Product type	Domestic vacuum sealer
Brand	Electrolux
Model	E6VS16AG
Dimensions (approx.)	40 x 20 x 10 cm
Weight (approx.)	2 kg
Power supply	220-240 V, 50/60 Hz
Power (estimated)	120 W
Body material	ABS plastic and stainless steel
Compatible bag types	Notched vacuum bags and rolls
Seal width	Double seal, 30 cm
Functions	Vacuum and seal (dry/moist), seal only, Pulse, External Pulse Vacuum
Included accessories	Roll 28 cm x 6 m, adapter nozzle for external pulse
Liquid collection tray	Yes, removable
Integrated cutter	Yes
Maintenance and cleaning	Unplug before cleaning; wipe with a damp cloth; removable collection tray washable
Safety	Hot sealing element; do not touch; unplug by pulling the plug; do not immerse
Repairability	Gasket and sealing strip replaceable by a professional
Intended use	Indoor domestic use only
Number of instruction manual pages	16 pages
Warranty	Standard manufacturer (refer to provided document)

Frequently Asked Questions - E6VS16AG ELECTROLUX

What foods can I vacuum with the Electrolux E6VS16AG?

This appliance is suitable for dry foods (rice, cereals) and moist foods (meat, fish). For delicate foods (fruits, bread), use the Pulse function for manual control.

How to clean the machine after use?

Unplug the appliance. Clean external surfaces with a damp cloth. The removable collection tray can be washed with soapy water. Never immerse the appliance in water.

What to do if the vacuum works but the seal does not?

Check that the edge of the bag is clean, without liquid or tear. Ensure the sealing strip is not damaged. If the problem persists, contact a professional.

Can I use bags from other brands?

For optimal results, use only original Electrolux bags and rolls or compatible notched vacuum bags. Unsuitable bags may melt or seal poorly.

How to use the External Pulse Vacuum function?

Connect the adapter nozzle to the machine and attach it to a compatible food container. Press the External Pulse Vacuum button to draw out air. Release to stop.

The appliance no longer vacuums, what to check?

Check that the rubber gasket is not deformed or dirty. Ensure the bag is properly positioned in the vacuum chamber. If the problem persists, the gasket may need replacement.

How to cut a roll to make a bag?

Use the integrated cutter: slide the knife from one side to the other to cut the desired length. Seal one end with the Seal function before filling the bag.

Can vacuum-sealed foods be stored at room temperature?

No, especially fruits, vegetables, and meats. Even under vacuum, they must be refrigerated or frozen to prevent spoilage. Dry foods can be stored at room temperature.

What do the 'Moist' and 'Dry' indicators mean?

The Moist mode is suitable for foods containing liquid (meat, fish). The Dry mode is for dry foods. Select the appropriate mode before starting the vacuum process.

How to recycle the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

USER MANUAL E6VS16AG ELECTROLUX

Explore Vacuum Sealer

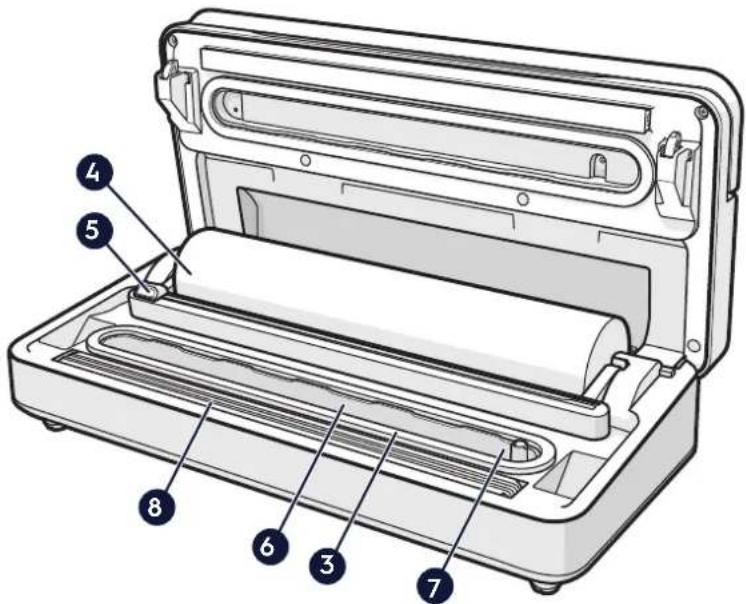

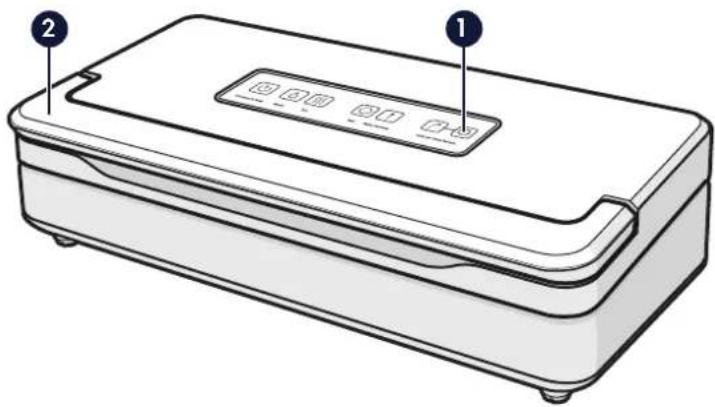

Product Overview:

1. External Pulse Vacuum: Use with Accessory hose connector to vacuum external food containers

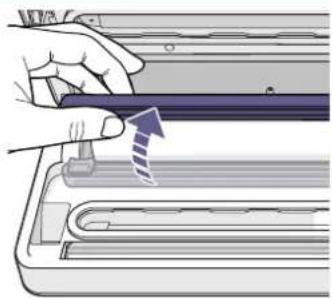

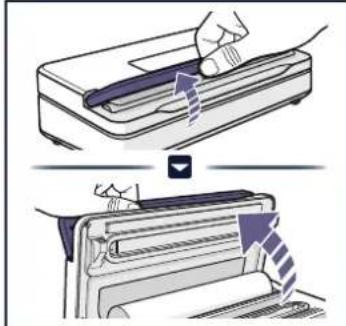

2. Handle: Opens and locks the lid
3. Gasket. There are two gasket (bottom and top)
4. Roll Storage

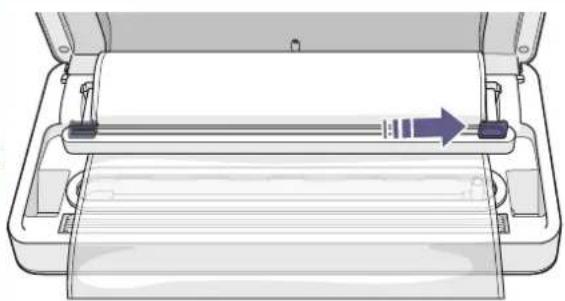

5. Cutter: Slide the cutter to the other end for cutting the bag
6. Vacuum Chamber: Place the bag inside the chamber for usage
   7 Removable drip tray
7. Sealing Element: Creates double seal

1x Vacuum Sealer Roll (28cm×6m)

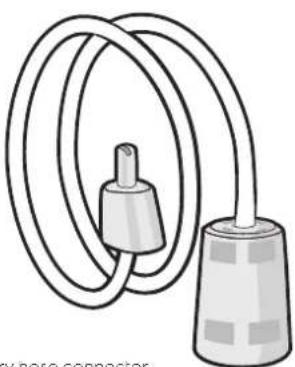

Illustration of a coiled hose connector with a cylindrical base (no text or symbols)

Ix Accessory nose connector (for vacuuming food containers)

Diagram of a rectangular electronic device with labeled parts, showing front panel and side indicators.

Technical diagram of a portable printer with numbered parts labeled for identification.

Vacuum & Seal Seal
Auto function: Automatically vacuums & seals

Pre-setting for moist and marinated food (i.e. meat, fish, etc.)

Dry Pre-setting for dry food (i.e. rice, grains, etc.)

Sealing function (creates a double seal)

Pulse Vacuum External P
Manual vacuum function (push to vacuum) for delicate and soft food (i.e. fruits, bread, etc.)

lse VacuumMoist
Use hose connector to connect to vacuum food container and press to vacuum.

Illustration showing two steps of a device cleaning process, with no visible text or symbols.

Illustration of a hand holding a tool interacting with a device panel (no text or symbols visible)

▶

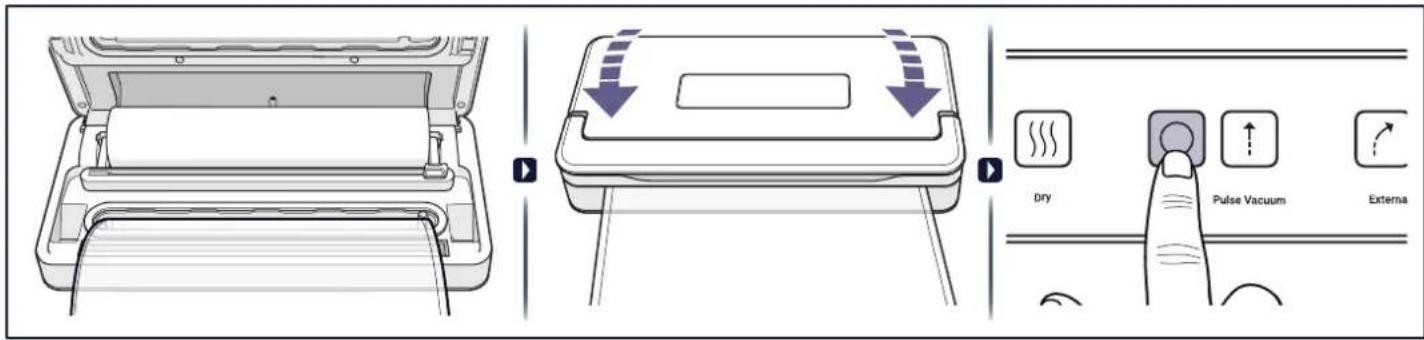

Illustration of a device with an open lid and internal compartments, showing a purple arrow pointing to a component (no text or symbols present)

▶

Diagram of a printer holder with a paper roll and arrow indicating direction (no text or symbols)

Diagram illustrating the process of a printer's internal structure and external hand gesture, showing steps from opening to pressing the button.

Diagram illustrating food cleaning steps: adding vegetables to a cup, opening a refrigerator with a moisture relief, and pressing a moisture level control panel.


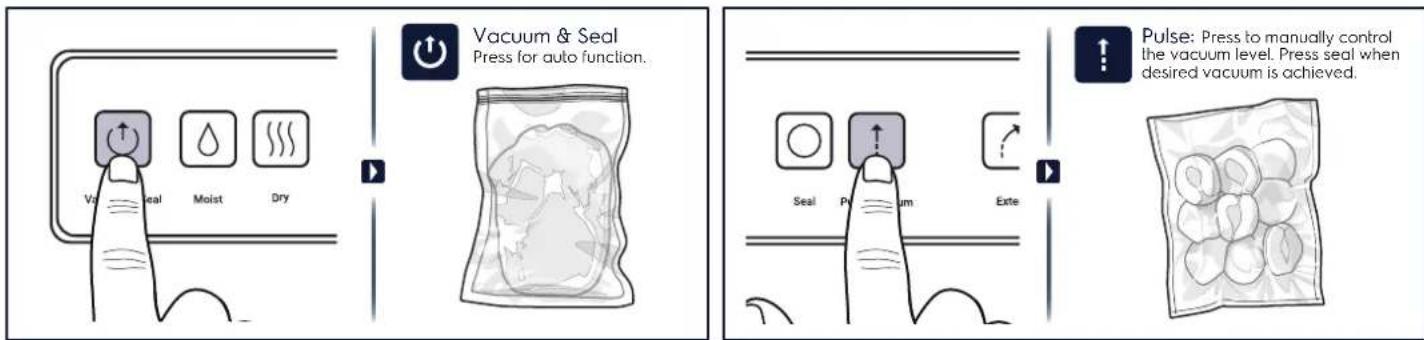

    D["Vacuum & Seal Press for auto function."] --> E["Image of vacuum bag"]
    E --> F["Pulse: Press to manually control the vacuum level. Press seal when desired vacuum is achieved."]

Diagram illustrating the procedure of a pulse vacuum device, showing step-by-step installation and connection steps.

Vacuum Sealer Bags EVSBI

Vacuum Sealer Rolls EVSR1

Kitchen Scale BKS1

EN - Safety Precautions

Safety Precautions - Read all Instructions Carefully read all instructions before using the appliance. For household use only.

1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
2. Before plugging cord into wall outlet or disconnecting, make sure that the cover of the machine is in unlocked condition. Unplug from outlet when not in use or before cleaning.
3. This appliance is not a toy, when used by or near children, close attention is necessary. Store this appliance in a safe place, out of the reach of children.
4. Do not use any attachments that are not recommended or appointed and don't use this appliance for other purpose except its intended use.
5. Stop using the machine immediately if the cord is damaged and have it replaced by a professional.
6. Keep away from moving parts.
7. Do not touch the hot sealing element located on edge of the top housing of this machine. It is hot and you may get burned.
8. Do not repair this appliance by yourself.
9. Don't use the appliance if it has fallen or if it is appears to be damaged.
10. Avoid doing the following: pull or carry by the cord, use cord as a handle, close a door on cord or pull cord around sharp edges or comers. Do not operate appliance over cord or cord and/or plug is wet.
11. Keep away from hot gas, heated oven, electric burner or any other hot surfaces. Do not use this appliance on wet or hot surface or near a heat source.
12. It's recommended to not to use an extension cord with this unit. However, if one is used, it must have a rating equal to or exceeding the fating of this appliance.
13. When unplugging to avoid any injury, please unplug by pulling the plug, not the cord.
14. Before plugging in or operating, make sure your hands are dry and safe to do the actions.
15. When ON or working position, always be on a stable surface, such as table or counter.
16. It's no need to use any lubricant, such as lubricating oils or water, on this appliance.
17. Do not immerse the appliance, power cord or plug into water or any other liquid.
18. Do not use this appliance outdoors or on a wet surface, it's recommended for household and indoor use only.
19. This appliance can't be used by children aged from 8 years and

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
20. Children should be supervised to ensure that they do not play with the appliance.
21. If the supply cord is damaged, it must be replaced by the manufacturer, the service agent or similarly qualified persons in order to avoid a hazard.
22. Cleaning and user maintenance shall not be made by children without supervision.

Instructions for use Product Overview

In the box:

1x Vacuum Sealer

1x Vacuum Sealer Rolls (28cmx6m)

1x Accessory Hose connector (for External Pulse Vacuum and connect to food containers)

1. External Pulse Vacuum: use with Vacuum Hose Connector to vacuum external food containers

2. Handle: opens and locks the lid

3. Gasket, there are two gasket (bottom and top)

4. Roll storage

5. Cutter: slide the cutter to the other end for cutting the bag

6. Vacuum chamber: place the bag inside the chamber for usage

7. Removable drip tray

8. Sealing element: creates double seal (25mm)

Functions

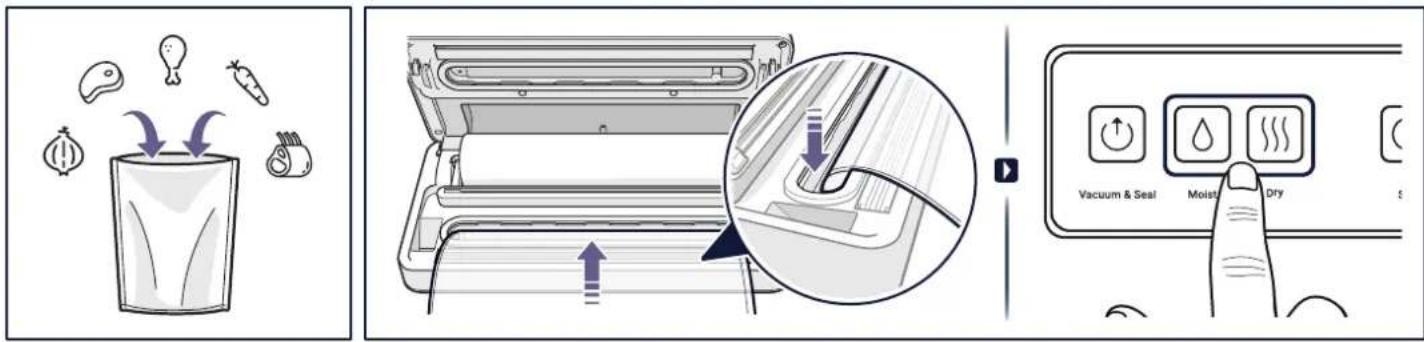

Vacuum & Seal: Auto function - Automatically vacuums & seals the bag.

Molst: Pre-setting for moist and marinated food (i.e. meat, fish, etc.) Please select prior using Vacuum & Seal Seal or Pulse function

Dry: Pre-setting for dry food (i.e. rice, grains, etc.) Please select prior using Vacuum & Seal, Seal or Pulse function

Seal: Sealing function (creates a double seal). Used when creating a bag or using Pulse function.

Pulse: Manual vacuum function (press to vacuum) for delicate and soft food (i.e. fruits, bread, etc.). After right vacuum is achieved, use Seal function to seal the bag.

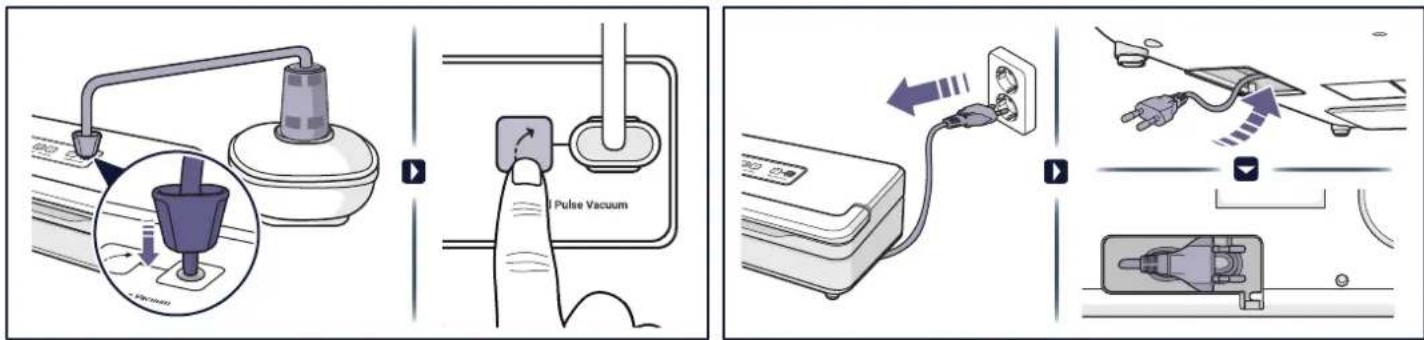

External Pulse Vacuum: Use hose connector to connect to vacuum food container and press vacuum.

Troubleshooting

It vacuums but the sealing function is not good

Check if the outside edge of the bag has liquid, oil stain or any chippings? If yes, please clean the edge of bags and try again. Check if the heating element is damaged and the setting is correct? If damaged, please exchange the heating element by a professional and make sure it is well installed.

Check if the sealing strip is damaged? If damaged, please exchange the sealing strip by a professional and make sure it is well installed.

Check if the edge of the bag is wrinkled? If yes, please take out some

foods so that the bags have enough space for sealing and smooth the bag mouth and try again.

Seal function is good but can not vacuuming

Check if the gasket is deformed? If deformed, replace it and try again.

Check if the bag is placed into the vacuum chamber? If not, please put the edge of bags into the vacuum chamber.

It does not vacuum properly even the machine is on?

Check that the bag is placed inside the vacuum chamber

The bag inflates after vacuuming

Is the food corrosive? Food that are naturally more corrosive need to be frozen or refrigerated after vacuuming, so that it can prolong its shelf life. But vacuuming doesn't guarantee the foods will never spoil. Check if you packed the fresh vegetables or fruit? All fresh vegetables or fruits and seeds are not suitable for room temperature storage after being vacuumed. Due to the photosynthesis and respiration. Keep it stored in the refrigerator or freezer.

The bag melts

Only use original vacuum sealer bags and rolls

DISPOSAL AND RECYCLING OF THE DEVICE. PROTECTION OF THE ENVIRONMENT.

At the end of the life of your product, it should go to a specially adapted waste-recycling centre.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
