USER MANUAL 5CC267FF0 BLAUPUNKT

1.3 Restriction on user group.........29

4 Installation and connection.......34

4.1 Scope of delivery......................34

4.2 Criteria for the installation

4.4 Preparing the appliance for

the first time..............................36

4.5 Connecting the appliance to

the electricity supply.................36 5 Familiarising yourself with your appliance............................36

6.2 Fruit and vegetable con-

7.1 Switching on the appliance......37

9 Refrigerator compartment .........38

9.1 Tips for storing food in the

refrigerator compartment .........38

9.2 Chill zones in the refrigerator

compartment ............................38

9.3 "OK" sticker ..............................39

10 Freezer compartment...............39

compartment volume .............39

10.3 Tips for storing food in the

freezer compartment ..............39

10.4 Tips for freezing fresh food ....40

10.5 Shelf life of frozen food at

−18°C....................................40

10.6 Defrosting methods for

frozen food .............................40 11 Defrosting.................................41

11.1 Defrosting in the refriger-

ator compartment...................41

11.2 Defrosting in the freezer

compartment ..........................41 12 Cleaning and servicing............41

12.1 Preparing the appliance for

12.3 Cleaning the condensation

channel and drainage hole ....42

14.1 Switching off the appliance ....46

14.2 Disposing of old appliance ....46

production number (FD).........47en

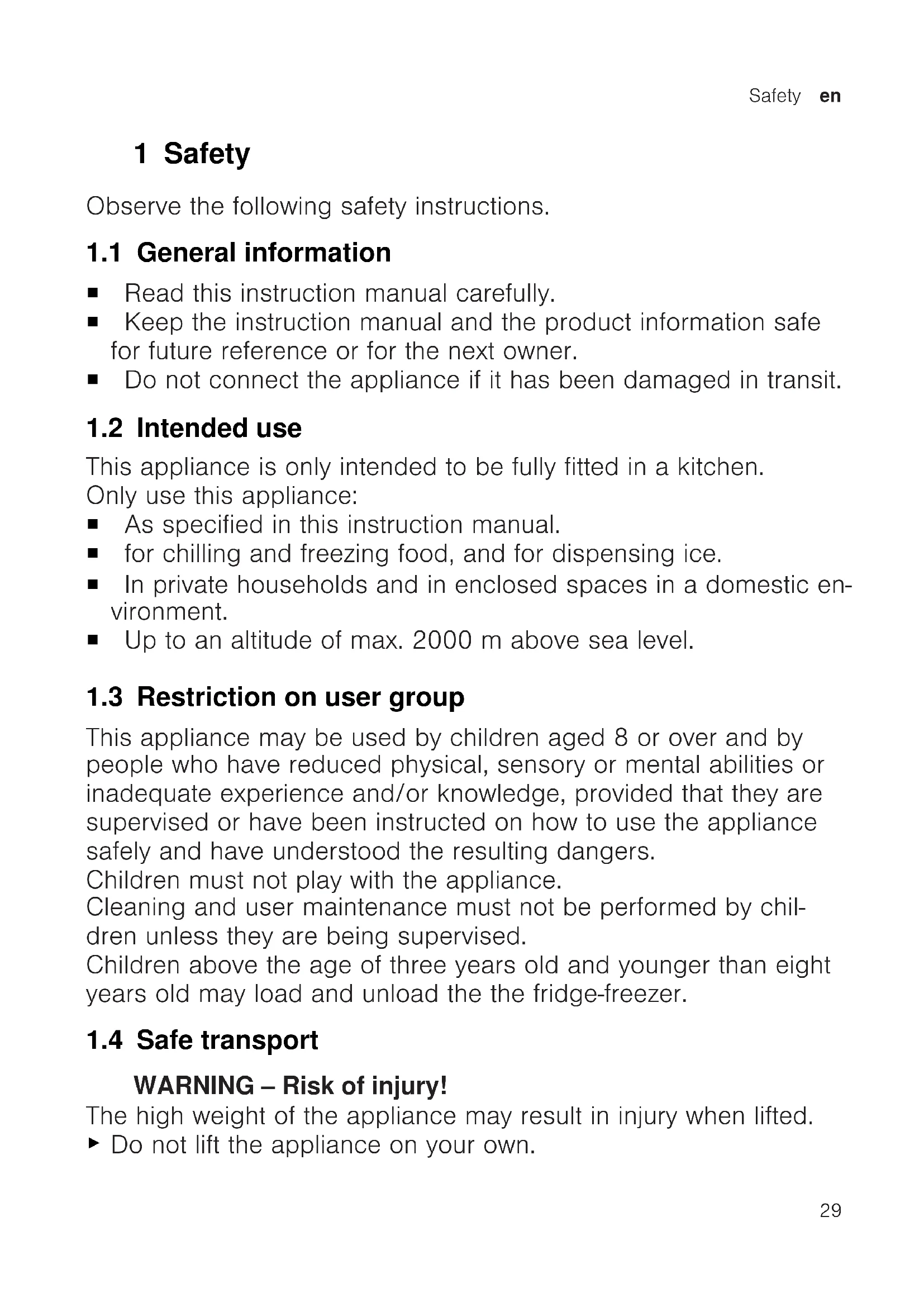

1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use This appliance is only intended to be fully fitted in a kitchen. Only use this appliance: ¡ As specified in this instruction manual. ¡ for chilling and freezing food, and for dispensing ice. ¡ In private households and in enclosed spaces in a domestic en- vironment. ¡ Up to an altitude of max. 2000m above sea level. 1.3 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be performed by chil- dren unless they are being supervised. Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer. 1.4 Safe transport WARNING‒Risk of injury! The high weight of the appliance may result in injury when lifted.

Do not lift the appliance on your own.en Safety

1.5 Safe installation WARNING‒Risk of electric shock! Improper installation is dangerous.

Connect and operate the appliance only in accordance with the specifications on the rating plate.

Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.

The protective conductor system of the domestic electrical in- stallation must be properly installed.

When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent elec- trical installation according to the installation regulations.

When installing the appliance, check that the power cable is not trapped or damaged. If the insulation of the power cord is damaged, this is dangerous.

Never let the power cord come into contact with heat sources. WARNING‒Risk of explosion! If the appliance's ventilation openings are sealed, a leak in the re- frigeration circuit may result in a flammable mixture of gas and air.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING‒Risk of fire! It is dangerous to use an extended power cord and non-approved adapters.

Do not use extension cables or multiple socket strips.

If the power cord is too short, contact Customer Service.

Only use adapters approved by the manufacturer. Portable multiple socket strips or portable power supply units may overheat and cause a fire.

Do not place portable multiple socket strips or power supply units on the back of the appliance.Safety en

1.6 Safe use WARNING‒Risk of electric shock! An ingress of moisture can cause an electric shock.

Only use the appliance in enclosed spaces.

Never expose the appliance to intense heat or humidity.

Do not use steam- or high-pressure cleaners to clean the appli- ance. WARNING‒Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate.

Keep packaging material away from children.

Do not let children play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate.

Keep small parts away from children.

Do not let children play with small parts. WARNING‒Risk of explosion! Mechanical devices or other devices may damage the refrigera- tion circuit; flammable refrigerant may escape and explode.

To accelerate the defrosting process, do not use any other mechanical devices or devices other than those recommended by the manufacturer. Products which contain flammable propellants and explosive sub- stances may explode, e.g. spray cans.

Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. WARNING‒Risk of fire! Electrical devices within the appliance may cause a fire, e.g. heat- ers or electric ice makers.

Do not operate electrical devices within the appliance.en Safety

WARNING‒Risk of injury! Containers that contain carbonated drinks may burst.

Do not store containers that contain carbonated drinks in the freezer compartment. Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

Do not damage the tubes of the refrigerant circuit or the insula- tion. WARNING‒Risk of cold burns! Contact with frozen food and cold surfaces may cause burns by refrigeration.

Never put frozen food straight from the freezer compartment into your mouth.

Avoid prolonged contact of the skin with frozen food, ice and surfaces in the freezer compartment. CAUTION‒Risk of harm to health! To prevent food from being contaminated, you must observe the following instructions.

If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance.

Regularly clean the surfaces that may come into contact with food and accessible drain systems.

Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food.

If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould. Metal or metal-style parts in the appliance may contain aluminium. If acidic food comes into contact with aluminium in the appliance, aluminium foil ions may pass into the food.

Do not consume soiled food.Safety en

1.7 Damaged appliance WARNING‒Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous.

Never operate a damaged appliance.

Call customer services. →Page47 Incorrect repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. WARNING‒Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

Keep naked flames and ignition sources away from the appli- ance.

Switch off the appliance. →Page37

Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

Call after-sales service. →Page47en Preventing material damage

Preventing material damage 2 Preventing material damage Preventing material damage ATTENTION! Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.

Do not stand or support yourself on the base, runners or doors. Contamination with oil or fat may cause plastic parts and door seals to become porous.

Keep plastic parts and door seals free of oil and grease. Metal or metal-style parts in the appli- ance may contain aluminium. Alu- minium reacts when it comes into contact with acidic foods.

Do not store unpackaged food in the appliance. Environmental protection and saving energy 3 Environmental protec- tion and saving energy Environmental protection and saving energy 3.1 Disposing of packaging The packaging materials are environ- mentally compatible and can be re- cycled.

Sort the individual components by type and dispose of them separ- ately. 3.2 Saving energy If you follow these instructions, your appliance will use less power. Selecting the installation location ¡ Keep the appliance out of direct sunlight. ¡ Install the appliance as far away as possible from heating elements, cookers and other heat sources: – Maintain a 30mm clearance to electric or gas cookers. – Maintain a 300cm clearance to oil or solid-fuel cookers. ¡ Use a niche depth of 560mm. ¡ Never cover or block the exterior ventilation grilles. Saving energy during use Note:The arrangement of the fittings does not affect the energy consump- tion of the appliance. ¡ Open the appliance only briefly. ¡ Never cover or block the interior ventilation openings or the exterior ventilation grilles. ¡ Transport purchased food in a cool bag and place in the appli- ance quickly. ¡ Allow warm food and drinks to cool down before storing them. ¡ Thaw frozen food in the refrigerator compartment to utilise the low tem- perature of the food. ¡ Always leave some space between the food and to the back panel. ¡ Pack the food airtight. ¡ Defrost the freezer compartment regularly. ¡ Open the freezer compartment door only briefly and then close it properly. Installation and connection 4 Installation and con- nection Installation and connection 4.1 Scope of delivery After unpacking all parts, check for any transport damage and for com- pleteness of delivery. If you have any complaints, contact your dealer or our after-sales service

• Page47. The delivery consists of the following:Installation and connection en

¡ Energy label ¡ Information on energy consump- tion and noises 4.2 Criteria for the installation location WARNING Risk of explosion! If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mix- ture of gas and air.

Only install the appliance in a space with a volume of at least

per 8g refrigerant. The volume of refrigerant is indicated on the rating plate. →Fig.

The weight of the appliance ex works may be up to 65kg depending on the model. The subfloor must be sufficiently stable to bear the weight of the appli- ance. Permitted room temperature The permitted room temperature de- pends on the appliance's climate class. The climate class can be found on the rating plate. →Fig.

Climate class Permitted room tem- perature SN 10°C to 32°C Climate class Permitted room tem- perature N 16°C to 32°C ST 16°C to 38°C T 16°C to 43°C The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperat- ures, the appliance will not be dam- aged up to a room temperature of 5°C. Niche dimensions Observe the niche dimensions if you install your appliance in the niche. If this is not the case, problems may occur when installing the appliance. Niche depth Install the appliance in the recom- mended niche depth of 560mm. If the niche depth is smaller, the en- ergy consumption increases slightly. The niche depth must be a minimum 550mm. Niche width An inside niche width of at least 560mm is required for the appli- ance. Side-by-side installation If you want to install two appliances side by side, you must maintain a distance of at least 150mm between the appliances. 4.3 Installing the appliance

Install the appliance in accordance with the enclosed installation in- structions.

Depending on the appliance specifications

Not in all countriesen Familiarising yourself with your appliance

4.4 Preparing the appliance for the first time

1. Remove the informative material.2. Remove the protective foil and

transit bolts, e.g. remove the ad- hesive strips and carton.

3. Clean the appliance for the first

time. →Page42 4.5 Connecting the appliance to the electricity supply

1. Insert the mains plug of the appli-

ance's power cable in a socket nearby. The connection data of the appli- ance can be found on the rating plate. →Fig.

2. Check the mains plug is inserted

properly. a The appliance is now ready for use. Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here.

Refrigerator compartment

Fruit and vegetable container

Door storage compartment for large bottles Note:Deviations between your appli- ance and the diagrams may differ with regard to their features and size. 5.2 Control panel You can use the control panel to con- figure all functions of your appliance and to obtain information about the operating status.

sets the temperature of the refrigerator compartment.

lights up when Super cooling is switched on.

Displays the set temperature for the refrigerator compart- ment in°C.

switches the appliance on or off. Features 6 Features Features The features of your appliance de- pend on the model. 6.1 Shelf To vary the shelf as required, you can remove the shelf and re-insert it elsewhere.

• "Removing the shelf", Page42 6.2 Fruit and vegetable con- tainer Store fresh fruit and vegetables in the fruit and vegetable container. Condensation may form in the fruit and vegetable container depending on the food and quantity stored. Remove the condensation with a dry cloth.Basic operation en

To ensure that the quality and aroma are retained, store fruit and veget- ables that are sensitive to cold out- side of the appliance at temperatures of approx. 8°C to 12°C, e.g. pine- apple, bananas, citrus fruits, cucum- bers, courgettes, peppers, tomatoes and potatoes. 6.3 Door racks To adjust the door racks as required, you can remove the door rack and re-insert elsewhere.

• "Removing door racks", Page42 6.4 Accessories Use original accessories. These have been made especially for your appli- ance. The accessories for your appliance depend on the model. Egg tray Store eggs safely on the egg tray. Ice pack Use the ice pack for temporarily keeping food cool, e.g. in a cool bag. Tip:If a power failure or malfunction occurs, the ice pack can be used to slow down the thawing process for the stored frozen food. Ice cube tray Use the ice cube tray to make ice cubes. Making ice cubes

1. Fill the ice cube tray with water up

to ¾ and place in the freezer com- partment. If the ice cube tray is stuck to the freezer compartment, loosen it with a blunt implement only (e.g. spoon handle).

2. To loosen the ice cubes, twist the

ice cube tray slightly or hold it briefly under flowing water. Basic operation 7 Basic operation Basic operation 7.1 Switching on the appli- ance

a The appliance begins to cool.

2. Set the required temperature.

• Page37 7.2 Operating tips ¡ Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appli- ance until the temperature has been reached. ¡ The housing around the freezer compartment is temporarily heated slightly. This prevents condensa- tion in the area of the door seal. ¡ When you close the door, a va- cuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset. 7.3 Switching off the appli- ance

Press . 7.4 Setting the temperature Setting the refrigerator compartment temperature

Press repeatedly until the tem- perature display shows the re- quired temperature.en Additional functions

The recommended temperature in the refrigerator compartment is 4°C.

• ""OK" sticker", Page39 Setting the freezer compartment temperature

In order to set the freezer compart- ment temperature, change the re- frigerator compartment temperat- ure →Page37. The refrigerator compartment tem- perature influences freezer com- partment temperature. Refrigerator compartment temperatures that are set to warm generate warmer freezer compartment temperatures. Additional functions 8 Additional functions Additional functions 8.1 Super function With the Super function, the refriger- ator compartment and the freezer compartment cool more intensively. Switch on the Super function 4 to 6hours before placing food weighing 2kg or more. In order to utilise the freezing capa- city, use the Super function.

• "Freezing capacity", Page39 Note:When the Super function is switched on, increased noise may occur. Switching on Super function

Press repeatedly until lights up. Note:After approx. 60hours, the ap- pliance switches to normal operation. Switching off Super function

Press . Refrigerator compartment 9 Refrigerator compart- ment Refrigerator compartment You can keep meat, sausage, fish, dairy products, eggs, prepared meals and pastries in the refrigerator com- partment. The temperature can be set from 2°C to 8°C. The recommended temperature in the refrigerator compartment is 4°C.

• ""OK" sticker", Page39 The refrigerator compartment can also be used to store highly perish- able foods in the short to medium term. The lower the selected temper- ature, the longer the food remains fresh. 9.1 Tips for storing food in the refrigerator compart- ment ¡ Only store food when fresh and undamaged. ¡ Observe the best-before date or use-by date specified by the manu- facturer. ¡ Store food well wrapped or covered. ¡ Allow hot food and drinks to cool down first before placing in the ap- pliance. 9.2 Chill zones in the refriger- ator compartment The air circulation in the refrigerator compartment creates different chill zones. Coldest zone The coldest zone is between the ar- row stamped on the side and the shelf underneath.Freezer compartment en

Tip:Store highly perishable food such as fish, sausages and meat in the coldest zone. Warmest zone The warmest zone is at the very top of the door. Tip:Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread. 9.3 "OK" sticker The "OK" sticker lets you check whether the refrigerator compartment reaches the safe temperature ranges of +4°C or colder recommended for food. The "OK" sticker is not included with all models. If the sticker does not indicate "OK", gradually reduce the temperature.

• "Setting the refrigerator compart- ment temperature", Page37 Once the appliance is switched on, it may take up to 12hours until the set temperature is reached. Correct setting Freezer compartment 10 Freezer compartment Freezer compartment You can store frozen food, freeze food and make ice cubes in the freezer compartment. The temperature in the freezer com- partment depends on the temperat- ure in the refrigerator compartment. Long-term storage of food should be at –18°C or lower. The freezer compartment can be used to store perishable food long- term. The low temperatures slow down or stop the spoilage. 10.1 Freezing capacity The maximum freezing capacity indic- ates the quantity of food that can be frozen right through to the centre within a specific period of time. Information on the maximum freezing capacity can be found on the rating plate. →Fig.

Prerequisites for freezing capacity

1. Approx. 24hours before placing

fresh food in the appliance, switch on Super function.

• "Switching on Super function", Page38

2. Add the food in the bottom frozen

food container first. This is where the food freezes most quickly. 10.2 Fully utilising the freezer compartment volume Learn how to store the maximum amount of frozen food in the freezer compartment.

Remove all fittings. →Page42

2. Store food directly on the shelves

and on the floor of the freezer compartment. 10.3 Tips for storing food in the freezer compartment ¡ To quickly and gently freeze larger quantities of fresh food, place this in the lower frozen food container. ¡ Place the food over the whole area of the compartments or the frozen food containers. ¡ Do not bring food which is to be frozen into contact with frozen food.en Freezer compartment

¡ To ensure that the air can circulate freely in the appliance, push the frozen food containers in as far as they will go. 10.4 Tips for freezing fresh food ¡ Freeze fresh and undamaged food only. ¡ Freeze food in portions. ¡ Cooked food is more suitable than food that can be eaten raw. ¡ Vegetables: Wash, chop up and blanch before freezing. ¡ Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution. ¡ Food that is suitable for freezing in- cludes baked items, fish and sea- food, meat, game, poultry, eggs without shells, cheese, butter and quark, ready meals and leftovers. ¡ Food that is unsuitable for freezing includes lettuce, radishes, eggs in shells, grapes, raw apples and pears, yoghurt, sour cream, crème fraîche and mayonnaise. Packing frozen food If you select suitable packaging ma- terial and the correct type of pack- aging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.

2. Squeeze out the air.

3. Pack food airtight to prevent it

from losing flavour and drying out.

4. Label the packaging with the con-

tents and the date of freezing. 10.5 Shelf life of frozen food at −18°C Food Storage time Fish, sausages, pre- pared meals and baked goods up to 6months Poultry, meat up to 8months Vegetables, fruit up to 12months The imprinted freezer calendar indic- ates the maximum storage duration in months at a constant temperature of –18°C. 10.6 Defrosting methods for frozen food CAUTION Risk of harm to health! During the thawing process, bacteria may multiply and spoil the frozen food.

Do not refreeze food after it has been defrosted or started to de- frost.

Refreeze food only after cooking.

These items should no longer be stored for the maximum storage period. ¡ Defrost animal-based food, such as fish, meat, cheese, quark, in the refrigerator compartment. ¡ Defrost bread at room temperat- ure. ¡ Prepare food for immediate con- sumption in the microwave, in the oven or on the hob.Defrosting en

Defrosting 11 Defrosting Defrosting 11.1 Defrosting in the refri- gerator compartment When the appliance is operating, condensation droplets or frost form on the rear panel of the refrigerator compartment due to functional reas- ons. The back panel in the refriger- ator compartment defrosts automatic- ally. Condensation runs through the con- densation channel into the drainage hole to the evaporation pan and does not have to be wiped away. To ensure that the condensation can drain and odours do not form, ob- serve the following information:

• "Cleaning the condensation chan- nel and drainage hole", Page42. 11.2 Defrosting in the freezer compartment The freezer compartment does not defrost automatically. A layer of hoar- frost in the freezer compartment im- pairs refrigeration of the frozen food and increases power consumption. Defrosting the freezer compartment Regularly defrost the freezer com- partment.

1. Switch on the Super function ap-

prox. fourhours before defrosting.

• "Switching on Super function", Page38 This means that the food reaches very low temperatures and it can be stored for longer at room tem- perature.

2. Remove the frozen food container

with the frozen food and temporar- ily place it in a cool location. Place ice packs (if available) on the frozen food.

3. Switch off the appliance.

4. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

5. To accelerate the defrosting pro-

cess, place a pan of hot water on a trivet in the freezer compartment.

6. Wipe up the condensation water

with a soft cloth or sponge.

7. Rub the freezer compartment dry

with a soft, dry cloth.

8. Electrically connect the appliance.

9. Switch on the appliance.

• Page37 10.Reinsert the frozen food containers with the frozen food. Cleaning and servicing 12 Cleaning and servi- cing Cleaning and servicing To keep your appliance working effi- ciently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inac- cessible points. Cleaning by cus- tomer service can give rise to costs. 12.1 Preparing the appliance for cleaning

1. Switch off the appliance.

2. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.en Cleaning and servicing

3. Take out all of the food and store it

in a cool place. Place ice packs (if available) onto the food.

4. If there is a layer of hoarfrost, allow

5. Remove all fittings from the appli-

ance. →Page42 12.2 Cleaning the appliance WARNING Risk of electric shock! An ingress of moisture can cause an electric shock.

Do not use steam- or high-pres- sure cleaners to clean the appli- ance. Liquid in the lighting or in the con- trols can be dangerous.

The rinsing water must not drip into the lighting or controls. ATTENTION! Unsuitable cleaning products may damage the surfaces of the appli- ance.

Do not use hard scouring pads or cleaning sponges.

Do not use harsh or abrasive de- tergents.

Do not use cleaning products with a high alcohol content. If liquid gets into the drainage hole, the evaporation pan may overflow.

The rinsing water must not get into the drainage hole. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discol- our.

Never clean fittings and accessory in the dishwasher.

1. Prepare the appliance for cleaning.

2. Clean the appliance, the fittings

and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.

3. Dry thoroughly with a soft, dry

4. Insert the fittings.

5. Electrically connect the appliance.

6. Switch on the appliance.

7. Putting the food into the appliance.

12.3 Cleaning the condensa- tion channel and drain- age hole Regularly clean the condensation channel and drainage hole to ensure that the condensation can drain.

Carefully clean the condensation channel and the drainage hole, e.g. using a moistened cotton bud.

12.4 Removing the fittings If you want to clean the fittings thor- oughly, remove these from your ap- pliance. Removing the shelf

Pull out and remove the shelf.

Lift the door rack and remove it.

Removing the fruit and vegetable container

1. Pull out the fruit and vegetable

container as far as it will go.

2. Lift the fruit and vegetable con-

tainer at the front and remove it

Removing the frozen food container

1. Take out the frozen food container

as far as it will go.

2. Lift the frozen food container at the

front and remove it .

• Fig. 7en Troubleshooting

Troubleshooting 13 Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Fault Cause and troubleshooting The appliance is not cooling, the displays and lighting light up. Showroom mode is switched on.

Carry out the appliance self-test. →Page46 a Once the appliance self-test has ended, the appli- ance switches to normal operation. The LED lighting does not work. Different causes are possible.

Call customer service. The customer service number can be found in the enclosed customer service directory. The base of the refri- gerator compartment is wet. The condensation channel or drainage hole are blocked.

Clean the condensation channel and the drainage hole. →Page42 The temperature dif- fers greatly from the setting. Different causes are possible.

Switch off the appliance. →Page37

2. Switch the appliance back on after fiveminutes.

• Page37 ‒ If the temperature is too warm, check the temper- ature again after a couple of hours. ‒ If the temperature is too cold, check the temper- ature again on the following day. The appliance hums, bubbles, buzzes, gargles or clicks. Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. No action required. The appliance makes noises. Fittings wobble or stick.

Check the removable fittings and, if required, re- place these.Troubleshooting en

Fault Cause and troubleshooting The appliance makes noises. Bottles or containers are touching.

Move the bottles or containers away from each other. Super function is switched on. No action required.en Storage and disposal

13.1 Power failure During a power failure, the temperat- ure in the appliance rises; this re- duces the storage time and the qual- ity of the frozen food. The stored frozen food is cooled to the temperature increase time spe- cified on the rating plate. →Fig.

Notes ¡ Open the appliance as little as possible during a power failure and do not place any other food in the appliance. ¡ Check the quality of the food immediately after a power failure. – Dispose of any frozen food that has defrosted and is hotter than 5°C. – Cook or fry slightly thawed frozen food, and then either con- sume it or freeze it again. 13.2 Conducting an appliance self-test

1. Switch off the appliance.

2. Switch the appliance back on after

approx. fiveminutes. →Page37

3. Within 10seconds of switching on,

press and hold for three to fiveseconds until 2°C lights up in the temperature display and an audible signal sounds. a The appliance self-test starts when the temperature displays light up in succession. a While the appliance self-test is run- ning, a long audible signal sounds. a If, at the end of the appliance self- test, the temperature display shows the set temperature, your appliance is OK. The appliance switches to normal operation. a If, at the end of the appliance self- test, flashes for 10seconds, inform the after-sales service. Storage and disposal 14 Storage and disposal Storage and disposal You can find out here how to prepare your appliance for storage. You will also find out how to dispose of old appliances. 14.1 Switching off the appli- ance

1. Switch off the appliance.

2. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

3. Remove all of the food.

Clean the appliance. →Page42

6. To ensure the ventilation inside the

appliance, leave the appliance open. 14.2 Disposing of old appli- ance Valuable raw materials can be re- used by recycling. WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk.

Leave shelves and containers in- side the appliance to prevent chil- dren from climbing in.

Keep children away from the re- dundant appliance.Customer Service en

WARNING Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

Do not damage the tubes of the re- frigerant circuit or the insulation.

Dispose of the appliance in an en- vironmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority. This appliance is la- belled in accordance with European Directive 2012/19/EU concerning used electrical and elec- tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determ- ines the framework for the return and recycling of used appliances as applicable throughout the EU. Customer Service 15 Customer Service Customer Service If you have any queries, are unable to rectify faults on the appliance your- self or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Eco- design Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note:Under the terms of the manu- facturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum dura- tion of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of war- ranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself un- der local legislation. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance. The contact details for Customer Ser- vice can be found in the enclosed Customer Service directory or on our website. 15.1 Product number (E-Nr.) and production number (FD) You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. Technical data 16 Technical data Technical data Refrigerant, cubic capacity and fur- ther technical specifications can be found on the rating plate.

10 Compartiment congélation......63

Compartiment congélation
