• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operat- ing a power tool. Distractions can cause you to lose control.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children. Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Do not use the tool near anything that is burning or smoking such as cigarettes, matches, or hot ashes.

• To reduce the risk of health hazards from vapors or dust, do not use tool near tool toxic, carcino- genic or other hazardous materials such as as- bestos, arsenic, barium, beryllium, lead, pesticides or other health endangering materials. ELECTRICAL SAFETY

• Do not expose power tools to rain or wet condi- tions. Do not immerse in water or spray with a hose. Do not clean with a pressure washer. Water entering a power tool will increase the risk of electric shock. Store tool indoors. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Always wear eye protection. Use of this tool can result in foreign objects being thrown into eyes, which can result in eye damage.

• Wear a face or dust mask when working in dust situations. Dust particles can harm your lungs.

• Use personal protective equipment. Protective equipment such as hearing protection, protective clothing, and non-skid safety shoes used for ap- propriate conditions will reduce personal injuries.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• Do not overreach. Keep proper footing and bal- ance at all times. This enables better control of the power tool in unexpected situations.

• Use the power tool, accessories, etc. in ac- cordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for opera- tions di󰀨erent from those intended could result in a hazardous situation.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Use tool only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Do not store the power tool on or near to fertilizers or chemicals.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Use the power tool, accessories, etc. in ac- cordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for opera- tions di󰀨erent from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Remove the battery pack from the power tool before making any adjustments, changing ac- cessories, storing, or any time the power tool is not in use. Such preventive safety measures reduce the risk of starting the power tool accidentally.3

• Turn o󰀨 power tool before removing battery pack.

• Do not handle battery pack, tool, or charger (including charger plug and terminals) with wet hands.

• Before using the battery pack or charger read the operator’s manuals, and any labels on the battery pack, charger and tool.

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is dam- aged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or tem- perature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Keep bystanders at least 50' away during use. Objects may be thrown or ricochet in all directions.

• Brace for unexpected movement when contact is made with a hard object. Loss of control could result in serious injury.

• Do not use blades, brush cutting wheels, accessories, or attachment other than those recommended by MILWAUKEE. Serious injury or product damage may occur.

• Do not operate the tool without the guard in place. The guard must be attached properly when trimming. Operating the trimmer without the guard will cause serious injury.

• Do not use tool with a damaged trimmer head. Cracked or broken pieces can be thrown.

• Do not operate the tool without the front handle in place. The front handle must be attached properly for use when trimming. Using one hand could cause loss of control and result in serious injury.

• Carry the trimmer by the front handle. Proper handling of the trimmer will prevent injury.

• Use both hands when operating the trimmer. Maintain a rm grip. Using one hand could cause loss of control and result in serious injury.

• Inspect the area before using the tool. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.

• Keep face, hands and feet clear of rotating line at all times. Rotating line can cause severe lacerations.

• Thrown objects may ricochet o󰀨 of hard surfaces, such as walls, trees, and rocks and cause injury. When possible, do trimming by hand in closed in areas.

• When replacing the line, use only .080" monola- ment or .095" braided (2 mm or 2.4 mm) diameter line. Any other size can degrade performance or cause damage to the trimmer.

• Use care when trimming around decorative plants and other obstacles. Rotating line will cut/damage many materials.

• Always turn o󰀨 the tool between cuts or when transporting from one location to another. Do not carry tool with nger on the trigger. Accidental starting can cause serious personal injury.

• Do not use tool as an edger. Do not tilt tool to create a right angle to the ground. Keep trimmer head and line parallel to the ground. Guard cannot protect against ying debris in this orientation.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles.

INSTRUCTIONS FOR FUTURE USE4 SYMBOLOGY Volts Direct Current RPM Safety Alert Symbol Read Operator's Manual Always wear eye protection and hearing protection. Always wear gloves and personal protective equipment. Always wear protective clothing and footwear Minimum50’ 15m Keep bystanders 50' away during use. Objects may be thrown or ricochet in all directions. Do not use in rain or wet locations. Do not use blades or brush cutting wheels.

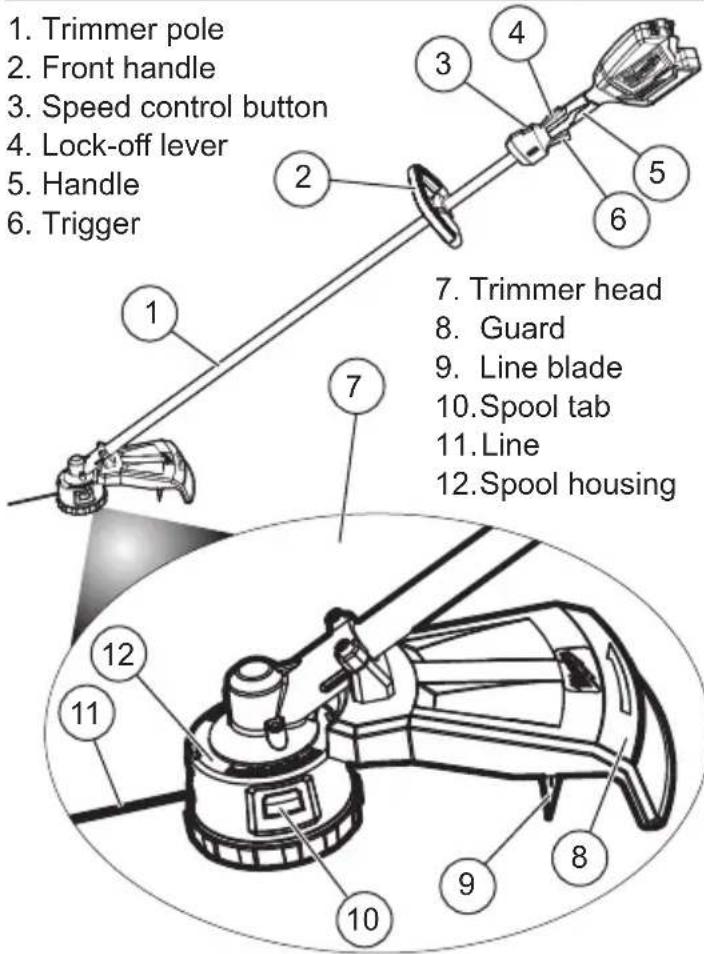

UL Listing for Canada and U.S. FUNCTIONAL DESCRIPTION

Cutting Line ............................... 25' x 0.080" spiral ............................... 20' x 0.090" spiral Replacement Line .........MILWAUKEE 49-16-2712 .... or MILWAUKEE 49-16-2713 ASSEMBLY WARNING Do not operate the tool without the guard in place. The guard must be attached properly when trimming. Operating the trimmer without the guard will cause serious injury. Installing the Guard The guard is shipped unin- stalled and must be installed before use.

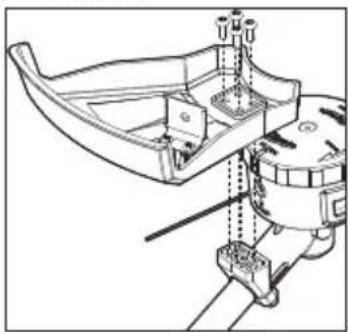

1. Line up the guard brack-

et with the holes in the guard.

2. Insert four screws

through the guard and into the bracket.

3. Tighten the screws

securely using the in- cluded key. WARNING Do not operate the tool without the front handle in place. The front handle must be attached properly for use when trimming. Using one hand could cause loss of control and result in serious injury. Installing the Front Handle The front handle is shipped uninstalled and must be installed before use.

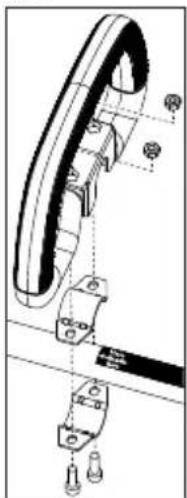

1. Place the two nuts into the front

2. Insert one bracket into the handle.

3. Alight the front handle with the top

of the warning sticker, just above the "Place Handle Here" marking.

4. Wrap the other bracket around the

5. Insert the two screws through the

lower bracket and into the side handle.

6. Tighten the screws securely using

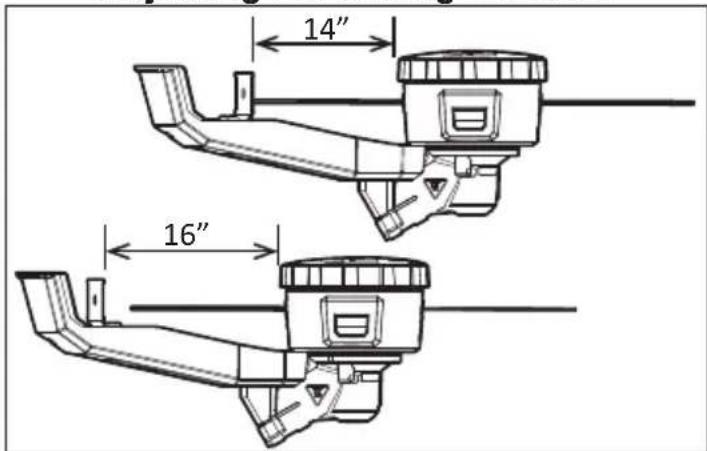

the included key.5 Adjusting the Cutting Diameter 14” 16” 14” 16” To change the cutting diameter from 14" to 16":

1. Remove the battery pack.

2. Remove the two screws holding the line cut-o󰀨

3. Rotate the blade 180° and reinstall the screws.

Tighten securely. WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator’s manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always remove battery pack before changing or removing accessories. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Do not use blades, brush cutting wheels, accessories, or attach- ment other than those recommended by MILWAUKEE. Serious injury or product damage may occur. Replacing the Cutting Line Use only MILWAUKEE trimmer line (see Specica- tions). Replace the cutting line with either 20' of .090 line or 25' of .080 line. Note, when used near abrasive surfaces or in dense growth, the cutting line will wear faster.

1. Remove the battery pack.

2. Clean any grass or debris from the trimmer head.

3. Measure out 20' of .090 line or 25' of .080 line.

CAUTION: When replacing the line, use only MILWAUKEE .080" or .090" (2 mm or 2.3 mm) diameter line. Any other line can degrade perfor- mance or cause damage to the trimmer.

4. Rotate the cap to align the red indi-

cators on the cap with the red indi- cators above the eyelets.

5. Insert the line through either eyelet

and push through the head so an equal amount of line extends from each eyelet.

6. Begin winding the line by rotating

the cap in the direction of the arrows. Continue twisting until 4" to 6" of line extends from the eyelets.

7. Check that the exposed line

extends no further than the line blade. If the exposed line is too long, continue winding the cap or trim before use.

8. Under normal operation, the remaining string

should be thrown from the spinning head during use. If any string remains in the head, or to remove a length of string to replace with a di󰀨erent type, turn the trimmer head over and press the release tabs. Pull the cover away from the head (2). Discard any short line rem- nants. Snap the cover back onto the trimmer head. Selecting the Speed Use the speed control button to select Low High Low or High speeds. Use low speed for larger jobs where extended battery life is needed. Use high speed for dense growth applica- tions.6 OPERATION WARNING To reduce the risk of injury, always wear proper eye protection marked to comply with ANSI Z87.1. Do not operate the tool without the guard in place. The guard must be attached properly when trim- ming. Operating the trimmer without the guard will cause serious injury. Use both hands when operating the trimmer. Maintain a rm grip. Using one hand could cause loss of control and result in serious injury. Inspect the area before use. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation. Trimming

1. Grasp the trigger handle with your right hand and

the front handle with your left hand to properly align yourself behind the guard and away from the direction of cut.

2. To start the trimmer, squeeze the lock-o󰀨 lever

and pull the trigger.

3. To vary the speed, increase or decrease the pres-

sure on the trigger. The further the trigger is pulled, the greater the speed up to the maximum set by the speed control button.

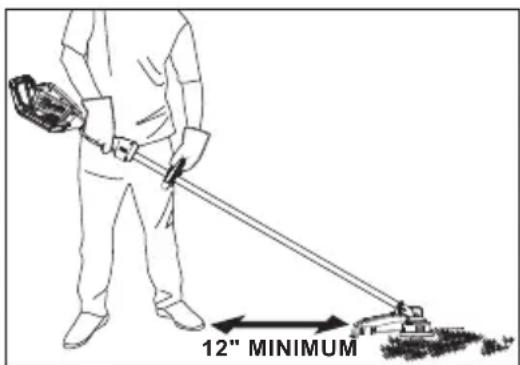

4. Allow the trimmer to angle down, keeping at least

12" between the trimmer head and any body part. Hold the trimmer just above the ground and swing the head side to side. NOTE: The trimmer will cut best when moved across the ground in the direction of the arrow on the guard. 12" MINIMUM

5. WARNING! Do not use tool as an edger. Do not

tilt tool to create a right angle to the ground. Keep trimmer head and line parallel to the ground. Guard cannot protect against ying debris in this orienta- tion.

6. To feed out the line, bump it against the ground

gently while running a normal speed. NOTE: When used near abrasive surfaces or in dense growth, the cutting line will wear faster and require "bump- ing" more often.

7. To stop the trimmer, release the trigger. Make sure

the tool comes to a complete stop before laying the tool down. Cutting Tips

• Allow the ends of the line to do the cutting.

• Contact between the line and solid objects will cause extra line wear and breakage.

• Do not drag the spool cover along the ground or bump it too hard. Only bump spool on the ground. Do not bump against rocks, driveways, etc.

• Make multiple passes in long growth.

• Avoid ornamental trees, shrubs, and plantings. Avoid contact with siding, fence posts, etc. They can all be damaged by the trimmer. MAINTENANCE WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may a󰀨ect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop- erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. Gearcase Lubrication After about 50 hrs of use, the gearcase should be lubricated to increase performance and extend the life of the tool. Place the trimmer head on its side and remove the hex head screw. Add up to 0.4 oz of Type Y grease (Cat. No. 49-08-5270) to the cavity. Do not overll. Replace the hex head screw and tighten securely. Maintaining Line Store extra line in a sealed plastic bag with a table- spoon of water to avoid drying or cracking. Periodi- cally sharpen the line cutter to ensure the line does not extend too long from the spool, which can cause motor overload. WARNING To reduce the risk of personal in- jury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Cleaning Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia. Never use ammable or combustible solvents around tools.7 Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: [e-mail] Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA Every MILWAUKEE Outdoor Power Equipment Product* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an outdoor power equipment product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of three (3) years after the date of purchase unless otherwise noted. Return of the outdoor power equipment to a MILWAUKEE factory Service Center location or participating MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE deter-mines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.Normal Wear: Many outdoor power equipment products need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to trimmer head, trimmer head spool, cutting lines, blades, chains, blower tubes, brushes, o-rings, and seals.*This warranty does not cover Cordless Battery Packs or Reconditioned Product. There are separate and distinct warranties available for these products.MILWAUKEE does not cover freight or labor charges associated with the inspection and testing of outdoor power equipment products which are found by MILWAUKEE not to be a valid warranty claim. A valid warranty claim must be substantiated by the discovery of defective material or workmanship by MILWAUKEE.ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PUR-CHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSE-QUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE-QUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.This warranty applies to product sold in the U.S.A. and Canada only.Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool. LIMITED WARRANTY - MEXICO,

CENTRAL AMERICA & CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 3 years since the original purchase date. This warranty card covers any defect in material and workmanship on this Product. To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC. Call toll-free1 01 [phone] to nd the nearest ASC, for service, parts, accessories or components.Procedure to make this warranty validTake the product to the ASC, along with the warranty card sealed/stamped by the distributor or store where you purchased the product, and any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process.ExceptionsThis warranty is not valid in the following situationsa) When the product is used in a di󰀨erent manner from the end-user guide or instruction manual.b) When the conditions of use are not normal.c) When the product was modied or repaired by people not authorized by TECH-TRONIC INDUSTRIES. Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.SERVICE AND ATTENTION CENTERCall to 55 4160-3547IMPORTED AND COMMERCIALIZED BYTECHTRONIC INDUSTRIES MEXICO, S.A. DE C.V.Miguel de Cervantes Saavedra No.301 Piso 5, Torre Norte11520 Colonia Ampliación GranadaMiguel Hidalgo, Ciudad de Mexico, Mexico Model: Date of Purchase: Distributor or Store Stamp:8

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca

1. Line up the guard

bracket with the holes in the guard.
