USER MANUAL 780 Vitamix

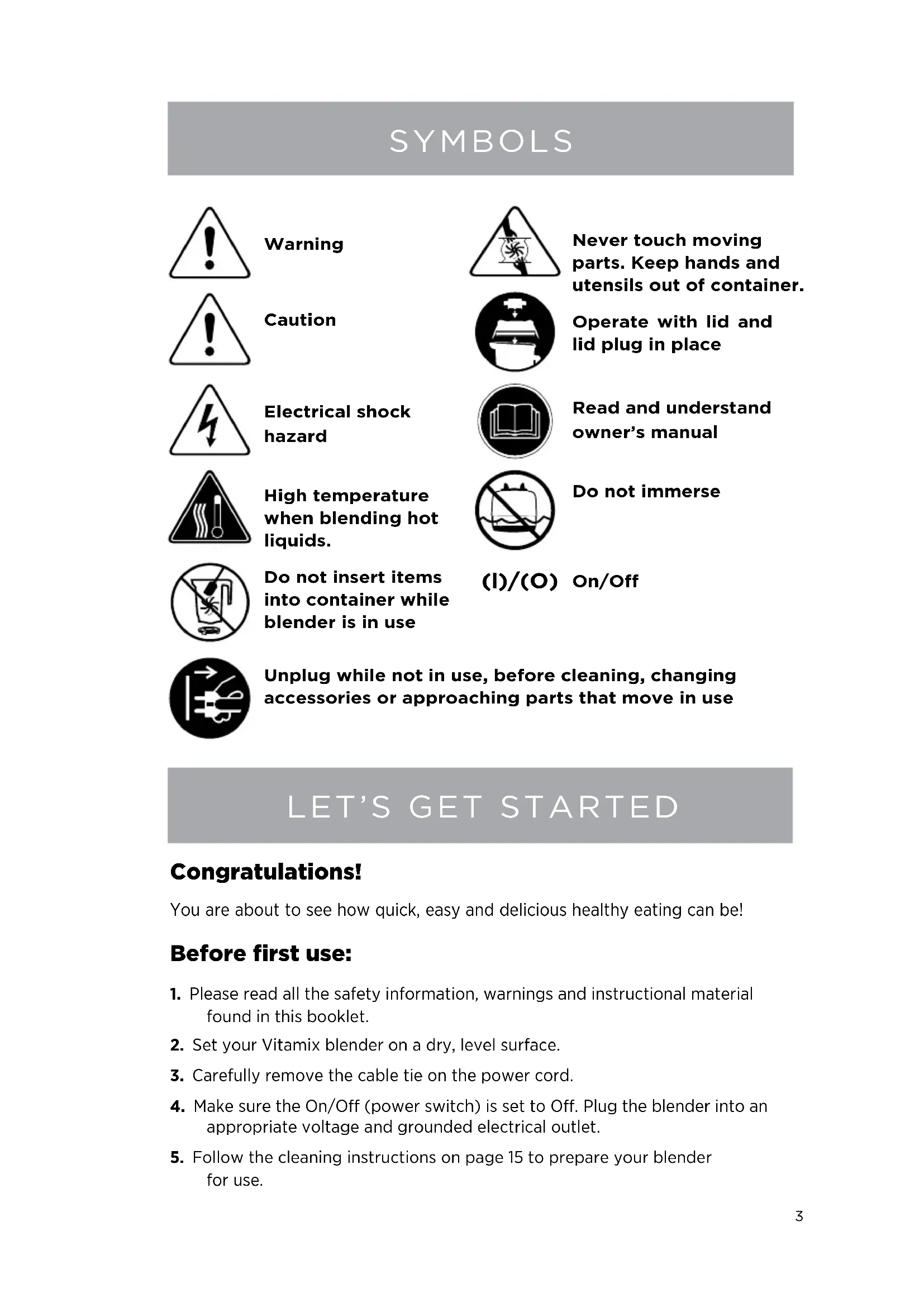

SYMBOLS WarningRead and understand owner’s manualElectrical shock hazardUnplug while not in use, before cleaning, changing accessories or approaching parts that move in useHigh temperature when blending hot liquids. Operate with lid and lid plug in placeNever touch moving parts. Keep hands and utensils out of container.Do not insert items into container while blender is in use Do not immerseCaution (l)/(O) On/O4 IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS, SAFEGUARDS, AND

WARNINGS BEFORE OPERATING BLENDER. 1. Read all instructions.2. Do not use blender for other than intended use.3. Not intended for use by or near children or persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge. Close supervision is necessary when any appliance is used by or near children or incapacitated persons. Children should be supervised to ensure that they do not play with the blender.4. WARNING: To avoid inadvertent activation, turn o and unplug before cleaning.5. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this blender must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.6. To protect against risk of electrical shock, do not put the blender base in water or other liquid.7. Unplug from outlet when not in use, before putting on or taking o parts, and before cleaning.8. Always check that the blender is OFF before plugging cord into wall outlet. To disconnect, turn OFF the blender, then remove plug from wall outlet.9. Illuminated icons and numbers on the control panel indicates ready to operate. Avoid inadvertent contact with the touch screen.10. Avoid contacting moving parts. 11. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Call Vitamix Customer Service at 1.800.848.2649 or 1.440.235.4840 or email service@vitamix.com at once for examination, repair, replacement, or adjustment. If purchased outside the U.S.A. or Canada, contact your local Vitamix dealer.12. Alteration or modification of any part of the blender, including the use of any part or parts that are not genuine authorized Vitamix parts, may cause fire, electric shock, or injury and may void your warranty.13. The use of attachments not expressly authorized or sold by Vitamix for use with this blender, including canning jars, may cause fire, electric shock, or injury.14. Do not use outdoors. 15. Do not let cord hang over edge of table or counter.16. Do not place on or near a hot gas or electric burner or in a heated oven.17. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A rubber scraper or spatula may be used, but only when the Vitamix blender is not running. 18. The tamper provided must be used only when the main part of the lid is in place. 19. Blades are sharp. Clean around the blade assembly in the container with extreme care to avoid injury. To reduce the risk of injury, never place a blade assembly on the motor base unless assembled to the Vitamix container.20. Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning.

WARNING: To avoid the risk of serious injury when using your

Vitamix blender, basic safety precautions should be followed, including the following.5 IMPORTANT SAFEGUARDS WARNING To Avoid Injury.Read and understand instruction manual before using the blender.IMPORTANT INSTRUCTIONS FOR SAFE USE This blender is intended for HOUSEHOLD USE ONLY and is not intended to be used for commercial purposes. Do not leave your Vitamix blender unattended when operating. Any repair, servicing, or the replacement of parts must be performed by Vitamix or an authorized service representative. WARNING Electrical Shock Hazard.Use grounded outlet only.DO NOT remove ground. DO NOT use an adapter. DO NOT use an extension cord. Always unplug before cleaning the motor base or when not in use. Do not put the motor base in water or otherliquid. Failure to follow instructions can cause death or electrical shock.

SAVE THESE INSTRUCTIONS

NOTICE: THE FAILURE TO FOLLOW ANY OF THE IMPORTANT SAFEGUARDS AND THE IMPORTANT INSTRUCTIONS FOR SAFE USE IS A MISUSE OF YOUR VITAMIX BLENDER THAT WILL VOID YOUR WARRANTY AND CREATE RISK OF SERIOUS INJURY. 21. Do not leave foreign objects, such as spoons, forks, knives or the lid plug, in the container as this will damage the blades and other components when starting the blender and may cause injury.22. Never attempt to operate with damaged blades. 23. Always operate blender with lid and lid plug firmly in place. The lid plug should be removed only when adding ingredients and when using the tamper.24. When blending hot liquids or ingredients, use caution; spray or escaping steam may cause burns. Do not fill container to the maximum capacity. Always begin processing on the lowest speed setting, variable speed 1. Keep hands and other exposed skin away from lid opening to prevent possible burns. 25. When making nut butters or oil-based foods, do not process for more than one minute after the mixture starts to circulate in the container. Processing for longer periods can cause overheating.6

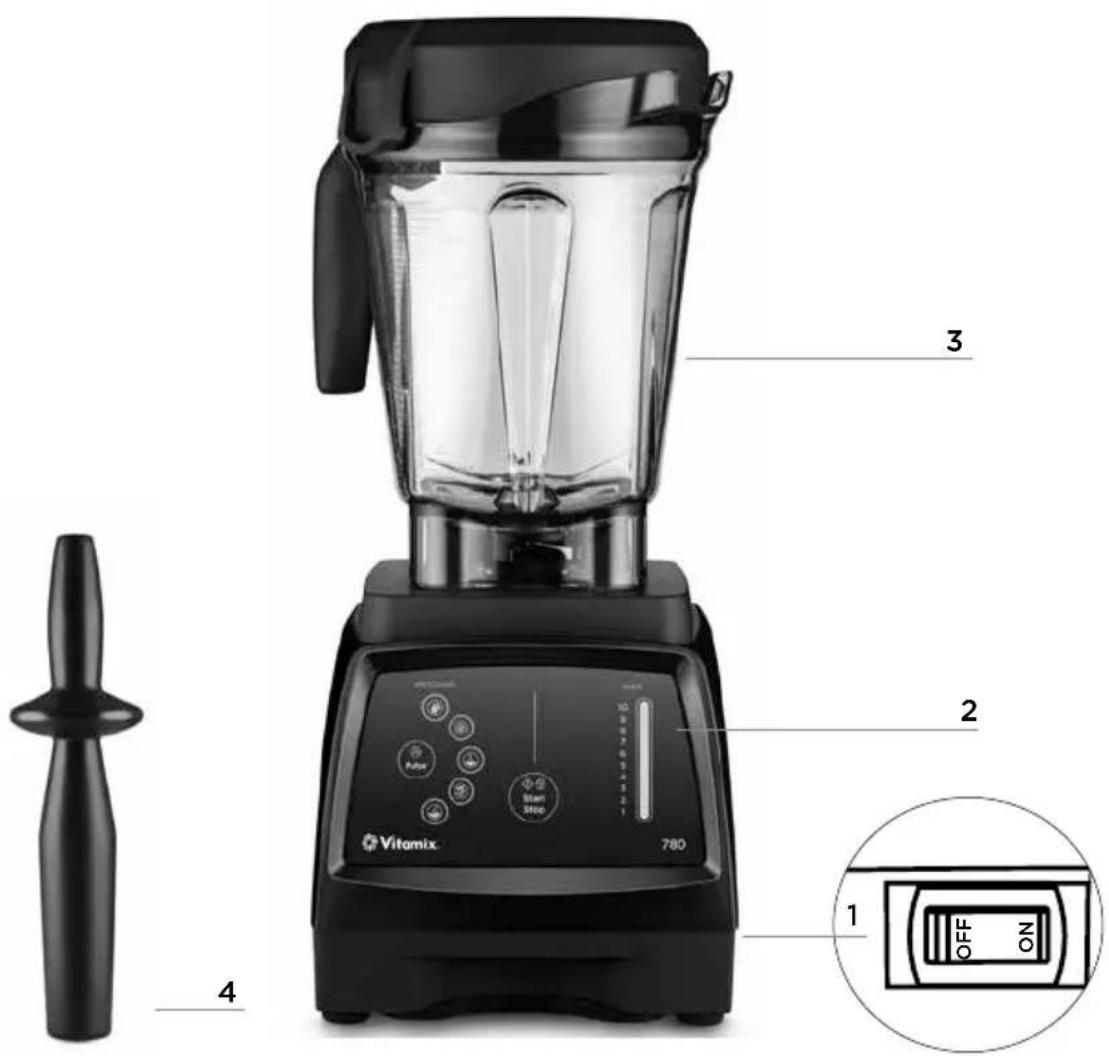

On/Off (I/O) Switch: The On/Off (I/O) (or Power) Switch is on the right-hand side of the blender base. The On/Off (I/O) Switch controls the power to the blender.

Control Panel: For more information, refer to Control Panel on Page 8. CAUTION: Lids and tampers are not interchangeable between dierent container styles, types and sizes. For more information, refer to Tamper on Page 10.

• Use the lid and lid plug when the blender is in operation

• Never operate the blender without checking to make sure that the lid is securely locked in place.

• Ounces, Milliliters and Cups are clearly marked.

• Insert the lid plug through the lid and secure by turning clockwise.

Tamper: Using the tamper maintains circulation by preventing air pockets from forming during blending.

To Lock the Lid in Place: Position the lid on the container with the lid flaps midway between the spout and the handle. Push the lid down onto the container until it locks into place. The lid must always be secured when processing, especially when blending hot liquids. Never operate the blender without checking to make sure that the lid is securely locked in place. To Remove the Lid: Lift up on one lid flap, while holding the container securely. To Remove the Lid Plug: Rotate the lid plug counterclockwise from the “locked” to the “unlocked” position and lift out. Power Cord: Your blender is equipped with a long power cord. Store the unused portion neatly underneath. Plastic cable retainers hold the cord securely. They are flexible and return to position after the cord is lifted out.

WARNING Rotating Blades Can CauseSevereInjury. DO NOT reach into the container while the blender is running. The blender motor is designed to be protected from overheating during use. This feature will shut o the motor. The motor will possibly emit a slight odor. Allow the blender to cool for 20-45 minutes before beginning another blending cycle. Tips to prevent “overloading” your Vitamix blender:

• Only process Vitamix recipes when learning to use the blender

• Do not process recipes at lower speeds than those recommended

• Do not process recipes at higher speeds than those recommended

• Do not process recipes for longer than recommended

• Use your tamper to process thicker mixtures and keep ingredients moving around and through the blades Flashing Lights on Control Panel: If you see the Pulse, LED 1 and LED 10 blink quickly, material is resting on a touch zone, causing the condition. Power the blender o (On/O Switch), unplug the blender and clean the material o the control panel. After cleaning is complete, plug the blender in and turn the power back on (On/O Switch) to continue blending. Maximum Continuous Run Time: Maximum continuous allowed run time of any function of the blender is 10 minutes. The blender will shut down after 10 minutes of continual usage.8

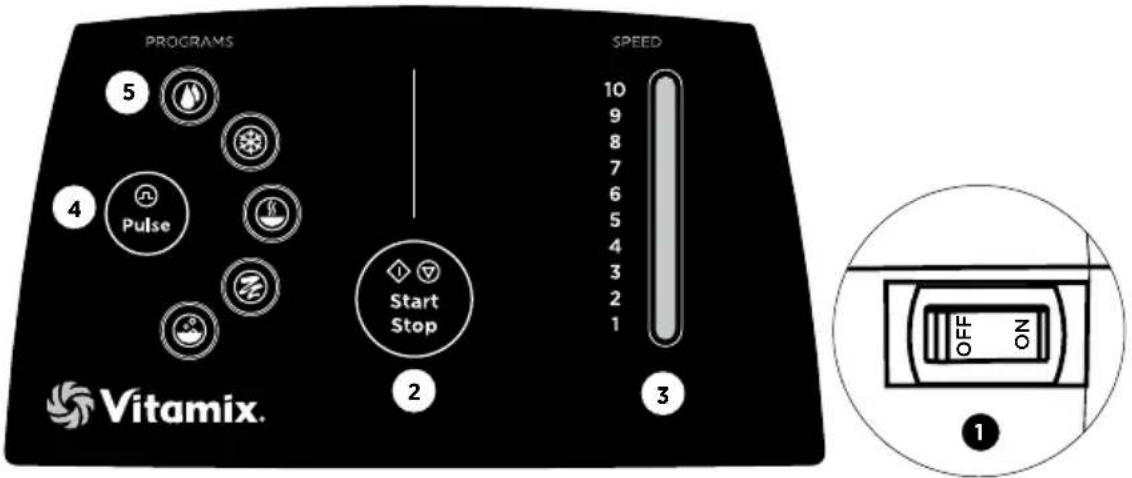

CONTROL PANEL On/O (l)/(O) Switch: The On/O (I/O) Switch controls the power to the blender base. The On/O (I/O) Switch is located on the right side of the blender base. Move the On/O (I/O) Switch to the O (O) position:

• whenever the blender is left unattended. If the On/O (I/O) Switch is moved to the O (O) position to stop a program mid-cycle, wait 30 seconds for power to recycle and the timer to reset before moving the On/O (I/O) Switch back to the On (I) position. Start ( ) / Stop ( ) : Blending can be interrupted by pressing Start ( ) /Stop (  ) at any time. The blender will enter Standby mode if the control panel is not used after a period of time (after 30 seconds). To wake the blender from standby mode, press any button: Start ( ) /Stop ( ), one of the Programs or a Speed on the Variable Speed Selector. Variable Speed Selector: The Variable Speed Selector is used to select a speed from 1 (low) to 10 (high). Pulse (

The blender will blend at 50% of high power when pressed. Programs:: Press a program button to select a program for Smoothies ( ), Frozen Desserts ( ), Soup ( ), Purées ( ) or Cleaning ( ).

WARNING Rotating Blades Can CauseSevereInjury. DO NOT reach into the container while the blender is running. Wet-Blade Container: Designed for processing liquids, including juice, frozen mixtures, sauces, soup, purées, batter, and for wet chopping. The wet blades can also process grain and knead dough, but they are not as efficient as the dry blades in this application. See instructions for dry container use. Dry-Blade Container: These blades are clearly marked “D” and are designed specifically for processing dry materials such as grain, cereal and coffee, and are also used for kneading bread dough. The dry blades CANNOT process liquids efficiently. If you prepare herbs on a regular basis, you may wish to purchase a separate dry-blade container.

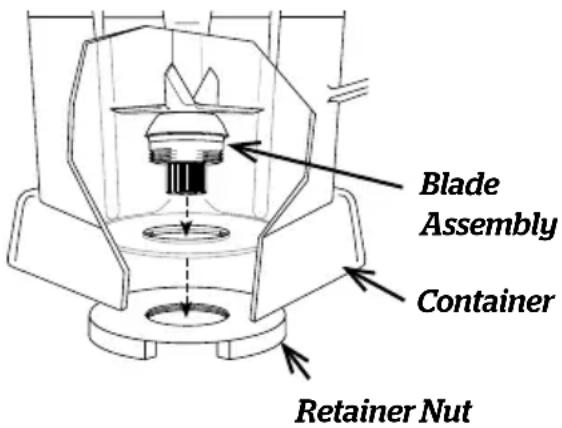

The wet-blade container comes as standard with the Vitamix blender. The blade is identified by a “W” for wet. This blade is used for most recipes. Additional containers with wet or dry blades may be purchased separately.

Moving Parts May Become Hot with Extended Use. DO NOT touch.

CAUTION10 CAUTION Rotating Blades Can Cause Damage. Lids and tampers are not interchangeable between dierent container styles, types and sizes. Use the tamper that was supplied with your blender. How to Determine the Tamper to be Used with Your Container Before using a tamper during the blending process, verify that you have the correct tamper. Only use the tamper with the lid in place and the lid plug removed. If a tamper came with your blender and container at purchase, it is the correct tamper to use. If a tamper did not come with your container or you want to determine if a tamper that you already have can be used with your new container, please see the inspection steps and illustration below.

1. Place the lid on an empty container.

2. Remove the lid plug and insert the tamper. The tamper should fit easily

into the opening. It should not come into contact with the blades no matter where you move the tamper inside the container

4. If you do not have the correct tamper for your container, contact Vitamix

Household Customer Service at

TAMPER 64 oz. / 2,0 L (SHORT) 64 oz. / 2,0 L (TALL) 48 oz. / 1,4 L 32 oz. / 0,9 L64 oz. / 2 L Short Container uses a tamper which is approx. 11 in. long.64 oz. / 2 L Tall Container uses a tamper which is approx. 12-½ in. long.48 oz. (1.4 L) and 32 oz. (0.9 L) Containers use a tamper which is approx. 9-¾ in. long.A non-step tamper must not be used with any of the containers.11 WARNING Rotating Blades Can Cause Severe Injury.

• DO NOT put hands, spatulas, utensils, etc. into the container while the blender is running or while the container is on the base.

• Lids and tampers are not interchangeable between dierent container styles, types and sizes. Use the tamper that was supplied with your blender. IMPORTANT!

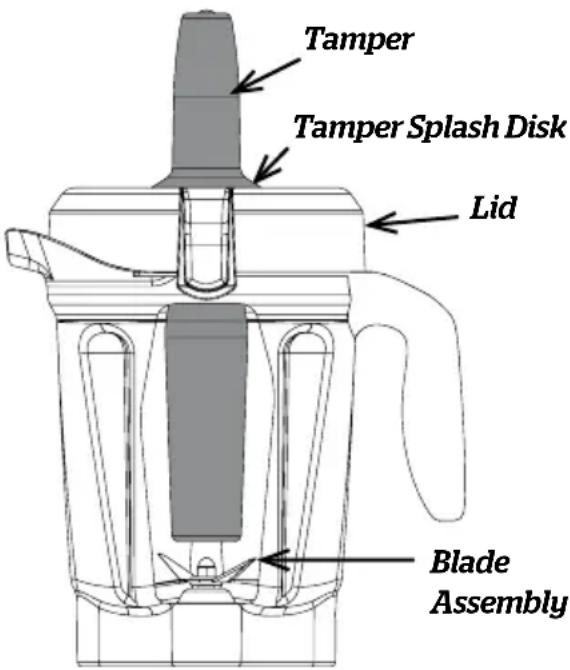

• The splash disk (near the top of the tamper) and lid prevent the tamper from hitting the blades when the lid is secured properly in the locked position.

• The container should not be more than two-thirds full when the tamper is used during blending.

• To avoid overheating during blending, DO NOT use the tamper for more than 30 consecutive seconds.

• If the food does not circulate, the blender may have trapped

HOW TO USE THE TAMPER

an air bubble. Carefully remove the lid plug, while making sure the lid stays firmly in place. Release the air bubble by inserting the tamper through the lid plug opening.

• Holding the tamper straight down may not help the ingredients circulate. If necessary, point the tamper towards the sides or corners of the container. DO NOT try to force the tamper deeper into the container. Tamper Splash Disk Tamper Blade Assembly Lid12 Using Variable Speed

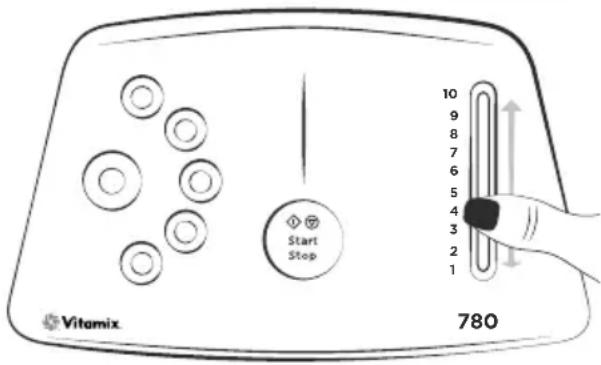

1. To pick a speed, press the

Variable Speed Selector until the number illuminates.

2. Slide your finger up or down to

increase or decrease the speed of the blender (1 is low, 10 is high). When the speed changes,

HINTS FOR SETTING SPEEDS

CAUTION To Avoid Possible Burns, Never Start on Speeds Above 1 when Processing Hot Liquids. Escaping steam, splashes or contents may burn. To secure the contents, lock the lid and lid plug securely in place prior to operating the blender. Always start on Variable 1, then slowly increase to 10.

the corresponding number will illuminate.

3. Return the Variable Speed Selector back to 1 at the end of the blending

cycle, press Start ( )/Stop ( ) to completely stop blade rotation. Use the highest setting stated in the recipe for as much of the processing time as possible to make smoothies, soup, shakes, frozen mixtures, purées, nut butter, and for grinding grain. Processing times will generally be less than one minute (most take less than 30 seconds). Blending for too long at too low a speed setting may overheat the blender and cause

the Automatic Overload Protection to turn o the blender. Blending on a higher speed maximizes the working of the motor’s cooling fan to avoid overheating. Programs Your blender has programs for Smoothies ( ), Frozen Desserts ( ), Soup ( ) or Purées ( ) and Cleaning ( ). The blade rotation speed may change over the course of the blender program. Allow the blender to cycle through the complete operation. The blades will stop rotating automatically at the end of the program.13 During your first few uses, you may notice a slight burning odor as the motor is primed. This is completely normal and will dissipate quickly. Wet-Blade Container The Wet-Blade Container is designed for processing liquids, including juice, frozen mixtures, sauces, soup, purées and batter. OPERATING INSTRUCTIONS

1. Load the container

before placing it on the motor base. Place liquids and soft foods in the container first, then solid items and, finally, ice.

2. Fasten the 2-part lid

securely. Always use the complete 2-part lid when blending (unless the tamper is inserted through the lid plug opening). Make sure that the lid is securely latched, especially when blending hot ingredients.

3. With the motor o, set the wet-blade container on the motor base by

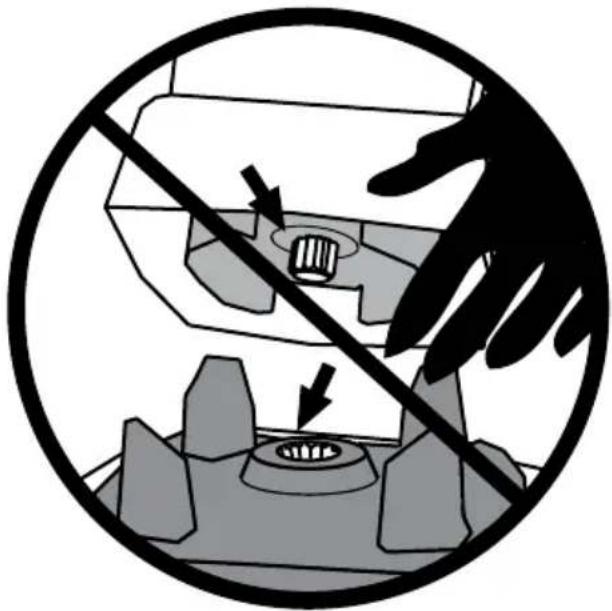

aligning it over the centering pad. Never attempt to put a container onto an operating motor base or to operate a motor base without a container properly in place.

4. To begin, make sure that the On/O Switch is in the On (I) position.

Liquids Dry Goods Leafy Greens Fruits & Veggies Ice & Frozen Ingredients CAUTION To Avoid Possible Burns, Never Start on Speeds Above 1 when Processing Hot Liquids. Escaping steam, splashes or contents may burn. To secure the contents, lock the lid and lid plug securely in place prior to operating the blender. Always start on Variable 1, then slowly increase to 10.14

5. Press in the Variable Speed Selector or press a program until it illuminates.

6. Activate the blades by pressing Start (

)/Stop ( ). Your container may shift and align itself. Follow the recipe and adjust the variable speed as necessary.

7. If the mixture stops circulating, insert the tamper through the lid plug and

stir the ingredients until it “burps” and the blades circulate the ingredients. If this does not work, press Start ( )/Stop ( ) to stop the motor. Remove the container from the motor base and use a rubber spatula to press the air bubble away from the blades. Return the container to the motor base, replace the lid and continue blending.

8. Until you are accustomed to the blender, time blends carefully to avoid

9. Allow the program to finish. The blade rotation will stop automatically at

the end of the program. If using Variable Speed, return the speed to 1. Press Start ( )/Stop ( ).

10. Wait until the blades stop completely before removing the lid or container

from the motor base. Dry-Blade Container Your dry-blade container should be used only for hard, dry materials, such as grain, and for kneading dough.

1. Load the container before placing it on the motor base.

2. Fasten the 2-part lid securely. Always use the complete 2-part lid when

blending (unless the tamper is inserted through the lid plug opening).

3. With the motor o, set the dry-blade container on the motor base by

aligning it over the centering pad. Never attempt to put a container onto an operating motor base or to operate a motor base without a container properly in place.

4. To begin, make sure that the On/O Switch is in the On (I) position.

5. Press in the Variable Speed Selector or press a program until it illuminates.

6. Activate the blades by pressing Start (

)/Stop ( ). Your container will shift and align itself. Follow the recipe and adjust the variable speed as necessary.

7. Until you are accustomed to the blender, time the blend carefully to avoid

8. Allow the program to finish. The blade rotation will stop automatically at

the end of the program. If using Variable Speed, return the speed to 1. Press Start ( )/Stop ( ).

9. Wait until the blades stop completely before removing the lid or container

from the motor base. OPERATING INSTRUCTIONS15 To prepare your new blender for initial use, follow the steps under Normal Cleaning, below. This will clean the unit and break in the motor.

1. Fill the container half full with warm water and add

a couple drops of liquid dish washing detergent to the container.

2. Snap or push the complete 2-part lid into the locked

3. Perform one of the following procedures:

• Variable Speed: a. Set the Variable Speed Selector to 1. b. Press the Start ( )/Stop ( ). c. Slowly increase Variable Speed to 10. d. Run the blender for 30 to 60 seconds. e. Reduce the Variable Speed Selector to 1. Press Start ( )/Stop ( ).

• Program: a. Press the Cleaning ( ) program icon until it illuminates. b. Press Start ( )/Stop ( ). c. Allow the program to complete.

4. Rinse and drain the container.

1. Follow the cleaning instructions above.

2. Fill the container half full with water and 1 ½ teaspoons of liquid bleach.

3. Snap or push the complete 2-part lid into the locked position.

4. Perform one of the following procedures:

• Variable Speed: a. Set the Variable Speed Selector to 1. b. Press Start ( )/Stop ( ). c. Slowly increase Variable Speed to 10. d. Run the blender for 30 to 60 seconds. e. Reduce the Variable Speed Selector to 1. Press Start ( )/Stop ( ).

• Program: a. Press the Cleaning ( ) program icon until it illuminates. b. Press Start ( )/Stop ( ). c. Allow the program to complete.

2. Wipe o the outside surfaces and control panel with a damp, soft cloth or sponge that has been rinsed in a mild solution of dishwashing liquid and warm water. Do not place the motor base in water.3. The centering pad can be removed for more thorough cleaning.4. Immediately dry all surfaces.5. Polish with a soft cloth.

WARNING Electrical Shock Hazard. Always unplug before cleaning the motor base or when not in use. Do not put the motor base in water or otherliquid. Failure to follow instructions can cause death or electrical shock. Retainer Nut Loosening In the event that the retainer nut at the bottom of your container loosens and no longer holds the blade assembly securely in place, DO NOT CONTINUE TO USE THE CONTAINER. Contact Vitamix customer service immediately for instructions. Container Retainer Nut Blade Assembly

5. Allow mixture to stand in the container for an additional 1 ½ minutes.

6. Pour bleach mixture out. Allow container to air dry.

7. Do not rinse after sanitizing.

WARNING To Avoid Injury and Damage. To avoid inadvertent activation, turn o and unplug the blender before cleaning.17

SERVICE AND REGISTRATION

Vitamix Service Record the model number and serial number of your Vitamix blender in the spaces provided below for future reference. These numbers can be found on the back of the motor base. Model Number Serial Number Date of Purchase Purchased From Before returning this product for any reason, including repair, first contact Vitamix Customer Service at 1.800.848.2649 or 1.440.235.4840, email service@vitamix.com, or contact your local dealer. Product Registration If you purchased your Vitamix blender directly from Vita-Mix Corporation via the company’s website or call center by phone, your product was registered at the time of purchase and your Vitamix blender’s warranty has been activated. If you purchased your Vitamix blender from an International Distributor or Dealer in countries other than the United States, Canada, United Kingdom, or Ireland, your product is warranted through the International Distributor or Dealer and need not be registered with the Vita-Mix Corporation. Your blender is not yet registered with Vitamix if you:

1. Purchased from a Dealer in the United States, Canada, United Kingdom, or Ireland

2. Purchased from a military base

3. Purchased from a retail or wholesale store

4. Received your Vitamix blender as a gift

5. Are not the original owner of the blender

Enjoy faster and easier service in the future by taking a few minutes to register your Vitamix blender today. Choose one of these easy ways to register your blender:

Your warranty may be honored by Vita-Mix Corporation or an authorized dealer. Failure to register your blender will not diminish your warranty rights.18 7-Year Full Machine Warranty

1. PRODUCT REGISTRATION.

Vita-Mix Corporation (“Vitamix”) strongly encourages you to register your purchase by completing and returning the product registration card that came with this Blender. You can register online at vitamix.com/warranty; or by calling our Customer Service Department at 1.800.848.2649 or 1.440.235.4840. Failure to register your product purchase will not diminish your warranty rights. However, registering your purchase will allow Vitamix to better serve you with any of your customer service needs.

2. WHO CAN SEEK WARRANTY COVERAGE.

This Warranty is extended by Vitamix to the owner of this Blender for personal household use only. This Warranty does not apply to products used for commercial, rental or re-sale purposes. Should ownership of the blender change during the 7-year period, please update the Blender’s owner information at vitamix.com/warranty.

Vitamix warrants to the owner that if this Blender (a “Blender” consists of a motor blender base, any container(s) and tamper(s) purchased together) fails within 7 years from the date of purchase due to a defect in material or workmanship or as a result of normal wear and tear from ordinary household use, Vitamix will, within 30 days of receipt of the returned product, repair the failed Blender or component part of the Blender free of charge. If, in Vitamix’s sole discretion, the failed Blender or component part of the Blender cannot be repaired, Vitamix will elect to either (A) replace the Blender free of charge or (B) refund the full purchase price to the owner, unless Vitamix receives prior written notice of the owner’s preference.

4. WHAT IS NOT COVERED.

This Warranty does not apply to Blenders used commercially or in non- household applications. This Warranty does not cover cosmetic changes that do not aect performance, such as discoloration or the eects of the use of abrasives or cleaners or food build up. This Warranty is only valid if the Blender is used and maintained in accordance with the instructions, warnings and safeguards contained in the owner’s manual. Vitamix will not be responsible for the cost of any unauthorized warranty repairs. REPAIR, REPLACEMENT OR REFUND OF THE PURCHASE PRICE ARE THE EXCLUSIVE REMEDIES OF PURCHASER AND THE SOLE LIABILITY OF VITAMIX UNDER THIS WARRANTY. NO EMPLOYEE OR REPRESENTATIVE OF VITAMIX IS AUTHORIZED TO MAKE ANY ADDITIONAL WARRANTY OR ANY MODIFICATION TO THIS WARRANTY WHICH MAY BE BINDING UPON VITAMIX. ACCORDINGLY, PURCHASER SHOULD NOT RELY UPON ANY ADDITIONAL STATEMENTS MADE BY ANY EMPLOYEE OR REPRESENTATIVE OF VITAMIX. IN NO EVENT, WHETHER BASED ON CONTRACT, INDEMNITY, WARRANTY19 WARRANTY WARRANTY, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, SHALL VITAMIX BE LIABLE FOR ANY SPECIAL, INDIRECT,

INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT

LIMITATION, LOSS OF PROFIT OR REVENUE. Some states do not allow limits on warranties. In such states, the above limitations may not apply to you. Outside the U.S.A. and Canada, other warranties may apply.

5. WHAT VOIDS THIS WARRANTY.

Abuse, misuse, negligent use, alteration of the Blender, exposure to abnormal or extreme conditions, or failure to follow the operating instructions in this manual will void this Warranty. The Warranty is also void if repairs to the Blender or any component part of the Blender are performed by someone other than either Vitamix or an authorized Vitamix Service Provider or if any component part of a Blender subject to this Warranty is used in combination with a motor base or container that is not expressly authorized by Vitamix.

6. HOW TO OBTAIN RETURN AUTHORIZATION UNDER THIS WARRANTY.

In the event that the Blender or any component part of the Blender needs service or repair, please call Vitamix Customer Service at 1.800.848.2649 or

1.440.235.4840. You will be asked to provide a date of purchase and proof

of purchase for any product that has not been registered with Vitamix. For product subject to this Warranty you will be provided with a return authorization number, up-to-date shipping instructions and a pre-paid return pick up label. Vitamix will pay standard shipping costs on the return of a Blender or component part for warranty service and repair and for return shipment of the product to you after the warranty repair or replacement. Purchaser is responsible for the costs of special shipping requests. Within the U.S.A. and Canada, this Warranty is honored directly through the Vita-Mix Corporation. United States Canada Vita-Mix Corporation Vita-Mix Corporation 8615 Usher Road 200-1701 Shepherd Street East Cleveland, Ohio 44138-2199 Windsor, Ontario N8Y 4Y5 1-800-848-2649 1-800-848-2649 service@vitamix.com service@vitamix.com You will be deemed to have accepted the returned product “as is” upon delivery unless you notify Vitamix of any problem, including shipment damage, within 48 hours of delivery. INTERNATIONAL INSTRUCTIONS If a blender was purchased within the U.S.A. or Canada, but is currently outside the U.S.A. or Canada, all shipping and resulting taxes and duties are at the owner’s expense. Call +1-440-235-4840 or email service@vitamix.com for more details.To see the complete line of Vitamix products, visit vitamix.com Vita-Mix Corporation8615 Usher RoadCleveland, OH 44138-2103 U.S.A. 1.800.848.2649/1.440.235.4840vitamix.com©2015 Vita-Mix Corporation. No part of this publication may be reproduced or transmitted in any form or by any means, or stored in a database or retrieval system, without the written permission of Vita-Mix Corporation. SPECIFICATIONS Motor: ≈ 2.2 peak output horsepower motor Electrical: 120 V, 50/60 Hz, 11.5 A Uses a U.S.A. three–prong grounded cord. Dimensions: Height: 17.25 in. / 43.9 cm Width: 8.8 in. / 22.4 cm Depth: 9 in. / 22.9 cm Vitamix 780™ When applicable:115098_Rev A 08/15 ENG/FRCManuel d’utilisation Veuillez lire et conserver ces instructions Vita-Mix Corporation8615 Usher RoadCleveland, OH 44138-2103 États-Unis 1 800 848-2649/ 1440235-4840 vitamix.com 780™
