USER MANUAL KMW102LC KICKER

Owner's Manual | English

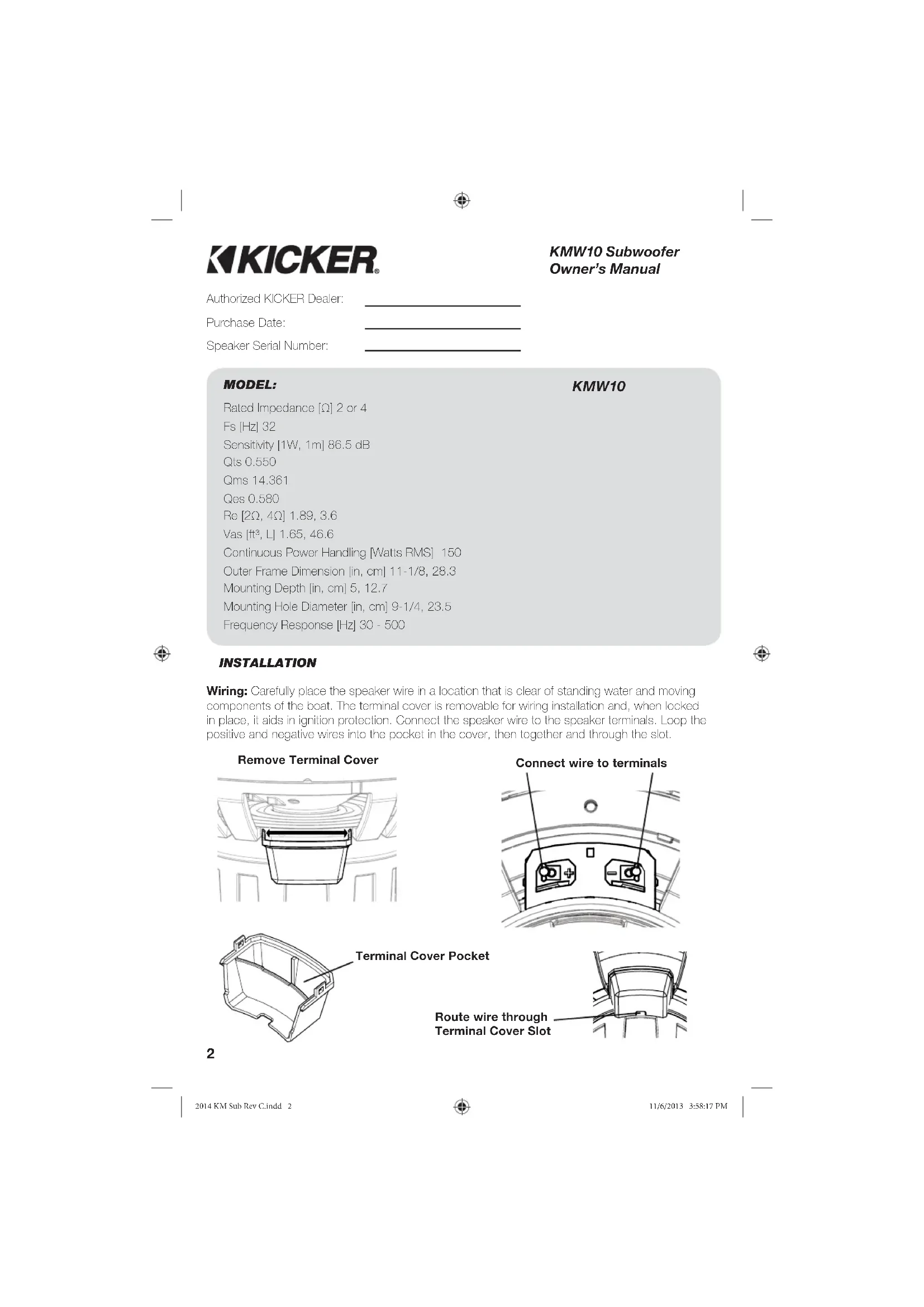

KMW10 Subwoofer Owner's Manual

MODEL:

KMW10

Rated Impedance [Ω] 2 or 4

Fs [Hz] 32

Sensitivity [1W, 1m] 86.5 dB

Qts 0.550

Qms 14.361

Ces 0.680

Ro [2Ω, 4Ω] 1.89, 3.6

Vas [t3,L] 1.65,46.6

Continuous Power Handling [Watts RMS] 150

Outer Frame Dimension [in, cm] 11-1/8, 28.3

Mounting Depth [in, cm] 5, 12.7

Mounting Hole Diameter [in, cm] 9-1/4, 23.5

Frequency Response [Hz] 30 - 500

INSTALLATION

Wiring: Carefully place the speaker wire in a location that is clear of standing water and moving components of the boat. The terminal cover is removable for wiring installation and, when locked in place, it aids in ignition protection. Connect the speaker wire to the speaker terminals. Loop the positive and negative wires into the pocket in the cover, then together and through the slot.

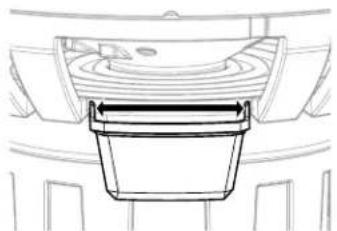

Remove Terminal Cover

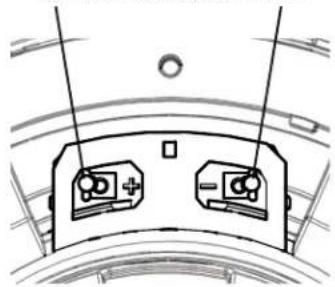

Connect wire to terminals

Terminal Cover Pocket

Route wire through

Terminal Cover Slot

2

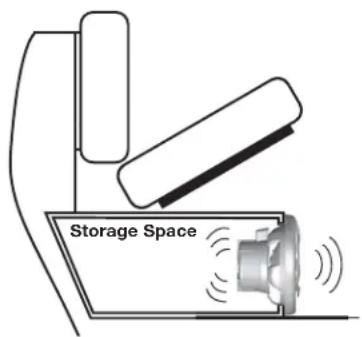

Infinite Baffle Mounting: The finiteto baffle mounting method effectively utilizes the storage space of most boats. Use caution when mounting speakers through any panel of the boat. Please be aware of wiring harnesses, springs, hinges, and folding seat mechanisms that may interfere with the operation of the boat or speaker system. Mark the panel for the hole cut-out diameter of the subwoofer and cut the hole.

Sealed Enclosures: The KM subwoofer generates more sound pressure than competing marine subwoofer on the market and excels when used in sealed boxes. These sealed enclosure designs give the smoothest response with increased energy at the lowest frequencies, 20 to 40Hz , delivering massive amounts of highly-accurate bass.

KM subwoofoers perform well in any size sealed enclosure between the minimum and maximum volume recommendations. These systems will exhibit benefits of both designs: Smaller enclosures will produce light punchy bass, while the larger enclosures will deliver extended low-frequency performance.

These enclosure recommendations have been calculated with the airspace inside the enclosure and include the displacement of the woofer.

Model: Sealed Minimum Sealed Maximum

KMW10 1.0 ft [28.3L] Power Handling = 150W RMS 2.4ft [68.0L] Power Handling = 150W RMS

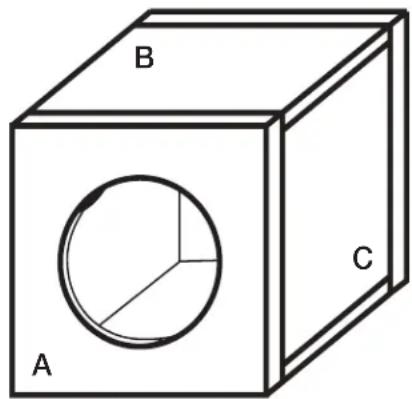

Panel Dimensions for Sealed Minimum Enclosure using 3 / 4'' [1.9cm] thick Marine Grade Plywood:

Model:Volume|

Panel A | in [cm]

Panel B | n [cm]

Panel C in [cm]

KMW10 1.0 [28.3] 13.5x13.5 [34.3x34.3] 13.5x12 [34.3x30.5] 12x15 [30.5x38.1]

More Box Building Notes: Use 3/4" (1.9cm) or thicker Marine Grade Plywood and seal the joints with silicone. Use the "template" inside your KM subwoofer's shipping carton to mark the mounting hole, then cut directly on the line. These designs need internal bracing. Add triangular bracing between each of the larger unsupported panels.

Pro Tip: You are one KXM Amplifier and a few cables away from a complete, high-quality system with rock-solid bottom end as only available from KICKER! Please ask your dealer about KICKER KXM amplifier upgrades.

Vented Minimum KMW10

BoxVolume[15,1]1.25,35.4

Port Opening [n x in, cm x cm] 1.5x10.5, 3.8x26.7

Port Long.h [In, cm] 14.5, 36.8

Power Harding Wnts RMS 150

Vented Maximum KMW10

Box Volume [L] 1.75-29.6

Port Opening [In x in, cm x cm] 1.5x10.6, 3.8x26.7

Port Long.h Jin,cm 13.25.33.7

Power Handling Wals RMS 150

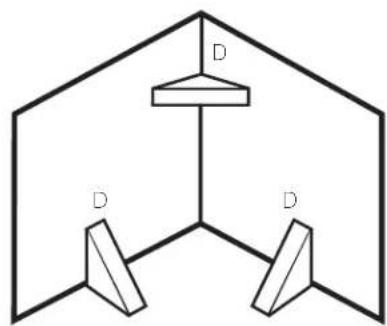

D = 2" × 2" for KMW10

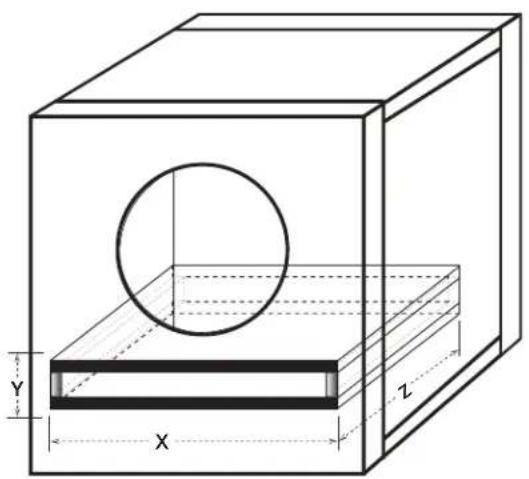

All of the cubic feet (L) measurements in this manual include the displacement of the woofer. For the vented enclosures the displacement of the port must be calculated and added to the internal volume of the final design. Use the outer dimensions of the port and multiply "X x Y x Z", convert to cubic feet, for example the KMW10 vented compact design's external port dimensions are, using 3/4'' (1.9cm) Marine Grade Plywood: [1.5'' + 1.5'' total wall thickness) x (10.5'' + 1.5'' total MDF wall thickness) x 14.5''] x (1ft^2 / 1728in^2) = .30ft^2 , and add this number to the internal volume of the enclosure, KMW10's 1.25ft^2 + .30ft^2 = 1.55ft^3 . Due to the necessary length of these ports, you may want to fold the port along the bottom and back walls. It will be impractical to use round ports for these designs.

Do not install a port opening against a solid surface, such as an internal brace, back-panel or structural wall, seat or interior panel of your boat. The port opening must remain unobstructed. Use the smallest dimension of the rectangular port as the minimum amount of space between the port opening and any solid surface to insure unrestricted airflow.

The displacement of the port must be calculated and added to the internal volume of the final design. The dimensions for X, Y, and Z may vary based on the thickness of the material used to make the port.

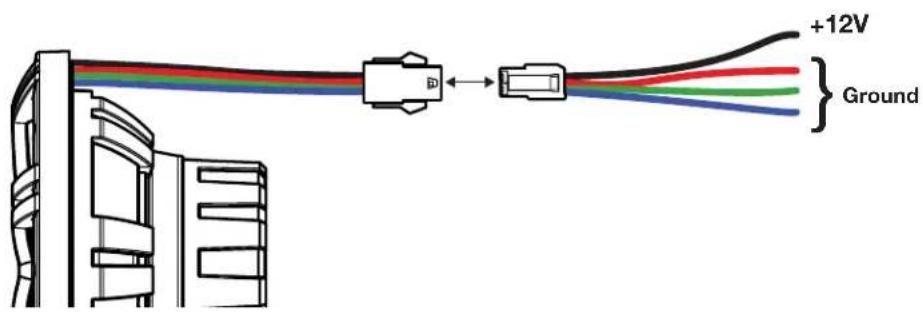

LED Wiring: When hard-wiring the RGB lighting, the black lead is +12V and the red, green, and blue leads are ground. There are seven colors available, depending on your wiring configuration. KICKER recommends using the KMLC lighting controller (sold separately) for more colors, patterns, and special effects.

Color Combinations: Splice and combine the ground wires to yield a different color.

Red Red

Green Green

Blue Blue

Red/Green Lime Green

Red/Blue Magenta

Blue/Green Aquamarine

Red/Green/Blue Blue-White

Please E-mail [e-mail] or call Technical Services at [phone] for specific or unanswered questions.

Note: KICKER Marine speakers meet or exceed industry standards for environmental humidity and corrosion, and for material degradation due to UV exposure. All specifications and performance figures are subject to change.

Please visit www.kicker.com for the most current information. To get the best performance from your new KICKER Supwooer, we recommend using genuine KICKER Accessories and Wiring. Please allow two weeks of break-in time for the subwoofer to reach optimum performance. The use of a subsonic filter will significantly increase the power handling. The power handling specifications in these charts are calculated using a 25dB, 24dB per octave subsonic filter.

KICKER

Sonsibilidad [1W, 1m] 86.5 dB

Qts 0.550

Qms 14.361

Ces 0.680

Re [20, 40] 1.89, 3.6

Vas[pioa,L]1.65,46.6

Manejo de potencia continua [Walls RMS] 150

Dimensión externa de baslidor [pulg., cm] 11-1/8, 28.3

Modelo: Volumen | ple [L] Panel A | pug. [cm] Panel B | pug. [cm] Panel C | pug. [cm]

KMW10 1.0 [28.3] 13.5x13.5 [34.3x34.3] 13.5x12 [34.3x30.5] 12x15 [30.5x38.1]

Longludcepuero[pug.cm]1325,33.7

Manjo de solcra [Mua PMS] 150

Reveneur KICKER agree:

Date d'achat :

Pussance [Mals PMS] 150

Ventile au maximum KMW10

Volume du Boileur | pied: L 1.75; 49,6

Quenture[pocpcmxcm]1.5x10.5;3.8x26.7

Longucdowonurlo 132537

Pussanco Mals PMSI 150

When purchased from an Authorized KICKER Dealer, KICKER warrants this product to be free from defects in material and workmanship or under normal use for a period of ONE (1) YEAR from date of original purchase. If this product is identified as "Refurbished" or "B Goods", the warranty is limited to a period of THREE (3) MONTHS from date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product. Where applicable, Some clauses do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty gives you specific legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:

Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting Stillwater Designs directly. You can confirm that a dealer is authorized by asking to see a current authorized dealer window icon.

It becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package only the defective items in a package that will prevent shipping damage, and return to:

Stillwater Design, 3100 North Husband St, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Please return only defective products. The return of functioning items increases your return freight charges. Non-defective items will be returned freight-collect to you. For example, if a subwoofer is defective, only return the defective subwoofer, not the entire enclosure. Include a copy of the original receipt with the purchase date clearly visible, and a "proof-of-purchase" statement listing the Customer's name, Dealer's name and invoice number, and product purchased. Warranty expiration on items without proof of purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:
o Damage due to improper installation
o Subsequent damage to other components
o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation
o Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse
o Any cost or expense related to the removal or reinstallation of product
o Speakers damaged due to amplifiers clipping or distortion
o Items previously repaired or modified by any unauthorized repair facility
o Return shipping or non-defective items
o Products with tampered or missing barcode labels
o Products with tampered or missing serial
o Products returned without a Return Merchandise Authorization (RMA) number
o Products purchased from an UNAUTHORIZED dealer
o Freight Damage
o The cost of shipping product to KICKER
o Service performed by anyone other than KICKER

HOW LONG WILL IT TAKE?

KICKER strives to maintain a goal of one-week service for all acoustics (subwoofoers, mdrange drivers, wocors, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department at [phone]. Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

41KMW10-C-20131106

INTERNATIONAL WARRANTY

Contact your international KOKER dealer or distributor concerning specific procedures for your country's warranty policies.

WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing. Turning up a system to a level that has a visible distortion is more damaging to your ears than listening to an undistorted system at the same volume low. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage your hearing. Please use common sense when controlling volume.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a repurchase or refund for a major failure and/or compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount up to a major fault.

GARANTÍA INTERNACIONAL Version Español
