14152 - Kettle BELLA - Free user manual and instructions

Brand	BELLA (Sensio Inc.)
Model	14152
Product Type	Electric Kettle
Capacity	1.2 L (5 cups)
Power Supply	120 V~, 60 Hz
Housing Material	Ceramic
Handle	Ceramic (fragile)
Functions	Automatic shut-off, dry boil protection
Safety	Safety thermostat, overheat shut-off
Cleaning	Do not immerse; wipe with a damp cloth
Descaling	White vinegar solution (3 cups vinegar + 2 cups water)
Warranty	2-year limited (non-mechanical parts: 90 days)
Usage	Household only
Included Accessories	Power base, lid
Plug Type	Three-prong grounded plug
Switch	Illuminated (automatic on/off)
Repairability	No user-serviceable parts

Frequently Asked Questions - 14152 BELLA

How do I descale my Bella 14152 kettle?

Use a solution of 3 cups white vinegar and 2 cups fresh water. Pour into the kettle without boiling, let soak overnight, then empty, rinse, and boil clean water several times until odor is gone.

What if my kettle no longer heats?

First check that the kettle is properly plugged into a 120 V outlet. If it does not heat, the dry boil protection may have activated: let the kettle cool, fill it with water above the MIN mark, then use it again. If the problem persists, contact customer service.

Can I use the kettle without water?

No, never operate the kettle empty or with insufficient water. The safety thermostat cuts off power in case of dry boiling, but this can damage the appliance.

How do I clean the exterior of the kettle?

Unplug and let cool. Wipe the exterior with a soft damp cloth. Do not use scouring pads or harsh cleaners. Never immerse the base, cord, or plug.

Why does the kettle stop before the water boils?

This may happen if the lid is not properly closed or if the water level is too low. Make sure the lid is snapped on correctly and that the water is above the MIN mark. If the problem persists, descaling may be necessary.

Can I plug the kettle into an extension cord?

No, using an extension cord is not recommended. Use only the short cord provided to avoid entanglement or tripping hazards.

The lid does not close properly, what should I do?

Check that the sealing ring is properly in place. Close the lid by pressing until it snaps shut. If the lid is not closed properly, the kettle may not shut off after boiling.

What if the kettle leaks?

If water leaks, check that the lid is tightly closed and that the water level does not exceed the MAX mark. Excess water may cause splashing. If the leak persists, the appliance may be damaged; contact customer service.

How do I reset the dry boil protection?

Remove the kettle from its base and let it cool completely. Fill it with water above the MIN mark, place it back on the base, and use normally. The thermostat resets automatically after cooling.

Can I heat milk or other liquids in the kettle?

No, use only water. Other liquids may damage the appliance and void the warranty. Do not mix or add anything to the water, except for descaling.

USER MANUAL 14152 BELLA

Register your product and get support at:

www.bellahousewares.com/welcome

_

| _

一

1

Table of Contents

Important safeguards 2

Additional important safeguards 3

Notes on the cord 3

Notes on the plug 3

Getting to know your Electric Ceramic Kettle 4

Before using for the first time....5

Operating instructions....5

Boil-Dry Protection....5

User maintenance instructions....5

Care & Cleaning Instructions....5

Descaling 6

Storing Instructions....6

Warranty 7

Table des matières

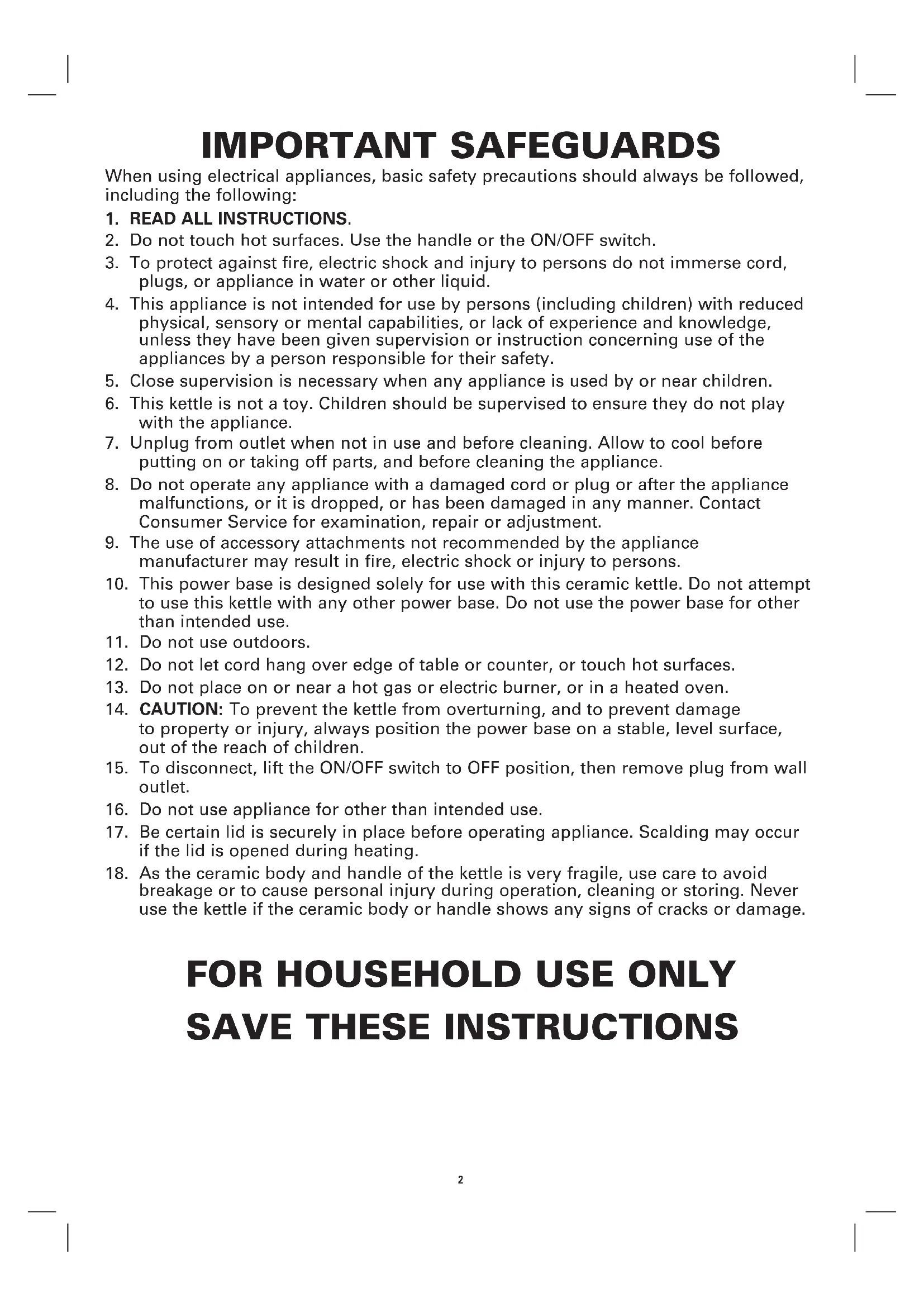

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.

1. Do not touch hot surfaces. Use the handle or the ON/OFF switch.
2. To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
4. Close supervision is necessary when any appliance is used by or near children.
5. This kettle is not a toy. Children should be supervised to ensure they do not play with the appliance.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or it is dropped, or has been damaged in any manner. Contact Consumer Service for examination, repair or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
9. This power base is designed solely for use with this ceramic kettle. Do not attempt to use this kettle with any other power base. Do not use the power base for other than intended use.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. CAUTION: To prevent the kettle from overturning, and to prevent damage to property or injury, always position the power base on a stable, level surface, out of the reach of children.
14. To disconnect, lift the ON/OFF switch to OFF position, then remove plug from wall outlet.
15. Do not use appliance for other than intended use.
16. Be certain lid is securely in place before operating appliance. Scalding may occur if the lid is opened during heating.
17. As the ceramic body and handle of the kettle is very fragile, use care to avoid breakage or to cause personal injury during operation, cleaning or storing. Never use the kettle if the ceramic body or handle shows any signs of cracks or damage.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

ADDITIONAL IMPORTANT SAFEGUARDS

WARNING: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property.

1. All users of this appliance must read and understand this instruction manual before operating or cleaning this appliance.
2. The cord to this appliance should be plugged into a 120V AC electrical outlet only.
3. Use water only in this appliance! Do not put any other liquids or food products in this appliance. Do not mix or add anything to the water placed in this appliance, except as instructed in the User Maintenance Instructions to clean the appliance.
4. Be sure kettle is filled with water to at least the MIN water level. Do not operate appliance without water (dry) or with an insufficient amount of water.
5. Do not fill above the MAX water level. If the kettle is over-filled, there is a risk that boiling water may be ejected.
6. To avoid accidental scalding or burns, use extreme caution while moving this appliance when it contains hot water, and while pouring hot water from this appliance.
7. Keep appliance at least 4 inches away from walls or other objects during operation. Do not place any objects on top of appliance while it is operating. Place the appliance on a surface that is resistant to heat.
8. If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair the malfunctioning appliance.
9. If this appliance falls or accidentally becomes immersed in water or any other liquid, unplug it immediately. Do not reach into the water! Do not use this appliance after it has fallen into or has become immersed in water. Contact Consumer Service for examination and repair.
10. Do not leave this appliance unattended during use.
11. Always pour water into kettle before plugging in and heating the appliance. Never pour water into heated kettle.
12. Do not block the steam from emitting from the spout during use.
13. Do not place this appliance in a microwave oven.

Notes on the Plug

This appliance is equipped with a grounded-type 3-wire cord (3-prong plug). This plug will only fit into an electrical outlet made for a 3-prong plug. This is a safety feature. If the plug should fail to fit the outlet, contact an electrician to replace the obsolete outlet. Do not attempt to defeat this safety feature.

Notes on the Cord

The provided short power-supply cord should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Do not use an extension cord with this product.

Plasticizer Warning

CAUTION: To prevent Plasticizers from migrating from the finish of the counter top or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the finish of the counter top or table top. Failure to do so may cause the finish to darken; permanent blemishes may occur or stains can appear.

Electric Power

If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.

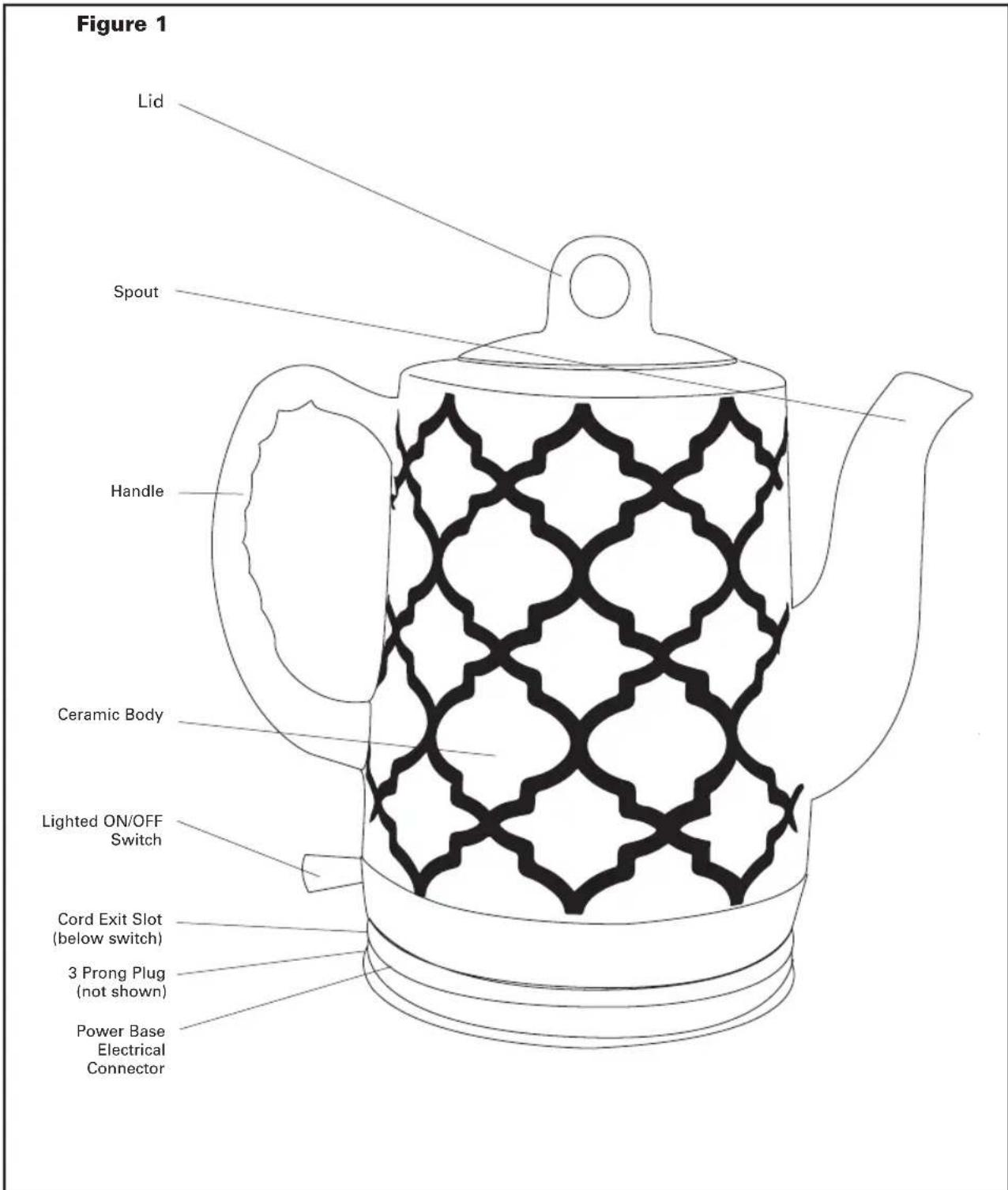

Getting to Know Your Electric Ceramic Kettle

Product may vary slightly from illustration

Figure 1 Lid Spout Handle Ceramic Body Lighted ON/OFF Switch Cord Exit Slot (below switch) 3 Prong Plug (not shown) Power Base Electrical Connector

Before Using for the First Time

1. Boil a kettle of water following the Operating Instructions described in this Instruction Manual.
2. Discard the boiled water. Your kettle is now ready for use.

OperatingInstructions

CAUTION: Do not immerse power base, power cord, or plug in water or any other liquid.

1. Position the power base on a stable, level surface near an electrical outlet. Unwind the power cord from the cord storage area located beneath the power base. Make sure the cord exits through the cord exit slot on the side of the power base.
2. Check that the ON/OFF switch is in the OFF (up) position.
3. Remove the kettle from the power base. Remove the lid. Fill with fresh, cold water to the desired level. The kettle yields up to 5 cups (1.2 liters) of water. Add water but do not fill above the MAX water level. Wipe excess water off the kettle.
   CAUTION: Never add water above the MAX water level. This could cause boiling water to splatter out. NOTE: If the kettle is accidentally switched ON without sufficient water, a boil-dry protection device will automatically turn the unit OFF. (See Boil-Dry Protection explanation in this Instruction Manual.)

4. Check to be sure the sealing ring is properly assembled onto the lid. Close the lid and press down gently until it snaps into position to ensure it is fully closed. Otherwise the kettle may not turn OFF after boiling. CAUTION: To avoid the risk of splashing while pouring hot water, make sure the lid is securely closed onto the kettle before operation.

5. Place the kettle on the power base, taking care not to spill any water.

6. Plug the power cord into a 120V AC electrical outlet. Press the ON/OFF switch down to the ON position. The lighted button will illuminate. Water will begin heating immediately.

7. When a rolling boil is reached, the lighted button will then turn off; the ON/OFF switch will lift (up) automatically and the kettle will turn OFF.

NOTE: The kettle can be turned OFF any time during the heating process by lifting the ON/OFF switch up.

WARNING: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property. Keep hands and face clear of the area above the kettle.

1. Grasp the handle and carefully lift the kettle from the power base before pouring.

CAUTION: Always check that the ON/OFF switch is in the OFF (up) position before removing it from the power base.

CAUTION: To avoid a risk of splashing, make sure the lid is securely closed onto the kettle before operating. Pour slowly and be careful not over-tilt the kettle.

CAUTION: Do not touch hot surfaces!

1. To reheat, check the water level to ensure it is above the MIN water level. If necessary, add more water before returning the kettle to the power base.

2. Allow at least 30 seconds before pressing the ON/OFF switch down to the ON position.

3. When not in use unplug the power cord from the wall outlet. Allow the unit to cool completely before cleaning. Empty the kettle after each use. Do not allow water to sit in the kettle overnight. See User Maintenance Instructions.

Boil-Dry Protection

A safety thermostat will automatically turn the kettle OFF whenever the unit is without sufficient water, or if the kettle is allowed to boil dry. To reset the boil-dry protection device, remove the kettle from the power base and allow it to cool before refilling with water.

User Maintenance Instructions

This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any servicing requiring disassembly must be performed by a qualified appliance repair technician.

Care & Cleaning Instructions

CAUTION: Always unplug kettle and allow to cool before cleaning. Never immerse kettle, power base, cord, or plug in water or other liquids. Never use scouring pads or harsh cleansers to clean your kettle as they may damage the surface.

1. Make sure the kettle is unplugged and completely cool.
2. Grasp the handle and remove the kettle from the power base. If necessary, wipe the inside and outside of the kettle with a soft, damp cloth and wipe dry.
3. Wipe the power base with a damp cloth.
4. Make sure both the power base and kettle are completely dry after cleaning and before use.

Descaling

NOTE: Mineral deposits can form a scale coating inside the kettle and may cause an off flavor in the water or lengthen the boiling time.

1. Several descalers are available. Follow the instructions provided.
2. As an alternative, use the white vinegar cleaning method:

In a spouted bowl, prepare a descaling solution of 3 cups white vinegar and 2 cups cool, clean water; pour into kettle. Do not boil the solution, as it may damage the kettle.

Allow the solution to soak in the kettle overnight.

Discard the cleaning solution. Fill the kettle with cool, clean water; boil, discard, and rinse thoroughly.

Repeat this procedure several times until the vinegar odor is gone.

1. Use a damp cloth to remove any stains remaining inside the kettle.

Storing Instructions

1. Make sure unit is unplugged and completely cool before storing.
   WARNING: Never store the electric kettle while it is hot or still plugged in.
2. Wrap the power cord around the cord storage area under the power base to store. Store kettle with lid and sealing ring securely in place
3. Store the kettle in its box, in a clean, dry area.

Limited TWO-YEAR Warranty

SENSIO Inc. hereby warrants that for a period of TWO YEARS from the date of purchase, this product will be free from mechanical defects in material and workmanship, and for 90 days in respect to non-mechanical parts. At its sole discretion, SENSIO Inc. will either repair or replace the product found to be defective, or issue a refund on the product during the warranty period.

The warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty.

EXCLUSIONS:

The warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use of the product, use of improper voltage or current, improper routine maintenance, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than qualified SENSIO Inc. personnel. Also, the warranty does not cover Acts of God such as fire, floods, hurricanes, or tornadoes.

SENSIO Inc. shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Apart from the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in time to the duration of the warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, and therefore, the above exclusions or limitations may not apply to you. The warranty covers specific legal rights which may vary by state, province and/or jurisdiction.

HOW TO OBTAIN WARRANTY SERVICE:

You must contact Customer Service at our toll-free number: 1-866-832-4843. A Customer Service Representative will attempt to resolve warranty issues over the phone. If the Customer Service Representative is unable to resolve the problem, you will be provided with a case number and asked to return the product to SENSIO Inc. Attach a tag to the product that includes: your name, address, daytime contact telephone number, case number, and description of the problem. Also, include a copy of the original sales receipt. Carefully package the tagged product with the sales receipt, and send it (with shipping and insurance prepaid) to SENSIO Inc.'s address. SENSIO Inc. shall bear no responsibility or liability for the returned product while in transit to SENSIO Inc.'s Customer Service Center.

CONSIGNES DE SÉCURITÉ IMPORTANTES

For customer service questions or comments

BELLA® is a registered trademark of Sensio Inc.,
