Product type	Gas cooker
Brand	Miele
Model	KM 6565 FR
Dimensions (W x D x H)	90 cm x 52 cm x 4.5 cm (built-in)
Weight	Approximately 14 kg
Power supply	Gas (G20/G25/G30/G31) and electric 230 V / 50 Hz
Number of burners	5
Burner types	2 rapid burners, 1 semi-rapid burner, 1 economy burner, 1 wok burner
Ignition	Integrated electronic
Safety	Automatic safety shut-off, safety stop valve
Main functions	Automatic ignition, safety shut-off, rotary controls, removable cast iron grates
WiFi	Optional WiFi module XKS 3170 W (connection with Miele hood or home network)
WiFi frequency band	2.4000 – 2.4835 GHz, power < 100 mW
Care and cleaning	Removable grates and caps dishwasher safe; stainless steel or tempered glass surface
Spare parts and repairability	Original Miele parts available; repair by authorized service center
General information	User and installation manual included (144 pages); compliant with directive 2014/53/EU

Frequently Asked Questions - KM 6565 FR MIELE

What types of gas can I use with the Miele KM 6565 FR cooker?

The cooker is compatible with G20 (natural gas), G25, G30 and G31 (butane/propane) gases. Refer to the manual for injector adjustment.

How do I install the WiFi module XKS 3170 W?

First unplug the cooktop. Attach the module under the worktop in a location away from metal masses. Plug the black connector into the dedicated socket on the cooker, then reconnect the appliance. The WiFi connection activates after about 1 minute.

What should I do if the WiFi connection to my Miele hood does not establish?

Try moving the WiFi module to a location with fewer metal obstacles. You can also use a standard WiFi repeater to improve range. If the problem persists, contact Miele customer service.

How do I clean the burners and grates of the cooker?

The grates and burner caps are removable and dishwasher safe. Clean the stainless steel surface with a soft cloth and non-abrasive detergent.

The cooker turns off automatically: is this normal?

Yes, it is a safety function. If the flame goes out accidentally or the maximum cooking time is exceeded, the automatic shut-off activates. Refer to the manual for settings.

Can I use copper or aluminum cookware?

For gas burners, all types of pots are suitable. Ensure the pot diameter matches the burner size for optimal cooking.

How do I adjust the gas supply to change gas type?

Changing gas requires replacing the injectors and adjusting the flow. This operation must be carried out by a Miele authorized professional. Refer to the installation manual.

The cooker emits a gas smell on first ignition: is it dangerous?

On first use, a slight odor from burning manufacturing residues is normal. Ventilate the room. If the smell persists or you smell strong gas, cut off the supply and contact customer service.

What is the energy consumption of the cooker?

Consumption depends on the gas used. On average, a rapid burner consumes about 0.25 m³/h of natural gas (G20). The energy class is A+ (according to the European directive).

Where can I find spare parts for the KM 6565 FR?

Original Miele spare parts are available from your authorized dealer or Miele after-sales service. Use the model number (KM 6565 FR) to order.

USER MANUAL KM 6565 FR MIELE

① Connection plug

① Connection plug

① Connection plug

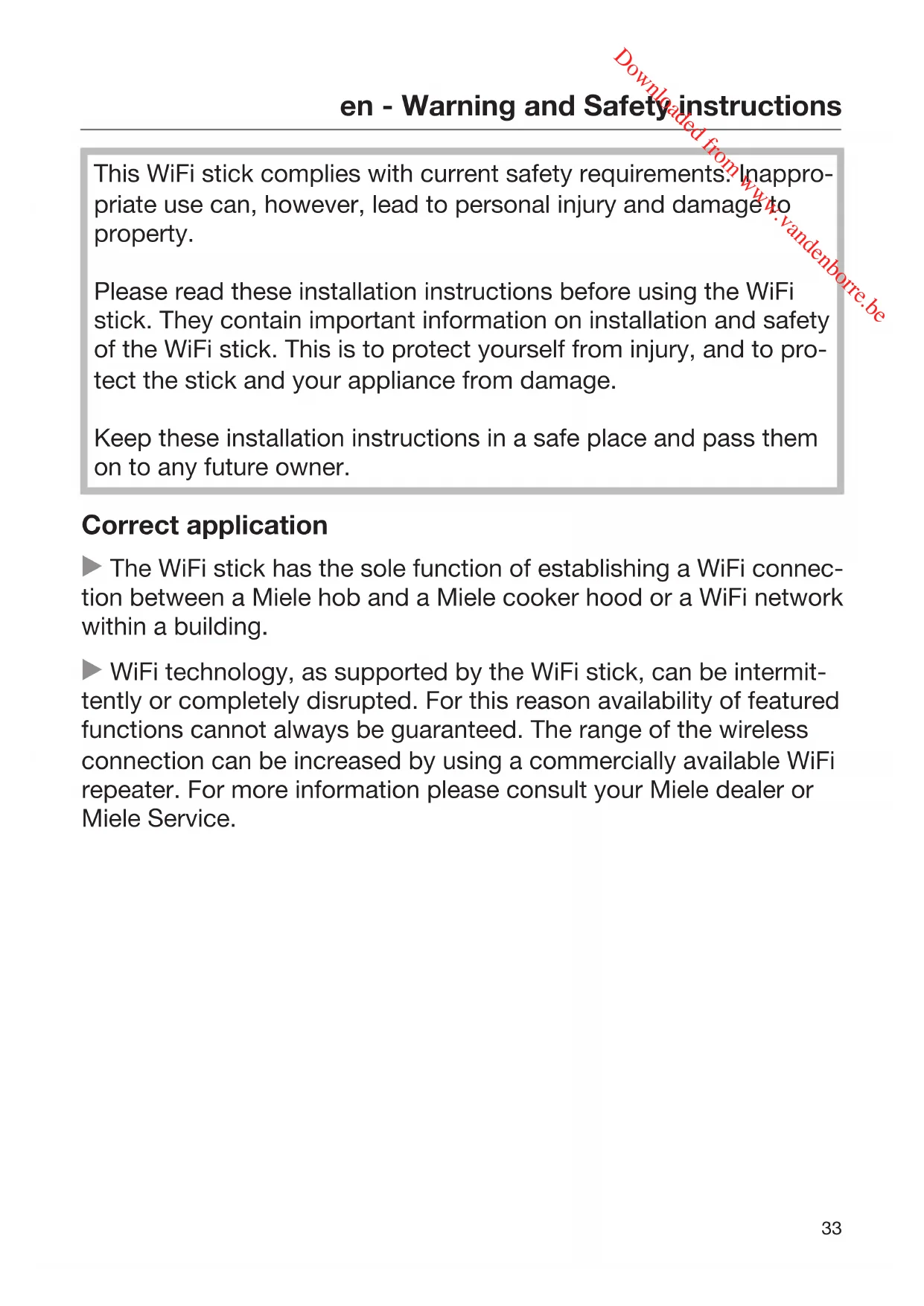

This WiFi stick complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.

Please read these installation instructions before using the WiFi stick. They contain important information on installation and safety of the WiFi stick. This is to protect yourself from injury, and to protect the stick and your appliance from damage.

Keep these installation instructions in a safe place and pass them on to any future owner.

Correct application

The WiFi stick has the sole function of establishing a WiFi connection between a Miele hob and a Miele cooker hood or a WiFi network within a building. WiFi technology, as supported by the WiFi stick, can be intermittently or completely disrupted. For this reason availability of featured functions cannot always be guaranteed. The range of the wireless connection can be increased by using a commercially available WiFi repeater. For more information please consult your Miele dealer or Miele Service.

Technical safety

Damage to the WiFi stick can compromise your safety. Check the WiFi stick for visible signs of damage. Do not install and use a damaged WiFi stick.

Miele can only guarantee the safety of the appliance when genuine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.

Disconnect the hob from the mains electricity supply before installing or removing the WiFi stick (see instructions for disconnection under “Electrical connection” in the Operating and Installation manual for your hob).

Disposal of the packing material

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

Disposing of your old appliance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

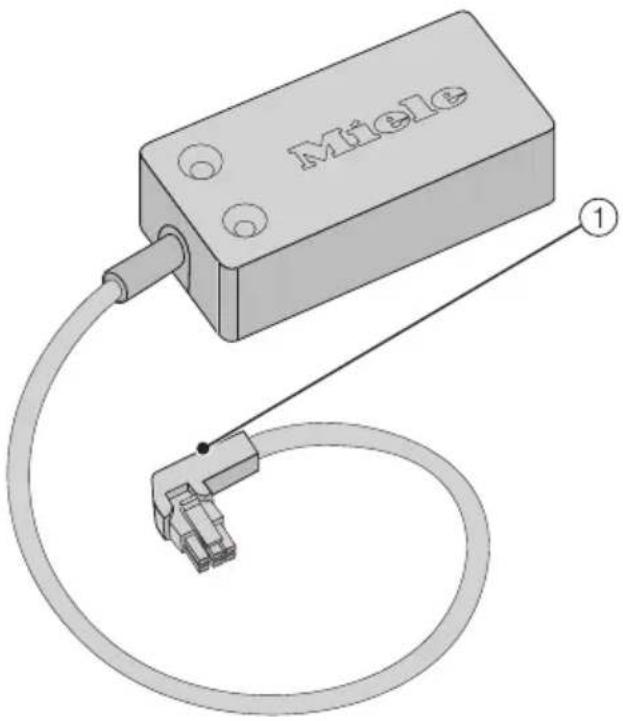

WiFi Stick

① Connection plug

For connecting the WiFi stick to the hob

Risk of heat damage.

The wireless module will suffer damage if subjected to heat.

Do not attach it to the underside of the hob.

Do not place it on top of an oven or a cooker.

The cable for the wireless module must not come into contact with the underside of a hob, or with an oven/cooker or other built-in appliance.

Secure the wireless module to the furthest point away from metal components. Also make sure that there are no or very few metal parts in the path between the wireless module and the antenna in the cooker hood.

■ Disconnect the hob from the mains electricity supply. - Secure the wireless module underneath the worktop, such that the WiFi stick can be fitted. ■ Fit the black plug on the WiFi stick into the socket on the hob.

The position of the socket is shown in the building-in diagram for your hob.

■ Reconnect the mains electricity supply.

The hob can be switched on after approx. 1 minute.

■ Switch the hob on as described in the Operating instruction manual for your hob.

If you are unable to establish a connection, please secure the wireless module to a different position where the signal is not hindered.

Miele hereby declares that this XKS 3170 W complies with Directive 2014/53/EU.

The complete text of the EU declaration of conformity is available from one of the following internet addresses:

• Products, Download from www.miele.co.uk
• For service, information, operating instructions etc: go to www.miele.co.uk/domestic/customer-information-385.htm and enter the name of the product or the serial number

Frequency band of the WiFi module 2.4000 GHz – 2.4835 GHz

Maximum transmitting power of the WiFi module < 100 mW
