CG 4016 - Coffee machine Orbegozo - Free user manual and instructions

Product type	Drip coffee maker
Brand	Orbegozo
Model	CG 4016
Tank capacity	1.25 L (approximately 10-12 cups)
Power	900 W
Power supply	220-240 V ~ 50 Hz
Dimensions (L x W x H)	25 x 20 x 30 cm
Weight	1.2 kg
Material	Plastic and glass (carafe)
Main functions	Drip coffee preparation, automatic shut-off, keep warm (30 min)
Filter type	Permanent filter (removable) or size 4 paper filter
Safety	Automatic shut-off when carafe is removed, hot surface indicator
Maintenance and cleaning	Removable parts washable with soapy water, regular descaling recommended
Descaling	With household descaler or citric acid (3%)
Spare parts and repairability	Carafe, filter holder, permanent filter available through technical service
Warranty	Legal warranty, keep the receipt

Frequently Asked Questions - CG 4016 Orbegozo

How to use the Orbegozo CG 4016 coffee maker?

Fill the reservoir with cold water up to the max level, place a filter and ground coffee in the filter holder, position the carafe on the warming plate, plug in the appliance and press the switch. The indicator light turns on and coffee starts to flow. You can interrupt the cycle by pressing the switch again.

How much ground coffee to use?

Use about one scoop of ground coffee per cup. Adjust according to taste. Ground coffee absorbs some water, so the final volume will be slightly less than the water added.

Can I remove the carafe during brewing?

Yes, you can remove the carafe at any time. The appliance automatically stops the flow. Do not exceed 30 seconds of interruption to avoid overflow when replacing.

How to clean the coffee maker?

Unplug the appliance before cleaning. Wash the removable parts (carafe, filter holder, filter) in warm soapy water. Clean the exterior with a damp cloth. Never immerse the base in water.

How to descale the Orbegozo CG 4016 coffee maker?

Mix water and household descaler (4:1 ratio) or use citric acid (3% of water volume). Fill the reservoir, brew one cup, let it sit for 15 minutes, then allow the rest to flow. Rinse with 3 cycles of fresh water.

What to do if coffee does not flow?

Check that the reservoir has enough water, the filter is not clogged, the carafe is properly positioned, and the appliance is plugged in and turned on. If the problem persists, contact technical support.

Does the coffee maker heat the carafe?

Yes, the warming plate keeps the coffee hot for about 30 minutes after brewing ends. For best taste, serve immediately.

What safety precautions to observe?

Do not touch hot surfaces, use handles. Do not plug in if the cord is damaged. Never immerse the appliance in water. Supervise children and keep packaging out of their reach.

How to avoid burns when serving?

Tilt the carafe slowly, do not exceed a 45° angle, pour gently to prevent coffee from flowing under the lid. Serve immediately after brewing.

Where to find spare parts or technical service?

Contact Orbegozo technical service via https://orbegozo.com/asistencia-tecnica/ or by email as indicated in the manual. Keep the receipt for warranty.

USER MANUAL CG 4016 Orbegozo

Three different coffee ovens with black and white models, one with a glass lid, shown against a white background (no visible text or symbols on the devices themselves).

CG 4012 - CG 4014 - CG 4016

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Dear Customer, if you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

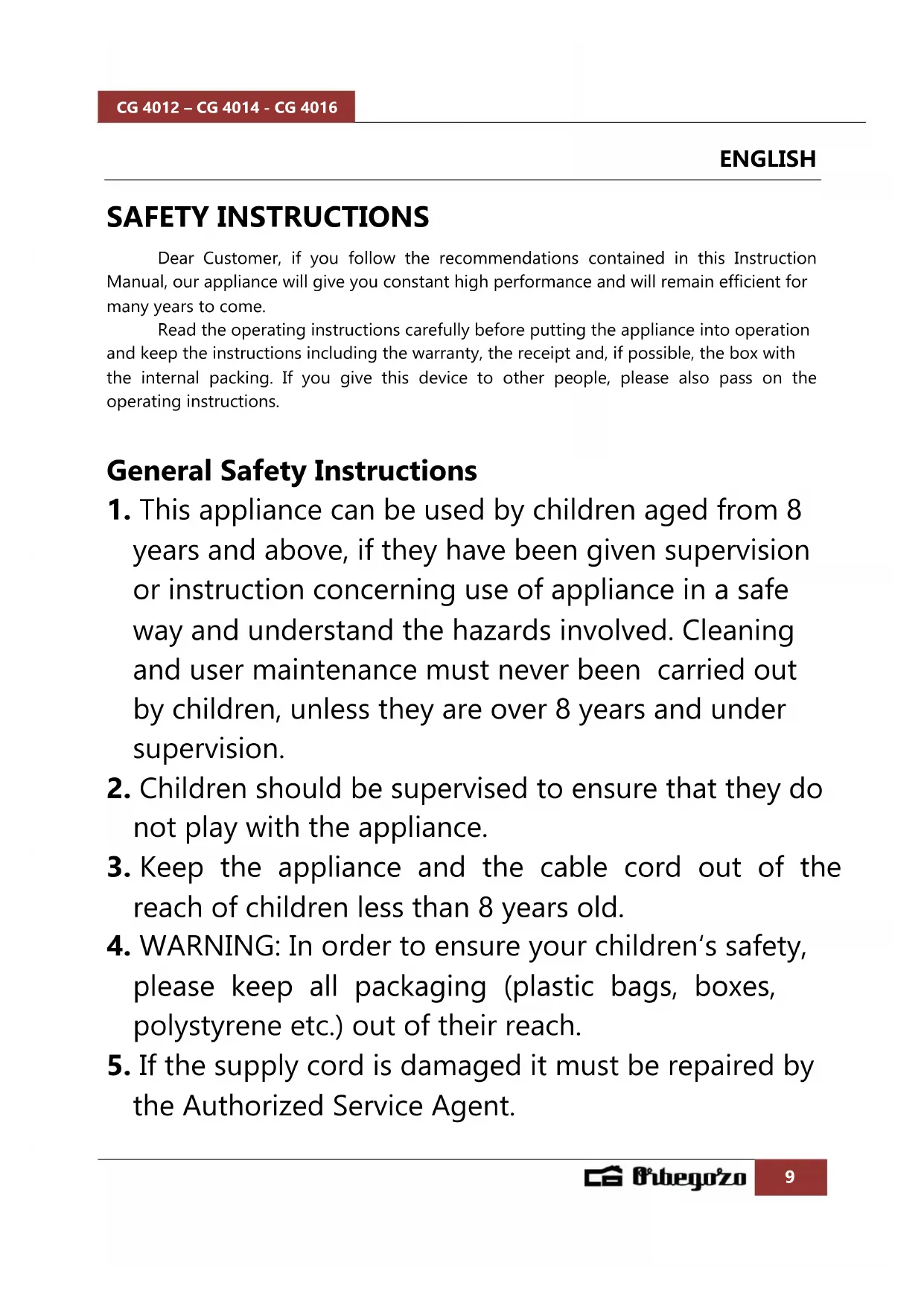

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above, if they have been given supervision or instruction concerning use of appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must never been carried out by children, unless they are over 8 years and under supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
    In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
13. WARNING: In case of misuse, there is a risk of possible injury.

SPECIFIC SAFEGUARDS

CAUTION: The surface can remain hot during or after use.

• To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the cord.
• Be careful not to get burned by the steam.

• Do not touch hot surface. Use handles or knobs only.

• Never use the appliance if the carafe shows any signs of cracks. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.

• Never use your coffee maker without water in it.
• Stand the appliance on a table or flat surface.

• This appliance is intended to be used in household applications such as:

• Reserved kitchen areas for staff in shops, offices and other working environments.

• Farms.
• By clients in hotels, motels and other residential environments.
  – In environments such hotel rooms.

BEFORE FIRST USE

Check that all accessories are complete and the unit is not damaged. Add water into water tank to the MAX level and brew water for several times without coffee powder, then discard the water. Clean all detachable parts thoroughly with warm water.

1. Open the tank cover and fill fresh water. The water level should not exceed the max level as indicated on the water tank. Replace the tank cover.
2. Swing the funnel support out and place the filter in the funnel, and make sure it is assembled correctly.
3. Add coffee into filter. Usually a cup of coffee need a level spoon of coffee, but you may adjust according to personal taste.
4. Insert the jug on the keeping warm plate horizontally.
5. Plug the power cord into the outlet.
6. Pulse the switch, the indicator will be illuminated. The appliance will begin working. The brewing process can be interrupted by pulsing the switch at any time. The appliance will continue brewing once the switch is turned on again.
7. Note: you can take out the jug, pour and serve at any time. The appliance will stop dripping automatically. But the time cannot exceed 30 seconds.
8. Remove out the jug to serve when finish brewing (about one minute later after the coffee stops dripping out.)

Note: the coffee you get will be less than the water you have added, as some water is absorbed by coffee.

Caution: When pour coffee, the momentary incline angle of the jug should not exceed 45^ . You should pour the coffee slowly until the jug is empty, otherwise the coffee in the jug will rush to the jug lid, and the coffee will flow out from two edges of the lid and will cause scalds.

1. When the process is finished, if you do not want to serve immediately do not unplug the power without pulsing the switch. The coffee can be kept warm during 30 minutes and then the device will stop. For an optimum coffee taste, serve it just after brewing.

2. Always turn the coffee maker off and unplug the power cord from the electrical outlet when the coffee maker is not in use.

CLEANING AND MAINTENANCE

CAUTION: Be sure to unplug this appliance before cleaning. To protect against electrical shock, do not immerse cord, plug or unit in water or liquid. After each use, always make sure plug is first removed from wall outlet.

1) Clean all detachable parts after each use in hot and sudsy water.
Note: the funnel can be removed from the column to cleaning. When assembling, only insert the column of funnel into the groove of the appliance.
2) Wipe the product's exterior surface with a soft, damp cloth to remove stains.
3) Water droplets may buildup in the area above the funnel and drip onto the product base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product.
4) Replace all parts and keep it for next use.

REMOVING MINERAL DEPOSITS

To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly according to the water quality in your area and the frequency use the appliance. Follow the next instructions:

1. Fill the tank with water and descaler to the MAX level in the gauge of coffee maker (the scale of water and descaler is 4:1). Please take into consideration the descaler's instructions. Please use "household descaler". You can also use citric acid instead of the descaler (the one hundred parts of water and three parts of citric acid).
2. Push the jug on the base. Pay attention to let center line of jug aligns with that of brew basket.
3. Pulse the switch and the indicator of it will be illuminated. After a while, water will drop out automatically.
4. After percolate the equivalent of one cup and pulse the switch to turn off the appliance.
5. Leave the solution work for 15 minutes, and then repeat the steps of 3-5 again.
6. Turn the appliance on and run off the water until the water tank is completely empty.
7. Rinse by operating the appliance with water at least 3 times.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
