Product type Electric guitar
Brand Ibanez
Model Premium SR1805E
String type Metal, nickel-plated steel
Number of strings 5 (bass) or 6 (guitar) – depending on model
Standard tuning E4, B3, G3, D3, A2, E2 (for 6 strings)
Neck adjustment By truss rod with Allen key
String height 1.5–1.7 mm (1st string) to 2–2.2 mm (6th string) at the 14th fret
Intonation Adjustable by moving the saddle
Bridge type Fixed bridge (Gibraltar, Tight-End, depending on model)
Vibrato Not equipped (bass model) or optional
Power supply (preamp) 006P (9V) battery for active models
Cleaning Soft cloth, avoid abrasive products, oil for fretboard
String replacement One by one to avoid tension shocks
Included tools Allen keys (1.5 mm, 2 mm, 3 mm, 4 mm), screwdriver
Fret maintenance Regular cleaning, replacement if worn by a technician
Storage In a case, away from humidity and temperature variations
Warranty According to authorized Ibanez dealer

Frequently Asked Questions - Premium SR1805E IBANEZ

How to tune the Ibanez Premium SR1805E guitar?
Use a tuner or a tuning fork. Tune each open string according to the standard tuning chart. To stabilize the tuning, loosen the string then wind it up in small increments. Avoid extreme tunings that can damage the strings or the guitar.
How to adjust the string height?
After tuning the guitar, measure the distance between the 14th fret and the bottom of the string. The recommended height is 1.5–1.7 mm for the 1st string and 2–2.2 mm for the 6th. Adjust using the bridge height screws (screwdriver or Allen key depending on type). Do not force to avoid damaging the threads.
How to adjust intonation?
Tune the guitar, then play the note at the 12th fret and compare with the harmonic at the same fret. If the note is lower, move the saddle forward; if higher, move it backward. Use a tuner to check. Repeat until perfect pitch.
How to adjust the neck relief?
Check the gap between the string and the 8th fret (should be 0.3–0.5 mm). To correct, use the Allen key on the truss rod nut: turn clockwise to reduce relief (straighten) and counterclockwise to increase relief (bow). Proceed in quarter turns and check the tuning after each adjustment.
How to replace the strings?
Replace the strings one by one to maintain tension. Cut the new string about 5–7 cm from the tuning peg, insert it into the bridge, and wind it around the peg in 2–3 turns without overlapping. Avoid removing all strings at once to avoid unbalancing the vibrato or neck.
How to clean the guitar?
Wipe off sweat marks with a soft cloth. For stubborn dirt, use a little oil. Never use abrasive or volatile products. For the fretboard, apply special oil with a cloth, especially around the frets.
How to change the preamp battery?
If the volume drops or the sound distorts, replace the battery (usually 006P 9V) located in the compartment at the back of the body. Unplug the output jack when not playing to save the battery. Use a battery of the same type.
What to do if the strings buzz?
First check the string height (see adjustment). If correct, adjust the neck relief or intonation. Persistent buzzing may indicate a worn fret or nut issue. Consult a technician if necessary.
How to maintain the fretboard?
Clean the fretboard with a slightly oiled soft cloth (lemon oil or special oil). Gently rub around the frets. Avoid excess oil which could stain the wood. Do this once or twice a year.
What tools are included with the guitar?
The guitar comes with Allen keys of different sizes (1.5 mm, 2 mm, 3 mm, 4 mm) and sometimes a screwdriver. These tools are used for adjusting height, intonation, neck, and locking screws. Keep them for routine maintenance.

User questions about Premium SR1805E IBANEZ

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Guitar in PDF format for free! Find your manual Premium SR1805E - IBANEZ and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Premium SR1805E by IBANEZ.

USER MANUAL Premium SR1805E IBANEZ

Guitar Electronics 227

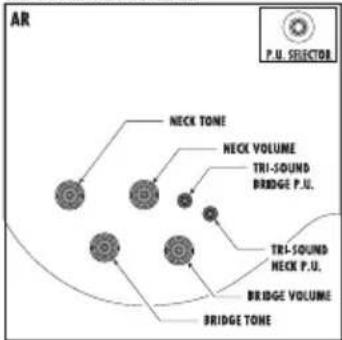

Guitar Controls 228

Thank you for purchasing an Ibanez guitar. In order to keep your guitar in the best possible condition, please read this manual for information on care and adjustment.

はじめにお読みください

安全にお使いいただくために

注意

楽器を振り回さないでください。

極端な大音量で鳴らさないでください。

1st2nd3rd4th5th6th7th8th9th
6-stringsEBGDAE---
7-stringsEBGDAEB--
8-stringsD#A#F#C#G#D#A#F-
9-stringsEBGDAEBF#C#

例外として、下記のモデルがあります。

Baritone guitar

1st 2nd3rd 4th5th 6th 7th8th
B F#D A E B- -

RGD、APEX

1st2nd3rd4th5th6th7th
6-stringsDAFCGD-
7-stringsDAFCGDA

MTM100

1st 2nd3rd 4th5th 6th 7th 8th
C#G#EBF#B - -

TAM10

1st 2nd3rd 4th5th 6th 7th 8th
E BGAE B E

ご注意

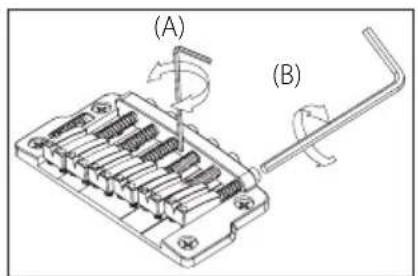

(A) (B) FULL TUNE II, ART1, ART2

Technical line drawing of a multi-layered mechanical component with mounting holes (no text or symbols)

アジャスタブルアーチトップブリッジ

Diagram of a battery pack with six slots and an arrow indicating rotation (no text or symbols)

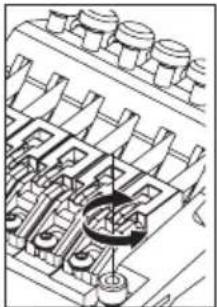

イントネーション調整

Diagram of a mechanical component with multiple slots and a curved arrow indicating rotation (no text or symbols)

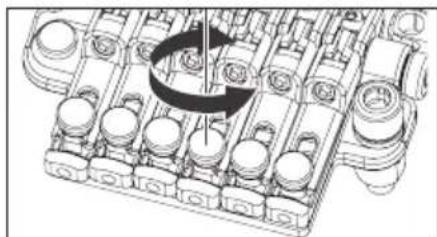

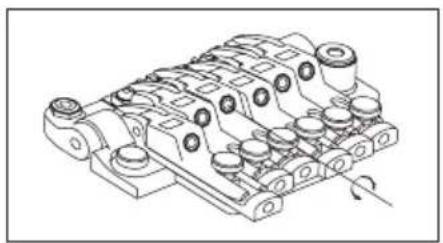

弦交换

ご注意

弦交换

弦交换

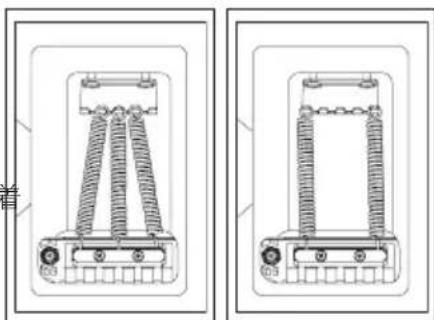

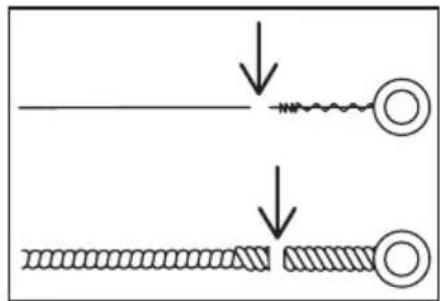

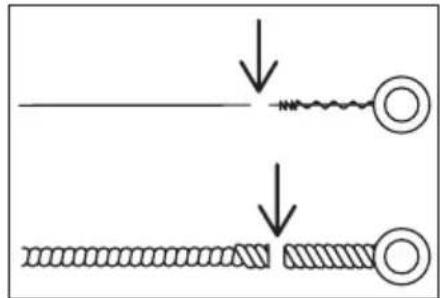

Diagram showing two stages of a coiled wire or filament under compression, with no text or symbols present.

ご注意

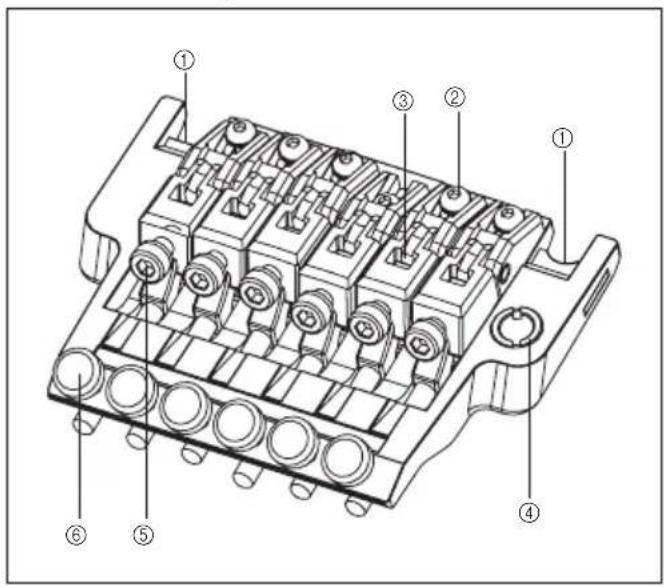

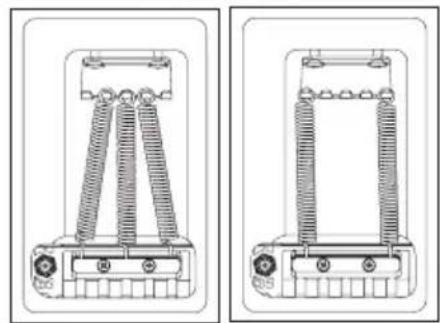

ロッキングトレモロ

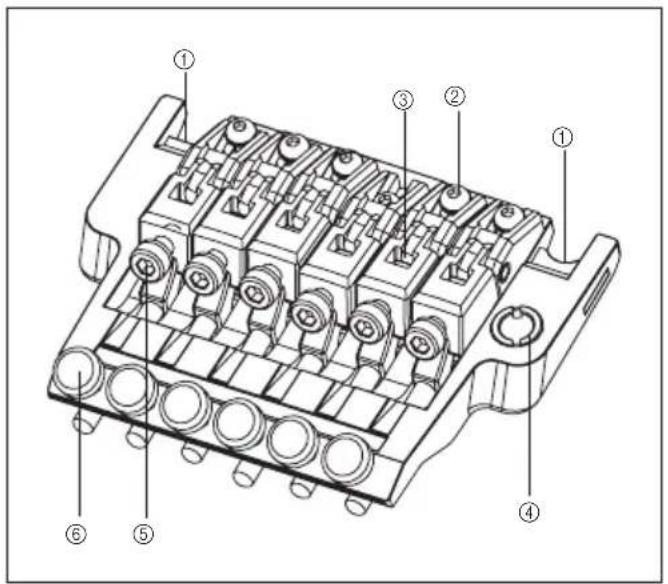

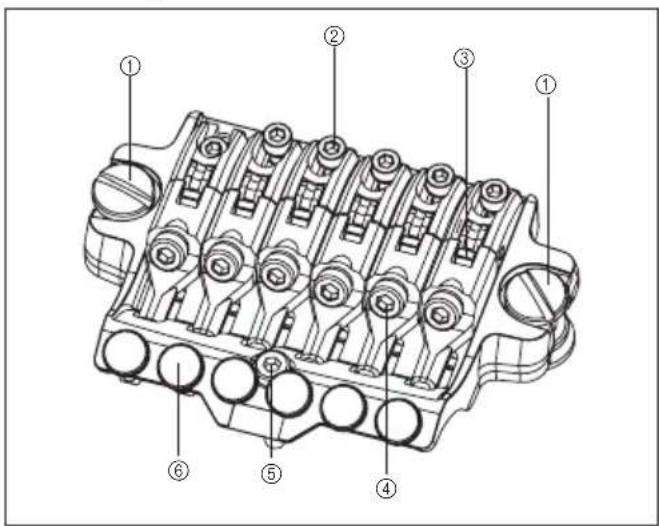

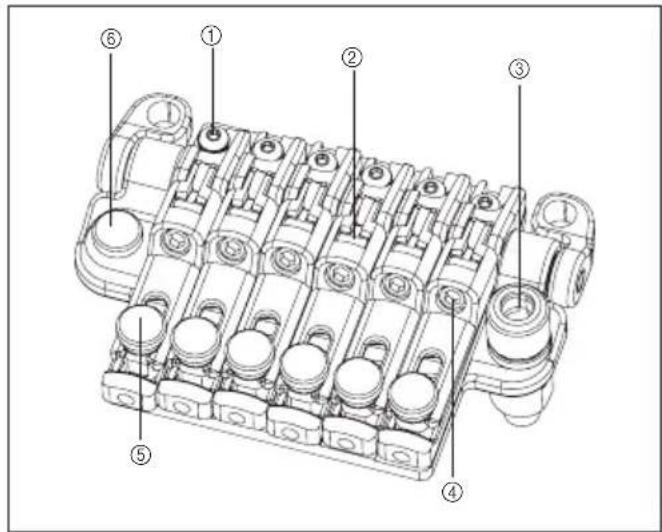

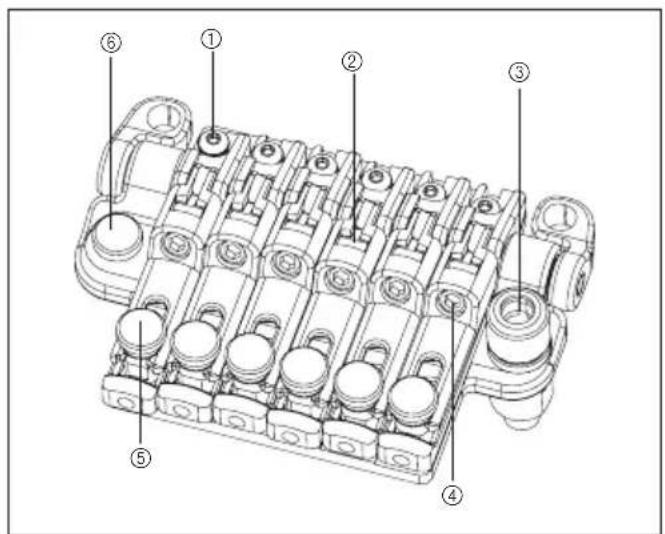

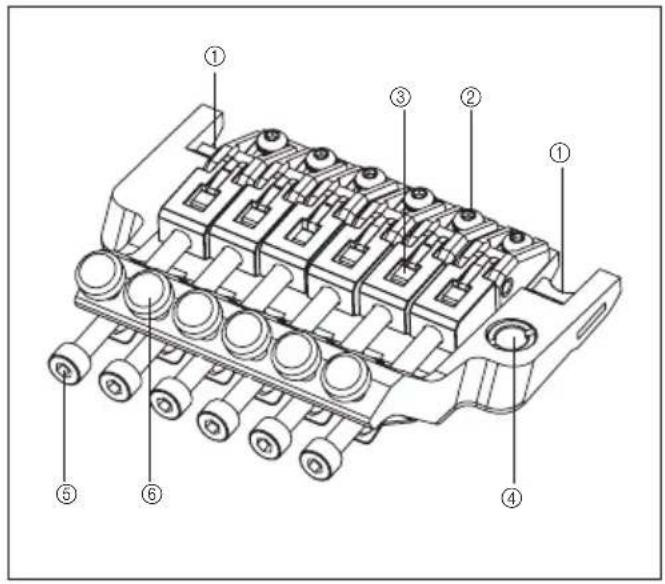

EDGE トレモロブリッジ

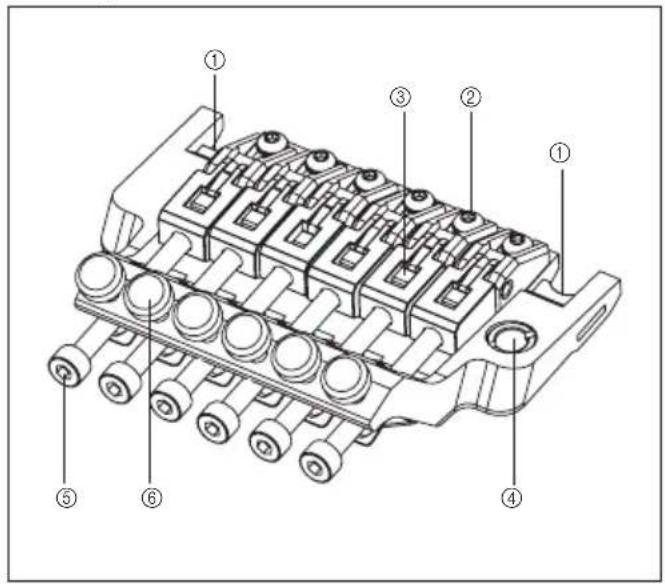

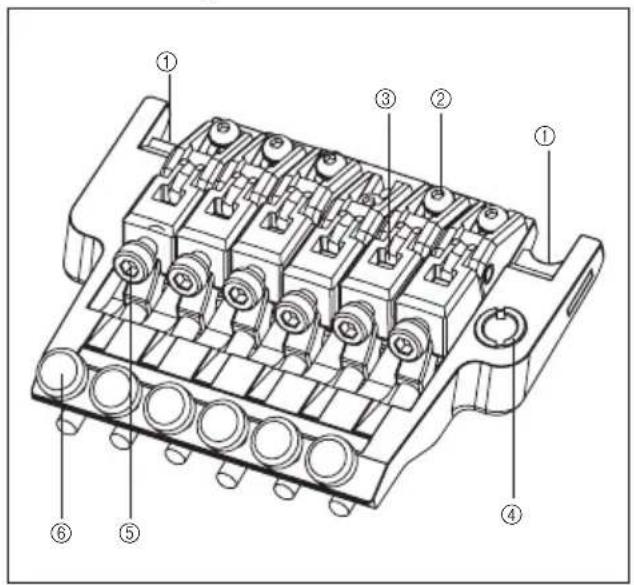

Edge

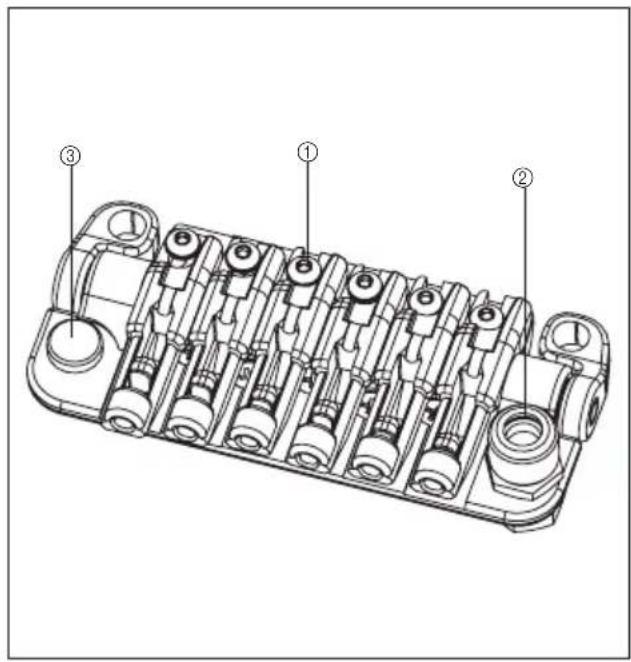

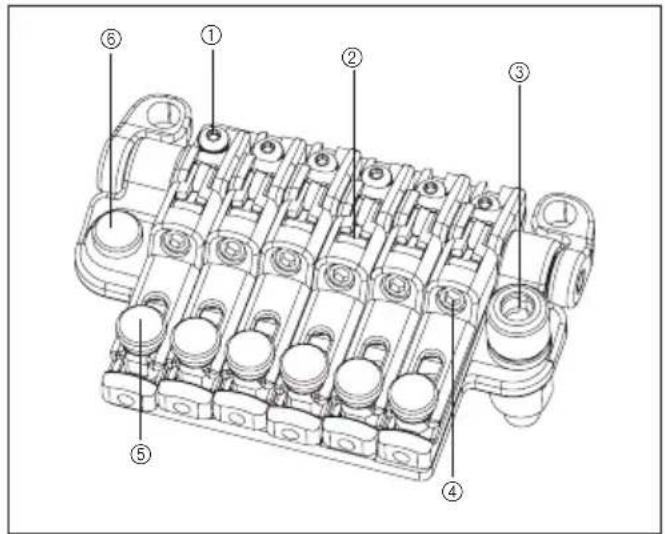

Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Lo-Pro Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

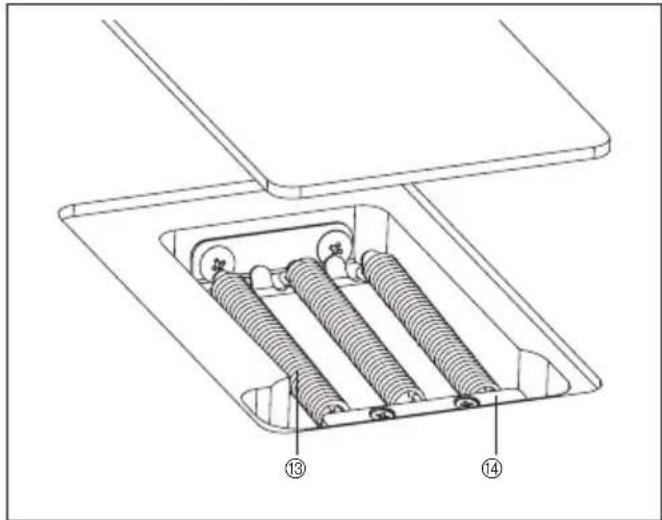

背面
Technical diagram of a mechanical assembly with numbered components labeled ⑦ and ⑧

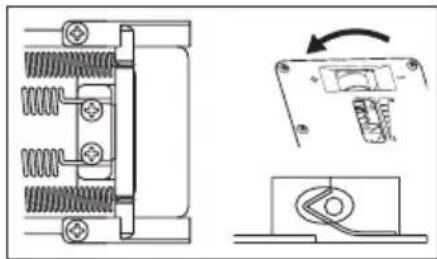

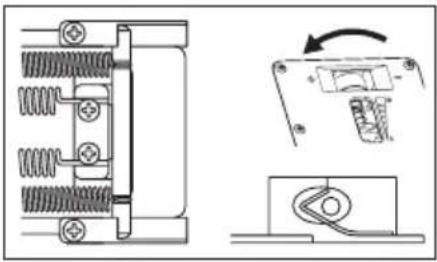

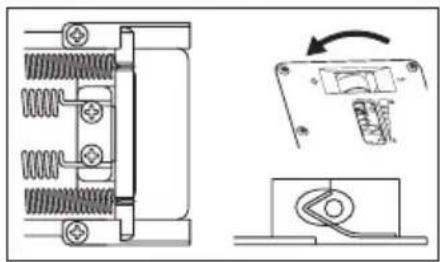

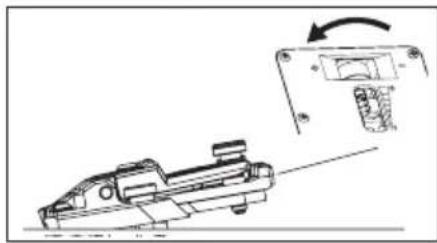

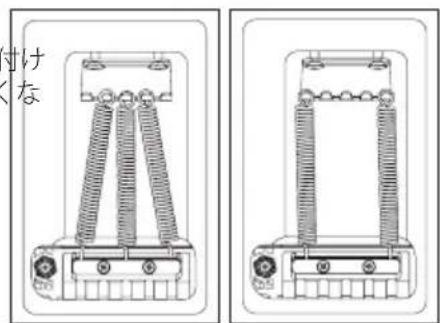

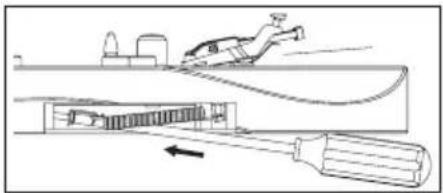

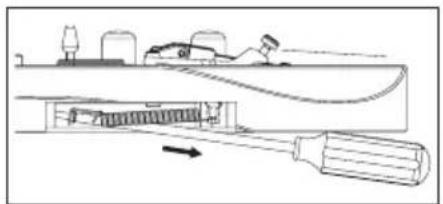

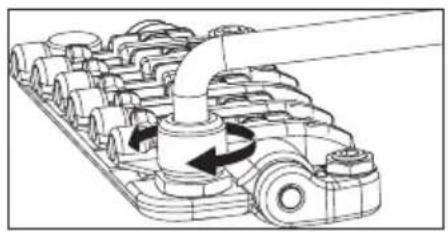

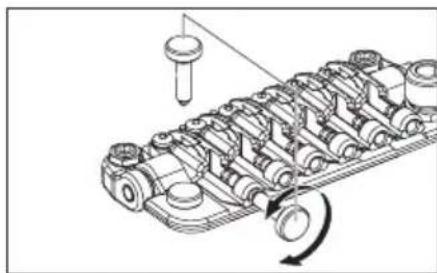

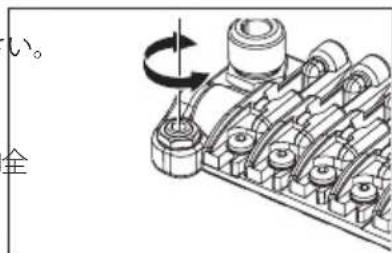

トレモロの取り付け角度調整

Technical line drawing of a mechanical assembly with tool and component (no text or symbols)

Diagram of a mechanical device with a tool inserted into a housing, showing internal components and motion direction (no text or symbols)

付け な

ご注意

Cross-sectional diagram of a mechanical component with rotational motion indicated by arrows (no text or symbols)

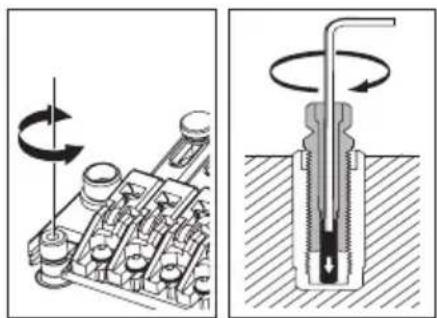

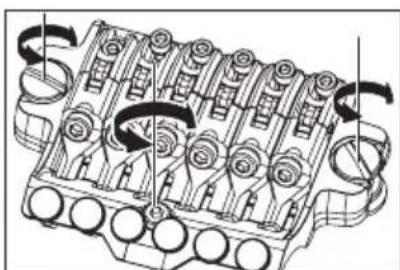

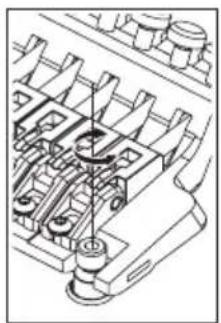

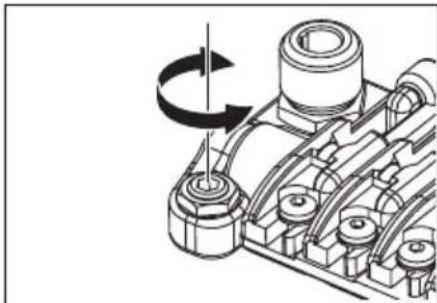

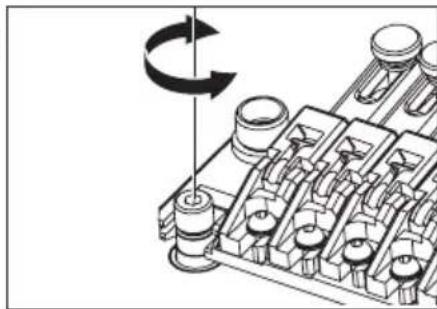

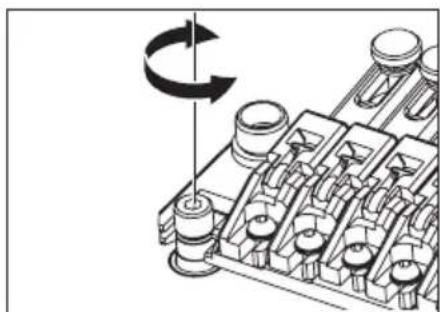

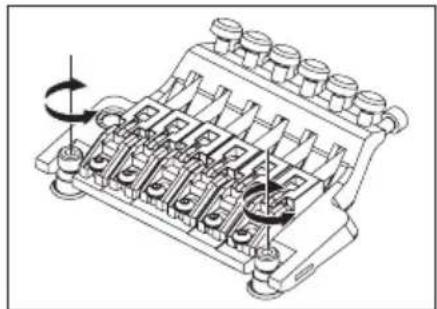

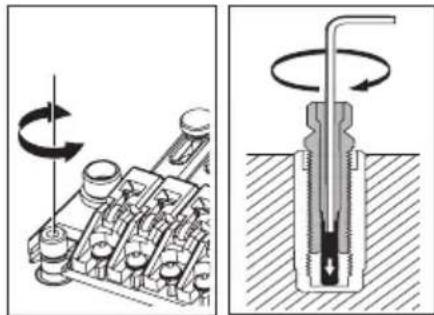

弦高調整

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

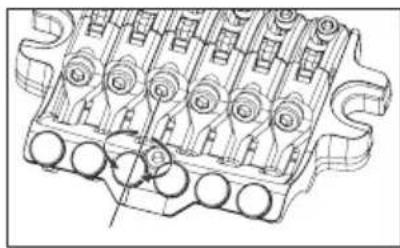

弦交换

Diagram of an engine component with rotating wheels and a labeled edge (no text or symbols beyond label)

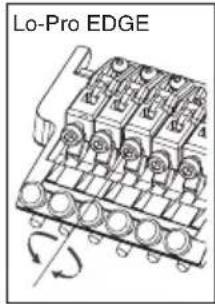

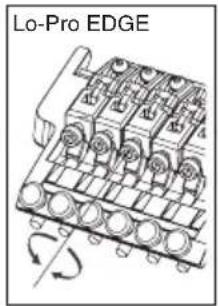

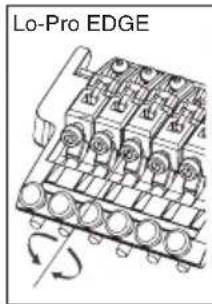

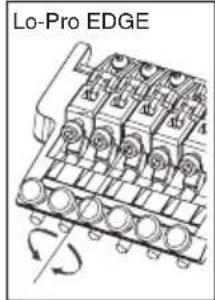

Lo-Pro EDGE

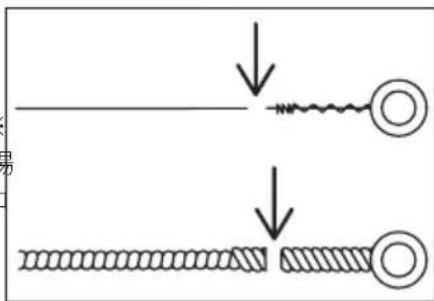

Diagram illustrating two steps of a coiled spring or wire repair process, with arrows indicating direction of movement.

ご注意

Technical line drawing of an engine cylinder head assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

ご注意

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with coiled spring and mounting base (no text or symbols)

ご注意

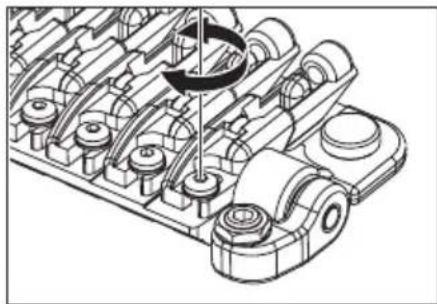

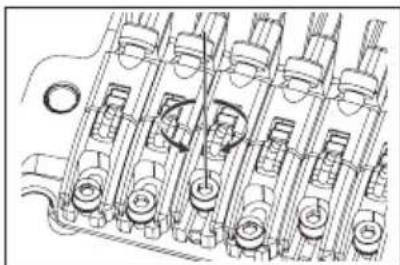

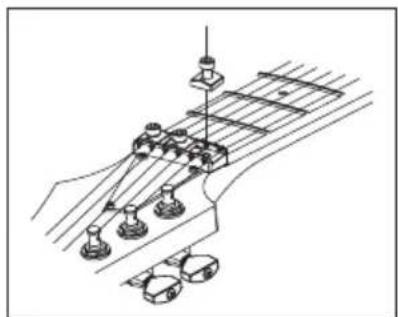

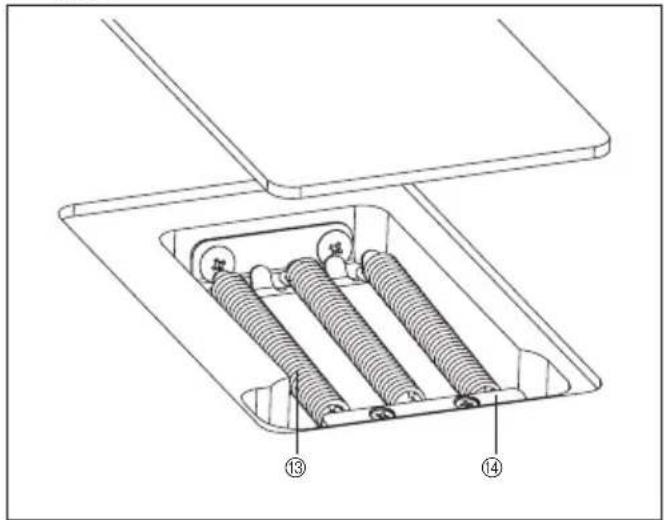

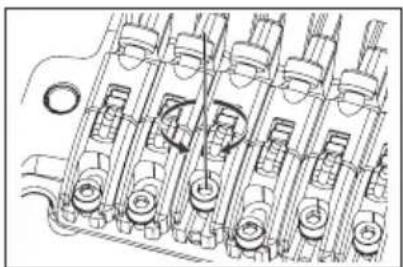

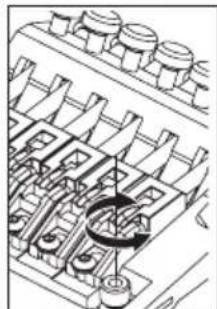

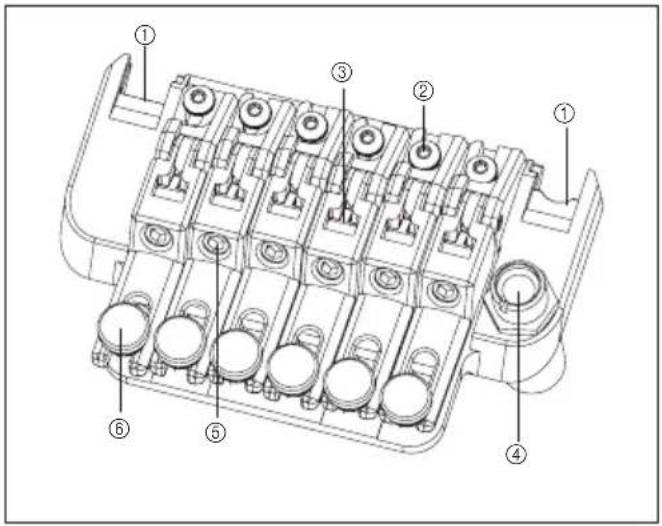

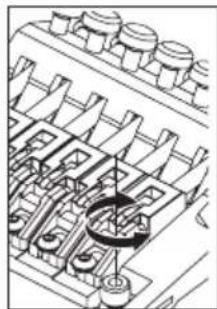

イントネーション調整

Technical line drawing of a mechanical assembly with multiple cylindrical components and mounting holes (no text or symbols)

Diagram showing two stages of a coiled spring or wire wound operation, with arrows indicating direction of movement.

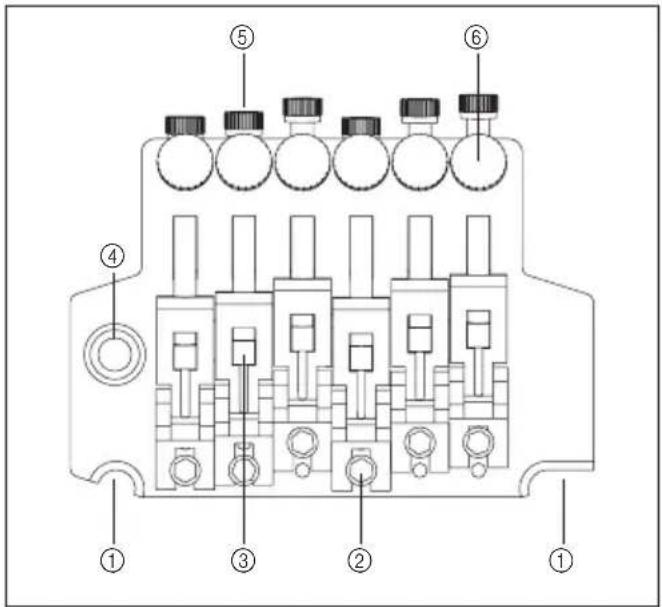

正面
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

背面2
Technical diagram of a mechanical assembly with numbered components labeled ③ and ④

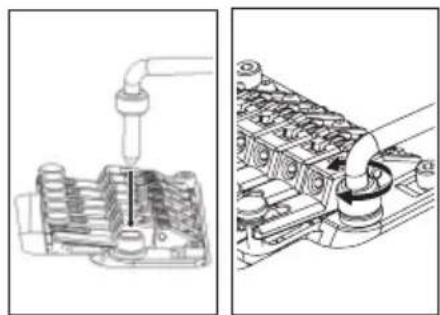

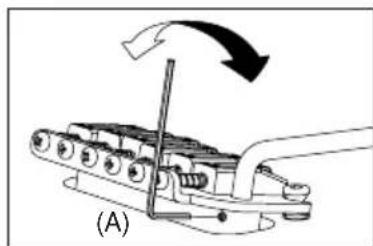

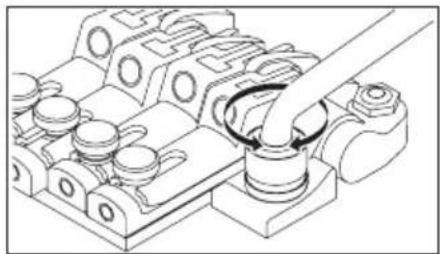

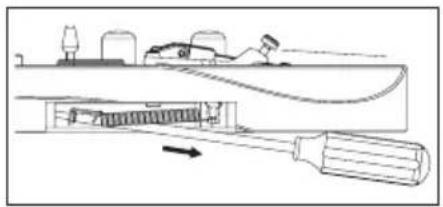

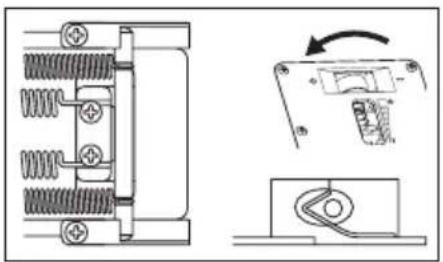

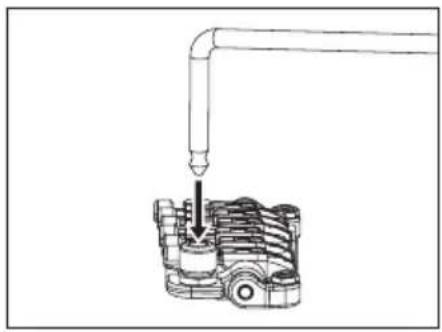

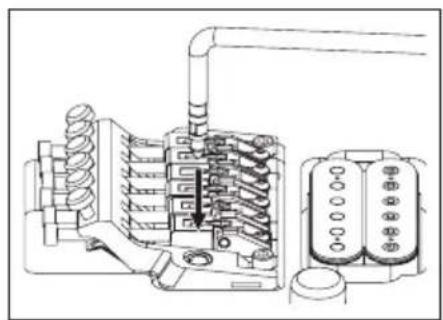

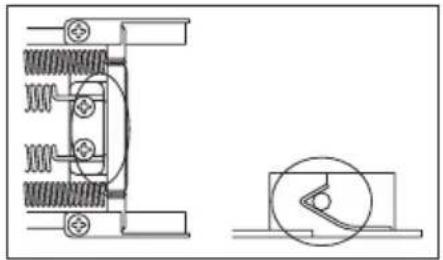

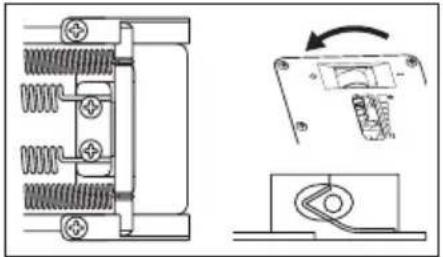

トレモロアームの取り付け

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

ス※

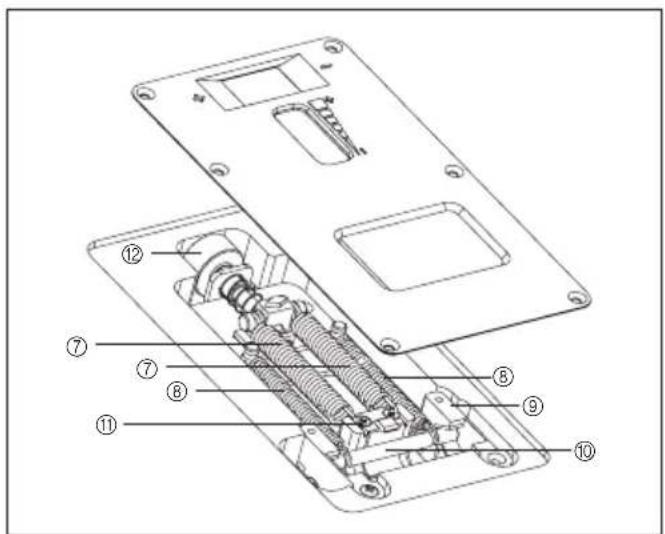

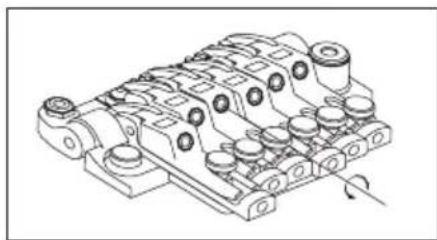

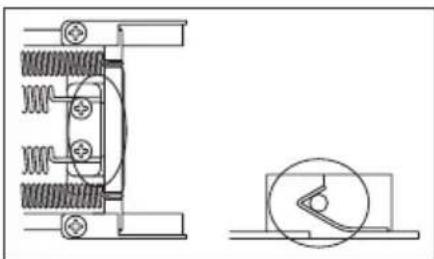

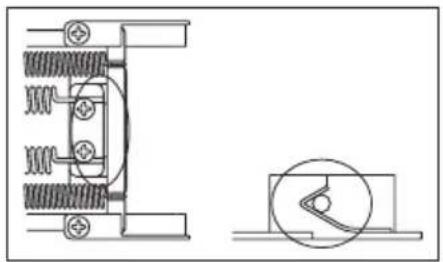

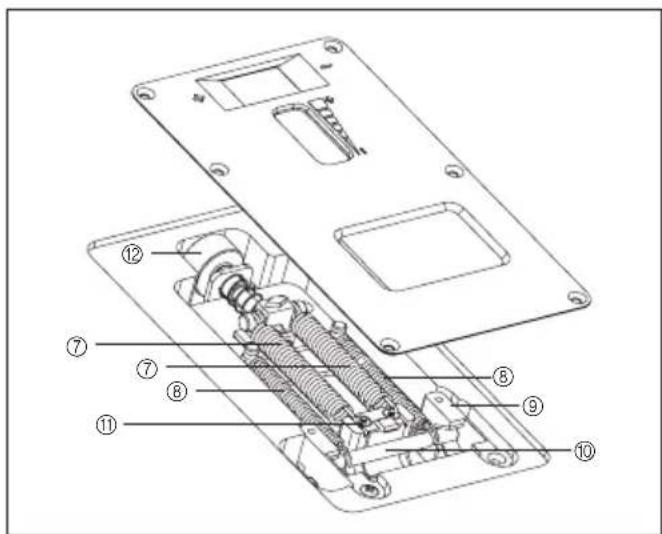

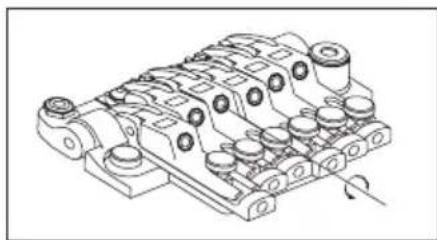

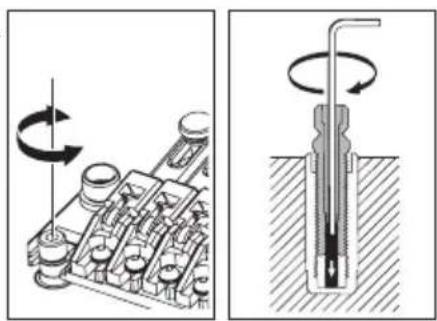

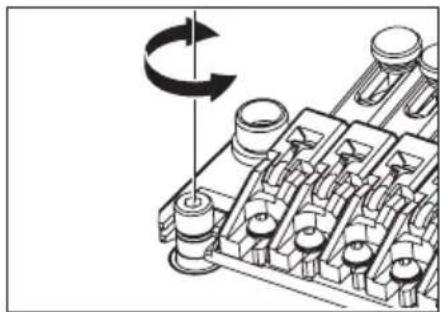

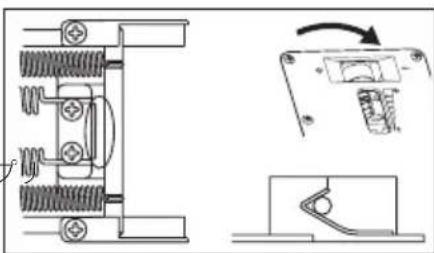

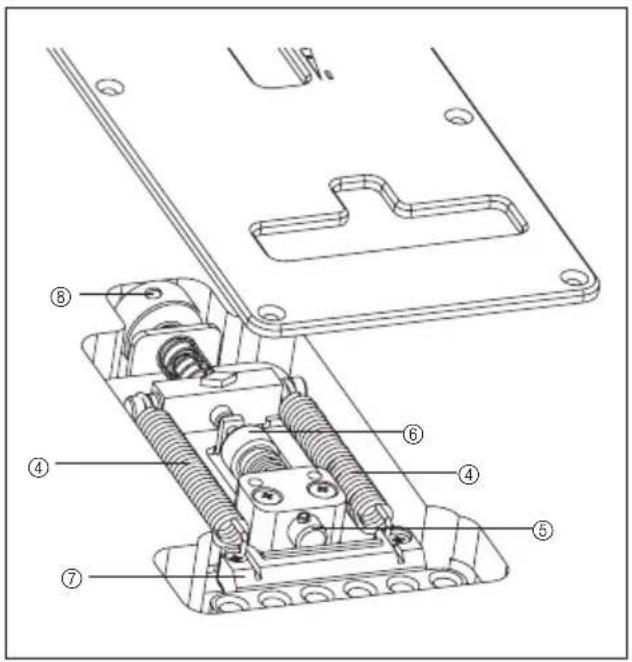

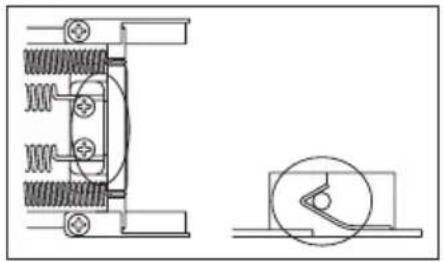

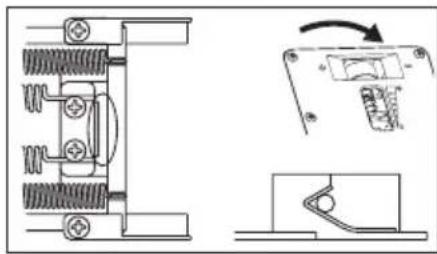

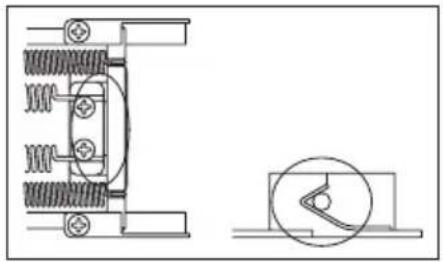

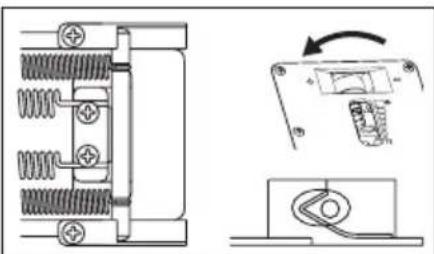

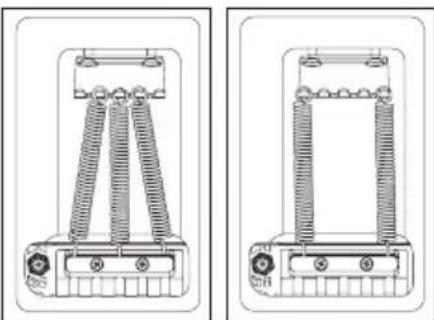

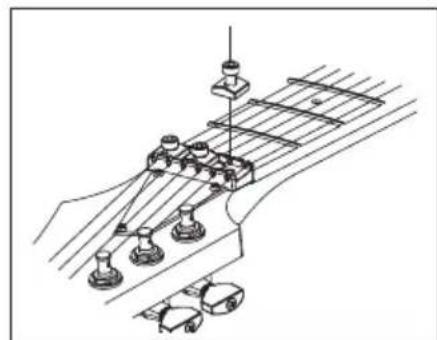

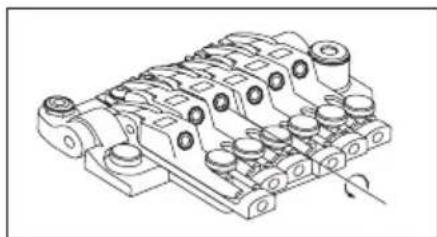

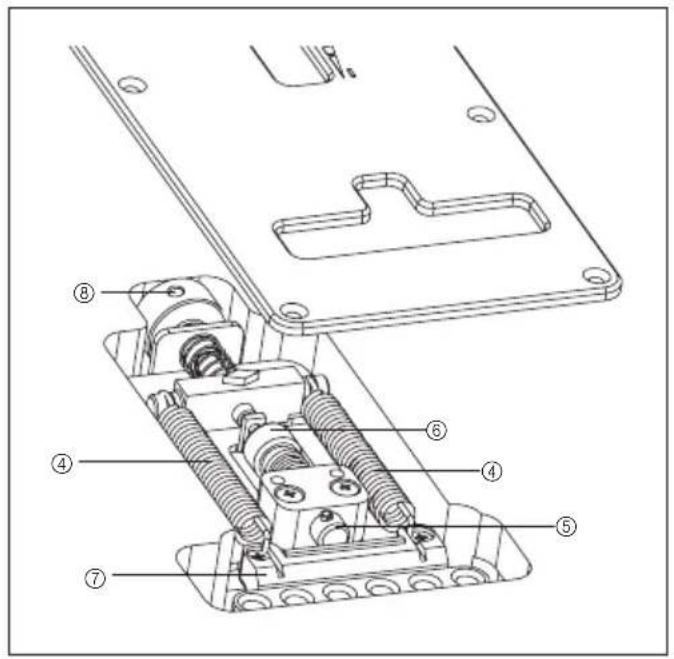

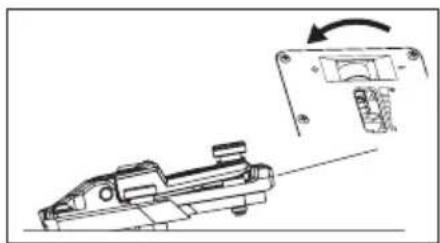

・ゼロ・ポイント・システム搭載モデル

Technical line drawing of a mechanical component with spring and housing, showing assembly and disassembly views (no text or symbols)

Technical line drawing of a mechanical assembly with spring components and a close-up view of a switch (no text or symbols)

Diagram showing a car on a road with an arrow indicating direction, alongside a mechanical component (no text or symbols present)

Technical illustration of a mechanical assembly with rotating components and a cross-sectional view (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

ご注意

Mechanical assembly diagram showing piston and crankshaft components (no text or labels)

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

ご注意

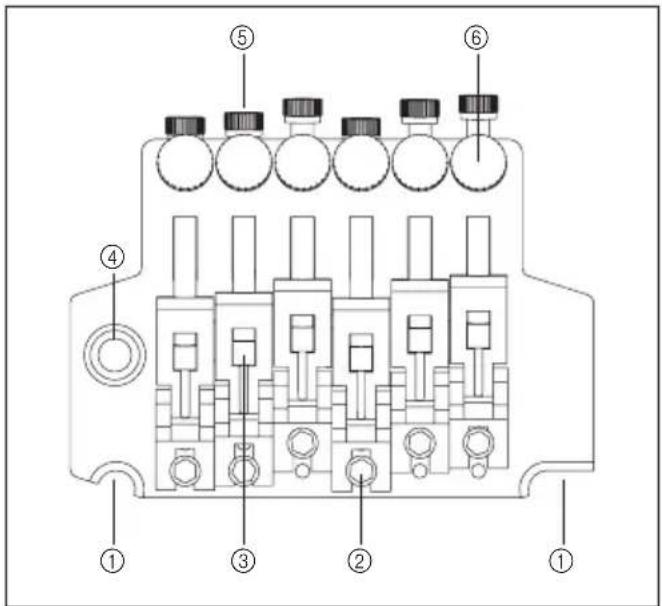

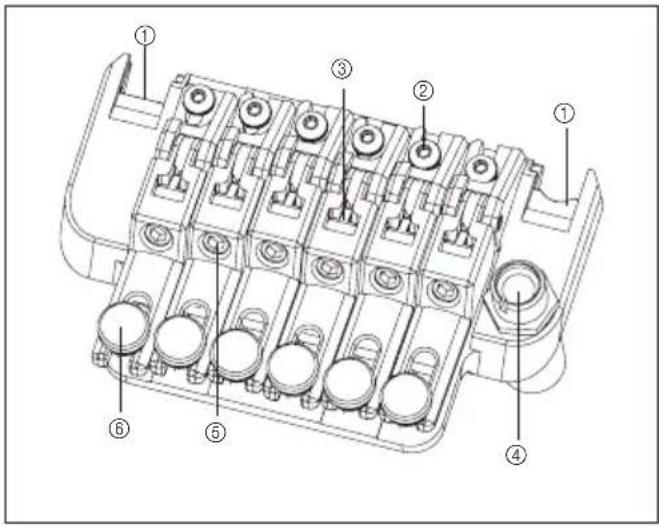

正面
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure mechanical assembly diagram showing spring-loaded components and a close-up of a switch mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with spring-loaded components and a separate view showing a switch mechanism (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a rotating lever mechanism (no text or symbols)

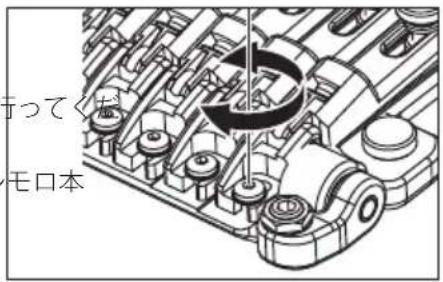

Technical diagram of a mechanical assembly with no visible text or symbols

行ってお モロ本

弦交换

Technical line drawing of a mechanical component with multiple cylindrical features and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

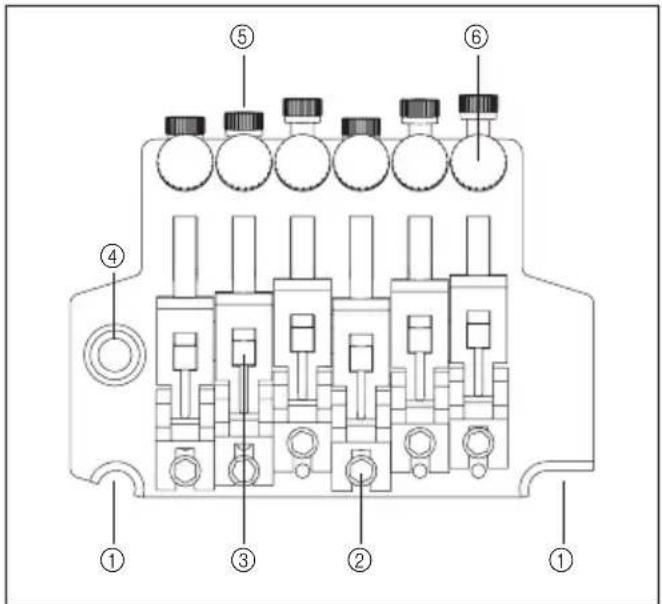

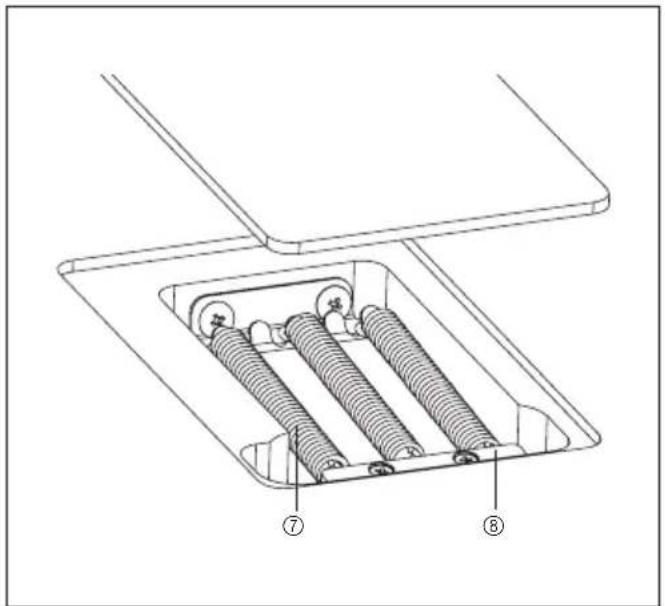

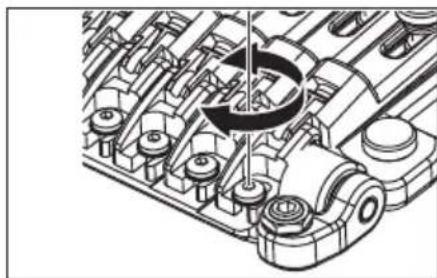

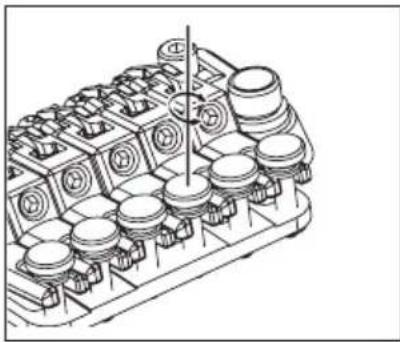

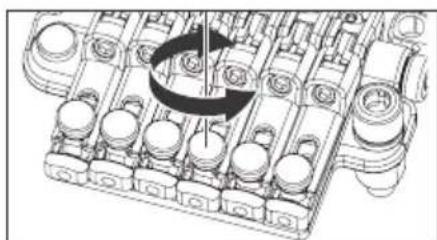

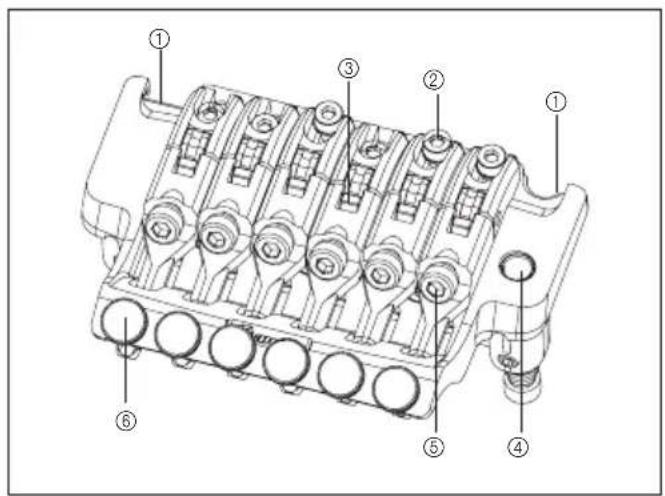

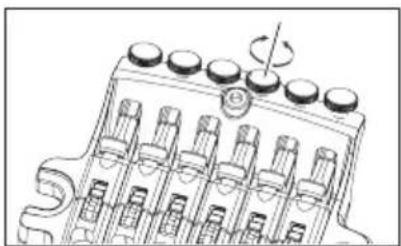

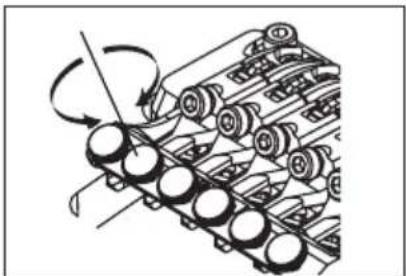

ファイン・チューニング

正面
Technical diagram of an electrical contactor with numbered components for identification

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical or electrical component with no visible text or symbols

ご注意

Pure electrical circuit lines without any symbols

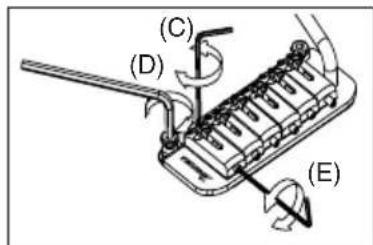

弦交换

Pure electrical circuit lines without any symbols

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

ご注意

Mechanical assembly diagram showing gear and shaft components with directional arrows (no text or labels)

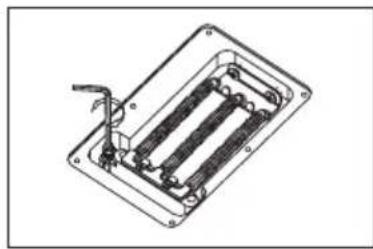

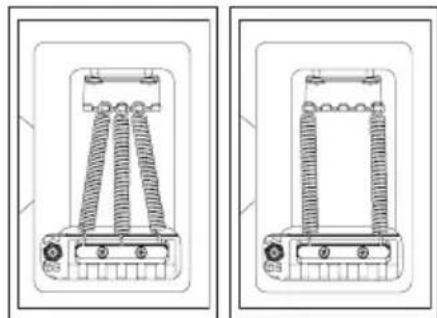

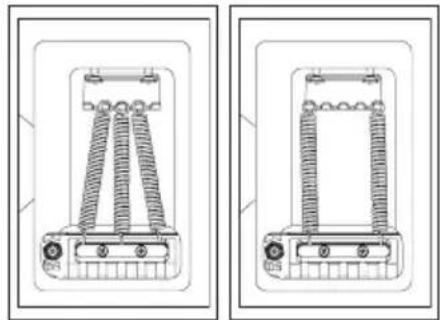

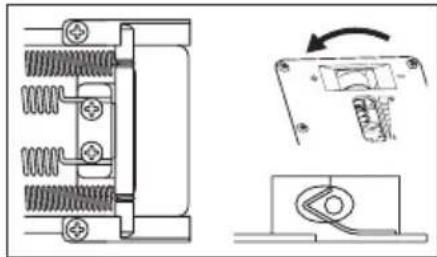

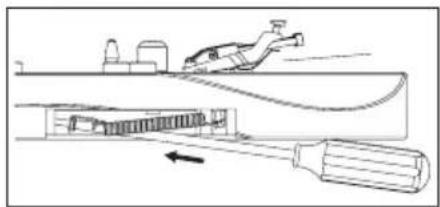

トレモロの取り付け角度調整

Diagram of a vehicle with a moving device and directional arrow indicating motion (no text or symbols)

Line drawing of a dump truck with an arrow indicating motion, next to a mechanical component (no text or symbols)

Technical diagram of a mechanical assembly with gears and a central component, no visible text or symbols

い。 全

Mechanical assembly diagram showing a row of gears and shafts with a rotating wheel (no text or labels)

Technical line drawing of a mechanical assembly with multiple cylindrical components and a central rotating component (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

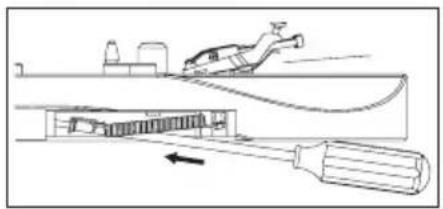

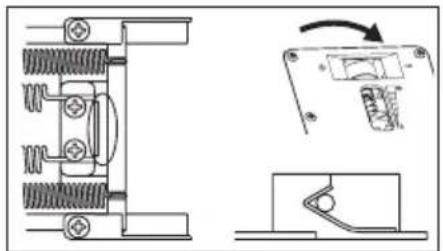

トレモロアームの取り付け

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force.

约3mm

Technical illustration of a mechanical assembly with no visible text or symbols

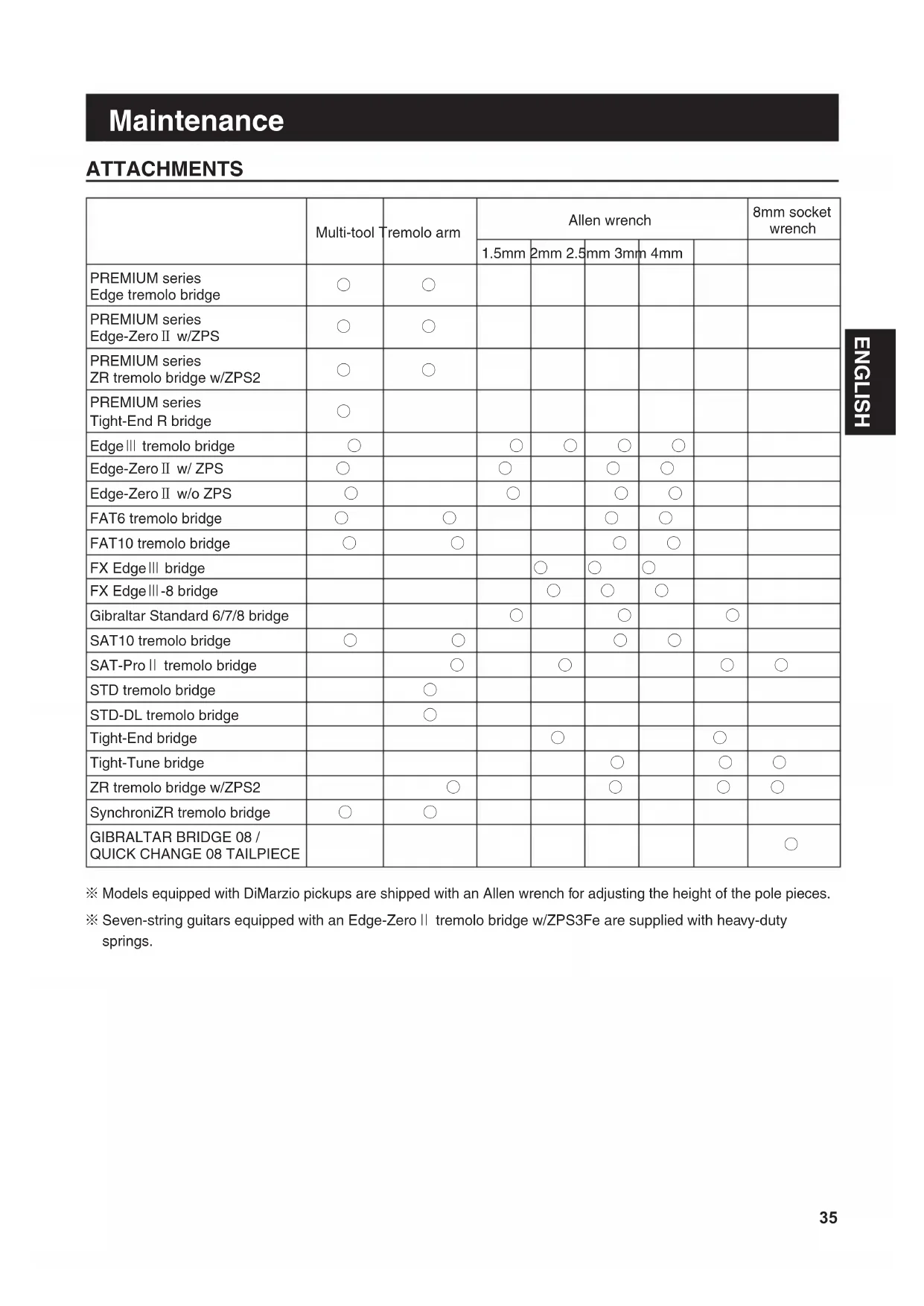

※ Models equipped with DiMarzio pickups are shipped with an Allen wrench for adjusting the height of the pole pieces.
※ Seven-string guitars equipped with an Edge-Zero II tremolo bridge w/ZPS3Fe are supplied with heavy-duty springs.

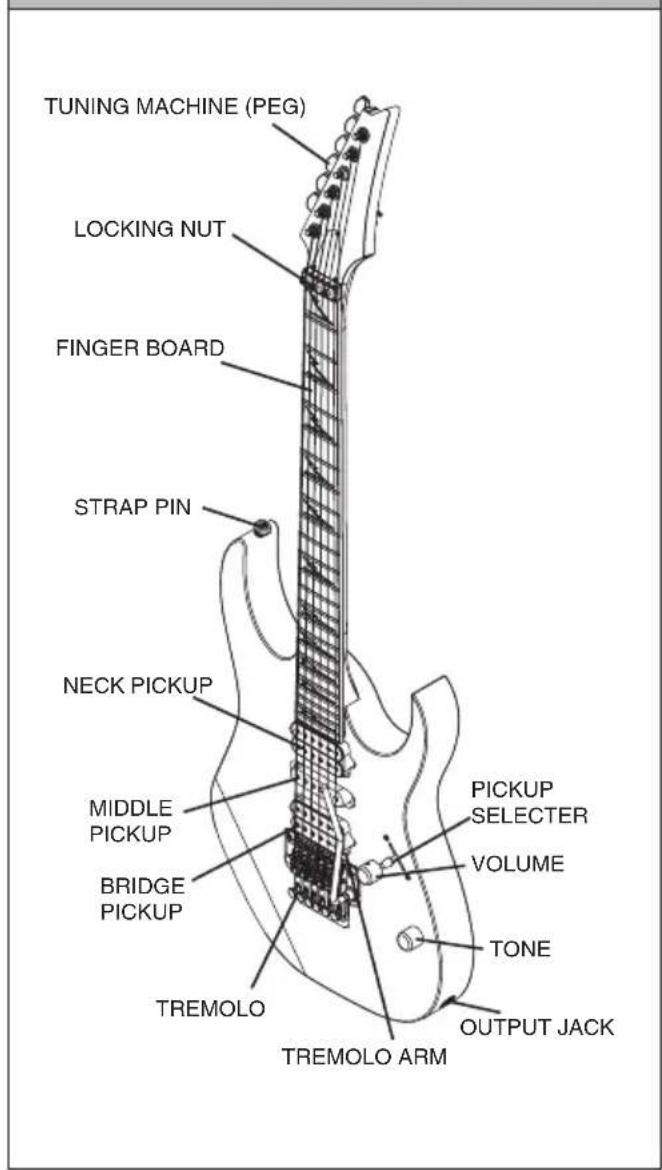

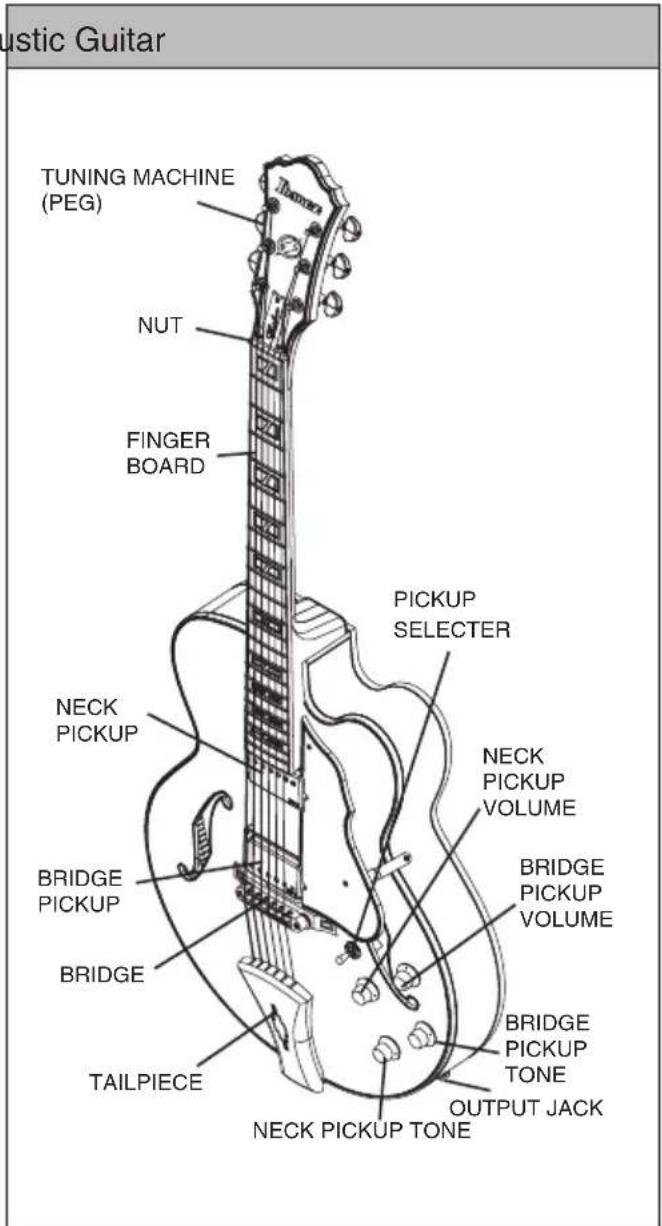

Electric Guitar Semi or Full Acoustic Guitar
TUNING MACHINE (PEG) LOCKING NUT FINGER BOARD STRAP PIN NECK PICKUP MIDDLE PICKUP BRIDGE PICKUP TREMOLO TREMOLO ARM PICKUP SELECTER VOLUME TONE OUTPUT JACK

TUNING MACHINE (PEG) NUT FINGER BOARD NECK PICKUP BRIDGE PICKUP BRIDGE TAILPIECE PICKUP SELECTER NECK PICKUP VOLUME BRIDGE PICKUP VOLUME BRIDGE PICKUP TONE OUTPUT JACK NECK PICKUP TONE

※ These illustrations show typical Ibanez models. The guitar you purchased might not match the illustration.
※ Tremolo/bridge adjustments will differ depending on the type of tremolo/bridge that is installed. For details, refer to the applicable tremolo/bridge section.
※ For details on the controls of each model, refer to the "Controls" section (p.228).

When shipped from the factory, Ibanez guitars are set up using the following tunings.

1st 2nd3rd 4th 5th6th 7th 8th
6-strings E4B3 G3 D3A2 E2 - -
7-strings E4B3 G3 D3A2 E2 B1 -
8-strings D#4A#3 F#3C#3 G#2 D#2D#2 F1

Note that following models are set up differently.

Baritone guitar

1st2nd3rd4th5th6th7th8th
BF#DAEB--

RGD、APEX

1st2nd3rd4th5th6th7th
6-stringsD4A3F3C3G2D2-
7-stringsD4A3F3C3G2D2A1

MTM100

1st2nd3rd4th5th6th7th8th
C#G#EBF#B--

TAM10

1st2nd3rd4th5th6th7th8th
EBGDAEBE

Use a tuner or tuning fork to tune up the sound of each open string to the above frequencies. If the pitch is higher than the above frequency, loosen the string to lower the pitch, and wind the string in small increments to tune it up. This is an easy way to stabilize your tuning. You may need to adjust the neck or the intonation if you tune your guitar to pitches other than those shown in these tables, or if you use strings of other than standard gauge.

For details on adjusting the neck or the intonation, refer to the sections "NECK ADJUSTMENT" (p. 38) or "INTONATION" (p. 38).

Memo

- Please note that extreme tuning or use of strings not intended for electric guitar may cause parts to break, and may cause unexpected injury.

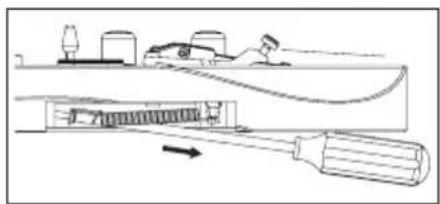

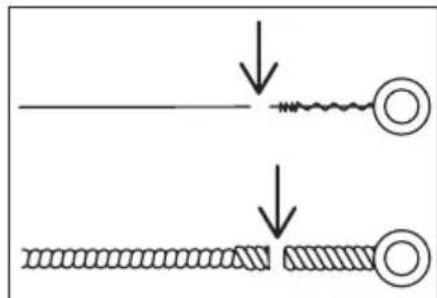

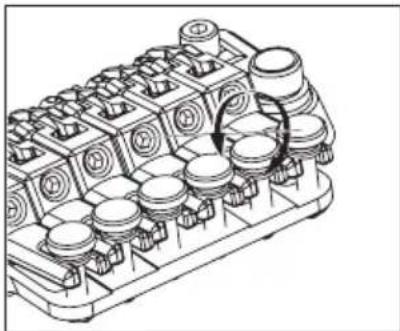

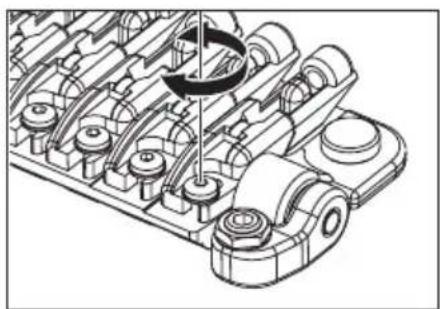

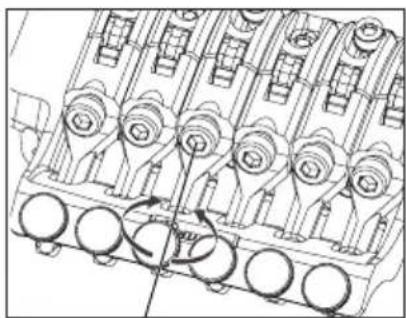

STRING REPLACEMENT

Strings will deteriorate over time, causing buzzing or inaccurate pitch. Replace the strings whenever your strings begin to rust or become discolored. We recommend that you replace all of the strings as a set at the same time. Bent, twisted, or damaged strings will not produce the appropriate quality sound and therefore should not be used.

Technical line drawing of two mechanical components with threaded ends and flanges (no text or symbols)

Wind the string around the tuning machine post two or three times from above, using about 5--7 cm of length and taking care that the string does not cross itself. The strings should be replaced one by one instead of removing all the strings at once. This is done to avoid stress on the neck and to reduce the risk of affecting tremolo balance.

※The method for removing and installing strings attached to a tremolo/bridge will differ depending on the type of tremolo/bridge. For details, refer to the section for the tremolo/bridge installed on your guitar.

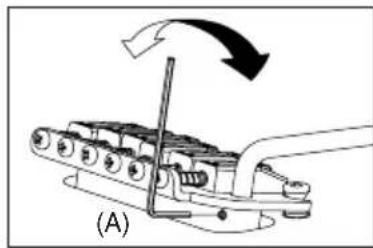

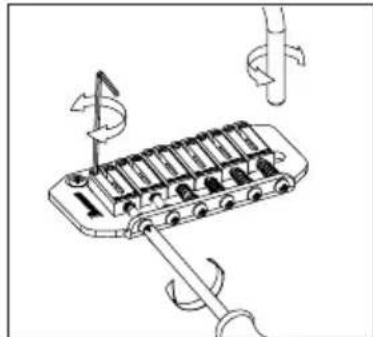

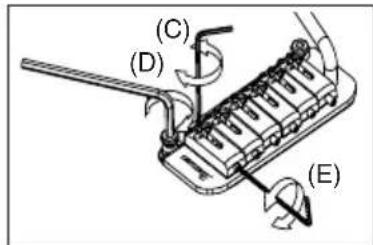

STRING HEIGHT

Action refers to the distance between the frets and the string.

To measure the action, tune the guitar accurately; then place a ruler at the 14th fret and measure the distance from the top of the fret to the bottom of the string. In general, this distance should be 1.5--1.7 mm for the first string, and 2.0 mm--2.2 mm for the sixth string.

For a seven-string guitar, the seventh string should be at 2.2 mm--2.4 mm. For an eight-string guitar, the eighth string should be at 2.4 mm--2.6 mm.

Diagram showing a measurement setup with a ruler and pointer, likely illustrating a physical or engineering concept.

For strings other than those listed above, adjust the action so that the distance gradually increases from the first string toward the lowest string.

If the action is too high, the instrument will be difficult to play. If the action is too low, you may experience string buzz, muted notes, or poor sustain.

If you experience string buzz or muted notes even when the action is adjusted correctly, you might need to adjust the neck bow.

For details, refer to "Neck" (p. 38).

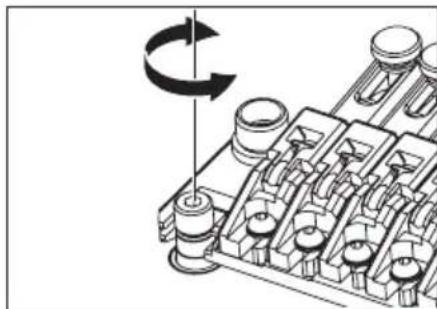

※ The method of adjusting the action will depend on the type of tremolo/bridge with which your guitar is equipped.

For details, refer to the appropriate tremolo/bridge section.

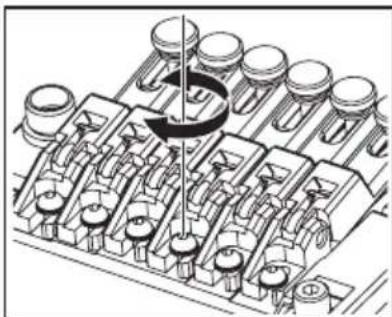

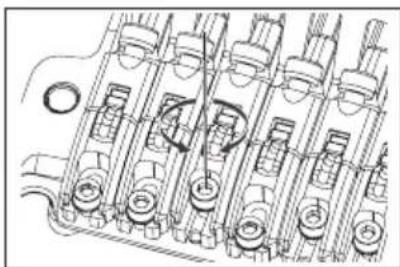

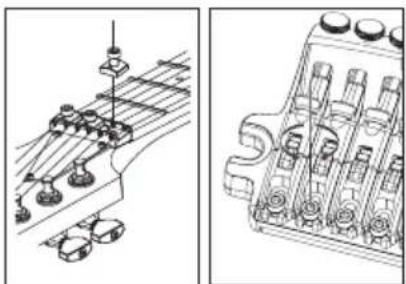

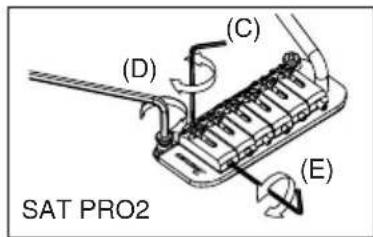

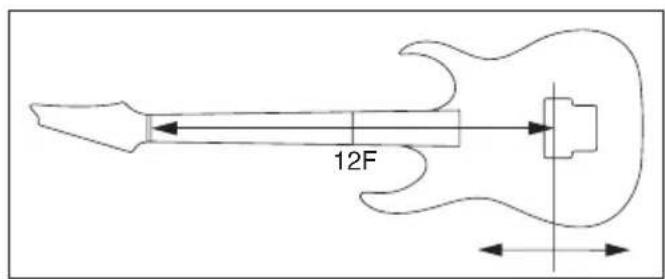

INTONATION

If you've changed string gauges or are using your guitar with an alternative tuning, you'll need to adjust the string length (intonation) to ensure that the correct pitch is sounded at all frets.

After tuning your guitar accurately, hold the guitar in playing position and compare the pitch of each string pressed down at the 12th fret with the pitch of the harmonic played at the 12th fret.

If the pitch of the fretted note at the 12th fret is

12F

lower than the harmonic at that fret, move the saddle of the tremolo/bridge forward to shorten the string.

Conversely, if the pitch of the fretted note is higher than the pitch of the harmonic, move the saddle backward to lengthen the string.

Use a tuning meter to ensure accurate intonation adjustments. ※

※ The method of adjusting the saddle position will differ depending on the installed model of tremolo/bridge. For details, refer to the section for the tremolo/bridge that's installed on your guitar.

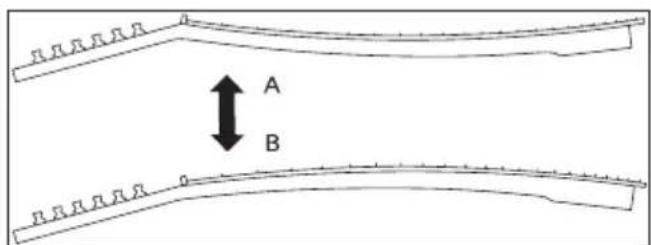

NECK ADJUSTMENT

The neck is constantly bearing the tension of the strings, and its curvature will be subtly affected not only by the state of tuning and the string gauge, but also by changes in temperature and humidity.

If you experience problems such as string buzz or muted notes even after the action and tuning are adjusted correctly, you should check and adjust the curvature of the neck.

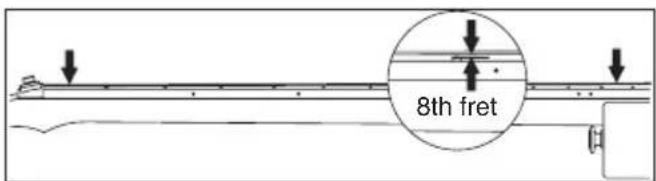

① Check the curvature of the neck.

After tuning accurately, hold the guitar in playing position. Then press the first string at the first fret and also at the fret that is nearest to the point where the neck joins the body, and measure the gap between the string and fret at the eighth fret.

In the same way, measure this gap for the lowest string, and make adjustments so that the gaps are in the range of 0.3 mm--0.5 mm.

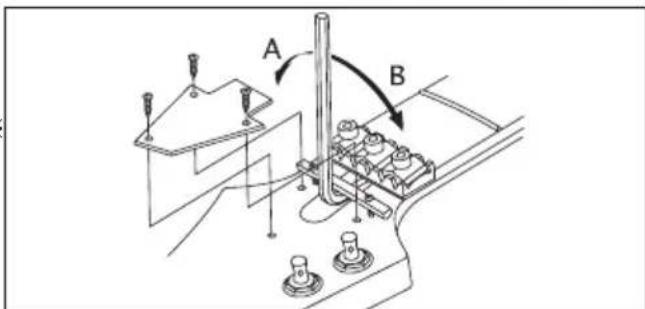

② If the gap is less than 0.3 mm, use the Allen wrench or socket wrench included with the guitar to turn the truss rod nut located at the headstock end of the neck in direction 'A', causing the neck curvature to be more convex.

8th fret

A B

3 If the gap is greater than 0.5 mm, turn the Allen wrench or socket wrench in direction 'B', causing the neck curvature to be more concave.

Adjust the truss rod nut in small increments of a quarter ✉ turn, checking the tuning while you do so.

Technical diagram showing mechanical assembly with labeled components A and B, likely illustrating a turning or mounting process.

Memo

You must take care when adjusting the neck.

Forced adjustments can damage your guitar. If you are unable to adjust the neck correctly, please contact your Ibanez authorized dealer.

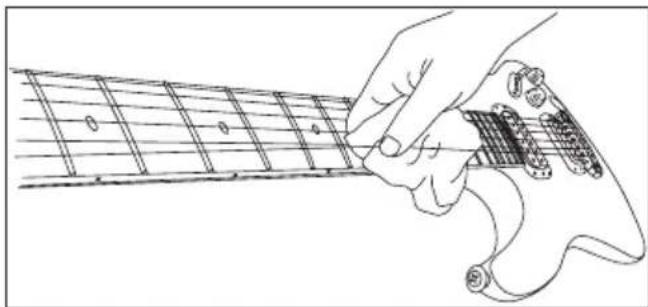

CLEANING

After playing, wipe sweat and oil off metal parts such as the underside of the strings, the frets, bridge saddles and nut. This will help to prevent rust.

Dirt or dust that adheres to metal parts may adversely affect their function. Wipe off stubborn dirt with a soft cloth moistened with a small amount of oil.

Line drawing of a hand playing guitar chord with fretboard and fretboard (no text or symbols)

If the tremolo arm should squeak when turning, apply some grease to the notch on the shorter side of the tremolo arm.

To clean the fi nished surface, do not use volatile or abrasive cleaning compounds; instead gently wipe using a soft cloth with polish formulated specifi cally for musical instruments.

Simple line drawing of a bent pipe with an arrow indicating direction (no text or symbols)

To clean off dirt that has adhered to an oil fi nished body or neck, use a pencil eraser, fi ne sandpaper of #1000 or fi ner grade, or #0000 steel wool. You can prevent drying by polishing once or twice a year with a colorless furniture fi nish oil or gun oil applied to #0000 steel wool or a cloth. Unfi nished fi ngerboards should be carefully wiped with a cloth moistened with a small amount of fi ngerboard oil or high-quality lemon oil, wiping carefully to the edge of the frets.

BATTERY

If your guitar has a built-in pre-amplifi er or equalizer, it will be powered by a battery. Replace the battery when you notice that the volume level has decreased or the sound has become distorted.

Some models use a 006P (9V) battery, and other models use two AA (1.5V) batteries.

Check the type of batteries used by your guitar, and replace them with the same type of batteries.

The batteries are found in the battery box located on the back of the body.

On models equipped with a battery, the output jack also functions as a power switch; inserting a plug into the jack will turn on the power.

Memo

- To prevent the battery from running down, remove the plug from the output jack if you will not be using it for an extended period.

Guitar Bridges

GIBRALTAR III (GUITAR & BASS), CB3, & FULL TUNE III, ART1, ART2

The action can be adjusted by using a slot head (-) screwdriver to turn the adjustment bolt at either end (A).

Intonation can be adjusted by moving the saddle forward or backward by turning the intonation adjustment screw (B) at the rear of the bridge. You can use either a Phillips (+), a fl at head (-) screwdriver, or the optional hex wrench.

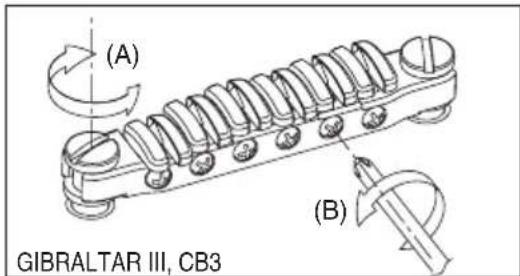

(A) (B) GIBRALTAR III, CB3

(A) (B) FULL TUNE II, ART1, ART2

Technical line drawing of a mechanical component with multiple cylindrical parts and mounting holes (no text or symbols)

REPLACING THE STRINGS : CB3

Install strings by inserting them from the front of the bridge.

Before adjusting the action on the Gibraltar III bridge, loosen the strings suf-※fi ciently so that you will not need to turn the screws with excessive force, which could damage the screw holes.

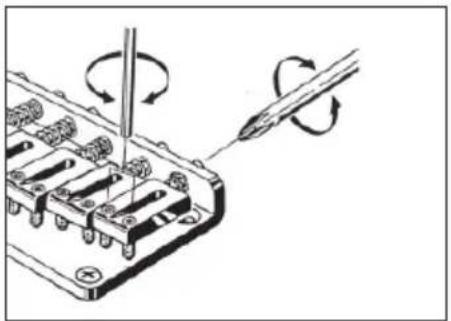

HARDTAIL BRIDGE

To change strings, thread the new strings through the string grommets located on the back of the guitar and bring them up and over the saddle. The intonation can be adjusted by adjusting the saddle forward or backward using a Phillips (+) head screwdriver on the intonation adjustment screw at the rear of the bridge. String height is controlled by raising or lowering the small Allen screws using a wrench on either side of the saddle.

The adjustment method is the same for 7-string and 8-string models. ※

Diagram of a screwdriver working on an electronic component with rotating arrows indicating motion (no text or symbols present)

GIBRALTER STANDARD BRIDGE (7-STRING / 8-STRING MODELS)

To install a new string, pass it through the string stopper ferrule from the back of the guitar body.

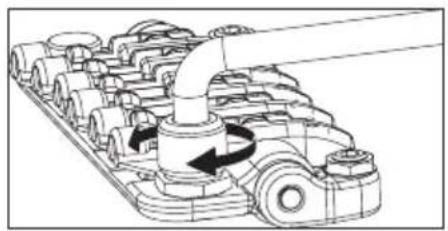

To adjust the height of the strings, use a 1.5mm hexagonal wrench to turn and adjust the height of each saddle (A).

To adjust the intonation, use a 2.5mm hexagonal wrench to turn the intonation adjustment screws of each saddle on the back of the bridge (B).

The adjustment method is the same for 7-string and 8-string models. ※

(A) (B)

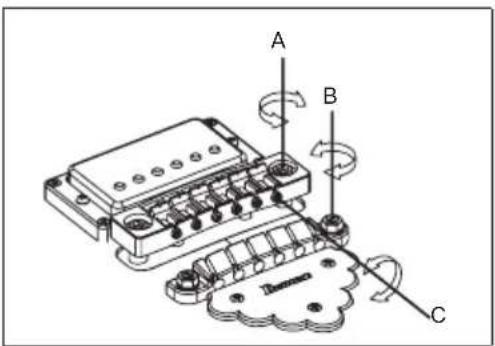

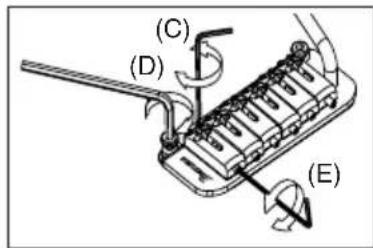

GIBRALTAR BRIDGE 08 / QUICK CHANGE 08 TAILPIECE

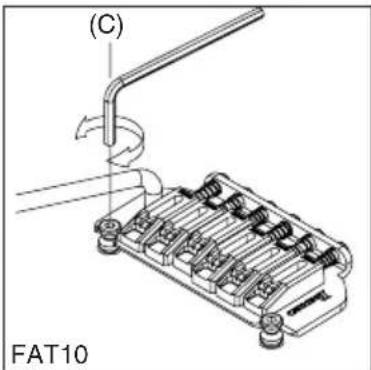

To adjust the string height, turn the stud bolts located at the left and right ends of the bridge (A) using a slotted (-) screw driver. Before adjustment, loosen the lock nut using an 8mm nut driver. After adjustment, tighten the lock nut again to fix the bridge.

To adjust the tailpiece height, turn the adjustment screws (B) on both sides with a slotted (-) screw driver. Before adjustment, loosen the lock nut. After adjustment, fix it again in the same way as the bridge. If the lock nut of the bridge and tailpiece is loose, it may cause distortion or resonance. Raising the tailpiece will reduce the string tension, which will provide a softer feel and make it easier to bend the strings.

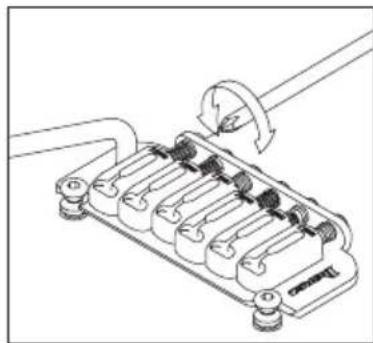

To adjust the intonation of each saddle, turn the intonation adjustment screw using a slotted (-) screw driver (C).

Technical diagram of an electrical component with labeled parts A, B, and C, showing internal wiring and mounting features.

ADJUSTABLE ARCH TOP BRIDGE

To adjust the string height, adjust the height of the entire bridge by using your fingers to turn the thumb wheel screws (A) located at either side of the bridge. (It is not possible to individually adjust the height of each string.)

To adjust the intonation, loosen the strings and move the entire bridge forward or backward; then tune the guitar and check the intonation. Repeat this adjustment until the intonation is correct. Take care that the bridge does not fall over.

When replacing the strings, it is recommended that they be replaced one by one so that the bridge does not become displaced.

Technical line drawing of a mechanical component with labeled dimensions A and B (no text or symbols beyond labels)

Vintage Vibrato

Replace the strings one by one. Fix the ball end onto the post of the bar (B), extend the string over the bar, and then

wrap it around the peg. For a model with a retainer bar (A), VBX60/VBX80, pass the string over the bar and then beneath the retainer bar before wrapping it around the peg. While replacing strings, always pull the string lightly toward the headstock and exercise care not to allow the ball-end to go off the post. Check that the string is correctly placed on the saddle while tuning. After completing tuning, proceed to replacement of the next string. After finishing replacing all strings, carry out tuning again for the entire unit.

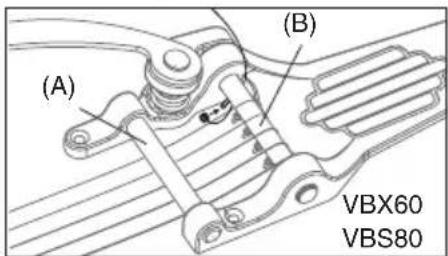

(A) (B) VBX60 VBS80

Memo

Removing all strings at the same time may have a serious impact on the state of each section of the guitar due to sudden changes of tension imposed on the guitar. Be sure to replace the strings one by one.

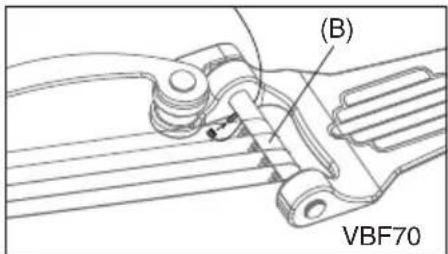

(B) VBF70

Tailpieces

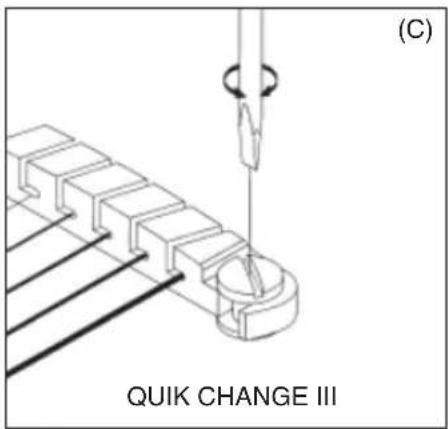

QUIK CHANGE TAILPIECES

To adjust the height of the tailpiece, turn the stud bolt on the right and left ends of the tailpiece with a slot head screwdriver or a coin.

To install a new string, pass it through the slot of the tailpiece and hook the ball end into the back of the tailpiece.

(C) QUIK CHANGE III

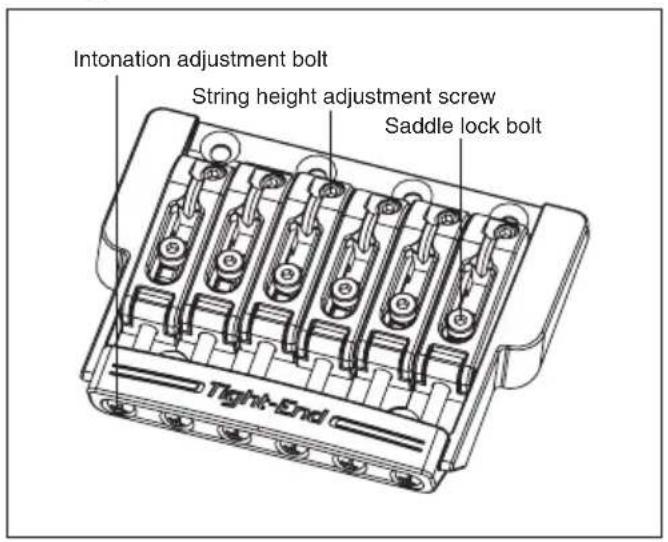

Tight-End bridge / Tight-End R bridge (for 6-string and 7-string)

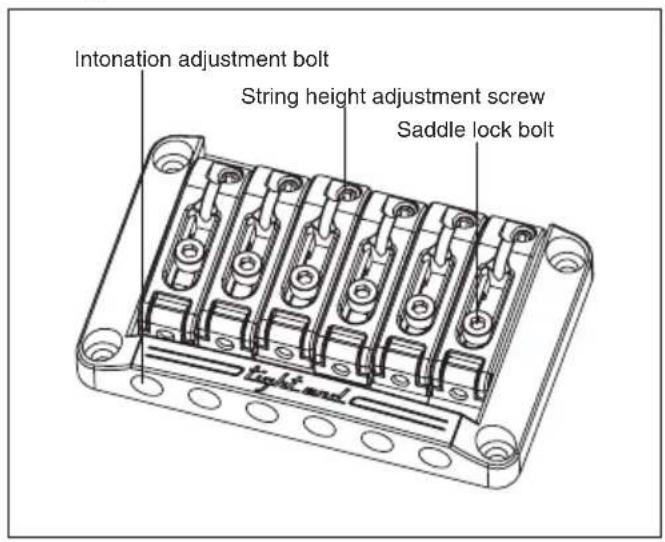

Tight-End
Intonation adjustment bolt String height adjustment screw Saddle lock bolt

Tight-End
Intonation adjustment bolt String height adjustment screw Saddle lock bolt Tight-End

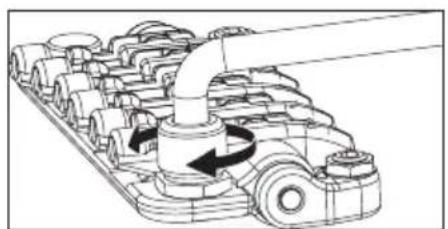

ADJUSTING THE ACTION

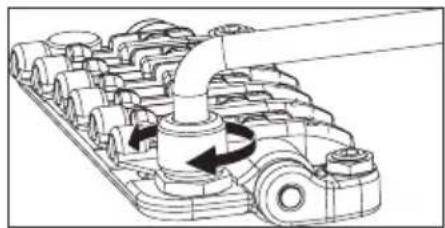

① Use an Allen wrench (2 mm) to loosen the saddle lock bolts.
② To adjust the saddle height, use the Allen wrench (2 mm) to turn the saddle height adjustment screws.
※ When you've finished making adjustments, tighten the saddle lock bolts.

Technical diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols present)

Diagram of a battery pack with rotating arrow indicating rotation (no text or symbols)

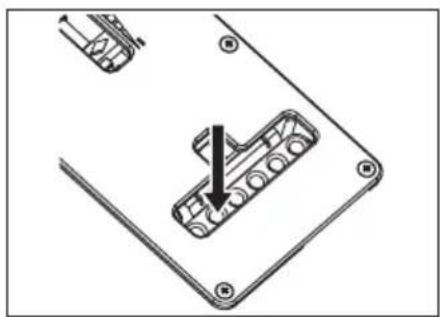

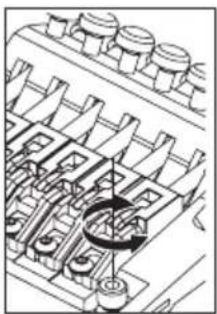

ADJUSTING THE INTONATION

① Use an Allen wrench (2 mm) to loosen the saddle lock bolts.
② Use a Phillips screwdriver to adjust the saddle position by turning the intonation adjustment bolt.
③ Use an Allen wrench (2 mm) to tighten the saddle lock bolts, and use a Phillips screwdriver to lightly tighten the intonation adjustment screw in the clockwise direction. (Tighten lightly, so as not to affect the saddle position.)

Technical diagram of a mechanical component with rotating shaft and housing (no text or symbols)

Diagram of a mechanical component with multiple slots and a curved arrow indicating rotation (no text or symbols)

Make sure that the guitar is tuned correctly before you check the intonation. ※

STRING REPLACEMENT

To install a new string, pass it through the string stopper ferrule from the back of the guitar body.

TIGHT-TUNE BRIDGE

The Tight-Tune bridge achieves the optimum level of stability and sound transference while suppressing unnecessary vibrations by allowing each movable part of the bridge to be locked. The bridge has a stud lock function for fi xing the bridge more securely onto the body. Furthermore, the tailpiece is equipped with a ball-end lock function to retain the ball end so that it will not come off.

ADJUSTING THE ACTION

Loosen the locking nuts (D) on the right and left sides of the bridge unit, and adjust the height of the bridge unit by turning the stud lock screws (E) with a 3 mm Allen wrench. Note that it is not possible to adjust the height of individual strings. After completing the adjustment, tighten the locking nuts.

STUD LOCK FUNCTION

After adjusting the action, turn the stud lock bolt (B) clockwise inside the stud bolt with a 2 mm Allen wrench. Keep tightening until the stud lock bolt contacts the anchor bolt (C) and the bolt cannot be turned any further.

Memo

When adjusting the action, be sure to fully loosen the stud lock bolt (B) beforehand by turning it counterclockwise with a 2 mm Allen wrench. Otherwise, damage may occur.

ADJUSTING THE INTONATION

Loosen the saddle lock screws (G) with a Phillips screwdriver, and turn the intonation adjustment screw (H) with a Phillips screwdriver to adjust the saddle position. Tune the guitar and check the intonation. Repeat these adjustments until the required intonation is reached, and then tighten the saddle lock screws.

Memo

A loose intonation adjustment screw (H) may cause resonance. If this occurs, gently tighten the intonation adjustment screw, exercising care not to allow the saddle to move.

REPLACING THE STRINGS

Insert the ball-end of the string into the slot of the tailpiece in the direction shown by arrow (J). The ball-end lock function retains the ball-end. To remove the string, pull it toward direction (K).

A B C

F E D G H

J K

Locking Bridge

FX EDGE III/FX EDGE III-8 BRIDGE

FX Edge III
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

① Main stud
② Saddle lock bolt
③ String holder block
④ String stopper bolt
⑤ Rear stud
⑥ Fine tuning bolt

ADJUSTING THE ACTION

① To adjust the string height, use a slotted screwdriver to turn the main studs at the left and right of the bridge unit to adjust the height of the entire tremolo unit. (It is not possible to adjust the height of individual strings.)
② Use an Allen wrench (3 mm) to turn the rear studs, adjusting them so that the bridge is approximately parallel with the surface of the guitar body.

Technical diagram of an internal combustion engine cylinder with no visible text or labels

As the action will change when you adjust the rear studs, it is recommended ※ that you check the final action after you've adjusted the rear studs.

To prevent the screw holes from being damaged, loosen the strings sufficiently before you adjust the main studs so that you will not have to use excessive force when turning the studs.

ADJUSTING THE INTONATION

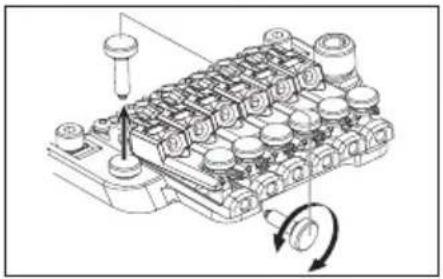

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings sufficiently.
② Use an Allen wrench (2 mm) to loosen the saddle lock bolt, and adjust the saddle position.

Before checking the intonation, fi rmly tighten the saddle lock bolts and tune ※ the guitar correctly. When you've fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

Technical line drawing of mechanical components and housing assembly (no text or symbols)

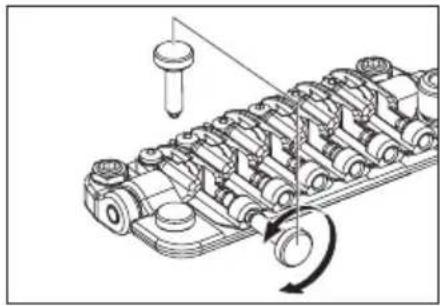

REPLACING THE STRINGS

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg.
② Use an Allen wrench (3 mm) to loosen the string stopper bolt of the bridge unit, then pull the string out of the saddle and remove it.
③ Use wire cutters to cut off the ball end of the new string.
④ Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string.
⑤ Wind the string onto the tuning peg, and tune it.
⑥ When you've fi nished tuning, tighten the pressure pad bolts of the locking nut

Technical line drawing of a mechanical component with multiple cylindrical features and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Memo

- Before you tune, make sure that the string stopper bolts are firmly tightened.

FINE TUNING

Even after you've used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string.

The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune.

Technical line drawing of a mechanical component with multiple cylindrical parts and a central knob (no text or symbols)

Locking Tremolos

EDGE TREMOLO BRIDGE

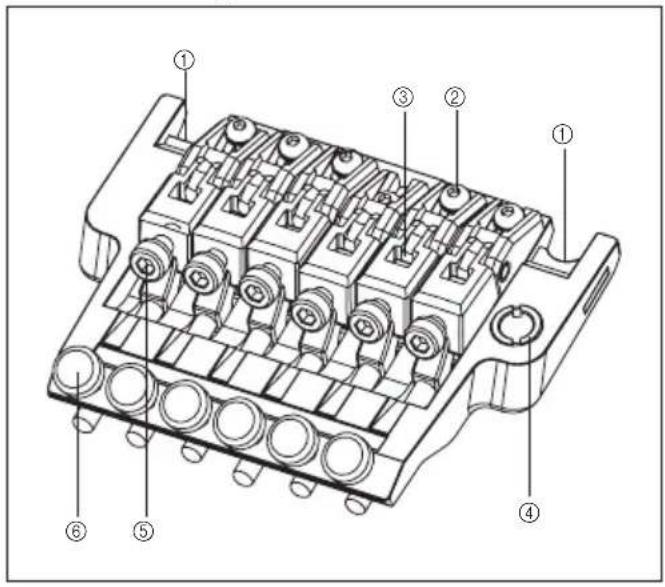

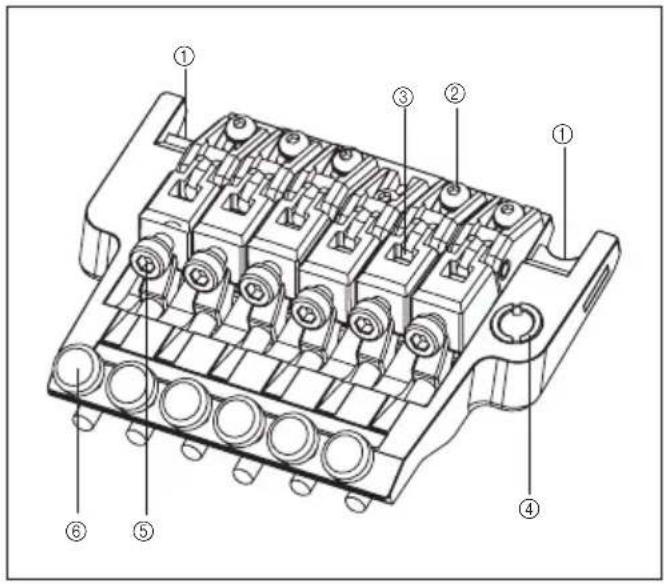

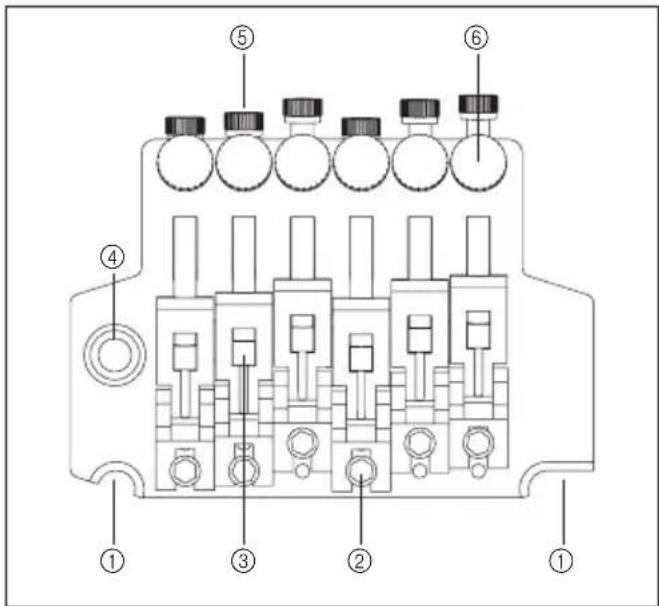

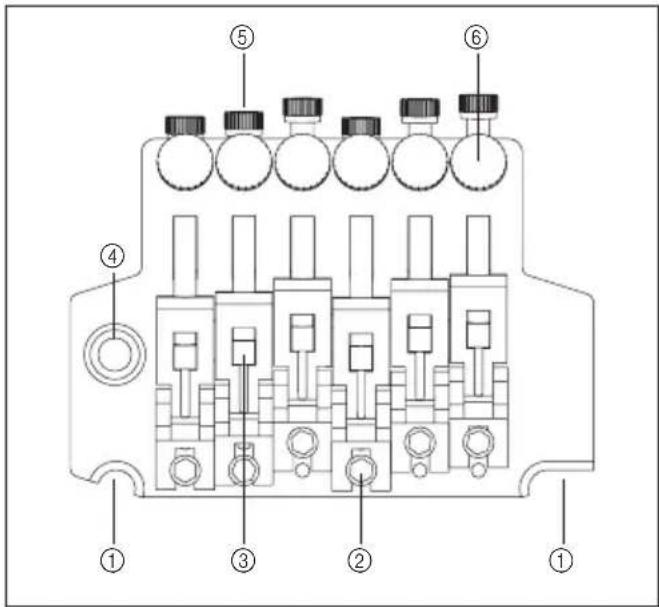

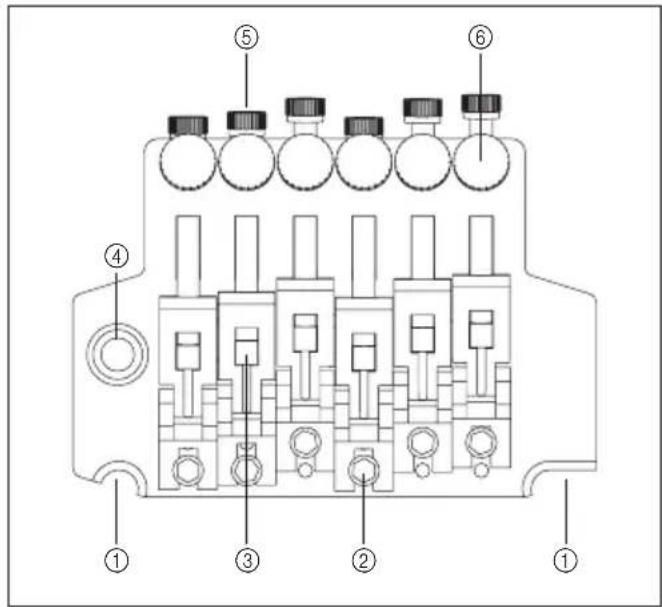

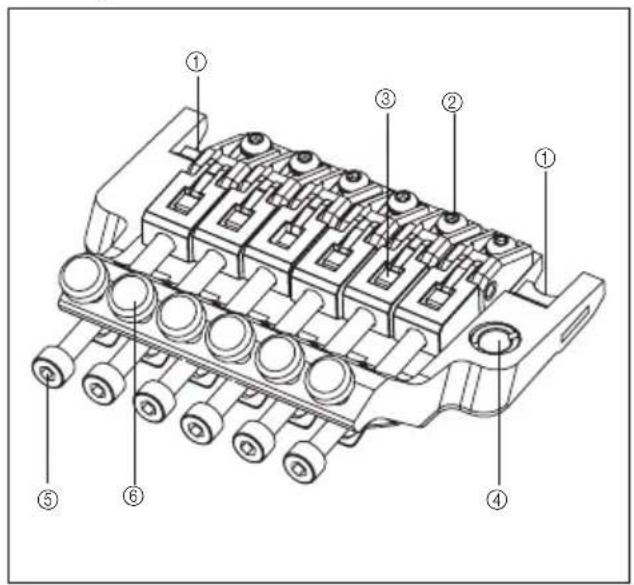

Edge

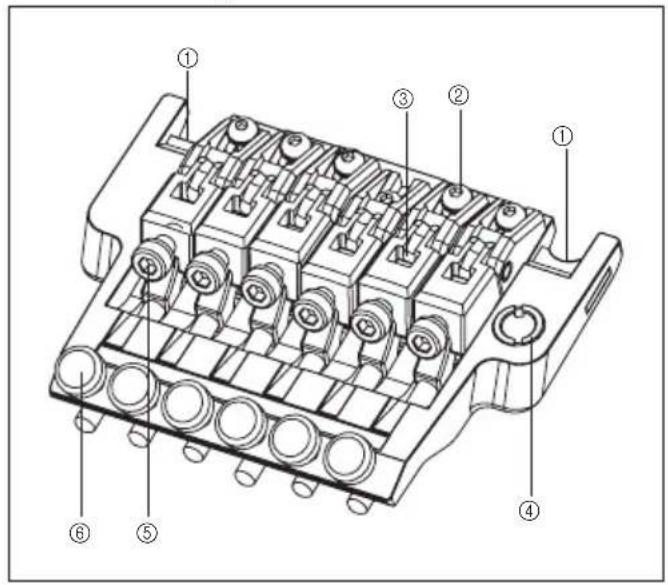

Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

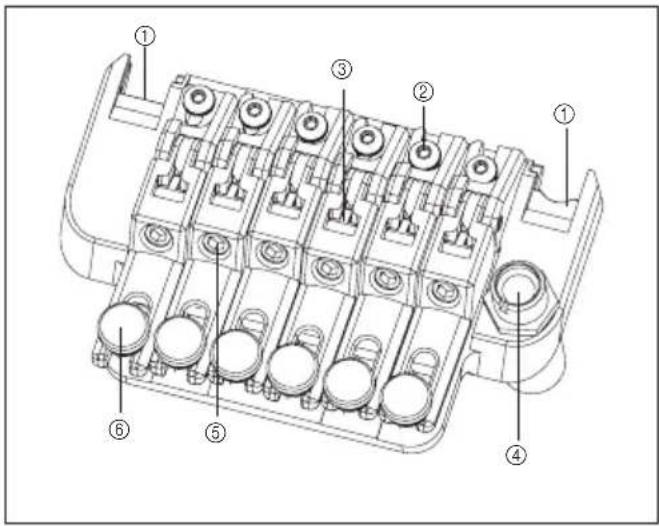

Lo-Pro Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

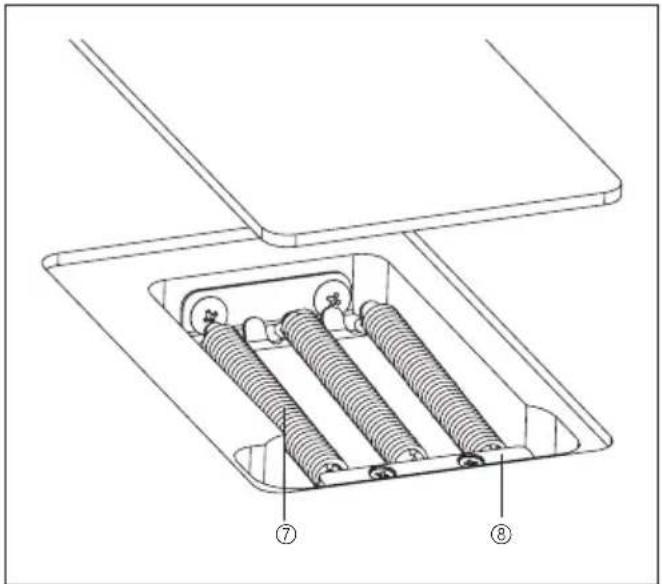

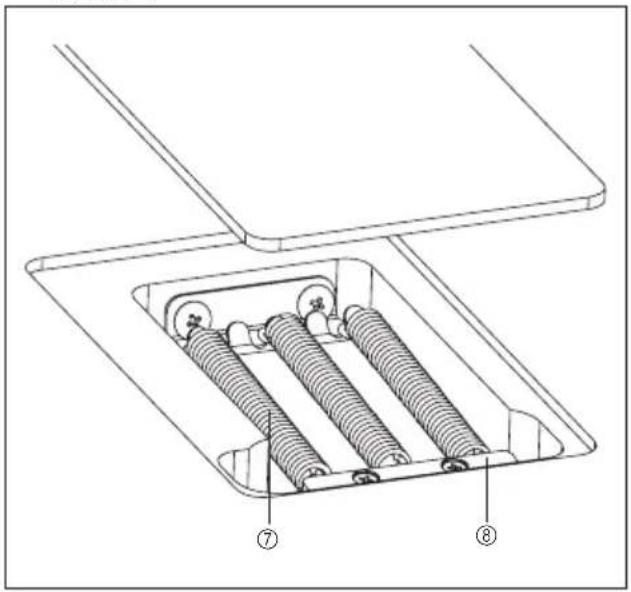

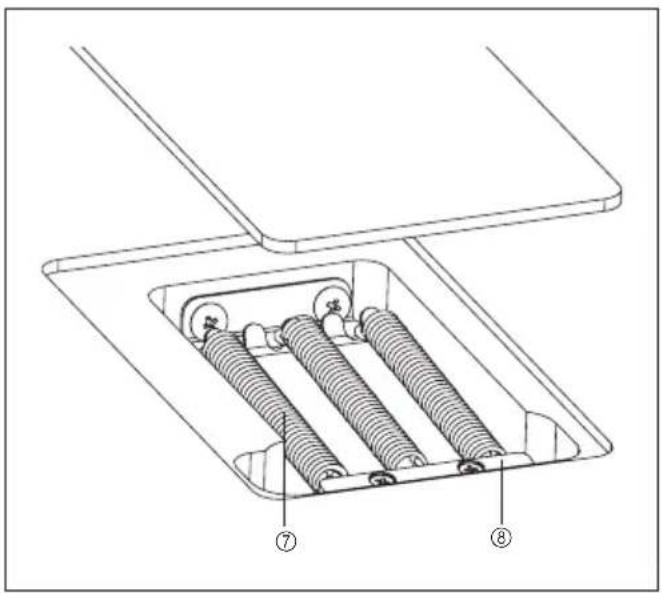

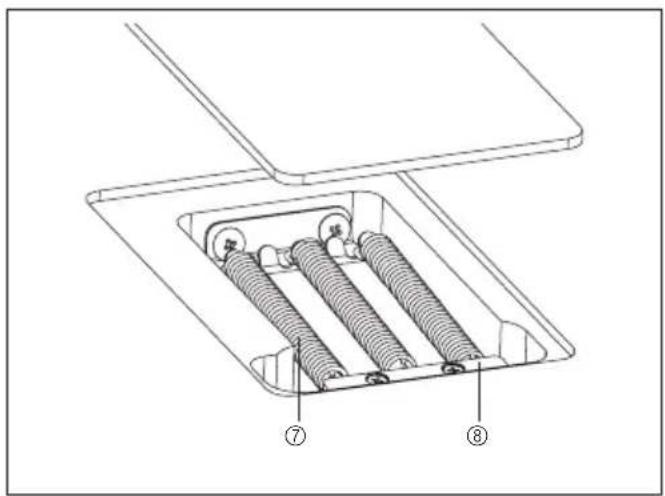

Rear
Technical diagram of a mechanical assembly with labeled parts ⑦ and ⑧, showing internal components in a housing.

① Knife edge
② Saddle lock bolt
③ String holder block
④ Tremolo arm socket
⑤ String stopper bolt
⑥ Fine tuning bolt
⑦ Tremolo spring
⑧ Spring lock

ATTACHING THE TREMOLO ARM

① The tremolo arm employs a snap-in/snap-out design. Hold the corner of the tremolo arm, and press it firmly into the arm socket of the base plate.

Technical line drawing of a mechanical or electrical component assembly (no text or symbols visible)

② The tightness of the tremolo arm attachment can be adjusted by adding or removing Tefl on washers. Using a larger number of washers will make the attachment tighter, and removing all the washers will leave the arm free. The Tefl on washers can be added or removed diagonally via the slit.

Memo

If the arm is no longer held firmly in place even after you've added Tefl on washers, replace the old Tefl on washers with new ones.

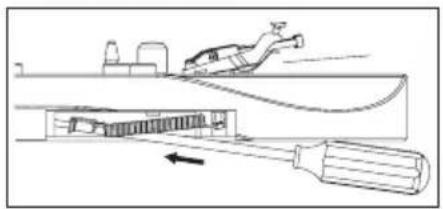

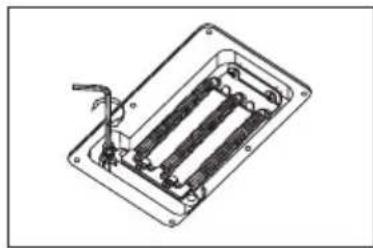

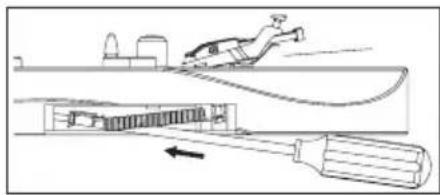

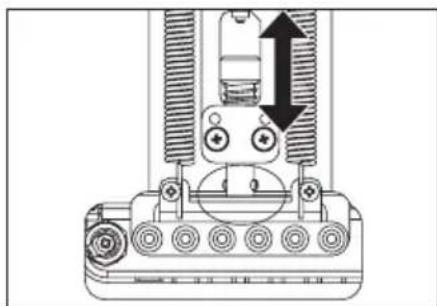

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body. You'll obtain the optimal performance by adjusting this so that the tremolo is approximately horizontal to the surface of the guitar body.

① With the guitar tuned correctly, check the angle of the tremolo.

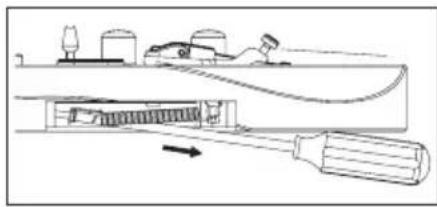

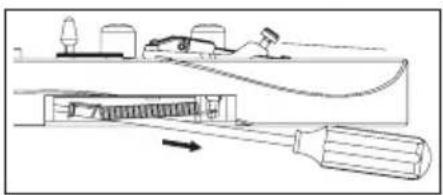

② If the tremolo is tilted toward the front, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screw to increase the tension of the tremolo springs.
③ If the tremolo is tilted toward the rear, loosen the screw to decrease the tension of the tremolo springs.

The tremolo angle adjustment will affect the tuning, because the balance of tension between the strings and the springs will change each time you adjust the tension of the tremolo springs. You'll need to tune repeatedly while making this adjustment.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component or tool with no visible text or symbols

Diagram of a mechanical device with a tool inserted, showing internal components and motion direction (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrow indicating motion or movement.

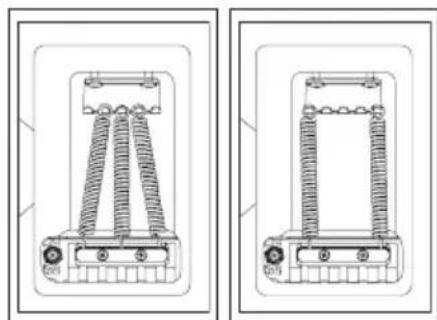

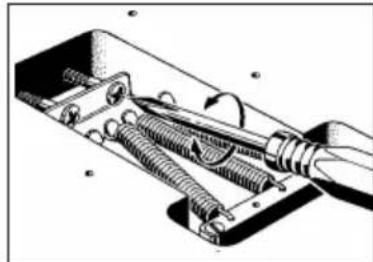

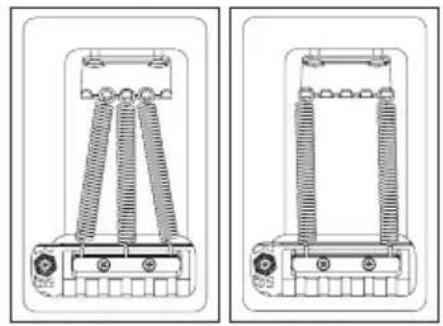

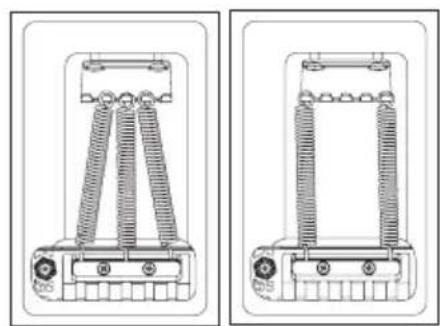

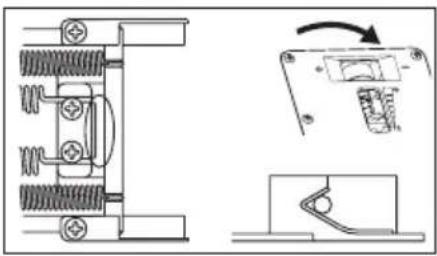

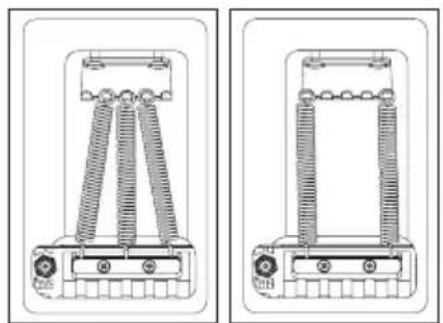

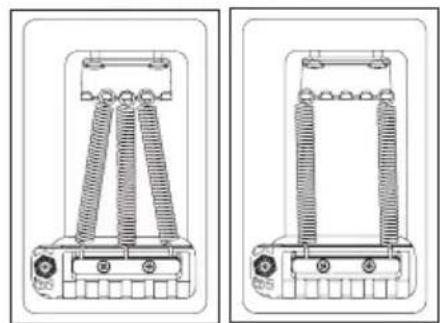

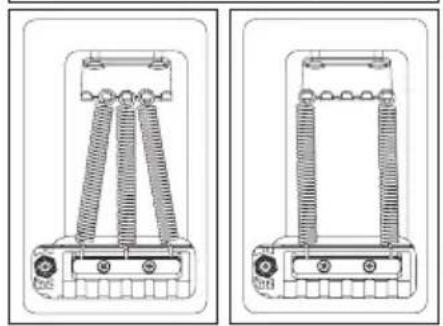

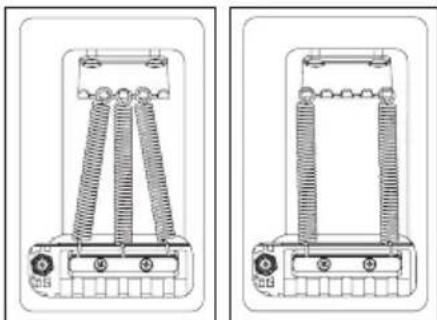

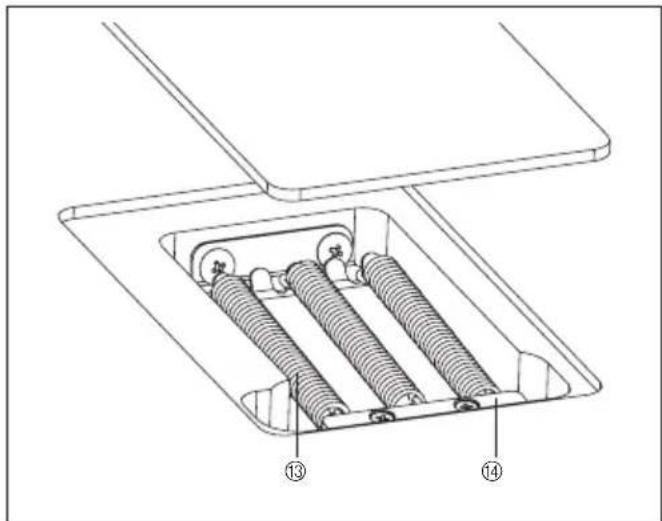

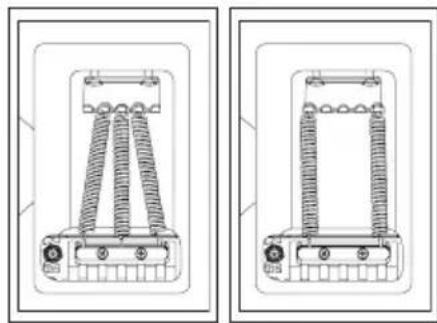

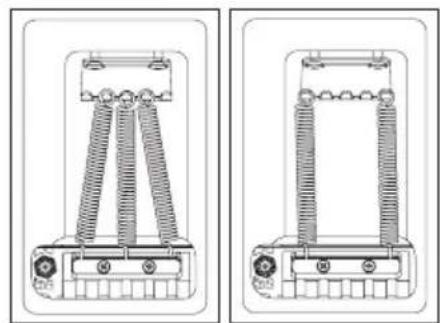

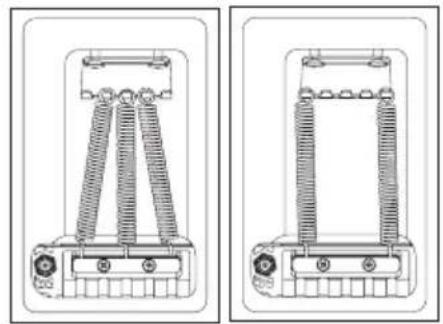

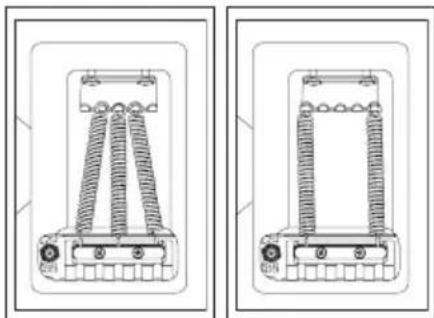

TREMOLO SPRINGS

When the guitar is shipped from the factory, it is set up with three tremolo springs installed in parallel. If the balance of tension between the strings and the tremolo springs has changed significantly, such as when you've switched string gauges or are using a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed.

① Use a Philips screwdriver to remove the spring lock.
② If you want to increase the tension, install the outer two tremolo springs diagonally.
③ If you want to decrease the tension, remove the center tremolo spring.

If you want to install four or more tremolo springs, attach them using the screw holes that were being used to attach the spring lock. (It will no longer be possible to attach the spring lock.)

Diagram of a mechanical assembly with a rotating component and a base plate (no text or symbols)

Technical line drawing of two mechanical components with coiled springs and mounting brackets (no text or symbols)

Memo

Loosen the strings sufficiently before you install or remove tremolo springs. Be aware that if you remove all of the springs, the tremolo unit will detach from the guitar.

To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, and then install the tremolo springs.

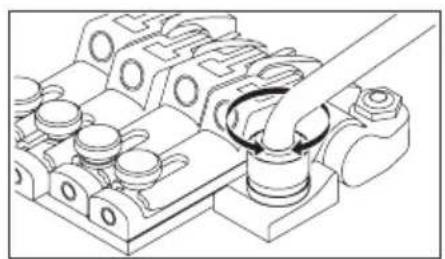

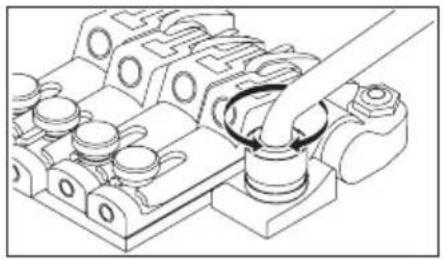

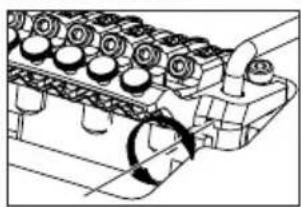

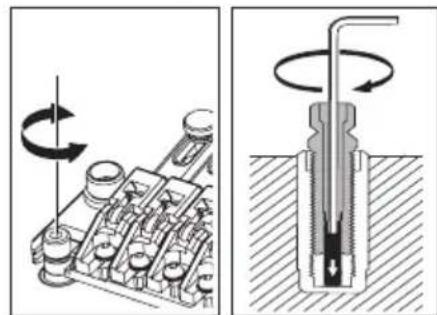

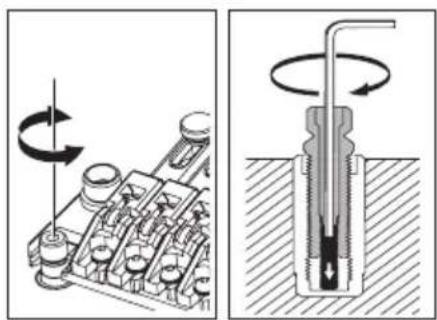

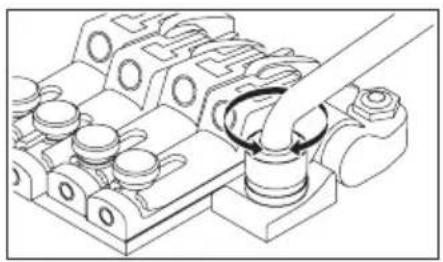

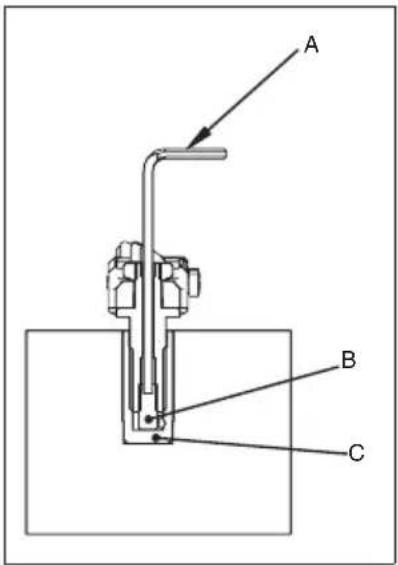

STUD LOCK

The Edge/Lo-Pro Edge tremolo bridge uses a stud lock mechanism.

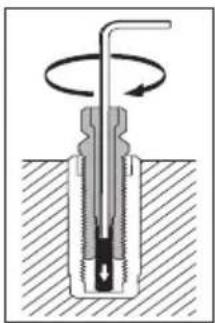

① Insert an Allen wrench (1.5 mm) through the hole in the top of the stud bolt.

② Turn the stud lock bolt clockwise, tightening it until it contacts the anchor nut and can no longer rotate.

The stud lock will be released when you loosen the stud lock bolt. ※

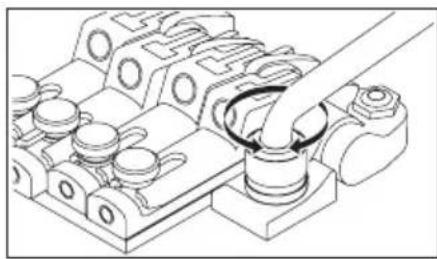

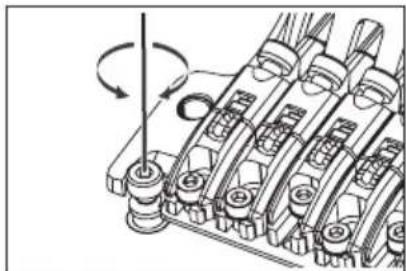

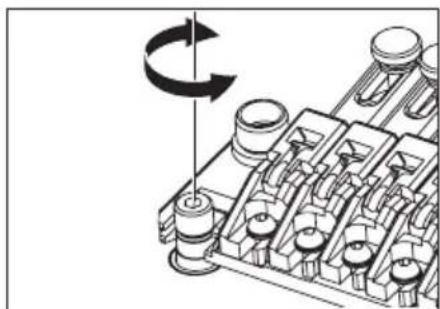

ADJUSTING THE ACTION

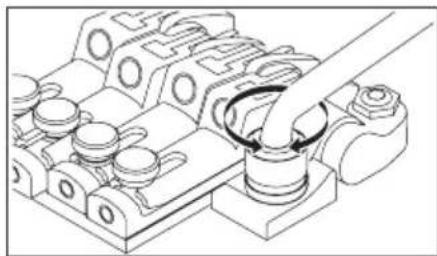

To adjust the height of the entire tremolo unit, use an Allen wrench (4mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Cross-sectional diagram of a mechanical device with rotating shaft and base, no text or symbols present

Technical line drawing of a mechanical component with multiple slots and rotating arrows (no text or symbols)

Memo

Make sure that the stud lock is released before you adjust the action.

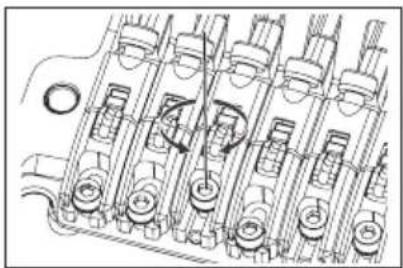

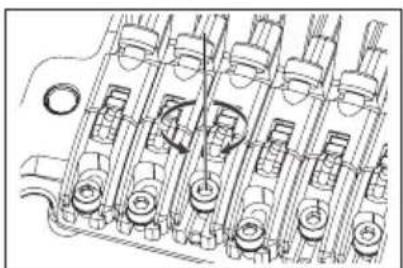

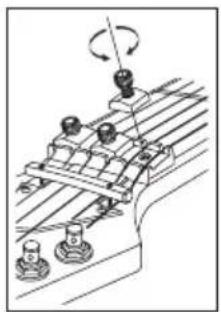

ADJUSTING THE INTONATION

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings sufficiently.

② Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position.

Before checking the intonation, firmly tighten the saddle lock bolts and × tune the guitar correctly. When you've finished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

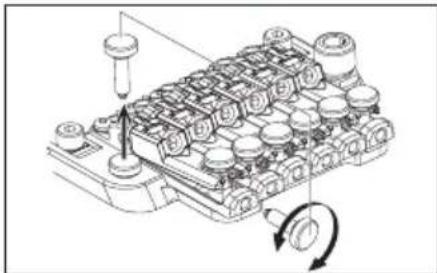

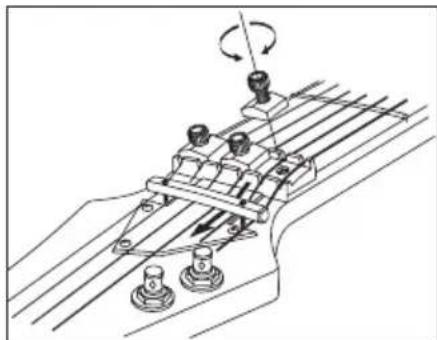

REPLACING THE STRINGS

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg.
② Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it.

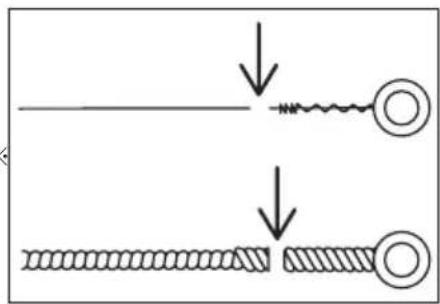

③ Use wire cutters to cut off the ball end of the new string.
④ Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string.
⑤ Wind the string onto the tuning peg, and tune it.
⑥ When you've fi nished tuning, tighten the pressure pad bolts of the locking nut.

Removing all strings at the same time will cause the tremolo attachment ※ angle to change signifi cantly, so we recommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle won't change signifi cantly.

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram of an engine block assembly with rotating components and a labeled edge (no text or symbols beyond label)

Lo-Pro EDGE

Diagram showing two stages of a cable or wire connection: one with a wavy line and another with a circular end, both indicated by downward arrows.

Memo

Before you tune, make sure that the string stopper bolts are firmly tightened.

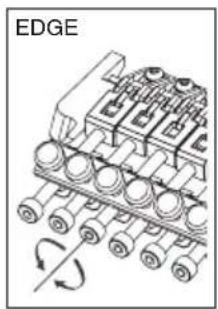

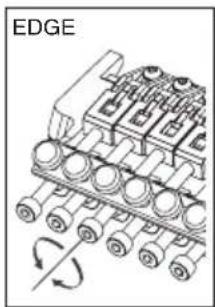

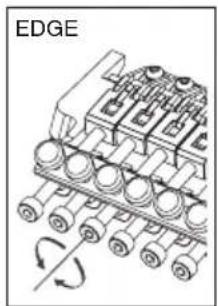

FINE TUNING

Even after you've used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string.

The range of adjustment after the strings are locked will be widest if you leave all fine-tuning bolts near the center of their adjustable range before you tune.

EDGE

Lo-Pro EDGE

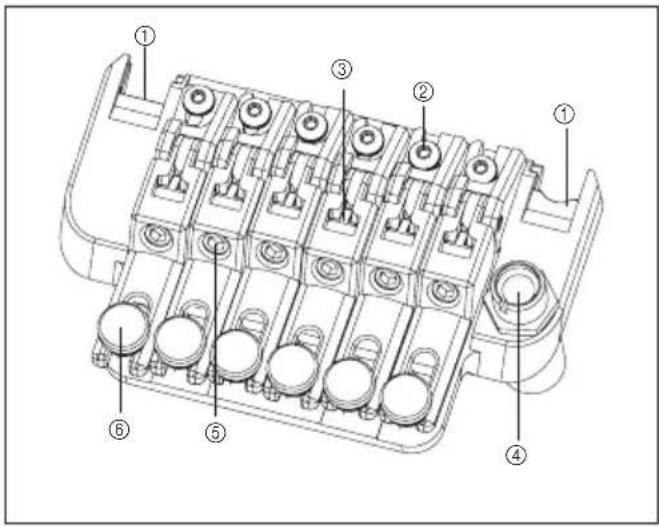

Overview
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

① knife edge

② saddle lock bolt

③ string holder block

④ tremolo arm socket

Rear
Technical diagram of a mechanical assembly with labeled parts ⑦ and ⑧, showing internal components in a housing.

⑤ string stopper bolt

⑥ fi ne tuning bolt

⑦ tremolo spring

⑧ spring lock

ATTACHING THE TREMOLO ARM

① The tremolo arm employs a snap-in/snap-out design. Hold the corner of the tremolo arm, and press it firmly into the arm socket of the base plate.
※ The tremolo arm of the EDGE III Herman Li Ver. installed on the EGEN8 is a screw-in type.
After inserting the tremolo arm into the arm socket, rotate it to fasten it in place.

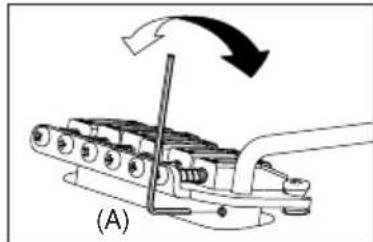

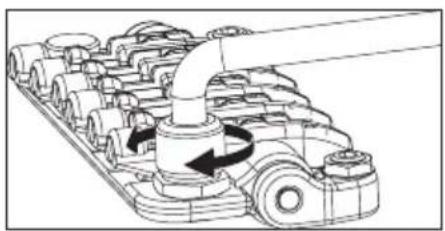

② To adjust the tightness of the tremolo arm, use an Allen wrench (2 mm) to adjust the torque adjustment screw via the adjustment hole on the side of the tremolo block. Tightening the torque adjustment screw clockwise will make the tremolo arm tighter; loosing the screw will make the arm looser.
③ To adjust the height of the tremolo arm, remove the tremolo spring cover on the back of the guitar and use an Allen wrench (3 mm) to turn the height adjustment screws located on the bottom of the tremolo block. Tightening the screws clockwise will increase the height.

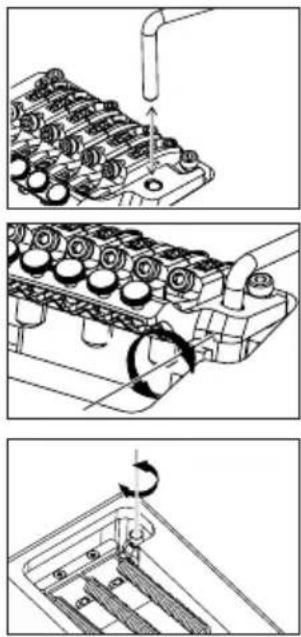

Technical diagram showing engine cylinder assembly with three stages: top view, side view, and bottom view with rotation arrows.

Memo

In addition to the one described above, the tremolo arm also has a torque adjustment screw located at the bottom of the tremolo block.

The torque adjustment screw at the bottom of the tremolo block is already adjusted when the guitar is shipped from the factory; if it should require adjustment, remove the tremolo unit from the guitar and then adjust the screw.

Before attaching the tremolo arm, make sure that the torque adjustment screw has not come loose or fallen out.

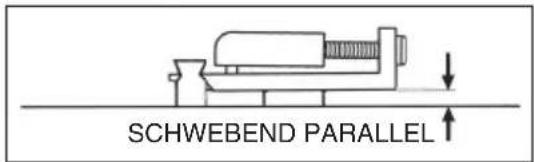

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body. You'll obtain the optimal performance by adjusting this so that the tremolo is approximately horizontal to the surface of the guitar body.

① With the guitar tuned correctly, check the angle of the tremolo.
② If the tremolo is tilted toward the front, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screw to increase the tension of the tremolo springs.
③ If the tremolo is tilted toward the rear, loosen the screw to decrease the tension of the tremolo springs.

Simple line drawing of a mechanical component or tool (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

※ The tremolo angle adjustment will affect the tuning, because the balance of tension between the strings and the springs will change each time you adjust the tension of the tremolo springs. You'll need to tune repeatedly while making this adjustment.

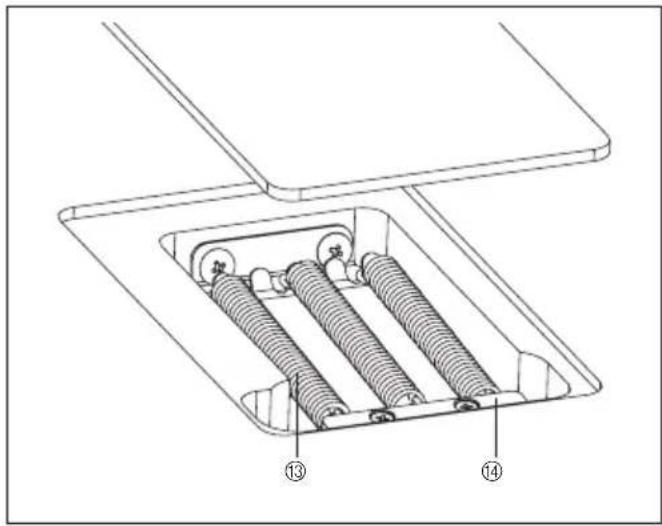

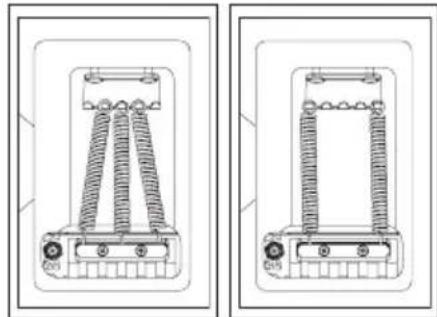

TREMOLO SPRINGS

When the guitar is shipped from the factory, it is set up with three tremolo springs installed in parallel. If the balance of tension between the strings and the tremolo springs has changed signifi cantly, such as when you've switched string gauges or are using a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed.

① Use a Philips screwdriver to remove the spring lock.
② If you want to increase the tension, install the outer two tremolo springs diagonally.
③ If you want to decrease the tension, remove the center tremolo spring.

If you want to install four or more tremolo springs, attach them using the screw holes that were being used to attach the spring lock. (It will no longer be possible to attach the spring lock.)

Diagram of a mechanical assembly with a rotating component and base plate (no text or symbols)

Technical line drawings of two mechanical components with coiled springs (no text or symbols)

Memo

Loosen the strings sufficiently before you install or remove tremolo springs.

Be aware that if you remove all of the springs, the tremolo unit will detach from the guitar.

To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, and then install the tremolo springs.

ADJUSTING THE ACTION

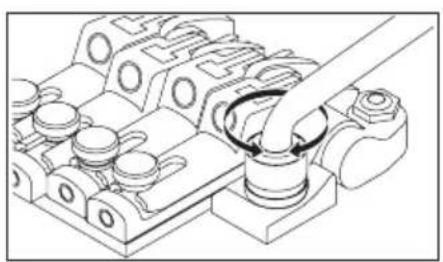

To adjust the height of the entire tremolo unit, use an Allen wrench (3 mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.)

Mechanical assembly diagram showing a rotating mechanism with no visible text or symbols

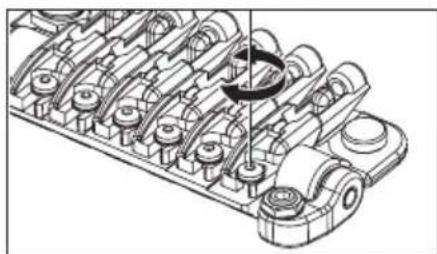

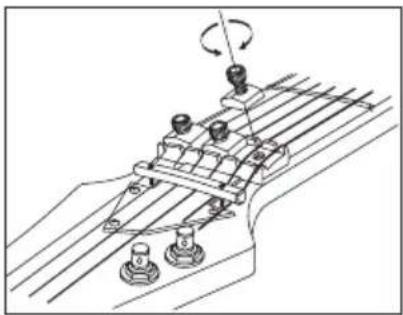

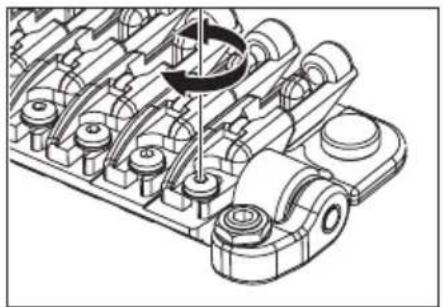

ADJUSTING THE INTONATION

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings sufficiently.

② Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position.

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Technical line drawing of an engine cylinder assembly (no text or labels)

※ Before checking the intonation, firmly tighten the saddle lock bolts and tune the guitar correctly. When you've finished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

REPLACING THE STRINGS

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg.

② Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it.

③ Use wire cutters to cut off the ball end of the new string.

④ Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string.

⑤ Wind the string onto the tuning peg, and tune it.

⑥ When you've fi nished tuning, tighten the pressure pad bolts of the locking nut.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram showing two mechanical or electrical states with downward arrows indicating process steps, possibly for wiring or disassembly.

※ Removing all strings at the same time will cause the tremolo attachment angle to change significantly, so we recommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle won't change signifi cantly.

Memo

- Before you tune, make sure that the string stopper bolts are firmly tightened.

FINE TUNING

Even after you've used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string.

The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune.

Mechanical assembly diagram showing a rotating component with multiple rollers (no text or symbols)

Overview
Technical diagram of a multi-chamber electrical connector with numbered parts labeled ① to ⑥.

① knife edge
② saddle lock bolt
③ string holder block
④ tremolo arm socket
⑤ string stopper bolt
⑥ fi ne tuning bolt
⑦ main spring
⑧ sub spring
⑨ stopper
⑩ stop rod
⑪ tremolo block
⑫ spring adjustment knob
⑬ tremolo spring
⑭ spring lock

Rear 1
Technical diagram of an electronic device with numbered components for identification

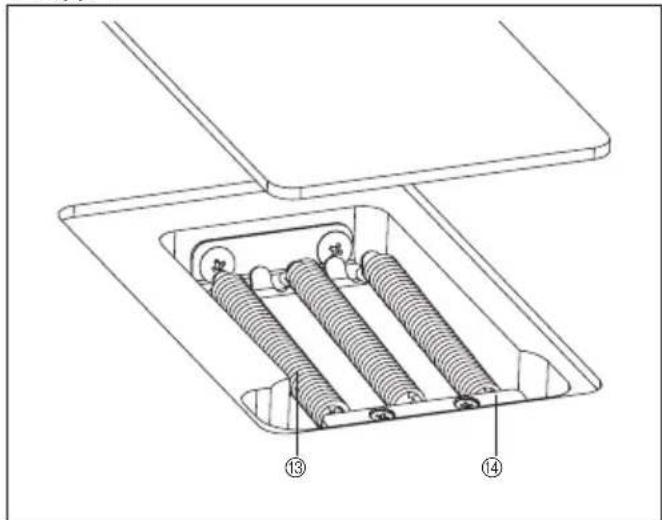

Rear 2
Technical diagram of a mechanical assembly with numbered components labeled ③ and ④

ATTACHING THE TREMOLO ARM

① The tremolo arm employs a one-piece snap-in design with an adjustable torque cap. Insert the tremolo arm into the arm socket of the base plate.
② Tighten the torque adjustment cap to secure the tremolo arm. The tremolo arm will become tighter as you tighten the torque adjustment cap.

Technical line drawings of mechanical components, one showing a pipe inserted into a housing and the other showing a valve assembly (no text or symbols present)

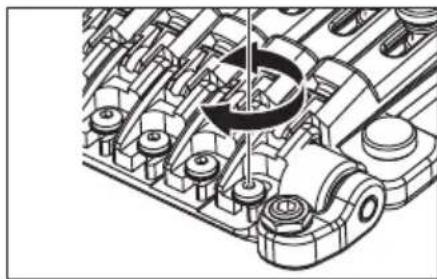

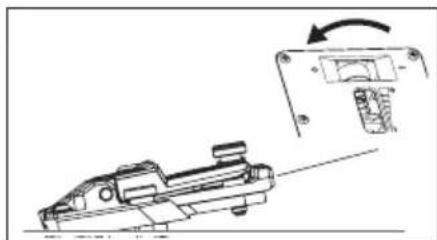

ANGLE ADJUSTMENT / ZERO POINT SYSTEM ADJUSTMENT

• Models not equipped with the zero point system

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body. You'll obtain the best performance by adjusting the tremolo arm so that it is approximately parallel with the surface of the guitar body.

① With the guitar tuned correctly, check the angle of the tremolo.

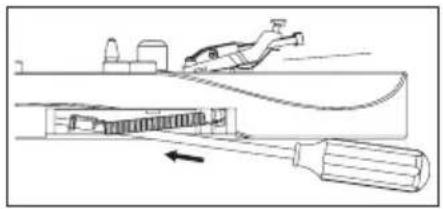

② If the tremolo is tilted forward, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screws to increase the tension of the tremolo springs.
③ If the tremolo is tilted toward the rear, loosen the screws to weaken the tension of the tremolo springs.

Because the balance of tension between the strings and the springs will change each time you adjust the tension of the tremolo springs, adjusting the tremolo angle will affect the tuning. You'll need to tune the guitar repeatedly while performing this adjustment.

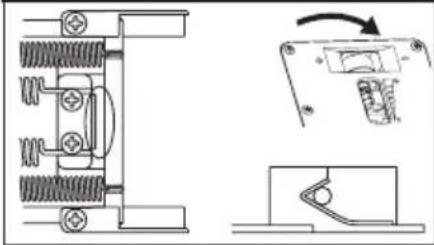

- Models equipped with the zero point system

The angle at which the tremolo is attached is adjusted by the balance between the tension of the strings and the zero point system installed on the back of the guitar body. The Edge-Zero 2 tremolo bridge is designed so that when the zero point system is correctly adjusted, the tremolo will be approximately parallel with the surface of the guitar body, and will perform optimally when in that state.

When the zero point system is correctly adjusted, the stop rod will be in firm contact with the tremolo block and the stop rod will be touching the stopper.

① With the guitar tuned correctly, check the zero point system.

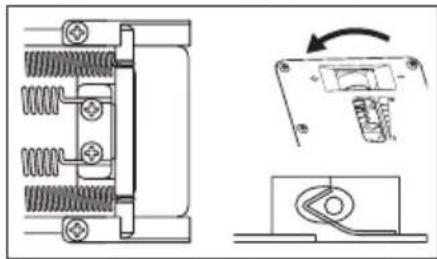

② If the stop rod is not touching the stopper (i.e., if the tremolo block is pushing up the stop rod), turn the spring adjustment knob located on the back of the body toward the "plus" direction to tighten the main spring.

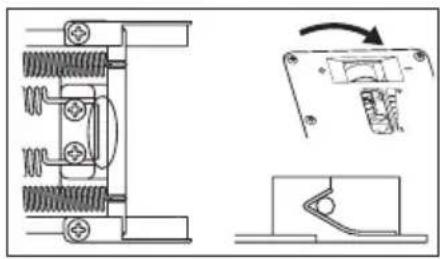

③ If the tremolo block is not in fi rm contact with the stop rod (i.e., if the tremolo is tilted toward the rear), turn the spring adjustment knob toward the "minus" direction to loosen the main spring.

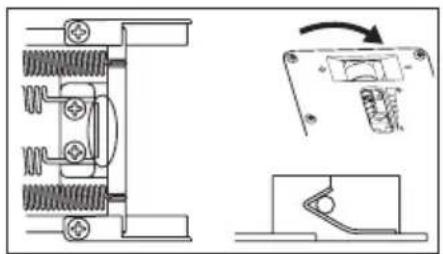

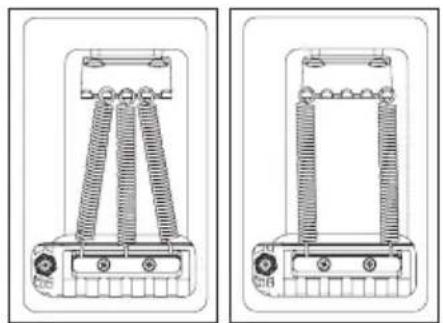

TREMOLO SPRING / ZERO POINT SYSTEM

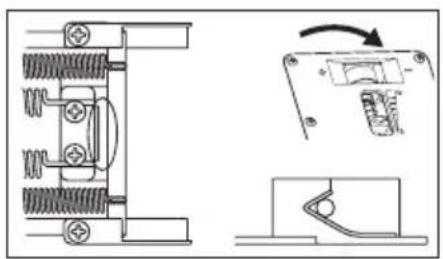

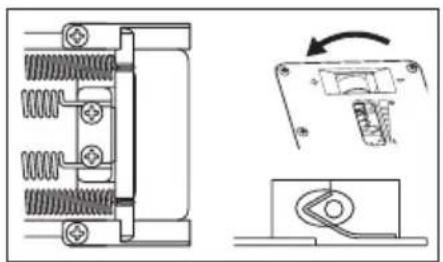

- Models not equipped with the zero point system

When shipped from the factory, the guitar is set up with three tremolo springs installed in parallel.

If the balance of tension between the strings and the tremolo springs has changed significantly, such as when you switch to a different gauge of strings or use a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed.

① Use a Philips screwdriver to remove the spring lock.

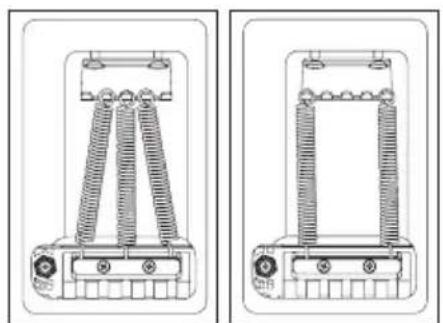

② If you want to increase the tension, install the outer two tremolo springs diagonally.
③ If you want to decrease the tension, remove the center tremolo spring.

If you want to install four or more tremolo springs, attach them using the screw holes that were being used to attach the spring lock. (It will no longer be possible to attach the spring lock.)

Simple line drawing of a mechanical device with no text or symbols

Diagram of a mechanical device with a tool and component, showing no text or symbols

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical assembly with spring and housing components (no text or symbols)

Technical diagram showing mechanical components with spring and housing, including a close-up of a switch mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with spring components and a close-up view of a switch mechanism (no text or symbols)

Diagram of a mechanical assembly with a rotating component and base plate (no text or symbols)

Technical line drawings of two mechanical components with spring-like elements and mounting holes (no text or symbols)

Memo

Loosen the strings suffi ciently before you install or remove tremolo springs.

Be aware that if you remove all of the springs, the tremolo unit will detach from the guitar.

To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, and then install the tremolo springs.

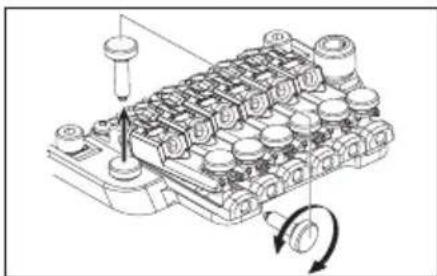

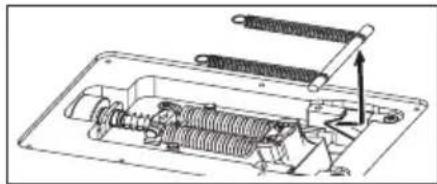

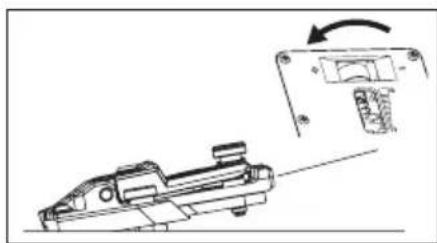

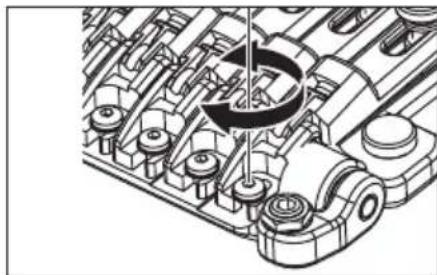

- Models equipped with the zero point system

By disabling the zero point system you can use the unit as a conventional fl oating bridge.

When the zero point system is disabled, the angle at which the tremolo is attached will be adjusted by the balance between the tension of the strings and the tension of the main springs attached to the tremolo block.

For optimal performance, adjust the tremolo so that it is approximately parallel with the surface of the guitar body.

① While holding the arm in the upward position (i.e., with the tremolo block away from the stop rod), remove the stop rod and the sub-spring.
② With the guitar tuned correctly, check the angle of the tremolo.
③ If the tremolo is tilted toward the front, turn the spring adjustment knob toward the "plus" direction to tighten the main spring.
④ If the tremolo is tilted toward the rear, turn the spring adjustment knob toward the "minus" direction to loosen the main spring.
※ The tuning will be affected when you adjust the tremolo angle with the zero point system disabled, because the balance between the tension of the strings and the springs will change each time you adjust the tension of the tremolo springs. You'll need to tune repeatedly while making this adjustment.

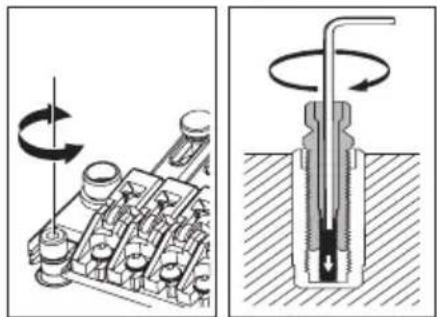

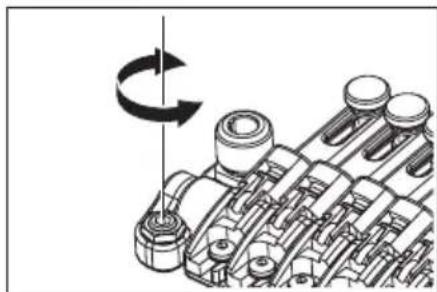

STUD LOCK

The Edge-Zero2 tremolo bridge uses a stud lock mechanism.

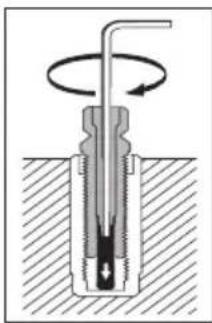

① Insert an Allen wrench (2 mm) through the hole in the top of the stud bolt.
② Turn the stud lock bolt clockwise, tightening it until it contacts the anchor nut and can no longer rotate.

The stud lock will be released when you loosen the stud lock bolt. ※

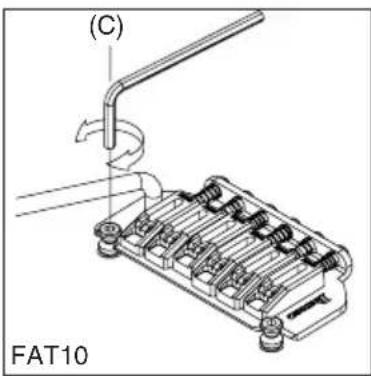

ADJUSTING THE ACTION

To adjust the height of the entire tremolo unit, use an Allen wrench (3 mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.)

Technical line drawing of a mechanical assembly with springs and housing (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a rotating component (no text or symbols)

Technical illustration of a mechanical assembly with rotating components and a cross-sectional view showing internal structure (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Memo

Before you tune, make sure that the string stopper bolts are firmly tightened.

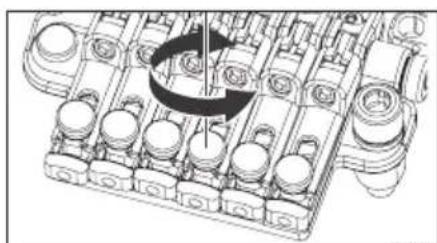

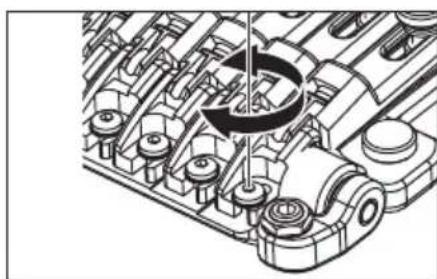

ADJUSTING THE INTONATION

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings sufficiently.
② Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing piston and crankshaft components (no text or labels)

※ Before checking the intonation, firmly tighten the saddle lock bolts and tune the guitar correctly. When you've fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

REPLACING THE STRINGS

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg.
② Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it.
③ Use wire cutters to cut off the ball end of the new string.
④ Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string.
⑤ Wind the string onto the tuning peg, and tune it.
⑥ When you've finished tuning, tighten the pressure pad bolts of the locking nut.

On tremolo bridges not equipped with the zero cross system, removing all * strings at the same time will cause the tremolo attachment angle to change signifi cantly, so we recommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle won't change signifi cantly.

Technical line drawing of a mechanical component with multiple cylindrical cavities and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Memo

- Before you tune, make sure that the string stopper bolts are firmly tightened.

FINE TUNING

Even after you've used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string.

The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune.

Technical line drawing of an internal combustion engine block (no text or symbols)

Overview

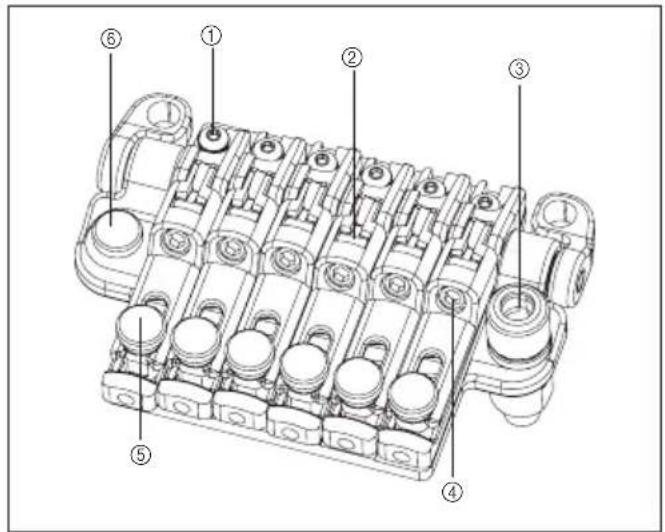

Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

① saddle lock bolt
② string holder block
③ tremolo arm socket
④ string stopper bolt
⑤ fi ne tuning bolt
⑥ intonation adjustment bolt

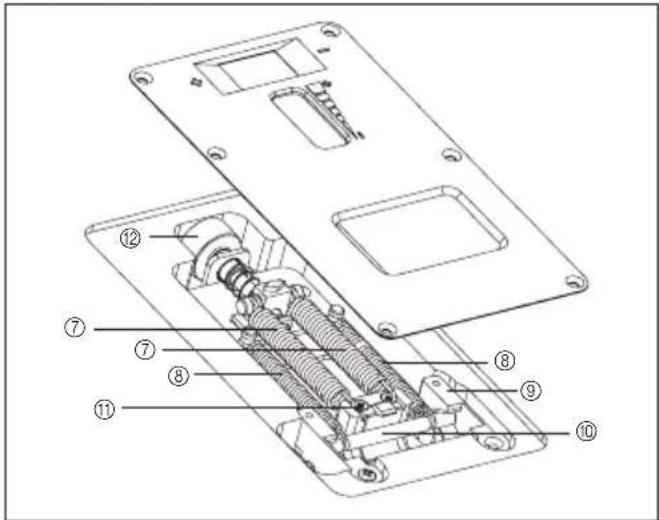

Rear
Technical diagram of an electronic device with numbered components for identification

⑦ main spring
⑧ sub spring
⑨ stopper
⑩ stop rod
⑪ tremolo block
⑫ spring adjustment knob

ATTACHING THE TREMOLO ARM

① The tremolo arm employs a one-piece snap-in design with an adjustable torque cap. Insert the tremolo arm into the arm socket of the base plate.
② Tighten the torque adjustment cap to secure the tremolo arm. The tremolo arm will become tighter as you tighten the torque adjustment cap.

Technical line drawing of a mechanical assembly with pipes and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ANGLE ADJUSTMENT / ZERO POINT SYSTEM ADJUSTMENT

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the zero point system installed on the back of the guitar body. The ZR tremolo bridge is designed so that the tremolo will be approximately parallel with the surface of the guitar body when the zero point system is adjusted correctly, and will perform optimally in this state. When the zero point system is correctly adjusted, the stop rod will be in firm contact with the tremolo block and the stop rod will be touching the stopper.

① With the guitar tuned correctly, check the zero point system.

② If the stop rod is not touching the stopper (i.e., if the tremolo block is pushing up the stop rod), turn the spring adjustment knob located on the back of the body toward the "plus" direction to tighten the main spring.

③ If the tremolo block is not in firm contact with the stop rod (i.e., if the tremolo is tilted toward the rear), turn the spring adjustment knob toward the "minus" direction to loosen the main spring.

Technical line drawing of mechanical components with spring and housing (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical assembly with spring components and a separate view showing a switch mechanism (no text or symbols)

DISABLING THE ZERO POINT SYSTEM (USING THE UNIT AS A CONVENTIONAL FLOATING

By disabling the zero point system you can also use the unit as a conventional floating bridge.

When the zero point system is disabled, the angle at which the tremolo is attached will be adjusted by the balance between the tension of the strings and the tension of the main springs attached to the tremolo block.

For optimal performance, adjust the tremolo so that it is approximately parallel with the surface of the guitar body.

① While holding the arm in the upward position (i.e., with the tremolo block away from the stop rod), remove the stop rod and the sub-spring.

② With the guitar tuned correctly, check the angle of the tremolo.

③ If the tremolo is tilted toward the front, turn the spring adjustment knob toward the "plus" direction to tighten the main spring.

④ If the tremolo is tilted toward the rear, turn the spring adjustment knob toward the "minus" direction to loosen the main spring.

Mechanical assembly diagram showing internal components with springs and a handle (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a rotating component (no text or symbols)

※ The tuning will be affected when you adjust the tremolo angle with the zero point system disabled, because the balance between the tension of the strings and the springs will change each time you adjust the tension of the tremolo springs. You'll need to tune repeatedly while making this adjustment.

ADJUSTING THE ACTION

To adjust the height of the entire tremolo unit, use an Allen wrench (3 mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.)

ADJUSTING THE INTONATION

① Remove the intonation adjustment bolts stored inside the tremolo unit, and screw them into the adjustment holes at the back of the saddle until the tip of each bolt contacts the wall of the tremolo unit.

② Use an Allen wrench (2 mm) to loosen the saddle lock bolt, and turn the intonation adjustment bolt to adjust the saddle position.

Before checking the intonation, fi rmly tighten the saddle lock bolts and ※ tune the guitar correctly. Before tuning, use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut. When you've fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut, and store the intonation adjustment bolts inside the tremolo unit.

REPLACING THE STRINGS

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg.
② Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it.
③ Use wire cutters to cut off the ball end of the new string.
④ Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string.
⑤ Wind the string onto the tuning peg, and tune it.
⑥ When you've finished tuning, tighten the pressure pad bolts of the locking nut.

Memo

Before you tune, make sure that the string stopper bolts are firmly tightened.

FINE TUNING

Even after you've used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string.

The range of adjustment after the strings are locked will be widest if you leave all fi ne-tuning bolts near the center of their adjustable range before you tune.

Mechanical assembly diagram showing a rotating shaft and housing components (no text or labels)

Technical diagram of a mechanical component with internal gears and a rotating knob (no text or symbols)

Technical illustration of an engine cylinder assembly with no visible text or symbols

Technical line drawing of a guitar fretboard with no visible text or symbols

Technical line drawing of a mechanical component with multiple cylindrical parts and mounting holes (no text or symbols)

Diagram showing two-step process of a mechanical or electrical component with circular end caps, indicating step-by-step assembly.

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Overview
Technical diagram of an electrical contactor with numbered components for identification

① knife edge
② saddle lock bolt
③ string holder block
④ tremolo arm socket

Rear
Technical diagram of a mechanical assembly with numbered components labeled ⑦ and ⑧

⑤ string stopper bolt
⑥ fi ne tuning bolt
⑦ tremolo spring
⑧ spring lock

ATTACHING THE TREMOLO ARM

① The tremolo arm employs a one-piece snap-in design with an adjustable-torque cap. Insert the tremolo arm into the arm socket of the base plate.
② Tighten the torque adjustment cap to secure the tremolo arm. The tremolo arm will become tighter as you tighten the torque adjustment cap.

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

The tremolo attachment angle is adjusted by changing the balance between the string tension and the tension of the tremolo springs installed on the back of the guitar body.

You'll obtain the optimal performance by adjusting this so that the tremolo is approximately horizontal to the surface of the guitar body.

① With the guitar tuned correctly, check the angle of the tremolo.
② If the tremolo is tilted toward the front, insert a Philips screwdriver through the slit in the tremolo spring cover on the back of the body, and tighten the screw to increase the tension of the tremolo springs.
③ If the tremolo is tilted toward the rear, loosen the screw to decrease the tension of the tremolo springs.

Line drawing of a mechanical component or tool (no text or symbols)

Diagram of a mechanical device with a tool and internal components, no visible text or symbols

Diagram showing a mechanical device with labeled components and directional arrow, likely illustrating a tool or assembly process.

※ The tremolo angle adjustment will affect the tuning, because the balance of tension between the strings and the springs will change each time you adjust the tension of the tremolo springs. You'll need to tune repeatedly while making this adjustment.

TREMOLO SPRINGS

When the guitar is shipped from the factory, it is set up with three tremolo springs installed in parallel.

If the balance of tension between the strings and the tremolo springs has changed signifi cantly, such as when you've switched string gauges or are using a dropped tuning, you may need to change the number of tremolo springs or change the way in which they are installed.

① If you want to increase the tension, install the outer two tremolo springs diagonally.

② If you want to decrease the tension, remove the center tremolo spring.

IBANEZ Premium SR1805E - TREMOLO SPRINGS - 1

Memo

Loosen the strings suffi ciently before you install or remove tremolo springs.

Be aware that if you remove all of the springs, the tremolo unit will detach from the guitar.

To reattach the tremolo, insert the knife edge of the tremolo securely into the groove of the stud bolts, and then install the tremolo springs.

ADJUSTING THE ACTION

To adjust the height of the entire tremolo unit, use an Allen wrench (3mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to make adjustments for each string individually.)

IBANEZ Premium SR1805E - ADJUSTING THE ACTION - 1

ADJUSTING THE INTONATION

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and loosen the strings sufficiently.
② Use an Allen wrench (2 mm) to loosen the saddle lock bolts, and adjust the saddle position.

Before checking the intonation, fi rmly tighten the saddle lock bolts and ※ tune the guitar correctly. When you've fi nished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut.

Mechanical assembly diagram showing rotating components and base connections (no text or labels)

Pure mechanical component diagram without any text, numbers, or symbols

REPLACING THE STRINGS

① Use an Allen wrench (3 mm) to loosen the pressure pad bolts of the locking nut, and remove the string from the tuning peg.
② Use an Allen wrench (3 mm) to loosen the string stopper bolt of the tremolo unit; then pull the string out of the saddle and remove it.
③ Use wire cutters to cut off the ball end of the new string.
④ Insert the tip of the string from which you cut off the ball end between the saddle and the string holder block, and tighten the string stopper bolt to fasten the string.
⑤ Wind the string onto the tuning peg, and tune it.
⑥ When you've finished tuning, tighten the pressure pad bolts of the locking nut. Removing all strings at the same time will cause the tremolo attachment ※ angle to change signifi cantly, so we recommend that you replace the strings one at a time. If you remove all strings at the same time, tuning will be easier if you wedge a piece of cloth below the tremolo to secure it so that the tremolo attachment angle won't change signifi cantly.

Mechanical assembly diagram showing rotating components on a conveyor belt (no text or labels)

Pure electrical circuit lines without any symbols

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Memo

- Before you tune, make sure that the string stopper bolts are firmly tightened.

FINE TUNING

Even after you've used the locking nuts to lock the strings, you can use the fi ne tuners to fi ne-tune each string.

The range of adjustment after the strings are locked will be widest if you leave all fine-tuning bolts near the center of their adjustable range before you tune.

IBANEZ Premium SR1805E - FINE TUNING - 1

Non Locking Tremolo

SynchroniZR

Overview
Technical diagram of a mechanical component with numbered parts labeled ①, ②, and ③.

①Saddle lock bolt
②Tremolo arm socket
③Intonation adjustment bolt

Rear
Technical diagram of a mechanical assembly with numbered components for identification

④Tremolo spring
⑤Tremolo block stopper
⑥Tremolo block stopper knob
⑦Tremolo block
⑧Spring adjustment knob

ATTACHING THE TREMOLO ARM

① The tremolo arm employs a snap-in design.

Holding the corner of the tremolo arm, press it firmly into the arm socket of the base plate until it clicks into place.

② The tightness of the tremolo arm can be adjusted by the torque adjustment cap. Turning the cap clockwise will make the arm tighter, and turning it counterclockwise will make the arm looser.

Mechanical assembly diagram showing a pipe inserted into a cylindrical component (no text or symbols)

Mechanical assembly diagram showing a motor with rotating shaft and housing (no text or labels)

ADJUSTING THE TREMOLO ATTACHMENT ANGLE

The angle at which the tremolo is attached is adjusted by the balance between the tension of the strings and the tension of the tremolo springs installed in the back of the guitar body.

The tremolo will perform optimally when adjusted so that it is approximately parallel with the surface of the guitar body.

① With the guitar tuned correctly, check the angle of the tremolo.
② If the tremolo is tilted forward, turn the spring adjustment knob located on the back of the body toward the "plus" direction to tighten the tremolo springs.
③ If the tremolo is tilted toward the rear, turn the spring adjustment knob toward the "minus" direction to loosen the tremolo springs.

Because the balance of tension between the strings and the springs will change ✉ each time you adjust the tension of the tremolo springs, adjusting the tremolo angle in the floating state will affect the tuning. You'll need to tune the guitar repeatedly while performing this adjustment.

Line drawing of a truck with no visible text, numbers, or symbols

Diagram of a truck with an attached device showing a rotation arrow (no text or symbols)

Diagram showing a robotic car on a flat surface and a mechanical device with an arrow indicating rotation (no text or symbols)

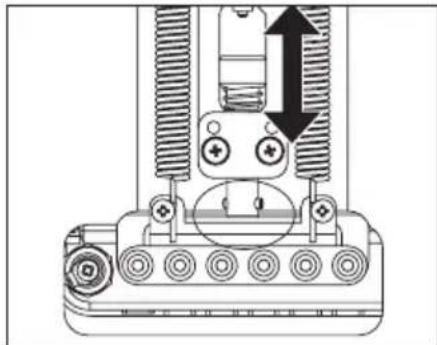

ARM-UP STOPPER

The SynchroniZR has an arm-up stopper feature. This feature disables the floating state by locking the arm-up range of movement.

① Make sure that the tremolo is adjusted so that it is approximately parallel with the surface of the guitar body.
② Remove the tremolo spring cover, and turn the arm-up stopper knob so that the tip of the arm-up stopper contacts the tremolo block.

③ Once again make sure that the tremolo is approximately parallel with the surface of the guitar body, and turn the spring adjustment knob several times in the "plus" direction.

If the tremolo spring tension is too weak, the tremolo block will be ✉ pulled by the strings, possibly causing the tuning to be unstable. If you experience this problem while tuning, turn the spring adjustment knob even farther in the "plus" direction.

Mechanical assembly diagram showing a clamping device with threaded components and mounting holes (no text or labels)

STRING HEIGHT ADJUSTMENT

To adjust the string height, adjust the height of the entire tremolo unit by using an Allen wrench (3 mm) to turn the stud bolts located at the left and right of the tremolo unit. (It is not possible to individually adjust the height of each string.)

Mechanical assembly diagram showing a rotating shaft and housing components (no text or labels)

INTONATION ADJUSTMENT

① Remove the intonation adjustment bolts stored in the tremolo unit, and screw them into the adjustment holes at the rear of the saddle until the bolt tips touch the wall of the tremolo unit.

② Use an Allen wrench (2 mm) to loosen the saddle lock bolt, and turn the intonation adjustment bolt to adjust the saddle position.

Before checking the intonation, firmly tighten the saddle lock bolts and × tune the guitar correctly. When you've finished making adjustments, tighten the saddle lock bolts and the pressure pad bolts of the locking nut, and store the intonation adjustment bolts inside the tremolo unit.

STRING REPLACEMENT

Install new strings by passing them through the tremolo block from the back side of the guitar body.

Mechanical assembly diagram showing a conveyor belt system with rotating wheel and fastener (no text or labels)

Technical illustration of a mechanical assembly with gears and shafts (no text or symbols)

Technical diagram showing a mechanical component with an arrow indicating assembly or insertion (no text or symbols present)

TREMOLO ARM INSTALLATION

The tremolo arm can be inserted and removed very easily. Insert the arm into the armhole on the tremolo base plate. Pull up on the arm to remove it.

TREMOLO ARM ADJUSTMENT (SAT PRO2)

To adjust the height of the arm, remove the tremolo spring cover from the back of the guitar, and use a 3 mm Allen wrench to turn the height adjustment screw attached to the bottom of the tremolo block. Tightening this in the clockwise direction will raise the height.

ARM ROTATION TORQUE

The rotation torque of the arm can be adjusted by raising the tremolo and inserting a 1.5mm Allen wrench in the screw (A) on the tremolo block, Turning this screw clockwise will tighten the arm torque and turning the screw counter clockwise will loosen the arm torque.

ADJUSTING THE STRING HEIGHT (SAT PRO2)

To adjust the action of each string, use a 1.5 mm Allen wrench to turn the screw on the saddle (C). The overall height can be adjusted on either side of the SAT PRO2 tremolo unit. To adjust the height, use a 3 mm Allen wrench to turn the stud (D) located on either side of the unit. Use caution when adjusting the height of the entire tremolo unit; adjust both sides to the same height to ensure optimum tremolo operation.

ADJUSTING THE STRING HEIGHT (FAT10/SAT10)

The height adjustment of the tremolo can be raised or lowered by adjusting the pivot studs (C) that the tremolo mounts on. These are located at either side of the front of the bridge. Clockwise lowers the tremolo and counter clockwise raises the tremolo.

(C) FAT10

Pure mechanical diagram of a lever handle connecting two blocks (no text or symbols)

Technical line drawing of a mechanical or electrical component with internal parallel lines and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

(A) (C) (D) (E)

(C) SAT10

INTONATION ADJUSTMENT (SAT PRO2)

To adjust the intonation, use a 1.5 mm Allen wrench to turn the screw located at the rear of the saddle (E). Turn the screw clockwise to move the saddle toward the rear, or counter-clockwise to move the saddle forward.

(D) (C) (E) SAT PRO2

INTONATION ADJUSTMENT (FAT10/SAT10)

The intonation can be adjusted by adjusting the saddle forward or backward using a Phillips (+) head screwdriver on the intonation adjustment screw at the rear of the bridge.

FAT10 SAT10

Technical line drawing of a mechanical component with no visible text or symbols

ADJUSTING THE INTONATION & THE STRING HEIGHT (FAT 6/STD)

The intonation can be adjusted by adjusting the saddle forward or backward using a philips(+) head adjustment screw at the rear of the bridge. String height is controlled by raising or lowering the small allen screws using a wrench on either side of the saddle.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

REPLACING THE STRINGS

To replace strings, thread the new strings through the string holes located on the back of the guitar. The strings are then threaded through the tremolo block and up and over the saddle.

Mechanical assembly diagram showing spring-loaded components and a bracket (no text or labels)

FAT/SAT (EXPECT FAT6) ADJUSTING THE TREMOLO SPRING

A standard tremolo can be adjusted so that the pitch can be raised when the tremolo arm is pulled up to loosen the tremolo springs located under the tremolo cavity on the back of the guitar. One disadvantage of this procedure is that it can cause the pitch to go sharp if string breaks. To remedy this, adjust the tremolo plate so it sits flush on the body by tightening the tremolo springs. Choose the number and placement of the tremolo springs according to the string gauge and the tremolo adjustment.

Technical illustration of a mechanical assembly with springs and a tool (no text or symbols)

Floating PARALLEL

ANBAUTEN

Multi-toolTremolo-hebelInbusschlussel8-mm-Steck-schlüssel
1.5mm2mm 2.5mm 3mm4mm
PREMIUM-Serie Edge-Tremolosteg
PREMIUM-Serie Edge-Zero II mit ZPS
PREMIUM-Serie ZR-Tremolosteg mit ZPS2
PREMIUM-Serie Tight-End-R-Steg
Edge-III-Tremolosteg
Edge-Zero II mit ZPS
Edge-Zero II ohne ZPS
FAT6-Tremolosteg
FAT10-Tremolosteg
FX-Edge-III-Steg
FX-Edge-III-8-Steg
Gibraltar Standardsteg 6/7/8 -Steg
SAT10-Tremolosteg
SAT-Pro-II-Tremolosteg
STD-Tremolosteg
STD-DL-Tremolosteg
Tight-End-Steg
Tight-Tune-Steg
ZR-Tremolosteg mit ZPS2
SynchroniZR-Tremolosteg
SAITENHALTER GIBRALTAR 08 / QUICK CHANGE 08 TAILPIECE

Hinweis

Simple line drawing of a bent pipe or duct with an arrow pointing to it (no text or symbols)

(A) (B) FULL TUNE II, ART1, ART2

Technical line drawing of a mechanical component with multiple cylindrical parts and mounting holes (no text or symbols)

ERSETZEN DER SAITEN: CB3

GIBRALTAR STANDARDSTEG (7-SAITIGE / 8-SAITIGE MODELLE)

Vintage Vibrato

Mechanical component diagram showing a rotating shaft assembly with multiple slots and a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with labeled components J and K (no text or symbols beyond labels)

Locking Bridge

FX-EDGE-III-/FX-EDGE-III-8-STEG

FX Edge III
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

WECHSELN DER SAITEN

Diagram showing two stages of a mechanical or electrical component with arrows indicating process direction (no text or symbols)

Hinweis

Locking Bridge

EDGE-TREMOLOSTEG

Edge
Technical diagram of a mechanical component with numbered parts labeled ① to ⑥

Lo-Pro Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Rückseite
Technical diagram of a mechanical device with labeled components, showing internal gears and housing structure.

Diagram of a person climbing over a cable with a tool inserted, showing mechanical components and motion direction (no text or symbols)

Diagram of a mechanical device with a tool inserted into a housing, showing internal components and motion direction (no text or symbols)

TREMOLOFEDERN

Technical line drawing of two mechanical components with coiled springs and mounting holes (no text or symbols)

Hinweis

Cross-sectional diagram of a mechanical component with rotating shaft and base, no text or symbols present

Hinweis

Technical line drawing of a mechanical assembly with multiple components and a central circular component (no text or symbols)

WECHSELN DER SAITEN

Diagram of an industrial conveyor system with rotating components and a labeled edge (no text or symbols beyond label)

Lo-Pro EDGE

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Hinweis

Technical line drawing of an engine cylinder head assembly with no visible text or symbols

Diagram of a mechanical assembly with a hand holding a rotating component (no text or symbols visible)

Hinweis

Technical line drawing of two mechanical components with coiled springs and mounting brackets (no text or symbols)

Hinweis

Technical line drawing of a mechanical assembly with multiple cylindrical components and mounting holes (no text or symbols)

Diagram showing two stages of a cable or wire bending process with arrows indicating direction and circular symbols at the ends.

Überblick
Technical diagram of a multi-chamber electrical connector with numbered parts labeled ① to ⑥.

Rückseite 2
Technical diagram of a mechanical assembly with numbered components labeled ③ and ④

MONTAGE DES TREMOLOHEBELS

Diagram of a mechanical device with a tool inserted into a housing, showing internal components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Technical line drawing of a mechanical assembly with spring and housing components (no text or symbols)

Technical diagram showing mechanical components with spring and housing, including a close-up of a switch mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with spring and housing components, showing a close-up of a switch mechanism (no text or symbols)

Diagram of a mechanical assembly with a rotating component and base components (no text or symbols)

Technical line drawings of two mechanical components with spring-like elements (no text or symbols)

Hinweis

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating component and a cross-sectional view of a threaded fastener (no text or labels)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Hinweis

Mechanical assembly diagram showing piston and crankshaft components (no text or labels)

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Hinweis

Überblick
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Technical line drawing of a mechanical assembly with no visible text or symbols

DEAKTIVIEREN DES NULLPUNKTSYSTEMS (VERWENDUNG ALS HERKÖMMLICHES SCHWEBENDES TREMOLO)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

Technical line drawing of a mechanical component with multiple cylindrical parts and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Gesamtansicht
Technical diagram of an electrical contactor with numbered components for identification

Diagram of a mechanical device with a tool and internal components, no visible text or symbols

Diagram showing a mechanical device with labeled components and directional arrow, likely illustrating a tool or assembly process.

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Hinweis

Pure electrical circuit lines without any symbols

WECHSELN DER SAITEN

Pure electrical circuit lines without any symbols

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Hinweis

④Tremolofeder
⑤Tremoloblock Stopper
⑥Tremoloblock Stopperschraube
⑦Tremoloblock
⑧Federeinstellknopf

MONTAGE DES TREMOLOHEBELS

Mechanical assembly diagram showing gear and shaft components with directional arrows (no text or labels)

Diagram of a truck with an arrow indicating motion, showing a vehicle and its internal components (no text or symbols present)

Diagram showing a truck on a road with an arrow indicating motion or change, next to a mechanical component (no text or symbols present)

STOPPFUNKTION BEI ANGEHOBENEM HEBEL

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

WECHSELN DER SAITEN

TREMOLOARM-INSTALLATION

Technical line drawing of a mechanical or electrical component with internal parallel slots and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

(A) (C) (D) (E)

ERSETZEN DER SAITEN

FAT/SAT (AUSGENOMMEN FAT6) EINSTELLEN DER TREMOLOFEDER

SCHWEBEND PARALLEL

FIXATIONS

MultioutilsTige de vibratoClé AllenClé à douille 8 mm
1.5mm2mm 2.5mm3mm4mm
Gamme PREMIUM - Chevalet vibrato Edge
Gamme PREMIUM - Edge-Zero II avec ZPS
Gamme PREMIUM - Chevalet vibrato ZR avec ZPS2
Gamme PREMIUM - Chevalet Tight-End R
Chevalet vibrato Edge III
Edge-Zero II avec ZPS
Edge-Zero II sans ZPS
Chevalet vibrato FAT6
Chevalet vibrato FAT10
Chevalet FX Edge III
Chevalet FX Edge III-8
Chevalet Gibraltar standard 6/7/8
Chevalet vibrato SAT10
Chevalet vibrato SAT-Pro II○ ○
Chevalet vibrato STD
Chevalet vibrato STD-DL
Chevalet Tight-End
Chevalet Tight-Tune○ ○
Chevalet vibrato ZR avec ZPS2○ ○
Chevalet vibrato SynchroniZR
CHEVALET GIBRALTAR 08/CORDIER QUICK CHANGE 08

REEMPLACEMENT DES CORDES

Mémo

Simple line drawing of a bent pipe with an arrow indicating direction (no text or symbols)

(A) (B) FULL TUNE II, ART1, ART2

Technical line drawing of a multi-layered mechanical component with no visible text or symbols

REEMPLACEMENT DES CORDES : CB3

CHEVALET À TABLE BOMBÉE RÉGLABLE

Diagram of a battery pack with rotating arrow indicating rotation (no text or symbols)

RÉGLAGE DE L'INTONATION

Diagram of a mechanical component with multiple cylindrical parts and a curved arrow indicating rotation (no text or symbols)

REPLACEMENT DES CORDES

Mechanical device with labeled components J and K, no readable text or symbols beyond labels

Locking Bridge

CHEVALET FX EDGE III/FX EDGE III-8

FX Edge

Technical diagram of an internal combustion engine component with numbered parts labeled ① to ⑥.

REMPLACEMENT DES CORDES

Diagram showing two-step cable termination process with wire and end symbols

Mémo

Locking Tremolos

CHEVALET VIBRATO EDGE

Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Lo-Pro Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Arrière
Technical diagram of a mechanical assembly with labeled parts ⑦ and ⑧, showing internal components in a rectangular housing.

RÉGLAGE DE L'ANGLE D'ATTAQUE DU VIBRATO

Diagram of a mechanical device with a tool and spring, showing internal components and motion direction (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrow indicating motion or force

Technical line drawing of two electrical insulator components with coiled spring and terminal blocks (no text or symbols)

Mémo

Cross-sectional diagram of a mechanical component with rotational motion arrows (no text or labels)

Mémo

Technical line drawing of a mechanical assembly with multiple components and a central rotating component (no text or symbols)

REPLACEMENT DES CORDES

EDGE

Lo-Pro EDGE

Diagram showing two stages of a coiled wire or cable joint, with arrows indicating direction of movement.

Mémo

Technical line drawing of an engine cylinder head assembly with no visible text or symbols

Diagram of a mechanical assembly with a rotating component and base structure (no text or symbols)

Mémo

Diagram of a mechanical device with a tool and component, showing motion or assembly (no text or symbols)

Diagram of a mechanical device with a tool and internal components, no visible text or symbols

Technical line drawing of a mechanical device with coiled spring and mounting base (no text or symbols)

Mémo

RÉGLAGE DE L'INTONATION

Technical line drawing of an engine cylinder assembly (no text or labels)

REPLACEMENT DES CORDES

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Arrière 2

Technical diagram of a mechanical assembly with numbered components labeled ①, ②, and ③

FIXATION DE LA TIGE DE VIBRATO

Technical line drawing of a mechanical assembly with gears and a central component (no text or symbols)

ZERO POINT

Diagram of a mechanical device with a tool inserted into a housing, showing internal components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with spring and housing components (no text or symbols)

Technical diagram showing mechanical components with spring and housing, including a close-up of a switch mechanism (no text or labels)

Technical line drawing of a mechanical assembly with spring-loaded components and a close-up view of a switch mechanism (no text or symbols)

Diagram of a mechanical assembly with a rotating component and base plates (no text or symbols)

Technical line drawings of two electrical components with coiled and straight wires (no text or symbols)

Mémo

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing a vehicle on tracks with an arrow indicating rotation or change (no text or symbols present)

Mechanical assembly diagram showing a rotating component and a cross-sectional view of a mechanical component (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Mémo

Technical illustration of a mechanical assembly with multiple cylindrical components and a central rotating arrow (no text or symbols)

Diagram showing two stages of a coiled spring or wire repair process with arrows indicating direction of movement.

Mémo

Vue d'ensemble
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Technical line drawing of a mechanical assembly with no visible text or symbols

RÉGLAGE DE L'ANGLE DU VIBRATO/RÉGLAGE DU SYSTÈME ZERO POINT

Technical line drawing of a mechanical component with spring and housing, showing assembly steps (no text or symbols)

Technical line drawing of a mechanical assembly with spring and housing components, showing exploded and assembled views (no text or symbols)

DÉSACTIVATION DU SYSTÈME ZERO POINT (UTILISATION DE L'UNITÉ COMME UN VIBRATO FL OTTANT TRADITIONNEL)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

REPLACEMENT DES CORDES

Technical diagram of a mechanical component with no visible text or symbols

Technical line drawing of an engine cylinder assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with multiple cylindrical features and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Présentation
Technical diagram of an electrical contactor with numbered components for identification

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

RÉGLAGE DE L'INTONATION

REPLACEMENT DES CORDES

Pure electrical circuit lines without any symbols

Mechanical assembly diagram showing rotating components on a conveyor belt (no text or labels)

Pure electrical circuit lines without any symbols

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Mémo

Mechanical assembly diagram showing gear and shaft components with rotational arrows (no text or labels)

RÉGLAGE DE L'ANGLE D'ATTAQUE DU VIBRATO

Diagram of a mechanical device with an arrow indicating rotation or change, no text or symbols present

Diagram showing a robotic arm interacting with a device, with an arrow indicating motion (no text or symbols present)

RÉGLAGE DE LA HAUTEUR DES CORDES

RÉGLAGE DE L'INTONATION

Mechanical assembly diagram showing gear and housing components (no text or labels)

Technical diagram showing a mechanical component with an arrow indicating assembly or insertion (no text or symbols present)

INSTALLATION DE LA TIGE DU VIBRATO

Technical line drawing of a mechanical or electrical component with internal parallel slots and mounting brackets (no text or symbols)

Mechanical device with rotating arrow and labeled section (A), no readable text or symbols present

(C) (D) (E)

RÉGLAGE DE LA HAUTEUR DES CORDES (FAT20/FAT10/SAT10

RÉGLAGE DE L'INTONATION (FAT10/SAT10)

RÉGLAGE DE L'INTONATION ET DE LA HAUTEUR DES CORDES (FAT 6/STD)

REMPLACEMENT DES CORDES

RÉGLAGE DU RESSORT DE VIBRATO

FLOTTEMENT EN PARALLÈLE

Mantenimiento

Nota

Simple line drawing of a bent pipe with an arrow pointing to it (no text or symbols)

(A) (B) FULL TUNE II, ART, ART2

Technical line drawing of a mechanical component with multiple grooves and mounting holes (no text or symbols)

PUENTE GIBRALTAR ESTÁNDAR (MODELOS DE 7/8 CUERDAS)

PUENTE ARCH TOP AJUSTABLE

Diagram of a battery pack with six slots and a rotating arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with rotational arrow indicating motion (no text or symbols)

J K

Locking Bridge

PUENTE FX EDGE III/FX EDGE III-8

Diagram showing two mechanical or electrical components with downward arrows indicating motion or force (no text or symbols)

Nota

Locking Trémolos

Lo-Pro Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Parte trasera
Technical diagram of a mechanical assembly with numbered components labeled ⑦ and ⑧

Line drawing of a mechanical device with a lever and base (no text or symbols)

Diagram showing a person climbing over a ramp with a tool inserted, illustrating the process (no text or symbols present)

Diagram of a mechanical device with a tool inserted into a housing, showing internal components and motion direction (no text or symbols)

Technical line drawing of two mechanical components with coiled springs and mounting brackets (no text or symbols)

Nota

Cross-sectional diagram of a mechanical component with rotating shaft and base, no text or symbols present

Nota

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Diagram of an engine block assembly with rotating components and a labeled edge (no text or symbols beyond label)

Lo-Pro EDGE

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Nota

Technical line drawing of an engine cylinder head assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Nota

Diagram of a mechanical device with a lever and gear, showing motion or assembly (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Diagram of a mechanical assembly with a tool and rotating motion arrows (no text or symbols)

Technical line drawing of a mechanical component with coiled spring and mounting base (no text or symbols)

Nota

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Edge-Zero Vista general
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Parte trasera 2
Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

AJUSTE DEL ÁNGULO DEL TRÉMOLO Y DEL SISTEMA ZERO POINT

- Modelos sin sistema Zero Point

Diagram of a mechanical device with a tool and internal components, no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Technical line drawing of a mechanical assembly with spring-loaded components and a close-up view of a circular component (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical assembly with spring-loaded components and a close-up view of a switch (no text or symbols)

Diagram of a mechanical assembly with a tool and rotating motion arrows (no text or symbols)

Technical line drawings of two mechanical components with spring-like elements (no text or symbols)

Nota

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating component and a cross-sectional view of a mechanical component (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Nota

Technical illustration of a mechanical assembly with multiple components and a central rotating element (no text or symbols)

Diagram showing two stages of a coiled wire or filament, with arrows indicating process direction (no text or symbols)

Nota

Vista general
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

⑦ Muelle principal
⑧ Muelle secundario
⑨ Tope
⑩ Varilla de tope
⑪ Bloque del trémolo
⑫ Manilla de ajuste del muelle

Technical line drawing of a mechanical assembly with no visible text or symbols

AJUSTE DEL ÁNGULO DEL TRÉMOLO Y DEL SISTEMA ZERO POINT

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical assembly with spring-loaded components and a close-up view of a switch mechanism (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical line drawing of a guitar fretboard with no visible text or symbols

Technical line drawing of a mechanical component with multiple cylindrical parts and mounting holes (no text or symbols)

Diagram showing two-step process: initial state with wavy line and circular end, followed by drop to rectangular block with hatched end.

Mechanical assembly diagram showing piston and crankshaft components (no text or labels)

Vista general
Technical diagram of an electrical contactor with numbered components for identification

Diagram of a mechanical device with a tool inserted into a housing, showing internal components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Nota

④Muelle del trémolo
⑤Tope del bloque del trémolo
⑥Boton tope del bloque del trémolo
⑦Bloque del trémolo
⑧Manilla de ajuste del muelle

Diagram of a vehicle with a moving component and an arrow indicating rotation (no text or symbols)

Diagram showing a vehicle on a road with an inset view of a mechanical component (no text or symbols)

Tope de palanca arriba

Octavación

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Cambio de cuerdas

Technical line drawing of a mechanical or electrical component with internal parallel slots and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

(A) (C) (D) (E)

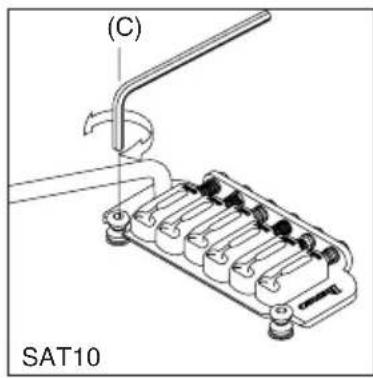

(C) SAT10

FAT/SAT (EXCEPTO FAT6) AJUSTE DE LOS MUELLES DEL TRÉMOLÓ

FLOTANTE PARALELO

Manutenzione

ACCESSORI INCLUSI

Strumento multiusoLeva tremoloChiave a brugolaChiave a esagono incassato da 8 mm
1,5mm2mm 2,5mm 3mm4mm
Serie PREMIUM ponte tremolo Edge
Serie PREMIUM Edge-Zero II con ZPS
Serie PREMIUM ponte tremolo ZR con ZPS2
Serie PREMIUM ponte Tight-End R
Ponte tremolo Edge III
Edge-Zero II con ZPS
Edge-Zero II senza ZPS
Ponte tremolo FAT6
Ponte tremolo FAT10
Ponte FX Edge III
Ponte FX Edge III -8
Ponte Gibraltar Standard 6/7/8
Ponte tremolo SAT10
Ponte tremolo SAT-Pro II
Ponte tremolo STD
Ponte tremolo STD-DL
Ponte Tight-End
Ponte Tight-Tune
Ponte tremolo ZR con ZPS2
Ponte tremolo SynchroniZR
PONTE GIBRALTAR 08 / CORDIERA QUICK CHANGE 08

Nota

Simple line drawing of a bent pipe with an arrow indicating direction (no text or symbols)

(A) (B) FULL TUNE II, ART1, ART2

Technical line drawing of a mechanical component with multiple grooves and mounting holes (no text or symbols)

SOSTITUZIONE DELLE CORDE: CB3

PONTE GIBRALTAR STANDARD (MODELLI A 7 E 8 CORDE)

Vibrato Vintage

Diagram of a battery pack with six slots and an arrow indicating rotational direction (no text or symbols)

Diagram of a mechanical component with multiple slots and a curved arrow indicating rotation (no text or symbols)

Mechanical device with labeled components J and K, no readable text or symbols beyond labels

Locking Bridge

PONTE FX EDGE III/FX EDGE III-8

FX Edge III
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Technical line drawing of a mechanical component with multiple cylindrical parts and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating process direction.

Nota

Locking Tremolos

PONTE TREMOLO EDGE

Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Lo-Pro Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Retro
Technical diagram of a mechanical assembly with labeled parts ⑦ and ⑧, showing internal components in a housing.

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Technical line drawing of a mechanical assembly with a tool inserted, showing internal components and motion direction (no text or symbols)

MOLLE DEL TREMOLO

Technical line drawing of two electrical insulator components with coiled spring and terminal blocks (no text or symbols)

Nota

Cross-sectional diagram of a mechanical component with rotational motion indicated by arrows (no text or labels)

Nota

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Diagram of an electronic component with multiple pins and a rotating arrow, labeled 'EDGE' (no text or symbols on the diagram itself)

Lo-Pro EDGE

Diagram showing two stages of a coiled spring or wire wound operation, with arrows indicating direction of movement.

Nota

Technical line drawing of an engine cylinder head with internal components and a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

Nota

Technical line drawing of a mechanical device with coiled spring components (no text or symbols)

Nota

Technical line drawing of internal combustion engine components (no text or labels)

Diagram showing two stages of a cable or wire connection, with arrows indicating direction and circular symbols at the ends.

Panoramica

Technical diagram of a multi-chamber electrical connector with numbered parts labeled ① to ⑥

Retro 2

Technical diagram of a mechanical assembly with numbered components labeled ①, ②, and ③

MONTAGGIO DELLA LEVA TREMOLO

Line drawing of a mechanical device with a screwdriver inserted, showing internal components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and spring component (no text or symbols)

Technical line drawing of a mechanical assembly with spring and housing components (no text or symbols)

Technical diagram showing spring-loaded components and a right-hand panel with a switch (no text or symbols)

Technical line drawing of a mechanical assembly with spring-loaded components and a close-up view of a switch mechanism (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a base plate (no text or symbols)

Technical line drawings of two mechanical components with spring-like elements and mounting base (no text or symbols)

Nota

Technical line drawing of a mechanical component with an inset showing a close-up view (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating mechanism and a cross-sectional view of a mechanical component (no text or symbols)

Mechanical assembly diagram showing a rotating mechanism with no visible text or symbols

Nota

Mechanical assembly diagram showing piston and crankshaft components (no text or labels)

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

Nota

Panoramica
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with spring and housing, showing assembly steps (no text or symbols)

Technical line drawing of a mechanical component with spring and housing, showing assembly and adjustment views (no text or symbols)

DISABILITAZIONE DEL SISTEMA ZERO POINT (UTILIZZO DELL'UNITÀ COME TREMOLO FL OTTANTE TRADIZIONALE)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up of a component (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical illustration of an engine cylinder assembly (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with multiple ports and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Panoramica
Technical diagram of an electrical contactor with numbered components for identification

Diagram of a mechanical device with a lever and tool, showing internal components and motion direction (no text or symbols)

Diagram of a mechanical device with a screwdriver and internal components, no visible text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Mechanical assembly diagram showing rotating components on a conveyor belt (no text or labels)

Pure electrical circuit lines without any symbols

Diagram showing two stages of a mechanical or electrical process: one with a wire and drop, the other with a hatched material and drop.

Nota

Mechanical assembly diagram showing a multi-stage gear mechanism with rotating shaft and housing (no text or labels)

Diagram of a vehicle with a sensor or sensor device interacting with a mechanical component (no text or symbols present)

Line drawing of a truck on a flat surface with an arrow indicating motion or change (no text or symbols)

ARRESTO ARM-UP

REGOLAZIONE DELL'ALTEZZA DELLE CORDE

MONTAGGIO DEL BRACCIO DEL TREMOLO

Technical line drawing of a mechanical or electrical component with internal parallel plates and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

(A) (B) (C) (D) (E)

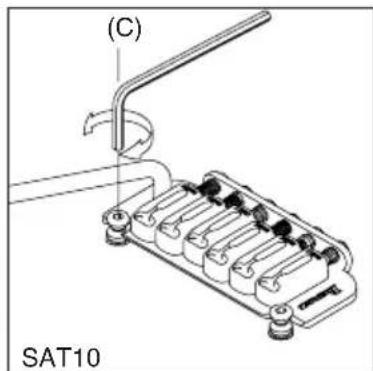

(C) SAT10

Technical line drawing of a mechanical component with no visible text or symbols

FAT/SAT (TRANNE FAT6) REGOLAZIONE DELLA MOLLA DEL TREMOLO

PARALLELO FLOTTANTE

维护保养

配件

1st 2nd3rd 4th 5th6th 7th 8th
六弦E4 B3G3 D3 A2 E2--
七弦E4 B3G3 D3 A2 E2B1 -
八弦D#4 A#3F#3 C#3 G#2 D#2 D#2F1

注意下列型号的设置方式不同

Baritone guitar

1st 2nd3rd 4th 5th 6th7th 8th
BF#DAEB--

RGD. APEX

1st 2nd 3rd 4th 5th 6th 7th
六弦D4A3F3C3G2D2-
七弦D4A3F3C3G2D2A1

MTM100

1st 2nd3rd 4th 5th 6th7th 8th
C#G#EBF#B--

TAM10

1st 2nd3rd 4th 5th 6th7th 8th
EBGDAEBE

- 必须小心调整琴颈。

Simple line drawing of a bent pipe with a pointed tip and an arrow indicating direction (no text or symbols)

(A) (B) FULL TUNE II, ART1, ART2

Technical line drawing of a multi-layered mechanical component with no visible text or symbols

更换琴弦: CB3

安装琴弦时,请从琴桥的前面插入琴弦。

GIBRALTER STANDARD 琴桥 (7-弦/8-弦型号)

可调拱形面板琴桥

获得醇厚的颤音

Diagram of a battery pack with six slots and a rotating arrow indicating rotation (no text or symbols)

调整八音

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols present)

换弦

Mechanical device with labeled parts J and K, no readable text or symbols beyond labels

固定琴桥

FX EDGE III/FX EDGE III-8 琴桥

FX Edge III
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

调整八音

更换琴弦

Diagram showing two stages of a cable or wire damage process: before and after, with arrows indicating direction of damage.

弦锁摇把

EDGE 颤音琴桥

Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

Lo-Pro Edge
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥


Technical diagram of a mechanical assembly with labeled parts ⑦ and ⑧, showing internal components in a rectangular housing.

① 刀口

② 琴码锁定螺栓

③ 琴弦固定块

④颤音臂插孔

⑤ 琴弦止动螺栓

⑥ 微调螺栓

⑦颤音器弹簧

⑧ 弹簧锁

安装摇把

Line drawing of a mechanical component or tool, possibly a cutting or assembly, with no visible text or symbols.

Diagram of a mechanical device with a lever and cable, showing internal components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

颤音器弹簧

Technical line drawings of two mechanical components with coiled springs and mounting holes (no text or symbols)

Cross-sectional diagram of a mechanical component with rotational motion arrows (no text or labels)

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

调整弦高时确保松开螺栓锁定紧固螺丝。

调整八音

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

换弦

Diagram of an industrial conveyor system with rotating components and a labeled edge (no text or symbols beyond label)

Lo-Pro EDGE

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

⑤ 琴弦止动螺栓
⑥ 微调螺栓
⑦颤音器弹簧
⑧ 弹簧锁

安装摇把

Technical line drawing of an engine cylinder head assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a tool and spring, showing internal components and motion direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of two mechanical components with coiled springs and mounting holes (no text or symbols)

调整八音

Technical line drawing of internal combustion engine components (no text or labels)

Diagram showing two stages of a coiled wire or filament process, with no text or symbols present.

简介
Technical diagram of a multi-chamber electrical connector with numbered parts labeled ① to ⑥.

后2
Technical diagram of a mechanical assembly with numbered components labeled ①, ②, and ③

安装摇把

颤音器角调整/零点系统调整

- 不配备零点系统的型号

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a bracket assembly (no text or symbols)

Mechanical assembly diagram showing a rotating component and a cross-sectional view of a mechanical component (no text or symbols)

Mechanical assembly diagram showing a rotating mechanism with no visible text or symbols

Technical illustration of a mechanical assembly with multiple components and a central rotating element (no text or symbols)

Diagram showing two stages of a coiled spring or wire wound, with arrows indicating direction of deformation.

■ 简介
Technical diagram of a mechanical component with numbered parts labeled ① through ⑥

① 琴码锁定螺栓
② 琴弦固定块
③颤音臂插孔
④ 琴弦止动螺栓
⑤ 微调螺栓
⑥ 八音调整螺栓


Technical diagram of an electronic device with numbered components for identification

Technical line drawing of a mechanical assembly with no visible text or symbols

颤音器角调整/零点系统调整

Technical line drawing of a mechanical component with spring and housing, showing assembly and disassembly views (no text or symbols)

Technical line drawing of a mechanical assembly with spring-loaded components and a close-up view of a switch mechanism (no text or symbols)

禁用零点系统(将颤音模块当做普通FLOATING(浮动式)颤音器使用)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a component being adjusted (no text or symbols present)

Technical diagram of a mechanical component with no visible text or symbols

Technical line drawing of an internal combustion engine assembly (no text or symbols)

Technical line drawing of a guitar fretboard assembly (no text or symbols)

Technical line drawing of a mechanical component with multiple cylindrical features and mounting holes (no text or symbols)

Diagram showing two stages of a mechanical or electrical component with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

■ 简介
Technical diagram of an electrical contactor with numbered components for identification

⑤ 琴弦止动螺栓
⑥ 微调螺栓
⑦颤音器弹簧
⑧ 弹簧锁

安装摇把

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

更换琴弦

Diagram showing two stages of a mechanical or electrical component with downward arrows indicating process flow.

① 琴码锁定螺栓
②顛音臂插孔
③ 八音调整螺栓


Technical diagram of a mechanical assembly with numbered components for identification

Mechanical assembly diagram showing a motor or conveyor system with rotating components and directional arrows (no text or labels)

调整颤音器角度

Technical line drawing of a mechanical device with an arrow indicating rotation or assembly (no text or symbols present)

Diagram showing a vehicle on a road with an arrow indicating motion or change, next to a mechanical component (no text or symbols present)

轴杆止动器

调整弦高

调整八音

Mechanical assembly diagram showing gear and housing components with a circular arrow indicating rotation (no text or labels)

Technical diagram showing a mechanical component with an arrow indicating assembly or insertion (no text or symbols present)

安装摇把

Technical line drawing of a mechanical or electrical component with internal parallel slots and a handle (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

(A) (C) (D) (E)

(C) FAT10

(C) SAT10

调八音(SAT PRO2)

调八音(FAT10/SAT10)

调整八音和弦高(FAT6/STD)

更换琴弦

FAT/SAT (FAT6除外) 调整摇把弹簧

可动变调器

Guitar Electronics

H-S-H (5-WAY)
IBANEZ Premium SR1805E - Guitar Electronics - 1

H-H (5-WAY)
IBANEZ Premium SR1805E - Guitar Electronics - 2

S-S-H (5-WAY)
IBANEZ Premium SR1805E - Guitar Electronics - 3

EGEN
Volume Pot Switch Push Down neck center bridge

IBANEZ Premium SR1805E - Guitar Electronics - 5

SA360
IBANEZ Premium SR1805E - Guitar Electronics - 6

IBANEZ Premium SR1805E - Guitar Electronics - 7
FRM

IBANEZ Premium SR1805E - Guitar Electronics - 8

IBANEZ Premium SR1805E - Guitar Electronics - 9

AT
IBANEZ Premium SR1805E - Guitar Electronics - 10

R05500H
IBANEZ Premium SR1805E - Guitar Electronics - 11

H-H (3-WAY)
IBANEZ Premium SR1805E - Guitar Electronics - 12

XPT700
IBANEZ Premium SR1805E - Guitar Electronics - 13

JS
Time Pot Switch Push Down Time Pot Switch Pull-up

TRI-SOUND (NECK P.U.)
IBANEZ Premium SR1805E - Guitar Electronics - 15

TRI-SOUND (BRIDGE P.U.)
IBANEZ Premium SR1805E - Guitar Electronics - 16

APEX
IBANEZ Premium SR1805E - Guitar Electronics - 17

Guitar Controls

1-V, 1-T, 5 WAY LEVER SWITCH

1-V, 1-T, 3 WAY LEVER SWITCH

1-V, 1 PRE-SET EQ, 3 WAY TOGGLE SWITCH

1-V, 3 WAY TOGGLE SWITCH

1-V, 1-T, 3 WAY TOGGLE SWITCH

1-V, 3 WAY TOGGLE SWITCH
XF 3 WAY P.U. SELECTOR VOLUME

1-V. 3 WAY TOGGLE SWITCH

1-V, 1-T, 3 WAY TOGGLE SWITCH

1-V, 1-T, 5 WAY LEVER SWITCH

1-V, 2-T, 5 WAY LEVER SWITCH

1-V, 1-T, 5 WAY LEVER SWITCH

1-V
ORM VOLUME

1-V, KILL SWITCH, 3 WAY LEVER SWITCH

1-V, 1-T, 3 WAY TOGGLE SWITCH

2-V, 1-T, 3 WAY TOGGLE SWITCH
ART BRIDGE VOLUME NECK VOLUME TONE 3 WAY P.U. SELECTOR

2-V. 1-T. 3 WAY TOGGOLE SWITCH
GART TONE NECK VOLUME Bridge VOLUME 3 WAY P.U. SELECTOR

2-V, 2-T, 3 WAY TOGGLE SWITCH.
TRI-SOUND NECK BRIDGE
AR P.U. SELECTOR NECK TONE NECK VOLUME TRI-SOUND BRIDGE P.U. TRI-SOUND NECK P.U. BRIDGE VOLUME BRIDGE TONE

1-V, 1-T, 3 WAY TOGGLE SWITCH

2-V, 2-T, 3 WAY TOGGLE SWITCH

2-V, 2-T, 3 WAY TOGGLE SWITCH
AGR, AMF, SS, SJ P.I. SELECTOR NECK TONE NECK VOLUME BRIDGE VOLUME BRIDGE TONE

1-V. 1-T
PM, HOLLOW BODY 1 PICKUP MODEL VOLUME TONE

2-V, 2-T, 3WAY TOGGLE SWITCH, TRI-SOUND NECK P.U.

This is to certify that the aforementioned equipments fully conform to protection

requirements of the following EC council directives. DIRECTIVES:89/336/EEC Electromagnetic compatibility

CE

The followings complies with the requirements of the EMC Directive 2004/108/EC of the European Union.

CE

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : IBANEZ

Model : Premium SR1805E

Category : Guitar
