RP11 - Food Processor PROLINE - Free user manual and instructions

USER MANUAL RP11 PROLINE

White ProLine kitchen mixer with stainless steel bowl and control knobs (no visible text or symbols)

Catalogue

Downloaded from www.vandenborre.be

Language of introduction Page

English EN1-EN5

French ---- FR6-FR11

Dutch ---- NL12-NL17

Spanish ES18-ES22

Portuguese ---- PT23-PT27

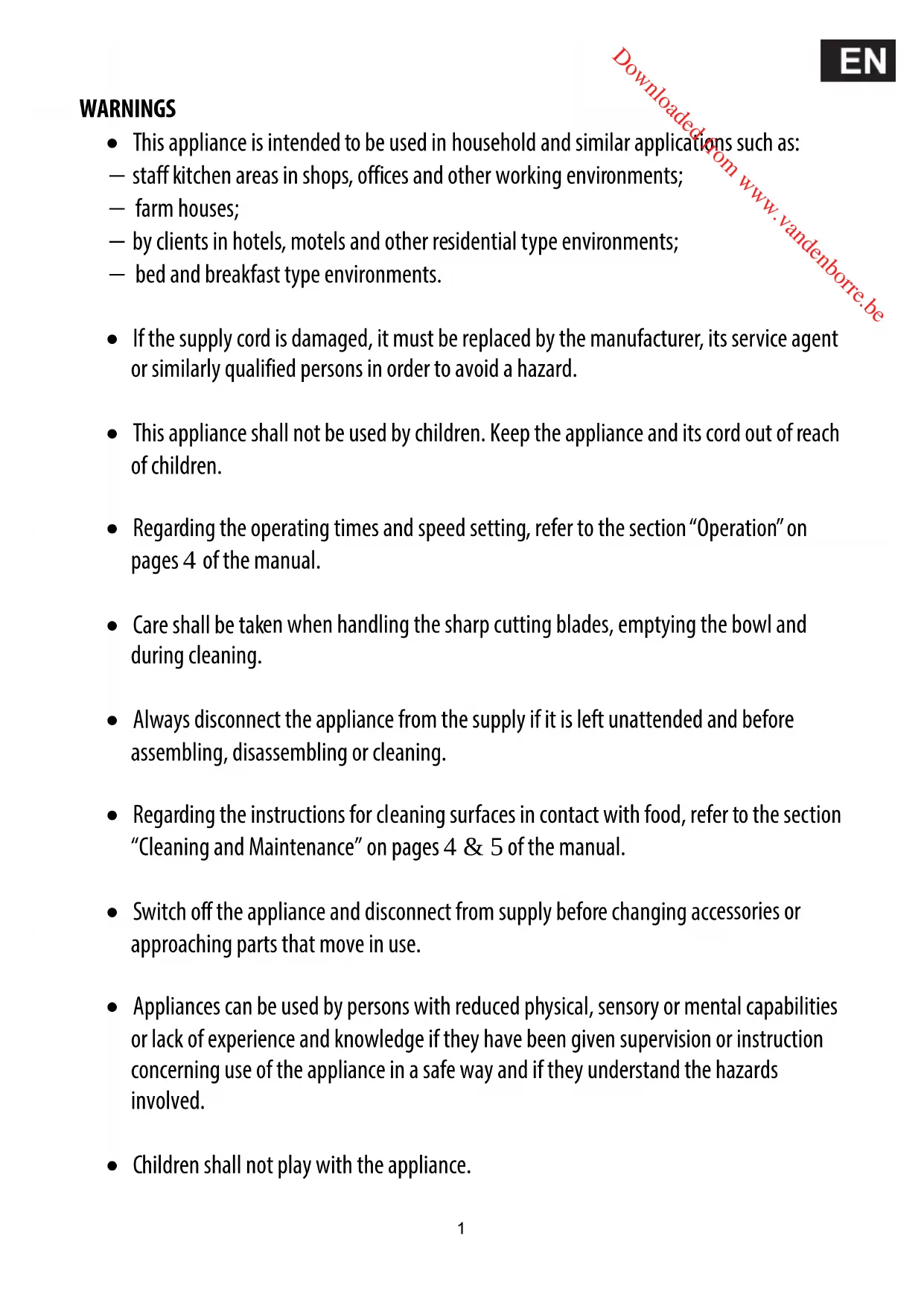

WARNINGS

• This appliance is intended to be used in household and similar applications such as:
  — staff kitchen areas in shops, offices and other working environments;
  — farm houses;
  — by clients in hotels, motels and other residential type environments;
  — bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Regarding the operating times and speed setting, refer to the section "Operation" on pages 4 of the manual.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Regarding the instructions for cleaning surfaces in contact with food, refer to the section "Cleaning and Maintenance" on pages 4 & 5 of the manual.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.

- WARNING: Risks of injuries if you don't use this appliance correctly.

IMPORTANT SAFETY INSTRUCTION

Read all instructions carefully before operating the appliance and retain this instruction manual for furture reference.

• Before operating this appliance, ensure that long hair is tied back and loose jewellery and clothing are removed.
• Be certain that accessories are firmly inserted and correctly assembled before operating this appliance.
• Do not exceed the maximum quantity of ingredients listed in the instruction manual.
• Never use this appliance to blend anything other than food.
• Do not use the blender to blend or chop hot food or liquid as there is a danger of scalding or damage to the appliance.
• Do not overfill the bowl.
• Do not use outdoors.
• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
• It is recommended to use the bowl cover on the bowl for whisking.
• Ensure the attachments have stopped rotating before lifting the mixer head upwards.
• The use of accessories not recommended by the manufacturer may cause fire, electric shock or injury.
• Do not use the appliance for anything other than its intended purpose.
  • Always operate the appliance with lid in place.

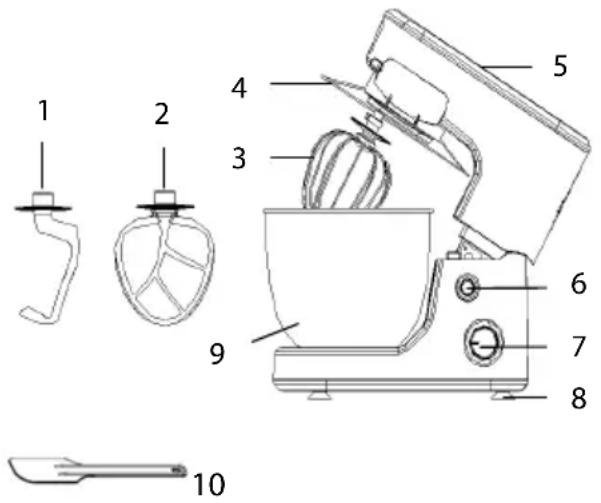

PARTS

Technical diagram of a kitchen mixer with numbered parts and exploded view

1. Dough hook

2. Beater

3. Whisk

4. Bowl cover

5. Head unit

6. Head release button

7. Speed selector

8. Rubber foot

9. Mixing bowl

10. Spatula

BEFORE FIRST USE

Before using this appliance for the first time, clean the accessories in warm soapy water. Rinse and dry thoroughly.

ASSEMBLY

WARNING: ALWAYS make sure the appliance is turned off and unplugged before assembly and disassembly.

Place the appliance on a fat stable surface.

Mixer Assembly

1. Press the head release button to lift the head unit.

Close-up of a white mechanical component with a metallic screw and a small circular feature, no visible text or symbols.

1. Attach the bowl cover to the head unit to prevent ingredients from splashing out during operation.

Close-up of a kitchen mixer with a bowl and kitchen stand (no visible text or symbols)

1. Press the head release button and lower the head unit.

2. Place the mixing bowl into the recessed bowl locator. Twist the mixing bowl clockwise to lock it into place.

Close-up of a kitchen mixer with a metal bowl and control panel (no visible text or symbols)

1. Place the accessory into the accessory socket. Rotate the accessory screw head anticlockwise to secure into place.

Close-up of a kitchen mixer with a bowl and kitchen stand (no visible text or symbols)

White kitchen mixer with a side panel and control knob (no visible text or symbols)

OPERATION

Ensure the speed selector is set to the OFF position. Plug the appliance into the mains socket.

MIN to medium speed settings for making bread dough

• Use the dough hook or beater to mix and knead yeast doughs.
• It is recommended that the maximum amount of flour and water to be used is 1000g for flour and 600ml for
  water.
• First put flour and then pour water in the bowl.
• The ingredients should be mixed at speed MIN for 30 seconds, and then the speed increased to a medium speed for additional 3 to 5 minutes. (Max: 5-minute continuous use, allow the appliance to cool down between two consecutive cycles.)

Speed MAX for making cakes and icings

• Use the whisk to whisk egg whites and creams for about 7 minutes at speed MAX.
• The maximum number of eggs is 14.

Speed MAX for mixing shakes, cocktails or other liquids

Use the beater to mix the ingredients at speed MAX for about 7 minutes.

NOTE: During mixing, ingredients may splash or cling to the side of the mixing bowl, turn the speed selector to the OFF position and use the supplied spatula scrape the side of the mixing bowl incorporating this into the centre of the mixing bowl, continue mixing.

CLEANING AND MAINTENANCE

Warning: Always turn off and unplug the appliance before cleaning.

Ensure the appliance has cooled completely before cleaning.

Disassemble the accessories.

Wash the accessories in warm soapy water. Rinse them thoroughly.

Clean the outside of the appliance with a slightly damp cloth. Do not immerse it in water.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of warm clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food.

Correct food hygiene practises should always be followed at all times to avoid possibility of food poisoning /cross contamination.

Dry the entire appliance with a dry cloth before replacing. Do not use chemical cleaners or abrasives product for cleaning.

SPECIFICATIONS

Ratings: 220-240V\~, 50Hz

1000W

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 27 / 09 / 2017

ATTENTION

Symbolic icon of a person walking with arrows indicating rotation or cycle (no text or symbols)

CONSIGNE POUVANT VARIER LOCALEMENT > WWW.CONSIGNESDETRI.FR

CONSIGNES DE SÉCURITÉ IMPORTANTES

Technical diagram of a kitchen mixer with numbered parts and exploded view

Close-up of a white mechanical component with a black arrow pointing to a circular feature (no visible text or symbols)

Close-up of a kitchen mixer with a metal bowl and control panel (no visible text or symbols)

Close-up of a kitchen mixer with open lid and metal bowl (no visible text or symbols)

Close-up of a kitchen mixer with open lid and control panel (no visible text or symbols)

White kitchen mixer with a side panel and control knob (no visible text or symbols)

UTILISATION

Hotline Darty France

Technical diagram of a kitchen mixer with numbered parts and exploded view

Close-up of a white mechanical component with a knob and arrow indicator (no visible text or symbols)

White kitchen mixer with a bowl and control panel (no visible text or symbols)

Close-up of a modern kitchen mixer with a bowl and control panel (no visible text or symbols)

Close-up of a kitchen mixer with open lid and control panel (no visible text or symbols)

Front view of a modern kitchen mixer with a large bowl and control knob (no visible text or symbols)

BEDIENING

Technical diagram of a kitchen mixer with numbered parts and exploded view

Close-up of a white mechanical component with a knob and adjustment knob (no visible text or symbols)

Exterior view of a modern kitchen mixer with a bowl and stand (no visible text or symbols)

Close-up of a white kitchen mixer with a metallic bowl and control panel (no visible text or symbols)

Close-up of a kitchen mixer with a bowl and kitchen stand (no visible text or symbols)

White kitchen mixer with a side panel open, showing liquid and control buttons (no visible text or symbols)

FUNCIONAMIENTO

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 27/09/2017

AVISOS

Technical diagram of a kitchen mixer with numbered parts for identification

Close-up of a white mechanical component with a knob and arrow indicator (no visible text or symbols)

Exterior view of a modern kitchen mixer (no text or symbols visible)

Close-up of a kitchen mixer with a metallic bowl and control panel (no visible text or symbols)

Close-up of a kitchen mixer with a bowl and stand mixer (no visible text or symbols)

White kitchen mixer with a glass bowl and control knob (no visible text or symbols)

FUNCIONAMENTO
