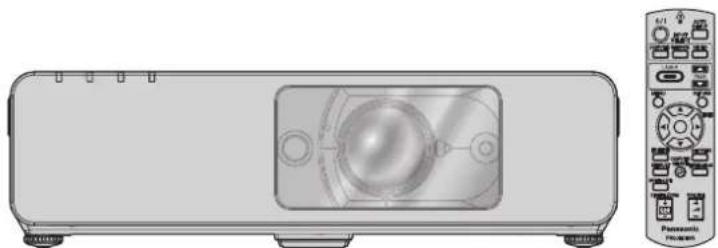

ENGLISH Operating Instructions LCD Projector Model No. PT-F100NTU PT-F100U Before operating this product, please read the instructions carefully and save this manual for future use. TQBJ0213 Commercial UseImportant Information ENGLISH - 2 Important Safety Notice Dear Panasonic Customer: This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector. The serial number of your product may be found on its bottom. You should note it in the space provided below and retain this booklet in case service is required. Model number: PT-F100NTU / PT-F100U Serial number:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE. Power Supply: This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only. CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 7 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug. Indication based on the German law "Geräte- und Produktsicherheitsgesetz” Directive 2001/95/EC (Article 5); Panasonic Marketing Europe GmbH Hagenauer Str. 43 65203 Wiesbaden F.R.GERMANY NOTICE: A This product has a High Intensity Discharge (HID) lamp that contains mercury. Dispose may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronics Industries Alliance: http://www.eiae.org Do not removeImportant Information Important Safety Notice ENGLISH - 3 Information on Disposal in other Countries outside the European This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to computers or peripheral devices. Any unauthorized changes or modifications to this equipment will void the users authority to operate. If you use serial port to connect PC for external control of projector, you must use optional RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this equipment will void the user’s authority to operate. FCC RF Exposure Warning: (if provided with wireless device) - This equipment complied with FCC radiation exposure limits set forth for an unconrolled environment. - This equipment has been approved for mobile operation and requires minimum 20 cm spacing be provided between antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. - This equipment may not be used with other installed transmitters, which may be capable of simultaneous transmission.

2. Connect with other devices

See “Connections” on page 20.

1. Set up your projector

See “Setting up” on page 16.

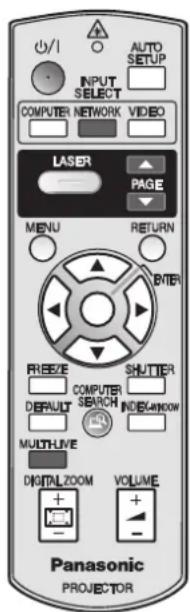

3. Prepare the Remote control

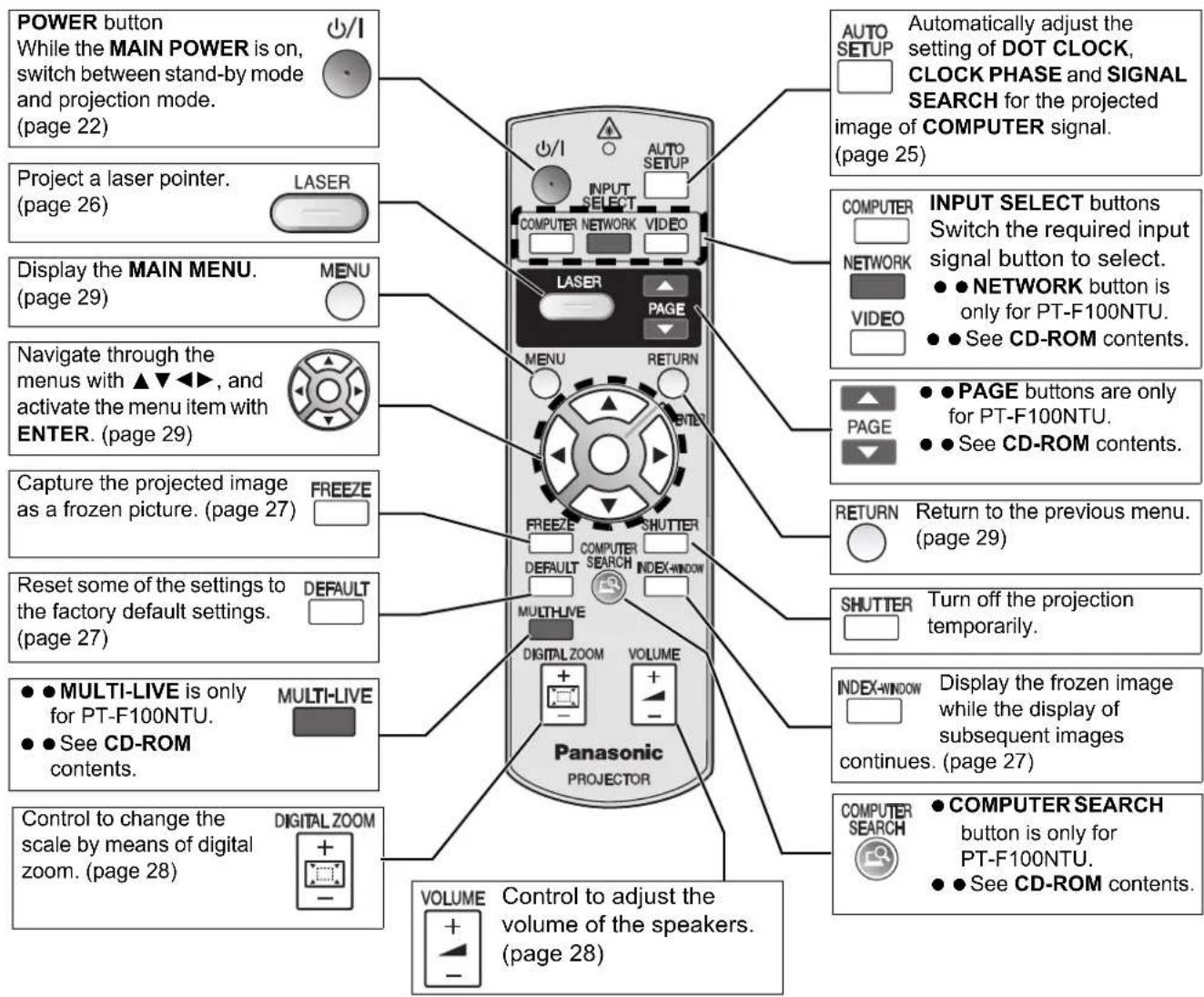

See “Remote control” on page 13.

See “Switching the projector on/off” on page 22.

• Précautions lors du transport p. 62
• Précautions lors de l'installation p. 62
• Précautions lors de l'utilisation p. 62
• Remplacement de l'unité de la lampe p. 63
• Protections du support de montage au plafond Settings Maintenance AppendixImportant Information ENGLISH - 8 Precautions with regard to safety If you notice smoke, strange smells or noise coming from the projector, disconnect the power plug from the wall socket. Do not continue to use the projector in such cases, otherwise fire or electric shocks could result. Check that no more smoke is coming out, and then contact an Authorized Service Center for repairs. Do not attempt to repair the projector yourself, as this can be dangerous. Do not install this projector in a place which is not strong enough to take the full weight of the projector. If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result. Installation work (such as ceiling suspension) should only be carried out by a qualified technician. If installation is not carried out correctly, there is the danger that injury or electric shocks may occur. Do not use other than an authorized ceiling mount bracket. If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, disconnect the power plug from the wall socket. Continued use of the projector in this condition may result in fire or electric shocks. Contact an Authorized Service Center for repairs. Do not overload the wall socket. If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result. Never attempt to modify or disassemble the projector. High voltages can cause fire or electric shocks. For any inspection, adjustment and repair work, please contact an Authorized Service Center. Clean the power plug regularly to prevent it from becoming covered in dust. If dust builds up on the power plug, the resulting humidity can damage the insulation, which could result in fire. Pull the power plug out from the wall socket and wipe it with a dry cloth. If not using the projector for an extended period of time, pull the power plug out from the wall socket. Do not handle the power plug with wet hands. Failure to observe this may result in electric shocks. Insert the power plug securely into the wall socket. If the plug is not inserted correctly, electric shocks or overheating could result. Do not use plugs which are damaged or wall sockets which are coming loose from the wall. Do not place the projector on top of surfaces which are unstable. If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result. Do not place the projector into water or let it become wet. Failure to observe this may result in fire or electric shocks. Do not do anything that might damage the power cord or the power plug. Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle. If the power cord is used while damaged, electric shocks, short-circuits or fire may result. Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary. Do not place the projector on soft materials such as carpets or sponge mats. Doing so may cause the projector to overheat, which can cause burns, fire or damage to the projector. Do not place liquid containers on top of the projector. If water spills onto the projector or gets inside it, fire or electric shocks could result. If any water gets inside the projector, contact an Authorized Service Center. Do not insert any foreign objects into the projector. Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks. Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins. Failure to observe this may cause the batteries to leak, overheat, explode or catch fire. Store the batteries in a plastic bag and keep them away from metallic objects. Do not touch the leaked liquid from the batteries. If you touch the leaked liquid, it may hurt your skin. Immediately wash away the liquid with water and seek medical advice. If you get the leaked liquid in your eye, it may cause blindness or damage. Never rub your eye, and immediately wash away the liquid with water and seek medical advice. During a thunderstorm, do not touch the projector or the cable. Electric shocks can result. WARNINGSPrecautions with regard to safety ENGLISH - 9 Important Information Do not use the projector in a bath or shower. Fire or electric shocks can result. Do not place your skin into the light beam while the projector is being used. Strong light is emitted from the projector’s lens. If you place directly into this light, it can hurt or damage your skin. Do not look into the lens while the projector is being used. Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes. Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector. Do not place your hands or other objects close to the air outlet port. Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port [allow at least 50 cm (20") of space], otherwise burns or damage could result. Replacement of the lamp is recommended to be carried out by a qualified technician. The lamp has high internal pressure. If improperly handled, explosion might result. The lamp can easily become damaged if struck against hard objects or dropped, and injury or malfunctions may result. When replacing the lamp, allow it to cool for at least one hour before handling it. The lamp cover gets very hot, and touching it can cause burns. Before replacing the lamp, be sure to disconnect the power plug from the wall socket. Electric shocks or explosions can result if this is not done. Do not allow infants or pets to touch the remote control unit. Keep the remote control unit out of the reach of infants and pets after using it. Do not cover the air inlet port or the air outlet port. Doing so may cause the projector to overheat, which can cause fire or damage to the projector. Do not place the projector in narrow, badly ventilated places such as closets or bookshelves. Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port. Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam. Using the projector under such conditions may result in fire, electric shocks or plastic deterioration. The plastic deterioration may cause the falling down of the projector which is mounted in the ceiling. Do not set up the projector in a high temperature environment, such as near a heater or in direct sunlight. Failure to observe this may result in fire, malfunction or plastic deterioration. When disconnecting the power cord, hold the plug, not the lead. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks may result. Always disconnect all cables before moving the projector. Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur. Do not place any heavy objects on top of the projector. Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury. Do not short-circuit, heat or disassemble the batteries or place them into water or fire. Failure to observe this may cause the batteries to overheat, leak, explode or catch fire, and burns or other injury may result. When inserting the batteries, make sure the polarities (+ and -) are correct. If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result. Use only the specified batteries. If incorrect or different kind of batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result. CAUTIONSPrecautions with regard to safety ENGLISH - 10 Important Information Do not mix old and new batteries. If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result. Remove the used batteries from the remote control promptly. If you leave used batteries in the remote control for an extended period of time, it may cause liquid leaking, abnormal internal temperature rising or explosion. If not using the projector for an extended period of time, disconnect the power plug from the wall socket and remove the batteries from the remote control. If dust builds up on the power plug, the resulting humidity may damage the insulation, which could result in fire. Keeping or leaving the remote control with batteries inside may cause insulation deterioration, electrical leakage or explosion which could result in fire. Do not put your weight on this projector. You could fall or the projector could break, and injury may result. Be especially careful not to let young children stand or sit on the projector. Disconnect the power plug from the wall socket as a safety precaution before carrying out any cleaning. Electric shocks can result if this is not done. If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces. Failure to observe this may cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces may cause injury. If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately. Ask your dealer about the replacement of the lamp unit and check the inside of the projector. Ask an Authorized Service Center to clean inside the projector at least once a year. If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation. It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorized Service Center to clean the projector when required. Please discuss with the Authorized Service Center regarding cleaning costs. We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable units back to your dealer or a recycling company. Do not subject the projector to excessive vibration or shocks. The projector lens need to be handled with care. Cover the lens with the lens cover when transporting the projector. When transporting the projector, hold the body at the bottom securely. Do not hold the adjuster legs or the top cover to move the projector, as this may damage the projector. Avoid setting up in places which are subject to vibration or shocks. The internal parts can be damaged, which may cause malfunctions or accidents. Avoid setting up in places which are subject to sudden temperature changes, such as near an air conditioner or lighting equipment. The life of the lamp may be shortened or the projector may be turned off. See “TEMP indicator” on page 40. Do not set up the projector near high-voltage power lines or near motors. The projector may be subject to electromagnetic interference. If installing the projector to the ceiling, ask a qualified technician to carry out all installation work. You will need to purchase the separate installation kit (Model No. ET-PKF100H, ET-PKF100S). Furthermore, all installation work is should only be carried out by a qualified technician. See “Ceiling mount bracket safeguards” on page 44 for the Safety cable installation. If using this projector at high elevations (above 1 400 m), set the HIGHLAND to ON. See “HIGHLAND” on page 38. Failure to observe this may result in malfunctions or the life of the lamp or the other components may be shortened. Cautions when transporting Cautions when installingPrecautions with regard to safety ENGLISH - 11 Important Information In order to get the best picture quality Draw curtains or blinds over any windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen. Do not touch the surfaces of the lens or the front glass with your bare hands. If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Moreover, when not using the projector, close the Front panel cover. Liquid crystal panel Do not project the same image for long periods of time, as this may remain as an afterimage on the liquid crystal panel. The liquid crystal panel of the projector is built with very high precision technology to provide fine picture details. Occasionally, a few stuck pixels may appear on the screen as fixed points of blue, green or red. It is recommended to switch off the projector once and try after 1hour later again. Please note that this does not affect the performance of your LCD. The projector has a high pressure mercury lamp and that is characterised as follows. The brightness of the lamp depends on the duration of use. The lamp may explode or shorten the lamp life by shocks or chipping damage. The lamp may explode only occasionally after using the projector. The lamp may explode if using the projector after the instructed lamp replacement timing. The lamp life is depends on individual lamp characteristics, usage condition and the installation environment. Especially the consecutive use of the projector for more than 10 hours, or the frequent switching on or off may greatly affect on the lamp life. Screen Do not apply any volatile substances which may cause discoloration to the screen, and do not let it become dirty or damaged. Optical components If you use the projector consecutively 6 hours every day, the optical components may need to be replaced in less than 1 year. Make sure the following accessories are provided with your projector. Cautions on use Accessories Remote control for PT-F100NTU p. 65

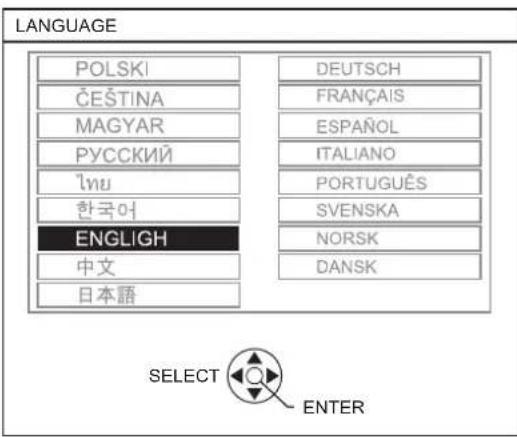

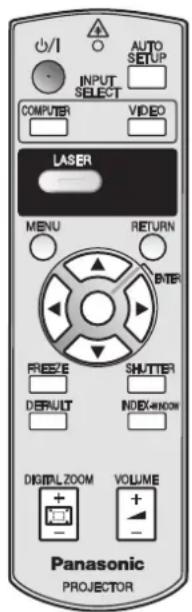

(x1) TQBH9009 *3. PT-F100NTU onlyENGLISH - 12 Preparation Read this first When you start the projection for the first time, the minimum required setting screen for projection will be displayed. J LANGUAGE Select the required language setting. Press F G I H buttons of the Remote control or Control panel on the projector to highlight the required language, and press ENTER to proceed to the next setting. J OPTIONS Select the current projection method and fan speed setting. If you need return to the previous setting, press the RETURTN button.INSTALLATION Press I H buttons of the Remote control or Control panel on the projector to select the required installation method. Press G to proceed to the HIGHLAND setting.HIGHLANDIf you use the projector at high elevation, the HIGHLAND setting need to be ON to set the fan speed high. Press I H to select the required option. If you need to return to the INSTALLATION, press F . OFF The fan speed is low. ON The fan speed is high.Press the ENTER button to start the projection. Once you finish the minimum requirement setting, it will not be displayed again unless the projector is initialised. See “INITIALIZE ALL” on page 38. You can change the settings from the MAIN MENU. See “Menu Navigation” on page 29. Minimum required setting screen LANGUAGESELECTENTERINSTALLATIONOPTIONFRONT/DESKHIGHLAND OFF SELECTENTERRETURNFRONT/DESKSetting on a desk/floor and projecting from frontFRONT/CEILINGMounting in the ceiling and projecting from frontREAR/DESKSetting on a desk/floor and projecting from rearREAR/CEILINGMounting in the ceiling and projecting from rearNOTE:

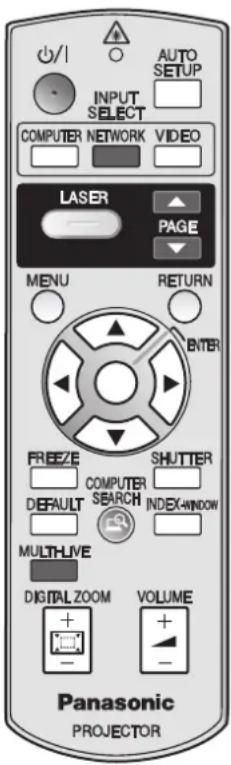

• At 1 400 m (4 593 ft) above sea level, the setting must be ON.• The loudness of fan noise depends on the HIGHLAND setting.ENGLISH - 13 Preparation About Your Projector Battery compartment1. Press the tab and lift up the cover.2. Insert the batteries according to the polarity diagram indicated inside.Top viewRemote control signal and Laser pointer beam emitters. (page 25)Attaching a hand strapYou can attach a favourite strap on to the Remote control.Remote control indicatorIf you press any button except the LASER button, the Remote control indicator will flash. If you press the LASER button, it will lit. Remote control POWER buttonWhile the MAIN POWER is on, switch between stand-by mode and projection mode. (page 22)INPUT SELECT buttonsSwitch the required input signal button to select. NETWORK button is only for PT-F100NTU. See CD-ROM contents.Project a laser pointer. (page 26) PAGE buttons are only for PT-F100NTU. See CD-ROM contents.Display the MAIN MENU. (page 29)Navigate through the menus with FGIH, and activate the menu item with ENTER. (page 29)Reset some of the settings to the factory default settings. (page 27)Turn off the projection temporarily.Display the frozen image while the display of subsequent images continues. (page 27) MULTI-LIVE is only for PT-F100NTU. See CD-ROM contents. COMPUTER SEARCH button is only for PT-F100NTU. See CD-ROM contents.Control to change the scale by means of digital zoom. (page 28)Control to adjust the volume of the speakers. (page 28)Return to the previous menu. (page 29)Capture the projected image as a frozen picture. (page 27)Automatically adjust the setting of DOT CLOCK, CLOCK PHASE and SIGNAL SEARCH for the projected image of COMPUTER signal. (page 25)Remote control indicator NOTE:
• Do not drop the Remote control.• Avoid contact with liquids or moisture.
• Use manganese batteries or alkaline batteries with the Remote control.

• Do not attempt to modify or disassemble the Remote control. Contact an Authorized Service Center for repairs.

• Do not keep pressing the Remote control buttons as this may shorten battery life.

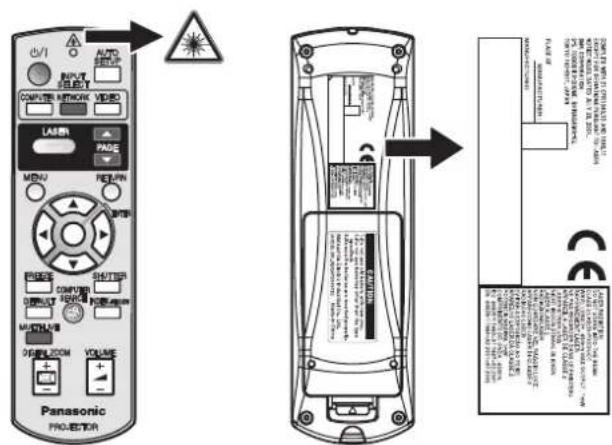

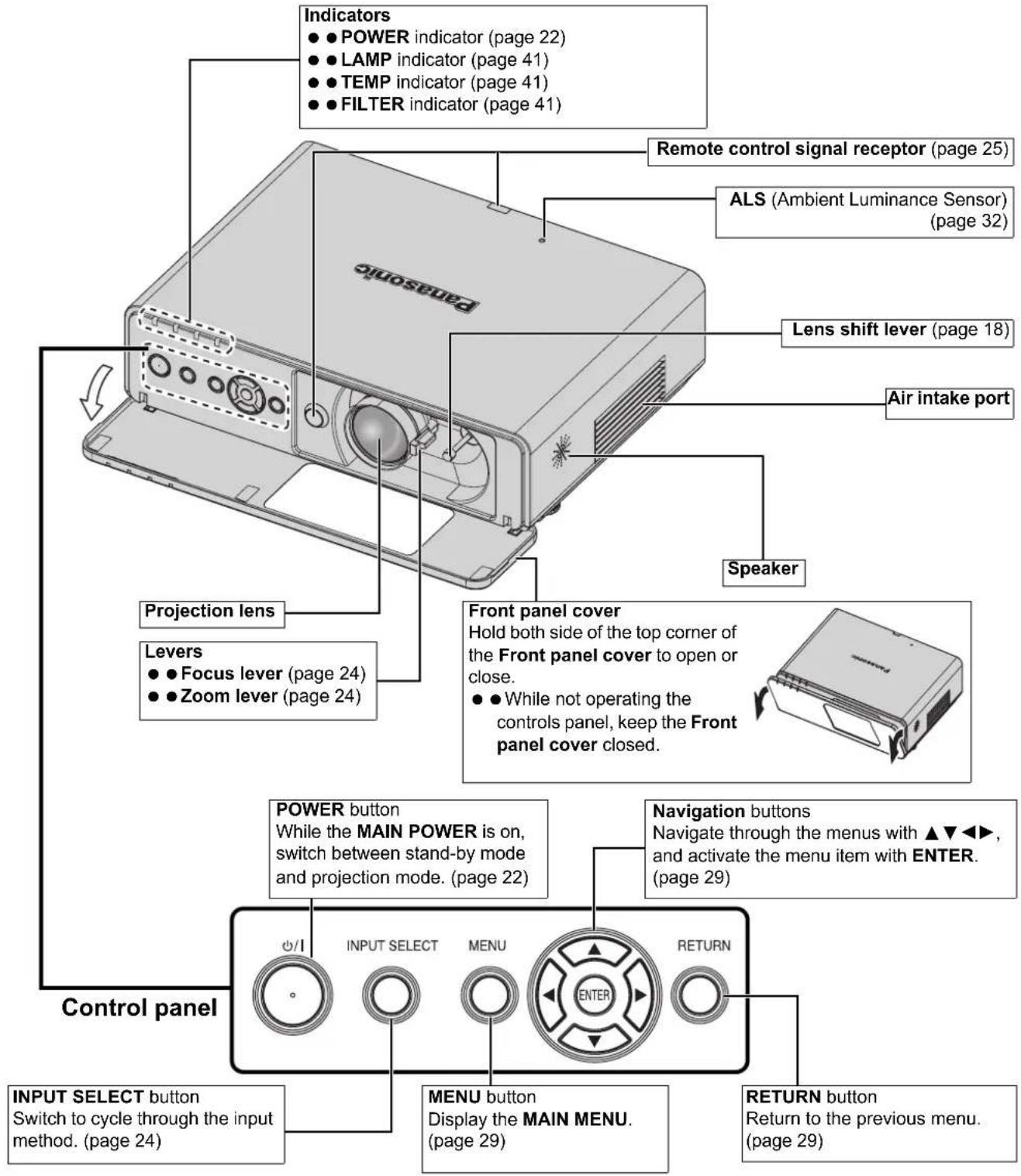

• Do not point the laser in other people’s eyes or stare into beam.• See “Remote control operation” on page 25.Preparation About Your Projector ENGLISH - 14 J Top and front view Projector body NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.

• While the projector is not in use, keep the FRONT PANEL COVER closed to protect the lens. Indicators POWER indicator (page 22) LAMP indicator (page 41) TEMP indicator (page 41) FILTER indicator (page 41)Levers Focus lever (page 24) Zoom lever (page 24)ALS (Ambient Luminance Sensor)(page 32)Speaker Lens shift lever (page 18)Projection lens Front panel cover Hold both side of the top corner of the Front panel cover to open or close. While not operating the controls panel, keep the Front panel cover closed.Remote control signal receptor (page 25)POWER buttonWhile the MAIN POWER is on, switch between stand-by mode and projection mode. (page 22)INPUT SELECT buttonSwitch to cycle through the input method. (page 24)Navigation buttonsNavigate through the menus with FGIH, and activate the menu item with ENTER. (page 29)MENU buttonDisplay the MAIN MENU. (page 29)RETURN buttonReturn to the previous menu. (page 29) Control panel Air intake portPreparation About Your Projector ENGLISH - 15 J Back and bottom view NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.

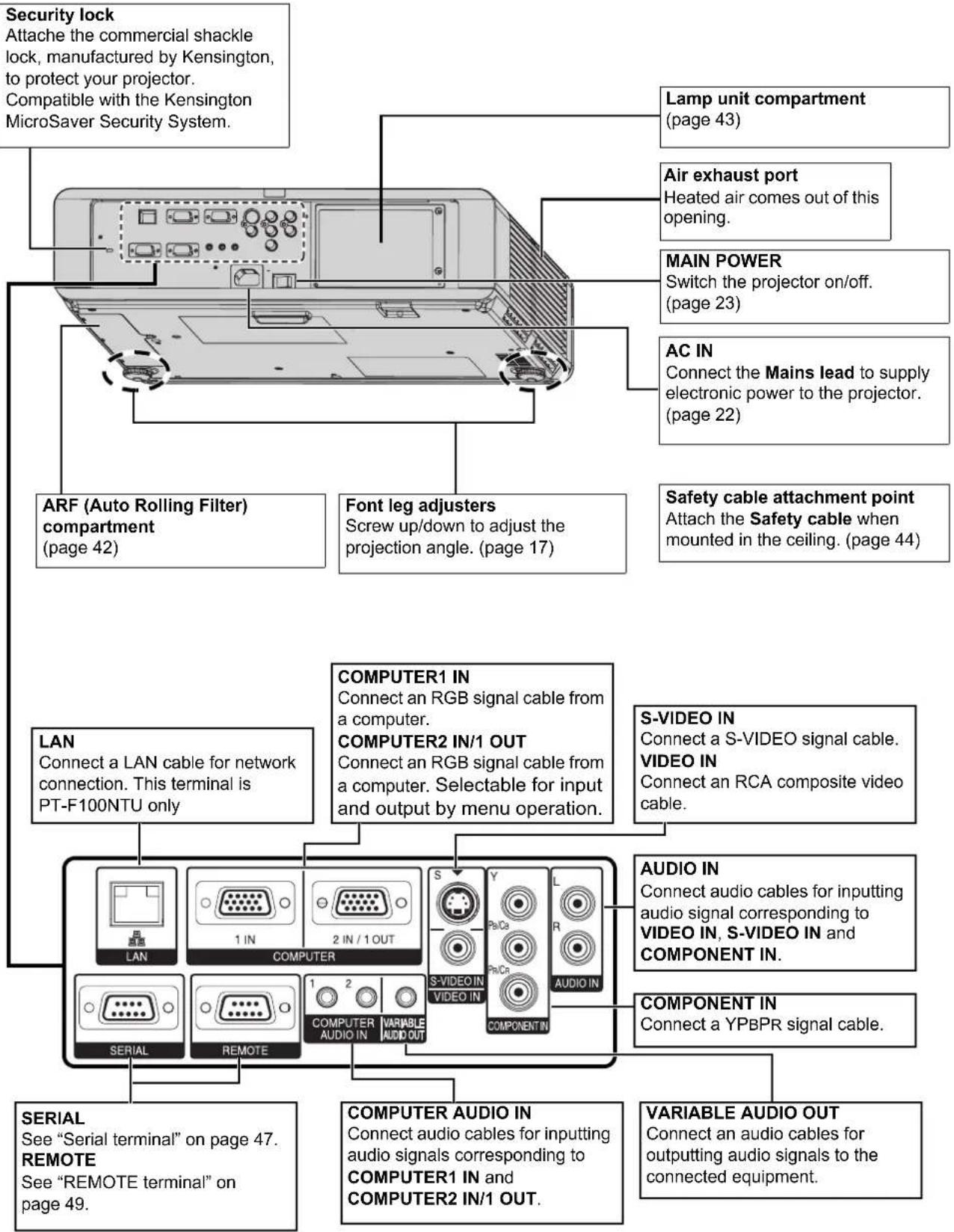

• When a cable is connected to the VARIABLE AUDIO OUT, the built-in speaker will be disabled. AC INConnect the Mains lead to supply electronic power to the projector. (page 22)MAIN POWERSwitch the projector on/off. (page 23)Safety cable attachment pointAttach the Safety cable when mounted in the ceiling. (page 44)ARF (Auto Rolling Filter) compartment(page 42)Lamp unit compartment(page 43)Font leg adjustersScrew up/down to adjust the projection angle. (page 17)Security lockAttache the commercial shackle lock, manufactured by Kensington, to protect your projector. Compatible with the Kensington MicroSaver Security System. LAN Connect a LAN cable for network connection. This terminal is PT-F100NTU onlyCOMPUTER1 INConnect an RGB signal cable from a computer.COMPUTER2 IN/1 OUTConnect an RGB signal cable from a computer. Selectable for input and output by menu operation.S-VIDEO INConnect a S-VIDEO signal cable.VIDEO INConnect an RCA composite video cable.COMPUTER AUDIO INConnect audio cables for inputting audio signals corresponding to COMPUTER1 IN and COMPUTER2 IN/1 OUT.SERIALSee “Serial terminal” on page 47.REMOTESee “REMOTE terminal” on page 49.COMPONENT INConnect a YPBPR signal cable.AUDIO INConnect audio cables for inputting audio signal corresponding to VIDEO IN, S-VIDEO IN and COMPONENT IN.Air exhaust portHeated air comes out of this opening.VARIABLE AUDIO OUTConnect an audio cables for outputting audio signals to the connected equipment.Getting Started ENGLISH - 16 Setting up You can adjust the projection size with 2.0x zoom lens. Calculate and define the throw distance as follows.

• All measurements above are approximate and may differ slightly from the actual measurements. J Calculation methods for screen dimensions You can calculate more detailed screen dimension from the screen diagonal.SW = SD x 0.0203 SH = SD x 0.0152LW = 0.0304 x SD - 0.048 LT = 0.0606 x SD - 0.057Unit: m* The results above are approximate and may differ slightly from the actual measurements. Screen size and throw distance Projection size (4 : 3) Throw distance (L)Screen diagonal (SD) Screen height (SH) Screen width (SW)Minimum distance (LW) Maximum distance (LT) 33" (0.84 m) 0.50 m (1'7") 0.67 m (2'2") 1.9 m (6'2") 40" (1.02 m) 0.61 m (2') 0.81 m (2'7") 1.2 m (3'11") 2.4 m (7'10") 50" (1.27 m) 0.76 m (2'5") 1.02 m (3'4") 1.5 m (4'11") 3.0 m (9'10") 60" (1.52 m) 0.91 m (2'11") 1.22 m (4') 1.8 m (5'10") 3.6 m (11'9") 70" (1.78 m) 1.07 m (3'06") 1.42 m (4'7") 2.1 m (6'10") 4.2 m (13'9") 80" (2.03 m) 1.22 m (4') 1.63 m (5'4") 2.4 m (7'10") 4.8 m (15'8") 90" (2.29 m) 1.37 m (4'5") 1.83 m (6') 2.7 m (8'10") 5.4 m (17'8") 100" (2.54 m) 1.52 m (4'11") 2.03 m (6'7") 3.0 m (9'10") 6.0 m (19'8") 120" (3.05 m) 1.83 m (6') 2.44 m (8') 3.6 m (11'9") 7.2 m (23'7") 150" (3.81 m) 2.29 m (7'6") 3.05 m (10') 4.5 m (14'9") 9.0 m (29'6") 200" (5.08 m) 3.05 m (10') 4.06 m (13'3") 6.0 m (19'8") 12.1 m (39'8") 250" (6.37 m) 3.81 m (12'6") 5.08 m (16'8") 7.6 m (24'11") 15.1 m (49'6") 300" (5.08 m) 4.57 m (14'11") 6.10 m (20') 9.1 m (29'10") 18.1 m (59'4") NOTE:

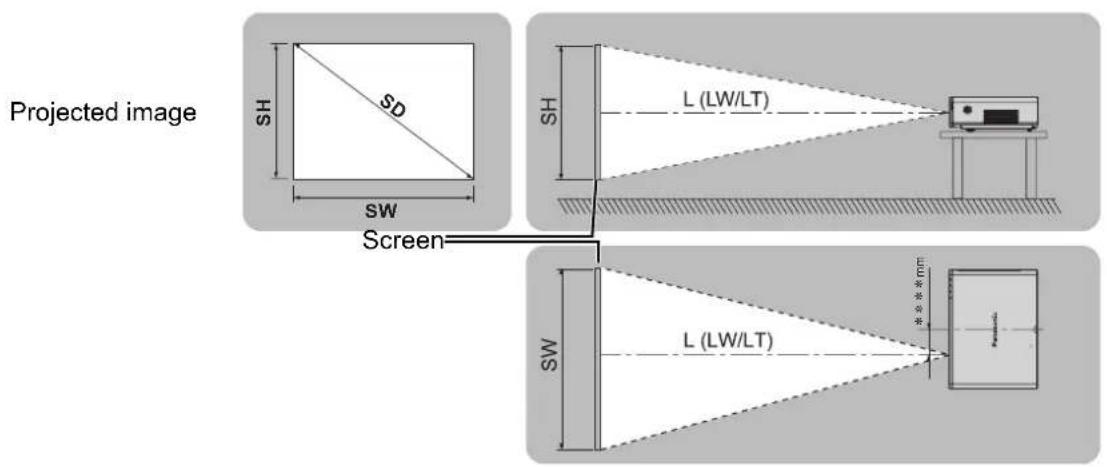

• See “Screen size and throw distance for 16:9 aspect ratio” on page 52.
• Do not use the projector at a raised or a horizontally tilted position as it may cause malfunction of the projector.
• Make sure the projector lens surface is parallel with the screen. You can tilt the projector body approximately ± 30° vertically. Overtilting may result in shortening the component’s life.
• For the best quality of the projection image, install a screen where sun light or room light does not shine directly onto the screen. Close window shades or curtains to block the lights.＊＊＊＊mm

ScreenProjected imageGetting Started Setting up ENGLISH - 17 You can use the projector with any of the following 4 projection methods. To set the desired method in the projector, See “INSTALLATION” on page 37.. You can screw up/down the front leg adjusters to control the angle of the projector for adjusting the throwing angle. See “Positioning the image” on page 24. Projection method J Setting on a desk/floor and projecting from front J Setting on a desk/floor and projecting from rear

INSTALLATION: FRONT/DESK INSTALLATION: REAR/DESK

J Mounting in the ceiling and projecting from front J Mounting in the ceiling and projecting from rear

INSTALLATION: FRONT/CEILING INSTALLATION: REAR/CEILING

• A translucent screen is required for rear projection.
• When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKF100H, ET-PKF100S) is required.

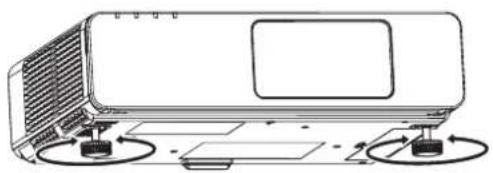

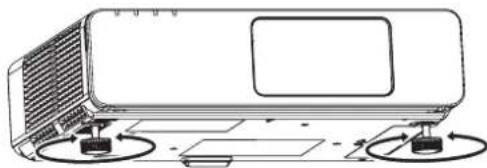

• See “Ceiling mount bracket safeguards” on page 44. Front leg adjusters and throwing angle NOTE:

• Heated air comes out of the Air exhaust port. Do not touch the Air exhaust port directly.

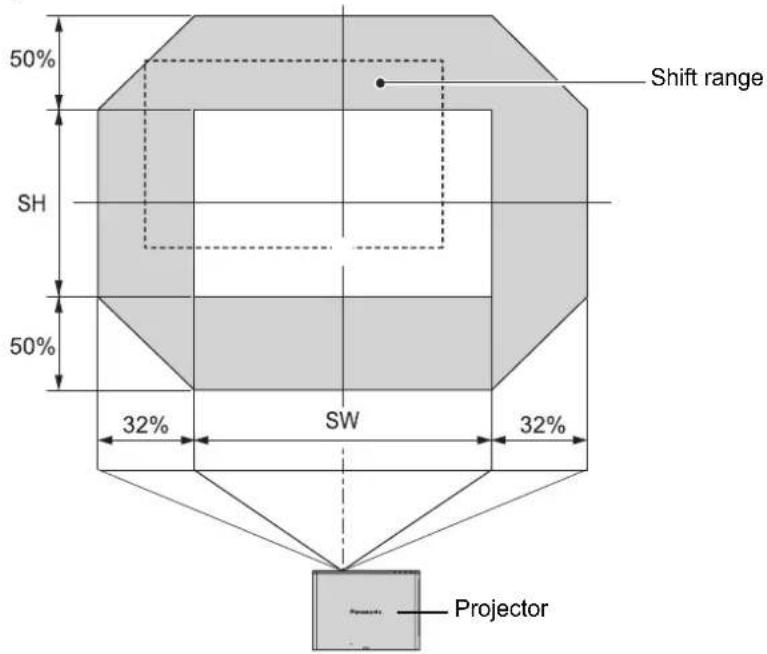

• If keystone distortion occurs, see “KEYSTONE” on page 34.Getting Started Setting up ENGLISH - 18 If the projector is not positioned right in front of the center of the screen, you can adjust the projected image position by moving the Lens shift lever within the shift range of the lens. J Adjusting the Lens shift lever 1. Open the Front panel cover.2. Screw the Lens shift lever counterclockwise to unlock.3. Move the Lens shift lever to adjust the projected image position.4. Screw the Lens shift lever clockwise to lock. Q Horizontal shift You can place the projector where the projector lens is up to 32% horizontally off-center from the screen and then adjust the image position with the Lens shift lever. Q Vertical shift You can place the projector where the projector lens is up to 50% vertically off-center from the screen and the adjust the image position with the Lens shift lever. Lens shift and positioning Shifting the lever right:Moving to screen’sright.Up to about 32 % of the projectionShifting the lever left: Moving to screen’s left.Up to about 32 %of the projectionUp to about 50 %of the projectionUp to about 50 %of the projectionShifting the lever down: Moving to screen’s bottom.Shifting the lever up: Moving to screen’s top.Getting Started Setting up ENGLISH - 19 J Projector location range You can determine where to locate the screen and the projector by considering the lens shift possibilities. See “Positioning the image” on page 24. Q When the screen position is fixed Q When the projector position is fixed NOTE:

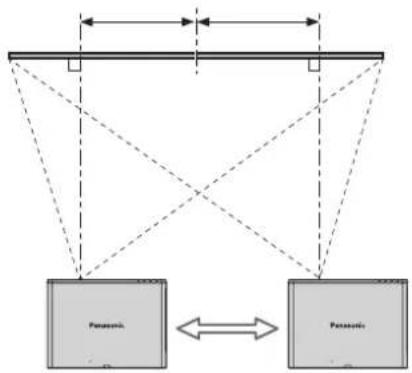

• When the projector is located right in front of the screen and the Lens shift lever is centered, you will get the best quality of the projection image.

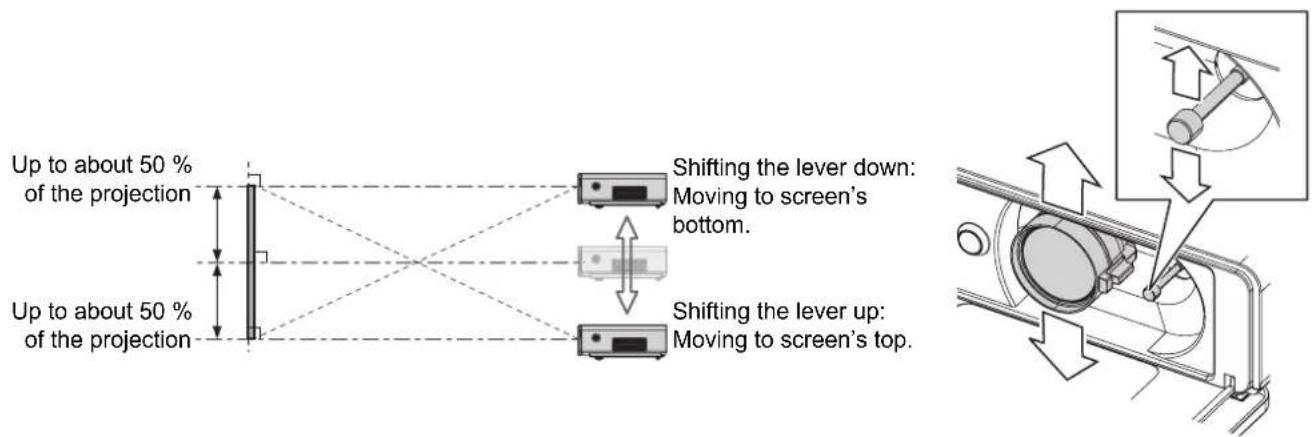

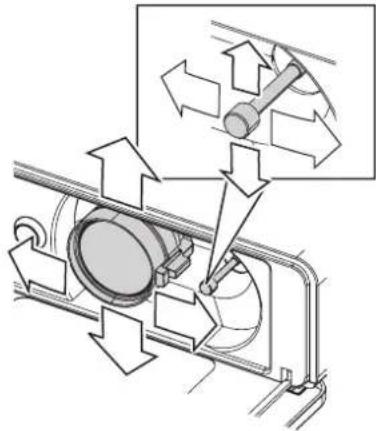

• When the Lens shift lever is at the vertical limit of the shift range, you cannot move the lever to the horizontal limit, likewise when the Lens shift lever is at the horizontal limit of the shift range, you cannot move the lever to the horizontal limit.
• When the projector is tilted and you adjust KEYSTONE, the center of the screen and the lens need to be realigned.

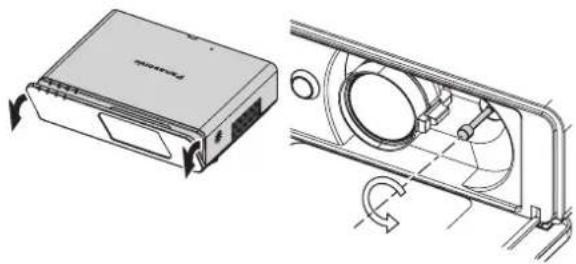

• Do not attempt to pull the Lens shift lever hard while adjusting.

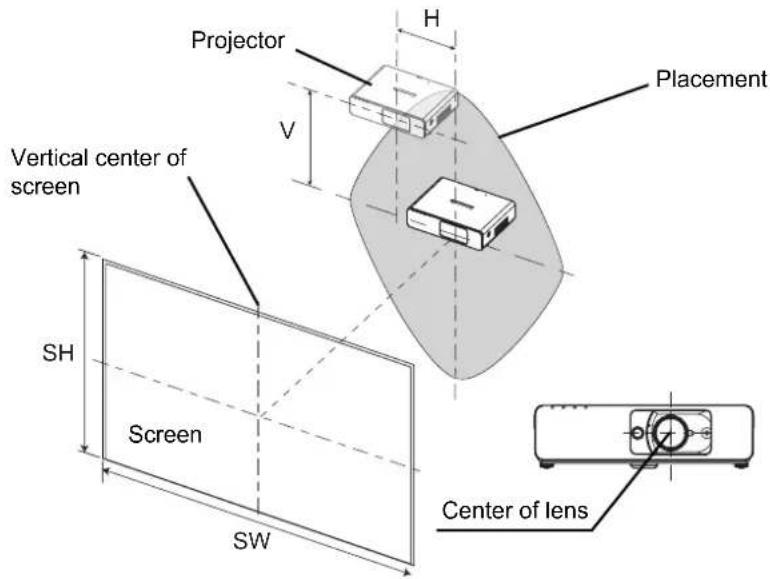

PlacementCenter of lensVertical center of screenProjectorScreenProjectorShift rangeGetting Started ENGLISH - 20 Connections Read and follow the operating and connecting instructions of each peripheral device. The peripheral devices must be turned off. Use cables that match each peripheral device to be connected. If the input signal is affected by signal jitter, the projected image may have poor image quality and timebase correction is effective. Confirm the type of video signals. See “List of compatible signals” on page 46. Before connection to the projector Connecting with computers NOTE:

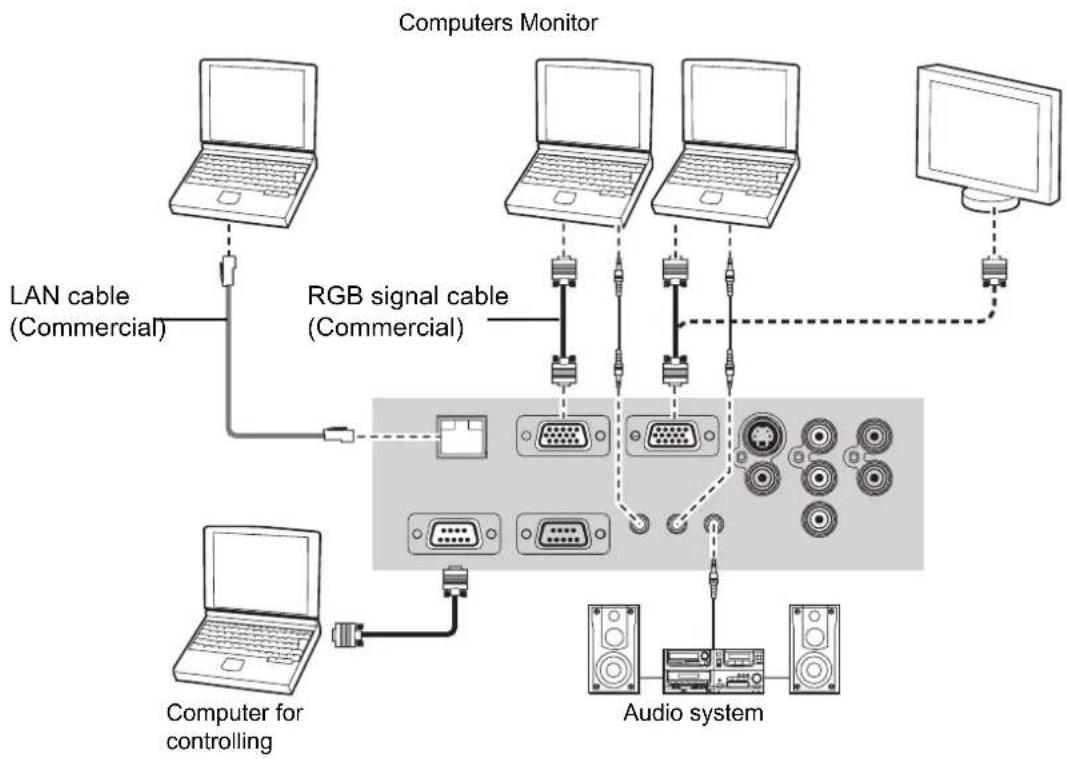

• When COMPUTER2 SELECT in the OPTION menu is set to OUTPUT, do not connect any input signals.

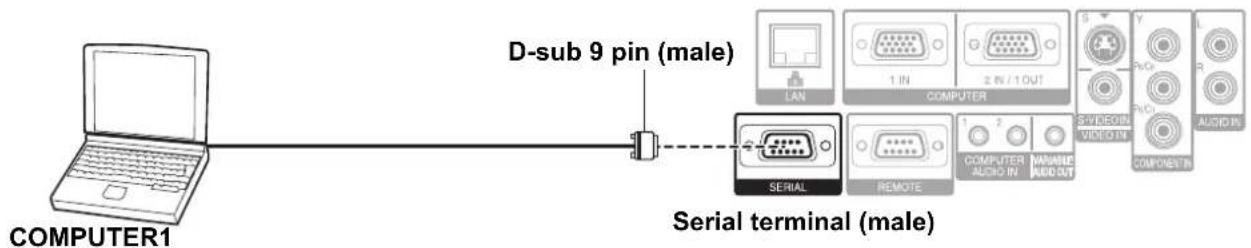

• See CD-ROM contents for the LAN network connection.Computers MonitorComputer for controllingAudio systemRGB signal cable (Commercial)LAN cable (Commercial)Getting Started Connections ENGLISH - 21 J Connecting with VIDEO IN/S-VIDEO IN J Connecting with COMPONENT IN Connecting with AV equipment NOTE:

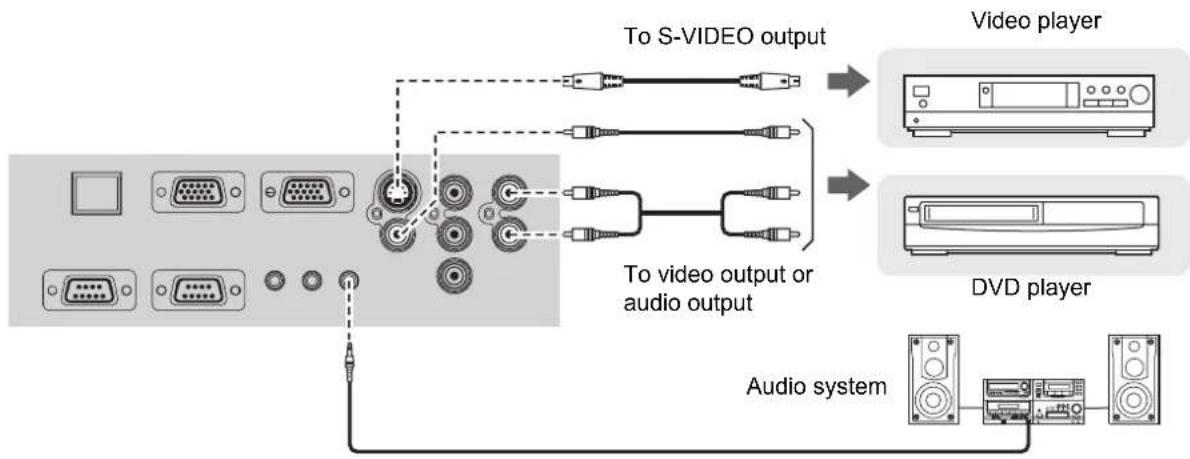

• When you connect more than one AV equipment, switch the audio connection manually. NOTE:

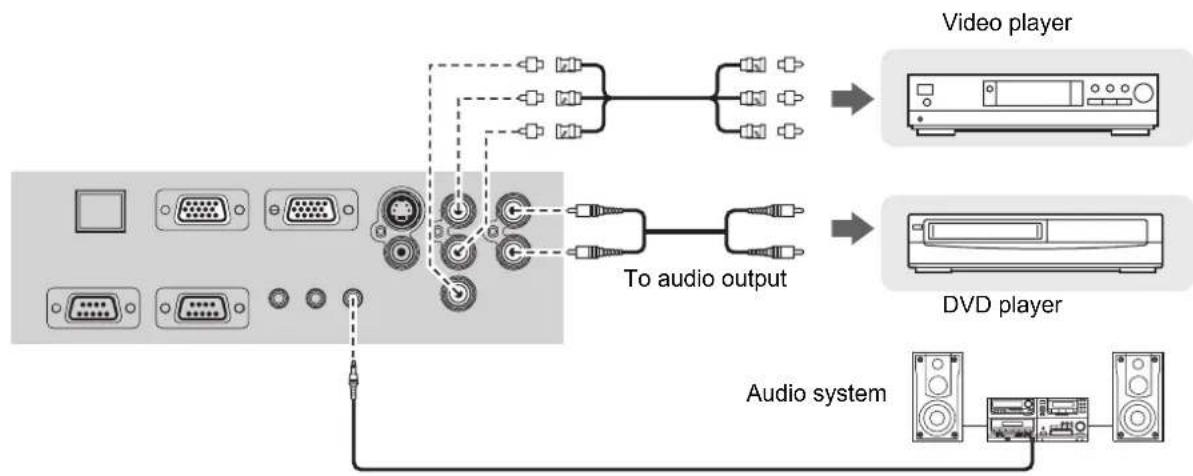

• If you connect the BNC cables, use with a commercial BNC-RCA adaptor.DVD playerAudio systemTo S-VIDEO outputVideo playerTo video output or audio outputDVD playerVideo playerAudio systemTo audio outputENGLISH - 22 Basic Operation Switching the projector on/off J Connecting 1. Make sure the shape of the power cord and the AC IN connector on the back of the projector match, then push the plug all the way in.2. Connect the Mains lead to a wall socket. J Disconnecting 1. Make sure the MAIN POWER is switched off and unplug the Mains lead from the wall socket.2. Hold the plug and unplug the Mains lead from the AC IN connector on the back of the projector. J Direct power off function You can disconnect the Mains lead from the projector or switch off the MAIN POWER button while projecting or soon after projecting. The internal lamp cooling fan will keep operating by the internal power supply. J Direct power on function If you activate the DIRECT POWER ON, you can start the projection only with connecting the Mains lead or switching on the MAIN POWER. See “DIRECT POWER ON” on page 37. Power cord NOTE:• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.NOTE:• Do not use other than a provided Mains lead.
• Ensure all the input devices are connected and turned off before connecting the Mains lead.
• Do not force the connector as this may damage the projector and/or the power cord.• Dirt or dust build-up around plugs may cause fire or electrical hazards.• Switch off the power to the projector when not in use. POWER indicator Indicator status Status No illumination or flashing The MAIN POWER is switched off. RED Lit The MAIN POWER is switched on and the projector is in standby. When the LAMP or TEMP indicator is flashing, the POWER indicator will not be lit. Flashing Network connection is ready while the POWER is turned off. GREEN Flashing The POWER is switched on and the projector is getting ready to project. Lit The projector is ready to project.ORANGE Lit The POWER is switched off and the projector is cooling the lamp. Flashing The POWER is switched on again when cooling the lamp and recovering to projection mode. Recovery may take a while.NOTE:
• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.• The electric consumption in standby mode is 3 W.POWER indicatorBasic Operation Switching the projector on/off ENGLISH - 23

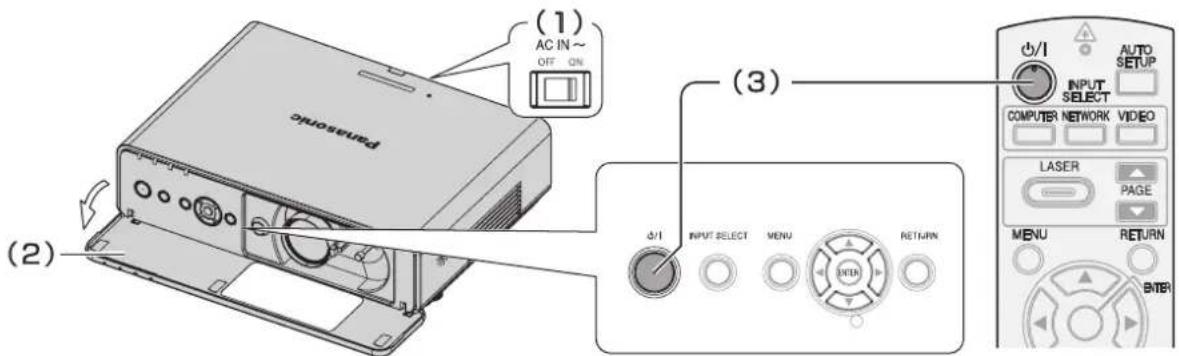

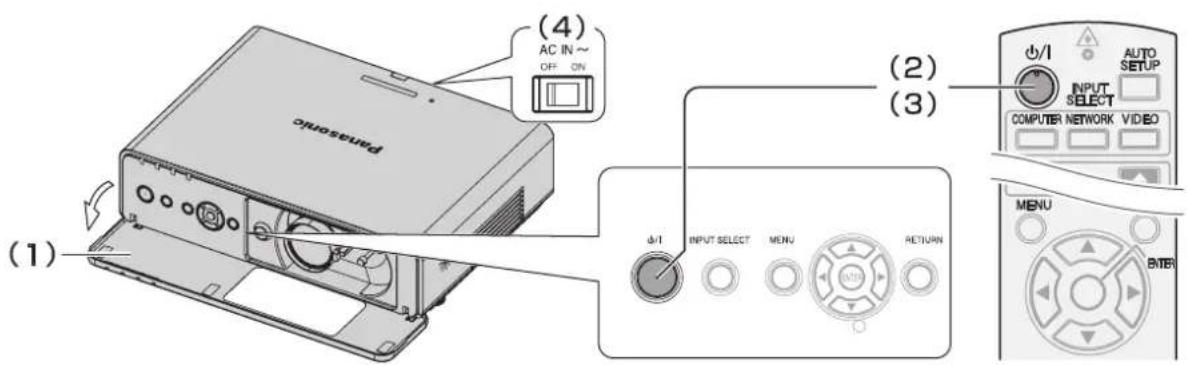

1. Switch the MAIN POWER on.

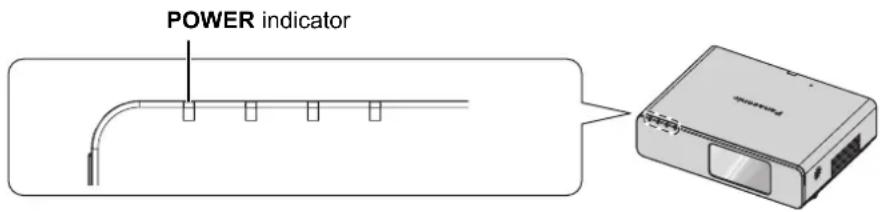

The power indicator lights up in RED.

2. Open the Front panel cover.

This is not necessary in Remote control operation.

3. Press the POWER button.

The power indicator lights up in GREEN after flashing for a while. The STARTUP LOGO is displayed on the screen. See “STARTUP LOGO” on page 36.1. Open the Front panel cover. This is not necessary in Remote control operation. 2. Press the POWER button. The confirmation screen is displayed. To return to the projection, press any button except the POWER button.3. Press the POWER button. The power indicator lights up in ORANGE while cooling the lamp, then illuminates RED when is ready to switch off the MAIN POWER.4. Switch off the MAIN POWER on the back of the projector. Switching on the projector NOTE:

• Some small rattling or tinkling sound may be heard when starting up, but this is normal and does not affect the performance of the projector.
• If you disconnected the Mains lead or switched off the MAIN POWER while on projecting mode, the projection will start with connecting the Mains lead or switching on the MAIN POWER. See “DIRECT POWER ON” on page 37. Switching off the projector NOTE:

• Press the POWER twice or for a long duration to switch the power off.

• You can disconnect the Mains lead or switch off the MAIN POWER instead of following this procedure. See “DIRECT POWER ON” on page 37.ENGLISH - 24 Basic Operation Projecting an image 1. Switch on the connected devices. Press the play button of the required device.2. Press the INPUT SELECT buttons to select the required input method if needed. See “Selecting the input signal” on page 24. The image will be projected on the screen.1. Open the Front panel cover.2. Adjust the projected image with the Lens shift lever. See “Lens shift and positioning” on page 18.3. Adjust the angle of the projector. Screw down the Front leg adjusters and adjust the angle vertically. See “Front leg adjusters and throwing angle” on page 17.4. Adjust the focus and the projected image size. Turn the Focus lever and Zoom lever to adjust the image. You can confirm the adjusted effect with the TEST PATTERN in OPTION menu. See “TEST PATTERN” on page 38. Selecting the input signal NOTE:

• SIGNAL SEARCH is ON as default and the signal from the connected devices is detected automatically. See “SIGNAL SEARCH” on page 37. Positioning the image NOTE:

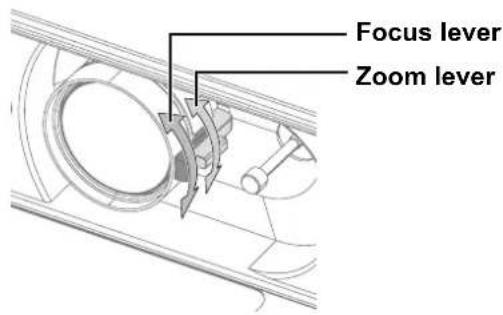

• Do not touch the Air Exhaust port as this may cause burns or injury.• If keystone distortion occurs, see “KEYSTONE” on page 34.• If you adjust the focus, you may need to adjust the size of the image by moving the Zoom lever again.Focus leverZoom leverENGLISH - 25 Basic Operation Remote control operation You can operate the projector with the Remote control within the remote range 15 m (49'2"). Q Facing to the projector Ensure the Remote control emitter is facing to the Remote control signal receptor on front/back of the projector and press the required buttons to operate. Q Facing to the screen Ensure the Remote control emitter is facing to the screen and press the required buttons to operate the projector. The signal will be reflected off the screen. The operating range may differ due to the screen material.You can adjust the setting of SIGNAL SEARCH, DOT CLOCK and CLOCK PHASE automatically for the projected COMPUTER signal image. Operating range NOTE:
• Do not let strong light shine onto the signal receptor. The Remote control may malfunction under strong light such as fluorescent.• If there are any obstacles between the Remote control and the Remote control signal receptor, the Remote control may not operate correctly. Setting up the image position automatically NOTE:
• SIGNAL SEARCH will be adjusted only when the SIGNAL SEARCH is set to ON.

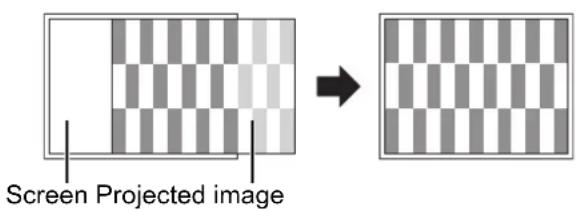

• If the dot clock frequency is 108 MHz or higher, AUTO SETUP is not effective.• If the projected image is dark or blurred around the edge, AUTO SETUP may stop the processing before complete. Project a much clearer or lighter image and press the AUTO SETUP button again.Screen Projected imageBasic Operation Remote control operation ENGLISH - 26 You can switch the input method manually by pressing the COMPUTER, NETWORK (PT-F100NTU only) and VIDEO buttons. Press the required button several times or I H to cycle through the input methods as follows. The actual projected image will be changed in a while. The graphical guidance will be displayed on the upper right of the projected image and you can confirm the selected input method which is highlighted in yellow. See “INPUT GUIDE” on page 36. J Pressing the COMPUTER button J Pressing the NETWORK button The NETWORK button is only for PT-F100NTU. See CD-ROM contents for more detailed information. J Pressing the VIDEO button J Pressing the INPUT SELECT button on the projector You can highlight items on the screen with the red laser pointer while projecting the image in presentations or visual demonstrations as an eye-catching pointing device.Hold down the LASER button to goes on the laser pointer and release to goes off. J Deactivating the LASER button You can deactivate the LASER button for an accidental operation.1. Open the battery compartment cover of the Remote control.2. Slide the switch tab.3. Close the battery compartment cover of the Remote control. See “Battery compartment” on page 13. Switching the input signal NOTE:

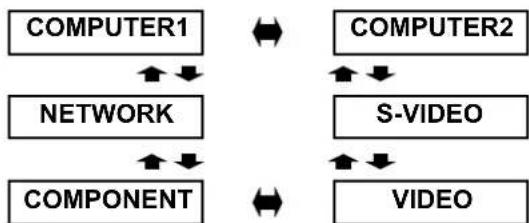

• Only when the COMPUTER2 SELECT is set to COMPUTER2 IN, you can switch between COMPUTER1 and COMPUTER2.COMPUTER1COMPUTER2VIDEOS-VIDEOCOMPONENTCOMPUTER1NETWORKCOMPONENTS-VIDEOVIDEO NETWORK is only for PT-F100NTU.COMPUTER2 NOTE:
• If you select an unplugged input method, the guidance will blink on and off several times.• See “List of compatible signals” on page 46.• See “Connections” on page 20. Using the laser pointer

• The laser pointer should never be projected directly into the eyes of a person or animal.• Do not aim the laser at reflective surfaces.• Do not allow children to use laser pointer.• Never look directly into the laser beam.• The laser pointer is not effective with translucent screens.• Please read the cautions on the Remote control.• This is a Class II laser product.Basic Operation Remote control operation ENGLISH - 27 When projecting an image, press FREEZE to capture the projected image and display it on the screen as a still picture. Press again to escape. While the image is frozen, the sound will be stopped.You can turn off the lamp and stop the projection temporary for electrical power save. Press the SHUTTER button to return to the projection.You can reset most of the customized settings to the factory defaults by pressing DEFAULT button of the Remote control. Display the required sub menu or the menu items and press the button again. See “Main menu and Sub-menu” on page 30.You can project an image in split 2 windows as an INDEX-WINDOW, one is frozen, stored in memory and displayed on the screen’s left side, while the display of subsequent images continues on the right.To escape from the INDEX-WINDOW, press the MENU or RETURN button. Q Switching the position In default, the frozen image is displayed on the left and the subsequent image is displayed on the right. Press IH to switch the position. Q Changing the image size Press F G to switch and cycle through in 3 size. Q Capturing a new image While in INDEX-WINDOW mode, press ENTER to capture a new image and the frozen image window will be updated in a while. Capturing an image NOTE:

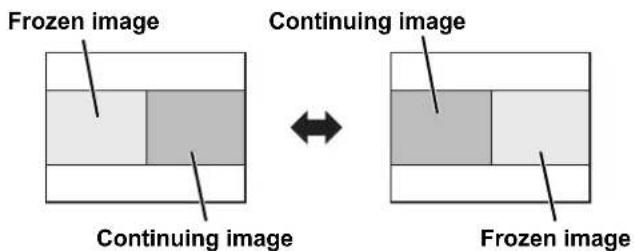

• Escaping from the freeze mode is available by pressing any button. Stopping the projection temporary Resetting to the factory default settings NOTE:
• Some menu items are not available to reset by pressing the DEFAULT button. Adjust each menu items manually.• To reset all the settings to the factory defaults, see “INITIALIZE ALL” on page 38. Projecting an image in INDEX-WINDOW mode Projected imageFrozen imageContinuing imageFrozen imageContinuing imageContinuing imageFrozen image NOTE:

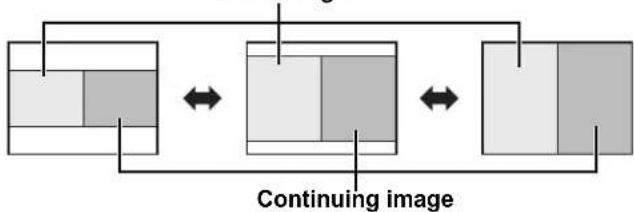

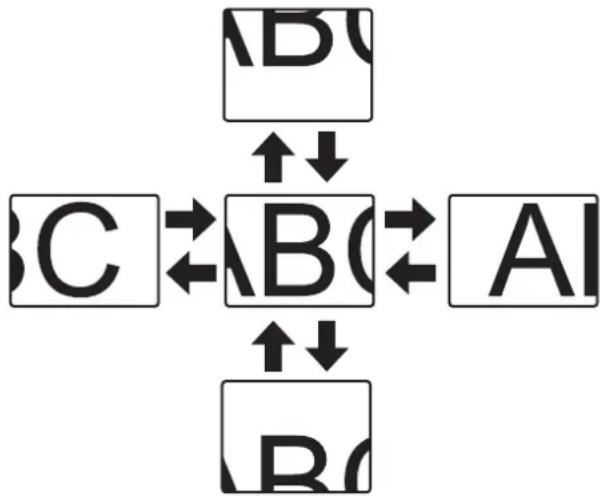

• If you change the window size, the aspect ratio of the image is changed and becomes vertically elongated.Frozen imageContinuing imageBasic Operation Remote control operation ENGLISH - 28 You can enlarge the projected image down to a centered area for emphasizing within the range of 1x to 2x. Q Enlarging the image 1. Press DIGITAL ZOOM +/- once. The centered area of the image will then be enlarged to 1.5x.2. Adjust the image size by pressing DIGITAL ZOOM +/-. The image size will be changed in steps of 0.1. Q Shifting the center point Press F G I H to shift the center point. You can control the volume of the built-in speakers and output sound. Press +/- to control the volume. Enlarging the centered area NOTE:

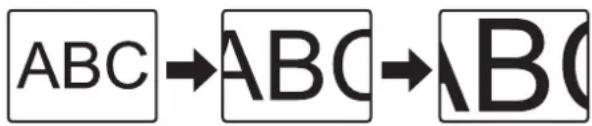

• When the COMPUTER signal is projected, the enlargement range will be changed to 1x to 3x. When the FRAME LOCK in POSITION menu is set to ON, the enlargement range is 1x to 2x. See “FRAME LOCK” on page 35.

• When the input signal is changed while the DIGITAL ZOOM is activated, the DIGITAL ZOOM will be cancelled. Controlling the volume of the speaker NOTE:
• Power consumption can be reduced if the volume level is lowered.ENGLISH - 29 Settings Menu Navigation The menu system allows you to access functions which do not have their own dedicated buttons on the Remote control. The menu options are structured and categorised. You can navigate through the menu with F G H I buttons. J Displaying the Main menu Press the MENU button to display the Main menu and the operating guidance. J Adjusting with the bar scale items The triangle mark under the bar indicates factory default setting and the square indicates the current setting. J Returning to the previous menu Press the MENU or RETURN button to return to the previous menu. Press repeatedly to escape from the menu mode and return to the projection. J Operating procedure

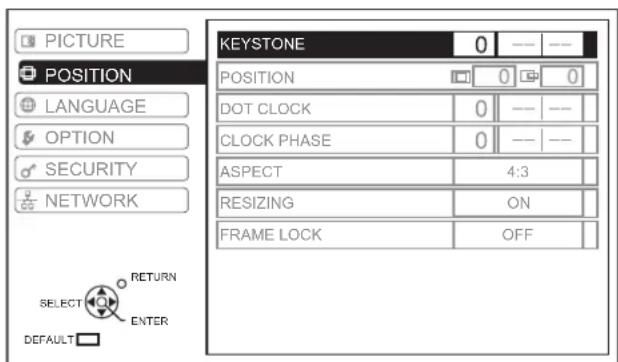

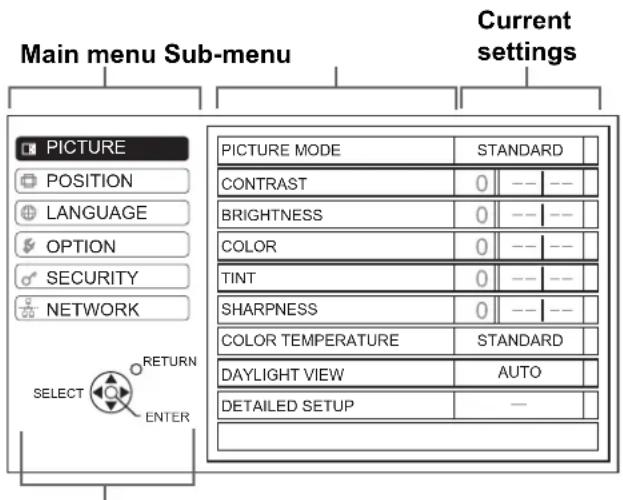

1. Press F G to scroll to the required Main menu

item and press ENTER to select. The selected item is highlighted in orange and the Sub-menu is displayed on the right. See “Main menu and Sub-menu” on page 30.

2. Press F G to scroll to the required Sub-menu

item and press I H or ENTER to adjust. The selected item is called up and the other menu items disappear from the screen. Called up item will be disappear after 5 seconds and return to the menu mode. If there is a lower level, the next level will be displayed.

3. Press I H to adjust or set the selected item.

For items using a bar scale, the current settings are displayed on the left of the bar scale. You can cycle through the options of an item by pressing I H.

4. Press MENU or RETURN to return to the previous

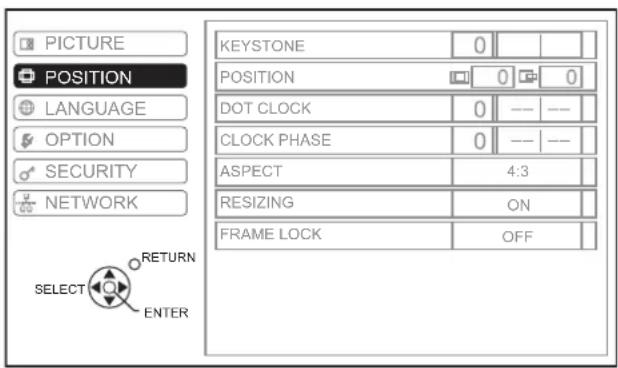

menu. Navigating through the MENU PICTUREPOSITIONPICTURE MODECONTRASTBRIGHTNESSCOLOR TINT

• See “Resetting to the factory default settings” on page 27 to reset each menu items.• See “INITIALIZE ALL” on page 38 to reset all the settings.Settings Menu Navigation ENGLISH - 30 The Main menu has 6 options. Select the required menu item and press ENTER to display the Sub-menu. Main menu and Sub-menu NOTE:

*2. Only KEYSTONE is available in POSITION menu with signals from WIRED LAN or WIRELESS LAN.

STATUS INITIALIZE (See CD-ROM contents for detailed information)ENGLISH - 32 Settings PICTURE menu Depending on the projection environment, you can use these preset parameter settings to optimize image projection. Press I H to cycle through the options. You can adjust the contrast of the projected image. Adjust the BRIGHTNESS in advance if necessary.You can adjust the brightness of the projected image.You can adjust the color saturation of the projected image.You can adjust the skin tone in the projected image.You can adjust the sharpness of the projected image.You can adjust the white balance of the projected image. LOW More bluish STANDARD Balanced white HIGH More reddishYou can keep the projected image bright and vivid even in well-lit rooms where the ambient light sources cannot be controlled, such as when a door opens or when window coverings fail to block out sunlight. AUTO: Automatic adjustment ON: Active OFF: Deactive PICTURE MODE NATURALReproduces the original color of the imageSTANDARD Setting for a general imageDYNAMIC Bright and sharp settingBLACKBOARDSetting for when projecting on a blackboardSee “BLACKBOARD” on page 38. NOTE:

• It may take for a while until the selected mode is stabilised. CONTRAST BRIGHTNESS Remote control Control panel See “Navigating through the MENU” on page 29. See “Main menu and Sub-menu” on page 30. HigherLower BrighterDarker COLOR TINT SHARPNESS COLOR TEMPERATURE DAYLIGHT VIEW NOTE:
• Do not cover the ALS (Ambient Luminance Sensor) of the projector. See “ALS (Ambient Luminance Sensor)” on page 14.
• AUTO is not available when INSTALLATION setting in OPTION menu is set to REAR/DESK or REAR/ CEILING. DarkerLighter More greenish More reddish More sharp Less sharpPICTURE menu ENGLISH - 33 Settings You can perform more detailed image adjustment manually. J For S-VIDEO/VIDEO signals Q TV-SYSTEM When the video signal is changed, the setting switches automatically. You can switch the setting manually to match the video data. Press I H to cycle through the options.

You can reduce the vertical flicker when projecting a still image. OFF: Deactive ON: Active

You can switch the automatic noise reduction system on/off. Press I H to select the required setting. ON: Automatic noise reduction OFF: No noise reduction J For RGB signals

You can adjust the white balance more properly in 3 colors temperature by pressing I H. WHITE BALANCE RED WHITE BALANCE GREEN WHITE BALANCE BLUE DETAILED SETUP NOTE:

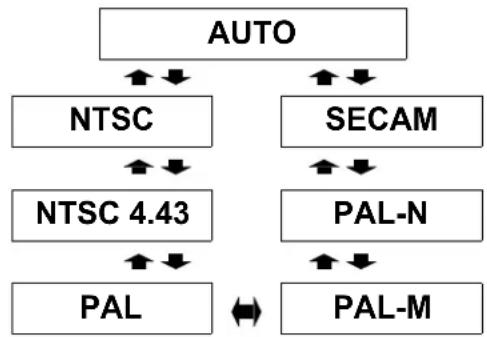

• AUTO setting will select from NTSC/NTSC 4.43/PAL/ PAL60/PAL-M/PAL-N/SECAM. NTSC NTSC 4.43 PAL AUTO SECAM PAL-N PAL-M NOTE:
• Set to OFF when projecting a moving image. NOTE:
• Applying noise reduction may affect image quality.ENGLISH - 34 Settings POSITION menu If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface, you can correct keystone. Setting range: -32 to +32You can move the projected image for fine adjustment. Press I H to move horizontally and F G vertically. If you have interference patterns of the projected image, which is sometimes referred to as moire or noise, you can minimize it by pressing I H to adjust the clock frequency.If you require further adjustment for the same reason as the DOT CLOCK adjustment, you can fine adjust the timing of the clock. Press I H to adjust. You can switch the aspect ratio manually when needed. Press I H to cycle through the options. Q 4:3 The input signal will be projected without any change. KEYSTONE Image Operation NOTE:
• You can correct the distortion ± 30 degrees from the plane. For a better quality image, installing the projector with a minimum of distortion is recommended.• Some distortion may be retained for lens shift adjustment.• The distortion of the Main menu screen is not correctable.• The result of the keystone correction will affect the aspect ratio and the size of the image. POSITION Remote control Control panel See “Navigating through the MENU” on page 29. See “Main menu and Sub-menu” on page 30.POSITION

• If the projecting signal’s dot clock frequency is higher than 108 MHz, the adjustment may not make a difference.• DOT CLOCK needs to be adjusted before adjusting the CLOCK PHASE. CLOCK PHASE NOTE:
• If the projecting signal’s dot clock frequency is higher than 108 MHz, the adjustment may not make a difference.

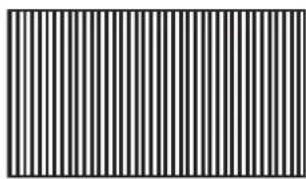

• CLOCK PHASE is available with PC signals and the following COMPONENT connection. ASPECT 4:3 16:9 AUTO S4:3POSITION menu ENGLISH - 35 Settings Q 16:9 The squeezed signal will be projected in 16:9 ratio. Q S4:3 The input signal will be sized down 75 % and projected. S4:3 mode is effective when projecting 4:3 image on to a 16:9 screen. Q AUTO The S1 signal which contains an identifying signal will be detected and automatically project the image in proper ratio.When the input signal resolution is lower than the projector resolution, it will be projected at the projector resolution. You can deactivate the RESIZING and project the lower resolution input signal at its original resolution. Press I H to select the required setting. ON Active OFF DeactiveIf the projected image is degraded, you can activate FRAME LOCK for synchronisation. Press I H to select the required option. OFF Deactive ON Active NOTE:

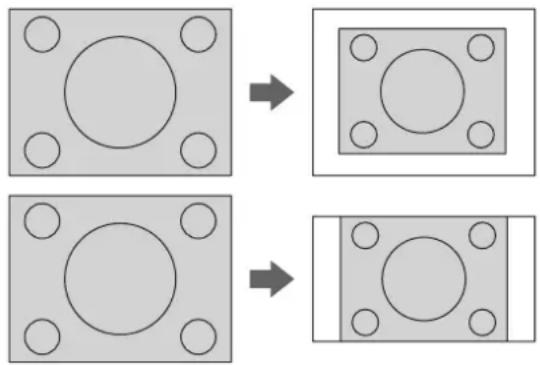

• If you project an image with an unmatched aspect ratio, the image may distort or some portions may be cropped. Select an aspect ratio which preserves the intention of the image creator.• The order of ASPECT types is defined not only by the input method but also by the input signals. “List of compatible signals” on page 46• If you project a copyrighted image enlarged or distorted by using ASPECT function in commercial use in a public place, such as a restaurant or hotel, you might infringe on the copyright of the creator which is protected by copyright law. RESIZING NOTE:
• Usually the recommended setting is ON.
• When the RESIZING is set to ON, the lower resolution input signal may be projected in less quality.When the RESIZING is set to OFF;• The size of the image will be projected smaller and you may need to adjust ZOOM and FOCUS, or the projector position backwards and forwards.
• DIGITAL ZOOM, KEYSTONE and INDEX-WINDOW are not available. FRAME LOCK NOTE:

• This function is available with COMPUTER signals only.ENGLISH - 36 Settings OPTION menu When you change the input method, the guidance appears in the upper right corner of the screen. The following display methods are available. Press I H to cycle through the options.You can switch the logo on/off that is displayed when starting up the projector. Press I H to select the required option. ON Active OFF Deactive USER Display the original text Q Editing the original text If you select USER, you can display the 2 lines of original text up to 40 characters in 1 line instead of the logo.

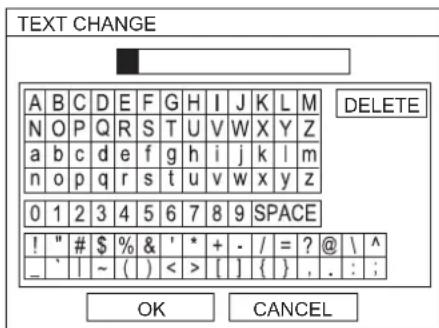

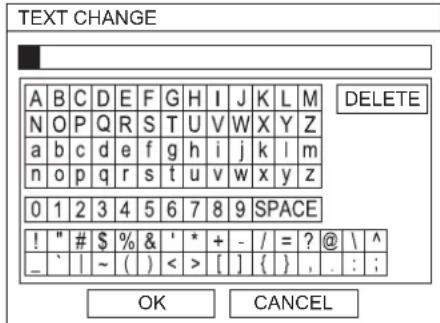

2. Select the required line to enter or edit the original text, and press ENTER.

3. Use F G I H to specify the location of the

required character and press ENTER. The selected character will be displayed in the box. Select DELETE to delete the last entered character and press ENTER.4. Repeat the step 3 until you finish the text to display in a line.

5. Select OK and press ENTER to set the entered

text in a box. Press G and edit the TEXT2 if you need to, and repeat the step 3 - 5.You can switch the function of the COMPUTER2 IN/1OUT terminal. INPUT COMPUTER2 IN OUTPUT COMPUTER1 OUTYou can check how long the lamp has been used. INPUT GUIDE Options FunctionOFF Turn off the guidance.SIMPLEDisplay the input method by text. The INPUT GUIDE will go out after 5 seconds without any operation.DETAILEDDisplay the input method by graphic. The INPUT GUIDE will go out after 10 seconds without any operation.If you select any COMPUTER terminal which has no signal, the computer connection guidance will be displayed. See “Computer connection guidance” on page 48.Remote control Control panel See “Navigating through the MENU” on page 29. See “Main menu and Sub-menu” on page 30. STARTUP LOGO COMPUTER2 SELECT LAMP RUNTIME NOTE:

• LAMP RUNTIME is a relevant matter for lamp replacement timing. See “Replacing the Lamp unit” on page 43.• When the lamp unit is replaced with the new one (ET-LAF100), the setting will be reset to “0”.OK CANCELDELETETEXT CHANGEOPTION menu ENGLISH - 37 Settings You can check the remaining amount of the ARF (Auto Rolling Filter). The color of the bar scale is indicating the condition of the ARF. Yellow The filter remaining amount is getting low. Red No more remaining. You can set the off timer to switch off the POWER of the projector after a certain period of time automatically when no signal is detected. Press I H to select the required period from 15 to 60 minutes at intervals of 5 minutes.You can switch the projector start up status for when the Mains lead is connected while the MAIN POWER is on, or for when the MAIN POWER is switched on while the Mains lead is connected. Press I H to select the required option. OFF The projector will start from the standby mode or the projecting mode. ON The projector will start from the projecting mode.You can turn off the function of the control panel buttons on the projector body. Press I H to select the required option. INVALID Invalidate the control panel buttonsConfirmation screen will be displayed. VALID Validate the control panel buttonsYou can turn off the AUTO SETUP function for when the COMPUTER signal is detected. AUTO When the projector detect a COMPUTER signal, adjust the projected image position automatically for SIGNAL SEARCH, DOT CLOCK and CLOCK PHASE. BUTTON Only when the AUTO SETUP button is pressed, the projected image position will be adjusted for DOT CLOCK and CLOCK PHASE. See “Remote control” on page 13.You can turn off the auto signal detecting system. ON Detect the input signal from the terminals and project the image. OFF DeactiveWhen installing the projector, select the projection method according to the projector position. Press I H to cycle through the options. See “Projection method” on page 17. FILTER REMAINING NOTE:
• See “Replacing the ARF (Auto Rolling Filter)” on page 42.
• After you replace the ARF, FILTER REMAINING should be reset to “0” by pressing the ENTER button for 3 seconds.

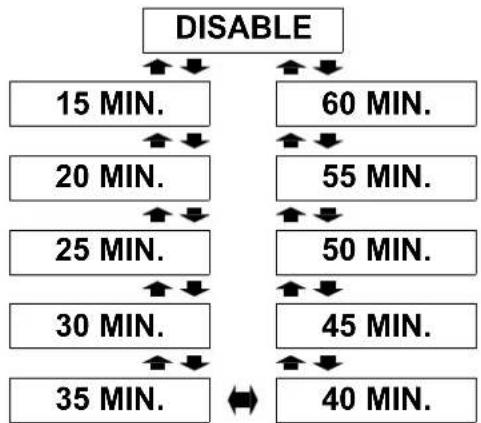

• When the projector is started from the projecting mode, pressing the POWER button procedure is skippable. DISABLE 15 MIN. 20 MIN. 25 MIN. 30 MIN. 35 MIN. 60 MIN. 55 MIN. 50 MIN. 45 MIN. 40 MIN. CONTROL PANEL AUTO SETUP NOTE:
• Usually the recommended setting is AUTO. SIGNAL SEARCH NOTE:
• SIGNAL SEARCH is not available when any input signal is projecting.• Usually the recommended setting is ON. INSTALLATION FRONT/DESKSetting on a desk/floor and projecting from frontFRONT/CEILINGMounting in the ceiling and projecting from frontREAR/DESKSetting on a desk/floor and projecting from rearREAR/CEILINGMounting in the ceiling and projecting from rearSettings OPTION menu ENGLISH - 38 If you use the projector at high elevation, the HIGHLAND setting need to be ON to set the fan speed high. Press I H to select the required option. OFF The fan speed is low. ON The fan speed is high.If the input signal contains closed captions, you can turn on the feature and switch the channels. Press I H to select the required option.You can use the 7 different test patterns to adjust the focus of the image. See “Lens shift and positioning” on page 18. 1. Press ENTER to display the test pattern 1.

2. Press F G to select the required test pattern.

3. Adjust the focus with the Focus lever.

4. Press MENU or RETURN to return to the previous

menu, oar press repeatedly to escape the menu mode.You can perform more detailed setting in various items.

You can change the background color of the menu. Press I H to select the required option.

You can switch the setting between SXGA and the larger setting, SXGA+. Press I H to select the required option.

You can switch the setting between XGA and the wider setting, WXGA. Press I H to select the required option. J BLACKBOARD You can exclude the BLACKBOARD in menu items of PICTURE MODE in PICTURE menu. Press I H to select the required option. ON Include the BLACKBOARD in menu items. OFF Exclude the BLACKBOARD in menu items.

You can choose a BLUE or BLACK screen for when the projector is idle. Press I H to select the required option. J VOLUME You can adjust the volume of the built-in monaural speaker and VARIABLE AUDIO OUT terminal. I Decrease H Increase

You can adjust to hear the sound played equally through both right and left external stereo speakers, or shift the balance so more sound plays through the left or right side. I More sound plays through the left side H More sound plays through the right side

You can reset all of the customized settings to the factory defaults except LAMP RUNTIME and FILTER REMAINING menu settings. Press ENTER to initialize and restart the projector by pressing the POWER button. HIGHLAND NOTE:

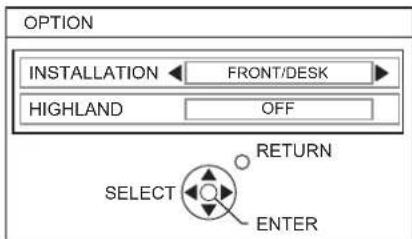

• At 1 400 m (4 593 ft) above sea level, the setting must be ON.• The loudness of fan noise depends on the HIGHLAND setting. CLOSED CAPTION OFF Deactive CC1 Caption channels CC2 TT1 Text channels TT2 TEST PATTERN NOTE:

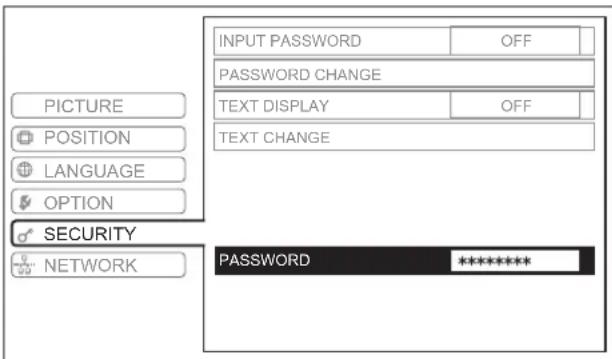

• When the projector and/or the screen is tilted, adjust the focus at the center of the image. The upper and lower edge might be out of focus.• When the image is distorted in keystone, adjust the KEYSTONE in POSITION menu. DETAILED SETUP TYPE1 Semi transparent blackTYPE2 Solid blueTYPE3 Semi transparent dark blueENGLISH - 39 Settings SECURITY menu J Entering the SECURITY Every time when you apply to the SECURITY menu, you will be asked to perform the password operation.When you apply to the SECURITY menu before you change the password to your original, perform to input the following factory default password operation. Press F H G I F H G I and ENTER. Q After you change the passwordWhen you apply to the SECURITY menu after you change the password to your original in the PASSWORD CHANGE menu, input the original password operation.You can activate the security system and the password operation will be asked to perform when the projecting mode started. Unless you perform the correct password operation, all of the button controls will be disabled except the POWER button. OFF Deactive ON ActiveYou can change the password operation to your original.1. Press a series of button operation up to 8 as a password by using F G I and H buttons. 2. Press ENTER.3. Press the exact same series of button operation you entered in the NEW password box for confirmation. If a series of button operation is incorrect, you will be asked to perform again.4. Press ENTER.You can set your original text, such as company name or URL information, to display regularly at the bottom of the projected image while projecting. OFF Deactive ON ActiveYou can enter your original text up to 22 characters for TEXT DISPLAY.

1. Use F G I H to specify the location of the

required character.2. Press ENTER. The selected character will be displayed in the TEXT CHANGE box.3. Repeat until finish your original text. Select DELETE to delete the last entered character and press ENTER.

4. Select OK and press ENTER to set the entered

text. Select CANCEL or press MENU/RETURN buttons to return to the previous menu.NOTE:• The factory default password is valid until you change the password in PASSWORD CHANGE menu.• The entered password operations will appear as asterisks in the box. INPUT PASSWORD NOTE:• When you activated the security system, make sure to change the password to your original for safety.• The factory default password is valid until you change the password in PASSWORD CHANGE menu.Remote control Control panel See “Navigating through the MENU” on page 29. See “Main menu and Sub-menu” on page 30.PICTUREPOSITIONINPUT PASSWORDPASSWORD CHANGETEXT DISPLAYTEXT CHANGEPASSWORDLANGUAGEOPTIONSECURITYNETWORK OFF OFF PASSWORD CHANGE NOTE:• The entered password operations will appear as asterisks in the box. TEXT DISPLAY TEXT CHANGE OK CANCEL DELETE

TEXT CHANGEENGLISH - 40

Settings NETWORK menu In NETWORK menu, the following items are available. WIRED LAN WIRELESS LAN NAME CHANGE PASSWORD CHANGE INPUT PASSWORD NETWORK STANDBY WEB CONTROL LIVE MODE CUT IN STATUS INITIALIZE NOTE:

• The NETWORK menu is available only with PT-F100NTU.• See more detailed instructions in the contents of the CD-ROM which is provided with the projector.Remote control Control panel See “Navigating through the MENU” on page 29. See “Main menu and Sub-menu” on page 30. Items in NETWORK menuENGLISH - 41 Maintenance TEMP, LAMP and ARF Indicators If a problem should occur with the projector, the TEMP , LAMP and/or FILTER indicators will inform you. Manage the indicated problems as follow.1. Confirm the status of all indicators and projector, and switch off the projector in proper way.

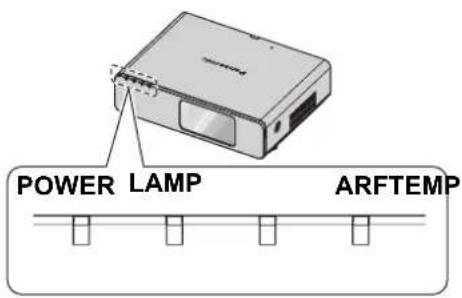

2. Find out the cause of the problem by status of the TEMP , LAMP

and/or FILTER indicators.3. Follow the instruction for each indication below and solve the problem.4. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer. J LAMP indicator J TEMP indicator J FILTER indicator When the ARF indicator is flashing GREEN, the ARF is normally rolling up. Managing the indicated problems NOTE:

• If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorized Service Center. Indicator Illuminating RED Flashing RED ProblemLAMP RUNTIME has reached 2 800 hours. LAMP circuit failure, abnormal function or Lamp unit is damaged. CauseLamp unit will run out soon and needs to be replaced.The MAIN POWER is switched on again before the Lamp unit is cooled enough.LAMP circuit failure, abnormal function.Lamp unit is damaged.RemedySee “Replacing the Lamp unit” on page 43.Let the Lamp unit cool down and turn on the MAIN POWER.Contact an Authorized Service Center.See “Replacing the Lamp unit” on page 43.Indicator Illuminating RED and still projecting Flashing RED and POWER is turned off Problem The temperature inside and/or outside the projector is abnormally high.CauseThe ventilation openings are covered.The room temperature is too high.The ARFis excessively dirty and the ventilation is poor.The projector is located at high elevations (above 1 400 m).RemedyRemove the object(s) from the ventilation openings or clear around the projector.Reinstall the t a temperature controlled place. See page 16.Replace the ARF in the proper method. See page 42.Turn on the projector

and set the HIGHLAND to ON. See page 38. *1. The projector will perform only 2 minutes with OFF setting at high elevation. Indicator Illuminating RED Flashing RED Illuminating ORANGE Flashing ORANGE ProblemFILTER REMAINING has turned red. See page 37.The projector cannot detect the ARF.The ARF cannot operate properly.FILTER REMAINING has turned yellow. See page 37. Cause ARF has been run out. ARF is not attached. Foreign object is blocking the ARF operation.ARF is running out.RemedySee “Replacing the ARF (Auto Rolling Filter)” on page 42.Attach the ARF.Remove the foreign object or contact an Authorized Center.Prepare the ARF for replacement.POWER LAMP ARFTEMPENGLISH - 42 Maintenance Care and Replacement J Before cleaning the projector Switch off the MAIN POWER and disconnect the power plug from the wall socket. Unplug all the cables from the projector. J Cleaning the outer surface of the projector Wipe off dirt and dust gently with a soft cloth. If it is difficult to remove the dirt, soak a cloth in a neutral detergent diluted with water, wring the cloth well and then wipe the projector. Dry off the projector with dry cloth. If you use a chemical treated wipe, follow the instructions supplied with it. J Cleaning the lens and front glass surface Wipe off dirt and dust gently with a lint-free cloth. Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a screen. J Before replacing the ARF Switch off the MAIN POWER and disconnect the power plug from the wall socket. Prepare a Phillips-head screw driver. Contact an Authorized Service Center to purchase a replacement ARF (ET-RFF100). J When to replace the ARF ARF is consumable product and effects on ventilation. ARF indicator will inform you of the replacement timing. You can check the remaining amount of the ARF in FILTER REMAINING menu. J Replacement procedure 1. Turn the projector upside down and place it gently on a soft cloth.2. Use a Phillips-head screwdriver to loosen 2 ARF cover fixing screws until the screws turn freely and remove the ARF cover.3. Use a Phillips-head screwdriver to loosen an ARF fixing screws and release the clamp, then slightly slide up the used ARF to remove.4. Insert the new ARF into the compartment in correct direction and slightly push down until it clicks.5. Tighten the ARF fixing screws securely with a Phillips-head screwdriver.

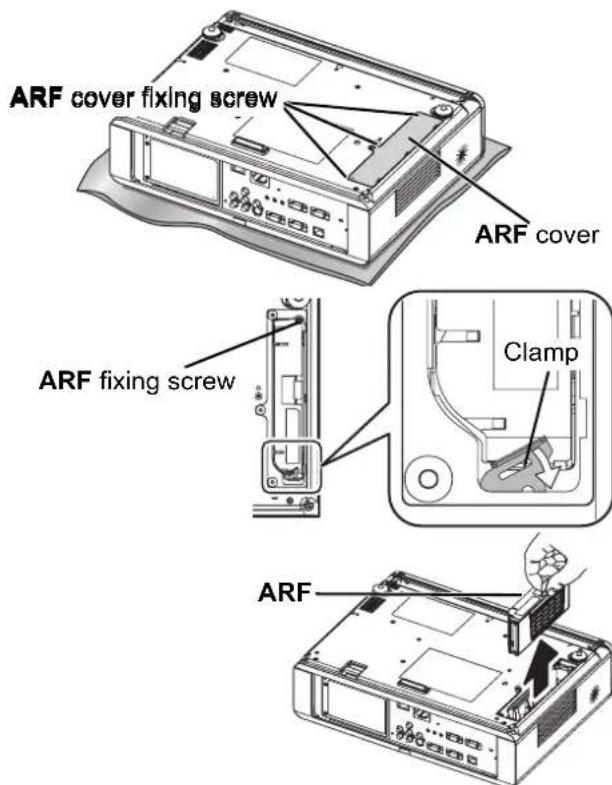

6. Attach the ARF cover and tighten the ARF cover

fixing screws securely with a Phillips-head screwdriver.7. Turn on the projector and reset FILTER REMAINING to “0”. See “FILTER REMAINING” on page 37. Cleaning the projector Replacing the ARF (Auto Rolling Filter) NOTE:• See “FILTER REMAINING” on page 37.• See “FILTER indicator” on page 41.NOTE:

• If the ARF and/or ARF cover are attached incorrectly, the projector may not be turned on.• Do not switch the power on while the ARF cover removed.ARF coverARF cover fixing screwARF fixing screwClamp ARF ARF cover fixing screwCare and Replacement ENGLISH - 43 Maintenance J Before replacing the Lamp unit Switch off the MAIN POWER and disconnect the power plug from the wall socket. Make sure the Lamp unit and the surroundings are cooled enough. Prepare a Phillips-head screwdriver. Contact an Authorized Service Center to purchase a replacement Lamp unit (ET-LAF100). When the projector is mounted in the ceiling, do not work directly under the projector or put your face closer to the projector. J When to replace the Lamp unit The Lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will inform you of the replacement timing at 2 800 hours, and at 3 000 hours, the projector will be turned off. Those figures are rough guidance and might be shortened by the usage conditions, characteristics of the Lamp unit, environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the OPTION menu. Replacing the Lamp unit NOTE:

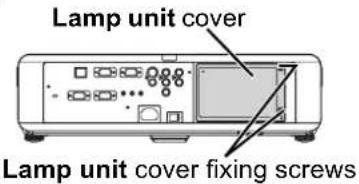

• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.• Do not attempt replacement with an unauthorized lamp unit.IndicationOn screenLAMP indicatorOver 2 800 hours“REPLACEMENT LAMP” is displayed on the upper left of the screen for 30 seconds.Illuminates RED.Over 3 000 hours“REPLACEMENT LAMP” is displayed on the upper left of the screen, and it will stay until you respond.To clear the screen, press any button. NOTE:

• The guide times, 2 800 and 3 000 hours, are rough estimates based on certain conditions and is not a guaranteed time.

• For more information about the Lamp unit, such as guaranteed time, see the instructions which is provided with the Lamp unit.
• If the lamp usage time has passed 3 000 hours, the projector will switch to standby mode after approximately 10 minutes of operation.REPLACE LAMPMaintenance Care and Replacement ENGLISH - 44 J Replacement procedure Q Removing and replacing the lamp unit 1. Use a Phillips-head screwdriver to loosen the 3 Lamp unit cover fixing screws on the back of the projector until the screws turn freely, and remove the Lamp unit cover.2. Use a Phillips-head screwdriver to loosen the 2 Lamp unit fixing screws.3. Hold the handles of the Lamp unit and release the lamp unit lock.4. Pull the used Lamp unit gently from the projector.5. Replace the new Lamp unit in correct direction.6. Press in the Lamp unit until it clicks and make sure the unit is installed securely.7. Tighten the 2 Lamp unit fixing screws securely with a Phillips-head screwdriver.8. Attach the Lamp unit cover and tighten the 3 Lamp unit cover fixing screws securely with a Phillips-head screwdriver. The projector and the ceiling mount bracket are designed sufficiently safety though, make sure the safety cable provided with the projector is installed and attached to the bottom of the projector when mounting in the ceiling for safety and security. J Installing the safety cable

1. Install the ceiling mount bracket according to the installation instructions.

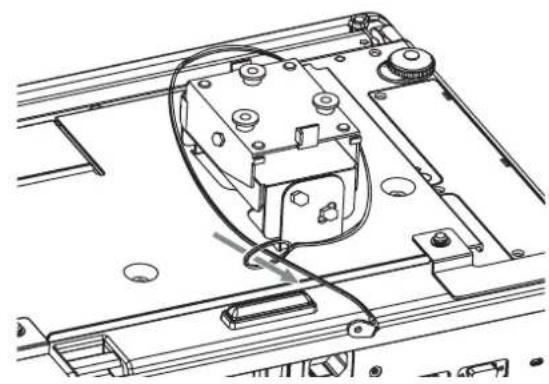

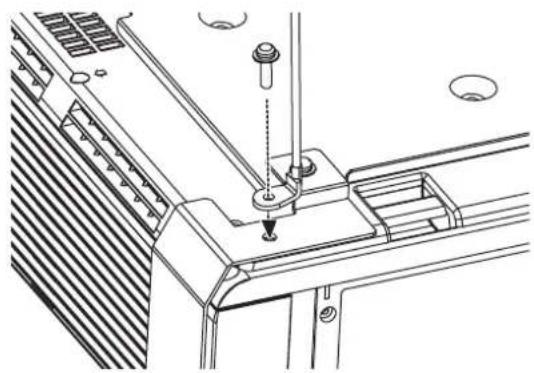

2. Loop the security cable around the ceiling mount bracket with less slack.

Lace the cable of the end with a latch through the loop on the other end of the cable. 3. Attach the latch on to the bottom of the projector with a provided screw. Torque: 125±20 CN·mLamp unit cover fixing screwsLamp unit coverLamp unit fixing screwsHandlesLamp unit fixing screwsPress here Ceiling mount bracket safeguards NOTE:

• Even if it is guarantee period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions.

• Make sure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.
• Installation work of the ceiling mount bracket should only be carried by a qualified technician.• Remove an unused ceiling mount bracket promptly.ENGLISH - 45 Maintenance Troubleshooting Should any problem persist, contact your dealer. Problem Cause Reference page Power does not turn on. The power cord may not be connected. The MAIN POWER switch is turned off. No electric supply is at the wall socket. TEMP indicator is lit or flashes. LAMP indicator is lit or flashes. The lamp unit cover has not been securely installed. The circuit breakers have tripped.

No picture appears. The video signal input source may not be connected to a terminal properly. The input selection setting may not be correct. The BRIGHTNESS adjustment setting may be at the minimum setting. The SHUTTER function may be in use.

The picture is fuzzy. The lens focus may not have been set correctly. The projector may not be at the correct distance from the screen. The lens may be dirty. The projector may be tilted too much.

The color is pale or greyish. COLOR or TINT adjustment may be incorrect. The input source which is connected to the projector may not be adjusted correctly.

No sound can be heard from the internal speaker. The audio signal source may not be connected properly. A cable may be connected to the VARIABLE AUDIO OUT terminal. The volume adjustment may be at the lowest possible setting.

The control buttons of the projector do not operate. CONTROL PANEL in OPTION menu is invalidated. If you have a loss of the Remote control while the CONTROL PANEL is invalidated, press and hold the MENU button for 2 seconds with pressing the ENTER button.

The Remote control does not operate. The batteries may be weak. The batteries may not have been inserted correctly. The remote control signal receptor on the projector may be obstructed. The remote control unit may be out of the operation range.

The picture does not display correctly. The signal format (TV-SYSTEM) may not have been set correctly. There may be a problem with the VCR or other signal source. A signal which is not compatible with the projector is being input.

Picture from a computer does not appear. The cable may be longer than the optional cable. The external video output from a laptop computer may not be correct. (You may be able to change the external output settings by pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method varies depending on the type of computer; refer to the documentation provided with your computer for further details.) COMPUTER2 SELECT setting in OPTION menu is not correct.

*1. The “i” appearing after the resolution indicates an interlaced signal. Scanning frequency Dot clock frequency (MHz) Picture quality

*2. The following symbols are used to indicate picture quality.AA Maximum picture quality can be obtained.A Signals are converted by the image processing circuit before picture is projected. Terminals H (kHz) V (kHz) NTSC/NTSC 4.43/ PAL-M/PAL60 720 x 480i 15.7 59.9 A VIDEO/S-VIDEO PAL/PAL-N/SECAM 720 x 576i 15.6 50.0 A 480i 720 x 480i 15.7 59.9 13.5 A COMPONENT/ COMPUTER 576i 720 x 576i 15.6 50.0 13.5 A 480p 720 x 483 31.5 59.9 27.0 A 576p 720 x 576 31.3 50.0 27.0 A 1 080/60i 1 920 x 1 080i 33.8 60.0 74.3 A 1 080/50i 1 920 x 1 080i 28.1 50.0 74.3 A 720/60p 1 280 x 720 45.0 60.0 74.3 A COMPONENT 720/50p 1 280 x 720 37.5 50.0 74.3 A VESA 640 x 400 31.5 70.1 25.2 A COMPUTER 640 x 400 37.9 85.1 31.5 A VGA480 640 x 480 31.5 59.9 25.2 A 640 x 480 35.0 66.7 30.2 A 640 x 480 37.9 72.8 31.5 A 640 x 480 37.5 75.0 31.5 A 640 x 480 43.3 85.0 36.0 A SVGA 800 x 600 35.2 56.3 36.0 A 800 x 600 37.9 60.3 40.0 A 800 x 600 48.1 72.2 50.0 A 800 x 600 46.9 75.0 49.5 A 800 x 600 53.7 85.1 56.3 A MAC 832 x 624 49.7 74.6 57.3 A 1 152 x 870 68.7 75.1 100.0 A XGA 1 024 x 768 48.4 60.0 65.0 AA 1 024 x 768 56.5 70.1 75.0 AA 1 024 x 768 60.0 75.0 78.8 AA 1 024 x 768 68.7 85.0 94.5 AA MXGA 1 152 x 864 64.0 71.2 94.2 A 1 152 x 864 67.5 74.9 108.0 A 1 152 x 864 76.7 85.0 121.5 A MSXGA 1 280 x 960 60.0 60.0 108.0 A SXGA 1 280 x 1 024 64.0 60.0 108.0 A 1 280 x 1 024 80.0 75.0 135.0 A 1 280 x 1 024 91.1 85.0 157.5 A SXGA60+ 1 400 x 1 050 64.0 60.0 108 A 1 400 x 1 050 65.1 59.9 122.4 A UXGA 1 600 x 1 200 75.0 60.0 162.0 A WXGA 1 280 x 768 47.8 59.9 79.5 A 1 280 x 800 49.1 60.2 69.1 A 1 280 x 800 49.7 59.8 83.5 A WXGA+ 1 440 x 900 55.9 59.9 106.5 ATechnical Information ENGLISH - 47 Appendix The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connecter. J Connection J Pin assignments and signal names J Communication settings J Basic format The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds before sending the command. If sending multiple commands, check that a response has been received from the projector for one command before sending the next command. When a command which does not require parameters to be sent, the colon (:) is not required. If an incorrect command is sent from the personal computer, the ER401 command will be sent from the projector to the personal computer. Serial terminal Pin No. Signal name Contents

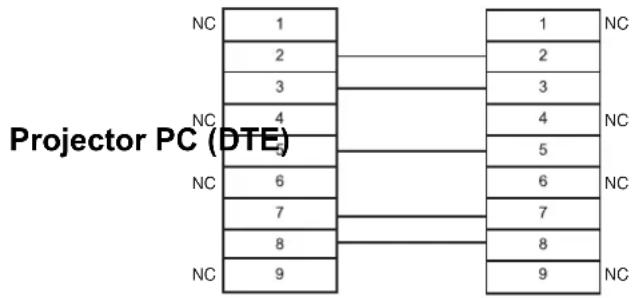

TXD Transmitted data RXD Received data

RTS Connected internally

Signal level RS-232C Character length 8bits Sync. method Asynchronous Stop bit 1bit Baud rate 9600bps X parameter None Parity None S parameter None The data streaming from the computer will start with STX, and proceed to Command, Parameter and end with ETX. You can add the required parameter.D-sub 9 pin (male)COMPUTER1Serial terminal (male) STX Command : Parameter ETX Start byte(02h)1byte End(03h)3bytes1byte - 4bytesAppendix Technical Information ENGLISH - 48 J Cable specifications (When connected to a personal computer) J Control commands You can switch the signals which to output from the COMPUTER1 OUT terminal by pressing the computer key command. The key commands are depend on the manufactures. If you select the computer terminals which has no signals while the INPUT GUIDE is set to DETAILED, the computer connection guidance will be displayed. Command Control contents RemarksPON Power ONIn standby mode, all commands other than the PON command are ignored. The PON command is ignored during lamp ON control.POF Power OFFIf a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp.AVL VolumeParameter000 - 063 (Adjustment value 0 - 63)IIS INPUTParameter:VID = VIDEO INRG1 = COMPUTER1SVD = S-VIDEO INRG2 = COMPUTER2NWP = WIRELESS (PT-F100NTU only) Q$S Lamp condition queryCall back0 = Standby1 = Lamp ON control active2 = Lamp ON3 = Lamp OFF control activeOSH SHUTTERTurning off the projection temporarily.Send the command to switch between ON and OFF.Do not send the command consecutively. Computer connection guidance Manufacturer Key command Manufacturer Key command Manufacturer Key command Panasonic NEC

• The computer connection guidance will disappear after 5 minutes.
• Please refer the instructions which provided with the computers for more detailed information.

Projector PC (DTE)Technical Information ENGLISH - 49 Appendix You can remotely operate the projector from the outside the Remote control range by connecting to the REMOTE terminal. J Pin assignments and signal names J LAMP switching J Switching input signals REMOTE terminal Pin No. Signal name Contents GND Ground

ENABLE Control by external contactPin No. Settings B - A Short OpenOperation On OffPin No. Settings C - A Open Open Short Short Short Open E - A Open Short Open Open Short Short F - A Open Open Short Open Open Short Input signal

• When pin A and pin I are short-circuited, the buttons on the projector’s control panel, POWER and INPUT SELECT buttons on the Remote control cannot be used. In addition, the RS-232C commands and network functions that correspond to these functions cannot be used either.
• While pin I is “Open”, do not short-circuit pin A, B, C, E and F. The projector would reject all the signals from the Remote control.Appendix Technical Information ENGLISH - 50 Specifications Power supply AC 100 - 240 V 50 Hz/60 Hz Power consumption 330 W During standby (when fan is stopped): 3.5 W Amps 3.9 A - 1.4 A LCD panel Panel size (diagonal) 0.7 type (17.78 mm) Aspect ratio 4 : 3 Display method 3 transparent LCD panels (RGB) Drive method Active matrix method Pixels 786 432 (1 024 x 768) x 3 panels Lens Manual zoom (2 x)/Manual focus F 1.7 - 2.6, f 21.6 mm - 43.0 mm Lamp UHM lamp (250 W) Luminosity 3200lm Operating environment Temperature 0°C - 40°C (32°F - 104°F) When the HIGHLAND (page 38) is set to ON: 0 °C - 35 °C (32 °F - 95 °F) Humidity 20% - 80% (no condensation) Scanning frequency

1.0 V [p-p] (including sync), 75 Ω

PB/CB, (PR/CR) 0.7 V [p-p], 75 ΩAUDIO IN Single - line, 0.5V [rms], RCA pin jack x 2 (L - R)COMPUTER AUDIO IN Single - line, 0.5V [rms], M3 jack (Stereo MINI)VARIABLE AUDIO OUT Single - line, 0.5V [rms], M3 jack (Stereo MINI)Monitor output/stereo compatible0 V [rms] - 2.0 V [rms] (variable)SERIAL D-sub 9-pin RS-232C compatibleREMOTE D-sub 9-pin For external controlLAN (RJ-45)Single - line, For network connection10 Base-T/100Base-TX/1000Base-TWireless LAN Compatible IEEE802.11b/IEEE802.11g (Wireless LAN standard protocol) Wireless channel IEEE802.11b/IEEE802.11g: 1 - 13 channels Distance 30 m (98'5") Depends on the usage environment Cabinet Moulded plastic (PC+ABS)DimensionsWidth 432 mm (17")Height 124.5 mm (4 - 7/8")Length 319 mm (12 - 17/32") Weight 6.0 kg (13.2 lbs.) CertificationsUL60950-1FCC Class B C-UL ICES-003Remote controlPower supply 3 V DC (AA battery x 2)Operating range Approx. 15 m (49'2") (when operated directly in front of signal receptor) Weight 117 g (4.2 ozs.) (including batteries) DimensionsWidth 48 mm (1 - 7/8")Length 163 mm (6 - 13/32")Height24.5 mm (-15/16") (not including surface projection parts)OptionsCeiling bracket ET-PKF100H/ET-PKF100S AV Cables TY-SC10CPAppendix Technical Information ENGLISH - 52

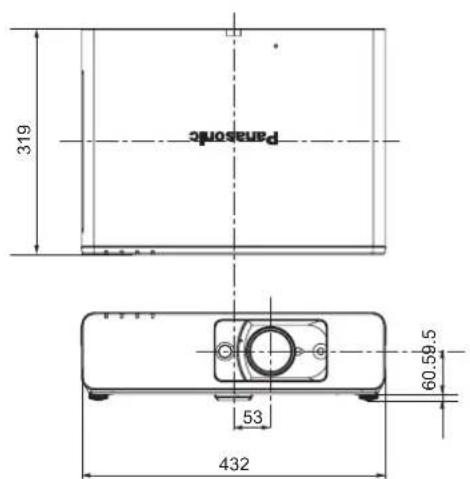

• All measurements above are approximate and may differ slightly from the actual measurements. J Calculation methods for screen dimensions You can calculate more detailed screen dimension from the screen diagonal. SW = SD x 0.0221 SH = SD x 0.0125 Unit: m LW = 0.0332 x SD - 0.049 LT = 0.066 x SD - 0.055

• The results above are approximate and may differ slightly from the actual measurements. Screen size and throw distance for 16:9 aspect ratio Projection size (16 : 9) Throw distance (L) Screen Diagonal (SD) Screen height (SH) Screen width (SW) Minimum distance (LW) Maximum distance (LT) (0.84 m) 33" 0.41 m (1'4") 0.73 m (2'4") 2.1 m (6'10") (1.02 m) 40" 0.50 m (1'7") 0.89 m (2'11") 1.3 m (4'3") 2.6 m (8'6") (1.27 m) 50" 0.62 m (2') 1.11 m (3'7") 1.6 m (5'2") 3.2 m (10'5") (1.52 m) 60" 0.75 m (2'5") 1.33 m (4'4") 1.9 m (6'2") 3.9 m (12'9") (1.78 m) 70" 0.87 m (2'10") 1.55 m (5'1") 2.3 m (7'6") 4.6 m (15'1") (2.03 m) 80" 1.00 m (3'3") 1.77 m (5'9") 2.6 m (8'6") 5.2 m (17') (2.29 m) 90" 1.12 m (3'8") 1.99 m (6'6") 2.9 m (9'6") 5.9 m (19'4") (2.54 m) 100" 1.25 m (4'1") 2.21 m (7'3") 3.3 m (10'9") 6.5 m (21'3") (3.05 m) 120" 1.49 m (4'10") 2.66 m (8'8") 3.9 m (12'9") 7.9 m (25'11") (3.81 m) 150" 1.87 m (6'1") 3.32 m (10'10") 4.9 m (16') 9.8 m (32'1") (5.08 m) 200" 2.49 m (8'2") 4.43 m (14'6") 6.6 m (21'7") 13.1 m (42'11") (6.37 m) 250" 3.11 m (10'2") 5.53 m (18'1") 8.3 m (27'2") 16.4 m (53'9") (7.62 m) 300" 3.74 m (12'3") 6.64 m (21'9") 9.9 m (32'5") 19.7 m (64'7")Technical Information ENGLISH - 53 Appendix VGA and XGA are trademarks of International Business Machines Corporation. S-VGA is a registered trademark of the Video Electronics Standards Association. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh Company, Ltd. All other trademarks are the property of the various trademark owners. These Operating Instructions are printed on recycled paper. Dimensions Trademark acknowledgements
