PREMIUM HI-FI Component System user manual MX-HS9000 imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 1 2014-05-27 오전 11:41:35Safety Information

• An administration fee may be charged if eitheran engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user's manual).you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user's manual).
• The amount of such administration charge will be advised to you before any work or home visit is carried out. 2 English Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPENCAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.This symbol indicates important instructions accompanying the product. WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.DANGER :• VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)CAUTION :• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. (IEC 60825-1)• THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LÁSER CLASE 1 [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 2 2014-05-27 오전 11:41:3501 Safety Information 3 English Precautions

• Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product.

• Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3 - 4 inches/7.5 - 10 cm).

• Do not place the product on amplifiers or other equipment which may become hot. Make sure the ventilation slots are not covered.

• Do not stack anything on top of the product.

• Before moving the product, ensure the Disc Insert Slot is empty.

• To turn off the product completely, disconnect the AC plug from the wall outlet. Disconnect the AC plug from the wall outlet if you will leave the device unused for a long period of time.

• During thunderstorms, disconnect the AC plug from the wall outlet. Voltage spikes due to lightning could damage the product.

• Do not expose the product to direct sunlight or other heat sources. This could cause the product to overheat and malfunction.

• Protect the product from moisture, excess heat, and equipment creating strong magnetic or electric fields (i.e. speakers.).

• Disconnect the power cable from the AC supply if the product malfunctions.

• Your product is not intended for industrial use. It is for personal use only.

• Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.

• The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

• Please check the volume level before playing not to startle the elderly, infirm and pregnant woman at a sudden loud sound.

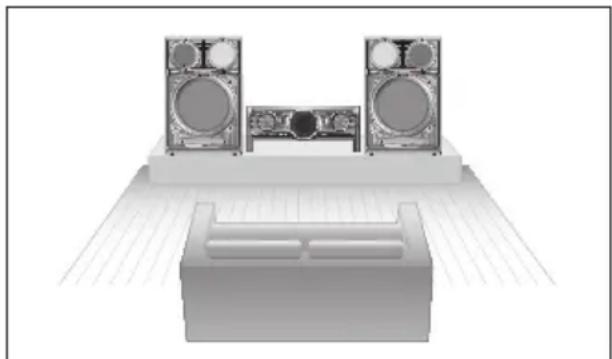

• Place the loudspeakers at a reasonable distance on either side of the system to ensure good stereo sound.

• Direct the loudspeakers towards the listening area.

• Do not expose this apparatus to dripping or splashing. Do not place objects filled with liquids, such as vases, on the apparatus.

• To turn this apparatus off completely, you must disconnect it from the wall outlet. Consequently, the wall outlet and power plug must be readily accessible at all times.

• Use only a properly grounded plug and receptacle. - An improper ground may cause electric shock or equipment damage. (Class l Equipment only.) Disc Storage & Management

• Holding Discs - Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping. - Avoid touching the surface of a disc where data has been recorded. - Hold the disc by the edges so that fingerprints will not get on the surface. - Do not stick paper or tape on the disc.

• Cleaning Discs - If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth. - When cleaning, wipe gently from the inside to the outside of the disc.

Do not keep in direct sunlight.

Keep in a cool ventilated area.

Keep in a clean protection jacket and store vertically. [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 3 2014-05-27 오전 11:41:37Safety Information 4 English Disc and Format Compatibility This product does not support Secure (DRM) Media files. CD-R Discs

• Some CD-R discs may not be playable depending on the disc recording device (CD- Recorder or PC) and the condition of the disc.

• Use 650MB/74 minute CD-R discs. Do not use CD-R discs over 700MB/80 minutes as they may not be played back.

• Some CD-RW (Rewritable) media may not be playable.

• Only CD-Rs that are properly "closed" can be fully played. If the session is closed, but the disc is left open, you may not be able to fully play the disc. MP3-CD Discs

• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

• MP3 file names should contain no blank spaces or special characters (. / = +).

• Use discs recorded with a compression/ decompression data rate greater than 128Kbps.

• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.

• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may play.

• For files encoded in the Variable Bit Rate (VBR) format,( i.e. files encoded in both low bit rate and high bit rate - 32Kbps ~ 320Kbps), the sound may skip during playback.

Does not support WMA Professional codec.

The above table shows supported sampling rates and bit rates. Files of not supported formats may not be played properly. [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 4 2014-05-27 오전 11:41:37Contents Contents 5 English SAFETy INFORMATION 2 Warning 3 Precautions 3 Disc Storage & Management 4 Disc and Format Compatibility 4 Supported Audio Formats GETTING STARTED 6 Front Panel 7 Rear Panel 8 Remote Control 9 Accessories 9 Connecting the Speakers 9 Cautions on Moving the Speakers 9 Attaching the speaker foot FUNCTIONS 10 The Display function 10 Changing Display mode 10 The DEMO Music function 10 Playing a CD 10 Loading a Compact Disc 10 CD/MP3/CD-R Playback 11 Selecting a Track 11 Searching for a Specific Music Passage on a CD 11 Repeat One or All Tracks on a CD 12 Playing USB Devices 12 USB Device Playback 12 To Select a File from a USB Device 13 To Use High Speed Search 13 To Delete a File 13 To Move to the Next/Previous Folder 13 To safely remove a USB device 13 Read Before Connecting USB Storage Devices 14 Searching for a Track Quickly 14 Using the Program Function 14 Viewing or Editing Programmed Tracks 15 Bluetooth 15 What is Bluetooth? 15 To connect the Hi-Fi Component to a Bluetooth device 16 To disconnect the Bluetooth device from the Hi-Fi Component 16 To disconnect the Hi-Fi Component from the Bluetooth device 16 Using Bluetooth Power On 17 TV SoundConnect 17 To connect the Hi-Fi Component to a SoundConnect Compatible Samsung TV 17 To disconnect the TV from the Hi-Fi Component 17 To disconnect the Hi-Fi Component from the TV 18 Using My Karaoke 18 Auto Change Function 18 Listening to the Radio 18 To Store the Stations You Want 19 Selecting a Stored Station 19 Timer Function 19 Setting the Clock 19 Setting the Timer 21 Cancelling the Timer 21 The Recording Function 21 Basic Recording 22 Recording Speed 23 Special Sound Effects 23 Selecting EQ Mode 23 FOOTBALL MODE function 23 GOAL Function 24 GIGA SOUND Function 24 BEAT WAVING Function 24 DJ BEAT Function 25 +PANNING Funcion 25 NON-STOP MUSIC RELAY Function 25 DANCE TIME Function 25 TEMPO Function 25 Booting Sound Function APPENDIx 26 Troubleshooting 27 Specifications [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 5 2014-05-27 오전 11:41:37Getting Started Front Panel

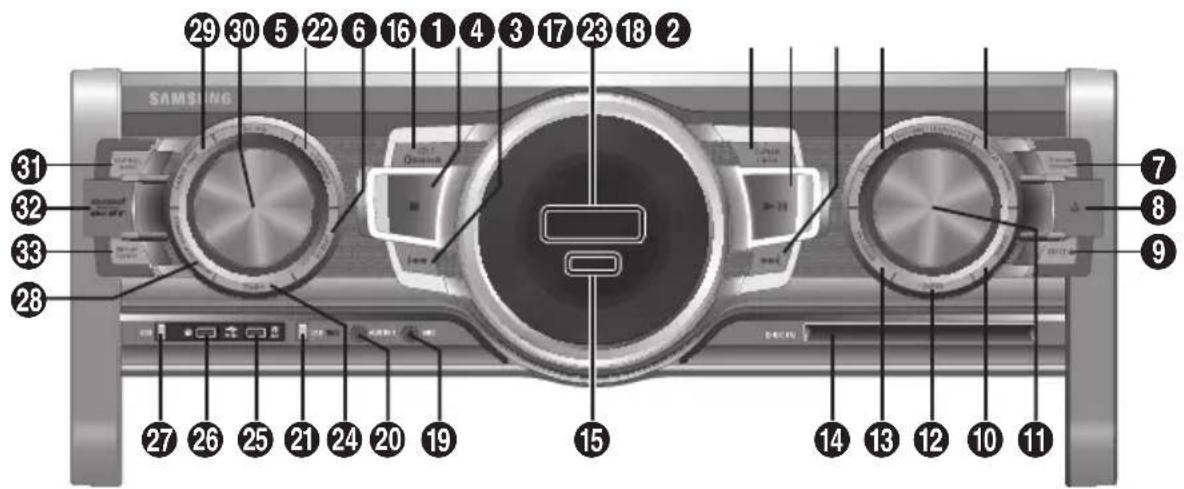

• Press this button to switch your product on or off.

AUX IN 1 jack Connecting an external device such as an MP3 player.

• Connect AUX IN 1 on the front panel of the product to the Audio Out of the external device/MP3 player.

USB 2 jack for Playing and USB Recording

USB 1 jack for Playback only.

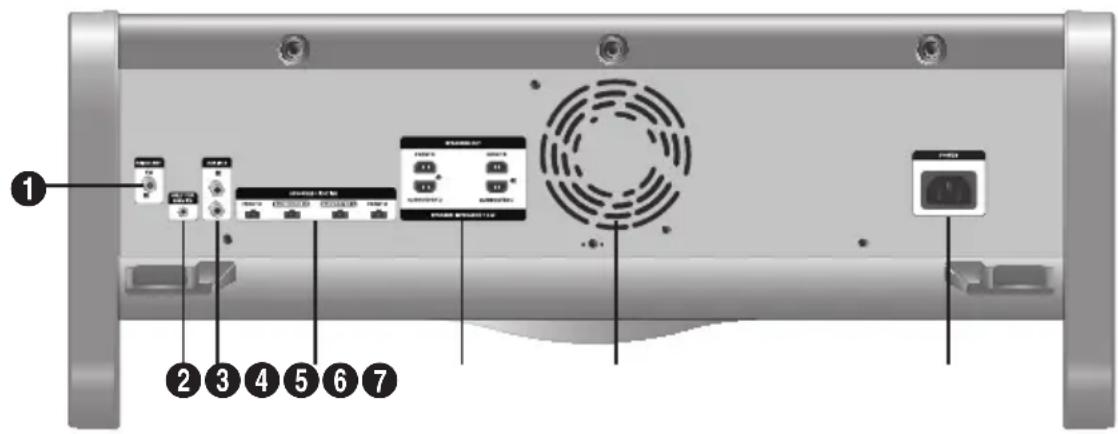

FM Antenna Terminals

1. Connect the FM antenna to the FM

Slowly move the antenna wire until you find a location where reception is good, then fasten it to a wall or other rigid surface.

If reception is poor, you may need to install an outdoor antenna. To do so, connect an outdoor FM antenna to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).

• This jack is for testing only. Please do not use.

Use an Audio Cable (not supplied) to connect AUX IN 2 on the product to Audio Out on an external analog output device.

• Be sure to match connector colors.

• If the external analog output device has only one Audio Out jack, connect either left or right.

• Press the TUNER/AUX button to select AUX 2.

• If the product is in AUX mode for more than eight hours and no buttons on the front panel or remote are pushed, the system will turn off.

LED Terminals for Speaker Beat Waving.

1. To achieve the correct sound quality,

when you connect the speakers, match the color of the speaker plugs to the color of the speaker jacks. See below.

• LEFT channel (marked , White/Purple).

• RIGHT channel (marked , Red/Purple).

• Don't force the Purple SUBWOOFER connector into the White or Red speaker jack.

• The fan operates while the unit is powered on. If you set the unit to the minimum volume, the fan won't operate. Secure a minimum 6 inches (15 cm) of clear space on all sides of the fan when installing the product.

• Insert only the provided power cable. 7 English

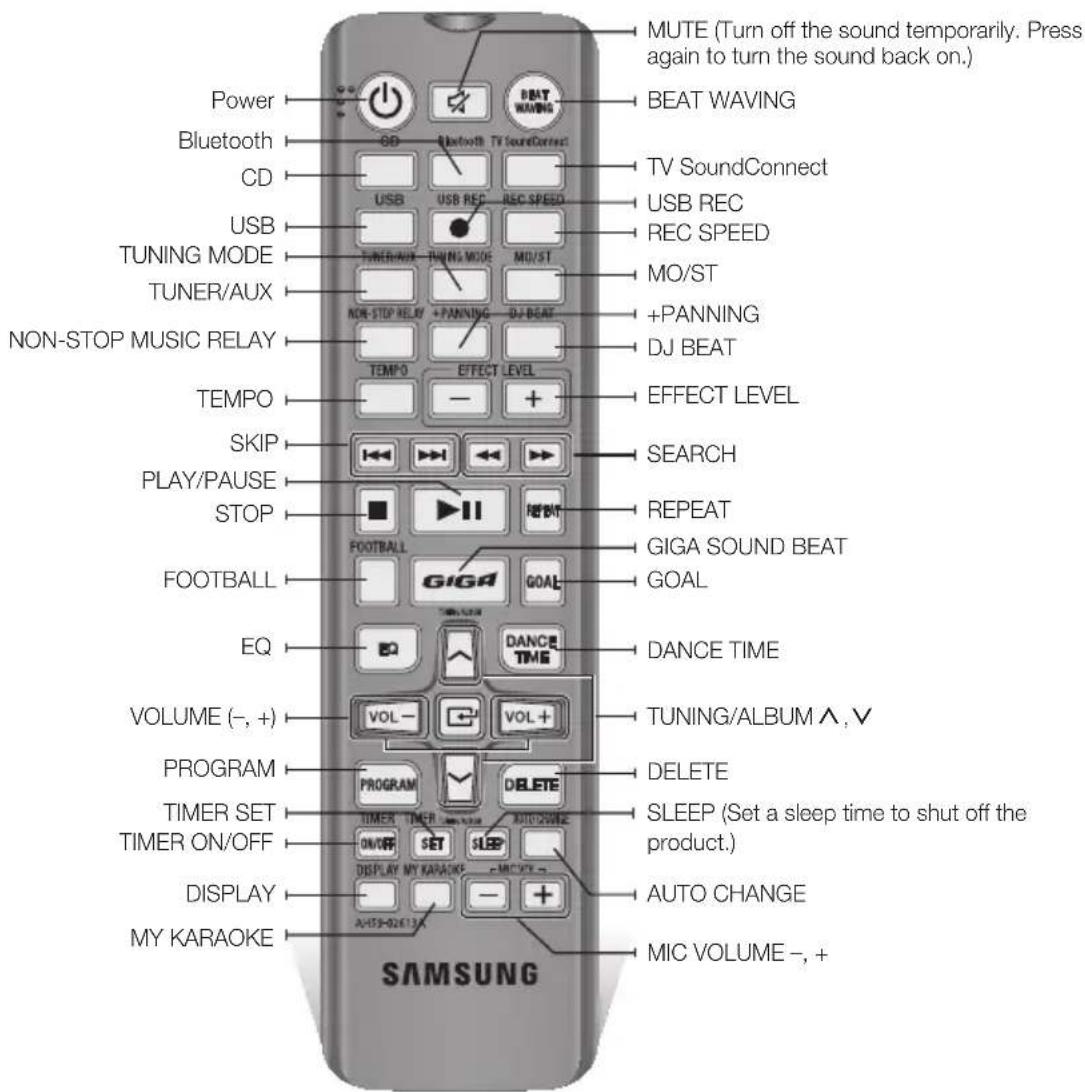

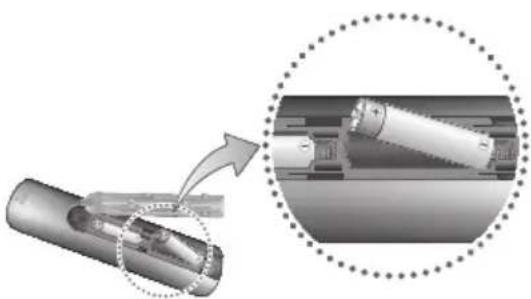

• Place batteries in the remote control so they match the polarity of the illustrations in the battery compartment. : (+) to (+) and (–) to (–).

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble, or overheat the batteries.

• Danger of explosion if the battery is replaced with the wrong battery type. Replace only with the same or equivalent type.

• The remote control can be used up to approximately 23 feet (7 meters) in a straight line from the system. Remote Control PowerBluetoothTUNING MODEPLAY/PAUSETIMER SETMY KARAOKE

• Figures and illustrations in this user's manual are provided for reference only and may differ from actual product appearance. Connecting the Speakers Recommended speaker setup. | IMPORTANT |

The product may not operate properly if it is subject to shaking or external shocks or if the speakers are not installed as recommended.

Do not stretch the speaker wires or place a heavy object on them. Cautions on Moving the Speakers

• When moving the main unit and speakers, make sure to separate all connected speaker cables before.

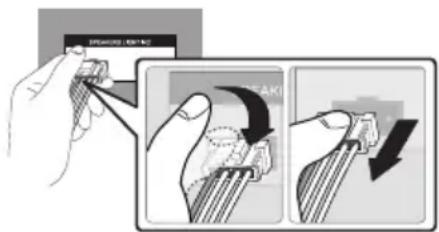

• When separating the SPEAKERS LIGHTING cables, press the lock to release the connector as shown below. Attaching the speaker foot Attach the supplied speaker feet to the bottom rear corners of each speaker as shown in the illustration to stabilize the speakers and prevent them from slipping. 9 English Rubber Foot [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 9 2014-05-27 오전 11:41:42Functions The Display function You can view functions available on the display, adjust the brightness of the display and set the Display/LED either on or off. Changing Display mode Press the DISPLAY/DEMO button on the product.Each time you press this button, the mode will change as follows:• The Dimmer function The Dimmer function is selected and the display darkens.• LED OFF The Front display LED is turned off while the dimmer function is working.• Clock ON The Clock you set is displayed.• Display/LED ON All displays and the LED are turned on. The DEMO Music function Press DISPLAY/DEMO button on the product or DISPLAY button on the remote control for 5 seconds to operate the demo mode.Each time you press this button, the mode will change as follows:DIMMER LED Off (unit/speaker) --:-- [time display] LED On (unit/speaker) To cancel the Demo Music mode
• Press the DISPLAY/DEMO button on the product or DISPLAY button on the remote control for 5 seconds again. The current mode is cancelled and the product is turned off.
• Press TUNER/AUX, CD/Bluetooth or USB button on the product. The current mode is cancelled and the mode is changed to the mode you selected. | NOTES |

While displaying DEMO Music, only the POWER ( ), VOL, MUTE ( ) buttons and the buttons mentioned above work.

The DEMO sampler plays for 3 minutes; only the message remains displayed on the front panel after its playback. Playing a CD Loading a Compact Disc You can play standard compact discs that require no adapter. 1. Insert a disc gently into the disc slot with the disc's label facing up. The disc will be played automatically.• You can load or unload compact discs when the radio, USB, or auxiliary source function is selected. When you press the button, all of the other functions will change to the CD mode.• If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will change to Stop mode.• If no buttons are pressed on the product or remote control for more than 25 minutes when the product is in Stop mode, the product will turn off. CD/MP3/CD-R Playback | IMPORTANT |

This product is designed to play the following audio disc types: CD, CD-R, CD-RW.1. Insert a disc gently into the disc slot with the disc's label facing up.2. The disc will be played automatically.• For MP3/WMA file, it may take several minutes for the product to finish scanning the disc tracks.• If you play a file with an English title, the song title will be shown in the display. (Titles in other languages can not be displayed.)• An English-titled track containing a special character (@, $, *, etc.) will not be displayed.<CD Playback Display>Track IndicatorPlaytime Indicator 10 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 10 2014-05-27 오전 11:41:4303 Functions

3. To adjust the volume:

• Turn the VOLUME control on the product.

• Press the VOL+ or VOL- button on the remote control. The volume level can be adjusted in 31 steps (VOLUME MIN, VOLUME 01 ~ VOLUME 29, and VOLUME MAX).

Main Unit To pause playback temporarily, press the button. Press again to continue playing the disc. Remote control To pause playback temporarily, press the button. Press the button to continue playing the disc.

If no CD is in the disc slot, “NO DISC” appears on the display.

The quality of MP3/CD-R playback may vary depending on the condition of the disc or the condition of the recorder used to create the disc.

If a disc contains different types of files or unnecessary folders, you will have problems with playback.

Gently insert a CD into the disc slot. Do not apply excessive force. - Do not apply force to the product or place a heavy object on the product. - Do not insert an out-of-spec or oddly shaped CD (heart shaped, octangular, etc.). You can damage the product. - Carefully maintain your CDs. Selecting a Track You can select a desired track while the disc is being played. To play the previous track Press the

button within 3 seconds after the current track has started playing. Press the

button twice, 3 seconds or more after the current track starts playing. To play the next track Press the

button. To play the current track from the beginning Press the

button, 3 seconds after the current track started playing. To play the track of your choice Press the

button to move to a desired track. Searching for a Specific Music Passage on a CD When listening to a CD, you can quickly search for a specific music passage on a track. Forward Search ....................

You can also press and hold the

buttons on the product to automatically scan for a track. Repeat One or All Tracks on a CD You can play a CD or tracks on a CD repeatedly.

1. Press the REPEAT button on the remote

control. Each time you press this button, the mode changes as follows: MP3 : OFF

RANDOM 11 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 11 2014-05-27 오전 11:41:43Functions

2. When you want to stop the repeat function,

press the REPEAT button until "OFF" is displayed.• OFF : Cancels repeat playback.• TRACK : Repeatedly plays the selected track.• DIR (DIRECTORY) : Repeatedly plays all tracks in the selected folder.• ALL : Repeatedly plays the entire disc.• RANDOM : Plays tracks in random order. Playing USB Devices Connect an external storage device such as a USB flash memory or external HDD (Hard Disk Drive) to the product. You can play files in MP3/WMA format. USB Device Playback 1. Connect the external USB storage device to your product.2. Select the USB mode by pressing the USB button on the product or the USB button on the remote control.3. The first file of the first directory plays automatically.4. To stop playing Press the button to stop playing. | NOTES |

To remove the USB device - If you press the button again, you can remove the USB device safely. | IMPORTANT |

Do not connect a USB recharger to the USB port of this product. You can damage the product. To Select a File from a USB Device You can select an MP3 file while the product is playing. | NOTES |

If you want to move to the previous/next track, press the

buttons briefly. - The unit moves to the previous/next track within the directory. - If you press the

buttons more times than the number of the files in the directory, the unit moves to the next directory. To repeat

1. Press the REPEAT button. Each time you press this button, the mode changes as follows:

TRACK DIR ALL RANDOM2. When you want to stop the repeat function, press the REPEAT button until "OFF" is displayed.• OFF : Cancels repeat playback.• TRACK : Repeatedly plays the selected file.• DIR (DIRECTORY) : Repeatedly plays all files in the selected folder.• ALL : Repeatedly plays all files.• RANDOM : Plays files in random order. | NOTES |

If the file selected to be played is located in a folder all the files within that folder are played in random order. If the file selected is located in the root folder all files will be played in random order. 12 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 12 2014-05-27 오전 11:41:4403 Functions To Use High Speed Search You can search a desired section quickly while the product is playing. Press the

• Each time you press the button, you move through the section forward/backward quickly. | IMPORTANT |

The product does not output sound during a high speed search.

You can also press and hold the

button on the main unit to automatically scan for a track. To Delete a File You can delete a file from your USB device.

1. Select a file you want to delete.

2. Press the DELETE button on the remote

control. "DELETE NO" is displayed.

3. Press the DELETE button on the remote

control and “DELETE YES” is displayed.

button. “DELETE END” appears and deletion is completed. To Move to the Next/Previous Folder Press the TUNING/ALBUM

button on the remote control to move to the previous/next folder. | NOTES |

When sound files are stored in the root directory rather than in a folder, press the TUNING/ALBUM

button to go to the first TRACK. To safely remove a USB device

button twice while the USB is playing or press the

button once when play has stopped.

2. When the REMOVE message appears on the

display, remove the USB device. Read Before Connecting USB Storage Devices

• Some USB devices may not work properly with this product.

• This product only supports external HDD`s that are formatted in the FAT file system.

• USB 2.0 HDDs should be connected to a separate power source. Otherwise, the USB 2.0 HDDs will not work.

• If multiple USB external storage are connected together, only the MP3 files in the first HDD will be played.

• Files with DRM are not supported. Digital Right Management(DRM) restricts unauthorized access to a DRM file so that the file is protected from piracy.

• Even if a file has an .mp3 extension, the file cannot be played if it is formatted in MPEG layer 1 or 2.

• Do not use an unrecognized USB hub.

• Only the first 15 characters of an audio file name are shown on the product's display.

• Only removable HDDs with less than 160GB are supported. Depending on the device, a 160GB- or more removable HDD may not be supported.

• It can take several minutes for the product to recognize the files on some USB devices.

• Some USB devices (USB HDDs, in particular) may cause a delay when moving from track to track.

• With USB storage devices supporting USB VER1.1 only, the product may access files slowly or may not recognize the file properties.

• The maximum electrical current provided by each USB port to connected USB devices is 0.5A (based on DC 5V).

• If there is no USB connection or STOP mode lasts for more than 25 minutes, the product will automatically turn off.

• Some USB devices, digital cameras, USB card readers, iPods, iPhones, and Smart Phones may not be supported. 13 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 13 2014-05-27 오전 11:41:44Functions Searching for a Track Quickly You can select a track directly without the

After pressing the SEARCH button, turn the VOLUME/SEARCH JOG control on the product to the left or right to select a desired track.

• You can move to the selected track directly.

2. When searching is done, the track will

automatically start playing. Using the Program Function This function is not available during playback of an MP3-CD/USB.

• You can program the playback order of up to 99 tracks of your choice.

• However, you must stop playing the CD/USB before selecting tracks.

1. While in CD/USB playback mode, press the

button to stop playing the CD/USB.

button or the VOLUME/ SEARCH JOG to move to a desired track.

to move to the previous track.

to move to the next track.

button to confirm your selection. The selection is stored and is displayed.

5. To select another track, follow Steps 3 and 4

button to play the programmed tracks.

button to stop playing the programmed tracks, Press the

button again to cancel playing the programmed tracks.

• If you eject the disc, CD programming is cancelled. If you turn off the product, CD/USB programming is cancelled. | NOTES |

CD/USB program play will continue if you try to switch to another mode.

USB REC, DELETE and TUNING/ALBUM buttons will not work in Program mode. If you press such buttons in Program mode, “PROGRAM PLAY” will be displayed instead.

If a file in the program to be played was not in a supported format, playback skips to the next file automatically. Viewing or Editing Programmed Tracks You can view and edit a list of programmed tracks.

1. If a programmed track is being played, press

3. Repeatedly press the

button until the desired track is displayed.

button to select a different track.

button to confirm your selection.

6. To play the programmed tracks, press the

Each time you press this button, the mode will change as follows: OFF

ALL 14 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 14 2014-05-27 오전 11:41:4403 Functions Bluetooth You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires! What is Bluetooth? Bluetooth is a technology that enables Bluetooth compliant devices to interconnect easily with each other using a short, wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, when: - A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Hi-Fi Component. - It is subject to electrical variation from obstructions caused by a wall, corner, or office partitioning. - It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

• Pair the Hi-Fi Component with the Bluetooth device while they are close together.

• The greater the distance between the Hi- Fi Component and the Bluetooth device, the worse the quality. If the distance exceeds the Bluetooth operational range, the connection is lost.

• In poor reception areas, the Bluetooth connection may not work properly.

• The Bluetooth connection only works when the Bluetooth device and the Hi-Fi Component are close together. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

• This wireless device may cause electric interference during its operation. To connect the Hi-Fi Component to a Bluetooth device Before you begin, confirm that your Bluetooth device supports the Bluetooth-compliant stereo headset function.

1. Press the CD/Bluetooth button of the Hi-

Fi Component to display the BLUETOOTH message.

• You will see WAIT for a short period of time and then READY on the front display of the Hi-Fi Component.

2. Select the Bluetooth menu on the Bluetooth

device you want to connect. (Refer to the Bluetooth device's user manual.)

3. Select the Stereo headset menu on the

• You will see a list of scanned devices.

4. Select "[Samsung] HI-FI XXXXXX" from the

• When the product is connected to the Bluetooth device, it will display CONNECTED

BLUETOOTH on the front display.

• If the Bluetooth device has failed to pair with the product, delete the previous “[Samsung] HI-FI XXXXXX” found by the Bluetooth device and have it search for the product again.

5. You can listen to the music playing on the

connected Bluetooth device over the Hi-Fi Component system.

• In Bluetooth mode, some model's Play/ Stop/Next/Back functions are not available. | NOTES | The product only supports Middle Quality SBC data (up to 237kbps@48kHz), and does not support High Quality SBC data (328kbps@44.1kHz).

The AVRCP feature is not supported.

Connect only to a Bluetooth device that supports the A2DP (AV) function.

You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function. 15 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 15 2014-05-27 오전 11:41:44Functions

Only one Bluetooth device can be paired at a time.

Once you have turned off the Hi-Fi Component and the pairing is disconnected, the pairing will not be restored automatically. To reconnect, you must pair the device again.

The Hi-Fi Component system may not search or connect properly in the following cases: - If there is a strong electrical field around the Hi-Fi Component. - If several Bluetooth devices are simultaneously paired with Hi-Fi Component. - If the Bluetooth device is turned off, not in place, or malfunctions. - Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference. To disconnect the Bluetooth device from the Hi-Fi Component You can disconnect the Bluetooth device from the Hi-Fi Component. For instructions, see the Bluetooth device's user manual.

• The Hi-Fi Component will be disconnected.

• When the Hi-Fi Component is disconnected from the Bluetooth device, the Hi-Fi Component will display DISCONNECTED

READY on the its display. To disconnect the Hi-Fi Component from the Bluetooth device Press another mode button on the front panel of the Hi-Fi Component to switch from Bluetooth mode to another mode or turn off the Hi-Fi Component. The currently connected device is disconnected. | NOTES |

The connected Bluetooth device will wait a certain amount of time for a response from the Hi-Fi Component before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Hi-Fi Component and the Bluetooth device exceeds 16.25 feet (5 meters).

If the Bluetooth device comes back into the effective range after disconnecting, you can restart the Hi-Fi Component to restore the pairing with the Bluetooth device.

The Hi-Fi Component automatically turns off after 25 minutes in the Ready mode.

When a Bluetooth device is connected to the Hi-Fi Component system, it automatically switches to the Bluetooth mode if it were in a different mode. Using Bluetooth Power On When the product is turned off, you can connect your smart device to the product via a Bluetooth connection to turn it on.

1. Press and hold the Bluetooth button on

the remote to set the Bluetooth Power On function On. Bluetooth Power On appears on the display.

2. When the product is off, connect your smart

device to the product via Bluetooth. (For information on Bluetooth connections, refer to your smart device’s manual.)

3. When the connection is complete, the

product turns itself on automatically in Bluetooth mode.

• Select the desired music to play from your smart device. | NOTES |

Press and hold the Bluetooth button on the remote control to turn the Bluetooth Power On function on or off. Each time you press and hold this button, the Hi-Fi Component displays Bluetooth Power

Off on its display. 16 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 16 2014-05-27 오전 11:41:4403 Functions TV SoundConnect You can listen to the sound from your SoundConnect Compatible Samsung TV through the Hi-Fi Component by using the TV SoundConnect function. To connect the Hi-Fi Component to a SoundConnect Compatible Samsung

Before activating this function, be sure to set the Samsung TV's SoundConnect or SoundShare function to On.

2. Set Add New Device to On in the TV's

SoundConnect Settings menu. (Refer to the TV's user manual for details.)

3. When the Hi-Fi Component is connected

CONNECTED on the front display.

4. The audio from the connected TV plays over

The SoundConnect feature is available on some Samsung TVs released since 2012. Check whether your TV supports the SoundShare or SoundConnect function. (For further details, refer to the TV's user's manual.)

If you unplug the Hi-Fi Component, the TV SoundConnect connection is terminated. To re-establish the connection, plug the Hi-Fi Component into an outlet, and then set the TV SoundConnect connection again.

Only one Hi-Fi Component can be connected to a TV via TV SoundConnect.

To connect to another TV in TV SoundConnect mode, press the button for more than 5 seconds, and then connect to the other TV by following the directions above. To disconnect the TV from the Hi-Fi Component You can disconnect the TV from Hi- Fi Component. For instructions, see the TV's user manual.

• When the Hi-Fi Component is disconnected from the TV, the Hi-Fi Component will display DISCONNECTED

REQUEST on its display. To disconnect the Hi-Fi Component from the TV Press the other mode button on the front panel of the Hi-Fi Component to switch from TV SoundConnect mode to another mode or turn off the Hi-Fi Component. The currently connected device is disconnected. | NOTES |

The connected TV will wait a certain amount of time for a response from the Hi-Fi Component before terminating the connection. (Disconnection time may differ, depending on the TV)

The connection may be lost or sound may stutter if the distance between the TV and the Hi-Fi Component exceeds 6.5 feet (2 m).

Instability in the network environment may cause the connection to be lost or sound to stutter.

The Hi-Fi Component automatically turns off after 25 minutes if the product is not connected to a TV. 17 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 17 2014-05-27 오전 11:41:44Functions Using My Karaoke You can use the MY Karaoke function to sing along with your favorite CDs and USB tracks.

1. Connect the microphone to the MIC jack on

the front of the product.

• If your microphone plug is smaller than the 6.3mm MIC jack, you need a Connector- Adaptor (not supplied) to complete the connection. - First, connect the Connector-Adaptor to the MIC jack on the front of the product, - Second, connect the microphone (with larger jack) to the Connector-Adaptor.

2. Press the MIC VOL-, + button on the

remote control to adjust the volume of the microphone.

3. Press the MY KARAOKE button on the

remote control to suppress the vocal if you need to. Each time the button is pressed, the selection is changed as follows:

• If you hear strange noises (squealing or howling) while using the Karaoke feature, move the microphone away from the speakers. Turning down the microphone's volume or the speaker volume is also effective. Do not aim the MICROPHONE towards the SPEAKERS.

• The microphone does not operate in the AUX and TUNER mode.

• If you connect a microphone, GIGA SOUND automatically turns off. To turn Giga Sound back on you must remove the microphone, and then press the GIGA SOUND BEAT button.

• When My Karaoke is on, GIGA SOUND does not work.

• When you turn My Karaoke off, all My Karaoke settings are lost.

• My Karaoke is only available when a microphone is connected to the Hi-Fi Component.

• My Karaoke does not operate in the Bluetooth, TV SoundConnect, FM and AUX mode. Auto Change Function You can circularly play between the disc and the USB.

to apply your selection.

• If Program Play has not been set in CD/ USB

• If Program Play has been set in CD/USB

• When the AUTO CHANGE mode is "ALL", - the music will be played on DISC

USB2 continuously. - if you press the POWER button, function change button or the EJECT button, the AUTO CHANGE function automatically switches to "OFF" mode. - the recording can't work. - the REPEAT function can't work and automatically changes to OFF. - the REC SPEED, USB REC button can't work.

• When USB is playing, if you disconnected the USB, the AUTO CHANGE function automatically switches to "OFF" mode.

• If there's no USB1, it will jump to USB2. Listening to the Radio To Store the Stations You Want You can store up to: 15 FM stations.

1. Select FM by pressing the TUNER/AUX

2. To search for a station, press the TUNING

MODE button on the remote control or the

button on the product one or more times until MANUAL is displayed. 18 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 18 2014-05-27 오전 11:41:4403 Functions

3. Select a station by:

button on the remote control to automatically search for active broadcasting stations.

4. Press the MO/ST button to switch between

• In a poor reception area, select MONO for a clear, interference-free broadcast.

• This applies only when listening to an FM station.

5. If you do not want to store the radio station

found, go back to Step 3 and search for another station. Otherwise: a. Press the

6. To store any other radio frequencies required,

repeat Steps 3 to 5. | NOTES |

In Tuner mode - In the Manual mode, you can use the

button or the DJ JOG control. - In the Preset mode, you can use the

button or the DJ JOG control on the product to search a stored radio station. Selecting a Stored Station To listen to a stored station, follow these steps:

1. Select FM by pressing the TUNER/AUX

button on the product or remote control.

2. Press the TUNING MODE button on the

remote control until “PRESET” is displayed.

on the remote control to select a preset number.

Turn the DJ JOG control left or right on the main unit to select the stored station. Timer Function Setting the Clock For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

1. Press the TIMER SET button on the remote

control twice. "CLOCK SET" is displayed.

button on the remote control. The hour flashes.

• Increase the hours: TUNING/ALBUM

• Decrease the hours: TUNING/ALBUM

3. When the correct hour is displayed, press the

button, and then the minutes flash.

4. When the correct minute is displayed, press

button, and then "TIMER PLAY SET" appears in the display. Setting the Timer The timer enables you to set the product to switch on or off at specific times automatically.

• Before setting the timer, check that the current time is correct.

• For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

• If you no longer want the product to be switched on or off automatically, you must cancel the timer by pressing the TIMER ON/OFF button. Example: You want to wake up to music every morning.

1. Press the TIMER SET button until TIMER

PLAY SET is displayed.

button. Result: ON TIME is displayed for a few seconds. You can set the timer switch-on time. 19 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 19 2014-05-27 오전 11:41:44Functions

3. Set the timer switch-on time.

button to set the hours. b. Press the

button to set the minutes. d. Press the

button. Result: OFF TIME is displayed for a few seconds. You can now set the timer switch-off time.

4. Set the timer switch-off time.

button to set the hours. b. Press the

button to set the minutes. d. Press the

button. Result: VOLUME XX is displayed, where XX corresponds to the volume already set.

button to adjust the volume level and press the

button. Result: The source to be selected is displayed.

button to select the source the Hi-Fi Component will play when it switches on. If you select You must also FM (radio) a. Press the

button. b. Select a preset station by pressing the TUNING/ALBUM

button. Result: TIMER REC SET (Do you want to record?) is displayed.

button. Result: REC SET YES/NO is displayed. You can press the TUNING/ALBUM

timer recording and any currently set tuner timer recording. Note that selecting REC NO does not cancel the Timer setting.

2) If you select REC YES, you can set the

tuner timer recording on and off times. a. Press the

button. Result: ON TIME is displayed for a few seconds. You can set the tuner timer recording switch-on time. b. Press the

button. Result: OFF TIME is displayed for a few seconds. You can set the tuner timer recording switch-off time. | NOTES |

Tuner timer recording On/Off times can differ from Timer On/Off times.

If the timer switch on and off times are identical, the word ERROR is displayed.

buttons on the product instead of the TUNING/ALBUM

button to make adjustments in Steps 3 through 8.

If the switch-on or -off time is the same as the timer recording time, only the switch-on or -off time is effective, and the timer recording is not applied.

When you use the auto timer, you may need an additional step to use a CD or USB device with it, depending on the disc (or device). Consequently, it is easier to use the tuner instead.

If you select CD or USB mode when there is no disc or no USB in the product, it will automatically change to TUNER. 20 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 20 2014-05-27 오전 11:41:4403 Functions Cancelling the Timer After you have set the timer, it will start automatically. When it starts, the TIMER ON message appears on the display. If you no longer want to use the timer, you must cancel it.

• To cancel the timer, Press the TIMER ON/OFF button once.

• To restart the timer, Press the TIMER ON/OFF button once again. | NOTES |

When you select the TIMER OFF mode, the TIMER RECORDING and TIME function are not available. The Recording Function Basic Recording You can record from a CD, a USB device, a radio broadcast, or an external source to a USB storage device.

1. Connect an external USB storage device to

a USB ( ) jack on your product. You can use USB 2.

2. Play a disc or USB, turn on the radio and

select a station, or connect an external source to your product as described below.

• Press the CD button on the product to select the CD function.

• Insert a CD gently into the disc slot.

• Use the CD selection (

• Select the radio frequency you want to record. USB 1 (Recording device is on USB 2)

• Connect the USB device with the files you want to record to USB 1 jack.

• Press the USB button to select USB 1.

• Play a song from the USB 1. External Source

• Connect an External device/MP3 player to the product.

• Press the TUNER/AUX button to select AUX IN 1 or AUX IN 2.

• Play a song from the external device.

3. Press the USB REC button on the remote

control to start recording.

• CD recording starts and “TRACK RECORD” and the current track number appear on the display alternately.

• If you want to record all the tracks on the disc, press and hold the USB REC button. "FULL CD RECORD" is displayed. RADIO

• “TUNER RECORD” is displayed and recording starts. CD-ROM/USB

• “FILE COPY” is displayed and recording starts.

• You can also copy a folder containing MP3/ WMA files to a device on USB 2. Press and hold the USB REC button while the system plays an MP3 or WMA file located in a folder. Your system displays "FOLDER COPY", and will record all the files in that folder.

• When the recording is done, “STOP” is displayed.

• If there is a file with the same name on the USB 2 device, "EXIST FILE" is displayed, and the function is canceled. 21 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 21 2014-05-27 오전 11:41:44Functions

• If a microphone is connected to the product and you press the USB REC button, you activate the MP3 Recording function, not the Copy function.

• Press the USB REC button for a second to start FILE COPY. Press and hold the USB REC button for a few seconds to start FOLDER COPY. External Source

• “AUX RECORD” is displayed and recording starts.

• “MP3 RECORD” is displayed and recording starts.

button. The recording is automatically saved as an MP3 file.

5. After the recording is finished, a directory

RECORDING” or “MP3 RECORDING” is created in your device. | NOTES |

WMA/MP2 files can only be copied not recorded.

Do not disconnect the USB device or the AC Cord during recording. You can cause file damage.

If you disconnected the USB device during recording, the product will turn off and you will not be able to delete the file that has been recorded. If this occurs, connect the USB device to a PC, back up the USB data to the PC, and then reformat the USB device.

If the USB device does not have enough memory, “NOT ENOUGH MEMORY” will appear on the display.

The Recording function supports the FAT file systems only. The NTFS file system is not supported.

When you use the CD high speed search function, the CD recording function is unavailable.

With some USB devices, recording time may be longer.

In the Program mode, you can't use the recording function.

When the Recording function is active, the EQ and GIGA SOUND functions automatically turn off and are unavailable.

During a CD recording, the REPEAT function automatically turns off and is unavailable.

If you use the MIC function during a CD recording, the voice from the microphone will be recorded.

You can not record audio from the radio when searching for a station or if there are no frequencies available when the product is set to Tuner mode.

Note that setting the input level too loud when recording music from an external device through the AUX or USB channel may introduce noise into the recording. If this occurs, lower the external device’s volume level. Recording Speed Each time you press the REC SPEED button on the remote control, the recording speed will change as follows: RECORD SPEED x 1

• When you record from the tuner or an external source, you cannot change the recording speed.

• If you select RECORD SPEED X 4, sound is not produced during the recording.

• If you connect the microphone, you have one recording speed mode available: RECORD SPEED X 1.

• During recording, if you disconnect the microphone, the recording will stop. If you reconnect the microphone, the recording will not restart. | NOTES |

Even when RECORD SPEED x4 is set, recording may not be made in x4 speed depending on the used USB storage device. 22 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 22 2014-05-27 오전 11:41:4403 Functions Special Sound Effects Selecting EQ Mode Your Hi-Fi Component system provides predefined equalizer settings that are optimized for particular music genre. You can also adjust the bass, middle and treble levels manually.

1. Press the EQ button.

Each time you press the EQ button or turn the VOLUME/SEARCH JOG control on the product, the mode changes as follows: OFF

2. To set the BASS, MID (Middle), and TREB

button to select a level from -06 to 06. Then, press the

button to select a level from -06 to 06. Then, press the

button to select a level from -06 to 06. Then, press the

button. Result: Setting is complete. | NOTES |

When the Hi-Fi Component is recording, the EQ function is turned off automatically and is unavailable.

If no buttons are pressed within 8 seconds, your settings will automatically be cancelled and the previous settings will be saved.

The EQ mode may be different depending on your region.

Use VOLUME/SEARCH JOG to alter the EQ mode, and the selected EQ mode will be applied after 2 seconds.

Use VOLUME/SEARCH JOG to alter the EQ mode and press

. EQ screen disappears. FOOTBALL MODE function The football mode brings greater realism to sports broadcasts.

1. Press the FOOTBALL MODE button on the

product. Each time you press this button, the mode changes as follows: OFF

MODE button until “OFF” is displayed. GOAL Function Press this button to add the sound of cheering while watching a football game.

1. Press the GOAL button on the remote

control. Each time you press this button, the mode changes as follows: GOAL ON

button until “GOAL OFF” is displayed. 23 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 23 2014-05-27 오전 11:41:44Functions | NOTES |

Press the GOAL button to output the currently playing sound file mixed with the GOAL sound. GIGA SOUND Function The GIGA SOUND function amplifies the bass sound and provides twice the bass for powerful, realistic sound.

1. Press the GIGA SOUND BEAT button on the

main unit or the GIGA button on the remote control. Each time you press this button, the mode changes as follows:

SOUND BEAT button until “GIGA SOUND OFF” is displayed. | NOTES |

product or on the remote control. Each time you press this button, the mode changes as follows: STARDUST

If you select BEAT WAVING OFF, all the speaker LED displays are turned off. DJ BEAT Function The DJ Beat function lets you turn on the DJ sound effect functions. The level of each effect is adjustable. Press the DJ BEAT button on the remote control or on the product. Each time you press this button, the mode changes as follows: | IMPORTANT |

The set scope is [-15 ~ +15] and the initial set up value are all 0.

• FLANGER : Creates an effect similar to the sound of a jet engine revving up and down.

• CHORUS : Creates an effect similar to a singing chorus.

• WAHWAH : Creates a 'Wah~ Wah~' effect.

• TREMOLO : Repeatedly and rapidly turns the volume up and down.

• FUZZ : Distorts the original sound to make it harder and harsher.

• PHASER : Alters the original sound from clear to dull.

• SLAPBACK : Creates the effect of a slapback echo following the original sound.

The red LED turns on around the button you pushed and around the DJ BEAT button.

You can control the intensity of the effect with the DJ Jog.

To cancel an effect, press the effect's button again.

You can also control the effect using the EFFECT LEVEL button on the remote control.

Use the DJ Jog to control the intensity of the effect that was activated last. For example, if you activated the WahWah effect and then the Panning effect, the DJ Jog will control the Panning effect.

To control the intensity of the effect you applied first, press the button of effect that you applied last to turn it off. Then, you can use the DJ Jog to control the intensity of the first effect. 24 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 24 2014-05-27 오전 11:41:4403 Functions +PANNING Funcion Increases the left and right speaker's output in turn and makes it seem as if the sound is moving from side to side. | NOTES |

To apply the PANNING effect to another effect, press the +PANNING button when the other effect is active or press another effect button when the PANNING effect is active. NON-STOP MUSIC RELAY Function The NON-STOP MUSIC RELAY function plays music continuously without an interval between tracks/files. If there were two mp3 files, it skips to the next file’s 10 seconds from start position when the previous track reaches its10 seconds before end position. Press the NON-STOP MUSIC RELAY button on the product or NON-STOP RELAY button on the remote control. Each time you press this button, the mode changes as follows:

This function is only available during playback of a CD/USB. DANCE TIME Function Press the DANCE TIME button on the remote control when playing music to play the dance music stored in the product. Use this function to enjoy exciting music.

1. Press the DANCE TIME button on the

remote control or on the product. Each time you press this button, the mode changes as follows:

TIME button until "DANCE TIME OFF" is displayed. | NOTES |

When DANCE TIME mode is swithed ON, the music from B/T, TV SoundConnect, TUNER, and AUX Source goes into Mute mode.

If you set DANCE TIME to OFF during playback of a CD or USB, playback returns to the beginning of the current track.

You can change dance music by pressing

button When playing of a DANCE TIME sound file. TEMPO Function Use this to change the TEMPO while music is playing.

1. During playback (CDDA/ MP3/ WMA), press

the TEMPO button on the remote control or on the product.

2. Select the desired TEMPO by using the

TEMPO Function does not operate in the Bluetooth, TV SoundConnect, FM and AUX mode.

When you turn TEMPO off, all TEMPO settings are lost. Booting Sound Function When the Booting Sound Function is on, your Hi-fi Component demonstrates it's audio prowess as it boots up.

1. Press the product's GIGA SOUND BEAT

button or the remote control's GIGA button for 5 seconds. The BOOTING SOUND menu appears on the display panel.

2. Press the product's GIGA SOUND BEAT

button or the remote control's GIGA button for 5 seconds to turn the BOOTING SOUND function On or Off. 25 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 25 2014-05-27 오전 11:41:45Appendix Troubleshooting Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy I cannot eject the disc. • Is the power cord plugged securely into the outlet?

• Turn off the power and then turn it back on. Playback does not start immediately when the Play/Pause button is pressed.

• Are you using a deformed disc or a disc with scratches on the surface?

• Wipe the disc clean. Sound is not produced. • No sound is heard during fast playback, slow playback, and step motion playback.

• Are the speakers connected properly? Is the speaker setup correctly customized?

• Is the disc severely damaged? The remote control does not work. • Is the remote control being operated within its operational angle and distance range?

• Are the batteries drained? The product is not working. (Example: The power goes out or the front panel buttons don't work, or you hear a strange noise.) The product is not working normally.

button (on front panel) for more than 5 seconds with no disc inside. The initialization message appears on the screen, and the power will turn off automatically. When you turn your product on again, all the settings will be reset. Don't use this unless absolutely necessary. Can't receive radio broadcast. • Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM antenna in an area with good reception. 26 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 26 2014-05-27 오전 11:41:4504 Appendix Specifications General Weight Main unit 8 Kg Speaker 72.52 Kg Dimensions Main unit 588 (W) x 238 (H) x 388 (D) mm Speaker 588 (W) x 887 (H) x 548 (D) mm Operating Temperature Range +5°C~+35°C Operating Humidity Range 10 % to 75 % FM Tuner Signal/Noise ratio 55 dB Usable sensitivity 10 dB Total harmonic distortion 1 % CD Disc CD : 12 cm (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 74 min. Amplifier Front speaker output 850W/CH (4Ω) Subwoofer output 850W/CH (4Ω) Frequency range 22Hz~20KHz S/N Ratio 65 dB Channel separation 60 dB Input sensitivity AUX IN1 1.2V, AUX IN2 2.0V *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - Design and specifications are subject to change without prior notice. - For information on the power supply and power consumption, refer to the label attached to the product. Open Source Announcement To send inquiries and requests regarding open sources, contact Samsung via Email (oss.request@ samsung.com).

• Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name. This equipment may be operated in Jordan. 27 English [MX-HS9000-SJ,ZN]AH68-02687H-03ENG.indd 27 2014-05-27 오전 11:41:46Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area Contact Centre

.ﺔﺷﺎﺸﻟ ﻰﻠﻋ "TIMER PLAY SET" ﺮﻬﻈﻳ

ﻚﻨﻜﻤﻳ ،REC SET YES/NO ﺮﻋ ﻢﺘﻳ :ﺔﺠﻴﺘﻨﻟ

."NOT ENOUGH MEMORY"
