USER MANUAL RF28K9580SG SAMSUNG

Free Standing Appliance

SAMSUNG

SAMSUNG

Contents

Safety information 4

Important safety symbols and precautions: 4

State of California Proposition 65 Warning (US only) 4

Critical installation warnings 5

Installation cautions 7

Critical usage warnings 7

Usage cautions 11

Cleaning cautions 12

Critical disposal warnings 13

1. Regulatory Notice 14

Installation 16

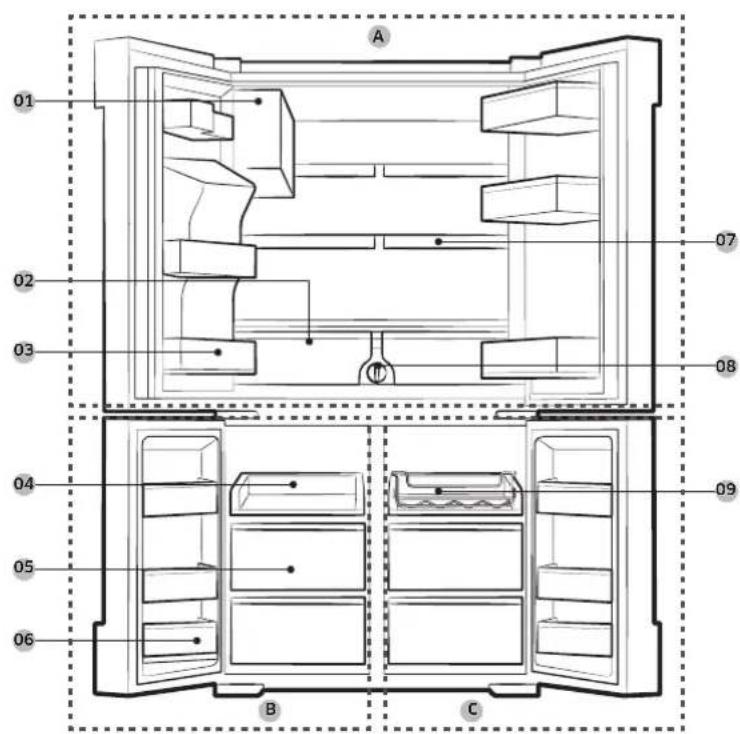

Your refrigerator at a glance 16

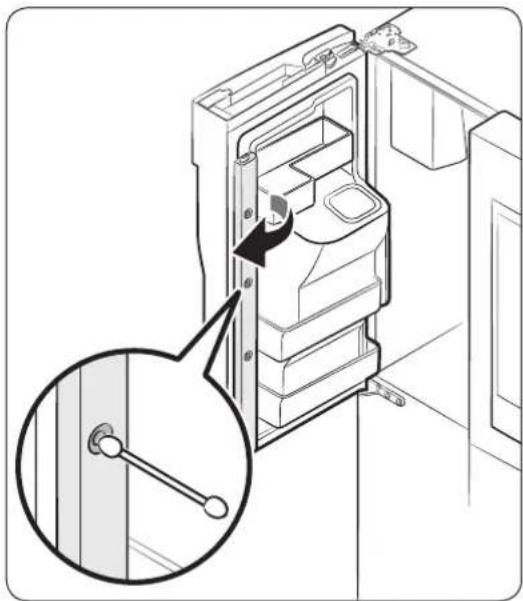

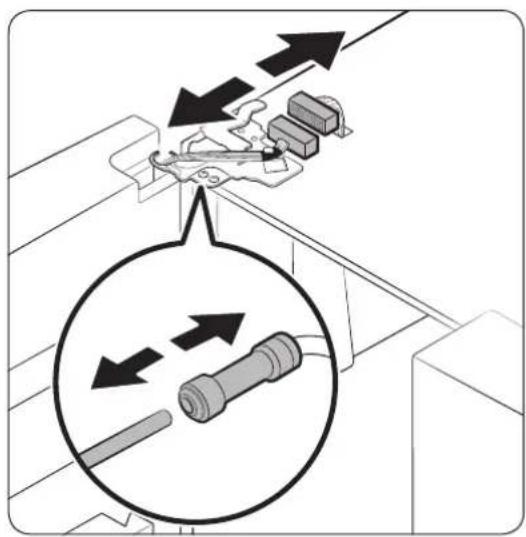

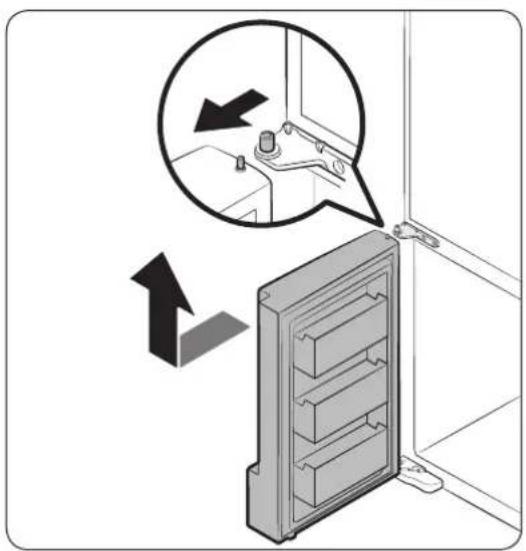

Door removal for entrance 18

Step-by-step installation 26

Operations 35

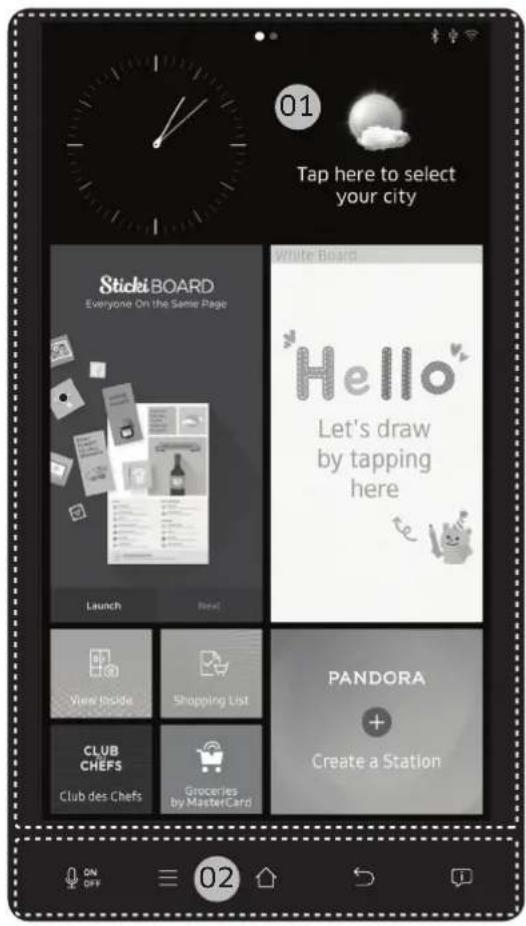

User interface 35

Samsung Smart Home 43

SMART GRID Function (Demand Response) 49

Special features 53

Maintenance 58

Handling and care 58

Cleaning 62

Replacement 63

Troubleshooting 66

General 66

Samsung Smart Home 69

Smart Grid 70

LCD 71

English2

Warranty (USA) 72

WARRANTY ON SAMSUNG REFRIGERATOR 72

Warranty Information (CANADA) 75

If your refrigerator needs service 75

Limited Warranty for Original Purchaser 75

Obligation to the Original Owner 75

Exclusions of the Warranty 76

Open Source Announcement 77

Safety information

• Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.
• If you have any question, contact us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• It is hazardous for anyone other than an Authorized Service Person to service this appliance.

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 Warning (US only)

WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

English4

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.
• If the wall socket is loose, do not insert the power plug.
• There is a risk of electric shock of fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• This may result in an electric shock or fire.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
• Damage to the cord may cause a short-circuit, fire, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not install this appliance near a heater or flammable material.
• Do not install this appliance in a location where gas may leak.
• This may result in an electric shock or fire.
• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
• If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.

English 5

Safety information

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
• There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• Failing to do so may result in an electric shock or fire due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops).
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in an electric shock, fire, problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
• Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.
• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
• This may result in an electric shock, fire, explosion, or problems with the product.
• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

English6

• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.
• If the power cord is damaged, have it replaced immediately by the manufacturer or one of its service agents.
• Only a qualified technician or service company should be allowed to change the fuse in the refrigerator.
• Failing to do so may result in an electric shock or personal injury.

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.
• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.
• We strongly recommend you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.
  • Overloading one door may make the refrigerator fall, causing physical injury.

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.

English 7

Safety information

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.
• Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
• This refrigerator is for storing food only.
• This may result in fire or explosion.
  • Children should be supervised to ensure that they do not play with the appliance.
• Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
• Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.
• If you smell smoke, pull out the power plug immediately, and then contact your Samsung Electronics service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.
• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.
• Do not allow babies or children go into a drawer.
• It can cause death from suffocation by entrapment or personal injury.
• Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.

English8

- Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.

- It may cause a personal injury or material damage.

- Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

- Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors.

- This may result in an electric shock or fire.

- Fill the water tank, ice tray, and water cubes with potable water only (tap water, mineral water, or purified water).

- Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.

- If spilled, there is a risk of fire or electric shock.

- Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Never stare directly at the UV LED lamp for long periods of time.

- This may result in eye strain due to the ultraviolet rays.

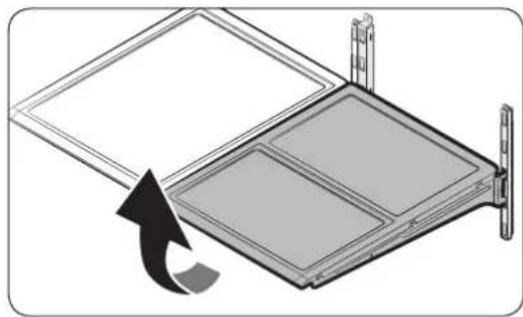

- Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work.

- The glass shelf could fall and cause personal injury.

- Keep fingers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

- If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

- Do not touch the appliance or power cord.

- Do not use a ventilating fan.

- A spark may result in an explosion or fire.

- Use only the LED Lamps provided by the manufacturer or its service agents.

- Bottles should be stored tightly together so that they do not fall over or out.

- This product is intended only for the storage of food in a domestic environment.

- Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker bucket.

- This can cause a personal injury or material damage.

Safety information

• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
• Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.
• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center.
• Failing to do so may result in an electric or fire hazards.
• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
• Otherwise, there is a risk of electric shock.
• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.
• Contact a Samsung service center.
• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.

English10

Usage cautions

CAUTION

- Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury.

• Use only the ice maker provided with the refrigerator.
  • To get the best performance from the product:

- Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.
• Do not put glass bottles or carbonated beverages into the freezer. They can freeze and break. Broken beverage containers can cause injury.
• Please observe maximum storage times and expiration dates of frozen goods.

- Do not put glass containers or bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.
• Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

- Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

- Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

- If the refrigerator is flooded, shut off the power to the refrigerator and contact your nearest Samsung service center.

- There is a risk of electric shock or fire.

English 11

Safety information

Cleaning cautions

CAUTION

• Do not spray water directly on the inside or outside the refrigerator.
• There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.
• Do not spray cleaning products directly on the display.
• Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center.
• Failing to do so may result in an electric shock or fire.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.
• Otherwise, there is a risk of fire or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
• They may damage the surface of the appliance and may cause a fire.
• Never put fingers or any objects into the dispenser outlet.
• This can cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in an electric shock or fire.

English12

Critical disposal warnings

WARNING

• DANGER : Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• Take off the doors and door latch.
• Leave the shelves in place so that children cannot easily climb inside.
• Children trapped inside a refrigerator can hurt themselves or suffocate to death.
• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this refrigerator contains flammable gas (Refrigerant R-600a), contact your local authority in regard to the safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.
• If trapped inside, the child could be injured or suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
• If a child places a bag over his or her head, the child could suffocate.

Safety information

1. Regulatory Notice

1.1 FCC Notice

! FCC CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contains Transmitter Module FCC ID: A3LWIDT30Q, A3LWIBT30D

This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause undesired operation.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet that is on a different circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

English14

1.2 IC Notice

Contains Transmitter Module IC: 649E-WIDT30Q, 649E-WIBT30D

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

For products available in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it's antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

SAVE THESE INSTRUCTIONS

Installation

Follow these instructions carefully to prevent accidents and to ensure the proper installation of this refrigerator.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
  • To prevent electric shock, unplug the power cord before servicing.

Your refrigerator at a glance

NOTE

The images of parts in this manual and the actual provided component parts of the refrigerator may differ, depending on the model and your country.

01 02 03 04 05 06 A 07 08 09 B C

English16

01 Auto Ice Maker (Ice Master)
02 EZ Fresh Vegetable & Fruit Drawers
03 Fridge Multi-Purpose Guard
04 Easy Slide-Shelf
05 Dry Food and Meat Storage Drawers
06 Freezer door Bins
07 Quick Space Shelf
08 Water filter
09 Wine Rack

* applicable models only

NOTE

• For energy efficiency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door by force, the other door may open.
• When the door opens, the interlock switch automatically disables the auger motor of the ice maker for safety reasons.
• If the internal or external LED lamp is out of order, contact a local Samsung service center.

Installation

Door removal for entrance

If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 26 for the installation instructions.

Tools required (not provided)

Philips screwdriver Flat-heat screwdriver Socket wrench (10 mm)

Pliers Allen wrench (4 mm) Allen wrench (5 mm)

Detaching the fridge doors

Technical diagram of a mechanical bracket with mounting holes and an upward arrow indicating motion (no text or symbols)

1. With the door closed, use a Philips screwdriver to remove the screws (x3) from the top cover. Pull up and remove the top cover with the connectors.

English18

Diagram showing mechanical components with directional arrows, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with rotating arrow (no text or symbols)

Diagram showing a mechanical component with a black arrow pointing to a rectangular component, intersected by diagonal lines (no text or symbols)

1. Disconnect the two wire connectors on the left door. The position of the connectors differs with the model.

CAUTION

• Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.
• Make sure the refrigerator is off before disconnecting the connectors.

• Disconnect the water tube from the coupler on the left door as shown.

• Gently draw up the clamp in several steps. To prevent finger injuries, do not apply a sudden force to the clamp.

• Pull up the clamp to remove.

Installation

installation

Diagram showing a mechanical component with an upward arrow, no text or symbols present

Diagram of an open refrigerator with a black upward arrow indicating direction (no text or symbols present)

1. Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.

2. Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury.

3. Lay the door down on a flat surface.

4. Repeat the steps above for the other door, except for Step 3. There is no water tube on the right side door.

English20

Detaching the freezer doors

CAUTION

• Be sure to remove the fridge doors before removing the freezer doors.
• Use caution when disconnecting the bottom connectors.

Diagram showing a screwdriver inserted into a door handle with a labeled component (A), no text or symbols present.

1. With the freezer door open, use a Philips screwdriver to remove the screw holding the cover (A) of the adjustable leg.

Diagram showing two mechanical components connected in a corner with bidirectional arrows indicating movement (no text or symbols)

1. Disconnect the wire connectors.

Diagram showing a mechanical clamp or bracket with a downward arrow indicating force or direction (no text or symbols present)

1. Locate the hinge shaft. While holding the door with one hand, use a flat-head screwdriver or wrench to press the shaft down. Make sure to hold the door to prevent the door from falling.

Installation

Diagram showing a refrigerator with a door handle and an inset view of the door handle (no text or symbols present)

1. To prevent contact with the middle hinge, slightly tilt the door to the front, and then lift it up to remove.
2. Repeat the steps above for the other door.

Re-attaching the freezer doors

CAUTION

• Before re-attaching the doors, make sure all the electrical connectors are properly connected.
• The freezer doors must be re-attached before the fridge doors.
• Be careful not to damage or step on the wires during this process.

Diagram showing a refrigerator with a door and an inset close-up of the interior (no text or symbols)

1. Insert the freezer door into the bottom hinge while pushing the freezer door in the direction of the arrow.

CAUTION

- Be careful not to damage or step on the wires during this process.

English22

Diagram of a kitchen sink with a wrench and a black arrow indicating downward motion (no text or symbols)

Diagram showing two mechanical components connected in a corner with bidirectional arrows indicating movement (no text or symbols)

Diagram showing a screwdriver inserted into a corner-mounted device with a directional arrow indicating movement (no text or symbols present)

1. While pressing the hinge shaft down, position the door so that the hinge shaft is below the shaft hole in the middle hinge. Release the hinge shaft so that it enters the shaft hole.
2. With the door open, connect the bottom connectors in the direction of the arrows.
3. Attach the levelling foot cover using a Philips screwdriver. Be careful not to damage or step on the connectors.
4. Repeat the steps above for the other door.

Installation

Re-attaching the fridge doors

Diagram showing a mechanical switch inserted into a housing component with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Diagram showing a person using a device to interact with a laptop, with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with motion arrow (no text or symbols)

1. While holding the door open by more than 90 degrees, insert the shaft on the middle hinge into the hole on the bottom of the door.
2. Put the top hinge into position on the top of the refrigerator, and then insert the hinge shaft into the top hole of the door. Make sure the wires from the door pass through the hole in the hinge shaft.
3. Insert the clamp in the direction of the arrow.
4. Push back the clamp as shown.

English24

Diagram showing mechanical components with directional arrows, no text or symbols present

Technical illustration of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

1. Connect the wire connectors.

CAUTION

- Make sure the wire connectors are connected properly. Otherwise, the display will not operate.

1. Connect the water tube.

CAUTION

• To prevent water leaks, make sure the red clips tighten the coupler properly.

- Keep the clips out of children's reach.

1. Repeat the above steps for the other door, except for Step 6. The right door does not have a water tube.

2. Attach the top cover with the front side first, and then press down on its back to get it into position. Then, tighten the screws (x3).

Installation

Step-by-step installation

STEP 1 Select a site

The site must:

• Have a solid level surface without carpeting or flooring that may obstruct ventilation
• Be out of direct sunlight
• Have adequate room for opening and closing the door
• Be away from any heat source
• Provide room for maintenance and servicing
  • Have a temperature range between 50 °F (10 °C) and 110 °F (43 °C)

Clearance

See the pictures and table below and on the next page for installation space requirements.

A B C D

Model RF2	2K* RF28K*
Depth “A”	28^7/8" (733 mm)	34^1/4" (871 mm)
Width “B”	35^3/4" (908 mm)	35^3/4" (908 mm)
Height “C”	70^3/4" (1797 mm)	70^3/4" (1797 mm)
Overall Height “D”	71^7/8" (1825 mm)	71^7/8" (1825 mm)

English26

01 0404 0202 05 03 06 07 08 09 10

	RF22K* RF28K*
01 2" (50 mm) 2" (50 mm)
02 1	25° 125°
03	59 ^5/_8 "(1515 mm)	59 ^5/_8 "(1515 mm)
04	11 ^7/_8 "(303 mm)	11 ^7/_8 "(303 mm)
05 1	2" (305 mm) 12" (305 mm)
06	35 ^3/_4 "(908 mm)	35 ^3/_4 "(908 mm)
07 2	4" (610 mm)	29 ^3/_8 "(748 mm)
08 2	^3/_4 " (70 mm) 2	^3/_4 " (70 mm)
09 1	^3/_4 " (43 mm) 1	^3/_4 " (43 mm)
10	42 ^5/_8 "(1083 mm)	48 ^1/_8 "(1221 mm)

NOTE

The measurements of your refrigerator may differ from those listed above, depending on the measuring method.

Installation

STEP 2 Flooring

Diagram showing two devices with directional arrows and a prohibition sign, indicating no movement or change in the device.

• The surface of the installation location must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard under each leg of the refrigerator when you move it for installation.
  • To protect the floor once the refrigerator is in its final position, do not move it unless necessary. If you have to move it, place thick paper or cloth such as an old carpet, along the movement path.

NOTE

If the refrigerator cannot pass through entrance to your home or kitchen due to its size, see Door removal for entrance on page 18.

English28

STEP 3 Adjust the levelling feet

CAUTION

• When installed, the refrigerator must be level on a flat, solid floor. Not leveling the refrigerator can cause damage to the refrigerator or physical injury.
• Levelling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.
• For safety reasons, adjust the front side a little higher than the rear side.

You can level the refrigerator using the front legs. The front legs have a special screw (leveller) for levelling purposes. Use a flat-head screwdriver for levelling.

Line drawing of a refrigerator with a speech bubble showing a refrigerator inside (no text or symbols)

• To adjust the height of the left side: Insert a flat-head screwdriver into the leveller of the left side front leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.
• To adjust the height of the right side: Insert a flat-head screwdriver into the leveller of the right side front leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower.

Installation

STEP 4 Adjust the door height as well as the door gap

Two abstract curved shapes resembling stylized letters or symbols, no text or labels present

Snap ring

The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm).

To adjust the height of a door

Line drawing of a two-door refrigerator with a circular button on the door (no text or symbols)

1. Check the height difference between the doors, and then raise and hold the lower door.

Diagram of a mechanical device with a curved component and an arrow indicating motion (no text or symbols)

1. Insert a suitable-sized snap ring (A) between the door and the hinge as shown.

CAUTION

• Insert only one snap ring for this purpose. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.
• Keep the snap rings out of children's reach, and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.

English30

To correct the door gap

Line drawing of a two-decker refrigerator with a circular badge on top (no text or symbols)

Door gaps can be corrected using the gap bolt on the top right corner of the refrigerator.

Technical diagram of a mechanical bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

1. With the door closed, use a Philips screwdriver to remove 6 screws on the top cover with the wire connectors.

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or symbols)

1. Use a 4 mm Allen wrench (not provided) to correct the door gap between two doors.

- To widen the gap, turn the gap bolt clockwise. - To narrow the gap, turn the gap bolt counterclockwise.

1. When done, reinsert the top cover.

CAUTION

The electrical connectors must be left intact during this process. Use caution so you don't tangle the connector wires or peel off the coating.

Installation

STEP 5 Connect the water dispenser line

A water dispenser with a filter is one of the helpful features on your new refrigerator. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that.

The water line also connects to the ice maker. For the ice maker to operate properly, a water pressure of 20-125 psi is required.

If the refrigerator is installed in an area with low water pressure (below 20 psi), you can install a booster pump to compensate for the low pressure.

After you have connected the water line, make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until the water runs from the water outlet.

NOTE

• Water line installation kits are available at extra cost from your retailer. We recommend using a water line installation kit that contains copper tubing and a 6 mm (1/4") compression nut.
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.

A B C

1. Shut off the main water source.

2. Insert the pipe clamp (B) and the shut off valve (C) into the cold water line (A).

3. Connect the water line installation kit (A) to the shut off valve (B).

Diagram showing a mechanical or electrical component with labeled parts A and B, including a directional arrow indicating movement.

English32

Connect the water supply line to the refrigerator

There are several items you must purchase to complete this connection. You may find these items sold as a kit at your local hardware store.

Copper Tubing	^1/_4" copper tubing ^1/_4" compression nut (1 pc)Ferrule (2 pc)
Plastic Tubing	^1/_4" plastic tubing → Molded end (Bulb) ^1/_4" compression nut (1pc)

A 04 01 05 02 06 07 0308 B

A. Refrigerator
B. Household water supply line
01 Compression Nut ( ^1/_4 ) (Assembled)
02 Ferrule (Not supplied)
03 Copper tubing (Not supplied)
04 Plastic Tubing (Assembled)
05 Compression Fitting (Assembled)
06 Molded end (Bulb)
07 Compression nut (B) (1/4") (Not supplied)
08 Plastic Tubing (A) (Not supplied)

1. Connect the household water line to the assembled compression fitting.

2. If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown.

3. If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing (A) into the compression fitting.

CAUTION

If you use plastic tubing, (A) do not use it without the molded end (Bulb).

1. Tighten the compression nut (B) onto the compression fitting. Do not over-tighten the compression nut (B).
2. Turn the water on and check for any leakage. If you find water drops or leakage in the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.

Installation

1. Flush 1 gallon of water through the filter before drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it, and then repeat.
2. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that period of time, throw out the first 1 or 2 buckets of ice the ice maker makes to ensure all impurities have been removed from the water line.

NOTE

Only connect the water line to a potable water source.

• If you have to repair or disassemble the water line, cut off ^1/4 of the plastic tubing to make sure you get a snug, leak-free connection.
• You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can fill a 5 3/4 oz. (170 cc) cup in about 10 seconds.

STEP 6 Initial settings

After you complete the following steps, the refrigerator should be fully functional.

1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest setting, and then wait for about an hour. Then, the freezer will be slightly chilled, and the motor should be running smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready to use.

STEP 7 Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with appropriate clearance between it and any walls or cabinets.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

English34

Operations

User interface

NOTE

• For detailed information about the refrigerator's functions, and apps, see the on-screen user manual available on the LCD display of your refrigerator.
• The content of apps and widgets, or their design is subject to change. Support for apps and widgets may be discontinued without notice, depending on the content provider's policy.
  • Underage transactions with the services must be supervised by adults.

01 Tap here to select your city Sticki BOARD Everyone On the Same Page Launch Next White Board "Hello" Let's draw by tapping here View Inside Shopping List CLUB CHEFS Club des Chefs Groceries by MasterCard PANDORA + Create a Station ON OFF 02

01 Home screen
02 Task bar

Operations

01 Home screen

01 Tap here to select your city Sticki BOARD Everyone On the Same Page Launch Hello Let's draw by tapping here PANDORA + Create a Station

01 Apps & Widgets	Tap a desired app or widget to launch it.Tap and hold an app or widget to enter Edit mode. A grid appears. In Edit mode, you can drag and drop an app or widget to a new position on the grid. When you move the app or widget to a new grid location, the location turns blue if it is available. If it is not available, it turns red.
02 Status bar	Bluetooth ( ): Indicates Bluetooth connection status.USB ( ) indicates USB connection status.NOTEThe refrigerator supports USB memory that is formatted in FAT32 or exFAT file system. NTFS is not supported. Be sure to convert NTFS to FAT32 or exFAT before use.Network ( ): Indicates network connection status in 5 levels (Off, 1-4).

English36

02 Task bar

01 ON OFF 40 ≡ ↑ ← ↑

01 Microphone	Tap to turn on or off the voice recognition function.The microphone icon turns red when it is turned off.
02 Menu	Tap to display the menus available.
03 Home	• Tap to open the Home screen.• Tap and hold to open the Task Manager. See the Task Manager section for details.
04 Return	Tap to return to the previous screen.
05 Notification	Tap to display the Quick Panel.

Operations

Fridge Manager

To access Fridge Manager, swipe the Home screen to the left, and then tap the FRIDGE MANAGER widget.

Fridge Manager 25°C | 64% Fridge -2°C Freezer -5°C FlexZone™

• On the Fridge Manager widget, the current fridge and freezer temperatures as well as active special functions are displayed.
• For detailed settings, tap the widget to open the Fridge Manager.

English38

Fridge Manager Outside 28°C 66°C Ice making Need to replace 01 Unlock 5°C Power Cool -16°C Power Freeze Cheese & Vegetable Humidity sensor is used for keeping perishable fruits and vegetables longer. 02 Special Features 03 Fridge Settings

The Fridge Manager is a graphical representation of your refrigerator. The top half represents the refrigerator compartment, the bottom left the freezer compartment, and the bottom right the FlexZone. The temperature or mode settings for each are displayed over each section.

Fridge Manager At a Glance

01 Temperature

Change the set temperature in the fridge, freezer, and FlexZone. You can also turn on and turn off the refrigerator's Power Cool function and the freezer's Power Freeze function.

• Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for several hours and then returns to the previous temperature.
• To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.

NOTE

Using Power Freeze increases power consumption. Make sure you turn it off to return to the previous temperature if you do not intend to use it.

02 Special Features

View a short explanation of some of the refrigerator's special features.

03 Fridge Settings

Change many of the fridge's settings including settings for ice making, the door alarm, and the temperature units (°F or °C). See the next page for details.

04 External Conditions

Displays the external (ambient) temperature and humidity.

NOTE

The displayed conditions may differ from the actual temperature and humidity.

Operations

NOTE

Also displayed is the Ice Off (ice making off) indicator at the top, center. When the indicator displays Ice Off, the refrigerator's ice maker is turned off.

Ice Making	Turns the icemaker on and off. Tap and drag the button to turn on or off. Note that if the ice bucket is full of ice, the refrigerator does not start making ice at the press of this button (turning the Ice Maker on), but displays the Ice Making Off indicator on the main screen.
Dispenser Lock	Turns the ice and water dispensers on and off. Tap and drag the button to turn on or off.
Door Alarm	The door alarm sounds if you leave the door open. Tap and drag the button to turn on or off.
Temp. Unit	Switch the temperature scale between Celsius and Fahrenheit. Touch °F or °C to change the scale.
Water Filter	Provides a water filter replacement tutorial and lets you reset the water filter replacement indicator. Tap to open.NOTEAfter installing the water filter for the first time, tap Water Filter, and then tap RESET. Tapping RESET initializes the time remaining until the water filter needs to be replaced.
Self Check	Self Check is a self diagnoses function. Tap to open. Tap START to run.
Demand Response	Works with the Smart Grid energy saving manager. Tap to open. Tap and drag the button to turn on or off. See the Smart Grid section in this manual for more information.
Cooling Off	Cooling Off mode (also called Shop mode), is designed for use by retailers when they are displaying refrigerators on the shop floor.In Cooling Off mode, the refrigerator's fan motor and lights work normally, but the compressors do not run, and the refrigerator and freezer do not get cold. If Cooling Off is turned on, all cooling controls will turn to OFF on the Fridge Manager. Tap and drag the button to turn on or off.

English40

Settings

Display	You can adjust the screen brightness, screen automatic wake-up, and screen saver including the theme and duration.
Volume	Adjust the volume, and turn on or off the key tone and keyboard feedback.
Wi-Fi	Turn on or off a Wi-Fi connection. The current Wi-Fi network is listed first in the access point (AP) list.To add an AP, press Menu on the task bar, and then add the AP with Wi-Fi turned on.
Bluetooth	Up to 4 recently paired Bluetooth devices are listed.To add a new device, first unpair a paired device from the device list.Available devices are Bluetooth-enabled headsets, headphones, and speakers.
Date and Time	Make sure the Automatic Time Update function is on with a proper Wi-Fi network connection. Open the fridge door and locate the display reset button on the inner side of the door. Press the button and press again to reset the display. Then, the date and time will be synced from the time server.You can change the time zone through the Time Zone menu.
Language	Select a preferred language. Available languages depend on the sales region.
Learn more about Family Hub	Tap Learn more about Family Hub to open the demo mode app. This app will walk you through a wide variety of Family Hub menus and functionality by separating them into 3 categories: Family Communication, Food Management, and Entertainment.
Online Manual	The online manual will walk you through various menus and apps that the refrigerator provides directly on the display.
About Device	Make sure the Software Update function is on with a proper Wi-Fi network connection.When updates are available, the UPDATE button becomes active. When updates are complete, the refrigerator restarts automatically.Legal information displays the Open Source License Agreement. Tap the list item to open the Open Source Announcement.
Easy Connection	Easy Connection can be used with Samsung Smartphone apps, and allows you to connect your device to the same home Wi-Fi network that your smartphone is connected to.

English 41

Operations

Device Authentication	·Device Authentication can be used with Samsung Smart TV apps where the privacy information on the refrigerator can be shared to the TV. ·Availability of this function depends on the device model.
Factory Data Reset	·Tap Resetto restart the refrigerator in Factory Data Reset mode. All user data will be removed permanently. Data to be removed includes account information, memos, photos, and user settings.____Once factory reset is complete, no user data can be recovered.

Display reset (applicable models only)

If the display is not working correctly, try resetting the display. This may resolve the problem.

Two-step diagram showing a device being inserted into a drawer, with an arrow indicating the process (no text or symbols present)

1. Open the right-side fridge door and locate the switch cover on the top right corner of the door.
2. Push up the cover to reveal the power switch.
3. Turn the switch off, and then turn it on again.
4. Reinsert the switch cover to the end until you hear a clicking sound.

English42

Samsung Smart Home

Installation

Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “Samsung Smart Home”. Download and install the Samsung Smart Home app provided by Samsung Electronics to your smart device.

NOTE

• The Samsung Smart Home app is designed for Android 4.0 (ICS) or higher, or iOS 7.0 or higher, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
• For improved performance, the Samsung Smart Home app is subject to change without notice or discontinued support according to the manufacturer's policy.
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or non-standard Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP.
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols. (IEEE 802.11 n is recommended.)
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators.

Operations

Samsung account

You are required to register your Samsung account to use the app. If you don't have a Samsung account, follow the app's onscreen instructions to create a free Samsung account.

Getting started

1. Run the Samsung Smart Home app and log in with your Samsung account. iPhone users are required to provide the login information each time they access the app.
2. Select Device > the + (plus) icon, and then tap Refrigerator.
3. Follow the onscreen instructions to provide the necessary information about the router, and then tap Next.
4. On the display of the refrigerator, access Settings, and then select Easy Connection.
5. When device registration is complete, the refrigerator icon will appear on the Samsung Smart Home app.
6. Tap the refrigerator icon to open the refrigerator page.

Refrigerator app

Integrated control

You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon in the Samsung Smart Home to open the Refrigerator page.
• Check the operation status or notifications related to your refrigerator, and then change options or settings if necessary.

NOTE

Some options or settings of the refrigerator may not be available for remote control.

English44

Key App features

Register Samsung Smart Home appliances to the Samsung Smart Home server for remote access.

App menu overview

NOTE

For improved performance and design, the content of the Samsung Smart Home App is subject to change without notice.

Devices Add new Refrigerator Total 1 device(s) ON Refrigerator Going out Coming Home Good night Good morning Chat control No chat history. Menu Chat control Home view Master key Customer Service Settings View Inside Shopping list Photo Album White Board Refrigerator Fridge Setting temp. 37°F Power Cool — Freezer Setting temp. 0°F Power Freeze — FlexZone™ Soft Freeze Ice Maker OFF Settings > About Device >

• Tap Refrigerator to open the settings page of the refrigerator.
• Swipe to move to the next page.

Chat control	You can control your Samsung Smart Home appliances remotely and check the operating status.
Home view(applicable models only)	By using the built-in camera of a Samsung Smart Home appliance, you can monitor your kitchen. This is available only with applicable models.
Master key	The master key is designed to control the locking system for different user activities such as going out, coming home, going to bed at night, and waking up in the morning. This is available only with applicable models.
Customer service	Lets you download the user manual and provides contact information for customer support.

Operations

Settings	You can check the connected device as well as the software information (version and open-source licenses), and add devices or select a country.You can simulate the operation of the current device for demonstration purposes.
View Inside	View Inside displays the inner view of the refrigerator by taking a picture of it or receiving the food list created by the user.
Shopping List Shopping	List displays a shopping list created by the user.
Photo Album	You can send photos in the refrigerator's Photo Album to your smartphone, or vice versa.
White Board	Create a new white board memo using the refrigerator's White Board and send to your smartphone, or vice versa.

English46

Refrigerator settings

Refrigerator Fridge 01 37°F Setting temp. 02 Power Cool — Freezer 03 0°F Setting temp. 04 Power Freeze — FlexZone™ Soft Freeze Ice Maker 06 OFF Settings 07 > ① About Device 08 > Power Cool — Power Freeze — OFF Power Cool — Power Freeze — ON B

A: Disabled (black)
B: Enabled (blue)

Fridge	01 Displays the currently set fridge temperature.02 You can turn on or turn off Power Cool and check the current settings.The Power Cool function lowers the fridge temperature and speeds up the cooling process. In the Power Cool mode, the fridge runs at full power for several hours and then returns to normal operation and the previous temperature setting.
Freezer	03 Displays the currently set freezer temperature.04 You can turn on or turn off Power Freeze and check the current settings.Power Freeze lowers the freezer temperature and speeds up the freezing process. In Power Freeze mode, the freezer runs at full power for several hours and then returns to normal operation and the previous temperature setting.
FlexZoneTM 05 Displays	the current mode setting.

Operations

Ice Maker

06 You can turn on or turn off the Ice Maker and check the current settings as well as the ice making status.

Self Check Are you worried if the home appliance that is expected to operate for long just breaks down? From now on, you don't need to contact the service personnel or look up the user manual each time you encounter a problem. The smart home electronics performs self-diagnosis to find out the cause of trouble, and informs you how to take a counter action on your smart phone. How about checking it now? Start Now Self Check Freezer Temperature Sensor Check out the freezer temperature sensor. It is correct working but when the delay for a long time, there may be problems with stored food. Service Center Dialing Energy Monitor Day Week Month < Nov 2015 XVII Aug Sep Oct Nov

Settings

07 On the Settings screen, you can monitor the energy usage status of your refrigerator in a preferred format. Supported formats are daily, weekly, or monthly cumulative energy consumption reports covering a maximum of the last 180 days.

About Device

08 Displays the product information including the current software version, tutorial, Self Check function, and Help Desk function. Lets you download the user manual and provides contact information for customer support.Self CheckBy accessing Self Check, you can view the diagnostic test results for your refrigerator. If the refrigerator detects an issue, it displays detailed information about the issue that can be used by customer service.

English48

SMART GRID Function (Demand Response)

When the refrigerator operates in SMART GRID (Demand Response) mode, the Energy Management Refrigerator function can control energy usage or delay the operation of some functions to save money when energy prices or demand are the highest.

NOTE

• You can deactivate the SMART GRID (Demand Response) function at any time using the Override On/Off function.
• To use the SMART GRID (Demand Response) function, you need a separate contract with your electric utility company.

In addition, to use the Smart Grid (Demand Response) function, you must register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy profile).

Using the SMART GRID (Demand Response) Function

This feature monitors energy prices and demand information from your utility company and sends notifications to the refrigerator to run high energy consuming tasks during off-peak times when electricity costs and demand are lower.

If the refrigerator receives a control signal from the utility company, the refrigerator will display the DAL (L3) \~ TALR (L4) levels on the refrigerator display and control the power consumption according to the level.

Exception condition: The DAL and TALR control signals from a utility company work as long as product performance is maintained.

If the refrigerator receives the SMART GRID (Demand Response) signal (DAL or TALR), the refrigerator will operate in Delay Appliance Load or Temporary Appliance Load Reduction mode.

- Delay Appliance Load (L3): The refrigerator responds to a DAL signal by providing a moderate load reduction for the duration of the delay period. This function controls functions that consume a lot of energy such as adjusting the Cooling system, running the defrost cycle, and making ice.

- DAL mode is automatically deactivated after it lasts for the amount of time stipulated by the DAL signal (max. 4.5 hours) or when the Override function is turned on.

Operations

- Temporary Appliance Load Reduction (L4): The refrigerator responds to a TALR signal by aggressively reducing the load for a short time period. This function reduces energy consumption by stopping the compressor and controlling the functions that consume a lot of energy such as the defrost cycle and making ice.

- TALR (L4) mode is automatically deactivated after it lasts for the received duration (max. 15 minutes), or when the Override function is turned on. The mode is immediately deactivated and the refrigerator returns to the normal state when the door is opened or closed, or the dispenser is used.

To check the MAC address

1. Tap the Settings icon on the Home screen.
2. Scroll down to and open About Device.
3. The screen displays (among others) the Wi-Fi MAC address.

Override Mode

When you want the refrigerator to ignore the SMART GRID (Demand Response) signal from the utility company, you can activate OVERRIDE mode.

When you activate OVERRIDE mode, the refrigerator ignores the SMART GRID (Demand Response) signal and is not controlled by the utility company.

Activating and deactivating Override mode

1. Tap the Fridge Manage icon.
2. On the bottom of the Fridge Manager screen, tap the Fridge Settings icon.
3. Tap Demand Response.
4. Slide the DAL/TALR override button to the ON or OFF position.

NOTE

- Alternatively, you can activate or deactivate OVERRIDE mode using the Samsung Smart Home app and the Energy Management function. See the next page.

English50

Using the Energy Management Function

The Energy Management function enables you to control and monitor your Energy Management refrigerator using the Smart Home app for your convenience.

NOTE

- To use the Energy Management refrigerator functions, you have to install the corresponding app first.

1. Operational Status

- You can check the DR and Override status.

1. Energy Consumption Reporting

- Shows the accumulated power consumption. Power consumption data is updated every 1 hour.

NOTE

The energy consumption report may differ from the power consumption specifications of the product depending on the operating environment and the quantity and type of stored food.

1. Delay Defrost Capability

- The Delay Defrost Capability function saves energy by delaying the defrost operation to a time specified by the user. You can configure the time. and this function will save energy during the specified period in a 24 hour cycle. If the time is not set, the function works with the default time settings. The default time settings are below:

- 6 am to 10 am: November 1st to April 30th.

- 3 pm to 7 pm: May 1st to October 31st.

To change the time setting for the Delay Defrost Capability

You can change the time setting for the Delay Defrost Capability on the app.

Operations

Provision for Open Access to the Connected Product Requirements

1. SGIP Open Standards (Smart Energy Profile 2.0 - http://www.csep.org/)

- Energy Consumption Reporting

- Demand Response

1. Samsung OPEN API

- Operational Status, User Settings & Messages

- ICE Maker Status: GET /devices/0/fridge/iceMaker

- Door Open Alarm: GET /devices/0/Door/openState

- DR Status: GET /devices/0/drlc

- Delay Defrost Capability

- Set Schedule of the Defrost Delay: POST /devices/0/fridge/defrostreservations

- Get Schedule of the Defrost Delay : GET /devices/0/fridge/defrostreservations

- Delete Schedule of the Defrost Delay: DELETE /devices/0/fridge/defrostreservations/<>

- Defrost Delay On/OFF: PUT /devices/0/fridge

English52

Special features

The refrigerator has many convenient features.

Water dispenser

With the water dispenser, you can dispense water without opening the fridge door.

A B

The water dispenser offers 3 options: chilled water, cubed ice, and crushed ice. If you do not want to dispense ice, simply press the water lever (B).

With the Ice Maker enabled,

1. Press to select an ice type.
2. Put a water glass on the ice lever (A) and push it. Ice is dispensed from the dispenser.
3. If you want water, put the glass on the water lever (B) and push it. Water is dispensed from the dispenser.

NOTE

• To get ice and water, push the ice lever (A) first for ice, then move your glass down and press the water lever (B) for water.
• If you push both levers at once, only the first pushed lever operates.
  • To prevent spills, wait 1 second before removing the glass after dispensing.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.

Operations

Ice maker

The refrigerator has a built-in ice maker that automatically dispenses ice so that you can enjoy filtered water with cubed or crushed ice.

Ice making

After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice:

1. Let the refrigerator run at least 24 hours without dispensing ice for optimal performance.
2. Dispense the first 4 to 6 ice cubes into a glass.
3. Wait another 8 hours and dispense another 4 to 6 ice cubes.
4. Then, wait another 16 hours and dispense the first glass-full of ice.

NOTE

• If you consume all the ice at once, you must wait 8 hours before dispensing the first 4 to 6 cubes. This ensures that the ice bucket is filled with ice properly.
• Ice cubes generated rapidly may look white, which is normal.

Diagnosis

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

If ice does not dispense, first check the ice maker.

To check the ice maker

1. Press Test on the side of the ice maker. You will hear a chime (ding-dong) when you press the button.
2. You will hear another chime if the ice maker is operating properly.

CAUTION

• If the ice making chime rings repeatedly, contact the waterline installer or a local Samsung service center.
• Do not press Test repeatedly after the ice tray is filled with ice or water. Water may overflow or ice may jam.
• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the refrigerator.

English54

• Do not put fingers or any objects into the dispenser outlet or the ice maker. This can cause physical injury or property damage.
• When reinserting the ice maker tray, make sure that the tray is properly centered at the entrance. Otherwise, the tray can get stuck.

Ice Maker Off

To disable the icemaker, tap Fridge Manager > Fridge Settings > Ice Making on the Home screen, and then select Off. Make sure to empty the ice bucket.

Remaining ice cubes may clump together, making it difficult to remove them.

To remove the ice bucket

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

1. Hold the bottom of the ice bucket with one hand and hold the side with the other hand.
2. Gently lift it up and pull out.
3. Remove the remaining ice cubes and put the ice bucket back into place.

If the ice bucket is not firmly inserted, turn the ice screw 90 degrees, and then try again.

NOTE

- Removal of the ice bucket does not affect the thermal and mechanical performance of the refrigerator.

English 55

Operations

Water clouding

Water supplied to the refrigerator flows through a core alkaline filter. During this filtering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds.

Wine Rack

The refrigerator ships with the wine rack, which can be positioned in one of 3 positions: under the shelf, in the partition guide or on top of the sliding shelf of the FlexZone. Availability of the position depends on the model.

CAUTION

To remove or insert the wine rack, make sure that the wine rack is empty.

Under the shelf

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Insert the wine rack under the shelf of the fridge. Make sure to insert it to the end as marked in the figure.

In the partition guide

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Insert the wine rack in the partition guide of the FlexZone.

• Make sure the front of the wine rack fits in the partition guide on the inner left-hand side of the FlexZone.
• Set the temperature of the FlexZone to White Wine.

English56

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

On the sliding shelf

Architectural detail showing window frame structure with a magnified inset highlighting a detail (no text or symbols)

Insert the wine rack on top of the sliding shelf of the FlexZone, normally below the partition guide.

- Set the temperature of the FlexZone to White Wine.

CAUTION

• Do not store wine bottles in the freezer. The bottles freeze and break, causing physical injury.
• Do not store wine bottles in two rows. The bottles may fall, causing physical injury.
• Do not store the wine bottles taller than 330 mm in height. The bottles may break when you close the door, causing physical injury.

Maintenance

Handling and care

Ice bucket

If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket.

Diagram showing a mechanical assembly with a rotating component and directional arrow (no text or symbols)

1. To remove the ice bucket, gently lift it up, and then pull it out slowly while holding the bottom of the bucket with one hand and the side with the other hand.

2. Empty the bucket.

3. When done, put the bucket back into position. If the bucket does not fit in, turn the helix screw 90 degrees, and then try again.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

CAUTION

• Do not apply excessive force to the bucket cover. The cover may break.
• Do not forcefully close the door. Water may spill over the ice maker.
  • To prevent injury, make sure to clean up any ice or water that has fallen on the floor.
• To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.
• Do not put your hand or an object into the ice chute. This may cause physical injury or product damage.
• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.
• Use only potable water that is connected to the water supply line.

NOTE

• The water pressure required for ice making is between 20 psi and 125 psi.
• Noise from the ice maker as it produces ice during the ice making process is normal.
• While the door is open, neither the ice maker nor the water dispenser operates.

English58

Tempered glass shelves (fridge)

Diagram of a device with a rectangular panel and directional arrow indicating rotation (no text or symbols)

Diagram showing a metal bracket being inserted into a wall-mounted panel, with an arrow indicating the direction (no text or symbols present)

Diagram showing a mechanical assembly with downward arrows indicating force or direction, and a magnified inset highlighting a component.

• To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and slide out.
- To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch.

CAUTION

• The tempered glass shelves are heavy. Use caution when removing them.
• The shelf must be inserted correctly. Do not insert upside down.
  • Glass containers may scratch the surface of glass shelves.

Maintenance

Door bins

The top door bin section has a marked line to ensure easy removal and proper reinsertion.

3D rendering of a rectangular container with a black arrow pointing to the top section (no text or symbols)

Lift up the door bin, and then pull out straight.

CAUTION

Do not allow children to play with the bins. Sharp-edged corners may cause injury.

Vegetable & fruit drawers (EZ fresh zone)

Diagram of a refrigerator drawer with an arrow indicating left-side motion (no text or symbols)

Gently lift up the front of the drawer and slide out.

We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.

English60

Vegetable shelf

Diagram of a drawer with an arrow indicating direction, no text or symbols present

1. Slide out the left-side vegetable drawer.

Diagram of a mechanical assembly with two components and an arrow indicating direction (no text or symbols)

1. Slide in the right-side foldable shelf.

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

1. While supporting the vegetable shelf with one hand, slide it out with the other hand.

NOTE

To use the space that is opened up after removing the foldable shelf, take out the vegetable shelf.

To reinsert, follow the steps above in the reverse order.

Ice bucket

To remove the ice bucket, see the Maintenance section on page 58.

Maintenance

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning. They may damage the surface of the refrigerator or cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.
• Do not put fingers or any objects into the dispenser outlet.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

To clean the refrigerator

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

Inner-view camera

Diagram of a refrigerator interior showing door, drawer, and handle mechanism (no text or labels)

NOTE

Use a cotton swab or microfiber cloth to clean the camera on the left-side door of the fridge.

English62

Replacement

Water filter

WARNING

- Do not use third-party water filters. Use only Samsung-provided or -approved filters. - Unapproved filters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water filters.

The filter indicator (☐) turns red to let you know it is time to replace the water filter. Before replacing the filter, make sure the water supply line is shut off.

Diagram showing a mechanical component with an arrow indicating rotation or force direction (no text or symbols)

Diagram showing a pipe being lifted by a curved arrow, with no visible text or symbols

1. Open the filter cover.

- Some models may not have the filter cover. In this case, skip this step.

1. Turn the knob of the filter cartridge counter clockwise 90 degrees (1/4 turn). The filter cartridge unlocks.

2. Pull out to remove the cartridge.

- If the water filter is severely contaminated, the cartridge may not be easy to remove. If that is the case, use force to remove the cartridge. - To prevent water leaks from the filter opening, keep the cartridge straight while removing it.

Maintenance

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

Diagram showing a mechanical component with a rotating arrow indicating rotation or force direction (no text or symbols)

NOTE

To prevent overflow, empty and dry the water filter tray.

1. Insert a new □ter cartridge. Use only Samsung-provided or approved □ters.

2. Turn the cartridge knob clockwise to lock into place.

3. On the Home screen, tap Fridge Manager > Fridge Settings > Water Filter, and then select RESET. The □iter indicator turns off.
4. When you are done replacing the Alter, open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line.

NOTE

• A newly installed Alter may cause the water dispenser to spurt water briefly. This is because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the floor with a dry towel.

English64

Reverse osmosis water filtration system

The water pressure of the water supply system to a reverse osmosis water filtration system must be between 35 psi and 120 psi (241 kPa and 827 kPa).

The water pressure of the reverse osmosis water filtration system to the refrigerator's cold water line must be at least 40 psi (276 kPa). If the water pressure is below these specifications:

• Check if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Refill the water tank in the reverse osmosis system with water.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter.

For more information or servicing, contact a licensed plumbing professional.

Ordering a new filter

To purchase a new water filter, contact a local Samsung service center or visit www.samsungparts.com on the web.

LED Lights

To replace the LED lights on the refrigerator, contact a local Samsung service center.

WARNING

The LED lights are not user-serviceable. Do not attempt to replace an LED light yourself. This can cause electric shock.

Troubleshooting

If you encounter a problem with the refrigerator, first check the tables starting below, and then try the suggested actions.

General

Symptom Action
The refrigerator does not operate or cool.	Make sure the power cord is connected properly.Make sure the temperature control is set correctly. Try setting to a lower temperature.Make sure the refrigerator is not being exposed to direct sunlight and is not near a heat source. Failing to do so may affect the cooling performance.Make sure the refrigerator is far enough away from rear walls, side walls, or cabinets to allow proper ventilation. Failing to do so may affect the cooling performance.Too much food can block the internal ventilation of the refrigerator. To keep the refrigerator operating normally, do not put too much food inside.
Food in the fridge freezes.	Check if the temperature control is set to the lowest temperature. If so, change to a higher temperature.This can happen if the ambient room temperature is too low. Set the room temperature higher.Check if food containing a high proportion of water has been put in the coldest area of the fridge or near the cooling vent. If so, move the food to other shelves in the fridge.
You hear unusual noises or sounds.	Make sure the refrigerator is installed on a stable, flat surface.Make sure the refrigerator is far enough away from rear walls, side walls, and cabinets to allow proper ventilation.Make sure that there are no foreign objects (coins, keys, cutlery, etc.) inside or underneath the refrigerator.The refrigerator may produce a ticking sound from inside. This occurs when the various accessories contract or expand as the temperature inside changes. This is normal.

English66

Symptom Action
The front corners and sides become warm and form condensation.	To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.Make sure the door is closed properly. Condensation may form if you leave the door open for an extended period of time.Condensation may form on the exterior surface of the refrigerator if humid air comes into contact with the cool surface of the refrigerator.
The ice maker does not make ice.	If you have used all the ice in the ice bucket, you must wait for 12 hours for the refrigerator to make more ice.Check if the Ice Off indicator is lit. If it is, activate the Ice Maker function so that the Ice Off indicator turns off. See Fridge Setting for details.Make sure the freezer is set below 32 °F (0 °C) (or 23 °F (-5 °C) in warm ambient air).Make sure the water tank is filled with water.Check if the ice bucket contains ice clumps. If it does, empty the ice bucket and try again.
The water dispenser is not functioning.	Check if the water tank is frozen. If so, select a higher fridge temperature.Make sure the water tank is filled with water.Make sure the water tank is installed properly.Make sure the water filter is installed properly.
You hear a bubbling sound.	This is normal. The bubbling sound comes from refrigerant circulating through the refrigerator.
A bad smell comes from inside the refrigerator.	Check for any spoiled food. We recommend cleaning the refrigerator on a regular basis and removing any spoiled or suspect food items.Make sure strong smelling food is wrapped tightly or stored in air tight containers.
Frost forms on the interior walls.	Make sure no food blocks the vents of the refrigerator. It is also important to arrange food items evenly for ventilation.Make sure the door is closed properly.

Troubleshooting

Symptom Action
Condensation forms on the interior walls or around vegetables.	This happens when food containing a high proportion of water is stored uncovered, or the door has been left open for an extended period of time.Make sure food is covered or put in sealed containers.
The freezer door does not close.	Push the water dispenser lever to check the water supply.Push the ice dispenser lever to check the operation of the auger motor in the ice maker assembly.Check if there are any objects obstructing the auger motor and preventing it from running. If found, remove the objects and clear the motor area.If the ice maker has not been used for an extended time, the ice bucket may contain ice chunks that obstruct the auger motor and prevent it from running properly. If this is the case, remove and empty the ice bucket.

English68

Samsung Smart Home

Symptom Action
Could not find “Samsung Smart Home” in the app market.	The Samsung Smart Home app is available for smartphones that run Android 4.0 (ICS) or higher, or iOS 7.0 or higher.
The Samsung Smart Home app fails to operate.	The Samsung Smart Home app is available on applicable models only.The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models.
The Samsung Smart Home app is installed but is not connected to my refrigerator.	You must log into your Samsung account to use the app.Make sure that your router is operating normally.If you have not connected your refrigerator to the Samsung Smart Home App after the app was installed, you must make connection using the device registration function of the app.
Could not log into the app.	You must log into your Samsung account to use the app.If you don't have a Samsung account, follow the app's onscreen instructions to create one.
An error message appears when I try to register my refrigerator.	Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again.
The Samsung Smart Home app is successfully connected to my refrigerator but does not run.	Exit and restart the Samsung Smart Home app or disconnect and reconnect the router.Unplug the power cord of the refrigerator, and then plug it in again after 1 minute.

Troubleshooting

Smart Grid

Symptom Action
What Do I Need to use the Energy Management and Smart Grid functions?	To use the Smart Grid (Demand Response) and Energy Management functions on your refrigerator, you need the following: DevicesA wireless access point (router)A Samsung Energy Management-supported refrigeratorA smartphoneRegistrationConnect your refrigerator to your home Wi-Fi network.Register for the EMS service with your electric company that has an EMS (Energy Management System) supporting SEP (Smart Energy profile).AppDownload the Samsung Smart Home app from the Google Play Store, Apple App Store, or Samsung Galaxy Apps.Install and run the Samsung Smart Home app on your smartphone.
Why isn't the Energy Management function working normally?	Make sure that your home router is operating normally with proper Internet service and connection.Make sure that the refrigerator is connected to the AP (router).CheckpointsConnect your smartphone to the router (AP, Access Point), and then check if you can browse the Internet on the smartphone.
Why isn't the Delay Defrost Capability working normally?	Make sure that your home router is operating normally with proper Internet service and connection.

English70

LCD

Symptom Action
Cannot connect to my TV.	This refrigerator can connect only with Samsung Smart TV 6400 series or higher models released since 2015. Please check the model name of your TV first.Network connections may suffer temporarily. Turn your TV off, and then try again.
The inner view picture looks bulged.	The edges of the inner view may look bulged, which is attributed to the convex lens.The inner view may be incomplete due to the blind spots on the left and right corners or screened depending on the layout of food items. Make sure to place food items in the front center.
The displayed measurement on the Fridge Manager is not correct.	The displayed conditions may differ from the actual temperature and humidity.

Warranty (USA)

WARRANTY ON SAMSUNG REFRIGERATOR

LIMITED WARRANTY TO ORIGINAL PURCHASER

This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung) and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year Parts and Labor on Refrigerator

Five (5) years Parts and Labor on sealed Refrigeration system only*

Ten (10) years Parts and Five (5) years Labor on Digital Inverter Compressor

(*Compressor, evaporator, condenser, drier, connecting tubing)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service center.

Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulated herein, with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products become the property of Samsung and must be returned to Samsung. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

In-home service will be provided during the warranty labor period subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed and accessible from floor level to service personnel. If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at our option, to provide for transportation of our choice to and from a Samsung authorized service center. Otherwise, transportation to and from the Samsung authorized service center is the responsibility of the purchaser.

English72

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied and authorized by Samsung, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due to spoilage; consumable items including filters and light.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact Samsung at:

Warranty (USA)

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660

If your refrigerator needs service

Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number when your product is not functioning properly.

Limited Warranty for Original Purchaser

This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods:

Labor : 1 year (in-home)

Parts : 1 year

Inverter Compressor : 10 years (Part only)

SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to find out if in-home service is currently available in your area by using the contact information at the back of this warranty.

All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To find the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca)

Obligation to the Original Owner

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer.

Warranty Information (CANADA)

Exclusions of the Warranty

This warranty does not cover damage due to accident, fire, flood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in the Canada.

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

English76

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/F_HUB/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

QR code image containing encoded data, no visible human-readable text

Memo

Memo

Scan this with your smartphone

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

* Requires reader to be installed on your smartphone

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Contact Center Web Site
U.S.A	1-800-SAMSUNG(726-7864)	www.samsung.com/us/support
CANADA	1-800-SAMSUNG(726-7864)	www.samsung.com/ca/support (English)www.samsung.com/ca_fr/support (French)

DA68-03460A-05

Refrigerador

Manual del usuario

1.1 Aviso de la FCC (Federal Communications Commission)

Technical diagram of a mechanical bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

Diagram showing mechanical components and directional arrows, no readable text or symbols present

Mechanical assembly diagram showing a lever mechanism with rotating arrow (no text or symbols)

Diagram showing a mechanical component with a black arrow pointing to a section, no text or symbols present

Diagram showing a mechanical component with an upward arrow, no text or symbols present

Diagram of an open refrigerator with a black upward arrow indicating direction (no text or symbols present)

Diagram showing a screwdriver inserted into a door handle with a black arrow indicating direction (no text or symbols present)

Diagram showing two connectors in a corner with bidirectional arrows indicating movement (no text or symbols)

Diagram showing a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Diagram showing a door panel with an inset view of a mechanical component, no text or symbols present

Diagram showing a refrigerator with a door and an inset close-up of the interior (no text or symbols)

Diagram illustrating three steps of a door handle assembly: mounting, clamping, and disassembly with arrows indicating direction.

Diagram of a mechanical switch or latch assembly with a downward arrow indicating a component (no text or symbols present)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Diagram showing a mechanical component with an arrow and parts, no readable text or symbols present

Mechanical assembly diagram showing a lever mechanism with motion arrow (no text or symbols)

Diagram showing mechanical components with arrows indicating motion, no text or symbols present

Mechanical assembly diagram showing a tool moving a curved arrow into a bracket (no text or symbols)

Diagram showing two devices with directional arrows and a prohibition sign, indicating no protection or disapproval.

Line drawing of a refrigerator with a spoon inside, alongside an inset showing a kitchen utensil (no text or symbols)

Two identical abstract curved shapes with no text or symbols

Anillo elástico

Technical illustration showing a door lock mechanism and a close-up of the internal component (no text or symbols)

Line drawing of a two-decker refrigerator with a handle and top-mounted door (no text or symbols)

Technical diagram of a mechanical bracket with mounting holes and an upward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or labels)

Diagram showing mechanical assembly with labeled components A and B, including a coiled cable and directional arrow indicating motion.

Two-step diagram showing a device being inserted into a drawer, with an arrow indicating the process (no text or symbols present)

Self Check Are you worried if the home appliance that is expected to operate for long just breaks down? From now on, you don't need to contact the service personnel or look up the user manual each time you encounter a problem. The smart home electronics performs self-diagnosis to find out the cause of trouble, and informs you how to take a counter action on your smart phone. How about checking it now? Start Now Self Check Freezer Temperature Sensor Check out the freezer temperature sensor. It is correct working but when the delay for a long time, there may be problems with stored food. Service Center Dialing Energy Monitor Day Week Month < Nov 2015 KWTI -Aug Sep Oct Nov

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Technical line drawing of a 3D architectural or mechanical component with an arrow pointing to it (no text or symbols present)

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Architectural detail showing a window frame with a magnified inset highlighting a specific window (no text or symbols present)

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a device with a rectangular panel and a black arrow indicating rotation or movement (no text or symbols)

Diagram showing a metal bracket being inserted into a wall, with an arrow indicating the direction (no text or symbols present)

Diagram showing a device with directional arrows and a magnified inset highlighting a component, likely illustrating a mechanical or electrical assembly.

3D rendering of a plastic container with an arrow pointing to a side panel (no text or symbols)

Diagram of a refrigerator drawer with an arrow indicating left-side movement (no text or symbols present)

Diagram of a drawer with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with two rectangular components and an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a refrigerator door with an inset close-up showing the handle mechanism (no text or symbols)

NOTA

Diagram showing a mechanical component with an arrow indicating rotation or force direction (no text or symbols)

Diagram showing airflow or ventilation around a cylindrical pipe mounted on a platform, with arrows indicating direction (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Diagram showing a mechanical component with a rotating arrow indicating rotation (no text or symbols)

NOTA

Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660

1-800-SAMSUNG(726-7864)

www.samsung.com/us/support

Notas

Notas

SAMSUNG

Contacte a SAMSUNG WORLD WIDE

Technical diagram of a mechanical bracket with mounting holes and an upward arrow indicating motion (no text or symbols)

Diagram showing mechanical components with directional arrows, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with rotating arrow (no text or symbols)

Diagram showing a mechanical lever interacting with a bracket, no text or symbols present

Diagram showing a mechanical component with an upward arrow, no text or symbols present

Diagram of a refrigerator interior showing the door and cabinet, with an upward arrow indicating direction (no text or symbols present)

Diagram showing a screwdriver inserted into a door handle with a labeled component (A), and a black arrow indicating direction (no text or symbols present)

Diagram showing two connectors in a corner with bidirectional arrows indicating movement (no text or symbols)

Diagram showing a mechanical clamp or bracket with a downward arrow indicating force or direction (no text or symbols present)

Diagram showing a refrigerator with a door handle and an inset view of the door mechanism (no text or symbols)

Diagram showing a 3D panel assembly with an inset close-up of a small object inside a room (no text or symbols)

Diagram of a kitchen sink with a wrench and a black arrow indicating downward motion (no text or symbols)

Diagram showing two mechanical components connected in a corner with bidirectional arrows indicating movement (no text or symbols)

Diagram showing a screwdriver inserted into a corner-mounted device with a directional arrow indicating movement (no text or symbols present)

Diagram of a mechanical switch inserted into a housing component, showing a downward arrow indicating force or movement (no text or symbols present)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Diagram showing a person using a device to interact with a laptop, with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with motion arrow (no text or symbols)

Diagram showing mechanical components with arrows indicating motion, no text or symbols present

Technical illustration of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing two devices with directional arrows and a prohibition sign, indicating no movement or change in the device.

Line drawing of a refrigerator with a magnified inset showing a kitchen utensil and a side view of the refrigerator (no text or symbols)

Two abstract curved shapes resembling stylized letters or symbols, no text or labels present

Circlip

Technical illustration showing a door mechanism and a close-up of a mechanical component with a curved arrow indicating motion (no text or symbols)

Line drawing of a two-decker refrigerator with a circular badge on top (no text or symbols)

Technical diagram of a mechanical bracket with mounting holes and an upward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with directional arrows (no text or labels)

Diagram showing mechanical assembly with labeled components A and B, including a coiled cable and directional arrow indicating motion.

01 Tap here to select your city Sticki BOARD Everyone On the Same Page Launch Next White Board "Hello" Let's draw by tapping here View Inside Shopping List CLUB CHEFS Club des Chefs Groceries by MasterCard PANDORA + Create a Station ON OFF 02

01 Tap here to select your city Sticki BOARD Everyone On the Same Page Launch New White Board Hello Let's draw by tapping here View Inside Shopping List CLUB CHEPS Club des Chefs Groceries by MasterCard PANDORA + Create a Station

Fridge Manager Outside 28°C 66°C Ice making Need to replace 01 Unlock 5°C Power Cool -16°C Power Freeze Cheese & Vegetable Humidity sensor is used for keeping perishable fruits and vegetables longer. 02 Special Features 03 Fridge Settings

Diagram of a device's internal component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand inserting a small component into a rectangular device (no text or symbols)

Self Check Are you worried if the home appliance that is expected to operate for long just breaks down? From now on, you don't need to contact the service personnel or look up the user manual each time you encounter a problem. The smart home electronics performs self-diagnosis to find out the cause of trouble, and informs you how to take a counter action on your smart phone. How about checking it now? Start Now Self Check Freezer Temperature Sensor Check out the freezer temperature sensor. It is correct working but when the delay for a long time, there may be problems with stored food. Service Center Dialing Energy Monitor Day Week Month < Nov 2015 kwn Aug Sep Oct Nov

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Technical line drawing of a 3D architectural or mechanical component with an arrow pointing to it (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset magnified view of a component (no text or symbols)

Architectural detail showing a window frame with a magnified inset highlighting a structural detail (no text or symbols)

Mechanical assembly diagram showing a rotating component with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a device with a rectangular panel and a black arrow indicating rotation or movement (no text or symbols)

Diagram showing a metal bracket being inserted into a wall, with an arrow indicating the direction (no text or symbols present)

Diagram showing a device with directional arrows and a magnified inset highlighting a component, likely illustrating a mechanical or electrical assembly.

3D rendering of a plastic container with an arrow pointing to the top section (no text or symbols)

Diagram of a refrigerator drawer with an arrow indicating left-side motion (no text or symbols present)

Diagram of a drawer with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with two rectangular components and an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a refrigerator door with an inset close-up showing a handle mechanism (no text or symbols)

REMARQUE

Diagram showing a mechanical component with an arrow indicating rotation or force direction (no text or symbols present)

Diagram showing airflow or ventilation around a cylindrical component with directional arrows (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

Diagram showing a mechanical assembly with a cylindrical component and directional arrow indicating rotation (no text or symbols)

REMARQUE

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Français74.

Mémo

Service has never been SMARTer

Samsung

Smart Service

ELITE

SERVICE

USA VIP Hotline [phone]

Available Monday to Friday 8AM - 12MIDNIGHT ET

Saturday to Sunday 9AM - 11PM ET

Register your product online at www.samsung.com/eliteservice

to receive Samsung Elite Service*

With Samsung Elite Service you will receive:

Complimentary Technician Home Visit

Complimentary VIP Hotline and VIP Website

*Available in Samsung Branded Engineer coverage USA markets only.

Please visit Elite Service website or contact VIP Hotline for eligibility and more details.

Subject to certain restrictions/limitations.

Customer Service

1-855-795-0508

Available Monday to Friday

830AM - 8PM ET

Register your product online at:

www.samsung.com/conciergeservice

to receive Samsung Concierge Service

• Complimentary Technician Home Visit

• Extended 90-Day Warranty
• 24 Hour Parts Turnaround†

Available in Toronto, Montréal, Vancouver, Calgary and Ottawa markets.

Please contact customer service or your area's service provider for

more details. Subject to certain restrictions/limitations.

†Subject to availability. Certain conditions apply.
