Brand	Hoover
Model	Reactiv RC71_RC10011
Product type	Bagless canister vacuum cleaner
Power type	Mains (power cord)
Separation technology	Hoover cyclone system with Vortex detector
Dust bin capacity	Approximately 2 L (estimate)
Pre-motor filter	Washable
Exhaust filter	Washable
Power cord length	Approximately 8 m (estimate)
Operating radius	Up to 10 m (estimate)
Tube	Telescopic with height adjustment
Main brush	Combined hard floor/carpet (GP) with mode selector
Included accessories	Crevice tool, upholstery brush, parquet brush, mini pet hair turbo brush
Power control	Yes (on some models)
Cord winder	Automatic cord rewind pedal
Parking position	Yes
Usage	Domestic
Safety	Automatic shut-off in case of overheating, protection against use without filter
Spare parts	Available from Hoover
Standards	Compliant with European directives 2014/35/EU, 2014/30/EU, 2011/65/EU

Frequently Asked Questions - Reactiv RC71_RC10011 HOOVER

How to empty the dust bin of the Hoover Reactiv RC71_RC10011 vacuum cleaner?

Turn off and unplug the appliance. Press the unlocking button of the dust bin flap, remove the entire bin assembly. Hold the bin with one hand and press the flap release trigger to empty the dust. Close the flap and replace the bin.

How often should the filters of this vacuum cleaner be cleaned?

It is recommended to clean the filters after emptying the dust bin 5 times, or when they are dirty. The pre-motor and exhaust filters are washable with warm water (without detergent). Let them dry completely before reinstalling.

What to do if the vacuum cleaner no longer sucks or sucks poorly?

Check in order: 1) The dust bin is not full or blocked. 2) The filters are clean and in place. 3) The tube, hose or brush is not clogged (unblock with a rod). 4) The appliance has not overheated (let it cool for 30 minutes for automatic reset).

How to clean the cyclone system (Vortex detector)?

Remove the dust bin, open the flap, then remove the red Vortex detector and the cyclone body. Clean them with a dry cloth or rinse with warm water if necessary. Make sure all parts are dry before reassembling.

What accessories are provided with the Reactiv RC71_RC10011 model?

Depending on the version, the vacuum cleaner includes a combined hard floor/carpet brush, a crevice tool, an upholstery brush, a parquet brush, a mini pet hair turbo brush. Some accessories may vary by model.

Can I use the vacuum cleaner to vacuum liquids?

No, this vacuum cleaner is designed for dry cleaning only. Never vacuum liquids, hot ashes, sharp objects or flammable substances.

How to adjust the suction power?

On models equipped with a power control, slide the knob located on the hose handle or on the vacuum cleaner body to adjust suction according to floor type.

How to use the combined brush on different floor types?

Press the brush pedal to select 'Hard floor' or 'Carpet' mode. Also adjust the slider on the brush for the desired cleaning type: 'All floors' or 'Deep cleaning'. For parquet, always use hard floor mode to avoid scratches.

What to do if the power cord is damaged?

Immediately stop using the appliance and contact an authorized Hoover repairer to replace the power cord. Do not attempt to repair it yourself.

Where can I find spare parts for this vacuum cleaner?

Hoover spare parts and consumables are available from your Hoover dealer. When ordering, specify the model number Reactiv RC71_RC10011. You can also contact Hoover customer service.

USER MANUAL Reactiv RC71_RC10011 HOOVER

"Dividends made by " May, reporting and making 'Online sales only' " May, reporting and making

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by HOOVER.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

HOOVER service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

Do not position the appliance above you when cleaning the stairs.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

CE This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherlo (MB) Italy

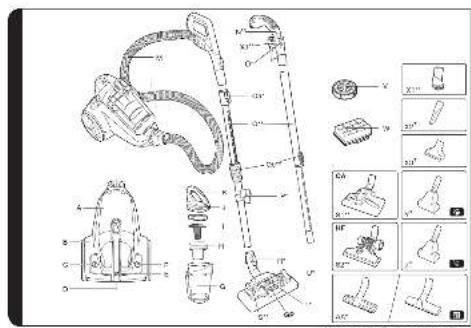

GETTING TO KNOW YOUR CLEANER

A. Dust Bin Assembly

B. Cleaner Main Body

C. On/Off Pedal

D. Park Slot

E. Dust Bin Release Button

F. Cord Reel Pedal

G. Dust Bin

H. Cyclone Body

I. Vortex Finder (Metallic Red)

J. Dust Bin Lid

K. Dust Bin Flap Release Trigger

L. Dust Bin Lid Release Button

M. Hose

N. Hose Handle**

O. Suction Regulator*

P. Accessory holder*

Q. Telescopic Tube**

Qa. Telescopic Tube Latch*

Qb. Telescopic Tube Adjuster**

R. Carpet and Floor nozzle Latch*

S. Carpet and Floor nozzle (GP)**

S1. Carpet Nozzle (CA)**

S2. Hard Floor Nozzle (HF) ^**

T. Carpet and Floor Nozzle Slider*

U. Floor Type Selector Pedal*

V. Pre-motor Filter

W. Exhaust Filter

X1. Dusting Brush**

X2. Crevice Tool*

X3. Furniture nozzle*

Y. Pet Hair Remover Mini Turbo Nozzle*

Z. Allergen Remover Mini Turbo Nozzle*

AA. Parquet Nozzle*

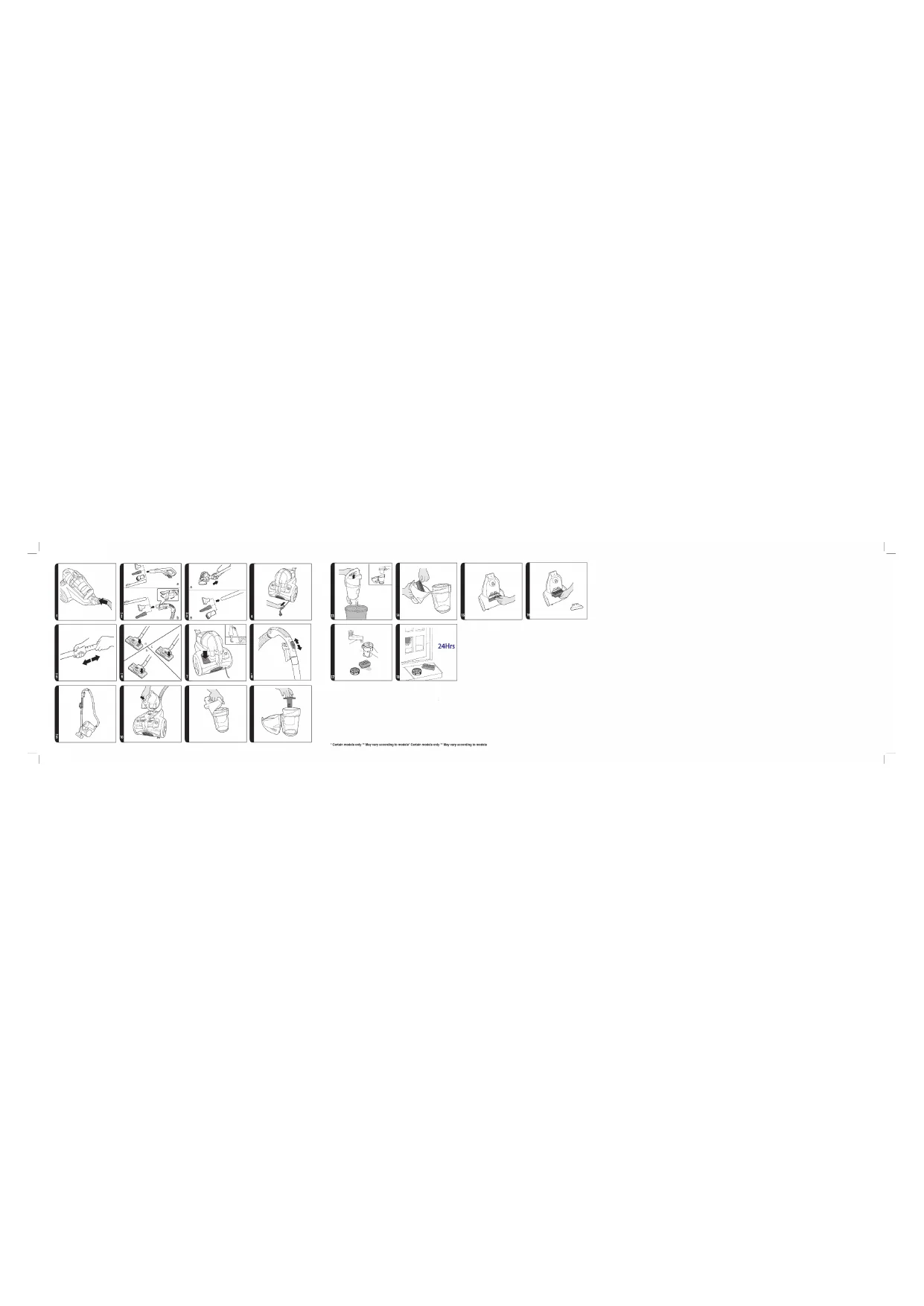

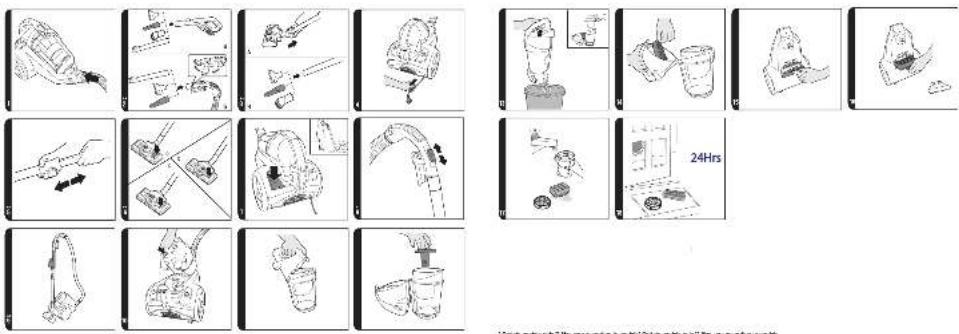

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position. To release: simply press the button on the hose end and pull. [1]

2. Connect the hose handle to the end of the extension tube upper [2a], or accessories if required. [2b]

3. Connect the extension tube lower to the carpet and floor nozzle** [3a] or accessories if required. [3b]

4. The cleaning accessory tools* can be stored after use on the underside of the extension tube, using the accessory holder provided^.

USING YOUR CLEANER

1. Extract the power cord and plug it into the power supply. Do not pull the cord beyond the red marker. [4]

2. Adjust the extension tube** to the desired height by moving the extension tube adjuster** up and raise or lower to the most comfortable cleaning position. [5]

3. After connecting the lower end of the telescopic tube to the Carpet and Floor Nozzle**, press the floor type selector pedal* on the nozzle to select the ideal cleaning mode::

Hard Floor – Brushes are lowered to protect the floor.

Carpet – Brushes are raised for deeper cleaning.

Carpet & Floor Nozzle\*\*: [6]

- Hard floor Cleaning: Press the pedal on the nozzle on Hard Floor mode and adjust the slider on the nozzle on ALL FLOORS. In this position brushes, wheels and wiper blade are

*Certain Models Only ** May vary according to models

lowered to protect hard floors. [6a]

- Standard Carpet & Rugs Cleaning: Press the pedal on the nozzle on Carpet mode and adjust the slider on the nozzle on ALL FLOORS. In this position brushes and wiper blade are raised while wheels are lowered to allow a perfect ease of movement on such surfaces. [6b]

- Deep Carpet cleaning: Press the pedal on the nozzle on Carpet mode and adjust the slider on the nozzle on DEEP CARPET CLEANING. In this position brushes, wheels and wiper blade are raised for a deeper cleaning of your carpet. [6c]

WARNING: It is recommended to avoid potential scratching of wooden floors that the pedal is not set on hard floor mode and the slider on deep carpet cleaning.

1. Switch the cleaner on by pressing the on/off Pedal on the cleaner main body. [7]

2. Adjust the suction by moving the suction regulator* to the desired level. [8]

3. Switch off at the end of use by pressing the on/off Pedal. Unplug and press the cord reel pedal [F] to wind the power cord back into the cleaner.

Parking and Storage Section

1. The tube can be parked on back of the cleaner for storage or temporary storage while in use. [9]

ACCESSORIES

To obtain the best performance and efficiency it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA.

A nozzle type GP can be used to clean both carpet and hard floor.

A nozzle type HF is suitable for use only on hard floor.

A nozzle of type CA is suitable for use only on carpet.

The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.

The crevice tool*, furniture nozzle* and dusting brush** are stored on the telescopic tube through a practical accessories' holder. They can be fitted to the handle or the end of telescopic tube.

On certain models the dusting brush is conveniently integrated in the hose handle.

Dusting Brush**— For bookshelves, frames, keyboards and other delicate areas. [X1]

Crevice Tool* – For corners and hard to reach areas. [X2]

Furniture Nozzle* – For soft furniture and fabrics. [X3]

Parquet Nozzle* – For parquet floors and other delicate floors. [AA]

Pet Hair Remover Mini Turbo Nozzle* - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for pet hair removal. [Y]

Allergen Remover MInl Turbo Nozzle* – Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for allergen removal. [Z]

IMPORTANT: Do not use mini turbo nozzles on rugs with long fringes, animal hides and

carpet pile deeper than 15mm. Do not keep the nozzle stationary while brush is rotating.

CLEANER MAINTENANCE

Emptying the Dust Bin

When the dust reaches the max level indicator in the bin, empty the dust bin.

IMPORTANT: To maintain optimum performance do not allow the dust above the max level indicator.

1. Turn off the cleaner with the main switch and unplug the power cable.
2. Press the dust bin lid release button and remove the dust bin assembly from the cleaner. [10]
3. Hold the dust bin with one hand and press the dust bin flap release trigger. [13]
4. Close the dust bin flap and refit to the cleaner main body. [10]

Cleaning the washable filters

The cleaner is fitted with pre-motor filter and exhaust filter. To maintain optimum cleaning performance, regularly remove the filters and tap against the side of the waste container to release dust. The filters should be washed every 5 dust container empties or when the filter has excessive dust level.

IMPORTANT: All bagless cleaners require regular filter cleaning. Failure to clean your filters may result in air blockage, overheating and product failure. This may invalidate your guarantee.

IMPORTANT: Regularly check and maintain the filters.

IMPORTANT: Always ensure the filter pack is fully dry before use.

To access the filter:

1. Press the dust bin lid release button and remove the dust bin assembly from the cleaner. [10]
2. Hold the dust bin with one hand and with the other hand press the dust bin lid release button to open the bin lid. [11]
3. Remove the pre-motor filter located in the bin lid. [14]
4. Gently tap and wash the pre-motor filter. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using. [17,18]
5. Reassemble the pre-motor filter to the dust bin lid once fully dry and refit to the cleaner.

IMPORTANT: Do not use the product without the filter pack fitted.

To access the exhaust filter:

1. Unlock the exhaust filter door by pressing two buttons and pulling outward from main cleaner. [15]
2. Remove the filter pack from recess by pulling the ring-pull of exhaust filter. [16]
3. Gently tap and wash the filter unit. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before using. [17,18]
4. Reassemble the Filter pack once it is fully dry and refit to the cleaner by inserting it back into the location and pushing it fully home. [16]
5. Lock the exhaust filter cover by pressing the edge which has the clips, you will hear a click once the exhaust filter door fits into place. [15]

^ Certain Models Only ^* May vary according to models

IMPORTANT: Do not use the product without the filter pack fitted.

Cleaning the dust bin / separation unit

This cleaner uses a separation system unique to Hoover. If necessary the separation unit can be disassembled from the dust bin and cleaned.

1. Press the dust bin lid release button and remove the dust bin assembly from the cleaner. [10]
2. Hold the dust bin with one hand and with the other hand press the dust bin lid release button to open the dust bin lid. [11]
3. Remove the Vortex Finder (Red) from the cyclone body. [12]
4. Remove the cyclone body from the dust bin. [13]
5. If necessary, use a cloth to remove excessive dust from the red vortex finder and the cyclone body surface.
6. Place the dust bin under the tap. [17] Rinse with lukewarm water. Wash internal surfaces of the dust bin with water only. DO NOT use soap detergents to wash the internals of the dust bin.
7. Reassemble the internal component to the dust bin, ensuring all components are dry.
8. Close over the dust bin lid and refit dust bin assembly to cleaner.

Removing a blockage

1. Check if the dust bin is full. If so refer to 'Emptying the dust bin.
2. If the dust bin is empty but suction is still low:

A. Do the filters need cleaning? If so refer to 'Cleaning the washable filters'.

B. Check if there is any other blockage in the system - Use a rod or pole to remove any blockage from the extension tube or flexible hose.
C. Check if pre-motor filter is fitted.
D. Check if the separation unit needs to be cleaned. Refer to 'Cleaning the separation unit.

USER CHECKLIST

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.
• Is the dust bin over-filled? Please refer to 'Cleaner Maintenance'.
• Is the filter blocked? Please refer to 'Cleaner Maintenance'.
• Is the hose or nozzle blocked? Please refer to 'Removing a blockage from the system'.
• Has the cleaner overheated? If so, it will take approximately 30 minutes to automatically reset.

IMPORTANT INFORMATION

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office.

Quality

BSI ISO 9001: Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice.
