RT24 - Pliers Vevor - Free user manual and instructions

Brand	Vevor
Model	RT24
Product Type	Log Grapple (Tool Grapple)
Safe Load Capacity (Static)	1100 lb (500 kg)
Safe Load Capacity (Dynamic)	900 lb (408 kg)
Maximum Grapple Size	24 inches (609 mm)
Color	Orange
Main Material	Heavy-duty Steel
Number of Pieces	7
Ring Dimensions	Inner diameter 58 mm, outer diameter 108 mm
Bolt Type	M16 × 55 mm
Assembly Required	Yes, simple assembly per manual
Intended Use	Handling and transporting logs and stones
Safety Precautions	ANSI glasses and gloves recommended; do not exceed maximum load
Maintenance	Inspect before each use; do not use if parts are loose or damaged
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online

Frequently Asked Questions - RT24 Vevor

How to assemble the RT24 log grapple?

Follow the steps in the manual: assemble the parts on a flat surface. Do not fully tighten the 3 circled screws to allow flexible rotation. Use the supplied M16 bolts.

What is the maximum load capacity of the RT24 grapple?

The maximum static load is 1100 lb (500 kg) and the maximum dynamic load is 900 lb (408 kg). Never exceed these limits.

What is the maximum log diameter the grapple can hold?

The maximum grapple size is 24 inches (609 mm).

Is the RT24 grapple delivered assembled?

No, it requires simple assembly. The manual provides steps and parts list.

What safety equipment is recommended for use?

Wear ANSI-approved safety glasses and heavy-duty work gloves during assembly and use.

Can I use the RT24 grapple on uneven ground?

No, use only on a flat, level, hard, and smooth surface capable of supporting the load.

How to maintain the log grapple?

Inspect before each use. Do not use if parts are loose or damaged. Clean after use and store in a dry place.

Where to find spare parts for the RT24?

Contact technical support via www.vevor.com/support to order spare parts.

Is the RT24 grapple under warranty?

Yes, Vevor provides an electronic warranty certificate available on their website.

Can I use the grapple to lift stones?

Yes, it is equipped with stone gripping pads for that purpose. Respect load capacities.

USER MANUAL RT24 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LOG TONGS

USER MANUAL

MODEL:RT24

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LOG TONGS

MODEL:RT24

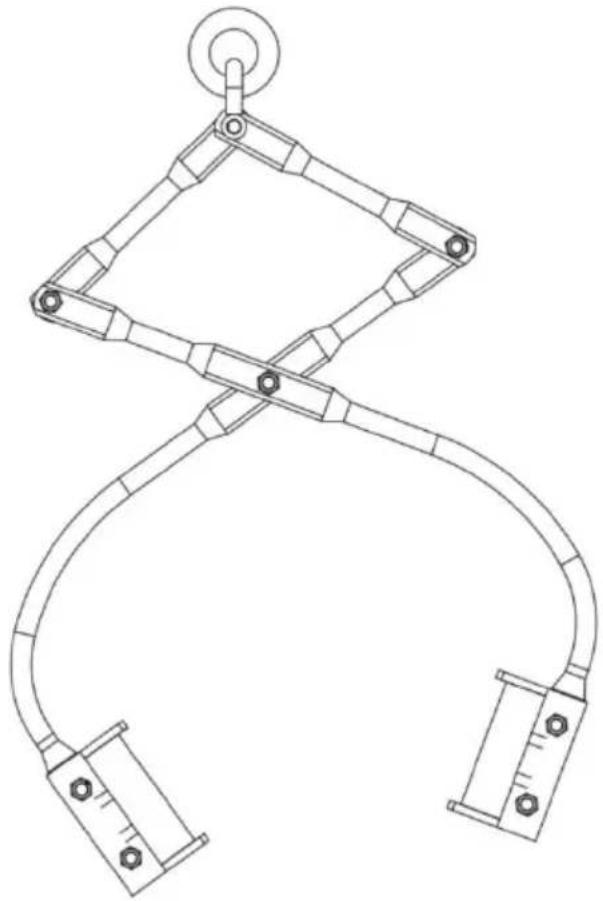

Technical line drawing of a mechanical linkage or clamp device with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soI updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Wooden Hall Tree.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

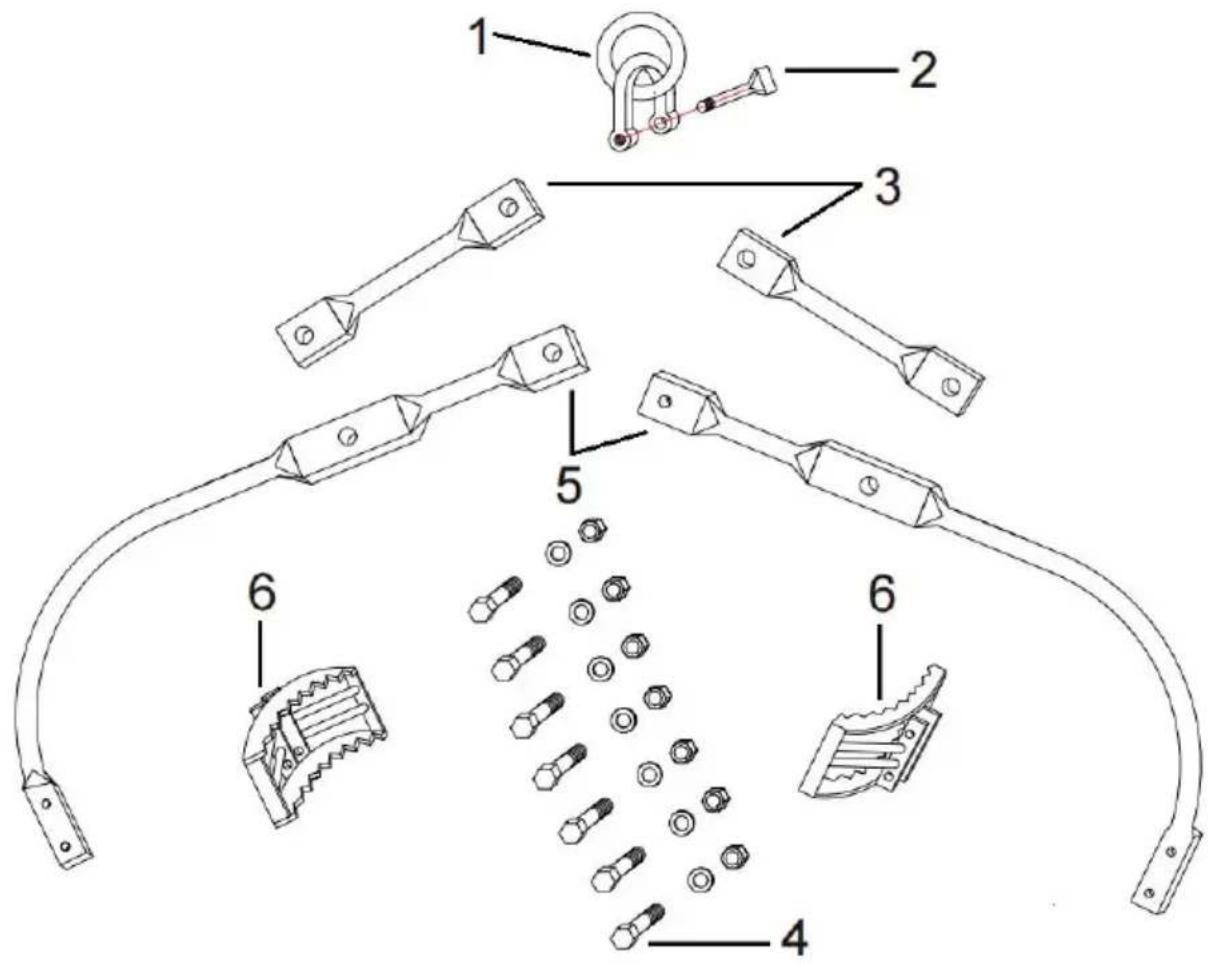

PARTS LIST

1 2 3 5 6 6 4

Part#	Description	Qty.
1	Ring (I.D.58mm, O.D. 108mm)	1
2	Hook+Hook Bolt	1
3	Connecting Rod	2
4	M16*55mm Bolt+M16 Nut+Washer	7
5	Curved Pads	2
6	Grabbing Stone Pads	2

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical diagram of a mechanical linkage system with numbered components and red-circled features

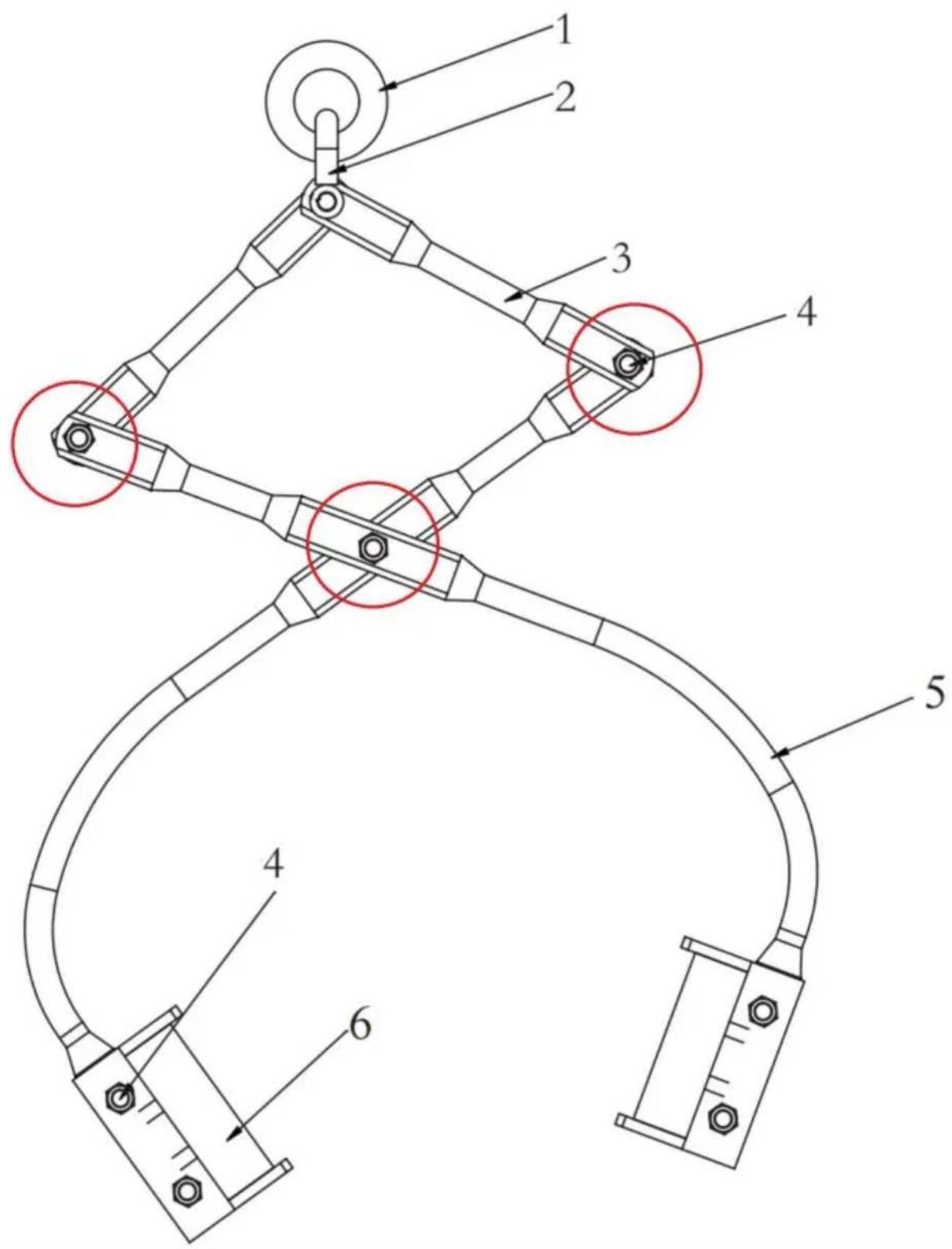

Do not lock the 3 screws(In-circle markings) completely, and leave some clearance to allow the parts to rotate flexibly.

PRODUCT PARAMETER

Model	RT24
Safe Loading Weight(Static)	1100lb(500kg)
Safe Loading Weight(Dynamic)	900lb(408kg)
Maximum gripping size	24in(609mm)
Colour	Orange

Do not exceed specified weight capacitie

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical linkage or clamp device with no visible text or symbols

Technical diagram showing exploded view of mechanical components with numbered parts labeled 1 through 6

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical diagram of a mechanical linkage system with numbered components and red-circled features

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical linkage or connector assembly (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical diagram showing exploded view of mechanical components with numbered parts labeled 1 through 6

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical diagram of a mechanical linkage system with numbered components and red-circled features

C/OYHConsultingLimitedBureau147,CenturionHouse,LondonRoad,Staines-upon-

Thames, Surrey, TW184AX

1ROKEVASTREETEASTWOODNSW2122Australie

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical linkage or clamp device with no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram showing exploded view of mechanical components with numbered parts labeled 1 through 6

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical diagram of a mechanical linkage system with numbered components and red-circled features

Staines-upon-Thames, Surrey, TW184AX

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical linkage or connector assembly (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Technical diagram showing exploded view of mechanical components with numbered parts labeled 1 through 6

Del#	Beskrivning	Antal.
1	Ring (ID58mm, OD 108mm)	1
2	Krok+krokbult	1
3	Vevstake	2
4	M16*55mm Bult+M16 Mutter+Bricka	7
5	Böjda kuddar	2
6	Ta tag i stenkuddar	2

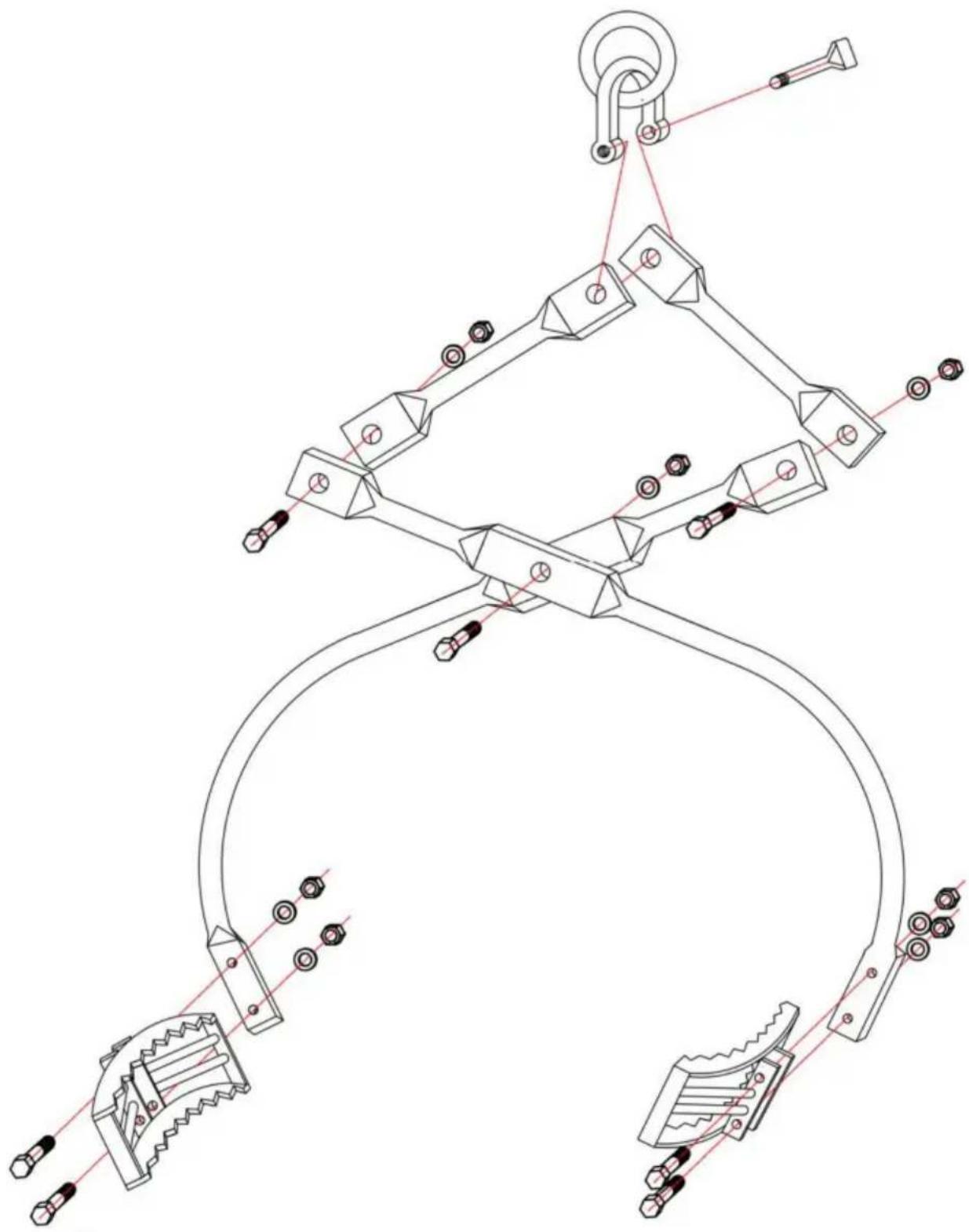

MONTERINGSTEG
