Product Type	Blender
Brand	Philips
Model	HR2511
Bowl capacity	600 ml
Bowl material	Plastic
Speeds	2 speeds (normal and maximum)
Pulse function	Yes (by holding the speed button)
Included accessories	Mixing bowl, lid, blade assembly, mill (HR2511/HR2512), flask (HR2512/HR2513)
Power supply	Electric, mains connection
Estimated power	300-500 W (unspecified)
Estimated dimensions	Height: 25 cm, Width: 15 cm, Depth: 15 cm (bowl only)
Estimated weight	1.2 kg (main unit)
Cleaning	Wash with warm soapy water; easy cleaning with dishwashing liquid
Safety	Automatic stop when releasing the speed button; unplug before cleaning
Maintenance	Wipe the motor unit with a damp cloth; dry all parts
Repairability	Spare parts available from the manufacturer (blade assembly, gaskets)
Warranty	Standard Philips (unspecified)

Frequently Asked Questions - HR2511 PHILIPS

How to assemble the blender?

Attach the blade assembly to the bowl by turning counterclockwise. Then, insert the assembled bowl onto the motor unit by turning clockwise until it clicks. Add ingredients, close the lid by turning clockwise.

What is the maximum bowl capacity?

The maximum capacity is 600 ml. Never exceed the MAX level indicated on the bowl.

How to use the mill?

Pour ingredients into the mill without exceeding the MAX level. Screw on the blade assembly by turning clockwise. Attach the mill to the motor unit by turning clockwise. Plug in and hold down the desired speed button.

Can I blend hot ingredients?

No, the blender is not designed for hot ingredients. Let food cool to room temperature before blending.

How to clean the blender easily?

Pour hot water and dishwashing liquid up to half the bowl. Close the lid and press the speed 2 button several times. Unplug, empty, and rinse.

How to remove the sealing ring from the blade assembly?

Hold the blade assembly firmly and shake gently until the ring comes off. Do not remove it by hand when it is inside.

What accessories are compatible?

The HR2511 model comes with a mixing bowl, a mill, and a flask (depending on version). Additional accessories are available from Philips.

How to prevent leaks?

Make sure the sealing ring is properly placed on the blade assembly. Check that the bowl is securely attached to the motor unit and the lid is tightly closed.

Can I blend ice cubes?

Yes, but cut them into small pieces and use speed 2. Respect the maximum quantities (about 5-6 ice cubes at a time).

What to do if the blender does not work?

Check that the appliance is plugged in and the bowl is properly attached (click). Make sure the lid is closed. If the problem persists, contact Philips service.

USER MANUAL HR2511 PHILIPS

Three white kitchen blisters with different sizes and packaging designs, one being filled with a blender (no visible text or symbols)

Simple line drawing of an open book with a grid pattern on the left and a closed page on the right (no text or symbols)

-1

-1

1_

1

-1

1_

-1

1

English 6

Čeština 18

Dansk 30

Deutsch 42

Eesti 54

Español 66

Français 78

Hrvatski 90

Italiano 102

Latviešu 114

Lietuviškai 126

Magyar 138

Nederlands 150

Norsk 162

Polski 174

Português 186

Română 198

Shqip 210

Slovenščina 222

Slovensky 234

Srpski 246

Suomi 258

Svenska 270

Türkçe 282

Ελληνικά 294

Български 306

Македонски 318

Русский 330

Українська 342

Қазақша 354

הכלה 366

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description

Diagram of a plastic bin with labeled part '2' (no text or symbols on the object itself)

HR2512

HR2513

HR2511

HR2512

• Plastic blender jar
  1 Plastic blender jar lid
  2 Plastic blender jar

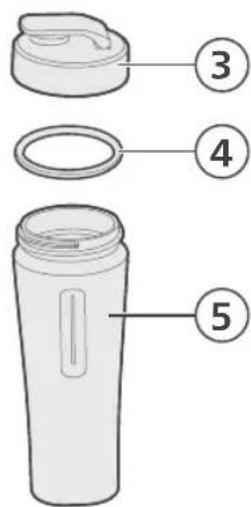

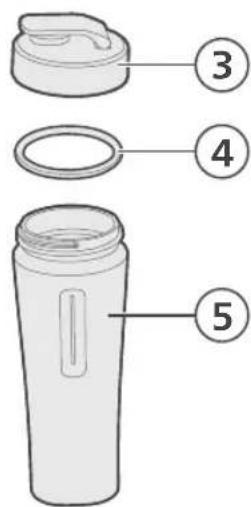

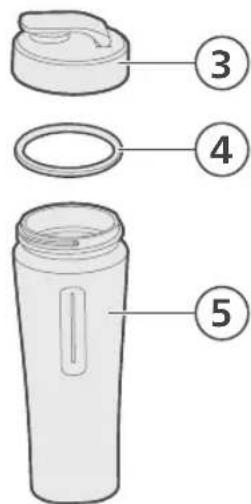

• Tumbler (HR2512/HR2513 Only)
  3 Tumbler lid
  4 Sealing ring
  5 Tumbler jar

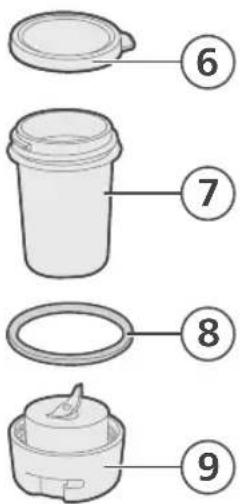

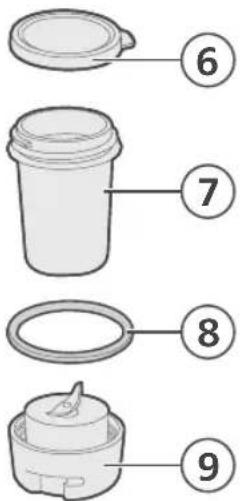

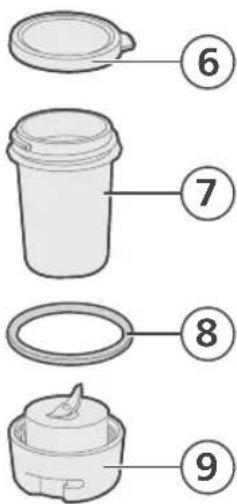

• Mill (HR2511/HR2512 Only)
  6 Mill lid
  7 Mill container
  8 Mill sealing ring
  9 Mill blade unit

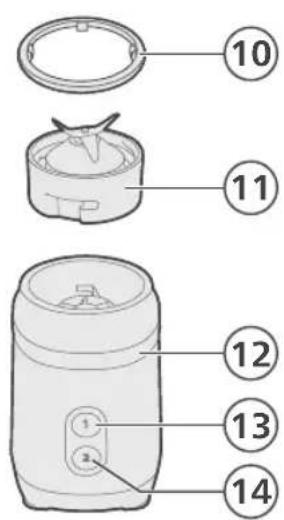

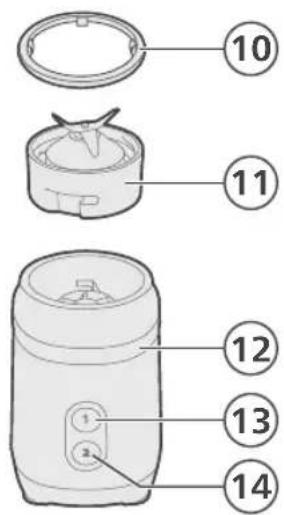

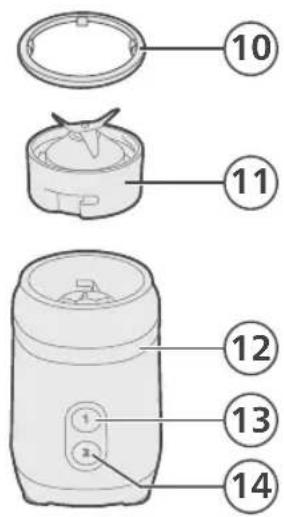

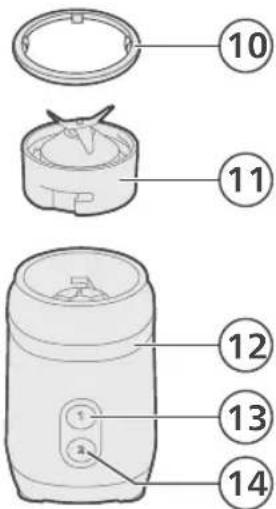

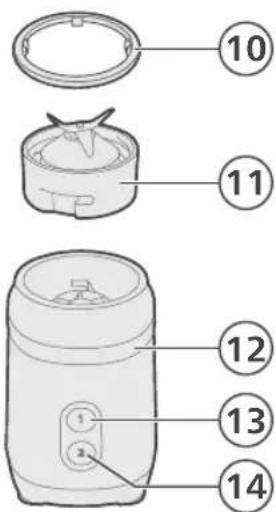

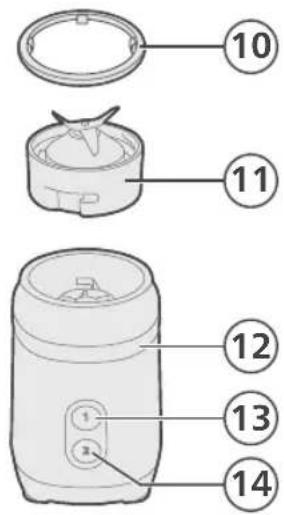

• Main unit
  10 Sealing ring (with 4 pins)
  11 Blade unit
  12 Motor base
  13 Speed 1 button: for normal speed blending
  14 Speed 2 button: for full speed blending

Before first use

Before the first use, wash the appliance and accessories with warm soapy water. Rinse them thoroughly and dry them completely before assembling.

Place the blender on a stable and flat surface.

Avoid placing it near heat sources, water, or flammable materials.

Using the appliance

1 Attach the blade unit to the blender jar by turning it anti-clockwise.

Ensure the mark on the blade unit aligns with the line on the jar for a secure lock.

2 Insert the assembled blender jar clockwise to lock it to the motor base.

You will hear a "click"' sound when it is locked.

8 English

3 Add ingredients into the blender jar.

Do not exceed the max level on the blender jar.

Cut the ingredients into smaller pieces to ensure they fit properly in the jar.

4 Turn the lid clockwise to lock it to the blender jar.

You will hear a "click"' sound when it is locked.

5 Plug in the appliance.

6 Press and hold with your desired speed button to start blending.

Simply release the speed button to stop operation.

7 Unplug the appliance after use.

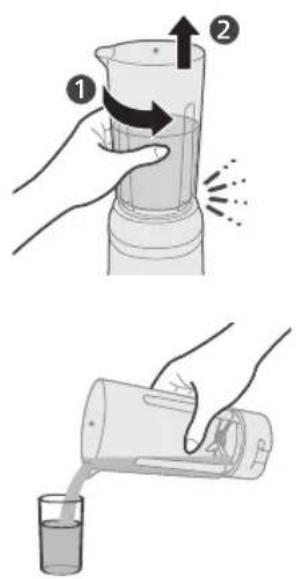

8 Turn the lid anti-clockwise to unlock it from the blender jar.

You will hear a "click"' sound when it is unlocked.

9 Turn the assembled blender jar anti-clockwise to unlock it from the motor base.

You will hear a "click"' sound when it is unlocked.

10 Empty the blender jar and enjoy.

Using the mill

1 Add ingredients into the mill container.

Do not exceed the max level on the mill container.

2 Attach the mill blade unit to the mill by screwing it up clockwise.

Ensure the mark on the mill blade unit aligns with the line on the mill container for a secure lock.

3 Insert the assembled mill container clockwise to lock it to the motor base.

English

4 Plug in the appliance.
5 Press and hold with your desired speed button to start blending.

Simply release the speed button to stop operation.

6 Unplug the appliance after use.

7 Turn the mill container assembly anti-clockwise to remove it from the motor base.

8 Turn the mill blade unit anti-clockwise to remove it from the mill container.
9 Pour out the processed ingredients.

Using the tumbler

1 Turn the lid anti-clockwise to remove it from the tumbler jar.

2 Add ingredients into the tumbler jar.

Do not exceed the max level on the tumbler jar.

Cut the ingredients into smaller pieces to ensure they fit properly in the jar.

3 Attach the blade unit to the tumbler jar by turning it clockwise.

4 Turn the assembled tumbler jar clockwise to lock it to the motor base.

5 Plug in the appliance.

6 Press and hold the desired speed button to start blending.

Simply release the speed button to stop operation.

7 Unplug the appliance after use.

12 English

8 Turn the assembled tumbler jar anti-clockwise to unlock it from the motor base.

9 Turn the blade unit anti-clockwise to remove it from the tumbler jar.

10 Attach the tumbler lid and close it by turning it clockwise.

Line drawing of a backpack with a side cover and mesh handle (no text or symbols)

11 Take the tumbler on-the-go.

Processing quantities and processing time

Do not exceed the maximum quantities and processing times indicated.

			30 sec200 g
		200 ml	30 sec
			30 sec
			30 sec
			6 x Pulse(speed 2)
			30 sec
		200 ml	30 sec
			30 sec
		40 g	30 sec
		50 g	30 sec
		15 g	30 sec
		50 g	30 sec
→ 2x2x2 cm

Cleaning and Maintenance

1 Always disconnect the appliance from the power source before cleaning.
2 Disassemble the appliance and carefully remove the blades and any other detachable parts.
3 Wipe the motor unit with a damp cloth only.
4 Clean the accessories with warm water and detergent.
5 Dry all the blender parts with a clean towel.

Easy clean

Follow the steps below for easy clean:

1 Add cleaning liquid and water to the blender jar.

Do not exceed half of the jar's capacity.

2 Close the blender jar lid.

Illustration of hands holding a cylindrical device with a plug and switch, no text or symbols present

3 Press the speed 2 button several times.

Diagram showing a kitchen sink with a lamp and a black tool on a diagonal line (no text or symbols)

4 Unplug the appliance and empty the jar.

Remove the seal ring from the blade unit

Two hand-drawn diagrams showing a container with lid and lid, separated by a diagonal line (no text or symbols)

1 Hold the blade unit firmly.

Illustration of a hand pressing a button on a mechanical component with curved arrows indicating rotation (no text or symbols)

2 Shake the blade unit gently until the seal ring detaches from the blade unit.

Illustration of a hand holding a ring with an arrow indicating rotation (no text or symbols)

Do not use your hands to remove the seal ring while it is inside the unit.

Illustration of a hand washing a basin with a faucet, against a tiled wall (no text or symbols)

3 Rinse the seal ring under running water.

			[24TT]	[DRW2]
