USER MANUAL Genuine LM2411 MOULINEX

• Remember: you may injure yourself if you use the appliance incorrectly.

• Do not use the appliance if it is not working properly or if it has been damaged. In this case, contact an authorised service centre (see the list in the service booklet).

• All maintenance other than cleaning and everyday upkeep by the customer must be performed by an authorised service centre.

• Do not use this appliance to blend or mix non-food items.

• Do not use the jug or bowls (according to model) as containers for freezing, cooking or sterilization.

• Blades are very sharp: to prevent injuries, handle them with care when emptying the blender jug, the bowls (according to model), cleaning, assembling and dismantling the blender jug (according to model) and the accessories (according to model).

• Never place your fingers or any other object not intended for this function in the blender jug when the appliance is running.

• Never remove the lid or the blender jug before the appliance has come to a complete stop.

• Always use the blender jug with the lid.

• Place the appliance on a stable, heat-resistant, clean and dry worktop.

• Before using your appliance for the first time, carefully read these instructions for use and retain them for future reference: the manufacturer shall not accept liability in the event of any use that does not comply with the instructions.

• Make sure that the voltage that your appliance uses matches that of your electrical supply system. Any error in connection will negate the guarantee.

• This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

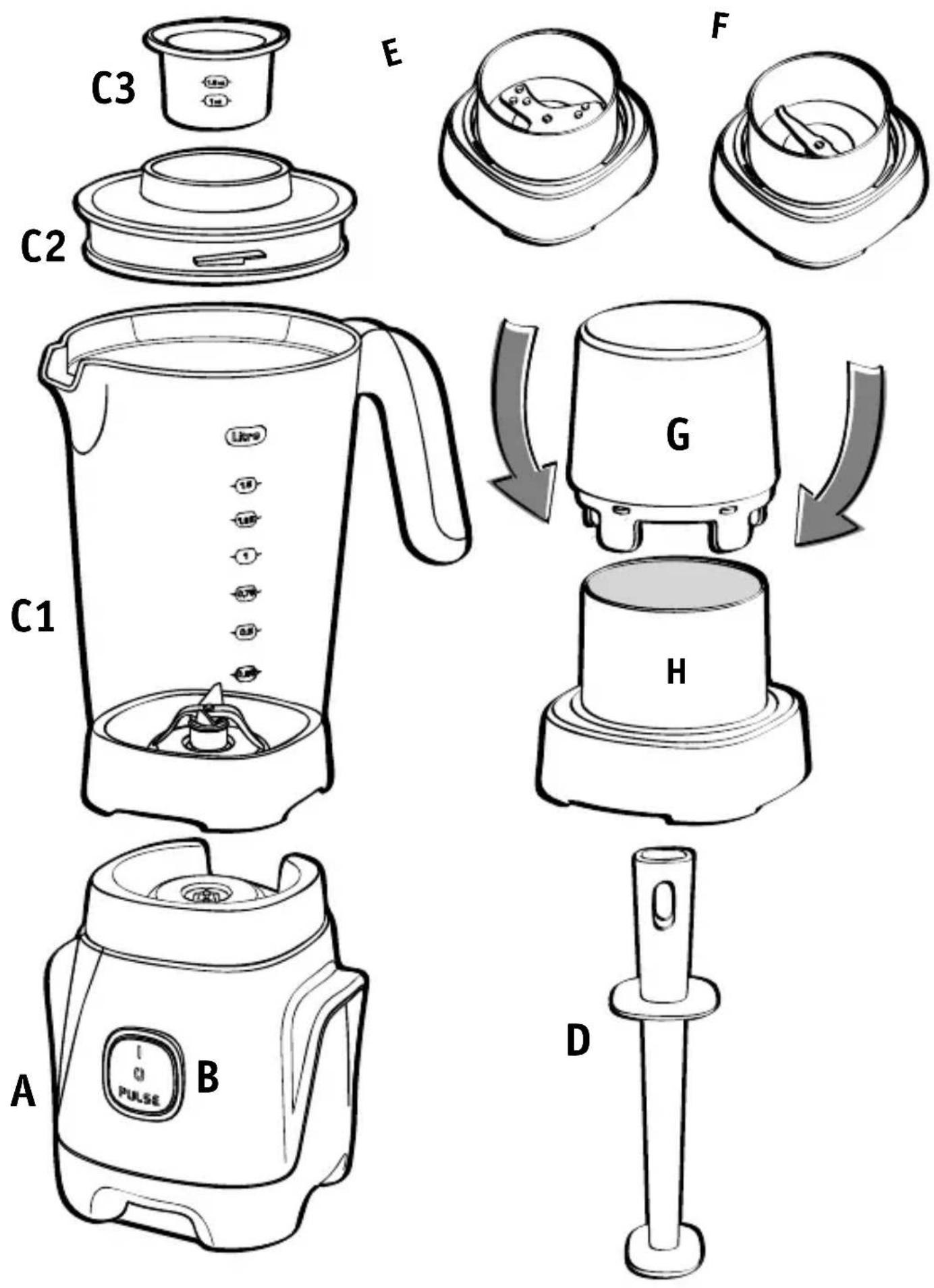

• Always disconnect the appliance from the mains power supply when it is unattended and before assembling, dismantling or cleaning it. DESCRIPTION A Body of the blender B Start/stop/pulse button (I/0/pulse) C Blender unit: c1 Graduated jug c2 Lid c3 Measuring cap D Pestle Accessories depending on models: E Grater F Spice mill G Accessories lid The accessories contained in the model you have bought are represented on the label located on the top of the packaging. SAFETY INSTRUCTIONS EN11

• Do not allow children to use the appliance without supervision.

• It is not intended to be used in the following applications, and the guarantee will not apply for: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• Switch off the appliance and unplug it from the electrical power supply before changing accessories or approaching parts that move in use.

• Refer to the instructions to obtain the appropriate operating time and speed settings for each accessory.

• Refer to the instructions for correct fitting and assembly of your accessories.

• Refer to the instructions for initial and regular cleaning of surfaces in contact with foodstuff, and for cleaning and maintenance of your appliance.

EUROPEAN MARKETS ONLY

• With all accessories except grater: this appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• Children shall not play with the appliance.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

• The grater (according to model) can be used by

• Do not immerse the appliance, power cord or plug in any liquid.

• Do not leave the power cord hanging within reach of children.

• Do not leave the power cord close to or in contact with the hot parts of the appliance, near a source of heat or a sharp angle or inside the blender jug in contact with the blades.

• Keep moving parts (blades) away from the cord during use.

• Never pull the power cord to disconnect the appliance.

• Do not allow long hair, scarves, ties etc. to hang over the appliance or attachment when either is in use.

• Do not use the appliance if the power cord or plug have been damaged. To avoid all danger, have them replaced by an authorised service centre (see the list in the service booklet).

• For your safety, only use spare parts and accessories that are approved for your appliance.

• Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance as it produces a lot steam.

• Do not pour boiling liquids (over 80°C/176°F) in the bowl or jug (according to model).

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.13

• Set button (B) to “I” and push the food onto the blades using the pestle.

2. ACCESSORIES (DEPENDING ON MODEL)

• The grater (E) is used to grate nutmeg, coconut, hard cheeses (e.g. 60 g parmesan), which have previously been chopped into cubes in 30 sec. It can also be used to blend 80 g of dried apricots in 8 seconds.

• The spice mill (F) can be used to grind spices (e.g.: 40g of coriander) in 30 sec.

• These accessories come with a safety lid (G) which prevents them coming into contact with the moving blades.

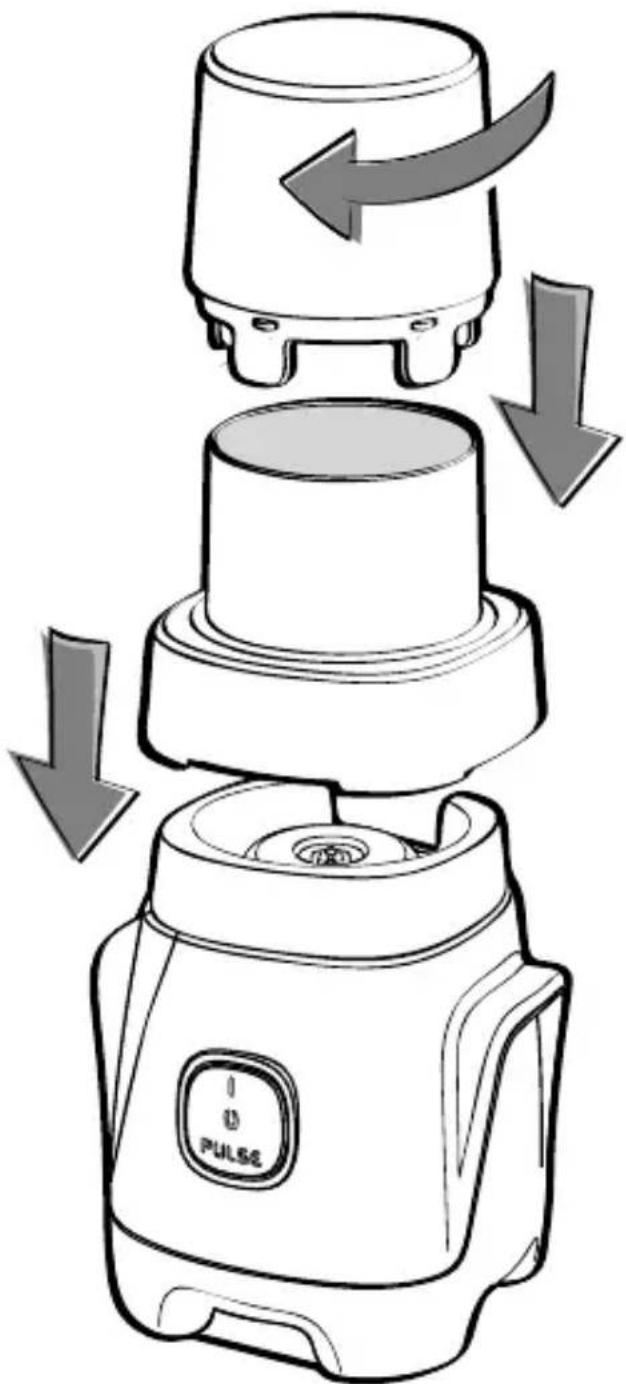

• Add the ingredients to the jug (E or F). Lock the lid (G) on the accessory jug and then place the whole unit onto the body of the blender (A) (Fig 1).

• Plug the blender in and set button (B) to position “I” or press “pulse” a few times. Hold the lid (G) down while the machine is working.

• To stop the blender, bring button (B) back to position “0”.

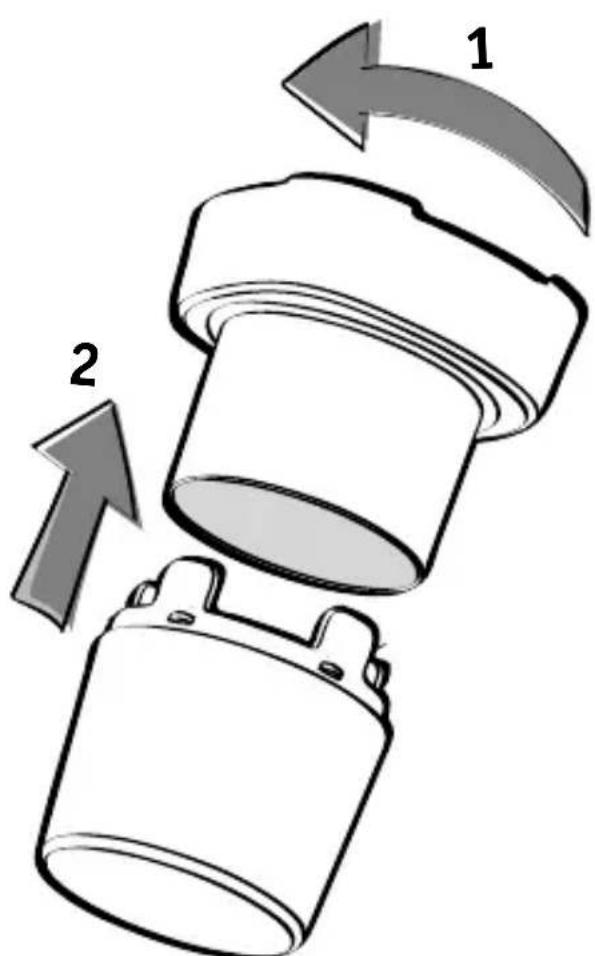

• Turn the whole of the accessory upside down onto the work surface in order to be able to un- lock the lid (E or F) (Fig 2). You can then remove the mixture directly from the lid, which is now a recipient.

• Handle the blades with extreme care, they may injure you.

• Remove the jug and rinse it under running water, along with its lid.

• Wash the accessories in warm water with a few drops of washing up liquid or place them in the dishwasher.

• Wipe the body of the blender (A) down with a damp cloth. Dry carefully.

• Never place it in water or under a running tap.

• The blender jug and its accessories are dishwasher-proof. Check: - the mains connection - that the blender or its accessories are correctly fitted If your blender still does not work Contact your nearest MOULINEX approved service centre (see the list in the service booklet). You can customise your blender and obtain the following kits from your usual retailer or a Mou- linex approved centre: Grater kit, spice mill kit, extra jug kit. CLEANING WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Pulse: This instantaneous speed setting enables you to refine the blending and mixing together of your recipes.

• This instantaneous speed can be obtained by repeatedly pressing button (B) in the pulse po- sition.

• To make a smoother blend, place the liquid ingredients into the blender first and turn it on very quickly, before introducing the solid ingredients. Only remove the blender or the acces- sory when the appliance has come to a complete stop.

• Before using it for the first time, clean the blender and the accessories in warm soapy water.

• Important note: Set button (B) to “0” before placing the jug or the accessories on the body of the blender.

• The blender only starts up once the accessory is properly positioned on the body.

• Do not turn the blender on if the lid is not correctly positioned.

• Add the foods to be blended into the jug, without exceeding the maximum level given: *1l for liquid mixtures *1.25l for thick mixtures

• Place the lid (c2) on the blender jug and lock it clockwise.

• Put the measuring cap (c3) in place in order to avoid splashes.

• Place the jug (C) onto the body of the blender (A); there are 4 possible positions.

• Plug the appliance in and turn it on by turning the button (B) to position “I”.

• To stop the blender, bring button (B) back to position “0”.

• Do not remove the accessories from the motor unit until the appliance has completely stopped.

• Do not operate the blender more than three minutes continuously.

• Wait a few minutes before restarting, after 3 minutes in operating.

• THE PESTLE (D) can be used to smoothen your mixtures and to mix them more efficiently (in particular the thicker ones) in the blender jug.

• To use it, slot the blender into the opening of the measuring cap (c3).

• Never use the pestle (D) without the lid, otherwise it will come into contact with the blades. PRACTICAL ADVICE
