USER MANUAL CA38SMBF7XS2 CANDY

(a) Do not a empt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated un l it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situa on. Specifica ons Model: CA38SMBF7XS2 Rated Voltage: 220-240V~/50Hz Rated Input Power(Microwave): 1300W Rated Output Power(Microwave): 750W Oven Capacity: 24L 800W External Dimensions: 595x316x393mm The appliances are not intended to be operated by means of an external mer or separate remote- control system. This appliance is intended to be used in household and similar applica ons such as: – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residen al type environments; – bed and breakfast type environments. Rated Input Power(Grill)EN 2

IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliances, follow basic precauons, including the following:

1. Warning: Liquids and other foods must not be heated in sealed

containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person

to carry out any service or repair operaon that involves the remov

a c ove r which gives protecon against exposure to microwave energy.

3. Warning: Only allow children to use the oven without supervision

when adequate instrucons have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

4. Warning: When the appliance is operated in the combinaon mode,

children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should

7. Read and follow the specific: “PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”.

8. When heang food in plasc or paper containers, keep an eye on the

oven due to the possibility of ignion.

9. If smoke is observed, switch off or unplug the appliance and keep the

door closed in or der to sfle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items,

such as bread, cookies, etc. inside the oven.

12. Remove wire twist-es and metal handles from paper or plasc

containers/bags before placing them in the oven.EN 3

13. Install or locate this oven only in accordance with the installaon

instrucons provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated

in microwave ovens since they may explode, even aer microwave heang has ended.

15. Use this appliance only for its intended uses as described in manual.

Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for in dustri

16. If the supply cord is damaged, it must be replaced by th

nufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement or near

19. The temperature of accessible surfaces may be high when the

appliance is operang. Keep cord away from heated surface, and do not cover any events on the ove

21. Failure to maintain the oven in a clean condion could lead to

deterioraon of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situaon.

22. The contents of feeding boles and baby food jars shall be srred

or shaken and the temperature checked before consumpon, in order to avoid burns.

23. Microwave heang of beverages can resul

t i n delayed erupve boiling, therefore take care when handling the container.

24. The appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilies, or lack of experience and knowledge, unless they have been given supervision or instrucon concerning use of the appliance by a person responsible for their safety. (for market beyond European market)

25. Children should be supervised to ensure that they do n

ot pla y with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensoryEN 4 or mental capabilies or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (for European market.)

26. The microwave oven shall not be placed in a cabinet.

27. The microwave oven is intended for heang food and beverag

es. Dry ing of food or clothing and heang of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignion or fire. Don't immerse the appliance in water or other liquid when cleaning. The appliance shall not be cleaned with a steam cleaner.

28. Metallic containers for food and beverages are not allowed during

29. Care should be taken not to displace the turntable when removing

containers from the appliance.

appliance must not be installed behind a decorave door in order to avoid overheang.

31. Important safety instrucons read carefully and keep for future

reference.EN 5 To Reduce the Risk of Injury to Persons Grounding Installaon DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet unl appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, gr ounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instrucons are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extensi on cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulng

from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rang of the cord set or extension cord

should be at least as great as the electrical rang of the appliance.

2) The extension cord must be a grounding- type 3-wire cord.

d should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintenonally.EN 6 CLEANING Be sure to disconnect the oven from the power supply.

1. Clean the inside of the oven aer using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned

carefully with a damp cloth when they are dirty. STANDBY In standby state, standby power consumpon meets the regulaon EN50564:201. UTENSILS See the instrucons on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in queson following the procedure below. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml)

along with the utensil in queson.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use

it for microwave cookin

CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operaon that involves the removal of a cover which gives protecon against exposure to microwave energy.EN 7 Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Crisp plate Follow manufacturer's instrucons. The boom of crisp plate must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the plate to damage. Dinnerware Microwave-safe only. Follow manufacturer's instrucons. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food unl just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer's instrucons. Do not close with metal e. Make slits to allow steam to escape. Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unaended while cooking. Paper towels Use to cover food for reheang and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splaering or a wrap for steaming. Plasc Microwave-safe only. Follow the manufacturer's instrucons. Should be labeled “Microwave Safe”. Some plasc containers soen, as the food inside gets hot. “Boiling bags” and ghtly closed plasc bags should be slit, pierced or vented as directed by package. Plasc wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plasc wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splaering and retain moisture. Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist es May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plasc foam Plasc foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack.EN 8

SETTING UP YOUR OVEN

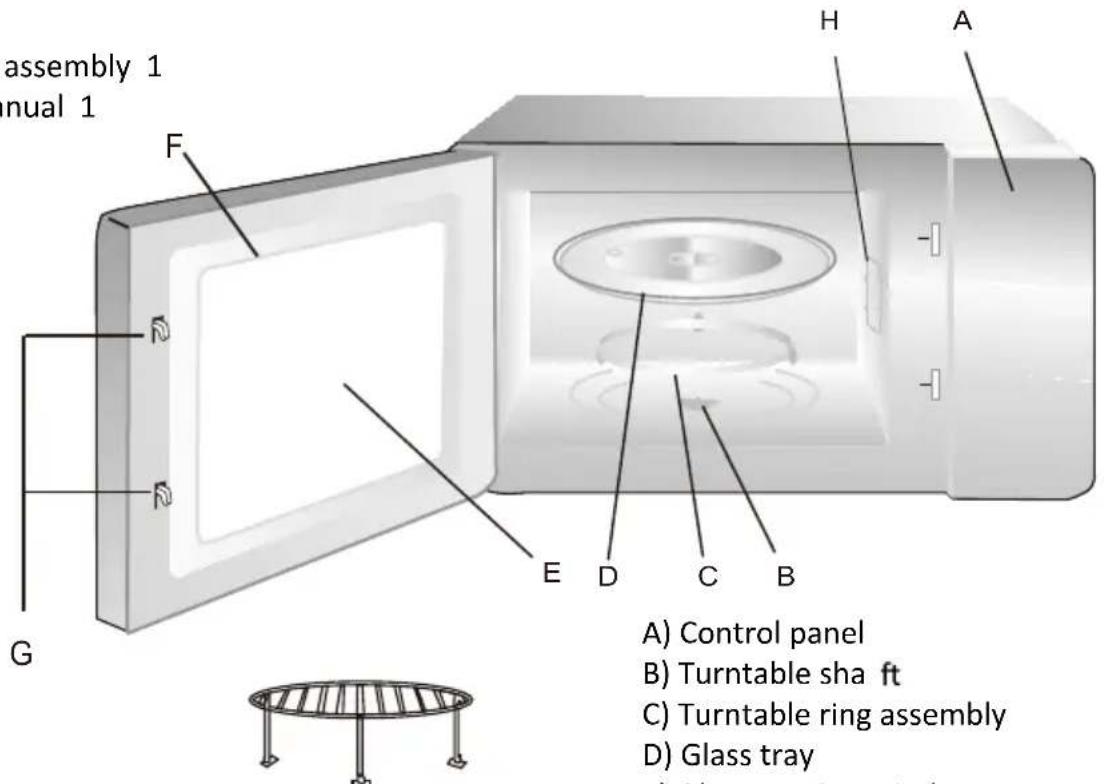

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Shut off oven power if the door is opened during opera on. Glass tray 1 Turntable ring assembly 1 Instruc on Manual 1 A) Control panel B) Turntable sha C) Turntable ring assembly D) Glass tray E) Observa on window F) Door assembly G) Safety interlock system

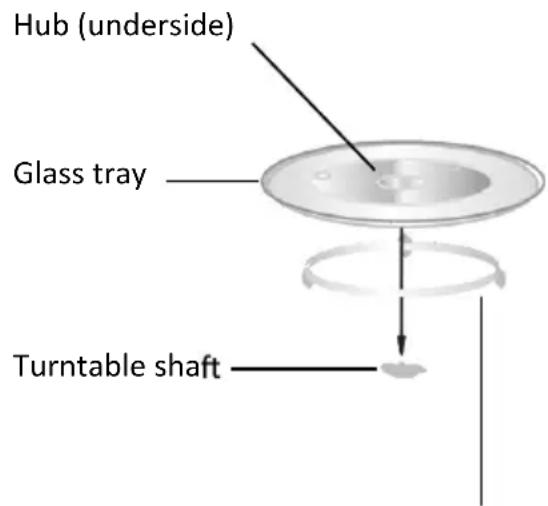

H) Mica Cover Grill Rack (O nly for Grill series)EN 9 Turntable Installa on a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable ring assembly Installa on

1. Remove any protec ve film found on the microwave oven cabinet surface, do not remove

the light white Mica cover that is a ached to the oven cavity to protect the magnetron.

2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside

3. The appliance can be installed in a 60cm wide wall-mounted cupboard (at least 55cm deep).

4. The appliance is fi

ed with a plug and must only be connected to a properly installed earthed socket.

5. The mains voltage must correspond to the voltage specified on the ra

6. The socket must be installed and connec

ng cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installa on, an all-pole disconnec ng device must be present on the installa on side with a contact gap of at lease 3mm.

ay strips and extension leads must not be used. Overloading can result in a risk of fire. Hub (underside) Glass tray Turntable shaEN

” or “ ” to adjust the hour figures, the input time should be within 0-23. “ ” to confirm the se ng, then the minute figures will flash.

Note: 1. If the clock is not set, it will not func on when powered.

2. When plugged in, you can press “ ” directly to confirm and finish the clock se

1) Press “ ”, the Microwave LED “

” will flash and display “750W”. “ ” to confirm and start se ng the microwave power.

3) Press “ ” to choose the power level. Press ” or “ “ ” to confirm.

4) Press “ ” or “ ” to set the cooking me.

5) Press “ ” to start cooking.

Note: The me step quan the flow ty will be changed one by one second, while long presses will accelerate

When the microwave oven is plugged in, the Clock LED “ ” and “12:00” will display, the hour figure will flash.EN 11

1) Press “ ”, the “ ” LED will flash. Press “ ” to confirm.

3) Press “ ” to start cooking.

6. Defrost by weight

1) Press “ ”, the “ ” LED will flash.

2) Press “ ” to choose the Weight Defrost, the “ ” LED will flash. Press “ ” to confirm.

“ ”, and Bread “ ” LEDs will flash. Press “ ” to confirm.

4) Press “ ” or “ ” to choose the defrost weight.

5) Press “ ” to start cooking.

the Grill LED " " will flash. Press " "

2) Press " " to choose the Grilli funcon,

ss " ", the Microwave LED " " will flash and display "750W". to confirm. 3 Press " " or " " to set the cooking me.

4) Press " " to start cooking.

2) Press " " to choose the Combi funcon, the Combi LED " " will flash. Press " "

ss " ", the Microwave LED " " will flash and display "750W".

4) Press " " or " " to set the cooking me.

5) Press " " to start cooking.

3) Press " " or " " to choose the power level. Press " " to confirm.EN 12

You can secure your appliance to prevent children from accidentally switching it on or changing the

1) In standby and cooking states, press “ ” and “ ” for 3 seconds, buzzer will ring once,

the lock is ac vated.

2) In standby and cooking states, press “ ” and “ ” for 3 seconds to unlock.

3) If the lock is ac vated in cooking state, press “ ” one me to pause cooking, press “ ”

twice or hold for 3 seconds to cancel cooking.

10. Automa opening door

1) In standby state, press “ ”, the oven light will be on, the door will open automa cally.

2) In cooking state, press “ ”, the door will open automa

cally. Note: A er opening the door, the motor needs a certain me to go back, about 1 second.

1) Press “ ”, the Microwave LED “ ” will flash and display “750W”.

2) Press “ ” or “ ” to choose the Auto Menu func

on. The “ ” LED will flash.

3) Press “ ” to confirm, the “A-01” LED will flash.

4) Press “ ” or “ ” to choose the Auto Menu from “A-01” to “A-05”. Press “ ” to confirm.

5) Press “ ” or “ ” to choose the food weight.

6) Press “ ” to start cooking.

1) In standby state, press “ ” to start cooking with 100% power, each added press will increase

the cooking me by 30 seconds up to 95min.

2) In cooking state, each press of “ ” can increase the cooking

3) In cooking state, press “ ” to pause cooking, press “ ” or “ ” to adjust cooking me,

press “ ” again to con nue cooking.EN 13 This appliance is labelled in accordance with European Direc ve 2012/19/EU on Waste Electrical and Electronic Equipment Regula ons 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both pollu ng substances (that can have a nega ve effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollu tants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essen al to follow a few basic rules: – the WEEE should not be treated as domes c waste; – the WEEE should be taken to dedicated collec on areas managed by the town council or a registered company. In many countries, domes c collec ons may be available for large WEEEs. When you bu y a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same func ons as the purchased appliance. Low power consump on data according to Commission Regula on (EU) 2023/826. Condi

Period a er which the equipment reaches automa cally the condi on Standby mode with informa on or status display 0.8W 20 Min Cod: 38900849-4 Normal Microwave oven interfering TV recep

Radio and TV recep on may be interfered when microwave oven opera ng. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim. It is normal. Steam accumula ng on door, hot air out of vents In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Oven started accidentally with no food in. It is forbidden to run the unit without any food inside. It is very dangerous. Trouble Possible Cause Remedy Oven can not be started. (1) Power cord not plugged in ghtly. Unplug. Then plug again a er 10 seconds. (2) Fuse blowing or circuit breaker works. Replace fuse or reset circuit breaker (repaired by professional personnel of our company) (3) Trouble with outlet. Test outlet with other electrical appliances. Oven does not heat. (4) Door not closed well. Close door well. Glass turntable makes noise when microwave oven operates (5) Dirty roller rest and oven bo om. Refer to “Maintenance of Microwave” to clean dirty parts.FR 14
