USER MANUAL H1M1AG1MONITORARM StarTech.com

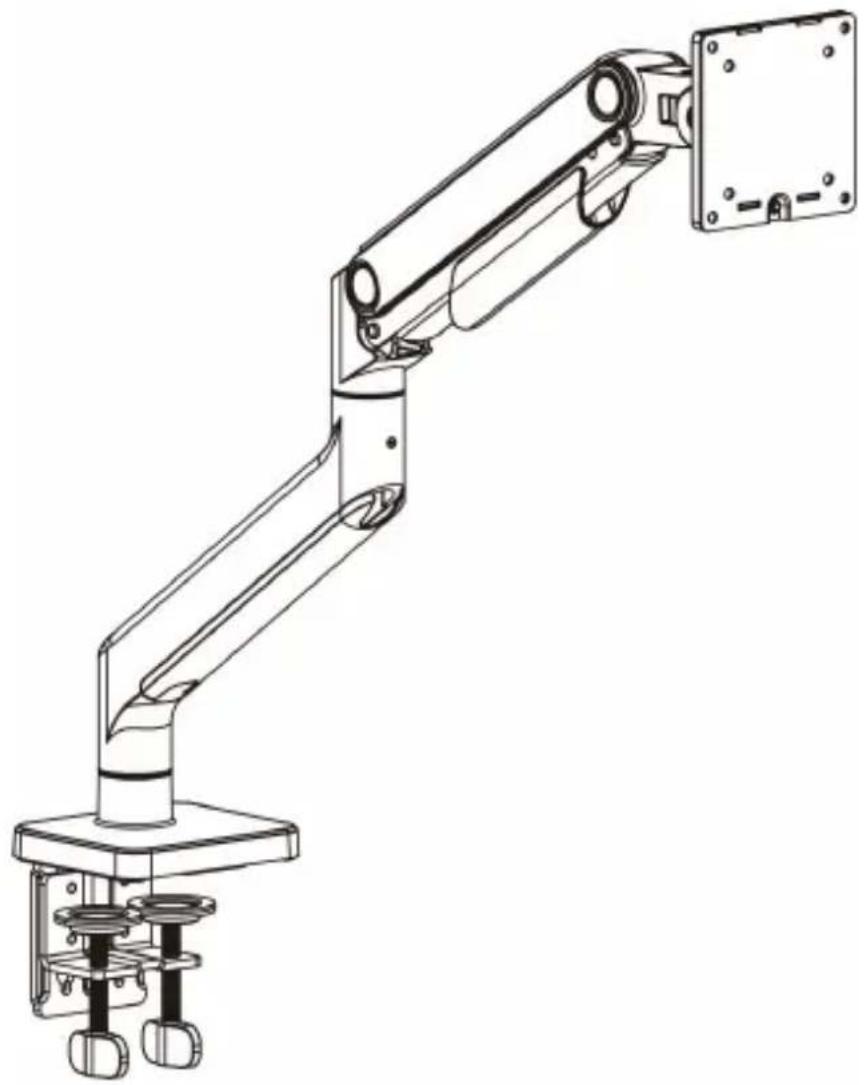

Heavy-Duty Monitor Desk Mount - Height Adjustable - For up to 49" Monitors

Full-Product Manual H1M1AG1-MONITOR-ARM

Actual products may vary from photos

Safety Statements

Safety measures

• Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

Warning Statements

StarTech.com Ltd. is not responsible for any property damage and/or personal injury resulting from the installation procedures outlined in this technical document.

• Assemble this product according to the instructions. Read the entire manual and ensure the instructions are fully understood before assembling and/or using this product.

• Always assess the product's stability, with the aid of a second person, during and after the initial display mounting and whenever adjustments are made.

• Do not exceed the weight capacity of this product. Overloading this product might result in personal injury or property damage.

The weight capacity of the monitor arm: 4.4-44 lb (2-20 kg).

• Do not allow children to climb on this product or to use this product without proper supervision.

This product is intended for indoor use only and should not be used outdoors.

• Do not over-tighten the screws. If any resistance is encountered, stop tightening.

• Assembling this product is a two-person task. Do not attempt to assemble this product and install equipment without assistance.

• Before adding equipment to this product, ensure the product has been properly assembled, and that the product can support the weight of the added equipment.

• Make sure all of the equipment has been properly secured before adjusting this product.

• Stored Energy Hazard! This product contains a spring mechanism which can cause the mounted display to move forcibly, and quickly, upwards. Always exercise caution when adjusting the position of, or in close proximity to, the mounted display.

• 'Pinch hazards! Keep hands away from any pinch points created by the mechanical components when lowering or raising the display. Failure to do so may result in serious personal injury.

• To avoid damage to the monitor or mount, do not make adjustments while the arm is in a horizontal position.

• Do not position the monitor beyond the rear edge of the desk to maintain the mount's stability and prevent it from detaching from the desk. Failure to do so could result in personal injury and/or property damage.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

Avertissements

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

Waarschuwingen

Safety Statements. 2

Warning Statements 3

Requirements 11

Package Contents. 11

Product Diagrams 14

Assembly 18

1. Desk Clamp Assembly 18

Method A) For Surface Edge Clamp Mount. 18

Method B) For Grommet Mount 21

1. Swivel Arm Assembly 22

Method A) For +90^ Rotation 22

Method B) For +180^ Rotation 22

1. Spring Arm Assembly 23

2. VESA Mount Assembly and Monitor Installation 24

3. Monitor Balancing 26

6.Cable Management 27

Operation 28

Tilt 28

Pan 28

Rotation 28

Warranty Information. 31

Limitation of Liability 31

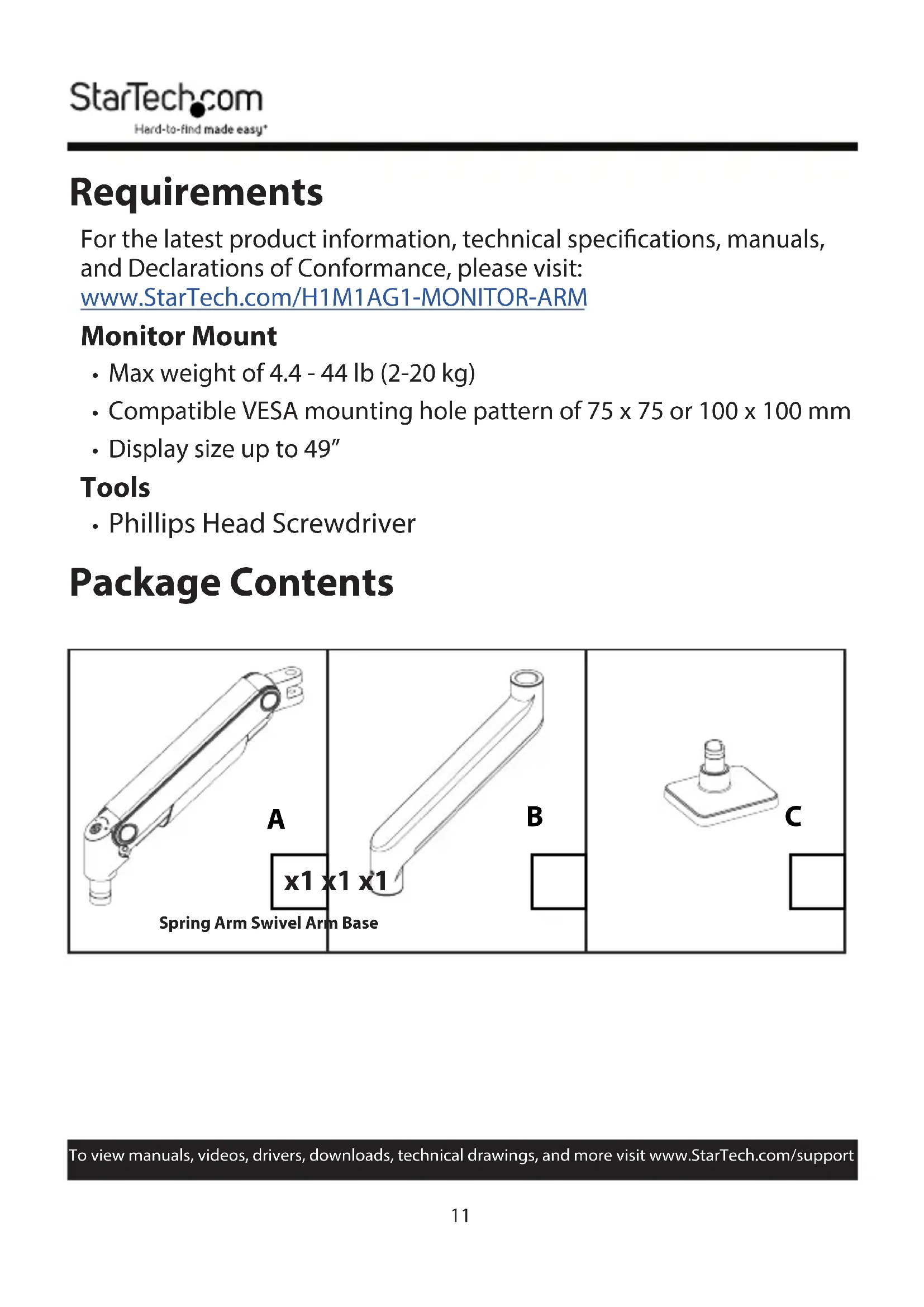

Requirements

For the latest product information, technical specifications, manuals, and Declarations of Conformance, please visit: www.StarTech.com/H1M1AG1-MONITOR-ARM

Monitor Mount

• Max weight of 4.4 - 44 lb( 2 - 20 kg)
• Compatible VESA mounting hole pattern of 75 × 75 or 100 × 100 ~mm
• Display size up to 49''

Tools

• Phillips Head Screwdriver

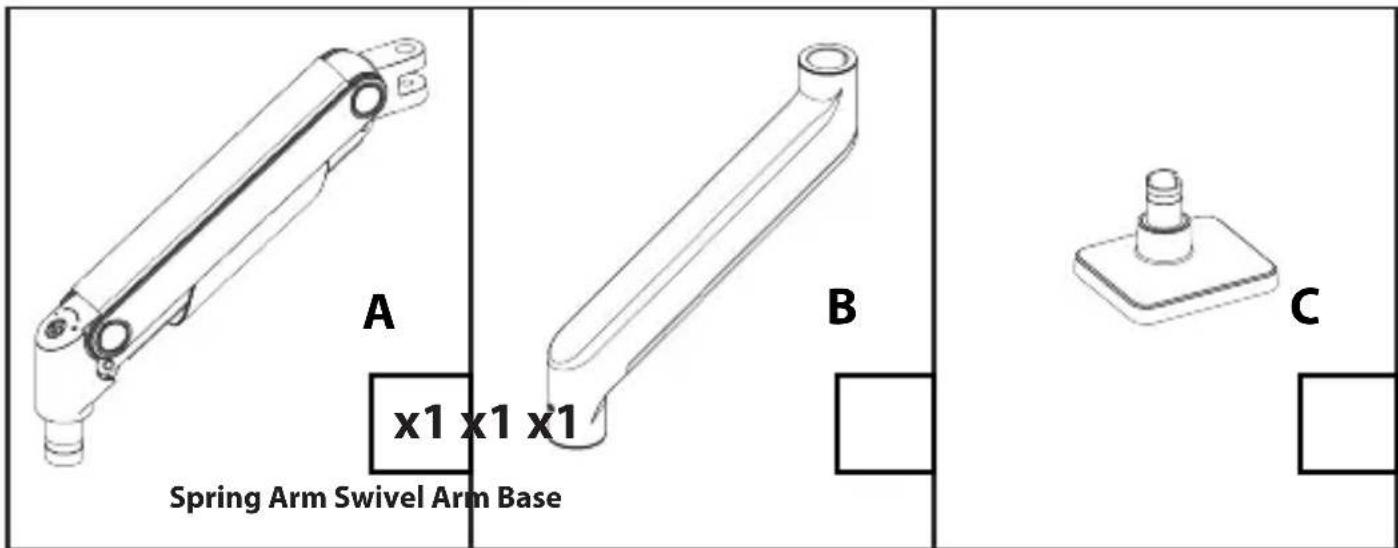

Package Contents

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

D x1 x1 x1 VESA Mount Assembly Des Clamp Bracket, Upper Desk Clamp Bracket, Lower		E F G H I J K L O P Q R S T U V W A B C D E F G H I J K L O P Q R S T U V W A B C D E F G H I J K L O P Q R S T U V W A B C D E F G H I J K L
G x1 x2 x2 Grommet Plate Clamping Discs Clamping Screws
J x1 x2 x2 VESA Mount Nut Small Washers M4x10mm Screws

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

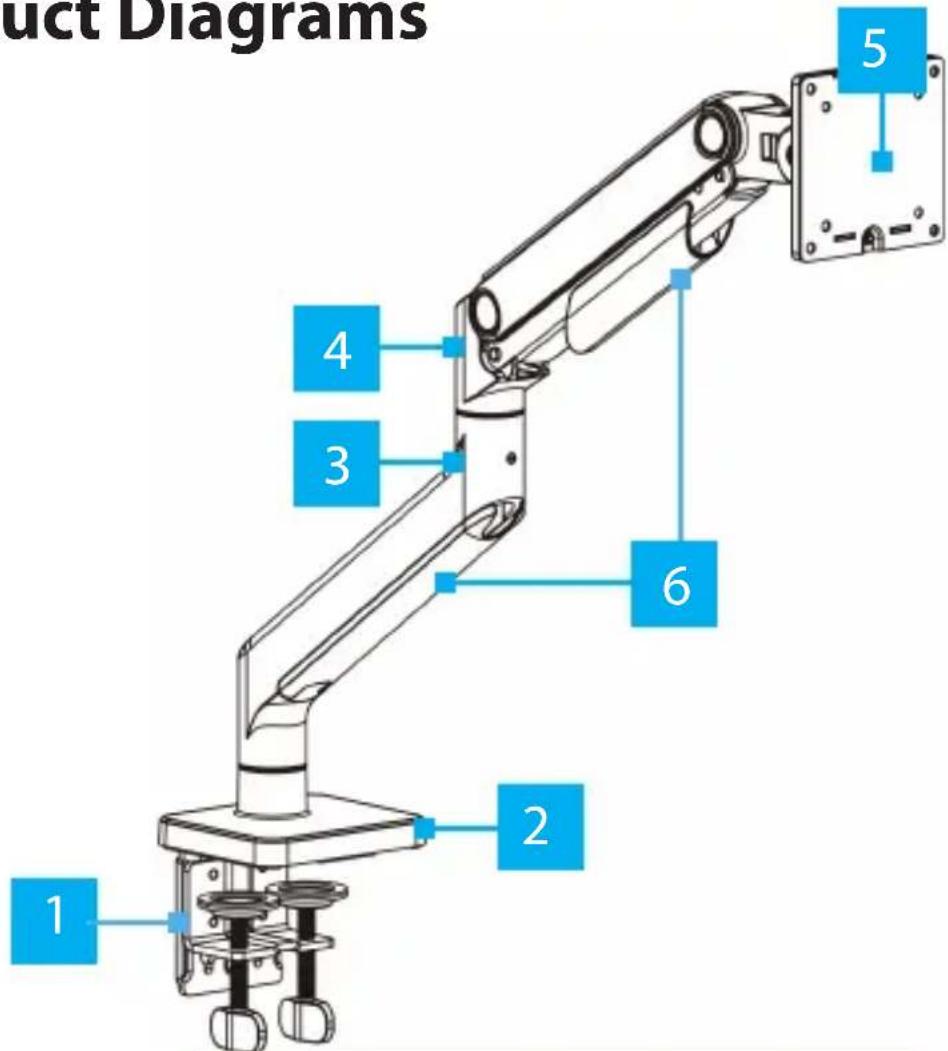

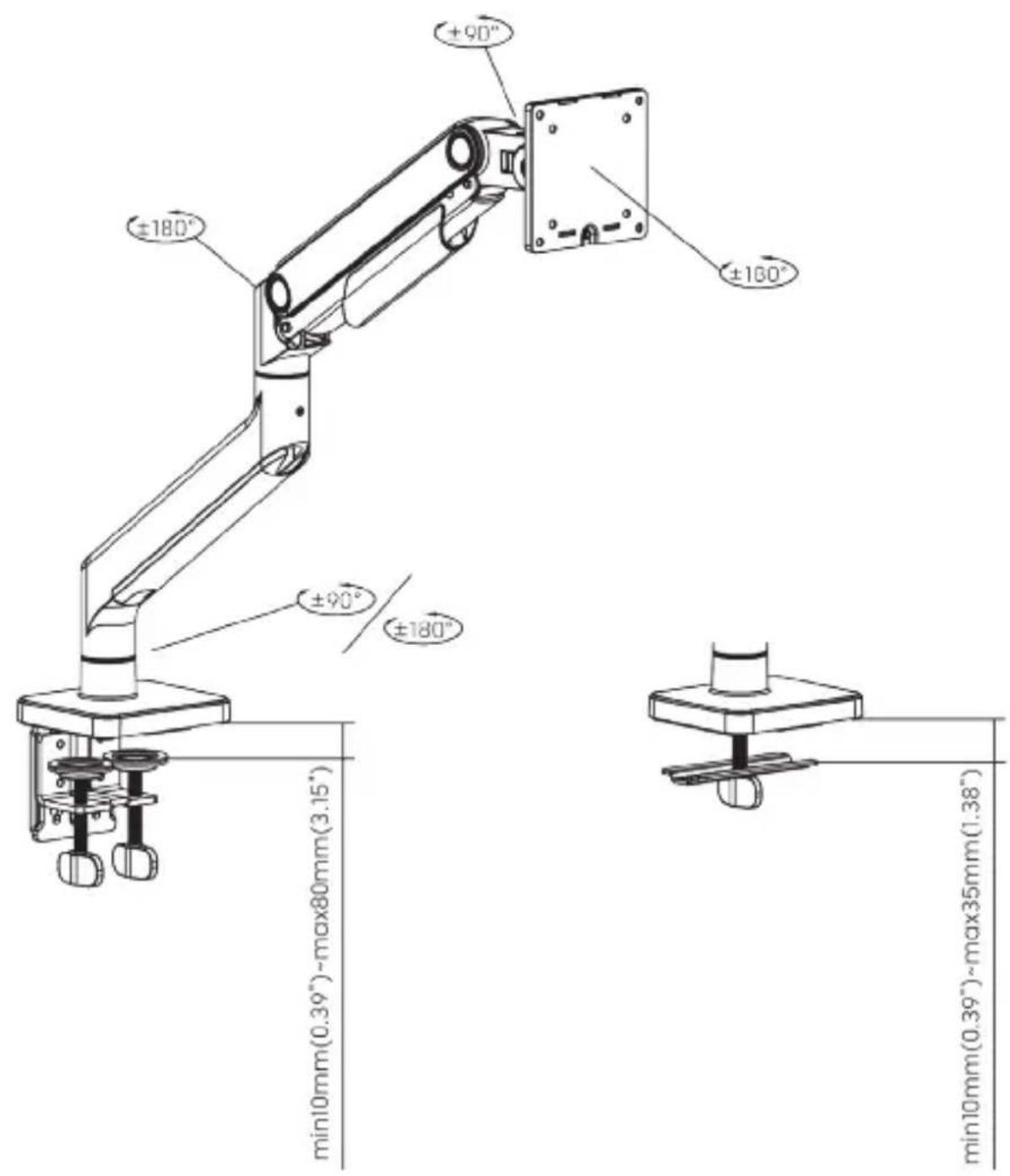

Product Diagrams

Component
1	Desk Clamp
2	Base
3	Swivel Arm
4	Spring Arm
5	Monitor VESA Mount
6	Cable Covers

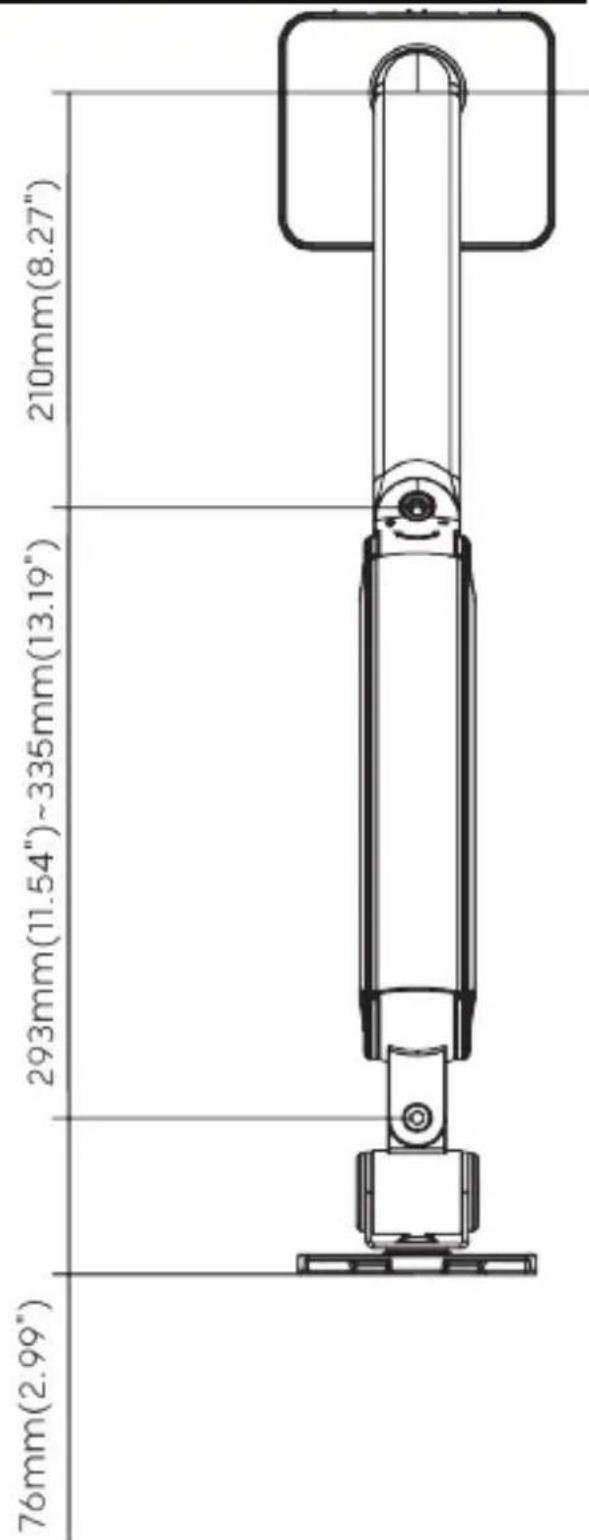

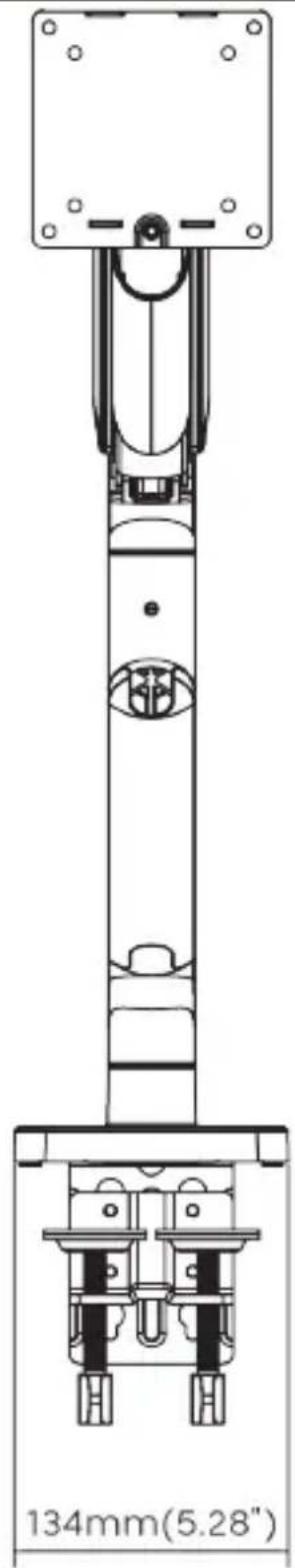

Front View Top View

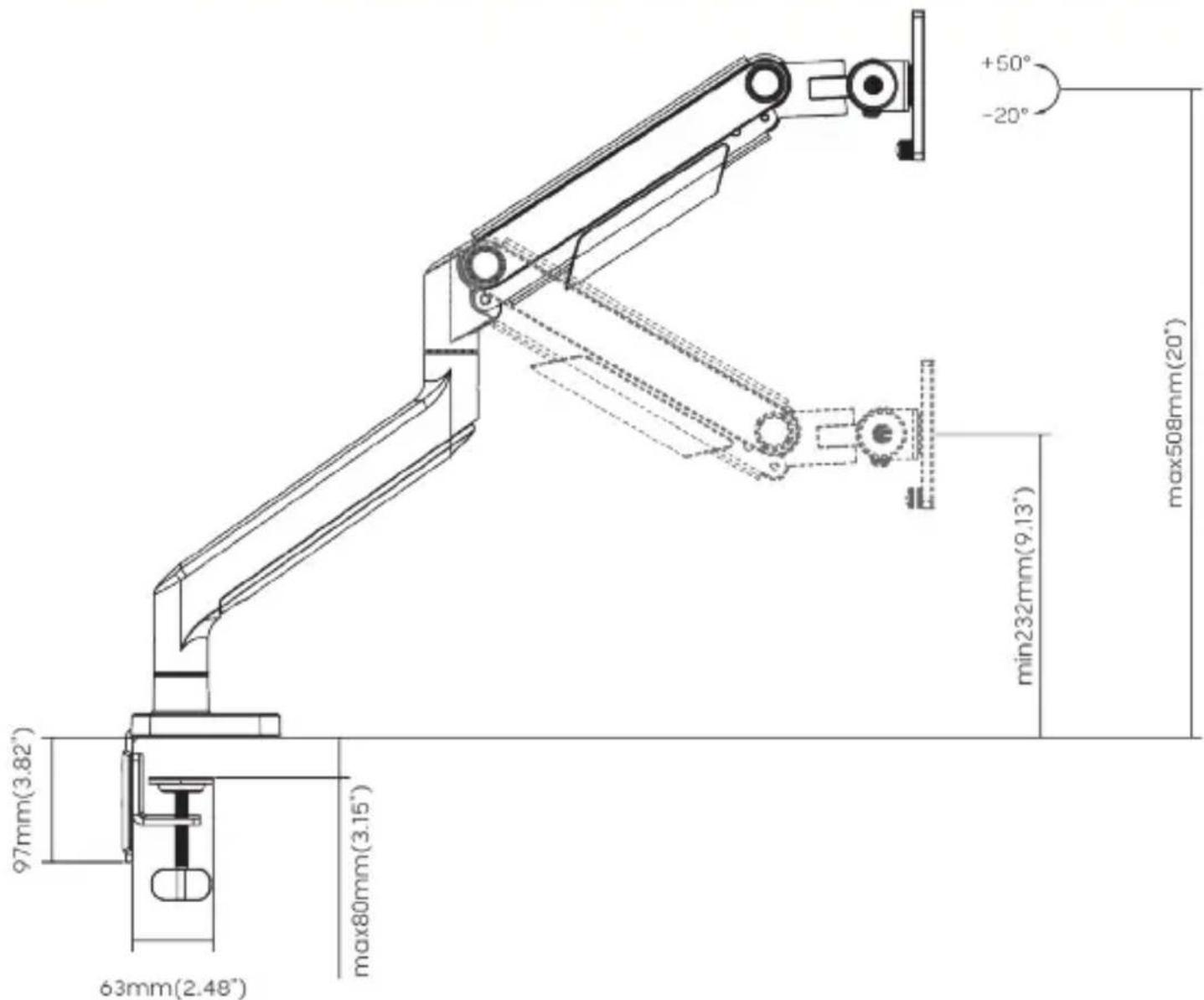

Side View

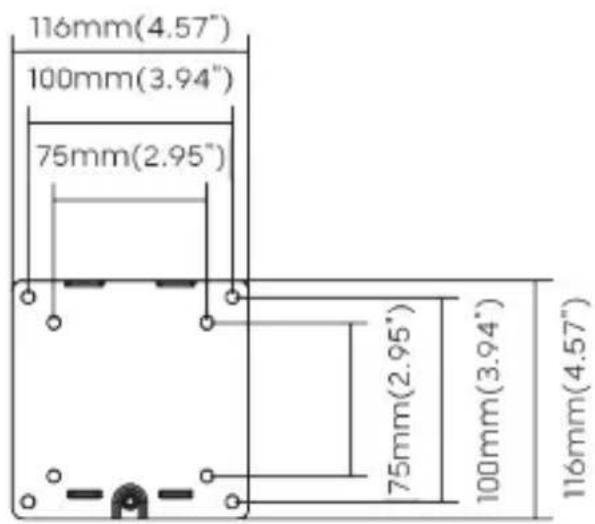

VESA Mount

Assembly

WARNING!

Pinch hazards! Keep hands away from any pinch points created by the mechanical components when lowering or raising the display. Failure to do so may result in serious personal injury.

Do not over-tighten the screws. If any resistance is encountered, stop tightening.

1. Desk Clamp Assembly

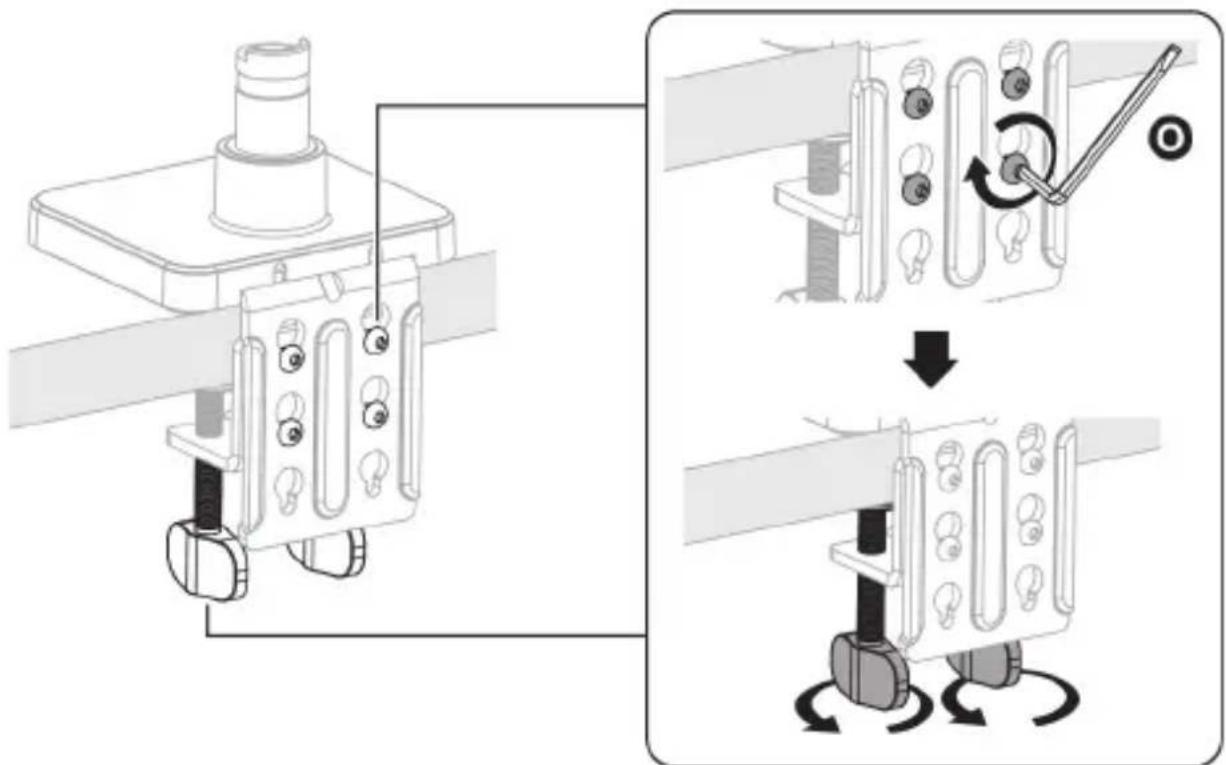

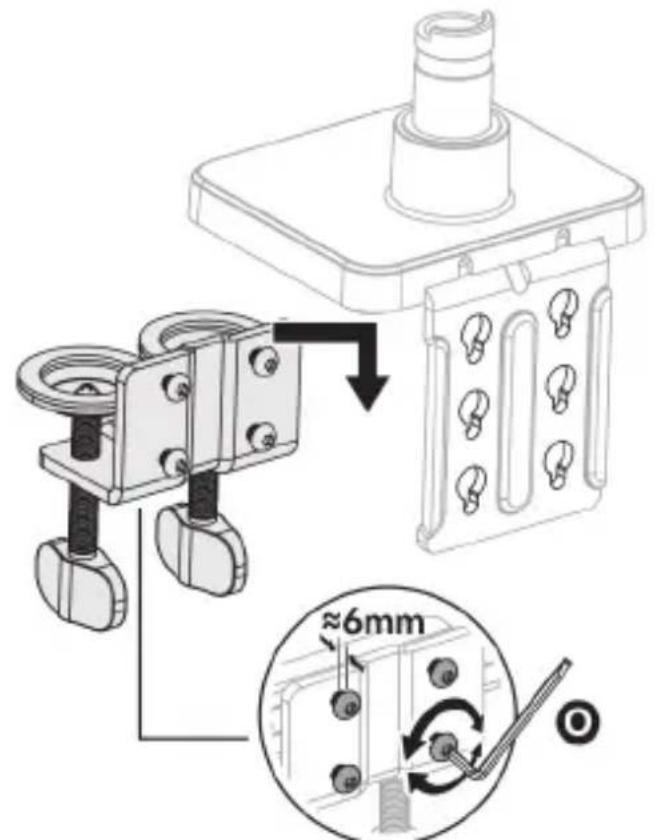

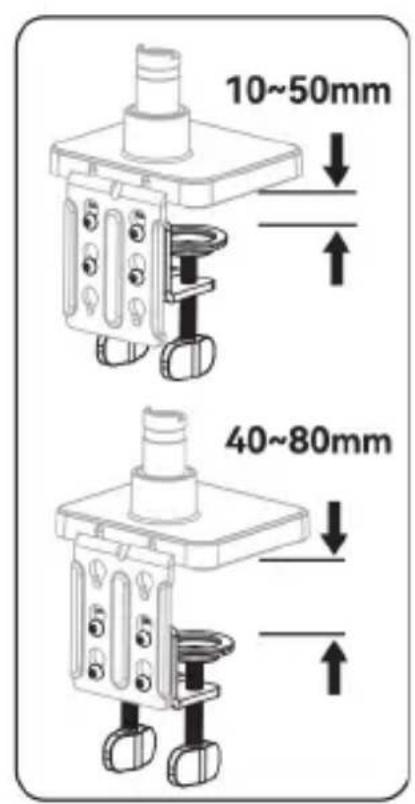

Method A) For Surface Edge Clamp Mount

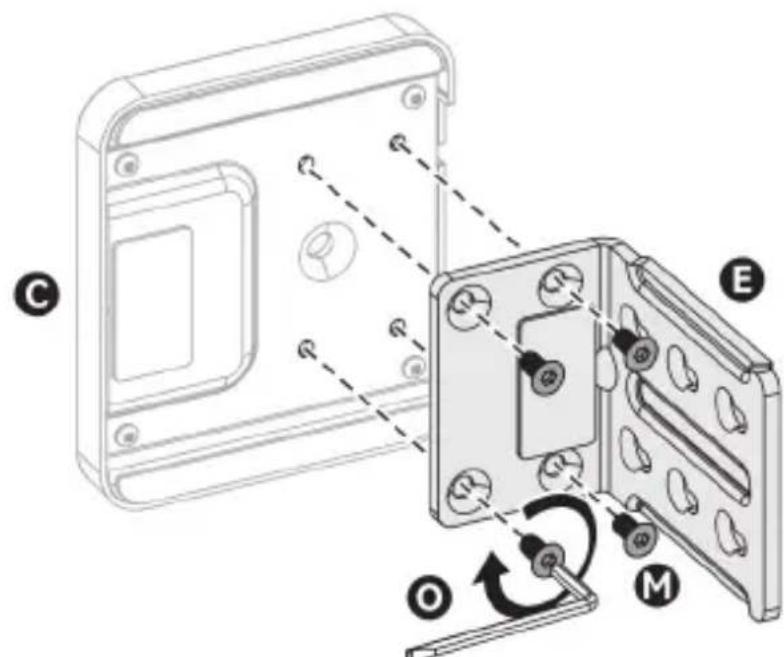

i)
Figure 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

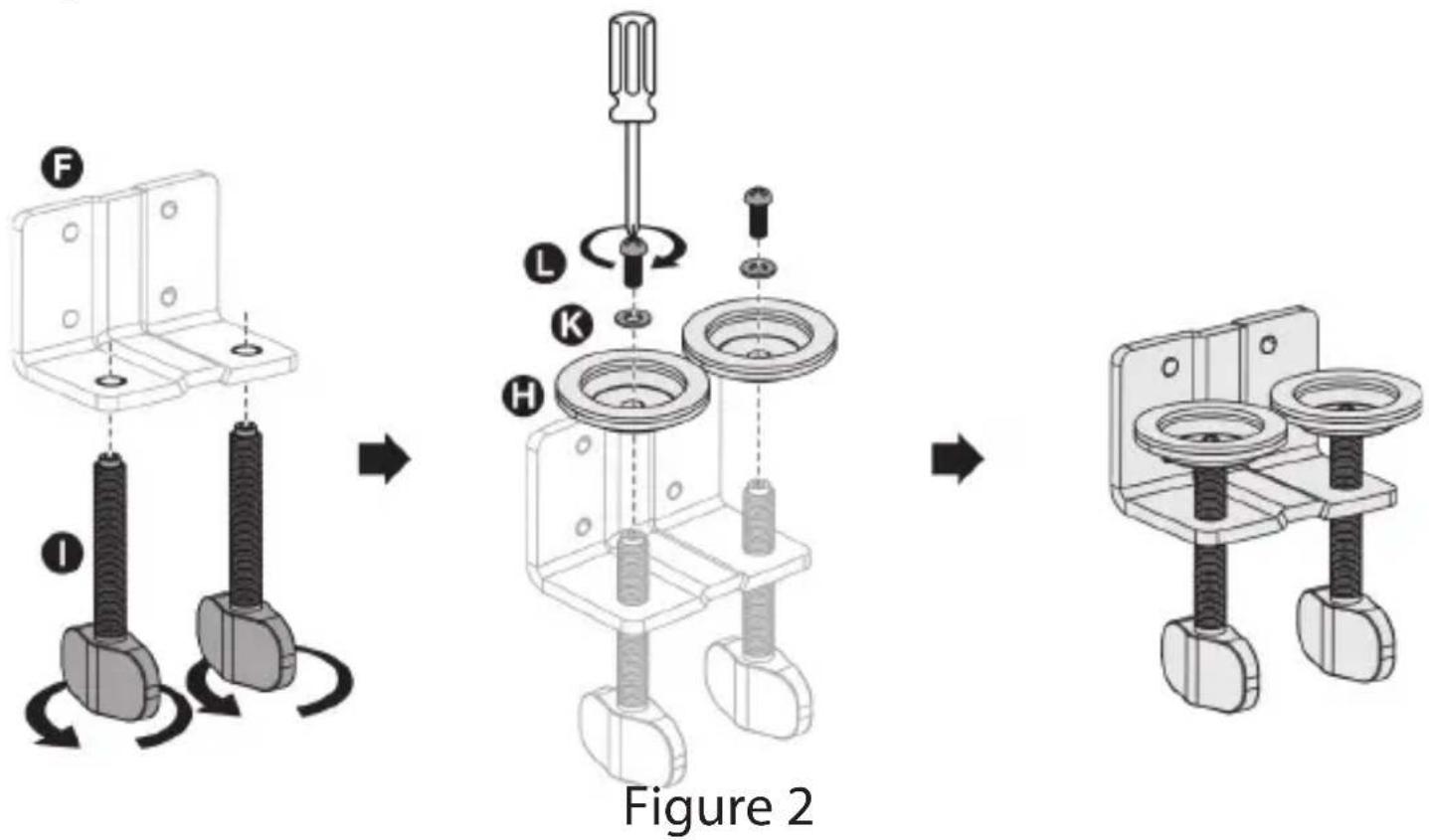

ii)
iii)

Figure 3

iv)
Figure 4

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

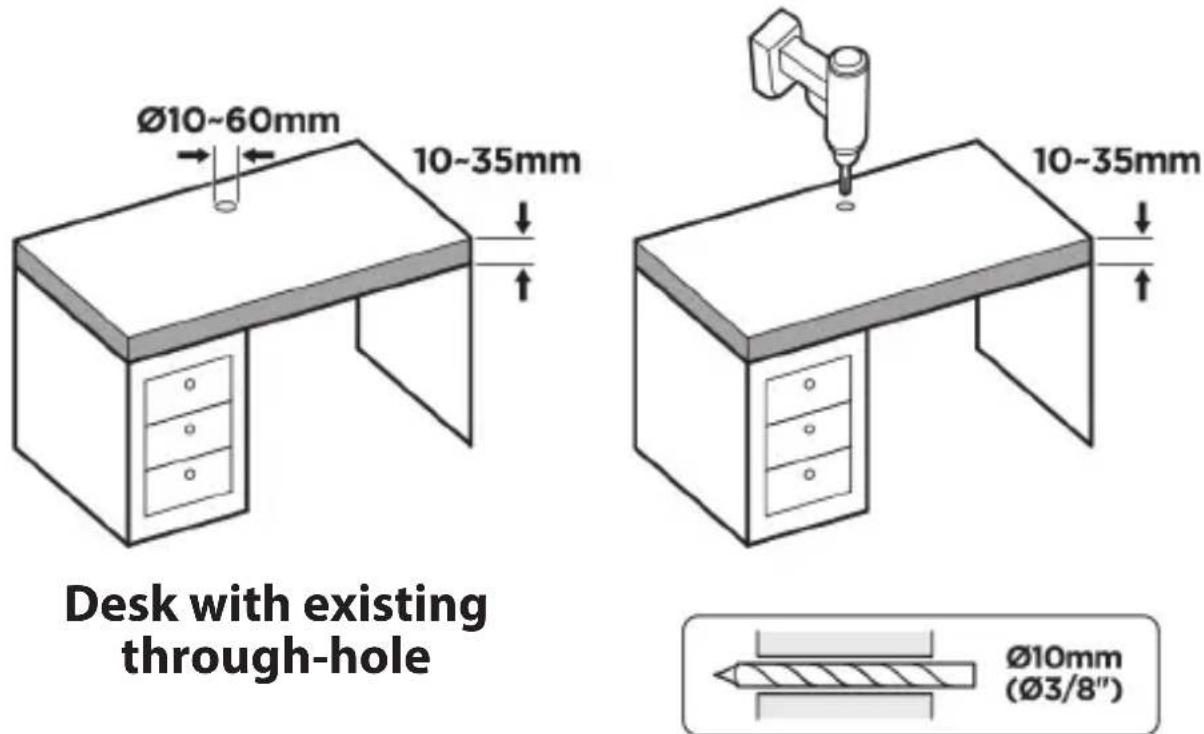

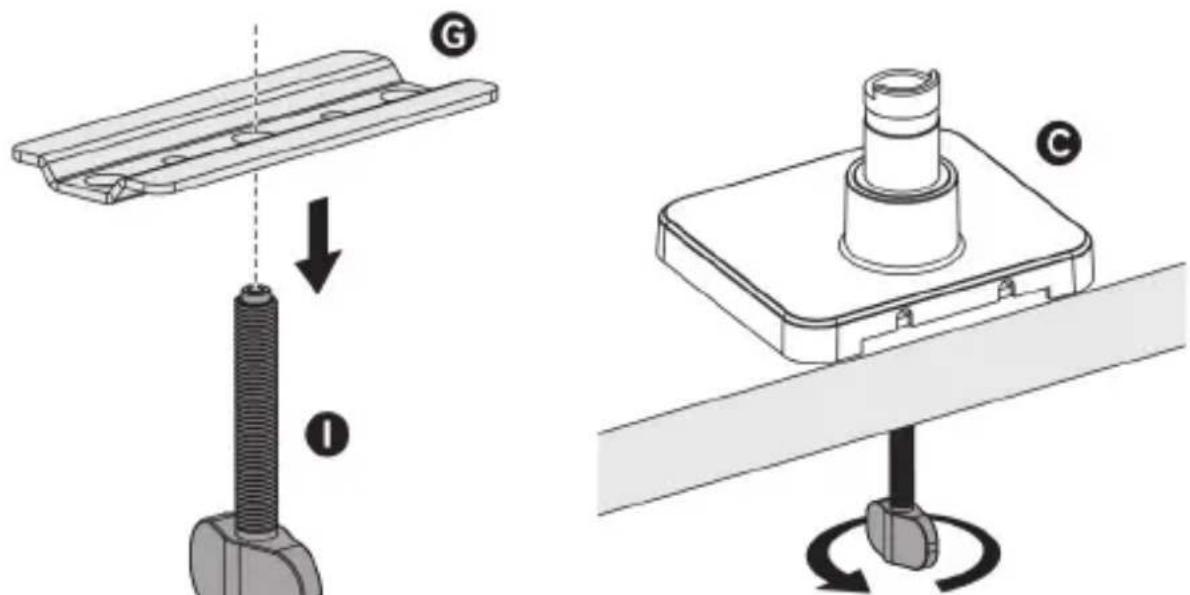

Method B) For Grommet Mount

i)
Figure 5
ii)

Figure 6

2. Swivel Arm Assembly

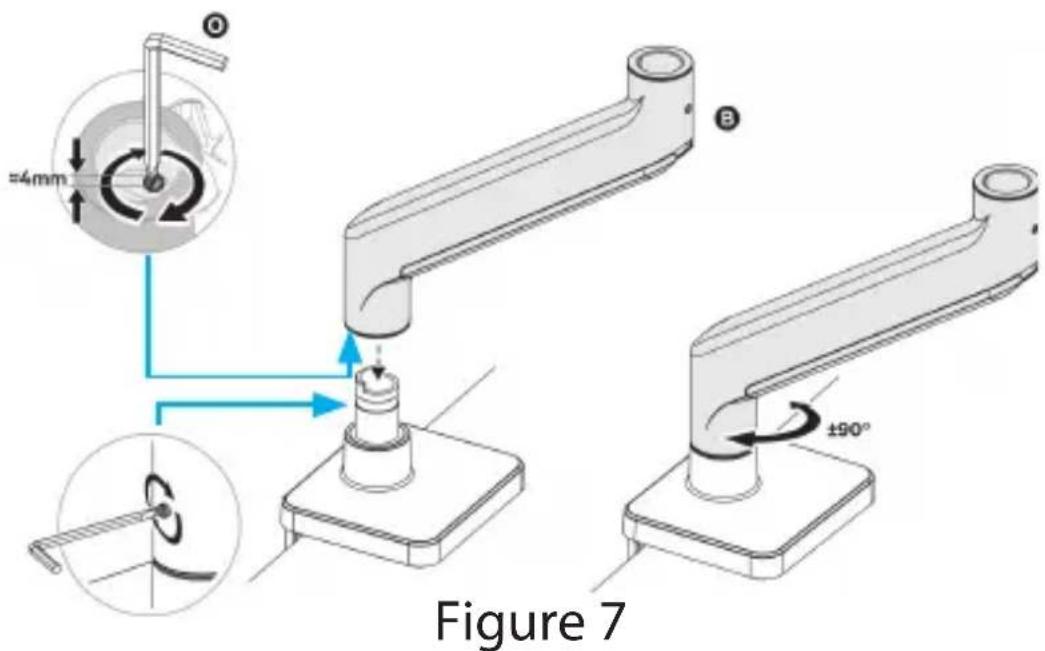

Method A) For +90^ Rotation

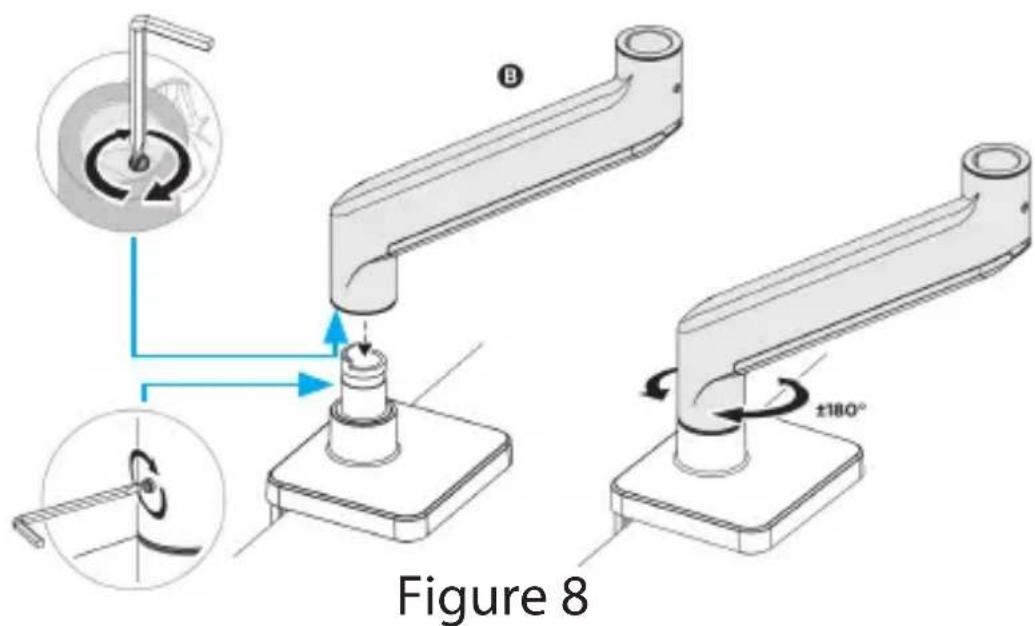

Method B) For +180^ Rotation

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

WARNING!

Stored Energy Hazard! This product contains a spring mechanism which can cause the mounted display to move forcibly, and quickly, upwards. Always exercise caution when adjusting the position of, or in close proximity to, the mounted display.

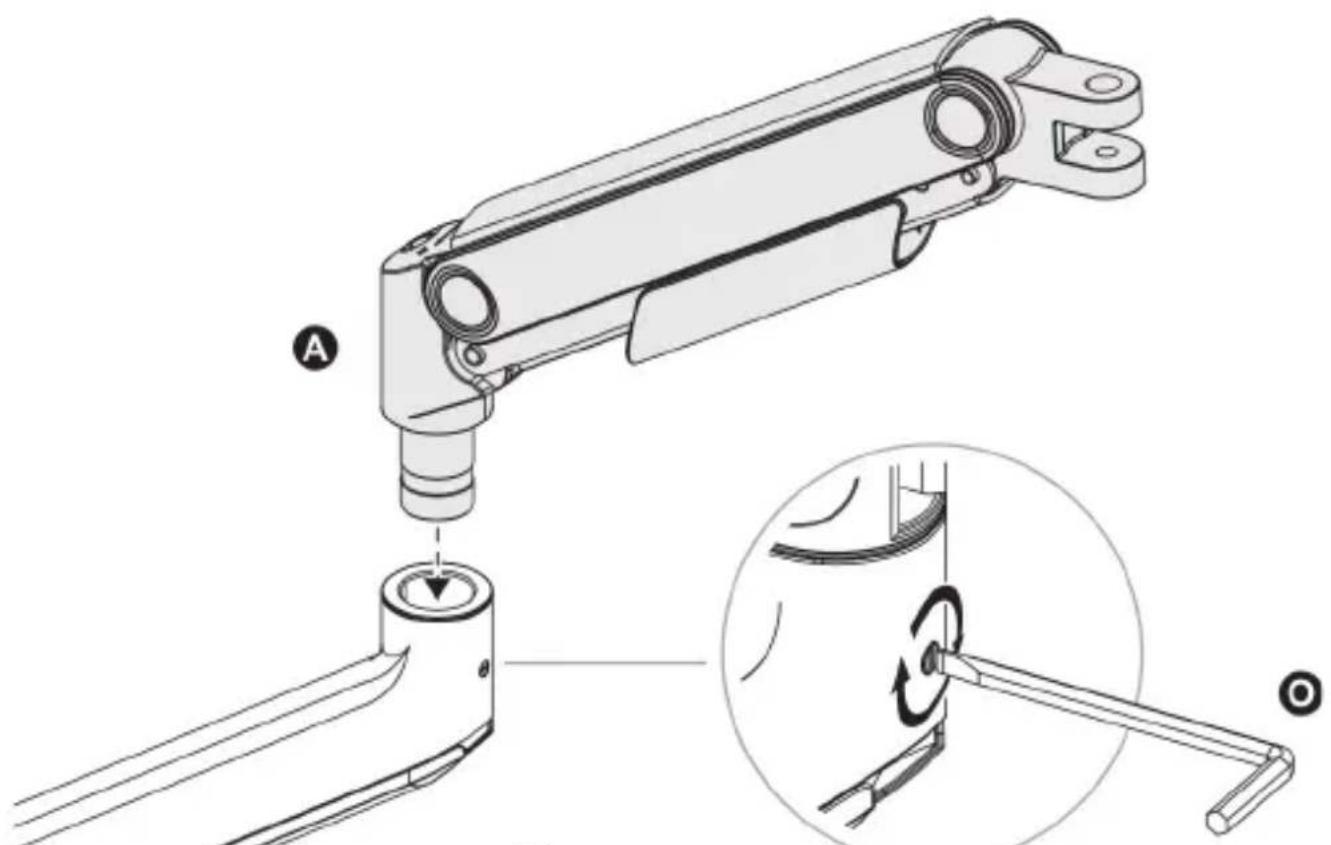

3. Spring Arm Assembly

Figure 9

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

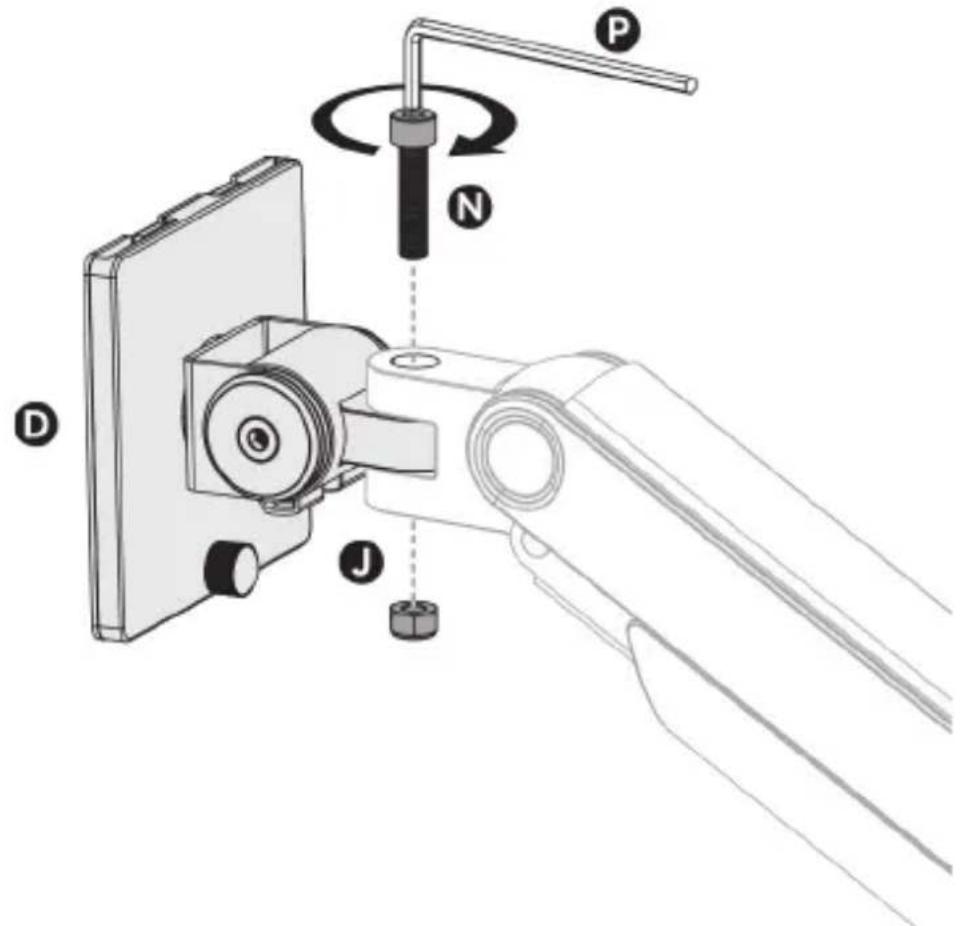

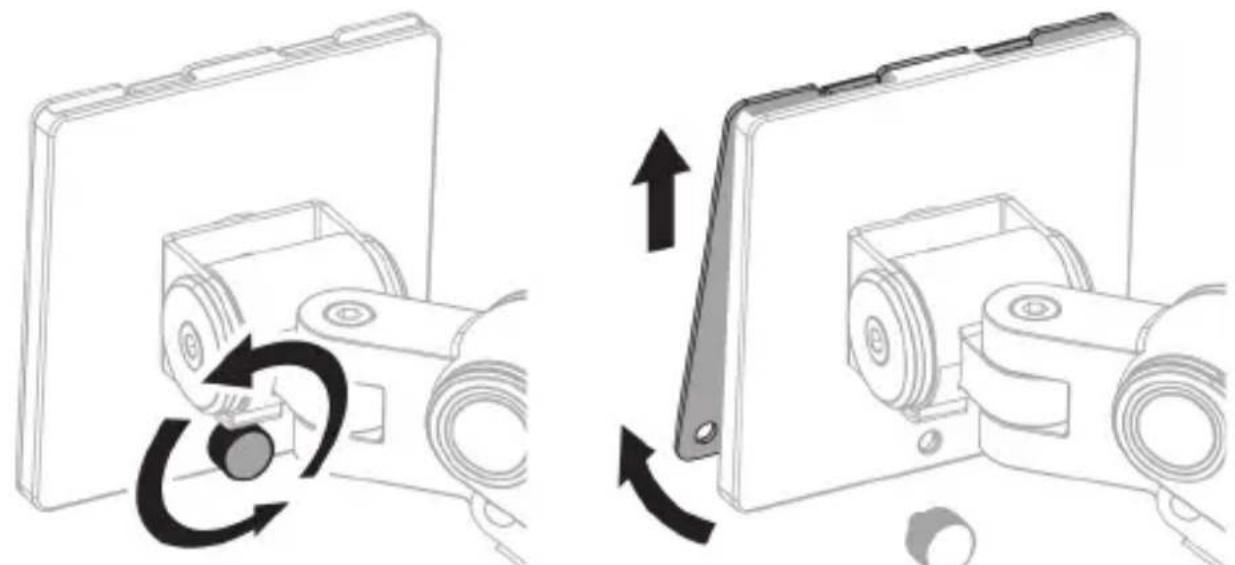

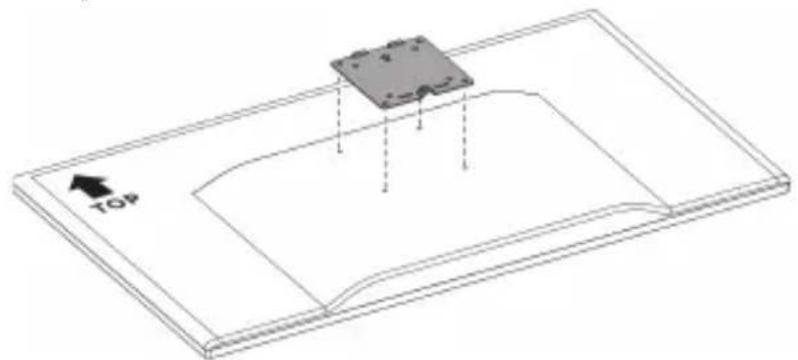

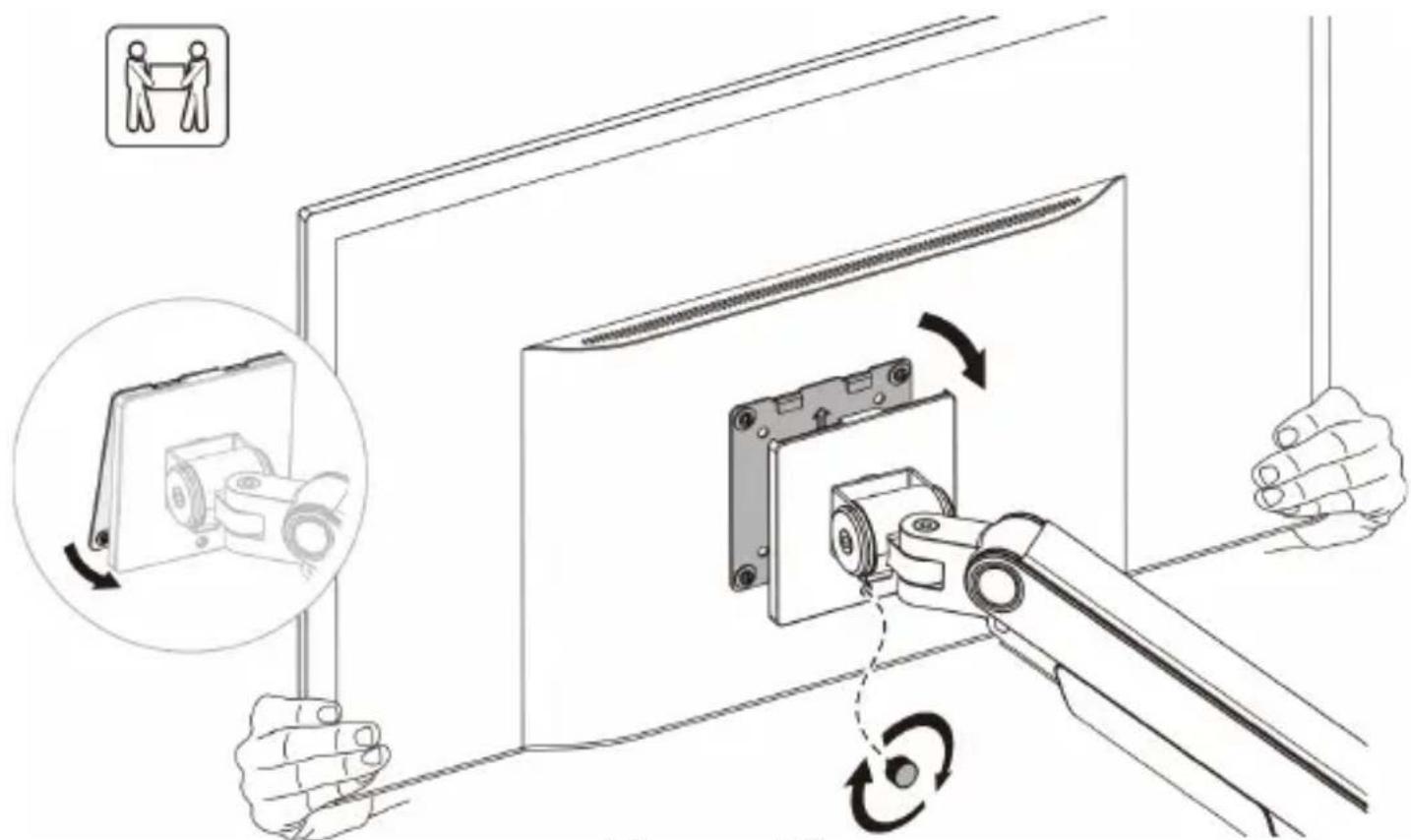

4. VESA Mount Assembly and Monitor Installation

i)
Figure 10

ii)
Figure 11

iii)

Figure 12

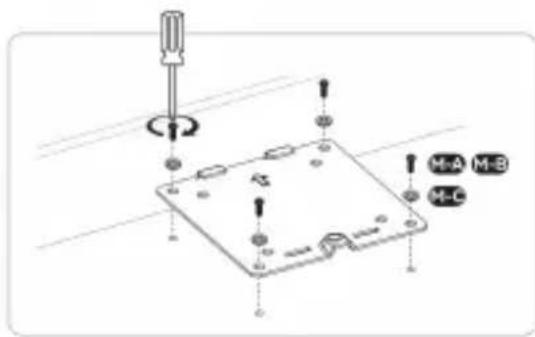

Use either set of the included monitor mounting screws, M4x12mm (M-A) or M5x12mm (M-B) depending on which the monitor supports

iv)
Figure 13

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

5. Monitor Balancing

To properly balance the arm with the monitor mounted adjust the spring tension using the 6mm Hex Key.

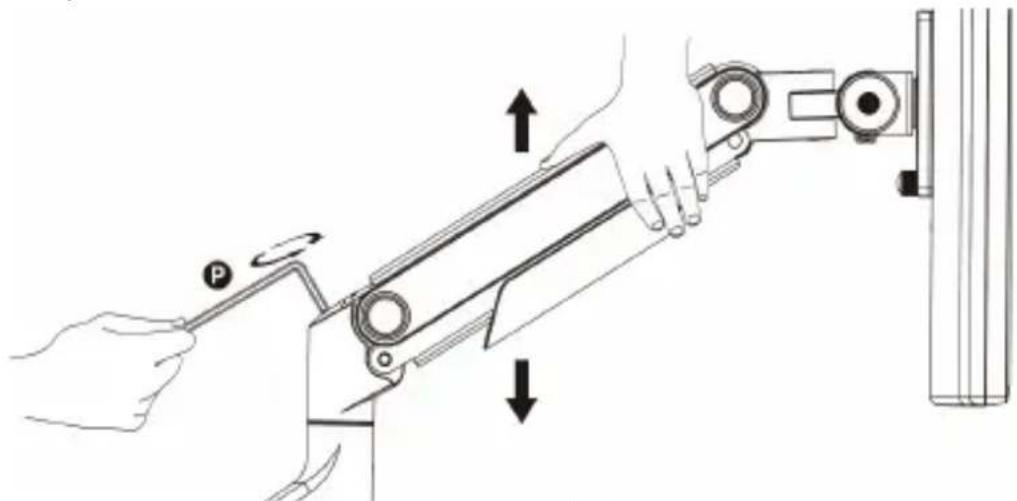

Position and firmly hold the arm (as shown in Figure 14) to make sure that the adjustment screw on the upper arm can be properly adjusted.

Figure 14

If the arm drops, turn the adjustment screw clockwise until it stays in a horizontal position.

If the arm rises, turn the adjustment screw counter-clockwise until it stays in a horizontal position.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

WARNING!

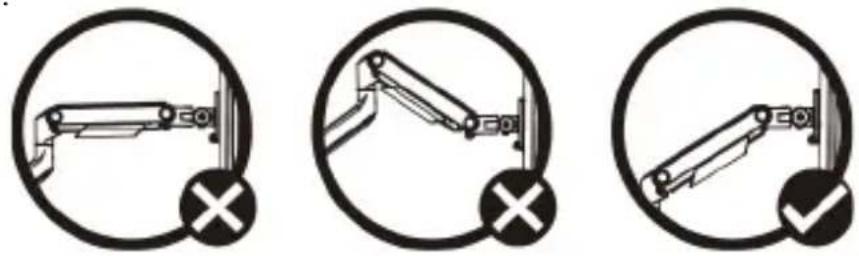

To avoid damage to the monitor or mount, do not make adjustments while the arm is in a horizontal or downward position.

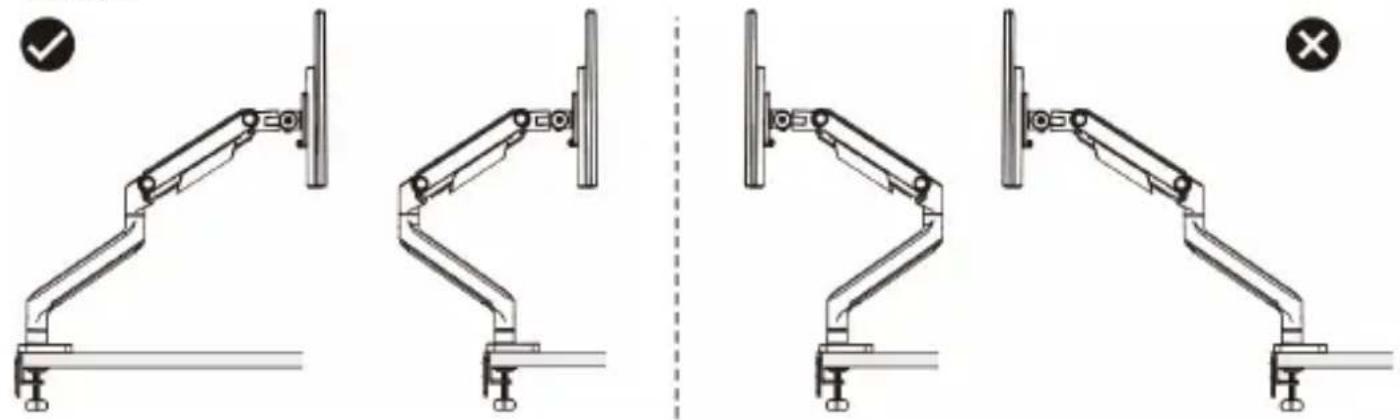

Do not position the monitor beyond the rear edge of the desk to maintain the mount's stability and prevent it from detaching from the desk. Failure to do so could result in personal injury and/or property damage.

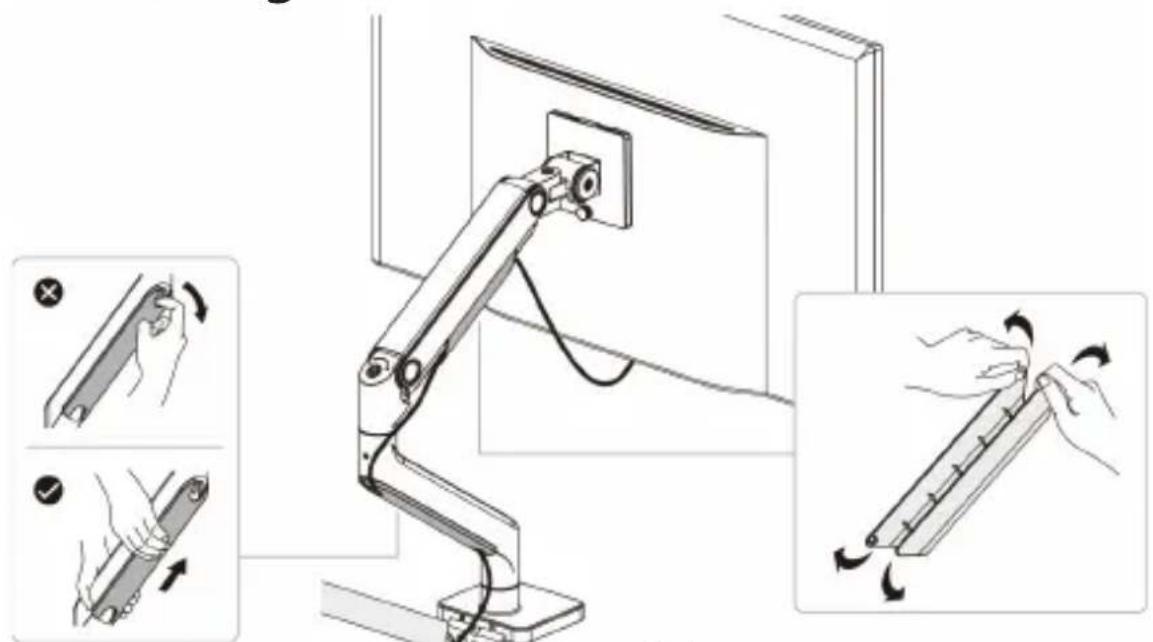

6. Cable Management

Figure 15

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

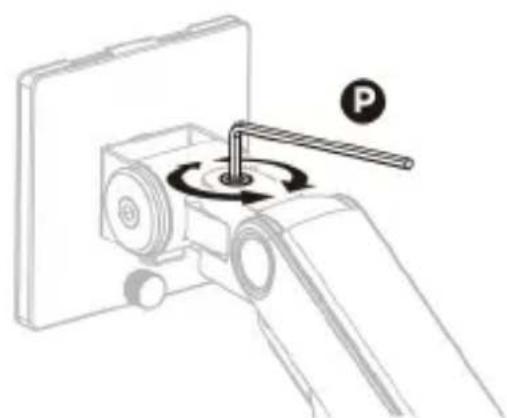

Operation

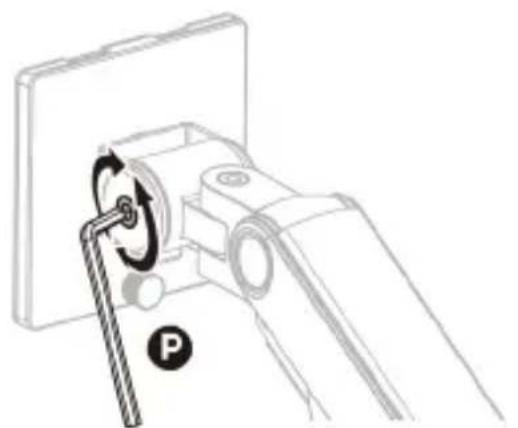

Tilt

Figure 16

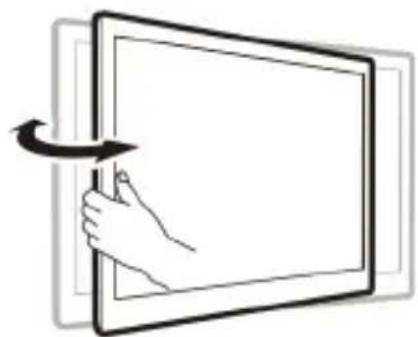

Pan

Figure 17

Rotation
Figure 18

Page Left Intentionally Blank

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

Page Left Intentionally Blank

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support

Warranty Information

This product is backed by a five-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
