Product Type	AC Automatic Voltage Regulator
Brand	EnerGenie
Model	EGAVR0501
Input Voltage	230 V AC, 50 Hz
Output Voltage	230 V AC regulated ± 10%
Rated Power	500 VA (approx. 300 W)
Frequency	50 Hz
Integrated Protection	Overvoltage, undervoltage, overload, short circuit
Socket Type	European mains socket (type C)
Dimensions (W x D x H)	15 x 10 x 10 cm
Weight	1.2 kg
Main Functions	Automatic voltage stabilization and regulation, noise filtering
Maintenance and Cleaning	Unplug before cleaning. Use a soft, dry cloth. Do not use chemical products.

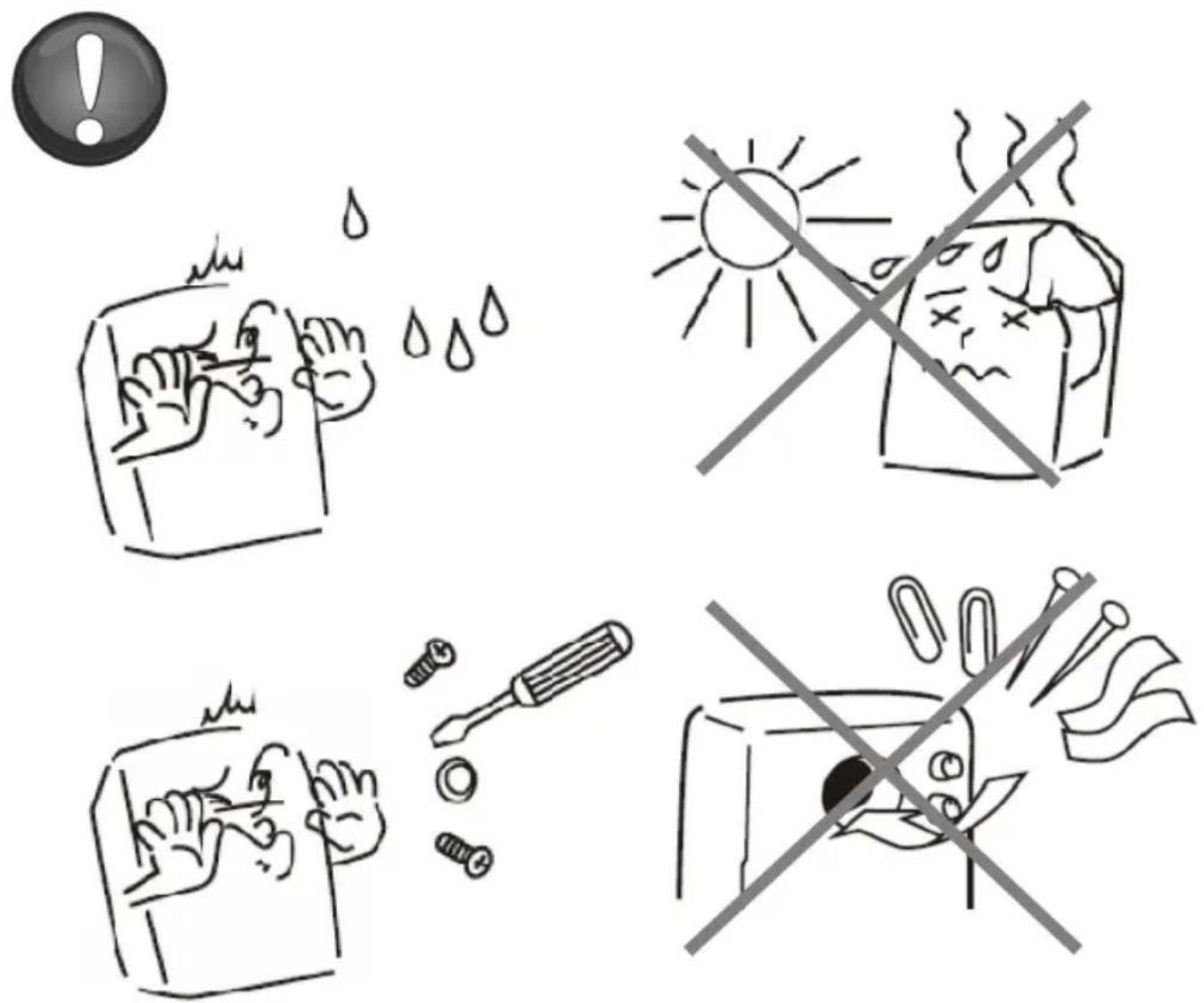

Safety	Do not open the device. Do not expose to water or moisture. Unplug during storms.
Spare Parts and Repairability	No spare parts available. In case of failure, contact after-sales service.
Operating Temperature	0 °C to 40 °C
Operating Humidity	20% to 80% (non-condensing)
General Information	36-month warranty. Manufacturer: Gembird Europe B.V.

Frequently Asked Questions - EGAVR0501 EnerGenie

How to connect the EGAVR0501 voltage regulator?

Plug the regulator into a standard wall outlet (230 V). Then, plug your devices into the regulator's outlets. Ensure the total power does not exceed 500 VA.

What is the maximum supported input voltage?

The regulator accepts a nominal input voltage of 230 V. The regulation range is generally about 150 V to 280 V. Refer to the manual for exact values.

Can I use this device with a refrigerator?

Yes, provided that the refrigerator's power (in VA) does not exceed the regulator's rated power. The regulator protects against voltage fluctuations that could damage the compressor.

What to do if the red light turns on?

A red light generally indicates an anomaly: overvoltage, undervoltage, or overload. Immediately unplug the devices and check the mains voltage. If the problem persists, contact after-sales service.

How to clean the device?

First unplug the device. Use a soft, dry cloth to wipe the surface. Never use liquids or abrasive products to avoid the risk of electric shock.

Is the device under warranty?

Yes, the EnerGenie EGAVR0501 regulator comes with a 36-month warranty from the purchase date. Keep the receipt for any claims.

Can it be wall-mounted?

This model is designed to be placed on a stable surface. It is not intended for wall mounting. Ensure adequate ventilation around the device.

What is the maximum supported power?

The rated power is 500 VA (approx. 300 W). Do not exceed this limit to avoid overload and damage.

Does the regulator make noise?

A slight hum may be normal during operation due to the transformer. If the noise becomes loud or irregular, it may indicate a problem. Check the load and input voltage.

How to know if the voltage is regulated?

The regulator typically has a green light indicating normal operation. Some models have a digital display or indicators for each phase. Refer to the manual for details.

USER MANUAL EGAVR0501 EnerGenie

Automatic AC voltage regulator and stabilizer

Automatic AC output voltage regulator (AVR) and stabilizer
Pure sinusoidal AC wave form
- LED status indication
- Short circuit, over-voltage, over-load, over-heating protection

energenie

EG-AVR-0501 AUTOMATIC AC VOLTAGE REGULATOR AND STABILIZER, LED, 220 V AC, 500 VA

Specifications

• Technology: transformer, relay type
• Input voltage: 140 ... 270 V AC
  Input frequency: 50 Hz
  Output voltage: 220 V AC ± 8%, sinusoidal wave form
  Output power: 500 VA (300 W)
• Efficiency: 98 %
• Sockets: IEC input and IEC output socket with Schuko input power cord
  Phase: single phase
• Display: LED type
• Circuit protection: circuit breaker
• Operating temperature: 0 40^ C
  Storage temperature: -15 ... 45 °C
• Operating relative humidity: 10 ... 102%RH, non-condensing

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

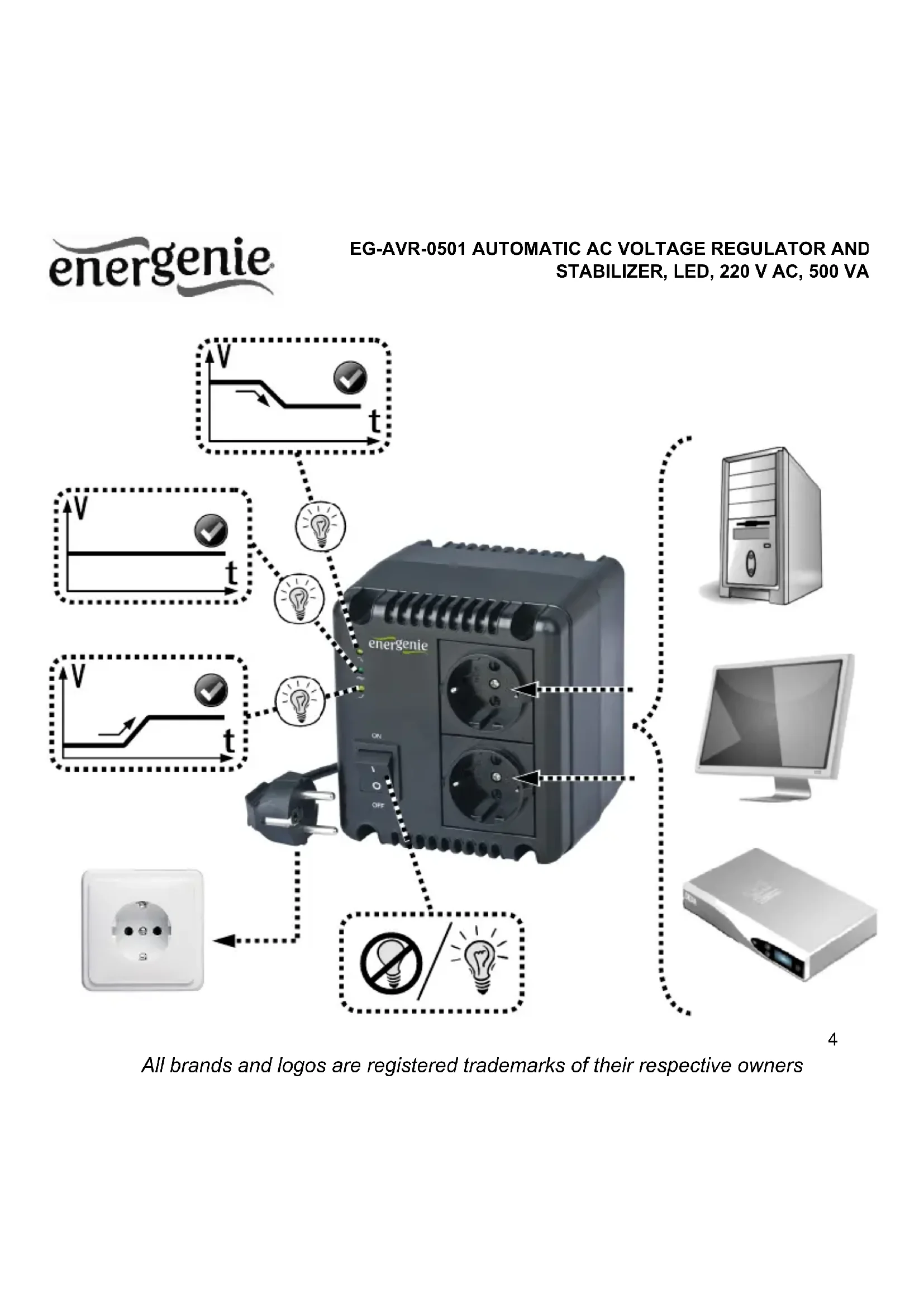

energenie

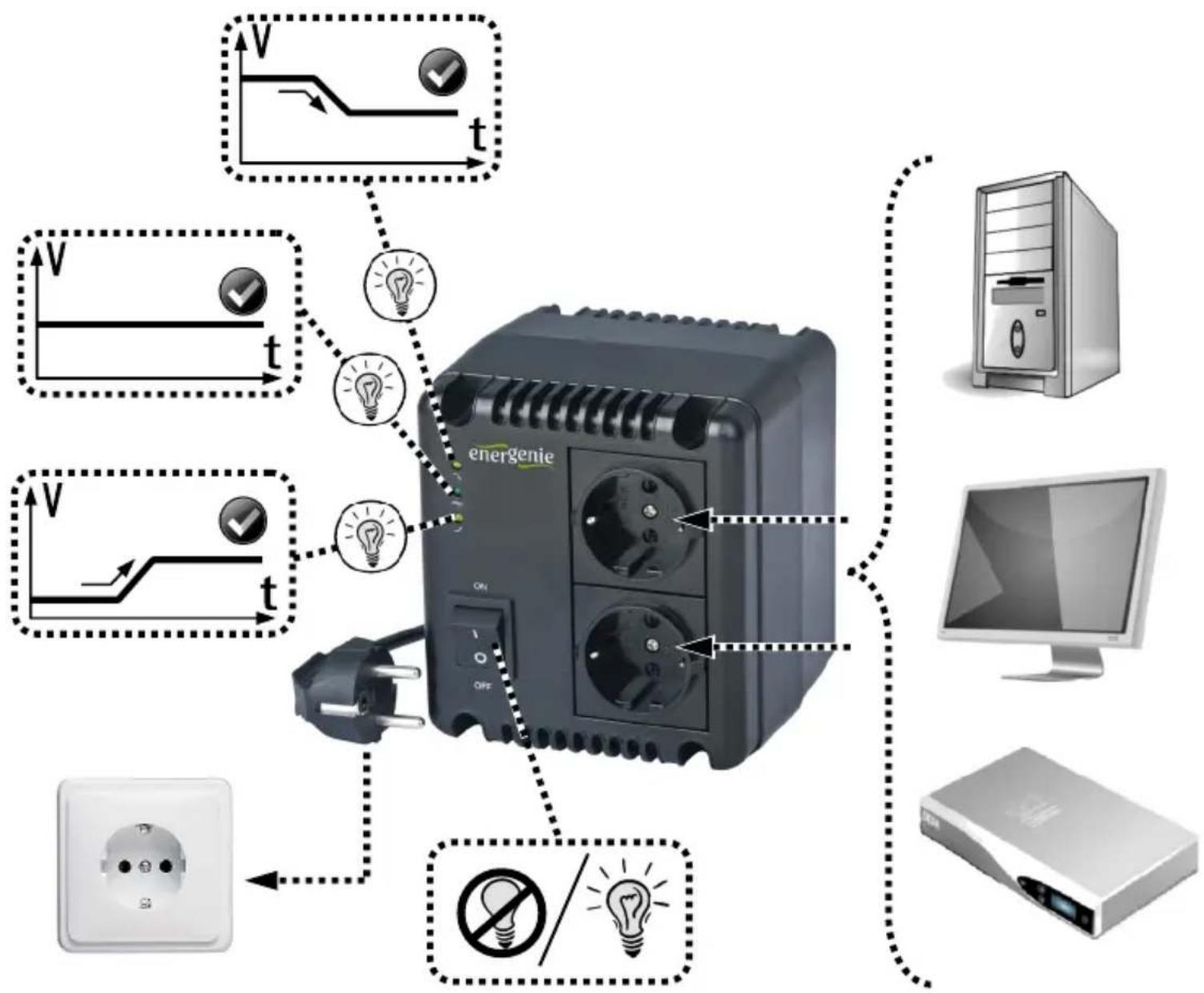

EG-AVR-0501 AUTOMATIC AC VOLTAGE REGULATOR AND STABILIZER, LED, 220 V AC, 500 VA

All brands and logos are registered trademarks of their respective owners

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant Safety Requirements of 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :	Gembird Europe BV Wittevrouwen 56, 1358CD, Almere, The Netherlands
Equipment :	Computer parts
Model Nos. :	EG-AVR-0501
Product description :	EG-AVR-0501 Automatic AC voltage regulator and stabilizer, LED, 220 V AC, 500 VA

European standards.

EN62040:2003; EN60591 EN61000-4-5:1995; EN61000-3-2:2000+ A2:2005; EN61000-3-3:1995+A1:2001+A2:2005;

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV Wittevrouwen 56,1388CD,Almere,The Netherlands Tel:[phone].Fax:[phone]

The Netherlands / Feb. 25, 2011 Place and Date

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

YMOBNI TAPAHINTINHOO OBCJNYTOBYBAHH

1. rapahtiIhe 06cnyroBvBaHnHaHaTbCn PpOraRmTePmHy rapahti, npn HaraBHOctI rapaHTiHoro TaHOy, 3anOBHeHOro HaneKHM YINHom, ta BnPo6y B NOBHI KOMNJIeKtaqii.
2. rapaHTiHe 06cnyroByBaHH He nIITpMmYcTbC B pa3i npuyWeHH npAanE kcnNpyatau, 36epiraHH a6o nepeBe3eHH Bnpo6y, 103a3Naehi B INCTpykui no ekcnnyatauBnpo6y.
   3.「apaHTiHHe o6cnyroByaHHn cKacOByeTbcn y BnnaIckax: -HaBHOCTi MexaHiuHNX N0UKOJKeHb a6o CnIDIB CTOpOHbOro BTPyHaHH;
3. NOUKOKeHHBKNIHKaHI CTNXHIM NIXOM a6O HeuacHM BnAaKOM, BKNIOUaOH N bNCKABky, NOTpAnJIHHM y BnpiC TOpOHHIX PpeDMETIB, pIDIN, KOMax, TOIO;
4. NOUKOJKeHHB NkNkKaH3acTocyBaHHaM a6o NiKJIoueHHaM HeCTaHapTHnX a6o HecnpaBnX nepnΦepiHnx npicTpOIB, akceCyapiB;
5. TapaHTIa He NoUHIOEbCra Ha BHTpaTHi MaTepiAn Ta DoJaTKOBi akcecyapn;
   3 rapaHTiHmYMOBaMn 3roJeH.
