USER MANUAL Easy Reach 31123D HAMILTON BEACH

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not operate unattended while in Toast or Broil modes.

• Do not use with oven cooking bags.

• Do not heat taco shells in toaster oven. Always use full-size conventional oven.

• Always allow at least one inch between food and heating element.

• Always unplug toaster oven when not in use.

• Regular cleaning reduces risk of fire hazard. IMPORTANT SAFEGUARDS

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by

or near children. Children should be supervised to ensure that they do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs.

5. To protect against electric shock, do not immerse cord, plug,

or toaster oven in water or other liquid.

6. Unplug from outlet when not in use and before cleaning. Allow

to cool before cleaning appliance and putting on or taking off parts.

7. Do not operate any appliance with a damaged supply cord or

plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

9. Do not use outdoors.

11. Do not place on or near a hot gas or electric burner or in a

12. Extreme caution must be used when moving an appliance

containing hot oil or other hot liquids.

13. To disconnect, turn all controls to OFF ( ); then remove plug

grease. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:3 Other Consumer Safety Information This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high- wattage appliance on the same circuit with this appliance.

Most heating appliances produce an odor and/or smoke when used the first time. Plug the toaster oven into an outlet. Turn Temperature Dial to 450°F (230°C). Heat at this temperature for 10 minutes. The odor should not be present after this initial preheating. Wash baking pan and oven rack before using.

SAVE THESE INSTRUCTIONS

15. Do not clean with metal scouring pads. Pieces can break off

the pad and touch electrical parts, creating a risk of electrical shock.

16. Oversize foods or metal utensils must not be inserted in a

toaster oven as they may create a fire or risk of electric shock.

17. The bread may burn. A fire may occur if toaster is covered or

touching flammable material, including curtains, draperies, walls, overhead cabinets, paper or plastic products, cloth towels, and the like, when in operation.

18. Extreme caution should be exercised when using containers

constructed of materials other than metal or glass.

19. Do not store any materials, other than manufacturer-

recommended accessories, in this oven when not in use.

20. Do not place any of the following materials in the oven:

paper, cardboard, plastic, and the like.

21. Do not cover crumb tray or any part of the oven with metal

foil. This will cause overheating of the oven.

22. To turn oven off, turn timer to OFF ( ) position. See “Parts

and Features” section.

23. Do not place eyes or face in close proximity with tempered

safety glass door, in the event that the safety glass breaks.

24. Always use appliance with crumb tray securely in place.

25. Do not use appliance for other than intended use.

26. Clean oven interior carefully. Do not scratch or damage

heating element tube.

27. Do not operate the appliance by means of an external timer or

Slide-Out Crumb Tray Toasting/Baking/Broiling Oven Rack Oven Door Baking/Broiling Pan Temperature Dial Function Dial Timer ON Indicator Light CAUTION: HOT SURFACE. The temperature of accessible surfaces may be high when the appliance is operating.5 How to Toast

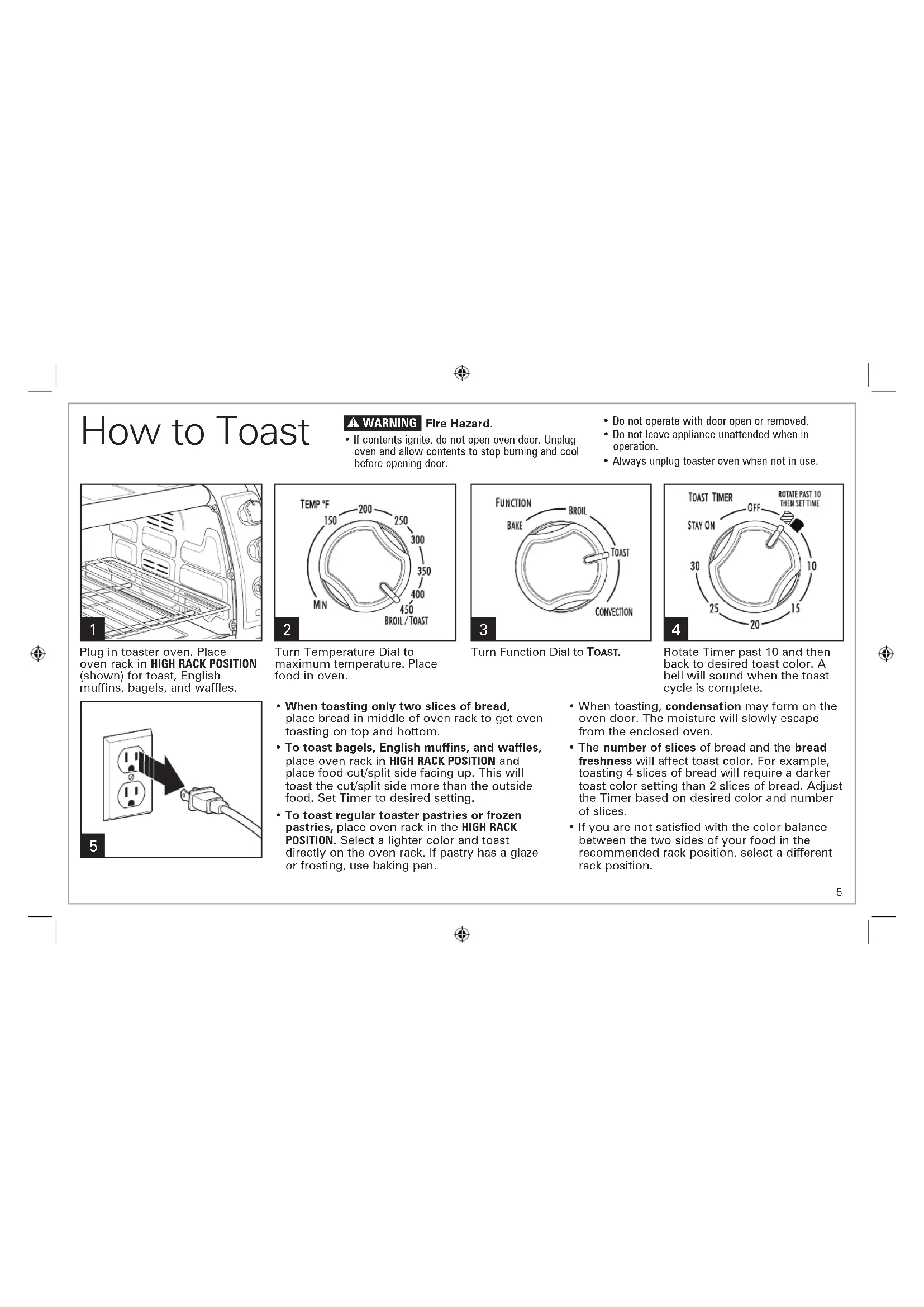

Plug in toaster oven. Place oven rack in HIGH RACK POSITION (shown) for toast, English muffins, bagels, and waffles. Turn Temperature Dial to maximum temperature. Place food in oven.

• When toasting only two slices of bread, place bread in middle of oven rack to get even toasting on top and bottom.

• To toast bagels, English muffins, and waffles, place oven rack in HIGH RACK POSITION and place food cut/split side facing up. This will toast the cut/split side more than the outside food. Set Timer to desired setting.

• To toast regular toaster pastries or frozen pastries, place oven rack in the HIGH RACK POSITION. Select a lighter color and toast directly on the oven rack. If pastry has a glaze or frosting, use baking pan.

• When toasting, condensation may form on the oven door. The moisture will slowly escape from the enclosed oven.

• The number of slices of bread and the bread freshness will affect toast color. For example, toasting 4 slices of bread will require a darker toast color setting than 2 slices of bread. Adjust the Timer based on desired color and number of slices.

• If you are not satisfied with the color balance between the two sides of your food in the recommended rack position, select a different rack position. Rotate Timer past 10 and then back to desired toast color. A bell will sound when the toast cycle is complete. w WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not operate with door open or removed.

• Do not leave appliance unattended when in operation.

• Always unplug toaster oven when not in use.

Rotate Timer past 10 and let oven preheat for 5 minutes prior to placing food in oven. Place the baking pan on oven rack. Set Timer to desired time by rotating Timer past 10 and then to desired baking time or rotate Timer to sTay on while pressing in and holding the buttons on the side of the dial. w WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not use oven cooking bags.

• Do not operate with door open or removed.

• Always allow at least 1 inch (2.5 cm) between food and heating element.

• Always unplug toaster oven when not in use. Plug in toaster oven. Place oven rack on LOW RACK POSITION (shown). Turn Function Dial to Bake

Turn Temperature Dial to desired temperature.

When finished, turn Timer dial to off ( ) and unplug.7

• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.

• To reheat rolls or biscuits, place on baking pan and heat at 300°F (149°C) for 10 minutes.

• Reheat leftover roasts or casseroles at 350°F (177°C) for 20 to 30 minutes or until heated through.

• Bake foods, such as pizza, on the LOW RACK POSITION. Place food directly on oven rack or in baking pan.

• Bake foods, such as a whole chicken, on the LOW RACK POSITION. Place food in baking pan.

• Convection mode: When baking pizza, use convection setting and reduce cooking time by 25%.

• Turn foods halfway through cooking time. Visit foodsafety.gov for more safe cooking temperature information. IF YOU LIVE IN A HIGH-ALTITUDE AREA: The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/. How to Bake (cont.)8 Convection Bake (on select models) Plug in toaster oven. Place oven rack on LOW RACK POSITION. Turn Temperature Dial to desired temperature.

TIPS FOR USING CONVECTION BAKE

NOTE: Convection Bake forces more air to circulate in the oven, so food will cook faster than the conventional Bake setting.• Bake at the same oven temperature but for a shorter period of time.

• Bake for the same length of time as the conventional Bake setting, but reduce the temperature by about 25 degrees.• When baking pizza, use convection setting and reduce cooking time by 25%. w WARNING Fire Hazard.• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door. • Do not use oven cooking bags.• Always allow at least 1 inch (2.5 cm) between food and heating element.• Always unplug toaster oven when not in use.

When finished, turn Timer dial

off ( ) and unplug.Turn Function Dial to ConveCTion

Rotate Timer past 10 and then let oven preheat for 5 minutes before beginning to bake. After oven is preheated, set Timer to desired time by rotating Timer past 10 and then to desired baking time or rotate Timer to sTay on while pressing in and holding the buttons on the side of the dial

Plug in toaster oven. Slide oven rack into HIGH RACK POSITION. Insert baking/broiling pan in slots under the oven rack and add food to rack. DO NOT PREHEAT OVEN. Turn Temperature Dial to Broil/ToasT

When finished, turn Timer dial

off ( ) and unplug. w WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not leave oven unattended during operation.

• Do not operate with door open or removed.

• Keep 1 inch (2.5 cm) between food and heating element.

• Do not use oven cooking bags.

• Do not heat foods in plastic containers.

• Follow food manufacturer’s instructions.

• Cook beef to at least 145°F (63°C).

• Cook ground meat and pork to at least 160°F (71°C).

• Cook chicken to at least 165°F (73°C).

• Cook fish until at least 145°F (63°C) or until opaque or flakes with a fork. Visit foodsafety.gov for more safe cooking temperature information. Turn Function Dial to Broil. Rotate Timer past 10 and then to the desired broiling time or rotate Timer to sTay on while pressing in and holding the buttons on the side of the dial . Turn foods when browned or halfway through cooking time.

Care and Cleaning To clean inside of oven, wipe oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth. For stubborn stains, use a plastic scouring pad. Wipe outside of oven with a damp cloth. Do not use abrasive cleansers or metal scouring pads.

w WARNING Electrical Shock Hazard. Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts. Baking Pan Oven Rack Crumb Tray

When finished, turn Timer dial

off ( ) and unplug. Hand wash in warm, soapy water, rinse, and dry.11 Troubleshooting Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

PROBLEM PROBABLE CAUSE/SOLUTION

Oven will not heat. • Check to make sure electrical outlet is working and the oven is plugged in. Turn Temperature Dial to 350°F (177°C) and turn Timer to sTay on while pressing in and holding the buttons on the side of the dial. Moisture forms on inside of oven door when toasting.

• This is normal when toasting in a toaster oven. Moisture is slower to escape from a toaster oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries. An odor and smoke come from oven.

• Smoke and odor are normal during first use of most heating appliances. These will not be present after initial heating period. Oven will not toast.

• Check to make sure outlet is working and oven is plugged in. Turn Temperature Dial to (toast) and rotate Timer past 10 and then back to desired toast color. Some foods burn and some are not done.

• Adjust oven temperature or cooking time for best results with your recipes. Concentrated steam comes out of top corners of oven door.

• Moisture escaping from oven will be concentrated into streams from the top corners of the door. This gives the appearance of smoke. This is normal for this product.12 This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. Limited Warranty13
