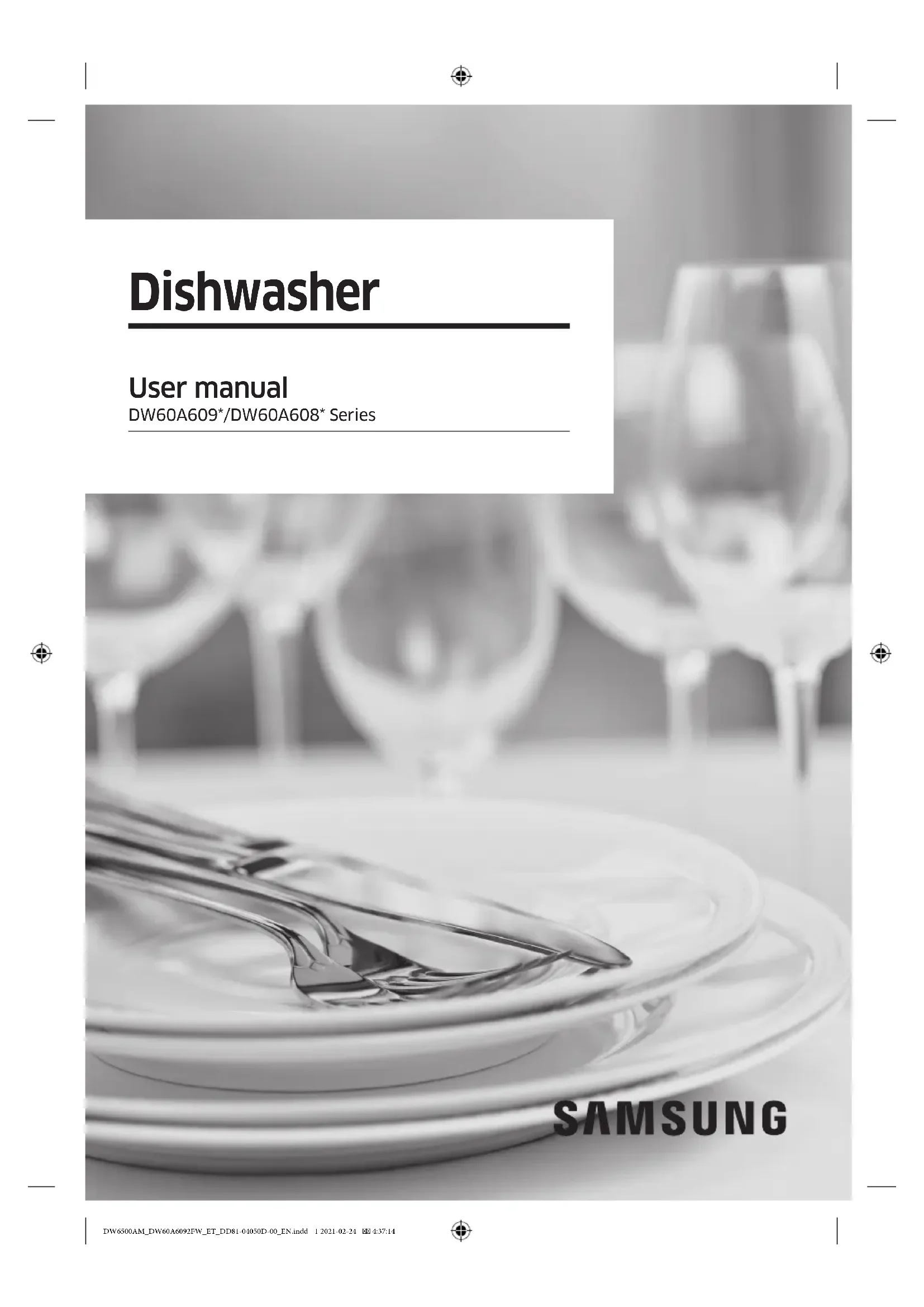

USER MANUAL DW60A6080BB SAMSUNG

Modelle DW60A609*F*, DW60A608*F*, DW60A609*U*, DW60A608*U*

2. Premere AUTO (modello DW60A60**BB, DW60A60**IB) o Programma (modello DW60A60**F*,

2. Premere AUTO (modello DW60A60**BB, DW60A60**IB) o Programma (modello DW60A60**F*,

2. Premere AUTO (modello DW60A60**BB, DW60A60**IB) o Programma (modello DW60A60**F*,

2. Premere AUTO (modello DW60A60**BB, DW60A60**IB) o Programma (modello DW60A60**F*,

Modelli DW60A609*F*, DW60A608*F*, DW60A609*U*, DW60A608*U*

4. Premere AUTO (modello DW60A60**BB, DW60A60**IB) o Programma (modello DW60A60**F*,

Transportation/relocation 67 Protection against frost 67 Disposing the dishwasher and helping the environment 67 Energy, water saving tip 68 Specications 69 For standard test 70 DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 3 2021-02-24 4:37:14English4 Safety information Safety information Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher’s many benets and features. What you need to know about safety instructions Please read this manual thoroughly to ensure that you know how to safely and efciently operate the extensive features and functions of your new appliance and retain it at a safe place near the appliance for your future reference. Use this appliance only for its intended purpose as described in this user manual. Warning and important safety instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your dishwasher. Because the following operating instructions cover various models, the characteristics of your dishwasher may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or nd help and information online at www.samsung.com. Important safety symbols What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury, death and/or property damage. CAUTION Hazards or unsafe practices that may result in personal injury and/or property damage. NOTE Indicates that a risk of personal injury or material damage exists. These warning symbols are here to prevent injury to you and others. Please follow them explicitly. Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 4 2021-02-24 4:37:14English 5 Safety information Instructions about the WEEE Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product specic regulatory obligations e.g. REACH, WEEE, Batteries, visit our sustainability page available via Samsung.com DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 5 2021-02-24 4:37:14English6 Safety information Safety information Important safety precautions To reduce the risk of re, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. This appliance is not to be used by persons (including

children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. For use in Europe: This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Children should be supervised to ensure that they do

not play with the appliance.

4. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

5. The new hose-sets supplied with the appliance are to

be used and old hose-sets should not be reused. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 6 2021-02-24 4:37:14English 7 Safety information

6. For appliances with ventilation openings in the base,

a carpet must not obstruct the openings.

7. For use in Europe: Children of less than 3 years

should be kept away unless continuously supervised.

8. CAUTION: In order to avoid a hazard due to

inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

9. WARNING: Knives and other utensils with sharp

points must be loaded in the basket with their points down or placed in a horizontal position. This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, ofces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 7 2021-02-24 4:37:14English8 Safety information Safety information Instructions when using your dishwasher This dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments such as:

• Ofces and showrooms and by residents in establishments such as:

• Hostels and guest houses. It must only be used as a domestic appliance as specied in this user manual, for cleaning domestic crockery and cutlery. Any other usage is not supported by the manufacturer and could be dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation. Do not use solvents in the dishwasher. Danger of explosion. Do not inhale or ingest dishwasher detergent. Dishwasher detergents contain irritant or corrosive ingredients which can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing. Consult a doctor immediately if detergent has been swallowed or inhaled. Avoid leaving the door open unnecessarily, as you could trip over it. Do not sit or lean on the opened door. This could cause the dishwasher to tip and be damaged, and you could get injured. Only use detergent and rinse aid formulated for domestic dishwashers. Do not use washing-up liquid. Do not use any strong acid cleaning agent. Do not ll the rinse aid reservoir with powder or liquid detergent. This will cause serious damage to the reservoir. Inadvertently lling the salt reservoir with powder or liquid dishwasher detergent will damage the water softener. Make sure you have picked up the correct packet of dishwasher salt before lling the salt reservoir. Please only use special coarse grained dishwasher salt for reactivation, as other salts may contain insoluble additives which can impair the functioning of the softener. In an appliance with a cutlery basket (depending on model), cutlery is cleaned and dried more if placed in efciently the basket with the handles downwards. However, to avoid the risk of injury, place knives and forks etc. with the handles upwards. Plastic items which cannot withstand being washed in hot water, such as disposable plastic containers, or plastic cutlery and crockery should not be cleaned in the dishwasher. The high temperatures in the dishwasher may cause them to melt or lose shape. On models with Delay Start function, make sure that the dispenser is dry before adding detergent. Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and may not be thoroughly dispersed. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 8 2021-02-24 4:37:14English 9 Safety information Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Instructions for protecting your children This appliance is not a toy! To avoid the risk of injury, keep children well away and do not allow them to play in or around the dishwasher or to use the controls. They will not understand the potential dangers posed by it. They should be supervised whenever you are working in the kitchen. There is also a danger that children playing might shut themselves in the dishwasher. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Older children may only use the dishwasher when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse. KEEP CHILDREN AWAY FROM DETERGENTS! Dishwasher detergents contain irritant and corrosive ingredients which can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing. Keep children away from the dishwasher when the door is open. There could still be detergent residues in the cabinet. Consult a doctor immediately if your child has swallowed or inhaled detergent. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 9 2021-02-24 4:37:14English10 Safety information Safety information Instructions for installing your dishwasher Before setting up the appliance, check it for any externally visible damage. Under no circumstances should you use a damaged appliance. A damaged appliance could be dangerous. The dishwasher must only be plugged into the electricity supply via a suitable switched socket. The electrical socket must be easily accessible after the dishwasher is installed so that it can be disconnected from the electricity supply at any time. (Refer to the “Dishwasher at a glance” section on page 35.) There must be no electrical sockets behind the dishwasher. Danger of overheating and re risk if the dishwasher were to be pushed up against a plug. The dishwasher must not be installed under a hob. The high radiant temperatures which are sometimes generated by a hob could damage the dishwasher. For the same reason it should not be installed next to open res or other appliances which give off heat, such as heaters etc. Do not connect the dishwasher to the mains supply until it has been fully installed and any adjustment has been made to the door springs. Before connecting the appliance, check that the connection data on the data plate (voltage and connected load) match the mains electricity supply. If in any doubt, consult a qualied electrician. The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective grounding system. It is most important that this basic safety requirement is present and regularly tested and where there is any doubt the electrical system in the house should be checked by a qualied electrician. The manufacturer cannot be held liable for the consequences of an inadequate grounding system (e.g. electric shock). Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. These do not guarantee the required safety of the appliance (e.g. danger of overheating). This appliance may only be installed in mobile installations such as ships if a risk assessment of the installation has been carried out by a suitably qualied engineer. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 10 2021-02-24 4:37:14English 11 Safety information The plastic housing of the water connection contains an electrical component. The housing must not be submerged in water. There are electrical wires in the hose of Aqua-Stop. Never cut the water inlet hose, even if it is too long. Installation, maintenance and repairs may only be carried out by a suitably qualied and competent person in strict accordance with current national and local safety regulations. Repairs and other work by unqualied persons can be dangerous. The manufacturer cannot be held liable for unauthorised work. The integrated waterproof system offers protection from water damage, provided the following conditions are met:

• The dishwasher is correctly installed and plumbed in.

• The dishwasher is properly maintained and parts are replaced where it can be seen that this is necessary.

• The stopcock has been turned off when the appliance is not used for a longer period of time (e.g. during holidays).

• The waterproof system will work even if the appliance is switched off. However, the appliance must remain connected to the electricity supply. A damaged appliance can be dangerous. If the dishwasher gets damaged, switch it off at the mains and call your dealer or the service department. Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by an approved service technician. Faulty components must only be replaced by original spare parts. Only when these parts are tted can the safety of the appliance can be guaranteed. Always disconnect the dishwasher from the electrical supply for maintenance work (switch off at the wall socket and remove the plug). If the connection cable is damaged it must be replaced with a special cable, available from the manufacturer. For safety reasons, this must only be tted by the service department or an authorised service technician. In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the guarantee. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 11 2021-02-24 4:37:14English12 Safety information Safety information In the event of a fault or for cleaning purposes, the appliance is only completely isolated from the electricity supply when:

• it is switched off at the wall socket and the plug is withdrawn, or

• it is switched off at the mains, or

• the mains fuse is disconnected, or

• the screw-out fuse is removed (in countries where this is applicable). Do not make any alterations to the appliance, unless authorised to do so by the manufacturer. Never open the casing/housing of the appliance. Tempering with electrical connections or components and mechanical parts is highly dangerous and can cause operational faults or electric shock. While the appliance is under guarantee, repairs should only be undertaken by a service technician authorised by the manufacturer. Otherwise the guarantee will be invalidated. When installing the product, make sure there is space at the top, left, right and back of the product to ensure proper ventilation. If there is insufcient space between the product and the sink, it may damage the sink or allow mold to grow. Make sure that your dishwasher’s hardness level setting is correct as your area. (Refer to the “Salt storage” section on page 46.) Please consult www.samsung.com/support for more information about materials and repair. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 12 2021-02-24 4:37:14English 13 Installation Installation What’s included Make sure all the parts are included in the product package. If you have a question about the dishwasher or the parts, contact a local Samsung customer centre or your retailer. The actual appearance of the dishwasher may differ, depending on your model and country. CAUTION After unpacking the dishwasher, keep packaging materials out of children’s reach to ensure their safety. FBI (Fully Built-In, DW60A60**BB) models Top bracket (2) Ø4 X 14 screw (10) Protective condensation sticker (1) Plastic cap (2) Ø3.5 X 45 screw (4) Ø3.5 X 16 screw (2) Door bracket (2) Sub foot (3) Custom panel xer (wood panel holders, 2) Ø3.5 X 25 screw (2) DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 13 2021-02-24 4:37:15English14 Installation Installation FBI (Sliding, DW60A60**IB) models Top bracket (2) Ø4 X 14 screw (14) Protective condensation sticker (1) Plastic cap (2) Custom panel xer (2) Ø3.5 X 16 screw (2) Sub foot (3) Custom panel xer (2) BU (Built Under, DW60A60**U*) models Top brackets (2) Ø4 X 14 screws (2) Sub foot (3) Ø3.5 X 16 screws (2) Kick plate brackets (2) Kick plate Plastic cap (2) Kick plate bolt (4) Kick plate nut (4) Protective condensation sticker (1) DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 14 2021-02-24 4:37:15English 15 Installation Installation kit (not provided) Hose clamp Tools required (not provided) Safety glasses Gloves Flashlight Wrench (22 mm) for the front foot Torx T15 Pliers Nipper Tape measure Pencil Phillips screwdriver Flat head screwdriver Cutting knife Level Hole saw (80-100 mm) Ear clamp plier DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 15 2021-02-24 4:37:16English16 Installation Installation Installation requirements To prevent a risk of re, electric shock, or personal injury, all wiring and grounding must be done by a qualied technician. Power supply

• An individual 220-240 V, 50 Hz branch circuit that is dedicated to the dishwasher.

• Power outlet with a maximum allowable current of 16 A (maximum 11 A for the dishwasher) WARNING

• Do not use an extension cord.

• Use only the power plug that comes with the dishwasher.

• After installation is complete, make sure the power plug is not bent or damaged. Grounding For permanent grounding, the dishwasher must be properly grounded to a grounded metal or permanent wiring system. The grounding conductor must be run with the circuit conductors and then connected to the grounding terminal or lead on the dishwasher. WARNING

• Do not connect the ground wire to plastic plumbing, gas lines, or hot water pipes. Improperly connected grounding conductors may cause electric shock.

• Do not modify the power plug of the dishwasher. If the power plug does not t the outlet, have a proper outlet installed by a qualied electrician. Water supply

• The water supply line must support water pressures between 0.04 and 1 MPa.

• Water temperatures must be lower than 60 °C.

• A stopcock with a 3/4” male thread must be installed on the water tap. To reduce a risk of leaks:

• Make sure water taps are easily accessible.

• Turn the water tap off when the dishwasher is not in use.

• Check for any leaks at the water hose ttings on a regular basis.

• To stop any leak, seal the water line connections and joints using Teon tape or sealing compound. Aqua Stop The Aqua Stop is an electrical component that is designed to prevent water leaks. The Aqua Stop is attached to the water hose and automatically cuts off the water ow in the event of damage to the hose. CAUTION

• Handle the Aqua Stop with care.

• Do not kink or twist the water hose connected to the Aqua Stop. If the Aqua Stop is damaged, shut off the water taps and unplug the power plug immediately. Then, contact a local Samsung customer centre or a qualied technician. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 16 2021-02-24 4:37:16English 17 Installation Drain If you are using a drain system dedicated to the dishwasher, connect the drain hose to a drain system that is between 30 cm and 70 cm off the ground. Connecting the drain hose to a drain system more than 80 cm off the ground can cause the drained water to ow backward. Flooring

• For safety, the dishwasher must be installed on a solidly constructed oor. Wooden oors may need to be reinforced to minimise vibrations. Avoid installing on carpet or soft tile. Carpeting and soft tile may cause vibrations and may cause your dishwasher to move slightly while operating. WARNING Do not install the dishwasher on a poorly supported structure.

• Make sure the dishwasher is level using the height adjustable feet.

• When levelling is complete, check if the door opens and closes properly. Ambient temperature Do not install the dishwasher in an area exposed to freezing temperatures. The dishwasher always retains some water in the water valve, pump, and hose. If the water freezes in the dishwasher or hoses, it may damage the dishwasher and its components. Test run After installing the dishwasher, run the Quick cycle to make sure the dishwasher is installed correctly. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 17 2021-02-24 4:37:16English18 Installation Installation Step-by-step installation The installation procedure may differ depending on the model. STEP 1 Select a location

Select a location that meets the following conditions.

• The location must have a solid oor that can support the weight of the dishwasher.

• The location must be near a sink with easy access to the water supply, drain system, and electrical outlet.

• The location must let you load dishes into the dishwasher easily.

• The location must have sufcient space for the dishwasher door to open easily and provide enough space between the dishwasher and the cabinet sides.

• The rear wall must be free of obstructions. Installation in a new location If you install the dishwasher in a new location, follow these instructions before installing the dishwasher.

1. Using a hole saw, cut a hole into the side

of the cabinet that holds the sink (A).

2. If the base inside the sink cabinet is raised

above the kitchen oor and is higher than the connections on the dishwasher, make a hole in the base inside the cabinet and in the cabinet side (B). NOTE

• If you are replacing an old dishwasher, check the existing connections for compatibility with the new dishwasher and replace the connections as needed.

• You may need to cut a hole in the opposite side of the cabinet according to the location of the electrical outlet. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 18 2021-02-24 4:37:16English 19 Installation Cabinet dimensions

550 (Fully Built-in model) 570 (Built under, Semi Built in model)

NOTE Check if the distance between the oor and the bottom of the worktop is more than 850 mm. If so, insert the sub foot included in the installation kit. For details, see the next section. If the distance is less than 850 mm, skip to STEP 3. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 19 2021-02-24 4:37:16English20 Installation Installation STEP 2 To insert the sub foot (Except Free Standing model) If the distance between the oor and the bottom of the worktop is more than 850 mm, insert the sub foot into the hole on the bottom of the dishwasher before you start the installation.

1. Lay the dishwasher on its back.

CAUTION Do not lay down the dishwasher on its side. Water may leak.

2. Find the sub foot in the installation kit,

and then insert the sub foot into the hole on the bottom of the dishwasher as shown in the gure. STEP 3 Check the water line

• The water line pressure must be between 0.04 and 1.0 MPa.

• Make sure that the water temperature does not exceed 60 °C. Hot water over 60 °C may cause the dishwasher to malfunction.

• Make sure that the water supply valve is turned off before connecting the water supply line to the dishwasher. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 20 2021-02-24 4:37:17English 21 Installation STEP 4 Arrange the hoses

1. Clean the bottom of the countertop.

3. Pull the power plug, the water hose, and

the drain hose through the sink hole. CAUTION

• Use caution not to kink or step on the power plug or the hoses.

• Do not remove the brown paper on the back of the dishwasher. The paper is used to keep the rear side clean against the wall. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 21 2021-02-24 4:37:17English22 Installation Installation STEP 5 Install the custom panel (For Fully Built-In models) FBI (Fully Built-In, DW60A60**BB) models

back of the custom panel and x it temporarily using transparent tape. Note that the rear of the custom panel will be attached to the dishwasher door. CAUTION

• The top end of the custom panel must be aligned with the top end of the installation template.

• Use a custom panel between 3 kg and 7 kg.

2. Mark 14 points guided on the

then tighten the custom panel xers (A) with 2 screws (B, Ø3.5 X 25) as shown in the gure. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 22 2021-02-24 4:37:17English 23 Installation

4. Tighten the door bracket (C) with

8 screws (D, Ø4 X 14) as shown in the gure.

custom panel to the holes (E) on the dishwasher door to x the custom panel.

6. While holding the custom panel, attach

it to the door and insert the custom panel xers (A) into the holes (F) as shown in the gure.

7. Push the custom panel downward to x.

CAUTION Do not let the custom panel extend more than 30 mm from the top of the dishwasher. UPDOWN

8. Adjust the spring level while the door

is approximately opened at 30 degrees. The door should hold its position, and should not fall open. CAUTION

• Do not adjust the spring level while the door is completely opened.

• If the custom panel weighs more than 7 kg, the door may fall open.

• Custom panels weighing more than 7 kg are not recommended. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 23 2021-02-24 4:37:17English24 Installation Installation

9. Open the dishwasher door and remove

the 4 screws. CAUTION Use caution when opening the door. The door might open or close unexpectedly if the spring level is not adjusted appropriately, resulting in physical injury.

10. Secure the custom panel to the door by

fastening the 4 screws (3.5 X 45). DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 24 2021-02-24 4:37:18English 25 Installation FBI (FBI Sliding, DW60A60**IB) models This dishwasher model is equipped with an auto-balancing system in the door. It has a sliding hinge, which is perfect for plinth-less kitchens or for installation above a small cupboard. Custom panel’s height (A) can be between minimum 670 mm to maximum 800 mm depending on the installation environment. Custom panel’s weight must not exceed 10 kg. Refer to the table for the height (C) in relation to the cabinet’s height (B), and then determine the height of the custom panel. 598 mm Min. 20

back of the custom panel and x it temporarily using transparent tape. Note that the rear of the custom panel will be attached to the dishwasher door.

2. Mark 4 points guided on the installation

template. NOTE Custom panel’s height can be between minimum 670 mm to 800 mm depending on the installation environment. CAUTION Custom panel’s weight must not exceed 10 kg. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 25 2021-02-24 4:37:18English26 Installation Installation

then tighten the Custom panel xers (B), (C) with 12 screws (A) as shown in the gure.

4. While holding the custom panel, attach

it to the door and insert the Custom panel xers into the corresponding holes at the door. CAUTION Use a custom panel between 4-10kg. Make sure the skirting board does not interfere with the dishwasher’s door fully opening and closing. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 26 2021-02-24 4:37:18English 27 Installation STEP 6 Level the dishwasher 0-30 mm 0-60 mm Normal Tall-kitchen (Insert the sub foot) You can adjust the height of the dishwasher to level it. Note that in these steps, the dishwasher is currently inserted halfway.

2. To adjust the front height, use a at

head(-) screwdriver.

• To lower the height, turn the foot counterclockwise.

• To raise the height, turn the foot clockwise.

UĮǮĘ Check level front to back Check level side to side

3. To adjust the rear height, insert a cross

head(+) screwdriver in the bottom centre of the dishwasher.

• To lower the height, turn the screwdriver clockwise.

• To raise the height, turn the screwdriver counterclockwise.

• Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 27 2021-02-24 4:37:18English28 Installation Installation

4. Leave at least a 5 mm space between

the top of the dishwasher and the bottom of the countertop.

5. When levelling is complete, check if the

door opens and closes properly. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 28 2021-02-24 4:37:19English 29 Installation STEP 7 Secure the dishwasher You can use the brackets to secure the dishwasher to the countertop. Alternatively, you can drill the side holes to secure the dishwasher to the cabinet sides. To the countertop using the brackets

1. Insert the provided brackets into the top

front holes of the dishwasher as shown.

2. Insert the dishwasher fully into place

under the countertop. Ø 2

3. Tighten the 2 screws (Ø4 X 14) to x the

brackets. NOTE After xing the dishwasher to the countertop, some screws remain. You can simply discard these screws, or use them to x the sides of the dishwasher to the cabinet if you want to.

4. Connect the water hose, but do not

open the water tap until installation is complete. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 29 2021-02-24 4:37:19English30 Installation Installation To the sides CAUTION If the plastic caps are not assembled, water may leak and cause a re or electric shock.

1. Remove the plastic caps.

2. Tighten the 2 screws (Ø3.5 X 16) to the

2 places (marked on the illustration).

3. Insert the provided plastic caps to the

2 places where screws are fastened.

4. Connect the water hose, but do not

open the water tap until installation is complete. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 30 2021-02-24 4:37:19English 31 Installation STEP 8 Connect the drain hose Max. 80 cm Min. 30 cm

1. Connect the drain hose to the drain

• Install the drain system properly so that the drain hose does not come out of the drain outlet in the draining process.

• Make sure that the drain hose, supply hose, and power cord is not kinked or folded. STEP 9 Final check

1. Remove all foam, paper packaging, and unnecessary parts from inside the dishwasher.

2. Turn the circuit breaker on.

3. Open the water supply valve to supply water to the dishwasher.

4. Plug in and turn the dishwasher on. Then, select and run the Quick cycle.

5. Check if the dishwasher turns on normally and if there are any water leaks while the

dishwasher is operating. Make sure to check for water leaks on both ends of the water line and the drain hose connector. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 31 2021-02-24 4:37:19English32 Installation Installation Skirting board You can attach the skirting board according to the model or installation conditions. Skirting board

1. Put the skirting board on the bottom of

2. Open the door of the dishwasher, and

draw a baseline on the skirting board where it interferes with the door.

3. Follow the baseline and cut the skirting

4. Attach the cut skirting board to the

bottom of the dishwasher. Make sure the board does not interfere with the door of the dishwasher. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 32 2021-02-24 4:37:19English 33 Installation Pre-cut skirting board (DW60A60**U* Series)

1. Insert the provided brackets to the

bottom of the dishwasher. Turn them into position.

• See the gure on the left for the correct attaching sequence and place of the brackets.

2. Insert the pre-cut skirting board into

the brackets rst, and then tighten the screws to x the board. See the gure on the left and make sure the brackets are positioned in the correct place. CAUTION Make sure the skirting board does not interfere with the dishwasher’s door opening and closing.

3. Push the skirting board with the

brackets into the bottom of the dishwasher as shown. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 33 2021-02-24 4:37:19English34 Installation Installation Kick plate (DW60A60**U* Series) If you want to install the kick plate, follow these steps.

1. Insert the provided brackets to the

bottom of the dishwasher. Turn them into position.

• See the gure on the left for the correct attaching sequence and place of the brackets.

2. Insert the kick plate into the brackets

rst, and then tighten the 4 kick plate bolts and nuts to x the kick plate. NOTE If the dishwasher is raised by levelling the foot, move kick plate down so that the kick plate ts in bottom.

3. Push the kick plate with the brackets

into the bottom of the dishwasher as shown. CAUTION Make sure the kick plate does not interfere with the dishwasher’s door opening and closing. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 34 2021-02-24 4:37:20English 35 Before you start Before you start Follow these instructions carefully to ensure proper installation of the dishwasher and to prevent accidents when washing dishes. Dishwasher at a glance DW60A609* models

01 Cutlery rack 02 Upper rack 03 Salt storage 04 Lower rack 05 Dispenser 06 Glass support 07 Door 08 Base 09 Inlet hose 10 Drain hose DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 35 2021-02-24 4:37:21English36 Before you start Before you start DW60A608* models

01 Knife rack 02 Upper rack 03 Salt storage 04 Lower rack 05 Dispenser 06 Cutlery basket 07 Door 08 Base 09 Inlet hose 10 Drain hose 11 Glass support DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 36 2021-02-24 4:37:22English 37 Before you start CAUTION

• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint. These materials will damage the dishwasher. Ash does not dissolve and will spread inside the dishwasher.

• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks, paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the dishwasher to malfunction, and damage your dishes and dishwasher. Unsuitable items for the dishwasher WARNING Wash only items such as glass, porcelain, and cutlery which the manufacturer declares as dishwasher safe. Do not wash aluminium (e.g. grease lters). The dishwasher may damage aluminium, or in extreme cases, cause a severe chemical reaction. Do not wash the following items in the dishwasher.

• Copper, brass, tin, ivory, and aluminium items or items with adhesive

• Non-heat resistant plastics

• Craft items, antiques, valuable vases, and decorative glassware

• Pottery or glazed-ceramic items

• Wooden cutlery and crockery or items with wooden parts

• Delicate glassware or glassware containing lead crystal. Clouding may occur on the glassware after frequent washing. NOTE Silverware that has contacted foods containing sulphur may become discoloured. Food with sulphuric content include egg yolks, onions, mayonnaise, mustard, sh, sh brine, and marinades. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 37 2021-02-24 4:37:22English38 Before you start Before you start Basic use of racks Height adjustment You can adjust the height of the upper rack so that the lower rack can accommodate larger sized dishes. Depending on the height of the upper rack, the lower rack can accommodate plates up to 30 cm in diameter, and the upper rack can accommodate plates up to 18 cm (with Cutlery rack) or 25 cm (without Cutlery rack) in diameter. CAUTION

• Adjust the height of the upper rack before loading dishes into the rack. Adjusting the rack after loading the dishes may damage the dishes.

• Make sure to hold both handles when adjusting, or the dishwasher door may not close properly.

• To raise the upper rack, pull the upper rack upwards. The adjustable handle will latch, and the upper rack will raise.

• To lower the upper rack, hold both the adjustable handles located at the left and right sides of the upper rack, and then evenly press down. Upper rack removal CAUTION

• Do not operate the dishwasher without the upper rack. Otherwise, noises occur and the dishwasher does not operate properly.

• Because the upper rack is removable, insert the upper rack properly to ensure the dishwasher operates normally. Pull the upper rack to the front until it is fully extended, and then lift it slightly to remove. See the following gures. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 38 2021-02-24 4:37:23English 39 Before you start Loading dishes Lower rack We recommend that you place large items, that are difcult to clean (such as pots, pans, lids, serving dishes and bowls), in to the lower rack. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the upper nozzle. Pots, serving bowls, etc. must always be placed top down. Deep pots should be slanted to allow water to ow out. The lower rack features folding tines to easily load larger pots and pans. DW60A609* models DW60A608* models NOTE Long items, serving cutlery, salad servers and big knives should be placed on the shelf so that they do not obstruct the rotation of the nozzles. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 39 2021-02-24 4:37:24English40 Before you start Before you start Using the folding tines For better stacking of pots and pans, the tines can be folded down as show in the gure. Upper rack The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. Always place glasses, cups & bowls upside down. DW60A609* models DW60A608* models DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 40 2021-02-24 4:37:24English 41 Before you start Guide Tines You can load dishes into the central rack in various ways by changing the guide tines. If the guide button is moved to the left, you can load standard wine glasses. If the guide button is in the middle, you can load shorter wine or brandy glasses. If the guide button is on the right, you can load bowls and plates. Upper rack Cutlery rack (DW60A609* models) The cutlery rack is best for atware and cooking or serving utensils. Use the cutlery rack to organize atware or utensils. NOTE The cutlery rack can be removed if you need more space on the upper rack to clean larger items. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 41 2021-02-24 4:37:28English42 Before you start Before you start

Rack Tray You can easily unload cutlery from a removable tray in the upper rack. You can also remove the left or right tray to load relatively larger utensils. Both trays are removable. Cutlery rack Using the glass support The glass support is especially suited for wine glasses. Hang wine glasses onto the pegs of the glass support. Fold the glass support back when it is not being used. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 42 2021-02-24 4:37:31English 43 Before you start Detergent compartment All dishwasher cycles require detergent in the detergent compartment. Apply detergent as recommended for the selected cycle to ensure best performance. WARNING

• Do not place dishwasher detergent in your mouth. Avoid breathing in detergent fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical attention immediately.

• Keep dishwasher detergent out of children’s reach. CAUTION

• Use dishwasher detergent only. Other types of detergent produce excessive foam, which may decrease the dishwasher’s performance or cause it to malfunction.

• The dishwasher may not wash well if there is not much detergent. For normally soiled items, we recommend 20-25 grams; however, this may differ depending on the detergent manufacturer, so please follow that manufacturer’s recommendations. Filling the detergent

1. Open the detergent dispenser cap by

pushing the detergent dispenser catch to the right. NOTE The cap remains open at the end of a cycle. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 43 2021-02-24 4:37:31English44 Before you start Before you start

2. Add the recommended amount of

detergent to the main wash detergent compartment.

3. Close the lid by sliding it up.

4. If the items are heavily soiled, pour a

small amount of detergent onto the door for better cleaning results. NOTE The additional detergent will activate during the pre-wash process. The cover opens automatically to dispense the detergent during the wash. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 44 2021-02-24 4:37:32English 45 Before you start Rinse aid reservoir Rinse aid improves the drying performance of the dishwasher. When the Rinse Rell indicator lights up on the control panel, rell with rinse aid. Only use liquid rinse aid. Powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction. CAUTION

• Do not apply any type of detergent to the rinse aid reservoir.

• Do not excessively ll the reservoir. Excessive rinse aid may overow during a cycle. Filling the rinse aid

CAUTION Do not ll the reservoir above the full level indicator. Excess rinse aid can overow during the wash cycle.

3. Close the rinse aid reservoir cap.

DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 45 2021-02-24 4:37:32English46 Before you start Before you start Salt storage CAUTION

• Use dishwasher-specic salt only. Do not use any other type of salt or solvent. This may damage the salt storage and the water softening system.

• To prevent corrosion due to an excessive amount of salt or salty water, always ll the salt storage before a washing cycle gets started. Filling the salt storage

2. Turn the cap counterclockwise to open.

NOTE When you open the softener lid, clean water stored for about one minute may run out. Add salt to stop the water from leaking out.

3. Fill the salt storage with water (only

• The maximum capacity is about 1 kg. Do not exceed the capacity.

• Exceeding the capacity may affect the dishwasher performance.

5. Turn the cap clockwise to close.

• To clean salt or salt water from dishwasher, run the Quick cycle.

• Depending on the size of the salt grains, it may take a while for the salt to dissolve and the indicator ( ) to turn off. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 46 2021-02-24 4:37:32English 47 Before you start Salt indicator The indicator ( ) turns on if there is not enough salt for the next several cycles. Touchpad responsiveness To prevent the touch-enabled controls from losing responsiveness, follow these instructions.

• Touch the centre of each button with one nger.

• Do not touch more than one button at a time, except as directed.

• Clean the surface of the control panel regularly with a soft, damp cloth. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 47 2021-02-24 4:37:32English48 Before you start Before you start Setting mode You can change the sound, auto door open function, rinse aid level, and water hardness settings to your preference. Entering the Setting mode

1. Turn the dishwasher on.

2. Press and hold the AUTO (DW60A60**BB, DW60A60**IB model) or Program

(DW60A60**F*, DW60A60**U* model) cycle button for ve seconds within 60 seconds from turning on the dishwasher. - When you entered the Setting mode, the display will show “0:00”. Sound setting You can turn the sound on or off.

1. Press the Upper rack only button to select the sound setting menu.

- The display shows the current setting. (Default setting: “U1”)

2. Press the AUTO (DW60A60**BB, DW60A60**IB model) or Program (DW60A60**F*,

DW60A60**U* model) cycle button to change the setting. - U0: Sound off - U1: Sound on

3. Wait 5 seconds to save the setting.

Auto door open function setting You can set the dishwasher to automatically open the door after each cycle for better drying results.

1. Press the Multi tab button to select the auto door open function setting menu.

- The display shows the current setting. (Default setting: “A1”)

2. Press the AUTO (DW60A60**BB, DW60A60**IB model) or Program (DW60A60**F*,

DW60A60**U* model) cycle button to change the setting. - A0: Function disabled - A1: Function enabled

3. Wait 5 seconds to save the setting.

DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 48 2021-02-24 4:37:32English 49 Before you start Rinse aid level setting You can change the amount of rinse aid applied during a cycle.

1. Press the Delay Start button to select the rinse aid level setting menu.

- The display shows the current setting. (Default setting: “F4”)

2. Press the AUTO (DW60A60**BB, DW60A60**IB model) or Program (DW60A60**F*,

DW60A60**U* model) cycle button to change the setting. - You can select from F1 - F5 (minimum – maximum).

3. Wait 5 seconds to save the setting.

Water hardness level setting You can change the water hardness level according to water hardness in your local area. Changing this setting will have effect on the salt consumption in the dishwasher’s salt storage.

1. Press the Self Clean (DW60A60**BB, DW60A60**IB model) or Sanitize (DW60A60**F*,

DW60A60**U* model) button to select the water hardness level setting menu. - The display shows the current setting. (Default setting: “H3”)

2. Press the AUTO (DW60A60**BB, DW60A60**IB model) or Program (DW60A60**F*,

DW60A60**U* model) cycle button to change the setting. - You can select from H1 – H6 (soft – hard).

3. Wait 5 seconds to save the setting.

• Change the setting according to the table in the “Adjusting salt consumption” section on page 54.

• The dishwasher regenerates the water softener once every 3–4 cycles depending on the setting. However, the dishwasher will regenerate the water softener on the rst cycle after you change the setting. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 49 2021-02-24 4:37:32English50 Operations Operations Control panel DW60A609*BB, DW60A608*BB, DW60A609*IB, DW60A608*IB models

DW60A609*F*, DW60A608*F*, DW60A609*U*, DW60A608*U* models

01 POWER Press to turn the dishwasher on or off. 02 Program Press to select a desired wash cycle. For more information, see the “Cycle overview” section on page 52. 03 Upper rack only Press to wash items using only the upper rack. 04 Lower rack only Press to wash items using only the lower rack. 05 Sanitize Press to increase the water temperature up to 69 °C in the nal rinse process for high temperature sanitization. This option is not available with AUTO, Quick, Self Clean and Delicate. 06 Multi tab Press to select the Multi tab option to use the 3 in 1 tablet which does not need salt and rinse aid. This option is not available with AUTO, Quick and Self Clean. 07 Control Lock Control lock allows you to lock the buttons on the control panel except for the POWER button. For more information, see the “Control Lock” section on page 56. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 50 2021-02-24 4:37:32English 51 Operations 08 Delay Start You can delay the cycle starting time up to 24 hours. For more information, see the “Delay Start” section on page 56. 09 START (Cancel & Drain) Press START to start operation. Make sure the door is closed. Cancel & Drain: To cancel the current cycle and drain the dishwasher, press and hold START for 3 seconds. Indicators DW60A609*BB, DW60A608*BB, DW60A609*IB, DW60A608*IB models DW60A609*F*, DW60A608*F*, DW60A609*U*, DW60A608*U* models No Salt indicator Lights up when the salt storage runs out of salt. Rinse Rell indicator Lights up if the dishwasher runs out of rinse aid. Control Lock indicator (DW60A609*F*, DW60A608*F*, DW60A609*U*, DW60A608*U* models) Lights up if Control Lock is activated. Delay Start indicator Lights up if Delay Start is activated. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 51 2021-02-24 4:37:33English52 Operations Operations Cycle overview

01 AUTO This cycle detects the level of soil and automatically initiates the optimal cycle, which is appropriate for all levels of soiled items. 02 ECO * This cycle reduces power and water consumption, which is appropriate for normally soiled items. 03 Intensive Select this cycle for heavily soiled items. 04 Quick Select this cycle to clean lightly soiled items in a short time. Sanitize and Multi tab options are not available in this cycle. 05 Delicate Select this cycle for lightly soiled, fragile items such as glasses. Sanitize option is not available in this cycle. 06 Express 60 Normally soiled daily using items, with short cycle time. 07 Self Clean Select this cycle to clean the inside of the dishwasher. Make sure the dishwasher is empty.

• The values for the ECO program have been obtained following the test standard EN 60436:2020. The values given for the other programs are indicative only. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 52 2021-02-24 4:37:33English 53 Operations Simple steps to start

1. Open the door, and then load the dishwasher. Make sure to remove food remains and

waste on the dishes.

2. Apply detergent to the detergent dispenser. For better results, add rinse aids.

3. Press POWER, and then select a cycle with necessary options (Upper rack only,

Lower rack only, Sanitize, Multi tab, and Delay Start). Some options may not be available depends on the cycle. NOTE

• If you select Lower rack only, make sure the dishes are loaded in the lower rack.

• If you select Upper rack only, make sure the dishes are loaded in the upper rack.

4. Press START, and then close the door. The dishwasher starts the cycle after draining for

• To change the cycle after it has started, press and hold START for 3 seconds to cancel the cycle. Then, select a new cycle.

• The default cycle is ECO.

• To resume after you have opened the door to stop the dishwasher while operating, simply close the door. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 53 2021-02-24 4:37:33English54 Operations Operations Salt storage The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. We recommend using soft water for better results. Hard water contains impurities that can reduce the washing performance. You will need to soften the water if the supplied water is harder than 1.0 mmol/l (6 °d - German scale).

• To soften the water, you need dishwasher-specic salt and conguration of the water hardness level according to your area. For more information about the water hardness level in your area, contact your local water department.

• If the hardness level of the supplied water supply is unsteady, set the dishwasher to the highest measurement. For example, if the water hardness reading ranges from

6.7 mmol/l to 9.0 mmol/l, set the dishwasher to 9.0 mmol/l.

• The dishwasher’s default water hardness level is 3 (2.1-3.0 mmol/l). If this setting matches the water hardness level in your area, you do not need to change it. Adjusting salt consumption The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption so that the salt consumption could be set proceed as follows:

1. Turn the dishwasher on.

2. Press and hold the AUTO (DW60A60**BB, DW60A60**IB model) or Program

(DW60A60**F*, DW60A60**U* model) cycle button for ve seconds within 60 seconds from turning on the dishwasher. - When you entered the Setting mode, the display will show “0:00”.

3. Press the Self Clean (DW60A60**BB, DW60A60**IB model) or Sanitize (DW60A60**F*,

DW60A60**U* model) button to select the water hardness level setting menu. - The display shows the current setting. (Default setting: “H3”)

4. Press the AUTO (DW60A60**BB, DW60A60**IB model) or Program (DW60A60**F*,

DW60A60**U* model) cycle button to change the setting. - You can select from H1 – H6 (soft – hard).

5. Wait 5 seconds to save the setting.

• It is recommended that adjustments should be made in accordance with the following (or Manual) table.

• 1 fH (French degree) = 0.1 mmol/l

• Contact your local water board for information on the hardness of your water supply.

• WATER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits may form on dishes and utensils. The appliance is equipped with a special softener that uses a salt specically designed to eliminate lime and minerals from the water.

• How water softener regeneration works (ECO cycle with H3 level setting) - Operates for about 2 minutes when drying starts and uses 2 L water, 0.0002 kWh energy - Regenerates once every 5 cycles DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 55 2021-02-24 4:37:33English56 Operations Operations Delay Start You can delay the cycle starting time up to 24 hours in 1-hour increments. To increase the delay time, press Delay Start. The hour displayed indicates the time at which the cycle will start.

1. Open the door, and then load the dishwasher.

2. Press Delay Start to change the time in 1-hour increments.

- If you press and hold the button, the time will increase until you release the button.

3. Press START, and then close the door.

NOTE To change the delay time once the dishwasher has started, press POWER and restart the dishwasher. Control Lock To prevent children from playing with the dishwasher, Control Lock locks all button controls except for POWER.

• To activate Control Lock, press and hold Control Lock for 3 seconds. With Control Lock activated, you cannot select a cycle or option, or start an operation.

• To deactivate Control Lock, press and hold Control Lock again for 3 seconds.

• Control Lock remains active after the dishwasher restarts. To cancel Control Lock, you must deactivate it rst. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 56 2021-02-24 4:37:33English 57 Maintenance Maintenance Cleaning Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and lengthen the lifecycle. Exterior Clean spills on the surface of the dishwasher immediately. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. CAUTION

• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances. These materials may discolour the surface of the dishwasher and cause stains.

• The dishwasher has electric parts inside. Do not spray water directly onto the dishwasher. Protect electrical components from water.

• For a stainless-steel door panel, use a stainless steel cleaner for home appliances and a clean, soft cloth. Interior Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles. Wipe inside the dishwasher and inside the door with a wet dishcloth. CAUTION

• Do not remove the front seal (the long rubber seal enclosing the opening of the dishwasher). The seal keeps the inner side of the dishwasher sealed.

• Use a damp cloth to remove lime scale or grease deposits inside the dishwasher. Alternatively, apply some detergent, and then run an empty cycle using the highest rinse temperature. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 57 2021-02-24 4:37:33English58 Maintenance Maintenance Nozzles To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean each nozzle. Use caution when removing the nozzles as they may break. Upper nozzle

1. Open the door, and then pull out the

upper rack to reveal the upper nozzle.

2. Loosen and remove the nut, and then

3. Unclog and clean the nozzle.

4. Reinsert the nozzle, and then tighten the

5. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly. Lower nozzle

1. Open the door, and then pull out the

lower rack. The lower nozzle is visible on the bottom.

2. Unclog and clean the nozzle.

3. Reinsert the nozzle.

4. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly. Internal Cleaning We recommend internal cleaning every month. You can use the Self Clean cycle or the Intensive cycle without putting in dishes. If your tap water is hard, you can prevent limescale inside the dishwasher by adding citric acid to the detergent when operating the dishwasher. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 58 2021-02-24 4:37:33English 59 Maintenance Filter We recommend cleaning the lter every month.

1. Open the door, and then remove the

2. Turn the lter handle counterclockwise

to unlock the Coarse lter.

3. Remove the Coarse lter, and then the

cylindrical micro lter underneath. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 59 2021-02-24 4:37:34English60 Maintenance Maintenance

4. Remove any dirt and impurities from

the micro lter and the Coarse lter.

5. Rinse them with running water, and then

6. Reinsert the lter, and then the Coarse

7. Turn the lter handle clockwise to lock.

CAUTION Make sure the Coarse lter is closed properly. A loose cover can reduce the ltering performance. Long-term care If you will not use the dishwasher for an extended period of time, rst drain the unit completely, and then disconnect the water hose. Shut off the water supply valve and the circuit breaker. Water remaining in the hoses or the internal components can damage the dishwasher. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 60 2021-02-24 4:37:34English 61 Troubleshooting Troubleshooting Checkpoints If you encounter an issue with the dishwasher, rst check the table below and try the suggestions. Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. Symptom Possible cause Action The dishwasher does not start. The door is not completely closed.

• Make sure the door is latched and completely closed.

• Make sure the upper rack is properly joined with the nozzle.

• Make sure the upper rack is properly assembled. The power cord is not connected.

• Check power supply is present. Water is not being supplied.

• Make sure the water supply valve is open. The control panel is locked. • Deactivate the Control Lock. The dishwasher has bad odours. Water remains from the previous cycle.

• With the dishwasher empty, add detergent, and then run the Quick cycle. This is available only on applicable models. Water remains in the dishwasher after a cycle has nished. The drain hose is folded or clogged.

• Straighten and unclog the hose. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 61 2021-02-24 4:37:34English62 Troubleshooting Troubleshooting Symptom Possible cause Action Food remains on dishes. An incorrect cycle was selected.

• Select a cycle according to the soil level of the dishes as instructed in this manual. The lters are clogged or not correctly fastened.

• Make sure the lters are correctly fastened. An insufcient amount of detergent was used.

• Use the correct amount of detergent for each load. The water pressure is low.

• Make sure the pressure is between 0.04-1.0 Mpa. The nozzles are clogged.

• Clean and unclog the nozzles. Dishes improperly loaded or overloaded.

• Arrange the dishes so they do not interfere with the nozzles and/or the detergent dispenser. The water is too hard.

• Check the salt rell indicator, and rell with dishwasher salt. Dishes are not dried well. There is no rinse aid in the dispenser, or not enough rinse aid was used.

• Check the rinse aid settings. Too many dishes are loaded.

• Overloading may reduce the drying performance. Load your dishes as recommended. Glasses and cups spilled water onto other dishes while being unloaded.

• Empty the lower rack rst, and then the upper rack. This will avoid water dripping from the upper rack onto the dishes in the lower rack. Multiple detergent tablets were used without selecting the Sanitize option.

• Select the Sanitize option or use rinse aid. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 62 2021-02-24 4:37:34English 63 Troubleshooting Symptom Possible cause Action The dishwasher is too noisy. The dishwasher makes a sound when the dispenser cover is open and the drain pump is operating.

• This is normal. The dishwasher is not level.

• Make sure the dishwasher is level. The nozzle bumps against the dishes, creating a chopping sound.

• Rearrange the dishes. Yellow or brown lm remains on dishes. Coffee and tea soils.

• Use a cycle with a higher temperature. Indicators do not light up. The power cord is not connected.

• Check power supply is present. The nozzles do not rotate smoothly. The nozzles are clogged with food particles.

• Clean the nozzles. A white coating remains on dishes. The water is too hard.

• Make sure the salt ll indicator and softener settings are correct according to the water hardness of your area.

• Make sure the salt storage cap is correctly fastened. Air bubbles and scratch marks are on the control panel. Air gets into the protective lm, causing EPS marks to remain.

• Remove the protective lm from the control panel. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 63 2021-02-24 4:37:34English64 Troubleshooting Troubleshooting Information codes If the dishwasher fails to operate, you may see an information code on the display. Check the table below and try the suggestions. Code Action

• Close the water supply valve. Go to your home’s circuit breaker panel, and set the dishwasher’s circuit breaker switch to off. Then, contact the installer to repair. If the issue continues, contact a local Samsung service center.

• Check if the water supply valve is closed, if the water supply is suspended, or if the water inlet valve or line is frozen or clogged by foreign particles. If the issue continues, contact a local Samsung service center.

• Check lter and drain pipe. If it is jammed, clean it. If the issue continues, contact a local Samsung service center.

• Abnormal communication between the main PCB and the sub PCB.

• If the problem continues, contact an authorised Samsung service center.

High temperature heating check

• Functional check. With the dishwasher empty, add detergent, and then run a cycle. If the issue continues, go to your home’s circuit breaker panel, and set the dishwasher’s circuit breaker switch to off. Then, contact a Samsung service center.

• Temperature sensor is Deformed or broken (short or open circuit). If the problem continues, contact an authorised Samsung service center.

• Abnormal working with distribution motor assembly, or main PCB. If the issue continues, contact a local Samsung service center. If any information code keeps appearing on the screen, contact a local Samsung service centre. Spare parts* for end-users are available for a minimum of 10 years**.

• Applicable parts : door hinge and seals, other seals, spray arms, drain lters, interior racks and plastic peripherals such as baskets and lids. ** This means a minimum of 10 years after Samsung places the last unit of the model on the market. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 64 2021-02-24 4:37:34English 65 Cycle chart Cycle chart Cycle AUTO ECO Intensive Cycle sequence Pre wash (45 °C) Main wash (55 °C- 65 °C) Rinse Rinse Hot rinse (50 °C - 55 °C) Dry End Main wash (50 °C) Rinse Hot rinse (50 °C) Dry End Pre wash (50 °C) Main wash (65 °C) Rinse Rinse Hot rinse (60 °C) Dry End Water consumption (L) 10.6-15.9 10 16.5 Energy consumption (kWh) 1.050-1.551

Energy consumption (kWh)

Cycle time (min.) 38 120 60 Cycle Self Clean Cycle sequence Pre wash (45 °C) Main wash (70 °C) Rinse Hot rinse (70 °C) Dry End Water consumption (L)

Energy consumption (kWh)

• The cycle time depends on the options you have added, and the pressure and temperature of the supplied water.

• The dishwasher drains the remaining water inside automatically if it has not been used for the last 5 days.

• The power consumption depends on the water temperature and/or load. When the rinse aid reservoir is empty, time and temperature can increase a little.

• If no rinse aid is used, the cycle time and temperature may increase slightly. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 66 2021-02-24 4:37:34English 67 Appendix Appendix Transportation/relocation Make sure the dishwasher is empty with no loose parts. First, drain the dishwasher as follows.

1. When the draining process is complete, open the door.

2. Turn the dishwasher off, and then shut the water valve off.

3. Disconnect the both the water hose and the drain hose.

CAUTION Do not shake or sway the dishwasher while moving it. Residual water may drip from the dishwasher. Protection against frost If you leave the dishwasher in a place with a risk of frost for an extended time, make sure to empty the dishwasher. For details, see the “Transportation/relocation” section. Disposing the dishwasher and helping the environment Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe your local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and children cannot get trapped inside the appliance. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 67 2021-02-24 4:37:34English68 Appendix Appendix Energy, water saving tip

• ECO programme is suitable to clean normally soiled tableware, that for this use, it is the most efcient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation (COMMISSION REGULATION (EU) 2019/2022).

• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. Use a knife, etc. to remove only large bits of food before loading.

• Water supplied can be up to 60 °C, and less power is consumed when hot water is connected.

• It’s better to ll the basket if possible but without overloading.

• Load the tableware to the baskets properly to prevent damages and poor performance. - Overloading and overlapping tableware may reduce the cleaning and drying performance. Load your tableware as recommended. - Load the tableware with concave bottom at an angle so that water can run off. - Arrange the tableware so they do not interfere with the nozzles and the detergent dispenser. It can make the cleaning and drying performance better, and prevent the noise of nozzle bumping the tableware. - To prevent injury from the knives and other utensils with sharp points, it must be loaded in the basket with their points down or placed in a horizontal position.

• To save water and energy, use the ECO cycle. ECO is the most efcient program when washing normally soiled items.

• Use an appropriate amount of detergent and rinse according to the manufacturer’s guidelines.

• Dishwasher use saves water compared to ordinary washing by hand.

• Ecodesign information can be found by going to www.samsung.com/support. To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu

2. Get the model identier from the energy label of the product and type it in the search

3. Energy Labelling information of the model is shown

• You can directly access the product information via https://eprel.ec.europa.eu/qr/###### (registration no.) The registration no. can be found on the rating label on your product. DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 68 2021-02-24 4:37:34English 69 Appendix Specications MODEL DW60A6090F* DW60A6092F* DW60A6080F* DW60A6082F* DW60A6090U* DW60A6092U* DW60A6080U* DW60A6082U* DW60A6090BB DW60A6092BB DW60A6080BB DW60A6082BB DW60A6090IB DW60A6092IB DW60A6080IB DW60A6082IB Type Free Standing Built Under Fully Built-in Fully Built-in (Sliding) Power 220-240 V

(DW60A608* models) DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 69 2021-02-24 4:37:34English70 For standard test For standard test NOTE The information for comparability test as follows. DW60A609* models

• Washing capacity: 14 place settings

• Test standard: EN 60436

• Position of upper rack: lower position

• Additional options: None

• Rinse aid level setting: F4

• Water hardness level setting: H3

• Dosage of the standard detergent: Main-wash 22 g

• For the arrangement of the items, refer to the below gures 1. Cups2. Saucers3. Glasses4. Mug cups5. Glass bowls6. Small serving bowls7. Dessert plates8. Dinner plates9. Soup plates10. Oval platter11. Melamine dessert12. Melamine bowl13. Small pot14. Oven pot Upper rack

DW6500AM_DW60A6092FW_ET_DD81-04050D-00_EN.indd 70 2021-02-24 4:37:36English 71 For standard test DW60A608* models

• Washing capacity: 13 place settings

• Test standard: EN 60436

• Position of upper rack: lower position

• Additional options: None

• Rinse aid level setting: F4

• Water hardness level setting: H3

• Dosage of the standard detergent: Main-wash 21 g

• For the arrangement of the items, refer below gures
