USER MANUAL WM2016CW LG

P / No. : MFL31245112WM2016CW Designed specially to use only HE (High Efficiency) detergentPRODUCT FEATURES

Direct Drive System The advanced Brushless DC motor directly drives the drum without belt and pulley.

Tilted Drum and Extra Large Door Opening Tilted drum and extra large opening make it possible to load and unload clothing more easily.

Automatic Wash Load Detection Automatically detects the load and optimizes the washing time.

Child Lock The Child lock prevents children from pressing any button to change the settings during operation.

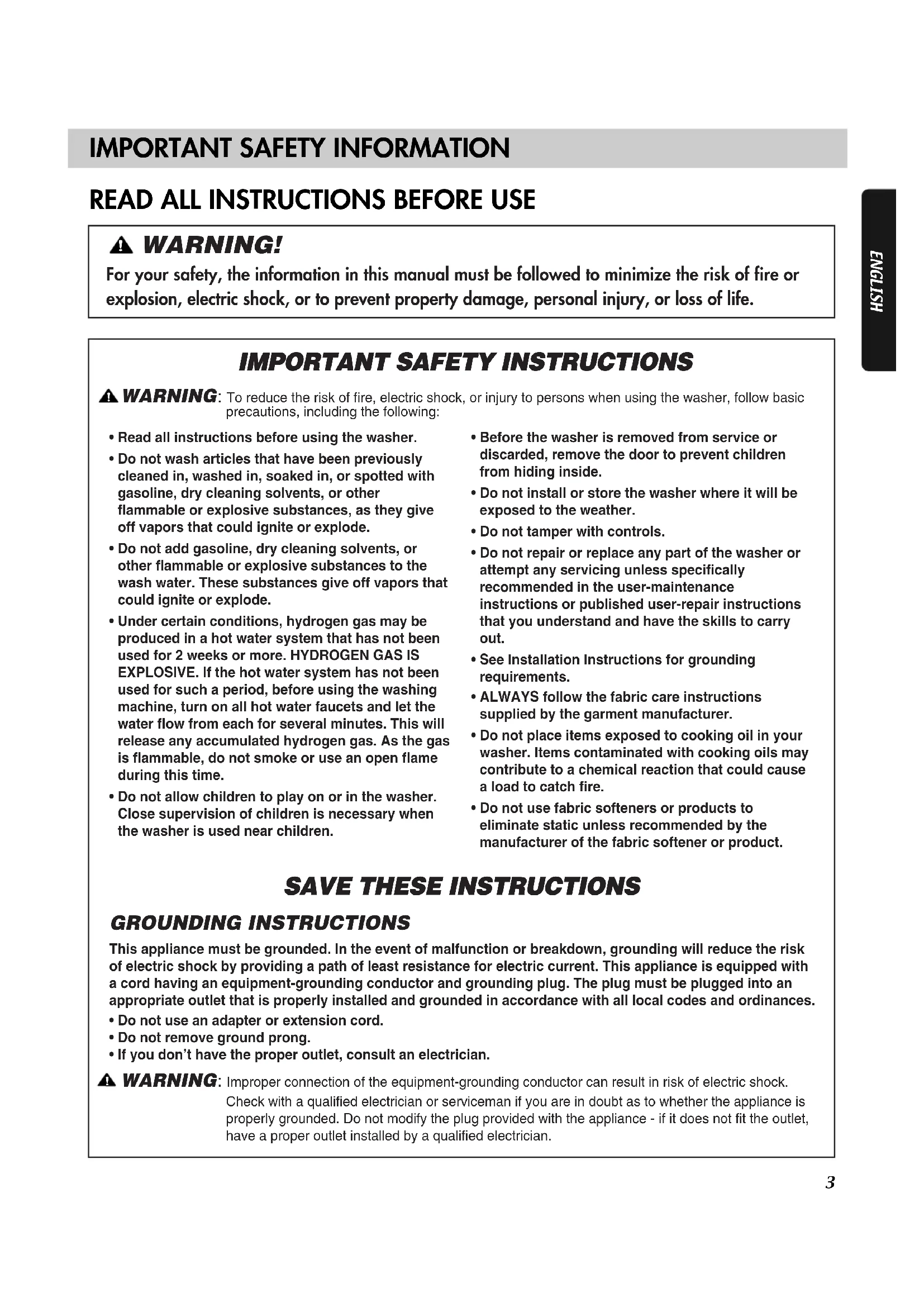

WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire orexplosion, electric shock, or to prevent property damage, personal injury, or loss of life.

IIMMPPOORRTTAANNTT SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS

• Read all instructions before using the washer.• Do not wash articles that have been previouslycleaned in, washed in, soaked in, or spotted withgasoline, dry cleaning solvents, or otherflammable or explosive substances, as they giveoff vapors that could ignite or explode.• Do not add gasoline, dry cleaning solvents, orother flammable or explosive substances to thewash water. These substances give off vapors thatcould ignite or explode.• Under certain conditions, hydrogen gas may beproduced in a hot water system that has not beenused for 2 weeks or more. HYDROGEN GAS ISEXPLOSIVE. If the hot water system has not beenused for such a period, before using the washingmachine, turn on all hot water faucets and let thewater flow from each for several minutes. This willrelease any accumulated hydrogen gas. As the gasis flammable, do not smoke or use an open flameduring this time.• Do not allow children to play on or in the washer.Close supervision of children is necessary whenthe washer is used near children.• Before the washer is removed from service ordiscarded, remove the door to prevent childrenfrom hiding inside.• Do not install or store the washer where it will beexposed to the weather.• Do not tamper with controls.• Do not repair or replace any part of the washer orattempt any servicing unless specificallyrecommended in the user-maintenanceinstructions or published user-repair instructionsthat you understand and have the skills to carry out.
• See Installation Instructions for groundingrequirements.• ALWAYS follow the fabric care instructionssupplied by the garment manufacturer.• Do not place items exposed to cooking oil in yourwasher. Items contaminated with cooking oils maycontribute to a chemical reaction that could causea load to catch fire.• Do not use fabric softeners or products toeliminate static unless recommended by themanufacturer of the fabric softener or product. WARNING : To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:

SSAAVVEE TTHHEESSEE IINNSSTTRRUUCCTTIIOONNSS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the riskof electric shock by providing a path of least resistance for electric current. This appliance is equipped witha cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into anappropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.• Do not use an adapter or extension cord.• Do not remove ground prong.• If you don’t have the proper outlet, consult an electrician. GROUNDING INSTRUCTIONS WARNING : Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance isproperly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet,have a proper outlet installed by a qualified electrician.

Weight: 179 lbs. (81 kg)

Specifications subject to change by manufacturer. Hose retainerHot/Cold (1 each) Hose Wrench Tide for removing shipping bolts and leveling the washerTie strapto secure drain hose to standpipe, inlet hose, or laundry tubCap (4 each)to cover the holes created afterremoving the shipping bolts

Accessories5 INSTALLATION INSTRUCTIONS ENGLISH1. To prevent internal damage during transport, 4 locking bolts are installed. Before operatingthe washer, remove the bolts and braces.• If they are not removed, it may cause severevibration, noise, and malfunction.3. Take out the 4 bolts and braces by twisting the braces slightly. Keep the 4 bolts, braces and the wrench for future use.• Whenever the appliance is transported, theshipping bolts and braces must be reinstalled. 2. Unscrew the 4 bolts with the wrench supplied.Do first lower side to remove easily. One of thebolts retains the power cord of the washer toprevent operating without removing bolts.4. Close the holes with the caps supplied.The appliance is fitted with shipping bolts to preventinternal damage during transportation.Packing and all shipping bolts must be removedbefore using the washer.󳢹 When unpacking the base, be sure to removethe additional packing support in the middle ofthe base packing.: Two or more people may be need to install and move the appliance. ■ Shipping bolts Install or store unit where it will not be exposed to temperatures below freezing or exposed to outside weather conditions. Properly ground washer to conform with all governing codes and ordinances. To reduce the risk of electric shock, do not install the washer in humid spaces. The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor. In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in clean condition at all times. Damage caused by cockroaches or other vermin will not be covered by the appliance warranty. ■ Removing shipping bolts cap

■ Installation clearances The location must be large enough to fully open the washer door. ■ Washer dimensions

• Most installations require a minimum 4 in. (10 cm) clearance behind the washer. ■ Minimum installation spacing for recessed area installation. The following dimensions shown are for the minimum spacing allowed. Additional spacing should be considered for installation and servicing.

• Additional clearances might be required for wall, door and floor moldings.

• Additional spacing of 1 in. (2.5 cm) on all sides of the washer is recommended to reduce noise transfer. Companion appliance spacing should also be considered. ■ Level floor

• Allowable slope under entire washer is 1°.

• To minimize noise and vibration, the washer MUST be installed on a solidly constructed floor.

• Carpeting and soft tile surfaces are not recommended.

• Never install the washer on a platform or weakly supported structure. NOTE: A firm, solid floor is even more critical to a front-loading washer than to a top-loader. If your floor is wood and/or frame construction, you may need to reinforce it. Front-loaders use substantially faster spin speeds than top-loaders, causing greater vibration. If the floor is not solid, your washer will vibrate. You will hear and feel the vibration throughout your house. ■ Power outlet

Must be within 60 in. (1.5 m) of either side of the washer. Do not overload the outlet with more than one appliance.

• Time-delay fuse or circuit breaker is recommended. NOTE: It is the personal responsibility and obligation of the customer to have a proper outlet installed by a qualified electrician. [Front view][Side view] 27"(68.6 cm)

• Water supply pressure must be between

14.5 and 116 psi(100~800 kPa).

• Do not crossthread when connecting inlet hose to the valve.

• If the water supply pressure is more than 116 psi, a pressure reducing device should be installed.

• Two Sealing washers are supplied with the water inlet hoses to prevent water leaks.

• Check for leakage of washing machine connections by turning the tap completely on.

• Periodically check the condition of the hose and replace the hose if necessary.

• Make sure that there is no kink in the hose and that it is not crushed.

• Be sure that the two water input ports are connected to the correct water faucets. The connector for hot water is colored red.

• Use ONLY the inlet hoses provided by LG with this laundry product. Aftermarket hoses are not guaranteed to fit or function correctly. Other hoses may not tighten correctly and could cause leaks. Subsequent damage to product or property will not be covered under the terms of LG's warranty. ■ Connecting water supply hose NOTE: Washing Machine is to be connected to the water mains using new hoses. Old hoses should not be used. ■ Electrical connection

• Do not use an extension cord or double adapter.

• If the supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard.

• If the machine will not be used for an extended time, unplug it and shut off the water supply.

• Connect the machine to a grounded outlet in accordance with current wiring regulations.

• The appliance must be positioned so that the plug is easily accessible. Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service center. Do not install your washing machine in a room where temperatures below freezing may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below the freezing point. If the appliance is delivered in the winter months and temperatures are below freezing, store the washing machine at room temperature for a few hours before putting it into operation.

CAUTION! Concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it,discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, orwalked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.INSTALLATION INSTRUCTIONS

• The drain hose should not be placed higher than 96 in. from the bottom of the washer.

• Properly securing the drain hose will protect the floor from damage due to water leakage.

• Place the end of the drain hose in the hole of the floor drain system.

• When installing the drain hose at a sink, secure it so it cannot break away and cause flooding and damage.

• Properly securing the drain hose will protect the floor from damage due to water leakage. This equipment is not designed for maritime use or for mobile installations such as in RV’s, aircraft, etc. Turn off the faucet if the machine is to be left for an extended period of time (e.g. holiday). When disposing of the appliance, cut off the power cable, and destroy the plug. Disable the door lock to prevent young children being trapped inside. Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all packaging from children.INSTALLATION INSTRUCTIONS ENGLISH

• Leveling the washing machine properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface, preferably in a corner of the room.

• If the floor is uneven, adjust the adjustable feet as required. (Do not insert pieces of wood, etc. under the feet.) NOTE: Extend the feet no more than necessary to level the washer. The more the feet are extended, the more the washer will vibrate.

• Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level (Use a level).

• After the washer is level, tighten the lock nuts up against of the base of the washer. All lock nuts must be tightened.

• It is critical to adjust the feet perfectly. This must be done while the washer is spinning with a load. Use the wrench (supplied) to adjust the feet until there is no vibration. Then tighten the lock nuts to prevent further adjustment. NOTE: If there are vibration and noise during the spin cycle, re-check the leveling of the washer, adjust the feet as required, and tighten the lock nuts securely to prevent changes in adjustment. Run the washer with a test load to make certain your washer is properly leveled. Put approximately 6 pounds of laundry in the machine. Then, press POWER, RINSE+SPIN, and START/PAUSE, in that order. When the machine spins at high speed, verify that it is stable. If not, adjust the feet accordingly. 󳢬 Diagonal Check When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all. (Please, check both directions.) If the machine rocks when pushing the machine top plate diagonally, adjust the feet again.

SPIN, Adjustable feet Adjustable feet Lock nut Adjustable feet

Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it shouldbe washed.

To get the best results, sort clothes into loads that can be washed with the same wash cycle.Different fabrics need to be washed in different ways.Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occur causingdiscoloration of white clothing. If possible, do not wash heavily soiled items with lightly soiled ones.Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.Color (White, Lights, Darks) Separate white fabrics from colored fabrics.Lint (Lint Producers, Collectors) Wash lint producers and lint collectors separately.

3. Check before loading

Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.• Check all the pockets to make sure that they areempty. Things such as clip, matches, pens,coins, and keys can damage both your washerand your clothes.• Close zippers, hooks, and strings to make surethat these items do not snag on other clothes.• Pretreat dirt and stains by brushing a littledetergent dissolved in water onto stains likecollars and cuffs to help lift dirt. WARNING To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. NOTE: Do not wash or spin water-proof clothes.USING THE DISPENSER ENGLISH

The automatic dispenser consists of four compartments which hold 1) liquid chlorine bleach, 2) liquid fabric softener, 3) liquid or powdered detergent for prewash and 4) liquid or powdered detergent and color safe bleach for main wash. All laundry products can be added at once in their respective dispenser compartments. They will be dispensed at the appropriate time for most effective cleaning. After loading the laundry additives into the dispenser, close the dispenser drawer. Add detergent, bleach and fabric softener to the automatic dispenser following these steps:

1. Open the dispenser drawer.

2. Load the laundry products into the appropriate compartments.

3. Close the dispenser drawer.

• Add detergent to this compartment when using the Prewash option. Liquid or powdered detergent may be used in this compartment. The detergent will automatically be dispensed during Prewash if the Prewash option is selected.

• Add 1/2 the recommended amount of detergent to the Prewash compartment and the recommended amount of detergent to the main wash compartment. NOTE : Liquid detergent will drain into the washer drum as it is added.

1. Prewash Detergent Compartment

Liquid Chlorine Bleach Compartment Liquid Fabric Softener Compartment Prewash Compartment Main Wash Compartment Your LG TROMM washer is designed to use only High Efficiency (HE) detergents. HE detergents are formulated specifically for front load washers and contain suds reducing components. HE detergents make less suds, improve washing and rinsing performance, and help to keep the interior of your LG TROMM washer clean. Use the manufacture’s recommend amount. If a regular detergent is used, it may cause oversudsing and unsatisfactory performance. For the best washing and rinsing performance, low-sudsing HE detergents are strongly recommended. Designed specially to use only HE(High Efficiency) detergentUSING THE DISPENSER

• Add measured detergent to this compartment for Main wash. Detergent is flushed from the dispenser at the beginning of the cycle. Either powdered or liquid detergent can be used.

• Liquid or powdered color-safe bleach may be added to the main wash compartment along with the same type of liquid or powdered detergent. NOTE: If you are using the Prewash option, powdered detergent must be used in the main wash compartment. Liquid detergent will drain into the washer drum as it is added.

2. Main Wash Detergent Compartment

• Add measured liquid chlorine bleach to this compartment. The bleach will be automatically dispensed at the proper time during the wash cycle.

• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.

• Do not pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can occur.

• Do not use powdered bleach in this compartment.

3. Liquid Bleach Compartment

• Add recommended amount of fabric softener to this compartment.

• Dilute concentrated softeners with warm water to the fill line.

• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could result in stained clothes.

• Do not pour fabric softener directly on the wash load.

• The fabric softener will be automatically dispensed during the last rinse cycle. NOTE: Do not place, store, or spill laundry products (soap, detergent, bleach, softener, etc.) on the top of your washer or dryer. These products can damage the finish or controls if left there too long.

4. Fabric Softener Compartment

Designed specially to use only HE(High Efficiency) detergentCYCLES ENGLISH

■ Select cycles designed for different types of fabric and soil levels. Extra High No Spin Low Medium High High Extra High No Spin Low Medium Medium High No Spin Low Medium No Spin Low Low Medium No Spin Tap Cold/Cold Tap Cold/Cold Tap Cold/Cold Tap Cold/Cold Tap Cold/Cold Stain Cycle Water PlusHOW TO USE THE WASHER

• Rotate the Cycle selector knob to select cycle designed for different types of fabric and soil levels.

• Each cycle has a preset Water Temperature, Spin Speed, Soil Level, and Option (See page 13).

• The preset settings can be changed anytime before Start. NOTE: This front load washer requires longer cycle time and gets clothes much cleaner, yet is more gentle on the fabrics, than top load washers. Washing time can be reduced significantly for small loads or lightly soiled loads by selecting Speed Wash cycle and setting the Soil Level button at Light.

• Use this button to turn the Power On/Off.

• Use this button to start/stop the washer.

• Allows the start of any cycle to be delayed for 1~12 hours.

• Choose the wash cycle for your load, and then press the Delay Wash button once for one hour or press the button again to increase the delay wash time up to 12 hours in one hour increments.

• Adds extra water to the wash and rinse cycles for superior results.

• This option provides an additional rinse.

• Use this option to ensure the removal of detergent or bleach residue from garments.

can be used when there is a vibration problem, especially on wood floor installations.

• To operate SPINSENSE

press and hold the Water Plus button for 3 seconds when the washing machine is running on any cycle.

has been selected, the Spin Speed button light will blink on and off continually to indicate that the SPINSENSE

function has been selected.

• Push and hold the Water Plus button again for 3 seconds to cancel SPINSENSE

has been selected, if will continue to function even if interrupted by a power failure.

• 'SPINSENSE' option cannot be selected during the spinning cycle.

NOTE: If you do not press the Start/Pause button within 4 minutes of selecting a cycle, the washer automatically turns off.HOW TO USE THE WASHER ENGLISH

• Press repeatedly to adjust the volume of the Beeper.

• Select a water temperature based on the type of load you are washing.

• Follow the fabric care label and chart below for best results.

• Warm rinses leave the loads dryer than cold rinses. Warm rinses increase wrinkling.

• In cold climates, a warm rinse makes the load more comfortable to handle.

• Cold rinses save energy.

• The Cold rinse temperatures depend on the cold water at your faucet.

• Warm rinses are regulated at approximately 86°F (30°C).

• For the Tap Cold/Cold setting, both wash and rinse temperatures depend on the cold water at your faucet.

8. Wash/Rinse Temperature

• To change the spin speed, press the Spin Speed button repeatedly to cycle through available options.

• To start Drain/Spin cycle:

1. Press Power button to turn on.

2. Press Spin Speed button only.

• To change the soil level, press the Soil Level button repeatedly until the desired setting is on.

Suggested Wash Temp. Garment Hot Whites and Heavy 122°F (50°C) soiled color-fast items Warm Most loads 104°F (40°C) Cold Brightly colored items, 77°F (25°C) washable woolens LED DISPLAY When the START/PAUSE button is pressed, the washer automatically detects the wash load (weight) and optimizes the washing time, based on the selected cycle and options. The display will then indicate the estimated time remaining for the selected wash cycle. NOTE: The cycle time displayed may appear much longer than that of a top-loading washer. The displayed time is for the complete cycle, rather than just the agitation portion of the cycle, as is typically shown on a top-loading washer.

2. ESTIMATED TIME REMAINING

Indicates that the door is locked. The washer door will lock while the washer is operating. The door can be unlocked by pressing the START/ PAUSE button to stop the washer.

1. DOOR LOCK INDICATOR

Shows how much of the current wash cycle has been completed.

3. CYCLE COMPLETION INDICATOR

This portion of the display shows the selected cycle, operating status, and special messages. If a cycle has special instructions, they will also be displayed in this area.

• Lights whenever the door of the washer is locked.

• The door can be unlocked by pressing the Start/Pause button to stop the washer. NOTE: If the water temperature or the level is too high, the door cannot be unlocked. Do not try to force the door open when DOOR LOCKED lights on. STATUS INDICATOR

• These lights show which portion of the cycle the washer is operating. (See page 15)

• This display shows: a) the estimated time remaining in the cycle when operating, b) the error code when an error has been detected.

• Use this option to prevent unwanted use of the washer. Press and hold OPTION button for 3 seconds to lock/unlock control.

• When Child lock is set, blinks and all buttons are disabled except the Power ( ) button. You can lock the washer while it is operating. OPTION

• Use this option for loads that need pretreatment. Adds 16 minutes prewash and drain.

• Adds time to the wash and rinse for better stain removal.

• The Quick Cycle offers a quick cycle time.• Suggested uses include freshening newly purchasedclothes, or clothing that has been packed away.

1. Remove any clothing or items from the washer

2. Open the dispenser drawer and add liquid

chlorine bleach to the bleach compartment. NOTE: Do not add any detergent to the detergent compartments. Excessive suds may be produced and leak from the washer.

3. Close the dispenser drawer slowly.

4. Power on the machine, press the “option” and

then select the “Tub Clean”.

5. Press the Start/Pause button to start.

6. After the cycle is complete, leave the door open

to dry around the washer door opening, door seal and door glass. CAUTION: If there are small children in the house, care must be taken so that they can not climb into or play inside the washer while it is open for drying.

■ The water inlet filter

• " " error message will blink on the control panel when water does not enter the dispenser.

• If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. We recommend cleaning it every few months. Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards. When disposing of the appliance, cut off the power cable, destroy the plug, and disable the door lock to prevent young children from being trapped inside.

1. Open the lower cover cap (󳡉).

Turn the drain plug (󳡊) to pullout the hose.2. Unplug the drain plug 󳡊,allowing the water to flow out. At this time use a vessel toprevent water from flowing onto the floor. When water doesnot flow any more, turn thepump filter 󳡋 open to the left.3. Remove any foreign objects fromthe pump filter 󳡋. After cleaning,turn the pump filter 󳡋 clockwiseand insert the drain plug 󳡊 to theoriginal place. Close the lowercover cap󳡉. ■ The drain pump filter

The drain filter collects threads and small objects left in the laundry.Check regularly that the filter is clean to ensure smooth running of your machine.

• Allow the water to cool down before cleaning the drain pump filter. CAUTION Drain, using the drain hose, before opening the pump filter to remove objects. Be careful when draining if the water is hot. 1. Turn off the water tap.2. Unscrew the water inlet hose.3. Clean the filter using a hardbristle brush.4. Tighten the inlet hose.• IMPORTANT: Use ONLY the inlet hosesprovided by LG with this laundryproduct. Aftermarket hoses are not guaranteed to fit or function correctly. Other hoses may not tighten correctly and couldcause leaks. Subsequent damage to product or property will not be covered under the terms of LG's warranty.18 MAINTENANCE ■ Cleaning the Dispenser

The dispenser may need to be cleaned periodically due to laundry additive build-up.

• Run warm water and use a soft brush or cloth on the drawer, liquid detergent box and inserts to remove any excess laundry additives.

• Clean the drawer opening using water and a small brush.

• Follow the illustrations in reverse order to replace the parts to their proper location. NOTE: Do not use any cleaning substance on the drawer opening other than water because it will drain into the tub. If this should happen, set the washer for a rinse and spin cycle to remove any cleaning substance from the washer before doing a load of laundry. ■ The washing drum

• If you live in a hard water area, lime scale can continuously build up in places where it cannot be seen and it is not easily removed from the drum. Over time the build-up of scale clogs appliances, and if it is not kept in check, these will eventually have to be replaced.

• Although the washing drum is made of Stainless steel, specks of rust can be caused by small metal articles (paper clips, safety pins, etc.) which have been left in the drum.

• The washing drum should be cleaned from time to time.

• If you use descaling agents, dyes, or bleaches, make sure they are suitable for washing machine use.

• Descaler could contain components that can damage part of your washing machine.

• Remove the spots with a stainless steel cleaning agent.

• Never use steel wool.

SOFTENER MAX Pull the dispenser drawer out until it stops.

Remove the liquid detergent box, softener and bleach inserts from their compartments. SOFTENER MAXENGLISH

Proper care of your washer can extend its life.The outside of the machine can be cleaned with warm water and a neutral, non-abrasive household detergent.Immediately wipe off any spills. Wipe with a damp cloth.Try not to damage the surface with sharp objects.󳢬 IMPORTANT: Do not use methylated spirit, solvents or similar products.

Dry around the washer door opening, flexible gasket and door glass. These areas should always be clean toensure a water-tight seal.Run washer through a complete cycle using hot water. Repeat process if necessary.• To start the TUB CLEAN cycle:1. Remove any clothing or items from the washer and close the door.2. Open the dispenser drawer and add liquid chlorine bleach to the bleach compartment.NOTE: Do not add any detergent to the detergent compartments. Excessive suds may be produced and leakfrom the washer.3. Close the dispenser drawer slowly.

4. Power on the machine, press the “option” and then select the “Tub Clean”.

5. Press the Start/Pause button to start. 6. After the cycle is complete, leave the door open to dry around the washer door opening, door seal anddoor glass. CAUTION: If there are small children in the house, care must be taken so that they can not climb into or play inside the washer while it is open for drying. NOTE: Remove hard water deposits using only cleaners labeled as safe for washing machines. ■ Winterizing instructions If the washer is stored in an area where freezing can occur or moved in freezing temperatures, follow thesewinterizing instructions to prevent damage to the washer:1. Turn off water supply tap.2. Disconnect hoses from water supply and drain water from hoses.3. Plug electrical cord into a properly grounded electrical outlet.4. Add 1 gallon (3.8ℓℓ) nontoxic recreational vehicle (RV) antifreeze to empty wash drum. Close door.

5. Set spin cycle and let washer spin for 1 minute to drain out all the water.

Not all of the RV antifreeze will be expelled.6. Unplug electrical power cord, dry drum interior, and close door.

7. Remove the two-compartment container from the Dispenser. Drain any water in compartments and dry the

compartments. 8. Store washer in an upright position.

9. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent.

Do not add laundry. !20 TROUBLESHOOTING GUIDE 󳢬 This washing machine is equipped with automatic safety functions which detect and diagnose problems at an early stage and react appropriately. When the machine does not function properly or does not function at all, check the following points before you call the Service Department. Rattling and clanking noise Thumping sound Vibrating noise Water leaks Excessive suds

• Foreign objects such as coins or safety pins may be in drum or pump.

• Heavy wash loads may produce a thumping sound. This is normal.

• Have all the transit bolts and packing been removed?

• Wash load may be unevenly distributed in the drum.

• Are all the feet resting firmly on the ground?

• Fill hose connection is loose at tap or washer.

• House drain pipes are clogged.

• Too much detergent or unsuitable detergent. Stop washer and check drum and drain filter. If noise continues after washer is restarted, call for service. If sound continues, washer is probably out of balance. Stop and redistribute wash load. See Installation Instructions for removing shipping bolts. Stop washer and rearrange wash load. Adjust the leveling feet. Make sure all four feet are in firm contact with the floor, while the washer is in the spin cycle with load. Check and tighten hose connections. Unclog drain pipe. Contact plumber if necessary. Reduce detergent amount or use HE (High Efficiency) detergent. Problem Possible Cause Solution Designed specially to use onlyHE(High Efficiency) detergentENGLISH

TROUBLESHOOTING GUIDE Washer does not start Washer won’t spin Wash cycle time delayed

• Electrical power cord may not be plugged in or connection may be loose.

• House fuse is blown, circuit breaker tripped, or a power outage has occurred.

• Water supply tap is not turned on.

• Check that the door is firmly shut.

• The washing time may vary by the amount of laundry, water pressure, water temperature, and other using conditions. Make sure plug fits tightly in wall outlet. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected by a qualified electrician. Turn on water supply tap. Close the door and press the Start/Pause button. After pressing the Start/Pause button, it may take a few moments before the clothes washer begins to spin. The door must lock before spin can be achieved. If the imbalance is detected or if the suds removing program operates, the wash time shall be increased. Problem Possible Cause Solution Water does not enter washer or it enters slowly Water in the washer does not drain or drains slowly

• Water supply is not adequate in area.

• Water supply tap is not completely open.

• Water inlet hose is bent.

• The filter of the inlet hose clogged.

• Drain hose is bent or clogged.

• The drain filter is clogged. Check another tap in the house. Fully open tap. Straighten hose. Check the filter of the inlet hose. Clean and straighten the drain hose. Clean the drain filter.22 TROUBLESHOOTING GUIDE

• Water supply is not adequate in area.

• Water supply taps are not completely open.

• Water inlet hose is bent.

• The filter of the inlet hose clogged.

• Drain hose is bent or clogged.

• The drain filter is clogged.

• Load is out of balance.

• The appliance has an imbalance detection and correction system. If individual heavy articles are loaded (bath mat, bath robe, etc.) and the imbalance is too great, after several attempts to restart the spin cycle the machine will stop and the error code will be displayed.

• Is the door opened or not completely closed?

• The water overfills due to the faulty water valve.

• The washer experienced a power failure. Check another tap in the house. Fully open tap. Straighten hose. Check the filter of the inlet hose. Clean and straighten the drain hose. Clean the drain filter. Add 1 or 2 similar items to help balance the load. Rearrange load to allow proper spinning. Close the door completely. 󳢬 If it is not released, call for service. Unplug the power plug and call for service. Close the water tap. Unplug the power plug. Call for service. Restart the cycle after 30 minutes. If LE is not released, call for service. Restart the cycle. Problem Possible Cause SolutionENGLISH

4. Stain Cycle (Cycle tache)
