Product type	Storage unit (elevating base)
Brand	Zanussi
Model	E6WHPED4
Dimensions (H x W x D)	1000 x 595 x 535 mm
Weight	Approximately 12 kg
Material	Steel with painted coating
Color	White
Maximum load capacity	Up to 100 kg (estimated)
Intended use	Elevating base for washing machine or tumble dryer
Included accessories	2 front brackets, 2 rear brackets for washing machine, 2 rear brackets for tumble dryer, 10 screws, 1 adjustment key, 2 additional bins
Number of bins	2 additional drawers (optional)
Adjustable feet	Yes, front adjustable feet
Installation	Requires two people, do not install alone
Safety	Do not stack two appliances on the base
Maintenance	Clean with a damp cloth, no abrasive products
Warranty	2 years
Recycling	Recycle according to local regulations

Frequently Asked Questions - E6WHPED4 ZANUSSI

What are the exact dimensions of the Zanussi E6WHPED4 storage unit?

The dimensions are 1000 mm high, 595 mm wide and 535 mm deep.

How to install the base under a washing machine or tumble dryer?

Place the base on a flat surface, screw on the front brackets, then position the appliance on top by sliding the front feet under the brackets. Secure the rear brackets with the supplied screws and adjust the feet to level.

What accessories are supplied with the unit?

The box contains: 2 metal front brackets, 2 rear brackets for washing machine, 2 rear brackets for tumble dryer, 10 screws (8 for tumble dryer), a foot adjustment key, 2 additional bins and 2 rear fixing screws.

Can the E6WHPED4 unit support a tumble dryer?

Yes, it is compatible with washing machines and tumble dryers. Use the specific rear brackets supplied for the tumble dryer.

Do I need to fix the unit to the floor or wall?

It is not necessary to fix it to the floor or wall. Simply ensure the assembly is stable and level after installation.

Can I install the base alone?

No, installation must be carried out by two people due to the weight and handling of the appliance.

How to clean this storage unit?

Use a soft, damp cloth with a mild detergent. Avoid abrasive or corrosive products that could damage the coating.

Is the unit supplied with drawers?

Yes, it includes 2 additional bins that can be inserted as drawers for storage.

What to do if the base is not level?

Use the supplied key to adjust the front adjustable feet until the assembly is stable and horizontal.

How to recycle the packaging and the product at end of life?

Recycle the packaging materials in appropriate containers. For the product, take it to a local recycling centre or follow municipal guidelines.

USER MANUAL E6WHPED4 ZANUSSI

EN	Accessories	Installation Instruction	2
BG	Аксесоари	Инструкция за монтаж	8
CZ	Příslušenství	Pokyny k instalaci	14
DA	Tilbehør	Installationsvejledning	20
DE	Zubehör	Montageanleitung	26
EL	Аξεσουάρ	Обнгієс егката́оста́снç	32
ES	Accesorios	Instrucciones de instalación	38
ET	Tarvikud	Paigaldusjuhend	44
FI	Tarvikkeet	Asennusohjeet	50
FR	Accessoires	Instructions d'installation	56
HR	Dodaci	Upute za montažu	62
HU	Tartozékok	Szerelési utasítások	68
IT	Accessori	Istruzioni di installazione	74
LT	Priedai	Montavimo instrukcija	80
LV	Piederumi	Uzstādīšanas norādījumi	86
NL	Accessoires	Montage-instructies	92
NO	Tilbehør	Monteringsanvisning	98
PL	Akcesoria	Instrukcja instalacji	104
PT	Acessórios	Instruções de instalação	110
RO	Accesorii	Instructiuni de instalare	116
RU	Аксессуары	Инструкции по установке	122
SK	Príslušenstvo	Návod na použitie	128
SL	Pripomočki	Navodila za namestitev	134
SR	Прибор	Упутство за постављање	140
SV	Tillbehör	Installationsinstruktion	146
TR	Aksesuarlar	Montaj Talimati	152
UA	Аксесуари	Інструкція з установки	158

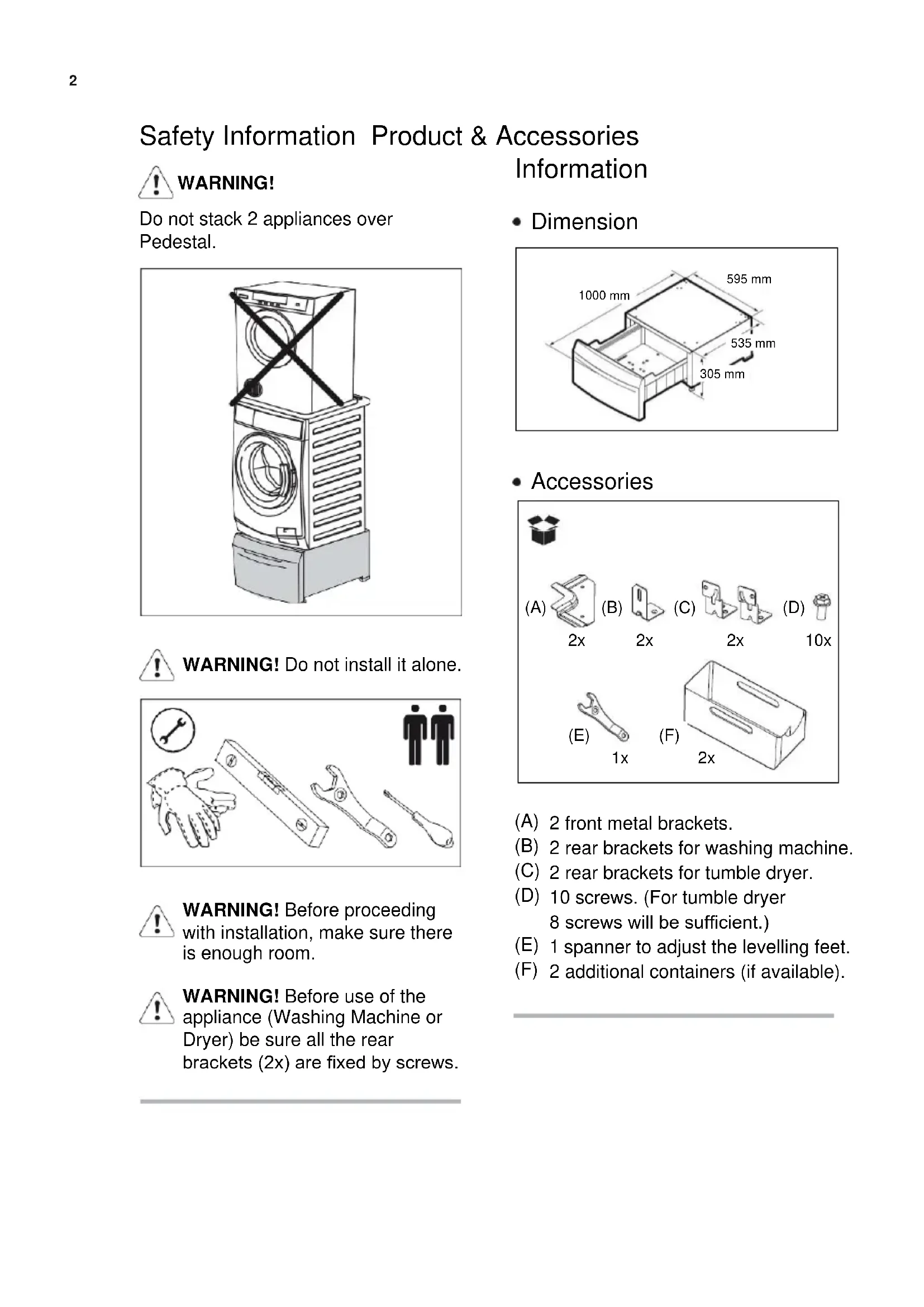

Safety Information Product & Accessories Information

WARNING!

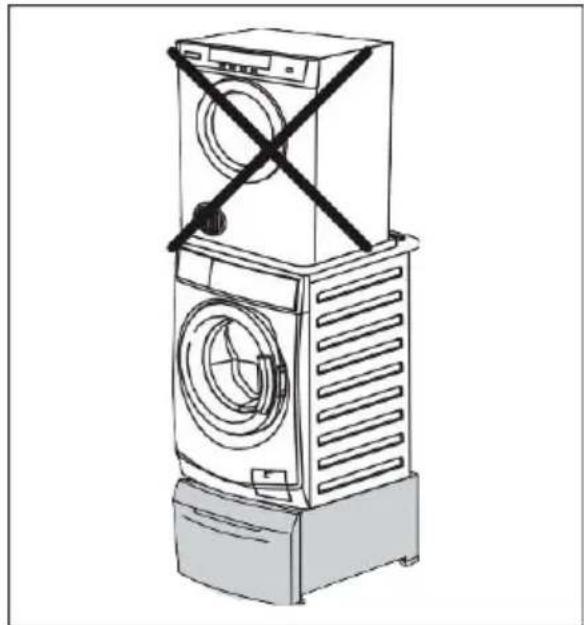

Do not stack 2 appliances over Pedestal.

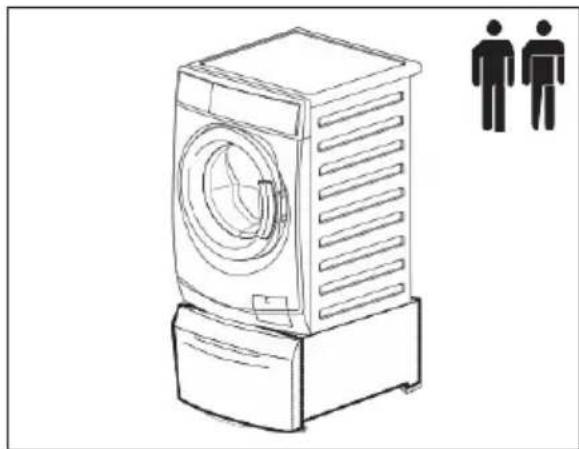

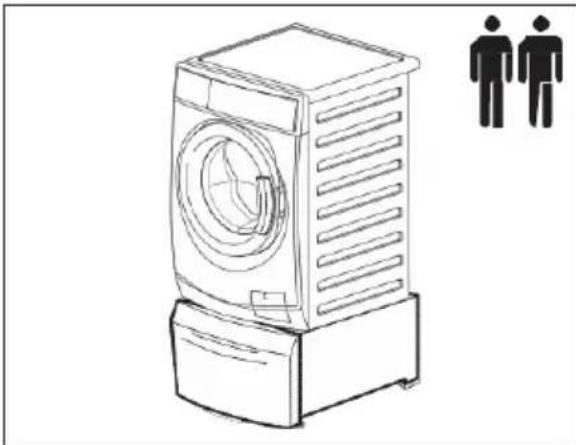

WARNING! Do not install it alone.

WARNING! Before proceeding with installation, make sure there is enough room.

WARNING! Before use of the appliance (Washing Machine or Dryer) be sure all the rear brackets (2x) are fixed by screws.

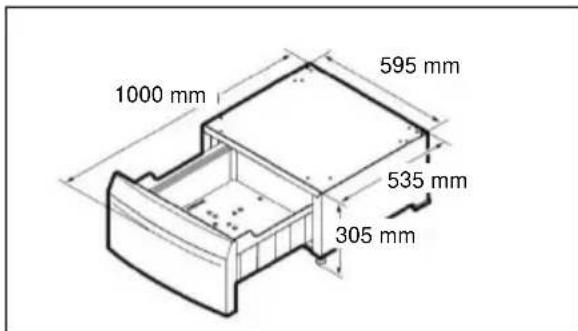

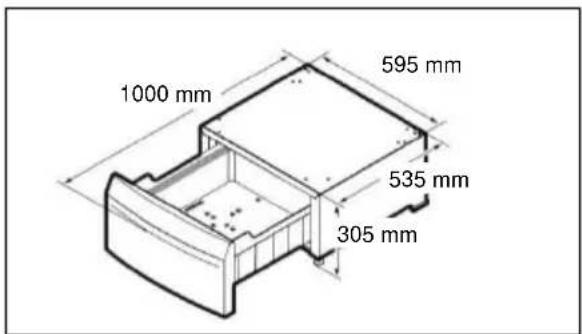

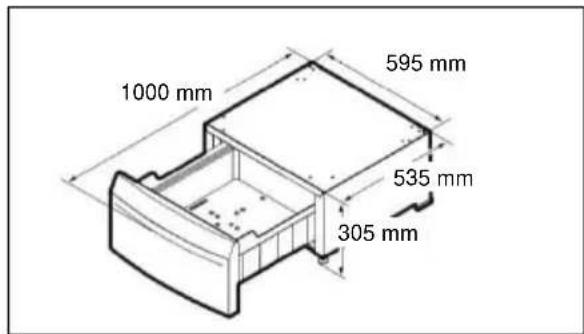

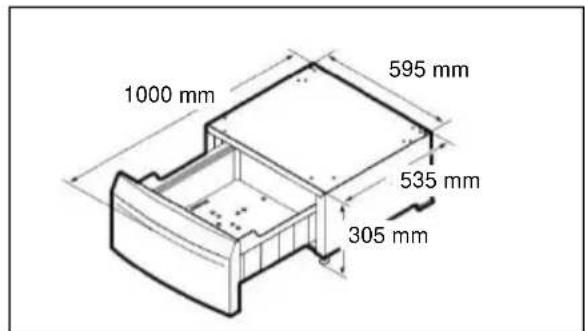

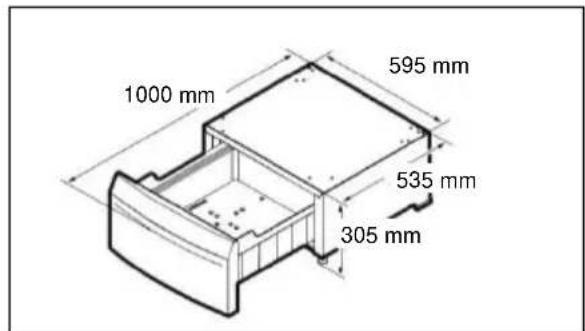

- Dimension

- Accessories

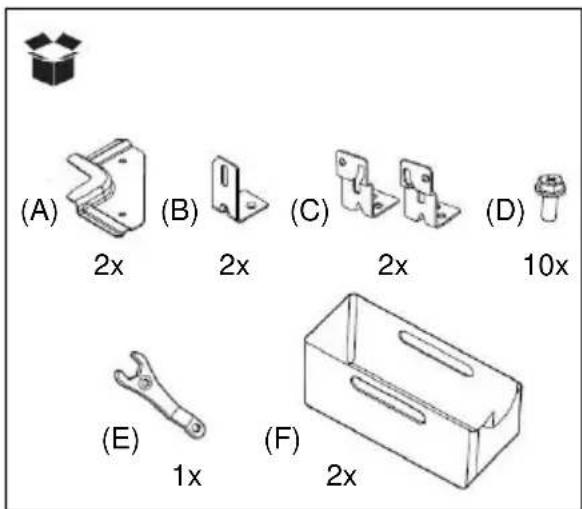

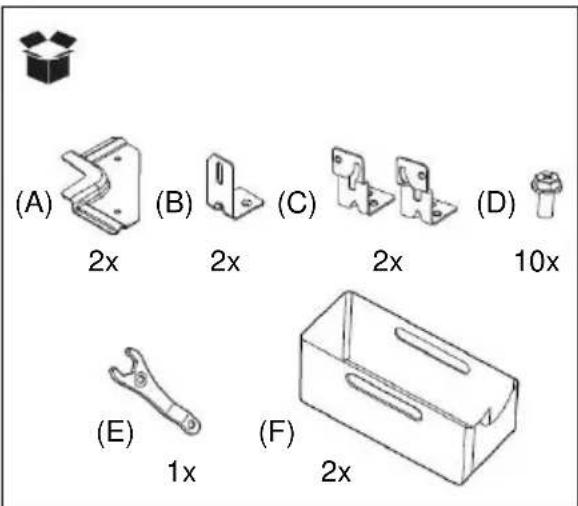

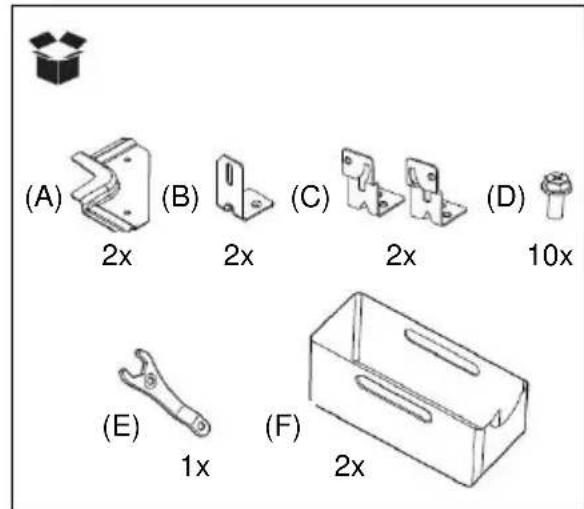

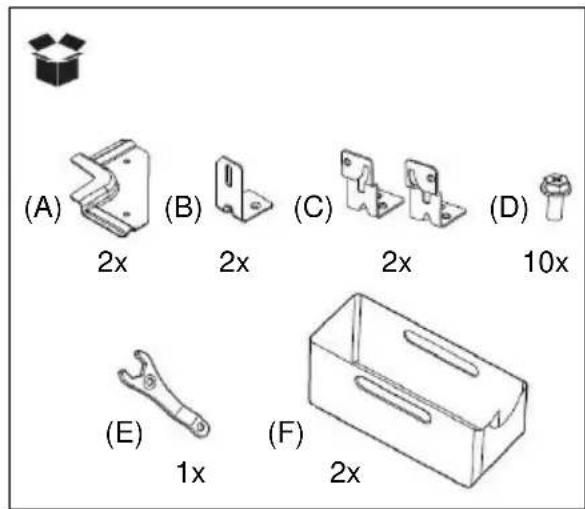

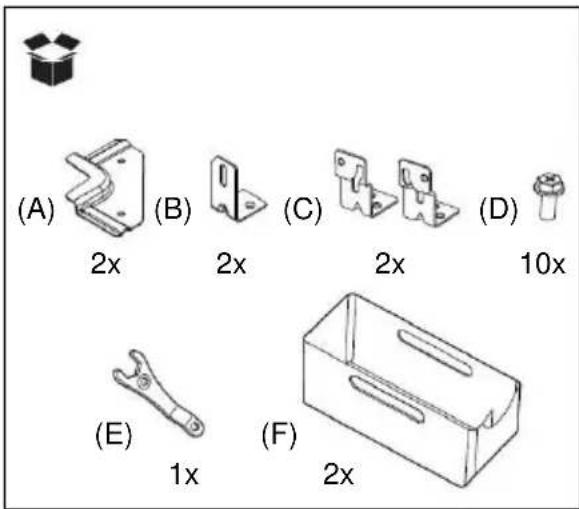

(A) 2 front metal brackets. (B) 2 rear brackets for washing machine. (C) 2 rear brackets for tumble dryer. (D) 10 screws. (For tumble dryer 8 screws will be sufficient.) (E) 1 spanner to adjust the levelling feet. (F) 2 additional containers (if available).

Installation Procedure

1. Remove the pedestal and all accessories from the box.

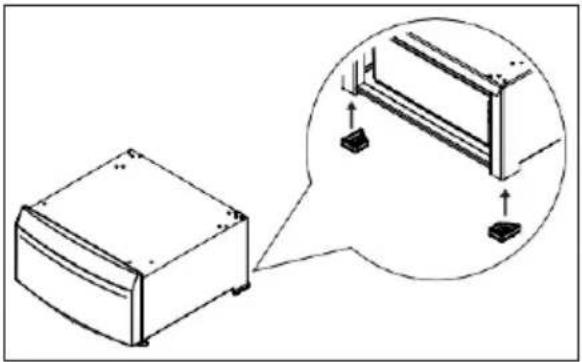

2. Make sure that the rear rubber feet are mounted.

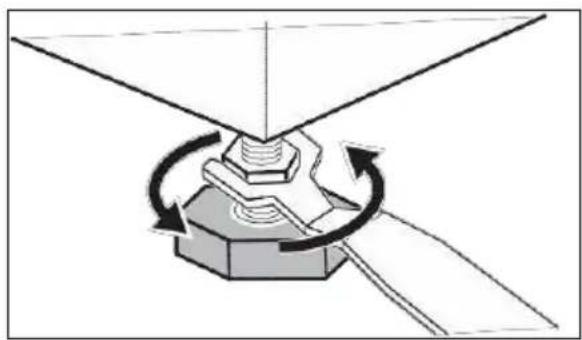

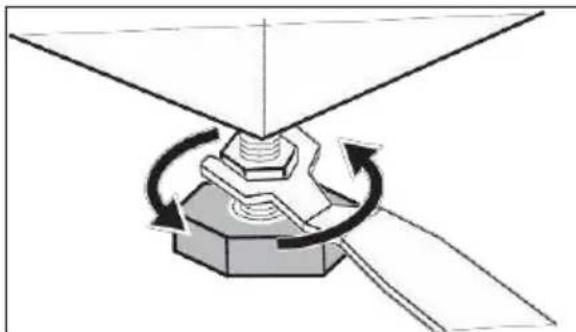

1. Adjust the front adjustable feet to make the pedestal stable.

1. If you install the pedestal under a brand new appliance, unpack the appliance as indicated in the instructions supplied with it and then proceed with step 6.
2. If the appliance is already connected:
3. Disconnect the mains plug from the mains socket.
4. For washing machine: Close the water tap.
5. For washing machine: Disconnect the inlet hose(s) from the water tap and let the water flow out from the inlet hose(s) and the drain hose, collecting it in a shallow basin.

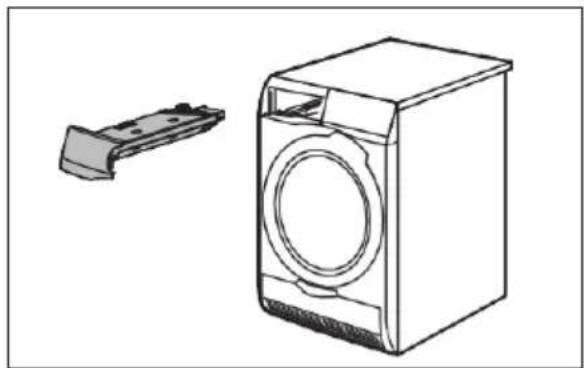

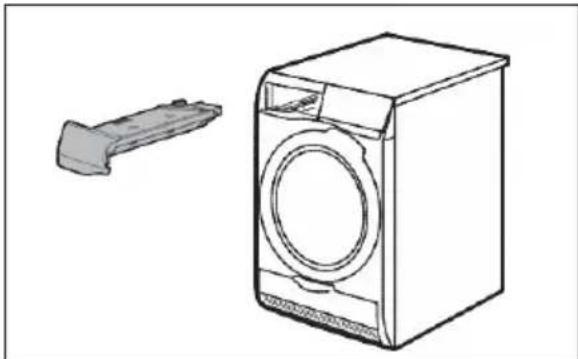

For tumble dryer: Empty the water container in a wash basin or, if available, activate the direct drain system to let the water flow out.

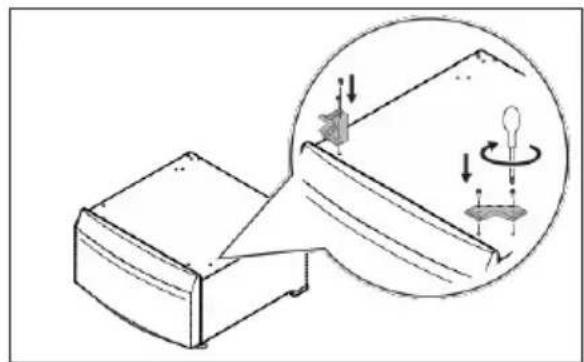

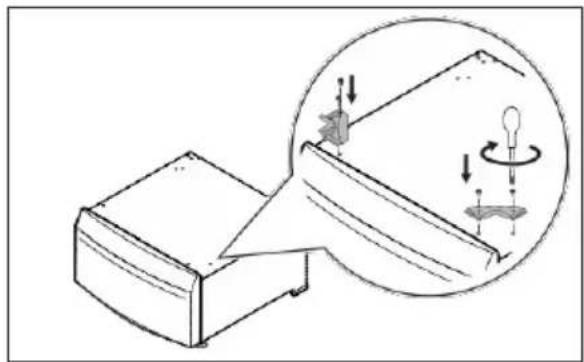

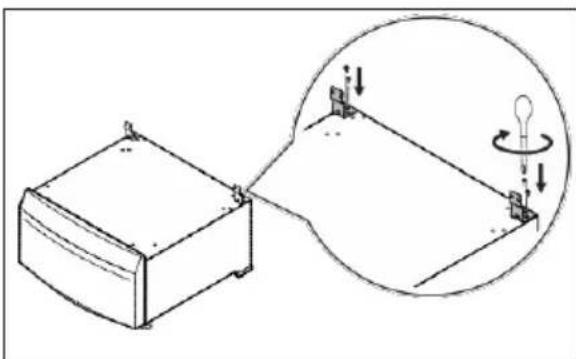

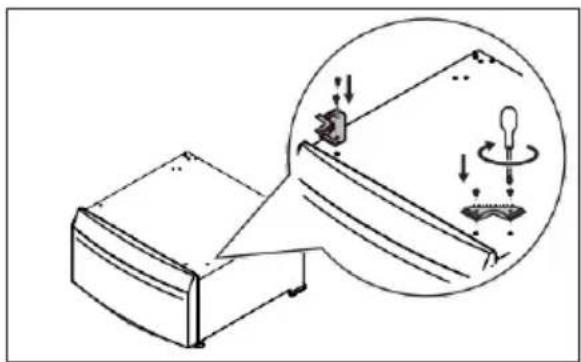

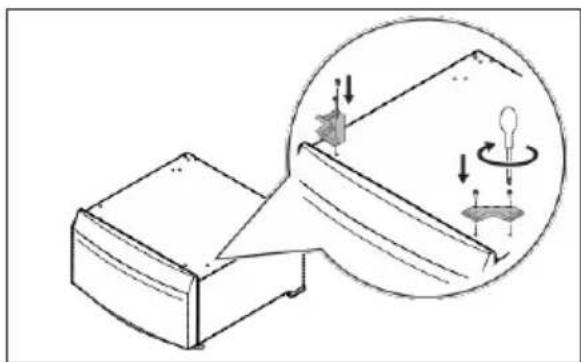

1. Screw the front brackets onto the pedestal.

1. For washing machine: Gently lay the washing machine on its detergent dispenser side.

Lay it on cardboard or a piece of polystyrene to avoid scratching the cabinet.

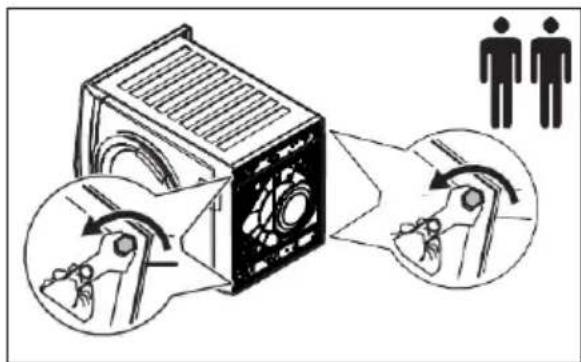

1. For washing machine: Adjust the appliance's adjustable feet to a suitable height to allow it to slide under the foot locking brackets.

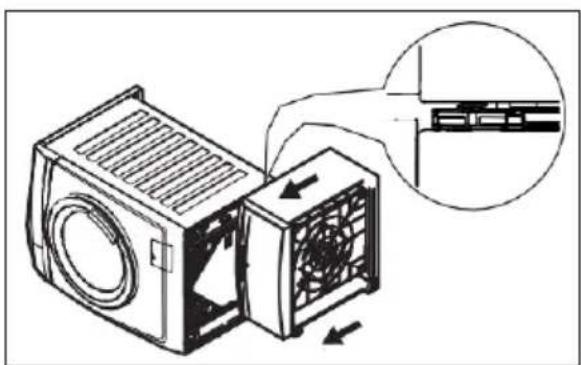

1. For washing machine: Lay the pedestal on the same side and slide it forward so that the appliance's front feet slide under the foot locking brackets.

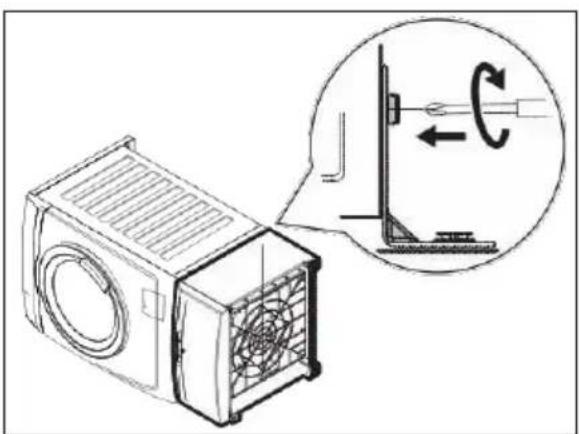

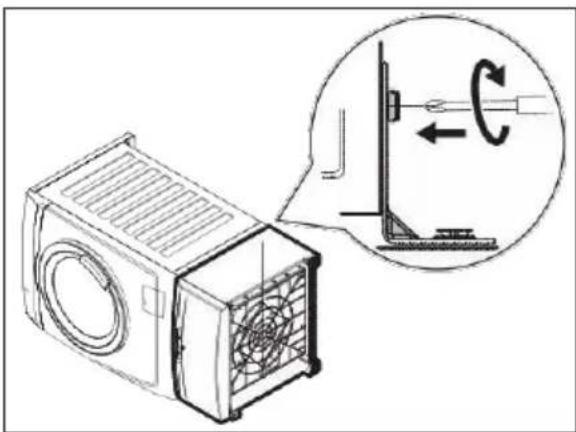

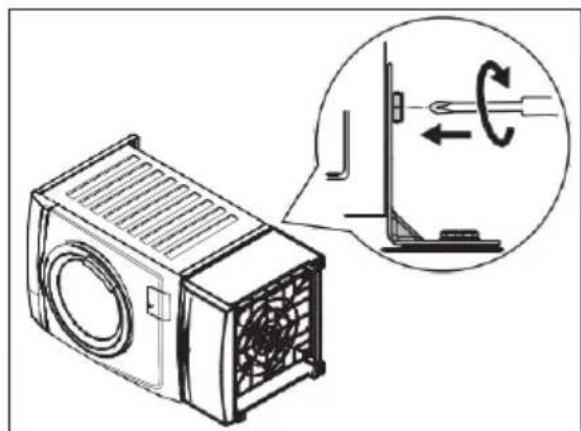

1. For washing machine: Use the screws supplied to secure the rear brackets (B) on both the washers and the pedestal.

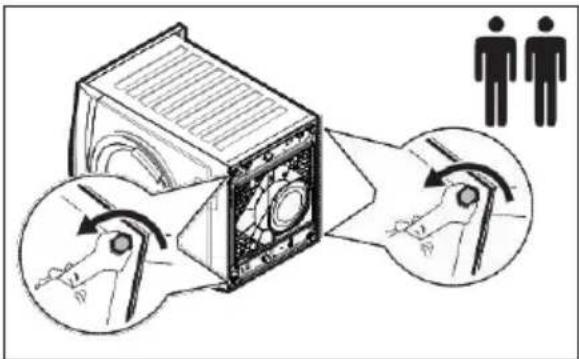

1. For washing machine: Put the pedestal and appliance in a vertical position. If necessary, adjust the appliance feet and go to step 16. Check that the screws are firmly tightened.

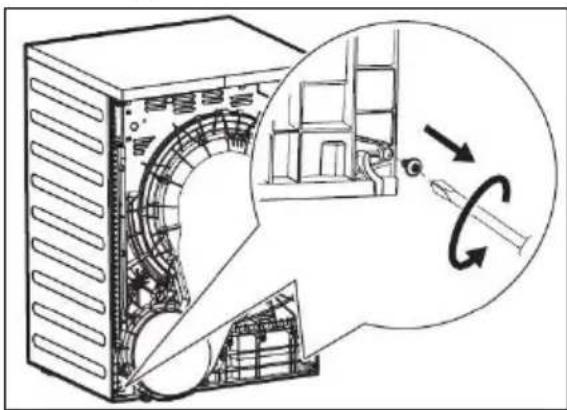

1. For tumble dryer: Unscrew the two bottom screws from the back of the appliance.

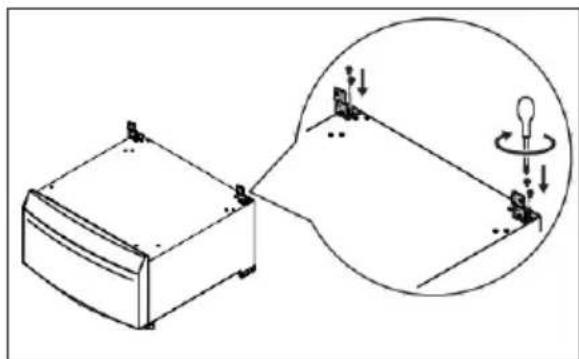

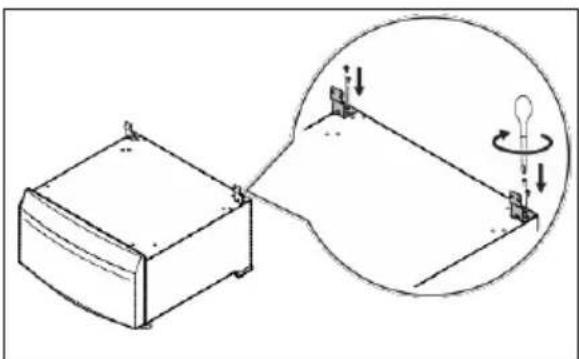

1. For tumble dryer: Screw the rear brackets (C) onto the pedestal using the screws supplied in the stand box.

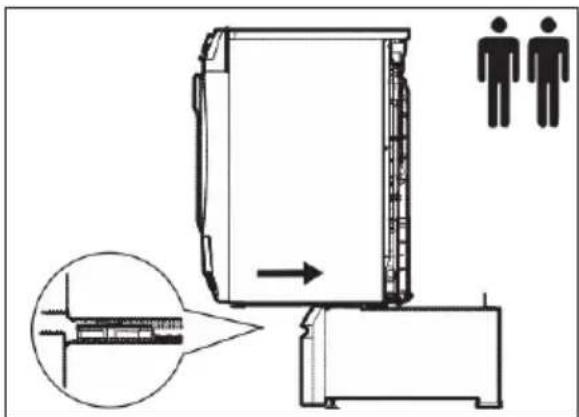

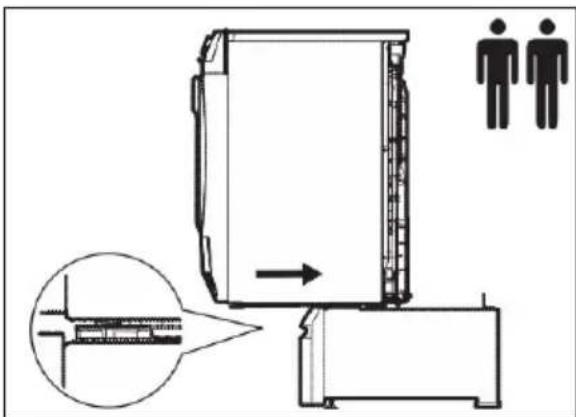

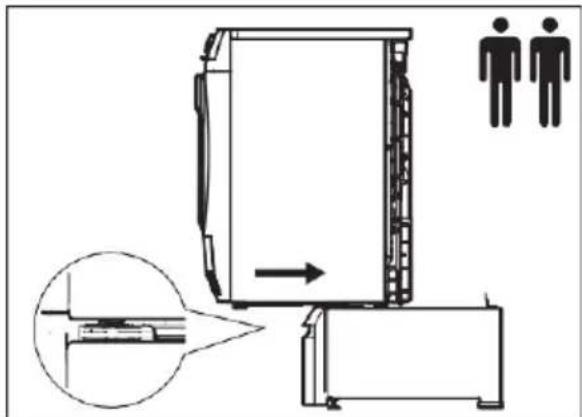

1. For tumble dryer. Lift the appliance and slide it backwards so that the front feet slide under the foot locking brackets.

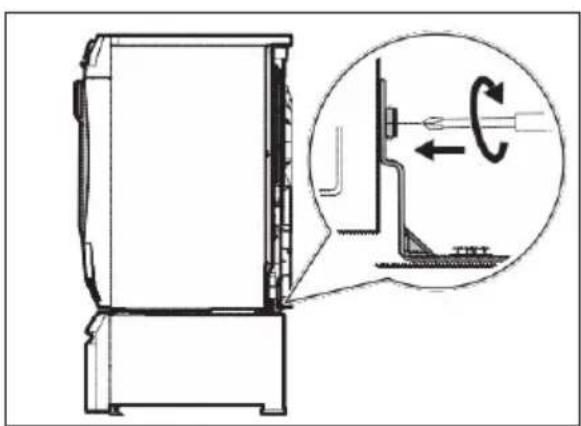

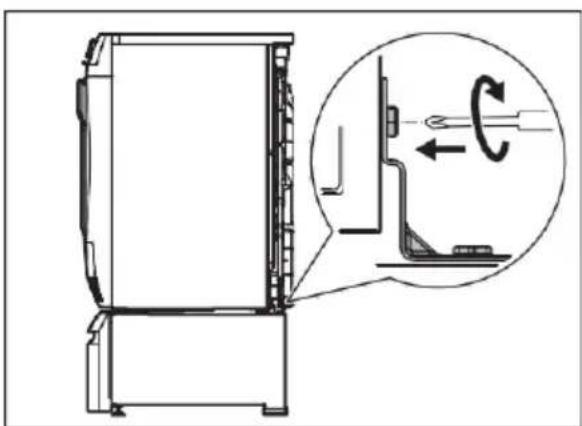

1. For tumble dryer. Screw the rear brackets (C) to the back of the appliance using the screws removed in step 12, and adjust the appliance feet if required.

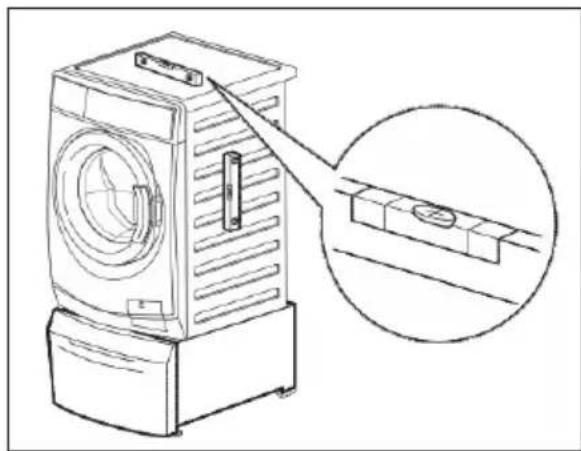

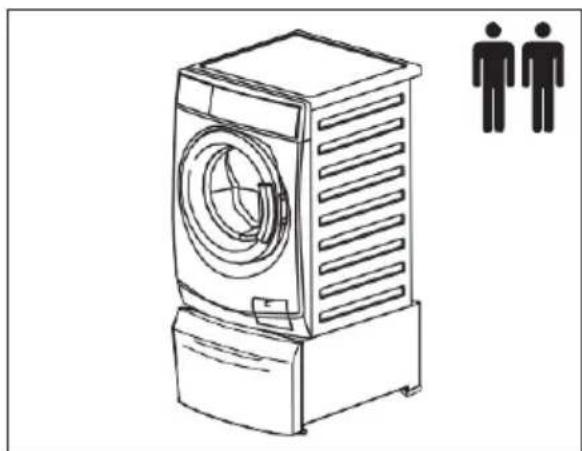

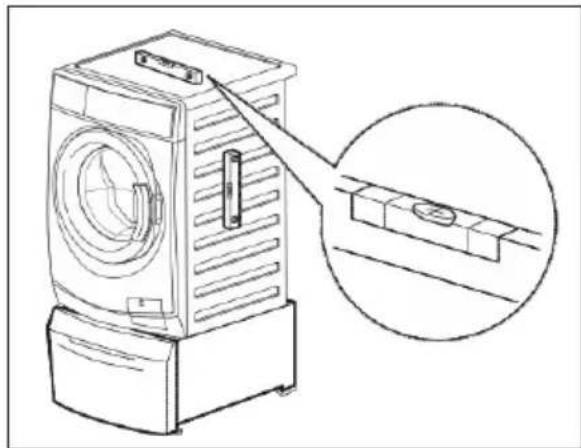

1. Move the pedestal/appliance assembly to its permanent location. Use a spirit level to check if the assembly is properly leveled. If not, adjust the feet to level it properly.

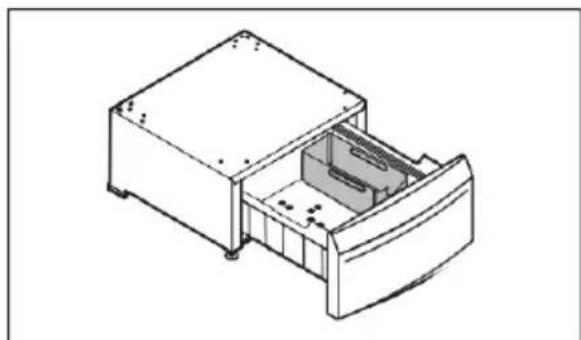

1. If available, you can insert the additional container (F).

1. Connect the appliance as indicated in the instructions supplied with the appliance.

Environmental Concerns

Recycle materials with the symbol 📊. Put packaging in applicable containers to recycle it. Help protect the environment and human health, and recycle waste from electrical and electronic appliances.

Do not dispose of appliances marked with the symbol with household waste.

Return the product to your local recycling facility or contact your municipal office.

Note

WARNING! Do not install without assistance.

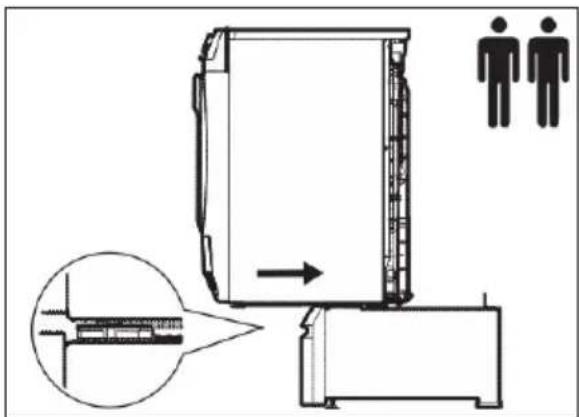

1. For tumble dryer. Lift the appliance and slide it backwards so that the front feet slide under the foot locking brackets.

WARNING! Before starting installation, ensure you have enough space.

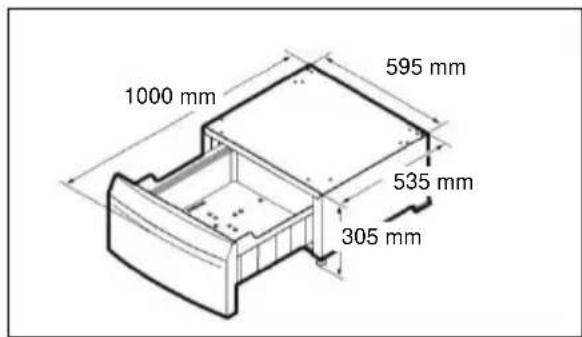

- Dimensions

- Accessories

WARNING! Do not install it yourself.

WARNING! Before installation, make sure there is enough space.

1. Adjust the front feet so that the base is stable.

1. If you are mounting the base under a new appliance, unpack the appliance as indicated in the enclosed instructions and proceed to step 6.
2. If the appliance is already connected:

- Pull the power plug out of the electrical outlet.

- For washing machines: Close the water tap.

- For washing machines: Disconnect the inlet hose(s) from the water tap and let the water drain from the inlet and drain hoses into a shallow basin.

- For tumble dryers: Empty the water container into a sink or, if available, activate the direct drain system to release the water.

1. For washing machines: Carefully lay the washing machine on its side with the detergent drawer.

Place it on cardboard or a piece of polystyrene to avoid scratching the frame.

1. For washing machines: Adjust the feet to adjust the appliance to a suitable height so that they can fit under the foot locking brackets.

1. For washing machines: Lay the base on the same side and push it forward so that the front feet of the appliance slide under the foot locking brackets.

1. For washing machines. Use the screws (G) supplied to fix the rear brackets (B) to the base and the screws (D) for the plinth.

1. For washing machines. Place the base and the appliance in an upright position. If necessary, adjust the appliance feet and proceed to step 16. Check that the screws are properly tightened.

1. For tumble dryers. Unscrew and keep the two lower screws on the rear of the appliance.

1. For tumble dryers. Screw the rear brackets (C) to the base using the screws supplied in the base box.

1. For tumble dryers. Lift the appliance and push it backwards so that the front feet of the appliance slide under the foot locking brackets.

1. For tumble dryers. Screw the rear brackets (C) to the back of the appliance using the screws removed in step 12 and, if necessary, adjust the appliance feet.

1. Connect the appliance as indicated in the instructions supplied with the appliance.

Environmental information

Recycle materials with the symbol 🚙. Dispose of packaging for recycling in suitable containers. Help protect the environment and human health and recycle waste from electrical and electronic appliances.

Do not dispose of appliances marked with the symbol 🚙️ with household waste.

Take the product to your local recycling facility or contact your local authority.

Note

- Dimensions

- Accessories

- Dimensions

- Accessories

WARNING! Do not install it alone.

1. Screw the front brackets to the base.

1. Screw the front brackets to the base.

1. For washing machine. Use the (G) screws provided to attach the rear brackets (B) to the washer and (D) screws for the pedestal.

1. For washing machine. Raise the pedestal and appliance to a vertical position. If necessary, adjust the feet and go to Step 16. Check that the screws are properly tightened.

1. For washing machine: Gently place the washing machine on the floor on the detergent dispenser side.

1. For washing machine. Use the (G) screws provided to fix the rear brackets (B) to the washer and (D) screws to the pedestal.

WARNING! Do not install it alone.

1. Screw the front brackets onto the base.

1. For washing machine. Carefully lay the washing machine on the detergent dispenser side.

1. For dryer. Lift the appliance and slide it so that the front feet of the appliance fit under the locking feet clips.

1. Move the pedestal/appliance to its permanent location. Use a spirit level to check that the mounting kit is level. If not, adjust the feet and level it.

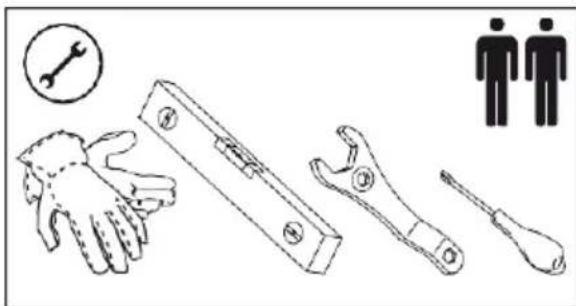

- Tools

- Accessories

WARNING! Do not install it yourself.

WARNING! Before continuing with the installation, make sure you have enough space.

WARNING! Before using the appliance (washing machine or dryer), make sure the rear brackets are secured with screws.

1. Adjust the front adjustable feet to make the base stable.

1. Screw the front brackets onto the base.

1. For washing machine. Place the base and appliance upright. If necessary, adjust the appliance feet and go to step 16. Check that the screws are tightened properly.

1. For dryer. Screw the rear brackets (C) onto the base with the provided screws.

1. Move the base/appliance to its permanent location. Use a spirit level to check if the appliance is level. If not, level the feet accordingly.

- Dimensions

- Accessories

WARNING! Do not

WARNING! Before
