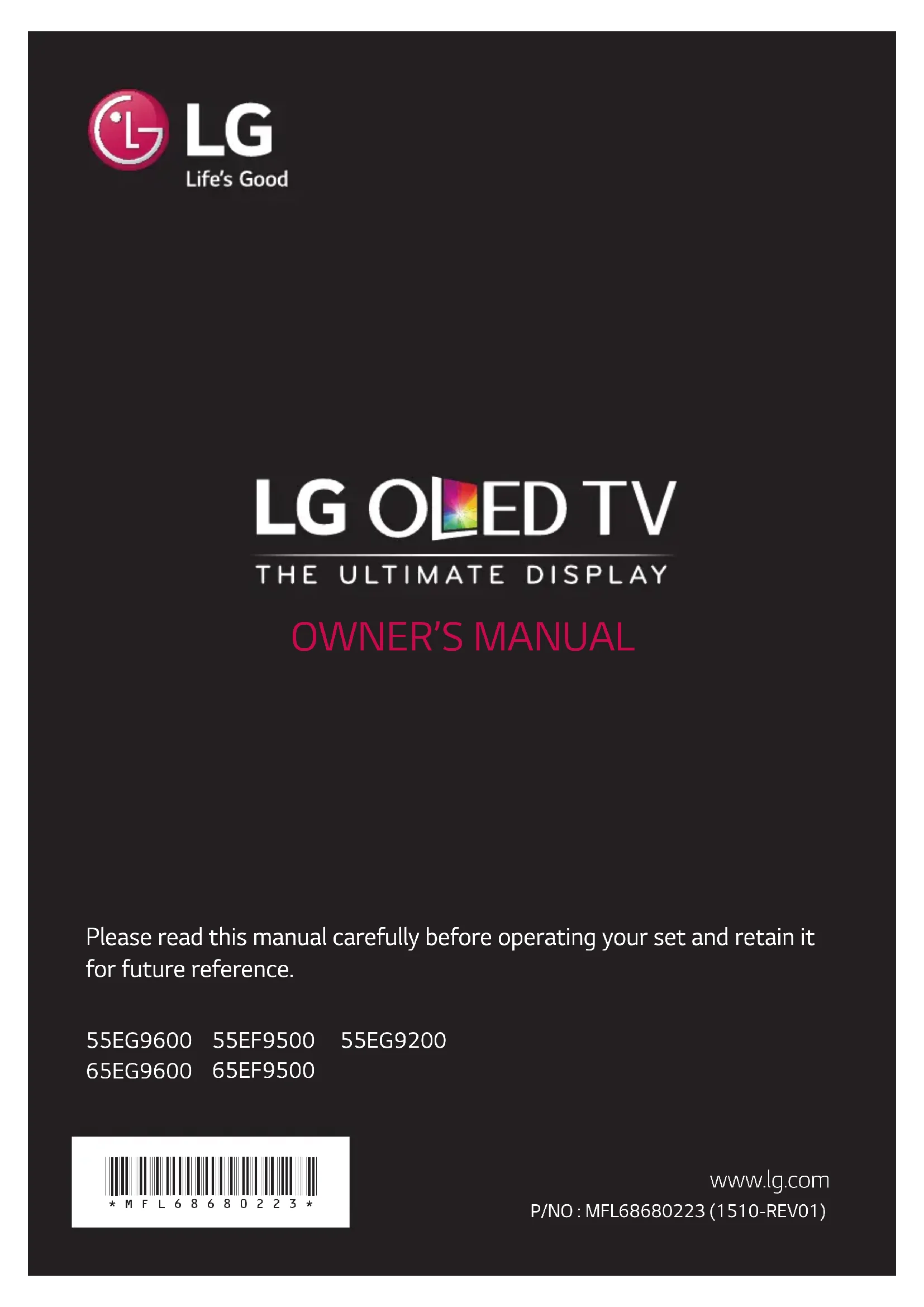

USER MANUAL 55EG9200 LG

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

Do not use this apparatus near water. Short-circuitBreakerPower Supply

Clean only with dry cloth. Short-circuitBreakerPower Supply

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Short-circuitBreakerPower Supply

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Short-circuitBreakerPower Supply

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Short-circuitBreakerPower Supply Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. WARNING/CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. WARNING/CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. WARNING/CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING/CAUTION - TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged. NOTE The note helps you understand and use the product safely. Please read the note carefully before using the product. Short-circuitBreakerPower SupplyENGENGLISH

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Short-circuit Breaker Power Supply

Only use attachments/accessories specified by the manufacturer. Short-circuit Breaker Power Supply

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Short-circuit Breaker Power Supply

Unplug this apparatus during lightning storms or when unused for long periods of time. Short-circuit Breaker Power Supply

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Short-circuit Breaker Power Supply

Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or make a scratch on it. Short-circuit Breaker Power Supply

Do not stick metal objects or any other conductive material into the power cord. Do not touch the end of the power cord while it is plugged in.

Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti- moisture material is harmful if swallowed. If swallowed, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

CAUTION concerning the Power Cord (Can differ by country): Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV. Short-circuit Breaker Power Supply

Warning - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. Short-circuit Breaker Power SupplyENG ENGLISH

Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g., on shelves above the unit). Short-circuitBreakerPower Supply

Grounding (Except for devices which are not grounded.) Ensure that you connect the earth ground wire to prevent possible electric shock (i.e., a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightning rods, or gas pipes.Short-circuitBreakerPower Supply

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off. Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product. Outdoor Antenna Grounding (Can differ by country): If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. Antenna grounding according to the National Electrical Code, ANSI/NFPA 70 Short-circuit Breaker Power Supply Ground ClampGrounding Conductor (NEC Section 810-21)Antenna Lead in WireElectric Service EquipmentAntenna Discharge Unit (NEC Section 810-20)Ground ClampPower Service Grounding Electrode System (NEC Art 250, Part H)NEC: National Electrical Code Cleaning When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners, or benzene. Moving Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV. Ventilation Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged in. Do not install in excessively dusty places. If you smell smoke or other odors coming from the TV, unplug the power cord and contact an authorized service center. Keep the product away from direct sunlight. Never touch this apparatus or antenna during a thunder or lightning storm. When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV. Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen. DISCONNECTING THE DEVICE FROM THE MAIN POWER The power plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible. Batteries Store the accessories (battery, etc.) in a safe location out of the reach of children. This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information. Do not dispose of batteries in a fire. Do not short circuit, disassemble or allow the batteries to overheat. Do not use high voltage electrical equipment near the TV, (e.g., a bug zapper). This may result in product malfunction. Dot Defect The panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. ThoseENGENGLISH

dots are deactivated pixels and do not affect the performance and reliability of the TV. Generated Sound Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending upon the product. This generated sound does not affect the performance and reliability of the product. Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product. Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall. If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal, there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen. Displaying a still image for a prolonged period of time may cause an image sticking. Avoid displaying a fixed image on the TV screen for a extended length of time. FCC Notice (For USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.ENG ENGLISH

FCC Radio Frequency Interference Requirements (for UNII devices) High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/ or damage this device. This device cannot be co- located with any other transmitter. FCC RF Radiation Exposure Statement [For having wireless function (WLAN, Bluetooth,...)] This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance. Industry Canada Statement (For Canada) [For having wireless function (WLAN, Bluetooth,...)] This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including

interference that may cause undesired operation of the device. IC Radiation Exposure Statement (For Canada) [For having wireless function (WLAN, Bluetooth,...)] This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna and your body.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE

FOR ANY RADIO OR TV INTERFERENCE CAUSED

USER’S AUTHORITY TO OPERATE THE EQUIPMENT. WARNING (For Canada) [For product having the wireless function using 5 GHz frequency bands]

The device for operation in the band 5150– 5250 MHz is only for indoor use to reduce the potential for harmful interference to co- channel mobile satellite systems;

The maximum antenna gain permitted for devices in the bands 5250–5350 MHz and 5470–5725 MHz shall comply with the EIRP limit; and

The maximum antenna gain permitted for devices in the band 5725–5825 MHz shall comply with the EIRP limits specified for point- to-point and non point-to-point operation as appropriate.

High-power radars are allocated as primary users (i.e., priority users) of the bands 5250– 5350 MHz and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Note to Cable/TV Installer (For USA and Canada) This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.ENGENGLISH

Viewing 3D Imaging WARNING Viewing Environment

When watching 3D contents, take five- to fifteen-minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue, or eye strain. Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

3D Contents are not recommended for those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight), or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

If your eyesight varies between your right and left eye, correct your eyesight prior to watching 3D contents. Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides. - Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, eyestrain, or fatigue. CAUTION Viewing Environment

Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV. Viewing Age

Infants / Children - Usage/ Viewing 3D contents for children under the age of 5 is not recommended. - Children under the age of 10 may overreact and become overly excited because their vision is in development, for example, trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents. - Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers - Teenagers may be stimulated by light coming from 3D videos. Advise them not to watch 3D videos for a long time when they are tired.

Elderly - The elderly may perceive less of a 3D effect than the youth. Do not sit closer to the TV than the recommended distance. Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses, or protective goggles.

Using modified 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.ENG ENGLISH

LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail] . This offer is valid for three (3) years from the date on which you purchased the product.ENGENGLISH

6 - Note to Cable/TV Installer

15 Lifting and Moving the TV 16 Setting Up the TV

16 - Attaching the Stand

20 - Mounting on a Table

22 - Mounting on a Wall

23 MAKING CONNECTIONS 23 Connecting to an Antenna or Cable 24 Connecting to a HD receiver, DVD Player, or VCR

28 Connecting to a PC

29 - HDMI Connection or DVI to HDMI

Connection 30 Connecting to an Audio System

30 - Digital Optical Audio Connection

31 Connecting Headphones 32 Connecting a USB Drive

33 MAGIC REMOTE FUNCTIONS

34 Registering Magic Remote 34 How to Use Magic Remote 34 Precautions to Take

37 - Screen, Frame, Cabinet, and Stand

Image shown may differ from your TV.

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

The available menus and options may differ from the input source or product model that you are using.

New features may be added to this TV in the future. NOTEENG ENGLISH

Open the package and make sure all the accessories are included. Attach the stand to the TV set. Connect an external device to the TV set. Make sure the network connection is available. You can use the TV network functions only when the network connection is made.* When the TV is turned on for the first time after being shipped from the factory, initialization of the TV may take approximately one minute.

ASSEMBLING AND PREPARING

Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. Do not use any unapproved items to ensure the safety and product life span. Any damages or injuries by using unapproved items are not covered by the warranty. In case of some model, the thin film on screen is a part of the TV, So don’t take it off. CAUTION

The items supplied with your product may vary depending upon the model. Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick and 18 mm (0.7 inches) width. Use an extension cable that supports USB 2.0 if the USB cable or USB FLASH DRIVE does not fit into your TV’s USB port. Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. Recommended HDMI cable types (3 m or less) - High-Speed HDMI

ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

Optional Extras Optional extras can be changed or modified for quality improvement without any notification. Contact your dealer for buying these items. These devices work only with certain models. The model name or design may be changed manufacturer’s circumstances or policies. AN-MR6** Magic Remote AG-F*** Cinema 3D Glasses AN-VC550 Smart Camera AG-F***DP Dual Play Glasses LG Audio DeviceENGENGLISH

ASSEMBLING AND PREPARING

Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. Joystick button is located below the screen of TV.LG Logo Light(For EG9600, EF9500 series)Power Indicator(For EG9200 series)ScreenSpeakersJoystick button

You can set the LG Logo Light to be on or off by selecting GENERAL in the main menus. (Depending upon model) NOTE Remote Control Sensor Intelligent Sensor

ASSEMBLING AND PREPARING

Using the Joystick button You can operate the TV by pressing the button or moving the joystick left, right, up, or down. Basic functions Power On When the TV is turned off, place your finger on the joystick button, press it once, and release it. Power Off When the TV is turned on, place your finger on the joystick button, press it once for a few seconds, and release it. All running apps will close. Volume Control Place your finger on the joystick button and move it left or right to adjust the volume level. Channels Control Place your finger on the joystick button and move it up or down to adjust the channels.

Move the joystick button up, down, left, or right. Be careful not to press it. If you press it first, you may not be able to adjust the volume or scroll through the channels. NOTE Adjusting the menu When the TV is turned on, press the joystick button one time. You can adjust the menu items moving the joystick button up, down, left, or right. POWER OFF Turns the power off.SETTINGS Accesses the quick settings.CLOSE Clears on-screen displays and returns to TV viewing.INPUTS Changes the input source.ENGENGLISH

ASSEMBLING AND PREPARING

Lifting and Moving the TV When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

Avoid touching the screen at all times, as this may result in damage to the screen.

Do not place the product on the floor with its front facing down without padding. Failure to do so may result in damage to the screen. CAUTION

Move the TV in the box or packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the power cord and all cables.

When holding the TV, the screen should face away from you to avoid damage.

Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Use at least two people to move a large TV.

When transporting the TV by hand, hold the TV as shown in the following illustration.

When handling the TV, be careful not to damage the protruding joystick button.

When transporting the TV, do not expose the TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right.

Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.

Be sure to keep your TV upright instead of laying or tilting it while moving the TV.ENG ENGLISH

ASSEMBLING AND PREPARING

Setting Up the TV You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other furniture. Attaching the Stand If you are not mounting the TV to a wall, use the following instructions to attach the stand. Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not tighten the screws with too much force; otherwise they may be damaged and come loose later. CAUTION

Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. NOTE Stand CoverStand Base(For 55EG9600, 55EG9200)Packing Brace When assembling the stand, lay the packing brace on a table or product box and then place the TV with its screen facing down on the packing brace. Be sure to protect the screen from scratches. When there is no packing brace provided, make sure that you place the screen on soft clothing or a cushion. Do not place the TV without the stand attached into its upright position. The protruding Joystick Button may be damaged. CAUTIONENGENGLISH

ASSEMBLING AND PREPARING

Insert the protruding parts of the stand cover into the holes.

Insert the cover holder of the stand cover into the holes until it clicks.

Press the stand cover gently so that the non- woven fabric inside is attached tightly.

When assembling the stand, lay the packing brace on a table or product box and then place the TV with its screen facing down on the packing brace. Be sure to protect the screen from scratches. When there is no packing brace provided, make sure that you place the screen on soft clothing or a cushion.

Do not place the TV without the stand attached into its upright position. The protruding Joystick Button may be damaged. CAUTIONENG ENGLISH

ASSEMBLING AND PREPARING

Insert the protruding parts of the stand cover into the holes.

Insert the cover holder of the stand cover into the holes until it clicks.

Press the stand cover gently so that the non- woven fabric inside is attached tightly.

Do not place the TV without the stand attached into its upright position. The protruding Joystick Button may be damaged.

ASSEMBLING AND PREPARING

Insert the protruding parts of the stand cover into the holes.

Insert the cover holder of the stand cover into the holes until it clicks.

Do not place the TV without the stand attached into its upright position. The protruding Joystick Button may be damaged.

ASSEMBLING AND PREPARING

Mounting on a Table (Image shown may differ from your TV.) Lift and tilt the TV into its upright position on a table.- Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. 10 cm10 cm10 cm10 cm (4 inches) 10 cm10 cm10 cm10 cm

Connect the power cord to a wall outlet. Do not place the TV near or on sources of heat, as this may result in fire or other damage. CAUTION

8 EA M4 x L14 Insert the protruding parts of the stand cover into the holes. Insert the cover holder of the stand cover into the holes until it clicks.Cover HolderENGENGLISH

ASSEMBLING AND PREPARING

Securing the TV to a wall (optional) (Depending upon model) Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.- If there are bolts inserted at the eye-bolts position, remove the bolts first. Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. Connect the eye-bolts and wall brackets tightly with a sturdy rope or cable. Make sure to keep the rope parallel to the flat surface. Make sure that children do not climb on or hang on the TV. CAUTION

Use a platform or cabinet that is strong and large enough to support the TV securely. Brackets, bolts, and ropes are optional. You can obtain additional accessories from your local dealer. NOTE Tidying Cables Gather and bind the cables with the cable holder. Cable Holder Do not move the TV by holding the cable holder, as the cable holder may break, and injuries and damage to the TV may occur. CAUTIONENG ENGLISH

ASSEMBLING AND PREPARING

Mounting on a Wall An optional wall mount can be used with your LG Television. Consult with your local dealer for a wall mount used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. 10 cm10 cm10 cm10 cm(4 inches)Make sure to use screws and wall mounts that meet the standard. Standard dimensions for the wall mount kits are described in the following table.Model 55EG9600 55EG9200A x B x C 200 x 340 x 195Standard screw M6Number of screws 4Wall mount bracket (optional)OTW150Model 65EG9600 55/65EF9500A x B x C 200 x 330 x 120Standard screw M6Number of screws 4Wall mount bracket (optional)OTW150 Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur. If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. Do not overtighten the screws as this may cause damage to the TV and void your warranty. Use the screws and wall mounts that meet the standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. CAUTION

Use the screws that are listed on the standard screw specifications. The wall mount kit includes an installation manual and necessary parts. The wall mount bracket is optional. You can obtain additional accessories from your local dealer. The length of screws may differ depending upon the wall mount. Make sure to use the proper length. For more information, refer to the manual supplied with the wall mount. NOTE

MAKING CONNECTIONS MAKING CONNECTIONS You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device. The external device connections shown may differ slightly from illustrations in this manual. Connect external devices to the TV regardless of the order of the TV port. If you connect a gaming device to the TV, use the cable supplied with the gaming device. Refer to the external equipment’s manual for operating instructions. (Smart TV Only) The TV may be capable of operating without a set-top from a multichannel video programming distributor (MVPD). NOTE Connecting to an Antenna or Cable Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and a RF cable is optional. Make sure not to bend the copper wire of the RF cable.Copper wire Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV. CAUTION Antena VHFAntena UHFAntennaCoaxial (75Ω)Terminal(*Not Provided) Use a signal splitter to use more than 2 TVs. DTV Audio Supported Codec: MPEG, Dolby Digital. Direct ULTRA HD broadcast is unavailable in areas without a ULTRA HD signal. This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been confirmed. NOTEENG ENGLISH

MAKING CONNECTIONS Connecting to a HD receiver, DVD Player, or VCR Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode. HDMI specifications may be different for each input port, so make sure to check the device specifications before connecting. Contact customer service for more information on the HDMI specifications of each input port. If the device connected to Input Port also supports ULTRA HD Deep Color, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV’s ULTRA HD Deep Color setting to Off. - This feature is available on certain models which are supported ULTRA HD Deep Color only. (Home) (Settings) (Advanced) Picture HDMI ULTRA HD Deep Color - On Support 4 K @ 60 Hz (4:4:4, 4:2:2, 4:2:0) - Off Support 4 K @ 60 Hz (4:2:0) NOTE HDMI Connection HDMI is the best way to connect a device.Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown in the following illustration. Use the latest High Speed HDMI™ Cable that supports CEC (Customer Electronics Control) function. High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher. HDMI Audio Supported Format: PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz) NOTE HDMI DVD / Blu-Ray / HD Cable Box / HD STB(*Not Provided)ARC (Audio Return Channel) When connected with a high-speed HDMI cable, digital audio can be sent to a compatible device without an additional optical audio cable.

ARC is only supported on the HDMI (4 K @ 60 Hz) / DVI IN 2 (ARC) port. An external audio device that supports ARC should be connected to HDMI (4 K @ 60 Hz) / DVI IN 2 (ARC) if you wish to use ARC.ENGENGLISH

DVI to HDMI Connection Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.

MAKING CONNECTIONS VIDEOAUDIO L R Component Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown in the following illustration.

If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.

AUDIOLR Composite Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration.

If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.

Check to ensure the cables are matched with the corresponding color connection. NOTE VCR / DVD / Blu-Ray / HD Cable Box YELLOW WHITE RED WHITE YELLOW RED WHITE YELLOW RED YELLOW (Use the composite video cable provided.) (*Not Provided)ENG ENGLISH

MAKING CONNECTIONS Connecting to a PC

Use an HDMI connection for the best image quality.

Depending upon the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use.

In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

The synchronization input form for Horizontal and Vertical frequencies is separate.

Depending upon the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.

If you are using DVI out from a PC, you have to connect analog audio separately. Refer to the instructions on the next page.

When using the HDMI/DVI cable, Single link is only supported.

If Ultra HD content is played on your PC, video or audio may become disrupted intermittently depending upon your PC’s performance.

HDMI specifications may be different for each input port, so make sure to check the device specifications before connecting.

Contact customer service for more information on the HDMI specifications of each input port.

If the device connected to Input Port also supports ULTRA HD Deep Color, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV’s ULTRA HD Deep Color setting to Off. - This feature is available on certain models which are supported ULTRA HD Deep Color only. (Home) (Settings) (Advanced) Picture HDMI ULTRA HD Deep Color - On Support 4 K @ 60 Hz (4:4:4, 4:2:2, 4:2:0) - Off Support 4 K @ 60 Hz (4:2:0)

With the HDMI cable, connect the HDMI (4 K @ 60 Hz) / DVI IN 1 port of your TV to the HDMI output port of your PC. Then, the TV will output video and audio together. NOTEENGENGLISH

MAKING CONNECTIONSOPTICAL AUDIO INDigital Audio System(*Not Provided) Connecting to an Audio System You may use an optional external audio system instead of the built-in speaker. Digital Optical Audio Connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration. Do not look into the optical output port. Looking at the laser beam may damage your vision. Audio with ACP (Audio Copy Protection) function may block digital audio output. NOTEENGENGLISH

MAKING CONNECTIONS Connecting Headphones (For EG9600, EF9500 series) Listening to sound with headphones.

Do not use headsets (earphones) at high volume or for a long time. It may cause damage to your hearing.

AUDIO menu options are disabled when headphones are connected.

When changing AV MODE with a headphone connected, the change is applied to video but not to audio.

Optical Digital Audio Out is not available when connecting a headphone.

Headphone impedance: 16 Ω

Headphone jack size: 3.5 mm (0.13 inches) NOTE (*Not Provided) HeadphoneENG ENGLISH

MAKING CONNECTIONS (*Not Provided) Choose any USB input port to connect. It does not matter which port you use.

Connecting a USB Drive Connect a USB storage device such as a USB flash thumbdrive, external hard drive, or a USB memory card reader to the TV and access the SmartShare menu to use various multimedia files.

Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it directly to the USB port on the TV.

Some USB device may not work if it does not meet USB 3.0 standard. In case, connect it to USB IN 2 or USB IN 3 port. NOTEENGENGLISH

MAGIC REMOTE FUNCTIONS

When the message Magic remote control battery is low. Change the battery . is displayed, replace the battery. To install batteries, open the battery cover, replace batteries (1.5 V AA) matching and ends to the label inside the compartment, and close the battery cover. Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution. Be sure to point the remote control at the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse. Do not mix old and new batteries, as this may damage the remote control. CAUTION This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor. (POWER) Turns the TV on or off. (INPUT) Changes the input source.* Pressing and holding the (INPUT) button displays all the lists of external inputs.Number buttons Enters numbers. (DASH) Inserts a dash between numbers such as 2-1 and 2-2. Accesses the saved channel list. Views the information of the current channels and screen. Adjusts the volume level. (MUTE) Mutes all sounds.* By pressing and holding the button, video descriptions function will be enabled.* (Secondary Audio Program) Feature can also be enabled by pressing the key. (Home) Accesses the Home menu. Scrolls through the saved channels. (BACK) Returns to the previous screen. Clears all on-screen displays and returns to TV viewing. Wheel (OK) Press the center of the Wheel button to select a menu. You can change channels by using the Wheel button. (up/down/left/right) Press the up, down, left or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right. (Q. Settings) Accesses the Quick Settings.

• Pressing and holding the (Q. Settings) button displays the Advanced menu. (Screen remote) Displays the Screen Remote. * Accesses the Universal Control Menu in some regions. Used for viewing 3D video. (Voice recognition)Network connection is required to use the voice recognition function.1. Press the voice recognition button.2. Speak when the voice display window appears on the TV screen.* Use the Magic Remote no further than 10 cm (4 inches) from your face.* The voice recognition may fail when you speak too fast or too slowly.* The recognition rate may vary depending upon the user’s characteristics (voice, pronunciation, intonation, and speed) and the environment (noise and TV volume). Activates or deactivates the subtitles. Color buttons These access special functions in some menus. ( Red, Green, Yellow, Blue)ENG ENGLISH MAGIC REMOTE FUNCTIONS / USING THE USER GUIDE Registering Magic Remote How to register the Magic Remote(Wheel)To use the Magic Remote, first pair it with your TV. 1 Put batteries into the Magic Remote and turn the TV on.2 Point the Magic Remote at your TV and press the Wheel (OK) on the remote control.* If the TV fails to register the Magic Remote, try again after turning the TV off and back on.How to deregister the Magic Remote (BACK) (Home)Press the (BACK) and (Home) at the same time, for five seconds, to unpair the Magic Remote with your TV.

Pressing and holding the button will let you cancel and re-register Magic Remote at once. How to Use Magic Remote

Shake the Magic Remote slightly to the right and left or press (Home), (INPUT), buttons to make the pointer appear on the screen. (In some TV models, the pointer will appear when you turn the Wheel button.) If the pointer has not been used for a certain period of time or Magic Remote is placed on a flat surface, then the pointer will disappear. If the pointer does not move as you wish, shake Magic Remote to the left and right. The pointer will move to the center of the screen. The Magic Remote depletes batteries faster than a normal remote due to the additional features. Precautions to Take

Use the remote control within the specified range (within 10 m or 32.8 ft.) You may experience communication failures when using the device outside the coverage area or if there are obstacles within the coverage area. You may experience communication failures depending on the accessories. Devices such as a microwave oven and wireless LAN operate in the same frequency band (2.4 GHz) as the Magic Remote. This may cause communication failures. The Magic Remote may not work properly if a wireless router (AP) is within 1 meter (3.28 ft) of the TV. Your wireless router should be more than 1 m (3.28 ft.) away from the TV. Do not disassemble or heat the battery. Do not drop the battery. Avoid extreme shocks to the battery. Inserting the battery in the wrong way may result in explosion.

SPECIFICATIONS SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. Power requirement AC 120 V ~ 50 / 60 Hz Television System NTSC-M, ATSC, 64 & 256 QAM Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135 External Antenna Impedance

Weight With stand 19 kg (41.8 Ibs) 26.9 kg (59.3 Ibs) Without stand 15.3 kg (33.7 Ibs) 21.7 kg (47.8 Ibs) Current value / Power consumption 3.9 A / 390 W 5.0 A / 500 W MODELS 55EG9600 (55EG9600-UB) 65EG9600 (65EG9600-UB) Dimensions W x H x T (D) With stand 1,226 x 760 x 213 (mm) 1,447 x 884 x 237 (mm)

Weight With stand 19 kg (41.8 Ibs) 26.9 kg (59.3 Ibs) Without stand 15.3 kg (33.7 Ibs) 21.7 kg (47.8 Ibs) Current value / Power consumption 3.6 A / 360 W 4.8 A / 480 W MODELS 55EG9200 (55EG9200-UA) Dimensions W x H x T (D) With stand 1,225 x 762 x 191 (mm)

48.2 x 30.0 x 7.5 (inches)

Weight With stand 16.5 kg (36.3 Ibs) Without stand 13.2 kg (29.1 Ibs) Current value / Power consumption 3.6 A / 360 WENG ENGLISH

Weight With stand 17.2 kg (37.9 Ibs) 25.8 kg (56.8 Ibs) Without stand 13.6 kg (29.9 Ibs) 21.2 kg (46.7 Ibs) Current value / Power consumption 3.6 A / 360 W 4.8 A / 480 W Wireless module (LGSBW41) Specifications Wireless Lan Bluetooth Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 4.0 Frequency Range 2400 to 2483.5 MHz 5150 to 5250 MHz 5725 to 5850 MHz Frequency Range 2400 to 2483.5 MHz Output Powe

Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

This device should be installed and operated with minimum distance 20 cm (7.8 inches) between the device and your body. And this phrase is for the general statement for consideration of user environment.ENGENGLISH

MAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning Your TV Clean your TV regularly to keep it at peak performance and to extend the product lifespan. Make sure to turn the power off and disconnect the power cord and all other cables first. When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. CAUTION Screen, Frame, Cabinet, and Stand To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions. Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or lubricants, as these may damage the screen’s finish and cause discoloration. Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. CAUTION Power Cord Remove the accumulated dust or dirt on the power cord regularly. TROUBLESHOOTING Problem SolutionCannot control the TV with the remote control. Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed ( to , to ). No image display and no sound is produced. Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.The TV turns off suddenly. Check the power control settings. The power supply may be interrupted. Check if the Sleep Timer/Timer Power Off is activated in the TIMERS settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.LG Customer Information Center For inquires or comments, visit www.lg.com or call;

The model and serial numbers of the TV are located on the back and one side of the TV. Record them below should you ever need service. MODEL SERIAL This product qualifies for ENERGY STAR® in the factory default (Home configuration) setting. Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR®. Refer to ENERGY STAR.gov for more information on the ENERGY STAR® program. (For 55EF9500, 65EF9500, 55EG9200)OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com2 ENG ENGLISH

• Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan, North America, Latin America except Colombia models)3 ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.Note: The type of control port on the TV can be different between model series.* Please be advised that not all models support this type of connectivity.* Cable is not provided. USB to Serial converter with USB Cable USB Type USB IN (TV) (PC ) (PC ) RS-232C IN(CONTROL & SERVICE) (TV) (TV) (PC ) (TV) (PC ) SERVICE ONLYRS-232C IN(CONTROL & SERVICE)RS-232C IN(CONTROL & SERVICE)132132

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals. RS-232C With RS232C Cable DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required for the connection between the PC and the TV, which is specified in the manual. USB IN (TV) (PC ) (PC ) RS-232C IN(CONTROL & SERVICE) (TV) (TV) (PC ) (TV) (PC ) SERVICE ONLYRS-232C IN(CONTROL & SERVICE)RS-232C IN(CONTROL & SERVICE)132132 The connection interface may differ from your TV.4 ENG ENGLISH

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the TV, which is specified in the manual.

• For other models, connect to the USB port.

• The connection interface may differ from your TV. USB IN (TV) (PC ) (PC ) RS-232C IN(CONTROL & SERVICE) (TV) (TV) (PC

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

01. Power* k a 00 to 01 15. Balance k t 00 to 64

(Colour) Temperature x u 00 to 64

Control k f 00 to 64

Brightness k h 00 to 64

Backlight, Control Panel Light m g 00 to 64

Sharpness k k 00 to 32

Control Lock Mode k m 00 to 01

13. Treble k r 00 to 64

14. Bass k s 00 to 64

• Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not executed and treated as NG. With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with USB-to-Serial converter cable, the command works only if TV is on.6 ENG ENGLISH

Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set can be controlled.

• [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on transmission/receiving protocol. [DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command. [Cr] : Carriage Return - ASCII code ‘0x0D’ [ ] : Space – ASCII code ‘0x20’ OK Acknowledgement [Command2][ ][Set ID][ ][OK][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer. Error Acknowledgement [Command2][ ][Set ID][ ][NG][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors. Data 00: Illegal Code Real data mapping (Hexadecimal b Decimal)

• When you enter the [data] in hexadecimal, refer to following conversion table.

• Commands may work differently depending on model and signal.

• Similarly, if other functions transmit ‘FF’ data based on this format, Acknowledgement feedback presents status about each function.

• In DTV/HDMI/Component mode (high-definition), Just Scan is available.

• Full wide mode may work differently based on model and is supported for DTV fully, and ATV, AV partially.

• In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

► To control volume mute on/off. You can also adjust mute using the MUTE button on remote control. Transmission [k][e][ ][Set ID][ ][Data][Cr] Data 00 : Volume mute on (Volume off) 01 : Volume mute off (Volume on) Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume. You can also adjust volume with the volume buttons on remote control. Transmission [k][f][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64 Ack [f][ ][Set ID][ ][OK/NG][Data][x]

► To adjust screen brightness. You can also adjust brightness in the PICTURE menu. Transmission [k][h][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64 Ack [h][ ][Set ID][ ][OK/NG][Data][x]

08. Color/Colour (Command: k i)

► To adjust the screen sharpness. You can also adjust sharpness in the PICTURE menu. Transmission [k][k][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 32 Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when controlling remotely. Transmission [k][l][ ][Set ID][ ][Data][Cr] Data 00 : OSD off 01 : OSD on Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and remote control. Transmission [k][m][ ][Set ID][ ][Data][Cr] Data 00 : Lock off 01 : Lock on Ack [m][ ][Set ID][ ][OK/NG][Data][x]

• If you are not using the remote control, use this mode. When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.

• In the standby mode (DC off by off timer or ‘ka’, ‘mc’ command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.

• It depends on model, and can adjust when sound mode is EQ adjustable value.

• This command may work differently depending on model and signal.

• For Europe, Mid-East, Colombia, Asia except South Korea and Japan Model ► Select channel to following physical number. Transmission [m][a][ ][Set ID][ ][Data 00][ ] [Data 01][ ][Data 02][Cr]

Set ID = All = 00 Data 00 & 01 = Channel Data is 10 = 00 0a Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00

2. Tune to the digital antenna (DVB-T) Channel 01.

Set ID = All = 00 Data 00 & 01 = Channel Data is 1 = 00 01 Data 02 = Digital Antenna TV = 10 Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00 Data 00 & 01 = Channel Data is 1000 = 03 E8 Data 02 = Digital Satellite TV = 40 Result = ma 00 03 E8 40 Ack [a][ ][Set ID][ ][OK][Data 00][Data 01] [Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except Colombia Model ► To tune channel to following physical/major/minor number. Transmission [m][a][ ][0][ ][Data00][ ][Data01] [ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr] Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.

Number - 22 : Antenna TV (DTV) – Don’t Use Physical Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical Channel Number - 46 : Cable TV (CADTV) – Use Major Channel Number Only (One Part Channel) Two bytes are available for each major and minor channel data, but usually the low byte is used alone (high byte is 0).

Set ID = All = 00 Data 00 = Channel Data is 35 = 23 Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00 Data 05 = Analog Cable TV = 01 Total = ma 00 23 00 00 00 00 01

Tune to the digital antenna (ISDB-T) channel 17-1

Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 17 = 00 11 Data 03 & 04 = Minor/Branch is 1 = 00 01 Data 05 = Digital Antenna TV = 02 Total = ma 00 00 00 11 00 01 02

2. Tune to the BS (ISDB-BS) channel 30.

Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Don’t Care = 00 00 Data 05 = Digital BS TV = 07 Total = ma 00 00 00 1E 00 00 07

• This function depends on model and signal.

• If [Data 00] is 00 (3D On), [Data 03] has no meaning.

• If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data 01], [Data 02] and [Data 03] have no meaning.

• If [Data 00] is 03 (2D to 3D), [Data 01] and [Data 02] have no meaning.

• If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data 03] works when 3D Mode (Genre) is manual only.

1) When [Data 00] is 00

00 : Right to Left 01 : Left to Right

• This option works when 3D Mode (Genre) is manual only.

• If conversion condition doesn’t meet, command is treated as NG.

• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required for the connection between the PC and the TV, which is specified in the manual. USB IN (TV) (PC ) (PC ) RS-232C IN(CONTROL & SERVICE) (TV) (TV) (PC ) (TV) (PC ) SERVICE ONLYRS-232C IN(CONTROL & SERVICE)RS-232C IN(CONTROL & SERVICE)132132
