USER MANUAL PTLB75U PANASONIC

Model No. PT-LB80NTU PT-LB80U PT-LB75NTU PT-LB75U

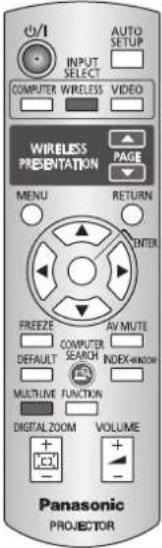

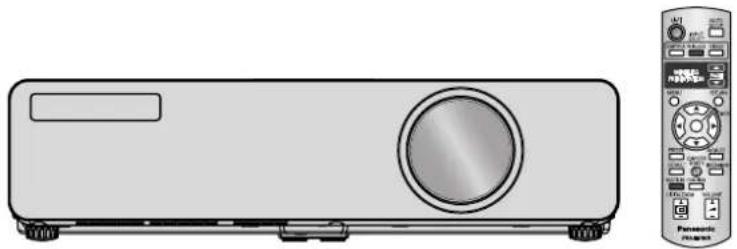

Illustration of a projector and its front-mounted remote control unit (no text or symbols)

Before operating this product, please read the instructions carefully and save this manual for future use.

Important Safety Notice

Dear Panasonic Customer:

The following information should be read and understood as it provides details, which will enable you to operate the projector in a manner which is both safe to you and your environment, and conforms to legal requirements regarding the use of projectors. Before connecting, operating or adjusting this projector, please read these instructions completely and save this booklet with the projector for future reference. We hope it will help you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector.

The serial number of your product may be found on its bottom. You should note it in the space provided below and retain this booklet in case service is required.

Model number:

PT-LB80NTU / PT-LB75NTU/PT-LB80U/PT-LB75U

Serial number:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Power Supply: This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.

CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 7 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result.

WARNING

RISK OF ELECTRIC SHOCK. DO NOT OPEN

MISE EN GARDE-RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Line drawing of a plug with two pins and a pointed tip, no text or symbols present

Do not remove

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Center

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

NOTICE:

- This product has a High Intensity Discharge (HID) lamp that contains mercury. Dispose may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org

WARNING:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer and/or peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.

FCC RF Exposure Warning: (if provided with wireless device)

• This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment.
• This equipment has been approved for mobile operation and requires minimum 20 cm spacing be provided between antenna(s) and all person's body (excluding extremities of hands, wrist and feet) during wireless modes of operation.
• This equipment may not be used with other installed transmitters, which may be capable of simultaneous transmission.

WARNING:

• Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
• For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring.
• For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

Declaration of Conformity

Model Number: PT-LB80NTU / PT-LB75NTU/PT-LB80U/PT-LB75U

Trade Name: Panasonic

Responsible party: Panasonic Corporation of North America

Address: One Panasonic Way, Secaucus, New Jersey 07094

Telephone number: (888) 411 - 1996

E-mail: [e-mail]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information on Disposal in other Countries outside the European

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Contents

Quick steps

1. Set up your projector See "Setting up" on page 15.

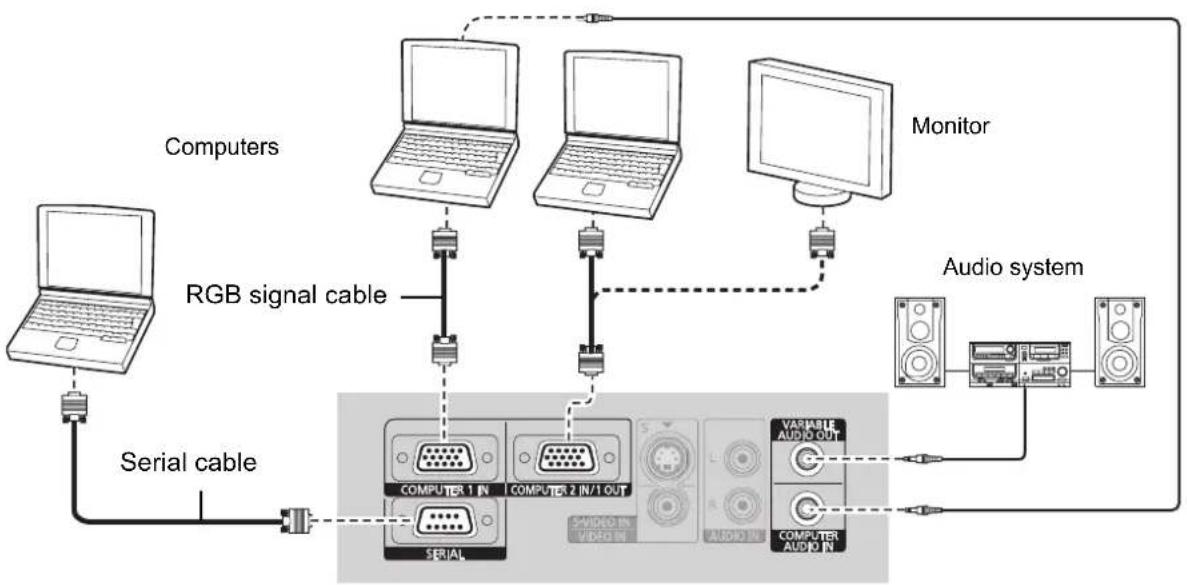

1. Connect with other devices See "Connections" on page 17.

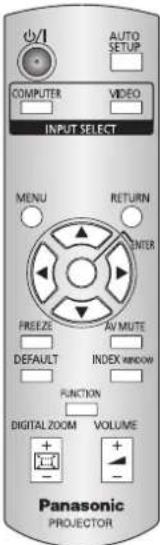

1. Prepare the Remote control See "Remote control" on page 14.

1. Start projecting See "Switching the projector on/off" on page 18.

1. Adjust the image See "Menu Navigation" on page 27.

- When you start the projection for the first time, the minimum required setting screen for projection will be displayed. See "Minimum required setting screen" on page 11.

Important Information

Important Safety Notice....2

Precautions with regard to safety....6 WARNINGS....6 CAUTIONS....7 Cautions when transporting....8 Cautions when installing....9 Cautions on use....9 Security....9 Accessories....10

Preparation

Read this first .... 11 Minimum required setting screen.... 11

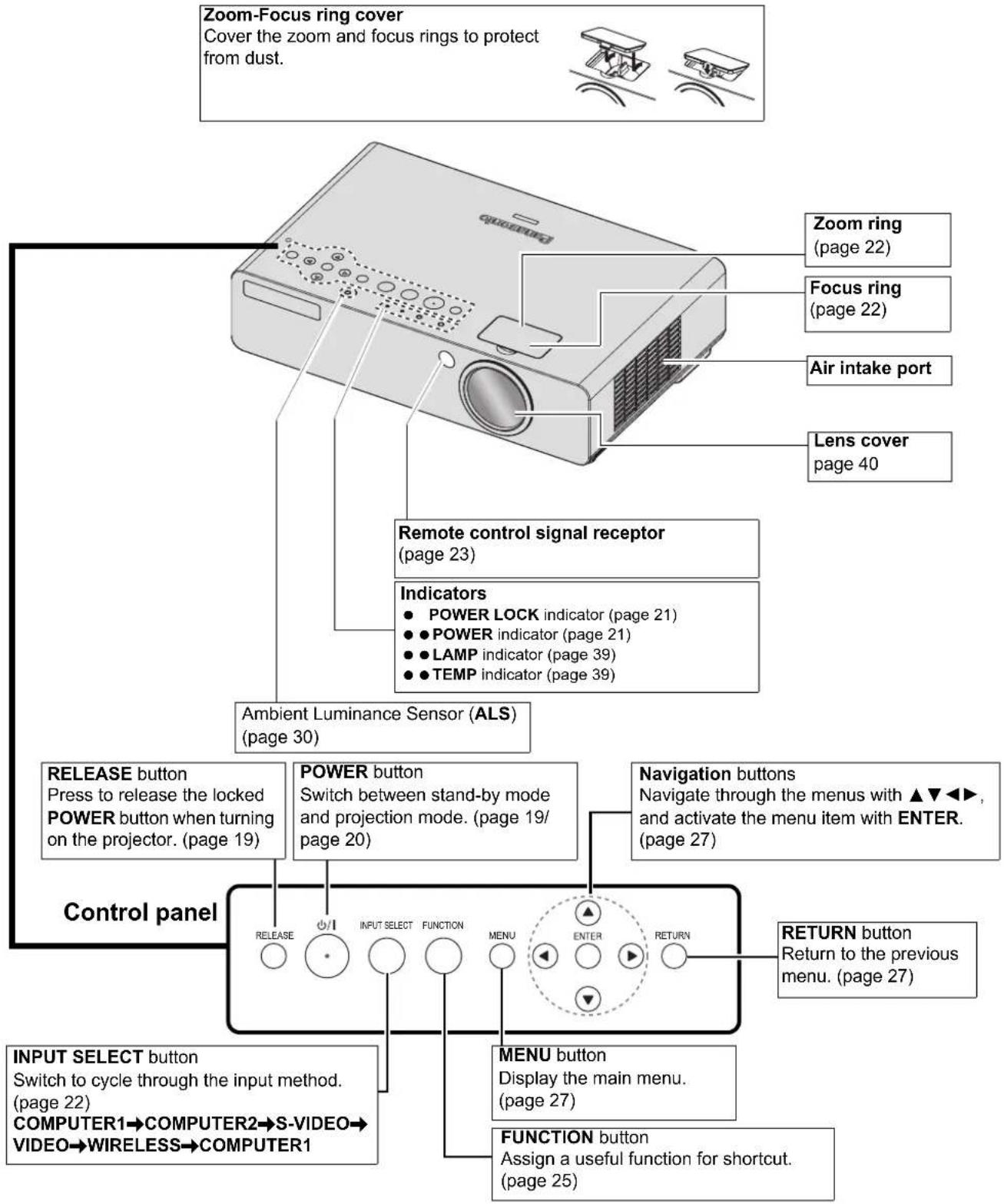

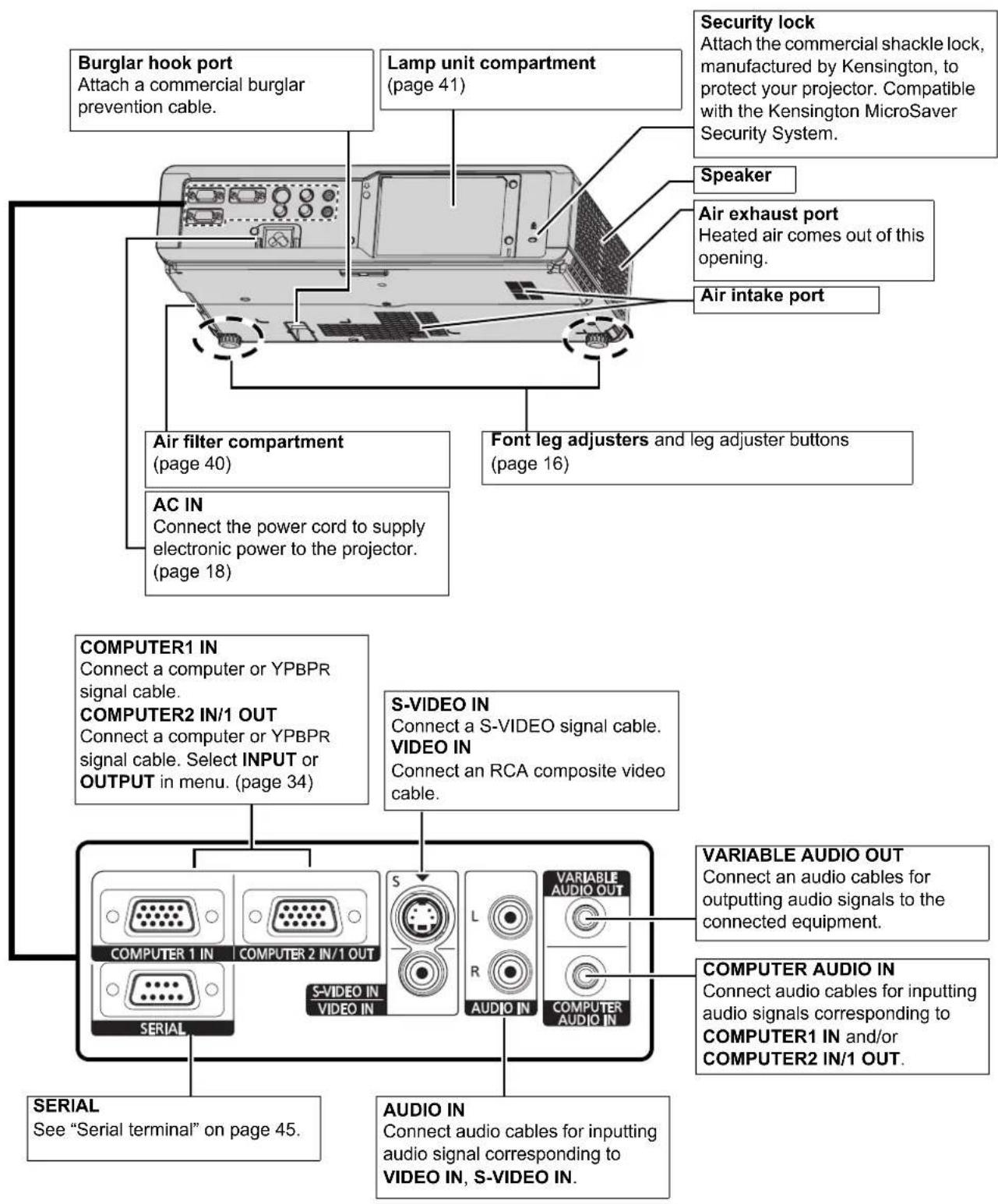

About Your Projector....12 Projector body....12 Remote control....14

Getting Started

Setting up....15 Screen size and throw distance....15 Projection method....16 Front leg adjusters and throwing angle....16 Connections....17 Before connection to the projector....17 Connecting example: AV equipment....17 Connecting example: Computers....17

Basic Operation

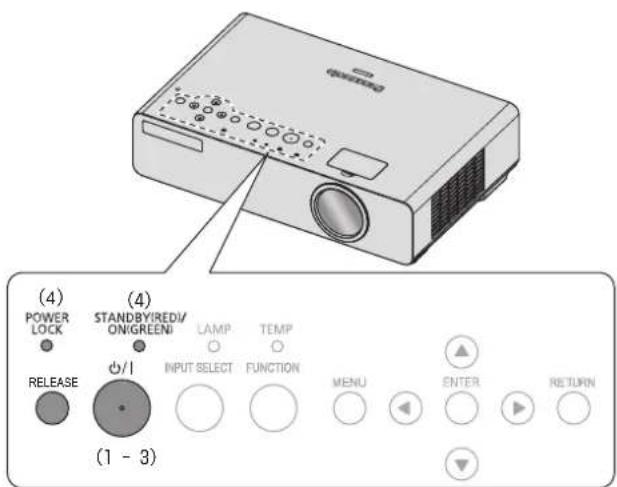

Switching the projector on/off .... 18 Power cord.... 18 Switching on the projector.... 19 Switching off the projector.... 20 POWER and POWER LOCK indicators.... 21

Projecting an image .... 22 Selecting the input signal .... 22 Positioning the image.... 22

Remote control operation....23 Operating range....23 Setting up the image position automatically....23 Switching the input signal....24 Capturing an image....24 Stopping the projection temporary....24 Resetting to the factory default settings....24 Projecting an image in INDEX-WINDOW mode....25 Using an assigned function....25 Controlling the volume of the speaker....25 Enlarging the centered area....26

Settings

Menu Navigation 27

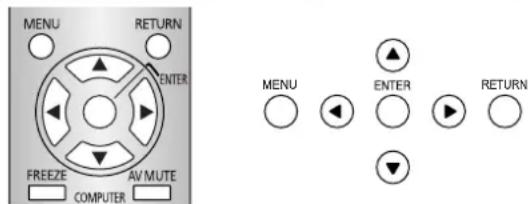

Navigating through the MENU 27

Main menu and Sub-menu....28

PICTURE menu....30

PICTURE MODE 30

CONTRAST 30

BRIGHTNESS.... 30

COLOR 30

TINT....30

SHARPNESS.... 30

COLOR TEMPERATURE.... 30

DAYLIGHT VIEW.... 30

DETAILED SETUP 31

POSITION menu 32

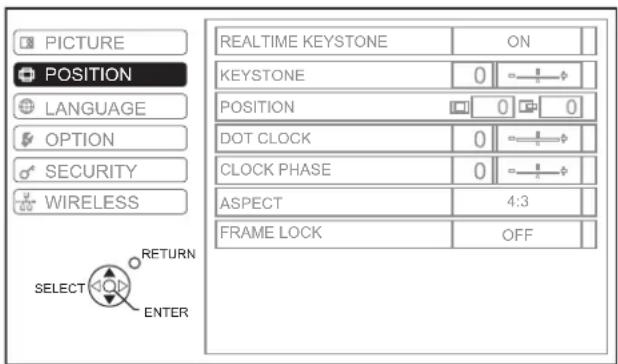

REALTIME KEYSTONE 32

KEYSTONE 32

POSITION....32

DOT CLOCK 32

CLOCK PHASE 32

ASPECT 32

FRAME LOCK.... 33

OPTION menu....34

INPUT GUIDE.... 34

STARTUP LOGO....34

COMPUTER2 SELECT 34

RGB/YPBPR 34

WIDE MODE.... 34

LAMP POWER 35

LAMP RUNTIME 35

POWER OFF TIMER.... 35

DIRECT POWER ON 35

CONTROL PANEL 35

AUTO SETUP 35

SIGNAL SEARCH.... 35

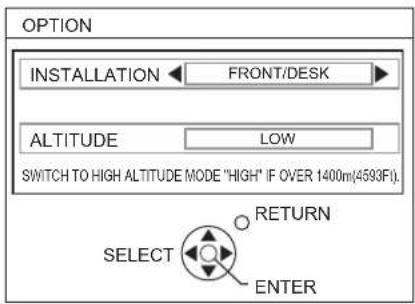

INSTALLATION 35

ALTITUDE....35

CLOSED CAPTION SETTING.... 36

FUNCTION BUTTON....36

TEST PATTERN.... 36

DETAILED SETUP 36

SECURITY menu 37

INPUT PASSWORD 37

PASSWORD CHANGE....37

TEXT DISPLAY 37

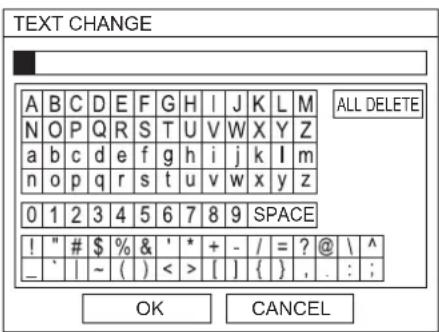

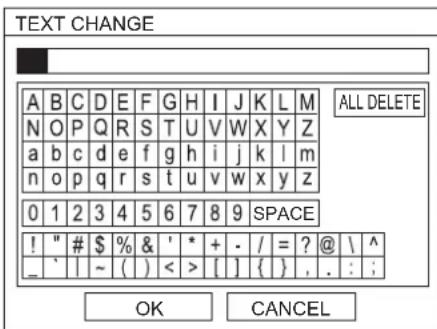

TEXT CHANGE 37

WIRELESS menu....38

Items in WIRELESS menu....38

Maintenance

LAMP and TEMP Indicators 39

Managing the indicated problems.... 39

Care and Replacement ....40

Cleaning the projector.... 40

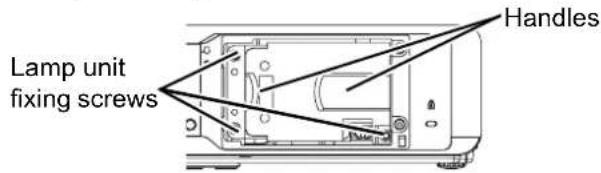

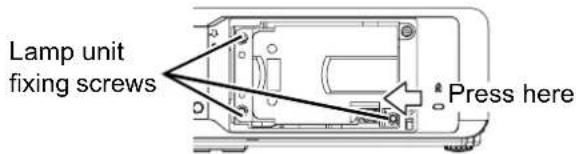

Replacing the Lamp unit 41

Troubleshooting....43

Appendix

Technical Information 44

List of compatible signals 44

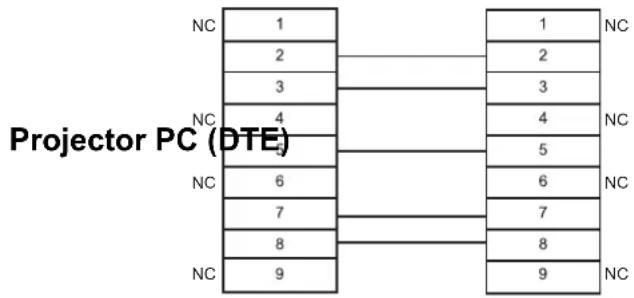

Serial terminal.... 45

Computer connection guidance.... 46

Screen size and throw distance for 16:9 aspect ratio..... 47

Specifications 48

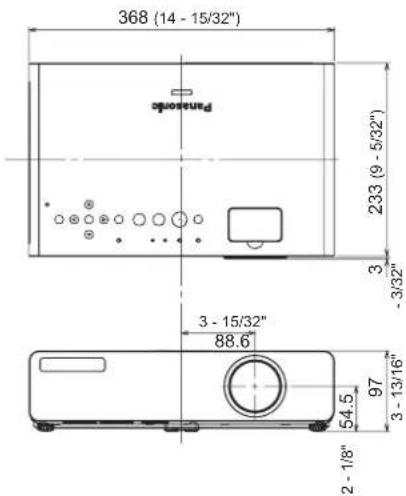

Dimensions.... 50

Trademark acknowledgements 50

Index....51

Precautions with regard to safety

WARNINGS

If you notice smoke, strange smells or noise coming from the projector, disconnect the power plug from the wall outlet.

• Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.
• Check that no more smoke is coming out, and then contact an Authorized Service Center for repairs.
• Do not attempt to repair the projector yourself, as this can be dangerous.

Do not install this projector in a place which is not strong enough to take the full weight of the projector.

- If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician.

• If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.
• Do not use other than an authorized ceiling mount bracket.

If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, disconnect the power plug from the wall outlet.

• ● Continued use of the projector in this condition may result in fire or electric shocks.
• Contact an Authorized Service Center for repairs.

The wall outlet shall be installed near the equipment and shall be easily accessible.

- ● Unplug the power plug from the wall outlet immediately when problem occurred.

Do not overload the wall outlet.

- If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result.

Never attempt to modify or disassemble the projector.

● ● High voltages can cause fire or electric shocks.
- ● For any inspection, adjustment and repair work, please contact an Authorized Service Center.

Clean the power plug regularly to prevent it from becoming covered in dust.

• If dust builds up on the power plug, the resulting humidity can damage the insulation, which could result in fire. Pull the power plug out from the wall outlet and wipe it with a dry cloth.
• If not using the projector for an extended period of time, pull the power plug out from the wall outlet.

Do not handle the power plug with wet hands.

● Failure to observe this may result in electric shocks.

Insert the power plug securely into the wall outlet.

• If the plug is not inserted correctly, electric shocks or overheating could result.
• Do not use plugs which are damaged or wall outlets which are coming loose from the wall.

Do not place the projector on top of surfaces which are unstable.

• If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.
• Do not use the projector at a raised or a horizontally tilted position as it may cause malfunction of the projector.

Do not place the projector into water or let it become wet.

- Failure to observe this may result in fire or electric shocks.

Do not do anything that might damage the power cord or the power plug.

• Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.
• If the power cord is used while damaged, electric shocks, short-circuits or fire may result.
• Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

Do not place the projector on soft materials such as carpets or sponge mats.

- ● Doing so may cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not place liquid containers on top of the projector.

• If water spills onto the projector or gets inside it, fire or electric shocks could result.
• If any water gets inside the projector, contact an Authorized Service Center.

Do not insert any foreign objects into the projector.

- Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

Do not use the projector in a bath or shower.

● ● Fire or electric shocks can result.

During a thunderstorm, do not touch the projector or the cable.

● ● Electric shocks can result.

Do not place your skin into the light beam while the projector is being used.

- ● Strong light is emitted from the projector's lens. If you place directly into this light, it can hurt or damage your skin.

Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

● ● Failure to observe this may cause the batteries to leak, overheat, explode or catch fire.
- Store the batteries in a plastic bag and keep them away from metallic objects.
- Use manganese batteries or alkaline batteries with the remote control.

Do not touch the leaked liquid from the batteries.

• If you touch the leaked liquid, it may hurt your skin. Immediately wash away the liquid with water and seek medical advice.
• If you get the leaked liquid in your eye, it may cause blindness or damage. Never rub your eye, and immediately wash away the liquid with water and seek medical advice.
  ● ● Damaged of insulation may cause leak of battery.

Do not look into the lens while the projector is being used.

• Strong light is emitted from the projector's lens. If you look directly into this light, it can hurt and damage your eyes.
• Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector.

Do not place your hands or other objects close to the air outlet port.

- Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port [allow at least 50 cm (20") of space], otherwise burns or damage could result.

Replacement of the lamp is recommended to be carried out by a qualified technician.

● ● The lamp has high internal pressure. If improperly handled, explosion might result.
● The lamp can easily become damaged if struck against hard objects or dropped, and injury or malfunctions may result.

When replacing the lamp, allow it to cool for at least one hour before handling it.

● ● The lamp cover gets very hot, and touching it can cause burns.

Before replacing the lamp, be sure to disconnect the power plug from the wall outlet.

- Electric shocks or explosions can result if this is not done.

Do not allow infants or pets to touch the remote control unit.

- Keep the remote control unit out of the reach of infants and pets after using it.

CAUTIONS

Do not cover the air inlet port or the air outlet port.

• ● Doing so may cause the projector to overheat, which can cause fire or damage to the projector.
• Do not place the projector in narrow, badly ventilated places such as closets or bookshelves.
• Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam.

- Using the projector under such conditions may result in fire, electric shocks or plastic deterioration. The plastic deterioration may cause the falling down of the projector which is mounted in the ceiling.

Do not set up the projector in a high temperature environment, such as near a heater or in direct sunlight.

● ● Failure to observe this may result in fire, malfunction or plastic deterioration.

Do not set up the projector outdoors.

● ● The projector is designed for indoor use only.

When disconnecting the power cord, hold the plug, not the cord.

- If the power cord itself is pulled, the cord will become damaged, and fire, short-circuits or serious electric shocks may result.

Always disconnect all cables before moving the projector.

- Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur.

Do not place any heavy objects on top of the projector.

● ● Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.

Do not short-circuit, heat or disassemble the batteries or place them into water or fire.

● ● Failure to observe this may cause the batteries to overheat, leak, explode or catch fire, and burns or other injury may result.

When inserting the batteries, make sure the polarities (+ and -) are correct.

- If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Use only the specified batteries.

- If incorrect or different kind of batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Do not mix old and new batteries.

- If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Remove the used batteries from the remote control promptly.

- If you leave used batteries in the remote control for an extended period of time, it may cause liquid leaking, abnormal internal temperature rising or explosion.

If not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control.

• If dust builds up on the power plug, the resulting humidity may damage the insulation, which could result in fire.
• Keeping or leaving the remote control with batteries inside may cause insulation deterioration, electrical leakage or explosion which could result in fire.

Do not put your weight on this projector.

• ● You could fall or the projector could break, and injury may result.
• Be especially careful not to let young children stand or sit on the projector.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

● ● Electric shocks can result if this is not done.

If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces.

● ● Failure to observe this may cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces may cause injury.
- If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.
- Ask your dealer about the replacement of the lamp unit and check the inside of the projector.

Ask an Authorized Service Center to clean inside the projector at least once a year.

• If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation.
• ● It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorized Service Center to clean the projector when required. Please discuss with the Authorized Service Center regarding cleaning costs.

We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable units back to your dealer or a recycling company.

Cautions when transporting

Do not subject the projector to excessive vibration or shocks.

● ● The projector lens need to be handled with care.
- Cover the lens with the lens cover when transporting the projector.

When you move the projector, hold the body at the bottom securely.

- Do not hold the adjuster legs or the leg adjuster buttons when move the projector, as this may cause damage.

When transporting, keep the projector in the provided carrying bag.

● Make the lens of the projector upward direction and put it gently into the carrying bag.
- In the carrying bag, the elongated adjuster legs must be housed.
- Do not put anything other than the projector and its accessories in the carrying bag.

Cautions when installing

Avoid setting up in places which are subject to vibration or shocks.

● ● The internal parts can be damaged, which may cause malfunctions or accidents.

Avoid setting up in places which are subject to sudden temperature changes, such as near an air conditioner or lighting equipment.

- ● The life of the lamp may be shortened or the projector may be turned off. See “TEMP indicator” on page 39.

Do not set up the projector near high-voltage power lines or near motors.

● ● The projector may be subject to electromagnetic interference.

If installing the projector to the ceiling, ask a qualified technician to carry out all installation work.

- ● You will need to purchase the separate installation kit. Furthermore, all installation work is should only be carried out by a qualified technician.

If using this projector at high elevations, 1 400 - 2 700 m (4 593 - 8 858 ft) sea level, set the ALTITUDE to HIGH. See “ALTITUDE” on page 35.

- Failure to observe this may result in malfunctions or the life of the lamp or the other components may be shortened. - Do not use the projector at high elevation higher than 2700 m (8858 ft).

Cautions on use

In order to get the best picture quality

- ● Draw curtains or blinds over any windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

Optical components

- If you use the projector consecutively 6 hours every day, the optical components may need to be replaced in less than 1 year.

Liquid crystal panel

- Do not project the same image for long periods of time, as this may remain as an afterimage on the liquid crystal panel. Display the white screen test pattern for more than an hour to remove it.

● The liquid crystal panel of the projector is built with very high precision technology to provide fine picture details. Occasionally, a few stuck pixels may appear on the screen as fixed points of blue, green or red. It is recommended to switch off the projector once and try after 1 hour later again. Please note that this does not affect the performance of your LCD.

The projector has a high pressure mercury lamp and that is characterised as follows:

● ● The brightness of the lamp depends on the duration of use.
● ● The lamp may explode or shorten the lamp life by shocks or chipping damage.
● ● The lamp may explode only occasionally after using the projector.
- When the lamp exploded, it emits the internal smoke-like gas.
● ● The lamp may explode if using the projector after the instructed lamp replacement timing.
● The lamp life is depends on individual lamp characteristics, usage condition and the installation environment. Especially the consecutive use of the projector for more than 10 hours, or the frequent switching on or off may greatly affect on the lamp life.

Do not touch the surfaces of the lens or lens cover with your bare hands.

- If the surface of the lens or lens cover becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen.

Security

Take safety measures for use of the projector which should cover the following envisioned incidents.

● ● The leakage of your personal registered information.
● Dishonest operation by an untrusted third party.
- Locking out or prevent anyone else from using the projector by an untrusted third party.

Security instruction

• Change your password regularly.
• ● Do not use too simple password to guess.
• Any of Authorized Service Centers will never ask you for the password.
• Do not share your password with the general public.
• Secure the network environment by the firewall.

Accessories

Make sure the following accessories are provided with your projector.

Remote control for PT-LB80NTU / PT-LB75NTU (x1)*1N2QAYB000260	Remote control for PT-LB80U / PT-LB75U (x1)*2N2QAYB000262	AA batteries for Remote control (x2)	Power cord secure lock (x1)TMXX051
		Power cord (x1)K2CG3DR00007	CD-ROM*3(x1)TQBH9011
		Carrying bag (x1)TPEP021	RGB signal cable (x1)1.8 m (5'10")K1HA15DA0002

*1. PT-LB80NTU / PT-LB75NTU only
*2. PT-LB80U / PT-LB75U only
*3. PT-LB80NTU / PT-LB75NTU only

* The protectors for enclosed products, such as a plug cover or foam cartons, must be treated properly.

* Contact to an Authorized Service Center for lost accessories.

Read this first

Minimum required setting screen

When you start the projection for the first time or after the projector is initialised, the minimum required setting screen for projection will be displayed.

● LANGUAGE

Select the required language setting.

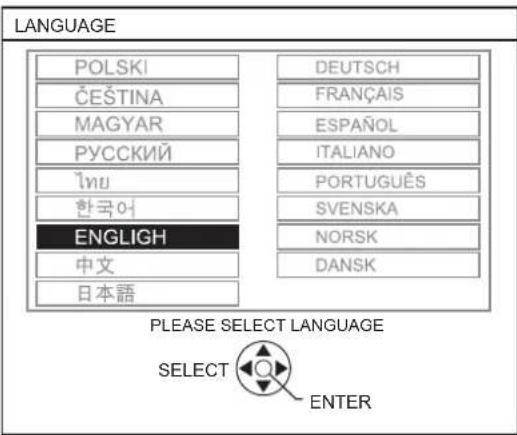

LANGUAGE POLSKI ČEŠTINA MAGYAR PYCCKIЙ Ínu 한국어 ENGLISH 中文 日本語 DEUTSCH FRANÇAIS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA NORSK DANSK PLEASE SELECT LANGUAGE SELECT ENTER

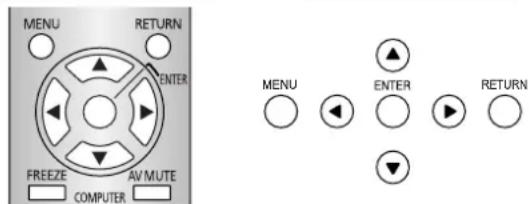

Press ▲ ▼ ◀▶ buttons of the remote control or control panel on the projector to highlight the required language, and press the ENTER button to proceed to the next setting.

OPTION

Select the current projection method and fan speed setting. If you need return to the previous setting, press the RETURTN button.

OPTION INSTALLATION ← FRONT/DESK ALTITUDE LOW SWITCH TO HIGH ALTITUDE MODE "HIGH" IF OVER 1400m(4593F). SELECT RETURN ENTER

INSTALLATION

Press ◀▶ buttons of the remote control or control panel on the projector to select the required installation method. Press ▼ to proceed to the ALTITUDE setting.

FRONT/DESK	Setting on a desk/floor and projecting from front
FRONT/CEILING	Mounting in the ceiling and projecting from front
REAR/DESK	Setting on a desk/floor and projecting from rear
REAR/CEILING	Mounting in the ceiling and projecting from rear

ALTITUDE

If you use the projector at high elevation, the ALTITUDE setting need to be HIGH to set the fan speed high. Press ◀▶ to select the required option. If you need to return to the INSTALLATION, press ▲.

• ● LOW The fan speed is low.
  ● ● HIGH The fan speed is high.

NOTE:

• At 1400 - 2700m (4593 - 8858ft) sea level, the setting must be HIGH.
• The loudness of fan noise depends on the ALTITUDE setting.

Press the ENTER button to start the projection.

• Once you finish the minimum requirement setting, it will not be displayed again unless the projector is initialised. See "INITIALIZE ALL" on page 36.

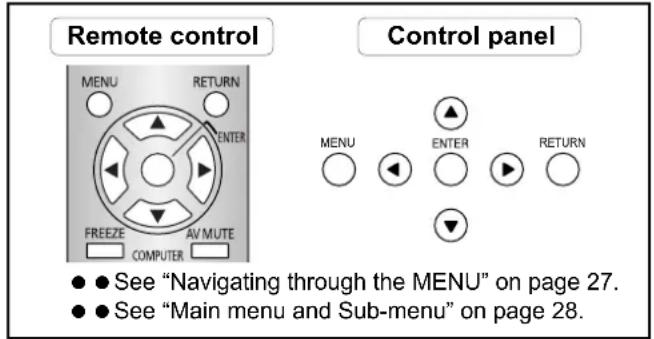

• You can change each settings in the main menu. See "Menu Navigation" on page 27.

About Your Projector

Projector body

● Top and front view

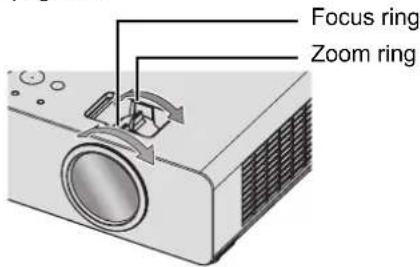

Zoom-Focus ring cover Cover the zoom and focus rings to protect from dust. Zoom ring (page 22) Focus ring (page 22) Air intake port Lens cover page 40 Remote control signal receptor (page 23) Indicators POWER LOCK indicator (page 21) POWER indicator (page 21) LAMP indicator (page 39) TEMP indicator (page 39) Ambient Luminance Sensor (ALS) (page 30) RELEASE button Press to release the locked POWER button when turning on the projector. (page 19) POWER button Switch between stand-by mode and projection mode. (page 19/ page 20) Navigation buttons Navigate through the menus with ▲▼◀▶, and activate the menu item with ENTER. (page 27) RETURN button Return to the previous menu. (page 27) CONTROL panel INPUT SELECT button Switch to cycle through the input method. (page 22) COMPUTER1→COMPUTER2→S-VIDEO→ VIDEO→WIRELESS→COMPUTER1 MENU button Display the main menu. (page 27) FUNCTION button Assign a useful function for shortcut. (page 25)

NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
• While the projector is not in use, keep the lens cover attached to protect the lens.

Back and bottom view

Burglar hook port Attach a commercial burglar prevention cable. Lamp unit compartment (page 41) Security lock Attach the commercial shackle lock, manufactured by Kensington, to protect your projector. Compatible with the Kensington MicroSaver Security System. Speaker Air exhaust port Heated air comes out of this opening. Air intake port Air filter compartment (page 40) Font leg adjusters and leg adjuster buttons (page 16) AC IN Connect the power cord to supply electronic power to the projector. (page 18) COMPUTER1 IN Connect a computer or YPBPR signal cable. COMPUTER2 IN/1 OUT Connect a computer or YPBPR signal cable. Select INPUT or OUTPUT in menu. (page 34) S-VIDEO IN Connect a S-VIDEO signal cable. VIDEO IN Connect an RCA composite video cable. VARIABLE AUDIO OUT Connect an audio cables for outputting audio signals to the connected equipment. COMPUTER AUDIO IN Connect audio cables for inputting audio signals corresponding to COMPUTER1 IN and/or COMPUTER2 IN/1 OUT. SERIAL See "Serial terminal" on page 45. AUDIO IN Connect audio cables for inputting audio signal corresponding to VIDEO IN, S-VIDEO IN.

NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
• When a cable is connected to the VARIABLE AUDIO OUT, the built-in speaker will be disabled.

Remote control

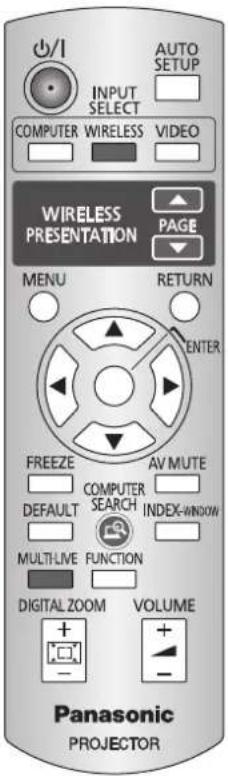

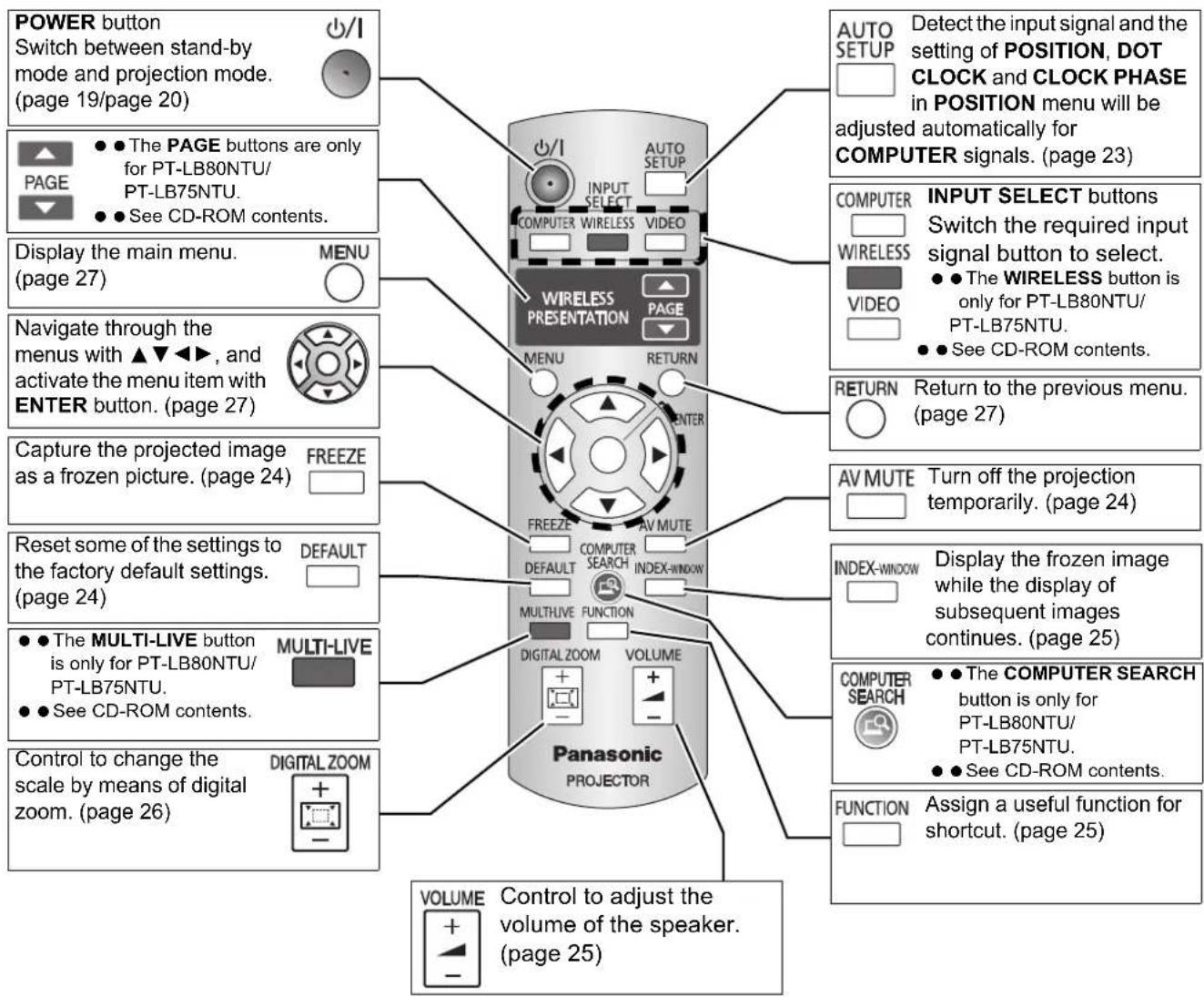

POWER button Switch between stand-by mode and projection mode. (page 19/page 20) PAGE ● The PAGE buttons are only for PT-LB80NTU/ PT-LB75NTU. ● See CD-ROM contents. Display the main menu. (page 27) MENU Navigate through the menus with ▲▼◀▶, and activate the menu item with ENTER button. (page 27) Capture the projected image as a frozen picture. (page 24) FREEZE Reset some of the settings to the factory default settings. (page 24) DEFAULT ● The MULTI-LIVE button is only for PT-LB80NTU/ PT-LB75NTU. ● See CD-ROM contents. MULTI-LIVE Control to change the scale by means of digital zoom. (page 26) DIGITAL ZOOM + - VOLUME + - Control to adjust the volume of the speaker. (page 25) AUTO SETUP Detect the input signal and the setting of POSITION, DOT CLOCK and CLOCK PHASE in POSITION menu will be adjusted automatically for COMPUTER signals. (page 23) COMPUTER INPUT SELECT buttons Switch the required input signal button to select. ● The WIRELESS button is only for PT-LB80NTU/ PT-LB75NTU. ● See CD-ROM contents. RETURN Return to the previous menu. (page 27) AV MUTE Turn off the projection temporarily. (page 24) INDEX-WINDOW Display the frozen image while the display of subsequent images continues. (page 25) COMPUTER SEARCH ● The COMPUTER SEARCH button is only for PT-LB80NTU/ PT-LB75NTU. ● See CD-ROM contents. FUNCTION Assign a useful function for shortcut. (page 25)

Battery compartment

1. Press the tab and lift up the cover.
2. Insert the batteries according to the polarity diagram indicated inside.

Top view (page 23)

Attaching a hand strap

You can attach a favorite strap on to the remote control.

Remote control signal emitters

Technical line drawing of a mechanical component with a hand holding a tool (no text or symbols)

NOTE:

• Do not drop the remote control.
• Avoid contact with liquids or moisture.
• Use manganese batteries or alkaline batteries with the remote control.
• Do not attempt to modify or disassemble the remote control. Contact an Authorized Service Center for repairs.
• Do not keep pressing the remote control buttons as this may shorten battery life.
• See "Remote control operation" on page 23.

Setting up

Screen size and throw distance

You can adjust the projection size with 2.0x zoom lens. Calculate and define the throw distance as follows.

Projected image

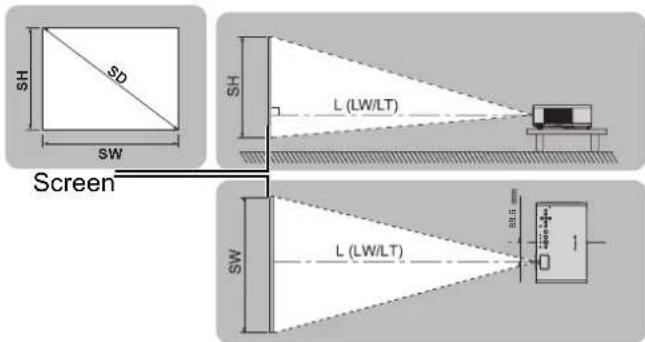

SH SD SW Screen SH L (LW/LT) SW L (LW/LT) 18.5 mm

Projection size(4 : 3)	Throw distance (L)PT-LB80NTU / PT-LB80U		Throw distance (L)PT-LB75NTU / PT-LB75U
Screen diagonal(SD)	Minimum distance(LW)	Maximum distance(LT)	Minimum distance(LW)	Maximum distance(LT)
33" (0.84 m) 1.1	m (3'7") 1.1 m (3'7")
40" (1.02 m)	1.1 m (3'7")	1.4 m (4'7")	1.1 m (3'7")	1.4 m (4'7")
50" (1.27 m)	1.4 m (4'7")	1.7 m (5'6")	1.4 m (4'7")	1.7 m (5'6")
60" (1.52 m)	1.7 m (5'6")	2.1 m (6'10")	1.7 m (5'6")	2.1 m (6'10")
70" (1.78 m)	2.0 m (6'6")	2.5 m (8'2")	2.0 m (6'6")	2.4 m (7'10")
80" (2.03 m)	2.3 m (7'6")	2.8 m (9'2")	2.3 m (7'6")	2.8 m (9'2")
90" (2.29 m)	2.6 m (8'6")	3.2 m (10'5")	2.6 m (8'6")	3.1 m (10'2")
100" (2.54 m)	2.9 m (9'6")	3.5 m (11'5")	2.9 m (9'6")	3.5 m (11'5")
120" (3.05 m)	3.5 m (11'5")	4.2 m (13'9")	3.5 m (11'5")	4.2 m (13'9")
150" (3.81 m)	4.4 m (14'5")	5.3 m (17'4")	4.3 m (14'1")	5.2 m (17')
200" (5.08 m)	5.9 m (19'4")	7.1 m (23'3")	5.8 m (19')	7.0 m (22'11")
250" (6.35 m)	7.4 m (24'3")	8.9 m (29'2")	7.3 m (23'11")	8.7 m (28'6")
300" (7.62 m)	8.8 m (28'10")	10.7 m (35'1")	8.7 m (28'6")	10.5 m (34'5")

* All measurements above are approximate and may differ slightly from the actual measurements.

● Calculation methods for screen dimensions

You can calculate more detailed screen dimension from the screen diagonal.

● ● Screen width (SW) and screen height (SH)

$$ \mathrm{SW} (\mathrm{m}) = \mathrm{SD} \left(^ {\prime \prime}\right) \times 0. 0 2 0 3 \mathrm{SH} (\mathrm{m}) = \mathrm{SD} \left(^ {\prime \prime}\right) \times 0. 0 1 5 2 $$

● ● Minimum distance (LW) and maximum distance (LT)

$$ \text { PT - LB80NTU: LW (m) } = 0. 0 2 9 6 \times \text { SD ("') } - 0. 0 3 9 \text { LT (m) } = 0. 0 3 5 8 \times \text { SD ("') } - 0. 0 4 7 $$

$$ \text { PT - LB75NTU: LW (m) } = 0. 0 2 9 2 \times \text { SD ("") } - 0. 0 3 6 \text { LT (m) } = 0. 0 3 5 1 \times \text { SD ("") } - 0. 0 4 4 $$

* The results above are approximate and may differ slightly from the actual measurements.

NOTE:

• See "Screen size and throw distance for 16:9 aspect ratio" on page 47.
• Do not use the projector at a raised or a horizontally tilted position as it may cause malfunction of the projector.
• You can tilt the projector body approximately ± 30^ vertically. Overtilting may result in shortening the component's life.
• For the best quality of the projection image, install a screen where sun light or room light does not shine directly onto the screen. Close window shades or curtains to block the lights.

+30° -30°

Projection method

You can use the projector with any of the following 4 projection methods. To set the desired method in the projector, See "INSTALLATION" on page 35.

Setting on a desk/floor and projecting from front

Simple line drawing of a person sitting at a desk watching a projector screen (no text or symbols)

Setting on a desk/floor and projecting from rear

Simple line drawing of a person sitting in front of a transparent display case, with no text or symbols present.

INSTALLATION: FRONT/DESK INSTALLATION: REAR/DESK

■ Mounting in the ceiling and projecting from front

Simple line drawing of a person sitting at a desk observing a projector on a screen (no text or symbols)

INSTALLATION: FRONT/CEILING

■ Mounting in the ceiling and projecting from rear

Simple line drawing of a person sitting in front of a rectangular box with a screen, no text or symbols present.

INSTALLATION: REAR/CEILING

NOTE:

• A translucent screen is required for rear projection.
• When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKB80) is required.

Front leg adjusters and throwing angle

You can adjust the projection angle in the vertical direction by pressing the leg adjuster buttons.

See "Positioning the image" on page 22.

Diagram of a computer monitor with ventilation grilles and a circular button, showing directional arrows indicating movement (no text or symbols)

Technical line drawing of a vehicle chassis with roof and side-mounted sensors (no text or symbols)

NOTE:

• Heated air comes out of the air exhaust port. Do not touch the air exhaust port directly.
• If keystone distortion occurs, see "KEYSTONE" on page 32.

Connections

Before connection to the projector

• Read and follow the operating and connecting instructions of each peripheral device.
  ● ● The peripheral devices must be turned off.
  ● Prepare the connecting cables that match with the projector and peripheral device terminals.
• If the input signal is affected by signal jitter, the projected image may have poor image quality and timebase correction is effective.
• Confirm the type of video signals. See "List of compatible signals" on page 44.
• When you connect more than one AV equipment, switch the audio connection manually.

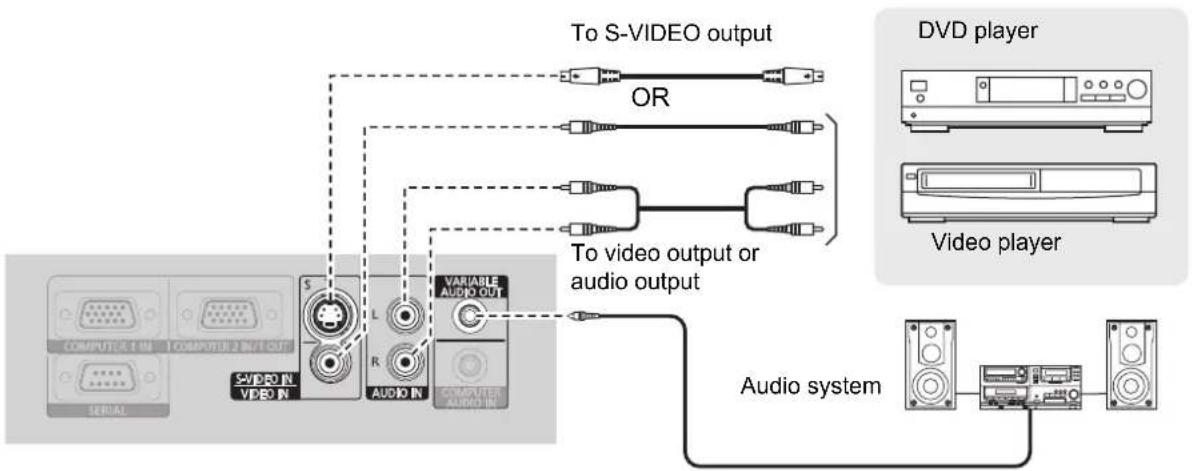

Connecting example: AV equipment

- Connecting with VIDEO IN/S-VIDEO IN

Connecting example: Computers


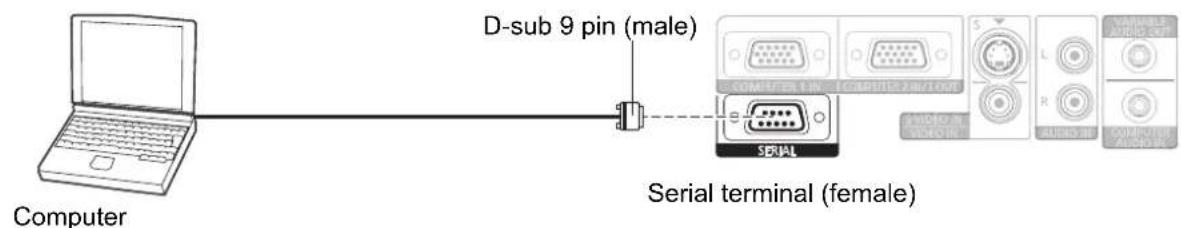

    A["Computer"] -->|Serial cable| B["Audio System"]
    A -->|RGB signal cable| C["Monitor"]
    C -->|Audio IN| D["Audio System"]
    D -->|VARIABLE AUDIO OUT| E["Audio System"]
    B --> F["COMPUTER 1 IN"]
    B --> G["COMPUTER 2 IN/1 OUT"]
    B --> H["COMPUTER 3 IN"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333

NOTE:

• When COMPUTER2 SELECT in the OPTION menu is set to OUTPUT, do not connect any input signals.
  • See CD-ROM contents for the wireless connection. (PT-LB80NTU/PT-LB75NTU only)

Switching the projector on/off

Power cord

- Connecting

1. Make sure the shape of the power plug and the AC IN terminal on the back of the projector match, then push the plug all the way in.

Illustration of a hand inserting a plug into a socket (no text or symbols)

1. Align the side of the power cord secure lock with the side guide rail of the AC IN terminal of the projector and slide it in.

Rail guide

1. Place the latch to the latch catcher and press until it clicks.

Latch

1. Connect the power cord to a wall outlet.
2. The POWER and POWER LOCK indicators light in red and the projector stays in standby mode.

● Direct power on function

If the DIRECT POWER ON in OPTION menu is set to ON, connect the power cord to a wall outlet and the projection will start even when the control panel is disabled or the POWER button is locked. See "DIRECT POWER ON" on page 35.

If the DIRECT POWER ON is set to OFF, the projector will be at the same mode as last unplugged, standby mode or projection mode.

- Disconnecting

1. Unplug the power cord from the wall outlet.
2. Depress the latch and slide the cover off.

Latch

1. Slide the power cord secure lock up along the side guide rail and remove.

Rail guide

1. Hold the plug and unplug the power cord from the AC IN terminal on the back of the projector.

● POWER indicator lights in orange if the internal cooling fan is still operating by internal power supply.

● Direct power off function

You can switch off the electric power supply any time by unplugging the power plug from the wall outlet or by switching off the main power. The internal lamp cooling fan keeps operating by the internal power supply, and stops automatically when cooled enough.

NOTE:

• Do not use other than a provided power cord.
• Ensure all the input devices are connected and turned off before connecting the power cord.
• Do not force the connector as this may damage the projector and/or the power cord.
• Dirt or dust build-up around plugs may cause fire or electrical hazards.
• Switch off the power to the projector when not in use.
• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.
• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.
• Do not put the projector into the carrying bag with the POWER indicator lit.

Switching on the projector

Before switching on the projector, make sure the power cord and all the other devices are connected correctly. See "Connections" on page 17 and "Power cord" on page 18.

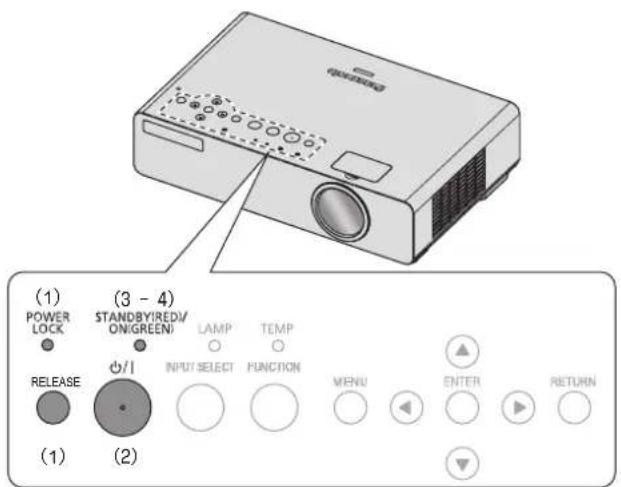

● By control panel operation

Make sure CONTROL PANEL in OPTION menu is set to VALID. The POWER button is locked to prevent malfunction and the POWER LOCK indicator lights in red.

1. Press the RELEASE button.

● The POWER LOCK indicator goes off.
● ● Without any operation in 10 seconds, the POWER button will be locked again.

1. Press the POWER button in 10 seconds.

● The POWER button beeps once.

1. The POWER indicator flashes in green several times.
2. The POWER indicator lights in green and displays the startup logo for 30 seconds.

- When the STARTUP LOGO in OPTION menu is set to OFF, the startup logo will not be displayed. See "STARTUP LOGO" on page 34.

(1) POWER LOCK (3 - 4) STANDBY/RED/ ON/GREEN LAMP TEMP RELEASE b/I INPUT SELECT FUNCTION MENU ENTER RETURN (1) (2)

● By remote control operation

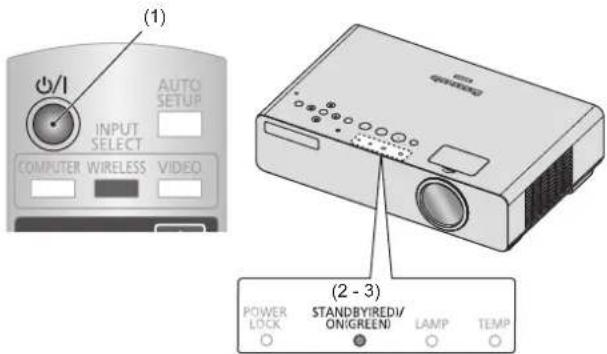

1. Press the POWER button.
2. The POWER indicator flashes in green several times.
3. The POWER indicator lights in green and displays the startup logo for 30 seconds.

- When the STARTUP LOGO in OPTION menu is set to OFF, the startup logo will not be displayed. See "STARTUP LOGO" on page 34.

(1) INPUT SELECT COMPUTER WIRELESS VIDEO AUTO SETUP (2 - 3) POWER LOCK STANDBYIREDIV ONIGREENI LAMP TEMP

● By direct power on function

You can switch on the projector by connecting the power cord. See "Direct power on function" on page 18.

NOTE:

• When starting up the projector, some small rattling or tinkling sound may be heard, or the display may flicker for the characteristics of the lamp. Those are normal and will not affect the performance of the projector.
• When the internal cooling fan is operating, some, operational sound may be heard. The loudness of the operational sound depends on the external temperature.
• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.
• Operating the control panel buttons with covered hand, such as plastered or gloved, may result in fail.

Switching off the projector

■ By control panel operation

Make sure the CONTROL PANEL setting in OPTION menu is set to VALID.

1. Press the POWER button.

● ● The confirmation screen will be displayed.
- Without any operation for 10 seconds or press any button other than the POWER button, the confirmation screen will go off and return to the projection.

1. Press the POWER button again in 10 seconds.
2. The POWER indicator will flash in orange.
   ● ● The projector is cooling the lamp.
3. The POWER and POWER LOCK indicator light red.

(4) POWER LOCK STANDBY/REDI/ ON/GREENI LAMP TEMP ○ ○ ○ ○ INPUT SELECT FUNCTION MENU ENTER RETURN RELEASE (1 - 3)

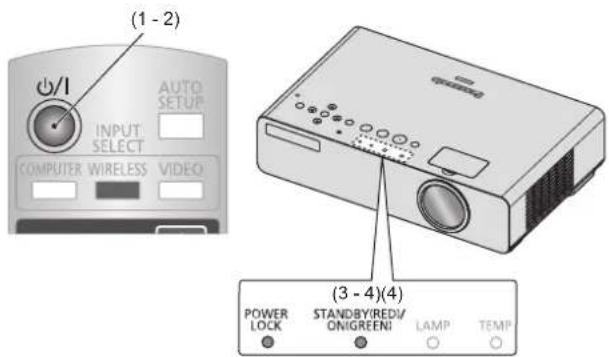

- By remote control operation

1. Press the POWER button.

● ● The confirmation screen will be displayed.
- Without any operation for 10 seconds or press any button other than the POWER button, the confirmation screen will go off and return to the projection.

1. Press the POWER button again in 10 seconds.
2. The POWER indicator will flash in orange.
   ● ● The projector is cooling the lamp.
3. The POWER and POWER LOCK indicator light red.

(1 - 2) OUTPUT SETUP INPUT SELECT COMPUTER WIRELESS VIDEO (3 - 4)(4) POWER LOCK STANDBY/RED/ ONIGREENI LAMP TEMP

■ By direct power off function

You can switch off the projector by disconnecting the power cord. See "Direct power off function" on page 18.

NOTE:

• You can switch off the power without displaying the confirmation screen by pressing the POWER button for longer than 0.5 second.
• When the internal cooling fan is operating, some, operational sound may be heard. The loudness of the operational sound depends on the external temperature.
• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.
• Operating the control panel buttons with covered hand, such as plastered or gloved hand, may result in fail.

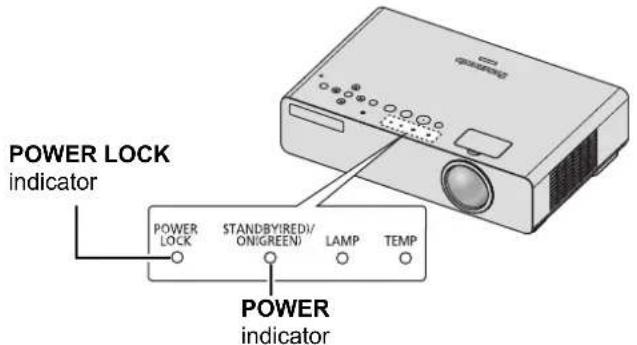

POWER and POWER LOCK indicators

The POWER indicator informs you the status of the power and the POWER LOCK indicator shows the status of the RELEASE button.

POWER LOCK indicator POWER LOCK STANDBYIRED/ ON/GREEN LAMP TEMP POWER indicator

● POWER LOCK indicator status

Indicator status Status
No illumination or flashing		● ● No power is supplied.● The RELEASE button is pressed and the POWER button is unlocked.● ● The power is on.
Red	Lit	The POWER button is locked.
	Flashing	Pressing the locked POWER button.

● POWER indicator status

Indicator status*1		Status
No illumination or flashing		No power is supplied and the internal cooling fan is not operating.
Red	Lit	The power is supplied and in standby mode*2, and the POWER button is locked.
	Flashing	Preparing for wireless connection.(PT-LB80NTU/PT-LB75NTU only)
Green	Flashing The power is on and preparing for projection.
	Lit Projecting.
Orange	Lit	No power supply and the internal fan is cooling the lamp by internal power supply.
	Flashing	The power is switched on again while cooling the lamp and recovering to the projection mode. Recovery may take a while.

*1. When the LAMP or TEMP indicator is flashing, the POWER indicator will not light.

*2. The electric consumption in standby mode is 4.0 W.

Projecting an image

Selecting the input signal

1. Switch on the connected devices.
2. Press the play button of the required device.
3. Detect the input signal automatically.
4. Switch the aspect ratio automatically.

NOTE:

• If the SIGNAL SEARCH in OPTION menu is deactivated, select the required input method by pressing the INPUT SELECT buttons of the remote control or the INPUT SELECT button of the projector several times. See "SIGNAL SEARCH" on page 35, "Switching the input signal" on page 24 or "INPUT SELECT button" on page 12.
  • See "ASPECT" on page 32.

Positioning the image

1. Place the projector at the right angle from the screen.

Simple line drawing of a room layout with a screen and a door, no text or symbols present

1. Adjust the vertical angle of the projector.

2. Press the front leg adjuster buttons and adjust the vertical angle.

3. See "Front leg adjusters and throwing angle" on page 16.

Diagram of a computer monitor with ventilation grilles and scroll wheel, showing directional arrows indicating movement (no text or symbols)

1. Open the Zoom-Focus ring cover.
2. See "Zoom-Focus ring cover" on page 12.
3. Turn the zoom and focus rings to adjust the projected image.
4. ● You can confirm the adjusted effect with the TEST PATTERN in OPTION menu. See "TEST PATTERN" on page 36.

Focus ring Zoom ring

NOTE:

• Do not touch the air exhaust port as this may cause burns or injury.
• If keystone distortion occurs, see "KEYSTONE" on page 32.
• If you adjust the focus, you may need to adjust the size of the image by moving the zoom ring again.

Remote control operation

Operating range

OUTPUT SETUP INPUT SELECT COMPUTER WIRELESS VIDEO WIRELESS PRESENTATION PAGE MENU RETURN ENTER FREEZE AV MUTE DEFAULT COMPUTER SEARCH INDEX-WINDOW MULTI-LIVE FUNCTION DIGITAL ZOOM VOLUME Panasonic PROJECTOR

You can operate the projector with the remote control within the remote range 15 m (49'2"), approximately ± 30° vertically and horizontally.

● Facing to the projector

Make sure the remote control emitter is facing to the remote control signal receptor of the projector when pressing the buttons to operate.

● Facing to the screen

Make sure the remote control emitter is facing to the screen when pressing the buttons to operate the projector. The signal will be reflected off the screen to the projector.

● The operating range may differ due to the screen material, and this function may not be effective with a translucent screen.

NOTE:

• See "About Your Projector" on page 12 to confirm the position of the remote control signal emitter and receptor.
• Do not let strong light shine onto the signal receptor. The remote control may malfunction under strong light such as fluorescent.
• If there are any obstacles between the remote control emitter and the remote control signal receptor, the remote control may not operate correctly.

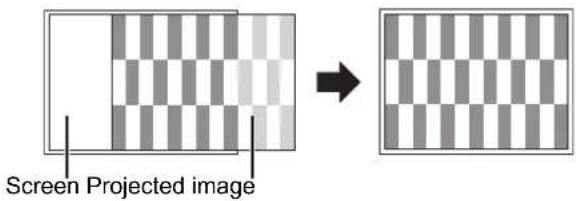

Setting up the image position automatically

If you need to readjust the projected image position while projecting or when AUTO SETUP in OPTION menu is set to OFF, press the AUTO SETUP button.

The projector will detect a RGB signal by SIGNAL SEARCH system and adjust the setting of POSITION, DOT CLOCK and CLOCK PHASE in POSITION menu automatically.

Screen Projected image

NOTE:

• If SIGNAL SEARCH setting in OPTION menu is set to OFF, select the required signal manually first. See "Switching the input signal" on page 24.
• If the dot clock frequency is 108 MHz or higher, AUTO SETUP is not effective.
• If the projected image is too dark or blurred around the edge, AUTO SETUP may stop the processing before complete the adjustment and return to the previous setting. Project a much clearer or lighter image and try again.

Switching the input signal

COMPUTER

WIRELESS

VIDEO

You can switch the input method manually by pressing the COMPUTER, WIRELESS

(PT-LB80NTU/PT-LB75NTU only) and

VIDEO buttons. Press the required button

several times or ◀▶ to cycle through the input methods as follows.

- ● You can confirm the selected input method in displayed graphical input guide on the upper right of the screen. Highlighted in yellow is selected terminal. See "INPUT GUIDE" on page 34.

● Pressing the COMPUTER button

COMPUTER1 COMPUTER

NOTE:

• Only when the COMPUTER2 SELECT is set to INPUT, you can switch between COMPUTER1 and COMPUTER2.
• With no signals from COMPUTER terminals, the computer connecting guidance will be displayed. See
  "Computer connection guidance" on page 46.

● Pressing the WIRELESS button

● The WIRELESS button is only for PT-LB80NTU/PT-LB75NTU.
● See CD-ROM contents for more detailed information.

● Pressing the VIDEO button

VIDEO

S-VIDEO

● Pressing the INPUT SELECT button on the projector

COMPUTER1

WIRELESS ^4

COMPUTER2

S-VIDEO

VIDEO

*1. WIRELESS is only for PT-LB80NTU/PT-LB75NTU.

NOTE:

• Switched signal may be displayed after a short interval.
• If you select an unplugged input method, the input guidance will blink on and off several times.
• See "List of compatible signals" on page 44.
  • See "Connections" on page 17.

Capturing an image

FREEZE

Press the FREEZE button to capture the image and you can see it as a still picture. While the image is frozen, the audio sound through the

projector will stop. Press the FREEZE button again to escape and return to the continuing image.

Stopping the projection temporary

AV MUTE

You can stop the projection and audio sound through the projector temporarily for saving

electrical power. Press the AV MUTE button again to escape.

Resetting to the factory default settings

DEFAULT

You can reset most of the customised settings to the factory defaults by pressing the

DEFAULT button of the remote control. Display

the required sub menu or the menu items and press the DEFAULT button again.

- See "Main menu and Sub-menu" on page 28.

NOTE:

• Some menu items are not available to reset by pressing the DEFAULT button. Adjust each menu items manually.
• To reset all the settings to the factory defaults, see "INITIALIZE ALL" on page 36.

Projecting an image in INDEX-WINDOW mode

INDEX-WINDOW

You can project an image split in 2 windows as an INDEX-WINDOW. One is frozen and stored in memory, and displayed on the

screen's left side while displaying subsequent image continues on the right.

Press the MENU or RETURN button to escape.

Projected image

Continuing image

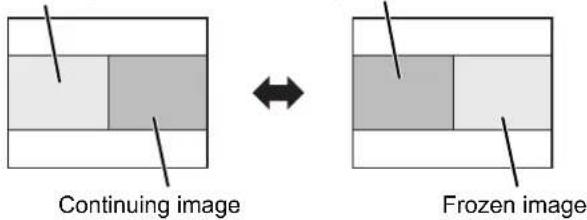

● Switching the position

In default, the frozen image is displayed on the left and the subsequent image is displayed on the right. Press ◀▶ to switch the position.

Frozen image

Continuing image Frozen image

Continuing image

Frozen image

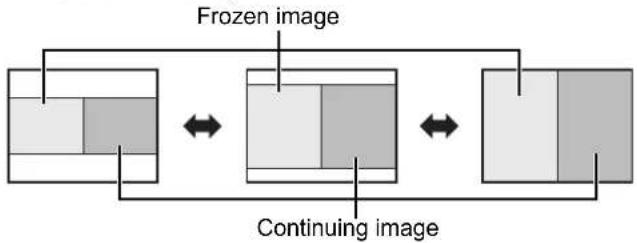

● Changing the image size

Press ▲ ▼ to capture a new image and change the size in 3ways.

NOTE:

- If you change the window size, the aspect ratio of the image is changed and becomes vertically elongated.

● Capturing a new image

While in INDEX-WINDOW mode, press the ENTER button to capture a new image and the frozen image window will be updated in a moment.

NOTE:

- When capturing a quick moving picture, perform several times to get a stabled picture.

Using an assigned function

FUNCTION

You can assign a selected function to the FUNCTION button.

Following functions are assignable. See

"FUNCTION BUTTON" on page 36 for assigning procedure.

AV MUTE	See “Stopping the projection temporary” on page 24.
FREEZE	See “Capturing an image” on page 24.
AUTO SETUP	See “Setting up the image position automatically” on page 23.
INDEX-WINDOW	See “Projecting an image in INDEX-WINDOW mode” on page 25.
ASPECT See “ASPECT”	on page 32.
PICTURE MODE	See “PICTURE MODE” on page 30.
CLOSED CAPTION SETTING	See “CLOSED CAPTION SETTING” on page 36.

Controlling the volume of the speaker

VOLUME

You can control the volume of the built-in speakers and output audio sound. Press "+" side of the VOLUME button to increase and "-" to decrease.

Enlarging the centered area

DIGITAL ZOOM

You can enlarge the projected image down to a centered area for emphasizing within the range of 1x to 2x.

● Enlarging the image

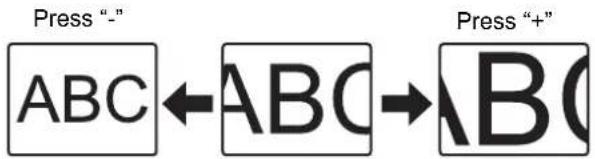

1. Press any side of the DIGITAL ZOOM +/- button once.

● ● The centered area of the image will then be enlarged

1. Adjust the image size by pressing the DIGITAL ZOOM +/- button.

● Changes the size of the image in steps of 0.1.


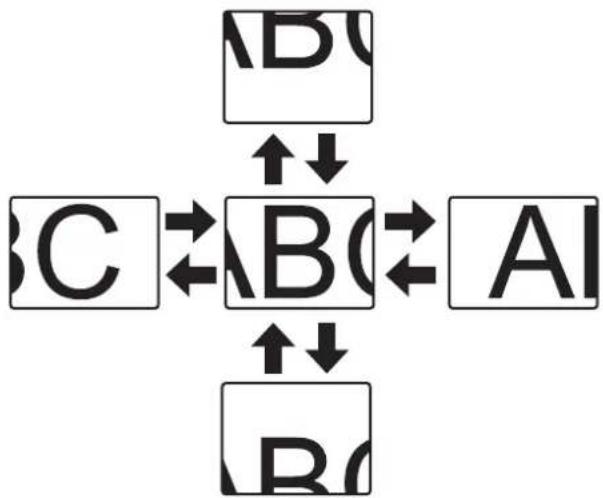

● Shifting the center point

Press ▲ ▼ ◀ ▶ to shift the center point.

NOTE:

• When the COMPUTER signal is projected, the enlargement range will be changed to 1x to 3x. When the FRAME LOCK in POSITION menu is set to ON, the enlargement range is 1x to 2x. See "FRAME LOCK" on page 33.
• When the input signal is changed while the DIGITAL ZOOM is activated, the DIGITAL ZOOM will be cancelled.
• While the DIGITAL ZOOM is activated, the AUTO SETUP, FREEZE, DEFAULT, INDEX-WINDOW and FUNCTION (except when AV MUTE is assigned) buttons are not available.

Menu Navigation

The menu system allows you to access functions which do not have their own dedicated buttons on the remote control. The menu options are structured and categorised. You can navigate through the menu with ▲ ▼ ▶ ◀ buttons.

Navigating through the MENU

- Displaying the main menu

MENU

Press the MENU button to display the main menu and the operating guidance.

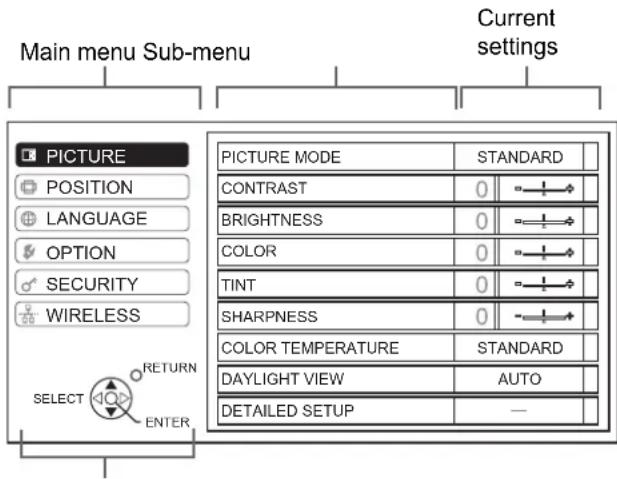

Main menu Sub-menu Current settings PICTURE POSITION LANGUAGE OPTION SECURITY WIRELESS SELECT RETURN ENTER PICTURE MODE STANDARD CONTRAST 0 BRIGHTNESS 0 COLOR 0 TINT 0 SHARPNESS 0 COLOR TEMPERATURE STANDARD DAYLIGHT VIEW AUTO DETAILED SETUP —

Operating guidance

Contains the required buttons to adjust the settings.

- Adjusting with the bar scale items

The triangle mark under the bar indicates factory default setting and the square indicates the current setting.

Current setting KEystone 0 Default

- Returning to the previous menu

RETURN

Press the MENU or RETURN button to return to the previous menu. Press repeatedly to escape from the menu mode and return to the projection.

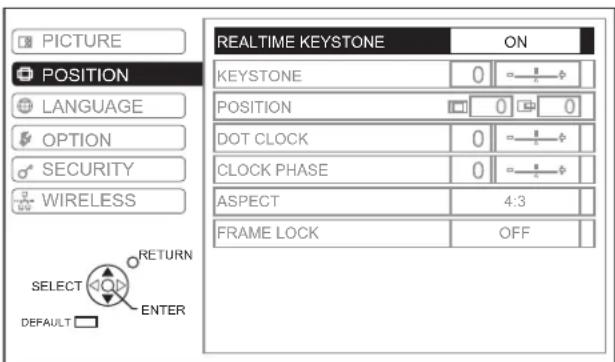

- Operating procedure

1. Press ▲ ▼ to scroll to the required main menu item and press the ENTER button to select.

● ● The selected item is highlighted in orange and displays the sub-menu on the right.
- See "Main menu and Sub-menu" on page 28.

PICTURE POSITION LANGUAGE OPTION SECURITY WIRELESS REALTIME KEYSTONE ON KEYSTONE 0 POSITION 0 0 DOT CLOCK 0 CLOCK PHASE 0 ASPECT 4:3 FRAME LOCK OFF RETURN SELECT ENTER

1. Press ▲ ▼ to scroll to the required sub-menu item and press ◀▶ or the ENTER button to adjust.

2. The selected item is called up and the other menu items disappear from the screen. Called up item will be disappear after 5 seconds without any operation and return to the menu mode.

3. If there is a lower level, the next level will be displayed.

PICTURE POSITION LANGUAGE OPTION SECURITY WIRELESS SELECT RETURN ENTER REALTIME KEYSTONE ON KEYSTONE 0 POSITION 0 0 DOT CLOCK 0 CLOCK PHASE 0 ASPECT 4:3 FRAME LOCK OFF

1. Press ◀▶ to adjust the bar scale or select the required option.

2. ● For items indicated in bar scale type, the current settings are displayed on the left of the bar.

3. ● You can cycle through the options of an item by pressing ◀▶.

1. Press MENU or RETURN button to return to the previous menu.

NOTE:

• See "Resetting to the factory default settings" on page 24 to reset each menu items.
• See "INITIALIZE ALL" on page 36 to reset all the settings.

Main menu and Sub-menu

The main menu has 6 options. Select the required menu item and press ENTER to display the sub-menu. Underlined items are factory default settings.

NOTE:

• Some default settings vary by the selected input signal.
• sub-menu items vary according to the selected input signal.
• Some settings are adjustable without any signals.

PICTURE POSITION

PICTURE MODE page 30

NATURAL STANDARD

DYNAMIC BLACKBOARD

CONTRAST page 30

(Default: 0)

BRIGHTNESS page 30

COLOR page 30

(Signals from S-VIDEO/VIDEO only)

(Default: 0)

TINT page 30

(Signals from S-VIDEO/VIDEO only)

(Default: 0)

SHARPNESS page 30

(Default: 0)

COLOR TEMPERATURE page 30

STANDARD

LOW HIGH

DAYLIGHT VIEW page 30

AUTO

OFF ON

DETAILED SETUP

page 31

(Not available with wireless connection)

TV-SYSTEM

AUTO

NTSC NTSC 4.43

PAL PAL-M

PAL-N SECAM

STILL MODE

ON OFF

NOISE REDUCTION

ON OFF

WHITE BALANCE RED (Default: 0)

WHITE BALANCE GREEN (Default: 0)

WHITE BALANCE BLUE (Default: 0)

REALTIME KEYSTONE page 32 ON OFF

KEYSTONE page 32

(Not available with wireless connection)

(Default: 0)

POSITION page 32

(Not available with wireless connection)

H (Default: 0) V (Default: 0)

DOT CLOCK page 32

(Signals from COMPUTER only)

(Default: 0)

CLOCK PHASE page 32

(Signals from COMPUTER only)

(Default: 0)

ASPECT page 32

(Vary according to the selected input signal)

AUTO

4:3

S4:3

16:9

THROUGH

FRAME LOCK page 33

(Signals from COMPUTER only)

OFF ON

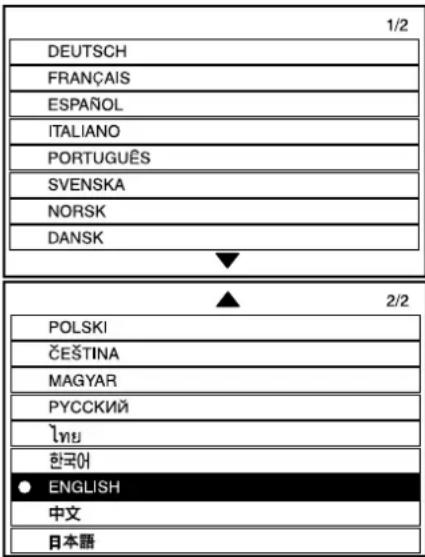

LANGUAGE

1/2 DEUTSCH FRANÇAIS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA NORSK DANSK ▼ 2/2 POLSKI ČEŠTINA MAGYAR PYCCKИЙ ไทย 한국어 ● ENGLISH 中文 日本語

OPTION

INPUT GUIDE page 34

DETAILED SIMPLE

OFF

STARTUP LOGO page 34

ON OFF

USER

COMPUTER2 SELECT page 34

INPUT OUTPUT

RGB/YPBPR page 34

AUTO

RGB YPBPR

WIDE MODE page 34

OFF

ON

LAMP POWER page 35

STANDARD ECO-MODE

LAMP RUNTIME page 35

DETAILED SETUP page 36

OSD DESIGN

TYPE1

TYPE3

TYPE2

SXGA MODE

SXGA

SXGA+

BLACKBOARD

ON OFF

BACK COLOR

BLUE

BLACK

VOLUME (Default: 20)

AUDIO BALANCE (Default: 0)

INITIALIZE ALL

SECURITY

INPUT PASSWORD page 37

OFF ON

PASSWORD CHANGE page 37

TEXT DISPLAY

OFF ON

page 37

TEXT CHANGE

page 37

WIRELESS

(PT-LB80NTU/PT-LB75NTU only)

NETWORK

NAME CHANGE

INPUT PASSWORD

PASSWORD CHANGE

NETWORK STANDBY

WEB CONTROL

LIVE MODE CUT IN

STATUS

INITIALIZE

page 38 ^*1

PICTURE menu

Remote control Control panel

MENU RETURN ENTER FREEZE AV MUTE COMPUTER MENU ENTER RETURN

• See "Navigating through the MENU" on page 27.
• See "Main menu and Sub-menu" on page 28.

PICTURE MODE

Depending on the projection environment, you can use these preset parameter settings to optimise image projection. Press ◀▶ to cycle through the options.

NATURAL	Reproduces the original color of the image
STANDARD	Setting for a general image
DYNAMIC	Bright and sharp setting
BLACKBOARD	Setting for when projecting on a blackboardSee “BLACKBOARD” on page 36.

NOTE:

- It may take for a while until the selected mode is stabilised.

CONTRAST

You can adjust the contrast of the projected image. Adjust the BRIGHTNESS in advance if necessary.

HigherLower

BRIGHTNESS

You can adjust the brightness of the projected image.

BrighterDarker

COLOR

You can adjust the color saturation of the projected image. (Available with signals of VIDEO/S-VIDEO/YPBPR only)

DarkerLighter

TINT

You can adjust the skin tone in the projected image. (Available with signals of VIDEO/S-VIDEO/YPBPR only)

More reddish

More greenish

SHARPNESS

You can adjust the sharpness of the projected image and the adjustable range depends on the input signal.

Less sharp

More sharp

COLOR TEMPERATURE

You can adjust the white balance of the projected image. Press ◀▶ to cycle through the options.

● ● STANDARD Balanced white
● ● HIGH More bluish
● ● LOW More reddish

DAYLIGHT VIEW

You can keep the projected image bright and vivid even in well-lit rooms where the ambient light sources cannot be controlled, such as when a door opens or when window coverings fail to block out sunlight.

● ● AUTO: Automatic adjustment
● ON: Active
● OFF: Deactive

NOTE:

• Do not cover the Ambient Luminance Sensor (ALS) of the projector. See “Ambient Luminance Sensor (ALS)” on page 12.
• AUTO is not available when INSTALLATION setting in OPTION menu is set to REAR/DESK or REAR/CEILING.

DETAILED SETUP

You can perform more detailed image adjustment manually.

For S-VIDEO/VIDEO signals

TV-SYSTEM

When the video signal is changed, the setting switches automatically. You can switch the setting manually to match the video data. Press ◀▶ to cycle through the options.

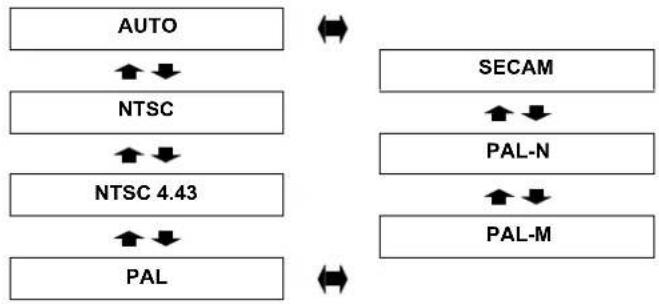


NOTE:

- AUTO setting will select from NTSC/NTSC 4.43/PAL/PAL60/PAL-M/PAL-N/SECAM.

● STILL MODE

You can reduce the vertical flicker when projecting a still image.

● ON: Active
- OFF: Deactive

NOTE:

- Set to OFF when projecting a moving image.

- NOISE REDUCTION

You can switch the automatic noise reduction system on/off. Press ◀▶ to select the required setting.

● ON: Automatic noise reduction
- OFF: No noise reduction

NOTE:

- Applying noise reduction may affect the image quality.

For RGB signals

You can adjust the white balance more properly in 3 colors temperature by pressing ◀▶.

● ● WHITE BALANCE RED
● ● WHITE BALANCE GREEN
● ● WHITE BALANCE BLUE

POSITION menu

Remote control Control panel

MENU RETURN ENTER FREEZE AV MUTE COMPUTER MENU ENTER RETURN

• See "Navigating through the MENU" on page 27.
• See "Main menu and Sub-menu" on page 28.

REALTIME KEYSTONE

If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface, the keystone will be corrected automatically. Press ◀▶ to select the required setting.

● ON: Active
- OFF: Deactive

KEYSTONE

If you need to correct the angle of the projection even when the REALTIME KEYSTONE is activated, you can correct the keystone manually.

Image Operation

NOTE:

• You can correct the distortion ± 30 degrees from the plane. For a better quality image, installing the projector with a minimum of distortion is recommended.
• The distortion of the Main menu screen is not correctable.
• The result of the keystone correction will affect the aspect ratio and the size of the image.

POSITION

You can move the projected image for fine adjustment. Press ◀▶ to move horizontally and ▲▼ vertically. (Available with signals of VIDEO/S-VIDEO/RGB/YPBPR only)

POSITION H 0 = 0/2 V 0 = 1/2

DOT CLOCK

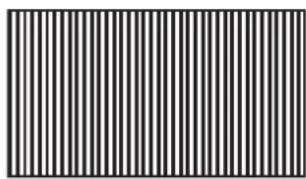

If you have interference patterns of the projected image, which is sometimes referred to as moire or noise, you can minimize it by pressing ◀▶ to adjust the clock frequency. (Available with signals of RGB only)

Abstract pattern of vertical black and white stripes (no text or symbols)

NOTE:

• If the projecting signal's dot clock frequency is higher than 108 MHz, the adjustment may not make a difference.
• DOT CLOCK needs to be adjusted before adjust the CLOCK PHASE.

CLOCK PHASE

If you require further adjustment for the same reason as the DOT CLOCK adjustment, you can fine adjust the timing of the clock. Press ◀▶ to adjust. (Available with signals of RGB/YPBPR only)

NOTE:

- If the projecting signal's dot clock frequency is higher than 108 MHz, the adjustment may not make a difference. See "List of compatible signals" on page 44.

ASPECT

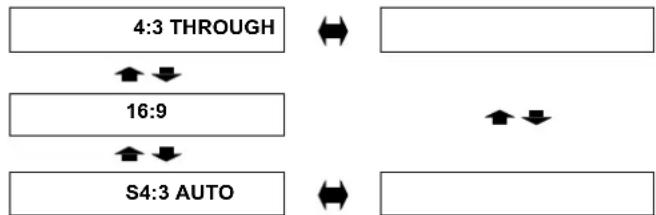

You can switch the aspect ratio manually when needed. Press ◀▶ to cycle through the options.

- Selectable options vary according to a input signal.

● 4:3

The input signal will be projected in 4:3 ratio.

Two identical diagrams showing a square with a circle and six surrounding circles, connected by an arrow (no text or symbols)

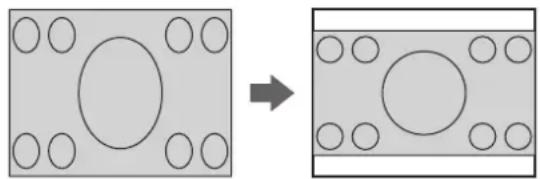

● 16:9

The squeezed signal will be projected in 16:9 ratio.

Diagram showing two rectangular blocks with circular holes, one larger and one smaller, both transforming into a smaller, more compact block (no text or symbols)

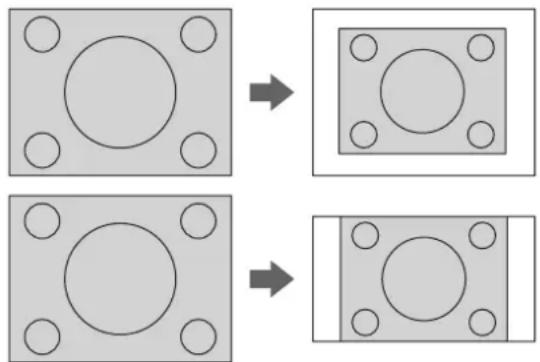

● S4:3

The input signal will be sized down 75 % and projected. S4:3 mode is effective when projecting 4:3 image on to a 16:9 screen.

● THROUGH

The image will be projected without any size adjustment.

Two square panels with circular holes and a central circle, connected by an arrow (no text or symbols)

AUTO

The signal which contains an identifying signal will be detected and automatically project the image in proper ratio.

NOTE:

• WIDE MODE in OPTION menu should be ON when projecting WIDE signals.
• If you project an image with an unmatched aspect ratio, the image may distort or some portions may be cropped. Select an aspect ratio which preserves the intention of the image creator.
• The order of ASPECT types is defined not only by the input method but also by the input signals. See "List of compatible signals" on page 44.
• If you project a copyrighted image enlarged or distorted by using ASPECT function in commercial use in a public place, such as a restaurant or hotel, you might infringe on the copyright of the creator which is protected by copyright law.

FRAME LOCK

If the projected image is degraded, you can activate FRAME LOCK for synchronisation. Press ◀▶ to select the required option. (Available with signals of RGB only)

• OFF Deactive
  ● ON Active

OPTION menu

Remote control MENU RETURN ENTER FREEZE AV MUTE COMPUTER Control panel MENU ENTER RETURN ● See "Navigating through the MENU" on page 27. ● See "Main menu and Sub-menu" on page 28.

INPUT GUIDE

When you change the input method, the guidance appears in the upper right corner of the screen. The following display methods are available. Press ◀▶ to cycle through the options.

Options	Function
DETAILED	Display the input method by graphic. The INPUT GUIDE will go out after 10 seconds without any operation.If you select any of the COMPUTER terminals which has no signal, the computer connection guidance will be displayed. See “Computer connection guidance” on page 46.
SIMPLE	Display the input method by text. The INPUT GUIDE will go out after 5 seconds without any operation.
OFF	Turn off the guidance.

STARTUP LOGO

You can switch the logo on/off that is displayed when starting up the projector. Press ◀▶ to select the required option. STARTUP LOGO will be displayed for 30 seconds.

● ON Active
- ● USER Display the original text
- OFF Deactive

● Editing the original text

If you select USER, you can display a 2 lines of original text which contains up to 40 characters in each.

TEXT CHANGE A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 SPACE ! " # $ % & ' * + - / = ? @ \ ^ _ ` | ~ ( ) < > [ } { } , . : ; OK CANCEL

1. Select USER and press the ENTER button.
2. Select the required line to enter or edit the original text, and press the ENTER button.
3. Use ▲ ▼ ◀▶ to specify the location of the required character and press the ENTER button.

● ● The selected character will be displayed in the box.

1. Repeat the step 3 until you finish the text to display in a line.

2. To delete all the entered characters, move the cursor to ALL DELETE and press the ENTER button.

3. To insert a character in the entered text line, move the cursor to the text box to select the required place, and press ▼ and return to the character field.

4. To delete a character, press the DEFAULT button or move the cursor to the required character then press the DEFAULT button.

5. Select OK and press the ENTER button to set the entered text in a box.

6. Press ▼ and edit the TEXT2 if you need to, and repeat the step 3 - 5.

7. Select CANCEL or press the MENU/RETURN button to return to the previous menu without setting.

COMPUTER2 SELECT

You can switch the function of the COMPUTER2 IN/1 OUT terminal.

● ● INPUT COMPUTER2 IN
● ● OUTPUT COMPUTER1 OUT

RGB/YPBPR

The projector will detect the signal from the COMPUTER1 IN or COMPUTER2 IN/1 OUT terminal if the signal is RGB or YPBPR. You can turn off the automatic system and switch the settings manually.

● ● AUTO Automatic adjustment
- RGB For RGB signals
● ● YPBPR For YPBPR signals

NOTE:

• Available with 480i, 576i, 480p, 576p, 1 125 (1 080)/60i, 1 125 (1 080)/50i, only.
- When the input signal is not selected correctly with AUTO setting, select RGB or YPBPR manually.

WIDE MODE

When projecting WIDE signals, switch to ON to display the image in well adjusted size.

● OFF For 4:3 signals
● ON For WIDE signals
(16:9, 16:10 and 15:9)

LAMP POWER

You can adjust the power of the lamp to save electricity, prolong the lamp life and reduce the noise.

● STANDARD When higher luminance is required
● ECO-MODE When lower luminance is sufficient

NOTE:

• When no input signal is detected, the function is disabled.
• The ECO-MODE setting is recommended when higher luminance is not required such as in a small room.

LAMP RUNTIME

You can check how long the lamp has been used.

NOTE:

• LAMP RUNTIME is a relevant matter for lamp replacement timing. See "Replacing the Lamp unit" on page 41.
• When the lamp unit is replaced with the new unit, the setting need to be reset to "0".

POWER OFF TIMER

You can set the off timer to switch off the power of the projector after a certain period of time automatically when no signal is detected. Press ◀▶ to select the required period from 15 to 60 minutes at intervals of 5 minutes.

DIRECT POWER ON

You can switch the projector start up status for when the electric power is supplied. Press ◀▶ to select the required option.

• OFF Starts in the same mode as last use.
  ● ● ON Skips the standby mode and starts the projection.

NOTE:

- If the projector is started from the projecting mode, the POWER button pressing procedure is skippable.

CONTROL PANEL

You can turn off the function of the control panel buttons on the projector body. Press ◀▶ to select the required option.

• VALID Validate the control panel buttons
• INVALID Invalidate the control panel buttons The confirmation screen will be displayed.

AUTO SETUP

You can turn off the automatic AUTO SETUP adjustment system.

● ● AUTO When the projector detect a

COMPUTER signal, automatically set the setting of POSITION, DOT CLOCK and CLOCK PHASE in POSITION menu.

- BUTTON

Only when the AUTO SETUP button is pressed, automatically set the POSITION, DOT CLOCK and CLOCK PHASE in POSITION menu for COMPUTER signals. See "Remote control" on page 14.

NOTE:

• AUTO setting is recommended.

SIGNAL SEARCH

You can turn off the auto signal detecting system.

● ● ON Detect the input signal from the terminals and project the image.
- OFF Deactive

NOTE:

- SIGNAL SEARCH is not available when any input signal is projected.

INSTALLATION

When installing the projector, select the projection method according to the projector position. Press ◀▶ to cycle through the options. See "Projection method" on page 16.

FRONT/DESK	Setting on a desk/floor and projecting from front
FRONT/CEILING	Mounting in the ceiling and projecting from front
REAR/DESK	Setting on a desk/floor and projecting from rear
REAR/CEILING	Mounting in the ceiling and projecting from rear

ALTITUDE

If you use the projector at high elevation, the ALTITUDE setting need to be HIGH to set the fan speed high. Press

◀▶ to select the required option.

● ● LOW The fan speed is low.
● ● HIGH The fan speed is high.

NOTE:

• At 1 400 -2 700 m (4 593 - 8 858 ft) sea level, the setting must be HIGH.
• The loudness of fan noise depends on the ALTITUDE setting.

CLOSED CAPTION SETTING

If the input signal contains closed captions, you can turn on the feature and switch the channels.

CLOSED CAPTION

• OFF Deactive
  ● ON Active

MODE

- CC1 - 4

Change the channels CC1 - 4

NOTE:

- VCR with TBC (Time Base Corrector) function is recommended for video cassette tapes.

FUNCTION BUTTON

You can select a useful function from the list and assign to the FUNCTION button for shortcut.

1. Press the ENTER button.
2. Press ▲ ▼ to select the required function.
3. Press the ENTER button.

- ● The dot on the left of the option is indicating the assigned function.

Option items Refer
AV MUTE	page 24
FREEZE	page 24
AUTO SETUP	page 23
INDEX-WINDOW	page 25
ASPECT• Press the FUNCTION button to display the ASPECT in POSITION menu.	page 32
PICTURE MODE• Press the FUNCTION to display the PICTURE MODE in PICTURE menu.	page 30
CLOSED CAPTION SETTING	page 36

TEST PATTERN

You can use the 7 different test patterns to adjust the focus of the image. See “Positioning the image” on page 22.

1. Press the ENTER button to display the test pattern 1.
2. Press ◀▶ to select the required test pattern.
3. Press the MENU or RETURN button to return to the previous menu, or press repeatedly to escape the menu mode.

DETAILED SETUP

You can perform more detailed setting in various items.

- OSD DESIGN

You can change the background color of the menu.

Press ◀▶ to select the required option.

TYPE1	Semi transparent black
TYPE2	Solid blue
TYPE3	Semi transparent dark blue

- SXGA MODE

When an SXGA signal image is cropped, you can switch the setting between SXGA and the larger setting, SXGA+. Press ◀▶ to select the required option.

- BLACKBOARD

You can exclude the BLACKBOARD in menu items of PICTURE MODE in PICTURE menu.

Press ◀▶ to select the required option.

• ON Include the BLACKBOARD in menu items.
• OFF Exclude the BLACKBOARD in menu items.

- BACK COLOR

You can choose a BLUE or BLACK screen for when the projector is idle. Press ◀▶ to select the required option.

VOLUME

You can adjust the volume of the built-in monaural speaker and VARIABLE AUDIO OUT terminal.

• Decrease
• ●▶ Increase

AUDIO BALANCE

You can adjust to hear the sound played equally through both right and left external stereo speakers, or shift the balance so more sound plays through the left or right side.

● ● ◀ More sound plays through the left side

● ●▶More sound plays through the right side

- INITIALIZE ALL

You can reset all of the customised settings to the factory defaults except WIRELESS and LAMP RUNTIME menu settings.

1. Press the ENTER button
2. Turn off the projector by pressing the POWER button.
3. Reset the projector by unplugging and plugging again.
4. The minimum required setting screen will be displayed.
5. See "Minimum required setting screen" on page 11.

NOTE:

- The security system is deactivated by default and when initialised.

Remote control Control panel

MENU RETURN ENTER FREEZE AV MUTE COMPUTER MENU ENTER RETURN

• See "Navigating through the MENU" on page 27.
• See "Main menu and Sub-menu" on page 28.

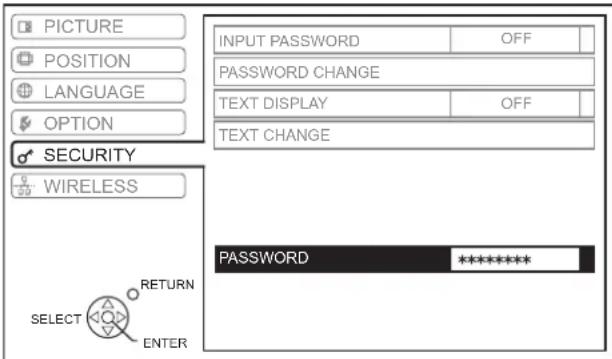

● Entering the SECURITY menu

Every time when you apply to the SECURITY menu, you will be asked to perform the password operation.

PICTURE POSITION LANGUAGE OPTION SECURITY WIRELESS SELECT RETURN ENTER INPUT PASSWORD OFF PASSWORD CHANGE TEXT DISPLAY OFF TEXT CHANGE PASSWORD ********

When you apply to the SECURITY menu before you change the password to your original, perform to input the following factory default password operation.

- Press ▲▶▼◀▲▶▼◀ and the ENTER button.

● After you change the password

When you apply to the SECURITY menu after you change the password to your original in the PASSWORD CHANGE menu, input the original password operation.

NOTE:

• The factory default password is valid until you change the password in PASSWORD CHANGE menu.
• The entered password operations will appear as asterisks in the box.

INPUT PASSWORD

You can activate the security system and the password operation will be asked to perform when projecting mode started. Unless you perform the correct password operation, all of the button controls will be disabled except the POWER button.

• OFF Deactive
  ● ON Active

NOTE:

• When you activated the security system, make sure to change the password to your original for safety.
• The security system is deactivated by default and when initialised.

PASSWORD CHANGE

You can change the password operation to your original.

1. Press a series of button operation up to 8 as a password by using ▲ ▼ ◀ and ▶ buttons.
2. Press the ENTER button.
3. Press the exact same series of button operation you entered in the NEW password box for confirmation.

4. If a series of button operation is incorrect, you will be asked to perform again.

5. Press the ENTER button.

NOTE:

• The entered password operations will appear as asterisks in the box.
• Change your password regularly.
• Do not use too simple password to guess.

TEXT DISPLAY

You can set your original text, such as company name or URL information, to display regularly at the bottom of the projected image while projecting.

• OFF Deactive
  ● ON Active

TEXT CHANGE

You can enter your original text up to 22 characters for TEXT DISPLAY.

TEXT CHANGE A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 SPACE ! " # $ % & ' * + - / = ? @ \ ^ _ ` | ~ ( ) < > [ ] { } , . : ; OK CANCEL

1. Use ▲ ▼ ◀ ▶ to specify the location of the required character and press the ENTER button.

● ● The selected character will be displayed in the TEXT CHANGE box.

1. Repeat step 1 until finish your original text.

2. To delete all the entered characters, move the cursor to ALL DELETE and press the ENTER button.

3. To insert a character in the entered text line, move the cursor to the text box to select the required place, and press ▼ and return to the character field.

4. To delete a character, press the DEFAULT button or move the cursor to the required character then press the DEFAULT button.

5. Select OK and press the ENTER button to set the entered text.

- Select CANCEL or press the MENU/RETURN button to return to the previous menu without setting.

Remote control Control panel

MENU RETURN ENTER FREEZE AV MUTE COMPUTER MENU ENTER RETURN

• See "Navigating through the MENU" on page 27.
• See "Main menu and Sub-menu" on page 28.

NOTE:

• The WIRELESS menu is available only with PT-LB80NTU/PT-LB75NTU.
• See the wireless information in the contents of the CD-ROM which is provided with the projector.
• When INPUT PASSWORD in SECURITY menu is activated, perform the correct password operation to initialise the projector via network.

Items in WIRELESS menu

In WIRELESS menu, the following items are available.

● ● NETWORK
● NAME CHANGE
● ● INPUT PASSWORD
● ● PASSWORD CHANGE
● ● NETWORK STANDBY
- WEB CONTROL
● ● LIVE MODE CUT IN
- STATUS
- INITIALIZE

LAMP and TEMP Indicators

Managing the indicated problems

If a problem should occur with the projector, the LAMP and/or TEMP indicators will inform you. Manage the indicated problems as follow.

1. Confirm the status of all indicators and projector, and switch off the projector in proper way.
2. See "Switching the projector on/off" on page 18.
3. Find out the cause of the problem by status of the LAMP and/or TEMP indicators.
4. Follow the instruction for each indication below and solve the problem.
5. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer.

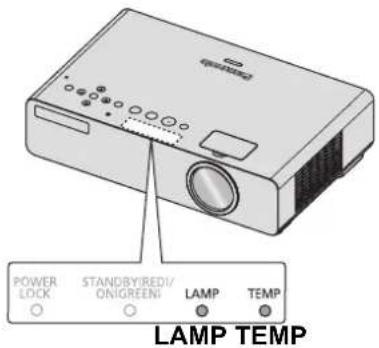

POWER LOCK STANDBY/REDI/ ONIGREENI LAMP TEMP LAMP TEMP

NOTE:

- If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorized Service Center.

LAMP indicator

Indicator	Illuminating red Flashing red
Problem	LAMP RUNTIME has reached 2 800 hours.	LAMP circuit failure, abnormal function or the lamp unit is damaged.
Cause	Lamp unit will run out soon and needs to be replaced.	The projector is switched on again too soon.	LAMP circuit failure, abnormal function.	Lamp unit is damaged.
Remedy	See “Replacing the Lamp unit” on page 41.	Let the lamp unit cool down and turn on the projector after 90 seconds.	Switch off the projector and contact an Authorized Service Center.	See “Replacing the Lamp unit” on page 41.

TEMP indicator

Indicator	Illuminating red while projecting and the alert will be displayed.Flashing red and power is turned off
Problem	The temperature inside and/or outside the projector is abnormally high.
Cause	The ventilation openings are covered.	The room temperature is too high.	The filter is excessively dirty and the ventilation is poor.	The projector is located at 1 400 - 2 700 m (4 593 - 8 8 5 8 ft).
Remedy	Remove the object(s) from the ventilation openings or clear around the projector.	Reinstall the projector in temperature controlled place. See page 48.	Clean the filter in the proper method. See page 40.	Turn on the projector*1and set theALTITUDE to HIGH. See page 35.

*1. The projector will perform 2 minutes with LOW setting at high elevation.

Care and Replacement

Cleaning the projector

■ Before cleaning the projector

• Switch off the projector and disconnect the power plug from the wall outlet.
  ● ● Unplug all the cables from the projector.

- Cleaning the outer surface of the projector

Wipe off dirt and dust gently with a soft cloth.

• If it is difficult to remove the dirt, soak a cloth with water, wring the cloth well and then wipe the projector. Dry off the projector with dry cloth.
• Do not use petroleum benzine, thinner, any alcoholic solvent, kitchen detergents or chemical clothes. Failure to observe these may result in altered or damaged surface of the projector.

- Cleaning the lens and front glass surface

Wipe off dirt and dust gently with a lint-free cloth.

● Make sure no dirt or dust remains on the surface of the lens or lens cover glass. It will be enlarged and projected onto a screen.

●- Attaching the lens cover

1. Attach the lens cover with aligning the latches in the holes.
2. Turn the lens cover counterclockwise.

● ● Removing the lens cover

1. Turn the lens cover clockwise.
2. Remove the lens cover from the projector.

Diagram of a projector with a circular button and rotating arrow, no text or symbols present

Diagram of a projector with two circular components and directional arrows indicating rotation (no text or symbols)

NOTE:

• Handle the ring cover with special care. Dropping or giving a shock may cause damage.
• Do not attempt to modify the ring cover.
• The ring cover must be attached to the projector all the time except cleaning time.

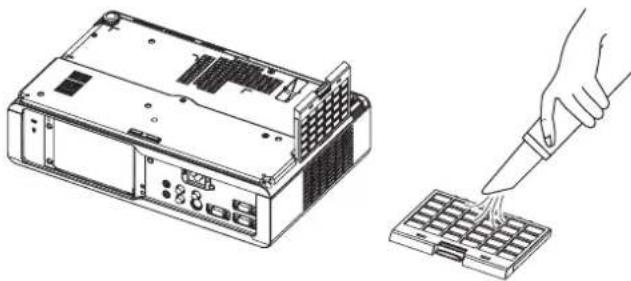

- Cleaning the air filter

If the air filter is excessively dirty, the internal temperature of the projector increases and may cause malfunction. Clean the air filter regularly every 100 hours of usage.

1. Turn the projector upside down and place it gently on a soft cloth.
2. press the tab and slightly slide up the air filter to remove.
3. Vacuum dirt and dust from the air filter.
4. Do not wash the air filter.
5. Place and slightly slide in the air filter in the air intake port to attach.
   ● Make sure the air filter clicks into the place.

Illustration of a computer hardware device with a hand holding a tool next to its internal grid array (no text or symbols present)

NOTE:

- Do not use the projector without attaching the air filter.

● Replacing the air filter

The air filter should be replaced when cleaning is ineffective and when replacing lamp unit. A replacement air filter is provided with a replacement lamp unit. Contact an Authorized Service Center for the optional air filter.

Replacing the Lamp unit

The lamp unit, ET-LAB80 is consumable and you must replace it regularly. It is recommended that a qualified technician carry the lamp unit replacement and consult with an Authorized Service Center.

- When to replace the Lamp unit

When the lamp is consumed, the brightness may decrease over time. 3 000 hours of use is the replacing timing as rough guided, and that might be shortened by the usage conditions, characteristics of the lamp unit or environmental conditions. You can find the duration of usage time by checking LAMP RUNTIME in OPTION menu.

Indication	On screen	LAMP indicator
Over 2 800 hours	Displays “REPLACE LAMP” on the upper left of the screen for 30 seconds.	Illuminates red.
Over 3 000 hours	Displays “REPLACE LAMP” on the upper left of the screen, and it will stay until you respond. Press any button to clear the screen.

NOTE:

• The guide times, 2 800 and 3 000 hours, are rough estimates based on certain conditions and is not a guaranteed time.
- For more information about the lamp unit and its guaranteed time, see the instructions which is provided with the lamp unit.
- Do not use a lamp unit over 3 000 hours. Failure to observe this may result in explosion of the lamp.

■ Before replacing the lamp unit

• Contact an Authorized Service Center to purchase a replacement lamp unit (ET-LAB80).
• Switch off the projector and disconnect the power plug from the wall outlet.
• Wait for more than 1 hour and make sure the lamp unit and the surroundings are cooled enough.
  ● Prepare a Phillips-head screwdriver.
• When the projector is mounted in the ceiling, do not work directly under the projector or put your face closer to the projector.

NOTE:

• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.
• Do not attempt replacement with an unauthorized lamp unit.

- Replacement procedure

●-Removing and replacing the lamp unit

1. Use a Phillips-head screwdriver to loosen the 2 lamp unit cover fixing screws on the back of the projector until the screws turn freely, and remove the lamp unit cover.

Lamp unit cover

Lamp unit cover fixing screws

1. Use a Phillips-head screwdriver to loosen the 3 lamp unit fixing screws.

Lamp unit fixing screws Handles

1. Pull the used lamp unit gently from the projector.

● Grip the handle and keep the lamp unit paralleled when you remove the lamp. Some parts of the lamp unit are sharpened and may cause injury.

Illustration of a hand holding a mechanical component with no visible text or symbols

1. Replace the new lamp unit in correct direction.
2. Press in the lamp unit until it clicks and make sure the unit is installed securely.
3. Tighten the 3 lamp unit fixing screws securely with a Phillips-head screwdriver.

Lamp unit fixing screws Press here

1. Attach the lamp unit cover and tighten the 2 lamp unit cover fixing screws securely with a Phillipshead screwdriver.

NOTE:

• Be sure to install the lamp unit and attach the lamp unit cover securely. If they are not installed securely, it may cause the protection circuit to operate so that the power cannot be turned on.
• Do not switch the power on while the lamp unit cover removed.
• Handle the lamp unit with special care as that is a glass product. Dropping or giving a shock may cause burst or damage.

- Resetting the LAMP RUNTIME

1. Connect the power cord to a wall outlet, and switch on the projector.
2. Press the MENU button to display the menu.
3. Press ▲ ▼ to select OPTION and press ENTER.
4. Press ▲ ▼ to select LAMP RUNTIME.

LAMP POWER NORMAL LAMP RUNTIME 1820H

1. Press and hold the ENTER button for approximately 3 seconds.
2. The confirmation screen will be displayed and select OK.
3. Reset the projector by unplugging and plug again the power cord.
4. Display the LAMP RUNTIME menu again and confirm the duration of time is reset to "0 H".

Troubleshooting

Should any problem persist, contact your dealer.

Problem Cause		Reference page
Power does not turn on.	● The power cord may not be connected securely.● No electric supply at the wall outlet.● TEMP indicator is lit or flashes.● LAMP indicator is lit or flashes.● The lamp unit cover has not been securely installed.● The circuit breakers have tripped.	1819393942-
No picture appears.	● The signal input source may not be connected to a terminal properly.● The input selection setting may not be correct.● The BRIGHTNESS adjustment setting may be at the minimum setting.● The signal input source may not be operating properly.● The AV MUTE function may be in use.	172430-24
The picture is fuzzy.	● The lens focus may not have been set correctly.● The projector may not be at the correct distance from the screen.● The lens may be dirty.● The projector may be tilted too much.	22154015/16
The color is pale or grayish.	● COLOR or TINT adjustment may be incorrect.● The input source which is connected to the projector may not be adjusted correctly.	3028
No sound can be heard from the internal speaker.	● The audio signal source may not be connected properly.● A cable may be connected to the VARIABLE AUDIO OUT terminal.● The volume adjustment may be at the lowest possible setting.	171325
The control buttons of the projector do not operate.	● CONTROL PANEL in OPTION menu is invalidated. If you have a loss of the remote control while the CONTROL PANEL is invalidated, press and hold the MENU button for 2 seconds with pressing the ENTER button.	35
The Remote control does not operate.	● The batteries may be weak.● The batteries may not have been inserted correctly.● The remote control signal receptor on the projector may be obstructed.● The remote control unit may be out of the operation range.● The remote control is under the strong light such as fluorescent.	-14232323
The picture does not display correctly.	● The signal format (TV-SYSTEM) may not have been set correctly.● There may be a problem with the VCR or other signal source.● A signal which is not compatible with the projector is being input.	31-44
Picture from a computer does not appear.	● The cable may be longer than the optional cable.● The external video output from a laptop computer may not be correct. (You may be able to change the external output settings by pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method varies depending on the type of computer; refer to the documentation provided with your computer for further details.)● COMPUTER2 SELECT setting in OPTION menu is not correct.	-4634

Technical Information

List of compatible signals

Mode	Displayresolution (dots)*1	Scanningfrequency		Dot clockfrequency(MHz)	Picturequality*2	Terminals
		H (kHz)	V (Hz)
NTSC/NTSC 4.43/PAL-MPAL60	720 x 480i 15.7	59.9 - A				VIDEO/S-VIDEO
PAL/PAL-N/SECAM 720 x	576i 15.6 50.0 - A
525i (480i) 720 x 480i	15.7 59.9 13.5 A					COMPUTER/YPBPR
625i (576i) 720 x 576i	15.6 50.0 13.5 A
525p (480p)	720 x 483	31.5 59.9	27.0 A
625p (576p)	720 x 576	31.3 50.0	27.0 A
1 125 (1 080)/60i	1 920 x 1 080i	33.8	60.0	74.3	A
1 125 (1 080)/50i	1 920 x 1 080i	28.1	50.0	74.3	A
750 (720)/60p	1 280 x 720	45.0 60.0	74.3 A			COMPUTER/YPBPR*3
750 (720)/50p	1 280 x 720	37.5 50.0	74.3 A
VESA	640 x 400	31.5 70.1	25.2 A			COMPUTER
	640 x 400	37.9 85.1	31.5 A
VGA	640 x 480	31.5 59.9	25.2 A
	640 x 480	35.0 66.7	30.2 A
	640 x 480	37.9 72.8	31.5 A
	640 x 480	37.5 75.0	31.5 A
	640 x 480	43.3 85.0	36.0 A
SVGA	800 x 600	35.2 56.3	36.0 A
	800 x 600	37.9 60.3	40.0 A
	800 x 600	48.1 72.2	50.0 A
	800 x 600	46.9 75.0	49.5 A
	800 x 600	53.7 85.1	56.3 A
MAC	832 x 624	49.7 74.6	57.3 A
XGA	1 024 x 768	39.6 50.1	51.9	AA
	1 024 x 768	48.4 60.0	65.0	AA
	1 024 x 768	56.5 70.1	75.0	AA
	1 024 x 768	60.0 75.0	78.8	AA
	1 024 x 768	68.7 85.0	94.5	AA
MXGA	1 152 x 864	64.0 71.2	94.2 A
	1 152 x 864	67.5 74.9		108.0	A
	1 152 x 864	77.1	85.0	119.7	B
MAC	1 152 x 870	68.7	75.1	100.0	A
MSXGA	1 280 x 960	60.0	60.0	108.0	A
SXGA	1 280 x 1 024	64.0	60.0	108.0	A
	1 280 x 1 024	80.0 75.0		135.0	B
	1 280 x 1 024	91.1 85.0		157.5	B
SXGA60+	1 400 x 1 050	64.0	60.0	108.0	A
	1 400 x 1 050	65.1 59.9		122.4	B
UXGA	1 600 x 1 200	75.0	60.0	162.0	B
WIDE750 (720)	1 280 x 720	44.8 59.9	74.5 A
	1 280 x 720	37.1 49.8	60.5 A
WXGA768	1 280 x 768	39.6 49.9	65.3 A
	1 280 x 768	47.8 59.9	79.5 A
WXGA800	1 280 x 800	41.3 50.0	68.0 A
	1 280 x 800	49.1 60.2	69.1 A
	1 280 x 800	49.7 59.8	83.5 A
WXGA+	1 440 x 900	55.9	59.9	106.5	A
WSXGA+	1 680 x 1 050	65.3	60.0	146.3	B
WUXGA	1 920 x 1 200	74.6	59.9	193.3	B

*1. The "i" appearing after the resolution indicates an interlaced signal.
*2. The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A Signals are converted by the image processing circuit before picture is projected.
B Some loss of data occurs to make projection easier.
*3. Displays 750 (720)/60p or 750 (720)/50p signals through COMPUTER terminals as WIDE750 (720). Press the AUTO SETUP button and adjust the image.

Serial terminal

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector.

- Connection

D-sub 9 pin (male) Computer Serial terminal (female)

- Pin assignments and signal names

	Pin No. Signal name Contents
	1		NC
	2	TXD Transmitted data
	3	RXD Received data
	4		NC
	5	GND Earth
	6		NC
	7	RTS	Connected internally
	8	CTS
	9		NC

- Communication settings

Signal level	RS-232C	Character length	8 bits
Sync. method	Asynchronous	Stop bit	1 bit
Baud rate	9 600 bps	X parameter	None
Parity	None	S parameter	None

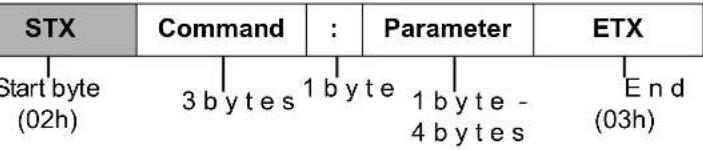

Basic format

The data streaming from the computer will start with STX, and proceed to Command, Parameter and end with ETX. You can add the required parameter.

• The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds before sending the command.
• If sending multiple commands, check that a response has been received from the projector for one command before sending the next command.
• When a command which does not require parameters to be sent, the colon (:) is not required.
• If an incorrect command is sent from the personal computer, the ER401 command will be sent from the projector to the personal computer.

- Cable specifications

(When connected to a personal computer)

Projector PC (DTE)

■ Control commands

Command Control contents Remarks
PON Power on		In standby mode, all commands other than the PON command are ignored.● ● The PON command is ignored during lamp ON control.
POF Power off		If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp.
AVL Volume		Parameter000 - 063 (Adjustment value 0 - 63)
IIS Input		Parameter: SVD = S-VIDEOVID = VIDEORG2 = COMPUTER2RG1 = COMPUTER1NWP = WIRELESS(PT-LB80NTU/PT-LB75NTU only)
Q$S	Lamp condition query	Call back0 = Standby 2 = Lamp on1 = Lamp on control active 3 = Lamp off control active
OSH Shutter		Turning off the projection temporarily.Send the command to switch between on and off.Do not send the command consecutively.

Computer connection guidance

You can switch the signals which to output from the COMPUTER1 OUT terminal by pressing the computer key command. The key commands are depend on the manufactures. If you select the computer terminals which has no signals while the INPUT GUIDE is set to DETAILED, the computer connection guidance will be displayed.

Manufacturer	Key command	Manufacturer	Key command	Manufacturer	Key command
Panasonic NEC		TOSHIBA SHARP HP		IBM SONY	Fn + F7
				Apple	F7
FUJITSU		EPSON DELL		Other	Fn + □/□

NOTE:

• The computer connection guidance will disappear after 5 minutes.
• Please refer the instructions which provided with the computers for more detailed information.

Screen size and throw distance for 16:9 aspect ratio

Projection size(16:9)	Throw distance (L)PT-LB80NTU / PT-LB80U		Throw distance (L)PT-LB75NTU / PT-LB75U
Screen diagonal(SD)	Minimum distance(LW)	Maximum distance(LT)	Minimum distance(LW)	Maximum distance(LT)
33" (0.84 m) 1.2	m (3'11") 1.2 m (3'11")
40" (1.02 m)	1.2 m (3'11")	1.5 m (4'11")	1.3 m (4'3")	1.5 m (4'11")
50" (1.27 m)	1.6 m (5'2")	1.9 m (6'2")	1.6 m (5'2")	1.9 m (6'2")
60" (1.52 m)	1.9 m (6'2")	2.3 m (7'6")	1.9 m (6'2")	2.3 m (7'6")
70" (1.78 m)	2.2 m (7'2")	2.7 m (8'10")	2.2 m (7'2")	2.6 m (8'6")
80" (2.03 m)	2.5 m (8'2")	3.0 m (9'10")	2.5 m (8'2")	3.0 m (9'10")
90" (2.29 m)	2.8 m (9'2")	3.4 m (11'1")	2.8 m (9'2")	3.4 m (11'1")
100" (2.54 m)	3.2 m (10'5")	3.8 m (12'5")	3.2 m (10'5")	3.8 m (12'5")
120" (3.05 m)	3.8 m (12'5")	4.6 m (15'1")	3.8 m (12'5")	4.6 m (15'1")
150" (3.81 m)	4.8 m (15'8")	5.8 m (19')	4.7 m (15'5")	5.7 m (18'8")
200" (5.08 m)	6.4 m (20'11")	7.7 m (25'3")	6.3 m (20'8")	7.6 m (24'11")
250" (6.35 m)	8.0 m (26'2")	9.6 m (31'5")	7.9 m (25'11")	9.5 m (31'2")
300" (7.62 m)	9.6 m (31'5")	11.6 m (38')	9.5 m (31'2")	11.4 m (37'4")

* All measurements above are approximate and may differ slightly from the actual measurements.

● Calculation methods for screen dimensions

You can calculate more detailed screen dimension from the screen diagonal.

● ● Screen width (SW) and screen height (SH)

$$ \mathrm{SW} (\mathrm{m}) = \mathrm{SD} \left(^ {\prime \prime}\right) \times 0. 0 2 2 1 \mathrm{SH} (\mathrm{m}) = \mathrm{SD} \left(^ {\prime \prime}\right) \times 0. 0 1 2 5 $$

● ● Minimum distance (LW) and maximum distance (LT)

$$ \text { PT - LB80NTU: LW (m) } = 0. 0 3 2 1 \times \text { SD ("") } - 0. 0 4 \text { LT (m) } = 0. 0 3 8 8 \times \text { SD ("") } - 0. 0 6 $$

$$ \text { PT - LB75NTU: LW (m) } = 0. 0 3 1 8 \times \text { SD ("') } - 0. 0 2 2 \text { LT (m) } = 0. 0 3 8 3 \times \text { SD ("') } - 0. 0 4 6 $$

* The results above are approximate and may differ slightly from the actual measurements.

Specifications

Power supply		AC 100 - 240 V 50 Hz/60 Hz
Power consumption		300 WDuring standby (when fan is stopped): 4 W
Amps 3.5 A - 1.2 A
LCD panel	Panel size (diagonal)	0.63 type (16.00 mm)
	Aspect ratio 4 : 3
	Display method 3 transparent LCD panels (RGB)
	Drive method Active matrix method
	Pixels	786 432 (1 024 x 768) x 3 panels
Lens		Manual zoom (1.2x)/Manual focusF 1.6 - 1.9, f 18.8 mm - 22.6 mm (PT-LB80NTU /PT-LB80U)F 1.7 - 1.9, f 18.5 mm - 22.2 mm (PT-LB75NTU / PT-LB75U)
Optical axis		8:1 fixed (PT-LB80NTU/PT-LB80U)
		5:1 fixed (PT-LB75NTU / PT-LB75U)(page 15)
Lamp UHM lamp (220 W)
Luminosity^*1		3 200 lm (PT-LB80NTU /PT-LB80U)2 500 lm (PT-LB75NTU / PT-LB75U)
Operating environment		0 °C - 40 °C (32 °F - 104 °F)When the ALTITUDE(page 35)is set to HIGH: 0 °C - 35 °C(32 °F - 95 °F)Humidity 20% - 80% (no condensation)
Scanning frequency^*2 (for RGB signal)	Horizontal scanning frequency	15 kHz - 91 kHz
	Vertical scanning frequency	50 Hz - 85 Hz
	Dot clock frequency	Less than 110 MHz
COMPONENT (YPbPR) signals		525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/60p,750 (720)/50p, 1 125 (1 080)/60i, 1 125 (1 080)/50i
Color system		7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)
Projection size		33" - 300" (838.2 mm - 7 620 mm)
Throw distance		1.1 m - 11.6 m (3'7" - 38')
Screen aspect ratio		4 : 3
Installation		FRONT/DESK, FRONT/CEILING, REAR/DESK, REAR/CEILING(Menu selection method)
Speaker		1 piece 4 cm x 2 cm (1 - 9/16" x - 25/32")
Max. useable volume output		1.0 W

*1. Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.
*2. See "List of compatible signals" on page 44 for available signals.

Terminals	S-VIDEO IN	Single - line, Mini DIN 4pY: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
	VIDEO IN	Single - line, RCA pin jack1.0 V [p-p], 75Ω
	COMPUTER	Single - line, D - sub HD 15-pin (female)● RGB input/outputR.G.B.: 0.7 V [p-p], 75 ΩG SYNC: 1.0 V [p-p], 75 Ω
		HD, VD/SYNC: TTL high impedance, automatic positive/negative polarity compatible
		● YPBPR/YPBCB input/outputY: 1.0 V [p-p] (include sync) 75 ΩPB/CB, PR/CR: 0.7 V [p-p] 75 Ω
	AUDIO IN Single - line, 0.5V [rms], RCA pin jack x 2 (L - R)
	COMPUTER AUDIO IN	Single - line, 0.5V [rms], M3 jack (Stereo MINI)
	VARIABLE AUDIO OUT	Single - line, 0.5V [rms], M3 jack (Stereo MINI)Monitor output/stereo compatible0 V [rms] - 2.0 V [rms] (variable)
	SERIAL D-sub 9-pin RS-232C compatible
Wireless LAN(PT-LB80NTU/PT-LB75NTU only)	Compatible	IEEE802.11b/IEEE802.11g (Wireless LAN standard protocol)
	Wireless channel IEEE802.11b/IEEE802.11g: 1 - 13 channels
	Distance	30 m (98'5") Depends on the usage environment
Cabinet Moulded plastic (PC+ABS)
Dimensions		Width 368 mm (14 - 15/32")Height 88 mm (3 - 13/16")Length 233 mm (9 - 5/32") (not including surface projection parts)
Weight 3 kg (6.6 lbs.)
Certifications		UL60950-1 FCC Class B C-UL ICES-003
Remote control	Power supply	3 V DC (AA battery x 2)
	Operating range	Approx. 15 m (49'2") (when operated directly in front of signal receptor)
	Weight	117 g (4.2 ozs.) (including batteries)
	Dimensions	Width 48 mm (1 - 7/8")Length 163 mm (6 - 13/32")Height 24.5 mm (-15/16") (not including surface projection parts)
Options	Ceiling bracket	ET-PKB80

Dimensions

368 (14 - 15/32") Panasonic 233 (9 - 5/32") 3 - 3/32" 3 - 15/32" 88.6" 97 3 - 13/16" 54.5" 2 - 1/8"

Unit: mm

88 3 - 7/16" 9 -11/32" 194.4 7 - 5/8" 103.6 4 - 1/16" 3 - 2/32" 5 4 93 -5/32"

Trademark acknowledgements

● VGA and XGA are trademarks of International Business Machines Corporation.
● S-VGA is a registered trademark of the Video Electronics Standards Association.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
- The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh Company, Ltd.

All other trademarks are the property of the various trademark owners.

Index

A

AC IN 13

Accessories 10

Air exhaust port 13

Air filter Cleaning .... 40 Compartment .... 13

Air intake port 12

ALTITUDE 35

Ambient Luminance Sensor (ALS) 12

ASPECT 32

AUDIO BALANCE 36

AUDIO IN 13

AUTO SETUP Menu .... 35 Remote control .... 23 Remote control button .... 14

AV MUTE Remote control .... 24 Remote control button .... 14

B

BACK COLOR 36

Batteries 10

Battery compartment 14

BLACKBOARD 36

BRIGHTNESS 30

Burglar hook port 13

C

Calculation methods 16:9 ....47 4:3 ....15

Carrying bag 10

CD-ROM Accessories 10

Cleaning Air filter ....40 Projector ....40

CLOCK PHASE 32

CLOSED CAPTION SETTING 36

COLOR 30

COLOR TEMPERATURE 30

COMPUTER Connection guidance .... 46 Remote control .... 24 Remote control button .... 14

COMPUTER AUDIO IN 13

COMPUTER SEARCH 14

COMPUTER1 IN 13

COMPUTER2 IN/1 OUT 13

COMPUTER2 SELECT 34

Connections 17

CONTRAST 30

CONTROL PANEL Buttons .... 12 Menu .... 35

D

DAYLIGHT VIEW 30

DEFAULT Remote control .... 24 Remote control button .... 14

DETAILED SETUP OPTION menu .... 36 PICTURE menu .... 31

DIGITAL ZOOM Remote control 26

Remote control button 14

Dimensions 50

Direct power off 18

DIRECT POWER ON Function ....18 Menu ....35

DOT CLOCK 32

E

ENTER Control panel button ....12 Remote control button ....14

F

Focus ring 12, 22

FRAME LOCK 33

FREEZE Remote control ....24 Remote control button ....14

Front leg adjusters ....13, 16, 22 Buttons ....22

FUNCTION Control panel button ....12 FUNCTION BUTTON ....36 Remote control ....25 Remote control button ....14

H

Hand strap ....14 HIGHLAND ....35

|

INDEX-WINDOW Remote control ....25 Remote control button ....14

INITIALIZE ALL 36

INPUT GUIDE ....34 INPUT PASSWORD ....37

INPUT SELECT Control panel button ....12 Remote control button ....14 Selecting ....24

INSTALLATION Menu ....35 Projection method ....16

K

KEYSTONE 32

L

LAMP Indicator ....12 Indicator status ....39 LAMP POWER ....35 LAMP RUNTIME ....35, 42 Lamp unit compartment ....13 Replacing ....41 Lens cover ....12, 40

M

MENU Control panel button ....12 Main menu ....28 Navigation ....27 Remote control ....27 Remote control button ....14 MULTI-LIVE ....14

N

Navigation buttons Control panel button ....12 Remote control button ....14 NOISE REDUCTION ....31

0

OPTION menu ....34 OSD DESIGN ....36

P

PAGE ....14 PASSWORD CHANGE ....37 PICTURE menu ....30 PICTURE MODE ....30 POSITION ....32 POSITION menu ....32

POWER Control panel ....12 Indicator ....12 Indicator status ....21 Remote control button ....14

Power cord Accessories ..... 10 Connecting ..... 18 Power cord secure lock ..... 10, 18 POWER LOCK Indicator ..... 12 Indicator status ..... 21 POWER OFF TIMER ..... 35 Projection method ..... 16

R

REALTIME KEYSTONE ....32 RELEASE Control panel button ....12

Remote control Accessories ....10 Operation ....23 Signal emitter ....14 Signal receptor ....12

Replacing Air filter ....40 Lamp unit ....41

RETURN Control panel button ....12 Remote control ....27 Remote control button ....14 RGB/YPBPR ....34

S

Screen size 16:9 ....47 4:3 ....15

Security 9
Security lock 13
SECURITY menu 37

SERIAL .... 13 Basic format .... 45 Cable specifications .... 46 Communication settings .... 45 Connection .... 45 Control commands .... 46 Pin assignments .... 45

SHARPNESS .... 30 SIGNAL SEARCH .... 35 Signals .... 44 Speaker .... 13 Specifications .... 48

STARTUP LOGO .... 34 STILL MODE .... 31 Sub-menu .... 28 S-VIDEO IN .... 13 SXGA MODE .... 36

[Non-Text]

Technical Information .... 44 TEMP Indicator .... 12 Indicator status .... 39

TEST PATTERN .... 36 TEXT CHANGE .... 37 TEXT DISPLAY .... 37

Throw distance 16:9 ....47 4:3 ....15 Throwing angle ....16 TINT ....30 Troubleshooting ....43 TV-SYSTEM ....31

[Non-Text]

VARIABLE AUDIO OUT .... 13 VIDEO Remote control .... 24 Remote control button .... 14 VIDEO IN .... 13 VOLUME .... 36 Remote control .... 25 Remote control button .... 14

W

WHITE BALANCE .... 31 WIDE MODE .... 34 WIRELESS Menu .... 38 Remote control .... 24 Remote control button .... 14

Z

Zoom ring 12, 22 Zoom-Focus ring cover 12

Cher client Panasonic:

PT-LB80NTU / PT-LB75NTU/PT-LB80U/PT-LB75U

Numéro de série:

AVERTISSEMENT: POUR REDUIRE LES RISQUES DE FEU OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CE PRODUIT À L'EAU OU À L'HUMIDITÉ.

Line drawing of a plug with two leads and a handle, no text or symbols present

Ne pas retirer

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

NOTICE:

Fabricant responsible: Panasonic Corporation of North America

Adresse: One Panasonic Way, Secaucus, New Jersey 07094

Téléphone: (888) 411 - 1996

Email: [e-mail]

Front view of a computer monitor with control panel and indicator lights (no visible text or labels)

Illustration of a hand holding a mechanical device (no text or symbols visible)

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Panasonic®

Projectors

Panasonic Projector Systems Company

Unit of Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

(201) 392 - 6591

Technical Support:

(888) 411 - 1996

FAX: (201) 348 - 7523

E-Mail: [e-mail]

© 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

Printed in Japan

S0308-1048B
