USER MANUAL PTST10U PANASONIC

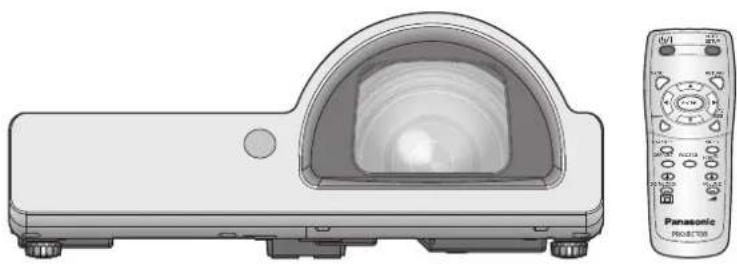

Operating Instructions Basic Manual

LCD Projector Commercial Use

Model No. PT-ST10U

Thank you for purchasing a Panasonic Projector.

Before operating this product, please read the instructions carefully, and save this manual for future use.

Before using your projector, be sure to read "Precautions with regard to safety" (pages 5 to 9).

For network operation, please read the Network Operation Manual.

Important Safety Notice

Dear Panasonic Customer:

The following information should be read and understood as it provides details, which will enable you to operate the projector in a manner which is both safe to you and your environment, and conforms to legal requirements regarding the use of projectors. Keep this booklet with your Panasonic LCD projector for future reference. The serial number of your product may be found on its bottom. Write it in the space provided below and retain this booklet in case service is required.

Model number: PT-ST10U

Serial number:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Power Supply: This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.

CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 7 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result.

WARNING

RISK OF ELECTRIC SHOCK. DO NOT OPEN

MISE EN GARDE-RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR.
WARNING- ZUR VERMEIDUNG EINES ELEKTRISCHEN SCHLAGES GERAT NICTE ÖFFENN.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: This equipment is equipped with a three-pin grounding-type power plug.

• Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician.
• Do not defeat the purpose of the grounding plug.

Do not remove

Pursuant to at the directive 2004/108/EC, article 9(2)

Pursuant to at the directive 2005/32/EC amended by 2008/28/EC, article 14

Panasonic Testing Center

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

NOTICE:

This product has a High Intensity Discharge (HID) lamp that contains mercury. Dispase may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org

Important Safety Notice (continued)

WARNING:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer and/or peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.

WARNING:

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

• For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring.
• For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

Declaration of Conformity

Model Number: PT-ST10U

Trade Name: Panasonic

Responsible party: Panasonic Solutions Company

Address: 3 Panasonic Way, Secaucus, NJ 07094

Telephone number: (877) 803 - 8492

E-mail: [e-mail]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information on Disposal in other Countries outside the European

These symbols are only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Environment care information for users in China

This symbol is only valid in China.

TABLE OF CONTENTS

Essential information

Important Safety Notice 2

Precautions with regard to safety 5

Preparation

Start-up display 10

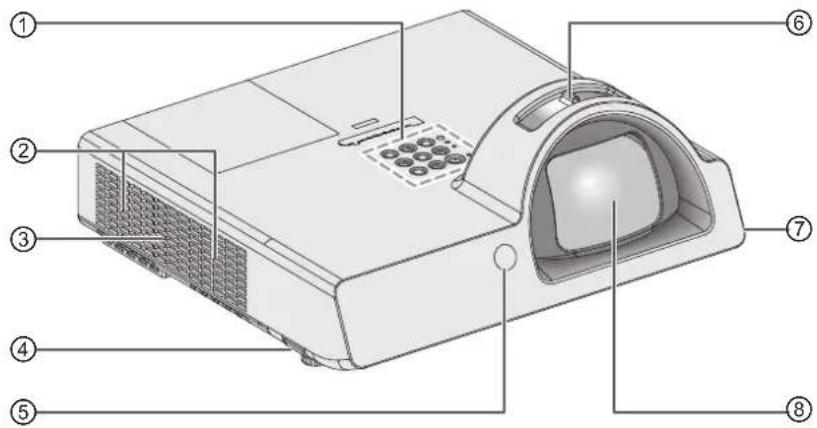

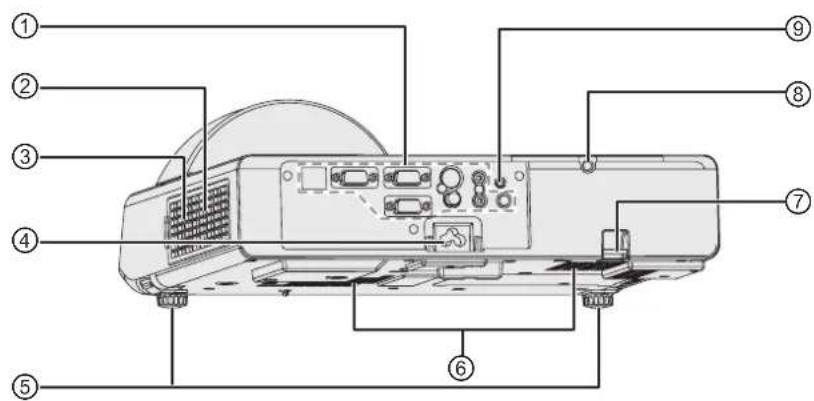

Details of your projector 11

Getting started

Set up your projector 14

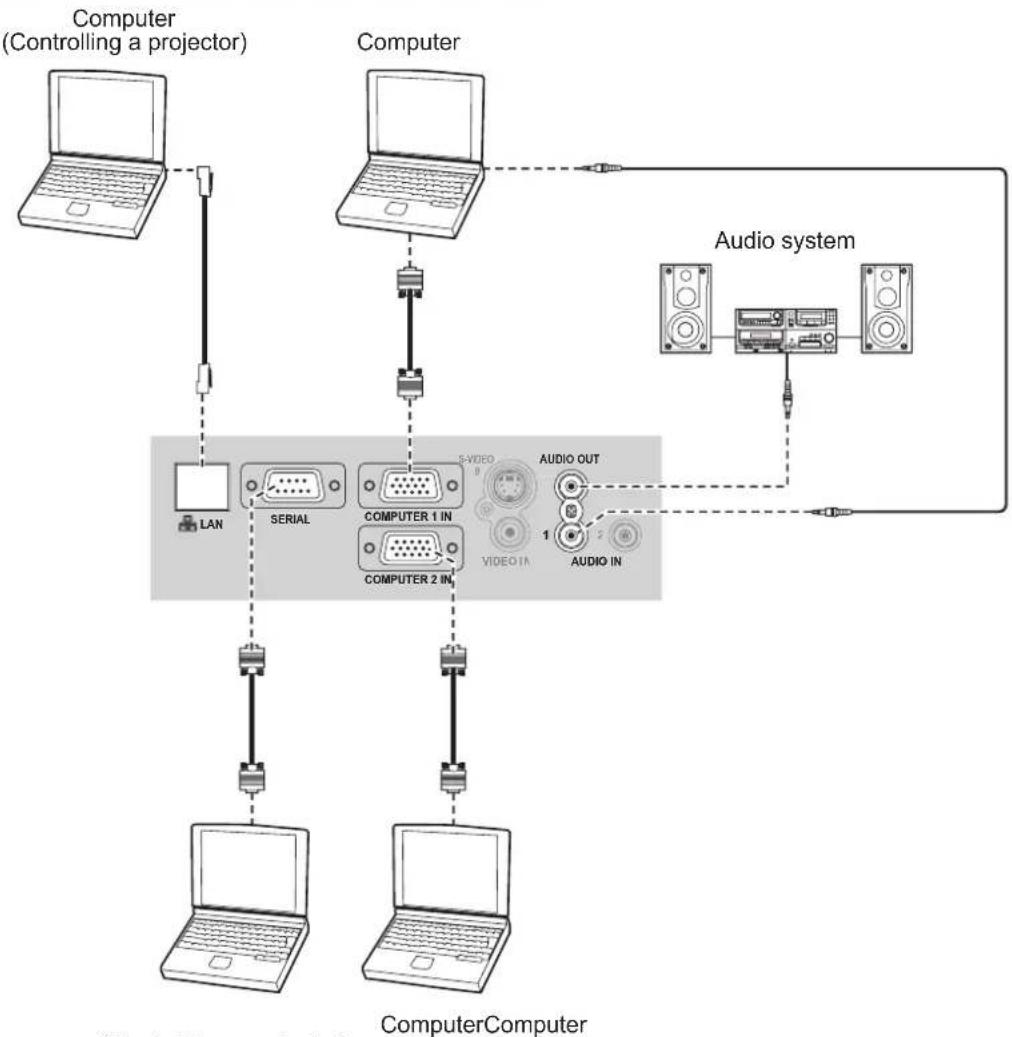

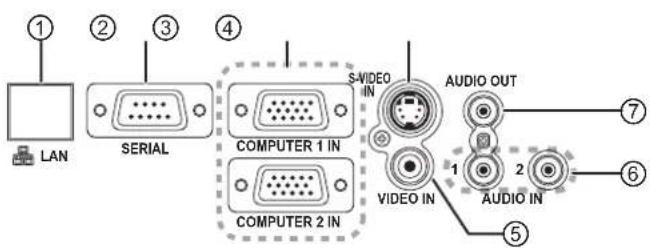

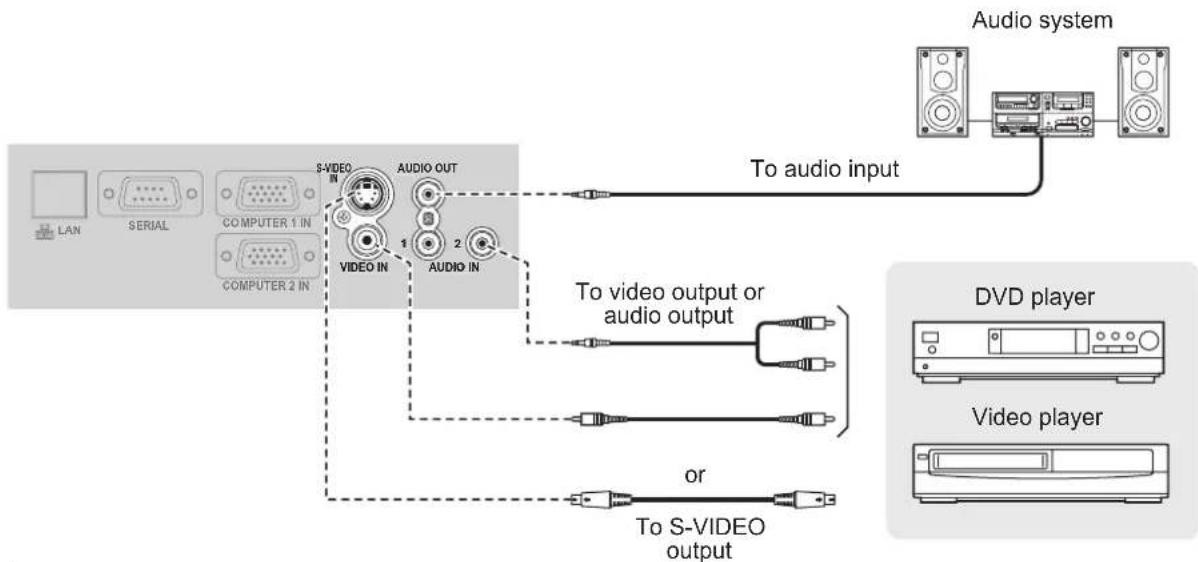

Connections 16

Basic operations

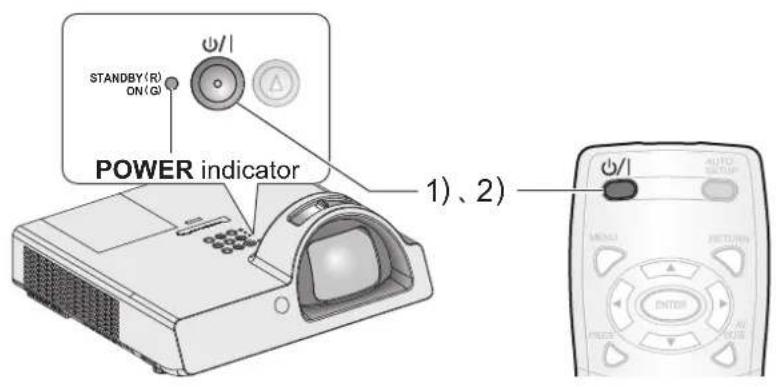

Turn the projector ON or OFF 18

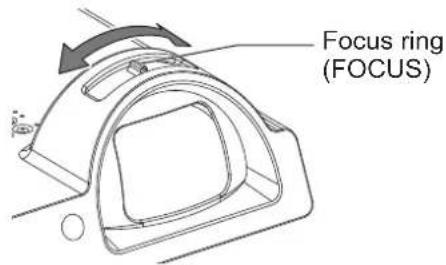

Project an image 22

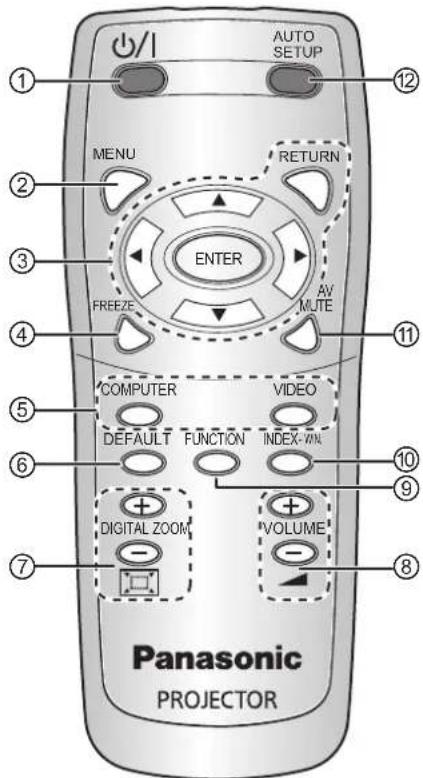

Remote control operation 23

Settings

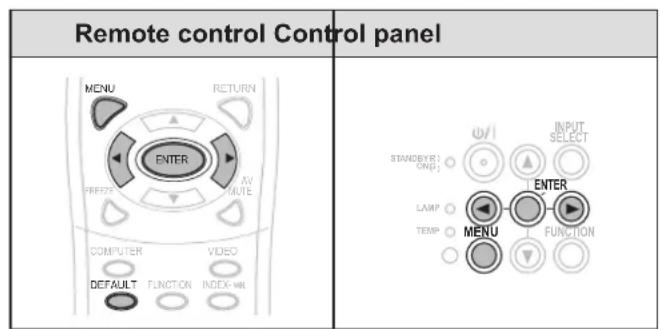

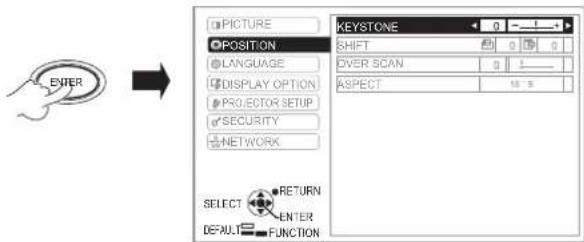

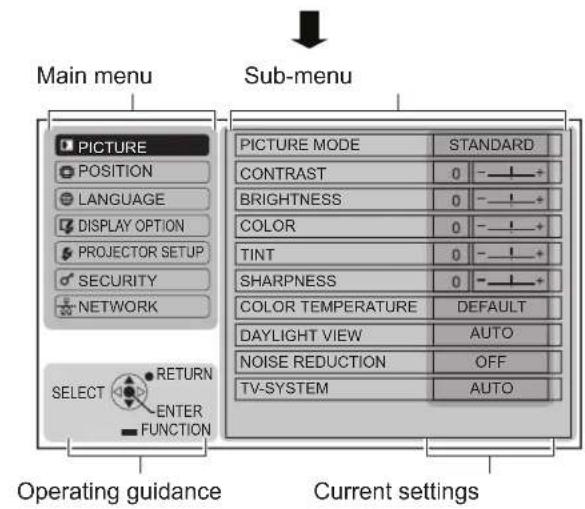

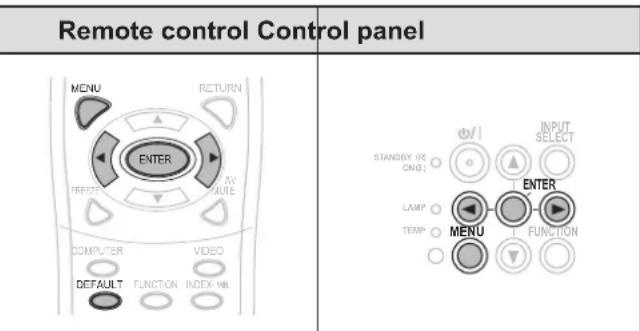

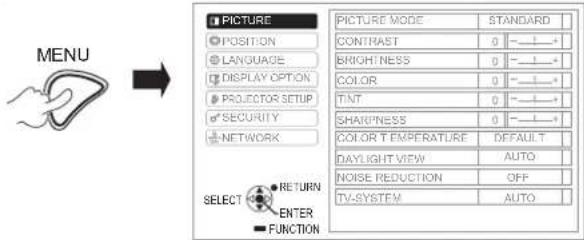

Menu operation 26

PICTURE MENU 28

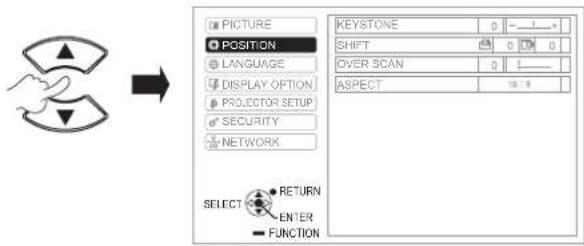

POSITION MENU 30

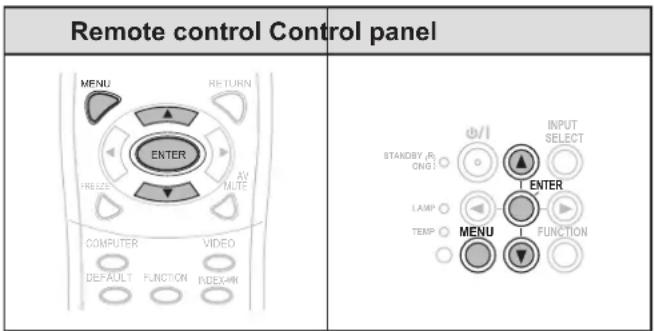

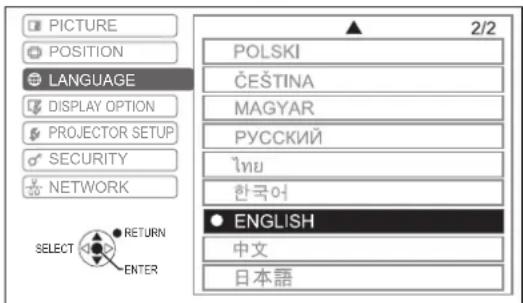

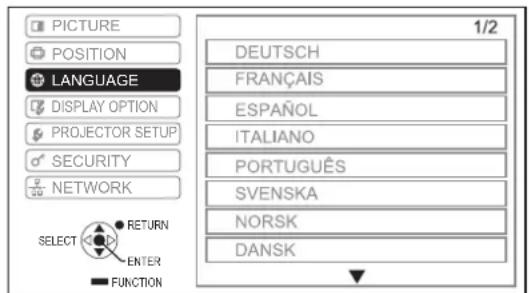

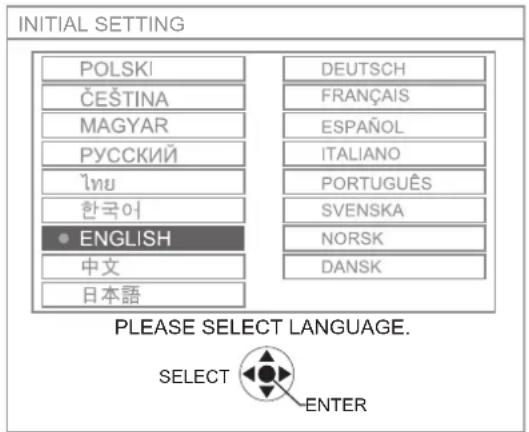

LANGUAGE MENU 33

DISPLAY OPTION MENU 33

PROJECTOR SETUP MENU 36

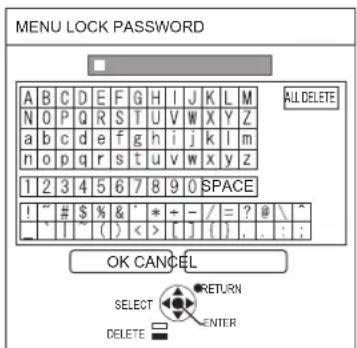

SECURITY MENU 40
NETWORK MENU 42

Maintenance

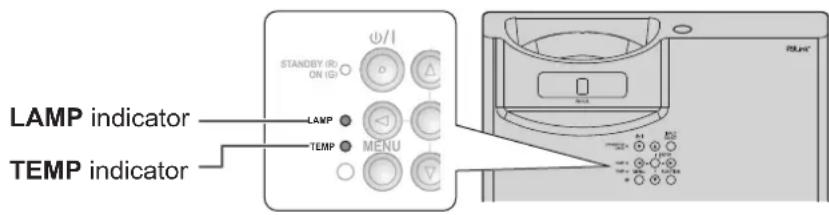

LAMP and TEMP indicators 43

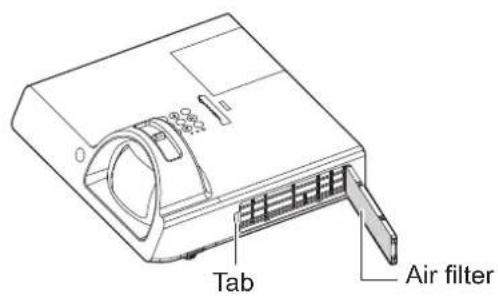

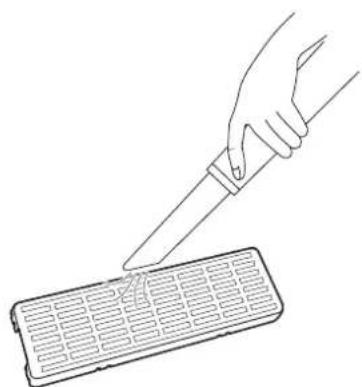

Care and replacement 44

References

Troubleshooting 48

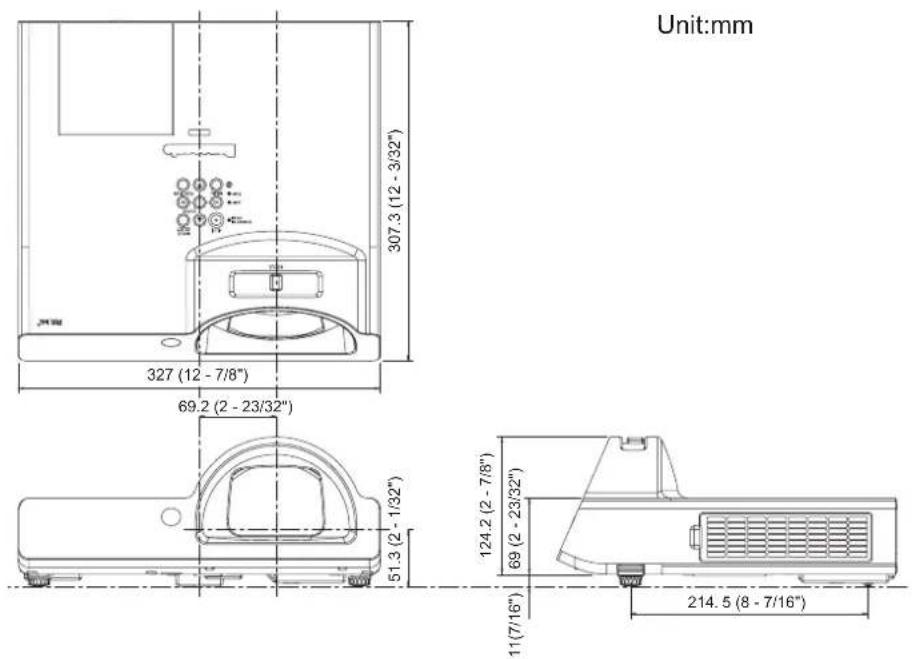

Dimensions 49
Trademark acknowledgements 49
Technical information 50
Specifications 53
Ceiling mount bracket safeguards. 55

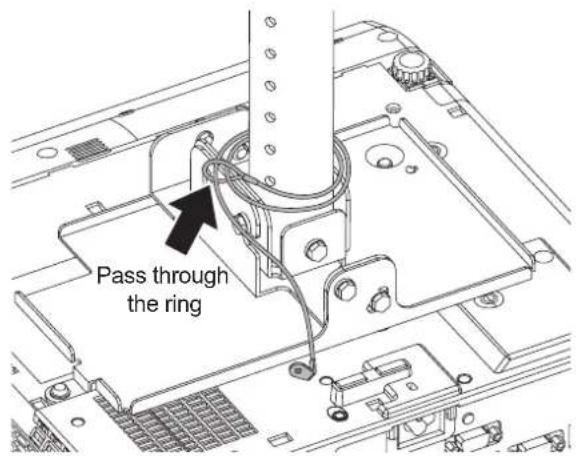

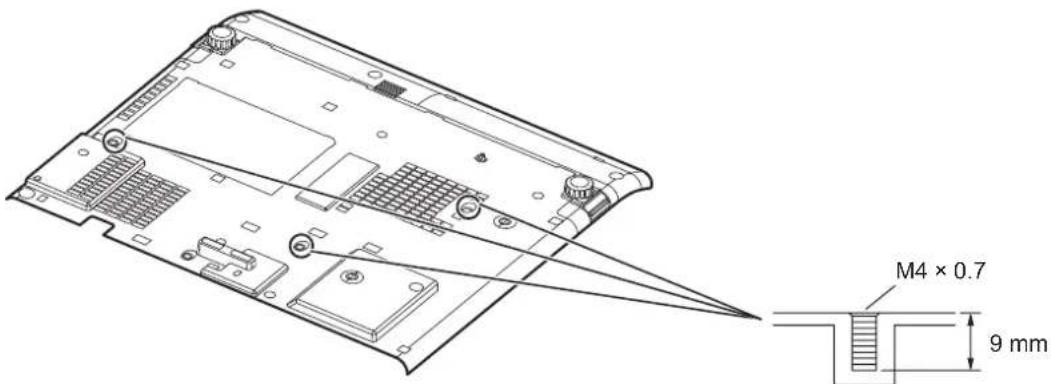

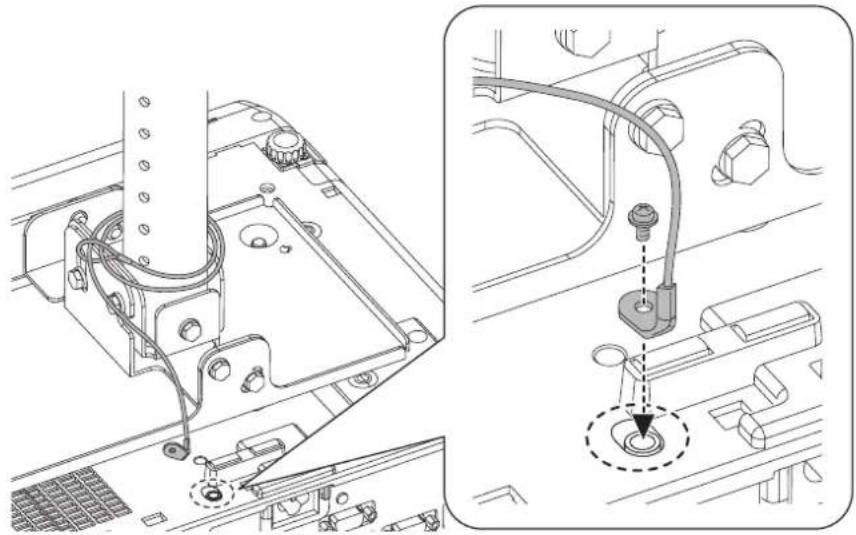

INSTALLING THE SAFETY CABLE 55

Index 57

Informations essentielles

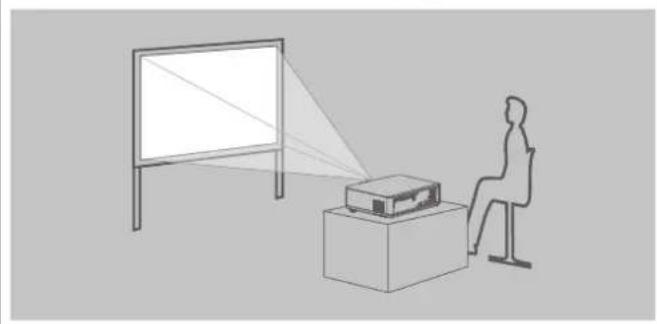

Projection on a large screen in a limited space

Since the short-focus lens is employed, images can be thrown on a screen of the same size from a distance less than 1/2 of the ordinary projector. () page 14

60 inch: Approx. 1.7 m (PT-LB2U)

60 inch: Approx. 0.6 m (PT-ST10U)

This projector can be installed to Electronic Whiteboard "elite Panaboard" and they can be used as one unit. Some parts sold separately are necessary for installation. For details, please contact your dealer.

Lengthened lamp replacement cycle

The lamp replacement cycle is longer than the former model. ( page 45)

Approx. 3 000 hours (PT-LB90NTU)

Approx. 5000 hours (PT-ST10U)

(LAMP POWER: In "ECO")

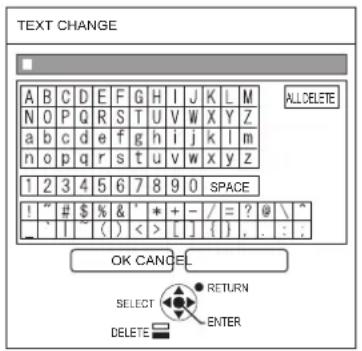

User logo display function

You can project your company's logo when projection starts. (⇒ page 34)

Precautions with regard to safety

WARNING

POWER

The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the followings problems occur, cut off the power supply immediately.

Continued use of the projector in these conditions will result in fire or electric shock.

If foreign objects or water get inside the projector, cut off the power supply.

If the projector is dropped or the cabinet is broken, cut off the power supply.

If you notice smoke, strange smells or noise coming from the projector, cut off the power supply.

Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not do anything that might damage the power cord or the power plug.

If the power cord is used while damaged, electric shocks, short-circuits or fire will result.

Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

Insert the power plug securely into the wall outlet. If the plug is not inserted correctly, electric shocks or overheating will result.

Do not use anything other than the provided power - cord.

Do not use the provided power cord for other electrical equipment.

Do not use plugs which are damaged or wall outlets - which are coming loose from the wall.

Clean the power plug regularly to prevent it from becoming covered in dust.

Failure to observe this will cause a fire.

If dust builds up on the power plug, the resulting humidity can damage the insulation.

If not using the projector for an extended period of time, pull the power plug out from the wall outlet.

Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.

Do not handle the power plug with wet hands.

Failure to observe this will result in electric shocks.

Do not overload the wall outlet.

If the power supply is overloaded (ex., by using too many adapters), overheating may occur and fire will result.

ON USE/INSTALLATION

Do not place liquid containers on top of the projector.

If water spills onto the projector or gets inside it, fire or electric shocks will result.

If any water gets inside the projector, contact an Authorized Service Center.

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so will cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam, ex. a bathroom.

Using the projector under such conditions will result in fire, electric shocks or components deterioration. Components deterioration (such as ceiling mount brackets) may cause the projector which is mounted on the ceiling to fall down.

Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable.

Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result.

Do not place another projector or other heavy objects on top of the projector.

Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician. If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks.

Do not use anything other than an Authorized ceiling - mount bracket.

Do not cover the air inlet port or the air outlet port.

Doing so will cause the projector to overheat, which can cause fire or damage to the projector.

Do not place the projector in narrow, badly ventilated - places such as closets or bookshelves.

Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not place your hands or other objects close to the air outlet port.

Doing so will cause burns or damage your hands or other objects.

Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port.

Precautions with regard to safety (continued)

Do not look and place your skin into the lights emitted from the lens while the projector is being used.

Doing so can cause burns or loss of sight.

Strong light is emitted from the projector's lens. Do not look or place your hands directly into this light.

Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector.

Do not insert any foreign objects into the projector.

Doing so will cause fire or electric shocks.

Do not insert any metal objects or flammable objects into the projector or drop them onto the projector.

Never attempt to remodel or disassemble the projector.

High voltages can cause fire or electric shocks.

For any inspection, adjustment and repair work, please contact an Authorized Service Center.

Do not project an image with the supplied lens cover attached.

Doing so can cause fire.

ACCESSIONS

Do not use or handle the batteries improperly, and refer to the following.

Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire.

Do not use unspecified batteries.

Use manganese batteries but not rechargeable - batteries.

Do not disassemble dry cell batteries.

Do not heat the batteries or place them into water or fire.

Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

Do not store batteries together with metallic objects.

Store the batteries in a plastic bag and keep them away from metallic objects.

Make sure the polarities (+) and are correct when inserting the batteries.

Do not use a new battery together with an old battery or mix different types of batteries.

Do not use batteries with the outer cover peeling away or removed.

Remove the empty batteries from the remote control at once.

• Insulate the battery using tape or something similar before disposal.

Do not allow children to reach the attached screws or AAA/R03 batteries.

• The battery can cause personal injury if swallowed.
• If swallowed, seek medical advice immediately.

If the battery fluid leaks, do not touch it with bare hands, and take the following measures if necessary.

• Battery fluid on your skin or clothing could result in skin inflammation or injury.

Rinse with clean water and seek medical advice immediately.

Battery fluid coming in contact with your eyes could result in loss of sight.

In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.

Do not disassemble the lamp unit.

If the lamp breaks, it could cause injury.

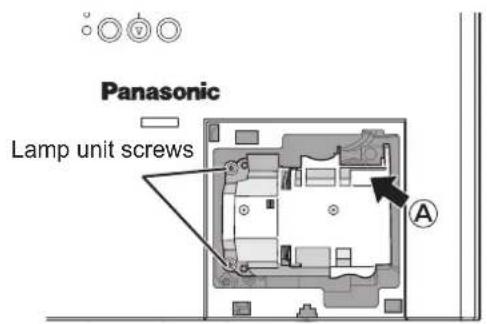

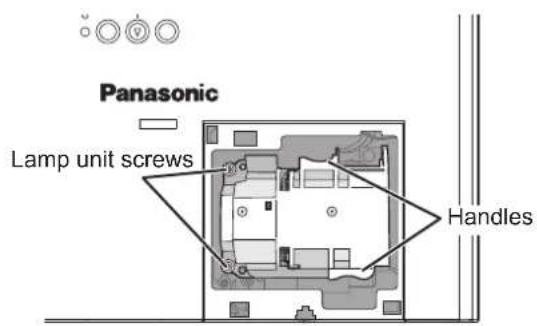

Lamp replacement

The lamp has high internal pressure. If improperly handled, an explosion and severe injury or accidents will result.

• Replacement of the lamp should be carried out by a qualified technician.
  The lamp can easily explode if struck against hard objects or dropped.
  Before replacing the lamp, be sure to disconnect the power plug from the wall outlet.
  Electric shocks or explosions can result if this is not done.
• When replacing the lamp, allow it to cool for at least one hour before handling it otherwise it can cause burns.
  Do not allow infants or pets to touch the remote control unit.
• Keep the remote control unit out of the reach of infants and pets after using it.

CAUTION

POWER

When disconnecting the power cord, be sure to hold the power plug and power connector.

If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.

When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control.

Disconnect the power plug from the wall outlet before carrying out any cleaning.

Electric shocks can result if this is not done.

ON USE/INSTALLATION

Do not put your weight on this projector.

You could fall or the projector could break, and injury will result.

Be especially careful not to let young children stand or sit on the projector.

Do not place the projector in extremely hot locations.

Doing so will cause the outer casing or internal components to deteriorate, or result in fire.

Take particular care in locations exposed to direct sunlight or near stoves.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which will cause fire or electric shocks to occur.

ACCESSORIES

Do not use the old lamp unit.

If used it could cause lamp explosion.

If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces.

Failure to observe this will cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces will cause injury.

If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.

Ask your dealer about replacing the lamp unit and check the inside of the projector.

CAUTIONS WHEN TRANSPORTING

When transporting the projector, the leg adjusters must be housed and do not hold them.

When transporting, keep the projector with the lens cover on it.

Please take care to keep them away from vibration and impacts, both the projector and the lens are precision-made and easily susceptible to damage.

CAUTIONS WHEN INSTALLING

DO NOT USE UNDER THE FOLLOWING CONDITIONS.

Do not set up the projector outdoors.

The projector is designed for indoor use only.

Avoid setting up in places which are subject to vibration or shocks.

If the projector is installed in a place where vibrations are transmitted or mounted in a car or a vessel, vibrations or impacts will result in damage to the internal parts, causing failure. Install the product in a place free from vibrations and impacts.

Avoid setting up in places which are subject to sudden temperature changes, such as near an air conditioner or lighting equipment.

Failure to observe this will result in malfunctions or the lamp life will be shortened.

See "TEMP INDICATOR" on page 43.

Avoid setting up in places which are near high-voltage power lines or near motors.

The product will be exposed to interference if it is installed in the vicinity of high-voltage electrical power lines or power sources.

• Do not install the projector at elevations higher than 2700m (8 858 ft) above sea level.

If using this projector at high elevations 1400 - 2700 m (4593 - 8858 ft) above sea level, set the HIGH ALTITUDE MODE to ON.

If using this projector at elevations lower than 1400m (4593 ft) above sea level, set the HIGH ALTITUDE MODE to OFF.

Failure to observe this will result in malfunctions or the lamp life or life of other components will be shortened.

BE SURE TO ASK A SPECIALIZED TECHNICIAN WHEN INSTALLING THE PRODUCT TO A CEILING.

If the product is to be installed hanging from the ceiling, purchase an optional hanging attachment (Model No. ET-PKB2). Please call a specialized technician or contact an Authorized Service Center for installation.

LENS FOCUS

Do not adjust the lens focus in the initial period after switching the projector on. The high clarity projector lens is thermally affected by the light from the light source, making the focus unstable in the period just after switching on. Please allow a warm-up time of at least 30 minutes before adjusting the lens focus.

Precautions with regard to safety (continued)

CAUTIONS ON USE

IN ORDER TO GET THE PICTURE QUALITY

Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen. Depending on where the projector is used, air exhaust vents or the warm air from air conditioning can cause a shimmering effect on the screen. For this reason, take care not to shield the air exhaust vents and consider the direction of the air flowing from air conditioning.

DO NOT TOUCH THE SURFACE OF THE PROJECTOR LENS WITH YOUR BARE HAND.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Please put the standard lens cover on the projector when you do not use it.

DO NOT MOVE THE PROJECTOR WHILE IT IS OPERATING OR SUBJECT IT TO VIBRATION OR IMPACT.

The service life of its internal components will be shortened.

THE PROJECTOR HAS A HIGH PRESSURE MERCURY LAMP THAT IS CHARACTERIZED AS FOLLOWS:

The brightness of the lamp will decrease over time. The lamp may explode or shorten the lamp life by shocks or chipping damage.

In rare cases, it may burst shortly after the first use.

The possibility of its bursting increases when the lamp is used beyond the replacement time.

If the lamp bursts, gas inside the lamp is released in the form of smoke.

The life of a mercury lamp varies according to the individual difference or conditions of use.

In particular, turning the power on and off frequently and/or repeatedly as well as continuous use for 10 hours will greatly affect the life cycle. Provide a lamp for replacement in advance.

CONNECTION TO EXTERNAL DEVICE

When connecting the projector to a computer or external device, use the power cord supplied with the corresponding device and a commercially available shielded interface cable.

OPTICAL COMPONENTS

It may be necessary to replace the optical components such as Liquid crystal panels and Polarizing plates in less than 1 year if using the projector in a high temperature environment or in a very dusty, oily smoke or tobacco smoke environment. For more details, please contact your dealer.

LIQUID CRYSTAL PANEL

The Liquid crystal panels are precision-made. Note that in rare cases, pixels of high precision could be missing or always lit, but this is not a malfunction.

Do not project the same image for long periods of time, as this may remain as an afterimage on the liquid crystal panel. Display the white screen test pattern for more than an hour to remove it. See "TEST PATTERN" on page 39.

SECURITY

TAKE SAFETY MEASURES AGAINST FOLLOWING INCIDENTS.

Personal information being leaked via this product.
Unauthorized operation of this product by a malicious third party.
Interfering or stopping of this product by a malicious third party.

SECURITY INSTRUCTION

The connecting network must be secured by firewall or others.

Change your password regularly.

Do not use a password that is simple to guess.

Panasonic and its affiliate companies would never directly inquire about your password.

Do not share your password with the general public.

Set a password, and place restrictions on the users who can log in.

CLEANING AND MAINTENANCE

ASK AN AUTHORIZATIONED SERVICE CENTER TO CLEAN THE INSIDE OF THE PROJECTOR AT LEAST ONCE A YEAR.

If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation. It is a good idea to clean the inside of the projector before the season when humid weather arrives.

Ask your nearest Authorized Service Center to clean the projector when required.

Please discuss with the Authorized Service Center regarding cleaning costs.

DISPOSAL

When discarding this product, please contact your local authorities or dealer and ask for the correct method of disposal.

SUPPLIED ACCESSORIES

Make sure that the following accessories are provided with your projector.

Remote control (×1) (N2QAYA000011)	Power cord (×1) (K2CG3YY00073)	RGB signal cable (×1) 1.8 m (5' 10") (K1HY15YY0009)
Panasonic PROJECTION	Power cord secure lock (×1) (TTRA0185)	AAA/R03 batteries for Remote control (×2)
Safety cable (1 set) (TTRA0141) Attachment screw (x1) Safety cable (x1)	Lens cover (×1) (TKKL5503) (Attached to the projector by default.)	CD-ROM (×1) (TXFQB02VKN8)

NOTE:

• The protectors for the enclosed products, such as a plug cover or foam cartons, must be handled appropriately.

Contact an Authorized Service Center for any lost accessories.

Keep the accessories away from children.

• The model Nos. of the accessories and parts sold separately are subject to change without notice.

NOTE:

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Start-up display

The LANGUAGE and INITIAL SETTING menu will be displayed when the projector is turned on for the first time or after it has been initialized. (→ page 39)

Navigate the DISPLAY OPTION menu to set the menus in accordance to its application and environment settings.

NOTE:

• When the projector is turned on for the first time, you may be required to adjust the "focus ring" (⇒ page 11) on the top of the projector body to make the menu screen clearer.

For details, see POSITION THE IMAGE. ( page 22)

LANGUAGE

To select the desired language.

2

To proceed to INITIAL SETTING menu.

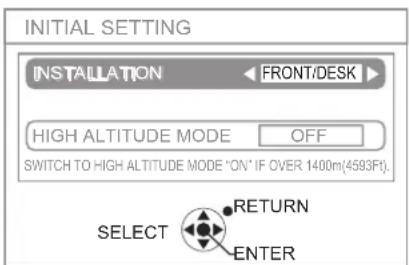

INITIAL SETTING

1

To select the desired menu.

INSTALLATION
HIGH ALTITUDE MODE

2

To change the settings in the menu.

INSTALLATION (⇒ page 15, 37)
FRONT/DESK	Put it on a desk or floor and project from the front
FRONT/CEILING	Mount it on the ceiling with a ceiling mount bracket (sold separately) and project from the front
REAR/DESK	Put it on a desk or floor and project from the rear (a translucent screen is required)
REAR/CEILING	Mount it on the ceiling with a ceiling mount bracket (sold separately) and project from the rear (a translucent screen is required)

HIGH ALTITUDE MODE (⇒ page 7, 37)
OFF	Use in normal environment (below 1400 m (4 593 ft) above sea level)
ON Use at high altitude (at 1400 - 2 700 m (4 593 - 8 858 ft) above sea level)

3

NOTE:

• To return to LANGUAGE menu, press [RETURN] in INITIAL SETTING menu.

Details of your projector

PROJECTOR'S MAIN UNIT

Top and front view

① Control Panel/Indicators
② Air outlet port

Hot air comes out from this opening.

③ Speaker
④ Leg adjuster button (⇒ page 22)

Remote control signal receptor
Focus ring-To adjust the focus. ( page 22)
⑦ Leg adjuster button (→ page 22)
⑥ Projection lens

NOTE:

Do not cover the air outlet port.

Putting a finger in the projector can cause injury.

• Do not place your hands or other objects close to the air outlet port as this may cause damage or injury.
• Do not place your hands or face, or objects which cannot withstand heat near the air outlet port. Hot air comes out from this port.

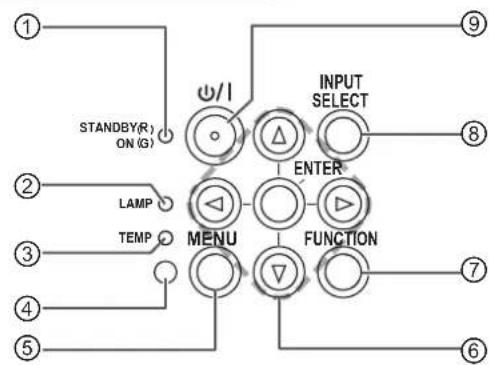

Control Panel/Indicators

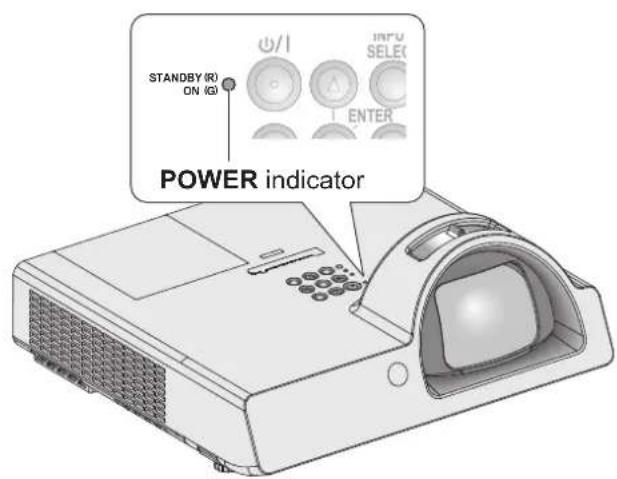

① Indicate the power supply's status.
(⇒ page 19)
② Indicate the lamp unit's status.
(⇒ page 43)
③ Indicate the temperature's status.
(⇒ page 43)
④ Ambient Luminance sensor (ALS).
⑤ Display the Main menu.

⑥ Navigate through the menus. Confirm selection.
⑦ Create shortcut assigned to certain selected function. (⇒ page 25, 38)
Switch the input connections. ( page 22)
Switch between standby mode and projection mode. ( page 20)

Details of your projector (continued)

Rear and bottom view

① Terminals
② Air filter compartment (⇒ page 44)
③ Air intake port
④ ACIN

Connect the power cord to supply electric power to the projector. ( page 18)

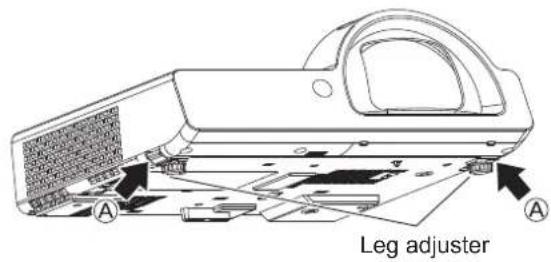

⑤ Leg adjuster
To adjust the projection angle. ( page 22)

NOTE:

Do not connect any power cable other than the attached one.
Do not cover the ventilation openings of the air intake port.

Terminals

① Connect to a network cable.
(See "Network Operation Manual".)

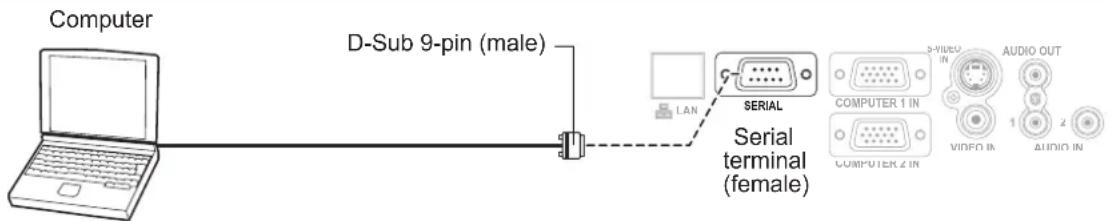

② Connect to a computer to control the projector's operation.
( page 17, 51)
③ Connect to a computer or YP_BPR signal cable. ( page 17)
④ Connect to an S-VIDEO signal cable.
(⇒ page 16)

⑤ Connect to a VIDEO signal cable.

( page 16)

⑥ Connect audio cables for inputting audio signal.
(⇒ page 16,39)

⑦ Connect an audio cable for audio signal output to the connected equipment. If it is connected to this terminal, no sound comes out of the built-in speaker.

( page 16)

Details of your projector (continued)

PROJECTOR'S REMOTE CONTROL

Top and rear view

Installing/removing batteries

Press the tab and lift up the cover.

Insert the batteries according to the polarity diagram indicated inside or remove.

Remove the batteries in the reverse order to setting.

Use only manganese batteries.

Front view

① POWER
Switch between standby mode and projection mode. ( page 20, 21)
② Display the Main menu. (⇒ page 27)
③ Navigate through the menus with [▲▼▲] and confirm the selection with [ENTER]. (⇒ page 26)
④ Capture the projected image as a frozen picture. () page 23
⑤ Switch the required input signal button to select.
(⇒ page 23)
⑥ Reset some of the settings to the factory default settings. (→ page 24)

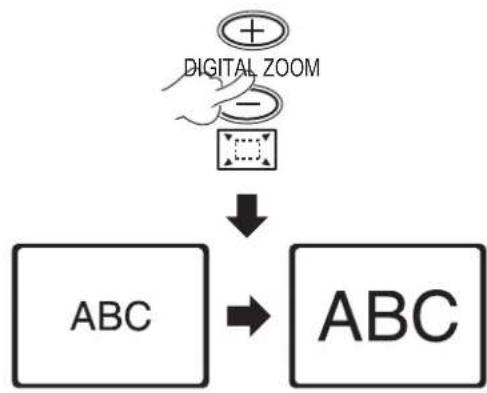

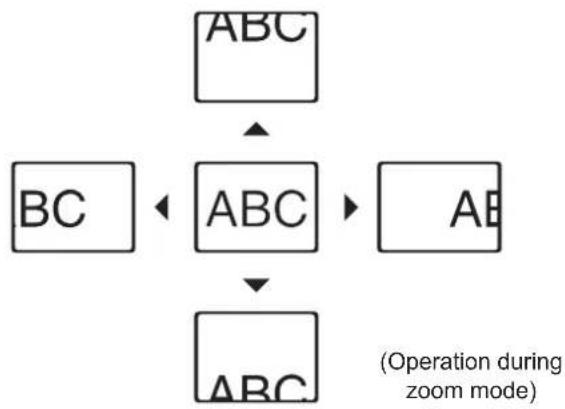

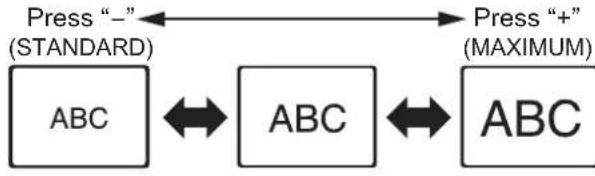

⑦ Control the zoom size. () page 25
⑧ Control speaker volume. () page 24
Create shortcut assigned to certain selected function. ( page 25,38)

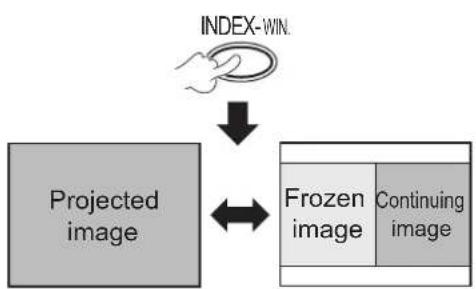

Display frozen image while the display of subsequent images continues. ( page 24)
⑩ Turn off the projection temporarily. (⇒ page 23)

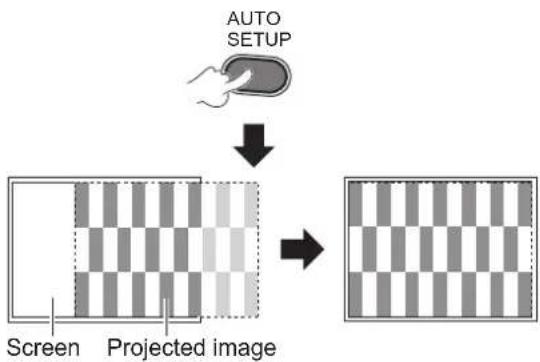

12 Detect the input signal. Adjust the settings of SHIFT, DOT CLOCK and CLOCK PHASE in the POSITION menu automatically for COMPUTER signals. ( page 23)

NOTE:

Do not drop the remote control.

Avoid contact with liquids or moisture.

Do not attempt to modify or disassemble the remote control.

Do not let strong light shine onto the signal receptor which will cause a malfunction.

• The remote control operates within the range of 7m (23' 0"), approximately ± 30^ vertically and horizontally from the projector avoiding any obstacles.
• The operating range may differ due to the screen material and may not be effective with a translucent screen.

Set up your projector

SCREEN SIZE AND THROW DISTANCE

You can calculate and define the throw distance as follows.

(All measurements below are approximate and may differ slightly from the actual measurements.)

Projection size For 4:3 aspect ratio For 16:9 aspect ratio
Screen diagonal (SD)	Throw distance (L)	Settable height (H)	Throw distance (L)	Settable height (H)
1.52 m (60") 0.60 m	\( \left( {{2}^{\prime }{0}^{\prime \prime }}\right) {0.05}\mathrm{\;m}\left( {{0}^{\prime }{2}^{\prime \prime }}\right) {0.66} \)	m (2' 2") 0.17 m (0' 7")
1.78 m (70") 0.71 m	\( \left( {{2}^{\prime }{4}^{\prime \prime }}\right) {0.05}\mathrm{\;m}\left( {{0}^{\prime }{2}^{\prime \prime }}\right) {0.78} \)	m (2' 7") 0.20 m (0' 8")
2.03 m (80") 0.82 m	\( \left( {{2}^{\prime }{8}^{\prime \prime }}\right) {0.06}\mathrm{\;m}\left( {{0}^{\prime }{2}^{\prime \prime }}\right) {0.90} \)	m (2' 11") 0.23 m (0' 9")
2.29 m (90") 0.92 m	\( \left( {{3}^{\prime }{0}^{\prime \prime }}\right) {0.07}\mathrm{\;m}\left( {{0}^{\prime }{3}^{\prime \prime }}\right) {1.01} \)	m (3' 4") 0.26 m (0' 10")
2.54 m (100") 1.03 m	\( \left( {{3}^{\prime }{4}^{\prime \prime }}\right) {0.08}\mathrm{\;m}\left( {{0}^{\prime }{3}^{\prime \prime }}\right) {1.13} \)	m (3' 8") 0.29 m (0' 11")
2.79 m (110") 1.14 m	\( \left( {{3}^{\prime }{9}^{\prime \prime }}\right) {0.08}\mathrm{\;m}\left( {{0}^{\prime }{3}^{\prime \prime }}\right) - - \)

You can calculate detailed screen dimensions from the "Screen diagonal". The unit of all the calculation results is m. (The results below differ slightly from the actual measurements.)

If the projection size is SD,

	For 4:3 aspect ratio For 16:9	aspect ratio
Screen height (SH)	= SD (" ) × 0.0152	= SD (" ) × 0.0125
Screen width (SW)	= SD (" ) × 0.0203	= SD (" ) × 0.0221
Throw distance (L)	= 0.0107 × SD (" ) - 0.0389	= 0.0117 × SD (" ) - 0.0395

NOTE:

• For best projection image quality, install a screen where sunlight or room lightings do not shine directly onto the screen. Close window shades or curtains to block the light and turn off the lightings.
• Do not use the projector at a raised or horizontally tilted position. It may cause the projector to malfunction.

However, you can tilt the projector's body approximately ± 30^ vertically and ± 10^ horizontally.

Over tilting may result in shortening the component's life.

• Do not cover the air outlet port and air intake ports or place anything within 50~cm (20") near them as this may cause damage or injury.

Set up your projector (continued)

PROJECTION METHOD

See "INSTALLATION" on page 37 to select the projection method.

Put it on a desk or floor and project from the front

Menu Method

INSTALLATION FRONT/DESK

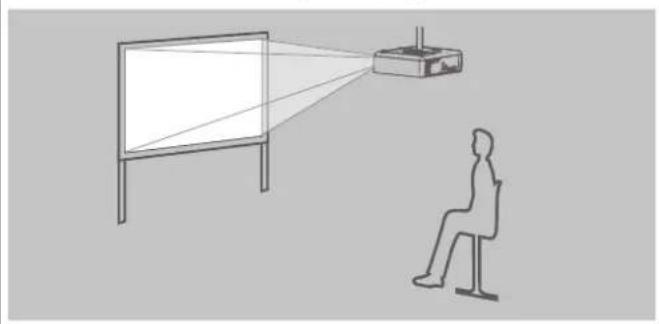

Mount it on the ceiling and project from the front

Menu Method

INSTALLATION FRONT/CEILING

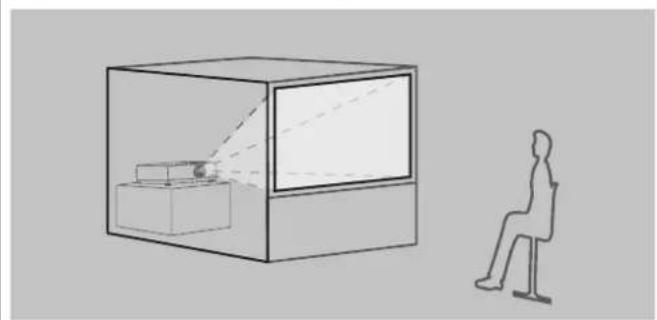

Put it on a desk or floor and project from the rear (Use translucent screen)

Menu Method

INSTALLATION REAR/DESK

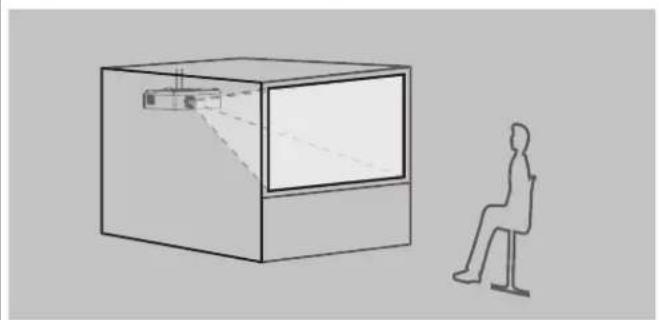

Mount it on the ceiling and project from the rear (Use translucent screen)

Menu Method

INSTALLATION REAR/CEILING

NOTE:

Use the optional ceiling mount bracket (ET-PKB2) when mounting the projector on the ceiling.

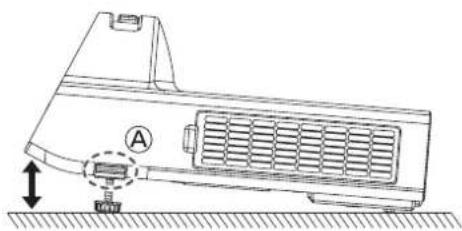

• You can adjust the projection angle in the vertical direction by adjusting the leg adjuster button. (→ page 22)

Connections

Preparations

• Read and follow the operating instructions of each peripheral device and turn the peripheral devices off prior to making any connections.
• Prepare the selected peripheral devices with the connection cables that correspond to the projector's terminals.
• All peripheral devices and cables used for the connections are sold separately unless indicated otherwise.
• If the input signal is affected by signal jitter, the projected image may have poor image quality and timebase correction is effective.

Confirm the types of video signals, • see “LIST OF COMPATIBLE SIGNALS”(page 50)

Example: AV equipment

NOTE:

Switch the audio connection manually for more than one AV equipment connections.

Connections (continued)

Example: Computers

(Controlling a projector)

NOTE:

For the network connection between the projector and computers, see "Network Operation Manual" in the CD-ROM provided.
- Only the RGB signal cable (1 piece) is attached. If any other cables are necessary, purchase them from the market.

Turn the projector ON or OFF

POWER CORD

Fix the provided "power cord secure lock" to the power cord on the projector to prevent the cord from coming off.

For details, see "Precautions with regard to safety". (⇒ pages 5 to 9)

Install the "power cord secure lock" Detach the "power cord secure lock"

1 Push the connector all the way into the AC IN terminal ensuring that the shape of the connector matches that of the terminal.

2 Align the side of the "power cord secure lock" with the side of the "Rail guide" of the AC IN terminal and slide it in.

3 Latch to the latch catcher and press until it clicks.

4 Connect the power plug to a wall outlet.

1 Unplug the power plug from the wall outlet.

2 Depress the latch and slide off the lock.

3 Slide up the "power cord secure lock" and remove it.

4 Hold the connector firmly and detach it from the AC IN terminal.

Direct power on function

If the power cord is connected to a wall outlet with INITIAL START UP (PROJECTOR SETUP menu) is set to ON, projection will start even when the control panel is disabled. ( page 37)

Direct power off function

You can switch off the electric power supply any time by unplugging the power plug from the wall outlet.

The internal cooling fan keeps operating using the internal power supply and automatically stops when cooled.

NOTE:

Do not put the projector into the bags with the · POWER indicator lit.

Turn the projector ON or OFF (continued)

POWER INDICATOR

POWER indicator

shows status of the projector's power

When the TEMP indicator flashes, the POWER indicator lights red and you cannot turn the projector on.

POWERindicatorstatus

Indicator status Status
No illumination or flashing No power		is supplied and the internal cooling fan is not operating.
Red	Lit	The power is turned off (when STANDBY MODE is set to ECO). If [POWER] button is pressed, projection starts.
	Flashing	The power is turned off (when STANDBY MODE is set to NORMAL). If [POWER] button is pressed, projection starts.
Green	Flashing The power is on and preparing for projection.
	Lit The projector is projecting.
Orange	Lit	No power supply and the power is preparing for being turned off. It is turned off (The projection is set in STANDBY MODE) after a while.
	Flashing	The power is switched on again while cooling the lamp and recovering to the projection mode. Recovery may take a while.

NOTE:

When the power is turned off, the internal fan cools the lamp using internal power supply.
The power is turned on again while cooling the lamp and recovers to the projection mode. Recovery may take a while.
- While the power is turned off (when STANDBY MODE is set to ECO, the POWER indicator is lit red), power of about 0.4W is consumed.

Turn the projector ON or OFF (continued)

Before switching on the projector, remove the lens cap.

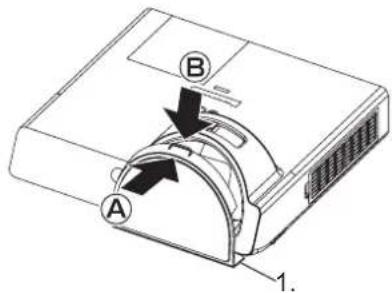

How to install and remove lens cap

1 Match the lens cap with the lens from underside.
2 Push in the front part of the claw until it clicks.
3 To remove, pull the claw in the opposite direction to installation.

TURN THE PROJECTOR ON

Before switching on the projector, make sure the mains lead and all the other devices are connected correctly. () page 16

1 Connect the power cord. ( page 18) After a while the "power indicator" lights or flashes in red.
2 Press the POWER button. POWER indicator flashes green several times before it lights up and the STARTUP LOGO is displayed. See STARTUP LOGO in DISPLAY OPTION menu. ( page 34)

NOTE:

• Confirm that CONTROL PANEL (when operating with the projector body) or REMOTE CONTROLLER (when operating with the remote control) under CONTROL DEVICE SETUP in the SECURITY menu is set to ENABLE. ( page 42)
  When setting the SECURITY menu, you will be asked to input the password. ( page 40)
• When starting up the projector, some small rattling or tinkling sound may be heard. These are normal and will not affect the performance of the projector.
• When the internal cooling fan is operating, some operational sound may be heard. The loudness of the operational sound depends on the external temperature.
• If INITIAL START UP (PROJECTOR SETUP menu) is set to ON, the projector starts projecting when the power cord is connected to a wall outlet. ( page 37)
• If the projector is turned on again while the internal cooling fan is still operating by the internal power supply, the display may flicker due to the specifications of the lamp. These are normal and will not affect the performance of the projector.

TURN THE PROJECTOR OFF

When operating the projector, check the status of the POWER indicator. (→ page 19)

1 Press the POWER button.

A confirmation screen will be displayed - the screen will go off and return to projection if there is no operation for approximately 10 seconds.

2 Press the button again.

The lamp goes off and the projection stops.

The cooling fan continues its rotation and POWER indicator lights orange. Wait until the POWER indicator turns red.

• If STANDBY MODE is set to NORMAL, the POWER indicator flashes red. (⇒ page 37)

3 After the POWER indicator lights or flashes in red, disconnect the power plug from the socket. ( page 18)

For urgency, you may disconnect the power plug immediately since the DIRECT POWER OFF function is installed.

NOTE:

• Confirm that CONTROL PANEL (when operating with the projector body) or REMOTE CONTROLLER (when operating with the remote control) under CONTROL DEVICE SETUP in the SECURITY menu is set to ENABLE. ( page 42)
• Power can be turned off by pressing [POWER] for at least 0.5 seconds.

Project an image

Preparations

Confirm the connections of the peripheral devices · ( page 16, 17) and power cord ( page 18).

Switch on the power · = (page 20) to start projecting.

Select the input signal and adjust the image.

SELECT THE INPUT SIGNAL

1 Switch on the connected devices.

When playing a connected DVD player, if SIGNAL SEARCH (DISPLAY OPTION menu) is set to ON, the input signal is detected and projected automatically when the projector is switched on. () page 35

Set the · INPUT GUIDE (DISPLAY OPTION) ON-SCREEN DISPLAY menu) to DETAILED. If the projector cannot detect any input signal, the "Computer connection guide" will be displayed. page 33

2 Select an input signal.

The image selected with any of the [INPUT SELECT] button is projected.

NOTE:

• Change the settings in the PICTURE menu according to the connected device for example DVD, video tape, etc., to be played. (→ page 28)

Confirm the aspect ratio of the screen and image.

Select the optimum aspect ratio. ( page 31)

POSITION THE IMAGE

When setting up the projector for the first time or setting up at a new place, you must perform the following operations.

1 Adjust the vertical angle of the projector.

Place the projector at the right angle from the screen.

Press the leg adjuster button and adjust the vertical projection angle. Then, adjust the projected image to the center of the screen.

2 Adjust the projection focus.

Turn the focus ring to adjust the projected image.

NOTE:

If keystone distortion occurs, see KEystone. (→ page 30)

• If the focus is adjusted, the shape (distortion) of the projected image changes. Adjust while checking the balance between the general focus of the projected image and shape (distortion).

Remote control operation

CAPTURE AN IMAGE

You can freeze the projected image and temporarily stop the sound, regardless of the playing condition of the connected device.

Press the button again to cancel it. The image is distorted momentarily when the projection is stopped and restarted.

STOP THE PROJECTION TEMPORARILY

You can temporarily stop the projection and the sound from the projector.

Press the button again to cancel it.

SWITCH THE INPUT SIGNAL

You can switch the input signal to be projected.

COMPUTER

COMPUTER

The options below are displayed each time you press this button.

COMPUTER1	signal input to COMPUTER1 IN terminal
COMPUTER2	signal input to COMPUTER2 IN terminal

VIDEO

VIDEO

The options below are displayed each time you press this button.

S-VIDEO Signal input to S-VIDEO IN terminal

VIDEO Signal input to VIDEO IN terminal

You can confirm the selected input terminal (from the graphical input terminal guide on the upper right of the screen), if INPUT GUIDE (DISPLAY OPTION ON-SCREEN DISPLAY menu) is set to DETAILED. () page 33

You can change the input with [ ] . It may take some time to change the image after the input signal is switched.

NOTE:

Input a compatible signal shown in the "LIST OF COMPATIBLE SIGNALS". ( page 50)

For the input terminals, see "Connections" page 16) The input guide automatically disappears when it is left idle.

Press [INPUT SELECT] on the control panel to switch the input in the following order. ( page 11)

SET UP THE IMAGE POSITION AUTOMATICALLY

The projector automatically adjusts the SHIFT, DOT CLOCK and CLOCK PHASE when an RGB signal is input.

NOTE:

The SIGNAL SEARCH will be in operation when it is set to ON. ( page 35)

If the dot clock frequency is higher than 162 MHz, DOT CLOCK and CLOCK PHASE can not be adjusted automatically. ( page 30, 31)

• If the projected signal or image is too dark or blurred around the edge, AUTO SETUP may stop the process before completing the adjustment or adjust abnormally. Project a much clearer or lighter image and try again.

Remote control operation (continued)

RESET TO FACTORY DEFAULT SETTINGS

You can reset most of the customized settings to the factory default settings.

DEFAULT

For details, see "Reset to factory default settings". ( page 26)

CONTROL SPEAKER VOLUME

You can control the volume of the built-in speakers and output audio sound.

• : increases the volume
• : decreases the volume

PROJECT AN IMAGE USING INDEX-WINDOW

You can split a projected image into 2 windows using INDEX-WINDOW. One frozen image is stored in memory and displayed on the left side of the screen. Projection continues for the other image on the right side.

Press [RETURN] to escape.

INDEX-WINDOW display

To capture a new image and change the size in 3 ways.

By default, the frozen image is displayed on the left and the subsequent image is displayed on the right.

To switch the position.

NOTE:

The aspect ratio of the image is changed and becomes vertically elongated.

If you change the window size, the aspect ratio of the image is changed. () page 31

• While in INDEX-WINDOW mode, press [ENTER] to capture a new image and the frozen image's window will be updated.

When capturing a quick moving picture, repeat several times to get a stable picture.

Remote control operation (continued)

ENLARGE THE IMAGE

You can enlarge the projected image to the center position by emphasizing within the range of 1 × to 2 × .

Press [RETURN] or [MENu] to escape.

[DIGITAL ZOOM] button operation

• button: zooms in
• button: zooms out

Press "▲▼▲" to shift the center point.

NOTE:

• When the COMPUTER signal is input, if FRAME LOCK in the POSITION menu is OFF,
  enlargement range is 1× to 3×
• When the COMPUTER signal is input, if FRAME LOCK in the POSITION menu is ON,
  enlargement range is 1 × to 2 × .

When another signal is input, the enlargement range is from 1 × to 2 × by 0.1.
DIGITAL ZOOM mode is canceled when the input signal is changed.
- During DIGITAL ZOOM mode, [AUTO SETUP], [FREEZE], [DEFAULT], [INDEX-WINDOW] and [FUNCTION] (except when AV MUTE is assigned) buttons are not available.
The image is distorted momentarily when the image is zoomed.

USE AN ASSIGNED FUNCTION

You can select a useful function from the list and assign it to [FUNCTION] button as a shortcut.

FUNCTION

FUNCTION

To display the onscreen menu (main menu, sub-menu or detailed menu).

For the menu

operation, see

"OPERATE THE

MENU". ( page 26)

Press and hold for at least 3 seconds.

When not using the [FUNCTION] button

1 Select DISABLE in FUNCTION BUTTON (PROJECTOR SETUP menu).
2 Press [ENTER].
3 Select OK.
4 Press [ENTER].

NOTE:

For details, see FUNCTION BUTTON in PROJECTOR SETUP menu. ( page 38)

Menu operation

OPERATE THE MENU

Depending on the selected input signals, some items and functions may not be adjusted or available. Some can be adjusted without any signals.

1

2 Select the main menu item.

3 Select the sub-menu item.

4

Press buttons to scroll to the required sub-menu item and press buttons or the ENTER button to adjust.

The selected menu is called up while other menu item disappears from the screen.

NOTE:

• Press [MENU] or [RETURN] to return to the previous menu. Press repeatedly to exit from the menu mode and return to the projection. Called up item will disappear after 5 seconds without any operation and return to the menu mode. For the sub-menu items, see "SUB MENU" in the ON-SCREEN MENU (→ page 27).

Reset to factory default settings

DEFAULT

During sub-menu screen display: The items of the sub-menu currently displayed are reset to the factory default settings.

During called up item screen display: Only the item adjusted currently is reset to the factory default setting.

NOTE:

You cannot reset all the settings at one time to the factory default settings.

For resetting all the settings, see INITIalyze ALL (PROJECTOR SETUP menu). ( page 39)

• Not all menu items can be reset by pressing [DEFAULT]. Adjust each menu item manually.

ON-SCREEN MENU

You can access other functions from operating this menu by referring to "OPERATE THE MENU". ( see left)

The ON-SCREEN MENU displayed consists of the main menu and sub-menu.

MAIN MENU

	POSITION
	LANGUAGE
	DISPLAY OPTION
	PROJECTOR SETUP
	SECURITY
	NETWORK

SUB MENU

Select the required sub-menu item and press ENTER to display the detailed menu.

PICTURE menu

S-VIDEO/VIDEO/RGB (Moving image)*1/YPBP signal is input.

Sub-menu item Default Page
PICTURE MODE STANDARD 28
CONTRAST 0 28
BRIGHTNESS 0 28
COLOR 0 29
TINT 0 29
SHARPNESS 0 29
COLOR TEMPERATURE DEFAULT 29
DAYLIGHT VIEW AUTO 29
NOISE REDUCTION*2	OFF 29

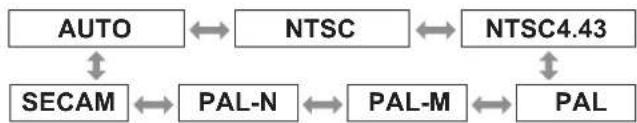

TV-SYSTEM*2	AUTO 29
RGB/YPBR*3	AUTO 30

1 RGB moving images can be projected only when the following signals: 480i, 576i, 480p, 576p, 1 080/60i, 1 080/50i, 1 080/60p, 1 080/50p, 720/60p, 720/50p
^2 Input signal is S-VIDEO/VIDEO.
*3 Input signal is RGB/YP B P R .

RGB (Still image) is input.

Sub-menu item Default	Page
PICTURE MODE	DYNAMIC	28
CONTRAST	0	28
BRIGHTNESS	0	28
SHARPNESS	0	29
WHITE BALANCE RED*1	0	29
WHITE BALANCE GREEN*1	0	29
WHITE BALANCE BLUE*1	0	29
COLOR TEMPERATURE	DEFAULT	29
DAYLIGHT VIEW	AUTO	29
RGB/YPBR*2	AUTO	30

1 Input signal is RGB.
2 Input signal is RGB (VGA60).

NOTE:

• The factory default values vary depending on the PICTURE MODE setting.

POSITION menu

Sub-menu item Default	Page
REALTIME KEYSTONE	OFF 30
KEYSTONE	0 30
SHIFT*1	0	30
DOT CLOCK*1	0	30
CLOCK PHASE*1	0	31
OVER SCAN*1	0	31

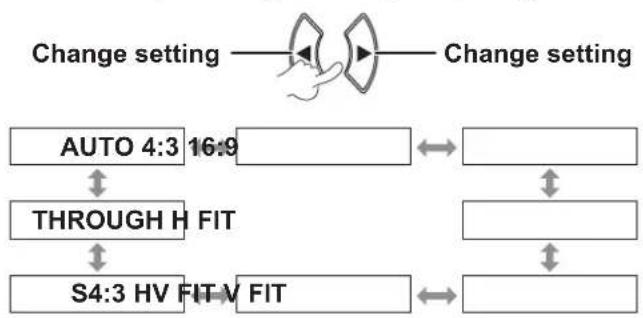

ASPECT	16:9 31
FRAME LOCK*1	OFF 32

*1 The setting is activated or deactivated depending on the input signal and the specific setting.

LANGUAGE menu

For details, see "LANGUAGE MENU". (⇒page 33)

DISPLAY OPTION menu

Sub-menu item Default	Page
ON-SCREEN DISPLAY	—	33
CLOSED CAPTION SETTING	OFF	34
STARTUP LOGO	ON	34
AUTO SETUP	AUTO	35
SIGNAL SEARCH	ON	35
BACK COLOR	BLUE	35
WIDE MODE*1	AUTO	36
SXGA MODE*1	SXGA	36
OTHER FUNCTIONS	—	36

*1 The setting is activated or deactivated depending on the input signal and the specific setting.

Menu operation (continued)

PROJECTOR SETUP menu

Sub-menu item Default Page
STATUS — 36
NO SIGNAL SHUT-OFF DISABLE 37
INITIAL START UP LAST MEMORY 37
INSTALLATION FRONT/DESK 37
HIGH ALTITUDE MODE OFF 37
STANDBY MODE ECO 37
LAMP POWER NORMAL 37
LAMP RUNTIME — 38
EMULATE DEFAULT 38
FUNCTION BUTTON STATUS 38
AUDIO SETTING — 38
TEST PATTERN — 39
INITIALIZE ALL — 39

SECURITY menu

Sub-menu item Default	Page
password	OFF	40
password CHANGE	—	40
TEXT DISPLAY	OFF	40
TEXT CHANGE	—	40
MENU LOCK	OFF	41
MENU LOCK PASSWORD	—	41
CONTROL DEVICE SETUP	—	42

Network menu

For details of items, see "Network Operation Manual".

Sub-menu item	Default
WIRED LAN	—
NAME CHANGE	—
NETWORK CONTROL	ON
STATUS	—
INITIALIZE	—

NOTE:

• Sub-menu items and the factory default settings vary according to the selected input signal.

PICTURE MENU

Set the selected item with [▲].

PICTURE MODE

You can optimize the projected image depending on the projection's environment.

Change setting

Change setting

STANDARD	Setting for general image
DYNAMIC	Setting for brightness and sharpness
BLACKBOARD	Setting for when projecting on a blackboard
WHITE BOARD	Setting for when projecting on a white board
NATURAL	Reproducing the original color of the image

NOTE:

• It may take a while until the selected mode is stabilized.

CONTRAST

You can adjust the contrast of the projected image.

BRIGHTNESS

You can adjust the brightness of the projected image.

Menu operation (continued)

COLOR

You can adjust the color saturation of the projected image. (For S-VIDEO/VIDEO/RGB (Moving image)/ YP_BPR input signal only)

NT

You can adjust the skin tone of the projected image. (For S-VIDEO/VIDEO/RGB (Moving image)/YPBPR input signal only)

SHARPNESS

You can adjust the sharpness of the projected image.

NOTE:

The adjustable range depends on the input signal.

WHITE BALANCE

You can adjust the white balance in 3-color temperature. (For RGB (Still image) input signal only)

Advanced menu item Default
WHITE BALANCE RED 0
WHITE BALANCE GREEN 0
WHITE BALANCE BLUE 0

COLOR TEMPERATURE

You can adjust the white balance of the projected image.

DEFAULT	Balanced white
HIGH	More bluish
LOW	More reddish

DAYLIGHT VIEW

You can keep the projected image bright and vivid even in well-lit rooms where the ambient light sources cannot be controlled.

AUTO Automatic adjustment

ON Active

OFF Deactive

NOTE:

Do not cover the Ambient Luminance Sensor(ALS) of the projector, otherwise the AUTO mode may not function properly.
- AUTO is not available when INSTALLATION in PROJECTOR SETUP menu is set to REAR/DESK or REAR/CEILING.

NOISE REDUCTION

You can switch the automatic noise reduction system on/off. (For S-VIDEO/VIDEO input signal only)

OFF No	noise reduction
ON Auto	matic noise reduction

NOTE:

• If NOISE REDUCTION is set active when the selected input signal has less noise, the image may look different from the true image. If so, set to OFF.

TV-SYSTEM

Switch the setting manually to match the video data. (For S-VIDEO/VIDEO input signal only)

NOTE:

• AUTO mode is selected by default.
• When the projector is not working properly in AUTO mode, change the setting according to each TV system type.
• AUTO setting will automatically select the compatible signal from NTSC/NTSC 4.43/PAL/PAL60/PAL-M/PAL-N/SECAM.

Menu operation (continued)

HGB/YPBPR

(For RGB/YPBPR input signal only) Select the signals to be input to the COMPUTER 1 IN and COMPUTER 2 IN terminals.

AUTO Automatic adjustment

RGB For RGB signals

YPBR For YPBPR signals

NOTE:

AUTO· mode is selected by default.

Select RGB or according to the input signal if the image is not normally projected during AUTO mode.

The function only becomes effective when certain signals are input:

(VGA60, 480i, 576i, 480p, 576p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 720/60p, 720/50p)

POSITION MENU

Remote control Control panel

Set the selected item with [ ] .

REALTIME KEystone

If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface; the keystone will be automatically corrected.

OFF Deactive

ON Active

NOTE:

If the detected inclination of the projector is within 5 degrees upward/downward from the level, the KEYSTONE correction is not carried out automatically even if the REALTIME KEYSTONE is ON.

If you need to correct the keystone, you can correct the distortion manually by adjusting the KESTONE.

HEYSTONE

If you need to correct the angle of the projection even when the REALTIME KEYSTONE is activated, you can correct the keystone manually.

Image Operation

NOTE:

You can correct the distortion ± 10^ from the plane.

• For a better image quality, install the projector to minimize distortion.
• The result of the keystone correction will affect the aspect ratio and the size of the image.
• The image is distorted momentarily when the keystone is corrected.

SHIFT

Horizontal (H): Press [▲] to move the image horizontally.

Vertical (V): Press [▲▼] to move the image vertically.

NOTE:

• This function can be adjusted by pressing the buttons directly.

TOT CLOCK

If there are interference patterns on the projected image (referred as moir or noise), minimize it by pressing [4] to adjust the clock frequency. (For RGB (Still image) input signal only)

NOTE:

• DOT CLOCK needs to be adjusted before adjusting the CLOCK PHASE.

Menu operation (continued)

LOCKPHASE

If you require further adjustment for the same reason as the DOT CLOCK adjustment, you can further adjust the timing of the clock. (For RGB/YPBPR input signal only) Press buttons to adjust.

NOTE:

If the projecting signal's dot clock frequency is higher than 162 MHz, adjusting DOT CLOCK or CLOCK PHASE may not make any difference. Refer to "LIST OF COMPATIBLE SIGNALS". (→ page 50)

QVER SCAN

Use this function when characters or pictures are cropped near the periphery of the projected image. (For S-VIDEO/VIDEO/RGB (Moving image)/YPBPR input signal only)

Setting range: 0 to +3

ASPECT

You can manually switch to the desired aspect ratio. Selectable options vary according to input signal.

NOTE:

AUTO mode is displayed only when NTSC/480i signal is input.

THROUGH mode is displayed only for certain signals. For the wide signal*, the aspect ratio option cycles through 16:9 V FIT HV FIT.

AUTO (For NTSC/480i input signal only)

The signal which contains an identifying signal will be detected and will automatically project the image in the most optimal aspect setting.

4:3

Standard input signal*1 projection is 4:3 aspect ratio.

Input signal: XGA

Image:

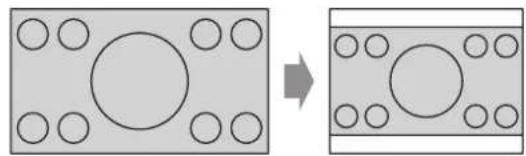

16:9

Standard input signal*1 projection is 16:9 aspect ratio. Wide input signal*2 projection is the current aspect ratio.

Input signal: 1080/60i

Image:Panel:

H FIT

Standard input signal*1 projection without changing the aspect ratio uses all the panel pixels in the horizontal direction to crop the top and bottom of the image.

Input signal: SXGA

Image:

^1 A standard signal has an aspect ratio of 4:3 or 5:4.
^2 A wide signal has an aspect ratio of 16:10, 16:9 or 15:9.

Menu operation (continued)

VFIT

Wide input signal*2 projection without changing the aspect ratio uses all the panel pixels in the vertical direction to crop the right and left of the image.

Input signal: 1080/60i

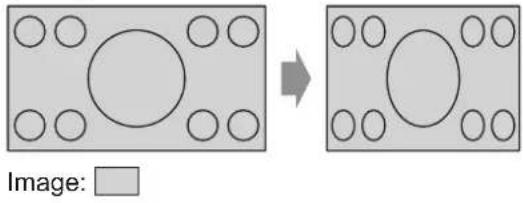

HV FIT

The image is projected all over the panel pixels (screen). The input signal is projected at the aspect ratio of the panel screen.

Input signal: 1080/60i

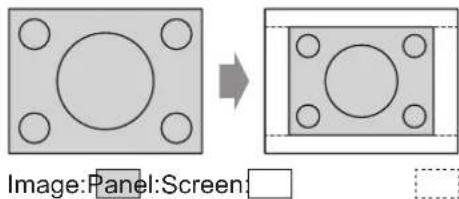

S4:3

Standard input signal ^*1 → the input signal will be sized down 75% and projected. S4:3 mode is effective when projecting 4:3 image onto a 16:9 screen.

Input signal: XGA

*1 A standard signal has an aspect ratio of 4:3 or 5:4.

^*2 A wide signal has an aspect ratio of 16:10, 16:9 or 15:9.

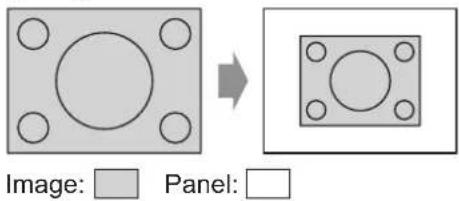

THROUGH

The image will be projected without any size adjustment.

This function can be set when the input signal is smaller than the number of the LCD panel pixels (1024 x 768).

Input signal: NTSC

NOTE:

When a 4:3 image is projected to 16:9 screen, the image may be distorted or some portions may be cropped. Select an aspect ratio (4:3) which retains the creator's intended image.

The order of ASPECT types is defined not only by the input method but also by the input signals.

If you project an enlarged or distorted copyrighted image using the ASPECT function for commercial use in a public place, you might infringe the copyright of the creator which is protected by the copyright law.

FRAME LOCK

If the projected image is bad, you can activate FRAME LOCK for synchronization. (For RGB input signal only)

ON Active

OFF Deactive

Menu operation (continued)

LANGUAGE MENU

Select the required language.

The set language is highlighted.

DISPLAY OPTION MENU

Set the selected item with [▶].

N-SCREEN DISPLAY

You can set the on-screen display.

INPUT GUIDE

Set the display method of the input terminal name currently selected in the upper right corner of the screen.

DETAILED	Display the input method using graphic. The INPUT GUIDE will go off if there is no operation after 10 seconds.
OFF Turn off the guide.
SIMPLE	Display the input method using text. The INPUT GUIDE will go off if there is no operation after 5 seconds.

Menu operation (continued)

Computer connection guide

You can switch the output signals from COMPUTER1/COMPUTER2 terminal by pressing the following computer command keys.

Manufacturer	Image output selection command
Panasonic NEC	Fn + F3
SAMSUNG HP	Fn + F4
acer SHARP TOSHIBA	Fn + F5

Manufacturer	Image output selection command
lenovo LG SONY	Fn + F7
DELL EPSON	Fn + F8
FUJITSU	Fn + F10
Apple	F7

NOTE:

The command keys depend on the manufacturers.

For detailed information, please refer to the instructions provided with the computers.

If you want to turn off the computer connection guide, select SIMPLE or OFF.

OSD DESIGN

You can change the background of the on-screen menu (OSD).

TYPE1 Semi	transparent black
TYPE2 Solid	blue
TYPE3 Semi	transparent dark blue

WARNINGMESSAGE

You can choose to or not to display the warning messages.

ON	Warning messages will be displayed
OFF No display

NOTE:

• When the WARNINGMESSAGE is set to OFF, use the projector with utmost care as most of the warning messages will not be displayed.

CLOSED CAPTION SETTING

If the input signal contains closed captions, you can turn on the feature and switch channels.

CLOSED CAPTION

OFF Deactive

ON Active

MODE

CC1-4 Change the channels CC1-4

NOTE:

VCR with TBC (Time Base Corrector) function is recommended for video cassette tapes.

STARTUP LOGO

You can set the Panasonic logo, your own image or Pre-set letters to be displayed at the start of the projection.

Change setting Change setting

ON Display	ay “Panasonic” logo
TEXT Display	play the original text
USER	Display the image registered by the user
OFF No display

NOTE:

• If TEXT is selected, the input letters are displayed at the start of the projection. You can display 2 lines of original text which contains up to 40 characters each.
• If USER is selected, the image transferred by the Logo Transfer Software is displayed at the start of the projection. (You can install the Logo Transfer Software from the provided CD-ROM.)
• STARTUP LOGO will be displayed for 30 seconds.

Menu operation (continued)

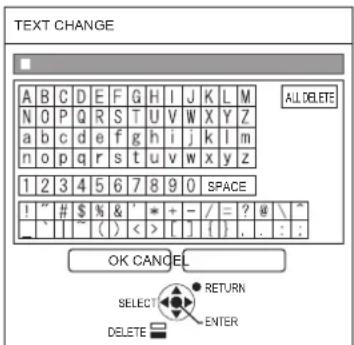

Editing the original text

1 Press [▶] to select TEXT and then press [ENTER].
2 Press [ ] to select the desired line and then press [ENTER].

You can input and edit the text for the first line in TEXT1 and the text for the second line in TEXT2.

3 Press [▲▼▲] to select the desired character and then press [ENTER].

To delete all the input characters, move the cursor to ALL DELETE and then press [ENTER].

To delete a character, press [DEFAULT] or move the cursor to select the character then press [DEFAULT].

4 Select OK and then press [ENTER] to set the input text in the box.
5 Select OK again and then press [ENTER]. Select CANCEL or press [MENU/RETURN] to return to the previous menu without any setting.

AUTO SETUP

AUTO mode is selected by default.

If you do not need to perform automatic correction, select "BUTTON".

Change setting

Change setting

AUTO	When the projector detects COMPUTER signal, SHIFT, DOT CLOCK and CLOCK PHASE in the POSITION menu is automatically set.
BUTTON	Only when [AUTO SETUP] is pressed, SHIFT, DOT CLOCK and CLOCK PHASE in POSITION menu will be automatically set for COMPUTER signals. (⇒ page 23)

SIGNAL SEARCH

You can turn off the auto signal detection.

Change setting

Change setting

ON	Detects the input signal from the terminals and projects the image
OFF	Deactive

NOTE:

SIGNAL SEARCH- is not available during any input signal projection.

ACK COLOR

You can choose BLUE or BLACK screen for the projector when it is idle.

Change setting

Change setting

BLUE	Display blue screen
BLACK Display black screen

Menu operation (continued)

WIDE MODE

Set this mode when projecting wide signals (16:9, 16:10, 15:9).

Change setting

Change setting

AUTO Automatic setting

OFF For 4:3 signals

ON For WIDE signals

SXGA MODE

Set this mode when an SXGA signal is input and the projected image is trimmed.

Change setting

Change setting

SXGA For normal projection

SXGA+ For projection when image is cropped

OTHER FUNCTIONS

You can perform some of the remote control button operations from the sub-menu.

AUTO SETUP

For details, see "SET UP THE IMAGE POSITION AUTOMATICALLY". (→ page 23)

FREEZE

You can capture the projected image as a still picture. While the image is frozen, the audio sound through the projector will stop.

Press [RETURN] to escape.

The image is distorted momentarily when the projection is stopped and restarted.

AV MUTE

You can temporarily stop projection and audio sound when the projector is left idle.

Press [MENU] to escape.

INDEX-WINDOW

For details, see "INDEX-WINDOW display". ( page 24)

DIGITAL ZOOM

[ ] button: zoom in [ ] button: zoom out

Press [ENTER] to select the enlargement.

Press [MENU] to escape.

The image is distorted momentarily when the image is zoomed.

PROJECTOR SETUP MENU

Set the selected item with [<].

STATUS

You can check the projector's status.

SIGNAL

NAME Name of input signal

FREQUENCY Scanning frequency of input signal

RUNTIME

PROJECTION Display the projector's current usage time

LAMP Display the lamp's current usage time

Menu operation (continued)

NO SIGNAL SHUT-OFF

If no image signal is input for the time set using the timer, the projector will automatically enter into standby mode.

DISABLE NO SIGNAL SHUT-OFF is disabled
15 - 60 MIN.	Timer can be set at a 5-minute intervals

INITIAL START UP

You can set the starting method when the power plug is connected to wall outlet.

LAST MEMORY	Projector starts from the last image before the power plug was disconnected
STANDBY	Projector starts in the standby mode
ON	Projector starts immediately

INSTALLATION

When installing the projector, select the projection method according to the projector's position. ( page 15)

HIGH ALTITUDE MODE

If you use the projector at high elevation, the HIGH ALTITUDE MODE setting need to be ON to set the fan speed to high.

OFF	Use in normal environment (below 1400 m (4 593 ft) above sea level)
ON	Use at high altitude (at 1400 m – 2700 m (4 593 - 8 858 ft) above sea level)

NOTE:

The loudness of fan noise depends on the HIGH ALTITUDE MODE setting.

STANDBY MODE

You can change the standby mode setting.

ECO	The standby power is reduced to 0.4 W to save power
NORMAL	The power of the projector can be turned ON and the audio output can be set active by controlling the computer connected via wired LAN in standby mode

AMP POWER

You can adjust the power of the lamp to save electricity, prolong the lamp life and reduce the noise.

NORMAL When higher luminance is required

ECO When lower luminance is sufficient

NOTE:

This function is disabled when no input signal is detected. ECO- setting is recommended when higher luminance is not required such as in a small room.

Menu operation (continued)

LAMP RUNTIME

You can check how long the lamp has been used.

NOTE:

LAMP RUNTIME: is important for lamp replacement timing.

See "REPLACE THE LAMP UNIT". (⇒ page 45)

Check the lamp unit replacement time. 一 = 4 page 45)

If the lamp runtime has reached 3800 hours, the red and gray marks appear alternately to notify you of the lamp replacement time.

The lamp life varies depending on the usage condition (number of power-on times, etc.).

EMULATE

When the projector is controlled by a computer through serial input terminal, you can change the setting to use the former projector control commands.

To select the required setting.

• DEFAULT	ST10 Series LB2 Series LB1 Series LB75 Series LB78 Series LB80 Series LB90 Series
D3500 D3500
D4000 D4000
D/W5K series	D5500 Series DW5000 Series D5600 Series DW5100 Series D5700 Series
D/W/Z6K series	D5000 Series D6000 Series DW6300 Series DZ6700 Series DZ6710 Series
L730	L520 Series L720 Series L730 Series
L780	L750 Series L780 Series
L735 L735 Series
L785 L785 Series
F/W series	F100 Series FW100 Series F200 Series F300 Series FW300 Series

NOTE:

Some commands are not available. For details, please contact your dealer.

38 ENGLISH

FUNCTION BUTTON

You can select a useful function from the list and assign it to [FUNCTION] button as a short-cut.

MENU

FUNCTION

To display the on-screen menu (main menu, submenu or detailed menu).

For the menu operation, see "OPERATE THE MENU".

( page 26)

Press and hold for at least 3 seconds.

When not using the [FUNCTION] button (→ page 25)

NOTE:

The text and button color will change once the setting has completed.

AUDIO SETTING

You can perform detailed setting for Audio.

VOLUME

You can adjust the volume of the built-in speakers and audio output sound.

BALANCE

You can adjust to listen to the sound played equally from both right and left external stereo speakers, or adjust the balance so that more sound plays from either the left or right side.

Menu operation (continued)

IN STANDBY MODE

You can turn ON or OFF the audio output in standby mode.

Change setting Change setting

OFF Deactive
ON	Active

NOTE:

• When STANDBY MODE is set to ECO, the audio output cannot be activated in the standby mode, even if ON is selected.

AUDIO IN SELECT

You can select the AUDIO IN 1 or AUDIO IN 2 terminal to connect the audio output of the devices connected to COMPUTER 1 IN or COMPUTER 2 IN.

Change setting Change setting

AUDIO IN SELECT
COMPUTER1 IN	Select AUDIO IN 1 or AUDIO IN 2 terminal
COMPUTER2 IN	Select AUDIO IN 1 or AUDIO IN 2 terminal

TEST PATTERN

You can use the 7 different test patterns to adjust the focus of the image.

To display the test pattern.

Change pattern

Change pattern

Press [MENUR] or [RETURN] to return to the PROJECTOR SETUP menu, or press repeatedly to escape the menu mode.

NOTE:

The initial screen is an all white pattern. Only when · TEST PATTERN is assigned to the [FUNCTION] button, the lattice pattern will be displayed as the initial screen.

INITIALIZE ALL

You can reset all of the customized settings in MENU to the factory default.

• If the [ENTER] is pressed in the INITIALIZIZE ALL menu, "INITIALIZE ALL" will be displayed. Select OK and press [ENTER], "NOW INITIALIZING..." is displayed followed by "POWER OFF" display. Select OK and turn the power off according to the instruction. (All other buttons are deactivated.)
• The LANGUAGE and INITIAL SETTING menu screen will be displayed when the power is connected. (⇒ page 10)

NOTE:

The usage time of the projector, lamp runtime and the NETWORK settings will not be initialized.

• When PASSWORD in SECURITY menu is activated, ensure to enter the correct password when initializing.
• After INITIALIZING ALL operation is completed, the password is reset to the factory default setting and PASSWORD setting is turned OFF.

Menu operation (continued)

SECURITY MENU

Remote control Control panel

Set the selected item with [ ] .

When you use SECURITY menu for the first time, you will be asked to perform the password operation. Input the initial password by pressing [▲▼▲▼] in this order and then press [ENTER].

NOTE:

• If you have changed the password, input the new password and press [ENTER].

Password

You can activate the security system and the password operation will be asked to perform when projection mode starts.

Change setting Change setting

OFF Deactive

ON Active

NOTE:

• PASSWORD is set to OFF by default and when initialized.
• Change your password regularly. Do not use a simple password that is easy to decode.
• Unless you perform the correct password operation, all of the control buttons will be disabled except the [POWER] button.

password CHANGE

You can change the password.

To change the password.

(Up to 8 button operations can be set.)

Input the password again and press the button.

NOTE:

• The entered password operations will appear as asterisks in the box.
• If the password input second does not match with the password input first, an error message is displayed. In this case, input the correct password again.

TEXT DISPLAY

You can set your original text to display regularly at the bottom of the projected image during projection.

Change setting

Change setting

OFF Deactive

ON Active

• When CLOSED CAPTION SETTING is set to ON, SECURITY TEXT will not be displayed.

TEXT CHANGE

You can enter your original text to be displayed when TEXT DISPLAY is turned ON.

To select

the characters

(You can input up to 22 characters.)

To delete all the entered characters, move the cursor to ALL DELETE and press [ENTER].

Menu operation (continued)

To delete a character, press [DEFAULT] or move the cursor to the required character then press [DEFAULT].

To select

OK

Select CANCEL or press [MENU/RETURN] to return to the previous menu without setting.

MENULOCK

Press [MENu] to display the menu. You can lock or unlock the menu operation.

OFF Unlock the menu operation

ON Lock the menu operation

NOTE:

• Once MENU LOCK is set to ON, you cannot use the [MENU] button unless you input the correct password.
• The MENU LOCK is set to OFF by default and when initialized.

MENU LOCK PASSWORD

You can set a MENU LOCK PASSWORD.

To select

the characters

(You can input up to 16 characters.)

To delete all the entered characters, move the cursor to ALL DELETE and press [ENTER].

To delete a character, press [DEFAULT] or move the cursor to the required character then press [DEFAULT].

To select

OK

Select CANCEL or press [MENU/RETURN] to return to the previous menu without setting.

NOTE:

When using the projector for the first time or after
INITIALIZE ALL operation is activated, the initial password is set to AAAA.
Change your password regularly. Do not use a simple - password that is easy to decode.
- To reset the password to the initial password, see MENU LOCK PASSWORD. (⇒ page 52)

Menu operation (continued)

CONTROL DEVICE SETUP

You can enable/disable the button operations of the control panel and remote control.

Change setting Change setting

CONTROL PANEL

ENABLE Enable the button operations

DISABLE Disable the button operations

REMOTE CONTROLLER

ENABLE Enable the button operations

DISABLE Disable the button operations

NOTE:

• If DISABLE is selected and [ENTER] is pressed, the confirmation screen appears. Select OK and press [ENTER].
• If any button is pressed after CONTROL PANEL is set to DISABLE, the password screen appears. Input the password which is set in the SECURITY menu. (If no operation is done, the password screen disappears in 10 seconds.)

If you set both · CONTROL PANEL and REMOTE CONTROLLER to DISABLE, all buttons' operations of the control panel and remote control are disabled and you cannot turn off the power.

How to clear DISABLE:

During the standby mode or projection, press and hold [ENTER] and [MENU] for at least 2 seconds, and CONTROL PANEL is set to ENABLE.

Change the setting of REMOTE CONTROLLER with the control panel.

NETWORK MENU

Remote control Control panel

Set the selected item with [<].

NOTE:

These items are set for network connection with a computer. For details of the PJ Link and network, see "Network Operation Manual".

WIRED LAN

You can set up a wired LAN.

NAME CHANGE

You can change the name of the projector.

NETWORK CONTROL

When controlling the projector with a computer on the network, you must turn this function ON.

STATUS

You can display the status of the network setting.

INITIALIZE

You can reset the settings of the network to the factory default settings.

NOTE:

• If PASSWORD (SECURITY menu) is activated, when the network setting is initialized, you will be required to input the password.

LAMP and TEMP indicators

The LAMP and/or TEMP indicators will light up to indicate that the projector has some problems.

NOTE:

• Make sure to turn off the power (see "TURNS THE PROJECTOR OFF" on page 21) and confirm the power supply status with the POWER indicator. ( page 19)

Manage the problem as follows:

LAMP INDICATOR

Indicator	·Illuminating red	·Flashing red
Problem	LAMP RUNTIME has reached 3 800 hours.	LAMP circuit failure, abnormal function or the lamp unit is damaged.
Cause	Lamp unit will run out soon and needs to be replaced.	The projector is turned on again too soon.	LAMP circuit failure, abnormal function.	Lamp unit is damaged.
Remedy	See “REPLACE THE LAMP UNIT”. (⇒ page 45)	Let the lamp unit cool down and turn on the projector after 90 seconds.	Turn the projector off (⇒ page 21) and contact an Authorized Service Center.	See “REPLACE THE LAMP UNIT”. (⇒ page 45)

NOTE:

If the LAMP indicator still lights or flashes after the above remedy, contact an Authorized Service Center.

TEMP INDICATOR

Indicator	Illuminating red while projecting and the alert will be displayed. • Flashing red and power is turned off. •
Problem	The temperature inside and/or outside the projector is abnormally high. The projection may become darker than usual. The internal fan's operational noise may be louder than usual.
Cause	The air outlet port and air intake ports are covered.	The room temperature is too high.	The filter is excessively dirty and the ventilation is poor.	The projector is located at 1400 - 2700 m (4593 - 8858 ft).
Remedy	Remove object(s) from the air outlet port and air intake ports or clear around the projector.	Reinstall the projector in temperature controlled place. (⇒ page 54)	Clean the filter in a proper method. (⇒ page 44)	Turn on the projector*1 and set the HIGH ALTITUDE MODE to ON. (⇒ page 37)

*1 The projector will operate for 2 minutes with OFF set at high elevation.

NOTE:

• Perform the above remedy; disconnect the power plug, and then supply the power again. If the TEMP indicator still lights or flashes after the above remedy, contact an Authorized Service Center.
• If temperature in the projector rises, the fan speed increases and the sound becomes louder.

Care and replacement

Preparations

Before cleaning, be sure to turn off the power and disconnect the power plug from the wall outlet. (⇒ page 18, 21)

CLEANING THE PROJECTOR

Cabinet

Wipe off dirt and dust gently with a soft cloth.

If it is difficult to remove the dirt, wipe the projector with a damp cloth. Dry off the projector with dry cloth.

• Do not use petroleum benzine, thinner, any alcoholic solvent, kitchen detergents or chemical cloths. Failure to observe these may result in altered or damaged surfaces of the projector.

Projector lens

Make sure no dirt or dust remains on the surface of the projector lens glass. It will be enlarged and projected onto the screen.

Wipe off dirt and dust gently with a lint-free cloth. Do not wipe the projector lens with a cloth which has collected dust.

NOTE:

Clean the projector lens with special care.

Air filter

If the air filter is excessively dirty, the internal temperature of the projector increases, the TEMP indicator lights, and the power is turned off.

If the power is turned off, the TEMP indicator flashes.

Clean the air filter regularly every 100 hours of usage.

1 Remove the air filter.

While pressing the tab of the air filter, pull the air filter open slowly.

2 Clean the air filter.

Vacuum dirt and dust from the air filter.

3 Install the air filter.

Install in the reverse order to 1).

NOTE:

• Do not use the projector without attaching the air filter. Otherwise, it will suck in dirt and dust which can cause malfunction.
  The TEM indicator may flash because of clogging within 100 hours, depending on the using environment. In that case, clean the air filter at shorter intervals.

REPLACE THE LAMP UNIT

Air filter

The air filter should be replaced when cleaning is ineffective and when replacing the lamp unit. A replacement air filter is provided with a replacement lamp unit (ET-LAB2). Contact an Authorized Service Center for the air filter (TXFKN01VKN5).

Lamp unit

The lamp unit, ET-LAB2 is consumable and you must replace it regularly. It is recommended that a qualified technician carry the lamp unit replacement. Consult with an Authorized Service Center.

Note on lamp unit replacement

Handle the lamp unit with special care as the lamp is made of glass.

Dropping or giving it a shock may cause it to burst or damaged.

If you wish to discard the used lamp, please contact your local authorities or dealer and ask for the correct method of disposal.

Prepare a Phillips-head screwdriver.

When replacing the lamp unit, be sure to hold it by the handle.

Hold the lamp unit horizontally to prevent broken pieces from scattering.

When the projector is mounted in the ceiling, do not work directly under the projector or put your face close to the projector.

Pull out the lamp vertically.

NOTE:

Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.

Do not attempt replacement of an unauthorized lamp unit.

The model Nos. of the accessories and the parts sold separately are subject to change without notice.

Lamp unit replacement time

When the lamp has expired, the brightness may decrease over time. 4000 hours of use is a rough guide of the replacing time and that might be shortened due to usage conditions, specifications of the lamp unit or environmental conditions. You can check the duration of usage time by checking LAMP RUNTIME in the PROJECTOR SETUP menu. Do not use a lamp unit over 5000 hours. Failure to observe this may result in explosion of the lamp.

	ON-SCREEN DISPLAY REPLACE LAMP	LAMP indicator LAMP
3 800 hours	Display “REPLACE LAMP” at the upper left of the screen for 30 seconds. If any button is pressed within 30 seconds, the message disappears.	Illuminates red, even in the standby mode.
5 000 hours	Display “REPLACE LAMP” at the upper left of the screen, and it will stay until you respond. The power is turned off automatically in 10 minutes.

NOTE:

The guide time, 4 000 hours, is a rough estimate based on certain conditions and is not a guaranteed time.

Care and Replacement (continued)

Lamp replacement procedure

• When the projector is mounted in the ceiling, do not work directly under the projector or put your face close to the projector.
• Be sure to install the lamp unit and attach the lamp unit cover securely. If they are not securely installed, it may cause the protection circuit to operate and the power cannot be turned on.

1 Disconnect the power plug from the wall outlet according to "TURN THE PROJECTOR OFF" ( page 21), wait for at least 1 hour and check the bottom if the lamp unit has cooled.
2 Use a Phillips-head screwdriver to loosen the 1 lamp unit cover screw on the back of the projector until the screw loosen and remove the lamp unit cover.

3 Use a Phillips-head screwdriver to loosen the 2 lamp unit screws. Pull the used lamp unit gently from the projector.

4 Press in the lamp unit until it clicks and make sure the unit is installed securely. Tighten the 2 lamp unit screws securely with a Phillipshead screwdriver. During insertion, particularly press the A portion securely.

5 Attach the lamp unit cover and tighten the 1 lamp unit cover screw securely with a Phillips-head screwdriver.
6 Connect the power cord to a wall outlet.
7 Press [POWER] to begin projection.

NOTE:

• If INITIAL START UP in the PROJECTOR SETUP menu is set to ON, the projector starts projecting when the power cord is connected to a wall outlet. (⇒ page 37)

8

To display the main menu.

To scroll to the PROJECTOR SETUP menu.

Care and Replacement (continued)

9

To select the PROJECTOR SETUP menu.

To select LAMP RUNTIME.

10

Press and hold for approximately 3 seconds.

LAMP RUNTIME

LAMP RUNTIME RESET.

OK

:PRESS 77 BUTTON

CANCEL

:PRESS ANY OTHER BUTTON

NOTE:

• If any button other than the [POWER] is pressed, the LAMP RUNTIME screen disappears and the lamp runtime is not reset. (Repeat from step 8 again).

11

After the lamp goes off,

projection stops and the

[POWER] button on the main unit lit red. Disconnect the power plug.

The lamp runtime has been reset to "0".

Troubleshooting

Confirm the following problem and cause.

If the suggested solutions do not solve the problem, contact an Authorized Service Center.

Problem Cause Page
Power does not turn on.	The power cord may not be connected securely. No electric supply at the wall outlet. The circuit breakers have tripped. TEMP or LAMP indicator is lit or flashes. The lamp unit cover has not been securely installed. CONTROL PANEL in the PROJECTOR SETUP menu is invalidated.
No picture appears.	The lens cover is not removed. The input terminal may not be connected properly. The input selection setting may not be correct. The BRIGHTNESS adjustment setting may be at the minimum setting. The signal input source may not be operating properly. The AV MUTE function may be in use.
The picture is fuzzy.	The lens focus may not have been set correctly. The projector may not be at the correct distance from the screen. The lens may be dirty. The projector may be tilted too much.
Color is pale or grayish.	COLOR or TINT adjustment may be incorrect. The input source which is connected to the projector may not be adjusted correctly.
No sound can be heard from the internal speaker.	The audio signal source may not be connected properly. The volume adjustment may be at the lowest possible setting. A cable may be connected to the AUDIO OUT terminal.
The remote control does not operate.	The batteries may be weak. The batteries may not have been inserted correctly. The remote control signal receptor on the projector may be obstructed. The remote control unit may be out of the operation range. REMOTE CONTROLLER in the PROJECTOR SETUP menu is invalidated. The remote control is under a strong light such as fluorescent.
The control buttons of the projector do not operate.	CONTROL PANEL in the PROJECTOR SETUP menu is invalidated. (If you have a loss of the remote control while the CONTROL PANEL is invalidated, press and hold [MENU] for 2 seconds by pressing [ENTER].)
The picture does not display correctly.	The signal format (TV-SYSTEM, RGB/YPBPR) may not have been set correctly. There may be a problem with the VCR or other signal source. A signal which is not compatible with the projector is being input.
Picture from a computer does not appear.	The RGB signal cable is too long. (Limit to 10 m (32' 10").) The external video output from a laptop computer may not be correct. (You may be able to change the external output settings by pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method varies depending on the type of computer; refer to the documentation provided with your computer for further details.)
The projector cannot be controlled through serial terminal.	EMULATE in the PROJECTOR SETUP menu is not set correctly. (If you fail to select your product series, ask your dealer for repair.)

Dimensions

Trademark acknowledgements

VGA and XGA are trademarks of International Business Machines Corporation.

S-VGA is a registered trademark of the Video Electronics Standards Association.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh Company, Ltd.

All other trademarks are the property of the various trademark owners.

Technical information

LIST OF COMPATIBLE SIGNALS

This projector can project the following image signals.

Mode	Display resolution (dots)*1	Scanning frequency		Dot clock frequency (MHz)	Picture quality*2	PnP availability*3	Terminals
		H (kHz) V	(Hz)
NTSC/NTSC4.43/PAL-M/PAL60	720 × 480i 15.7	59.9 — A					VIDEO/S-VIDEO
PAL/PAL-N/SECAM 720 × 576i 15.6 50 — A
525i (480i) 720 × 480i 15.7 59.9 13.5 A							RGB/YPBPR
625i (576i) 720 × 576i 15.6 50 13.5 A
525p (480p) 720 × 483 31.5 59.9 27	A
625p (576p) 720 × 576 31.3 50	27	A
1 125 (1 080)/60i	1 920 × 1 080i 33	8 60 74.3 A
1 125 (1 080)/50i	1 920 × 1 080i 28	1 50 74.3 A
1 125 (1 080)/60p	1 920 × 1 080p	67.5	60.0	148.5	A	O
1 125 (1 080)/50p	1 920 × 1 080p	56.3	50.0	148.5	A	O
750 (720)/60p	1 280 × 720 45	60 74.3 A
750 (720)/50p	1 280 × 720 37.5	50 74.3 A
VESA	640 × 400 31.5	70.1 25.2 A					RGB
	640 × 400 37.9	85.1 31.5 A
VGA	640 × 480 31.5	59.9 25.2 A		O
	640 × 480	35 66.7	30.2 A	O
	640 × 480 37.9	72.8 31.5 A		O
	640 × 480 37.5	75 31.5 A		O
	640 × 480 43.3	85	36	A
SVGA	800 × 600 35.2	56.3 36	A	O
	800 × 600 37.9	60.3 40	A	O
	800 × 600 48.1	72.2 50	A	O
	800 × 600 46.9	75 49.5 A		O
	800 × 600 53.7	85.1 56.3 A
MAC	832 × 624 49.7	74.6 57.3 A		O
XGA	1 024 × 768 39.6	50.1 51.9	AA
	1 024 × 768 48.4	60	65	AA	O
	1 024 × 768 56.5	70.1 75	AA	O
	1 024 × 768 60.75	75 78.8	AA	O
	1 024 × 768 68.7	85 94.5	AA
MXGA	1 152 × 864 64	71.2 94.2 A		O
	1 152 × 864 67.5	74.9	108	A
	1 152 × 864 77.1	85 119.7	A
MAC	1 152 × 870	68.7	75.1	100	A	O
MSXGA	1 280 × 960	60	60	108	A	O
SXGA	1 280 × 1 024 64	60	108	A
	1 280 × 1 024 80	75	135	A	O
	1 280 × 1 024	91.1 85	157.5	A
SXGA60+	1 400 × 1 050 64	60	108	A
	1 400 × 1 050	65.1	59.9	122.4	A	O
UXGA	1 600 × 1 200	75	60	162	A	O
WIDE750 (720)	1 280 × 720 44.8	59.9 74.5 A		O
	1 280 × 720 37.1	49.8 60.5 A
WXGA768	1 280 × 768 39.6	49.9 65.3 A
	1 280 × 768 47.8	59.9 79.5 A		O
WXGA800	1 280 × 800 41.3	50	68	A
	1 280 × 800 49.1	60.2 69.1 A		O
	1 280 × 800 49.7	59.8 83.5 A
WXGA+	1 440 × 900	55.9	59.9	106.5	A	O
WSXGA+	1 680 × 1 050	65.3	60	146.3	A	O
WUXGA	1 920 × 1 200	74.6	59.9	193.3	B

1 The "i" appearing after the resolution indicates an interlaced signal.
*2 The following symbols are used to indicate picture quality.
AA: Maximum picture quality can be obtained.
A : Signals are converted by the image processing circuit before picture is projected.
B : Some loss of data occurs to make projection easier.
3 The signals marked with circles (O) can be applied by plug-and-play device.

Technical Information (continued)

SERIAL TERMINAL

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specifications. The projector can be controlled by a personal computer which is connected to this connector.

Connection

Pin assignments and signal names

Pin No. Signal name Contents
①		NC
②	TXD Transmitted data
③	RXD Received data
④		NC
⑤	GND Earth
⑥		NC
⑦	RTS Connected internally
⑧	CTS
⑨		NC

Communication settings

Signal level RS-232C Character length 8 bits
Sync.method Asynchronous Stop bit 1 bit
Baud rate 9 600 bps X parameter None
Parity None	S parameter None

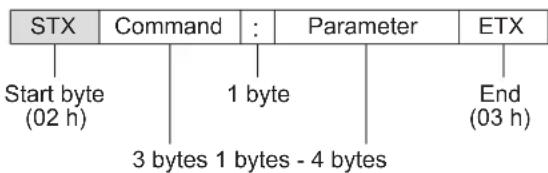

Basic format

The data streaming from the computer will start with STX, and proceed to Command, Parameter and end with ETX.

You can add the required parameter.

NOTE:

• The projector cannot receive any command for 10 seconds after the lamp is switched on. Wait for 10 seconds before sending the command.
• For multiple commands, check the projector if the response has been sent for one command before sending the next command.
• When a command which does not require parameters to be sent, the colon (:) is not required.
• If an incorrect command is sent from the personal computer, an ER401 command will be sent from the projector to the personal computer.

Technical Information (continued)

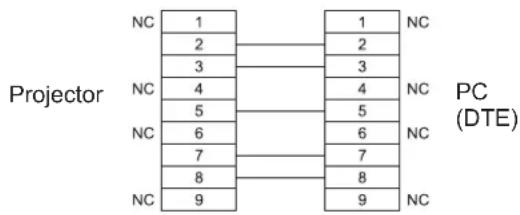

Cable specifications

(When connected to a personal computer)

Control commands

The following commands are used for control of the projector with a computer. (Operation commands)

Command	Control contents Remarks
PON Power	• The PON command is ignored during lamp ON control. • If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp.
POF Power off
AVL Volume	Parameter: 000 - 063 (Adjustment value 0 - 63)
IIS Input	Parameter: VID = VIDEO SVD = S-VIDEO RG1 = COMPUTER 1 IN RG2 = COMPUTER 2 IN
Q$S	Lamp condition query	Call back: 0 = Standby 1 = Lamp on control active 2 = Lamp on 3 = Lamp off control active
OSH AV mute	Turn off the projection and sound temporarily. Send the command to switch between off and on. (⇒ page 23) Do not send the command consecutively. 0 = Off 1 = On

NOTE:

• If STANDBY MODE is set to ECO, only PON and Q$S command can be used in the standby mode.

MENULOCKPASSWORD

To reset the password to the default setting AAAA, perform the following when the MENU LOCK PASSWORD request screen is displayed.

1) Press and hold the button of the remote control or the button of the control panel and the button of the control panel together for at least 2 seconds.
2) Press and hold button for at least 2 seconds.
PASSWORD HAS BEEN INITIALIZED. is displayed on the MENU LOCK PASSWORD request screen.

Specifications

Power supply AC 100 - 240 V 50 Hz/60 Hz
Power consumption		300 WDuring standby (when fan is stopped):0.4 W (STANDBY MODE: ECO)15 W *1 (STANDBY MODE: NORMAL)
Current 3.5 A - 1.2 A
LCD panel	Panel size (diagonal) 0.63	type (16.00 mm)
	Aspect ratio 4:3
	Display method 3 transparent	LCD panels (RGB)
	Drive method Active matrix	method
	Pixels 786 432 (1 024 × 768) × 3 panels
Lens		Fixed focus/Manual focusF 1.80, f 6.74 mm
Lamp UHM lamp (220 W)
Luminosity *2		2 800 lm
Scanning frequency *3(for RGB signal)	Horizontal scanning frequency	15 kHz - 91 kHz
	Vertical scanning frequency	50 Hz - 85 Hz
	Dot clock frequency Less than 170 MHz
COMPONENT (YPBPR) signals		525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1 125 (1 080)/60i, 1 125 (1 080)/50i, 1 125(1 080)/60p,1 125(1 080)/50p
Color system 7 (NTSC/NTSC4.43/PAL/PAL-M/PAI		-N/PAL60/SECAM)
Projection size 60" - 110" (1 524 mm - 2 794 mm)
Optical axis 10:-0.5 fixed
Throw distance		0.60 m - 1.14 m (2' 0" - 3' 9")
Screen aspect ratio		4:3
Installation		FRONT/DESK, FRONT/CEILING, REAR/DESK, REAR/CEILING (Menu selection method)
Speaker		1 piece 4 cm × 2 cm (1 5/8" × 3/4")
Max. useable volume output		1.0 W (Monaural)
Terminals	S-VIDEO IN	Single - line, Mini DIN 4pY: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
	VIDEO IN	Single - line, RCA pin jack1.0 V [p-p], 75 Ω
	COMPUTER IN	Dual - line, D-Sub HD 15-pin (female)● RGB inputR.G.B.: 0.7 V [p-p], 75 ΩG-SYNC: 1.0 V [p-p], 75 ΩHD, VD/SYNC: TTL high impedance, automatic positive/negative polarity compatible● YPBPR/YCeCR inputY: 1.0 V [p-p] (include sync), 75 ΩPe/Cs, PR/CR: 0.7 V [p-p], 75 Ω
	AUDIO IN	Dual - line, 0.5 V [rms], M3 jack (Stereo MINI)
	AUDIO OUT	Single - line, M3 jack (Stereo MINI)Monitor output/stereo compatible0 V [rms] - 2.0 V [rms] (variable)
	SERIAL	Single - line, D-Sub 9-pin RS-232C compatible
	LAN (RJ-45)	Single - line, 10Base-T/100Base-TX

1 When "IN STANDBY MODE" in AUDIO SETTING menu is ON: 18 W.
2 Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.
*3 See "LIST OF COMPATIBLE SIGNALS" on page 50 for available signals.

Specifications (continued)

Cabinet		Moulded plastic (PC+ABS)
Dimensions		Width: 327 mm (12 7/8") Height: 124 mm (4 7/8") Length: 307 mm (12 3/32") (not including surface projection parts)
Weight		Approx. 3.1 kg (6.8 lbs.) *4 (Excluding lens cap)
Operating environment		Temperature: 0 °C - 40 °C (32 °F - 104 °F) When the HIGH ALTITUDE MODE ( ⇒ page 37) is set to ON: 0 °C - 35 °C (32 °F - 95 °F) Humidity: 20 % - 80 % (no condensation)
Certifications		UL60950-1 C-UL FCC Class B ICES-003
Remote control	Power supply	3 V DC (AAA/R03 battery × 2)
	Operating range	Approx. 7 m (23' 0") (when operated directly in front of signal receptor)
	Weight	Approx. 64 g (2.3 ozs.) (including batteries)
	Dimensions	Width: 45.6 mm (1 25/32") Length: 115 mm (4 17/32") Height: 21.4 mm (27/32") (not including surface projection parts)
Options *5	Ceiling bracket	ET-PKB2
	Air Filter Unit	ET-KFB2

*4 Average value. Each product has an individual variability in weight.
*5 The model Nos. of the accessories and parts sold separately are subject to change without notice.

Ceiling mount bracket safeguards

When installing the ceiling mount bracket to the projector, install the accessory Drop-prevention bracket (Safety cables) to the projector.

(The projector will still be safe if they are not used, however they will help prevent the possibility of accidents caused by the projector falling down if the screws happen to become loose.)

Model No. of ceiling mount bracket: ET-PKB2

Installation work of the ceiling mount bracket should only be carried by a qualified technician according to the following procedure.

• Panasonic takes no responsibility for any losses or damage occurring as a result of using a ceiling mount bracket not manufactured by Panasonic, or if damage to the projector occurs as a result of an inappropriate location used for installing the ceiling mount bracket, even if the projector's warranty period has not yet expired.
• Use a torque screwdriver or similar tool to tighten the screws. Do not use tools such as electric screwdrivers or impact screwdrivers.
• An unused ceiling mount bracket should be removed promptly by qualified technician.
• Do not use the screw holes of the front leg adjusters for the projector installation.
• Do not attach the safety cable to the burglar hook port and suspend the projector on it.
• For how to install wire ropes to the ceiling, see the installation manual for the ceiling mount bracket.
  The part numbers of accessories and separately sold components are subject to change without notice.

INSTALLING THE SAFETY CABLE

1 Install the ceiling mount bracket according to the installation instructions.

Torque: 1.25 ± 0.2 N.m

2 Loop the security cable around the ceiling mount bracket with less slack.

Lace the cable of the end with a latch through the loop on the other end of the cable.

Ceiling mount bracket safeguards (continued)

3 Attach the latch on to the projector with a provided screw.

Torque: 1.25 ± 0.2 N.m

Index

A ASPECT 31
AUDIO SETTING 38
AUTO SETUP 35
AV MUTE 23

B

R REALTIME KEystone 30 Remote control operation 23 REPLACE THE LAMP UNIT. 45 RGB/YPbPR 30

SCREEN SIZE AND THROW DISTANCE 14
SECURITY 8
SECURITY MENU 40
SELECT THE INPUT SIGNAL 22
SERIAL TERMINAL 51
SHARPNESS 29
SHIFT 30
SIGNAL SEARCH 35
Specifications 53
STANDBY MODE 37
STARTUP LOGO 34
STATUS 36
SUB MENU 27
SUPPLIED ACCESSORIES 9
SXGA MODE 36

TABLE OF CONTENTS 4
TEMPINDICATOR 43
TEST PATTERN 39
TEXT CHANGE 40
TEXT DISPLAY 40
TINT 29
Troubleshooting 48
TURN THE PROJECTOR OFF 21
TURN THE PROJECTOR ON 20
TV-SYSTEM 29

V VOLUME 24

W WHITE BALANCE 29
WIDE MODE 36

Partie responsible : Panasonic Solutions Company

Adresse: 3 Panasonic Way, Secaucus, NJ 07094

MISE AU POINT DE L'OBJECTIF

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Panasonic Corporation

Web Site: http://panasonic.net/avc/projector/

© Panasonic Corporation 2010

Panasonic Solutions Company

3 Panasonic Way, Secaucus, NJ 07094

TEL: (877) 803 - 8492

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

TEL: (905) 624 - 5010
