Product Type	3-piece speaker system (2 satellites + subwoofer) with built-in power supply
Brand	Cyber Acoustics
Model	CA3614
Power	AC power adapter included, Class II (double insulation)
Connectivity	3.5mm jack input (green); 3.5mm headphone output; side auxiliary input
Controls	On/off on wired remote; main volume (MAX/MIN) on remote; bass volume (Bass Vol) on rear of subwoofer
Features	Automatic sound muting when headphones are plugged in; priority auxiliary input
Recommended Placement	Subwoofer on floor near a wall or corner; satellites on either side of audio source
Compatibility	Computers, smartphones, iPod, MP3/CD/DVD players, game consoles (requires Y-adapter, not included)
Safety Instructions	Do not expose to water, rain or moisture; do not block ventilation openings; use only a dry cloth for cleaning; do not open the device (risk of electric shock)
Maintenance and Cleaning	Clean with a soft dry cloth; do not use solvents (wax, benzene, acetone, etc.)
Troubleshooting	Check power, connections, volume; test with another audio source (smartphone) to isolate the issue
Customer Service	Phone: [phone] (PST 8am-5pm); email: [e-mail]
Included Accessories	2 satellite speakers, 1 subwoofer, wired remote, user guide
Recycling	Do not dispose of with household waste; take to a collection point or return to retailer for recycling

Frequently Asked Questions - CA3614 Cyber Acoustics

What devices are compatible with the Cyber Acoustics CA3614?

The CA3614 can be connected to a desktop computer, laptop, smartphone, iPod, MP3/CD/DVD player, or game console (requires a Y-adapter, not included).

How to connect the speakers to a computer?

Connect the green cable to the audio output (green) jack of the computer, then the gray plug to the 'To Speaker' jack on the rear of the subwoofer. Finally, plug the power adapter into a wall outlet.

The system does not power on, what to do?

Check that the on/off switch on the wired remote is in the 'on' position (blue LED lit). Ensure the power adapter is properly connected and the wall outlet is powered.

No sound comes out of the speakers, how to fix?

Check power, volume, and connections. Try another audio source (smartphone) to isolate the issue. Make sure the green cable is plugged into the audio output (green) and not another jack.

The sound is distorted, what to do?

Reduce the volume by 25 to 50% via the speakers or software. Set the computer volume to about 50%, then adjust the speaker volume. Also check that the bass is not too high.

Can I use headphones with these speakers?

Yes, by plugging your headphones into the headphone output jack on the wired remote. The speakers' sound is then automatically muted.

How to clean the speakers?

Use a soft dry cloth. Never use solvents such as alcohol, acetone, ammonia, or furniture wax.

Where to place the subwoofer for better sound?

Place the subwoofer on the floor, near a wall or in a corner. Point the port towards the wall to enhance bass. Adjust the distance for desired performance.

What safety precautions should I follow?

Do not use near water, do not block ventilation openings, unplug during storms, do not open the device (risk of electric shock). Use only the provided adapter.

How to recycle these speakers at end of life?

Do not dispose of the device with household waste. Take it to an authorized collection point or return to the point of sale for environmentally friendly recycling.

USER MANUAL CA3614 Cyber Acoustics

Three black audio speakers with visible sound waves and a small speaker, no text or symbols present.

CA-3614 Owner's Guide

Powered Speaker System with Control Pod

Thank you!

Merci!

¡Gracias!

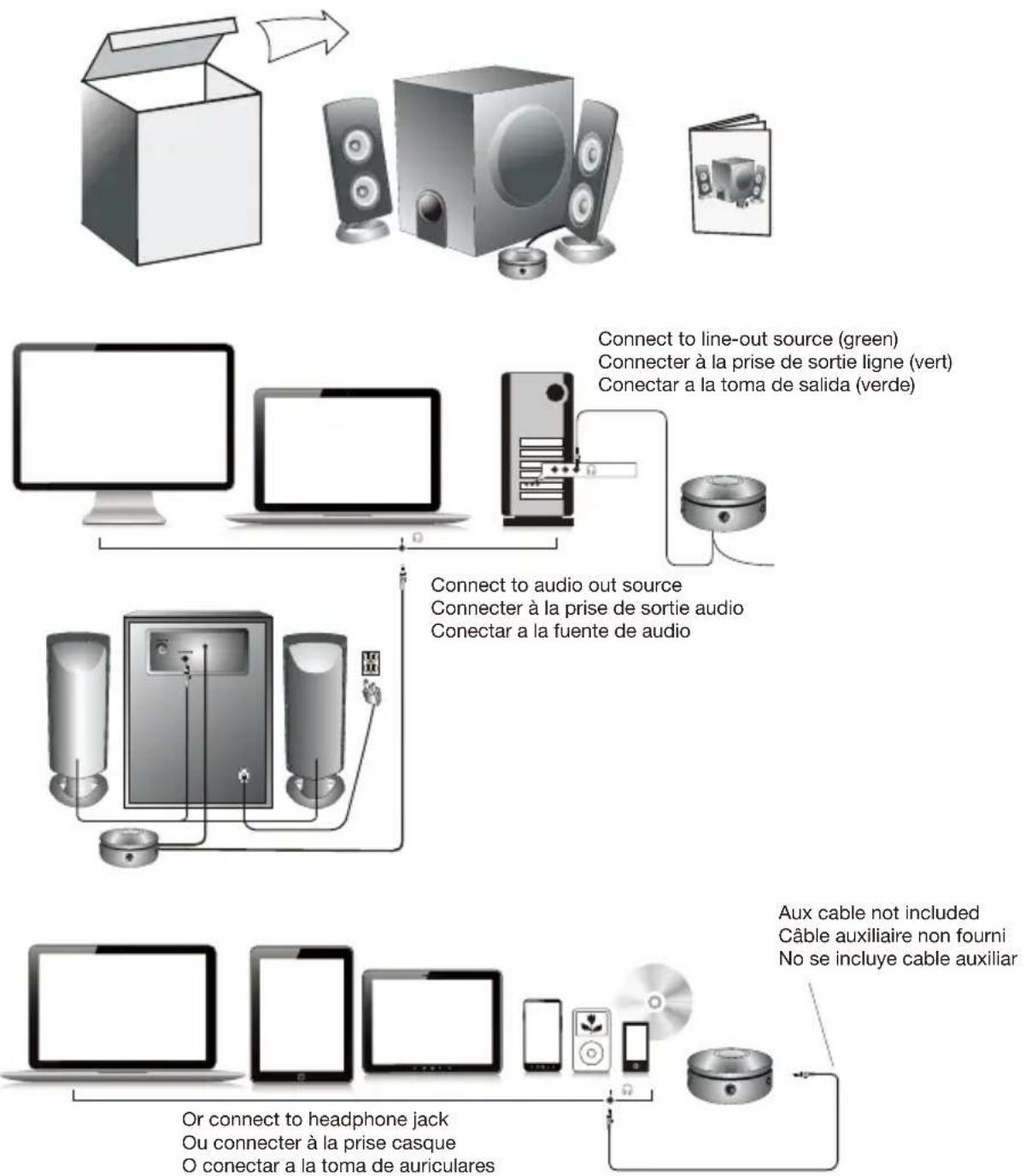

Getting Started

Pour commencer

Inicio

Connect to line-out source (green)

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT.

Black triangular warning symbol with white lightning bolt and downward arrow (no text)

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Black triangular warning symbol with exclamation mark (no text or numbers)

The exclamation point within an equilateral triangle is Intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

See the bottom of the set

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions - All the safety and operating instructions should be read before this product is operated.
2. Keep these instructions - The safety and operating instructions should be retained for future reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions All operating and use instructions should be followed.
5. Do not use this apparatus near water. The appliance should not be used near water or moisture for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Symbolic illustration of a person climbing a ladder inside a circle with 'over' text (no readable document content)

1. Unplug the apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. Please keep the unit in a good ventilation environment.

4. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

5. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.

6. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.

7. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

8. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

9. This is CLASS II apparatus with double insulation, and no protective earth Provided.

10. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.

11. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

12. Do not install this equipment in a confined space such as a book case or similar unit. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.

13. No naked flame sources, such as lighted candles, should be placed on the apparatus.

14. Attention should be drawn to environmental aspects of battery disposal.

15. Use of the apparatus in moderate climates.

AVERTISSEMENT

NE JAMAIS UTILISER UN CÂBLE DE RALLONGE, OU UNE PRISE OU AUTRES RACCORDS QUI EMPÊCHENT LE BRANCHEMENT COMPLET DE LA FICHE AFIN D'ÉVITER TOUT RISQUE DE FEU OU CHOC DANGEREUX. NE JAMAIS LAISSER CET APPAREIL SOUS LA PLUIE OU L'HUMIDITÉ POUR ÉVITER TOUT DANGER DE FEU OU CHOC ÉLECTRIQUE, LA FICHE DOIT TOUJOURS ÊTRE BRANCHÉE COMPLÈTEMENT SUR UNE PRISE LUI CONVENANT.

Black triangular warning symbol with white lightning bolt and downward arrow (no text)

Black triangular warning symbol with exclamation mark (no text or numbers)

Symbolic icon of a person pushing a large box under a circle (no text or symbols)

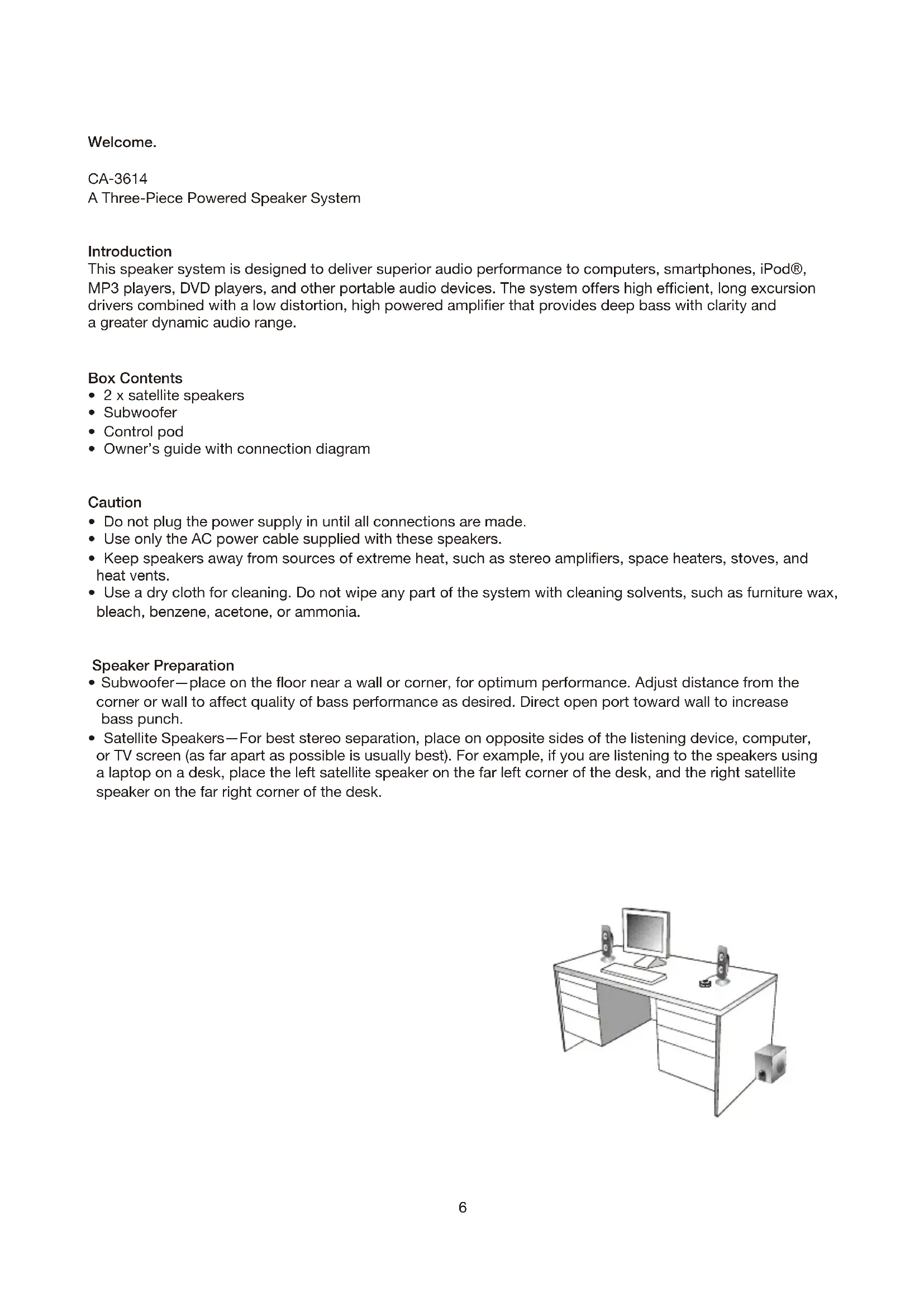

A Three-Piece Powered Speaker System

Introduction

This speaker system is designed to deliver superior audio performance to computers, smartphones, iPod®, MP3 players, DVD players, and other portable audio devices. The system offers high efficient, long excursion drivers combined with a low distortion, high powered amplifier that provides deep bass with clarity and a greater dynamic audio range.

Box Contents

• 2 x satellite speakers
• Subwoofer
• Control pod
• Owner's guide with connection diagram

Caution

• Do not plug the power supply in until all connections are made.
• Use only the AC power cable supplied with these speakers.
• Keep speakers away from sources of extreme heat, such as stereo amplifiers, space heaters, stoves, and heat vents.
• Use a dry cloth for cleaning. Do not wipe any part of the system with cleaning solvents, such as furniture wax, bleach, benzene, acetone, or ammonia.

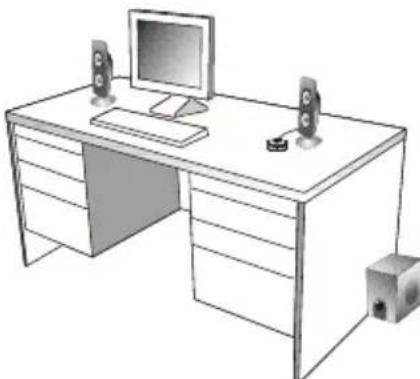

Speaker Preparation

• Subwoofer—place on the floor near a wall or corner, for optimum performance. Adjust distance from the corner or wall to affect quality of bass performance as desired. Direct open port toward wall to increase bass punch.
• Satellite Speakers—For best stereo separation, place on opposite sides of the listening device, computer, or TV screen (as far apart as possible is usually best). For example, if you are listening to the speakers using a laptop on a desk, place the left satellite speaker on the far left corner of the desk, and the right satellite speaker on the far right corner of the desk.

Line drawing of a desktop computer with monitor, speaker units, and keyboard (no text or symbols)

Speaker Connection

You can connect these speakers to a variety of devices, such as laptop, computer, smartphone, iPod, MP3 player, CD player, DVD player, and other audio devices. Please read the following instructions along with the diagrams provided to identify which diagram most closely matches your connection source.

Desktop computer

• Take the cable with the green plug and plug it into the green output/source jack in the back or front of the computer (also referred to as the sound/audio out jack).
- Connect the gray plug to the "To Speaker" jack on the back of the subwoofer.
• Take the AC power cord and plug it into a wall socket or power strip.

Smartphone, iPod, MP3 player, DVD Player, or CD player

• Take the cable with the green plug and plug it into the green output/source jack of the audio device.
- Connect the gray plug to the "To Speaker" jack on the back of the subwoofer.
• Take the AC power cord and plug it into a wall socket or power strip.

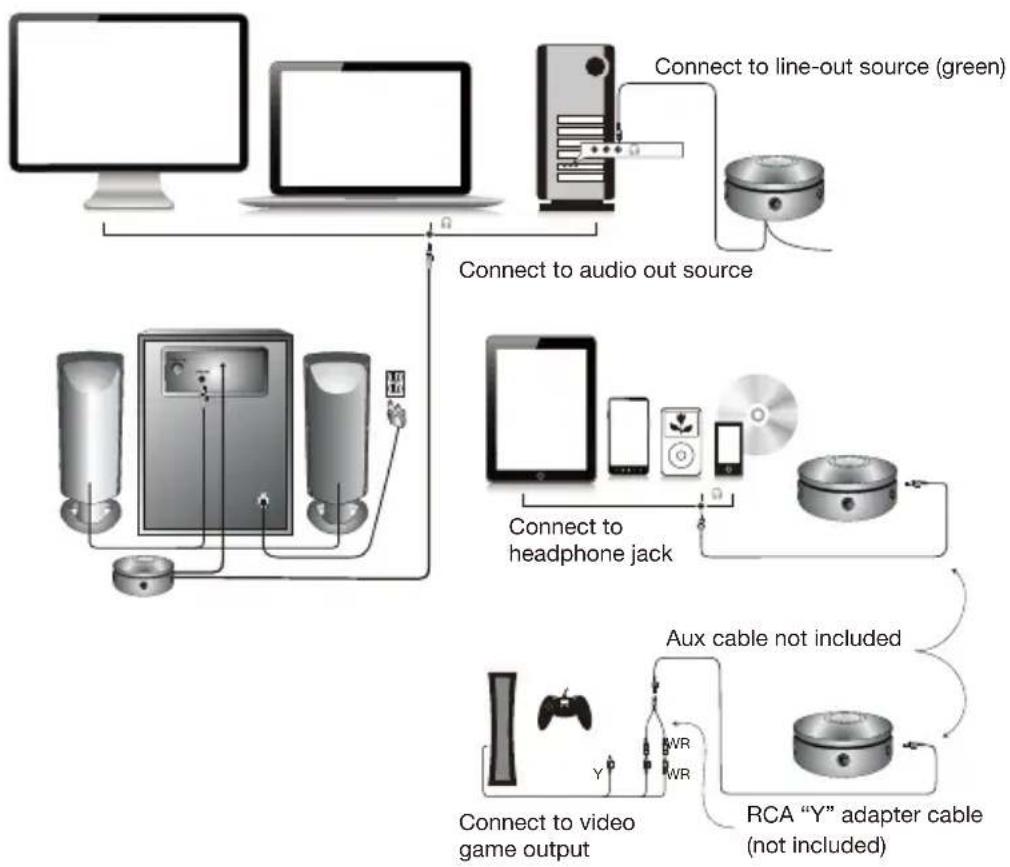

Gaming system

• In order to connect these speakers to a game console, you will need a console gaming adapter, also known as a "Y adapter", which has dual-RCA outputs and is sold separately.
• Turn off the power to your gaming system.
  • Take the red and white dual-RCA connections on the Y adapter, and plug them into the matching red and white RCA jacks on your gaming system.
  • Take the green stereo jack at the other end of the Y adapter, and plug that into the control pod cable with the green plug.
• Connect the gray plug to the "To Speaker" jack on the back of the subwoofer.


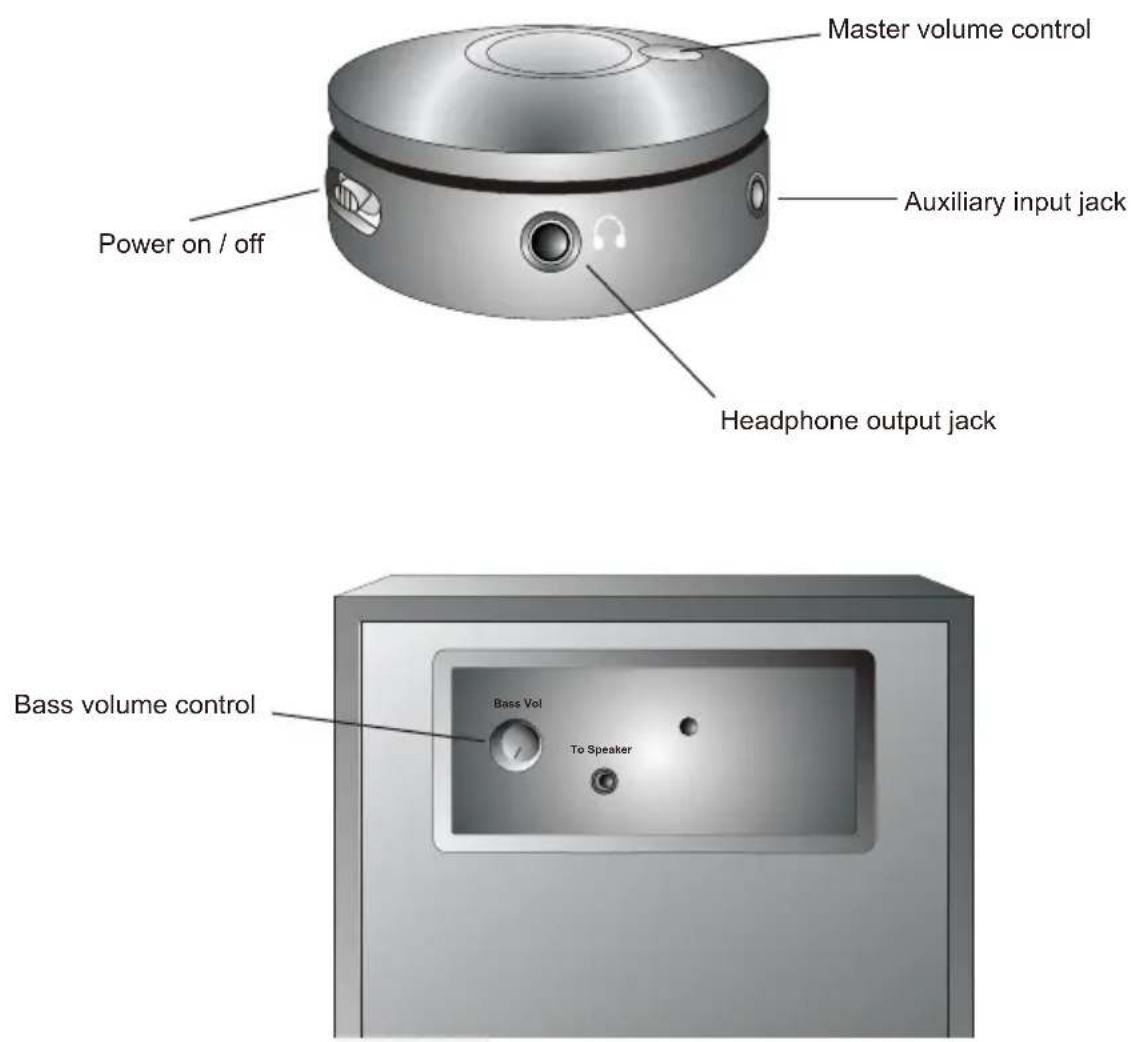

Controls and Features

• Power—the on/off button is on the side of the control pod. Slide to turn the speaker on or off.
• Master Volume Control—this volume is on the top of the control pod and is indicated by the words "MAX" and "MIN." Rotate clockwise to turn the volume up, and counter-clockwise to turn the volume down.
• Bass Volume Control – this control is on the subwoofer jack panel and is indicated by the word “Bass Vol”. Rotate clockwise to turn volume up or counter-clockwise to turn volume down.
• Headphone Output Jack—connect your headphones to this jack and they will mute the speaker system automatically. The master volume can then be used to turn the volume up or down to your headphones.
• Auxiliary Input Connection—the auxiliary input jack allows the connection of a second audio source. For example, if your speakers are connected to your computer, you would still be able to plug in an iPod or smartphone using the 3.5mm input jack on the side of the control pod. The connected iPod or smartphone would override your computer's audio source connection while it's plugged in.

Master volume control Auxiliary input jack Power on / off Headphone output jack Bass volume control Bass Vol To Speaker

Troubleshooting

Symptom:

Speaker system will not power on.

Solution:

• Power button is not turned on. Slide the power button back and forth and check for the blue LED indicator light to come on.
• Verify the AC power cord is plugged into the wall outlet.
• Check if the wall outlet or power strip you are using is actually getting power, i.e. not a switched outlet.

Symptom:

Speaker does not produce sound.

Solution:

• Verify the speaker is getting power. Check above steps.
  • Make sure the volume is turned up to audible listening level.
• Verify that all cables are plugged into the correct jacks.
• Many times users believe that the speakers are not working, when in fact they are having trouble with the sound source. The most common problem when connecting to a computer is that the connections are incorrect. Make sure you are connected to the audio output jack from your computer. Many times, this jack will be green. Also, make sure your media device or CD/DVD device is playing and the software volume settings are turned up and not muted.
• If you still have problems, disconnect the speaker source cable from your computer and connect to a smartphone, iPod, or anything else with a 3.5mm headphone output. If your speakers work on this other source, you know they are functioning as normal and the issue likely lies with your computer or the connections.

Symptom:

Sound is distorted.

Solution:

• Turn the volume down by 25% or 50%. If this does not work, also check the audio software volume level and decrease it if necessary.
• Adjust the computer's master volume control by balancing the volume until it's at 50% , then adjust the volume levels on the speakers.

If you have questions or need assistance with your speakers, we're here to help.

Call 360-883-0333 during the hours of 8 am to 5 pm (United States PST) or send email to [e-mail]

iPod, iPhone, iPad, and iPad mini are a trademarks of Apple, Inc.

Merci!

CA-3614

Line drawing of a desktop computer with monitor, speaker speakers, and power unit (no text or symbols)

Line drawing of a desktop computer setup with monitor, speakers, and power unit (no text or symbols)

Speaker does not produce sound.

Solución:
