USER MANUAL DW80M2020US SAMSUNG

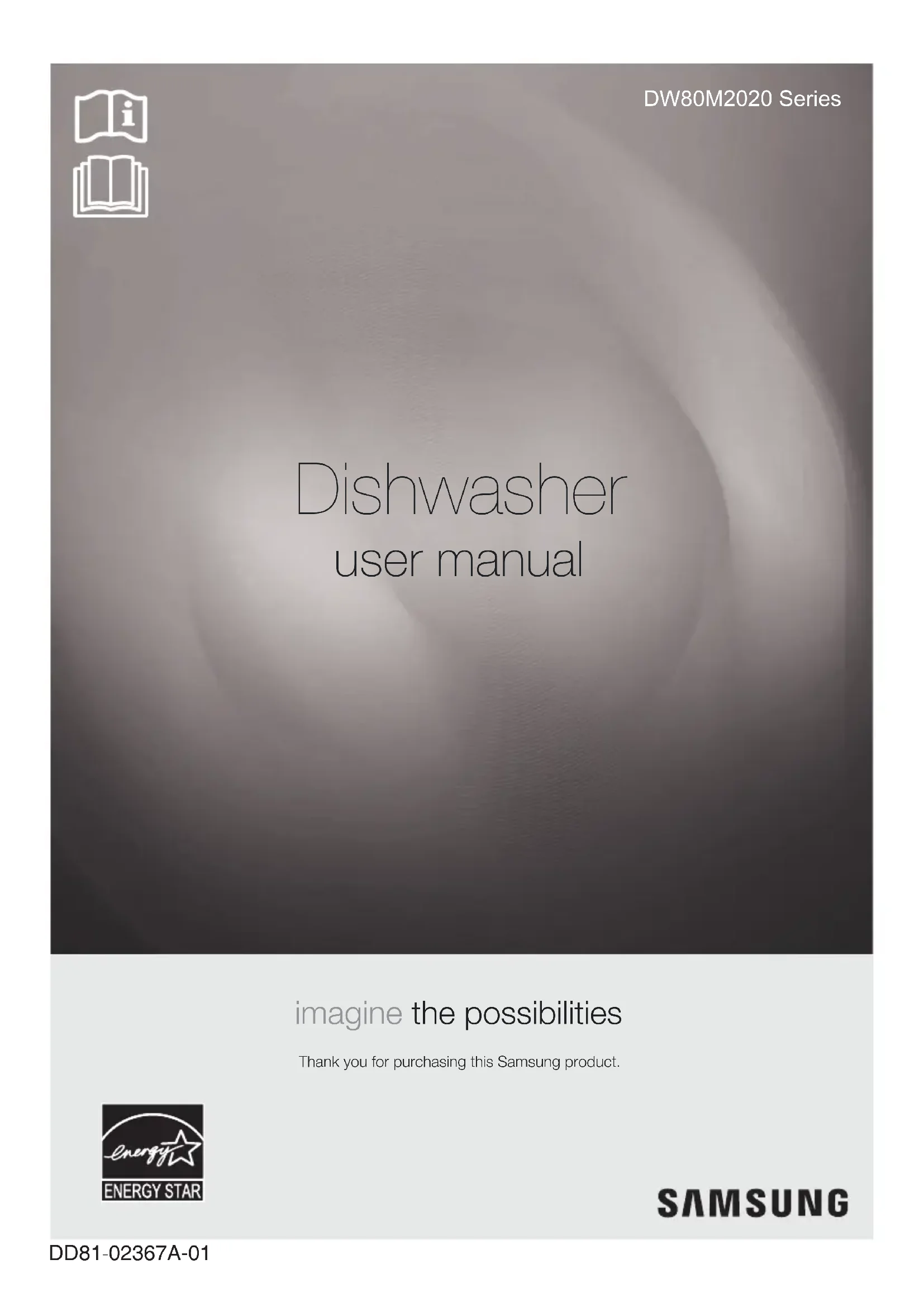

Dishwasher user manual imagine the possibilities Thank you for purchasing this Samsung product. DW80M2020 Series DD81-02367A-01English - 2 contents

SETTING UP YOUR DISHWASHER

6 Unpacking your dishwasher 6 Checking parts 7 Control panel 9 Cycle selector 10 Meeting installation requirements

USING YOUR DISHWASHER

11 Basic guidelines 14 Adjusting the height of the upper rack 14 Removing the upper rack 15 Loading the lower rack 15 Loading the upper rack 16 Using the glass support

CLEANING AND MAINTAINING YOUR

20 Cleaning the exterior 20 Cleaning the interior 20 Cleaning the filters 21 Cleaning the nozzles 21 Storing your dishwasher CYCLES

22 Cycle chart TROUBLESHOOTING

IMPORTANT SAFETY INSTRUCTIONS

What the icons and signs in this user manual mean : WARNINGHazards or unsafe practices that may result in severe personal injury or death CAUTIONHazards or unsafe practices that may result in personal injury or property damage.CAUTIONTo reduce the risk of fir e, explosion, electric shock, or personal injury when using your dishwasher, follow these basic safety precautions:Do NOT attempt.Do NOT disassemble.Do NOT touch.Follow directions explicity.Unplug the power plug from the wall socket.Make sure the machine is grounded to prevent electric shock.Call the service center for help. WARNING State of California Proposition 65 Warning (US only)This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.WARNING - When using the dishwasher, follow basic precautions, including the following:Read all instructions before using the dishwasher.As with any equipment using electricity, water, and moving parts, potential hazards exist.Use the dishwasher only for its intended function.Use only detergents or wetting agents recommended for use in a dishwasher, and keep them out of the reach of children.When loading items to be washed:- Locate sharp items so that they are not likely to damage the door seal, and- Load sharp knives with the handles up to reduce the risk of cut-type injuries.

SAVE THESE INSTRUCTIONS

WARNING01 safety information Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use, and care of your appliance. Please take time to read this manual to take full advantage of your many benefits and features. WHAT YOU NEED TO KNOW ABOUT THE SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer

dish dishwasher's .English - 4 Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations. Do not touch the HEATING ELEMENT during or immediately after use.

WARNING : When using your dishwasher, follow basic precautions, including the following:

1. Read all instructions before using the dishwasher.

2. Use the dishwasher only for its intended function.

3. Use only detergents or wetting agents recommended for use in a dishwasher and keep

them out of the reach of children.

4. When loading items to be washed:

- locate sharp items so that they are not likely to damage the door seal, and - load sharp knives with the handles up to reduce the risk of cut-type injuries.

5. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.

For plastic items not so marked, check the manufacturer’s recommendations.

6. Do not touch the HEATING ELEMENT during or immediately after use.

7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

8. Do not tamper with the controls.

9. Do not abuse, sit on, or stand on the door or on a dish rack of the dishwasher.

10. To reduce the risk of injury, do not allow children to play in or on the dishwasher.

11. Under certain conditions, hydrogen gas may be produced in a hot-water system that

has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot- water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flo w from each for several minutes. This will release any accumulated hydrogen gas. As the gas is f lammable, do not smoke or use an open flame d uring this time.

12. Remove the door to the washing compartment when removing an old dishwasher from

service or discarding it. After unpacking the dishwasher, keep the packaging out of the reach of children. The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by yourself. Two or more people are needed to move a dishwasher and avoid potential injuries. Do not install the dishwasher near electrical components. Keep the dishwasher away from open f lames. Install and level your dishwasher on an uncarpete Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See page 10 for more information on grounding your dishwasher. Connect the ground wire to the green ground connector in the terminal box. After the dishwasher is installed, check that the drain hose is properly connected and that there is no leakage from the hose connectors. If the drain hose is loose, it may cause property damage. The water supply line is susceptible to breakage. As time goes by, it becomes less f lexible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it immediately. WARNING safety information

SAVE THESE INSTRUCTIONS

01 safety information Do not touch the VENT ELEMENT during or immediately after use. floor that can support its weight.

WARNINGEnglish - 5 To safely operate this appliance, familiarize yourself with its operations and exercise care when using it.Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.Disconnect the power cable (or set the circuit breaker to off) before servicing your dishwasher.Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs and modific ations must be performed by authorized service technicians only. Work done by an unauthorized person may void your warranty.Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals cannot get trapped inside.If the dishwasher is left unused for an extended period of time, turn off the water supply.This dishwasher is intended for residential use only.

BEFORE USING YOUR DISHWASHER

WARNING Tip-Over Hazard- Do not use the dishwasher until it is correctly installed.Electric Shock HazardFailure to follow these instructions can result in death, f ire, or electric shock:- Electrically ground the dishwasher- Connect the ground wire to the green ground connector in the junction box.- Do not use an extension cord.

SAVE THESE INSTRUCTIONS

01 safety information WARNING Do not push down on the dishwasher door when it is open.o not place excessive weight on the dishwasher door when it is open. D

• English - 6 setting up your dishwasher Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you’re not at risk of injury when washing dishes.

UNPACKING YOUR DISHWASHER

Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage.If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at the number listed below.If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety. CHECKING PARTS When your dishwasher has been unpacked, make sure you’ve received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service at 1-800-SAMSUNG (726-7864)Lower rackUpper rackMiddle nozzleCutlery rackAccessory parts - User/Installation manual, Installation Kit.WARNING 02 setting up your dishwasher The floater is very important for the operation of your dishwasher.Please do not tamper with, damage, or remove the floater. .English - 7 CONTROL PANEL When you press the Power button, the entire display turns on and off, and then the light of the most recently f inished cycle lights up. When the selected cycle is complete, the dishwasher powers off automatically. Select the appropriate wash cycle depending on the soil level of your dishes. After you select a cycle, the Cycle On light for that cycle lights up. The temperature rises to 156 °F (69 °C) in the f inal rinse cycle for high temperature sanitization. If you select the Sanitize option, the “Sanitize” lamp blinks when the water temperature reaches the sanitary temperature (over 156 °F (69 °C)), and then remains illuminated until the Sanitize option ends. When you press the Power button, the “Sanitize” lamp turns off. Sanitize is not available for the Auto and Express 60 cycles. The Normal Cycle with the Sanitize option selected is NSF certified. The Sanitize feature operates in accordance with NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. 02 setting up your dishwasher

Hi-Temp Wash Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food. Hi-Temp Wash is not available for the cycle. Express 60

Heated Dry When the “Heated Dry” function is selected,the heater will work during the drying process. Control Lock allows you to lock the buttons on the control panel so children cannot accidently start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold the Heated Dry button down for three (3) seconds when power is On.

Clean Indicates that the operation is over and that your dishes are clean.

Delay Start Delay a cycle for up to 24 hours in one-hour increments. The hour displayed indicates the time at which the wash will be started. If a proble occurs during an operation,

specific LEDS blink, indicating the cause of the problem. The blinking is accompanied by a warning tone. For more information, refer to "Information Codes" on page 26.English - 8

Start To start a cycle, press the Start button before closing the door. To cancel the cycle, press and hold the Start button for 3 seconds or press the Power button to power off . You can select options (Hi-Temp Wash, Sanitize,Heated Dry) before starting a cycle. If you change the cycle after selecting an option, the original cycle is reset. To prevent the touchpad from losing response sensitivity, follow these instructions: - Touch the center of each keypad using one finger . Do not push. - Clean the touch control’s surface regularly with a soft, damp cloth. - Be careful not to touch more than one touch key pad at a time, except as directed. When you pause a cycle by opening the door, press the Start button before closing the door to continue the cycle. Push door f irmly closed within 3 seconds of pressing Start button. If the door is not closed within 3 seconds, the cycle will not start. setting up your dishwasher O O X 02 setting up your dishwasher the dishwasher the theEnglish - 9 CYCLE SELECTOR

Auto This cycle detects the level of soil and automatically initiates the optimal cycle after a few minutes of operation.

Normal Use this cycle for normally soiled dinner dishes.

Heavy Use this cycle for heavily soiled dishes and dishes with heavy soil.

Express 60 Use this cycle for lightly soiled dishes. 02 setting up your dishwasher 60English - 10

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.Never use an extension cord.When preparing for installation, ensure that you provide:An individual branch circuit with a 120 V, 60Hz, 15 AMP fuse or circuit breaker that serves only your dishwasher .Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes. GROUNDING INSTRUCTIONS For a permanently connected appliance:This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and then connected to the equipment-grounding terminal or lead on the appliance. Water supply The hot water supply line pressure must be between 20-120 psi (140-830 kPa). Adjust the water heater to deliver water between 120 F (49 ) - 149 (65 ).° °C °F °C Most plumbing supply stores sell water supply lines of various lengths up to 10 feet (305 cm) long.You can reduce the risk of leaks and water damage by: Making water faucets easily accessible. Turning off faucets when the dishwasher is not in use. Periodically checking for leaks at water supply line fittings.Before using your dishwasher for the first time, check all connections at the water supply valve and faucets for leaks. Flooring For safety, your dishwasher must be installed on a solidly constructed f loor. Never install your dishwasher on a platform or poorly supported structure.Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at www.samsung.com.CAUTIONWARNINGWARNING setting up your dishwasher 02 setting up your dishwasherEnglish - 11 using your dishwasher BASIC GUIDELINES

1. Open the door and load your dishes (see page 14).

- Place dishes into the upper and lower racks, unless you have selected Lower Rack. - Remove any food remains from the dishes before placing them in the rack(s). - After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes will interfere with them. - Make sure the dishes will not prevent the detergent dispenser from opening.

2. Add detergent to the dispenser (see page 20).

- Make sure to use only automatic dishwasher detergent and rinse aid. - Refer to “Using detergent” on page 20 for instructions explaining how to add detergent and rinse aid.

3. Press the Power button.

- When you press the Power button, the entire display turns on and off, and then the indicator of the most recently f inished cycle lights up.

Select an appropriate cleaning cycle depending on the soil level of the dishes. (See pages 9 and 24.) - Press the appropriate cycle button. - When you press a cycle button, the cycle indicator lights up.

5. Press the Start button, and then close the door within 3 seconds.

- The dishwasher will start draining after a few seconds, and then start the selected cycle. - Make sure to close the door f irmly. If the door is not closed properly, the selected cycle will not start automatically.

6. When the wash cycle is completed.

- The light illuminates and the dishwasher sounds a chime. - The dishwasher powers off automatically. - If you want to load more dishes or pause the dishwasher while it is already running, make sure to open the door slowly and carefully as there is a possibility of injury from the hot steam inside the dishwasher. - If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle. - To resume operation, press the Start button, and then close the door within 3 seconds. - Adding dishes several minutes after the dishwasher starts operating may affect its performance. - If you open the door while the dishwasher is running at high temperature, it will drain the hot water automatically to protect you from scalding. You should use rinse aids for better drying performance. You can further improve drying performance by also selecting the Sanitize option. CAUTION 03 using your dishwasherEnglish - 12 Touch controls Touch controls allow you to operate the dishwasher easily. hey:Have a simple and stylish design.Are easy to clean.If you have children or you want to clean the Control Interface, we recommend activating the Control Lock feature to lock the control buttons. See page 7.- Children will not be able to accidently start the dishwasher by touching the controls with this option selected. - If a cycle is running, the buttons will not respond. (except the P ower button) - If dishwasher is off, only the P ower button responds. using your dishwasher Delay start When you select the Delay Start option, your dishwasher will:Start draining to remove remaining water at once (pre-drain).Your dishwasher will operate the selected cycle when the delay time expires. When using the dishwasher, try to arrange the dishes properly as described on page 14 to 16. You should remove food remains such as bones, fruit seeds, etc. and any other waste such as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise, or cause the dishwasher to malfunction.Select the appropriate cycle depending on the level of soil and the type of dishes.Use only the proper amount of detergent and rinsing agent. Do not wash the following items in your dishwasher Acrylic or Aluminum items: Dishes with printed gold rim decoration may become discolored.Dishes treated with adhesive: Treated plastics, wood, ivory, copper, and tin may come loose. Plastics with a temperature tolerance less than 194 (90 ):°F °C Thin plastics wash and dry poorly, and may be damaged due to elevated wash temperatures.Tin: Tin items should be washed by hand and dried immediately as may rust.Wooden utensils: Wooden items may crack.WARNINGWARNING 03 using your dishwasher Do not touch the VENT ELEMENT during or immediately after use.

they Are convenient to operate, requiring only a soft touch.English - 13 ADJUSTING THE HEIGHT OF THE UPPER RACK You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. With the upper rack set at the highest position, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to 8 in. (20 cm) in diameter.

We recommend adjusting the height of the upper rack before loading dishes into the rack. If you adjust the rack after loading the dishes, you may damage the dishes.

REMOVING THE UPPER RACK

Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below. While the upper rack is removable, it must be installed for the dishwasher to operate properly. If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly. Step 1. Step 2. Step 3. CAUTIONCAUTION 03 using your dishwasher Lower positionUpper positionTo lower the upper rack by 2 in. (5 cm), remove the upper rack as shown in Removing the Upper Rac w. Thenreinsert the ck so that the upper four wheels on each side ar

on either side of guide rail. See th ower position illustration to the rightTo lower the upper rack by 2 in. (5 cm), remove the upper rack as shown in Removing the Upper Rack w. Then,reinsert the rack so that the upper four wheels on each side of the rack are above are on either side of guide rail. See th wer position illustration to the right To raise the upper rack, remove the upper rack as shown i Upper Rack hen reinsert the rack so that the lower three wheels on each sid guide rail. Se illustration to the right. To raise the upper rack, remove the upper rack as shown i Upper Rack hen

einsert the rack so that the lower three wheels on each side of the rack are above and guide rail. Se illustration to the right.

and below the RemovinRemoving below theEnglish - 14

LOADING THE LOWER RACK

The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates. Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack. See the recommended loading patterns below. 10 place setting using your dishwasher 12 place setting

LOADING THE UPPER RACK

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the illustrations below. Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.) When loading dishes, pull the upper rack out suf iciently so you can load it without striking the counter above. 10 place setting 12 place setting 03 using your dishwasher SaucerEnglish - 15

USING THE GLASS SUPPORT

You can load cups or glasses onto the glass support. This is also very convenient for washing wine glasses. Hang your wine glasses onto the pegs of the glass support. You can fold the glass support back when it is not being used. cup support 03 using your dishwasher glass supportEnglish - 16

USING THE CUTLERY RACK

You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration.You can use the cutlery rack with the cover open. Refer to the illustration to the right.10 place setting12 place settingThe spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below.DO NOT let any item extend through the bottom.

03 using your dishwasherusing your dishwasher English - 17 USING DETERGENT All dishwasher cycles require detergent in the detergent compartment.Add the correct amount of detergent for the selected cycle to ensure the best performance.Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher’s performance or cause it to malfunction.Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed dishwasher detergent or inhaled the fumes, seek medical attention immediately.Keep dishwasher detergent out of the reach of children. Filling the detergent dispenser 1. Open the detergent dispenser c ap by pushing the detergent dispenser release catch. The f lap is always open at the end of a dishwashing cycle.2. Add the recommended amount of detergent to the main wash detergent compartment. 3. Close the f lap by sliding it to the and then pressing it down.4. For better cleaning result, especially if you have very dirt items, pour a small amount (about 15 g) of detergent The additional detergent will activate during the pre-wash phase.CAUTIONWARNINGWARNINGonto the door. 03 using your dishwasher downEnglish - 18 03 using your dishwasher The cover opens automatically to dispense the detergent during the wash. CYCLEAMOUNT OF DETERGENTMain wash dispenser Onto the door for pre-washAuto, Normal 20 g 10 gHeavy, Express 60 30 g 15 g The numbers inside the dispenser refer to grams. Filling the rinse aid reservoir Your dishwasher has been designed to use liquid rinse aid only. Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to Rinse aid improves the drying performance of the dishwasher. Do not add regular detergent to the rinse aid reservoir.

Use the viewing port when fil ling the rinse aid reservoir. Do not f ill the reservoir above the full level indicator. Excess rinse aid can over flo w during the wash cycle.

CAUTIONCAUTION malfunction. View the amount of rinse aid in the reservoir through the clear viewing port. Stop adding when the reservoir reaches the full level. Open the rinse aid reservoir cap.English - 19 cleaning and maintaining your dishwasher Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life.

CLEANING THE EXTERIOR

It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by sprinkling water over it and avoid letting water come into contact with any of the electrical parts.If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for Home Appliances or a similar product using a clean, soft cloth.

CLEANING THE INTERIOR

Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of the dishwasher and the inner part of the door with a wet dishcloth. We recommend f illing the detergent dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal or Express 60 cycle with the sanitize option. This will keep your dishwasher clean.If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty and without detergent until it f lushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into the lower basket. Close the dishwasher and let the cycle f inish.Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher).

CLEANING THE FILTERS

1. Turn off the dishwasher.2. Rotate the f ilter insert counterclockwise to unfasten and then detach the f ilter insert.3. Remove the f ine f ilter (f lat, rectangular).CAUTIONDo not touch the HEATING ELEMENT during or immediately after use. 04 cleaning and maintainingEnglish - 20

4. Remove any dirt or other remains from the fil ter, and then rinse

under running water.

5. Reassemble the f ilter in the reverse order of the dissasembly, re-insert

the f ilter insert, and then rotate clockwise as shown until close . If the fil ter insert is not closed properly, its performance will be decreased.

CLEANING THE NOZZLES

If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break. Lower nozzle

1. Check whether the nozzle holes are

clogged by food particles.

2. If cleaning is needed, remove the nozzle by

3. Clean the nozzle, and then push it back

4. Check whether the nozzle is engaged

correctly by rotating it by hand. CAUTION 04 cleaning and maintaining

dEnglish - 21 Middle nozzle 1. Pull the upper rack towards the front and remove it.2. Check whether the nozzle holes are clogged by food particles.3. If cleaning is needed, remove the nozzle.4. To remove the nozzle, unfasten and remove the nut, and then remove the nozzle.5. Clean the nozzle, re-insert it, and fasten the nut.6. When fastening the nut, turn it fir mly by hand.7. Check whether the nozzle is engaged correctly by rotating it by hand. Upper nozzle 1. Check whether the nozzle holes are clogged by food particles.2. If cleaning is needed, remove the nozzle.3. To remove the nozzle, pull out the upper rack f irst, unfasten the nozzle cap by turning it counterclockwise, and then remove the upper nozzle.4. Clean the nozzle, re-insert it, and then fasten the nozzle cap to the nozzle by turning the cap clockwise.5. Check whether the nozzle is engaged correctly by rotating it by hand.

STORING YOUR DISHWASHER

If you need to store your dishwasher for an extended period of time, fir st drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher.After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker. cleaning and maintaining your dishwasher

Cap nozzle 04 cleaning and maintainingEnglish - 22 cycles CYCLE CHART 05 cycles 05 cycles When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level of the dishes. The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water. When you select any options, the cycle time can be changed. Cycle Pre- wash1 Pre- wash2Main wash Rinse1Rinse Last Rinse [Sanitize] Dry Water [gal(l)]CycleTime (min) Auto 110-135Normal 3-6 (11.4-22.5)105-140108-118 °F(42-48 )°C122-136°F(50-58 )°C[156 (69 )]°F °CHeavy6 (22.5)118 (48 )°F °C136 (58 )°F °C[156 (69 )]°F °CExpress 104 (40 )°F °C122 (50 )°F °C ( : Basic, : Optional step) (15.1) 118-135 °F(48-57 )°C122-136°F(50-58 )°CTime with (min)HI-tempTime with (min)Sanitize 3-6 (11.4-22.5)

CHECK THESE POINTS IF YOUR DISHWASHER…

PROBLEM POSSIBLE CAUSE SOLUTION

Will not start. The door is not closed completely. Check if the door is latched and closed completely. No cycle is selected. Select a proper cycle. The power cable is not connected. Connect the power cable properly. The Control Panel is locked. Unlock the child lock A circuit breaker is open. Reset the circuit breaker. It’s taking too long with an operation or cycle. Cold water is being supplied. Check if the water supply line is connected to a hot water supply. (Additional time is required to heat cold water.) There are food particles remaining on dishes. (Not cleaning properly.) You selected an inappropriate cycle. Select a cycle according to the number and soil level of the dishes, as directed in this manual. The water temperature is low. Connect the water supply line to a hot water supply. For best performance, the temperature of the supplied water should be 120 (49 ).°F °C Low water pressure. The water pressure should be between 20 and 120 psi (140 - 830 kPa). The water is too hard. Use high-quality, fresh detergent with rinse aid. Dishwasher detergent was not used. Use automatic dishwasher detergent. We recommend a powder or gel type dishwasher detergent. Detergent remains in the dispenser. Make sure large items such as cookie sheets, cutting boards, or contaners, etc. are not blocking the detergent dispenser and preventing it from opening properly. Rearrange the dishes so they do not interfere with detergent dispenser operation. There is no rinse aid. Check the dispenser and add rinse aid. Use liquid type rinse aid. A nozzle is clogged. Clean the nozzle ee page 20. The dishes are improperly loaded. Too many dishes have been loaded. Rearrange the dishes so they do not interfere with nozzle rotation and detergent dispenser operation. Load only an appropriate number of dishes. Load your dishes as recommended. (See page 14.) 06 troubleshooting . SEnglish - 24

PROBLEM POSSIBLE CAUSE SOLUTION

Leaves glasses with a dull film. The water supplied is soft and too much detergent was used. Underload the dishwasher and use a rinse aid to minimize this. Aluminum dishes were included in the wash load. Remove the marks on the dishes using a low sensitivity cleaner. Leaves a yellow or brown film on the inside of the dishwasher. This is caused by coffee and tea soils. Remove the soils using a spot cleaner. Does not dry dishes well. There is no rinse aid in the dispenser. Check the dispenser and add rinse aid. Use a liquid type rinse aid. The temperature of the water is low when the dishwasher is running. Connect the water supply line to a hot water supply. Use rinse aid with the Sanitize option. Too many dishes have been loaded. Proper loading of items can affect drying. Load your dishes as recommended. (See page 14.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when After the cycle fin ishes, empty the lower rack fir st and then the upper rack. This will prevent water from dripping from the upper rack onto the dishes in the lower rack. Has a bad odor. Water was left over from an incomplete cycle. Insert detergent without loading dishes, and run the Normal cycle to clean the dishwasher. The Drain Hose is obstructed. Contact a qualifie d service technician to remove any obstruction from the drain hose. The dishwasher is not used daily or soiled dishes are left in unit too long. With the dishwasher empty and no detergent, place a glass with 8 ounces of vinegar upright into the lower rack, and then run a Normal cycle. Is too noisy. Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage. This is normal operation. The dishwasher is not level. Ensure the dishwasher is level. Foreign material (a screw, a plastic piece) is in the pump chamber. Contact a qualif ied service technician to remove foreign material from the pump chamber. There is a ‘chopping’ sound because a nozzle is bumping against the dishes. Rearrange the dishes. troubleshooting you are unloading.English - 25

PROBLEM POSSIBLE CAUSE SOLUTION

The nozzle hole is clogged with food particles. Clean the nozzle hole. See page 20. The nozzle is blocked by a dish or pot and cannot rotate. After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes interfere with them. Water won’t pump out of the dishwasher. The drain is clogged. Contact a qualif ied service technician to remove any obstruction from the drain hose and check the drain pump operation. Has a bent upper rack after loading dishes. The dishes are not loaded properly. Load your dishes as recommended. (See page 14.) 06 troubleshooting A nozzle does not rotate smoothly.English - 26 INFORMATION CODES The Control Panel displays information codes to help you understand what is occurring with your dishwasher. For any codes not listed above, call 1-800-SAMSUNG (726-7864) troubleshooting If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.WARNINGHigh-water level Not reaching requiredtemperature If your dishwasher has a problem, the CODE SYMBOL lights blink as shown below.

Possible e water tap isn't opened. e pressure switch is broken. he wash pump sn't work . the Main PBA .e high water switch econds.e eater is broken. he emperature detected by the mistor is wrong.

T ingThere is a problem with Th was activated 5 stimes for 5 The high water switch was on continuously for 120 seconds.

T t There is a problem with the Main PBA.The heater was on continuously for 60 minutes, but the water did not heat up to the required temperature. There is a problem with the Main PBA. The leakage switch was activated for 2 seconds.There is a problem with the Main PBA.The thermistor suffered an open-circuit failure.There is a problem with the Main PBA.The thermistor suffered a short circuit failure.There is a problem with the Main PBA.A touch key was operated abnormally or operated abnormally.Example: A key was pressed for more than 30 seconds.There is a problem with the Sub PBA.A touch key was operated abnormally or operated abnormally.Example: A key was pressed for more than 30 secondsThere is a problem with the Main PBA.There is a problem with the Sub PBA.Thermistor open-circuit failureThermistor short-circuit failureAbnormal operation of touch key-pressAbnormal signal If an overflow occurs, turn off the main water supply before calling ther fo r service. Water leakageEnglish - 27 appendix

HELPING THE ENVIRONMENT

Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be connected to a power source.Remove the door so that animals and small children cannot get trapped inside the appliance.Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions. SPECIFICATIONS Model DW80M2020USType Built-in Dishwasher Wash capacity 14 place settingsPower120 V, 60 Hz only Used water pressure20 - 120 psi(140 - 830 kPa)Rated power uasgeWash Motor 50 W Heater 840 WDimensions(Width × Depth × Height)WeightUnpacked64 lb (29 kg) 07 appendix [604 x 625 (Excluding Handle) x 858mm] (DW80M2020 Series) 23 ¾ x 24 ⁄ in.

This SAMSUNG brand product, as supplied and distributed by USA: SAMSUNG ELECTRONICS AMERICA, INC./CANADA: SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specif ied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior f inish; accidents, abuse, neglect, f ire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, f uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or f ixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. One (1) Year Parts and Labor. This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States/Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States/Canada. In home service is not available in all areas.English - 29 EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specif ic rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact SAMSUNG at: In USA Samsung Electronics America, Inc. 85 Challenger Road 1-800-SAMSUNG (726-7864) www.samsung.com/us/support In CANADA Samsung Electronics Canada Inc. 2050 Derry Road West 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) ield Park, NJ 07660Ridge Mississauga, Ontario L5N 0B9 Canada fmemomemoU.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) bit.ly/samsungdishwashers
