Brand	Candy
Model	CAS10 011
Product type	Cordless handstick and canister vacuum
Power supply	Rechargeable Lithium-ion battery, 230 V charger (240 V GB)
Charging time	Approximately 6 hours
Charge indicator	Red light while charging, blue when fully charged
Runtime	Not specified (depends on usage)
Operating modes	Temporary mode (on/off) and continuous mode (switch)
Dust bin capacity	Not specified (max fill mark)
Filtration system	Mesh filter, cyclone separator, washable exhaust filter
Included accessories	Storage station, electric brush, tube, crevice nozzle, flat nozzle, 2in1 upholstery brush, 2in1 long rotating brush, mini turbo brush, flexible crevice tool, top tool, radiator tool, detail cleaning brush, accessory adapter, accessory bag (depending on model)
Maintenance	Empty bin after each use; wash bin, filters and separator with warm water (dry 24h); clean rotating brush
Safety	Obstruction protection: automatic agitator stop, red flashing light; do not use on wet surfaces or burning objects
Weight	Approximately 3 kg (estimate)
Dimensions	Not specified
Electrical compatibility	Double insulation, mains voltage 230 V
Spare parts and repairability	Replaceable battery, interchangeable rotating brush, Candy replacement filters; repairs by authorized service
Warranty	According to country conditions, invoice required

Frequently Asked Questions - CAS10 011 CANDY

How to charge the Candy CAS10 011 vacuum for the first time?

Before first use, charge the appliance for at least 6 hours. Plug the charger into a suitable outlet and connect the jack plug to the appliance. The light turns red during charging and blue when fully charged.

What to do if the vacuum does not turn on?

Check that the appliance is charged. If the problem persists, contact Candy customer service.

How to empty the dust bin?

Press the accessory release button to remove the tube. Press the dust bin emptying button to open the flap and empty the contents. Close until it clicks.

How to clean the vacuum filters?

Wash the mesh filter, cyclone separator and exhaust filter with warm water. Let dry completely for 24 hours before reassembling. Do not use hot water or detergents.

The agitator does not rotate, what to do?

Check if there is an obstruction in the agitator. Clear it, make sure continuous mode is off, then press the on/off button to restart.

How to use the continuous mode?

To activate continuous mode, pull out the stop/start switch and it will engage. To deactivate, push the switch forward. After each use, return it to the unlocked position to preserve the battery.

Can I use the vacuum on wet surfaces?

No, never use the appliance outdoors, on a wet surface, or for wet pick-up. This could damage the appliance and pose an electrical hazard.

How to replace the rotating brush?

Turn off the appliance. Remove the electric brush from the tube. Slide the brush release button forward to remove it. Clean or replace it. Place it back and release the button to lock.

How to replace the battery?

Completely discharge the vacuum, unplug the charger. Pull the battery pack release button, remove it slowly. Replace with an approved Candy battery. Used batteries must be recycled.

What to do if the vacuum stops and the light flashes red?

This indicates an obstruction in the agitator. Turn off the appliance, clear the obstruction, then press on/off to restart normally.

USER MANUAL CAS10 011 CANDY

UPUTSTVO ZA UPOTREBU (SRB)......P 36

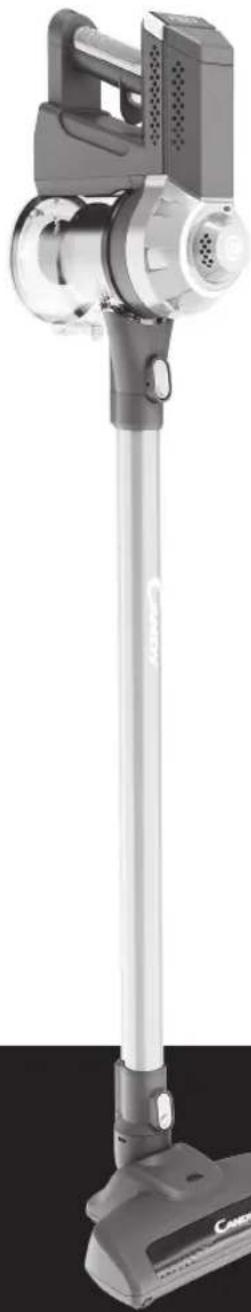

Exterior view of a modern vacuum cleaner (no visible text or symbols)

3PCS K* A* B* J* I H Z* G N O M L* P Q R S AA* BB* F CC* U V T X W EE** DD** C E* D Y*

* Certain models only

Diagram showing two mechanical components connected by wires, labeled A and B, with no visible text or symbols.

Diagram of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

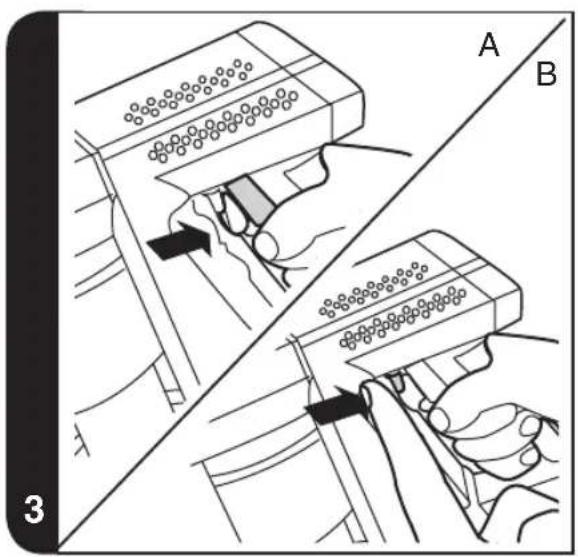

A B 3

a b 4

Illustration of various cleaning tools including a vacuum cleaner and multiple screwdrivers (no text or symbols)

Line drawing of hands using a portable blender to generate waste from a trash bin (no text or symbols)

Line drawing of a hand holding a small electric shaver device (no text or symbols)

Illustration of two hands holding a device, one with a handle and the other with a mesh grille (no text or symbols)

Line drawing of a hand holding a tool next to a mechanical device, showing assembly steps (no text or symbols)

Illustration of a hand pouring liquid into a microchip, with two separate cups below (no text or symbols)

24Hrs 11

3PCS 12

Line drawing of a hand holding a tool or device with a black clip, no text or symbols present

14 a b

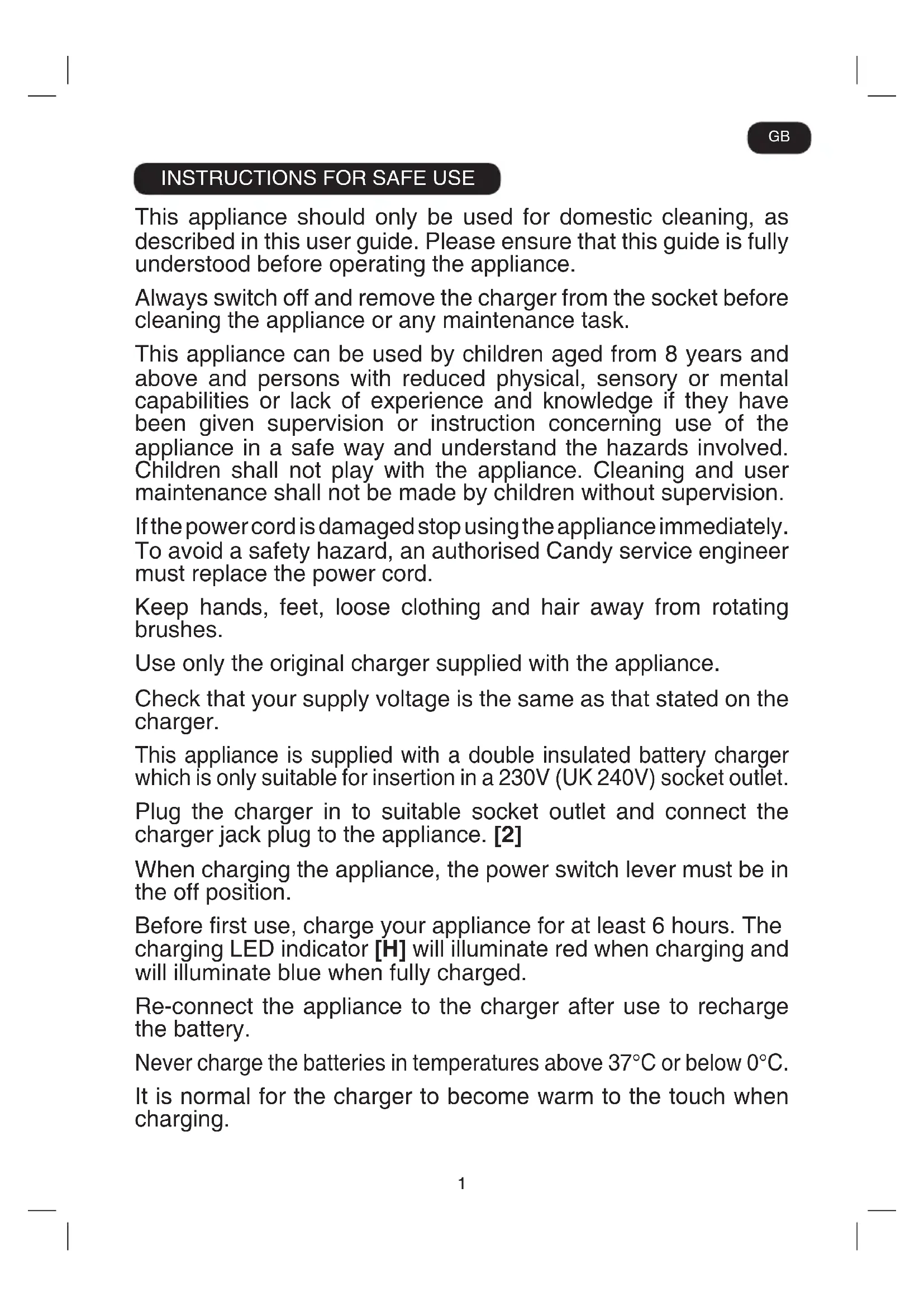

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Always switch off and remove the charger from the socket before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Candy service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only the original charger supplied with the appliance.

Check that your supply voltage is the same as that stated on the charger.

This appliance is supplied with a double insulated battery charger which is only suitable for insertion in a 230V (UK 240V) socket outlet.

Plug the charger in to suitable socket outlet and connect the charger jack plug to the appliance. [2]

When charging the appliance, the power switch lever must be in the off position.

Before first use, charge your appliance for at least 6 hours. The charging LED indicator [H] will illuminate red when charging and will illuminate blue when fully charged.

Re-connect the appliance to the charger after use to recharge the battery.

Never charge the batteries in temperatures above 37°C or below 0°C.

It is normal for the charger to become warm to the touch when charging.

Do not unplug the charger by pulling on the power cord.

Unplug the charger in the event of prolonged absence (holidays, etc.). Recharge appliance again before use as batteries may self discharge over increased periods of storage.

If the appliance is to be disposed of the batteries must first be removed. The appliance must be disconnected from the supply mains when removing the battery. Dispose of the batteries safely. Run the appliance until it stops because the batteries are fully discharged. Used batteries should be taken to a recycling station and not disposed of with household waste. To remove the batteries, please contact the Candy Customer Centre or proceed according to the following instructions.

IMPORTANT: Always fully discharge the batteries before removal.

Run the cleaner until the batteries are completely empty.

Remove the charger jack plug from the appliance.

Pull back the battery pack release button and the battery pack will be pushed out a short distance automatically. [14a]

Drag the battery pack slowly from the slot. [14b]

Note: Should you experience any difficulty in dismantling the unit or for more detailed information on treatment, recovery and recycling of this appliance, please contact your local city office or your household waste disposal service.

Use only attachments, consumables or spares recommended or supplied by Candy.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items. Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord. Do not continue to use your appliance or charger if it appears faulty.

Candy service: To ensure the continued safe and efficient operation

of this appliance we recommend that any servicing or repairs are only carried out by an authorised Candy service engineer.

Do not use the appliance to clean animals or people.

Do not replace the batteries with non-rechargeable batteries.

The Environment:

This appliance is marked according to the European directive 2011/65/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

This product complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY Hoover GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

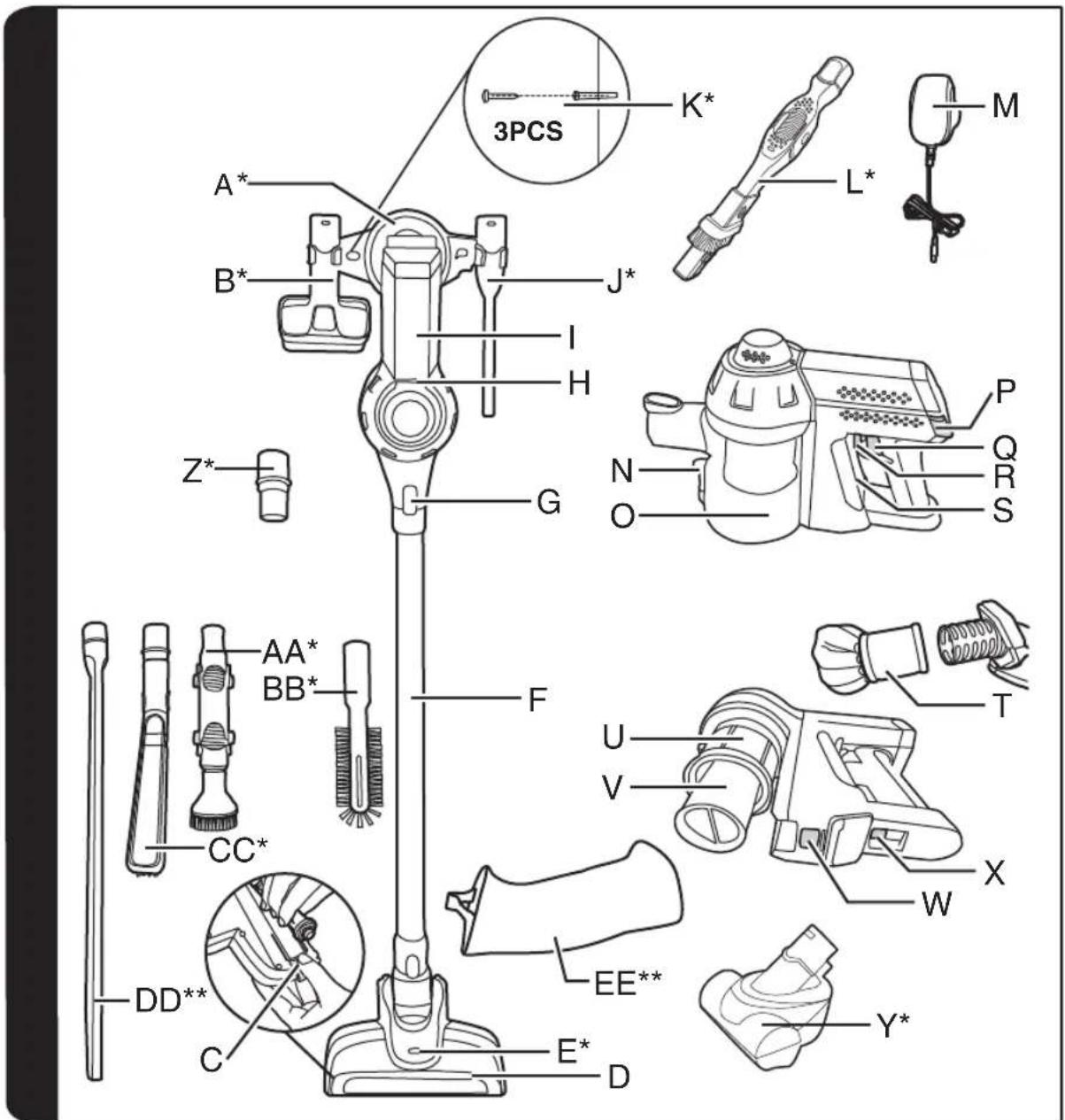

PRODUCT COMPONENTS

A. Docking Station *

B. 2In1 Dusting Brush *

C. Agitator Release Button

D. Power Nozzle

E. Nozzle Led Light *

F. Tube

G. Accessory Release Button

H. Handheld Led Light

I. Handheld Unit

J. Crevice Tool *

K. Screws Plugs *

L. Long Rotation 2 In 1 Brush *

M. Charger

N. Dust Cup Empty Button

O. Dust Cup

P. Exhaust Filter Release Button

Q. Switch On/Off

R. Switch Lever

S. Battery Pack

T. Exhaust Filter

U. Mesh Filter

V. Cyclone Separator

W. Dust Cup Release Button

X. Battery Pack Release Button

Y. Mini-turbo Nozzle *

Z. Accessory Adaptor *

AA. Up To Top Tool *

BB. Radiator Tool *

CC. Deep Cleaning Brush*

DD. Long Flexible Crevice Tool*

EE. Accessory bag*

PREPARING YOUR CLEANER

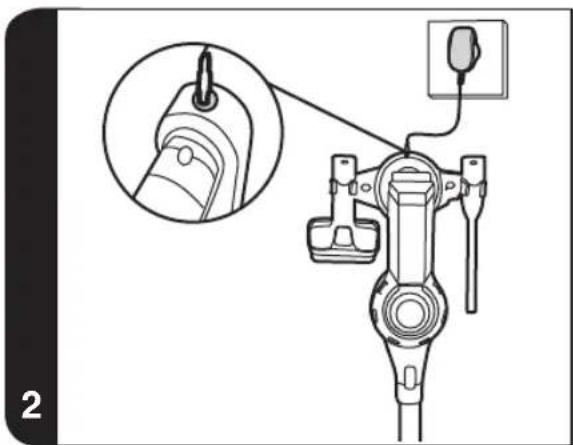

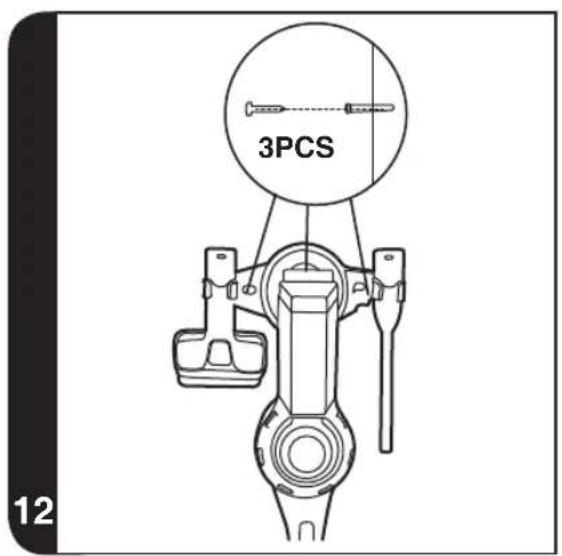

1. Fix the docking station to your wall using the screws and screw plugs provided.

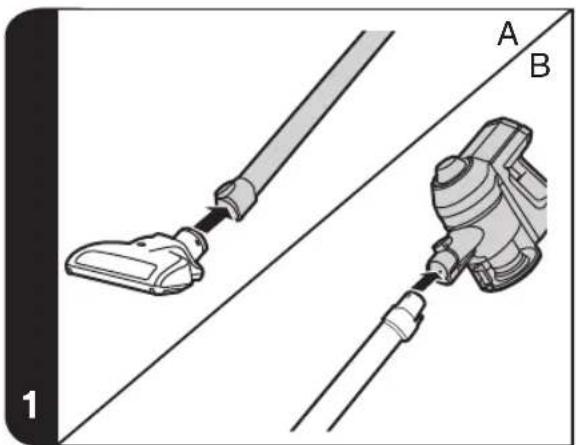

2. Insert the nozzle head into one side of tube until you hear a "click" sound. [1A]
3. Insert another side of tube into handheld unit until you hear a "click" sound. [1B]
4. To fully charge the appliance, connect the charger jack plug to the appliance. It will take around 6Hrs. [2]

NOTE: To remove the nozzle press the nozzle release button and pull away from the main body.

NOTE: Use only the charger supplied with your cleaner to recharge.

IMPORTANT: When charging the cleaner the switch lever must be in the OFF position.

It is normal for the charger to become warm to the touch when charging.

USING YOUR CLEANER

Safety protection system

To ensure the reliability of product is not affected if used under arduous conditions, the product features an integrated Safety protection system.

* Certain Models Only

NOTE: The Safety protection system will action if the agitator has a blockage or is locked. Once actioned, the agitator will stop rotating and the Blue LED on the handheld unit will turn red and begin to flash.

If this happens, simply switch off your product and clear the agitator obstruction. To resume cleaning, press the on/off button and the product will restart in normal mode.

There are two working modes:

• TEMPORARY MODE: The product will start working when you press the on/off switch and stop when released. [3A]
- CONTINUOUS MODE: To enable continuous mode you can pull switch lever back and it will click into place. To disable continuous mode you can push the switch lever forward. [3B]

Charging Indication: The handheld LED light keep red light during charging and turns into blue light when fully charged.

Discharging Indication: When the batteries are discharging, both handheld LED light and nozzle LED light are blue. Handheld LED light will blink when the battery capacity is lower than 5%.

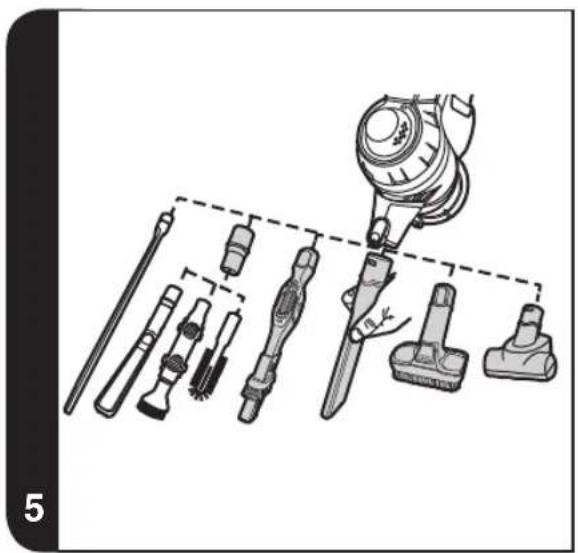

Crevice Tool / 2 in 1 Dusting Brush* / Long Rotation 2 in 1 Brush* / Mini-turbo Nozzle* / Long Flexible Crevice Tool*
You can insert the accessory directly into the air inlet of handheld unit or one side of the tube and heard a "click" sound. [5]
Only Crevice Tool and 2in1 Dusting brush can be stored on the docking station.

Accessory bag\*:

Additional accessories can be stored in the accessory bag.

NOTE: The mini-turbo nozzle is ideal for deep cleaning textile surfaces (i.e. sofas) and pet hair removal. Move it steadily backwards and forwards. After using, please remove hair / threads collected on the brush with scissors if necessary.

NOTE: The long flexible crevice tool is ideal for cleaning in hard to reach areas and underneath furniture.

Up to Top Tool\*/Radiator Tool\*/Deep Cleaning brush\*

These accessory must be assembled with accessory adaptor for using.

You can insert the accessory adaptor directly into the air inlet of handheld unit or one side of tube and heard a "click" sound.

NOTE: The up to top tool can easily clean high and hard to reach places and delicate surfaces without scratching.

NOTE: The radiator tool is ideal for cleaning inside and around cabinets, radiators, couches, blinds and more.

NOTE: The deep cleaning brush is useful to clean in tight spaces without scratching surfaces.

IMPORTANT: After each use of your product, please ensure to push the switch lever forward to the unlocked position. Failure to do so may result in a reduction in battery life or failure.

CLEANER MAINTENANCE

Emptying the Dust Container

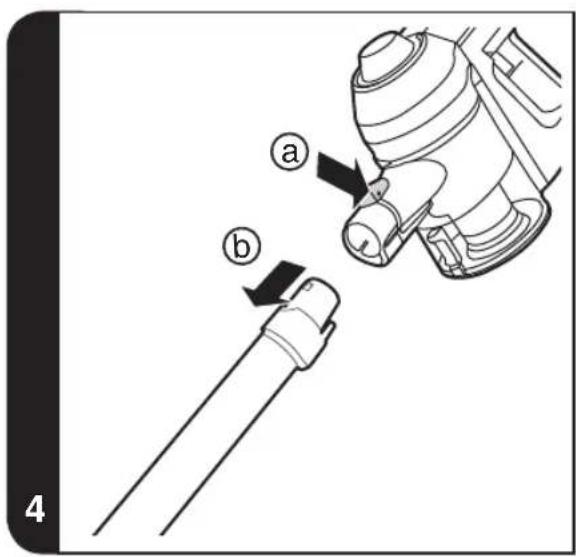

1. Press the accessory release button and remove the tube. [4]

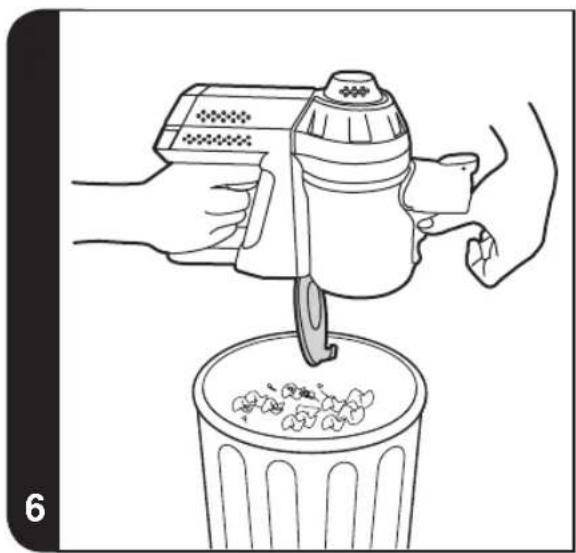

2. Push down the dust cup empty button to release the bin flap and empty the contains. [6]

3. Close the dust cup flap up, you will hear a click when fully locked.

NOTE: It is recommended to empty the dust cup after each use or when dust is up to the max fill line.

Cleaning the Dust Container and Filter

1. Press the accessory release button and remove the tube. [4]
2. Press the dust cup empty button to open the bin flap and empty it. [6]

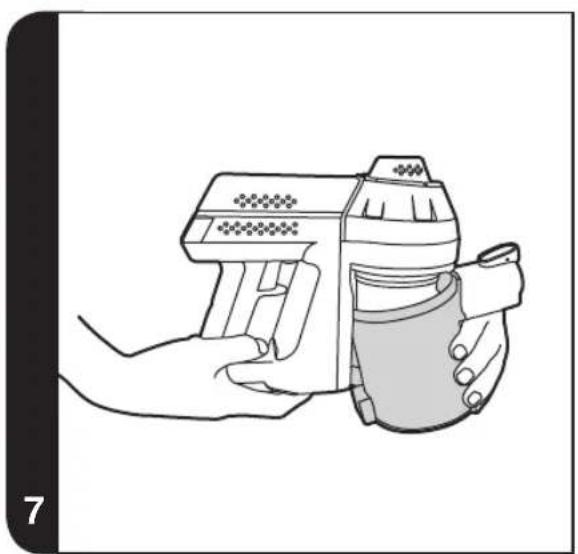

3. Press the dust cup release button and also pulling the dust cup away in an downwards and outward direction. [7]

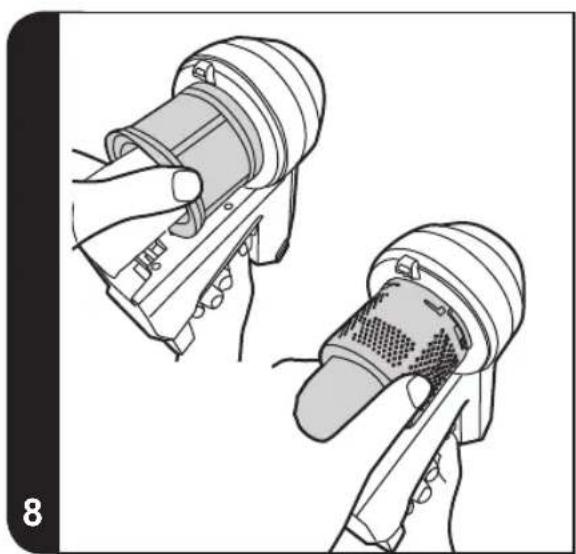

4. Turn the mesh filter to the anticlockwise direction to align the arrow mark and then it can be pulled out from the cleaner. [8]

5. Turn the cyclone separator to the anticlockwise direction, align the arrow mark and then it can be pulled out from the cleaner. [8]

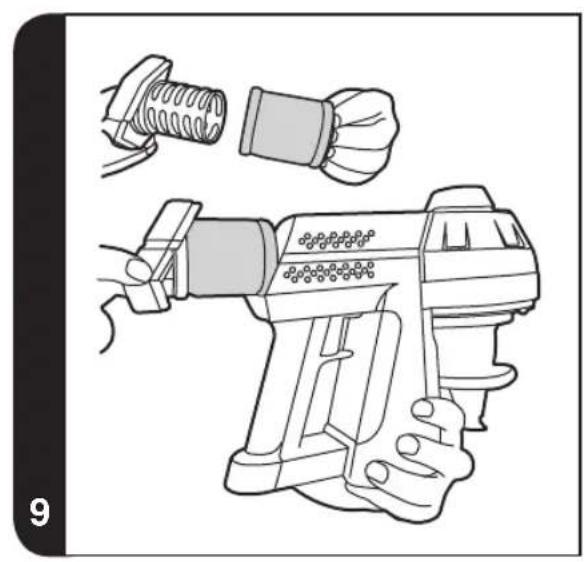

6. Press the two exhaust filter release buttons simultaneously and then remove the exhaust filter. [9]

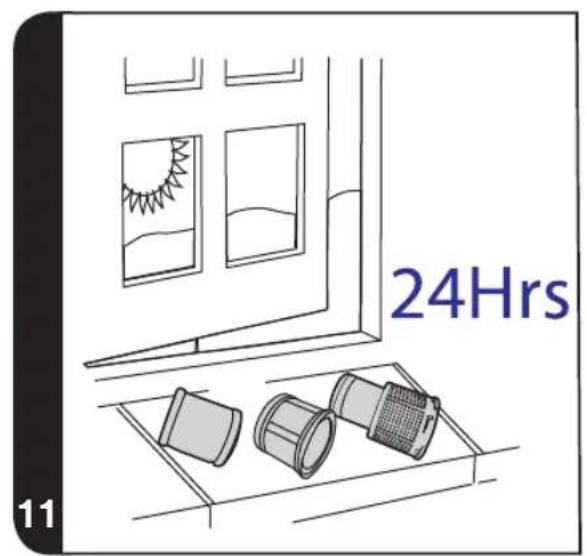

7. Wash the exhaust filter in lukewarm water and leave to dry for 24 hours. Reassemble once completely dry and refit to the product. [10] [11]

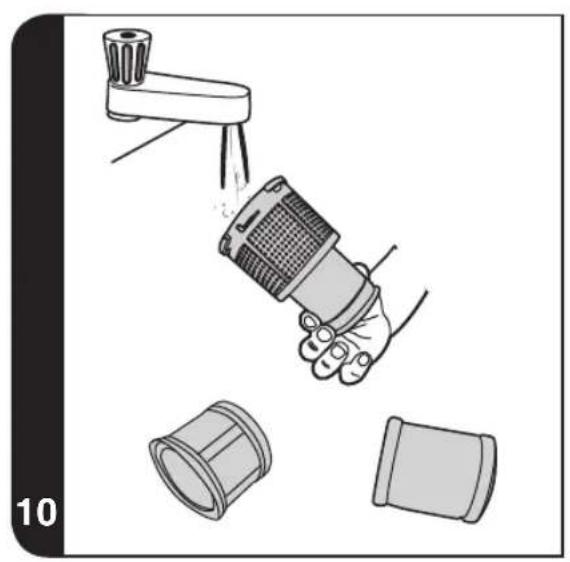

8. Wash the dust cup/mesh filter/cyclone separator in lukewarm water. Ensure it is fully dry before returning to the main body. [10]

9. Reassemble the handheld unit and then attach it to the docking station. [12]

NOTE: Do not use hot water or detergents when cleaning the exhaust filters. In the unlikely event of the exhaust filters becoming damaged, fit a genuine Candy replacement. Do not try use the product without a filter fitted.

IMPORTANT: For optimum performance, always keep your mesh filter clean. We recommend that the filter should be washed at least once a month.

* Certain Models Only

Changing and Cleaning the Agitator

IMPORTANT: Always switch off the cleaner before changing and cleaning the agitator.

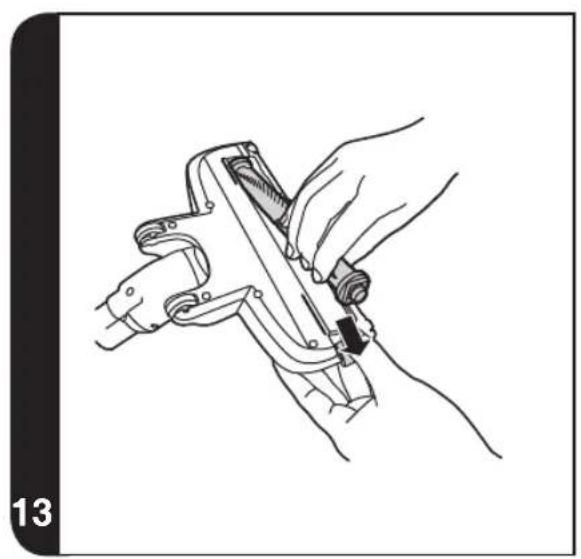

1. Remove the power nozzle from the tube and slide the agitator release button outward to remove the agitator. [13]
2. Remove all the debris from the agitator or if this is not satisfactory you can replace it.
3. When you are refitting the agitator please note it can only be fitted in the one direction. To refit slide the agitator release button outwards and locate agitator in correct position then release button, it will lock automatically.

Replacing the Batteries

This cleaner is fitted with a rechargeable Lithium ion battery pack which is replaceable.

WARNING: Only use approved replacement parts for your cleaner. Using parts not validated by Candy are dangerous and will invalidate your guarantee.

WARNING: Do not try to open the battery pack and repair it by yourself.

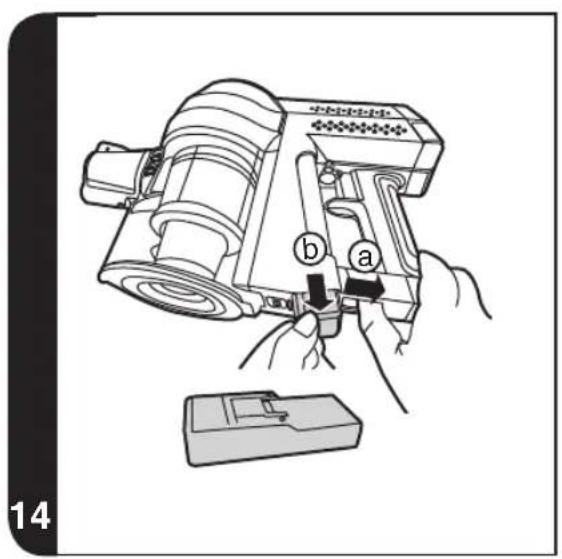

1. Pull back the battery pack release button and the battery pack will be pushed out short distance automatically. [14a]
2. Pull the battery pack slowly from the slot. [14b]
3. Remove the old battery pack and replace with the new battery pack.
4. Dispose of the batteries safely. Used batteries should be taken to a recycling station and not disposed off with household waste.

TROUBLE SHOOTING

Should you have any problem with your cleaner, follow this simple check list before calling the Candy Customer Service Centre:

A. Cleaner does not switch on.
Check if the cleaner is charged.

B. Cleaner stop working or the agitator does not rotate.

Check if there is an obstruction in the agitator, clear it and ensure the continuous mode lever is off. Once this is done simply press the on/off button, the product will restart after a few seconds.

C. Loss of suction or no suction

Empty the dust cup and wash the mesh filter and cyclone separator. Remove nozzle and check for any blockages in the duct.

D. Batteries cannot be charged.

This may be a result of very long storage periods (over half year). Contact Candy customer service to arrange battery replacement. If the problem persists contact the Candy customer service centre

Candy SPARES AND CONSUMABLES

Always replace parts with genuine Candy spares. These are available from your local Candy dealer or direct from Candy. When ordering parts always quote your model number.

YOUR GUARANTEE

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
