USER MANUAL Bass Limiter Enhancer BLE400 BEHRINGER

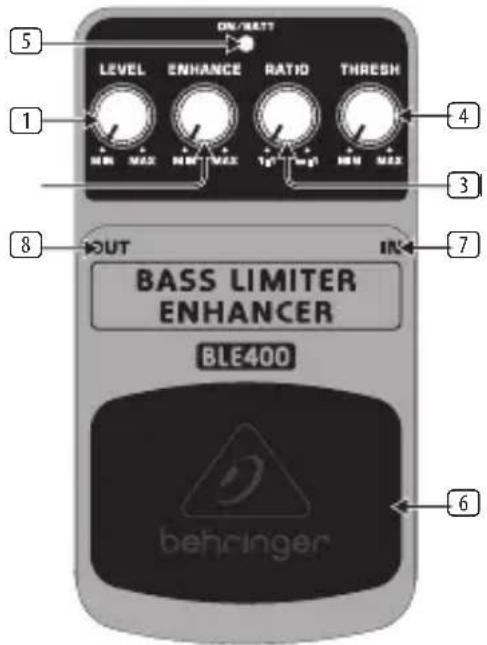

Ultimate Dynamics Eects Pedal Thank you for showing your condence in us by purchasing the Behringer BASS LIMITER ENHANCER BLE400. This ultimate eects pedal is specìcally designed to smoothen harsh volume peaks when using dynamic slaps or other playing styles. Thanks to its high-performance features you get full dynamics and tone control for absolute exibility and limitless creative options. A limiter reduces the dynamic range of a signal. This means that signal peaks will be attenuated and the level dierences between loudest and softest playing are reduced. This results in a more powerful and pressure-rich tone. The loss of high frequencies due to compression can be compensated by using an enhancer that adds high-frequency harmonics to the sound. Controls (1) The LEVEL control adjusts the output level. (2) Turn up the ENHANCE control to achieve more presence and bass clarity. (3) The RATIO control determines the amount of compression when the chosen threshold (see below) value is exceeded. (4) Use the THRESH(old) control to dè ne a level threshold. When this value is exceeded by the input signal, the BLE400 starts limiting with the chosen amount of ratio. (5) The ON/BATT LED illuminates when the eect is activated. It also serves as a battery level indicator. (6) Use the footswitch to activate/deactivate the eect. (7) Use this ¼" TS IN connector to plug in the instrument cable. (8) The ¼" TS OUT connector sends the signal to your amp. Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included). V 1.0 (5) (1) (8) (7) (4) (6)

(3)(2)2 BASS LIMITER ENHANCER BLE400

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

The BLE400 has no on/o switch. As soon as you insert the jack into the in connector, the BLE400 begins running. When not using the BLE400, remove the jack from the in connector. This extends the life of the battery. The SERIAL NUMBER is located at the bottom. Safety Instructions Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualì ed servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged. Limited Warranty For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at community.musictribe.com/pages/support#warranty. Specications

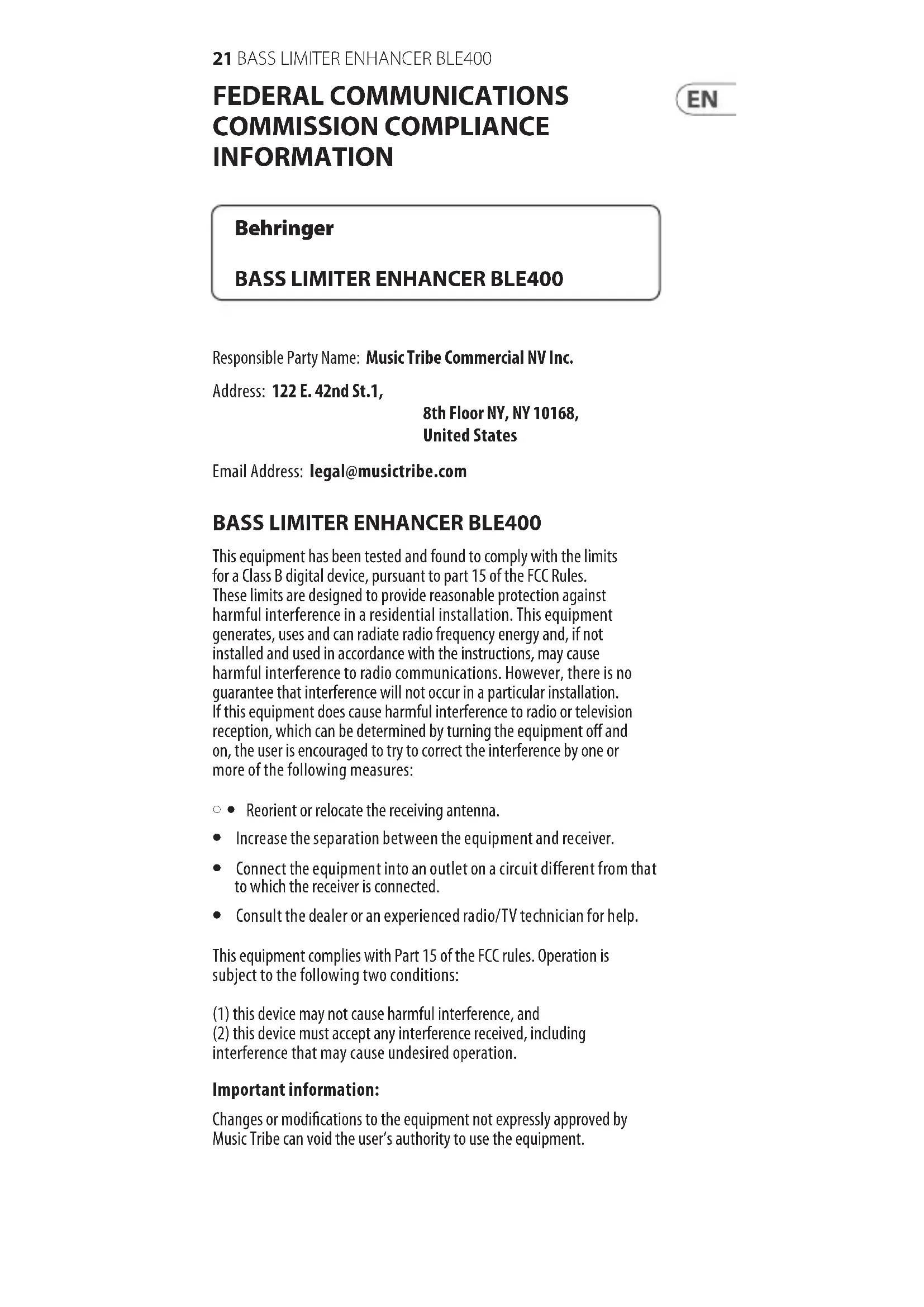

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• • Reorient or relocate the receiving antenna.

• • Increase the separation between the equipment and receiver.

• • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important information: Changes or modications to the equipment not expressly approved by Music Tribe can void the user’s authority to use the equipment.

BASS LIMITER ENHANCER BLE400

Behringer22BASS LIMITER ENHANCER BLE400 Hereby, Music Tribe declares that this product is in compliance with Directive 2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/ EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC. Full text of EU DoC is available at https://community.musictribe.com/ EU Representative: Music Tribe Brands DK A/S Address: Gammel Strand 44, DK-1202 København K, Denmark UK Representative: Music Tribe Brands UK Ltd. Address: 6 Lloyds Avenue, Unit 4CL London EC3N 3AX, United KingdomBatteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like. WARNING

• As with all small batteries, the batteries used with this product should be kept away from small children who still put things in their mouths. If they are swallowed, promptly call your local poison control center.

• Always purchase the correct size and grade of battery most suitable for intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries are installed correctly with the regard to polarity (+ and -).

• Always remove battery if consumed or if product is to be left unused for a long time.

• Replacement of a battery with an incorrect type that can defeat a safeguard! Replace only with the same or equivalent type!

• Risk of re or explosion if the battery is replaced by an incorrect type.

• Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of ammable liquid or gas; and

• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas.

• Attention should be drawn to the environmental aspects of battery disposal
