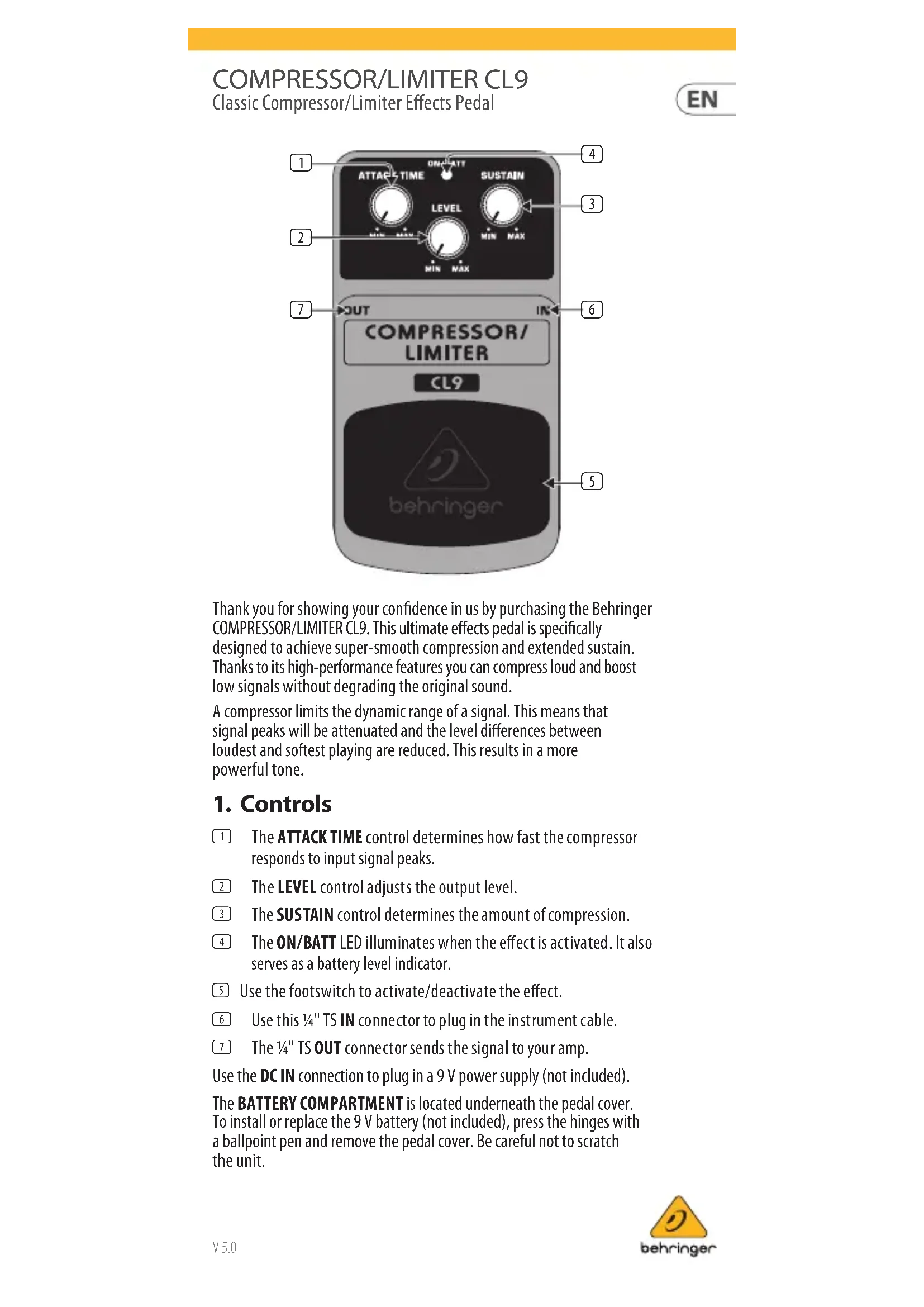

USER MANUAL CL9 CompressorLimiter BEHRINGER

Classic Compressor/Limiter Effects Pedal

Thank you for showing your confidence in us by purchasing the Behringer COMPRESSOR/LIMITER CL9. This ultimate effects pedal is specifically designed to achieve super-smooth compression and extended sustain. Thanks to its high-performance features you can compress loud and boost low signals without degrading the original sound.

A compressor limits the dynamic range of a signal. This means that signal peaks will be attenuated and the level differences between loudest and softest playing are reduced. This results in a more powerful tone.

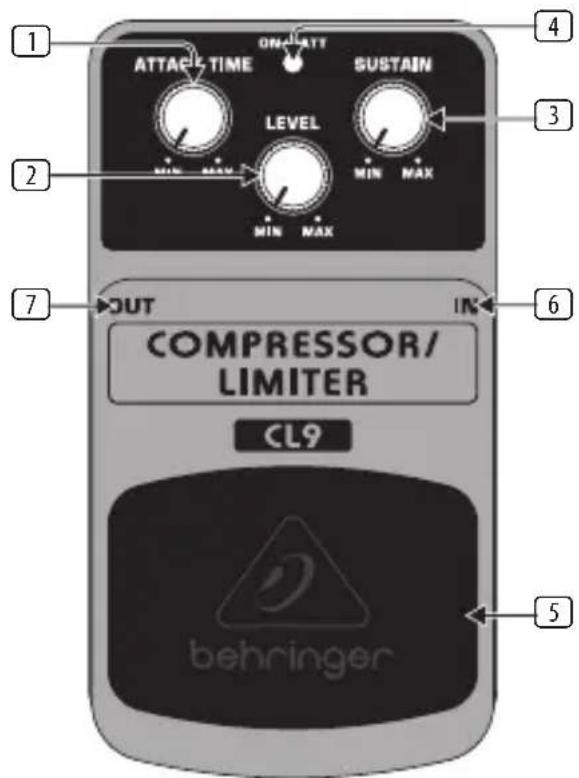

1. Controls

The ATTACK TIME control determines how fast the compressor responds to input signal peaks.
The LEVEL control adjusts the output level.
The SUSTAIN control determines the amount of compression.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
6 Use this 14 TS IN connector to plug in the instrument cable.
The 1 / 4 TSOUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to scratch the unit.

The CL9 has no on/off switch. As soon as you insert the plug into the in connector, the CL9 is on. When not in use, remove the plug from the in connector. This extends the life of the battery.

The SERIAL NUMBER is located at the underside.

2. Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

3. Warranty

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musictribe.com/pages/support#warranty.

4. Specifications

In

Connector 1/4" TS

Impedance 500 kΩ

Out

Connector 1/4" TS

Impedance 1 kΩ

Power Supply
9 V	—, 100 mA regulated
Behringer PSU-SB
USA/Canada 120 V~, 60 Hz
Europe/U.K./Australia 230 V~, 50 Hz
China 220 V~, 50 Hz
Korea 220 V~, 60 Hz
Japan 100 V~, 50/60 Hz
Power connector 2 mm DC jack, negative center
Battery 9 V type 6LR61
Power consumption 30 mA

Physical/Weight
Dimensions	approx. 2 1⁄8 x 2 3⁄4 x 4 1⁄2"
(H x W x D)	approx. 54 x 70 x 123 mm
Weight	approx. 0.73 lbs / 0.33 kg
