USER MANUAL CO CHFA 150 CANDY

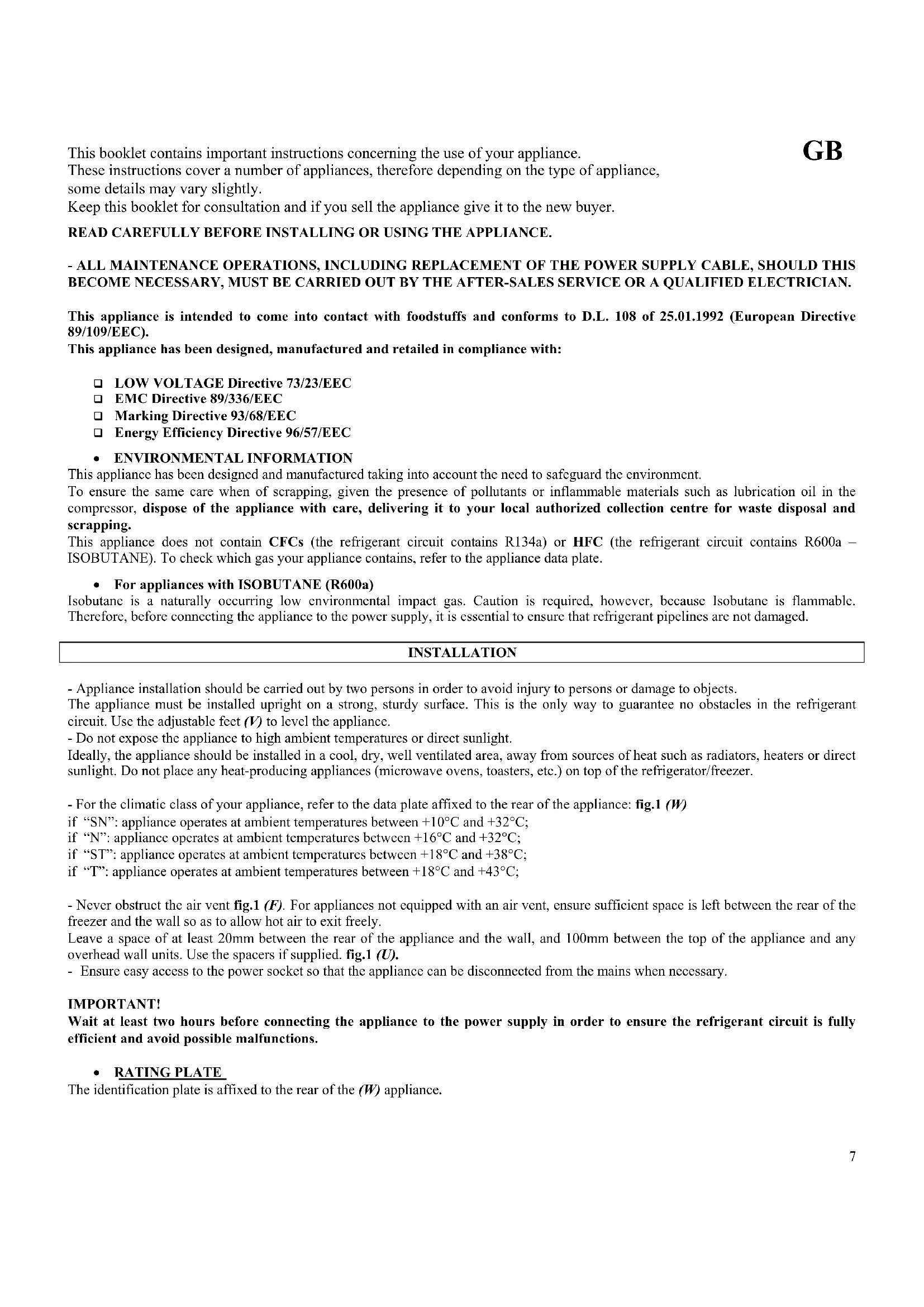

This booklet contains important instructions concerning the use of your appliance. These instructions cover a number of appliances, therefore depending on the type of appliance, some details may vary slightly. Keep this booklet for consultation and if you sell the appliance give it to the new buyer. READ CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE. - ALL MAINTENANCE OPERATIONS, INCLUDING REPLACEMENT OF THE POWER SUPPLY CABLE, SHOULD THIS BECOME NECESSARY, MUST BE CARRIED OUT BY THE AFTER-SALES SERVICE OR A QUALIFIED ELECTRICIAN. This appliance is intended to come into contact with foodstuffs and conforms to D.L. 108 of 25.01.1992 (European Directive 89/109/EEC). This appliance has been designed, manufactured and retailed in compliance with: LOW VOLTAGE Directive 73/23/EEC EMC Directive 89/336/EEC Marking Directive 93/68/EEC Energy Efficiency Directive 96/57/EEC

• ENVIRONMENTAL INFORMATION This appliance has been designed and manufactured taking into account the need to safeguard the environment. To ensure the same care when of scrapping, given the presence of pollutants or inflammable materials such as lubrication oil in the compressor, dispose of the appliance with care, delivering it to your local authorized collection centre for waste disposal and scrapping. This appliance does not contain CFCs (the refrigerant circuit contains R134a) or HFC (the refrigerant circuit contains R600a – ISOBUTANE). To check which gas your appliance contains, refer to the appliance data plate.

• For appliances with ISOBUTANE (R600a) Isobutane is a naturally occurring low environmental impact gas. Caution is required, however, because Isobutane is flammable. Therefore, before connecting the appliance to the power supply, it is essential to ensure that refrigerant pipelines are not damaged. INSTALLATION - Appliance installation should be carried out by two persons in order to avoid injury to persons or damage to objects. The appliance must be installed upright on a strong, sturdy surface. This is the only way to guarantee no obstacles in the refrigerant circuit. Use the adjustable feet (V) to level the appliance. - Do not expose the appliance to high ambient temperatures or direct sunlight. Ideally, the appliance should be installed in a cool, dry, well ventilated area, away from sources of heat such as radiators, heaters or direct sunlight. Do not place any heat-producing appliances (microwave ovens, toasters, etc.) on top of the refrigerator/freezer. - For the climatic class of your appliance, refer to the data plate affixed to the rear of the appliance: fig.1 (W) if “SN”: appliance operates at ambient temperatures between +10°C and +32°C; if “N”: appliance operates at ambient temperatures between +16°C and +32°C; if “ST”: appliance operates at ambient temperatures between +18°C and +38°C; if “T”: appliance operates at ambient temperatures between +18°C and +43°C; - Never obstruct the air vent fig.1 (F). For appliances not equipped with an air vent, ensure sufficient space is left between the rear of the freezer and the wall so as to allow hot air to exit freely. Leave a space of at least 20mm between the rear of the appliance and the wall, and 100mm between the top of the appliance and any overhead wall units. Use the spacers if supplied. fig.1 (U). - Ensure easy access to the power socket so that the appliance can be disconnected from the mains when necessary. IMPORTANT! Wait at least two hours before connecting the appliance to the power supply in order to ensure the refrigerant circuit is fully efficient and avoid possible malfunctions.

• RATING PLATE The identification plate is affixed to the rear of the (W) appliance.8 ELECTRICAL CONNECTION SAFETY WARNINGS - The appliance must be connected to the mains by means of a socket with an earth connection in accordance with current regulations. For this reason, the appliance is fitted with a plug with a suitable earth connection, to be inserted in a power socket of the same type. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe these recommendations. - Check that the voltage indicated on the appliance data plate corresponds to the supply voltage. - Do not expose the refrigerant circuit to any mechanical stress, especially the following accessible components: Rear condenser (Q)(S); Compressor (N); Capillary pipeline/Return pipeline (R); Drying filter (O); Fan (P); Any maintenance operations on the refrigeration circuit must be carried out by authorized qualified technicians only.

SWITCHING ON THE APPLIANCE

Fully unpack the appliance

Remove all polystyrene from the compressor compartment (if fitted) (M) Remove all documentation and any accessories supplied from the compressor compartment Clean the inside of the appliance with warm water and vinegar and dry thoroughly Close the appliance Insert the power plug into the mains socket

Turn the temperature regulator clockwise to MAX. fig.2 (A) The green (B) and red (C) indicator lights come on. fig.2 If present, select the FAST-FREEZE (E) function (the yellow LED (D) also comes on) Do not open the door for approx. 4 hours until the red indicator light switches off, in order to allow the compartment to reach a suitably cold temperature. Food can then be placed in the freezer for fast freezing (see “maximum height for stacking”) After 24 hours, press the FAST-FREEZE button again to cancel the function.

OPERATION INDICATOR LIGHTS

If your appliance features indicator lights, they denote the following: fig.2 Green indicator light – CONTROL (B) the appliance is connected to the electrical power supply and is switched on. The green indicator light must always be visible when the appliance is plugged in and switched on. This indicator light is particularly important since in the event of a power cut the red and yellow indicator lights do not work. Red indicator light – ALARM (C) Temperature too high It is normal for the red indicator light to come on under the following circumstances: Initial switch-on of the appliance Switch-on following defrosting Introduction of fresh food in the freezer The red indicator light switches off automatically when the internal temperature reaches approx. –18°C Select, if supplied, the fast freeze function (E). If, however, the red indicator light remains lit after 12-24 hours, the appliance may have a technical fault. Yellow indicator light (D) – The FAST-FREEZE function is selected and the thermostat function is cancelled. The compressor continues to work to lower the temperature until the FAST-FREEZE function is cancelled. DESIGN VARIATIONS (FIG. 2) (G)

Design Variation: with separate switch for fast freeze function (E).

Design Variation: with switch for fast freeze function. No fast freeze function indicator light (D).

Design Variation: no fast freeze function.

Design Variation: with ON/OFF (F) switch and fast freeze (E) switch.

Design Variation: with fast freeze (E) switch only.

Design Variation: no fast freeze function. TEMPERATURE REGULATOR (thermostat) The thermostat is used to set the freezer temperature.9 To select: turn the regulator clockwise > (A) fig. 2 Set the temperature, according to requirements, between: Min (minimum temperature) and Max (maximum temperature) To cancel: turn the regulator anti-clockwise < (A) fig. 2 The position “ 0 ” indicates the appliance is not operating (switched off). When setting the temperature, take into account: 1) the ambient temperature in the room where the appliance is installed; 2) the quantity of food in the compartment; 3) the frequency of door opening.

INSIDE LIGHT (if provided ) fig.1 (C) Appliances fitted with an inside light also feature a switch for the light. The light switches on automatically when the door is opened and switches off again when the door is closed. The incandescent bulb is protected by a transparent cover. fig.3 To replace the bulb, proceed as follows: unplug the appliance or switch off the domestic power supply at the main switch, remove the cover, squeezing the end. Replace with a new bulb, max 15 W. STORING/FREEZING Place fresh foods in the side compartment fig.1 (I) (not provided on all models) or in the bottom of the freezer, where the temperature is lowest. (E) The two compartments are divided by a separator panel, which is fixed or mobile, depending on the model. fig.1 (H) Within 24 hours place the fresh food in the freezer. Do not exceed the quantity of fresh food that can be frozen by your appliance. Refer to the appliance data plate for details. If provided, select FAST-FREEZE before placing food in the freezer. After 24 hours remove the frozen food from the bottom of the freezer and place in a basket (L) so that the pre-freezing compartment or bottom of the freezer is free again for fresh food to be frozen. Switch off FAST-FREEZE fig.2 (E) (the yellow indicator light switches off) Set the temperature regulator to a suitable position, taking into account how full the appliance is. Maximum stacking height To guarantee optimal storage of frozen food, do not fill the freezing compartment to the top level. Always leave a reasonable gap between frozen food stacked and the appliance lid. Never exceed the maximum stacking height indicated on the appliance by the manufacturer fig.1 (T). Food Symbol Description Storage Time/Packing Minced meat Sausages/cold cuts 2-3 months Fish in polythene freezer bags Ice cream Fruit Cheese 4 months Bread in polythene freezer bags Sweets/Biscuits Pork 6 months Beef in tinfoil Rabbit/lamb or mutton Mushrooms/Asparagus in polythene freezer bags Vegetables (cut) in tinfoil Chicken/Turkey 8 months Duck/Goose Cauliflower 10-12 months Beans/Peppers in polythene freezer bags Preserves in glass containers Cooked Fruit in tinfoil

CARE AND MAINTENANCE

Unplug the appliance before any cleaning or maintenance operations. To clean the inside of the appliance, use a solution of water and vinegar; never use abrasive products, detergents or soap.10 If the appliance is provided with a condenser on the external wall fig.1 (S), periodically remove any dust and dirt from it, since these prevent heat being vented from the appliance. The formation of ice and frost on the inside walls has a detrimental effect on the appliance's ability to chill, and should therefore be removed periodically. For removal of frost and ice, adhere strictly to the manufacturer's recommendations. DEFROSTING To carry out defrosting proceed as follows: - turn the thermostat to 0; fig.2 (A) - unplug the appliance or switch off the domestic power supply at the main switch; - remove all food from the freezer; - remove the defrost water drain plug inside the compartment and on the outside of the housing, where provided.; fig.1 (Z) - place a container next to the external drain outlet to collect the defrost water; - dry the inside walls. With normal use (the appliance is opened 3-4 times a day) the freezer should be defrosted once or twice a year. Never use electrical appliances such as hairdryers, fan heaters or a naked flame for defrosting. AFTER-SALES SERVICE Only contact after-sales service if you are unable to solve the problem yourself with the help of the “Troubleshooting guide/Causes/Solutions” (supplied with the appliance). To facilitate the job of the after-sales service, before calling take note of the following information to identify your appliance:

TROUBLESHOOTING GUIDE/CAUSES/SOLUTIONS

Abnormal operation is not always caused by an actual malfunction of the appliance, but by incorrect installation or use. To avoid needless call-outs and the relative bill for after-sales service, observe the following: The appliance is not working Check that: The thermostat is not at 0. The power plug is in good condition and properly inserted in the socket There is no power cut. The appliance does not freeze sufficiently Freezing takes too long The compressor runs too much Check that: The door is closed properly; fig.1 (A) The thermostat is set to the correct position; fig.2 (A) The freezer is not too near a heat source; There is not an excessive build-up of frost in the low temperature compartment; The appliance is too noisy Check that: The appliance is properly level; The rear coil is not touching the wall; fig.1 (S) Bear in mind that it is normal for the appliance to produce the following noises: clicking noises caused by the compressor starting and stopping; humming noises when the compressor begins running; gurgling noises as the refrigerant gas flows through the pipelines, even once the compressor stops; IMPORTANT! The manufacturer declines all liability for injury to persons or animals and for damage to property resulting directly or indirectly from failure to observe the procedures and reminders given in this instruction booklet.11
