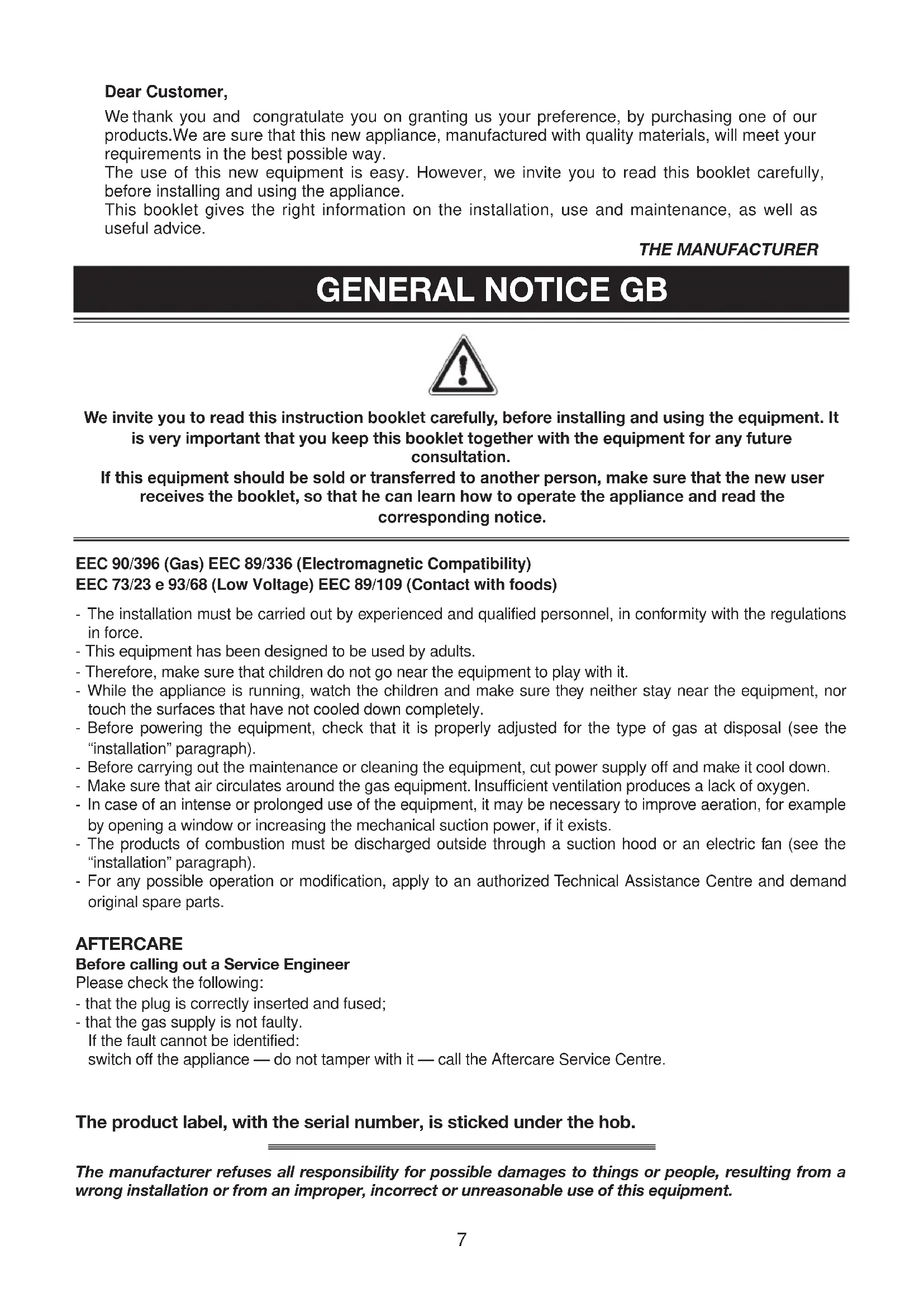

Dear Customer, We thank you and congratulate you on granting us your preference, by purchasing one of our products.We are sure that this new appliance, manufactured with quality materials, will meet your requirements in the best possible way. The use of this new equipment is easy. However, we invite you to read this booklet carefully, before installing and using the appliance. This booklet gives the right information on the installation, use and maintenance, as well as useful advice. THE MANUFACTURER

EEC 90/396 (Gas) EEC 89/336 (Electromagnetic Compatibility) EEC 73/23 e 93/68 (Low Voltage) EEC 89/109 (Contact with foods) - The installation must be carried out by experienced and qualified personnel, in conformity with the regulations in force. - This equipment has been designed to be used by adults. - Therefore, make sure that children do not go near the equipment to play with it. -While the appliance is running, watch the children and make sure they neither stay near the equipment, nor touch the surfaces that have not cooled down completely. - Before powering the equipment, check that it is properly adjusted for the type of gas at disposal (see the “installation” paragraph). - Before carrying out the maintenance or cleaning the equipment, cut power supply off and make it cool down. - Make sure that air circulates around the gas equipment. Insufficient ventilation produces a lack of oxygen. - In case of an intense or prolonged use of the equipment, it may be necessary to improve aeration, for example by opening a window or increasing the mechanical suction power, if it exists. - The products of combustion must be discharged outside through a suction hood or an electric fan (see the “installation” paragraph). -For any possible operation or modification, apply to an authorized Technical Assistance Centre and demand original spare parts. AFTERCARE Before calling out a Service Engineer Please check the following: - that the plug is correctly inserted and fused; - that the gas supply is not faulty. If the fault cannot be identified: switch off the appliance — do not tamper with it — call the Aftercare Service Centre. The product label, with the serial number, is sticked under the hob. The manufacturer refuses all responsibility for possible damages to things or people, resulting from a wrong installation or from an improper, incorrect or unreasonable use of this equipment. We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that he can learn how to operate the appliance and read the corresponding notice.8

INSTRUCTIONS FOR THE USER

It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer.

The symbols silk-screen printed on the side of the knob indicate the correspondence between the knob and the burner. Start-up without valves Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig.1) and press start-up button P (fig.1). Automatic start-up with valves Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig.1) and press the knob. Once the burner has been started up, keep the knob pressed for about 6 seconds. Using the burners In order to obtain the maximum yield without waste of gas, it is important that the diameter of the pot is suitable for the burner potential (see the following table), so as to avoid that the flame goes out of the pot bottom (fig.2). Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point. The gas supply can be interrupted by turning the knob clockwise up to the closing position. If there is no power supply, it is possible to light the burners with matches, setting the knob to the start- up point (large flame, fig. 1). Notice - When the equipment is not working, always check that the knobs are in the closing position (see fig.1). - If the flame should blow out accidentally, the safety valve will automatically stop the gas supply, after a few seconds. To restore operation, set the knob to the lighting point (large flame, fig.1). - While cooking with fat or oil, pay the utmost attention as these substances can catch fire when overheated. - Do not use sprays near the appliance in operation. - Do not place unstable or deformed pots on the burner, so as to prevent them from overturning or overflowing. - Make sure that pot handles are placed properly. - When the burner is started up, check that the flame is regular and, before taking pots away, always lower the flame or put it out. Burners Power W Ø of pots Auxiliary 1000 10 - 14 cm Semi-rapid 1650 16 - 18 cm Rapid 3000 20 - 22 cm Tr iple-ring 3300 24 - 26 cm9

INSTRUCTIONS FOR THE USER

CLEANING Before any operation, disconnect the appliance from the electric grid. It is advisable to clean the appliance when it is cold. Glass platform and enamelled parts The glass platform and all of the enamelled parts must be washed with a sponge and soapy water or with a light detergent. Do not use abrasive or corrosive products. Do not leave substances, such as lemon or tomato juice, salt water, vinegar, coffee and milk on the enamelled surfaces for a long time. Burners and racks These parts can be removed to make cleaning easier. The burners must be washed with a sponge and soapy water or with a light detergent, wiped well and placed in their housing perfectly. Make sure that the flame-dividing ducts are not clogged. Check that the feeler of the safety valve and the start-up electrode are always perfectly cleaned, so as to ensure an optimum operation. The racks can be washed in the dishwasher. Gas taps The possible lubrication of the taps must be carried out by specialized personnel, exclusively. In case of hardening or malfunctions in the gas taps, apply to the Customer Service.

The electric-plate is operated with a seven- position switch (Fig. 3) and to turn the electric- plate on, rotate the switch to any of the positions shown. The red light is switched on when the electric-plate is in operation. Below as indicative basis, the settings to be used for operating the electric-plate. Warning Use only flat pans and with sufficiently thick base, equal or not much superior than that of the plate. Do not switch the electric plate without the pan over the plate.(Fig. 4) Do not cook any food on the plate surface. Tu rn off the plate few minutes before the cooking end. After use the electric plate remains very hot for a prolonged period of time, do not tuch it and do not place anj abject on top of the plate. For a good preservation, the electric plate must be thoroughly cleaned with appropriate cleaning products which are readly available. When operating for the first time, it is necessary to eliminate any humidity or oil which may accumulated around the electric elements of the plate by operating the electric plate on its lowest setting (1) for about 30 minutes.

SETTING COOKING 1Very low 2Low 4 Medium 3 Mild 0Off 6Very strong 5 Strong To defrost frozen foods, cook stews, at to below boiling point. To heat small quantities of liquids. To boil large quantities of liquid , to fry. For roasting, grilling , stews. For foods which require boiling point, delicate meat and fish. Heating medium quantities of liquid, to prepare sauces and creams requiring long cooking.10

INSTRUCTIONS FOR THE INSTALLER

IMPORTANT NOTICE THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED PERSONNEL EXCLUSIVELY, IN CONFORMITY WITH THE REGULATIONS IN FORCE. THE MANUFACTURING FIRM REFUSES ALL RESPONSIBILITY FOR DAMAGES TO PEOPLE, ANIMALS OR THINGS, RESULTING FROM THE FAILURE TO COMPLY WITH SUCH PROVISIONS. INSTALLATION Installing the top The appliance is designed to be embedded into heat-resistant pieces of furniture. The walls of the pieces of furniture must resist a temperature of 65°C besides the room one. The equipment must not be installed near inflammable materials, such as curtains, cloths, etc. Make a hole in the top of the piece of furniture, with the dimensions indicated in fig.5, at a distance of at least 50 mm from the appliance border to the adjacent walls. Any possible wall unit over the cook-top must be placed at a distance of at least 760 mm from the top. It is advisable to isolate the appliance from the piece of furniture below with a separator, leaving a depression space of at least 10 mm (fig.6). If the hob is going to be installed on the top of an oven, precautions must be taken to guarantee an installation in accordance with current accident prevention standards. Pay particular attention to the position of the electric cable and gas pipe: they must not touch any hot parts of the oven. Moreover, if the hob is going to be installed on the top of a built in oven without forced cooling ventilation, proper air vents must be installed to guarantee an adequate ventilation, with the lower air entering with a cross section of at least 200

, and the higher air exiting with a cross section of at least 60 cm

Fastening the top Every cook-top is equipped with a special washer having an adhesive side. - Remove the racks and burners from the top. -Turn the appliance upside down and lay the adhesive washer S along the external border of the glass (fig.7). - Introduce and place the cook-top in the hole made in the piece of furniture, then block it with the V screws of the fastening hooks G (fig. 8). Installation room This appliance is not provided with a device for exhausting the products of combustion. Therefore, it is necessary to discharge these smokes outside. The room where this appliance is installed must have a natural air inflow, so as to ensure a regular gas combustion and room ventilation: the necessary air volume must not be lower than 20

Air must come from permanent openings made on the room walls that communicate with the outside. The section of these openings shall correspond to at least 200 cm

Gas connection Make sure that the appliance is adjusted for the gas type available (see the label under the appliance). Follow the instructions indicated in the chapter “gas transformations and adjustments” for the possible adaptation to different gases. The appliance must be connected to the gas system by means of still metal pipes or flexible steel pipes having continuous walls, in compliance with the regulations in force. Some models are equipped with both cylindrical A and conical B connectors for gas supply (fig. 9). Please select the type which is correct for the supply concerned. The connection must not stress the gas ramp. Once the installation is over, check the connection seal with a soapy solution.11

INSTRUCTIONS FOR THE INSTALLER

Electric connection The connection to the electric grid must be carried out by qualified personnel and in conformity with the regulations in force. The voltage of the electric system must correspond to the value indicated in the label under the appliance. Make sure that the electric system is provided with an effective ground connection in compliance with the regulations and provisions of the law. Grounding is compulsory.

GAS TRANSFORMATIONS AND

ADJUSTMENTS Replacing the nozzles If the equipment is adjusted for a type of gas that is different from the one available, it is necessary to replace the burner nozzles. The choice of the nozzles to replace must be made according to the table of the “technical characteristics”. Act as follows: - Remove the racks and burners. -by means of a straight spanner L, unscrew the nozzle U (fig.10) and substitute it with the corresponding one. - tighten the nozzle strongly. Adjusting the burners The lowest flame point must always be properly adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the minimum position. If this is not so, it is necessary to adjust the lowest flame point as follows: - start the burner up - turn the tap up to the minimum position (small flame) - remove the knob from the tap rod - introduce a flat-tip screwdriver C in the hole F of the tap (fig. 11) and turn the by-pass screw up to a proper adjustment of the lowest flame point. As regards propane gas burners, the by-pass screw must be tightened completely. MAINTENANCE Lubricating the taps In case of tap hardening, it is necessary to disassemble and grease it. These are the operations to carry out: - Unscrew the two screws that lock the head flange of the tap. - Lift the gas adjusting cone and carefully clean it with gasoline or diluent. - Spread a little high-temperature grease on it, making sure that the gas holes are not obstructed. - Reassemble all of the parts with care. Replacing the power supply cable If the power supply cable should be replaced, it is necessary to use a cable with a section of 3 x 0.75 mm2, type H05VV-F or H05RR-F, complying with the regulations in force. The connection to the terminal board must be effected as shown in fig. 11: brown cable L (phase) blue cable N (neutral) green-yellow cable (ground)12 Cher Client, Nous vous remercions pour la préférence que vous avez bien voulu nous accorder en achetant notre produit et vous félicitons pour votre choix. Nous sommes certains que ce nouvel appareil, fabriqué avec des matériaux de qualité, satisfera entièrement vos exigences. L’utilisation de ce nouvel appareil est simple, nous vous invitons cependant à lire attentivement ce manuel avant de l’installer et de l’utiliser. En effet, ce manuel fournit les indications nécessaires pour l’installation, l’utilisation et l’entretien ainsi que des conseils pratiques. LE FABRICANT
