USER MANUAL CO CVS 250 K CANDY

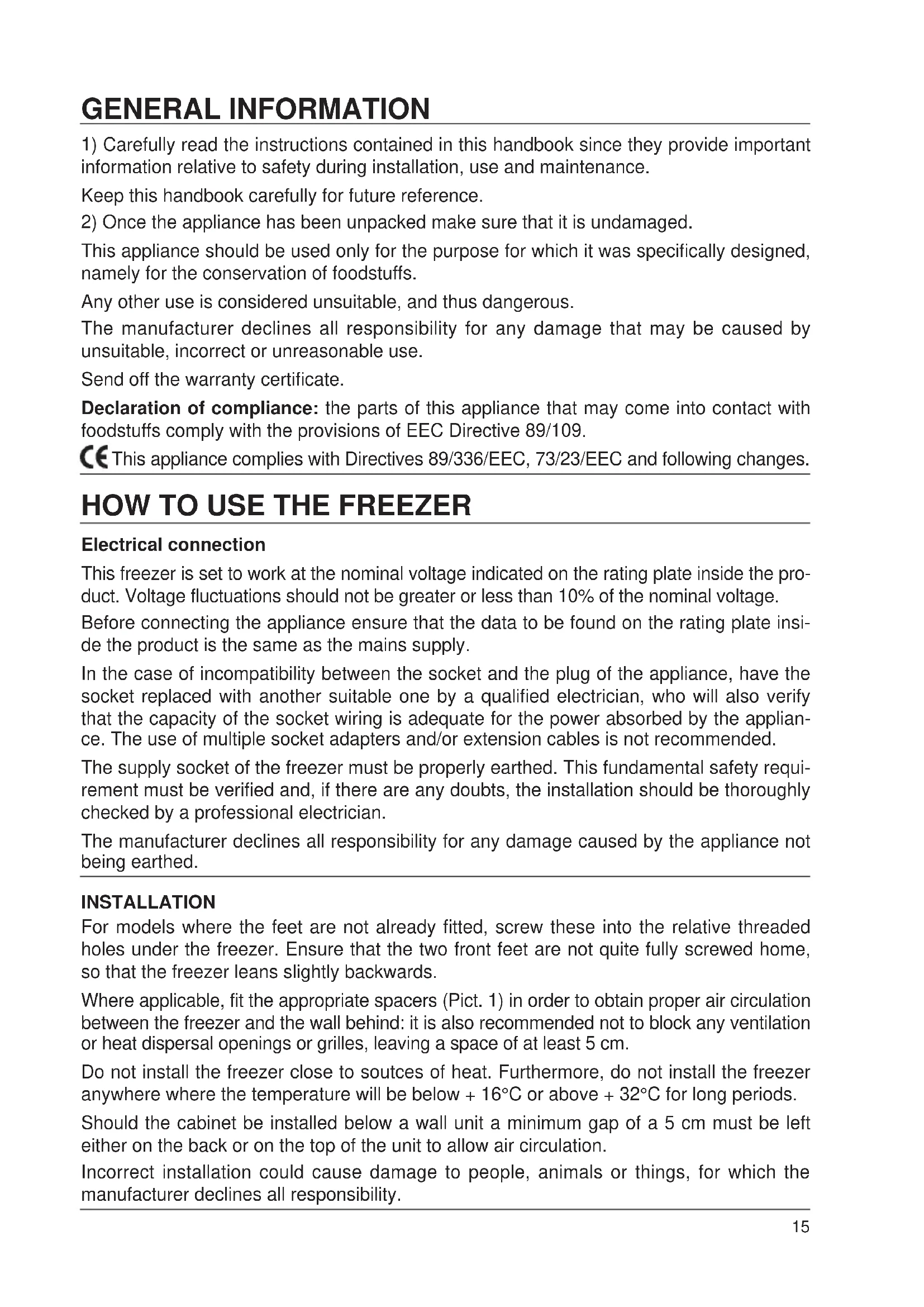

1) Carefully read the instructions contained in this handbook since they provide important

information relative to safety during installation, use and maintenance. Keep this handbook carefully for future reference.

2) Once the appliance has been unpacked make sure that it is undamaged.

This appliance should be used only for the purpose for which it was specifically designed, namely for the conservation of foodstuffs. Any other use is considered unsuitable, and thus dangerous. The manufacturer declines all responsibility for any damage that may be caused by unsuitable, incorrect or unreasonable use. Send off the warranty certificate. Declaration of compliance: the parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109. This appliance complies with Directives 89/336/EEC, 73/23/EEC and following changes.

HOW TO USE THE FREEZER

Electrical connection This freezer is set to work at the nominal voltage indicated on the rating plate inside the pro- duct. Voltage fluctuations should not be greater or less than 10% of the nominal voltage. Before connecting the appliance ensure that the data to be found on the rating plate insi- de the product is the same as the mains supply. In the case of incompatibility between the socket and the plug of the appliance, have the socket replaced with another suitable one by a qualified electrician, who will also verify that the capacity of the socket wiring is adequate for the power absorbed by the applian- ce. The use of multiple socket adapters and/or extension cables is not recommended. The supply socket of the freezer must be properly earthed. This fundamental safety requi- rement must be verified and, if there are any doubts, the installation should be thoroughly checked by a professional electrician. The manufacturer declines all responsibility for any damage caused by the appliance not being earthed. INSTALLATION For models where the feet are not already fitted, screw these into the relative threaded holes under the freezer. Ensure that the two front feet are not quite fully screwed home, so that the freezer leans slightly backwards. Where applicable, fit the appropriate spacers (Pict. 1) in order to obtain proper air circulation between the freezer and the wall behind: it is also recommended not to block any ventilation or heat dispersal openings or grilles, leaving a space of at least 5 cm. Do not install the freezer close to soutces of heat. Furthermore, do not install the freezer anywhere where the temperature will be below + 16°C or above + 32°C for long periods. Should the cabinet be installed below a wall unit a minimum gap of a 5 cm must be left either on the back or on the top of the unit to allow air circulation. Incorrect installation could cause damage to people, animals or things, for which the manufacturer declines all responsibility. 15ENVIRONMENTAL INFORMATION Packaging and waste treatment After unpacking the appliance, do not throw the packaging in the garbage but separate the various materials (such as styrofoam, cardboard. etc.) according to the local regula- tions and procedures for waste disposal. Important: This appliance has been produced without CFCs. The refrigerating circuit contains HFC R 134a fluid, or alternatively, R 600a isobutane gas. For further details, look at the serial number plate on the appliance. When cleaning the appliance, use only the materials and the procedure specified in the section dealing with cleaning. Otherwise the appliance may be damaged. For appliances with isobutane (R 600 a) Isobutane is a natural gas that does not harm the environment. Isobutane is, however, flammable. You must therefore ensure that: - when the appliance is installed there is more than 3 cubic metres of air around it; - the appliance's ventilation vents are kept unobstructed and clean; - the appliance's refrigerating circuit is not damaged neither internally, through the use of sharp or pointed objects nor because the condenser unit was incorrectly cleaned. At the end of the appliance's working life it must be stored before being disposed of. For information on proper disposal of the appliance, consult your retailer or the local authority responsible for disposal. TEMPERATURE CONTROL The ambient temperature, the load and the frequency with which the doors of the applian- ce are opened all affect the internal temperature. When the control value is changed the freezer cannot start up immediately because it has been halted. Temperature regulation is done using the thermostat knob to be found outside the freezer. By turning the knob clockwise lower temperatures are reached. It is recommended to keep the thermostat knob at a mid point position and to increase it by a few numbers when the freezer is opened frequently or when a lage quantity of food to be frozen is put in. CONTROL PANEL Fig. 2 When the plug is inserted, the green light (B) lights up. The thermostat A controls the freezer temperature. On Position "●" the freezer will not operate although the green light will still be on. Turning the knob clockwise will start the appliance. The red warning light (C) when lit up means that the temperature in the freezer compart- ment is not adequate. This could depend on: - When appliance is firstly plugged in. - Door left open or not properly closed. - Insertion of fresh food to be frozen in the freezer compartement. - The red light goes off once the freezer compartment has reached the required temperature. By turning the thermostat knob to "SUPER" the yellow light (D) will illuminate, indicating that the fast freeze has been started making the compressor work continuously.

16CONSERVATION AND FREEZING

The symbol shows that frozen products can be stored for a long time and that fresh foods can be frozen. Conservation times are closely connected with maintaining the temperature, thus any changes will affect the life of the product. In the case of a power cut do not, under any circumstances, open the door. The frozen foods will remain wholesome for 10-12 hours. For longer periods the food should be wrapped in special foodstuff paper and preferably put into another freezer or, at least, in a cool place. In this case it is advisable to eat the food within 24 hours or to cook it and then to re- freeze it. In some models, equipped with cool packs, in case of interruption in power the temperatu- re is kept low for a longer period of time, keeping the frozen foods at the right temperature. The cool pack must be placed in the upper shelf. For the standard refrigeration tests, we recommend that you remove all the baskets, apart from the last two. For freezing fresh produce we advise: - If necessary move items already frozen into the conservation compartment. - Set the thermostat control to the fast freeze position "SUPER" at least 24 hours before putting in the food to be frozen; remembering to set it back to its original position after 24 hours from when freezing commenced. The maximum quantity that can be frozen, as laid down by European standards, is indica- ted on the rating plate. DEFROSTING a) 24 hours before defrosting set the thermostat control to the coldest position so as to reduce the temperature of the food. b) Wrap frozen products in special foodstuff paper and put them in another freezer or a cool place. c) Disconnect plug from socket. d) Leave door open. e) When defrosting is completed, dry the interior and replace the products. f) Then reinsert the plug into the socket and let the appliance work for 3/4 hours on the coldest position. Upright freezers are fitted with a system for expelling defrosted water consisting of a removable draining tube located at the bottom of the freezing compartment. CLEANING To prevent the formation of unpleasant smells, it is recommended that the freezer be cleaned periodically, at least two or three times a year. a) Before carrying out any cleaning or maintenance, disconnect the appliance from the power supply by pulling out the plug (it is not enough to set the thermostat control to "

b) Remove all food and ice cubes from the freezer. c) Wait until the frost has melted off the evaporator. d) Clean the interior of the freezer using lukewarm water into which has been dissolved one or two spoonfuls of bicarbonate of soda; rinse and dry. IMPORTANT: do not use detergents, abrasives or soaps.

❋e) Switch the freezer on for at least 1 hour before replacing the foods. When the freezer is to be out of use for a long period, after a thorough cleaning it should be left unplugged and with its doors partially open. SERVICING For any repairs use only Service Centres recommended by the manufacturer and insist that only original spares be used. Non-observance of the above could prejudice the safety of the appliance. If your freezer does not work, or if it does not work properly, check these points before making a Service call.

1) Is power getting to the socket to which the freezer is connected? Try it with a lamp.

2) Is the connecting plug not plugged into the socket? Plug it in.

3) Is the thermostat perhaps at position "

●"? turn it to position 4.

4) Have you let too much frost accumulate on the evaporator (more than 4 to 5 mm)?

Defrost it (see "Defrosting").

5) Has the food been badly placed inside the freezer, hindering free circulation of air?

6) Can air circulate freely around the condenser behind the freezer? Move it further away

from the wall. If you have a problem in or out of guarantee, please contact GIAS UK on Tel: 08705-99 00 11 for manufacturers service, giving the model type which you will find on the rating plate inside the freezer (or on the warranty form). You will get prompter and better service by giving this information. Important: A layer of heat around the freezer cell shows that the appliance is working properly HOW TO REVERSE THE DIRECTION OF THE DOOR OPENING Necessary: — n° 8 box spanner — Philips screwdriver Reversing the door (Pict. 3)

1) It is advisable to lay the freezer on its side or to lean it at an angle of about 45°, since it

is necessary to work on the bottom of the appliance in order remove the lower hinge.

2) Remove the lower hinge (and relative washer) by loosening screws A as shown in the

4) Remove the plastic film, covering the upper left-hand hinge, from the facing.

5) Unscrew journal C from the upper right-hand hinge and refit it on the left.

6) Replace the door working in a reverse fashion (3-2); remembering to refit the spacing

washers between door and hinge.

7) Shift the handle from right to left, using the appropriate screws.

8) Reset the appliance in an upright position.
