LSDSI795XAUS - Dishwasher CANDY - Free user manual and instructions

USER MANUAL LSDSI795XAUS CANDY

4) Amount of detergent:

– 8 gr for pre-wash – 22 gr for wash. OUI OUI OUI OUI OUI OUI OUIEN 50242 place load Capacity with pans and dishes Water supply pressure Fuse Power input Supply voltage

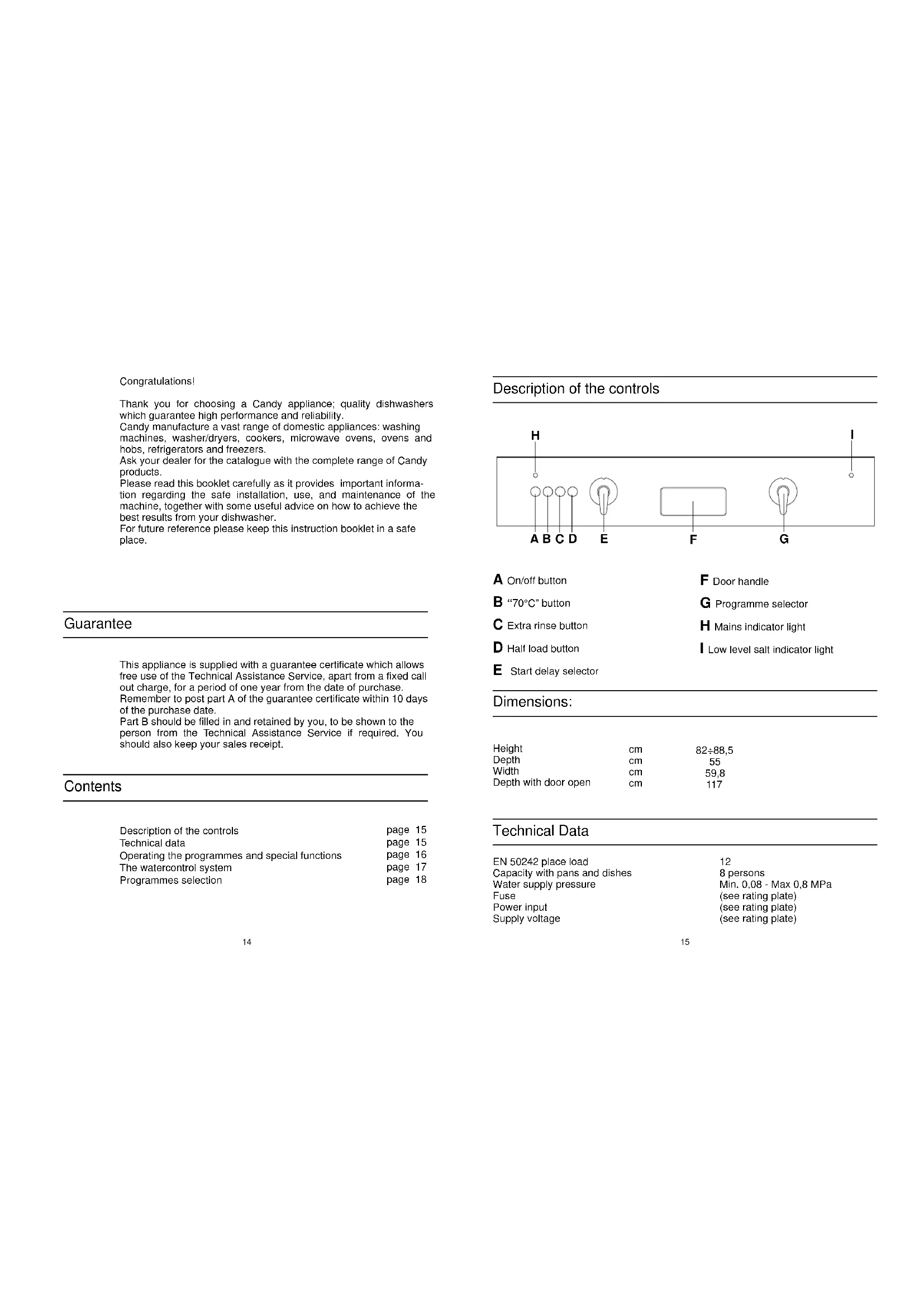

Description of the controls Technical Data Dimensions: 82÷88,5

Congratulations! Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability. Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers. Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important informa- tion regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher. For future reference please keep this instruction booklet in a safe place. This appliance is supplied with a guarantee certificate which allows free use of the Technical Assistance Service, apart from a fixed call out charge, for a period of one year from the date of purchase. Remember to post part A of the guarantee certificate within 10 days of the purchase date. Part B should be filled in and retained by you, to be shown to the person from the Technical Assistance Service if required. You should also keep your sales receipt. Description of the controls Technical data Operating the programmes and special functions The watercontrol system Programmes selection page 15 page 15 page 16 page 17 page 18 Guarantee Contents A B C D

E17 Attention This dishwasher is equipped with an anti-overflow safety device which works even when power is switched off, and if the water level is too high the supply will automatically be closed off. Important To ensure the correct operation of the anti-overflow safety device, it is recommended not to move or to tilt the dishwasher during operation. If it is necessary to move or to tilt the dishwasher, first make sure the washing cycle is finished and that no water is left in the tank. To set the programme, turn the dial clockwise until the pointer indicates the symbol of the required programme on the control panel. Then press the On/Off button. Ensure that the water supply is turned on and the door is closed properly. “70°C” button This button is an option available on the UNIVERSAL INTENSIVE 70°C and DAILY INTENSIVE 70°C programmes which will increase the temperature of the water of washing from 50°C to 70°C. Extra rinse button Extra rinse for very dirty washing. Half load button By pressing this button it is possible to wash a small quantity of crockery using only the upper basket for dishes and cutlery in the bottom basket. This reduces water and energy consumption and requires a smaller quantity of detergent as well. Start Delay Control Start Delay is available on all programmes and is used to postpone the start of programmes by up to 12 hours. Each one hour period is marked. If you wish to delay the start, simply load the machine, load the dispenser with detergent, and turn the programme control knob clockwise to the number of hours you wish the programme to be delayed. For example if it is 8pm and you want the machine to start at midnight, turn the start delay knob to 4. Press the On/Off button. The red pilot light will come on to show that the machine is switched on. The start of the programme will then be delayed according to the selected time. The cycle ends When the program handle reaches the symbol, the cycle ends. Push the On/Off button to cut power to the dishwasher and then only open the door. Selecting the programme and special functions Use in conjunction with programme guide

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose. In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine. This fault is shown by a red sector on the window «A». Would this occur, please refer to your Service Agent. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent. Watercontrol-system Red button blocked valve indicator Safety antitwist device (press and twist to remove the washer) A19

50°C Short cold pre-wash for items that arestored in the dishwasher until you areready to wash a full load.Once a day - for heavily soiled pans andany other items that have been left allday for washing.Energy Saving Programme suitable fornormal soiled items. Using detergentswith enzyme.Programme standardised to EN 50242.Once a day - for normal soiled pans andany other items that have been left allday for washing. Suitable for heavily soiled items that areto be washed straight after a meal.Suitable for delicate crockery andglassware. Also for less soiled itemsexcluding pans.Suitable for rinsing dishes which havenot been used for some time and forwarming dishes prior to serving. PROGRAMME SELECTION Detergent forsoakingDetergent for washingClean filterCheck rinse aiddispenserCheck salt containerHot pre-washCold pre-washMain washHot rinse withrinse aidWith cold water(15°C)“70°C” buttonExtra rinse buttonHalf load buttonCheck list Programme contentsAverageduration inminutesSpecial functionbuttons available Information for the test laboratories General programme comparison Ref. EN 50242 Standards:

4) Amount of detergent:

– 8 gr for pre-wash – 22 gr for wash. YES YES YES YES YES YES YES20 21
