USER MANUAL CFBD 2330 CANDY
DOPPIA PORTA INCASSO

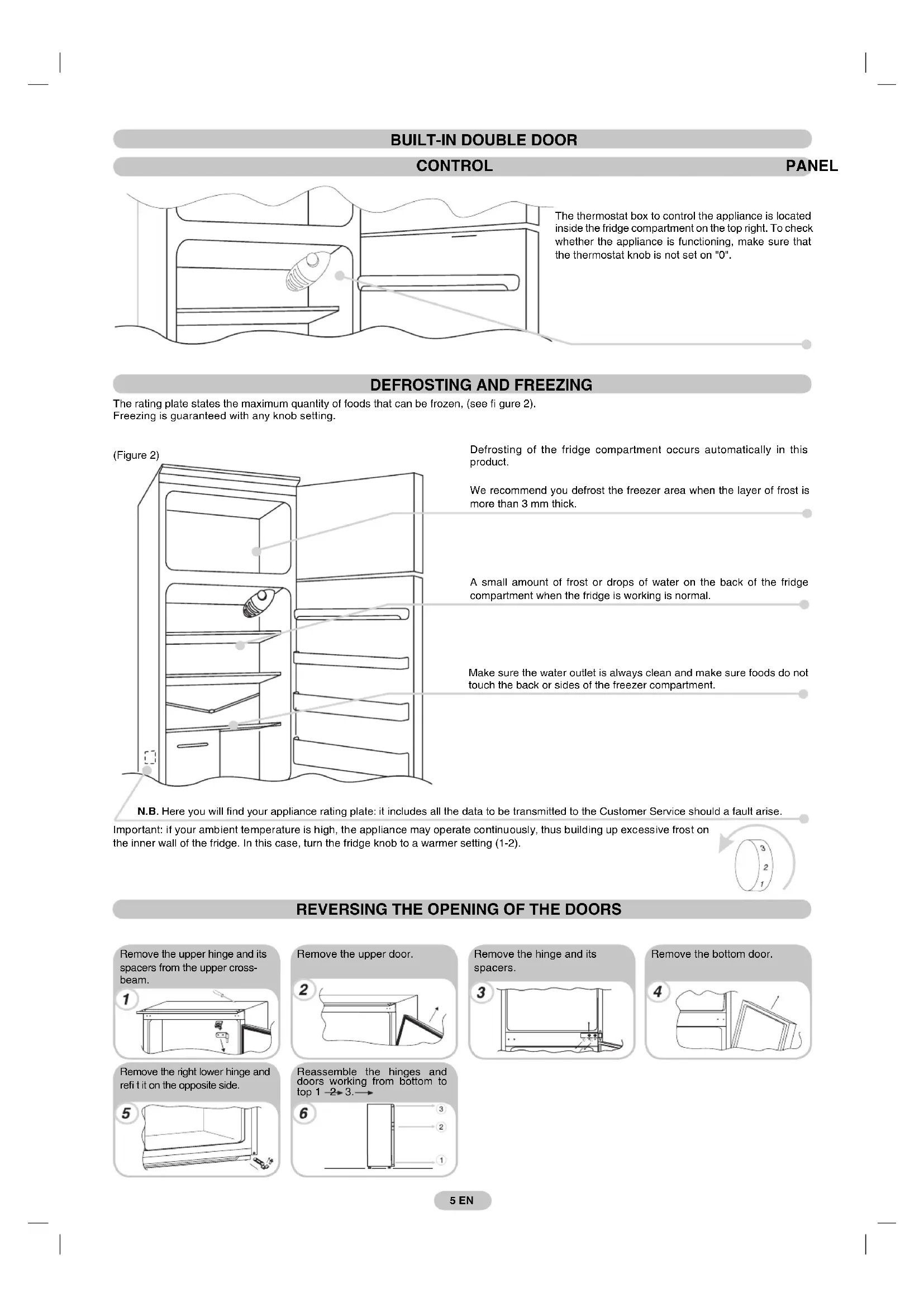

CONTROL PANEL The thermostat box to control the appliance is located inside the fridge compartment on the top right. To check whether the appliance is functioning, make sure that the thermostat knob is not set on "0".
DEFROSTING AND FREEZING
The rating plate states the maximum quantity of foods that can be frozen, (see fi gure 2). Freezing is guaranteed with any knob setting. Defrosting of the fridge compartment occurs automatically in this product. We recommend you defrost the freezer area when the layer of frost is more than 3 mm thick. A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal. Make sure the water outlet is always clean and make sure foods do not touch the back or sides of the freezer compartment. Important: if your ambient temperature is high, the appliance may operate continuously, thus building up excessive frost on the inner wall of the fridge. In this case, turn the fridge knob to a warmer setting (1-2). (Figure 2) N.B. Here you will fi nd your appliance rating plate: it includes all the data to be transmitted to the Customer Service should a fault arise. Remove the upper hinge and its spacers from the upper cross- beam. Remove the right lower hinge and refi t it on the opposite side. Remove the upper door. Reassemble the hinges and doors working from bottom to top 1 2 3. Remove the hinge and its spacers. Remove the bottom door.6 IT6 EN
PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENT
INSTALLATION OF THE APPLIANCE IN THE COLUMN Secure the seal (supplied) to the appliance, on the opposite side from the hinges. Insert the appliance in the column, placing it on the opposite side of the hinges. Make sure the top connecting plate of the cabinet fi ts perfectly. Secure the appliance lower part using the supplied screws. Secure the appliance upper part to the cabinet, using the supplied screws. Click the ventilation grill.7 IT 7 EN Once the product has been embedded, place the rear part of the column in contact with the wall so as to prevent access to the compressor compartment. For the product to operate correctly it is essential to allow adequate air circulation so as to cool down the condenser located in the rear part of the appliance.For this reason, the column must be equipped with a rear chimney, whose upper opening must not be blocked and with a front slot which will be covered with a ventilation grill. 540 mm 50 mm 380 mm 50 mm The appliance is equipped with coupling devices for the appliancedoors with the column panels (loader slide).Dimensions of the gap to be left between the column and the ceiling. 50 mm
BUILT-IN COLUMN OF THE APPLIANCE
DOORS Secure the slide in the inner part of the panel of the built-in column at the desired height and at approx. 20 mm. From the outer wire of the door.Open the doors of the built-in column and the fridge. Position the built-in loader in the slide, then fi t it into the fridge door.Mark the fi xing points for the screws and drill with a bit of a diameter of 2.5.Connect the appliance door to the cabinet panel keeping theloader slots as guidelines.
