USER MANUAL FO FP 622 W CANDY

Tempo di cottura Temperatura Tempo di cottura Temperatura Pietanza Quantità Ripiano in minuti forno Ripiano in minuti forno Pane carrè tostato 4 fette 4 5 (5 Prerisc.) Grill 4 5 (10 Prerisc.) Grill Toasts farciti n. 4 3 10 (5 Prerisc.) Grill 3 5/8 (10 Prerisc.) Grill Salsiccie n. 6 / kg 0,9 4 25/30 (5 Prerisc.) Grill 4 15/20 (10 Prerisc.) Grill Costate di manzo n. 4 / kg 1,5 4 25 (5 Prerisc.) Grill 4 15/20 (10 Prerisc.) Grill Coscie di pollo n. 4 / kg 1,5 3 50/ 60 (5 Prerisc.) Grill 3 50/60 (10 Prerisc.) Grill Dolci torte La cottura con il grill deve essere eseguita ponendo il cibo sotto il grill elettrico a raggi infrarossi. Attenzione: durante il funzionamento il grill diventa di colore rosso vivo. La leccarda deve essere inserita sotto la griglia per raccogliere i sughi. Verdura Frutta Cottura a grill19 La Ditta costruttrice declina ogni responsabilità per eventuali errori di stampa contenuti nel presente libretto. Si riserva inol- tre il diritto di apportare le modifiche che si renderanno utili ai propri prodotti senza compromettere le caratteristiche essen ziali. INSTALLAZIONE Targhetta matricolaThe installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or things. The manufacturer cannot be held responsible for such harm or injury. FITTING THE OVEN INTO THE KITCHEN UNIT Fit the oven into the space provided in the kitchen unit: it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the four fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances indicated in the diagram on page 38 must be adhered to when fining the oven. Note: For ovens that are combined with a hob unit the instructions contained in the manual for the hob unit must be followed. IMPORTANT If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant mate- rial. Ensure that the glues of units made of veneered wood can withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit. Once the oven has been lodged inside the unit, the electrical parts must be comple- tely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it impossible to remove them without using spe cial tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear light of at least 45 mm. Connecting to the power supply Plug into the power supply. Ensure first that there is a third contact that acts as earthing for the oven. The oven must be properly earthed. If the model of oven is not fitted with a plug, fit a standard plug to the power cable. It must be able to bear the power supply indicated on the specifications plate. The earthing cable is yel- low-green. The plug must be fitted by a properly qualified person. If the socket and the plug are incompatible the socket must be changed by a properly qualified person. A properly qualified person must also ensure that the power cables can carry the cur- rent required to operate the oven. An ON/OFF switch with a minimum distance of 3 mm between contacts may also be connec- ted to the power supply. The connections must take account of the current supplied and must comply with current legal requirements. The yellow-green earthing cable must not be gover- ned by the ON/OFF switch. The socket or the ON/OFF switch used for connecting to the power supply must be easily accessible when the oven has been installed. Important: During installation, position the power cable in such a way that it will not subjected to temperatures of above 50°C at any point. The oven complies with safety standards set by the regulatory bodies. The oven is safe to use only if it has been adequately earthed in compliance with current legal requirements on wiring safety. You must ensure that the oven has been adequately earthed. The cabling and wiring system must be able to bear the maximum electric power required by the oven. This is indicated on the specifications plate. If you are in any doubt at all, use the services of a professionally qualified person. The manufacturers cannot be held responsible for any harm or injury to persons, ani- mals or thinas caused bv failure to properly earth the oven.

WARNING: the voltage and the supply frequency are showed on the rating plate (fig. 4 -

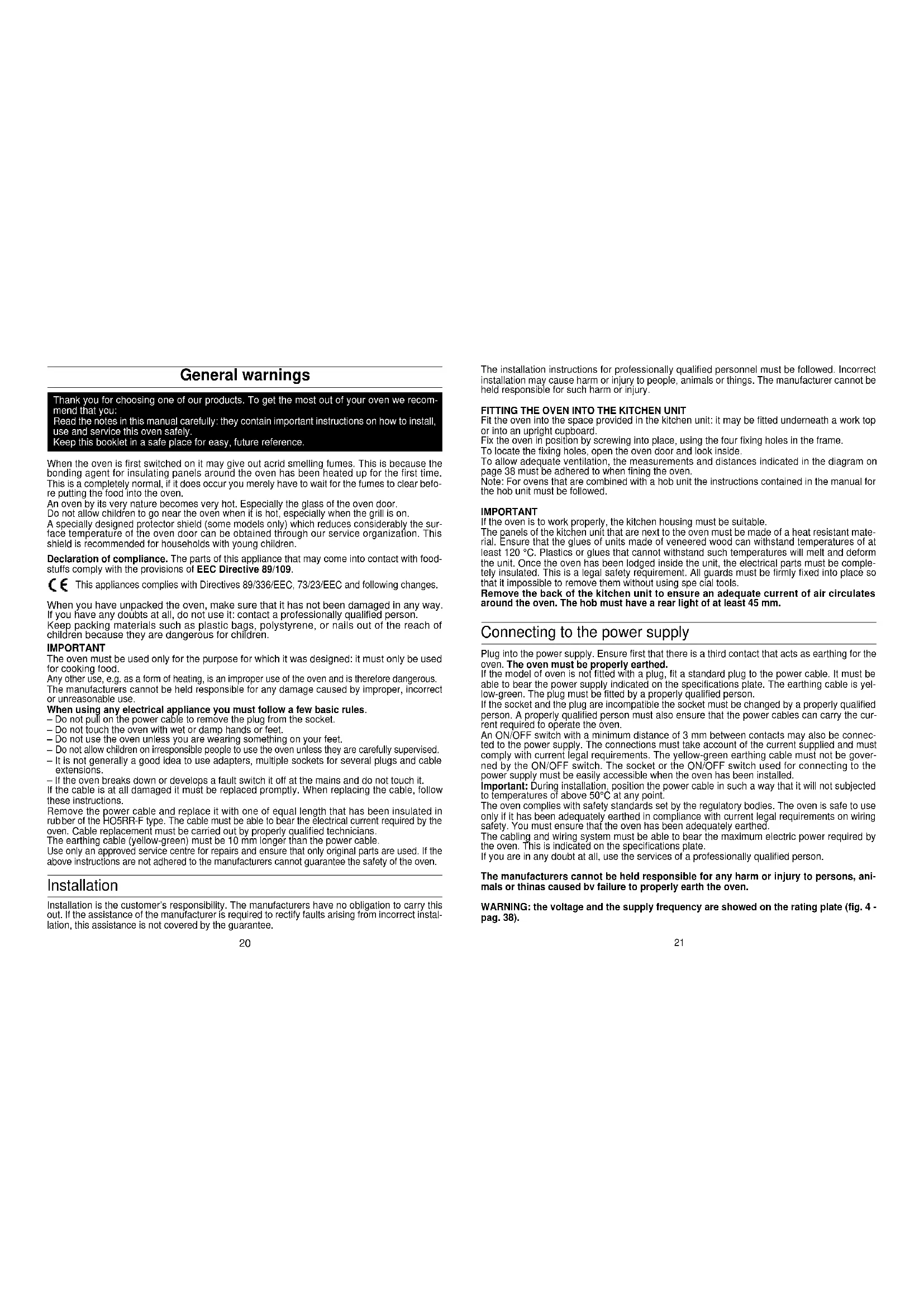

General warnings Thank you for choosing one of our products. To get the most out of your oven we recom- mend that you: Read the notes in this manual carefully: they contain important instructions on how to install, use and service this oven safely. Keep this booklet in a safe place for easy, future reference. When the oven is first switched on it may give out acrid smelling fumes. This is because the bonding agent for insulating panels around the oven has been heated up for the first time. This is a completely normal, if it does occur you merely have to wait for the fumes to clear befo- re putting the food into the oven. An oven by its very nature becomes very hot. Especially the glass of the oven door. Do not allow children to go near the oven when it is hot, especially when the grill is on. A specially designed protector shield (some models only) which reduces considerably the sur- face temperature of the oven door can be obtained through our service organization. This shield is recommended for households with young children. Declaration of compliance. The parts of this appliance that may come into contact with food- stuffs comply with the provisions of EEC Directive 89/109. This appliances complies with Directives 89/336/EEC, 73/23/EEC and following changes. When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because they are dangerous for children. IMPORTANT The oven must be used only for the purpose for which it was designed: it must only be used for cooking food. Any other use, e.g. as a form of heating, is an improper use of the oven and is therefore dangerous. The manufacturers cannot be held responsible for any damage caused by improper, incorrect or unreasonable use. When using any electrical appliance you must follow a few basic rules. – Do not pull on the power cable to remove the plug from the socket. – Do not touch the oven with wet or damp hands or feet. – Do not use the oven unless you are wearing something on your feet.

Do not allow children on irresponsible people to use the oven unless they are carefully supervised. – It is not generally a good idea to use adapters, multiple sockets for several plugs and cable extensions. – If the oven breaks down or develops a fault switch it off at the mains and do not touch it. If the cable is at all damaged it must be replaced promptly. When replacing the cable, follow these instructions. Remove the power cable and replace it with one of equal length that has been insulated in rub ber of the HO5RR-F type. The cable must be able to bear the electrical current required by the oven. Cable replacement must be carried out by properly qualified technicians. The earthing cable (yellow-green) must be 10 mm longer than the power cable. Use only an approved service centre for repairs and ensure that only original parts are used. If the above instructions are not adhered to the manufacturers cannot guarantee the safety of the oven. Installation Installation is the customer’s responsibility. The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect instal- lation, this assistance is not covered by the guarantee. 20Door closed GrillingThe setting of this function switches on the infrared grill element.This function is ideal for cooking meats of medium thickness(sausages and bacon).Door closed fan grillThe air is heated by the grill element and the fan blows the air onto thefood at the required temperature. This ranges from 50°C to 200°C. Thegrill/fan is an excellent alternative to roasting on the spit. It is ideal forroasting even large quantities of poultry, sausages and red meats.Fan assisted cookingThe oven top and lower element produce heat which is distributed ineven manner with aid of a fan.This cooking method is particularly suited to chicken, fish, bread, etc.The perfect heat distribution of this function guarantees perfect resultson large size dishes.Natural convectionBottom and top oven elements are used. This is the traditional form ofbaking and roasting. It is ideal for roasting joints of meat and game,baking biscuits and apples and making the food nice and crunchy. Youwill get the best results if you put the food on the same shelf and set thetemperature between 50°C and 240°C.Turn the control dial to the light will remain on during allthe following phases.The ovens is fitted with:• a bottom element;• a top element for infra-red heating,or grilling

Minute timer or timerfor complete cooking period For formation on the minute timer or the timer for a complete cooking period see the relevant section on pages 27.

OPERATING INSTRUCTIONS Our range includes many different styles and colours. To find the technical specifications and functions of the model which you have bought, study the diagrams below. Some models feature push/pull knobs, press to eject before rotating. STATIC OVEN WITH MINUTE TIMER OR TIMER FOR COMPLETE COOKING PERIOD Minute timer or timer forcomplete cooking period For formation on the minute timer or the timer for a complete cooking period see the relevant section on page 27. The ovens is fitted with:• a bottom element;• a top element for infra-red heating,or grillingTurn the control dial to the light will remain on during all the followingphases.Temperature setting and the oven’s top and bottom elements. 50 ÷ MAXDoor closed GrillingThe setting of this function switches on the infrared grill element.This function is ideal for cooking meats of medium thickness (sausages andbacon).Grill/spit element.This is used for roasting on the spit.function/thermostat dial function dialthermostat dial 50 ÷ MAX 50 ÷ MAX 50 ÷ MAX 50 ÷ 200 Fan plus lower elementThis function is ideal for delicate dishes (pies-souffle). 50 ÷ MAX

ACCORDING TO THE MODELS25

Door closed Grilling The setting of this function switches on the infrared grill element. This function is ideal for cooking meats of medium thickness (sausages and bacon). Door closed fan grill The air is heated by the grill element and the fan blows the air onto the food at the required temperature. This ranges from 50°C to 200°C. The grill/fan is an excellent alternative to roasting on the spit. It is ideal for roasting even large quantities of poultry, sausages and red meats. Fan assisted cooking The oven top and lower element produce heat which is distributed in even manner with aid of a fan. This cooking method is particularly suited to chicken, fish, bread, etc. The perfect heat distribution of this function guarantees perfect results on large size dishes. Fan plus lower element This function is ideal for delicate dishes (pies-souffle). Natural convection Bottom and top oven elements are used. This is the traditional form of baking and roasting. It is ideal for roasting joints of meat and game, baking biscuits and apples and making the food nice and crunchy. You will get the best results if you put the food on the same shelf and set the temperature between 50°C and 240°C. Turn the control dial to the light will remain on during all the following phases. The ovens is fitted with:

• a top element for infra-red heating,or grilling.

Minute timer or timer for complete cooking period For information on the minute timer or the timer for a complete cooking period see the relevant section on page 27. To set the chosen function press the central knob and position on or on the cooking time required.

Minute timer or timer for complete cooking period For information on the minute timer or the timer for a complete cooking period see the relevant section on page 27. According to the models: to set the chosen function press the central knob and position on or on the cooking time required. Door closed Grilling The setting of this function switches on the infrared grill element. This function is ideal for cooking meats of medium thickness (sausages and bacon). Pizza function The intense heat generated when using this function is similar to that produced in traditional wood-fired pizza ovens. Door closed fan grill The air is heated by the grill element and the fan blows the air onto the food at the required temperature. This ranges from 50°C to 200°C. The grill/fan is an excellent alternative to roasting on the spit. It is ideal for roasting even large quantities of poultry, sausages and red meats. Defrosting When the dial is set to this position. The fan circulates air at room tem- perature around the frowen food so that it defrosts in a few minutes without the protein content of the food being changed or altered. Fan assisted cooking The oven top and lower element produce heat which is distributed in even manner with aid of a fan. This cooking method is particularly suited to chicken, fish, etc. The perfect heat distribution of this function guarantees perfect results on large size dishes. Fan plus lower element This function is ideal for delicate dishes (pies-souffle). Natural convection Bottom and top oven elements are used. This is the traditional form of baking and roasting. It is ideal for roasting joints of meat and game, baking biscuits and apples and making the food nice and crunchy. You will get the best results if you put the food on the same shelf and set the temperature between 50°C and 240°C. Turn the function knob to the on position the light will be on for all the following operations. The cooling fan is also switched on. The oven is fitted with:

To set the cooking time, turn dial one complete revolution and then position the index to the required time. When the time has la- psed, the signal will ring for a few seconds.

This control enables to set the desired cooking time (max. 120 min.) the oven will automatically switch off at the end of the set ti- me. The timer will count down from the set time return to the

posi- tion and switch off automatically. For normal use of oven set the timer to the position. Note. The end of cooking timer also act as general switch. To set the oven ensure the timer is not on the

Door closed Grilling The setting of this function switches on the infrared grill element. This function is ideal for cooking meats of medium thickness (sausages and bacon). Pizza function The intense heat generated when using this function is similar to that produced in traditional wood-fired pizza ovens. Door closed fan grill The air is heated by the grill element and the fan blows the air onto the food at the required temperature. This ranges from 50°C to 200°C. The grill/fan is an excellent alternative to roasting on the spit. It is ideal for roasting even large quantities of poultry, sausages and red meats. Defrosting When the dial is set to this position. The fan circulates air at room tem- perature around the frowen food so that it defrosts in a few minutes without the protein content of the food being changed or altered. Fan oven Air that has been heated to a temperature between 50 and 240 is blown by the fan onto the different levels. It is ideal for cooking different types of food at the same time (e.g. meat and fish) without mixing ta- stes and smells. It cooks very gently and is ideal for sponge cakes, pa- stries, etc. Fan plus lower element This function is ideal for delicate dishes (pies-souffle). Natural convection Bottom and top oven elements are used. This is the traditional form of baking and roasting. It is ideal for roasting joints of meat and game, baking biscuits and apples and making the food nice and crunchy. You will get the best results if you put the food on the same shelf and set the temperature between 50°C and 240°C. Turn the function knob to the on position the light will be on for all the following operations. The cooling fan is also switched on. The oven is fitted with:

Preliminary Operations to Perform After Plugging-in the Oven. After initially plugging-in the unit, and after each interruption in power, the lighted display on the control panel will respond by flashing «AUTO» Press the TIMER and END buttons along with the or buttons to set the exact time. When the symbol appears on the display, the oven is ready to be used manually. Available Functions — Manual operation — Timed operation — Semi-automatic operation (programmed end to the cooking time) — Automatic operation (programmed beginning and end of cooking time) Manual Operation (of the oven): This has already been described in the section of PRELIMINARY OPERATIONS. Just press the button to make the corresponding symbol appear in the center and remove the AUTO indicator. Using the Electronic Programmer As described in the PRELIMINARY OPERATIONS section, the electronic programmer allows the oven to be operated manually or by: — The timer; — Programming the end of the cooking time (semi-automatic operation); — Programming the beginning and end of the cooking time (automatic operation). Using the Timer While pressing the button, use the and buttons to select the desired time (23:59 maximum). Setting the desired time will light the symbol. (Note: This function can be used either as a manual function or automatic along with another program). At the end of the set time the programmer sounds an interminent signal, to cancel the signal press . While cooking, to display the time remaining press . Adjusting the Tone of the Timer Signal Three different tones are available on the acoustic timer signal. To choose the bone desired, press the button while the signal is sounding. Semi-Automatic Programming (end of cooking time) Select oven temperature and cooking function. To program only the shut-off (and not the turn-on) time of the oven proceed as follows. Press the TIMER button along with either the or button, and, while holding the buttons, set the display to the desired cooking time. Release the buttons. The display responds by ligh- ting the symbol and «AUTO», indicator. The symbol on the display means the oven has begun to cook. At the end of the cooking time, the oven shuts-off automatically, the programmer sounds a to- ne, the symbol vanishes from the display, and the «AUTO» indicator begins to blink. Remember that when the «AUTO» indicator is blinking, the bunon must be pressed to re- turn the oven to manual operation. To display the cooking time remaining while cookingl press the TIMER button. Pressing the END button shows the time when cooking will end Automatic Programming (beginning and end of cooking time) Select oven temperature and cooking function. To program not only the oven shut-off time, but also the cooking time (and hence the turn-on ti- me) the following steps must be performed:

1) Press and hold the

TIMER button and use the and buttons to set the display to the desired cooking time. Upon releasing the buttons, the display will again show the current time, the «AUTO» indi- cator, and the symbol.

2) Press and hold the

END button and use the and buttons to set the display when time cooking is to finish. When the buttons are released, the display will again show: — The current time; — The «AUTO» indicator. Once the above steps are completed, the oven will automatically turn on and off at the desired times. The oven turn-on time will automatically be determined by the oven, based on the cooking times. When the oven begins operation, the programmer will display with symbol and the «AUTO» indicator. When the oven shuts-off, the tone sounds and the symbol disappears. The «AUTO» indicator begins to blink. Remember that when the «AUTO» indicator is blinking, the button must be pressed to return the oven to manual operation. The tone signaling the end of the cooking time can be canceled by pressing the button. To display the cooking time remaining while cooking, press the TIMER button. Pressing the END button shows the time when cooking will end.

Warning: The symbols on the buttons may vary from model to model, but their functions

remain the same.To replace the interior light: switch off the mains power supply and unscrew bulb. Replace with an identical bulb that can withstand very high temperatures. Self-cleaning oven with catalytic Special self-cleaning panels covered in a micro-porous coating are available as optional extras for all models. If they are fitted, the oven no longer needs to be cleaned by hand. The fat that is splattered onto the sides of the oven during roasting is eliminated by the micro- porous coating which breaks the fat down by catalysis and transforms it into gas. Excessive splattering may nevertheless block the pores and therefore hinder self-cleaning. The self-cleaning capacity may be restored by switching on the empty oven to maximum for about 10-20 minutes. Do not use abrasive products, metal cleaning wads, sharp objects, rough cloths, or chemical products and detergents that may permanently damage the catalytic lining. It is a good idea to use deep roasting trays to roast fatty foods such as joints of meat etc. and to put a tray underneath the grill to catch surplus fat. These simple precautions will ensure the correct temperature and ideal conditions for catalytic cleaning to take place. If the walls of the oven are so thickly coated in grease that the catalytic lining is no longer ef- fective remove surplus grease with a soft cloth or sponge soaked in hot water. The lining must be porous for self-cleaning to be effective. N.B.: All catalytic linings currently on the market have a working life of about 300 hours. They should therefore be replaced after about 300 hours. Service centre Before calling the Service Centre If the oven is not working, we recommend that: — you check that the oven is properly plugged into the power supply. If the cause of the fault cannot be detected: disconnect the oven from the mains, do not touch the oven and call the after sales service. Before calling the Service Centre remember to make a note of the serial number on the serial number specifications plate (see fig. 4, pag. 38). The oven is supplied with a guarantee certificate that ensures that it will be repaired free of char- ge at the Service Centre.

Weighing grill ACCORDING TO THE MODELS For routine cleaning access can be gained to the upper parts of the oven by removing the screw and washer (A) from the middle of the grill element and then gently tilting the element in a downward direction. Once cleaned the grill can be returned to the correct posi- tion by reversing the above procedure. NB: For cleaning instructions please refer to the section entitled cleaning and maintenance.

WARNING: the oven must only be used when the grill in its

USEFUL TIPS Shelf safety system The oven features a new shelf safety system. This allows you to pull out the oven shelves when in- specting the food without danger of food spillages or shelves folling accidentally out of the oven. To remove the shelves pull out and lift. Grilling Grilling makes it possible to give food a rich brown colour quickly. For browning we recommend that you insert the grill onto the fourth level, depending in the proportions of the food (see fig. 2, page 35). Almost all food can be cooked under the grill except for very lean game and meat rolls. Meat and fish that are going to be grilled should first be lightly doused with oil. Cooking times For recommended cooking times and temperatures the first time you use the oven, refer to the tables on pages 32, 33, 34, 35, 36 and 37. You may then wish to vary these times and settings in the light of your own experience. Cleaning and maintenance Clean the stainless steel and enamelled surfaces with warm, soapy water or with suitable brand products. On no account use abrasive powders that may damage surfaces and ruin the oven’s appearance. It is very important to clean the oven each time that it is used. Melted fat is deposited on the sides of the oven during cooking. The next time the oven is used this fat could cause unpleasant odours and might even jeopardise the success of the cooking. Use hot water and detergent to clean; rinse out thoroughly. To make this chore unnecessary all models can be lined with catalytic self-cleaning panels: these are supplied as an optional extra (see the section SELF-CLEANING OVEN WITH CATALYTIC LINING). Use detergents and abrasive metal pads like «brillo pads» for the stainless steel grills. The glass surfaces as the top, oven door and warming compartment door must be cleaned when they are cold. Damage that occurs to them because this rule was not adhered to are not covered by the guarantee.

30TABLES OF COOKING TIMES

The overall suggested cooking times set out below are intended as a rough guide only. They may in fact vary according to the quality, the freshness, the size and the thickness of the food cooked and of course cooking time is also partly a matter of taste. Let the food stand for a few minutes before serving because the ingredients continue cooking after they have been removed from the oven. Static oven Unless otherwise stated, the cooking times do not include heating up the oven to the required temperature. See fig. 2, page 34 for the correct position of the oven shelves. HANDY TIP: Turn off the oven at least 10 minutes before the time shown, leaving the food in the oven. This way, you will save energy and be able to finish cooking the dish in such a way as to suit you. Lower the temperature so as to avoid the surface of the food becoming hard and dry.

Remarks Put the lasagne into an unheated oven Put the cannelloni into an unheated oven Put the oven baked pasta into an unhea- ted oven. Remarks Form the dough into a loaf and make a cross with a knife on top of the dough leave the dought to rise for at least 2 hours. Grease the baking tin and put the dough in the middle of it. Warm the oven for 15 minutes and place the pizzas in the greased baking tray. Garnish them with to- matoes, mozzarella, ham, oil, salt and origano. Place 24 vol au vents in the oven and bake. Warm the oven for 15 minutes, grease the baking tray, season the 4 focaccia with oil and salt and leave them to rise at room temperature for at least 2 hours before putting them in the oven.

STATIC ELECTRIC OVEN ELECTRIC FAN OVEN

Time of cooking Oven Time of cooking Oven Food Quantity Shelf in minutes temperature Shelf in minutes temperature Lasagne kg 3,5 2 70 ÷ 75 220 2 60 ÷ 65 200 Cannelloni kg 1,8 2 50 ÷ 60 220 2 40 ÷ 50 200 Oven baked pasta kg 2,5 2 55 ÷ 60 220 2 45 ÷ 50 200 Baking (not cakes) STATIC ELECTRIC OVEN ELECTRIC FAN OVEN Time of cooking Oven Time of cooking Oven Food Quantity Shelf in minutes temperature Shelf in minutes temperature Bread kg 1 pasta 2 35 200 2 30 ÷ 35 180 10 (pre-heating) 10 (pre-heating) Pizzas kg 1 1 25 ÷ 35 190 1 20 ÷ 25 190 Pastry (frozen) n. 24 1 30 ÷ 35 220 2 25 ÷ 30 200 vol au vents 4 Focaccia 200 gr. 2 25 ÷ 30 200 2 20 ÷ 25 180 of dough each Pasta34 35 Meat Remarks Put the meat into a deep Pyrex dish and season with salt and pepper; turn the meat half way through cooking. Cook the meat in a covered Pyrex di- sh with herbs, spice, oil and butter. Cook as indicated above. Cook as indicated above. Remarks Cover the trout with salt, oil and onions and cook in a Pyrex dish. Cook the salmon in an open Pyrex dish with salt, pepper and oil. Cook the sole with salt and a spoonful of oil. Cook the bream in oil and salt in a covered dish. Remarks Place the guinea fowl in a deep Pyrex or pottery dish with very little oil and season with herbs and spices. Follow the procedure for cooking the guinea fowl. Put all the pieces of the same size in the glazed tray. Season with herbs and spices. Turn the pieces as and when required. All meats can be roasted in shallow or deep roasting trays. It is advisable to cover the shallow trays to avoid splattering the sides of the oven with grease will be crunchier. The roasting times are the same whether the meat has been covered up or not. Fig. 2

STATIC ELECTRIC OVEN ELECTRIC FAN OVEN

Time of cooking Oven Time of cooking Oven Food Quantity Shelf in minutes temperature Shelf in minutes temperature Whole joint of beef kg 1 3 70 ÷ 80 220 3 50 ÷ 60 200 Joint of deboned kg 1 2 100 ÷ 110 220 2 80 ÷ 90 200 Joint of deboned veal kg 1,3 1 90 ÷ 100 220 2 90 ÷ 100 200 Joint of filet of beef kg 1 2 80 ÷ 90 220 2 80 ÷ 90 200

Time of cooking Oven Time of cooking Oven Food Quantity Shelf in minutes temperature Shelf in minutes temperature Cocount cake baked in a tin 1 55 180 1 50 160 Torta Margherita in a tin 1 55 175 1 40 ÷ 45 160 Carrot cake baked in a tin 1 65 180 1 50 ÷ 60 160 Apricot pie 700 gr. 1 40 200 2 30 ÷ 35 180

Time of cooking Oven Time of cooking Oven Food Quantity Shelf in minutes temperature Shelf in minutes temperature Whole apples kg 1 1 45 ÷ 55 220 2 45 ÷ 55 200 Pears kg 1 1 45 ÷ 55 220 2 45 ÷ 55 200 Peaches kg 1 1 45 ÷ 55 220 2 45 ÷ 55 200 STATIC GRILL WITH OPEN DOOR GRILL FAN WITH CLOSE DOOR Time of cooking Oven Time of cooking Oven Food Quantity Shelf in minutes temperature Shelf in minutes temperature Squares of bread 4 slices 4 5 Grill 4 5 Grill for toasting (5 to heat up grill) (10 to heat up grill) Toasted sandwiches n. 4 4 10 Grill 3 5/8 Grill (10 to heat up grill) (10 to heat up grill) Sausages n. 6 / kg 0,9 4 25/30 Grill 4 15/20 Grill (5 to heat up grill) (10 to heat up grill) Ribs of beef n. 4 / kg 1,5 4 25 Grill 4 15/20 Grill (5 to heat up grill) (10 to heat up grill) Chicken legs n. 4 / kg 1,5 3 50/ 60 Grill 3 50/ 60 Grill (5 to heat up grill) (10 to heat up grill) Remarks Use a tin that is 22 cm deep. Pre-heat for 10 m. Use a tin that is 22 cm deep. Pre-heat for 10 m. Use a tin that is 22 cm deep. pre-heat for 10 m. Use a tin that is 22 cm deep. Pre-heat for 10 m. Remarks Cut the fennel into four pieces, add butter, salt and potatoes if required and place in a Pyrex face up. Cover the dish. Slice the courgettes, place in a Pyrex dish and add butter and salt. Cut the potatoes into equal parts and place in a Pyrex dish. Season with salt, origano and rosemary. Cook in oil. Slice the carrots, place in a Pyrex dish and cook. Remarks Bake the fruit in an open Pyrex or earthenware dish. Leave it to cool inside the oven. Follow procedure above. Follow procedure above. Remarks Lay the bread on the grill tray. When one side of the bread has been toasted, turn over and toast the other side. Remember: keep the toast warm at the bottom of the oven until you are ready to serve it. Lay the bread on the grill tray. When one side of the sandwich has been toasted, turn over and toast the other side. Cut the sausages in half and lay them face down on the grill. Half way through grilling turn them over. Warming: Every so often, check that they are being cooked equally all over. If this is not happening, switch over the positions of those being less and those being more cooked. Make sure that the ribs of beef are expo- sed to the full effect on the main grill. Turn them over twice during grilling. Cakes Vegetables Fruit Place the food to be grilled underneath the infra-red grill. Warning: When the grill is on it takes on a bri- ght red colour. Place the tray underneath the grill to collect juices and fat from the food being grilled. Grilling38 The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function. INSTALLATION Rating plateLa instalación debe ser efectuada según las instrucciones por personal profesionalmente cualifi- cado. Una instalación erronea puede causar daños a personas, animales o cosas, de los cuales el fabricante no puede ser considerado responsable.
