USER MANUAL CDMEE 3750 CANDY

Open the top door of the fridge in order to access the control panel.

SWITCHING THE PRODUCT ON AND OFF

The product is electronically powered by connecting the power cable to the power outlet and remains powered on until cable is removed.

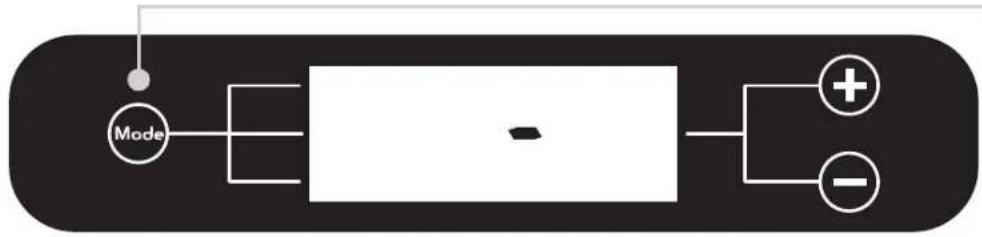

When " - " is displayed on the digital controls, it indicates that the product is in stand-by mode, therefore it is connected to the power outlet but it is not working. To switch the appliance on, press the MODE button. To turn the product to standby mode, press the MODE button for a few seconds. When the product is in standby mode, any food in your fridge or freezer will not be cooled.

(Figure 1)

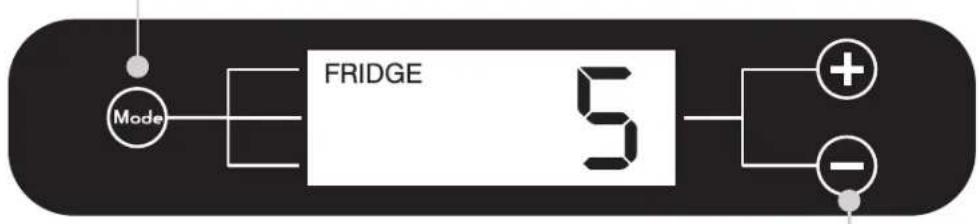

Once the plug has been connected, the product will show the recommended temperature for the fridge compartment on the display +5^ . For the freezer compartment, the product will automatically switch to the recommended temperature of -18^ .

SETTING THE TEMPERATURE OF THE FRIDGE COMPARTMENT

It is possible to modify the temperature by pressing the buttons (+) and (-). The maximum temperature is 7, and the minimum is 1. The manufacturer's recommended temperature is 5.

When the temperature of the fridge compartment is being set, the word FRIDGE fl ashes.

SETTING THE TEMPERATURE OF THE FREEZER COMPARTMENT

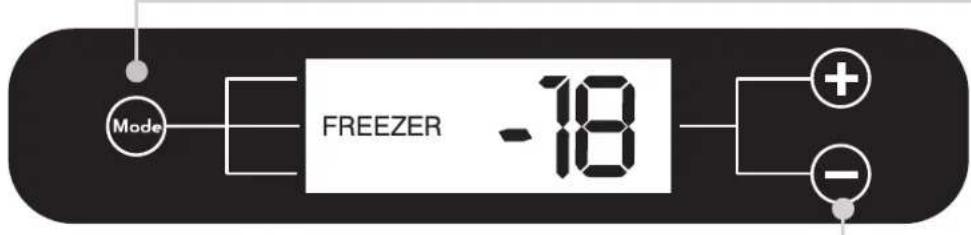

It is possible to switch from Fridge to Freezer mode by pressing the MODE button. The word FREEZER will now be displayed. Subsequently, the recommended temperature -18 will be displayed. It is possible to modify the temperature from -16^ to -22^ .

(Figure 2)

To modify the temperature, press the buttons (+) and (-) until you reach the desired temperature. The display temperatures are only indicative.

The SUPER option can be selected to fast freeze food items. Ideal to use when a large amount of food has been added to your freezer.

Off On

(figure 3)

Press the (+) button in order to activate the SUPER function. After 36 hours the product will automatically leave the SUPER function. If you wish to interrupt the SUPER function at anytime press the (-) button. At the end of the pre-set time, the product will automatically exit the SUPER function. Should you wish to stop it sooner, press the (-) button. The rating plate states the maximum quantity of foods that can be frozen, (see fi gure 5).

FAULTS AND ERRORS

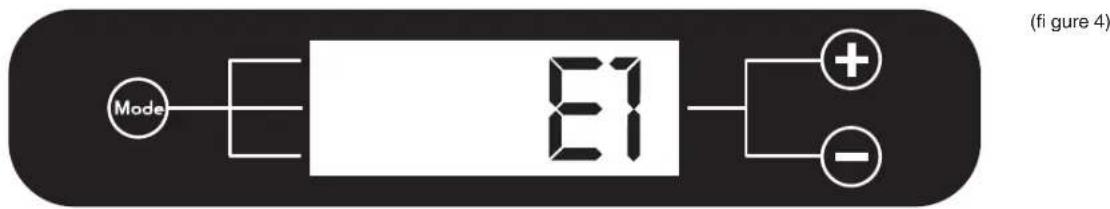

Every error or fault that occurs will be automatically shown on the display which will be indicated by the letter ^a (Error), followed by a number. If this occurs switch the product off and back on again, if the error persists, please contact for technical assistance.

In case of a power cut which lasts between 10-12 hours, check that the food items have remained unchanged. Any food that has been fully or partially defrosted needs to be consumed within 24 hours and NOT refrozen.

DEFROSTING

Defrosting of the fridge compartment is automatic in this product.

A small amount of frost or drops of water on the back of the fridge compartment is normal.

Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the compartment.

We recommend you defrost the freezer area when the layer of frost is more than 3mm thick.

N.B. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Important: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case, turn the dial to a higher setting.

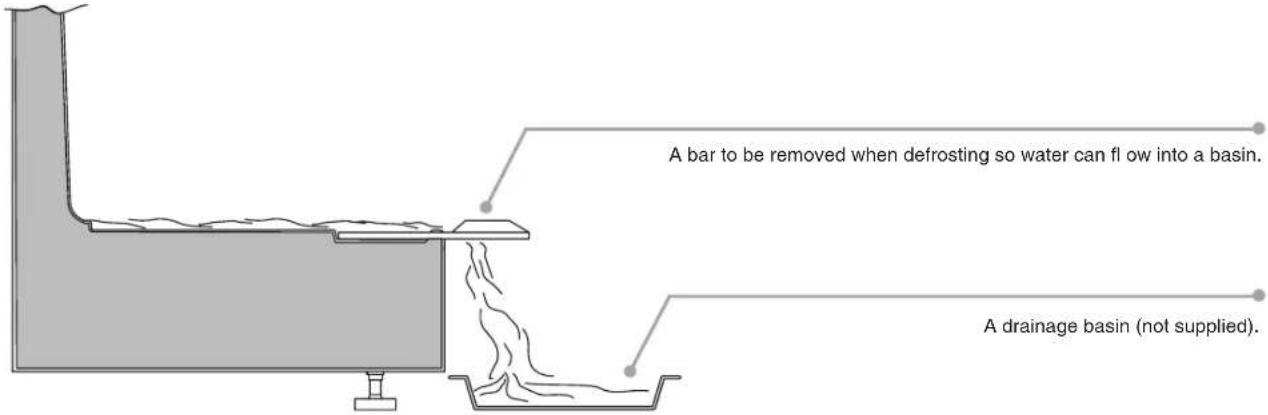

DRAINING WATER

The appliance has a system for draining water while defrosting. This system consists of:

REVERSING THE OPENING OF THE DOORS

In order to reverse the opening of the doors, follow the indications in relation to the insert and hinge type your product is made up of.

Place the appliance on the floor or at a 45^ angle, as it is necessary to work on the bottom of the appliance.

1

Remove the bottom right hinge by unscrewing the screws, pin and washers, then remove the bottom door

2

Remove the screws from the central hinge and remove the top door.

Take off the bottom right-hand hinge by removing the screws, pin and washers, then remove the lower door.

4

Remove the caps (A) and (B), loosen the screws and partially remove the panel making sure not to damage the rear electric part

5

Unscrew the right hinge.

Mark and break the left-hand slot on the panel, in the insert area.

7

Flip the top left-hand hinge found in the accessories kit.

8

Fit the panel, and secure with the screws and caps.

Remount the hinges and doors working from bottom to top, 1 2 3

10

To reverse the handles: remove the outer caps from the right-hand side of the doors.

Unscrew the handles from the left-hand side and move them to the right-hand side, then position the outer caps on the left-hand side of the doors.

12

Put the appliance in an upright position and wait two hours before turning it on.

13

COMBINE ELECTRONIQUE

PANNEAU DE COMMANDE

NASTAVENI TEPLOTY PROSTORU CHLADNICKY

Teplotu je mozne zmenit stisknutim tlaitek (+) a (-). Maximaini teplata je 7 a minimaini teplata je 1. Nastaveni teploty doporueneVyrobcem je 5. Jakmile nestavite teplotu prostoru chladncky, zaene blikat vyraz FRIDGE.

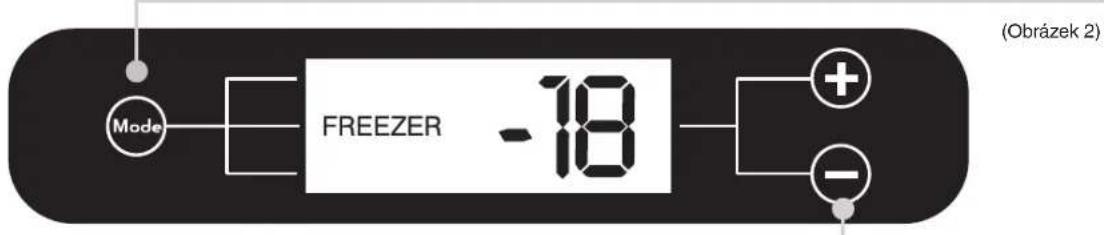

NASTAVENI TEPLOTY PROSTORU MRAZNICKY

Prepnuti rezimu z Chladncky na Mrazncku se prove de stiskutim tlaitka MODE. Nni se zo brazi slovo FREEZER. Nasledne se zo brazi doporucnatapelota-18. Teplotu je mozné nastavovat v rozsahu od -16°C do -22°C.
