USER MANUAL 6038562 Yard Works

This unit includes the following:

• Electric Blower/Vacuum

• Owner’s Registration Card Examine all parts to make certain that nothing is missing and no breakage has occurred during shipping. Damaged or missing parts must be replaced before using this unit. THANK YOU Thank you for buying this quality product. This modern outdoor power tool will provide many hours of useful service. You will find it to be a great labor-saving device. This operator’s manual provides you with easy-to- understand operating instructions. Read the whole manual and follow all the instructions to keep your new outdoor power tool in top operating condition.

PRODUCT REFERENCES, ILLUSTRATIONS AND

SPECIFICATIONS All information, illustrations and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice. Copyright

2003 MTD SOUTHWEST INC

All Rights Reserved. SERVICE INFORMATION Service on this unit both within and after the warranty period should be performed only by an authorized and approved service dealer. Dial:

• 1-888-939-0992 in Canada to obtain a listing of authorized service dealers near you. DO NOT RETURN THE UNIT TO THE RETAILER. NOTE: PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE. Make sure you carefully read and understand this manual before starting or operating this equipment. THIS PRODUCT IS COVERED BY ONE OR MORE

Failure to obey a safety warning will result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

WARNING: Failure to obey a safety

warning can result in injury to yourself and others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. CAUTION: Failure to obey a safety warning may result in property damage or personal injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. SAFETY ALERT SYMBOL: Indicates danger, warning or caution. Attention is required in order to avoid serious personal injury. May be used in conjunction with other symbols or pictographs. SYMBOL MEANING The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures. NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment. SYMBOL MEANING

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.

• Do not operate this unit when tired, ill or under the influence of alcohol, drugs or medication.

• Children and teens under the age of 15 must not use the unit, except for teens guided by an adult.

• Before each use, thoroughly inspect your unit for loose or damaged parts. Do not use until adjustments or repairs are made.

• All guards and safety attachments must be installed properly before operating the unit.

• Inspect the area before starting the Blower/ Vacuum. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Use the unit only in daylight or good artificial light.

• Keep all bystanders, especially children and pets, at least 50 feet (15 m) away from the unit while operating.

ELECTRICAL SAFETY WARNINGS

• Since the tool is double-insulated, a 2-wire extension cord (an extension cord without a ground) may be used. A 3-wire extension cord (an extension cord with a ground) that uses a NEMA type connector (parallel blade, U ground) is recommended. Extension cords are available from your local retailer. Use only round- jacketed extension cords approved for outdoor use.

• This tool is double-insulated. Repair or replace damaged cords.

• To reduce the risk of electrical shock, this unit has a polarized plug (one blade is wider than the other). This unit will fit with a polarized plug in one way only. If the plug does not fit fully into the unit, reverse the plug. If it still does not fit, use a cord with the correct connection. Do not modify the unit in any way. *The wire size (AWG) for appliances using 12 to 16 amps is 14 AWG for 25 feet, 12 AWG for 50 feet, and not recommended for 100 or 150 feet.

• CORD SETS: Make sure your cord set is in good condition, with a cord that is heavy enough to carry the current that your unit will draw. An undersized cord set will cause a drop in line voltage resulting in a loss of power, as well as overheating. The table shown above illustrates the correct size to use depending on the cord length and nameplate amperage rating. If in doubt, use the next heavier size line gauge. The smaller the gauge number, the heavier the cord. To prevent the cord from disconnecting from the unit, use the cord hook shown in the Operating Instructions.

DANGER: When using electric gardening

appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Carefully read and understand the entire operator's manual before using your unit. Pay close attention to the operating instructions and safety warnings.

When using the unit, you must follow the safety rules. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use. Cord length (ft.) 25 50 100 150Wire size (AWG)* 16 16 16 14MINIMUM WIRE SIZE FOR EXTENSION CORDS FOR120 VOLT APPLIANCES USING 0-12 AMPS*

WARNING: To reduce the risk of electrical

shock, use only SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-W or SJTOW-A cord types.4

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) that will be used for the unit. Use receptacles with built-in GFCI protection for an extra measure of safety.

• A nameplate on your unit indicates the voltage used. Never connect the unit to an AC voltage that differs from this voltage.

• Inspect all extension cords and the unit power connection periodically. Look closely for deterioration, cuts or cracks in the insulation. Also inspect the connections for damage. Repair or replace the cords if any defects appear.

• Avoid dangerous environments. Never operate your unit in damp or wet conditions. Moisture is a shock hazard.

• Do not use the unit in the rain.

• Do not handle the plug or the unit with wet hands. WHILE OPERATING

• Wear safety glasses or goggles that are marked as meeting ANSI Z87.1-1989 standards. Also wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty. Long sleeve shirts are recommended.

• Wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

• Avoid accidental starting. Do not carry around a unit that is plugged in with your finger on the trigger switch. Be sure the switch is in the off position when plugging in the unit.

• Do not set unit on any surface except a clean, hard area while engine is running. Debris such as gravel, sand, dust, grass, etc. could be picked up by the air intake and thrown out by the discharge opening, damaging unit, property, or causing serious injury to bystanders or operator.

• Use the right tool. Only use this tool for the purpose intended.

• Do not overreach. Always keep proper footing and balance. Do not operate from unstable surfaces like ladders, trees, slopes or rooftops.

• Do not abuse the power cord. Do not pull or carry the unit by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces, oil and sharp edges.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Always remain alert. Use common sense. To prevent injury to yourself and others, do not operate this unit if you are fatigued.

• Do not operate the unit while under the influence of drugs, alcohol or medication.

• Do not leave the blower/vacuum plugged in when not in use, changing attachments, or while being serviced.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dirt, debris and anything that may reduce the air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Use only Genuine Factory Parts™ replacement parts when servicing this unit. These parts are available from your authorized service dealer. Do not use unauthorized parts, accessories, or attachments for this unit. Doing so could lead to serious injury to the user, or damage to the unit, and void your warranty.

• Do not force unit. It will do the job better and with less likelihood of injury at a rate for which it was designed.

• Never use the blower/vacuum without the blower/vacuum tube and vacuum bag attached.

• Turn off all controls before unplugging.

• Unplug the blower/vacuum before attempting to install or remove the blower/vacuum tube or vacuum bag. The unit must be unplugged, and the impeller blades stopped to avoid contact with the rotating blades.

WHILE OPERATING UNIT AS A BLOWER

• Never point the blower in the direction of people or pets, or in the direction of windows. Always direct the blowing debris away from people, animals, and windows. Use extra caution when blowing debris near solid objects such as trees, automobiles, walls, etc.

WHILE OPERATING UNIT AS A VACUUM

• Avoid situations that could catch the vacuum bag on fire. Do not operate near an open flame. Do not vacuum warm ash from fireplaces, barbecue pits, brush piles, etc. Do not vacuum discarded cigars or cigarettes unless the cinders are completely cool.

• The unit is designed to pickup dry material such as leaves, grass, small twigs, and bits of paper. Do not attempt to vacuum wet debris and/or standing water as this may result in damage to the blower/ vacuum. To avoid severe damage to the impeller, do not vacuum metal, broken glass, etc.

OTHER SAFETY WARNINGS

• Be sure to secure the unit while transporting.

• Store the unit in a dry area, locked up to prevent unauthorized use or damage, and stored in a high place out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use. See the Cleaning and Storage instructions.

• Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions.

SAVE THESE INSTRUCTIONS

• SAFETY ALERT SYMBOL Indicates danger, warning, or caution. May be used in conjunction with other symbols or pictographs.

• WARNING - READ OPERATOR'S MANUAL Read the Operator’s Manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and

loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Use a full face shield when needed.

WARNING: Keep clear of blower

outlet. Never point the blower at yourself or others. Objects can be thrown from blower. Do not operate unit without proper attachments and guards in place.

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING

• DO NOT USE IN THE RAIN

WARNING: Avoid dangerous

environments. Never operate your unit in the rain, or in damp or wet conditions. Moisture is a shock hazard.

WARNING: Stop the engine and

allow the impeller to stop before opening the vacuum door, installing or changing tubes or bag, or before cleaning or performing any maintenance

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders,

especially children and pets, at least 50 feet (15 m.) from the operating area.6 Shoulder Strap Blower/Vacuum Tube Vacuum Bag Blower/Vacuum Mode Change-Over Lever Vacuum Inlet Blower Outlet Vacuum Bag Hook Power/Speed Switch Motor Air Vents Vacuum Bag Zipper Latch Support

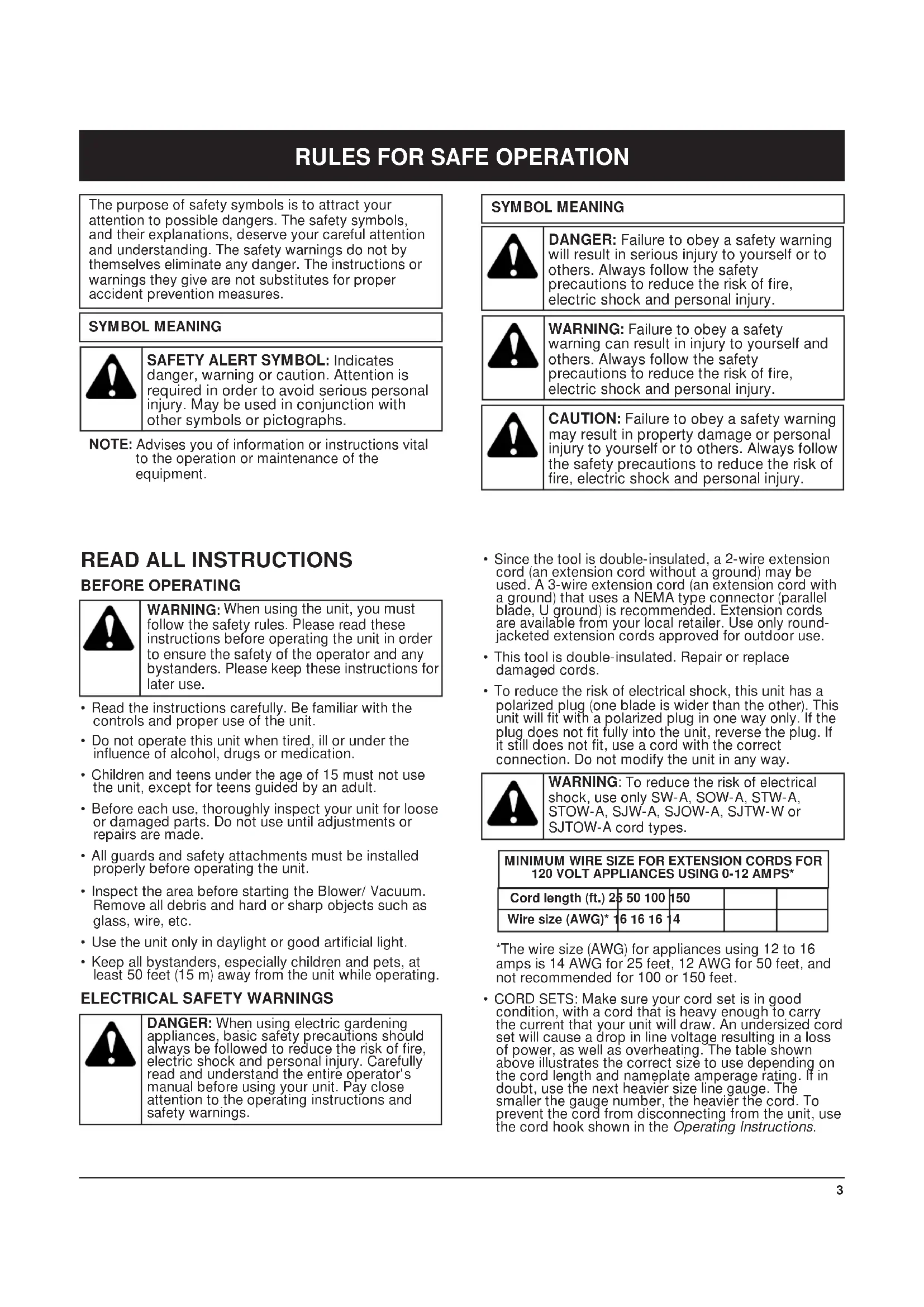

RULES FOR SAFE OPERATION

APPLICATION As a blower:

• Cleaning yards, garages, driveways, porches, patios and around walls, fences and more As a vacuum:

• Picking up leaves and other light debris

ATTACHING AND REMOVING THE

Attaching NOTE: The blower/vacuum tube comes unassembled on this unit. Installation is required to provide safe and easy use for the operator.

1. Remove the screws and nuts provided from the

2. Insert the blower/vacuum tube all the way into the

opening on the motor housing until the holes in the tabs on the blower/vacuum tube align with the screw holes in the housing (Fig. 1).

3. Insert the 2 (two) 8-32 x 3/4” slotted T20 Torx screws

into the right side of the motor housing and the 2 (two) nuts into the left side of the motor housing (Fig. 1). Fig. 1

4. Tighten the screws firmly. Do not over-tighten.

5. Install the 2 (two) remaining self-tapping 8-16 x 3/4”

slotted T20 Torx screws into the holes on either side of the housing (Fig. 1). Tighten until snug, do not over-tighten. Removing NOTE: It may be necessary to remove the blower/vacuum tube to clear a blocked tube or impeller.

1. Remove the 2 (two) self-tapping screws from either

side of the housing.

2. Remove the 2 (two) screws and nuts holding the

blower/vacuum tube on the housing (Fig. 2). NOTE: Keep the hardware in a safe place for future use. Fig. 2

3. Remove the blower/vacuum tube from the motor

4. Replace blower/vacuum tube before use.

Screw Nut Blower/Vacuum Tube Motor HousingSelf-Tapping Screw

WARNING: To prevent serious personal

injury, make sure the unit is in the off position, it is unplugged, and the impellers have stopped before attaching or removing tubes.

WARNING: To avoid serious personal injury,

the blower/vacuum tube and vacuum bag must be used when operating this unit.

WARNING: To prevent serious personal

injury, make sure the unit is in the off position, it is unplugged, and the impellers have stopped before attaching or removing tubes.8 ASSEMBLY INSTRUCTIONS Fig. 8 Fig. 7 Support Fitting

3. Snap the clip on to the support fitting (Fig. 7).

4. While standing in the operating position adjust the

length to fit the operator’s size. Pull the tab to lengthen, pull the strap to shorten (Fig 8). Clip

INSTALLING THE SHOULDER HARNESS

1. Push the strap through the center of the buckle.

2. Pull the strap over the cross bar and down through

the slot in the buckle (Fig. 6). Removing

1. Press the latching tabs on both sides of the vacuum

bag tube and pull the vacuum bag down from the unit (Fig. 5).

2. Detach the vacuum bag from the vacuum bag hook.

Vacuum Bag Vacuum Bag Hook Debris Exhaust Tube Vacuum Bag Tube Zipper Fig. 4 Fig. 3 Latching Tabs

1. Attach the vacuum bag to the vacuum bag hook on

the blower/vacuum tube (Fig. 3).

2. Slide the vacuum bag tube over the debris exhaust

tube on the housing. Push the tube until the latching tabs on both sides click into place, securing the bag on the unit (Fig. 4). Clip Fig. 6 Latching Tabs PRESS IN PRESS IN Fig. 59 This unit plug will only fit into a polarized extension cord in one orientation. If the plug does not fully fit into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will only fit into a polarized wall outlet in a specific orientation. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the unit plug, extension cord receptacle, or extension cord plug in any way.

1. Secure the extension cord to the motor housing as

This unit is equipped with a three-way (OFF/ LOW/ HIGH) switch (Fig. 11):

• Slide the switch all the way down for OFF.

• Slide the switch up to the first click for LOW.

• Slide the switch up to the second click for HIGH. Once the unit is plugged in, stand in the operating position (Fig. 12). Slide the power/speed switch to LOW or HIGH to start the unit. To stop the unit, slide the switch to OFF (Fig. 11). Fig. 10

2. Plug the female end of the electrical cord into the

receptacle at the back of the unit (Fig. 10). Receptacle Cord length (ft.) 25 50 100 150 Wire size (AWG) 16 16 16 14 MINIMUM WIRE SIZE FOR EXTENSION CORDS FOR

120 VOLT APPLIANCES USING 0-12 AMPS

To reduce the risk of electrical shock, this unit has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord.10 Air Vents AIR VENTS Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling (Fig. 13). Fig. 13

HOLDING THE BLOWER/VACUUM

Before operating the unit, stand in the operating position. (Fig. 12). Check for the following:

• Operator is wearing proper clothing, such as boots, safety glasses or goggles, ear/hearing protection, gloves, long pants and a long sleeve shirt

• If the conditions are dusty, the operator is wearing a dust mask or face mask

• The unit is in good working condition

• The tubes and the bag are in place and secure

• The vacuum bag is installed and zipped closed (when used as a vacuum) OPERATING TIPS

• Be sure the vacuum bag is zipped closed before operating the unit.

• Assure the unit is not directed at anybody or any loose debris before starting the unit.

• Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure.

• Always hold the unit with both hands when operating. Keep a firm grip on both the front and rear handle or grips.

• To reduce the risk of hearing loss associated with sound level(s), hearing protection is required. Fig. 12

WARNING: To avoid serious personal injury,

wear goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations

WARNING: To prevent serious personal injury

or damage to the unit, make sure blower tubes or vacuum tubes and the vacuum bag are in place before you operate the unit.

• Use the shoulder strap when vacuuming.

• Operate power equipment only at reasonable hours— not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 am to 5:00 pm, Monday through Saturday.

• To reduce noise levels, limit the number of pieces of equipment used at any one time.

• To reduce noise levels, operate power blowers at the lowest possible speed to do the job.

• Use rakes and brooms to loosen debris before blowing.

• In dusty conditions, slightly dampen surfaces or use a mister attachment when water is available.

• Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.

• Watch out for children, pets, open windows or freshly washed cars, and blow debris safely away.

• Clean up after using blowers and other equipment. Dispose of debris appropriately.

WARNING: To avoid serious personal injury,

do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc. that could get drawn into the air vents. To make sure long hair does not get drawn into the air vents secure hair above shoulder level. OPERATING INSTRUCTIONS11 Change-over Lever

OPERATING AS A BLOWER

Converting to a Blower

1. Place the shoulder harness over your head, onto

your shoulder and adjust it if necessary. Refer to Installing the Shoulder Harness.

2. Start the unit. See Starting/Stopping Instructions.

3. Set the blower/vacuum mode change-over lever to

the up position (Blower Mode) (Fig. 14). NOTE: Never use the unit with the lever in a position half way between either mode. Fig. 14 Blower Vacuum Fig. 15 Fig. 16 Fig. 17 OPERATING INSTRUCTIONS Blower Operating Procedures Hold the blower as shown in Figures 15, 16 and 17. Sweep from side to side with the nozzle several inches above the ground or floor. Slowly advance the unit, keeping the accumulated pile of debris in front of you. Most dry blowing operations are better suited to low speeds, rather than high. High speed blowing is a better way to move heavier items like large debris or gravel. 1Use the blower for trees, shrubs, flower beds and hard-to-clean areas (Fig. 15).

2. Use the unit around buildings and for other normal

cleaning procedures (Fig. 16).

3. Use the blower around walls, overhangs, fences and

screens (Fig. 17).12 Vacuum Operation Procedures Check for the following before operating the unit:

• Operator is wearing proper clothing, such as boots, safety glasses or goggles, ear/hearing protection, gloves, long pants and long sleeve shirt

• If the conditions are dusty, operator is equipped with a dust mask or face mask

• The unit is in good working condition-- the vacuum tubes and vacuum bag are in place and secure.

• The vacuum bag harness is in place and correctly adjusted Use the unit for vacuuming up light debris like leaves and paper. Hold the vacuum, tilting the suction tube slightly (2-4 in or 50-100 mm), and use a sweeping action to collect light debris (Fig. 19). The debris will flow into the vacuum bag. Items such as small leaves and small twigs will be mulched as they pass through the fan housing, allowing the vacuum bag to hold more debris.

WARNING: To prevent serious personal injury

or damage to the unit, always install vacuum tubes, the vacuum bag and make sure the vacuum bag is completely zipped closed when operating this unit as a vacuum.

OPERATING AS A VACUUM

Converting to Vacuum

1. Place the shoulder harness over your head, onto

your shoulder and adjust it if necessary. Refer to Installing the Shoulder Harness.

2. Start the unit. See Starting/Stopping Instructions.

3. Set the blower/vacuum mode change-over lever to

the down position (Vacuum Mode) (Fig. 18). NOTE: Never use the unit with the lever in a position half way between either mode. Change-over leverFig. 18Vacuum Mode Blower Mode

WARNING: To avoid serious personal

injury, never unzip the vacuum bag without stopping the unit first.

WARNING: Avoid situations that could

catch the vacuum bag on fire. Do not operate near an open flame. Do not vacuum warm ash from fireplaces, barbecue pits, brush piles, etc. Do not vacuum discarded cigars or cigarettes unless the cinders are completely cool.

WARNING: As a vacuum, the unit is

designed to pick up dry material such as leaves, grass, small twigs and bits of paper. To avoid serious personal injury, do not attempt to vacuum wet debris and/or standing water as this may result in damage to the blower/ vacuum. To avoid severe damage to the impeller, do not vacuum metal, broken glass or similar items. Fig. 19 OPERATING INSTRUCTIONS When the bag is full, suction will noticeably decrease. Turn off the unit and allow the impeller to stop before you unzip the bag. Unzip the bag and empty the contents before continuing. Refer to Emptying the Vacuum Bag. NOTE: Empty the bag after each use to avoid deterioration and obstructing air flow, which will reduce the performance of the vacuum.13

EMPTYING THE VACUUM BAG

NOTE: Empty the bag after each use to avoid deterioration and obstructing air flow, which will reduce the performance of the vacuum.

2. While pressing the latching tabs on both sides of the

vacuum bag tube, pull the vacuum bag down off the unit (Fig. 20).

3. Detach the vacuum bag from the vacuum bag hook.

4. Unzip the bag and empty the contents into a

garbage bag or container.

5. Turn the bag inside out after initial emptying and

vigorously shake out dust and debris.

6. Return the bag to outside in, zip the bag closed and

reinstall vacuum bag.

7. Plug the unit back into the power supply.

1. Slide the Power/Speed switch down in the OFF position

until the unit comes to a complete stop (Fig. 11).

3. Remove the blower/vacuum tube and the vacuum bag.

4. Carefully remove material blocking the tube or

impeller. Inspect the blades to assure no damage has occurred. Rotate the impeller blades by hand to assure the blockage is completely cleared.

5. Reinstall the vacuum bag and blower/vacuum tube.

6. Plug the unit back into the power supply.

WARNING: To avoid serious personal injury,

be sure the unit is off and unplugged before clearing the impeller.

WARNING: To avoid serious personal injury,

always wear gloves to protect yourself from the impeller blades or other sharp objects.

WARNING: To avoid serious personal

injury, never unzip or remove the vacuum bag without first turning the unit off.

Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.

CLEANING THE VACUUM BAG

1. Empty the bag after each use to avoid deterioration

and obstructing air flow, which will reduce the performance of the vacuum.

2. Wearing eye protection and a dust mask, clean the

bag as needed. Turn the bag inside out after initial emptying and vigorously shake out dust and debris.

3. Wash the bag once a year or more often if needed:

a. Remove the vacuum bag. b. Turn bag inside out. c. Hang it up. d. Hose it down thoroughly. e. Hang to dry. f. Turn bag right-side out and reinstall. STORAGE

• Store the unit locked up to prevent unauthorized use or damage.

• Store the unit in a dry, well-ventilated area.

• Store the unit out of the reach of children.

INSPECT EXTENSION CORDS

Inspect all extension cords periodically. Look closely for deterioration, cuts or cracks in the insulation. Inspect the connectors for damage. Replace cords if defective or damaged.

WARNING: To avoid serious personal injury,

always turn your unit off and unplug it before you clean or service it.

ACCESSORIES/ REPLACEMENT PARTS

This unit is double-insulated. In a double-insulated unit, two systems of insulation are provided instead of grounding. There is no grounding provided and no means of grounding should be added to this unit. Extreme care and knowledge of the system is required when servicing a double-insulated unit. Service should be performed by qualified service personnel only. Replacement parts for a double-insulated unit must be identical to the parts they replace. Refer any repair to an authorized service dealer. A double-insulated unit is marked with the words “double insulation” or “double insulated.”15 TROUBLESHOOTING If further assistance is required, contact your authorized service dealer. CAUSE ACTION Bag full Empty bag, as described in Empty the Vacuum Bag Blocked tube Clear the blockage as described in Clearing a Blocked Tube/ Impeller Blocked impeller Clear the blockage as described in Clearing a Blocked Tube/ Impeller Damaged impeller Take the unit to an authorized service dealer Dirty bag Clean the vacuum bag Torn bag Replace the vacuum bag Bag unzipped Zip up the vacuum bag Unit unplugged Plug into an outlet or an extension cord

UNIT WILL NOT BLOW OR VACUUM

NOTES17 NOTES18 NOTES19 NOTESThe limited warranty set forth below is given by YARDWORKS Canada, Toronto Canada,M4S 2B8 (“YARDWORKS”) with respect with new merchandise purchased and used in Canada. YARDWORKS warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by YARDWORKS for use with the product(s) covered by this manual will void your warranty as to any resulting damage. This warranty is limited to ninety (90) days from the date of original retail purchase for any YARDWORKS product that is used for rental or commercial purposes, or any other income-producing purpose. HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer in your area, please contact the Customer Service Department of YARDWORKS Canada by calling 1-888-939-0992 or writing to YARDWORKS Canada, Toronto Canada, M4S 2B8 No product returned directly to the factory will be accepted unless prior written permission has been extended by the Customer Service Department of YARDWORKS Canada. This limited warranty does not provide coverage in the following cases: A. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, and Starter Ropes. B. YARDWORKS does not extend any warranty for products sold or exported outside of the Canada. YARDWORKS reserves the right to change or improve the design of YARDWORKS product without assuming any obligation to modify any product previously manufactured. No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product shall bind YARDWORKS. During the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth above. (Except where this limitation may not apply.) The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales. YARDWORKS shall not be liable for incidental or consequential loss or damages including, without limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for related expenses, or for rental expenses to temporarily replace a warranted product. (Except where this limitation may not apply) In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of the safety features of the product shall void this Warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use the product. This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for whom it was purchased as a gift. This warranty gives you specific legal rights, and you may also have other rights, which may vary from province to province. To locate your nearest service dealer dial 1-888-939-0992 in Canada.

SPÉCIFICATIONS RELATIVES AU PRODUIT

• 791-182606 Vacuum Bag Assembly (includes 16, Vacuum Bag & Cable Tie)
