USER MANUAL 32FA7504 SALORA

1280x1024 x x x 1400x1050

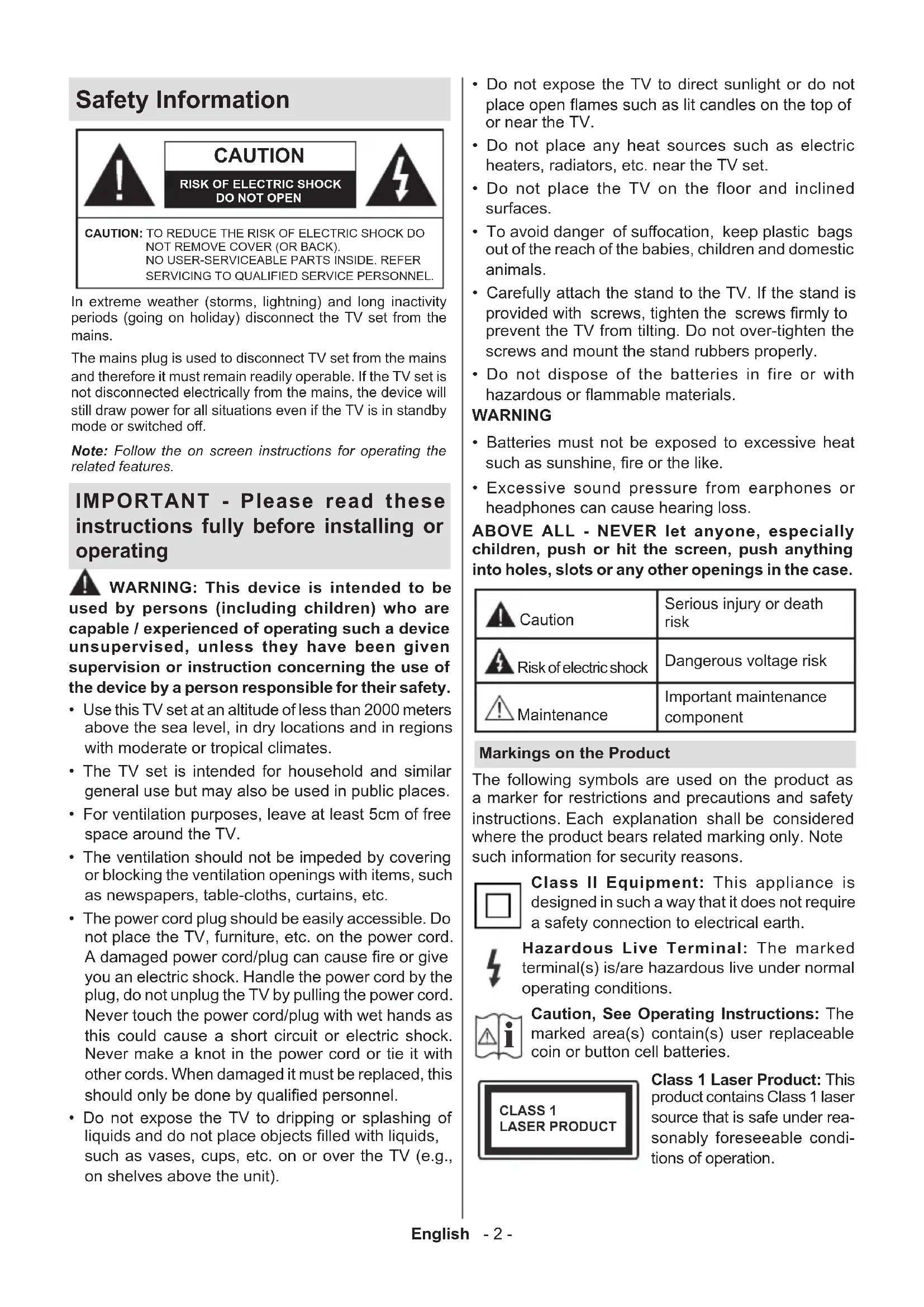

WARNING: This device is intended to be

used by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety. Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates. The TV set is intended for household and similar general use but may also be used in public places. For ventilation purposes, leave at least 5cm of free space around the TV. The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord.

you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this

Do not expose the TV to dripping or splashing of

such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit). Do not expose the TV to direct sunlight or do not

or near the TV. Do not place any heat sources such as electric heaters, radiators, etc. near the TV set. Do not place the TV on the floor and inclined surfaces.

out of the reach of the babies, children and domestic animals. Carefully attach the stand to the TV. If the stand is

prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly. Do not dispose of the batteries in fire or with

WARNING Batteries must not be exposed to excessive heat

Excessive sound pressure from earphones or headphones can cause hearing loss. ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case. CautionSerious injury or death risk Risk of electric shockDangerous voltage risk MaintenanceImportant maintenance component Markings on the Product The following symbols are used on the product as a marker for restrictions and precautions and safety

such information for security reasons. Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth. Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

CLASS 1LASER PRODUCT

Class 1 Laser Product: This product contains Class 1 laser source that is safe under rea- sonably foreseeable condi- tions of operation.English - 3 - WARNING Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the prod- uct may contain a coin/button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. – – – – – – – – – – – – A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set

• ALWAYS use furniture that can safely support the television set.

• ALWAYS ensure the television set is not overhang- ing the edge of the supporting furniture.

• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.

• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

• NEVER place a television set in an unstable location.

• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.

• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

• The equipment is only suitable for mounting at heights ≤2 m. If the existing television set is going to be retained and relocated, the same considerations as above should be applied. – – – – – – – – – – – – Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protec- tive earthing – and to a television distribution system using coaxial cable, may in some circumstances create a re hazard. Connection to a television distri- bution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.

• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.

• Do not install the TV on a ceiling or on an inclined wall.

• Use the specied wall mounting screws and other accessories.

• Tighten the wall mounting screws rmly to prevent the TV from fall. Do not over-tighten the screws. Figures and illustrations in this user manual are provided for reference only and may di󰀨er from the actual product appearance. Product design and specications may be changed without notice.English - 4 - Introduction Thank you for choosing our product. You’ll soon be enjoying your new TV. Please read these instructions carefully. They contain important information which will help you get the best from your TV and ensure safe and correct installation and operation. Accessories Included

• Remote controlled colour TV

• Fully integrated digital terrestrial/cable/satellite TV (DVB-T-T2/C)

• Composite inputs for external devices (such as DVD Players, PVR, video games, etc.)

• Headphone connection

• Automatic programming system

• Ethernet (LAN) for Internet connectivity and service

• 802.11 a/b/g/n/ac built in WLAN Support

• HbbTV High Dynamic Range (HDR) / Hybrid Log- Gamma (HLG) Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several di󰀨erent exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements. It delivers the look that lmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG contents are supported via native and market applications, HDMI, USB inputs and over DVB broadcasts. Stand Installation & Wall Mounting Assembling / Removing the pedestal Preparations Take out the pedestal(s) and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)

• Use a at and rm table bigger than the TV.

• Do not hold the screen panel part.

• Make sure not to scratch or break the TV. Assembling the pedestal

1. Place the stand(s) on the stand mounting

pattern(s) on the rear side of the TV.

2. Insert the screws provided and tighten them gently

until the stand is properly tted. Removing the pedestal from the TV Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

• Put the TV onto a work table with the screen panel down on the clean and soft cloth. Leave the stand(s) protruding over the edge of the surface.

• Unscrew the screws that xing the stand(s).

• Remove the stand(s). When using the wall mount bracket Your TV is also prepared for a VESA-compliant wall mount bracket. If it is not supplied with your TV, contact your local dealer to purchase the recommended wall- hanging bracket. Holes and measurements for wall mount bracket installation;

VESA WALL MOUNT MEASUREMENTS

Hole Paern Sizes (mm) W H

Screw Sizes Length (X) min. (mm) 7 max. (mm) 8 Thread (Y) M4 Antenna Connection Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket located on the rear side of the TV. Rear side of the TV ANT If you want to connect a device to the TV, make sure that both the TV and the device are turned o󰀨 before making any connection. After the connection is done, you can turn on the units and use them.English - 6 - Other Connections If you want to connect a device to the TV, make sure that both the TV and the device are turned o󰀨 before making any connection. After the connection is done, you can turn on the units and use them. Connector Type Cables Device COMPONENT Component Video Connection (back) VGA to Component Connection Cable HDMI Connection (back&side) VGA Connection (back) AUDIO IN VGA/ Component Audio Connection (back) Component/VGA Audio Cable SPDIF SPDIF (Coaxial Out) Connection (back) COMPOSITE Composite (Audio/Video) Connection (back) Audio Video Cable HEADPHONE Headphone Connection (side) USB Connection (side)

Connection (side) CAM module LAN Ethernet Connection (back) LAN / Ethernet Cable To enable VGA/Component audio, you will need to use the back audio inputs with a VGA/Component audio cable for audio connection. When using the wall mounting kit (contact your dealer to purchase one, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. The USB inputs on the TV support devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. When connecting equip- ment using a HDMI cable to your TV, to guarantee sucient immunity against parasitic frequency radiation and trouble-free transmission of high denition signals, such as 4K con- tent, you have to use a high speed shielded (high grade) HDMI cable with ferrites.English - 7 - Turning On/Off the TV Connect power IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet. The TV will switch on automatically. To switch on the TV from standby If the TV is in standby mode the standby LED lights up. To switch on the TV from standby mode either:

• Press the Standby button on the remote control.

• Press the control button on the TV. The TV will then switch on. To switch the TV into standby The TV cannot be switched into standby mode via control button. Press and hold the Standby button on the remote control. Power o󰀨 dialogue will appear on the screen. Highlight OK and press the OK button. The TV will switch into standby mode. To switch o󰀨 the TV To power down the TV completely, unplug the power cord from the mains socket. Quick Standby Mode In order to switch the TV into quick standby mode either;

• Press the Standby button on the remote. Press again to go back to operating mode.

• Press the control button on the TV. Press the control button again to go back to operating mode. TV Control & Operation The control button allows you to control the Quick Standby-On functions of the TV. Note: The position of the control button may dier depending on the model. To turn the TV o󰀨 (Quick Standby): Press the control button to turn the TV into quick standby mode. To turn the TV o󰀨 (Standby): The TV cannot be switched into standby mode via control button. To turn on the TV: Press the control button, the TV will turn on. Note: Live TV settings menu OSD in Live TV mode cannot be displayed via the control button. Operation with the Remote Control Press the Menu button on your remote control to display Live TV settings menu when in Live TV mode. Press Home button to display or return to the Home Screen of the Android TV. Use the directional buttons to move the focus, proceed, adjust some settings and press OK to make selections in order to make changes, set your preferences, enter a sub-menu, launch an application etc. Press Return/Back to return to the previous menu screen. Input Selection Once you have connected external systems to your TV, you can switch to di󰀨erent input sources. Press the Source button on your remote control consecutively or use the directional buttons and then press the OK button to switch to di󰀨erent sources when in Live TV mode. Or enter the Inputs menu on the Home Screen, select the desired source from the list and press OK. Changing Channels and Volume You can adjust the volume by using the Volume +/- buttons and change the channel in Live TV mode by using the Programme +/- buttons on the remote.English - 8 - Remote Control

Inserting the Batteries into the Remote Remove the screw that secures the battery compart

ment cover on the back side of the remote control rst. Lift the cover gently. Insert two 1.5V - size AAA bat- teries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again. Standby Button Press and hold the Standby button on the remote control. Power o󰀨 dialogue will appear on the screen. Highlight OK and press the OK button. The TV will switch into standby mode. Press briey and release to switch the TV into quick standby mode or to switch on the TV when in quick standby or standby mode.

1. Standby: Quick Standby / Standby / On

2. Numeric buttons: Switches the channel in Live TV

mode, enters a number or a letter in the text box on the screen

3. Language: Switches among sound modes (analogue

TV), displays and changes audio language (digital TV, where available)

4. Home: Opens the Home Screen

5. Mute: Completely turns o󰀨 the volume of the TV

7. Guide: Displays the electronic programme guide in

moves the focus or cursor etc., sets record time and displays the subpages in Live TV-Teletext mode when pressed Right or Left. Follow the on-screen instructions.

9. OK: Confirms selections, enters sub-menus, views

channel list (in Live TV mode)

10. Back/Return: Returns to previous menu screen, goes

one step back, closes open windows, closes teletext (in Live TV-Teletext mode)

mode, displays available setting options such as sound and picture

13. Stop: Stops the media being played

14. Rewind: Moves frames backwards in media such as

16. Coloured Buttons: Follow the on-screen instructions for

coloured button functions

17. Text: Opens and closes teletext (where available in

18. Pause: Pauses the media being played, starts timeshift

recording in Live TV mode Play: Starts to play selected media

19. Fast forward: Moves frames forward in media such

22. Exit: Closes and exits from displayed Live TV Settings

menus, closes running applications and/or the Home Screen and switches to last set source

23. Info: Displays information about on-screen content

24. Source: Shows all available broadcast and content

sources, closes the Home Screen and switches to last set source

Initial Setup Wizard Note: Follow the on-screen instructions to complete the initial setup process. Use the directional buttons and the OK button on the remote to select, set, conrm and proceed. When turned on for the rst time, a search for acces- sories will be performed before the initial setup starts. Follow the on-screen instructions to pair your remote control (depends on the model of the remote control) and other wireless accessories with your TV. Press Back/Return button to end adding accessories and start the setup.

1. Welcome Message and Language Selection

“Welcome” message will be displayed along with the language selection options listed on the screen. Select the desired language from the list and press OK to continue.

If you didn’t priorly connect your TV to the internet via Ethernet a screen will be displayed where you can transfer your Android phone’s WLAN network and Google Account to your TV. Highlight Continue and press OK to proceed. Follow the on-screen instructions on your TV and your phone to complete the process. You can also skip this step by selecting Skip option. Some steps may be skipped depending on the settings made in this step. If you did priorly connect your TV to the internet via Ethernet a message will be displayed stating that you are connected. You can choose to continue with wired connection or change the network. Highlight Change network and press OK if you want to use wireless connection instead of wired connection.

3. Network Connection

You will be directed to the next step automatically, if you connect your TV to internet via Ethernet at this point. If not, available wireless networks will be searched and listed on the next screen. Select your WLAN network from the list and press OK to connect. Enter the password using the virtual keyboard if the network is password protected. Select the Other network option from the list, if the network that you want to connect has hidden SSID. If you prefer not to connect to the internet at this point you can skip this step by selecting Skip option. You can connect to internet later using the Network & Internet menu options in the Settings menu from the Home Screen or from the TV options menu in Live TV mode. This step will be skipped if internet connection has been established in the previous step.

4. Sign in to your Google account

If connection succeeds, you can sign in to your Google account on the next screen. You need to be signed in to a Google account in order to use Google services. This step will be skipped if no internet connection has been established in the previous step or if you already signed in to your Google account in Quick Setup step. By signing in, you will be able to discover new apps for videos, music and games on Google Play; get personalised recommendations from apps like YouTube; buy or rent the newest movies and shows on Google Play Movies & TV; access your entertainment and control your media. Highlight Sign In and press OK to proceed. Sign-in options are as following:

• Use your phone or computer: You can use a browser on your phone or computer to sign in. Highlight this option and press OK button. A code will be displayed on the TV screen. Make sure your phone or computer is on the same network as your TV. Open the given website (androidtv.com/setup, follow on-screen instructions for the up-to-date website url) in your phone’s or computer’s browser and enter the code you see on your TV screen into the related entry eld. Then follow the instructions on your device and complete the process.

• Use your remote: Using this option you can sign in to your Google account by entering your e-mail address or phone number and your password. If you prefer not to sign in to your Google account at this point you can skip this step by selecting Skip option.

Terms of Service screen will be displayed next. By continuing, you will agree to the Google Terms of Service, the Google Privacy Policy and the Google Play Terms of Service. Highlight Accept and press OK on the remote to conrm and proceed. You can also view Terms of Service, Privacy Policy and Play Terms of Service on this screen. To display the content an internet connection is needed. A message will be displayed mentioning the web site address on which this information can also be viewed, in case internet access is not available.

On the next screen, you can allow or disallow Google and third party apps to use your TV’s location informa

tion. Select Yes to conrm and press OK. To skip this step without conrmation, select No and proceed by pressing the OK button. You can change this setting later using the Settings>Device Preferences>Loca- tion menu on the Home Screen.

7. Help improve Android

Automatically send diagnostic information to Google, like crash reports and usage data from your device and apps. This information won't be used to identify you. Select Yes to conrm and press OK. To skip this step without conrmation, select No and proceed by pressing the OK button. You can change this settingEnglish - 10 - later using the Settings>Device Preferences>Usage & Diagnostics menu on the Home Screen. Information on Google services and some features of your TV will be displayed next. You can turn on person

al results for Assistant by choosing the related option when prompted. Press OK consecutively to proceed.

In the next step select your Country from the list and press OK to continue.

Depending on the country selection you made in the previous step you may be asked to dene a password (PIN) at this point. Press OK to proceed. The selected PIN cannot be 0000. This PIN will be required in order to access some menus, contents or to release locked channels, sources etc. You will have to enter it if you are asked to enter a PIN for any menu operation later.

In the following step of the initial setup, you can set the TV’s operation mode either as Home or as Store. Store option will congure your TV’s settings for store environment. This option is intended only for store use. It is recommended to select Home for home use.

11. Chromecast built-in always available

Select your chromecast availability preference. If set as On your TV will be detected as a Google Cast device and allow Google Assistant and other services to wake your TV up to respond to Cast commands, even when on standby mode and the screen is o󰀨.

Note: If you don’t want to perform a tuner scan, select one of the available options anyway. You can skip the scan at some later stage of the installation wizard. If you skip this step you can perform a channel search later using the related Channels menu options. The next step is the selection of the tuner mode. Select your tuner preference to install channels for Live TV function. Antenna and Cable options are available. Highlight the option that corresponds to your environment and press OK or Right directional button to proceed. Antenna If Antenna option is selected, the TV will search for digital terrestrial and analogue broadcasts. On the next screen highlight Scan option and press OK to start the search or select Skip Scan to continue without performing a search. Cable If Cable option is selected, the TV will search for digital cable and analogue broadcasts. If any, available operator options will be listed on the Select Operator screen. Otherwise this step will be skipped. You can select only one operator from the list. Highlight the desired operator and press OK or the Right directional button to proceed. On the next screen select Scan option to start a search or select Skip Scan to continue without performing a search. If Scan is selected a conguration screen will be displayed next. Scan Mode, Frequency(KHz), Modulation, Symbol Rate(Ksym/s), Network ID options may need to be set. To perform a full scan set the Scan Mode as Full/Advance if available. Depending on the selected operator and/or Scan Mode some options may not be available to be set. Once you are done with setting available options, press the Right directional button to proceed. The TV will start to search available broadcasts. When the initial setup is completed results will be displayed. Press OK to nish the setup. Home Screen will be displayed. You can highlight Live TV app and press OK to switch to Live TV mode and watch TV channels. Home Screen To enjoy the benets of your Android TV, your TV must be connected to the Internet. Connect the TV to a home network with a high-speed Internet connection. You can connect your TV wirelessly or wired to your modem/router. Refer to the Network & Internet and Connecting to the Internet sections for further information on how to connect your TV to the internet. The Home menu is the centre of your TV. Press the Home button to display Home Screen. From the Home menu you can start any application, switch to a TV channel, watch a movie or switch to a connected device. Depending on your TV setup and your country selection in the initial setup the Home menu may contain di󰀨erent items. The available options of the Home Screen are posi

tioned in rows. To navigate through the Home Screen options use the directional buttons on the remote. Apps, YouTube, Google Play Movies & TV, Google Play Music and Google Play related rows and rows of the applications you have installed might be available. Select a row then move the focus to the desired item in the row. Press OK button to make a selection or to enter a sub-menu. On the upper left of the screen, search tools will be located. You can choose either to type a word to start a search via the virtual keyboard or try voice search option if your remote has a built-in microphone. Move the focus to the desired option and press OK to proceed. On the upper right of the screen, Notications, Inputs, Network & Internet (will be named as Connected or Not Connected according to the current connection status), Settings and the current time will be displayed.English - 11 -

using the Date & time menu options from the Settings>Device Preferences menu. First row will be the Apps row. Live TV and Multi Media Player apps will be available alongside with other apps. Highlight Live TV and press OK to switch to Live TV mode. If the source was set to an option other than TV previously, press the Source button and set as TV in order to watch live TV channels. Highlight Multi Media Player and press OK to browse the connected USB devices or media servers and play/ display the installed media content on the TV. The

TV or through the speaker systems connected to the

the Menu button on the remote to see Live TV menu options. To switch to Live TV mode you can either press the Exit button or highlight the Live TV app from the Apps row and press OK on the Home Screen. Channels Add to My Favourites: Add the channel that is currently being watched to the previously selected favourite list. Program Guide: Open the electronic programme guide. Refer to the Programme Guide section for detailed information. New Channels Available: Start a search for new channels. Select the channel source application or tuner. Then make the settings according to your environment and preferences if necessary. You can use the Channel menu options to search for broadcast channels. Refer to the Channel section for more information. When complete highlight Done and press OK. TV Options Source: Display the list of input sources. Select the desired one and press OK to switch to that source. Picture Mode: Set the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: User, Standard, Vivid, Sport, Movie and Game. You can use User mode to create customised settings. Go to Settings>Device Preferences>Picture for detailed setting options. Display Mode: Set the aspect ratio of the screen.

your preference. Speakers: To hear the TV audio from the connected compatible audio device set as External Audio System. Set as TV Speakers to use the speakers of your TV for sound output. Power Sleep Timer: want your TV to enter sleep mode automatically. Picture o󰀨: OK to

or on the TV to turn the screen on again. Note that you can not turn the screen on via the Volume +/-, Mute and Standby buttons. These buttons will function normally. Switch o󰀨 timer:

O󰀨 to disable. No Signal Auto Power O󰀨: Set the behaviour of the TV, when no signal is detected from the currently set input source. 󰀨O󰀨 to disable. CI Card: Display available menu options of the CI card in use. This item may not be available depending on the input source setting. Advanced Options Audio Language: Set your language preference for audio. This item may not be available depending on the input source setting. Blue Mute:󰀨 your preference. When turned on, blue background will be displayed on the screen when no signal is available. Default Channel: Set your default startup channel preference. When the Select Mode is set as User Select, Show Channels option will become available. Highlight and press OK to see channel list. Highlight a channel and press OK to make a selection. Selected channel will be displayed, every time the TV is turned back on from quick standby mode. If the Select Mode is set as Last Status, the last watched channel will be displayed. Interaction Channel: Turn the Interaction Channel

MHEG PIN Protection: Turn the MHEG PIN

disables access some of the MHEG applications. Disabled applications can be released by entering the right PIN. HBBTV Settings HBBTV Support: Turn the HBBTV function on

Do Not Track: Set your preference regarding the tracking behaviour for HBBTV services.English - 12 - Cookie Settings: Set your cookie setting preference for HBBTV services. Persistent Storage: Turn the Persistent Storage 󰀨On cookies will be stored with an expiry date in the persistent memory of the TV. Block Tracking Sites: Turn the Block Tracking

Device ID:󰀨 Reset Device ID: Reset the device ID for HBBTV

on dialogue will be displayed. Press OK to proceed, Back to cancel. Subtitle Analogue Subtitle: Set this option as O󰀨, On or Mute. If Mute option is selected, the analogue subtitle will be displayed on the screen but the speakers will be muted simultaneously. Digital Subtitle: Set this option as O󰀨 or On. Subtitle Tracks: Set your subtitle track preference, if any available. Digital Subtitle Language: Set one of the listed

preference. Second Digital Subtitle Language: Set one of the listed language options as second digital subtitle language preference. If the selected language in the Digital Subtitle Language option is not available, the subtitles will be displayed in this language. Subtitle Type: Set this option as Normal or Hearing Impaired. If Hearing Impaired option is selected, it provides subtitle services to deaf and hard of hearing viewers with additional descriptions. Teletext Digital Teletext Language: Set the teletext language for digital broadcasts. Decoding Page Language: Set the decoding page language for teletext display. Auto Sleep: want your TV to enter sleep mode automatically. 4 Hours, 6 Hours and 8 Hours options are available. Set as Never to disable. System Information: Display detailed system information on the current channel such as Signal Level, Signal Quality, Frequency etc. Version Info: Display system information such as Model Name, Version and Serial Number. Settings: Refer to Settings section for detailed information. Record Record List: The recordings will be displayed if any available. Highlight a recording of your choice and press the Yellow button to delete it or press the Blue button to view detailed information. You can use Red and Green buttons to scroll the page up and down. Device Info: Connected USB storage devices will be displayed. Highlight the device of your choice and press OK to see available options. Set TimeShift: Tag the selected USB storage device or a partition on it for time shift recording. Set PVR: Tag the selected USB storage device or a partition on it for PVR. Format: Format the selected USB storage device. Refer to USB Recording section for more information Speed Test: Start a speed test for the selected USB storage device. The test result will be displayed when completed. Schedule List: Add reminders or record timers using the Schedule List menu. Time Shift Mode: Enable or disable timeshift recording feature. Refer to USB Recording section for more information. Settings You can access the Settings menu from the Home Screen or from the TV options menu in Live TV mode. Network & Internet

the options of this menu. You can also highlight the Connected/Not Connected icon on the Home screen and press OK to access this menu. Wi-Fi: Turn the wireless LAN (WLAN) function on

Available networks When the WLAN function is turned on, available wireless networks will be listed. Highlight See all and press OK to see all networks. Select one and press OK to connect. You may be asked to enter a password to connect to the selected network, in case the network is password protected. Other options Add new network: Add networks with hidden SSID’s. Scanning always available: You can let the location service and other apps scan for networks, even when 󰀨OK to turn it on 󰀨English - 13 - Wow: Turn the Wake On WLAN function on and o󰀨. This function allows you to turn on or awaken your TV via network. Wol: Turn the Wake On LAN function on and o󰀨. This function allows you to turn on or awaken your TV via wireless network. Ethernet Connected/Not connected: Displays the status of the internet connection via Ethernet, IP and MAC addresses. Proxy settings: Set a HTTP proxy for browser manu

ally. This proxy may not be used by other apps. IP settings: Congure your TV’s IP settings. Channel Channels Options of this menu may change or become inac

tive depending on the Channel Installation Mode selection. Channel Installation Mode - Antenna Automatic Channel Search: Start a scan for analogue and digital channels. You can press the Back button to cancel the scan. The channels that have already been found will be stored in the channel list. Update Scan: Search for updates. Previously added channels will not be deleted, but any newly found channels will be stored in the channel list. Analogue Manual Scan: Start a manual scan for analogue channels. Enter the Start Frequency and then select Scan Up or Scan Down. When a channel is found the scan will be completed and the found channel will be stored in the channel list. Single RF Scan: Select the RF Channel by using the Right/Left directional buttons. Signal Level and Signal Quality of the selected channel will be shown. Press OK to start scan on the selected RF channel. The found channels will be stored in the channel list. Manual Service Update: Start a service update manually. LCN: Set your preference for LCN. LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available). Channel Scan Type: Set your scan type preference. Channel Store Type: Set your store type preference. Favourite Network Select: Select your favourite network. This menu option will be active, if more than only one network is available. Channel Skip: Set channels to be skipped when switching the channels via Programme +/- buttons on the remote. Highlight the desired channel/s on the list and press OK to select/unselect. Channel Sort: Replace the positions of the two selected channels in the channel list. Highlight the desired channels on the list and press OK to select. When the second channel is selected, the position of this channel will be replaced with the position of the rst selected channel. Channel Move: Move a channel to the position of another channel. Highlight the channel you want to move and press OK to select. Then do the same for a second channel. When the second channel is selected, the rst selected channel will be moved to the position of that channel. Channel Edit: Edit channels in the channel list. Edit the name and channel number of the selected channel and display Network Name, Frequency, Color System and Sound System information related to that channel if available. Depending on the channel other options may also be editable. You can press the Blue button to delete the highlighted channel. Analogue Channel Fine-tune: Fine-tune an analogue channel. A list of available analogue channels will be displayed. Select the desired one from the list and press OK button. Then change the frequency of the channel by pressing Left/Right directional buttons. Press OK to store the new frequency for that channel. Press Back to cancel. This item may not be visible, depending on whether or not the last watched channel was analogue. Clear Channel List: Delete all channels stored in the channel list of the selected channel installation mode. A dialogue will be displayed for conrmation. Highlight OK and press OK button to proceed. Highlight Cancel and press OK to cancel. Channel Installation Mode - Cable Automatic Channel Search: Start a scan for analogue and digital cable channels. If available, operator op

tions will be listed. Select the desired one and press OK. Scan Mode, Channel Scan Type, Frequency and Network ID options may be available. The options may vary depending on the operator and the Scan Mode selections. Set the Scan Mode as Full if you don’t know how to set up other options. Highlight Scan and press OK to start the scan. You can press the Back button to cancel the scan. The channels that have already been found will be stored in the channel list. Single RF Scan: Enter the Frequency value. Signal Level and Signal Quality of the selected Frequency will be shown. Highlight the Scan option and press OK to start scan. The found channels will be stored in the channel list. LCN: Set your preference for LCN. LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available). Channel Scan Type: Set your scan type preference.English - 14 - Channel Store Type: Set your store type preference. Favourite Network Select: Select your favourite network. This menu option will be active, if more than only one network is available. Channel Skip: Set channels to be skipped when switching the channels via Programme +/- buttons on the remote. Highlight the desired channel/s on the list and press OK to select/unselect. Channel Sort: Replace the positions of the two selected channels in the channel list. Highlight the desired channels on the list and press OK to select. When the second channel is selected, the position of this channel will be replaced with the position of the rst selected channel. Channel Move: Move a channel to the position of another channel. Highlight the channel you want to move and press OK to select. Then do the same for a second channel. When the second channel is selected, the rst selected channel will be moved to the position of that channel. Channel Edit: Edit channels in the channel list. Edit the name and channel number of the selected channel and display Network Name, Frequency, Color Sys

tem, Sound System, Modulation and Symbol Rate information related to that channel. Depending on the channel other options may also be editable. You can press the Blue button to delete the highlighted channel. Analogue Channel Fine-tune: Fine-tune an analogue channel. A list of available analogue channels will be displayed. Select the desired one from the list and press OK button. Then change the frequency of the channel by pressing Left/Right directional buttons. Press OK to store the new frequency for that channel. Press Back to cancel. This item may not be visible, depending on whether or not the last watched channel was analogue. Clear Channel List: Delete all channels stored in the channel list of the selected channel installation mode. A dialogue will be displayed for conrmation. Highlight OK and press OK button to proceed. Highlight Cancel and press OK to cancel. Note: Some options may not be available and appear as grayed out depending on the operator selection and operator related settings. Channel Installation Mode Set this option as Antenna or Cable. Auto Channel Update Turn the auto channel update function on or o󰀨. Channel Update Message Turn the channel update message function on or o󰀨. This item may not be visible, depending on the Chan

nel Installation Mode selection. Parental Controls (*) To enter this menu PIN should be entered rst. Default password is set to 1234. If you have dened a new password after the initial setup process use the password that you have dened. Some options may not be available or vary depending on the country selection during the initial setup. Channels Blocked: Select channel/s to be blocked from the channel list. Highlight a channel and press OK to select/unselect. To watch a blocked channel password should be entered rst. Program Restrictions: Block programmes according to the age rating information that are being broadcast

ed with them. You can turn on or o󰀨 restrictions, set ratings systems, restriction levels and age limits using the options of this menu. Inputs Blocked: Prevent access to the selected input source content. Highlight the desired input option and press OK to select/unselect. To switch to a blocked input source password should be entered rst. Change PIN: Change the default PIN. Highlight this option and press OK. You will need to enter the old PIN rst. Then new password entry screen will be dis

played. Enter the new password twice for conrmation. Audio Channel Set the audio channel preference, if available. This item may not be visible, depending on whether or not the last watched channel was analogue. Audio Language Set one of the listed language options as rst audio language preference. This item may not be visible, depending on whether or not the last watched channel was digital. Second Audio Language Set one of the listed language options as second audio language preference. If in the Audio Language setting selected language option is not supported, this language preference will be considered. This item may not be visible, depending on whether or not the last watched channel was digital. Open Source Licenses Display Open Source Software license information. Version Displays system version number. Accounts & Sign In Google: This option will be available if you have signed in to your Google account. You can congure your data syncing preferences or remove your registered account on the TV. Highlight a service listed in the Choose synced apps section and press OK to enable/disable data sync. Highlight Sync now and press OK to sync all enabled services at once.English - 15 - Add account: Add a new one to available accounts by signing in to it. Apps Using the options of this menu, you can manage the apps on your TV. Recently opened apps You can display recently opened apps. Highlight See all apps and press OK to see all the apps installed on your TV. The amount of storage space that they needed will also be displayed. You can see the version of the app, open or force to stop the running of the app, uninstall a downloaded app, see the permissions and

data and cache etc. Highlight an app and press OK to see available options. Permissions Manage the permissions and some other features of the apps. App permissions: The apps will be sorted by permission type categories. You can enable disable permissions for the apps from within these categories. Special app access: and special permissions. Security & restrictions: Using the options of this menu; You can allow or restrict installation of apps from sources other than the Google Play Store. Set the TV to disallow or warn before installation of apps that may cause harm. Device Preferences About: Check for system updates, change the device name, restart the TV and display system information such as network addresses, serial numbers, versions etc. You can also display legal information, manage advertisings, display your advertising ID, reset it and

your interests. Netflix ESN: Display your ESN number. ESN

especially to identify your TV. Date & time: Set the date and time options of your TV. You can set your TV to automatically update the time and date data over the network or over the broadcasts. Set corresponding to your environment and preference. Disable by setting as O󰀨 if you want to manually change the date or time. Then set date, time, time zone and hour format options. Timer Power On Time Type: Set your TV to turn on by itself. Set this option as On or Once to enable a power on timer to be set, set as O󰀨 to disable. If set as Once the TV will turn on only once at the Auto Power On Time option below. Auto Power On Time: Available if the Power On Time Type is enabled. Set the desired time for your TV to come on from standby using the directional buttons and press OK to save the new set time. Power O󰀨 Time Type: 󰀨 itself. Set this option as On or Once to enable a 󰀨O󰀨 to disable. If set as Once󰀨 Auto Power O󰀨 Time option below. Auto Power O󰀨 Time: Available if the Power O󰀨 Time Type is enabled. Set the desired time for your TV to go to standby using the directional buttons and press OK to save the new set time. Language: Set your language preference. Keyboard: Select your keyboard type and manage keyboard settings. Inputs: Show or hide an input terminal, change the

for HDMI CEC(Consumer Electronic Control) function. Power Sleep Timer: want your TV to enter sleep mode automatically. Picture o󰀨: OK to

or on the TV to turn the screen on again. Note that you can not turn the screen on via the Volume +/-, Mute and Standby buttons. These buttons will function normally. Switch o󰀨 timer:

O󰀨 to disable. No Signal Auto Power O󰀨: Set the behaviour of the TV, when no signal is detected from the currently set input source. 󰀨O󰀨 to disable. Picture Picture Mode: Set the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: User, Standard, Vivid, Sport, Movie and Game. You can use User mode to create customised settings. Brightness, Contrast, Colour, HUE, Sharpness settings will be adjusted according to the selected picture mode. If one of these settings is changed manually, Picture Mode option will be changed to User, if not already set as User. Auto Backlight: Set your auto backlight preference. O󰀨, Low, Middle and Eco options will be available. Set as O󰀨 to disable.English - 16 - Backlight: Adjust the backlight level o󰀨 the screen manually. This item will not be available if the Auto Backlight is not set as O󰀨. Brightness: Adjust the brightness value o󰀨 the screen. Contrast: Adjust the contrast value o󰀨 the screen. Colour: Adjust the colour saturation value of the screen. Hue: Adjust the hue value o󰀨 the screen. Sharpness: Adjust the sharpness value for the objects displayed on the screen. Gamma: Set your gamma preference. Dark, Middle and Bright options will be available. Colour Temperature: Set your colour temperature preference. User, Cool, Standard and Warm op

tions will be available. Set as User to adjust red, green and blue gain values manually. If one of these values is changed manually, Colour Temperature option will be changed to User, if not already set as User. Display Mode: Set the aspect ratio of the screen. Select one of the predened options according to your preference. HDR: Turn the HDR function on or o󰀨. This item will be available if HDR content is detected. Advanced Video DNR: Dynamic Noise Reduction (DNR) is the process of removing noise from digital or analogue signal. Set your DNR preference as Low, Medi

um, Strong, Auto or turn it o󰀨 by setting as O󰀨. MPEG NR: MPEG Noise Reduction cleans up block noise around outlines and noise on the back

ground. Set your MPEG NR preference as Low, Medium, Strong or turn it o󰀨 by setting as O󰀨. Adaptive Luma Control: Adaptive Luma control adjusts contrast settings globally according to content histogram in order to provide deeper black and brighter white perception. Set your Adaptive Luma Control preference as Low, Medium, Strong or turn it o󰀨 by setting as O󰀨. DI Film Mode: It is the function for 3:2 or 2:2 cadence detection for 24 fps lm contents and improves the side e󰀨ects (like interlacing e󰀨ect or judder) which are caused by these pull down methods. Set your DI Film Mode preference as Auto or turn it o󰀨 by setting as O󰀨. This item will not be available if Game Mode or PC Mode is turned on. Blue Stretch: Human eye perceives cooler whites as brighter white, Blue Stretch feature changes White balance of mid-high grey levels to cooler colour temperature. Turn the Blue Stretch function on or o󰀨. Game Mode: Game mode is the mode which cuts down some of the picture processing algorithms to keep up with video games that have fast frame rates. Turn the Game Mode function on or o󰀨. PC Mode: PC Mode is the mode which cuts down some of the picture processing algorithms to keep signal type as it is. It can be usable especially for RGB inputs. Turn the PC Mode function on or o󰀨. HDMI RGB Range: This setting should be ad

justed according to input RGB signal range on HDMI source. It can be limited range (16-235) or full range (0-255). Set your HDMI RGB range preference. Auto, Full and Limit options will be available. This item will not be available, if the input source is not set as HDMI. Colour Tuner: Colour saturation, hue, brightness can be adjustable for red, green, blue, cyan, ma

genta, yellow and esh tone (skin tone) for having more vivid or more natural image. Set the Hue, Colour, Brightness, Offset and Gain values manually. Highlight Enable and press OK to turn this function on. 11 Point White Balance Correction: White bal

ance feature calibrates TV’s colour temperature in detailed grey levels. By visually or measurement, grey scale uniformity can be improved. Adjust the strength of the Red, Green, Blue colours and Gain value manually. Highlight Enable and press OK to turn this function on. Reset to Default: Reset the video settings to factory default settings. Note: Depending on the currently set input source some menu options may not be available. Sound Sound Style: For easy sound adjustment, you can select a preset setting. User, Standard, Viv

id, Sport, Movie, Music or News options will be available. Sound settings will be adjusted according to the selected sound style. Some other sound options may become unavailable depending on the selection. Balance: Adjust the left and right volume balance for speakers and headphones. Sound Surround: With Sound Surround, you can enrich (expand and deepen) the sound quality of the TV speakers. Turn this option on/o󰀨 by pressing OK. Equalizer Detail: Adjust the equalizer values ac

cording to your preferences. Speakers: To hear the TV audio from the connected compatible audio device set as External Audio System. Set as TV Speakers to use the speakers of your TV for sound output. Digital Output: Set the digital sound output prefer

ence. Auto, Bypass, PCM, Dolby Digital Plus andEnglish - 17 - Dolby Digital options will be available. Highlight the option you prefer and press OK to set. SPDIF Delay: Adjust the SPDIF delay value. Auto Volume Control: With Auto Volume Control, you can set the TV to automatically level out sudden volume di󰀨erences. Typically at the beginning of adverts or when you are switching channels. Turn this option on/o󰀨 by pressing OK. Downmix Mode: Press OK to see the options and set. Stereo and Surround options will be available. Highlight the option you prefer and press OK to set. Dolby Audio Processing: With Dolby Audio Pro

cessing, you can improve the sound quality of your TV. Press OK to see the options and set. Some other sound options may become unavailable and appear as grayed out depending on the settings made here. Dolby Audio Processing: Highlight this option and press OK to turn this function on/o󰀨. Sound Mode: If the Dolby Audio Processing option is turned on Sound Mode option will be available to set. Highlight the Sound Mode option and press OK to see the preset sound modes. Smart, Movie, Music and News options will be available. Highlight the option you prefer and press OK to set. Reset to Default: Resets the sound settings to factory defaults. Storage: View the total storage space status of the TV and connected devices if available. To see detailed in

formation on the usage details highlight and press OK. There will also be options for ejecting and formatting the connected storage devices. Home screen: Customise your home screen. Select channels which will be displayed on the home screen. Organize apps and games, change their order or get more of them. Store mode: Highlight Store mode and press OK. Highlight Continue and press OK if you want to pro

ceed. Then highlight On to activate or O󰀨 to deactivate and press OK. In store mode your TV’s settings will be congured for store environment and the supported features will be displayed on the screen. Once activat- ed, Store messaging settings will become available. Set according to your preferences. It is recommended not to activate store mode for home use. Google Assistant: Select your active account, view permissions, select which apps to include in search results, activate safe search lter, activate o󰀨ensive word blocking and view open source licenses. Screen saver: Set screensaver and sleep mode options for your TV. You can choose a screensaver, set wait time for the screensaver, set when the TV goes into sleep mode or start the screensaver mode. Location: You can allow the use of the wireless connection to estimate the location, see the recent location requests and allow or restrict the listed apps to use your location information. Usage & Diagnostics: Automatically send usage data and diagnostic information to Google. Set according to your preference. Accessibility: Congure Visually Impaired, Cap

tions settings and/or turn Audio Description, Hearing Impaired, Spoken subtitle, High contrast text on/ o󰀨. Some of the caption settings may not be applied. Visually Impaired: Digital TV channels can broadcast special audio commentary describing on-screen action, body language, expressions and movements for people with visual disabilities. Speaker: Turn this option on if you want to hear the audio commentary through the TV speakers. Headphone: Turn this option on if you want to route the sound of the audio commentary to the TV’s headphone output. Volume: Adjust the volume level of the audio commentary. Pan and Fade: Turn this option on if you want to hear the audio commentary more clearly, when it is available through broadcast. Audio for the Visually Impaired: Set the audio type for visually impaired. Options will be available depending on the selected broadcast. Fader Control: Adjust the volume balance between the main TV audio (Main) and audio commentary (AD). Reset: Reset all TV settings to the factory default. Highlight Reset and press OK. A conrmation message will be displayed, select Erase everything to proceed with resetting. The TV will switch o󰀨/on rst and the initial setup will start. Select Cancel to exit. Remote & Accessories You can use wireless accessories, such as your remote control (depends on the model of the remote control), headphones, keyboards or game controllers with your Android TV. Add devices to use them with your TV. Select this option and press OK to start searching available devices in order to pair them with your TV. If available highlight Add accessory option and press OK to start the search. Set your device to pairing mode. Available devices will be recognized and listed or pairing request will be displayed. Select your device from the list and press OK or highlight OK and press OK to start pairing. Connected devices will also be listed here. To unpair a device, highlight it and press OK. Then highlight Unpair option and press OK. Then select OK and press OK again to unpair the device from the TV. YouEnglish - 18 - can also change the name of an connected device. Highlight the device and press OK, then highlight Change name and press OK again. Press OK again to use the virtual keyboard to change the name of the device. Programme Guide By means of Electronic Programme Guide (EPG) function of your TV you can browse the event schedule of the currently installed channels on your channel list. It depends on the related broadcast whether this feature is supported or not. In order to access the Electronic Programme Guide on the Home Screen press the Guide button on the remote. Electronic Programme Guide is also available in Live TV mode. You can switch to Live TV mode by either launching the Live TV application on the Home Screen or selecting Channels input source from the Inputs menu on the Home Screen. To access the programme guide while in Live TV mode, press the Guide button on your remote. Use the directional buttons to navigate through the programme guide. You can use the Up/Down directional buttons or Programme +/- buttons to switch to previous/next channel on the list and Right/ Left directional buttons to select a desired event of the currently highlighted channel. If available, the full name, start-end time and date, genre of the highlighted event and a brief information about it will be displayed on the bottom of the screen. Press Blue button to lter the events. Due to the large variety of lter options you can nd events of the desired type quicker. Press Yellow button to see detailed information on the highlighted event. You can also use Red and Green buttons to see events of previous day and next day. The functions will be assigned to the coloured buttons on the remote when they are available. Follow the on-screen information for accurate button functions. The guide can not be displayed if TV input source is blocked from the Settings>Channel>Parental Controls>Inputs Blocked menu in Live TV mode or on Home Screen. Connecting to the Internet You can access the Internet via your TV, by connecting it to a broadband system. It is necessary to congure the network settings in order to enjoy a variety of streaming content and internet applications. These settings can be congured from Settings>Network & Internet menu. You can also highlight the Connected/ Not Connected icon on the Home screen and press OK to access this menu. For further information refer to Network & Internet section under the title of Settings. Wired Connection Connect your TV to your modem/router via an Ethernet cable. There is a LAN port on the rear side of your TV. The status of the connection under the Ethernet section in the Network & Internet menu will changed from Not connected to Connected.

3. LAN input on the rear side of the TV

You might be able to connect your TV to a network wall socket depending on your network’s conguration. In that case, you can connect your TV directly to the network using an Ethernet cable.

2. LAN input on the rear side of the TV

Wireless Connection A wireless LAN modem/router is required to connect the TV to the Internet via wireless LAN. Highlight Wi-Fi option in the Network & Internet menu and press OK to enable wireless connection. Available networks will be listed. For more information refer to Network & Internet>Wi-Fi section under the title of Settings.English - 19 -

A network with hidden SSID can not be detected by other devices. If you want to connect to a network with hidden SSID, highlight the Add new network option under the Settings>Network & Internet menu on the Home Screen and press OK. Add the network by entering its name manually using the related option. A Wireless-N router (IEEE 802.11a/b/g/n/ac) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, le transfers and wireless gaming. Use a LAN connection for quicker data transfer between other devices like computers. The transmission speed di󰀨ers depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line tra󰀩c and the products that you use. The transmission may also be cut o󰀨 or may get disconnected depending on the radio wave conditions, DECT phones or any other WLAN 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission. The location where the transmission is most e󰀨ective di󰀨ers depending on the usage environment. The Wireless feature of the TV supports 802.11 a,b,g,n & ac type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos. You must change your modem’s SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection. A stable connection speed is required to play back streaming content. Use an Ethernet connection if the wireless LAN speed is unstable. Multi Media Player On the Home Screen scroll to Apps row, select Multi Media Player (MMP) and press the OK button to launch. Select the media type on the main media player screen. On the next screen, you can press the Menu button to access a list of menu options while the focus is on a folder or a media le. Using the options of this menu you can change the media type, sort the les, change the thumbnail size and turn your TV into a digital photo frame. You will also be able to copy, paste and delete the media les using the related options of this menu, if a FAT32 formatted USB storage device is connected to the TV. Additionally you can switch the viewing style by selecting either Normal Parser or Recursive Parser. In Normal Parser mode the les will be displayed with folders if any available. So only the selected type of media les in the root folder or in the selected folder will be displayed. If there isn’t any media les of the selected type, the folder will be assumed as empty. In Recursive Parser mode the source will be searched for all available media les of the selected type and the found les will be listed. Press the Back/Return button to close this menu. While browsing for the video les a preview of the highlighted video will be displayed in a small window on the left side of the screen if the view style is set to List View. Press the Blue button to switch between the List View and Grid View. From USB Connection IMPORTANT! Back up the les on your USB storage devices before connecting them to the TV. Manufacturer will not be responsible for any le damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/ memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting. FAT32 formatted devices with a storage capacity larger than 192TB are not supported. NTFS formatted devices with a storage capacity larger than 2TB are not supported. You can view your photos, text documents or play your music and video les installed on a connected USB storage device on the TV. Plug in the USB storage device to one of the USB inputs on the TV. On the main media player screen select the desired media type. On the next screen, highlight a le name from the list of available media les and press the OK button. Follow the on-screen instructions for more information on other available button functions. Note: Wait a little while before each plugging and unplugging as the player may still be reading les. Failure to do so mayEnglish - 20 - cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a le. From a Mobile Device via DMR Make sure that your mobile device is connected to the same network as your TV. On the TV, scroll to Apps row on the Home Screen, select Multi Media Player (MMP) and press the OK button to launch. Select the media type on the main media player screen. On the next screen, press the Blue button to switch the List View layout. Then press the Back button. DMR (Digital Media Renderer) option will appear among the media type options. Highlight the DMR option and press the OK button. The TV is ready to receive the media le sent from your mobile device. On the mobile device, open the le you want to share and tap on the sharing icon or on the related option from the options menu of your mobile device. Available devices will be listed. Select your TV from the list. You can get the device name of your TV from the Settings>Device Preferences>About menu on the Home screen. If desired, the name of the TV can also be changed by either selecting one of the predened names or entering a custom name using the options of the Device name menu. If the connection is successfully established the selected media le will be played/ displayed on your TV. USB Recording To record a programme, you should rst connect a USB disk to your TV while the TV is switched o󰀨. You should then switch on the TV to enable the recording feature. To record long duration programmes such as movies, it is recommended to use USB Hard disk drives (HDD’s). Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these les will not be available to be played on a computer. You can play the recordings only via your TV. Lip Sync delay may occur during the timeshifting. Radio record is supported. If the writing speed of the connected USB disk is not su󰀩cient, the recording may fail and the timeshifting feature may not be available. It is recommended to use USB hard disk drives for recording HD programmes. Do not pull out the USB/HDD during a recording. This may harm the connected USB/HDD. Some stream packets may not be recorded because of signal problems, as a result sometimes videos may freeze during playback. If a recording starts from timer when teletext is on, a dialogue will be displayed. If you highlight Yes and press OK teletext will be turned o󰀨 and recording will start. Instant Recording Press Record button to start recording an event instantly while watching a programme. Press Stop button to cancel instant recording. You can not switch broadcasts during the recording mode. Watching Recorded Programmes Select Record List from the Record menu in Live TV mode and press OK. Select a recorded item from the list (if previously recorded). Press the OK button to watch. Press the Stop or Back/Return button to stop a playback. The recordings will be named in the following format: Channel Name_Date(Year/Month/Day)_ Duration(Hour/Minute/Second). Timeshift Recording In order to use timeshift recording feature Time Shift Mode option in the Record>Time Shift Mode menu should be enabled rst. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press Pause/Play button while watching a broadcast to activate timeshifting mode. Press Pause/Play button again to resume the paused programme from where you stopped. Press the Stop button to stop timeshift recording and return to the live broadcast. When this feature is used for the rst time Disk Setup wizard will be displayed when the Pause/Play button is pressed. You can either choose Auto or Manual setup mode. In Manual mode, if you prefer, you can format your Disk and specify the storage space that will be used for timeshift function. When the setup is completed result will be displayed. Press Exit button. Timeshift function will not be available for radio broadcasts. Disk Format When using a new USB storage device, it is recommended that you rst format it using the Format option in the Record>Device Info menu in Live TV mode. Highlight the connected device on the Device Info screen and press OK or Right directional button to see the list of available options. Then highlight Format and press OK to proceed. A conrmation dialogue will be displayed. Highlight Yes and press OK to start formatting. IMPORTANT: Formatting your USB storage device will erase ALL the data on it and it’s le system will be converted to FAT32. In most cases operation errors will be xed after a format but you will lose ALL your data.English - 21 - Schedule List You can add reminders or record timers using the Schedule List menu. You can access the Schedule List from the Record menu in Live TV mode. Highlight Schedule List and press OK. Previously set timers will be listed if any available. Press Record button to add a timer while the Schedule List menu is displayed on the screen. You can dene the type of the timer by setting the Schedule Type option as Reminder or Record. When other parameters are set highlight Add and press OK. The timer will be added to the list. If any available, you can also edit or delete the timers on this list. Highlight the timer of your choice and press OK. Edit and Delete options will appear at the bottom of the screen. Highlight the desired option and press OK. After you edited a timer you can choose either to replace it or add it as a new timer. If you choose the Replace option, the timer will be saved with the new settings. If you choose the Add option, the timer will be added to the list as a new timer. Highlight Replace or Add according to your preference and press OK to proceed. When you choose to delete a timer a conrmation dialogue will be displayed on the screen. Highlight Yes and press OK to delete the selected timer. A warning message will be displayed if the time intervals of two timers overlap. You can not set more than one timer for the same time interval. Press EXIT button to close the Schedule List. CEC With CEC function of your TV you can operate a connected device with the TV remote control. This function uses HDMI CEC (Consumer Electronics Control) to communicate with the connected devices. Devices must support HDMI CEC and must be connected with an HDMI connection. The TV comes CEC function switched on. Make sure that all CEC settings are properly set up on the connected CEC device. The CEC functionality has di󰀨erent names on di󰀨erent brands. CEC function might not work with all devices. If you connect a device with HDMI CEC support to your TV, the related HDMI input source will be renamed with the connected device's name. To operate the connected CEC device, select the related HDMI input source from the Inputs menu on the Home Screen. Or press the Source button if the TV is in Live TV mode and select the related HDMI input source from the list. To terminate this operation and control the TV via the remote again, press the Source button, which will still be functional, on the remote and switch to another source. The TV remote is automatically able to control the device once the connected HDMI source has been selected. However not all buttons will be forwarded to the device. Only devices that support CEC Remote Control function will respond to the TV remote control. The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system). Connect the audio system to the HDMI2 input on the TV to enable ARC feature. In order to activate ARC feature the Speakers option should be set as External Audio System. You can access this option from the TV options or TV options>

Settings>Device Preferences>Sound menu in Live TV mode or from Settings>Device Preferences>Sound menu on the Home Screen. When ARC is active, TV will mute its other audio outputs automatically. So you will hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). The volume control buttons of the remote will be directed to connected audio device and you will be able to control the volume of the connected device with your TV remote. Note: ARC is supported only via the HDMI2 input. The CEC functions are set to On by default. To switch o󰀨 completely do the following:

2 - Scroll down to Consumer Electronic Control

(CEC) section. Highlight HDMI control option and press OK. Google Cast With the built-in Google Cast technology you can cast the content from your mobile device straight to your TV. If your mobile device has Google Cast feature, you can mirror your device’s screen to your TV wirelessly. Select Cast screen option on your android device. Available devices will be detected and listed. Select your TV from the list and tap on it to start casting. You can get the network name of your TV from the Settings>Device Preferences>About menu on the Home screen. Device name will be one of the shown articles. You can also change the name of your TV. Highlight Device name and press OK. Then highlight Change and press OK again. You can either select one of the predened names or enter a custom name. To cast your device’s screen to the TV screen…English - 22 -

1. On your android device, go to ‘Settings’ from the

notication panel or home screen

2. Tap on ‘Device Connectivity’

3. Tap on the ‘Easy projection’ and enable ‘Wireless

projection’. Available devices will be listed

4. Select the TV you would like to cast to

2. Tap on ‘Wireless projection’

3. Select the TV you would like to cast to

If the mobile app is Cast-enabled, such as YouTube, Dailymotion, Netix, you can cast your app to your TV. On the mobile app, look for the Google Cast icon and tap on it. Available devices will be detected and listed. Select your TV from the list and tap on it to start casting. To cast an app to the TV screen…

1. On your smartphone or tablet, open an app that

supports Google Cast

2. Tap the Google Cast icon

3. Select the TV you would like to cast to

4. The app you selected should start playing on TV

Notes: Google Cast works on Android and iOS. Make sure that your mobile device is connected to the same network as your TV. The menu options and namings for Google Cast function on your Android device can dier from brand to brand and can change with time. Refer to your device’s manual for latest information on Google Cast function. HBBTV System HbbTV (Hybrid Broadcast Broadband TV) is a stand- ard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, electronic programme guide, in- teractive advertising, personalisation, voting, games, social networking and other multimedia applications. HbbTV applications are available on channels where they are signalled by the broadcaster. The HbbTV applications are generally launched with the press of a coloured button on the remote. Generally a small red button icon will appear on the screen in order to notify the user that there is an HbbTV appli

cation on that channel. Press the button indicated on the screen to launch the application. HbbTV applications use the buttons on the remote control to interact with the user. When an HbbTV application is launched, the control of some buttons are owned by the application. For example, numeric channel selection may not work on a teletext applica

form. There are numerous applications providing VOD (video on demand) and catch-up TV services. The OK (play&pause), Stop, Fast forward, and Rewind buttons on the remote control can be used to interact with the AV content. Note: You can enable or disable this feature from the HBBTV Settings>TV Options>Advanced Options> menu in Live TV mode. Quick Standby Search If earlier an automatic search is performed, your TV will search for new or missing digital channels at 05:00 am every morning while in quick standby mode. And if the Auto Channel Update option in the Set

tings> Channel menu is enabled the TV will wake up within 5 minutes after it is switched into quick standby mode and search for channels. Standby LED will blink during this process. Once the standby LED stops blinking the search process is completed. Any new found channels will be added to the channel list. If the channel list is updated, you will be informed on the changes at the next power on. Software Update Your TV is capable of nding and updating the rmware automatically via Internet. To experience the best use of your TV and benet from the latest improvements make sure your system is always up to date. Software update via internet On the Home Screen enter the Settings>Device Pref- erences>About menu in order to update your Android system version. Move the focus to the System update option and press OK. You will be informed about the system status and the time at which the device was last checked for an update will be displayed. The Check for update option will be highlighted, press OK if you want to check for an available update. Note: Do not unplug the power cord during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in. Troubleshooting & Tips TV does not switch on

• Make sure the power cord is plugged in securely to power outlet.English - 23 -

• Disconnect the power cable from the power outlet. Wait for one minute then reconnect it.

• Press the Standby/On button on the TV. TV does not respond to the remote control

• The TV requires some time to start up. During this time, the TV does not respond to the remote control or TV controls. This is normal behaviour.

• Check if the remote control is working by means of a mobile phone camera. Put the phone in camera mode and point the remote control to the camera lens. If you press any key on the remote control and you notice the infra red LED icker through the camera, the remote control is working. The TV needs to be checked. If you do not notice the ickering, the batteries may be exhausted. Replace the batteries. If the remote is still not working, the remote control might be broken and needs to be checked. This method of checking the remote control is not possible with remote controls which are wirelessly paired with the TV. No Channels

• Make sure that all cables are properly connected and that the correct network is selected.

• Make sure that the correct channel list is selected.

• Make sure that you have entered the correct channel frequency if you have done manual tuning. No picture / distorted picture

• Make sure that the antenna is properly connected to the TV.

• Make sure that the antenna cable is not damaged.

• Make sure that the correct device is selected as the input source.

• Make sure that the external device or source is properly connected.

• Make sure that the picture settings are set correctly.

• Loud speakers, unearthed audio devices, neon lights, high buildings and other large objects can inuence reception quality. If possible, try to improve the reception quality by changing the antenna direction or moving devices away from the TV.

• Change to a di󰀨erent picture format, if the picture does not t the screen

• Make sure that your PC uses the supported resolution and refresh rate. No sound / poor sound

• Make sure that the sound settings are correctly set.

• Make sure that all cables are properly connected.

• Make sure that the volume is not muted or set to zero, increase the volume to check.

• Make sure that the TV audio output is connected to the audio input on the external sound system.

• Sound may be coming from only one speaker. Check the balance settings from Sound menu. Input sources - can not be selected

• Make sure that the device is connected to the TV.

• Make sure that all cables are properly connected.

1280x1024 x x x 1400x1050

Number of Preset Channels

Channel Indicator On Screen Display RF Aerial Input 75 Ohm (unbalanced) Operating Voltage 220-240V AC, 50Hz. Audio German+Nicam Stereo Audio Output Power (WRMS.) (10% THD) 2 x 6 Power Consumption (W) 65 W Networked Standby Power Consumption (W) < 2 TV Dimensions DxLxH (with foot) (mm) 184 x 732 x 476 TV Dimensions DxLxH (without foot) (mm) 53/81 x 732 x 435

32" Operation temperature and operation humidity 0ºC up to 40ºC, 85% humidity max

EU countries (and other countries following the rele

vant EU directive) without any limitation except for the countries mentioned below. Country Restriction Bulgaria General authorization required for outdoor use and public service Italy If used outside of own premises, general authorization is required Greece In-door use only for 5470 MHz to 5725 MHz band Country Restriction Luxembourg General authorization required for network and service supply(not for spectrum) Norway Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Fed

eration In-door use only Israel 5 GHz band only for 5180 MHz-5320 MHz range The requirements for any country may change at any time. It’s recommended that user checks with local authorities for the current status of their national reg- ulations for 5 GHz wireless LAN’s. Licences

Interface, and the HDMI Logo are trademarks or regis- tered trademarks of HDMI Licensing Administrator, Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Google, Android, Android TV, Chromecast, Google Play and YouTube are trademarks of Google LLC. This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected

content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. The “CI Plus” Logo is a trademark of CI Plus LLP. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibitedEnglish - 31 - without a license from Microsoft or an authorized Microsoft subsidiary. Disposal Information [European Union] These symbols indicate that the electrical and electronic equipment and the battery with this symbol should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2012/19/EU and 2013/56/EU. By disposing of these products correctly, you will help to conserve natural resources and will help to prevent potential negative e󰀨ects on the environment and human health which could otherwise be caused by inappropriate waste handling of these products. For more information about collection points and recycling of these products, please contact your local municipal o󰀩ce, your household waste disposal service or the shop where you purchased the product. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. [Business users] If you wish to dispose of this product, please contact your supplier and check the terms and conditions of the purchase contract. [Other Countries outside the European Union] These symbols are only valid in the European Union. Contact your local authority to learn about disposal and recycling. The product and packaging should be taken to your local collection point for recycling. Some collection points accept products free of charge. Note: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Connect the antenna to your TV Connect the TV to the mans socketInsert the batteres nto the Remote Control

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

1. Press the Standby button on the remote control.

After pluggng the power cable to the mans socket outlet the TV wll swtch on automatcally. If the TV is in standby mode the standby LED lights up.

2. Press the centre of the control swtch on the TV n.

To swtch on the TV from standby mode ether; Swtch the TV on

Quck Start Gude REAR SIDE OF THE TV(optonal)SATELLITEAERIALCABLE orEnglsh If you want to connect a devce to the TV, make sure that both the TV and the devce are turned off before makng any connecton. Use a sutable cable to connect two unts together. Once you have connected external systems to your TV, you can swtch to dfferent nput sources. Press the Source button on your remote control consecutvely or use the drectonal buttons and then press the OK button to swtch to dfferent sources when n Lve TV mode. Besdes ths, you can swtch to the desred nput source by selectng the desred opton from the Inputs menu on the Home Screen or TV optons >Source menu n Lve TV mode. Change the Input Source

Note: For detaled nformaton and nstructons on the ntal setup process refer to the Insructon Book of ths TV. When turned on for the frst tme, a search for accessores wll be performed before the ntal setup starts. Follow the on-screen nformatons to par your remote control and other wreless accessores wth your TV. Press Ext to end addng accessores and start the setup.“Welcome” message wll be dsplayed along wth the language selecton optons lsted on the screen. Select the desred language from the lst and press OK to contnue.Follow the on-screen nstructons to complete the ntal setup process. Use the drectonal buttons and the OK button on the remote to select, set, confrm and proceed. Connect your TV to the Internet

English Product Fiche Commercial Brand Product No. Model No. Energy efficiency class Visible screen size

Product No. 10129830

Visible screen size (diagonal,approx.) (inch/cm) 32 inches 80 cm

On mode average power consumpon (Wa) 31,0

Display resoluon (px) 1920x1080G HI J K English On mode average

Annual energy consumption

Standby power consumption

Off mode power consumption

Consumo annual energia
