USER MANUAL KA7902I20G NEFF

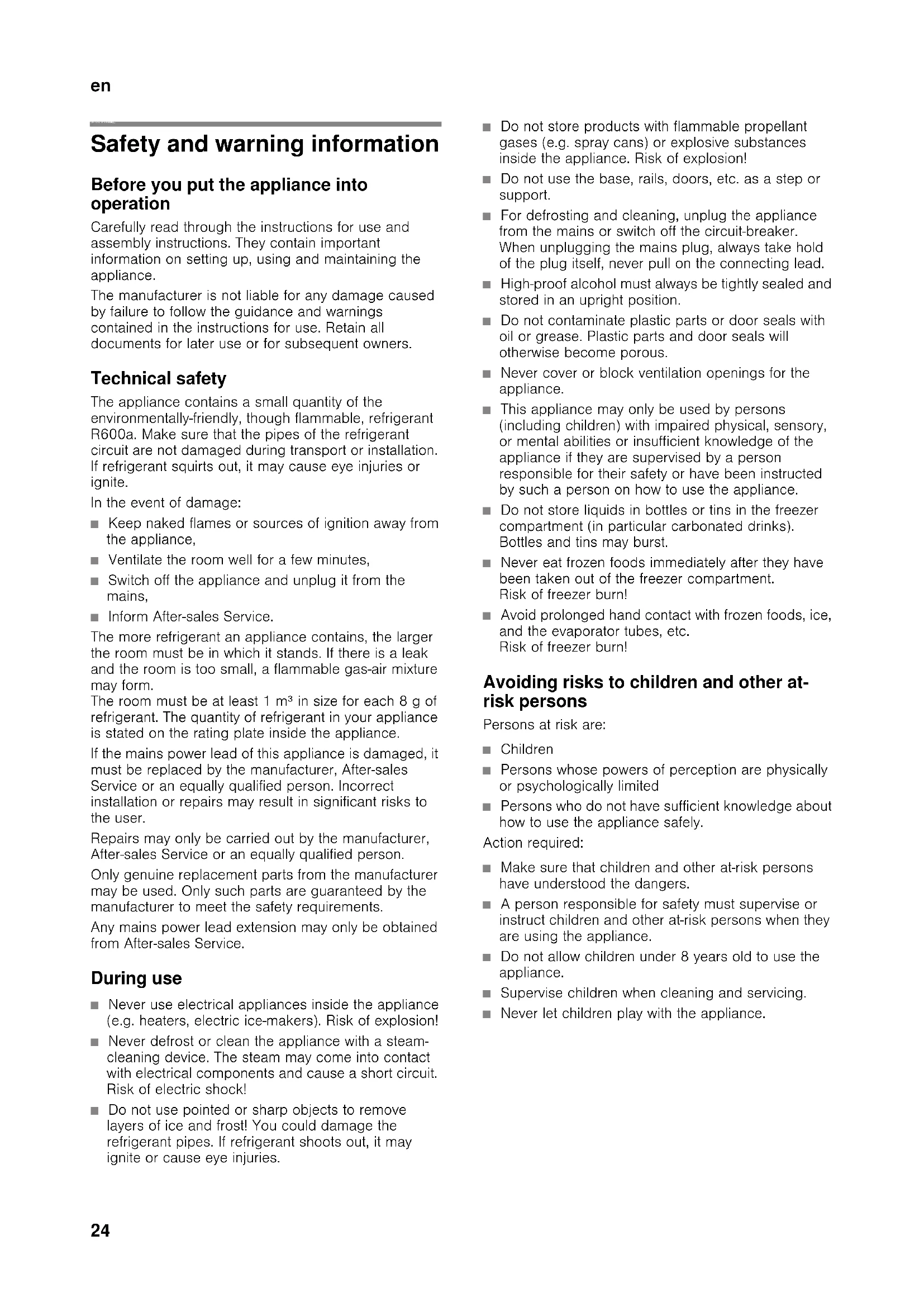

enTable of contents enInstructions for use Safety and warning information Before you put the appliance into operation Carefully read through the instructions for use and assembly instructions. They contain important information on setting up, using and maintaining the appliance. The manufacturer is not liable for any damage caused by failure to follow the guidance and warnings contained in the instructions for use. Retain all documents for later use or for subsequent owners. Technical safety The appliance contains a small quantity of the environmentally-friendly, though flammable, refrigerant R600a. Make sure that the pipes of the refrigerant circuit are not damaged during transport or installation. If refrigerant squirts out, it may cause eye injuries or ignite. In the event of damage: ■ Keep naked flames or sources of ignition away from the appliance, ■ Ventilate the room well for a few minutes, ■ Switch off the appliance and unplug it from the mains, ■ Inform After-sales Service. The more refrigerant an appliance contains, the larger the room must be in which it stands. If there is a leak and the room is too small, a flammable gas-air mixture may form. The room must be at least 1 m³ in size for each 8 g of refrigerant. The quantity of refrigerant in your appliance is stated on the rating plate inside the appliance. If the mains power lead of this appliance is damaged, it must be replaced by the manufacturer, After-sales Service or an equally qualified person. Incorrect installation or repairs may result in significant risks to the user. Repairs may only be carried out by the manufacturer, After-sales Service or an equally qualified person. Only genuine replacement parts from the manufacturer may be used. Only such parts are guaranteed by the manufacturer to meet the safety requirements. Any mains power lead extension may only be obtained from After-sales Service. During use ■ Never use electrical appliances inside the appliance (e.g. heaters, electric ice-makers). Risk of explosion! ■ Never defrost or clean the appliance with a steam- cleaning device. The steam may come into contact with electrical components and cause a short circuit. Risk of electric shock! ■ Do not use pointed or sharp objects to remove layers of ice and frost! You could damage the refrigerant pipes. If refrigerant shoots out, it may ignite or cause eye injuries. ■ Do not store products with flammable propellant gases (e.g. spray cans) or explosive substances inside the appliance. Risk of explosion! ■ Do not use the base, rails, doors, etc. as a step or support. ■ For defrosting and cleaning, unplug the appliance from the mains or switch off the circuit-breaker. When unplugging the mains plug, always take hold of the plug itself, never pull on the connecting lead. ■ High-proof alcohol must always be tightly sealed and stored in an upright position. ■ Do not contaminate plastic parts or door seals with oil or grease. Plastic parts and door seals will otherwise become porous. ■ Never cover or block ventilation openings for the appliance. ■ This appliance may only be used by persons (including children) with impaired physical, sensory, or mental abilities or insufficient knowledge of the appliance if they are supervised by a person responsible for their safety or have been instructed by such a person on how to use the appliance. ■ Do not store liquids in bottles or tins in the freezer compartment (in particular carbonated drinks). Bottles and tins may burst. ■ Never eat frozen foods immediately after they have been taken out of the freezer compartment. Risk of freezer burn! ■ Avoid prolonged hand contact with frozen foods, ice, and the evaporator tubes, etc. Risk of freezer burn! Avoiding risks to children and other at- risk persons Persons at risk are: ■ Children ■ Persons whose powers of perception are physically or psychologically limited ■ Persons who do not have sufficient knowledge about how to use the appliance safely. Action required: ■ Make sure that children and other at-risk persons have understood the dangers. ■ A person responsible for safety must supervise or instruct children and other at-risk persons when they are using the appliance. ■ Do not allow children under 8 years old to use the appliance. ■ Supervise children when cleaning and servicing. ■ Never let children play with the appliance.en

General requirements The appliance is suitable for the following tasks: ■ Chilling and freezing food,■ Making ice cubes. This appliance is intended for use up to a maximum height of 2000 metres above sea level. This appliance is intended for domestic use in private households and for a domestic environment. The appliance is fitted with interference suppression in accordance with EU Directive 2004/108/EC. The refrigeration circuit has been checked for leak tightness. This product complies with the applicable safety requirements for electrical appliances (EN 60335-2-24). Directions for disposal

• Disposing of packaging. The packaging protects your appliance from damage during transport. All the materials used are environmentally friendly and can be recycled. Please help by disposing of the packaging in an environmentally responsible manner. Information about the available disposal methods and sites can be obtained from your appliance retailer or your local authority.

• Disposing of your old appliance Used appliances are not valueless waste. Valuable raw materials can be recovered through environmentally responsible disposal. m Warning Appliances at the end of their useful life:

1. Unplug the mains plug.

2. Cut the power cord and remove it along with the

3. Do not remove the shelves and containers. Leaving

them intact makes it more difficult for children to climb in.

4. Never let children play with a disused appliance.

Risk of asphyxiation! Refrigerators contain refrigerant as well as gases in the insulation material. Refrigerant and gases must be disposed of properly. Do not damage the refrigerant circuit pipes before disposing of them properly. Specifications supplied After unpacking the appliance, check all parts for transport damage. If you find any defects, contact the retailer from whom you purchased the appliance or our After-sales Service. The appliance supplied consists of the following components: ■ Free-standing appliance■ Features (vary depending on the model)■ Bag of assembly materials■ Instructions for use and installation■ Service record■ Guarantee slip■ Information on energy consumption and noise Installing the appliance Transport The appliance is heavy and must be securely fixed when being transported and installed. Because of the weight and size of the appliance, and in order to minimise the risk of personal injury or damage to the appliance, at least two persons are required for moving and positioning the appliance safely. The castors are provided for installation purposes only. Do not use the castors for transporting the appliance. Do not move the appliance over uneven or soft ground on its castors. Installation site The ideal installation site is a dry, well ventilated room. The appliance should not be installed in a position that is exposed to direct sunlight or close to a source of heat, such as a cooker or radiator. If installation near to a source of heat is unavoidable, use a suitable insulating panel or keep to the following minimum distances from the source of heat: ■ 3 cm from an electric or gas cooker.■ 30 cm from oil or solid fuel cookers. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Floor surface The floor at the installation site must not give. Reinforce the floor if necessary. The appliance is very heavy. The weight when empty is detailed in the table below. Wall clearance If the appliance is positioned in the corner of a room or a recess, minimum clearances (see the section headed Installation dimensions) at the sides must be maintained so that the appliance doors can be fully opened. If the depth of the adjacent kitchen fittings exceeds 65 cm, minimum clearances at the sides must be maintained so that the full opening width of the doors can be utilised (see section headed Door opening angle). Minimum clearance at rear Fix the spacers supplied to the holes provided on the rear of the appliance using the screws. The spacers maintain the minimum clearance of 22 mm from the wall, thus providing adequate ventilation. Observe the room temperature and ventilation requirements Room temperature The appliance is designed for a certain climate class. Depending on the climate class, the appliance can be operated at the following ambient temperatures. The climate class is specified on the rating plate. Note The appliance is fully functional within the room temperature limits of the specified climate class. If an appliance in the SN climate class is operated at lower ambient temperatures, damage to the appliance can be excluded up to a temperature of +5 °C. Ventilation The heated air must be able to escape unimpeded. Otherwise, the refrigerating unit has to work harder, which increases the appliance's power consumption. Therefore, never cover over or block the air vent. Basic model 98 kg Climate class Permissible room temperature SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °Cen

Installation dimensions Door opening angle Spacers Dimensions in mmDimensions in mm Dimensions in mm *720 mm with spacers Side panel clearance Side panel depth Drawers can be pulled out fully at door opening of 145° min. 22 Dimensions in mm min.

Drawers can be pulled out fully at door opening of 145°en

Connecting the appliance After setting up the appliance, wait for at least 1 hour before starting the appliance up. The oil contained in the compressor may have been displaced into the refrigeration system during transport. Before starting the appliance up for the first time, clean its interior (see the section headed Cleaning the appliance). Do not remove the transit locks from the shelves and trays until the appliance has been installed. Electrical connection The socket must be near to the appliance and easily accessible after the appliance has been installed. The appliance conforms to protection class I. Connect the appliance to a 220-240 V/50 Hz alternating current supply using a socket with protective earthing conductor which has been correctly installed. The socket must be protected by a fuse with a rating of 10 A to 16 A. In the case of appliances operated outside of Europe, check whether the voltage and type of current specified conform to the values of your electricity grid. You will find this information on the rating plate. m Warning The appliance must never be connected up to an electronic energy-saving socket. Sinusoidal-commutated and line-commutated inverters can be used with our appliances. Line-commutated inverters are used with photovoltaic systems that are connected directly to the national grid. Sinusoidal- communicated inverters must be used with standalone applications (e.g. on ships or mountain huts) that do not have a direct connection to the national grid. Levelling the appliance Note To ensure that it functions properly, the appliance must be set level using a spirit level. If the appliance is not level, it could prevent the doors from closing properly.

1. Move the appliance into its intended installation

2. So that the appliance cannot move, unscrew the two

front feet until they are standing firmly on the floor.

3. Screw the feet in/out until the appliance is exactly

level. Use the appliance doors as a reference point.

4. If the freezer compartment door is lower:en

5. If the fridge compartment door is lower: If the appliance is exactly level but one of the doors is

lower than the other:

1. Open the appliance doors.

2. Unscrew the 3 screws holding the base panel and

4. Turn the adjusting nut until the appliance doors are

5. If the freezer compartment door is lower: Turn the

adjusting nut anti-clockwise.

6. If the fridge compartment door is lower: Turn the

8. Put the base panel back in place and secure it with

Note Due to its own weight or when the door is filled with foodstuffs, it is possible that the fridge compartment door leans even when the appliance is standing up vertically. The door gap at the top and at the bottom is not identical. If the door gap at the top and at the bottom is not identical:

1. Unscrew 2 screws and remove the top hinged

2. Slacken the hinge screw.

Do not unscrew the screw completely!

3. Adjust the fridge compartment door‘s vertical

4. Tighten the hinge screw.

5. Apply the hinged cover and fasten with 2 screws.

Fitting the doors If the appliance is too big to fit through the doors of your home, the door handles or the appliance doors can be unscrewed. Note The door handles or the appliance doors may only be removed by an After-sales Service technician. Your local After-sales Service centre will advise you of the cost.en

Getting to know the appliance Appliance The features of the models may vary. The illustrations may differ from your particular model. A Fridge compartment B Freezer compartment (4 stars) 1 Operating controls 2 Door pocket (2-star compartment) Note Only the door pocket is rated as 2 stars, the rest of the freezer compartment is 4-star rated. 3 Door pockets 4 Ice-cube trays 5 Freezer compartment glass shelves 6 Freezer compartment drawers 7 Shelf 8 Fridge compartment glass shelves 9 Egg tray 10 Vegetable drawer 11 Fruit drawer 12 Butter and cheese compartment 13 Door pocket with liden

Operating controls 1 "freezer/super" button ■ For setting the temperature in the freezer compartment. ■ For switching fast freezing function on and off. 2 "alarm off" button ■ Switches off the display of the temperature alarm. 3 "lock" button ■ Switches the button lock (childproof lock) on or off. 4 "fridge/super" button ■ For setting the temperature in the fridge compartment. ■ For switching the fast cooling function on and off. 5 Fridge compartment display panel ■ Fridge compartment temperature. ■ "super" symbol shown when fast cooling function is active. ■ "alarm" symbol shown when fridge compartment alarm is active. 6 Freezer compartment display panel ■ Freezer compartment temperature. ■ "super" symbol shown when fast freezing function is active. ■ "alarm" symbol shown when freezer compartment alarm is active. 7 Symbols on the display panel Button lock (childproof lock) Button lock is switched on.en

Switching on the appliance Plug the mains plug into the mains outlet socket. The appliance will start cooling. When the appliance is switched on for the first time, the alarm function is deactivated until the appliance has reached the set temperature. If the appliance is switched off for an extended period, the temperature alarm may be triggered when it is first switched on again. The temperatures flash and the display panels show the "alarm" symbol until the appliance has reached the set temperatures. By pressing the "alarm off" button the temperature warning is switched off. The lights come on when the appliance doors are opened. The following temperatures are recommended by the manufacturer and pre-set at the factory: ■ Fridge compartment +4 °C ■ Freezer compartment -18 °C Notes on using the appliance ■ After switching on the appliance, it may be several hours before the set temperatures are reached. Do not put any food in the appliance before then. ■ Thanks to the fully automatic NoFrost system, the freezer compartment remains free of ice. Defrosting is not required. ■ Some of the casing end faces are slightly heated to prevent condensation forming in the door seal area. ■ If you cannot open the freezer compartment door again immediately after closing it, wait a moment for the low pressure created to equalise. Setting the temperature Fridge compartment The temperature can be set from +2 °C up to +8 °C. Repeatedly press the "fridge/super" button until the desired fridge compartment temperature is set. The temperature last set is saved. The set temperature is shown on the fridge compartment display panel. Freezer compartment The temperature can be set to between -16 °C and -22 °C. Repeatedly press the "freezer/super " button until the desired freezer compartment temperature is set. The temperature last set is saved. The set temperature is shown on the freezer compartment display panel. Fast cooling function The fast cooling function cools the fridge compartment to the coldest possible temperature for approximately 40 minutes. After that, the temperature setting automatically reverts to +4 °C. Switch on fast cooling, for example ■ before putting a large amount of food in the fridge compartment. ■ to cool drinks quickly. Note When fast cooling is switched on, the appliance may make more noise. Switching on Press the "fridge/super" button repeatedly until the fridge compartment display panel shows "super". Switching off Press the "fridge/super" button. Note The display panel no longer shows "super". The temperature setting automatically reverts to +4 °C.en

Fast freezing function Food should be frozen thoroughly as quickly as possible. This ensures that vitamins, nutritional values, the look and the taste of the food is retained. Switch on fast freezing a few hours before placing fresh food in the freezer in order to prevent a drop in temperature. In general, 4 - 6 hours is sufficient. When the function is switched on, the appliance operates continuously. As a result, a very cold temperature in the freezer compartment is achieved. Fast freezing automatically switches off after about 48 hours. If the maximum freezing capacity is to be used, fast freezing should be switched on 24 hours before placing the fresh food in the freezer. Small quantities of food for freezing (up to 2 kg) can be frozen without using the fast freezing function. Note When fast freezing is switched on, the appliance may make more noise. Switching on Press the "freezer/super" button repeatedly until the freezer compartment display panel shows "super". Switching off Press the "freezer/super" button. Note The display panel no longer shows "super". The temperature automatically switches back to the temperature set before the "Fast freezing" function was activated. Button lock (childproof lock) When the button lock is switched on, all buttons are locked. When the button lock is switched on, the "alarm" button can be used to switch off the audible warning signal. Switching on Press the "lock" button. The display panel shows the "Button lock" symbol. Switching off Press and hold the "lock" button for 3 seconds. Alarm functions Door alarm The door alarm switches on if one of the appliance doors is open for longer than one minute. The warning sound repeats every 60 seconds for a period of 5 minutes. Closing the door switches off the warning sound. Temperature alarm The display panel shows the temperature alarm if the fridge or freezer compartment becomes too warm and the food is at risk. The relevant display panel shows the highest temperature and "alarm". Fridge compartment If the temperature in the fridge compartment has become too high, before eating any food that has got warm, make sure you heat it through properly. In in doubt, do not use raw food.en

Freezer compartment Do not refreeze defrosted food. It can only be refrozen after it has been made into a ready-to-eat meal (cooked or roasted). Do not then leave the food in the freezer for the maximum storage period. Without any risk to the frozen food, the alarm may be triggered: ■ when the appliance is first used. ■ when putting large quantities of fresh food in the freezer. ■ if the freezer compartment door is left open for too long. Switching off the alarm Press the "alarm off" button. Note As soon as the set temperature is reached again, the display stops showing "alarm". Energy-saving mode 20 seconds after the doors are closed or the last button is pressed, the display panel switches to energy- saving mode. The display panel switches off and leaves only the words "freezer" and "fridge" dimly illuminated. As soon as a door is opened or a button pressed, the display panel switches on and returns to the normal brightness. Usable capacity You will find the details of the usable capacity on the rating plate inside the appliance. Using the entire freezing capacity To accommodate the maximum quantity of frozen food, you can remove all of the fittings from inside the appliance. You can then stack the food directly on the shelves and the bottom of the freezer compartment. How to remove and refit the fittings is described in the section headed Fittings. Fridge compartment The fridge compartment is the perfect place for keeping ready meals, bread and pastries, jams and preserves, condensed milk and hard cheeses. When placing food in the fridge, follow these guidelines: ■ Keep fresh, untouched food in the fridge. In that way it will keep longer and stay fresher. ■ In the case of ready-made products and packaged foods and liquids, pay attention to the manufacturer's specified best-before or use-by date. ■ In order to maintain flavour, colour and freshness, keep food well packed or covered over. That also prevents flavours from mixing and the plastic parts from becoming discoloured in the fridge compartment. ■ Allow warm food and beverages to cool before putting them into the appliance. Note Keep food from coming into contact with the rear panel. Otherwise, the air circulation will be impaired. Food or packaging could also become frozen to the rear panel. Pay attention to the temperature zones in the fridge compartment The air circulation produces different temperature zones in the fridge compartment: ■ The coldest zones are close to the rear panel. ■ The warmest zone is at the very top of the door. Note Keep items such as hard cheese and butter in the warmest zone. That will allow the cheese to continue developing its flavour and the butter will remain spreadable. Freezer compartment Use the freezer compartment for the following: ■ Storing deep frozen food. ■ To make ice cubes. ■ To freeze food. Note Make sure that the freezer compartment door is always closed. When the door is open, the frozen foods defrost and the freezer compartment ices up heavily. In addition: Energy is wasted due to the power consumption. Note The 2-star door pocket can be used to store ice and food at -12 °C for short periods. The rest of the freezer compartment is 4-star rated.en

Max. freezing capacity You will find information on the maximum freezing capacity in 24 hours on the rating plate. Conditions for use of max. freezing capacity ■ Switch on the fast freezing function before placing the food in the freezer (see section headed Fast freezing). ■ Remove the freezer compartment fittings. ■ Stack the food directly on the shelves and the bottom of the freezer compartment. Note Do not cover over the ventilation slots in the rear panel with the food you are freezing. ■ Preferably, large quantities of food for freezing should be placed in the top compartment. There it will freeze quickly and, therefore, without adversely affecting the food quality. Freezing and storing Purchasing frozen foods ■ Packaging must not be damaged. ■ Observe the best before date. ■ The temperature in the commercial chest freezer must be -18 °C or colder. ■ As far as possible, frozen food must be transported in an insulated container and quickly placed in the freezer compartment. When arranging the food, note the following: ■ Preferably, large quantities of food for freezing should be placed in the top compartment. There it will freeze quickly and, therefore, without adversely affecting the food quality. ■ Spread the items out well in the compartments/trays. Note Food that is already frozen must not come into contact with the food that is to be freshly frozen. If necessary, move already frozen items to other freezer trays. Storing frozen food Push the freezer trays in as far as they will go so as to ensure perfect air circulation. Freezing fresh food Only use fresh, undamaged food for freezing. In order to retain the nutritional value, aroma and colour of the food as much as possible, blanch vegetables before they are frozen. Blanching is not required for aubergines, peppers, courgettes and asparagus. You can find literature about freezing and blanching in bookshops. Note Do not allow food that is to be frozen to sit right next to food that has already been frozen. ■ The following are suitable for freezing: Baked goods, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without their shells, dairy products such as cheese, butter and curd cheese, prepared dishes and leftovers such as soups, stews, cooked meat and fish, potato dishes, baked casseroles and sweet foods. ■ The following are not suitable for freezing: types of vegetable that are usually eaten raw, such as lettuces or radishes, eggs in their shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, curds, soured cream, crème fraîche and mayonnaise. Packing frozen food Pack food so that it is airtight to prevent it from losing its flavour or drying out.

1. Store food in its packaging.

2. Press out any air.

3. Close the packaging tightly.

4. Label packaging with its contents and date of

freezing. The following are suitable as packaging: Plastic film, polyethylene hose film, aluminium foil, freezer bags. You will find these products at your specialist dealer. The following are not suitable as packaging: Wrapping paper, greaseproof paper, cellophane, rubbish bags and used shopping bags. The following are suitable for sealing packaging: Rubber bands, plastic clips, pack-twines, cold-resistant scotch tape, or similar. Polyethylene bags and hose film can be fused closed using a bag sealer. Storage life of frozen foods The storage life depends on the type of food. At a temperature of -18 °C: ■ Fish, sausages, prepared dishes, baked goods: Up to 6 months. ■ Cheese, poultry, meat: Up to 8 months. ■ Vegetables, fruit: Up to 12 months.en

Defrosting frozen food You can choose between the following options, depending on the type of food and its intended use: ■ at ambient temperature ■ in the fridge ■ in an electric oven, with/without hot air convection ■ In the microwave oven. m Caution Do not refreeze defrosted food. It can only be refrozen after it has been made into a ready-to-eat meal (cooked or roasted). Do not continue to use the complete max. storage time for the frozen food. Fittings Glass shelves The glass shelves can be removed and fitted at different heights. Removing Lift the glass shelf at the back and pull it out. Inserting Slide the glass shelf backwards on the guide rails until it snaps downwards into place. Glass shelves over the drawers The glass shelves can be removed. Pull the shelf out and lift it upwards to remove it. Door pockets The door pockets can be removed. Pull the door pockets upwards to remove. Ice-cube trays The ice-cube tray is for producing and keeping ice cubes in. Pull out the ice-cube trays. Drawers The drawers can be removed. Pull the drawer out as far as the stop, lift it at the front and remove it completely.en

Shelf For holding drinks cans. Egg tray Door pocket with lid This compartment can be removed. Pull the compartment upwards to remove. Switching off and shutting down the appliance Switch off the appliance Unplug the appliance from the mains or switch off the circuit-breaker. The refrigeration system and lights switch off. If the appliance is to be switched off but not unplugged (e.g. while you are on holiday): Press and hold the "freezer/super" and "fridge/super" buttons for 5 seconds. When the appliance is off, the temperature displays will show "- -". The rest of the display panel is off. Switching on the appliance: Press and hold the "freezer/super" and "fridge/super" buttons for 5 seconds. Putting the appliance out of service If you do not use the appliance for long periods:

1. Remove all food from the appliance

2. Switch off the appliance.

3. Clean the appliance.

4. Leave the appliance doors open.

Defrosting Fridge compartment While the appliance is in use, drops of condensation or frost form on the back of the fridge compartment. As the rear panel defrosts automatically, it is not necessary to remove the frost or the condensation. Freezer compartment Thanks to the fully automatic NoFrost system, the freezer compartment remains free of ice. There is no longer any need to defrost it.en

Cleaning the appliance m Caution ■ Do not use gritty, acidic or chlorine-based cleaning agents or solvents. ■ Do not use abrasive cleaning pads or sponges that may scratch surfaces. This may lead to corrosion of the metallic surfaces. ■ Never clean the shelves or containers in the dishwasher. The parts may warp. Proceed as follows:

1. Switch off the appliance before cleaning.

2. Unplug the appliance from the mains or switch off

the circuit-breaker.

3. Take out the food and store it in a cool place. Place

an ice block (if you have one) on the food.

4. Wait until the layer of frost has thawed out.

5. Clean the appliance with a soft cloth, lukewarm

water, and a little pH-neutral washing-up liquid. The washing-up liquid solution must not be allowed to get into the lights or run into the evaporation tray through the drain hole.

6. Only wipe the door seal with clean water and then

rub it until it is dry.

7. After cleaning, reconnect the appliance to the mains

8. Put the food back in.

Fittings All the variable components of the appliance can be removed for cleaning (see section headed Fittings). Smells If you notice unpleasant smells:

1. Unplug the appliance from the mains or switch off

the circuit-breaker.

2. Remove all food from the appliance.

3. Clean the inside of the appliance (see section

headed Cleaning the appliance).

4. Clean all packaging.

5. Pack strongly smelling food in air-tight containers to

6. Switch on the appliance again.

7. Arrange the food.

8. After 24 hours, check again to see if the smells

have reappeared. Lighting (LED) Your appliance is equipped with a maintenance-free LED light. Any repair work on the lighting must only be carried out by the after-sales service or authorised experts. Saving energy ■ Install the appliance in a dry, well ventilated room. The appliance must be installed out of direct sunlight and away from heat sources (e.g. heating elements, cooker). Use an insulating plate if necessary. ■ Allow hot food and drinks to cool before placing them in the appliance. ■ Place frozen food in the fridge compartment to defrost and utilise the low temperature of the frozen food to cool other food. ■ Only open the appliance doors for as short a time as possible. ■ To prevent the food warming up quickly in the event of a power cut or a fault, place blocks of ice in the top compartment directly on top of the food. ■ Make sure that the freezer compartment door is always closed. ■ The arrangement of the fittings has no effect on the energy consumption of the appliance. ■ To prevent increased power consumption, occasionally clean the air vent with a soft brush or vacuum cleaner. Operating noises Completely normal noises Humming Motors running (e.g. refrigeration units, ventilator). Bubbling, whirring or gurgling noises Refrigerant circulating through the pipes. Clicking Motors, switches or solenoid valves are switching on/ off. Preventing noises The appliance is not standing straight Make sure the appliance is exactly level by using a spirit level. To adjust the position of the appliance, use the adjustable feet or place something underneath. The appliance is touching adjacent units or appliances Move the appliance away from adjacent furniture or appliances. Containers or shelves are wobbling or sticking Check the removable parts and re-insert them if necessary. Containers are touching Move the containers apart slightly.en

Rectifying minor faults yourself Before calling After-sales Service: Check whether you can rectify the fault yourself by using the notes below. You must pay the cost of the After-sales Service call out – even during the guarantee period. Appliance After-sales Service You can find your local After-sales Service centre in the phone book or the After-sales Service directory. Please quote the product number (E no.) and production number (FD no.) of your appliance. You will find this information on the rating plate. Please help us to avoid unnecessary journeys by quoting the appliance and production number. By doing so, you will save any associated additional charges. Booking a repair call-out and advice on faults The After-sales Service contact details for all countries are listed in the attached After-sales Service directory.

Problem Possible cause Remedy Appliance is not cooling/ freezing. The lighting is not working. The display does not light up. Power cut. Check whether there is power to the appliance. Circuit-breaker is switched off. Check circuit-breaker. Power plug not properly plugged in. Check whether power plug is properly plugged in. The refrigeration unit switches on with increasing frequency and for longer periods. The appliance door is being opened frequently. Do not open the appliance door unnecessarily. The ventilation openings are covered. Remove any obstructions. Placing large quantities of food in the appliance. Switch on fast cooling/fast freezing function. The fridge compartment/ freezer compartment is too cold. The temperature setting is too low. Set a higher temperature. The (LED) lighting does not work. The LED lighting is faulty. See section headed Lighting (LED). Light switch is sticking. Check whether you can move the light switch. The appliance door was opened for too long. The lighting switches off after approx. 10 minutes. After closing and opening the appliance door, the lighting is switched on again. Unpleasant smells are noticeable. Strongly smelling food not packed in air-tight containers. Clean the appliance. Pack strongly smelling food in air-tight containers (see section headed Smells). Warning beeper sounds or temperature indicator flashes. It is too warm in the fridge or freezer compartment. Food is at risk. Appliance door is open. See section headed Alarm functions. Too much food was stored at once. GB 0344 892 8969 Calls charged at local or mobile rate. IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.fr
