USER MANUAL KD-55X9005, KD55X9005, KD79X9005BB, KD55X9005B SONY

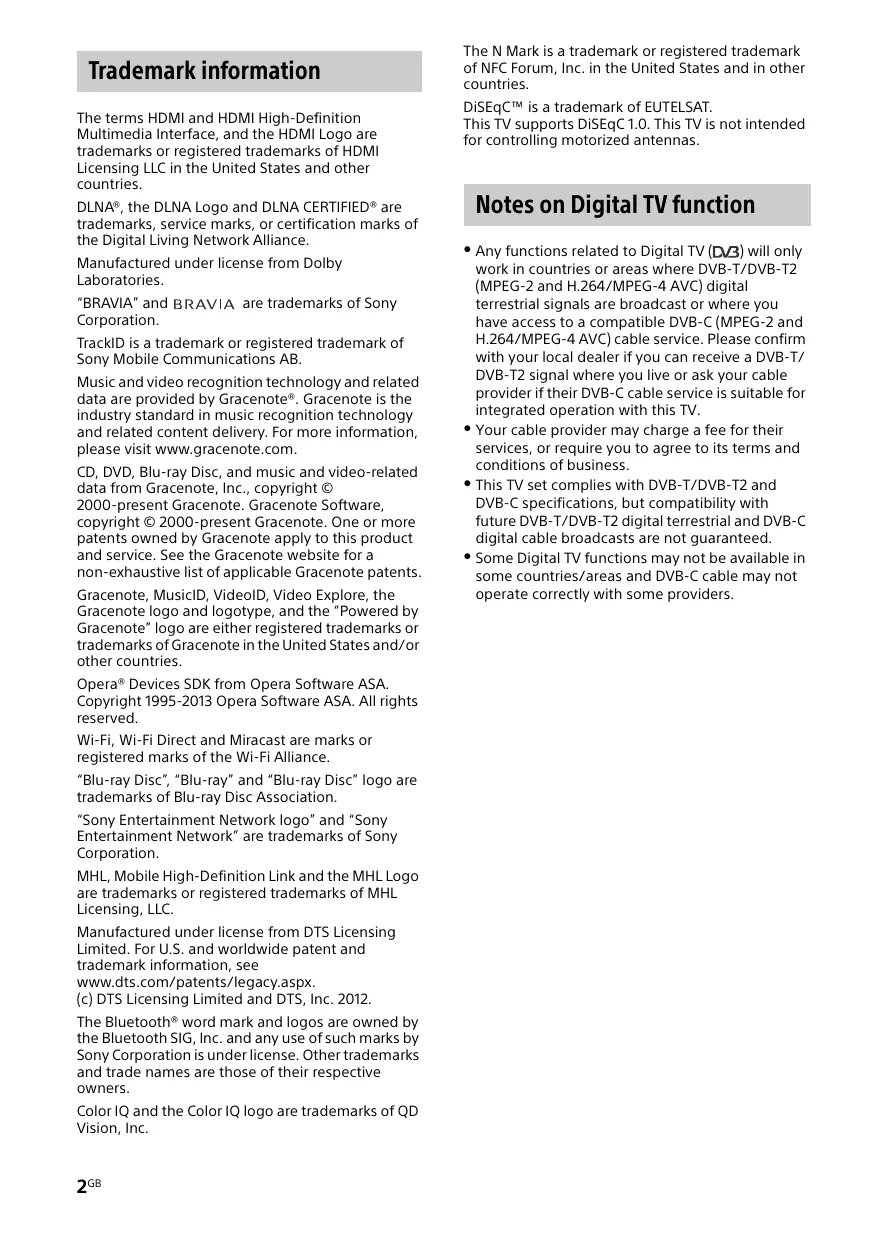

Trademark information The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance. Manufactured under license from Dolby Laboratories. “BRAVIA” and Corporation.

are trademarks of Sony

TrackID is a trademark or registered trademark of

Sony Mobile Communications AB. Music and video recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com. CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a non-exhaustive list of applicable Gracenote patents. Gracenote, MusicID, VideoID, Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries. Opera® Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved. Wi-Fi, Wi-Fi Direct and Miracast are marks or registered marks of the Wi-Fi Alliance. “Blu-ray Disc”, “Blu-ray” and “Blu-ray Disc” logo are trademarks of Blu-ray Disc Association. “Sony Entertainment Network logo” and “Sony Entertainment Network” are trademarks of Sony Corporation. MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC. Manufactured under license from DTS Licensing Limited. For U.S. and worldwide patent and trademark information, see www.dts.com/patents/legacy.aspx. (c) DTS Licensing Limited and DTS, Inc. 2012. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. Color IQ and the Color IQ logo are trademarks of QD Vision, Inc.

2GB The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

Notes on Digital TV function

 Any functions related to Digital TV ( ) will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG-2 and H.264/MPEG-4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T/ DVB-T2 signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV.  Your cable provider may charge a fee for their services, or require you to agree to its terms and conditions of business.  This TV set complies with DVB-T/DVB-T2 and DVB-C specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial and DVB-C digital cable broadcasts are not guaranteed.  Some Digital TV functions may not be available in some countries/areas and DVB-C cable may not operate correctly with some providers.

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds). Press "/1 on the TV to turn it off, disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When the illumination LED is not flashing, check the items in the tables as follows.

Also refer to “Troubleshooting” in the i-Manual. If the problem persists, have your TV serviced by qualified service personnel.

There is no picture (screen is dark) and no sound.

 Check the antenna (aerial)/cable connection.  Connect the TV to the AC power (mains), and press "/1 on the TV or remote.

Some programmes cannot be tuned.

 Check the antenna (aerial) or dish.  The satellite cable might be short-circuited or there might be connection problems of the cable. Check the cable connection and then turn the TV off with the Mains power On/Off switch, and turn it on again.  The frequency that you entered is out of range. Consult the received satellite broadcasting company.

There is no Cable TV services

(programmes) found.  Check the cable connection or tuning configuration.  Attempt the “Digital Auto Tuning” by selecting “Antenna” instead of “Cable”.

The remote does not function.

 Replace the batteries.  Your TV may be in SYNC mode. Press SYNC MENU, select “TV Control” and then select “Home (Menu)” or “Options” to control the TV.

The “Parental Lock” password has been forgotten.

 Enter 9999 for the PIN code. (PIN code 9999 is always accepted.)

The TV surrounds become warm.

 When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.

GB Frozen audio or video, a blank screen, or the TV does not respond to TV or remote buttons.

 Perform a simple reset of the TV by unplugging the AC power cord for two minutes, then plug it in again.

The CH+/–,  +/–, ///, , and

HOME buttons cannot be located on the TV.  See below illustration for location of the buttons on the TV.

Rear of TV The illumination LED is turned on.

 If you do not wish to light up the illumination LED, you can turn it off. Press HOME, then select “Settings” t “System Settings” t “General Set-up” t “Illumination LED” t “Off”. You can also press OPTIONS, then select “Illumination LED” t “Off”.

When viewing photo files in 4K resolution:  The menu screen, operation guide or messages may not appear when displaying photos.  To finish playback of photos, press RETURN, or switch the input by pressing .

System Panel system LCD (Liquid Crystal Display) Panel TV system Analogue: Depending on your country/area selection: B/G/H, D/K, L, I, M Digital: DVB-T/DVB-T2/DVB-C Satellite: DVB-S/DVB-S2 Colour/video system Analogue: PAL, SECAM, NTSC3.58, NTSC4.43 Digital: Refer to the i-Manual. Channel coverage Analogue: UHF/VHF/Cable, Depending on your country/area selection. Digital: UHF/VHF/Cable, Depending on your country/area selection. Satellite: IF Frequency 950-2150 MHz Sound output

12.5 W + 12.5 W + 20 W + 20 W MHL (Common with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i Video (3D): Side-by-Side 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Over-Under 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz) Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM, Dolby Digital) AUDIO OUT / i Audio output (stereo minijack) Headphones jack 1 (HDD Rec), 2, 3 USB HDD device port ( 1 only), USB port CAM (Conditional Access Module) slot LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Supplied accessories Refer to “What’s in the box” in Quick Start Guide. Optional accessories Camera and Microphone Unit: CMU-BR200/CMUBR100 USB Wireless LAN Adapter: UWA-BR100

Passive 3D Glasses: TDG-500P SimulView™ Passive Glasses: TDG-SV5P Operating temperature

0 ºC - 40 ºC Operating humidity 10% - 80% RH (non-condensing)

Power requirements 220 V – 240 V AC, 50 Hz Energy Efficiency Class KD-65X9005A: B KD-55X9005A: B Screen size (measured diagonally) (Approx.) KD-65X9005A: 163.9 cm / 65 inches KD-55X9005A: 138.8 cm / 55 inches

 Do not remove the dummy card from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.  Optional accessories availability depends on countries/region/TV model/stock.  Design and specifications are subject to change without notice.

Power consumption in “Home”/“Standard” mode

KD-65X9005A: 193 W KD-55X9005A: 155 W in “Shop”/“Vivid” mode

KD-65X9005A: 349 W KD-55X9005A: 279 W GB Average annual energy consumption*1

KD-65X9005A: 268 kWh KD-55X9005A: 215 kWh Standby power consumption*2 0.40 W (16 W in software/EPG update mode) Display resolution 3,840 dots (horizontal) × 2,160 lines (vertical)

Dimensions (Approx.) (w × h × d) with Table-Top Stand

KD-65X9005A: 168.2 × 90.3 × 40.5 cm KD-55X9005A: 146.3 × 77.8 × 40.5 cm without Table-Top Stand KD-65X9005A: 168.2 × 87.5 × 10.0 cm KD-55X9005A: 146.3 × 74.9 × 10.0 cm

Mass (Approx.) with Table-Top Stand

KD-65X9005A: 46.4 kg KD-55X9005A: 34.5 kg without Table-Top Stand KD-65X9005A: 45.0 kg KD-55X9005A: 33.1 kg *1 Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. 2 * Specified standby power is reached after the TV finishes necessary internal processes.
