USER MANUAL LIVBOJ IKEA

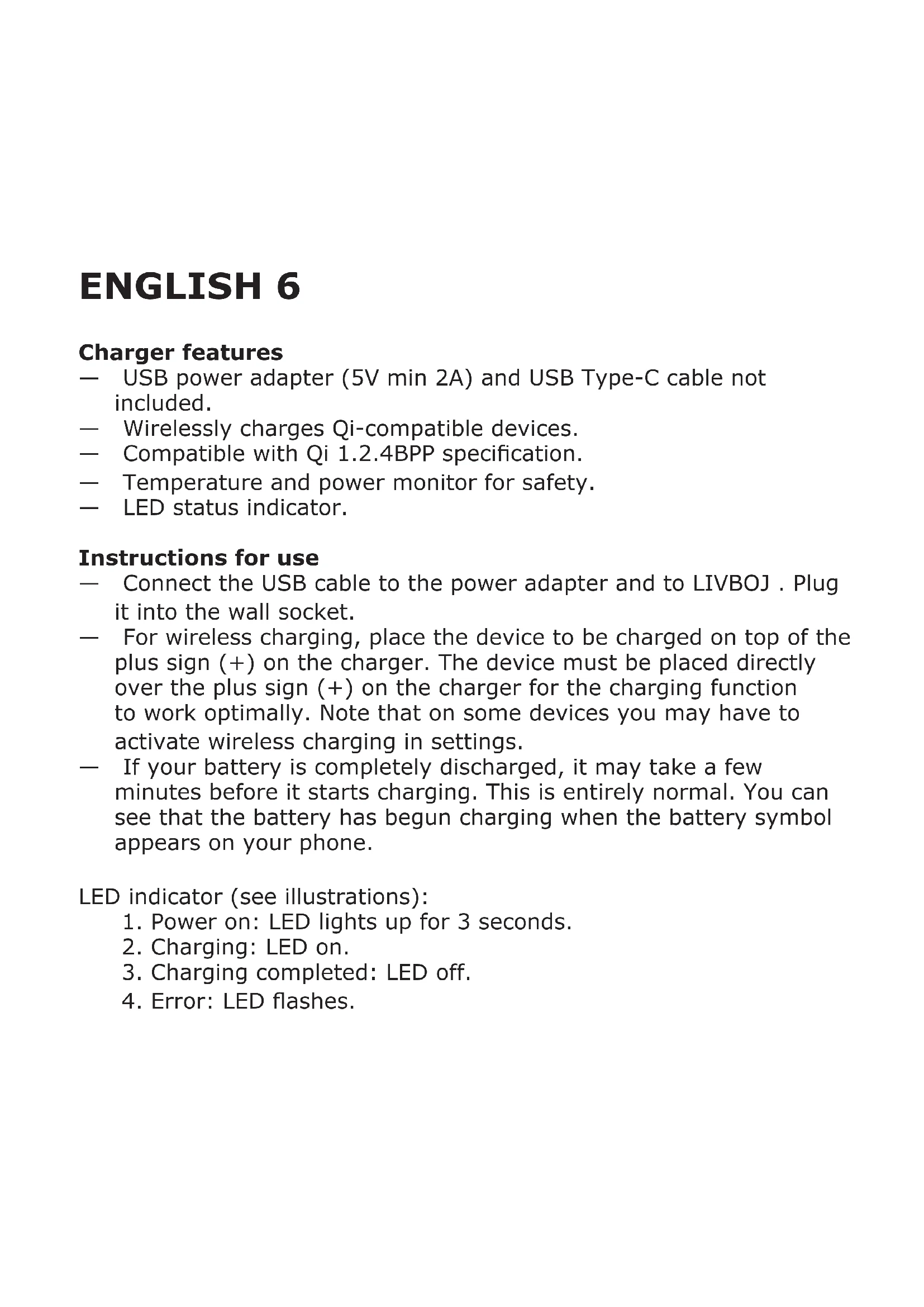

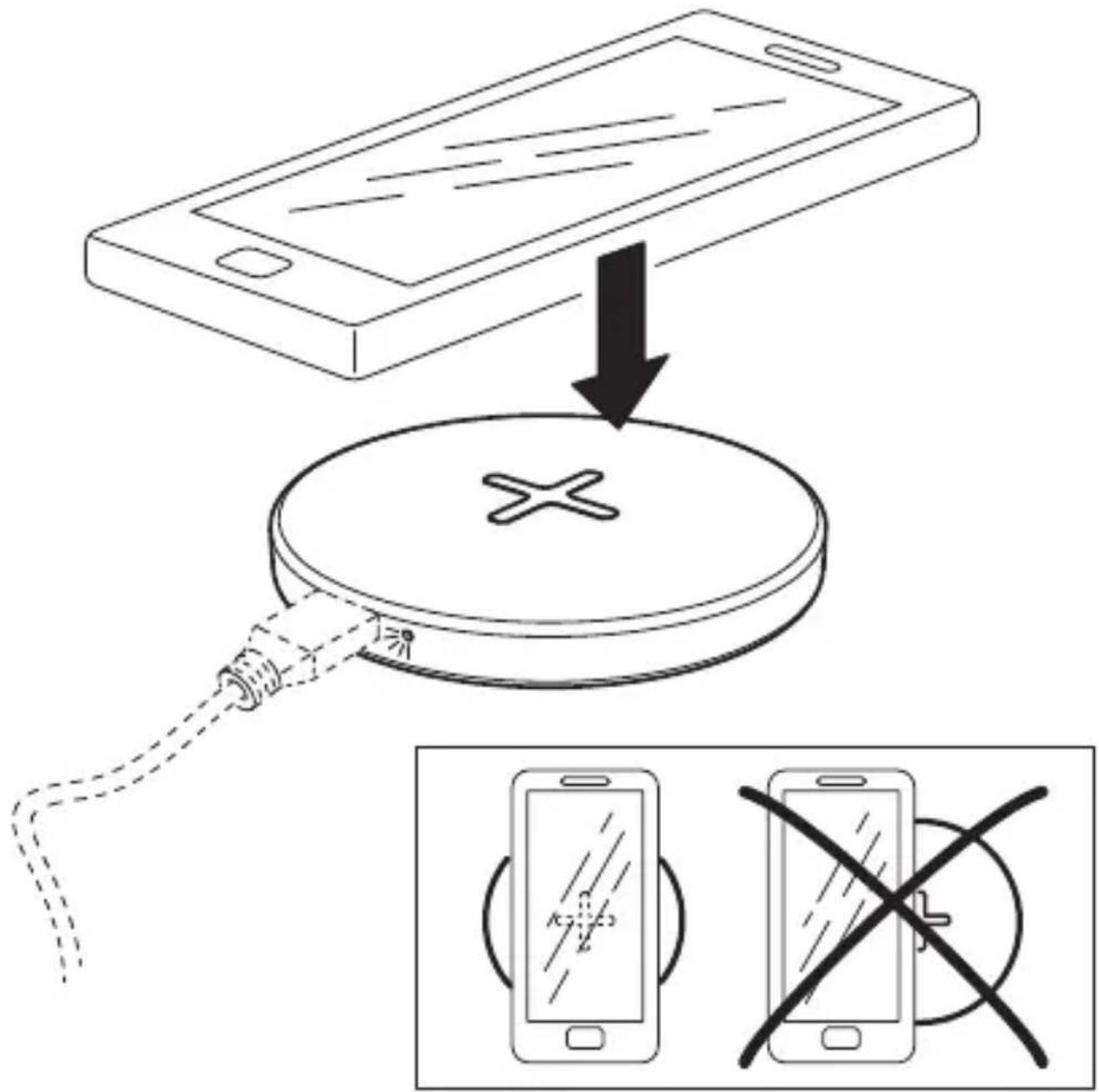

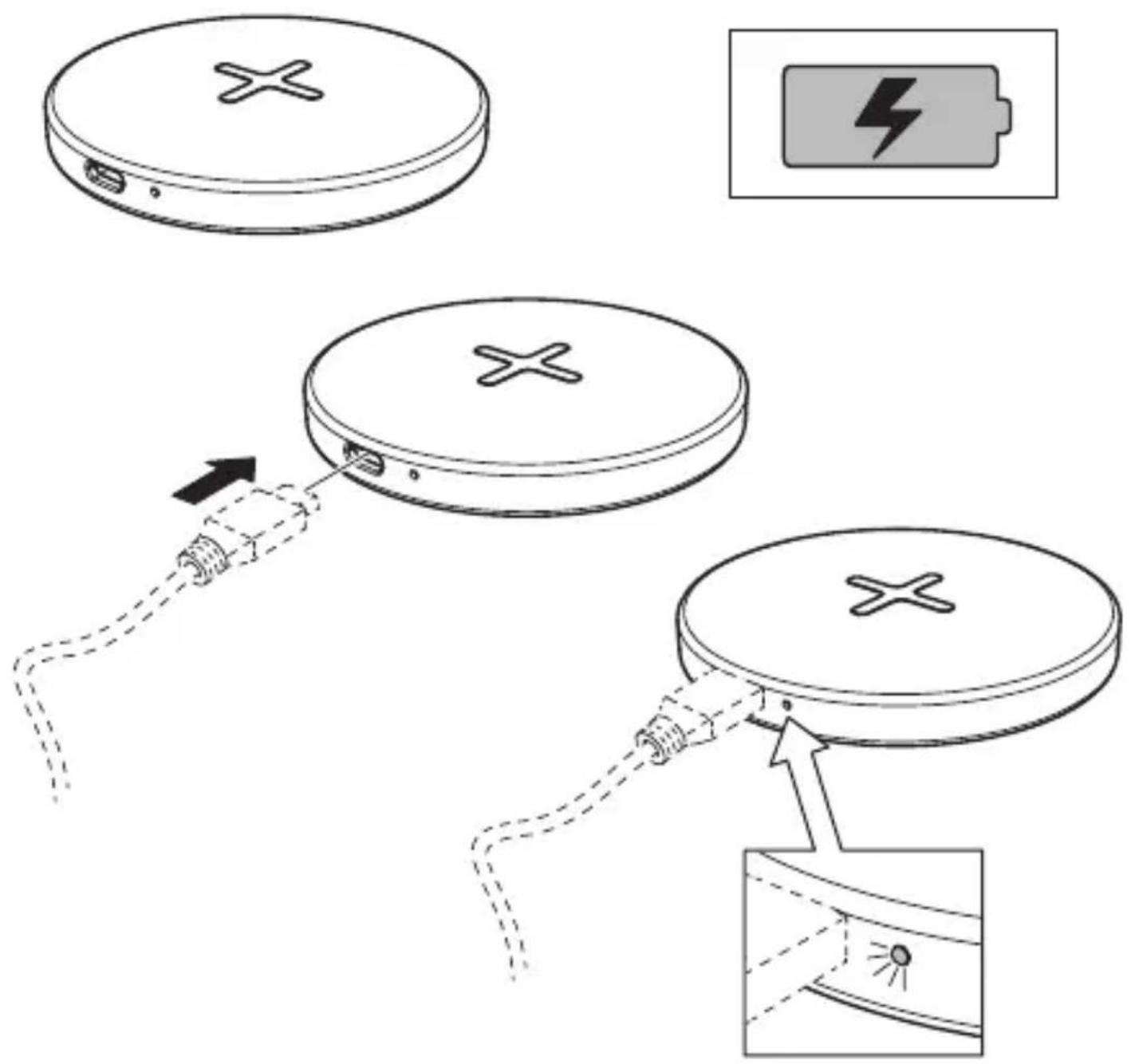

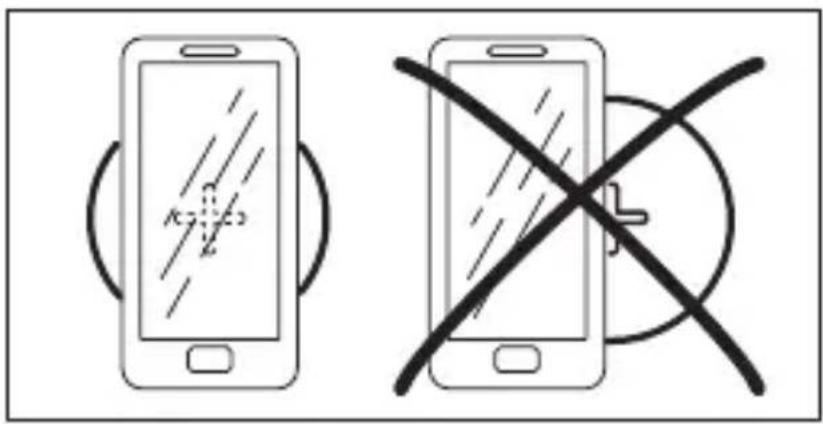

62ENGLISH 6 Charger features — USB power adapter (5V min 2A) and USB Type-C cable not included. — Wirelessly charges Qi-compatible devices. — Compatible with Qi 1.2.4BPP specication. — Temperature and power monitor for safety. — LED status indicator. Instructions for use — Connect the USB cable to the power adapter and to LIVBOJ . Plug it into the wall socket. — For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings. — If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone. LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED ashes.7

Good to know — USB cable length and quality inuences charging speed and performance. — Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged. — Charging time may vary based on the device’s battery capacity, charge level, the age of the battery and the temperature in the surrounding area. — Charger storage temperature: -20°C to 25°C. — Charger operating temperature: 0°C to 40°C. Unplug the charger from the power source before cleaning and when it is not in use. To clean the charger, wipe with a moist cloth. Never submerge the charger in water. Recommended precautionary measures and technical data. See the back of the charger. Save these instructions for future use.

— Only charge devices that are Qi-compatible. — The wall socket must be located near the equipment and must be easily accessible. — Only use in dry locations.— Children should be supervised to ensure they do not play with the product. — Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device. Product servicing Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. TECHNICAL DATA Type: E1815 LIVBOJ Input: 5V DC, min 2A USB Type-C Indoor use only Operating frequency: 110.3KHZ - 148 KHz Output power: 33 dBµA/m at 3m Manufacturer: IKEA of Sweden AB Address: Box 702, SE-343 81 Älmhult, SWEDEN 8The ‘Qi’ symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION
