USER MANUAL RUD3000DQ1 Roper

GARANTIE.....................................................................................353 DISHWASHER SAFETY You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:4 Before Using Your Dishwasher ■ Install where dishwasher is protected from the elements. Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. See “Storing Your Dishwasher” in the “Dishwasher Care” section for winter storage information. ■ Install and level dishwasher on a floor that will hold the weight, and in an area suitable for its size and use. ■ Remove all shipping plugs from hoses and connectors (such as the cap on the drain outlet) before installing. See Installation Instructions for complete information. Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts. Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector in terminal box. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.5

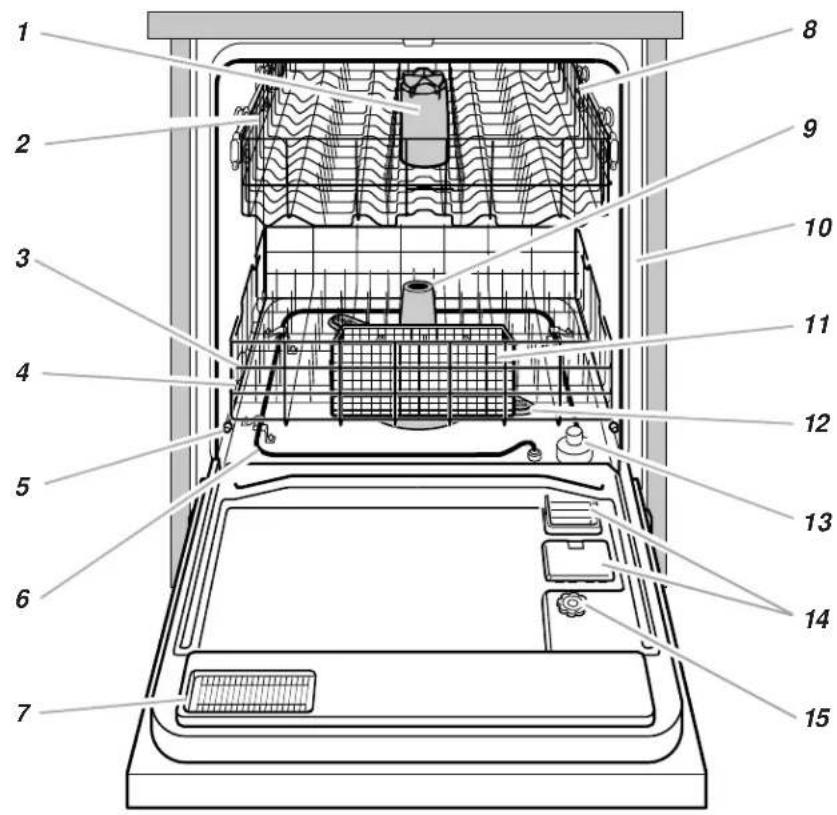

This manual covers several different models. The dishwasher you have purchased may have some or all of the parts and features listed below.

1. Third level wash [on some models]

3. Water inlet opening [in tub wall]

8. Extra-capacity fold-down shelves

9. Spray tower and protector

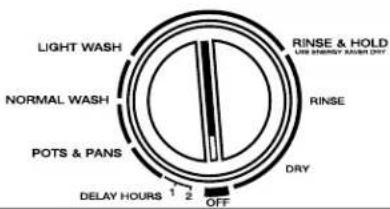

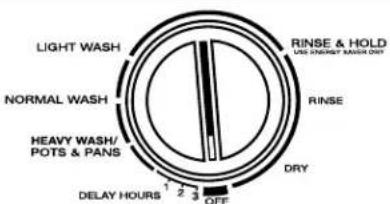

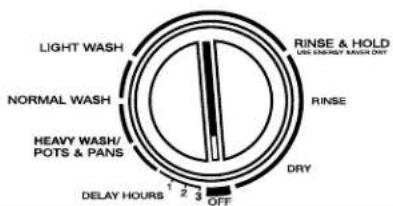

Control Panels Model RUD1000 Model RUD3000 Model RUD5000 Model RUD57507 START-UP GUIDE Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety information and useful operating tips. Using Your New Dishwasher

1. Scrape large food soil and hard items (toothpicks or bones)

2. Properly load the dishwasher. (See “Dishwasher Loading.”)

Make sure nothing prevents the spray arm(s) from spinning freely.

3. Add detergent and check the rinse aid dispenser. Add rinse

aid if needed. (See “Dishwasher Use.”)

4. Push door firmly closed. The door latches automatically. Run

hot water at the sink nearest your dishwasher until the water is hot. (See “Dishwasher Efficiency Tips.”) Turn off water.

5. Select the desired cycle. (See “Dishwasher Use.”)

6. Select the desired option. (See "Option Selections.")

Stopping Your Dishwasher You can stop your dishwasher anytime during a cycle.

1. Open the door slightly.

2. Wait for the spraying action to stop. Then open the door all

3. Close the door to continue the cycle.

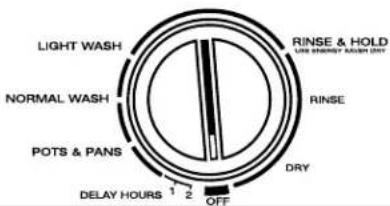

1. Turn the Cycle Control knob slowly clockwise until you hear

water draining. Let the dishwasher drain completely.

3. Turn the Cycle Control knob to OFF.

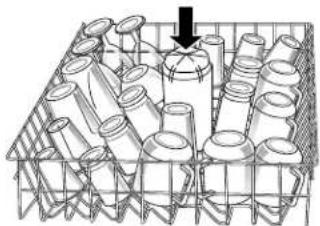

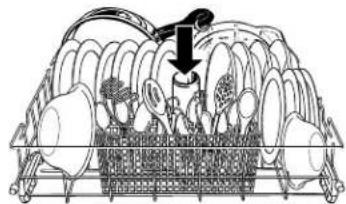

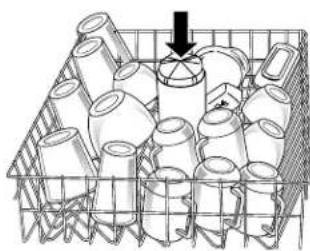

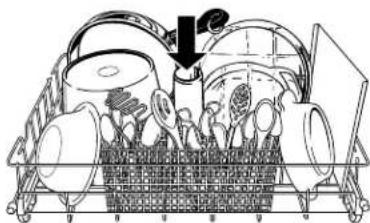

DISHWASHER LOADING Loading Suggestions ■ Remove leftover food, bones, toothpicks and other hard items from the dishes. It is not necessary to rinse the dishes before putting them in the dishwasher. NOTE: If hard items such as fruit seeds, nuts, and egg shells enter the wash system, you might hear chopping, grinding, crunching, or buzzing sounds. These sounds are normal. Do not let metallic items (such as pot handle screws) get into the wash system. Damage can occur. ■ Load dishes so soiled surfaces face the spray (down or inward). It is important for the water spray to reach all soiled surfaces. ■ Load dishes so they are not stacked or overlapping if possible. For best drying, water must be able to drain from all surfaces. ■ Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not interfere with the spray arm rotation. ■ Run a rinse cycle (on some models) to keep dishes moist if you do not plan to wash them soon. Foods like eggs, rice, pasta, spinach, and cooked cereals may be hard to remove if they are left to dry over a period of time. Quiet operating tips To avoid thumping/clattering noises during operation: ■ Make sure lightweight load items are secured in the racks.■ Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not touch interior walls or interfere with the rotation of the spray arm. ■ Load dishes so they do not touch one another. NOTE: For built-in models, keep sink drain plugs closed during dishwasher operation to prevent noise transfer through drains. OR8 Loading the Top Rack The top rack is designed for cups, glasses, and smaller items. (See recommended loading patterns shown.) NOTE: The features on your dishwasher rack may vary from the drawings shown. Do not cover third level wash (on some models). See arrow. Cup and glass load Mixed load ■ Place items so open ends face down for cleaning and draining. ■ Load glasses and cups in top rack only. The bottom rack is not designed for glasses and cups. Damage can occur. ■ Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots. ■ To avoid chipping, do not let stemware touch other items. ■ China, crystal, and other delicate items must not touch each other during dishwasher operation. Damage can occur. ■ Wedge lightweight items against one another or overlap them with heavier dishes. ■ Load plastic items securely in the top rack only. Wash only plastic items marked “dishwasher safe.” ■ Small bowls, pans, and other utensils can be placed in the top rack. Load bowls in the center section for best stability. Extra-capacity fold-down shelves (on some models) Fold down the extra shelf on the top rack to hold additional cups, or long items such as utensils and spatulas. Loading the Bottom Rack The bottom rack is designed for plates, pans, casseroles, and utensils. Items with cooked-on or dried-on food should be loaded with soiled surfaces facing inward to the spray. (See recommended loading patterns shown.) NOTE: The features on your dishwasher rack may vary from the drawings shown. Do not cover spray tower. See arrow. Mixed load ■ Do not load glasses, cups, or plastic items in the bottom rack. Load small items in the bottom rack only if they are secured in place. ■ Load plates, soup bowls, etc., between tines and facing inward to the spray. ■ Overlap the edges of plates for large loads. ■ Load soup, cereal, and serving bowls in the rack in a variety of ways depending upon their size and shape. Load bowls securely between the rows of tines. Do not nest bowls because the spray will not reach all surfaces. Utensil load ■ Load cookie sheets, cake pans, and other large items at the sides and back. Loading such items in front can keep the water spray from reaching the detergent dispenser and silverware basket. ■ Secure heavily soiled cookware face down in the rack. ■ Make sure pot handles and other items do not stop rotation of the spray arm(s). The spray arm(s) must move freely. ■ Do not load items between the bottom rack and the side of the dishwasher tub. You can block the water inlet opening. NOTE: If you have removed the bottom rack for unloading or cleaning, replace it with the bumpers in front.9 Loading the Silverware Basket Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table. NOTE: Unload or remove the basket before unloading the racks to avoid spilling water droplets on the silverware. Style 1 (on some models) Style 2 (on some models) Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items. IMPORTANT: Always load sharp items (knives, skewers, etc.) pointing down. NOTES: ■ Do not load silver or silver-plated silverware with stainless steel. These metals can be damaged by contact with each other during washing. ■ Some foods (such as salt, vinegar, milk products, fruit juices, etc.) can pit or corrode silverware. Run a rinse cycle if you do not have a full load to wash immediately. DISHWASHER USE Detergent Dispenser The detergent dispenser has 2 sections. The Pre-Wash section empties detergent into the dishwasher when you close the door.

2. Main wash section

The Main Wash section automatically empties detergent into the dishwasher during the main wash. (See the “Cycle Selection Chart.”) ■ Use automatic dishwashing detergent only. Other detergents can produce excessive suds that can overflow out of the dishwasher and reduce washing performance. ■ Add detergent just before starting a cycle.■ Store tightly closed detergent in a cool, dry place. Fresh automatic dishwasher detergent results in better cleaning. NOTE: Do not use detergent with a rinse cycle. Filling the dispenser

1. If the dispenser cover is closed, open the cover by pushing

2. Fill the Main Wash section with detergent. See “How Much

3. Close the Main Wash dispenser cover. Fill the Pre-Wash

section if needed. It is normal for the cover to open partially when dispensing detergent. NOTE: Use both sections for cycles with 2 washes. Use only the covered section for cycles with 1 wash. See the “Cycle Selection Chart” for more details. How much detergent to use ■ The amount of detergent to use depends on the hardness of your water and the type of detergent. If you use too little, dishes won’t be clean. If you use too much in soft water, glassware will etch. ■ Water hardness can change over a period of time. Find out your water’s hardness by asking your local water department, water softener company, or county extension agent. ■ Different brands of dishwasher detergent have different amounts of phosphorous for softening water. If you have hard water and use a detergent with a phosphorous content of less than 8.7%, you might need to use more detergent, or use a detergent with a phosphorous content higher than 8.7%.

NOTE: Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Follow instructions on the package when using liquid dishwasher detergent or concentrated powdered detergent. Rinse Aid Dispenser Rinse aids prevent water from forming droplets that can dry as spots or streaks. They also improve drying by allowing water to drain off of the dishes during the final rinse by releasing a small amount of the rinse aid into the rinse water. Your dishwasher is designed to use a liquid rinse aid. Do not use a solid or bar-type. Checking the dispenser Check the center of the Fill Indicator cap. Clear means it needs filling. Or you can remove the Fill Indicator cap. If an “E” is visible, the dispenser is empty. Filling the dispenser The rinse aid dispenser holds 6 oz (175 mL) of rinse aid. Under normal conditions, this will last for about three months. You do not have to wait until the dispenser is empty to refill it. Try to keep it full, but be careful not to overfill it.

1. Make sure the dishwasher door is completely open.

2. Remove the Fill Indicator cap.

3. Add rinse aid. Fill to the smallest opening in the lower part of

the dispenser. Overfilling can cause the rinse aid to leak out, and could cause oversudsing.

4. Clean up any spilled rinse aid with a damp cloth.

5. Replace the Fill Indicator cap. Close tightly.

Where to fill Top of 3rd step (3 tbs or 45 g) Top of 2nd step (2 tbs or 30 g) Top of 1st step (1 tb or 15 g) Water Hardness Amount of Detergent Soft to Medium Hard Water 0 to 6 grains per gallon For normally soiled loads ■ Fill the Main Wash section to the top of the 2nd step (2 tbs or 30 g) ■ Fill the Pre-Wash section to the top of the 2nd step (2 tbs or 30 g) if needed NOTE: Add only 1 tb or 15 g of detergent to both sections if dishes are pre-rinsed or the water is very soft (0 to 2 grains per gallon). For heavily soiled loads ■ Fill the Main Wash section to the top of the 3rd step (3 tbs or 45 g) ■ Fill the Pre-Wash section to the top of the 2nd step (2 tbs or 30 g) Medium to Hard Water 7 to 12 grains per gallon For normally soiled and heavily soiled loads ■ Fill the Main Wash section to the top of the 3rd step (3 tbs or 45 g) ■ Fill the Pre-Wash section to the top of the 2nd step (2 tbs or 30 g) if needed OR11 Dishwasher Efficiency Tips Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on dishes and helps glasses dry spot-free. For best dishwashing results, water must be at least 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low. To check water temperature

Run hot water at the faucet closest to your dishwasher for at least 1 minute.

Place a candy or meat thermometer in a glass measuring cup.

Check the temperature on the thermometer as the water is running into the cup.

If the water temperature at the faucet is below 120°F (49°C), have a qualified person raise the water heater’s thermostat setting. ■ To save water, energy and time, do not rinse dishes before putting them into the dishwasher. ■ Use a low energy, quick, or short cycle whenever possible. These cycles use less hot water and energy than the Normal cycle. ■ Use a delay feature (on some models) to run your dishwasher during off-peak hours. Local utilities recommend avoiding heavy usage of energy at certain times of day. ■ During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen. ■ Use the energy-saving dry option whenever possible. Allow longer drying times (overnight) when using these options. Use a rinse aid to improve drying. ■ Use cycles or options that add extra heat to the wash or rinse portion of the cycle only when needed. ■ Run your dishwasher with full loads. Run a rinse cycle after meals until the dishwasher is full. Cycle Selection Chart Select the wash cycle. If the door is latched, you will hear the cycles start and stop as the Cycle Control knob passes each cycle mark. This is normal and does not hurt the dishwasher. If you prefer, you can set the Cycle Control knob with the door unlatched. NOTE: Use the Energy-Saver Dry option with the Rinse & Hold cycle (on some models). Models with a rocker switch: Turn the Cycle Control knob to the desired cycle. Models with 5 or 7 pads: Press the desired cycle. Turn the Cycle Control knob to the desired cycle. To use Rinse & Hold, press any cycle and turn the Cycle Control knob to RINSE & HOLD. A “

” shows what steps are in each cycle. Your model may have some or all of the cycles shown. Water usage is shown in U.S. gallons/liters. Cycle time includes dry time. Wash Rinse Rinse Main Wash Rinse Final RinseDry Time(min)Water Usage(gal/L)

90 7.2/27.2 Use this cycle for hard-to- clean, heavily-soiled pots, pans, casseroles, and regular tableware. Use both detergent dispenser sections. POTS & PANS Use this cycle for loads with heavy food soil. Use both detergent dispenser sections. Use this cycle for loads with normal amounts of food soil. (The energy- usage label is based on this cycle.) Use both detergent dispenser sections.

NORMAL WASH WASH12 Canceling a Cycle You can cancel a cycle at any time.

1. Turn the Cycle Control knob slowly clockwise until you hear

water draining. Let the dishwasher drain completely.

3. Turn the Cycle Control knob to OFF.

Changing a Cycle or Setting If your dishwasher has more than one wash cycle, you can change a cycle anytime during a cycle.

1. Lift the door latch to stop the cycle.

2. Turn the Cycle Control knob clockwise.

3. Check the detergent dispensers. They must be filled properly

for the new cycle. NOTE: Turning the Cycle Control knob can cause the covered Detergent Dispenser section to open and release the detergent. Check the covered section if the cycle uses detergent in both sections.

4. Close the door firmly until it latches. The dishwasher starts a

new cycle. Adding Items During a Cycle You can add an item anytime before the main wash starts, or the Cycle Control knob reaches Light Wash.

1. Lift up the door latch to stop the cycle. Wait for the spraying

action to stop before opening the door.

2. Open the door and add the item.

3. Close the door, but do not latch it. Wait 30 seconds for the air

in the dishwasher to warm up. This reduces the amount of moisture escaping from the vent when restarting a cycle.

4. Close the door firmly until it latches. The dishwasher resumes

the cycle. Option Selections You can change an option anytime before the selected option begins. For example, you can press an unheated drying option any time before drying begins. Energy Saver Dry Select this option to dry dishes without heat and save energy. The dishes take longer to dry and some spotting can occur. For best drying, use a liquid rinse aid. Some items (such as plastics) may need towel drying. NOTE: Energy Saver Dry is an option with all cycles except Rinse & Hold (on some models). Heated Dry Select this option to dry dishes with heated air. For best drying results, use a liquid rinse aid and heated drying. NOTE: Heated Dry is an option with all cycles except Rinse & Hold (on some models). For Model 5750: To select Heated Dry, press RESET OPTIONS. Low Energy Washing (model 5750 only) Select this low energy washing option to reduce water temperature during the main wash and final rinse. This will reduce the amount of electricity needed to run the dishwasher. NOTE: Low Energy Washing (model 5750 only) is an option with all cycles. Reset Options (model 5750 only) Select this option to change an option setting. You can change option settings anytime during a cycle as long as the cycle has not passed the point where the option is used. For example, you can press Energy Saver Dry anytime before the Cycle Control knob reaches Dry.

20 2.9/10.9 Use this cycle for pre- rinsed or lightly soiled loads. Use covered detergent dispenser section. LIGHT WASH Use this cycle for rinsing dishes, glasses, and silverware that will not be washed right away. Do not use detergent with this cycle. RINSE & HOLD

OR13 Delay Hours (on some models) Select this option to run your dishwasher at a later time or during off-peak hours. To delay the start

Select a wash cycle and option. Press the desired cycle. Turn the Cycle Control knob clockwise to the number of hours you want the dishwasher to delay the start. The dishwasher starts the cycle in the selected number of hours. You can add items while the time is counting down.

Close and latch the door. The Cycle Control knob will not advance if the door is unlatched. NOTES: ■ To cancel the delay, turn the Cycle Control knob to the desired cycle. ■ Rinse & Hold and the Light Wash cycles (on some models) cannot be delayed. IMPORTANT: ■ Operate your dishwasher only when you are at home.■ If your home is equipped with a water softener, do not start the dishwasher during the regeneration of the softener. Drying System During drying, you can see steam escaping through the vent at the upper left corner of the door. This is normal as the heat dries your dishes. IMPORTANT: The vapor is hot. Do not touch the vent during drying. Overfill Protection Float The overfill protection float (in the front right corner of the dishwasher tub) keeps the dishwasher from overfilling. It must be in place for the dishwasher to operate. Check under the float for objects that may keep the protector from moving up or down.

WASHING SPECIAL ITEMS

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe. Material Dishwasher Safe?/Comments Aluminum Yes High water temperature and detergents can affect finish of anodized aluminum. Disposable Aluminum

Do not wash throwaway aluminum pans in the dishwasher. These might shift during washing and transfer black marks to dishes and other items. Bottles and Cans

Wash bottles and cans by hand. Labels attached with glue can loosen and clog the spray arms or pump and reduce washing performance. Cast Iron

Seasoning will be removed and iron will rust. China/ Stoneware Yes Always check manufacturer’s recommendations before washing. Antique, hand-painted, or over-the-glaze patterns may fade. Gold leaf can discolor or fade. Crystal Yes Check manufacturer’s recommendations before washing. Some types of leaded crystal can etch with repeated washing. Gold

Gold-colored flatware will discolor. Glass Yes Milk glass yellows with repeated dishwasher washing. Hollow-Handle Knives

Handles of some knives are attached to the blade with adhesives which can loosen if washed in the dishwasher. Pewter, Brass, Bronze

High water temperatures and detergent can discolor or pit the finish. Disposable Plastics

Cannot withstand high water temperatures and detergents. Plastics Yes Always check manufacturer’s recommendations before washing. Plastics vary in their capacity to withstand high temperatures and detergents. Load plastics in top rack only.14 DISHWASHER CARE Cleaning Your Dishwasher Cleaning the exterior In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to keep the outside of your dishwasher looking nice and clean. Cleaning the interior Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area. Do not clean the dishwasher interior until it has cooled. Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing. To clean interior Make a paste with powdered dishwasher detergent on a damp sponge and clean.

Use liquid automatic dishwasher detergent and clean with a damp sponge.

See the vinegar rinse procedure in “Spotting and filming on dishes” in “Troubleshooting.” NOTE: Run a Wash or Normal Wash cycle with detergent after cleaning the interior. Cleaning the Filter Screen The filter system requires periodic cleaning as needed. To clean screen

Unload the bottom rack. Slide the rack forward or remove the rack to reach the filter screen.

Remove collected particles from the screen with your fingers or a paper towel.

Replace the bottom rack with the rack bumpers facing the door. NOTE: Do not clean the dishwasher interior until it has cooled. Stainless Steel Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish. Sterling Silver or Silver Plate Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish. Tin

Wash by hand. Always check manufacturer’s instructions before washing. Untreated wood can warp, crack, or lose its finish. Material Dishwasher Safe?/Comments15 Drain Air Gap Check the drain air gap anytime your dishwasher isn’t draining well. Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. If a drain is clogged, the drain air gap protects your dishwasher from water backing up into it. The drain air gap is usually located on top of the sink or countertop near the dishwasher. To order a drain air gap contact your local dealer, or in the U.S.A., call the Customer Interaction Center and ask for Part Number 300096. NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap. To clean the drain air gap Clean the drain air gap periodically to ensure proper drainage of your dishwasher. Follow the cleaning instructions provided by the manufacturer. With most types, you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil buildup. Clean if necessary. Storing Your Dishwasher Storing for the summer Protect your dishwasher during the summer months by turning off the water supply and power supply to the dishwasher. Winterizing your dishwasher Protect your dishwasher and home against water damage due to freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have your dishwasher winterized by authorized service personnel. TROUBLESHOOTING First try the solutions suggested here and possibly avoid the cost of a service call... Dishwasher is not operating properly

Dishwasher does not run or stops during a cycle Is the door closed tightly and latched? Is the right cycle selected? Refer to the “Cycle Selection Chart.” Is there power to the dishwasher? Has a household fuse blown or circuit breaker tripped? Has the motor stopped due to an overload? The motor automatically resets itself within a few minutes. If it does not restart, call for service. Is the water shut-off valve (if installed) turned on?

Dishwasher will not fill Is the overfill protection float able to move up and down freely? Press down to release.

Water remains in the dishwasher Is the cycle complete?

Detergent remains in the covered section of the dispenser Is the cycle complete? Is the detergent lump-free? Replace detergent if necessary. Is the bottom rack installed properly with the bumpers in the front? Refer to the “Parts and Features” section. Reinstall the rack if necessary.

White residue on the front of the access panel Was too much detergent used? Refer to the “Detergent Dispenser” section. Is the brand of detergent making excess foam? Try a different brand to reduce foaming and eliminate buildup.

Odor in the dishwasher Are dishes washed only every 2 or 3 days? Run a rinse cycle once or twice a day until you have a full load. Does the dishwasher have a new plastic smell? Run a vinegar rinse as described in “Spotting and filming on dishes” later in this Troubleshooting guide.

Condensation on the kitchen counter (built-in models) Is the dishwasher aligned with the counter top? Moisture from the vent in the dishwasher console can form on the counter. Refer to the Installation Instructions for more information. Dishes are not completely clean

Food soil left on the dishes Is the dishwasher loaded correctly? Refer to the “Dishwasher Loading” section.16 Is the water temperature too low? If needed, turn home water heater up to ensure water entering dishwasher is at least 120°F (49°C). Refer to the “Dishwasher Efficiency Tips” section. Did you use the correct amount of fresh detergent? Use recommended dishwasher detergents only. Refer to the “Detergent Dispenser” section. Never use less than 1 tb (15 g) per load. Detergent must be fresh to be effective. Store detergent in a cool, dry area. Heavy soil and/or hard water generally require extra detergent. Is detergent caked in dispenser? Use fresh detergent only. Do not allow detergent to sit for several hours in a wet dispenser. Clean dispenser when caked detergent is present. Is the pump or spray arm clogged by labels from bottles and cans? If you wash bottles and cans in your dishwasher, check for labels clogging the pump or spray arm. Is the home water pressure high enough for proper dishwasher filling? Home water pressure should be 20 to 120 psi (138 to 828 kPa) for proper dishwasher fill. A booster pump on the water supply can be added if pressure is too low. Are high suds slowing the wash arm? Never use soap or laundry detergents. Use recommended dishwasher detergents only.

■ Dishwasher door will not close Is the bottom rack in backwards? The rack bumpers must face the dishwasher door. Spots and stains on dishes

■ Spotting and filming on dishes Is your water hard or is there a high mineral content in your water? Conditioning the final rinse water with a liquid rinse aid helps eliminate spotting and filming. Keep the rinse aid dispenser filled. Is the water temperature too low? If needed, turn home water heater up to ensure water entering dishwasher is at least 120°F (49°C). Refer to the “Dishwasher Efficiency Tips” section. Did you use the correct amount of effective detergent? Use recommended dishwasher detergents only. Refer to the “Detergent Dispenser” section. Never use less than 1 tb (15 g) per load. Detergent must be fresh to be effective. Store detergent in a cool, dry area. Heavy soil and/or hard water generally require extra detergent. Is the home water pressure high enough for proper dishwasher filling? Home water pressure should be 20 to 120 psi (138 to 828 kPa) for proper dishwasher fill. A booster pump on the water supply can be added if pressure is too low. NOTE: To remove spots and film from dishes, try a white vinegar rinse. This procedure is intended for occasional use only. Vinegar is an acid and using it too often could damage your dishwasher.

1. Wash and rinse dishes. Use an air-dry or an energy-

dishwasher-safe measuring cup on the bottom rack.

3. Run the dishwasher through a complete washing cycle

using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

■ Silica film or etching (silica film is a milky, rainbow- colored deposit; etching is a cloudy film) Sometimes there is a water/chemical reaction with certain types of glassware. This is usually caused by some combination of soft or softened water, alkaline washing solutions, insufficient rinsing, overloading the dishwasher, and the heat of drying. It might not be possible to prevent the problem, except by hand washing. To slow this process use a minimum amount of detergent but not less than 1 tb (15 g) per load. Use a liquid rinse aid and underload the dishwasher to allow thorough rinsing. Silica film and etching are permanent and cannot be removed. Do not use heated drying.

■ White spots on cookware with non-stick finish Has the dishwasher detergent removed cookware seasoning? Reseason cookware after washing in the dishwasher.

■ Brown stains on dishes and dishwasher interior Does your water have high iron content? Rewash dishes using 1-3 tsp (5-15 mL) of citric acid crystals added to the covered section of the detergent dispenser. Do not use detergent. Follow with a Normal wash cycle with detergent. If treatment is needed more often than every other month, the installation of an iron removal unit is recommended.

■ Black or gray marks on dishes Are aluminum items rubbing dishes during washing? Disposable aluminum items can break down in the dishwasher and cause marking. Hand wash these items. Remove aluminum markings by using a mild abrasive cleaner.

■ Orange stains on plastic dishes or dishwasher interior Are large amounts of tomato-based foods on dishes placed in the dishwasher? Stains can gradually fade over time. Regular use of heated drying will slow fading. Stains will not affect dishwasher performance. Regular use of a rinse cycle and an air-dry or energy-saving dry option will reduce the likelihood of staining. Dishes do not dry completely

■ Dishes are not dry Did you load your dishwasher to allow proper water drainage? Do not overload. Refer to the “Dishwasher Loading” section. Use a liquid rinse aid to speed drying. Are the plastics wet? Plastics often need towel drying. Is the rinse aid dispenser empty? Refer to the “Rinse Aid Dispenser” section. Did you use an air-dry or energy-saving dry option? Use a heated drying option for dryer dishes. Dishes are damaged during a cycle

■ Chipping of dishes Did you load the dishwasher properly? Load the dishes and glasses so they are stable and do not strike together from washing action. Minimize chipping by moving the rack in and out slowly. NOTE: Antiques, feather-edged crystal, and similar types of china and glassware might be too delicate for automatic dishwashing. Wash by hand.17

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only FSP

factory specified parts. These parts will fit right and work right because they are made with the same precision used to build every new ROPER

appliance. In the U.S.A., call the Customer Interaction Center at 1-800-44-ROPER (1-800-447-6737) , or your nearest designated service center. In Canada, call 1-800-807-6777 , or your nearest designated service center. In the U.S.A. Call the Roper Customer Interaction Center toll free: 1-800-44-ROPER (1-800-447-6737). Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States. To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to us with any questions or concerns at: Roper Brand Home Appliances Customer Interaction Center c/o Correspondence Dept. MD 8020 553 Benson Road Benton Harbor, MI 49022-2400 Please include a daytime phone number in your correspondence. In Canada Call the Inglis Limited Customer Interaction Center toll free: 1-800-461-5681 8:30 a.m. - 5:30 p.m. (EST) Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Referrals to local dealers. ■ Warranty information. For service in Canada Call 1-800-807-6777. Inglis Limited designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to us with any questions or concerns at: Customer Interaction Center Inglis Limited 1901 Minnesota Court Mississauga, Ontario L5N 3A7 Please include a daytime phone number in your correspondence.WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for FSP

replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

ITEMS WHIRLPOOL WILL NOT PAY FOR

1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair house fuses or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty coverage.

3. Repairs when your major appliance is used for other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.

5. Any food loss due to refrigerator or freezer product failures.

6. Replacement parts or repair labor costs for units operated outside the United States or Canada.

7. Pickup and delivery. This major appliance is designed to be repaired in the home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service in remote locations.

10. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. 8/05 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product. Dealer name____________________________________________________ Address ________________________________________________________ Phone number__________________________________________________ Model number __________________________________________________ Serial number __________________________________________________ Purchase date __________________________________________________
