USER MANUAL 55DM7500 Star-Light

Front view of a modern flat-screen TV with black frame and stand (no visible text or symbols)

Smart TV(2861)

English/German/Dutch/Italian/French/Spanish

Portuguese/Greek/Hungarian/Czech/Slovak

Polish/Romanian/Bulgarian/Macedonian

IMPORTANT:

Please read this manual carefully before installing and operating the TV.

Keep this manual handy for further reference

Safety Information:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

Important Safety Precautions:

1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions.

5) Do not use this apparatus near water. 6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments /accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth

25) The maximum using environment temperature is 45 degrees. The Maximum using altitude is 2000 meters

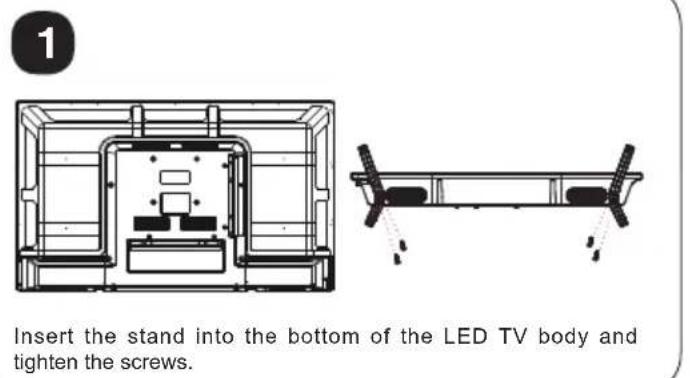

Insert the stand into the bottom of the LED TV body and tighten the screws.

2

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

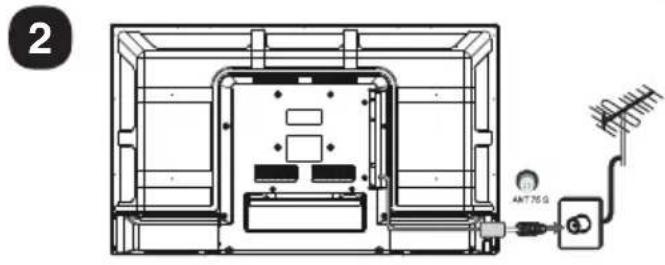

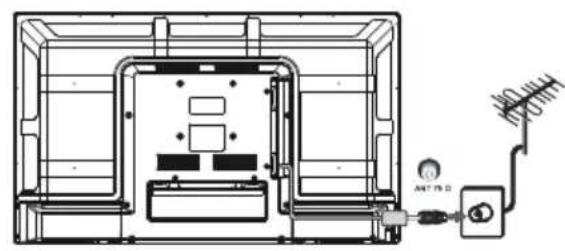

Insert the aerial cable into the RF socket.

3

Architectural cross-section diagram of a building facade with internal compartments and structural elements (no text or labels)

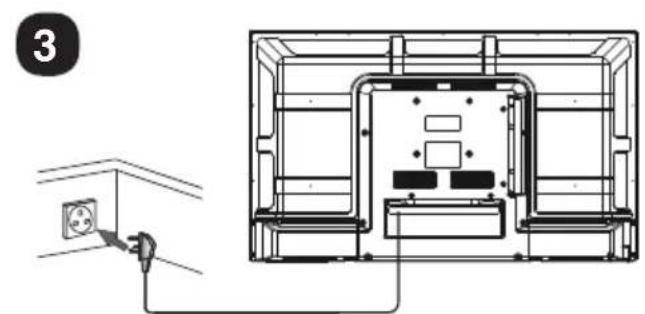

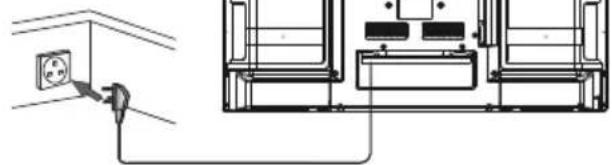

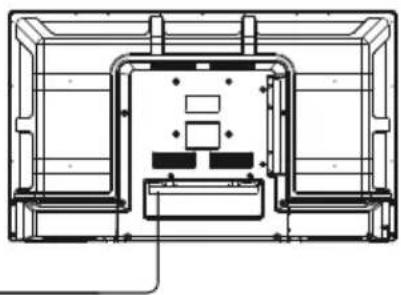

Connect the power cord into a suitable wall socket and switch on.

4

① Push ② Open

1. Open the battery compartment cover on the back side;

2. Insert two 1.5V batteries of AAA type with correct polarity.

3. Close the battery compartment cover on the back side

5

Illustration of a flat-screen TV with a hand pressing a button next to it (no text or symbols)

Switch on the TV by pressing the power button on the side of the TV or on the remote control. (The LED will change from red to green)

6

TV Buttons:

Note: The following is only functional schematic. The actual position and arrangement of the buttons may differ by model.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

(1)

:Turn ON/OFF Power.

SOURCE: External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-:Select Channel.

VOL+/-:Adjust Volume.

7

Language German Spanish French Italian Portuguese Russian Next Step... http://www.elsevier.com/locate/organ/locate/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/other/Other

1.TV will enter the page.
2. Follow the on-screen steps to language setting, home setting and net setting.

8
Specifications:

Screen Size	power Consumption	Main accessories
19"	36W/48W	User's manual x1Remote controller x1Power cord x1AAA Batteries x2
20"	36W/48W
22"	36W/48W
24"	36W/48W
28"	36W
32"	56W/65W/100W
39"/40"	60W/70W/76W
42"	67W/70W/95W/100W
43"	65W/80W
50"	100W/108W/135W
55"	100W/135W/140W/160W
65"	159W/165W/195W

Note:

Picture for reference purposes only; Please prevail in kind.

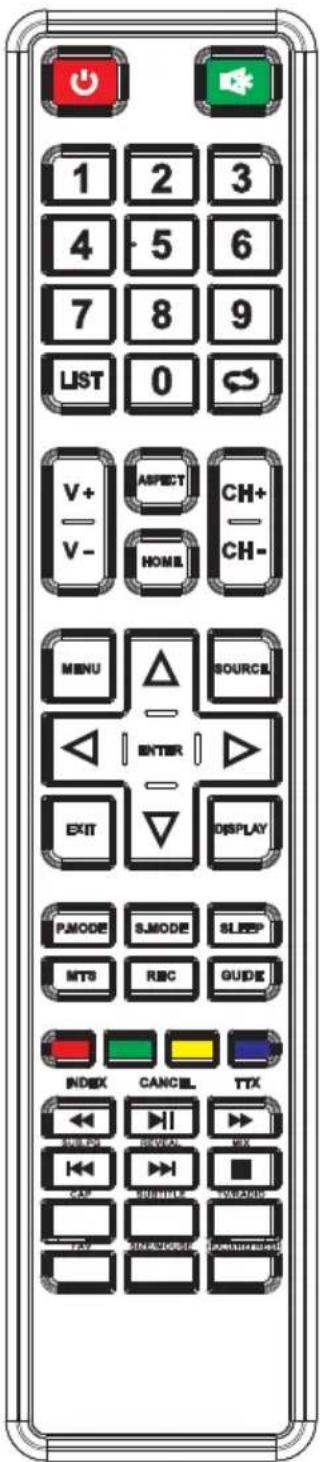

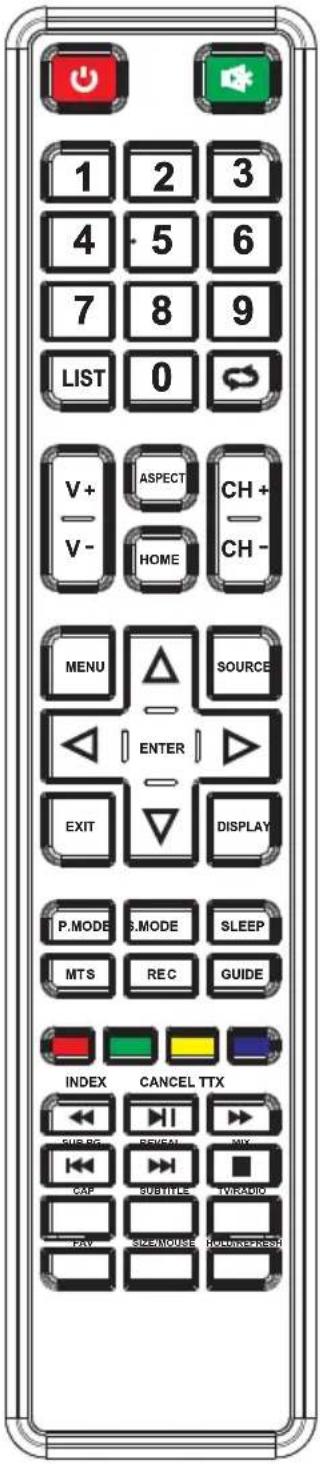

Remote Controller:

EN

POWER

Set your TV to power on or standby mode.

MUTE

Press to mute the sound. Press again or press VOL+ to unmute.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you are watching TV.

LIST:

Press to open the channels list.

Return to the previous viewed program.

S.MODE: Press to cycle through the different sound settings.

SLEEP: Select amount of time before TV turn itself off automatically.

MTS : Press to search the MTS modes.

P.MODE: Press to cycle through the different picture settings.

MENU

Start system menu and return to upper menu.

SOURCE

Press to list the sources.

THUMBSTICK (▲/▼/◄/►/ENTRE)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

DISPLAY

Press to display the source and channel's information.

EXIT

Exist from the menu or sub-menu and cancel the function in progress (if applicable).

TV/RADIO : When watching channel, allows you to switch between TV and Radio modes.

GUIDE: Launches the EPG (Electronic Program Guide).

CANCEL: When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCELkey to return to the mode of text for you to browse this page.

COLOR BUTTONS

VOL+: Increase the volume.

VOL-: Decrease the volume.

REFRESH: Refresh page.

CAP:A key to the current image is saved to the disk.

PLAY/PAUSE: Press to PLAY/PAUSE in the USB mode. start play and PAUSE, in USB mode.

HOME: A key back to the android home page.

:Previous chapter in PVR or Media Player mode.

SUB. PG: Press to access sub page.

■: Exit the playing function in PVR or Media Player mode.

MIX: TV and TTX pictures are mixed together (transparent background)

MOUSE:Mouse switch.

SIZE: Change the size of display in Teletext mode.

CH+/CH- : Press to scan through channels.

FAV: press to open the favorite list. then you can select the favorite channel.

ASPECT: Select picture scale.

▶ fast forward in PVR or Media Player mode.

TTX: Switch the teletext on and off.

◀:Fast reverse in PVR or Media Player mode.

INDEX: Request the Index page in Teletext mode.

▶: Next chapter in PVR or Media Player mode.

REVEAL: Reveal or Hide the hidden words.

SUBTITLE: To show and set the language of current DTV.

HOLD: HOLD On or Off for current page display.

REC: Record begin in PVR mode.

▶: play on PVR or Media Player mode.

1 2 3 4 5 6 7 8 9 LIST 0 V+ ASPECT CH+ V- HOME CH- MENU SOURCE ENTER EXIT DISPLAY P.MODE S.MODE SLEEP MTS REC GUIDE INDEX CANCEL TTX SUB RG REVEAL MIX CAP SUBTITLE TV/RADIO PAY SHEN/HOUSE HOOD/REFIN

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries.

Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

LED TV

BEDIENUNGSANLEITUNG

WICHTIG:

Technical line drawing of a mechanical assembly with internal components and a side-view view (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Steek de antennekabel in de RF-aansluiting.

3

Pure electrical circuit lines without any symbols

Illustration of a flat-screen TV with a hand cursor clicking the button (no text or symbols)

Language German English Spanish French Italian Portuguese Russian

▶: snel vooruit in PVR of Media Player modus.

◀: Snel terugspoelen in PVR of Media

Technical line drawing of a mechanical assembly with internal components and a separate schematic view (no text or symbols)

Illustration of a flat-screen TV with a hand pressing a button (no text or symbols)

Language English Spanish French Italian Portuguese Russian Next Next > 7

Technical line drawing of a mechanical assembly with internal components and a side-view detail (no text or symbols)

Illustration of a flat-screen TV with a hand pressing a button next to it, no text or symbols present.

Language German Dutch Spanish French Italian Portuguese Russian Send Use 3

GUIDE: Lance le programme EPG (Electronic Program Guide) et.

Technical line drawing of a mechanical assembly with internal components and a side-view detail (no text or symbols)

Illustration of a flat-screen TV with a hand pressing a button next to it, labeled with number 5 (no text or symbols on the TV itself)

Language Spanish English French Italian Portuguese Russian Next Step: 7

MANUAL DE INSTRUÇÕES

IMPORTANTE:

Technical line drawing of a mechanical assembly with internal components and a separate view (no text or symbols)

2 ANT 75 G

Insira o cabo da antena na tomada RF.

3

Illustration of a flat-screen TV with a hand pressing a button (no text or symbols)

Language German Dash Spanish Form Italian Portuguese Russian Get up > Search for https://www.elsevier.org

Tamanho ecrã	Consumo energia	Acessórios principais
19"	36W/48W	User's manual x1Remote controller x1Power cord x1AAA Batteries x2
20"	36W/48W
22"	36W/48W
24"	36W/48W
28"	36W
32"	56W/65W/100W
39"/40"	60W/70W/76W
42"	67W/70W/95W/100W
43"	65W/80W
50"	100W/108W/135W
55"	100W/135W/140W/160W
65"	159W/165W/195W

Nota:

MOUSE: Interruptor do rato

Technical line drawing of a mechanical assembly with internal components and a side-view detail (no text or symbols)

2 ANT 70 G

Illustration of a flat-screen TV with a hand pressing a button next to it, labeled with number 5 (no text or symbols on the TV itself)

Language English English French Italian Portuguese African Next step 7

Technical line drawing of a mechanical assembly with internal components and a side-view detail (no text or symbols)

Technical line drawing of an electrical enclosure with antenna and internal components (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Illustration of a flat-screen TV with a button press icon next to it (no text or symbols)

Language German English French Italian Portuguese Russian Next Next > No change to language is currently selected.

Technical line drawing of a mechanical assembly with internal components and a side-view detail (no text or symbols)

Illustration of a flat-screen TV with a hand pressing a button (no text or symbols)

Language Seritas English Spanish French Italian Portuguese Chinese Start Menu

Technical line drawing of a mechanical assembly with internal components and a side-view detail (no text or symbols)

Zasuňte stojan do spodnej časti tela LED TV a zatiahnite skrutky.

2 ANT 75 G

Illustration of a flat-screen TV with a hand pressing a button (no text or symbols)

Language German English Spanish French Italian Portuguese Russian Next Next...

Technical line drawing of a mechanical assembly with internal components and a separate view showing a shaft and lever mechanism (no text or symbols)

Illustration of a flat-screen TV with a hand pressing a button next to it, labeled with number 5 (no text or symbols on the TV itself)

Language German English Spanish French Italian Portuguese Russian Next Next > 7

▶: Odtwarzanie w trybie PVR albo Media Player.

1 2 3 4 5 6 7 8 9 LIST 0 ⇌ V+ ASPECT CH+ V- HOME CH- MENU SOURCE ENTER EXIT DISPLAY PMODE SMODE SLEEP MTS REC GUIDE INDEX CANCEL TTX SYNC SWITCH OK RUNNING VAUNCH PLAY STRONG LANWHOLE

Technical line drawing of a mechanical assembly with internal components and a separate schematic view (no text or symbols)

2 A1115 D

Illustration of a flat-screen TV with a hand pressing a button (no text or symbols)

Language Campos English Spanish Forum Pattern Portuguese Passan Next step...

Technical line drawing of a mechanical assembly with internal components and a side-view detail (no text or symbols)

Illustration of a flat-screen TV with a hand pressing a button next to it, labeled with number 5 (no text or symbols on the TV itself)

Language Define English Spanish French Italian Portuguese English Next step > 7

Technical line drawing of an electrical enclosure with antenna and internal components (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text or symbols

① Push ② Open

Illustration of a flat-screen TV with a button and pointer icon next to it (no text or symbols)

Language German English French Italian Portuguese Russian
