USER MANUAL K3C51(W)FR S INDESIT

Operating Instructions

Contents Operating Instructions,1 Description of the appliance-Overall view,5 Description of the appliance-Control Panel,5 Installation,15 Start-up and use,17 Cooking modes,18 Using the hob,21 Precautions and tips,22 Care and maintenance,23 Assistance,24 K3C51/FR S KN3C51/FR S KN3C55/FR S

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a

hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. The internal surfaces of the compartment (where present) may become hot. Never use steam cleaners or pressure cleaners on the appliance. Remove any liquid from the lid before opening it. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

WARNING: Ensure that the appliance is

switched off before replacing the lamp to avoid the possibility of electric shock.

WARNING: Danger of fire: do not store

items on the cooking surfaces.

WARNING: If the surface in glass-

ceramic is cracked, switch off the appliance to avoid the possibility of electric shock. WARNINGWARNING4

Description of the appliance Control panel

mm. without hood mm.

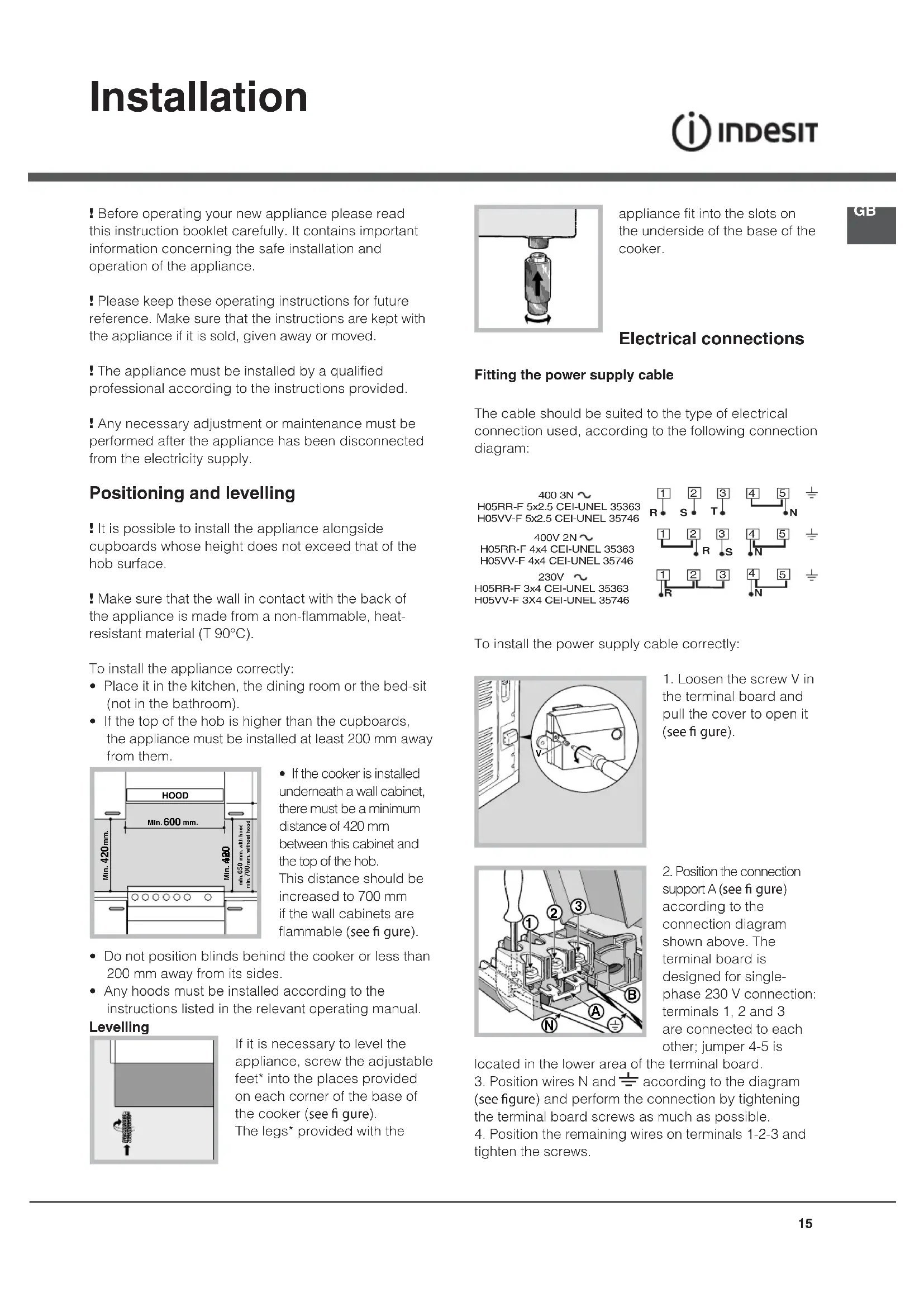

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe installation and operation of the appliance. ! Please keep these operating instructions for future reference. Make sure that the instructions are kept with the appliance if it is sold, given away or moved. ! The appliance must be installed by a qualified professional according to the instructions provided. ! Any necessary adjustment or maintenance must be performed after the appliance has been disconnected from the electricity supply. Positioning and levelling ! It is possible to install the appliance alongside cupboards whose height does not exceed that of the hob surface. ! Make sure that the wall in contact with the back of the appliance is made from a non-flammable, heat- resistant material (T 90°C). To install the appliance correctly:

• Place it in the kitchen, the dining room or the bed-sit (not in the bathroom).

• If the top of the hob is higher than the cupboards, the appliance must be installed at least 200 mm away from them.

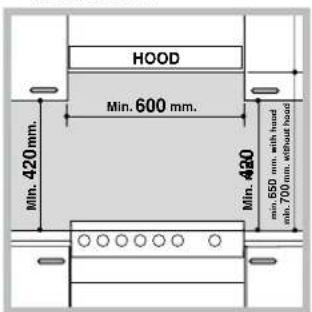

• If the cooker is installed underneath a wall cabinet, there must be a minimum distance of 420 mm between this cabinet and the top of the hob. This distance should be increased to 700 mm if the wall cabinets are flammable (see gure).

• Do not position blinds behind the cooker or less than 200 mm away from its sides.

• Any hoods must be installed according to the instructions listed in the relevant operating manual. Levelling If it is necessary to level the appliance, screw the adjustable feet* into the places provided on each corner of the base of the cooker (see gure). The legs* provided with the appliance fit into the slots on the underside of the base of the cooker. Electrical connections Fitting the power supply cable The cable should be suited to the type of electrical connection used, according to the following connection diagram: To install the power supply cable correctly:

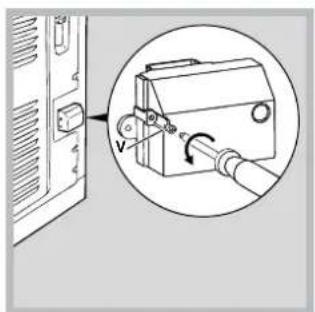

1. Loosen the screw V in

the terminal board and pull the cover to open it (see gure).

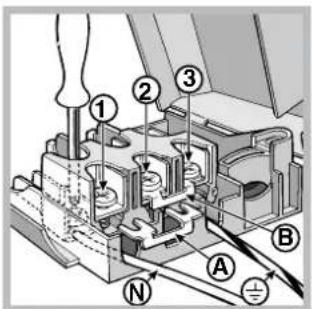

2. Position the connection

support A (see gure) according to the connection diagram shown above. The terminal board is designed for single- phase 230 V connection: terminals 1, 2 and 3 are connected to each other; jumper 4-5 is located in the lower area of the terminal board.

3. Position wires N and

according to the diagram (see gure) and perform the connection by tightening the terminal board screws as much as possible.

4. Position the remaining wires on terminals 1-2-3 and

tighten the screws. Installation HOOD

5. Fix the power supply cable in place by fastening the

6. Close the terminal board cover by tightening the

screws V. Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate located on the appliance. The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point. Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated by the data plate.

• The voltage is in the range between the values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only. ! The manufacturer declines any liability should these safety measures not be observed.

Oven dimensions (HxWxD) 34x38x44 cm Volume 56 l Useful measurements relating to the oven compartment width 42 cm depth 44 cm height 18 cm Power supply voltage and frequency see data plate Ceramic hob Front Left Back Left Back Right Front Right Max. ceramic hob consumption

1200 W 1700 W 1200 W 1700 W 5800W ENERGY LABEL

Directive 2002/40/EC on the label of electric ovens. Standard EN 50304 Energy consumption for Natural convection – heating mode: Static

Energy consumption for Forced convection – heating mode:

EC Directives: 06/95/EC dated 12/12/06 (Low Voltage) and subsequent amendments – 04/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments – 93/68/EEC dated 22/07/93 and subsequent amendments – 2002/96/EC. 1275/2008 Stand-by/ Off mode

Data plate, is located inside the flap or, after the oven compartment has been opened, on the left-hand wall inside the oven.GB

Start-up and use ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. ! Before operating the product, remove all plastic film from the sides of the appliance. Starting the oven

1. Select the desired cooking mode by turning the

2. Select the recommended temperature for the

cooking mode or the desired temperature by turning the THERMOSTAT knob. A list detailing cooking modes and suggested cooking temperatures can be found in the relevant table (see Oven cooking advice table). During cooking it is always possible to:

• Change the cooking mode by turning the SELECTOR knob.

• Change the temperature by turning the THERMOSTAT knob.

• Set the total cooking time and the cooking end time (see below).

• Stop cooking by turning the SELECTOR knob to the “0” position. ! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. Only use position 1 in the oven when cooking with the rotisserie spit. ! Always place cookware on the rack(s) provided. THERMOSTAT indicator light When this is illuminated, the oven is generating heat. It switches off when the inside of the oven reaches the selected temperature. At this point the light illuminates and switches off alternately, indicating that the thermostat is working and is maintaining the temperature at a constant level. Oven light This is switched on by turning the SELECTOR knob to any position other than “0”. It remains lit as long as the oven is operating. By selecting

, with the knob, the light is switched on without any of the heating elements being activated. ! When inserting the shelf make sure the backstop is at the rear of the cavity (see image).18

Only available in certain models. Cooking modes ! A temperature value can be set for all cooking modes between 50°C and Max, except for the following modes

• GRILL and DOUBLE GRILL (recommended: set only to MAX power level).

• FAN-ASSISTED DOUBLE GRILL (recommended: do not exceed 200°C). DEFROSTING mode The fan located on the bottom of the oven makes the air circulate at room temperature around the food. This is recommended for the defrosting of all types of food, but in particular for delicate types of food which do not require heat, such as for example: ice cream cakes, cream or custard desserts, fruit cakes. By using the fan, the defrosting time is approximately halved. In the case of meat, fish and bread, it is possible to accelerate the process using the “multi-cooking” mode and setting the temperature to 80° - 100°C.

STATIC OVEN mode Both the top and bottom heating elements will be activated. When using this traditional cooking mode, it is best to use only one rack at a time, otherwise the heat will not be distributed evenly. FAN OVEN mode The top and bottom heating elements will switch on and the fan will begin to operate. Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time.

GRILL mode The central part of the top heating element is switched on. The high and direct temperature of the grill is recommended for food that requires a high surface temperature (veal and beef steaks, fillet steak and entrecôte). This cooking mode uses a limited amount of energy and is ideal for grilling small dishes. Place the food in the centre of the rack, as it will not be cooked properly if it is placed in the corners.

DOUBLE GRILL mode The top heating element and the rotisserie spit will be activated. This provides a larger grill than the normal grill setting and has an innovative design that improves cooking efficiency by 50% and eliminates the cooler corner areas. Use this grilling mode to achieve a uniform browning on top of the food. FAN ASSISTED DOUBLE GRILL mode The top heating element and the turnspit are activated and the fan begins to operate. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This prevents the food from burning on top by enabling heat to penetrate into the food more effectively; it is therefore an ideal way of cooking food quickly under the grill or for grilling large pieces of meat without having to use the turnspit. ! The GRILL, DOUBLE GRILL and FAN-ASSISTED DOUBLE GRILL cooking modes must be performed with the oven door shut. ! When using the GRILL and DOUBLE GRILL cooking modes, place the rack in position 5 and the dripping pan in position 1 to collect cooking residues (fat and/ or grease). When using the FAN-ASSISTED DOUBLE GRILL cooking mode, place the rack in position 2 or 3 and the dripping pan in position 1 to collect cooking residues. Electronic timer This function displays the time and works as a timer which counts down to zero. ! All functions will be implemented approximately 7 seconds after they have been set. Resetting the clock After the appliance has been connected to the power supply, or after a power cut, the clock display will begin to blink, showing the figure: 0:00

to set the exact time. Press and hold the buttons to quicken the count upwards. Any necessary modifications can be made by repeating the above process.GB

Timer* To activate the Timer proceed as follows:

1. Turn the TIMER knob in a clockwise direction for

almost one complete revolution to set the buzzer.

2. Turn the TIMER knob in an anticlockwise direction

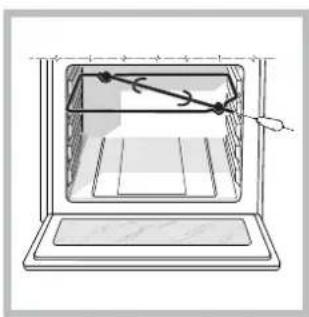

to set the desired length of time. Rotisserie To operate the rotisserie (see diagram) proceed as follows:

1. Place the dripping

support in position 4 and insert the spit in the hole provided on the back panel of the oven.

3. Activate the rotisserie

by selecting with the SELECTOR knob. Lower compartment* There is a compartment underneath the oven that may be used to store oven accessories or deep dishes. To open the door pull it downwards (see gure). ! Do not place flammable materials in the lower oven compartment. ! The internal surfaces of the compartment (where present) may become hot.

Only available in certain models. Cooking on several shelves simultaneously If it is necessary to use two racks, use the FAN OVEN cooking mode , as this is the only cooking mode suited to this type of cooking. We also recommend that:

• Positions 1 and 5 are not used. This is because excessive direct heat can burn temperature sensitive foods.

• Positions 2 and 4 are used and that food that requires more heat is placed on the rack in position

• When cooking foods that require different cooking times and temperatures, set a temperature that is halfway between the two recommended temperatures (see Oven cooking advice table) and place the more delicate food on the rack in position

4. Remove the food that requires a shorter cooking

• When cooking pizzas on several racks with the temperature set to 220°C, the oven is preheated for 15 minutes. Generally speaking, cooking on the rack in position 4 takes longer: we recommend that the pizza cooked on the lowest rack position is removed first, followed by the pizza cooked in position 4 a few minutes later.

• Place the dripping pan on the bottom and the rack on top. Timer feature This function may be accessed by pressing the

button, after which the display will show the symbol . Every time the

button is pressed it corresponds to a time increase of 10 seconds, until it reaches 99 minutes and 50 seconds. After this point, each press of the button represents an increase of one minute, up to a maximum of 10 hours. Pressing the

button reduces the time. After the time period has been set, the timer will begin to count down. When the timer reaches zero, the buzzer will sound (this may be stopped by pressing any button). The time may be displayed by pressing the

symbol indicates that the timer function has been set. After approximately 7 seconds, the display will automatically revert to the timer.20

• Only available in certain models. Oven cooking advice table Cooking modes Foods Weight (in kg) Rack position Preheating time (min) Recommended Temperature (°C) Cooking time (minutes) Static Duck Roast veal or beef Roast pork Biscuits (shortcrust pastry) Tarts

65-75 70-75 70-80 15-20 30-35 Fan-assisted Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Sponge cake made with yoghurt Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies

Max Max Max 80-90 70-80 70-80 Grilled chicken Cuttlefish Chicken (on the spit) + potatoes (on the dripping pan)

70-80 70-80 70-80 Fan-assisted Double Grill With multi-spit rotisserie (where present) Meat kebabs Vegetable kebabs

Using the glass ceramic hob ! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special non- abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly. Switching the cooking zones on and off To switch on a cooking zone, turn the corresponding knob in a clockwise direction. To switch it off again, turn the knob in an anticlockwise direction until it is in the “0” position. If the ELECTRIC HOTPLATE ON indicator light is lit, this shows that at least one hotplate on the hob is switched on. Cooking zones The hob is equipped with electric radiant heating elements. When they are in use the following items on the hob become red. A. The cooking zone. B. The residual heat indicator light: this indicates that the temperature of the corresponding cooking zone is greater than 60°C, even when the heating element has been switched off but is still hot. Cooking zones with radiant heating elements They have similar properties to gas burners: they are easy to control and reach set temperatures quickly, allowing you to actually see the power they are providing. Turn the corresponding knob in a clockwise direction, to a position between 1 and 6. Practical advice on using the hob

• Use pans with a thick, flat base to ensure that they adhere perfectly to the cooking zone.

• Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the heat produced.

• Always make sure that the base of the pan is completely clean and dry: this ensures that the pans adhere perfectly to the cooking zones and that both the pans and the hob last for a longer period of time.

• Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may have warped the base of the pan, causing it not to adhere to the surface correctly.

• Never leave a cooking zone switched on without a pan on top of it, as doing so may cause the zone to become damaged.

Cooking vegetables, fish

Cooking potatoes (using steam) soups, chickpeas, beans.

Continuing the cooking of large quantities of food, minestrone

For roasting (above average)

For browning and reaching a boil in a short time.22

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The glass ceramic hob is resistant to temperature fluctuations and shocks. It is, however, wise to remember that blades or cooking utensils may ruin the surface of the hob. If this happens, remove the plug of the cooker from the electricity socket and contact an authorised Technical Assistance Centre in order to request original spare parts. Failure to comply with the above may compromise the safety of the appliance.

• If the surface of the hob is cracked, switch off the appliance to prevent electric shocks from occurring.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or damp hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

• The instruction booklet accompanies a class 1 (insulated) or class 2 - subclass 1 (recessed between 2 cupboards) appliance.

• When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don’t touch them and keep children well away.

• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

• The openings used for the ventilation and dispersion of heat must never be covered.

• Always use oven gloves when placing cookware in the oven or when removing it.

• Do not use flammable liquids (alcohol, petrol, etc...) near the appliance while it is in use.

• Do not place flammable material in the lower storage compartment or in the oven itself. If the appliance is switched on accidentally, it could catch fire.

• Always make sure the knobs are in the

position when the appliance is not in use.

• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• If the appliance breaks down, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact Assistance.

• Do not rest heavy objects on the open oven door. Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. Exhausted appliances may be collected by the public waste collection service, taken to suitable collection areas in the area or, if permitted by current national legislation, they may be returned to the dealers as part of an exchange deal for a new equivalent product. All major manufacturers of household appliances participate in the creation and organisation of systems for the collection and disposal of old and disused appliances. Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning.

• Always keep the oven door closed when using the GRILL, DOUBLE GRILL and FAN-ASSISTED DOUBLE GRILL modes: This will achieve better results while saving energy (approximately 10%).

• Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion.GB

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. ! Never use steam cleaners or pressure cleaners on the appliance. Cleaning the oven

• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.

• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.

Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.

• The accessories can be washed like everyday crockery, and are even dishwasher safe.

• Dirt and grease should be removed from the control panel using a non-abrasive sponge or a soft cloth. Inspecting the oven seals Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest After- sales Service Centre. We recommend that the oven is not used until the seals have been replaced. Replacing the oven light bulb

1. After disconnecting the oven from the electricity mains,

remove the glass lid covering the lamp socket (see gure).

2. Remove the light bulb and replace

it with a similar one: voltage 230 V, wattage 25 W, cap E 14.

3. Replace the lid and reconnect the

oven to the electricity supply. Cleaning the glass ceramic hob ! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen roll.

• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly.

• To remove more stubborn dirt, use a suitable scraper (this is not supplied with the appliance). Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rustproof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.

• If plastic or sugary substances have accidentally been melted on the hob, remove them immediately with the scraper, while the surface is still hot.

• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance should be carried out while the appliance is warm (not hot) or cold.

• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes. Cleaning stainless steel Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents that contain phosphorus. We recommend that the steel surfaces are rinsed well then dried thoroughly. Assistance Please have the following information handy:

• The appliance model (Mod.).

• The serial number (S/N). This information can be found on the data plate located on the appliance and/or on the packaging. Care and maintenance Glass ceramic hob cleaners Available fromWindow scraper Razor bladescrapersDIY StoresReplacement blades DIY Stores,supermarkets,chemistsCOLLO lunetaHOB BRITEHob CleanSWISSCLEANERBoots, Co-op stores,department stores, RegionalElectricity Company shops,supermarkets ! Do not use the oven lamp as/for ambient lighting.24

Catalitic Cleaning* In some models, the most exposed internal vertical sides of the oven are coated with porous enamel, which is called catalytic enamel. When heated, this enamel destroys fat particles given off by the food. This „oxidation” of the fat particles occurs when the temperature of the sides exceeds 170°C. The porous quality of the catalytic enamel increases the surface area where the exchange vital to the oxidation of the fats takes place. If there is still grime on the catalytic surfaces after the cooking programme has ended, leave the empty oven on with the door shut, turning the temperature adjustment knob to its maximum setting. Leave the oven like this for a period of time between 60 and 90 minutes, according to how much dirt was left inside. The cleaning process for more stubborn food residues may be quickened by using hot water and a soft brush.
