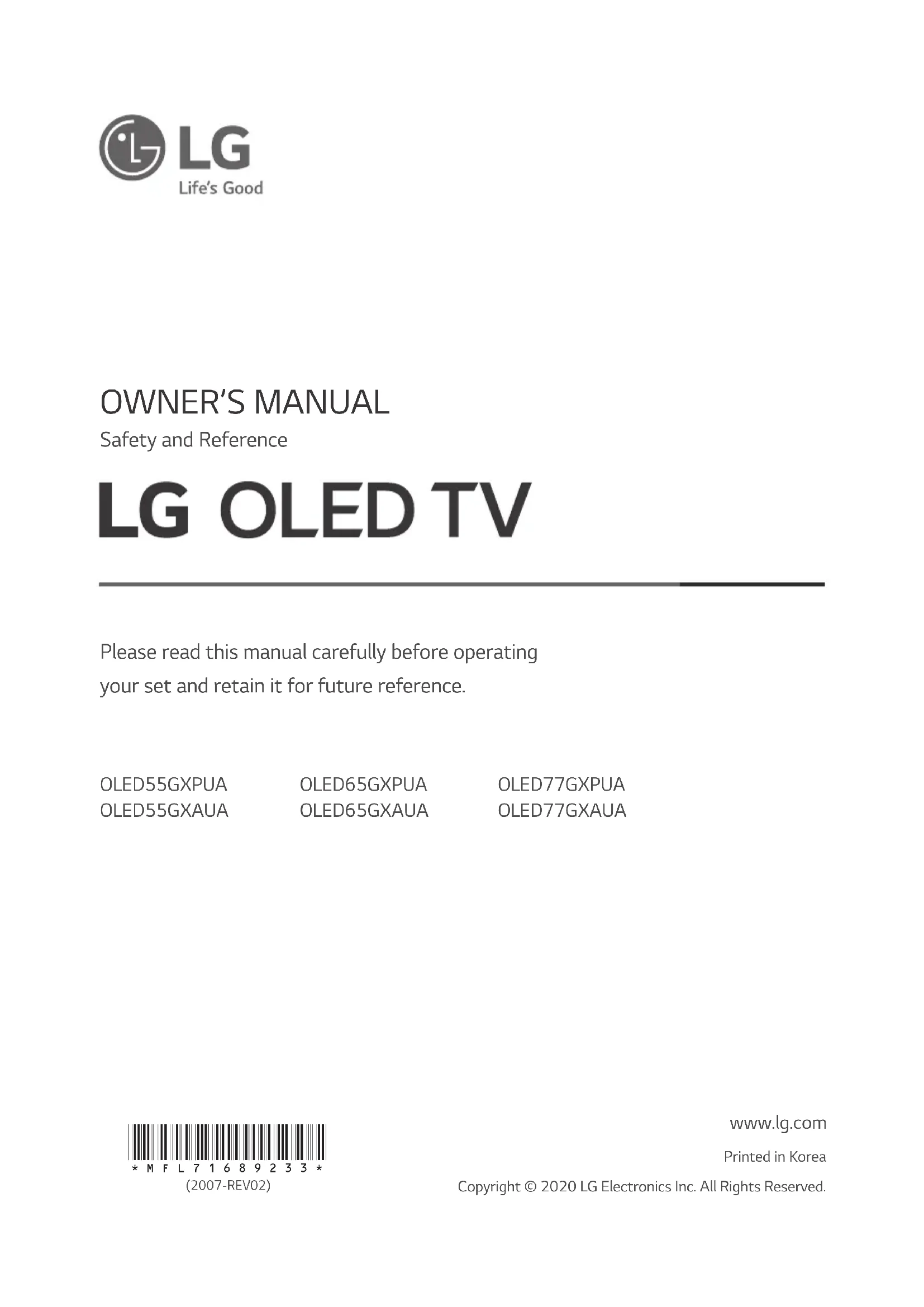

USER MANUAL OLED55GXPUA LG

www.lg.com Printed in Korea Copyright © 2020 LG Electronics Inc. All Rights Reserved. Please read this manual carefully before operating your set and retain it for future reference. OLED55GXPUA OLED55GXAUA OLED65GXPUA OLED65GXAUA OLED77GXPUA OLED77GXAUA

• Read these instructions.

• Keep these instructions.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specied by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. By using this product, you agree that all disputes between you and LG arising out of or relating in any way to this product (including but not limited to warranty disputes) shall be resolved exclusively through binding arbitration on an individual basis. The terms of the arbitration agreement (including details on the procedure for resolving disputes) is available at www.lg.com/us/arbitration (USA) or www.lg.com/ca_en/arbitration (Canada).3 ENGLISH_index Warning! Safety Instructions CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons. The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the device.

WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

• Do not place the TV and/or remote control in the following environments: - Keep the product away from direct sunlight. - An area with high humidity such as a bathroom - Near any heat source such as stoves and other devices that produce heat. - Near kitchen counters or humidiers where they can easily be exposed to steam or oil. - An area exposed to rain or wind. - Do not expose to dripping or splashing and do not place objects lled with liquids, such as vases, cups, etc. on or over the apparatus (e.g., on shelves above the unit). - Near ammable objects such as gasoline or candles, or expose the TV to direct air conditioning. - Do not install in excessively dusty places. Otherwise, this may result in re, electric shock, combustion/ explosion, malfunction or product deformation.

• Ventilation - Install your TV where there is proper ventilation. Do not install in a conned space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.

• Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot.

• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device.

• Do not move the TV whilst the Power cord is plugged in.

• Do not use a damaged or loosely tting power cord.

• Be sure to grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

• Do not connect too many devices to the same AC power outlet as this could result in re or electric shock.

• Disconnecting the Device from the Main Power - The power plug is the disconnecting device. In case of an emergency, the power plug must remain readily accessible.

• Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

• Outdoor Antenna Grounding (Can dier by country): - If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A.

provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. Antenna grounding according to the National Electrical Code, ANSI/NFPA 704 ENGLISH_index

• Grounding (Except for devices which are not grounded.) - TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet. Ensure that you connect the earth ground wire to prevent possible electric shock.

• Never touch this apparatus or antenna during a lightning storm. You may be electrocuted.

• Make sure the power cord is connected securely to the TV and wall socket if not secured damage to the Plug and socket may occur and in extreme cases a re may break out.

• Do not insert metallic or inammable objects into the product. If a foreign object is dropped into the product, unplug the power cord and contact the customer service.

• Do not touch the end of the power cord while it is plugged in. You may be electrocuted.

• If any of the following occur, unplug the product immediately and contact your local customer service. - The product has been damaged. - If water or another substance enters the product (like an AC adapter, power cord, or TV). - If you smell smoke or other odors coming from the TV - When lightning storms or when unused for long periods of time. Even the TV is turned o by remote control or button, AC power source is connected to the unit if not unplugged in.

• Do not use high voltage electrical equipment near the TV (e.g., a bug zapper). This may result in product malfunction.

• Do not attempt to modify this product in any way without written authorization from LG Electronics. Accidental re or electric shock can occur. Contact your local customer service for service or repair. Unauthorized modication could void the user’s authority to operate this product.

• Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in re, electric shock, malfunction, or product damage.

• Never disassemble the AC adapter or power cord. This may result in re or electric shock.

• Handle the adapter carefully to avoid dropping or striking it. An impact could damage the adapter.

• To reduce the risk of re or electrical shock, do not touch the TV with wet hands. If the power cord prongs are wet or covered with dust, dry the power plug completely or wipe dust o.

• Batteries - Store the accessories (battery, etc.) in a safe location out of the reach of children. - Do not short circuit, disassemble, or allow the batteries to overheat. Do not dispose of batteries in a re. Batteries should not be exposed to excessive heat. - Caution: Risk of re or explosion if the battery is replaced by an incorrect type.

• Moving - When moving, make sure the product is turned o, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV. Otherwise, this may result in product damage, re hazard or injury.

• Keep the packing anti-moisture material or vinyl packing out of the reach of children.

• Do not allow an impact shock, any objects to fall into the product, and do not drop anything onto the screen.

• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or make a scratch on it. It may causedamage to screen.

• Cleaning - When cleaning, unplug the power cord and wipe gently with a soft/dry cloth. Do not spray water or other liquids directly on the TV. Do not clean your TV with chemicals including glass cleaner, any type of air freshener, insecticide, lubricants, wax (car, industrial), abrasive, thinner, benzene, alcohol etc., which can damage the product and/or its panel. Otherwise, this may result in electric shock or product damage.5 ENGLISH_index Preparing

• When the TV is turned on for the rst time after being shipped from the factory, initialization of the TV may take approximately one minute.

• Image shown may dier from your TV.

• Your TV’s OSD (On Screen Display) may dier slightly from that shown in this manual.

• The available menus and options may dier from the input source or product model that you are using.

• New features may be added to this TV in the future.

• The device must be easily accessed to a location outlet near the access. Some devices are not made by turning on / o button, turning o the device and unplugging the power cord.

• The items supplied with your product may vary depending upon the model.

• Product specications or contents of this manual may be changed without prior notice due to upgrade of product functions.

• For an optimal connection, HDMI cables and USB devices should have bezels less than 8 mm (0.31 inches) thick, 18 mm (0.7 inches) width and 8 mm (0.31 inches) a wire diameter.

• Use an extension cable that supports or higher if the USB cable or USB ash drive does not t into your TV’s USB port.

• Use a certied cable with the HDMI logo attached. If you do not use a certied HDMI cable, the screen may not display or a connection error may occur.

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or at surface to protect the screen from scratches.

• Make sure to wring any excess water or cleaner from the cloth.

• Do not spray water or cleaner directly onto the TV screen.

• Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen. Optional Extras Optional extras can be changed or modied for quality improvement without any notication. Contact your dealer for buying these items. These devices work only with certain models. The model name or design may be changed due to the manufacturer’s circumstances or policies. Magic Remote Control MR20GA Check whether your TV model supports Bluetooth in the Wireless Module Specication to verify whether it can be used with the Magic Remote. Stand (Depending upon model) Stand Model

ENGLISH_index Wall Mounting Bracket (Depending upon model) Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Model OLED55/65/77GX* VESA (A x B) (mm) 300 x 300 Standard screw M6 Number of screws 4 Wall mount bracket OLW480B Lifting and moving the TV When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the side and bottom of the TV frame rmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• Use at least two people to move a large TV.

• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.

• When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right.

• When handling the TV, be careful not to damage the protruding buttons.

• Avoid touching the screen at all times, as this may result in damage to the screen.

• Do not place the product on the oor with its front facing down without padding. Failure to do so may result in damage to the screen.

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or at surface to protect the screen from scratches.7 ENGLISH_index Mounting on the Table 1 Lift and tilt the TV into its upright position on a table.

• Leave a minimum of 10 cm (4 inches) space from the wall for proper ventilation. 10 cm 10 cm 10 cm10 cm 10 cm (4 inches) (Depending upon model) 2 Connect the power cord to a wall outlet.

• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)

• If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• Do not use any unapproved items to ensure the safety and lifespan of the product.

• Any damages or injuries by using unapproved items are not covered by the warranty.

• Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward after being installed.)

• When installing on a cabinet or a shelf using a stand, make sure its width is greater than that of the TV.

• Do not fasten the screws with excessive force otherwise they may strip and become loose. Securing TV to the Wall (Depending upon model) 1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

• If there are bolts inserted at the eye-bolts position, remove the bolts rst. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope or cable. Make sure to keep the rope parallel to the at surface.

• Use a platform or cabinet that is strong and large enough to support the TV securely.

• Brackets, bolts and ropes are optional. You can obtain additional accessories from your local dealer.8 ENGLISH_index Mounting to the Wall An optional wall mount can be used with your LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the oor. If you are attaching the TV to other building materials, please contact qualied personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. If you are using a non-adjustable mount, attach the mount to the wall. Attach the cables to the TV rst, then attach the TV to the mount. 10 cm 10 cm 10 cm 10 cm 10 cm (4 inches)(Depending upon model)•  Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.•  For more information of screws and wall mount bracket, refer to the Separate purchase.•  If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), x it carefully so as not to drop.•  When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.•  Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.•  When installing the Full Contact Wall Mount, the TV may not be contacted rmly against the wall due to some wall conditions.For more information, watch the installation video on your smart device. Precautions for Safety (Except for OLW480B)
• Professional installers should read this manual carefully to ensure proper installation. • Professional installers should forward this manual to customers after installation and encourage them to read and store it in a convenient place for future reference.After reading the installation manual, keep it in a convenient place for future reference.•  Ask a professional installer appointed by the store for installation of the product.Installation by someone other than a professional installer is extremely dangerous and may result in personal injury.•  Do not install the product in an unstable site that cannot withstand its weight.If the installation site lacks sucient rigidity, the product may fall and cause personal injury.•  Contact a professional installer appointed by the store prior to moving or replacing the product after installation.Installation is a technical task and safety issues may arise if an individual attempts to install or move the product personally.•  Do not hang on the product or subject it to severe impact after installation.Doing so may cause the product to fall and cause personal injury.•  When installing the product on a wall, do not hang the power line or signal cables from the back of the TV.This can damage the cords, resulting in a re, electrical shock or malfunction of the product.•  Be sure to wear work gloves when installing the product. - Installing with unprotected hands may result in injury.9 ENGLISH_index

• Install the product according to the instructions in the installation manual. Failure to install the product according to the instructions in the installation manual can result in serious personal injury or product damage.

• Be sure to have at least two people when installing the product or adjusting the product’s height. Attempting to perform installation or adjustments personally may result in personal injury or damage to the product.

• Make sure a wall is available prior to proceeding with installation. Make use of the anchors and screws provided with the product. Use of any unauthorized anchors or screws may not support the product's weight, which poses safety risks.

• When drilling in the wall for installation, be sure to use drill bits and drills of the specied diameter. Follow the instructions for the hole depth. Drilling and installing the product in ways other than specied in the installation manual may result in an unstable installation and potential safety issues.

• Do not wipe the product with a wet towel or use any heating equipment or humidier under the place where the product is installed. Liquid water or vapor may enter the product and excessive heat may cause re, electric shock, or malfunction.

• Do not install the product near a re sprinkler or detector, a place where vibration or shock may occur or near a high- voltage wire or power source.

• Unplug the product’s power cord from the wall outlet before installing. Installing the product while the power cord is plugged in may result in electric shock or re.

• Do not install the product with bare hands. Be sure to wear work gloves. Attempting installation without work gloves may cause personal injury.

• Connect the product with the supplied cable. Use of an unauthorized cable may result in damage by friction with the wall. Make sure to use the supplied cable gender. (This may vary by model.) Before Installation (Except for OLW480B)

• Do not use the product for any purpose other than installing the TV on a wall.

• Avoid product damage and safety accidents caused by careless installing or use of improper or unauthorized wall mount.

• Follow the instructions in the installation manual for a convenient installation of the wall mount.

• Immediately discontinue installation and contact the service center if you cannot fully understand the installation process. Use a professional installer if any installation issues remain after the inquiry.

• Installation of this product on a concrete wall or wood stud is recommended. Installation of this product on other surfaces (Dry wall, plywood, bricks, etc.) is not recommended. Improper installation may result in the product falling.

• Install the product only on a vertical wall. Do not install on a tilted wall that exceeds building standards or on the heavily titled wall or ceiling. LG is not responsible for problems caused by improper installation of the product, e.g., heavily tilted walls and ceilings.

• Check the enclosed accessories before installation. We are not responsible for any lost or damaged accessories after the inner packaging is opened.

• When an infant or small child swallows the enclosed accessories, various safety accidents such as choking may occur. Keep the enclosed accessories out of the reach of infants and children.

• When tightening screws, tighten until fully snug. Avoid using excessive force when tightening the screws. Doing so may damage the wall and product or reduce the rigidity or performance of the product.

• Avoid installing a TV that exceeds the specied tensile load, and do not allow any external force to be applied to the product.

• Avoid accidents by using work tools with care during installation. Tools for Installation

• “+” shaped screwdriver (manual or electric) / level / drill / Ø 8 mm drill bit for concrete or Ø 4 mm drill bit for steel10 ENGLISH_index Securing TV to the Wall (Except for OLW480B)

• Please use the TV close to the wall after installation. How to x anchors and screws (Except for OLW480B) Please make sure that:

• Check that the material and thickness of the wall and nishing material comply with the installation manual. Before beginning the mounting process, you must be sure the wall is able to support the weight of the TV.

• Should use the enclosed anchors and screws on crack-free concrete walls.

• Never install the product on a plasterboard or wall made of paper or medium-density berboard (MDF). When it is necessary to install the product on such wall, anchor screws must be fastened to retaining walls (concrete) or wood Stud inside the nishing material.

• The wall mount should be attached to a stud.This usually will not be a problem, but depending on individual circumstances, there may be cases when the ability to mount into a studis not possible. In this case, there are a variety of drywall anchors, such as toggle bolts, which may provide a solution.If using drywall anchors, please be sure the anchors and the wall have the ability to support the weight of your TV. Please note that the supplied anchors may not be the correct ones for your individual situation, so you should check with a local professional.

• Other unspecied walls must be capable of supporting pullout loads of over 70kgf (154lbf) (686N) and shear loads of over 100kgf (220lbf) (980N) per fastener.

• Use an Ø 8mm drill bit for concrete and a hammer (impact) drill or Ø 4mm drill bit for wood stud to drill holes. (For installation on concrete wall) 1 Drill holes in anchor locations with a drill bit of Ø 8 mm to a depth of 80mm (3.15inches) to 100mm (3.94inches). 2 Clean the drilled holes. 3 Insert the enclosed anchors for xing the wall mount into the holes. (Use a hammer when inserting anchors.) Wall mounting anchor 4 Push the wall mount support closely toward the wall to match the hole locations. 5 Tighten screws for xing the wall mount to the holes. At this time, tighten the screws to a torque of between 45 kgf/cm (39.06lbf/in) to 60kgf/cm (52.08lbf/in). Wall mounting screw11 ENGLISH_index (For installation on wood stud) Use the Ø4mm drill bit for wood to drill holes with the depth of 76mm (2.9 Inches). (Clean the drilled hole.) Drywall Wood stud 76mm / (2.9 Inches) Without using the wall mounting anchor, fasten the wall mounting screw directly to the wood stud. After Installation

• When connecting additional cables from the sides, we recommend holding the centre of the TV horizontally or vertically and pulling the product to make sure there is sucient distance from the wall before connecting.

• When connecting additional cables from the bottom, we recommend releasing the TV from the wall mount before connecting.

• Use cable management systems to arrange the cables at the bottom of the TV as shown below. Cable managements are not provided with the product, so purchase them separately. (For example)

• After installing the product, be sure to use it adhered to the wall. - Using the product while it is not adhered to the wall may damage or shake the product. Connections You can connect various external devices to the TV. For more information on external device’s connection, refer to the manual provided with each device. Antenna/Cable Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may dier from the actual items and an RF cable is optional.

• Make sure not to bend the copper wire of the RF cable. Copper wire

• Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV.

• Use a signal splitter to use 2 TVs or more.

• DTV Audio Supported Codec: MPEG, Dolby Digital

• This TV cannot receive Ultra HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been conrmed. Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable.12 ENGLISH_index HDMI

• When connecting the HDMI cable, the product and external devices should be turned o and unplugged.

• Supported HDMI Audio format (Depending upon model): True HD (48 kHz), Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz)

• → → [Picture] → [Additional Settings] → [HDMI Ultra HD Deep Color] - On: Support 4K @ 50/60Hz (4:4:4, 4:2:2, 4:2:0), 4K @ 100/120Hz (4:4:4, 4:2:2, 4:2:0) - O: Support 4K @ 50/60Hz (4:2:0) If the device connected to Input Port also supports Ultra HD Deep Color, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, change the TV’s [HDMI Ultra HD Deep Color] setting to o. IR Blaster

• Control the set-top box (cable/satellite/IP/OTT), Blu-ray/DVD player, soundbar, game consoles, etc., using the IR Blaster. (Depending upon country) - Connect the IR Blaster cable to the TV’s IR Blaster port. - Place both ends (one or two) of the IR Blaster in front of the external device as shown in the picture below. - Use universal control settings to control the device. Go to → → [Connection] → [Device Connection Settings] → [Universal Control Settings]. - Secure the IR Blaster with the 3M tape provided. External Devices Supported external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

• If you record a TV program on a Blu-ray/DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the manual provided with the connected device.

• The external device connections shown may dier slightly from illustrations in a manual.

• Connect external devices to the TV regardless about the order of the TV port.

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.

• Refer to the external equipment’s manual for operating instructions.

• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the [Picture] menu until the picture is clear. Depending upon the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.

• Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

• When connecting via a wired LAN, it is recommended to use a CAT 7 cable.

• The TV may be capable of operating without a set-top-box from a multichannel video programming distributor (MVPD). Remote RS-232C setup To obtain the RS-232C external control setup information, please visit www.lg.com . Download and read the manual, (Depending upon model).

• Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.13 ENGLISH_index Using Button You can simply operate the TV functions, using the button. Basic functions Power On (Press) Power O

(Press and Hold) Menu Control (Press

Menu Selection (Press and Hold

1 All running apps will close. 2 You can access and adjust the menu by pressing the button when TV is on. 3 You can use the function when you access menu control. Adjusting the menu When the TV is turned on, press the button one time. You can adjust the Menu items using the button. Turns the power o. Changes the input source. Adjusts the volume level. Scrolls through the saved channels.14 ENGLISH_index Using Magic Remote Control The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. When the message [Magic Remote battery is low. Please change the battery.] is displayed, replace the batteries. To install batteries, open the battery cover, replace batteries (1.5 V AA) matching the and ends to the label inside the compartment, and close the battery cover. Be sure to point the magic remote toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse. This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor.

(Some buttons and services may not be provided depending upon models or regions.) To use the button, press and hold for more than 1 second. (POWER) Turns the TV on or o. (STB POWER) You can turn your set-top box on or o by adding the settop box to the universal remote control for your TV. Number buttons Enters numbers.

Accesses the [Quick Help]. (DASH) Inserts a between numbers such as 2-1 and 2-2. Accesses the saved channel list. (MORE ACTIONS) Displays more remote control functions.

Edits QUICK ACCESS - QUICK ACCESS is a feature that allows you to enter a specied app or Live TV directly by pressing and holding the number buttons.

SAP (Secondary Audio Program) feature can also be enabled by pressing the button. Adjusts the volume level. (MUTE) Mutes all sounds.

(MUTE) Accesses the [Accessibility] menu. Scrolls through the saved channels. (Voice recognition) Network connection is required to use the voice recognition function. Check for recommended content. (Some recommended services may not be available in some countries.) (Voice recognition) Speak while pressing and holding the button to use the voice recognition feature. (HOME) Accesses the Home menu.

(HOME) Shows the previous history. (Q. Settings) Accesses the Quick Settings.

(Q. Settings) Displays the [All Settings] menu. Wheel (OK) Press the center of button to select a menu. You can change channels by using button. (up/down/left/right) Press the up, down, left or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right. (BACK) Returns to the previous level.

(BACK) Clears on-screen displays and returns to last input viewing. Displays the program event according to time scheduler.

Streaming Service buttons Connects to the Video Streaming Service. (INPUT) Changes the input source.

(INPUT) Accesses the [Home Dashboard]. , , , These access special functions in some menus. , (Control buttons) Controls media contents.15 ENGLISH_index Registering Magic Remote Control How to register the Magic Remote Control To use the Magic Remote, rst pair it with your TV. 1 Put batteries into the Magic Remote and turn the TV on. 2 Point the Magic Remote at your TV and press the Wheel (OK) on the remote control.

• If the TV fails to register the Magic Remote, try again after turning the TV off and back on. How to deregister the Magic Remote Control Press the (BACK) and (HOME) buttons at the same time, for ve seconds, to unpair the Magic Remote with your TV.

• Press and hold the button for more than 5 seconds to disconnect and re-register the Magic Remote at the same time.

• It is recommended that an Access Point (AP) be located more than 0.2 m (0.65 ft) away from the TV. If the AP is installed closer than 0.2 m (0.65 ft), the Magic remote control may not perform as expected due to frequency interference.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in re, personal injury, or ambient pollution.

• This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information.

• Batteries inside or inside the product shall not be exposed to excessive heat such as sunshine, re or the like. User Guide For more information about this TV, read the USER GUIDE embedded in the product.

• To open the USER GUIDE → → [Support] → [User Guide] Troubleshooting Cannot control the TV with the remote control.

• Check if anything such as tape has been placed over the receiver.

• Check if there is any obstacle between the product and the remote control.

• Replace the batteries with new fresh ones. No image display and no sound is produced.

• Check if the product is turned on.

• Check if the power cord is connected to a wall outlet.

• Check if there is a problem in the wall outlet by connecting other products. The TV turns o suddenly.

• Check the power control settings. The power supply may be interrupted.

• Check if the auto-o function is activated in the settings menu.

• If there is no signal while the TV is on, the TV will turn o automatically after 15 minutes of inactivity.16 ENGLISH_index Abnormal Display

• If the TV feels cold to the touch, there may be a small icker when it is turned on. This is normal; there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse eect on the TV’s performance. Avoid touching the screen or holding your nger(s) against it for long periods of time. Doing so may produce some temporary distortion eects on the screen.

• This panel is an advanced product that contains millions of pixels. In a very few cases, you could see ne dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not aect the performance and reliability of the TV. Generated Sound

• Cracking noise A cracking noise that occurs when watching or turning o the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

• Electrical circuit humming/panel buzzing A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending upon the product. This generated sound does not aect the performance and reliability of the product.

• Make sure to wring any excess water or cleaner from the cloth.

• Do not spray water or cleaner directly onto the TV screen.

• Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen.17 ENGLISH_index Specications Product specications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).

• For information of the power supply and power consumption, refer to the label attached to the product. - The typical power consumption is measured in accordance with IEC 62087 or each country’s energy regulations.

• On some models, the label is inside the external device connection terminal cover.

• Depending upon the model or country, the typical power consumption may not be on label. Broadcasting Specifications Television system ATSC / NTSC-M, 64 & 256 QAM Program coverage VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135 External antenna impedance 75 Ω Wireless module (LGSBWAC94) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 5,150 to 5,725 MHz 5,725 to 5,850 MHz

18 dBm 18 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 9 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is congured for the regional frequency table. For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the device and the body.

FCC ID: BEJLGSBWAC94 / IC: 2703H-LGSBWAC94

Environment condition Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 %18 ENGLISH_index Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]

This oer is valid for a period of three years after our last shipment of this product. This oer is valid to anyone in receipt of this information. Licenses (Magic Remote supported models only)19 ENGLISH_index Recommended Measures for Preventing Image Retention

• Avoid watching a video displaying an image as listed above for extended periods of time.

• Adjust your TV settings as below when turning on a video exhibiting an image as listed above for extended periods of time. - → → [Picture] → [Picture Mode Settings] → [Picture Mode] → [APS] - → → [Picture] → [Picture Mode Settings] → [OLED LIGHT] → Adjust to lower value - → → [Picture] → [OLED Screen Saver] → [Logo Luminance Adjustment] → [High]

• Turn o the menu bar of an external device, such as a set-top box, to prevent long-term display of the menu bar of such device. (Please refer to the manual of the applicable external device for instructions.)

• Adjust the settings as below when watching a video constantly showing black bars on the left, right, top or bottom, in order to remove the black bars. - → → [Picture] → [Aspect Ratio Settings] → [Aspect Ratio] → [Vertical Zoom] or [4-Way Zoom] Information on Functions Supporting Image Quality in Relation to Temporary Image Retention

• LG OLED TVs provide a feature called Pixel Refresher, which helps to prevent temporary image retention.

• When the accumulated television viewing time reaches 2,000 hours or more (this is equivalent to watching TV for ve hours a day over the course of a year), Pixel Refresher will be automatically activated once your TV is turned o. When turning o your TV, a notice will appear on the screen informing the activation of Pixel Refresher. This feature will run for an hour while your TV is turned o. A horizontal line may appear at the top or bottom of the screen when the process is almost nished.

• You may also manually activate Pixel Refresher via the TV menu:

• → [Picture] → [OLED Screen Saver] → [Pixel Refresher].

• Whenever you watch your TV for more than four cumulative hours, Pixel Refresher will be automatically activated for a few minutes once your TV is turned o. (Note: Pixel Refresher will not be activated if the power cord of your TV is not plugged in or the main power is o.) Important Information for Preventing Image Retention OLED is a self-emissive technology, which brings many signicant benets to image quality and performance. As with any self-emitting display, it is possible for users of OLED TVs to experience temporary image retention under certain conditions, such as when displaying a static image on the screen for a long time. LG OLED TVs incorporate dedicated functions that protect the screen from possible image retention. If a static image persists on screen, screen brightness is automatically reduced in specic areas of, or across the entire screen. Once the static image disappears, screen brightness will automatically return to its prior setting. This is not a product malfunction. Examples of Images that may Cause Image Retention

• Still images or xed images containing certain information that are displayed uninterrupted on the screen, such as channel numbers, station logos, program titles, news or movie subtitles, and headlines.

• Fixed menu or icons for video game consoles or broadcasting set-top boxes.

• Black bars shown on the left, right, top, or bottom of the screen, such as in images with a 4:3 or 21:9 ratio.20 ENGLISH_index Regulatory

(For USA and Canada) This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied. Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No. Supplier’s Declaration of Conformity Trade Name LG Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ

• Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan, North America, Latin America except Colombia models)3 ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.Connect the USB to Serial(RS-232C) converter/RS-232C(Serial) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.Note: The type of control port on the TV can be different between model series.* Please be advised that not all models support this type of connectivity.* Cable is not provided. USB to Serial(RS-232C) converter with USB Cable USB Type USB IN (TV) (PC ) (PC

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial(RS-232C) converter which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals. RS-232C(Serial) With RS-232C(Serial) Cable DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C(Serial) cable required for the connection between the PC and the TV, which is specified in the manual. USB IN (TV) (PC

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the TV, which is specified in the manual.

• For other models, connect to the USB port.

• The connection interface may differ from your TV. USB IN (TV) (PC ) (PC ) RS-232C IN(CONTROL & SERVICE) (TV) (TV) (PC

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

01. Power* k a 00 to 01 15. Balance k t 00 to 64

(Colour) Temperature x u 00 to 64

Control k f 00 to 64

Brightness k h 00 to 64

Backlight, Control Panel Light m g 00 to 64

Sharpness k k 00 to 32

Control Lock Mode k m 00 to 01

13. Treble k r 00 to 64

14. Bass k s 00 to 64

• Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not executed and treated as NG. With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with USB-to-Serial converter cable, the command works only if TV is on.6 ENG ENGLISH

Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set can be controlled.

• [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on transmission/receiving protocol. [DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command. [Cr] : Carriage Return - ASCII code ‘0x0D’ [ ] : Space – ASCII code ‘0x20’ OK Acknowledgement [Command2][ ][Set ID][ ][OK][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer. Error Acknowledgement [Command2][ ][Set ID][ ][NG][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors. Data 00: Illegal Code Real data mapping (Hexadecimal b Decimal)

• When you enter the [data] in hexadecimal, refer to following conversion table.

• Commands may work differently depending on model and signal.

• Similarly, if other functions transmit ‘FF’ data based on this format, Acknowledgement feedback presents status about each function.

• In DTV/HDMI/Component mode (high-definition), Just Scan is available.

• Full wide mode may work differently based on model and is supported for DTV fully, and ATV, AV partially.

• In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

► To control volume mute on/off. You can also adjust mute using the MUTE button on remote control. Transmission [k][e][ ][Set ID][ ][Data][Cr] Data 00 : Volume mute on (Volume off) 01 : Volume mute off (Volume on) Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume. You can also adjust volume with the volume buttons on remote control. Transmission [k][f][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64 Ack [f][ ][Set ID][ ][OK/NG][Data][x]

► To adjust screen brightness. You can also adjust brightness in the PICTURE menu. Transmission [k][h][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64 Ack [h][ ][Set ID][ ][OK/NG][Data][x]8 ENG ENGLISH

08. Color/Colour (Command: k i)

► To adjust the screen sharpness. You can also adjust sharpness in the PICTURE menu. Transmission [k][k][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 32 Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when controlling remotely. Transmission [k][l][ ][Set ID][ ][Data][Cr] Data 00 : OSD off 01 : OSD on Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and remote control. Transmission [k][m][ ][Set ID][ ][Data][Cr] Data 00 : Lock off 01 : Lock on Ack [m][ ][Set ID][ ][OK/NG][Data][x]

• If you are not using the remote control, use this mode. When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.

• In the standby mode (DC off by off timer or ‘ka’, ‘mc’ command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.

• It depends on model, and can adjust when sound mode is EQ adjustable value.

• This command may work differently depending on model and signal.

• For Europe, Mid-East, Colombia, Asia except South Korea and Japan Model ► Select channel to following physical number. Transmission [m][a][ ][Set ID][ ][Data 00][ ] [Data 01][ ][Data 02][Cr]

Set ID = All = 00 Data 00 & 01 = Channel Data is 10 = 00 0a Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00

2. Tune to the digital antenna (DVB-T) Channel 01.

Set ID = All = 00 Data 00 & 01 = Channel Data is 1 = 00 01 Data 02 = Digital Antenna TV = 10 Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00 Data 00 & 01 = Channel Data is 1000 = 03 E8 Data 02 = Digital Satellite TV = 40 Result = ma 00 03 E8 40 Ack [a][ ][Set ID][ ][OK][Data 00][Data 01] [Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except Colombia Model ► To tune channel to following physical/major/minor number. Transmission [m][a][ ][0][ ][Data00][ ][Data01] [ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr] Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.10 ENG ENGLISH

Set ID = All = 00 Data 00 = Channel Data is 35 = 23 Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00 Data 05 = Analog Cable TV = 01 Total = ma 00 23 00 00 00 00 01

Tune to the digital antenna (ISDB-T) channel 17-1

Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 17 = 00 11 Data 03 & 04 = Minor/Branch is 1 = 00 01 Data 05 = Digital Antenna TV = 02 Total = ma 00 00 00 11 00 01 0211 ENGENGLISH

Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Don’t Care = 00 00 Data 05 = Digital BS TV = 07 Total = ma 00 00 00 1E 00 00 07

• This function depends on model and signal.

• If [Data 00] is 00 (3D On), [Data 03] has no meaning.

• If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data 01], [Data 02] and [Data 03] have no meaning.

• If [Data 00] is 03 (2D to 3D), [Data 01] and [Data 02] have no meaning.

• If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data 03] works when 3D Mode (Genre) is manual only.

1) When [Data 00] is 00

00 : Right to Left 01 : Left to Right

• This option works when 3D Mode (Genre) is manual only.

• If conversion condition doesn’t meet, command is treated as NG.
