USER MANUAL UMH50008HS WHIRLPOOL

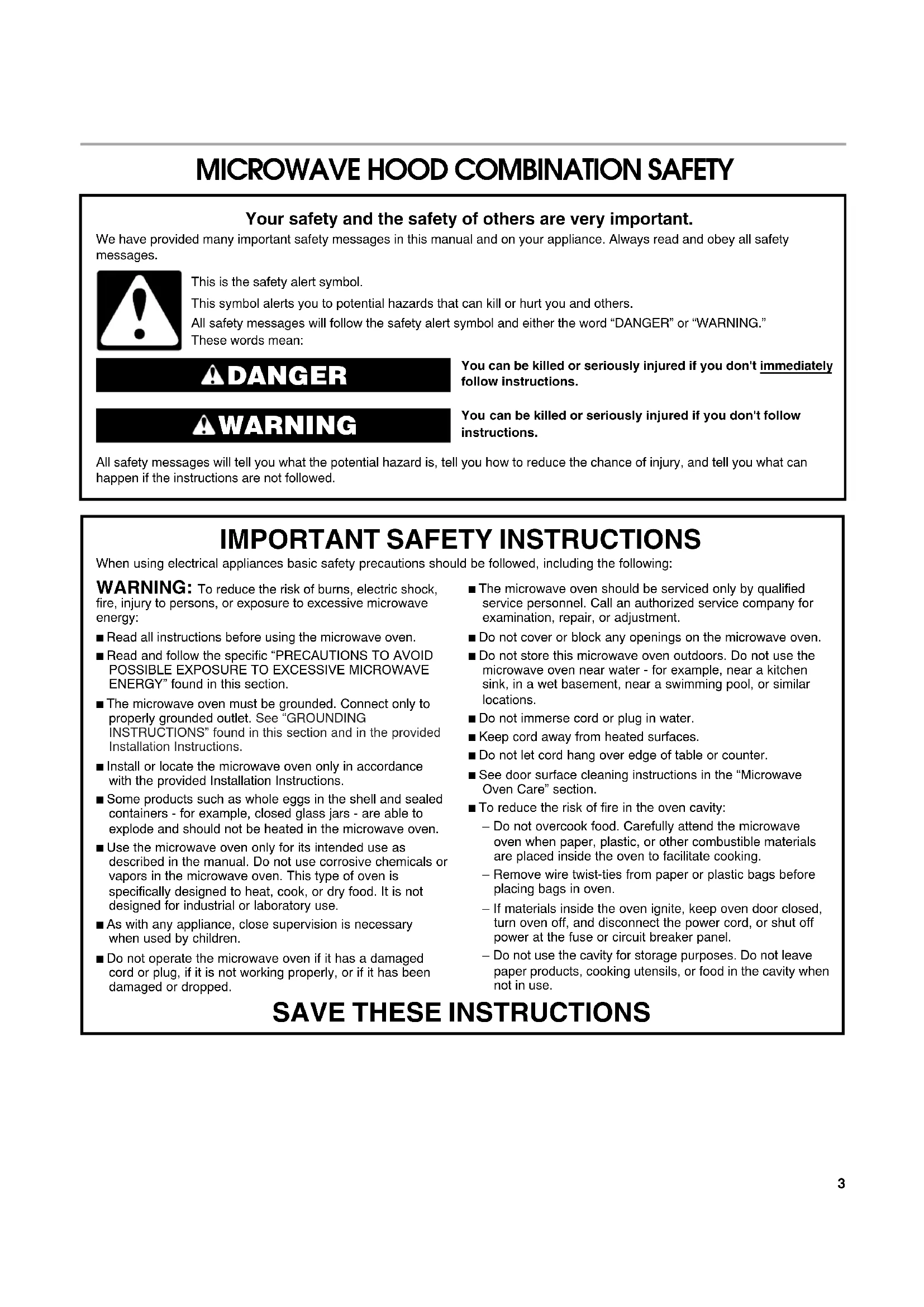

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING When using electrical appliances basic safety precautions should be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of burns, electric shock,

fire, injury to persons, or exposure to excessive microwave energy:■ Read all instructions before using the microwave oven.■ Read and follow the specific “PRECAUTIONS TO AVOIDPOSSIBLE EXPOSURE TO EXCESSIVE MICROWAVEENERGY” found in this section.■ The microwave oven must be grounded. Connect only toproperly grounded outlet. See “GROUNDINGINSTRUCTIONS” found in this section and in the providedInstallation Instructions.■ Install or locate the microwave oven only in accordancewith the provided Installation Instructions.■ Some products such as whole eggs in the shell and sealedcontainers - for example, closed glass jars - are able toexplode and should not be heated in the microwave oven.■ Use the microwave oven only for its intended use asdescribed in the manual. Do not use corrosive chemicals orvapors in the microwave oven. This type of oven isspecifically designed to heat, cook, or dry food. It is notdesigned for industrial or laboratory use.■ As with any appliance, close supervision is necessarywhen used by children.■ Do not operate the microwave oven if it has a damagedcord or plug, if it is not working properly, or if it has beendamaged or dropped.■ The microwave oven should be serviced only by qualifiedservice personnel. Call an authorized service company forexamination, repair, or adjustment.■ Do not cover or block any openings on the microwave oven.■ Do not store this microwave oven outdoors. Do not use themicrowave oven near water - for example, near a kitchensink, in a wet basement, near a swimming pool, or similarlocations.■ Do not immerse cord or plug in water.■ Keep cord away from heated surfaces.■ Do not let cord hang over edge of table or counter.■ See door surface cleaning instructions in the “MicrowaveOven Care” section.■ To reduce the risk of fire in the oven cavity:– Do not overcook food. Carefully attend the microwaveoven when paper, plastic, or other combustible materialsare placed inside the oven to facilitate cooking.– Remove wire twist-ties from paper or plastic bags beforeplacing bags in oven.– If materials inside the oven ignite, keep oven door closed,turn oven off, and disconnect the power cord, or shut offpower at the fuse or circuit breaker panel.– Do not use the cavity for storage purposes. Do not leavepaper products, cooking utensils, or food in the cavity whennot in use.4

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: – Do not overheat the liquid.

Stir the liquid both before and halfway through heating it. – Do not use straight-sided containers with narrow necks. – After heating, allow the container to stand in the microwave oven for a short time before removing the container. – Use extreme care when inserting a spoon or other utensil into the container. ■ Do not mount over a sink.■ Do not store anything directly on top of the microwave oven when the microwave oven is in operation. ■ Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter. ■ When flambéing foods under the hood, turn the fan on.■ Suitable for use above both gas and electric cooking equipment. ■ Intended to be used above ranges with maximum width of 24" (61.0 cm). ■ Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter.

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. State of California Proposition 65 Warnings:WARNING: This product contains one or more chemicals known to the State of California to cause cancer.WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.5 Electrical Requirements Observe all governing codes and ordinances.Required:■ A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supplywith a fuse or circuit breaker.Recommended:■ A time-delay fuse or time-delay circuit breaker.■ A separate circuit serving only this microwave oven.

This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The appearance of your particular model may differ slightly from the illustrations in this manual. Turntable The turntable can rotate in either direction to help cook food more evenly. For best cooking results, do not operate the microwave oven without having the turntable in place. See “Assistance or Service” to reorder any of the parts.To Install: 1. Place the support on the microwave oven cavity bottom.2. Place the turntable on the support.Fit the raised, curved lines in the center of the turntablebottom between the three spokes of the hub. The rollers onthe support should fit inside the turntable bottom ridge. Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For all cord connected appliances:The microwave oven must be grounded. In the event ofan electrical short circuit, grounding reduces the risk ofelectric shock by providing an escape wire for the electriccurrent. The microwave oven is equipped with a cordhaving a grounding wire with a grounding plug. The plugmust be plugged into an outlet that is properly installedand grounded.

WARNING: Improper use of the grounding plug can

result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven. A. Model and serial number plate B. Control panel C. Upper component housing D. Microwave inlet cover E. Microwave oven light F. Door lock system G. Window H. Visor

J. Grease filter Parts and Features not shown Turntable A B C D E F G H I J A. Turntable B. Support C. Hub

This device complies with Part 18 of FCC Rules. This device complies with Industry Canada ICES-001.6

MICROWAVE OVEN CONTROL

Display When power is first supplied to the microwave oven, “:” will appear in the display. If the “:” appears in the display at any other time, the clock is not set, or there has been a power failure. Reset the clock if needed. See “Clock.” When the microwave oven is in use, the display will show cook time remaining. When the microwave oven is not in use, the display will show the time of day (if the clock is set). Start The Start control begins any function. If cooking is interrupted by opening the door, pressing the Start control will resume the cycle, within 10 minutes of interruption. The Start control also automatically starts the microwave oven at full power (750W) for 30 seconds, and adds 30 seconds of cook time with each additional touch of the control. Time may be added to any manual cooking cycle in 30-second increments, at the current power level, by pressing the Start control during cooking. NOTE: To avoid unintentional operation of the microwave oven, a cooking function cannot be started if the microwave oven door

as been closed for about 1 minute. The word “door” will appear in the display until the door is opened and closed. Stop The Stop control clears any incorrect command, and cancels any program during cooking. The microwave oven will also turn off when the door is opened. Close the door and press Start control to resume the cycle. Time Entry The +/- control is used to enter time for setting the clock and for programming cooking cycles. The following represents the control press time increments. NOTE: Press and hold +/- control to jump to 10 minutes. Timer The microwave oven may be used as a kitchen timer by using zero power (0W). To Set:

1. Press +/- controls to set desired time. Each press adds or

removes 5 seconds from the current time.

2. Press Power Level control repeatedly until 0W appears in the

When the set time ends, a tone will sound. The time can be reset during the countdown by pressing the +/- control repeatedly. Clock This is a 12-hour clock. NOTE: If there is a power failure, the clock will have to be reset. To Set: The microwave oven must be off (in standby mode).

1. Press and hold Stop control for about 3 seconds, until the

left-hand digits in the display blink.

2. Press the +/- controls to set the hour.

3. Press Start control. The right-hand digits will blink.

4. Press the +/- controls to set the minutes.

5. Press Start control to complete the setting.

1. Press and hold Stop control for about 3 seconds, until the

left-hand digits in the display blink.

2. Press Stop control. The time will disappear, and “:” wil

appear o n the display. Language/Weight Entry The microwave oven display’s language and weight entry mode may be changed using Customer Settings. The default language is English, but may be changed to French. The default weight entry mode is grams, but may be changed to ounces. NOTE: If there is a power failure, the language and weight entry mode will return to the default settings. Each Press Adds Up to 5 seconds 1 minute 15 seconds 3 minutes 30 seconds 6 minutes setunim 03etunim 1

1. Press and hold Defrost control for about 3 seconds, until

“Cset” appears in the display.

Start control to complete the setting. Depending on the language setting, “Done” or “Fini” will appear in the display. Vent Fan The vent (exhaust) fan has 3 speeds: high, medium and low. The fan speed indicator lights show the current fan speed. If left on, the fan will automatically shut off after 4 hours. Override Mode To keep the microwave oven from overheating, the vent fan will automatically turn on at high speed if the temperature from the range or cooktop below the microwave oven gets too hot. It may stay on for several minutes to cool the microwave oven. When this occurs, the vent fan cannot be turned off and the fan speed cannot be changed until the temperature drops below a certain level. NOTE: While the fan is in override mode, the fan speed indicator lights will not necessarily reflect the actual speed (high). To Turn Vent Fan On/Off: Press Vent Fan control repeatedly to scroll through the speeds or to turn off. Cooktop Light To Turn Light On/Off: Press Light control repeatedly to toggle on and off. Tones Tones are audible signals that cannot be turned off, and they indicate the following: Two tones ■ Reminder, repeat every 30 seconds Three tones ■ End of cycle

A magnetron in the microwave oven produces microwaves which reflect off the metal floor, walls and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar and water molecules in the food, causing them to move, producing friction and heat which cooks the food. ■ To avoid damage to the microwave oven, do not lean on or allow children to swing on the microwave oven door. ■ To avoid damage to the microwave oven, do not operate microwave oven when it is empty. ■ Baby bottles and baby food jars should not be heated in microwave oven. ■ Clothes, flowers, fruit, herbs, wood, gourds, paper, including brown paper bags and newspaper, should not be dried in microwave oven. ■ Paraffin wax will not melt in the microwave oven because it does not absorb microwaves. ■ Use oven mitts or pot holders when removing containers from microwave oven. ■ Do not overcook potatoes. At the end of the recommended cook time, potatoes should be slightly firm. Let potatoes stand for 5 minutes. They will finish cooking while standing. ■ Do not cook or reheat whole eggs inside the shell. Steam buildup in whole eggs may cause them to burst, requiring significant cleanup of microwave oven cavity. Cover poached eggs and allow a standing time. Food Characteristics When microwave cooking, the amount, size and shape, starting temperature, composition and density of the food affect cooking results. Amount of Food The more food heated at once, the longer the cook time needed. Check for doneness and add small increments of time if necessary. Size and Shape Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food. Starting Temperature Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods. Composition and Density Foods high in fat and sugar will reach a higher temperature, and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake. Cooking Guidelines Covering Covering food helps retain moisture, shorten cook time and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking. Stirring and Turning Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top. Arranging If heating irregularly shaped or different sized foods, arrange the thinner parts and smaller sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty. Piercing Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent.8 Shielding Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips and fish tail. See “Aluminum Foil and Metal” first. Standing Time Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food. Cookware and Dinnerware Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using. To Test Cookware or Dinnerware for Microwave Use:

1. Place 1 cup (250 mL) of water next to cookware or

dinnerware in microwave oven.

2. Cook at 100% cooking power for 1 minute.

Do not use cookware or dinnerware if it becomes hot and the water stays cool. Aluminum Foil and Metal Always use oven mitts or pot holders when removing dishes from the microwave oven. Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occur and cause damage to the microwave oven. OK for Use Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines: ■ To avoid damage to the microwave oven, do not allow aluminum foil or metal to touch the inside cavity walls, ceiling or floor. ■ Always use the turntable. ■ To avoid damage to the microwave oven, do not allow contact with another metal object during microwave cooking. Do Not Use Metal cookware and bakeware, gold, silver, pewter, non- approved meat thermometers, skewers, twist ties, foil liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze should not be used in the microwave oven. Microwave Cooking Power Many recipes for microwave cooking specify which cooking power to use by percent or name. For example, 500W=Medium-High. To see the exact power level during a cooking cycle, press Power Level control. The display will briefly show the current power level, then will return to the cooking countdown. Use the following chart as a general guide for the suggested cooking power of specific foods. MATERIAL RECOMMENDATIONS Aluminum Foil, Metal See “Aluminum Foil and Metal” section. Browning Dish Bottom must be at least 3/16" (5 mm) above the turntable. Follow manufacturer’s recommendations. Ceramic Glass, Glass Acceptable for use. China, Earthenware Follow manufacturer’s recommendations. Melamine Follow manufacturer’s recommendations. Paper: Towels, Dinnerware, Napkins Use nonrecycled and those approved by the manufacturer for microwave oven use. Plastic: Wraps, Bags, Covers, Dinnerware, Containers Use those approved by the manufacturer for microwave oven use. Pottery and Clay Follow manufacturer’s recommendations. Silicone Bakeware Follow manufacturer’s recommendations. Straw, Wicker, Wooden Containers Do not use in microwave oven. Wax Paper Acceptable for use.

750W, High (default setting) Quick heating convenience foods and foods with high water content, such as soups, beverages and most vegetables. Cooking small, tender pieces of meat, ground meat, poultry pieces and fish fillets. 500W, Medium- High Heating rice, pasta or stirrable casseroles. Heating cream soups. Cooking and heating foods that need a cook power lower than high. For example, whole fish and meat loaf. Reheating a single serving of food. Cooking sensitive foods such as cheese and egg dishes, pudding and custards. Cooking non-stirrable casseroles, such as lasagna. 350W, Medium Cooking ham, whole poultry and pot roasts. Simmering stews. Melting chocolate, butter. Heating bread, rolls and pastries. 160W, Medium- Low, Defrost Defrosting bread, fish, meats, poultry and precooked foods. Softening butter, cheese, and ice cream. Taking chill out of fruit. 0W, No power For kitchen timer use only; magnetron does not turn on.9 Defrost The defrost feature can be used or the microwave oven can be manually set to defrost. ■ Unwrap foods and remove lids (for example, from fruit juice containers) before defrosting. ■ Shallow packages will defrost more quickly than deep blocks. ■ Separate food pieces as soon as possible during or at the end of cycle for more even defrosting. ■ Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips and fish tails. See “Aluminum Foil and Metal” first. The defrost feature is for meat, poultry and fish only, between 4 and 70oz (100and 2000g). It should not be used for food left outside the freezer more than 20 minutes and frozen ready-made food. Use the following chart as a guide. To Use Defrost:

1. Unwrap food, place on the turntable, and close the door.

2. Press defrost control.

3. Press +/- controls repeatedly to enter the weight in ounces or

grams, depending on the weight entry setting. See “Language/Weight Entry” section. Weight can be set from 4 to 70 oz (100 to 2000 g).

4. Press Start control.

The display will count down the defrost time. About midway through defrosting, the cycle will pause, and you will be prompted to turn the food. Open the door and stir or turn food. Close door, and press Start control to resume. If you do not wish to turn the food, the cycle will resume automatically after 2 minutes. When the cycle ends, “End” will appear in the display.

5. Press Stop control or open the door to clear the display.

To Defrost Manually: Follow directions in “Manual Cooking” section, and use 160W cooking power. See “Microwave Cooking Power” chart. Manual Cooking To Use:

1. Place food on the turntable and close the door.

2. Press +/- control repeatedly to set the time. See “Time Entry”

section for time entry increments. If cooking with high power (750W), skip Step 3.

3. Press Power Level control repeatedly to select the desired

power level. See “Microwave Cooking Power” chart.

4. Press Start control.

The display will count down the cook time. When the cycle ends, “End” will appear in the display.

5. Press Stop control or open the door to clear the display.

The cook time and power may be changed after pressing Start control without interrupting cooking. To Change Cook Time: Press Start control to add time in 30-second increments, or press the +/- controls to add or remove time in 5-second increments. To Change Cook Power: Press Power Level control repeatedly to toggle through the power levels, resting on the desired new level. NOTE: For best cooking results, use only small “snack size” commercially packaged microwave popcorn bags, due to the compact cavity size. MEAT Beef: ground, steaks, roast, stew The narrow or fatty areas of irregular shaped cuts should be shielded with foil before defrosting. Do not defrost less than 1/4 lb (113 g) or two 4 oz (113 g) patties. Place all meats in microwave- safe baking dish. Lamb: stew and chops Pork: chops, ribs, roasts, sausage POULTRY Chicken: whole and cut up Place in microwave-safe baking dish, chicken breast side up. Cornish hens Turkey: breast FISH Fillets, Steaks, Whole, Shellfish Place in microwave-safe baking dish.10

General Cleaning IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products. Soap, water and a soft cloth or sponge are suggested unless otherwise noted. GREASE FILTER Do not use ammonia or corrosive cleaning agents such as lye- based oven cleaners. ■ Hot water and mild detergent: Soak filters, then scrub and swish to remove embedded dirt and grease. Rinse well and shake to dry. ■ Dishwasher: Wash separately, not with dirty dishes, because food can be trapped in the filters. NOTE: Some discoloration of the filters may occur after cleaning them in the dishwasher. This is normal, and will not affect the performance of the grease filters.

MICROWAVE OVEN CAVITY

To avoid damage to the microwave oven cavity, do not use soap- filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths or some recycled paper towels. To avoid damage to stainless steel models, rub in direction of grain. The area where the microwave oven door and frame touch when closed should be kept clean. Average soil ■ Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth. Heavy soil ■ Mild, nonabrasive soaps and detergents: Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth. Odors ■ Lemon juice or vinegar: Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in microwave oven. Microwave Inlet Cover To avoid arcing and microwave oven damage, the microwave inlet cover (see “Parts and Features”) should be kept clean. ■ Wipe with wet cloth.

MICROWAVE OVEN DOOR AND EXTERIOR

The area where the microwave oven door and frame touch when closed should be kept clean. ■ Mild, nonabrasive soaps and detergents: Rinse with clean water and dry with soft, lint-free cloth. ■ Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass cleaner to towel, not directly to surface. Stainless Steel (on some models) To avoid damage to microwave oven door and exterior, do not use soap-filled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths or some paper towels. Rub in direction of grain. ■ Stainless Steel Cleaner and Polish (not included): See “Assistance or Service” section to order. ■ Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth. ■ Vinegar for hard water spots CONTROL PANEL ■ Sponge or soft cloth and water: Dampen sponge with water and wipe panel. Dry with soft cloth. ■ To avoid damage to the control panel, do not use chemical or abrasive cleansers. TURNTABLE Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place. ■ Mild cleanser and scouring pad ■ Dishwasher11 Replacing Grease Filter The grease filter should be removed and cleaned at least once a month. Do not operate the microwave oven or vent fan without the grease filter in place. See “Assistance or Service” for information on reordering filters. To Remove and Replace Grease Filter:

1. Remove the grease filter by pushing the filter to the left side

of the microwave oven until the right end of the filter drops down, then pull out the filter.

2. Replace grease filter by inserting one end of the filter into the

left rim of the frame. Swing the right end of the filter up and slide it into position. Replacing Charcoal Filter (for recirculation installation only) The charcoal filter (not provided) should be used if venting is set to recirculation. See “Accessories” in “Replacement Parts” section for information on ordering.

1. Remove grease filter. See Step 1 of “Replacing Grease Filter.”

2. Remove wire rods holding charcoal filter in place, then

remove old charcoal filter.

3. Cover the inside of the grease filter with the new charcoal

4. Insert wire rods to hold the charcoal filter in place.

5. Reinstall grease filter. See Step 2 of “Replacing Grease Filter.”

Replacing Cooktop Light The cooktop light is a 25W halogen bulb. See “Assistance or Service” section to reorder. To Replace:

1. Unplug microwave oven or disconnect power.

2. Remove visor mounting screws.

5. Reinsert visor. Replace mounting screws.

6. Plug in microwave oven or reconnect power.

A. Charcoal filter B. Grease filter C. Wire rods (2)

A. Visor B. Mounting screws (2) A B12 TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Nothing will operate ■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Is the microwave oven wired properly? See Installation Instructions provided with your microwave oven. Microwave oven will not operate ■ Is the magnetron working properly? Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, try the steps below. If microwave oven still does not operate, call for service. See “Assistance or Service” section. ■ Is the door completely closed? Firmly close door. ■ Does a message about the door appear in the display? The door has been closed for 5 minutes or more. Open and close the door, then press Start control to start the cooking cycle. See “Start” section. ■ Is a packaging spacer (on some models) attached to the inside of the door? Remove packaging spacer, then firmly close door. ■ Is the electronic microwave oven control set correctly? See “Microwave Oven Control” section. Microwave oven makes humming noise ■ This is normal and occurs when the power supply switches the magnetron on and off. Microwave oven door looks wavy ■ This is normal and will not affect performance. Turntable will not operate ■ Has the tape been removed from turntable hub? See “Turntable” section. ■ Is the turntable properly in place? Make sure turntable is correct side up and is sitting securely on the turntable support. ■ Is the turntable support operating properly? Remove turntable. Remove and clean turntable support and rollers. Replace turntable support. Replace turntable. Place 1 cup (250 mL) of water on the turntable, then restart microwave oven. If it still is not working, call for service. See “Assistance or Service” section. Do not operate the microwave oven without turntable and turntable support working properly. Turntable alternates rotation directions ■ This is normal and depends on motor rotation at the beginning of the cycle. Display shows messages ■ Is the display showing “:”? There has been a power failure, or the clock time has been turned off. See “Display” section to clear display. See “Clock” section to reset the clock or to turn it on. ■ Is the display showing a letter followed by a number? Clear the display. If it reappears, call for service. See “Assistance or Service” section. Display shows time countdown, but is not operating ■ Is the Timer in use? See “Timer” section. Fan running slower than usual ■ Has the microwave oven been stored in a cold area? The fan will run slower until the microwave oven warms up to normal room temperature. Fan running during microwave cooking ■ This is normal. The fan comes on to cool the microwave oven, and may stay on for up to 5 minutes after cooking has ended. See “Vent Fan” section. Cooking times seem too long ■ Is the cooking power set properly? See “Microwave Cooking Power” section. ■ Are large amounts of food being heated? Larger amounts of food need longer cooking times. ■ Is the incoming voltage less than that specified in “Microwave Hood Combination Safety?” Have a qualified electrician check the electrical system in the home. Radio, TV or cordless phone interference ■ Is the radio or TV receiver near the microwave oven? Move the receiver away from the microwave oven, or adjust the radio or TV antenna. ■ Are the microwave oven door and sealing surfaces clean? Make sure these areas are clean. ■ Is the cordless phone frequency 2.4 GHz? Some 2.4 GHz-based cordless phones and home wireless networks may experience static or noise while the microwave oven is on. Use a corded phone, a different frequency cordless phone or avoid using these items during microwave oven operation.13

ASSISTANCE OR SERVICE

■ Features and specifications on our full line of appliances. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Designated service technicians are trained to fulfill the product warranty and provide after- warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write with any questions or concerns at: Please include a daytime phone number in your correspondence. Replacement Parts Accessories Charcoal Filter Kit may be ordered and installed if microwave oven is set for recirculation venting. The kit comes with one charcoal filter and two wire rods. It attaches to the grease filter. Part Number W10610033 Stainless Steel Panel Kit may be ordered and installed above the front face of the microwave oven to cover the upper component housing. The kit comes with one stainless steel panel and three mounting screws. Part Number W11170104 Cleaning Supplies Glass Turntable Part Number W10618210 Turntable Support and Rollers Part Number W10618211 Turntable Hub Part Number W10618212 Visor Part Number W10618218 25W Halogen Bulb Part Number W10618217 Grease Filter Part Number W10618216 affresh

Stainless Steel Cleaner Part Number W10355016B affresh

Stainless Steel Wipes Part Number W10355049B Heavy Duty Degreaser Part Number 31552A Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified parts in your area, call us or your nearest designated service center. For accessories in the U.S.A., you can visit our website at www.whirlpool.com/owners or call us at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca/owners or call us at 1-800-807-6777. Our consultants provide assistance with: In the U.S.A. Whi rlpool Brand Hom e Appliances Customer eXperience Center 553 Benson Road, Benton Harbor, MI 49022-2692 In Canada. Whirlpool

Mississauga, Ontario L5N 0B714 IF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, or visit www.whirlpool.com/owners 2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to: Whirlpool Customer eXperience CenterIn the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies. WHIRLPOOL

MAJOR APPLIANCE LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center: ■ Name, address and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.1. Commercial, non-residential, multiple-family use, or use inconsistent with published user,operator or installation instructions.2. In-home instruction on how to use your product.3. Service to correct improper product maintenance or installation, installation not inaccordance with electrical or plumbing codes or correction of household electrical orplumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.6. Conversion of products from natural gas or propane gas.7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products notapproved by Whirlpool.8. Repairs to parts or systems to correct product damage or defects caused by unauthorizedservice, alteration or modification of the appliance.9. Cosmetic damage including scratches, dents, chips, and other damage to the appliancefinishes unless such damage results from defects in materials and workmanship and isreported to Whirlpool within 30 days.

10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments

including but not limited to high salt concentrations, high moisture or humidity or exposureto chemicals.11. Food or medicine loss due to product failure.12. Pick-up or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized

Whirlpool servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative

panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing,removal or replacement of the product.15. Service or parts for appliances with original model/serial numbers removed, altered or noteasily determined.The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIESIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.11/14LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGESYOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.15 SÉCURITÉ DE L’ENSEMBLE FOUR À MICRO-ONDES/HOTTE Risque possible de décès ou de blessure grave si vous ne suivez pas immédiatement les instructions. Risque possible de décès ou de blessure grave si vous ne suivez pas les instructions. Tous les messages de sécurité vous diront quel est le danger potentiel et vous disent comment réduire le risque de blessure et ce qui peut se produire en cas de non-respect des instructions. Votre sécurité et celle des autres est très importante. Nous donnons de nombreux messages de sécurité importants dans ce manuel et sur votre appareil ménager. Assurez-vous de toujours lire tous les messages de sécurité et de vous y conformer. AVERTISSEMENT DANGER Voici le symbole d’alerte de sécurité.Ce symbole d’alerte de sécurité vous signale les dangers potentiels de décès et de blessures graves à vous et à d’autres.Tous les messages de sécurité suivront le symbole d’alerte de sécurité et le mot “DANGER” ou “AVERTISSEMENT”. Ces mots signifient : Lors de l’utilisation de tout appareil ménager électrique on doit observer certaines précautions de sécurité fondamentales, dont les suivantes :
