USER MANUAL CA328353 CONSTRUCTA

8Intended use Intended use Read these instructions carefully. Please keep the instruction and installation manual, as well as the appliance certificate, in a safe place for later use or for subsequent owners. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty. This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces. This appliance is intended for use up to a maximum height of 2000 metres above sea level. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. (Important safety information Impor t ant saf et y informat i on :Warning – Risk of fire! ■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. Risk of fire! ■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob. Risk of fire! ■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob. Risk of fire! ■ The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of burns! ■ Do not use hob covers here.They can cause accidents, for example due to overheating, catching fire or materials shattering. :Warning – Risk of burns! ■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance. Risk of burns! ■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of burns! ■ It is only allowed to use safety devices, e.g. hob guards, which have been approved by ourselves. Unsuitable safety devices or hob guards may result in accidents. :Warning – Risk of electric shock! ■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after- sales service. Risk of electric shock! ■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. Risk of electric shock!Causes of damage en

■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock! ■ Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service. :Warning – Risk of injury! Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry. ]Causes of damage Causes of damage Caution! ■ Rough pot and pan bases scratch the ceramic. ■ Avoid boiling pots dry. This may cause damage. ■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage. ■ Damage can occur if hard or pointed objects fall on the hob. ■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob. Overview You will find the most frequently caused damage in the following table. 7Environmental protection En v i r o n ment al pr ot ect i on In this section, you can find information about saving energy and disposing of the appliance. Energy-saving tips ■ Always place suitable lids on saucepans. When cooking without a lid, considerably more energy is required. A glass lid means that you can see inside without having to lift the lid. ■ Use pots and pans with even bases. Uneven bases increase energy consumption. ■ The diameter of pot and pan bases should be the same size as the hotplate. In particular, small saucepans on the hotplate cause energy losses. Please note: cookware manufacturers often indicate the upper diameter of the saucepan. This is usually bigger than the diameter of the base of the pan. ■ Use a small saucepan for small quantities. A larger, less full saucepan requires a lot of energy. ■ Cook with only a little water. This will save energy. Vitamins and minerals in vegetables are preserved. ■ Always cover as large an area of the hotplate as possible with your saucepan. ■ Switch to a lower heat setting in good time. ■ Select a suitable ongoing cooking setting. You will waste energy by using an ongoing cooking setting which is too high. ■ Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5-10 minutes before the end of the cooking time. Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. Damage Cause Measure Stains Boiled over food Remove boiled over food imme- diately with a glass scraper. Unsuitable clean- ing agents Only use cleaning agents that are suitable for glass ceramic. Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space. Rough pot and pan bases scratch the ceramic. Check your cookware. Discolouration Unsuitable clean- ing agents Only use cleaning agents that are suitable for glass ceramic. Pan abrasion (e.g. aluminium) Lift pots and pans when moving them. Blisters Sugar, food with a high sugar con- tent Remove boiled over food imme- diately with a glass scraper. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.en Getting to know your appliance

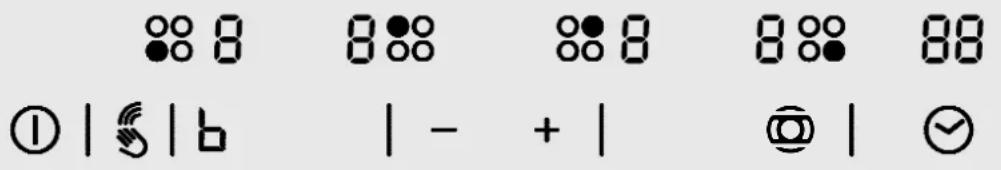

*Getting to know your appliance Get t i ng to know your appl i ance The instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. ~ Page 2 The control panel Notes ■ When you touch a symbol, the respective function is activated. ■ Always keep the controls dry. Moisture reduces their effectiveness. ■ Do not pull pans close to the displays and sensors. The electronics could overheat. The hotplates Notes ■ Any dark areas in the glow pattern of the hotplate are due to technical reasons. The function of the hotplate is not affected. ■ Hotplate temperature is regulated by the heat switching on and off.The heat may also switch on and off at the highest setting. This ensures e.g.: – sensitive components are protected from overheating – the appliance is protected from electrical overload – better cooking results are achieved ■ With multi-circuit hotplates the heater elements of the inner filament circuits and the heater element of the activations may switch on and off at different times.

Timer Hotplate Activating and deactivating

Dual-circuit hotplate Select the hotplate and touch the ó symbol

Extended cooking zone Select the hotplate and touch the ósymbol When the hotplate is activated, the corresponding display lights up When switching on the hotplate, the previously set size is automati- cally selected.Operating the appliance en

Residual heat indicator The hob has a two-stage residual heat indicator for each hotplate. If • appears in the display the hob is still hot. It may be used, for example, to keep a small meal warm or to melt cooking chocolate. As the hotplate cools down further, the display changes to œ. The display remains lit until the hotplate has cooled sufficiently. 1Operating the appliance Oper at i ng the appl i anc e In this section, you can find out how to set the hotplates. The table shows heat settings and cooking times for various meals. Switching the hob on and off The main switch is used to switch the hob on and off. Switching on Touch the symbol #. An audible signal sounds. The indicator light above the main switch and the ‹ indicators light up. The cooktop is ready to use. Switching off Touch the symbol # until the indicator light above the main switch and the indicators go out. All hotplates are switched off. The residual heat indicator remains on until the hotplates have cooled down sufficiently. Notes ■ The hob will switch itself off automatically once all hotplates have been switched off for a while (10- 60 seconds). ■ The settings remain stored for 4 seconds after the cooktop has been switched off. If you switch it on again during this time, the cooktop will operate using the previously stored settings. Setting a hotplate Use the + and - symbols to set the desired heat setting. Heat setting 1 = lowest setting Heat setting 9 = highest setting There is an intermediate setting between each heat setting. This is identified by a dot. Setting the heat setting The hob must be switched on.

1. Touch the Q symbol to select the hotplate. ‹ lights

up in the heat setting display, ¬ lights up under the heat setting display.

2. Touch the+ or - symbol within the next 10 seconds.

The basic setting appears. + symbol: Heat setting 9 - symbol: Heat setting 4

3. To change the heat setting: Touch the + or - symbol

until the desired heat setting appears. Switching off the hotplate There are 2 ways to switch off the hotplate: ■ Briefly touch the Q symbol on the hotplate 2x one after the other. ‹ appears in the heat setting display. After about 10 seconds, the residual heat display appears. ■ Use the Q symbol to select the hotplate. Touch the + or - symbol until ‹ appears. After about 10 seconds, the residual heat display appears. Note: The last selected hotplate remains activated. You can set the hotplate without selecting it again. Table of cooking times The following table provides some examples. Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible. For bringing liquids to the boil, use heat setting 9. Stir thick liquids occasionally. Food that needs to be seared quickly or food which loses a lot of liquid during initial frying is best seared in several small portions. Tips for energy-saving cooking can be found in the Environmental protection section.~ Page 31 Ongoing cooking set- ting Ongoing cook- ing time in min- utes Melting Chocolate coating 1-1. - Butter, honey, gelatine 1-2 - Heating and keeping warm Stew (e.g. lentil stew) 1-2 - Milk** 1.-2. - Heating sausages in water** 3-4 - Defrosting and heating Frozen spinach 2.-3. 10-20 min Frozen goulash 2.-3. 20-30 min

vPowerBoost function Po we r Bo o s t functi on PowerBoost lets you heat up large volumes of water even faster than on heat setting 9. PowerBoost is only available on hotplates marked with the Power Boost symbol. With dual-circuit hotplates, the second filament circuit has to be activated for use with the PowerBoost function. Switching on PowerBoost

1. Select the hotplate.

2. Touch the › symbol. The › display lights up.

The PowerBoost function is switched on. Switching off PowerBoost

1. Select the hotplate.

2. Select any ongoing cooking setting. The › display

goes out. The PowerBoost function is switched off. Notes ■ If you do not turn off the PowerBoost function, it switches off automatically after a certain period of time. The hotplate switches back to the heat setting

■ Please remember that oil and fat heat up quickly with PowerBoost. Never leave the hob unattended. Overheated oil and fat catch fire quickly, see section Important Safety Information.~ Page 30 Poaching, simmering Dumplings 4.-5.* 20-30 min Fish 4-5* 10-15 min White sauces, e.g. béchamel sauce 1-2 3-6 min Whisked sauces, e.g. sauce Béar- naise, hollandaise 3-4 8-12 min Boiling, steaming, braising Rice (with double the quantity of water) 2-3 15-30 min Rice pudding 1.-2. 35-45 min Unpeeled boiled potatoes 4-5 25-30 min Boiled potatoes 4-5 15-25 min Pasta, noodles 6-7* 6-10 min Stew, soups 3.-4. 15-60 min Vegetables 2.-3. 10-20 min Frozen vegetables 3.-4. 10-20 min Cooking in a pressure cooker 4-5 - Braising Roulades 4-5 50-60 min Pot roast 4-5 60-100 min Goulash 2.-3. 50-60 min Frying with little oil** Escalope, plain or breaded 6-7 6-10 min Escalope, frozen 6-7 8-12 min Chop, plain or breaded*** 6-7 8-12 min Steak (3 cm thick) 7-8 8-12 min Hamburger, rissoles (3 cm thick)*** 4.-5. 30-40 min Poultry breast (2 cm thick)*** 5-6 10-20 min Poultry breast, frozen*** 5-6 10-30 min Fish and fish fillet, plain 5-6 8-20 min Fish and fish fillet, breaded 6-7 8-20 min Fish and fish fillet, breaded and frozen, e.g. fish fingers 6-7 8-12 min Scampi and prawns 7-8 4-10 min Sautéing vegetables, fresh mush- rooms 7-8 10-20 min Vegetables, meat in Asian-style strips 7.-8. 15-20 min Stir fry, frozen 6-7 6-10 min Pancakes 6-7 consecutively Omelette 3.-4. consecutively Ongoing cooking set- ting Ongoing cook- ing time in min- utes

• Ongoing cooking without a lid ** Without lid *** Turn frequently Fried eggs 5-6 3-6 min Deep-fat frying (150-200 g per portion continuously in 1-2 li- tres oil**) Frozen products, e.g. chips, chicken nuggets 8-9 - Croquettes, frozen 7-8 - Meat, e.g. chicken portions 6-7 - Fish, breaded or battered 5-6 - Vegetables, mushrooms, breaded or battered, tempura 5-6 - Small baked items, e.g. ring doughnuts/jam-filled doughnuts, fruit in batter 4-5 - Ongoing cooking set- ting Ongoing cook- ing time in min- utes

AChildproof lock Childproof lock You can use the childproof lock to prevent children from switching on the hob. Switching the child safety lock on and off The hob must be switched off. To switch on: Touch the " symbol for approx. 4 seconds. The ‚ symbol lights up for 10 seconds. The hob is locked. To switch off: Touch the " symbol for approx. 4 seconds. The lock is released. Automatic childproof lock This function automatically activates the childproof lock every time you switch the hob off. Switching on and off Find out how to switch the automatic childproof lock on and off in the Basic settings section.~ Page 36 OTime-setting options Ti me- set t i ng opt i ons There are 2 different time-setting options: ■ A hotplate should switch off automatically■ Kitchen timer Automatic hotplate switch-off Enter a cooking time for the relevant hotplate. When the cooking time has elapsed, the hotplate switches off automatically. Setting the cooking time

1. Setting the heat setting

2. Touch the 3 symbol. The x display for the

required hotplate lights up. ‹‹ lights up on the timer display.

3. Touch the + or - symbol. The default value appears.

+ symbol: 30 minutes - symbol: 10 minutes The cooking time counts down. If you have set a cooking time for more than one hotplate, the cooking time of the selected hotplate is always displayed. Automatic setting Touch the - symbol continuously and the cooking time automatically counts back as far as 0 minutes. Touch the - symbol continuously and the cooking time automatically counts forward as far as 99 minutes. After the time has elapsed When the cooking time has elapsed, the cooking position switches off. You will hear a signal and the ‹‹ lights up in the display for 10 seconds. The x display lights up brightly. Touch the 3 symbol. The displays go out and the beep stops. Changing or cancelling the cooking time Select the hotplates and touch symbol 3. The x display lights up brightly. Press the + or - to change the cooking time or to set to ‹‹. Note: You can set a cooking time of up to 99 minutes. Automatic timer You can use this function to preselect a cooking time for all hotplates. Each time a hotplate is switched on, the pre-selected cooking time then counts down. When the cooking time has elapsed, the hotplate switches off automatically. You can find out how to switch on the automatic timer in the Basic settings section.~ Page 36 Note: You can change the cooking time for a hotplate or switch off the automatic timer for the hotplates: Select the hotplates and touch symbol 3. The x display lights up brightly. Press the + or - to change the cooking time or to set to ‹‹. Kitchen timer You can use the kitchen timer to set a time of up to 99 minutes. It runs independently of all the other settings. Switching on the kitchen timer You can switch the kitchen timer on in 2 different ways: ■ If a hotplate has been selected, touch the symbol 3 twice within 10 seconds. ■ If a hotplate has not been selected, touch the 3 symbol. The W display lights up. Setting the kitchen timer Set the desired time with the + or - symbol. When the time has elapsed After the time has elapsed, you will hear a beep. ‹‹ lights up in the timer display. The display W for the kitchen timer lights up brightly. The displayr switches off after 10 seconds. Displaying the time Use the 3 symbol to select the kitchen timer. The time is displayed for one minute.

Setting the correct time Use the 3 symbol to select the kitchen timer and reset the time. bAutomatic safety cut-out Au t omat i c safety cut - out If a hotplate has been switched on for a long time without the setting being changed, the automatic time limit is activated. The hotplate stops heating. ”‰ and the •/œ residual heat indicator flash alternately on the hotplate display. The display goes out when you touch any control. You can make new settings. When the time limit is activated depends on the heat setting selected (1 to 10 hours). kWipe protection Wipe pr ot ec t i on If you wipe over the control panel while the hob is switched on, settings may be changed. To prevent this from happening, your hob has a wipe protection function. Touch the " symbol. A beep goes off. The display light above the " symbol lights up. The control panel is locked for 30 seconds. You can now wipe over the control panel without changing any settings. Note: The primary switch is not affected by the wipe protection function. You can switch off the hob at any time. [Energy consumption indicator En e r g y consumpt i on indicator You can use this function to display the total energy consumption between switching the hob on and off. Once switched off, the energy consumption is displayed in kilowatt hours (e.g. 1.08 kWh) for 10 seconds The accuracy on the display depends on the voltage quality of the power supply, among other factors. The display has not been activated. You can find out how to activate the display in the Basic settings section.~ Page 36 QBasic settings Ba s i c set t i ngs Your appliance has various basic settings. You can adjust these settings to meet your own needs. Display Function

Automatic child safety lock

Manual and automatic child safety lock switched off.

Confirmation signal and operation error signal are switched off (primary switch signal always remains).

Only the operation error signal is switched on.

Only the confirmation signal is switched on.

Confirmation signal and operation error signal switched on.*

Energy consumption display (Ask your electric com- pany what the mains voltage is)

Consumption display switched off.*

Consumption display with mains voltage at 230 V.

Consumption display with mains voltage at 400 V.

Consumption display with mains voltage at 220 V.

Consumption display with mains voltage at 240 V.

Switched off.* ‹‚-ŠŠ Cooking time after which the hotplates switch off.

Duration of the timer end signal

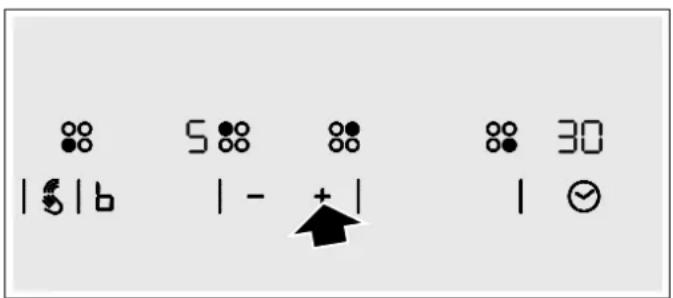

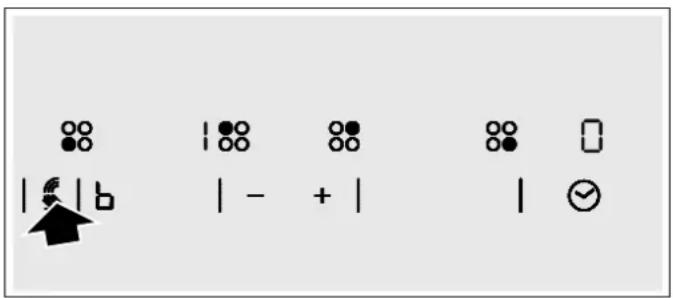

Changing the basic settings The hob must be switched off.

1. Switch on the hob.

2. Within the next 10 seconds, touch and hold the "

symbol for 4 seconds. ™ and ‚ flash alternately in the left-hand display; ‹lights up in the right-hand display.

3. Touch the " symbol repeatedly until the desired

display appears in the left-hand display.

4. Touch the + or - symbol repeatedly until the desired

setting appears in the display.

5. Touch the " symbol for 4 seconds.

The setting is activated. Switching off To exit the basic setting, switch off the hob with the main switch and make new settings. DCleaning Cl eani ng Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop. Ceramic Clean the hob after each use. This will prevent spills from burning onto the ceramic. Only clean the hob when it has cooled down sufficiently. Use only cleaning agents which are suitable for glass ceramic. Follow the cleaning instructions on the packaging. Never use: ■ Undiluted washing-up liquid■ Detergent intended for dishwashers■ Scouring agents ■ Harsh cleaning agents such as oven spray or stain remover ■ Abrasive sponges ■ High-pressure cleaners or steam jet cleaners Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions. You can also obtain a suitable glass scraper from our after-sales service or from the e-Shop. Using special sponges to clean glass ceramic achieves great cleaning results. Hob surround To prevent damage to the hob surround, observe the following instructions: ■ Use only hot soapy water.■ Wash new sponge cloths thoroughly before use.■ Do not use any sharp or abrasive agents.■ Do not use the glass scraper.

Activation of the heating elements

Last setting before the hotplate was switched off.*

Selected time for the hotplate

Unlimited: the most recently selected hotplate can always be adjusted without having to select it again.*

Once you select a hotplate, you have 10 seconds to adjust it, after which you will have to select it again in order to be able to adjust it.

Switched on. Display Function *Basic settingen Trouble shooting

3Trouble shooting Tr oubl e shoot i ng Faults often have simple explanations. Please read the notes in the table before calling the after-sales service. The electronics of your hob are underneath the control panel. For various reasons, the temperature in this area may rise sharply. In order that the electronics do not overheat, the hotplates are switched off as and when necessary. The ”ƒ, ”…, or ”† display appears alternately with the • or œ residual heat indicator. E-report in the displays When an error message with "E" appears in the display, e.g. E0111, switch the appliance off and on again. If it was a one-off error, the display goes out. If the error message appears again, call the after-sales service and quote the exact error message. 4Customer service Cu s t o mer ser vi ce Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits. E number and FD number Please quote the E-number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate. Please note that a visit from an after-sales service engineer is not free of charge in the event of misuse of the appliance, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances. Display Fault Measure None The power supply has been disconnected. Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances. All displays flash The touch control is wet or an object is resting on it. Dry the control or remove the object.

Several hotplates have been used over a pro- longed period at high power settings. To pro- tect the electronics, the hotplate has been switched off. Wait a while. Touch any touch control. When ”ƒ goes out, the electronics have cooled down sufficiently. You can continue cooking. ”… Despite the switch-off by ”ƒ, the electronics have become hot again. All hotplates have therefore been switched off. Wait a while. Touch any touch control. When ”… goes out, you can con- tinue cooking. ”†and the heat setting flash alternately. An audible signal can be heard

Warning: There is a hot pan in the area of the

control panel. There is a risk that the electron- ics will overheat. Remove the pan. The fault display goes out shortly afterwards. You can continue cooking. Ӡand audible signal There is a hot pan in the area of the control panel. To protect the electronics, the hotplate has been switched off. Remove the pan. Wait a while. Touch any control. When Ӡ goes out, you can continue cooking.

The hotplate was in operation for too long and has switched itself off. You can switch the hotplate back on again immediately. š“ The hotplates do not heat up Demo mode is switched on Switching off the demo mode: Disconnect the appliance for 30 seconds from the power supply (switch off the household fuse or the circuit breaker in the fuse box). Touch any touch control after 3 minutes. The demo mode is switched off.Test dishes en

ETest dishes Tes t di shes This table has been produced for test institutes to facilitate the testing of our appliances. The data in the table refers to our accessory cookware from Schulte Ufer (4-part induction pot set CZ9442X0) with the following dimensions: ■ Saucepan dia.16 cm, 1.2 litres, for 14.5 cm dia. single-circuit hotplate ■ Cooking pot dia. 16 cm, 1.7 litres, for 14.5 cm dia. single-circuit hotplate ■ Cooking pot dia. 22 cm, 4.2 litres, for 18 cm dia. or 17 cm dia. hotplate ■ Frying pan dia. 24 cm, for 18 cm dia. or 17 cm dia. hotplate Test dishes Heating up/bringing to boil Ongoing cooking Heat setting Cooking time (min:sec) Lid Ongoing cooking setting Lid Melting chocolate Cookware: saucepan Chocolate couverture (e.g. Dr. Oetker dark choc- olate, 150 g) on 14.5 cm dia. hotplate - - - 1. No Heating and keeping lentil stew warm Cookware: cooking pot Lentil stew made to DIN 44550 Initial temperature 20° C Amount: 450 g for 14.5 cm dia. hotplate 9 approx. 2:00 without stirring Yes 1. Yes Amount: 800 g for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:00 without stirring Yes 1. Yes Lentil stew from the tin e.g lentils with Erasco sausages: Initial temperature 20° C Amount 500 g for 14.5 cm dia. hotplate 9 approx. 2:00 (Stir after approx. 1:30) Yes 1. Yes Amount: 1000 g for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:30 (Stir after approx. 1:30) Yes 1. Yes Simmering Béchamel sauce Cookware: saucepan Milk temperature: 7° C Recipe: 40 g butter, 40 g flour, 0.5 l milk (3.5% fat content) and one pinch of salt for

Melt the butter, stir in the flour and salt, and keep cooking the roux for 3 minutes

Add the milk to the roux and bring to the boil, stirring continuously

After the Béchamel sauce has come to the boil, keep cooking it at setting 1 for a further 2 minutes, stirring all the timeen Test dishes

Cooking rice pudding - Ongoing cooking with lid Cookware: cooking pot Milk temperature: 7° C Recipe: 190 g round grain rice, 90 g sugar, 750 ml milk (3.5% fat content) and 1 g salt for 14.5 cm dia. hotplate 9 approx. 6:45 Heat the milk until it starts to rise up. Switch down to the ongoing cook- ing setting and add the rice, sugar and salt to the milk Total cooking time (incl. bringing to boil) approx. 45 minutes No 2 Yes Stir the rice pudding after 10 minutes Recipe: 250 g round grain rice, 120 g sugar, 1 l milk (3.5% fat content) and 1.5 g salt for 18 cm dia. or 17 cm dia. hotplate 9 approx. 7:20 Heat the milk until it starts to rise up. Switch down to the ongoing cook- ing setting and add the rice, sugar and salt to the milk Total cooking time (incl. bringing to boil) approx. 45 minutes No 2 Yes Stir the rice pudding after 10 minutes Cooking rice pudding - Ongoing cooking without lid Cookware: cooking pot Milk temperature: 7° C Recipe: 190 g round grain rice, 90 g sugar, 750 ml milk (3.5% fat content) and 1 g salt for 14.5 cm dia. hotplate 9 approx. 7:30 Add rice, sugar and salt to the milk and heat the mixture up, stirring continuously. At a milk temperature of approx. 90°C switch down to the ongoing cooking setting. Simmer for approx. 50 minutes No 2 No Recipe: 250 g round grain rice, 120 g sugar, 1 l milk (3.5% fat content) and 1.5 g salt for 18 cm dia. or 17 cm dia. hotplate 9 approx. 8:00 Add rice, sugar and salt to the milk and heat the mixture up, stirring continuously. At a milk temperature of approx. 90°C switch down to the ongoing cooking setting. Simmer for approx. 50 minutes No 2 No Cooking rice Cookware: cooking pot Water temperature 20° C Recipe acc. to DIN 44550: 125 g long grain rice, 300 g water and a pinch of salt for 14.5 cm dia. hotplate 9 approx. 2:48 Yes 2 Yes Recipe acc. to DIN 44550: 250 g long grain rice, 600 g water and a pinch of salt for 18 cm dia. or 17 cm dia. hot- plate 9 approx. 3:15 Yes 2. Yes Test dishes Heating up/bringing to boil Ongoing cooking Heat setting Cooking time (min:sec) Lid Ongoing cooking setting LidTest dishes en

If the tests are carried out with an 18 cm dia. hotplate with a power rating of 1500 W, the boiling time is increased by approx. 20% and the ongoing cooking setting by one ongoing cooking setting. Frying pork loin chops Cookware: frying pan Initial temperature loin chops: 7° C Amount: 3 loin chops (total weight approx. 300 g, about 1 cm thick) 15 g sunflower oil for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:40 No 7 No Frying pancakes Cookware: frying pan Recipe acc. to DIN EN 60350-2 Amount: 55 ml batter per pancake for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:40 No 6 or 6. depending on browning level

Deep-fat frying frozen chips Cookware: cooking pot Amount: 1.8 kg sunflower oil, per portion: 200 g frozen chips (e.g. McCain 123 Original fries) for 18 cm dia. or 17 cm dia. hotplate 9 Until oil temperature reaches 180

No 9 No Test dishes Heating up/bringing to boil Ongoing cooking Heat setting Cooking time (min:sec) Lid Ongoing cooking setting Lidnl
